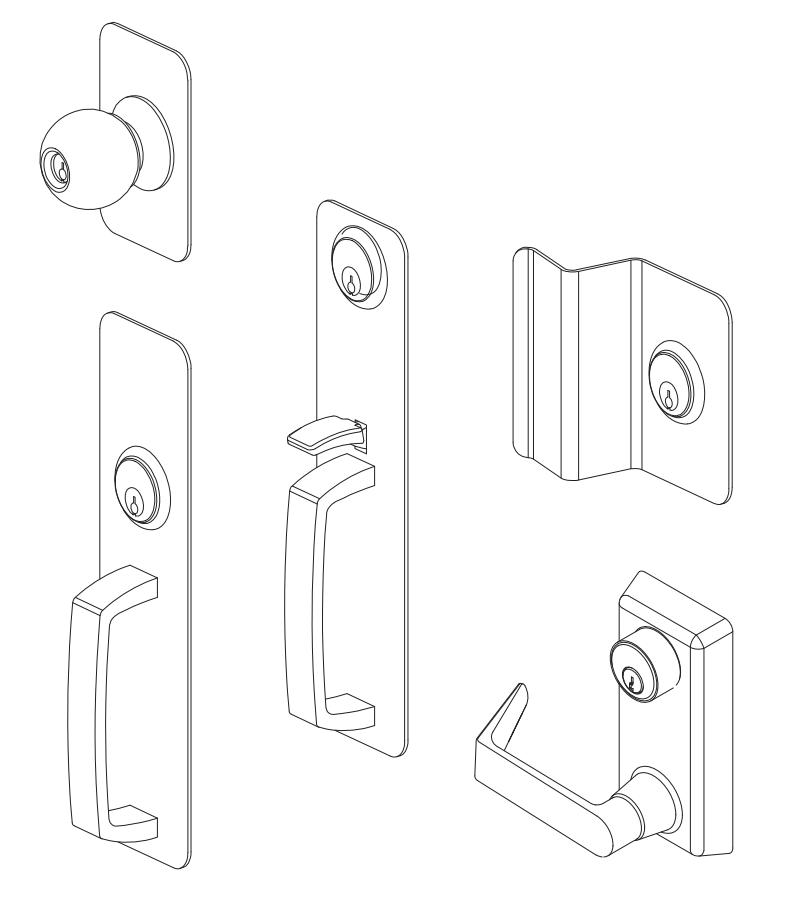

110, 210, & 230 Series Trim
Service manual
INDEX
General Information
|
Introduction
2 |
|
|---|---|
| How to Order | 2 |
| Part Number Changes | 2 |
| 110, 210, 230 Series Trim Finishes 2 | |
| 110, 210, 230 Series Trim Parts | |
|
110NL-MD
3 |
|
|
210NL
3 |
|
| 210K 4 | |
|
210K-BE
4 |
|
| 230NL 5 | |
|
230DT
5 |
|
| 230TP 6 | |
|
230TP-BE
7 |
|
|
230L
8 |
|
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 110, 210, and 230 Series Trim.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when ordering replacement parts or assemblies, please provide the following information:
- Part number or assembly number
- Description
- Quantity needed
- Finish desired (if available finished)
- Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division Allegion 2720 Tobey Drive Indianapolis, Indiana 46219 Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product and/or manufacturing process, part numbers and availability can change over time.
110, 210, 230 SERIES TRIM FINISHES
| US Number | BHMA Number | Color |
|---|---|---|
| SP28 | 689 | Aluminum (lacquered) |
| SP313 | 695 | Bronze, dark (painted) |
110NL-MD PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 959055 | 550/555/556 Special Cylinder Screw - 1-3/4" Door | 1 | |
| 1 | 959056 | 550/555/556 Special Cylinder Screw - 2-1/4" Door | 1 | |
| 2 | 960060 |
1
10NLCylinderSpacer Collar |
1 | |
| 3 | 961180 | 110NL Cylinder Assembly Countersink Washer | 1 | |
| 4 | 967291 |
110NL-MD
Cylinder Collar |
1 | X |
| 5 | 971593 |
1
10NLCylinderAssembly Cylinder Disc |
1 |
X in "Finish" column designates finished item; specify finish when ordering.
210NL PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 6 | 050156 |
T
ailpiece Guide Lead Kit |
1
0 |
|
| 7 | 965226 |
Cylinder
Collar |
1 | X |
| 8 | 968201 |
210/230
Cylinder Retaining Cup |
1 |
X in "Finish" column designates finished item; specify finish when ordering.

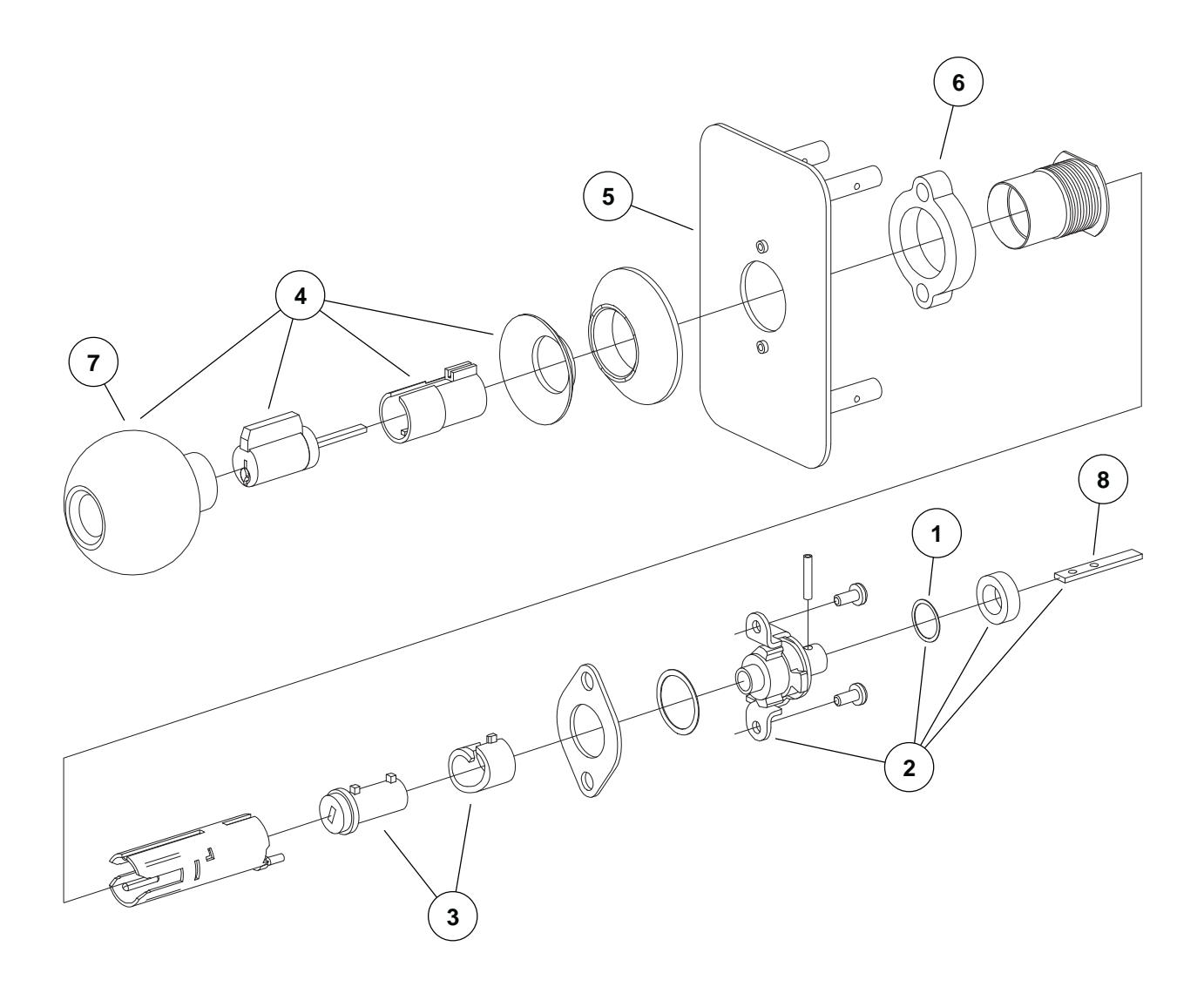

210K, 210K-BE PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 090103 |
210K
Wave Spring Washer Pkg. |
1
0 |
|
| 2 | 109871 |
210K
Bracket & Booster Assembly |
1 | |
| 3 | 109872 |
210K
Spiral Cam Sub-Assembly |
1 | |
| 4 | 109873 |
210K
Cylinder Knob Sub-Assembly |
1 | X |
| 5 | 109879 |
210K
Trim Sub-Assembly |
1 | X |
| 6 | 969140 | 210KKnobSpacer | 1 | |
| 7 | 969157 | 210KKnob | 1 | X |
| 7 | 969352 | 210K-BEKnob | 1 | X |
| 8 | 970979 | 210K/LSpindleShaft | 1 |
X in "Finish" column designates finished item; specify finish when ordering.

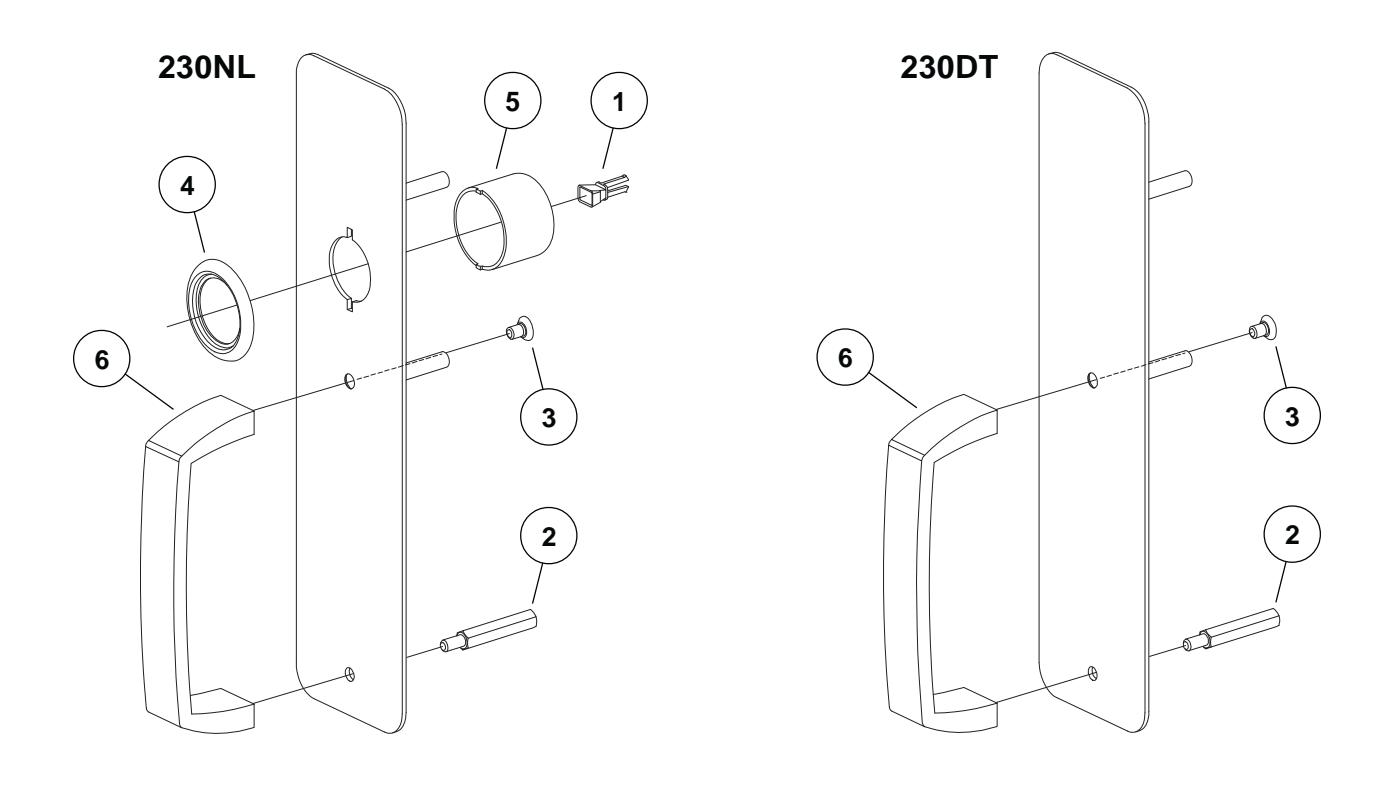

230NL, 230DT PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 050140 |
230DT
x 330/350 Screw Pkg. 1-3/4" Door |
X | ||
|
#12
Countersink Washer |
1 | |||
|
12-24
x 3/4" OPHMS |
1 | |||
|
#10
Countersink Washer |
4 | |||
|
10-24
x 3/4" OPHMS |
4 | |||
| 050141 |
230DT
x 330/350 Screw Pkg. 1-3/4" Door |
X | ||
|
#12
Countersink Washer |
1 | |||
|
12-24
x 1-1/4" OPHMS |
1 | |||
|
#10
Countersink Washer |
4 | |||
|
10-24
x 1-1/4" OPHMS |
4 | |||
| 1 | 050156 |
T
ailpiece Guide Lead Kit |
1
0 |
|
| 2 | 956760 |
Hex
Stud |
1 | |
| 3 | 963579 |
12-24
x 3/8" UFPHMS |
1 | |
| 4 | 965226 |
Cylinder
Collar |
1 | X |
| 5 | 968201 |
210/230
Cylinder Retaining Cup |
1 | |
| 6 | 969925 |
230
Pull Grip |
1 | X |
X in "Finish" column designates finished item; specify finish when ordering.

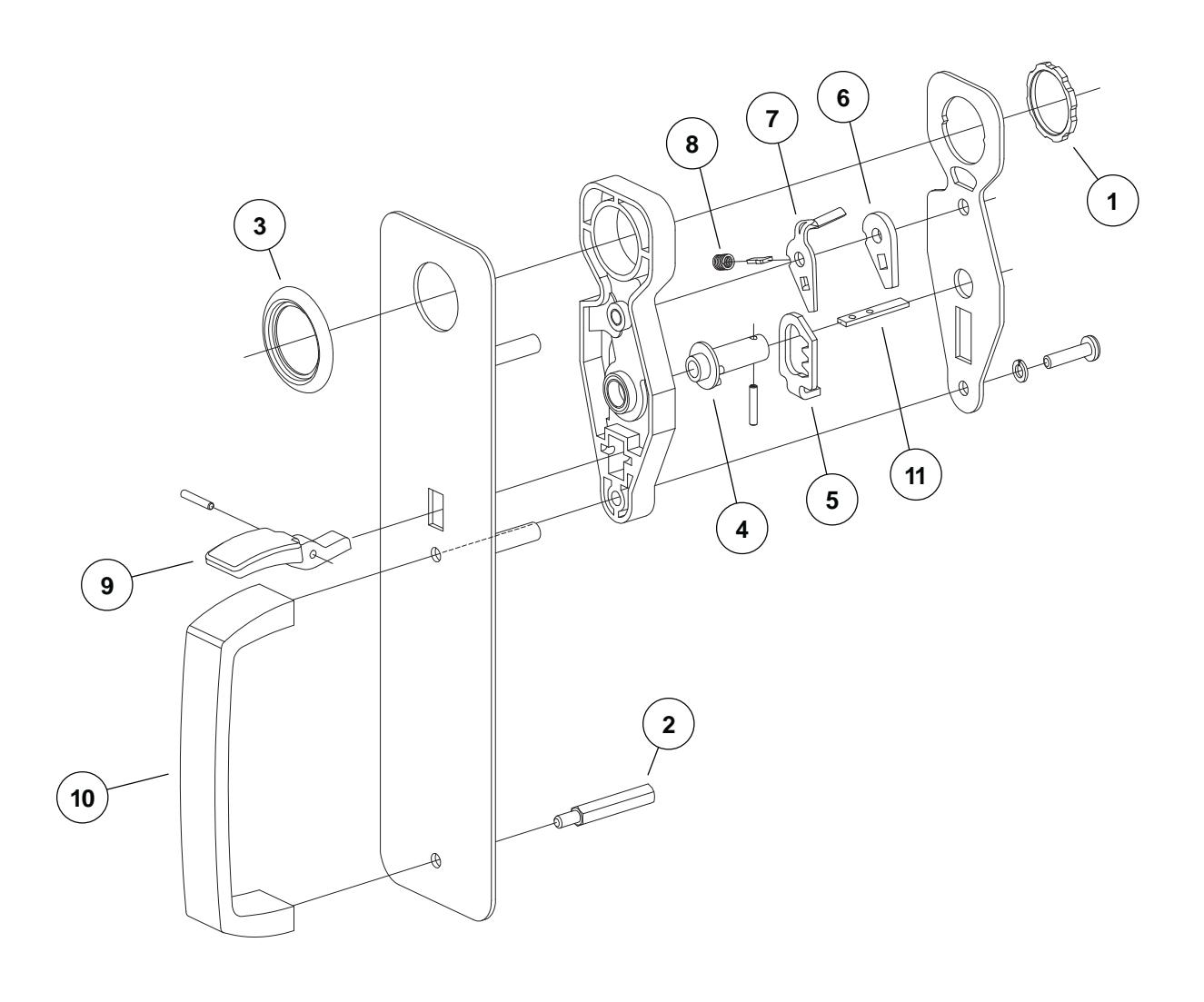

230TP PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 050526 |
230L
Cylinder Locknut |
1 | |
| 2 | 956760 |
Hex
Stud |
1 | |
| 3 | 965226 |
Cylinder
Collar |
1 | X |
| 4 | 969903 | 230TPCam | 1 | |
| 5 | 969904 | 230TPSlider | 1 | |
| 6 | 969906 |
230TPLocking
Cam |
1 | |
| 7 | 969908 |
230TP
Locking Cam Latch |
1 | |
| 8 | 969909 | 230TPCompressionSpring | 1 | |
| 9 | 969910 | 230TPThumbpiece | 1 | X |
| 10 | 969925 |
230
Pull Grip |
1 | X |
| 11 | 970979 | 210K/LSpindleShaft | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
230TP-BE PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 956760 |
Hex
Stud |
1 | |
| 2 | 969903 | 230TPCam | 1 | |
| 3 | 969904 |
230TP
Slider |
1 | |
| 4 | 969910 | 230TPThumbpiece | 1 | X |
| 5 | 969925 |
230
Pull Grip |
1 | X |
| 6 | 970979 | 210K/LSpindleShaft | 1 |
X in "Finish" column designates finished item; specify finish when ordering.

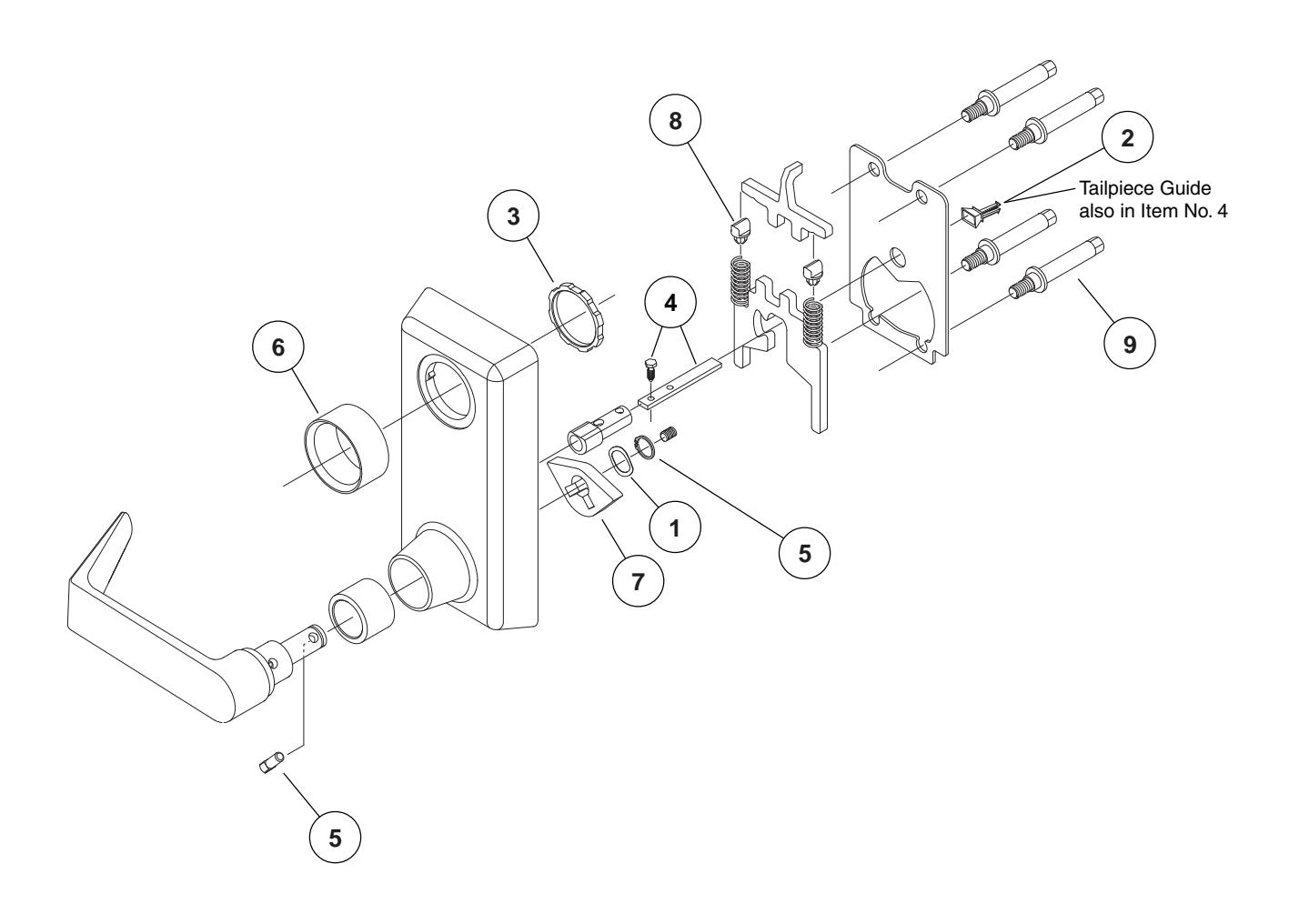

230L PARTS
| Item No. | Part No. | Description | Quantity | Finish |
|---|---|---|---|---|
| 1 | 090103 | Wave Spring Washer Package | 10 | |
| 2 | 050156 | Tailpiece Guide Lead Kit | 10 | |
| 3 | 050526 | 230L Cylinder Locknut | 1 | |
| 4 | 900894 | 230L Tailpiece Auxiliary | ||
| Tailpiece Guide | 1 | |||
| Pine Tree Clip | 1 | |||
| Tailpiece | 1 | |||
| 5 | 050611 | 230L Retaining Ring and Shear Pin | 1 | |
| 6 | 971249 | 230L Cylinder Collar | 1 | |
| 7 | 050813 | 230L Lever Cam | 1 | |
| 8 | 971497 | 230L Locking Plunger | 1 | |
| 9 | 971245 | 230L Stud | 1 |
X in "Finish" column designates finished item; specify finish when ordering.
