Von Duprin 01 Modified Trim Used with 88DT, 88NL, 88NL-F For Metal Applications Template

Original Source Document Full PDF Version

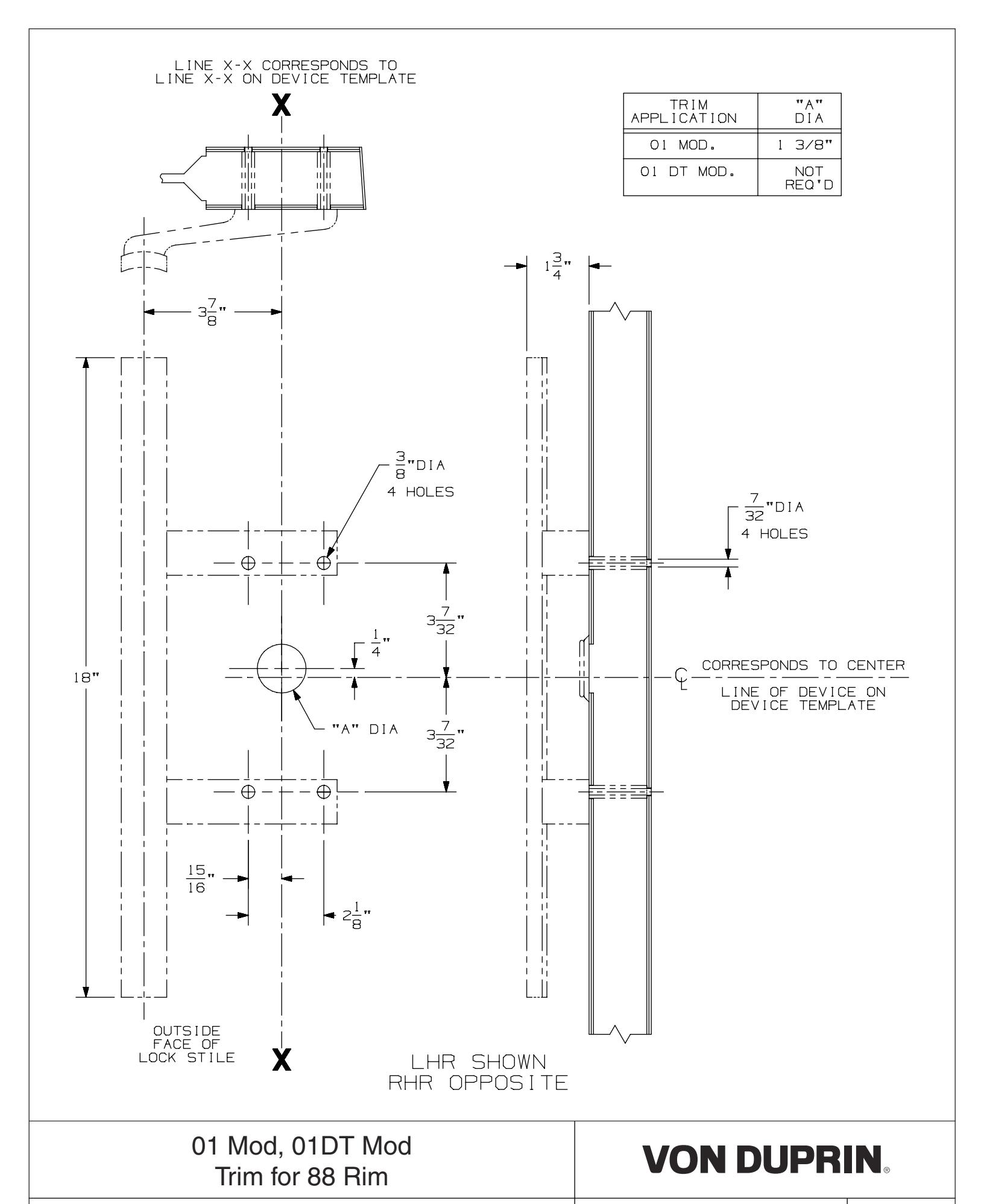

Von Duprin 01 Modified Trim Used with 88DT, 88NL, 88NL-F For Metal Applications Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

20437_a

DATE: 05-23-13
