Von Duprin 01 Mod Trim for Back to Back Mount with 330 Push Bar Template

Original Source Document Full PDF Version

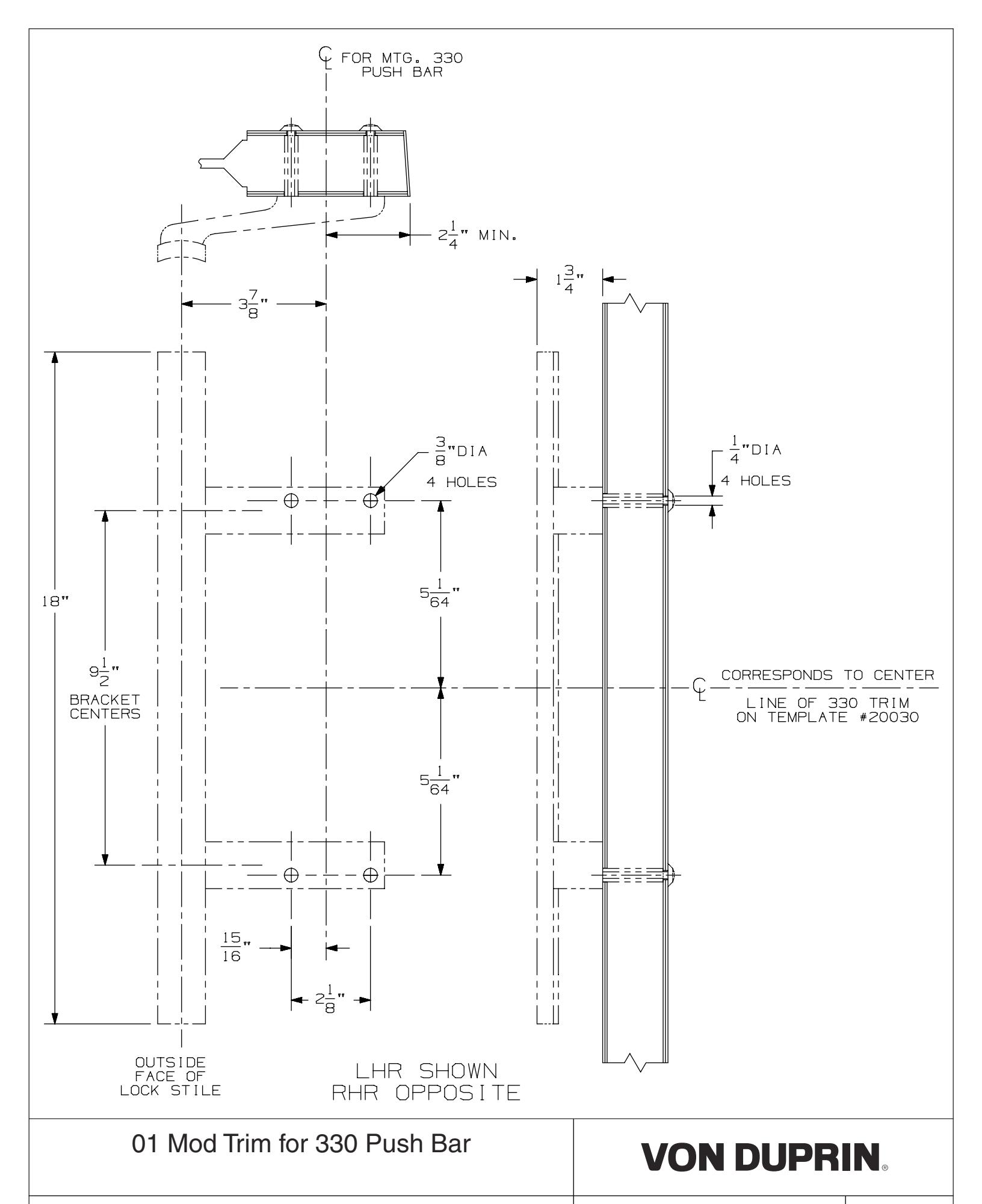

Von Duprin 01 Mod Trim for Back to Back Mount with 330 Push Bar Template diagram on page 1

NOTES: SEE MASTER SHEET #10001 FOR SUGGESTED REINFORCING

TEMPLATE NUMBER:

20442_a

DATE: 05-23-13
