LRVD2R INSTALLATION INSTRUCTIONS REQUEST-TO-EXIT SWITCH KIT

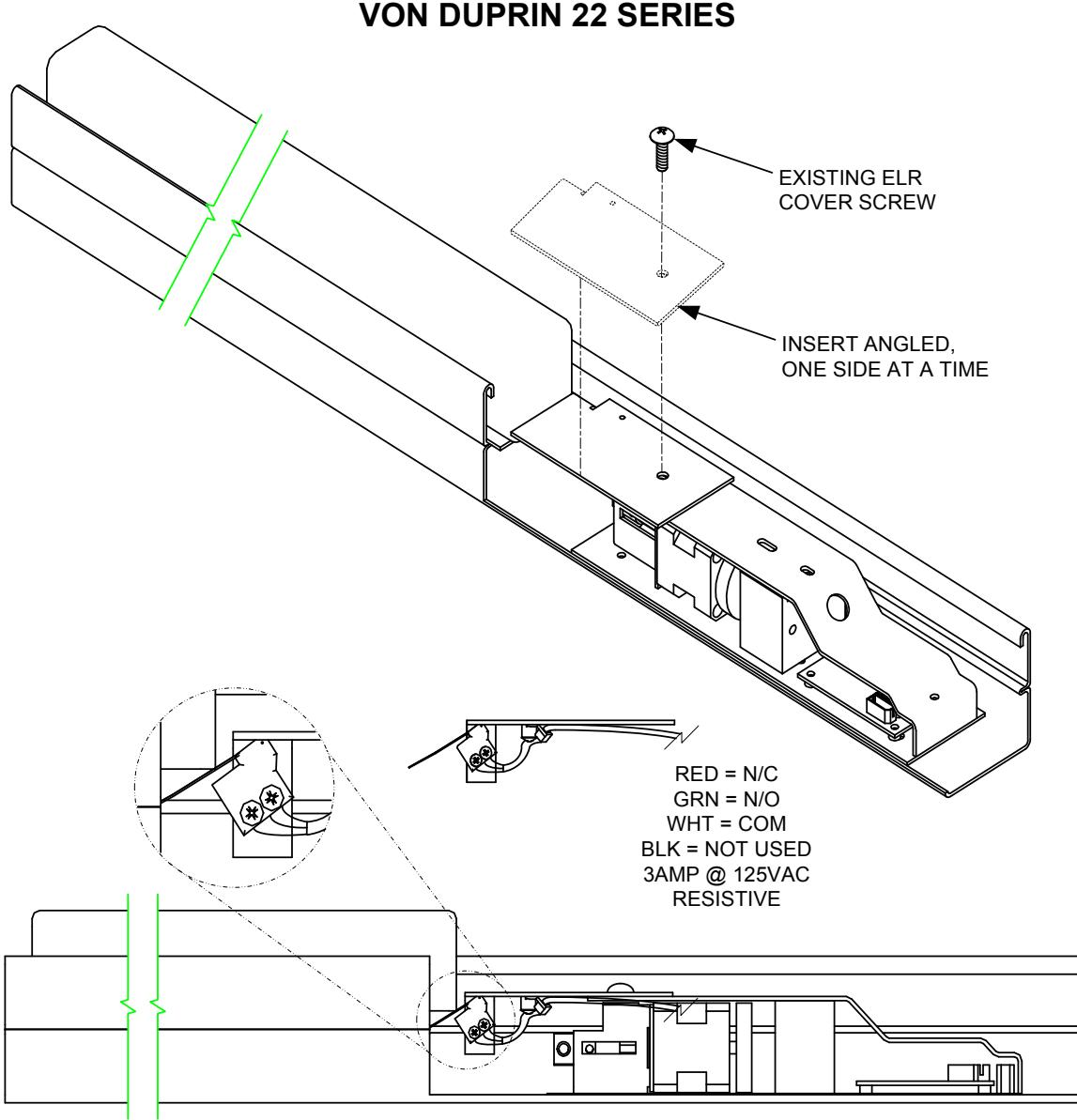

Remove and retain the existing screw on the ELR cover. Route the REX switch kit wires along the inside of the extrusion taking care not to interfere with any of the ELR components.

You must insert the REX switch kit into the exit device angled, one side at a time. Position the switch arm under the push pad and replace the ELR cover screw securing the switch kit in place.
