688 Trim Retrofit Kit For retrofit of Von Duprin 98/99 Series Rim Exit Device

For assistance, contact SARGENT at 800-727-5477 or www.sargentlock.com

688 Trim Retrofit Kit (for retrofit of Von Duprin 98-99 Series Rim Exit Device) image on page 1

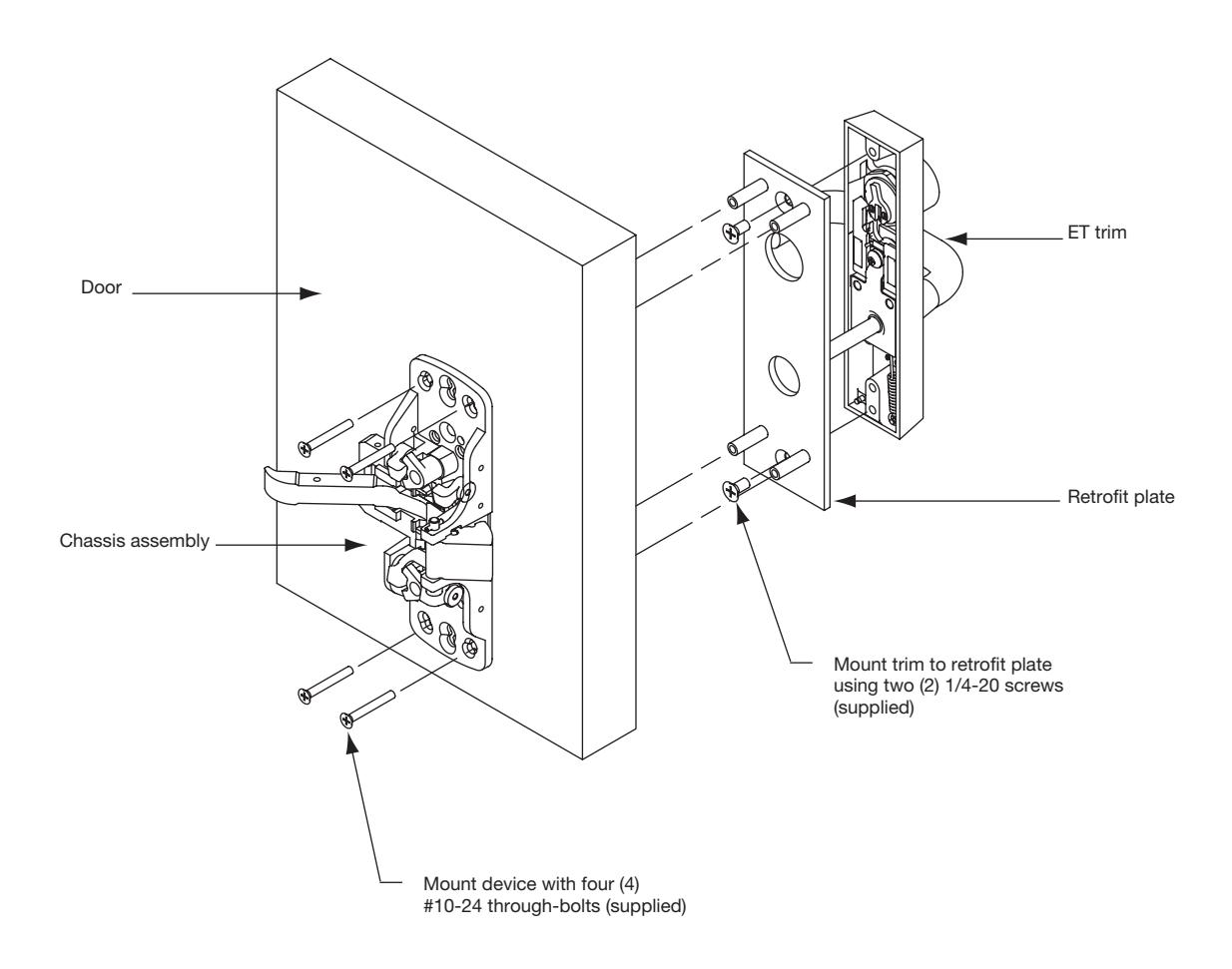

  • 1. Mount trim to retrofit plate using (2) 1/4 20 screws (supplied)
  • 2. Insert posts of plate into existing prep
  • 3. Mount chassis assembly with (4) #10-24 through-bolts (supplied)
