HAGER'
COMPANIES ST. LOUIS. MISSOURI

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE. MATERIAL MOT FINISH

PRIMARY DIMENSIONS SHOWN IN INCHES, DIMENSIONS IN [] ARE MILLIMETERS.

| DRAWN | MRJ | 8/26/2008 | |-----------------------------------

THREE PLACE DECIMAL: ±0.004"

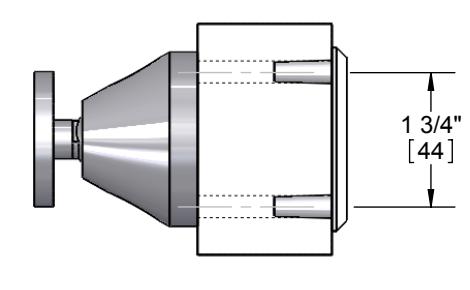

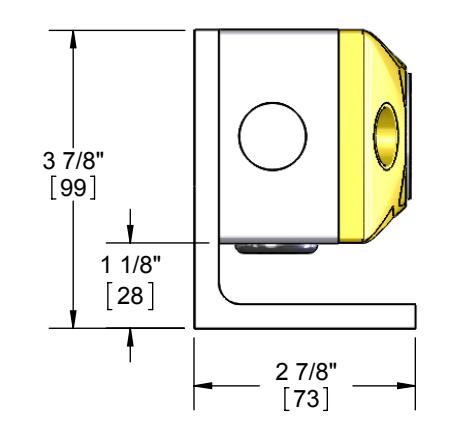

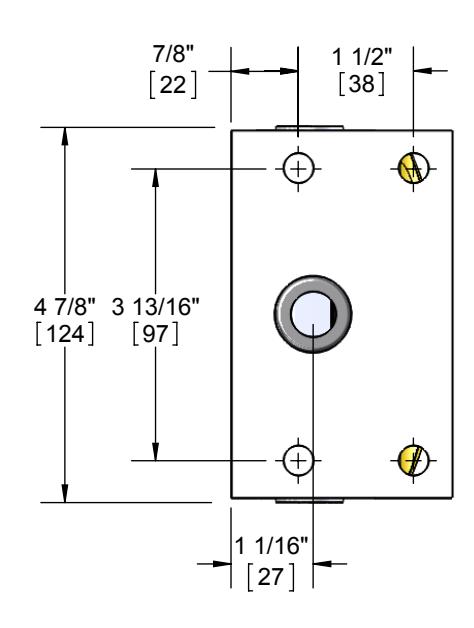

380G GROUND MOUNT

| SIZE
