t-ta00070

NOTE: STANDARD SINGLE GANG BOX WILL NOT WORK WITH 380R WITHOUT MODIFICATIONS. USE HAGER 381B GANG BOX TO INSURE PROPER INSTALLATION.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING MATERIAL AT 1-800-325-9995 FOR THE LATEST REVISION DATE OF TEMPLATE.

ENG. APPR. Material <not specified> TOLERANCES: FINISH FRACTIONAL: ±0.015" ANGULAR: MACH: ± 1° BEND: ±1° TWO PLACE DECIMAL: ±0.01" DO NOT SCALE DRAWING THREE PLACE DECIMAL: ±0.004"

DRAWN

8/26/2008

MRJ

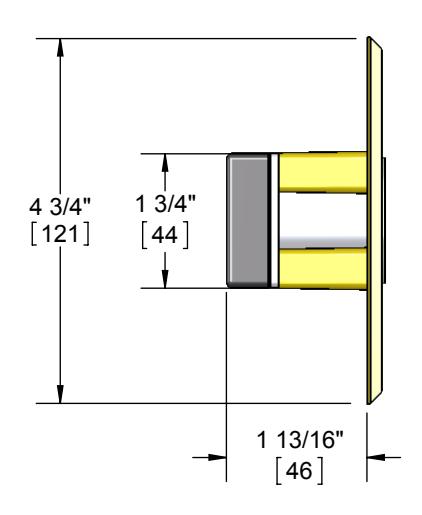

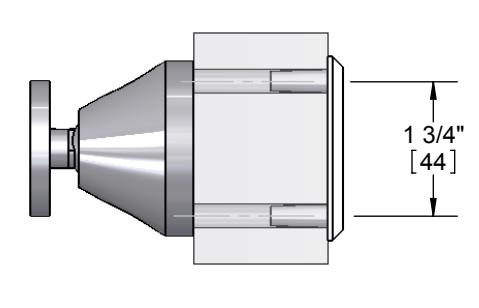

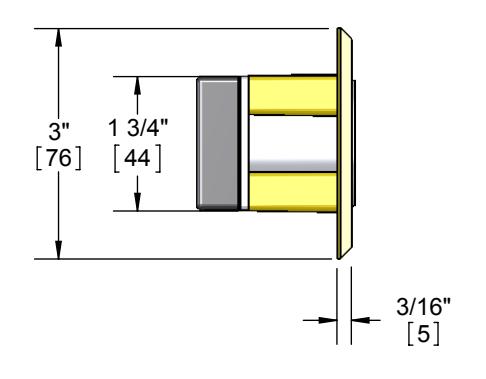

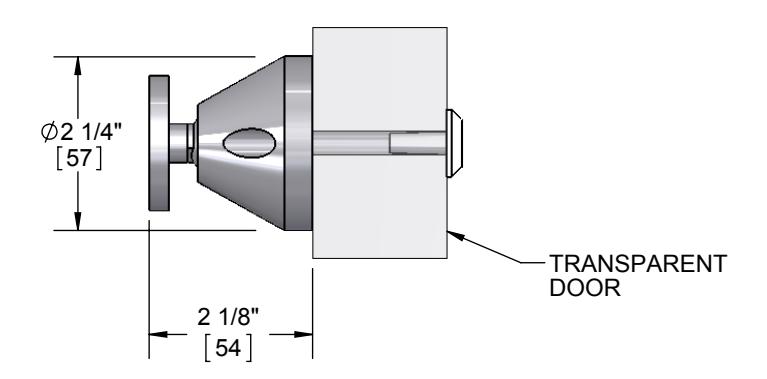

380R RECESSED MOUNT

SIZE DWG. NO. REV. 02 Α T-TA00070 SHEET 1 OF 1 SCALE:1:4 WEIGHT: 0.91
