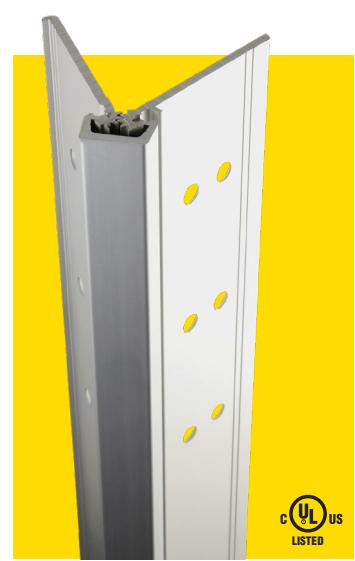

View PDF662HD-Heavy Duty Full Mortise

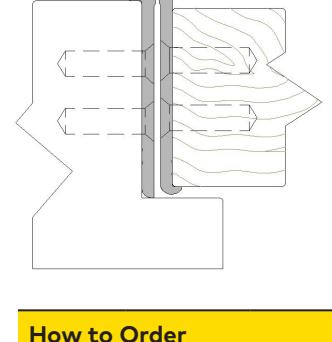

for 3/32" inset doors
- Full mortise, heavy duty
- With door edge protection lip
- For use on 1-3/4" doors only
- 3/32" door inset
- Distributes door weight and stress along the full length of door and frame
- No misaligned pivot points of individual hinges, typically no additional reinforcement required
- 48" door width maximum
- Clear aluminum, dark bronze and black anodized finishes
- Conforms to ANSI/BHMA Standard A156.26-1996, Grade 1
- Supports doors up to 450 lbs
- Hinge covered by limited lifetime warranty for the life of the building
- Approved for use on metal swinging type fire doors rated up to and including 90 minutes (Order "FR" option for 3 hour rating)
- Approved for use on wood swinging type fire doors rated up to and including 60 minutes (order "FR" option for 90 minute rating)
- Electric through-wires with Easy Access Panel
- Electric through-wires supplied as three separate sections
- Electric switch (CS)
- Dutch door prep (DD)
- Electronic Power Transfer Specify manufacturer and model number and handing of transfer at time of order (EPT)
- Fire Studs (FR)
- Hospital Tips (HTCAP) *ligature resistant
- Hospital Tips Cut (HTCUT)
- Lead Lined model for doors up to 1,000 lbs. (LL) *staggered hole pattern
- School option (SO)
- Custom length (specify length on order)
| How to Order | ||||
|---|---|---|---|---|
| Series | Option | Option Description | Size (Inches) | Finish |
| 662HD | CE-12EA | Electric through-wires with Easy Access Panel | 79 | AL |
| CE-12R | Electric through-wires supplied as three separate sections | 83 | DB | |
| CS | Electric switch (CS) | 85 | BK | |
| DD | Dutch door prep (DD) | 95 | ||
| EPT |
Electronic Power Transfer – Specify manufacturer and model number and
handing of transfer at time of order (EPT) |
120 | ||
| FR | Fire Studs (FR) | |||
| HTCAP | Hospital Tips (HTCAP) *ligature resistant | |||
| HTCUT | Hospital Tips Cut (HTCUT) | |||
| LL |
Lead Lined model for doors up to 1,000 lbs. (LL)
*staggered hole pattern |
|||
| SO | School option (SO) | |||
| Custom length (specify length on order) | ||||
| Additional fastener options must be ordered separately | ||||
*Fasteners included: 12-24 x 3/4" undercut self-drilling, thread-forming tek machine screws
** Provide handing at time of order
** Hinge comes standard with all tek screws. To order wood screws, please indicate "Half Tek / Half Wood" or "All Wood" at time of order.
