SM SERIES

Light Commercial Cylindrical Lock Grade 3

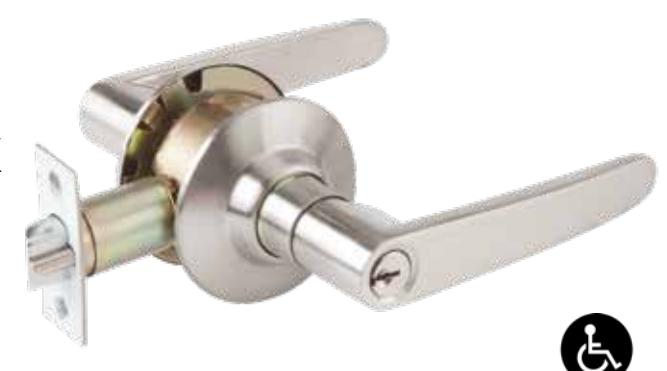

SM SERIES GRADE 3 CYLINDRICAL LOCK

FEATURES

  • Anti-Lockout Kick-Off Feature (Privacy), Not Available on Tubular Locks
  • 4 Mechanical Functions Privacy, Passage, Entry, Single Dummy
  • More Durable Than a Tubular Lock
  • Retrofits All Major Competitor Door Preps
  • Adjustable Backset, 2-3/8" 2-3/4"
  • Doors 1-3/8", 1-3/4" ThickWood or Metal
  • 2-3/4" Diameter Rose Fits Narrower Stile Doors

TYPICAL APPLICATIONS

  • Assisted Living
  • Hospitality
  • Multi-Family

SPECIFICATIONS

FOR DOORS: • 1-3/8" to 1-3/4" thick, wood or metal
BACKSET: • 2-3/4" - 2-3/8" Adjustable
FRONT:
  • 2-1/4" x 1" 1/4" Radius (Default)
  • 2-1/4" x 1" Square (Optional)
  • Stainless Steel or Wrought Brass
STRIKE:
  • Full Lip 1/4" Radius
  • ASA and T-Strike available as options
ROSE: • 2-3/4" Diameter Wrought
LATCHBOLT: • 1/2" Throw
HAND: Non-handed
TRIM: Diecast lever Stainless Steel or Wrought Brass Roses Philadelphia and Miami Levers
KEYS: • Two (2) per Lock
KEYWAYS: SCC Default (Schlage C Compatible).
FINISHES: 619 (US15) Satin Nickel, 626 (US26D) Satin Chromium
COMPLIANCES: Complies with ADA (Americans with Disabilities Act)
and ICC/ANSI 117.1 for Accessible and Usable Buildings
WARRANTY: One (1) year Limited Warranty

PDQ FUNCTIONS

FUNCTION FUNCTION
NUMBER 		INSIDE | OUTSIDE DESCRIPTION ANSI
NUMBER
Passage SM126 Latchbolt operated by both levers F75
Privacy SM176
  • Latchbolt operated by outside lever
  • Push button on inside locks lever
  • Inside lever or closing door releases button
  • Emergency opening from outside
F76
Entry SM182
  • Latchbolt operated by lever from either side or key in outside lever
  • Outside lever locked by push button on inside
  • Outside lever unlocked by key from outside
Single
Dummy 		SM211
  • Single pull lever one side
  • Surface mount
_

INDICATES RIGID LEVER

HOW TO ORDER

SERIES FUNCTION LEVER FINISH BACKSET STRIKE
SM 182 PHL 619 ADJR —
ADJR — Radius
Corner (default)
ADJ — Square
Corner 		FLR — Radius Full Lip
(default)
FLS — Full Lip
T — "T" Strike
ASA — ASA 4-7/8"

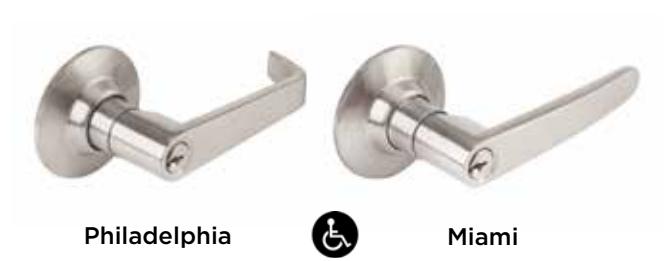

LEVER DESIGNS

TRIM

Round Rose – 2-3/4" Diameter

FINISHES

619 (US15) Satin Nickel

626 (US26D) Satin Chromium

BACKSET

CODE DESCRIPTION PDQ NO.
SPRINGLATCH — 2-3/4" - 2-3/8" ADJUSTABLE
ADJRKO 2-1/4" x 1" x 1/4"Radius Privacy I04407KR
DEADLATCH — 2-3/4" - 2-3/8" ADJUSTABLE
ADJR 2-1/4" x 1" x 1/4"Radius I04406
FILL 1-1/8" Latch Front Filler Plate (Minimum of 100 pieces)
I099-100

Springlatch

Deadlatch

STRIKES

CODE DESCRIPTION
FLR Full Lip Strike Radius (default) (SM series only) 1-5/8" x 2-1/4" x 1/4" Radius V919010 (des
ignate finish)
FLS Full Lip Strike (SM series only) 1-5/8" x 2-1/4" V919004 (designate finish)
T T Strike (SM series only) 1-1/8" x 2-3/4" V919001 (designate finish)
ASA ASA Strike 1-1/4" x 4-7/8"
