Door Preparation Instructions for Door with No Holes

Schlage Encode™, BE489

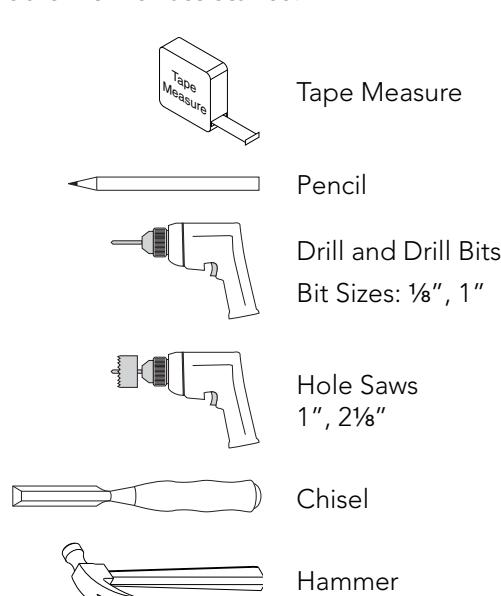

Tools Needed

L If you are uncomfortable performing these steps, call a locksmith for assistance.

1 Measure door thickness.

If the door is thinner than 1C\," or thicker than 1C\v", then the lock will not fit properly on the door.

A thick door kit is used to fit the Schlage Encode to doors that are between 1M\," and 2Z\v" thick.

L A thick door kit is available from Product Support at (888) 805-9837

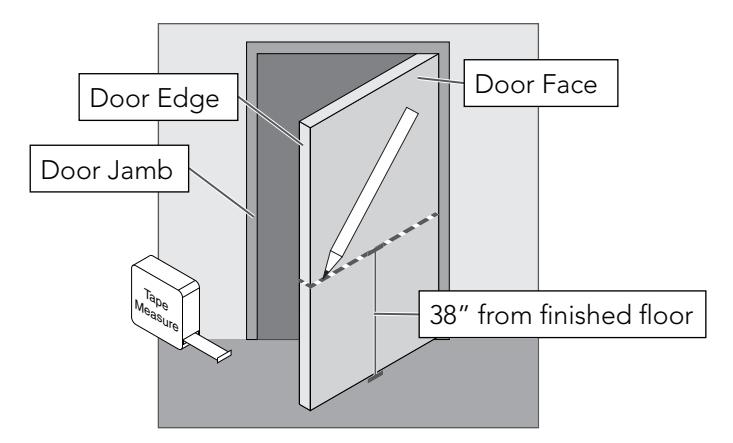

2 Mark door.

Mark lock centerline on door face, door edge and door jamb.

3 Prepare cross bore.

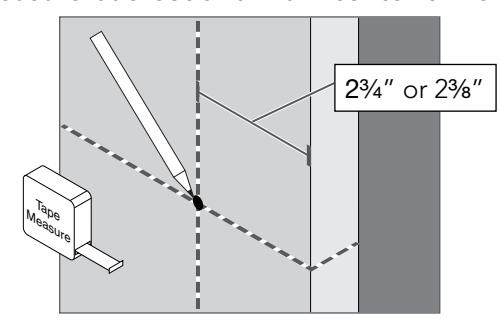

3a Measure backset and mark center of hole.

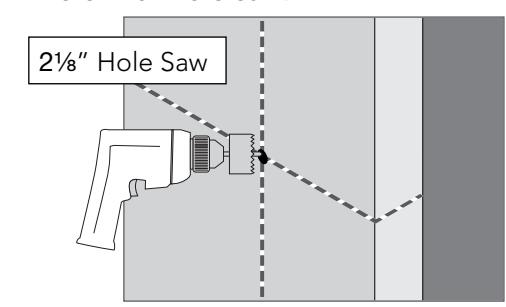

3b Drill hole with hole saw.

4 Prepare door edge hole.

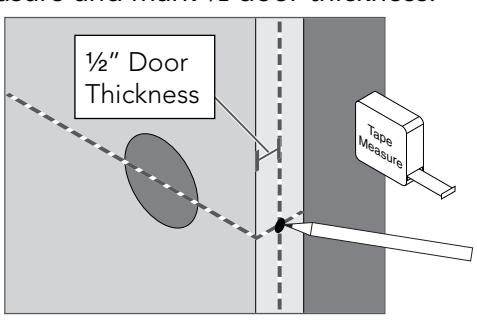

4a Measure and mark Z\x door thickness.

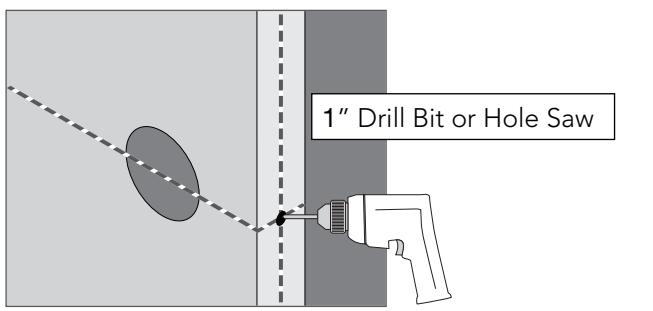

4b Drill hole in door edge.

5 Mortise for bolt.

5a Insert bolt into door edge hole. Trace bolt faceplate and mark holes.

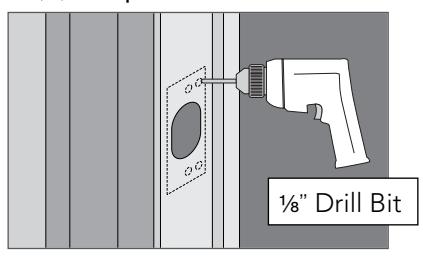

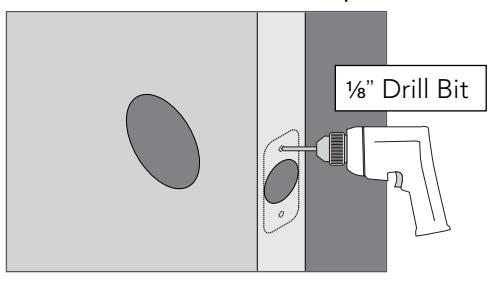

5b Remove bolt and drill two Z\," pilot holes.

5c Use chisel and hammer to create bolt mortise.

6 Measure, mark and drill holes in door jamb for strike.

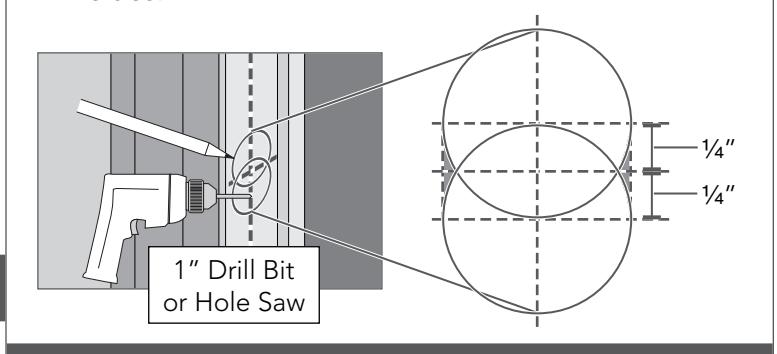

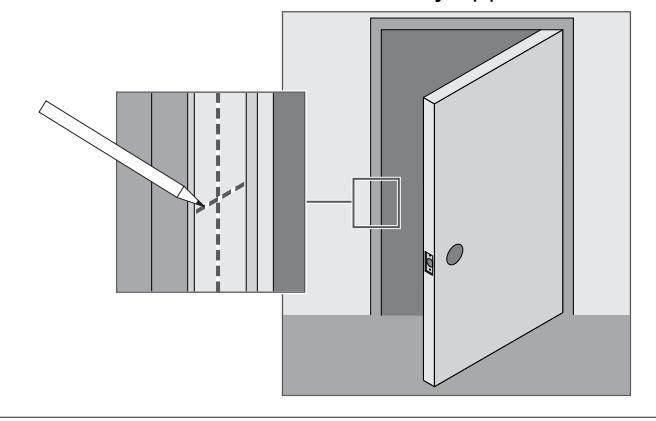

6a Mark center for strike hole exactly opposite latch hole.

6b Measure, mark and drill two (2) 1" holes, 1Z\v" deep, as shown. Chisel out excess material on the sides.

7 Mortise for strike and reinforcement plate.

7a Trace strike and reinforcement plate and mark holes.

7b Drill four (4) Z\," pilot holes.

7c Use chisel and hammer to create mortise for strike and reinforcement plate.

Questions about your new Smart WiFi Deadbolt?

Please don't return it to the store!

Let us help you first! www.schlage.com/faqs-encode

Schlage Customer Service Calling From:

USA: (888) 805-9837 Canada: (800) 997-4734 México: 018005067866

© Allegion 2018 Schlage Encode door prep with no holes Rev. 10/18-a
