Rb Electronic Deadbolts

BE-Series

Models BE365, BE365F, BE367, BE367F, BE369, BE479, BE468, BE469, BE489

Door Type: Wood or Composite, Flat or Beveled

Door Thickness: 1%" (35 mm)–1¾" (44 mm)

Faceplate: Square Corner, 1" (25 mm) wide 23/4," (60 mm), 23/4" (70 mm) Backsets:

Standard backset in

bold.

Dimensions shown in parentheses () are in millimeters.

Customer service: 888-805-9837 We can help you find the correct guide for your product and application!

DRAWING IS NOT TO SCALE!

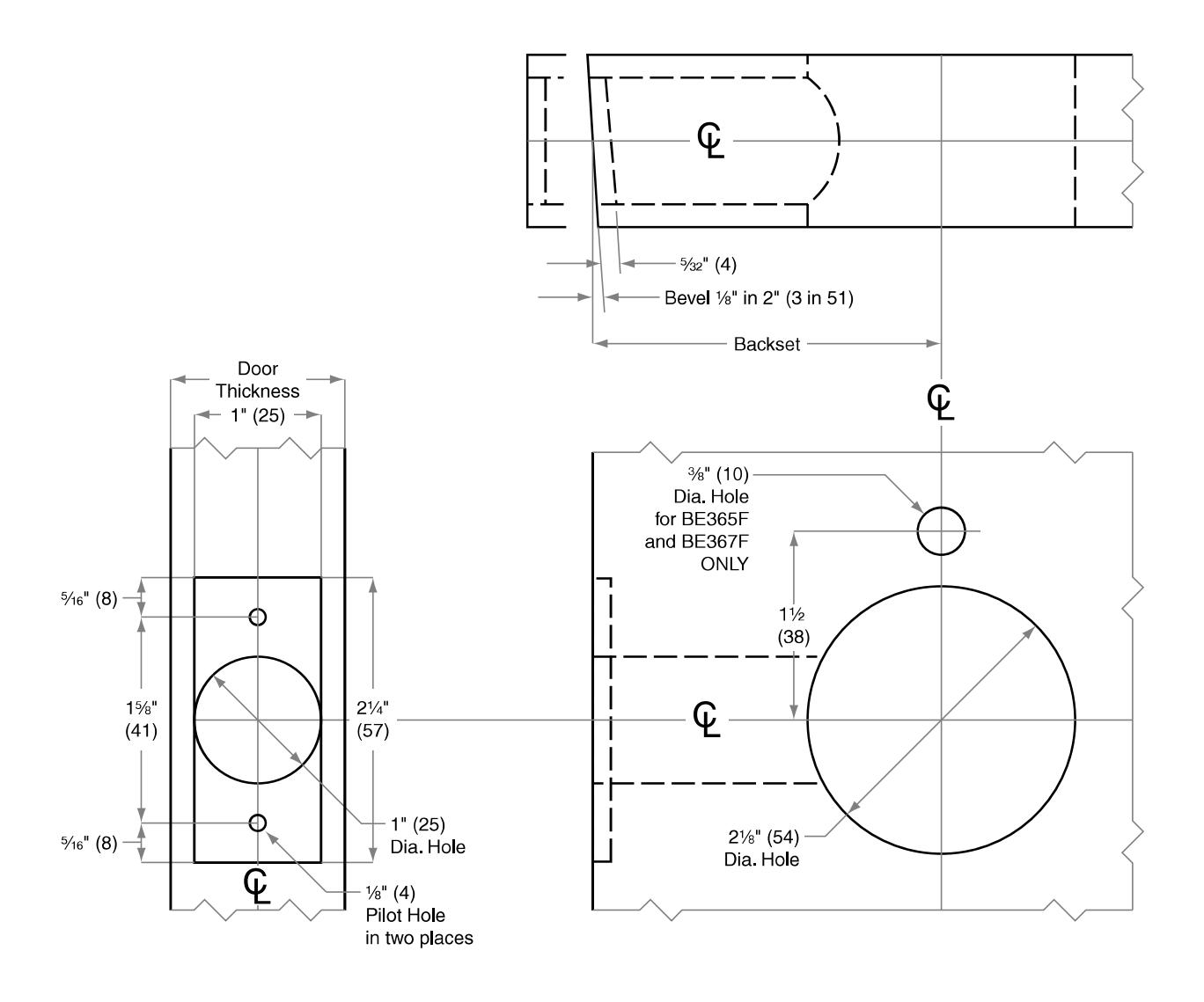

Door preparation template

RB101
