SDS-XLS Grade 2

Cylindrical Lock

WIRELESS NETWORKED ACCESS CONTROL

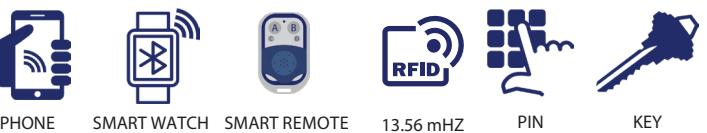

Multi-Credential Options

13.56 mHZ

Product Features

EXTERIOR VIEW INTERIOR VIEW

Access Types

Access Levels

Max Users Audit Trail

Notifications Programmed

Communication

Security

Power Source

Back set

Door Thickness

Operation Chassis

Handing

Cylinders Compatibility

Keying Keypad

Certifications Environment

Remote Operation

Upgradeable

Retrofits

Smartphone, PIN access codes, RFID, smart remote, smartwatch, traditional key override. Two-factor authentication capable

Administrator defined through the Cloud Based Access Control Interface

1000 users locally, Unlimited in the cloud

Real time events tracking through the app or Cloud Based Access Control Interface. Event filtering and report exporting is standard

Email or SMS notifications, Administrator defined through the Cloud Based Access Control Interface

All user and credential data is added through the Cloud Based Access Control Interface

Hybrid BLE and ANT+ wireless mesh network

Patented End2End AES 128-bit with Cypher Block Chaining

4 AA alkaline batteries

2-3/4" standard, 5" as an option

1-3/4" - 2-1/4" thick, preset for 1-3/4"

Non-handed, field reversible

Always locked or can be set to Passage mode. Built on PDQ SD Grade 2 standard-duty chassis

Conventional, SFIC, Schlage LFIC, High Security and UL 437

Shares common lever styles with the CL interconnected lock. Match for entry and interior doors for a

coordinated look

22 keyways plus Restricted, High Security and UL 437 Capacitive touch, back lit. Integrated Mifare RFID reader

UL 20 min other ratings pending.

Suitable for interior/exterior applications -31 to 150F weatherized

Easy retrofits, utilizes standard 161 door prep

Remotely operated and controlled via our wireless mesh network

Over the Air Firmware ensures the products remain cyber secure and evolve capabilities over time

Typical Applications

• Multi-Family
• Assisted Living
• Hospitality
• Government Facilites
• Offices / Co-Working Spaces
• Public Buildings
• Retail
• Medical/ Dental Clinics
• K-12 / Higher Ed / Private Schools
• Industrial

• Warehouses / Distribution Facilities
• Manufacturing Companies
• Maintenance areas
• Houses of Worship
• Airports and Transit Centers

Lever Styles Cylinders

PHILADELPHIA — PHL BOSTON — BSN MIAMI — MIA MEMPHIS — MEM ORLANDO — ORL

Architectural Finishes

605 (US3) Bright Brass

613 (US10B) Oil Rubbed Bronze

622 (US19) Flat Black

626 (US26D) Satin Chromium

Wireless Networked Smart Locking Solutions

Grade 1 Cylindrical GTS-XLS

Heavy-Duty Deadbolt KMS-XLS

Grade 2 Cylindrical SDS-XLS

Grade 1 Mortise MRS-XLS

Heavy-Duty Exit Device Trim 6EWS-XLS

Standard-Duty Interconnected CLS-XLS*

*Contact factory for availability
