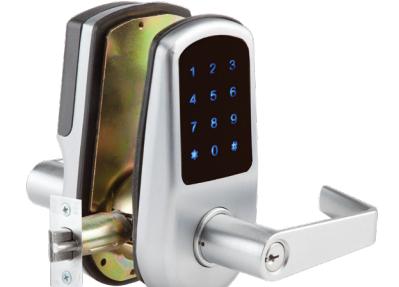

SDS-STP Standard-Duty

Cylindrical Lock

STAND-ALONE SMART LOCK

Multi-Credential Options

SMART REMOTE

Works With

EXTERIOR VIEW INTERIOR VIEW

Product Features

Access Types

Access Levels

Max Users

Audit Trail

Notifications

Programmed

Power Source

Back set

Door Thickness

Handing

Operation Chassis

Cylinders

Keying Keypad

Certifications

Environment Retrofits

Remote Operation

Upgradeable

Smartphone, PIN access codes, smart remote, smartwatch, traditional key override

24/7 access, ability to create schedules. Two-factor authentication capable

100 users maximum

25 events stored locally in APP, 1 years' worth in the cloud. Defined # of events. Event filtering and

report exporting is standard

Supports 24 standard Push notifications

Managed locally (APP) or PIN codes via PIN pad

4 AA alkaline batteries

2-3/4" standard, 5" as an option

1-3/4" - 2-1/4" thick, preset for 1-3/4"

Non-handed, field reversible

Always locked or can be set to Passage mode.

Built on PDQ SD Grade 2 standard-duty chassis

Conventional, SFIC, Schlage LFIC, High Security and UL 437

22 keyways plus Restricted, High Security and UL 437

Capacitive touch, back lit

UL 20 min other ratings pending.

Suitable for interior/exterior applications -31 to 150F weatherized

Easy retrofits, utilizes standard 161 door prep

Requires the addition of an ethernet bridge

STP can be upgraded to networked access control with the addition of a Hybrid Cloud Network Device

Typical Applications

• Primary Residences
• Airbnb / Vacation Homes/ Vrbo
• Rental Properties
• Realtors
• Offices / Co-Working Spaces
• Small Business
• Retail
• Medical/ Dental Clinics
• Daycare/ Volunteer Centers
• Fitness Centers/ Gyms
• Warehouses / Distribution Facilities
• Manufacturing Companies
• K-12/ Higher Ed/ Private Schools
• Houses of Worship
• Airports and Transit Centers

Lever Styles Cylinders

PHILADELPHIA — PHL BOSTON — BSN MIAMI — MIA MEMPHIS — MEM ORLANDO — ORL

Architectural Finishes

605 (US3)

Bright Brass

613 (US10B) Oil Rubbed Bronze

626 (US26D) Satin Chromium

Stand-Alone Smart Locking Solutions

Grade 1 Cylindrical GTS-STP

Heavy-Duty Deadbolt KMS-STP

Grade 2 Cylindrical SDS-STP

Grade 1 Mortise MRS-STP

Heavy-Duty Exit Device Trim 6EWS-STP

Standard-Duty Interconnected CLS-STP
