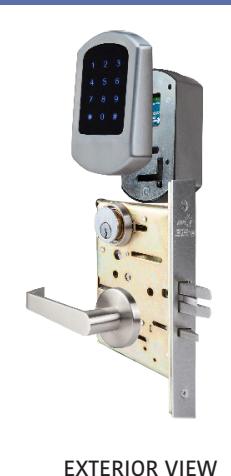

MRS-XLS Heavy-Duty Mortise Lock

WIRELESS NETWORKED ACCESS CONTROL

Multi-Credential Options

Rose Designs

SOLIARE ROSE (SR) J-TRIM

Product Features

Access Types

Access Levels

Max Users Audit Trail

Notifications

Programmed

Communication

Security

Power Source

Back set

Door Thickness

Handing

Operation

Chassis

Cylinders Keying

Keypad Certifications

Retrofits

Environment

Remote Operation

Upgradeable

Smartphone, PIN access codes, RFID, smart remote, smartwatch, traditional key override. Two-factor authentication capable

Administrator defined through the Cloud Based Access Control Interface

1000 users locally, Unlimited in the cloud

Real time events tracking through the app or Cloud Based Access Control Interface. Event filtering

and report exporting is standard

Email or SMS notifications, Administrator defined through the Cloud Based Access Control Interface

All user and credential data is added through the Cloud Based Access Control Interface

Hybrid BLE and ANT+ wireless mesh network

Patented End2End AES 128-bit with Cypher Block Chaining

4 AA alkaline batteries

2-3/4"

1-3/4" standard, 2" and 2-1/4" options available

Non-handed, field reversible

Always locked or can be set to Passage mode.

Built on PDQ MR Grade 1 heavy-duty chassis, tested to over 11 million cycles (equivalent to operating

the lever every 60 seconds for 26.5 years without failure)

Conventional, SFIC, Schlage LFIC, High Security and UL 437 22 keyways plus Restricted, High Security and UL 437

Capacitive touch, back lit. Integrated Mifare RFID reader

UL 20 min other ratings pending.

Suitable for interior/exterior applications -31 to 150F weatherized

Easy retrofits, utilizes standard mortise door prep

Remotely operated and controlled via our wireless mesh network

Over the Air Firmware ensures the products remain cyber secure and evolve capabilities over time

Typical Applications

• Multi-Family
• Assisted Living
• Hospitality
• Government Facilites
• Offices / Co-Working Spaces
• Public Buildings
• Retail
• Medical/ Dental Clinics
• K-12 / Higher Ed / Private Schools
• Industrial

• Warehouses / Distribution Facilities
• Manufacturing Companies
• Maintenance areas
• Houses of Worship
• Airports and Transit Centers

Lever Styles Cylinders

PHILADELPHIA — PHL BOSTON — BSN MIAMI — MIA CHICAGO — CHI

DALLAS — DAL MEMPHIS — MEM ORLANDO — ORL LOS ANGELES — LA

Architectural Finishes

605 (US3) Bright Brass

606 (US4) Satin Brass

612 (US10) Satin Bronze

613 (US10B) Oil Rubbed Bronze

622 (US19) Flat Black

626 (US26D) Satin Chromium

629 (US32) Bright Stainless

Wireless Networked Smart Locking Solutions

Grade 1 Cylindrical GTS-XLS

Heavy-Duty Deadbolt KMS-XLS

Grade 2 Cylindrical SDS-XLS

Grade 1 Mortise MRS-XLS

Heavy-Duty Exit Device Trim 6EWS-XLS

Standard-Duty Interconnected CLS-XLS*

*Contact factory for availability
