CLS-XLS Standard-Duty

Interconnected

WIRELESS NETWORKED ACCESS CONTROL

Multi-Credential Options

Product Features

EXTERIOR VIEW INTERIOR VIEW

Access Types

Access Levels Max Users

Audit Trail

Notifications Programmed Communication

Security Power Source

Back set Center to Center

Door Thickness

Thumbturn Handing

Operation Chassis

Cylinders Compatibility

Keying Keypad

Certifications Environment Remote Operation

Future-Proofed

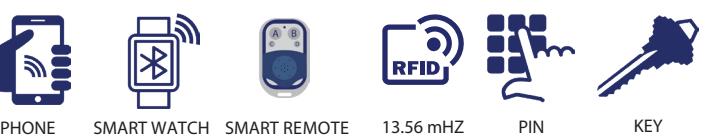

Smartphone, PIN access codes, RFID, smart remote, smartwatch, traditional key override, Two-factor authentication capable

Administrator defined through the Cloud-Based Access Control Interface

1000 users locally, Unlimited in the cloud

Real time events tracking through the app or Cloud Based Access Control Interface. Event filtering and report exporting is standard

Email or SMS notifications, Administrator defined through the Cloud Based Access Control Interface

All user and credential data is added through the Cloud Based Access Control Interface

Hybrid Bluetooth Low Energy 5.0 and ANT+ wireless mesh network

Patented End2End AES 128-bit with Cypher Block Chaining

4 AA alkaline batteries

Latchbolt 2-3/8" or 2-3/4" (Default), Deadbolt Field adjustable for 2-3/8" and 2-3/4" (Default).

ADJ 4", 5-1/2"

1-3/8" - 1-3/4" conventional cylinder, 1-3/4" SFIC

ADA compliant

*Non-handed, field reversible (*Memphis specify handing)

Always locked or can be set to Passage mode. Single action egress from inside of opening.

Built on PDQ SD Standard-duty chassis and KM Heavy-Duty Deadbolt

Conventional, SFIC, High Security and UL 437

Shares common lever styles with the SD cylindrical lock. Match for entry and interior doors.

22 keyways plus Restricted

Capacitive touch, back lit. Integrated Mifare RFID reader

UL 20 min other ratings pending.

Suitable for interior/exterior applications -31 to 150F weatherized Remotely operated and controlled via our wireless mesh network

Device never obsolete. Free automated updates.

Typical Applications

• Multi-Family Housing
• Senior Housing
• Student Housing
• Hospitality
• Offices / Co-Working Spaces
• Public Buildings
• Government Facilities
• Medical/ Dental Clinics
• K-12 / Higher Ed / Private Schools
• Industrial

• Warehouses / Distribution Facilities
• Manufacturing Companies
• Maintenance areas
• Houses of Worship
• Airports and Transit Centers

Lever Styles

PHILADELPHIA — PHL BOSTON — BSN MIAMI — MIA MEMPHIS — MEM ORLANDO — ORL

Cylinders

Architectural Finishes

605 (US3) Bright Brass

613 (US10B) Oil Rubbed Bronze

622 (US19)* Flat Black

626 (US26D) Satin Chromium

Trim

ROUND ROSE SQUARE ROSE

Wireless Networked Smart Locking Solutions

Grade 1 Cylindrical GTS-XLS

Heavy-Duty Deadbolt KMS-XLS

Grade 2 Cylindrical SDS-XLS

Grade 1 Mortise MRS-XLS

Heavy-Duty Exit Device Trim 6EWS-XLS

Standard-Duty Interconnected CLS-XLS

*Contact factory for availability
