TownSteel e-Genius 4000/5000 Series Lock Installation 4" Center To Center
| 2 |
| 4 |
| 5 |
| 6 |
| 7 |
| 8 |
| 9 |
Step 3 - - Adjust Deadbolt Step 4 - Install Deadbolt And Latch Bolt Step 5 - Install Outside Lever Step 6 - Install Outside Assembly
Addendum A - Change Handing Information
Step 12 - Install Strikes
Troubleshoot
YW2030
Step 7 - Install Backplate Step 8 - Install Spindle And Connect Battery Tray Step 9 - Set Handing On Battery Tray
Step 10 - Install Batteries Step 11 - Install Escutcheon And Inside Lever
Addendum B - Remove Levers Addendum C - Change Handing On Outside Assembly Exploded View Of Lock
23

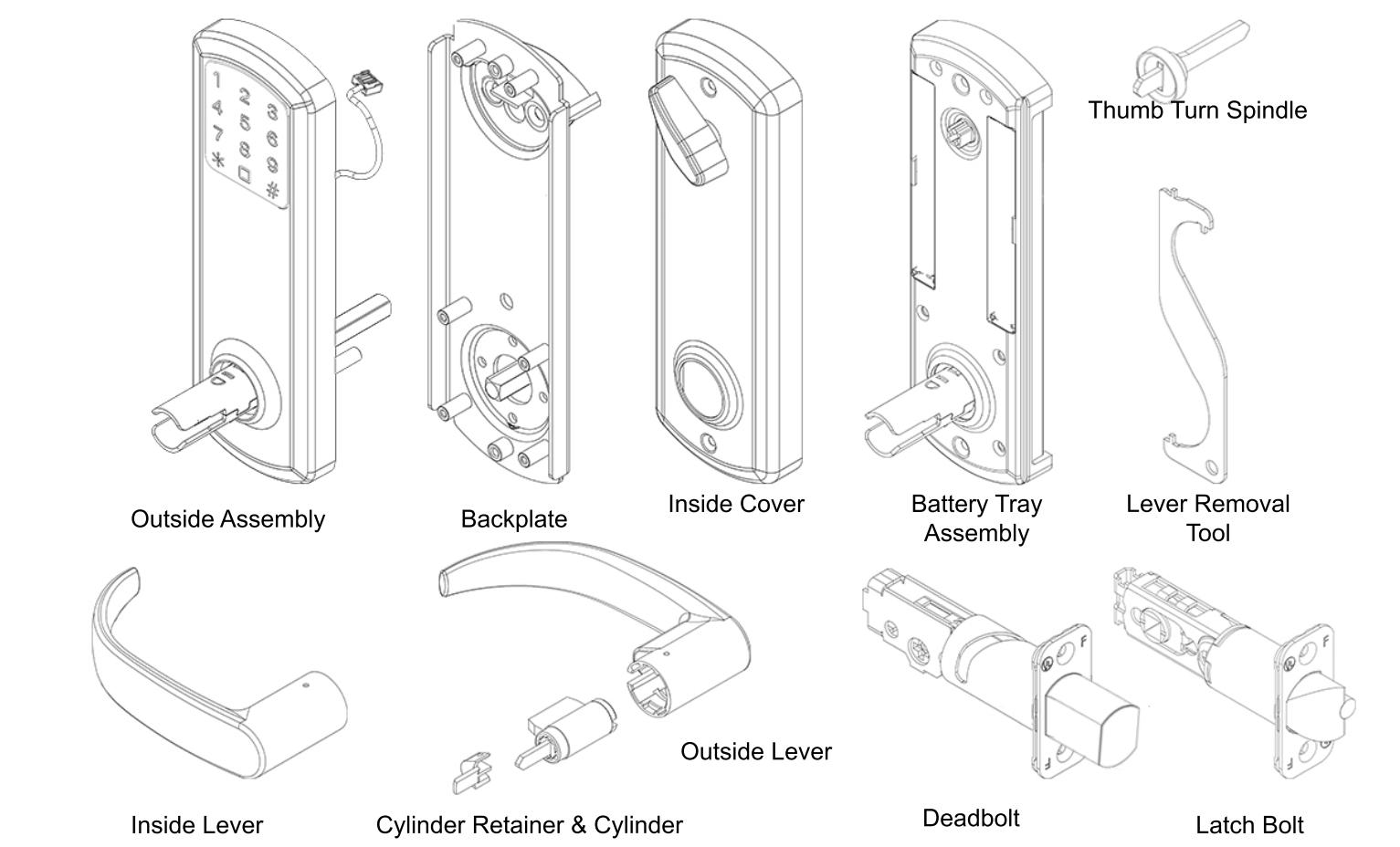

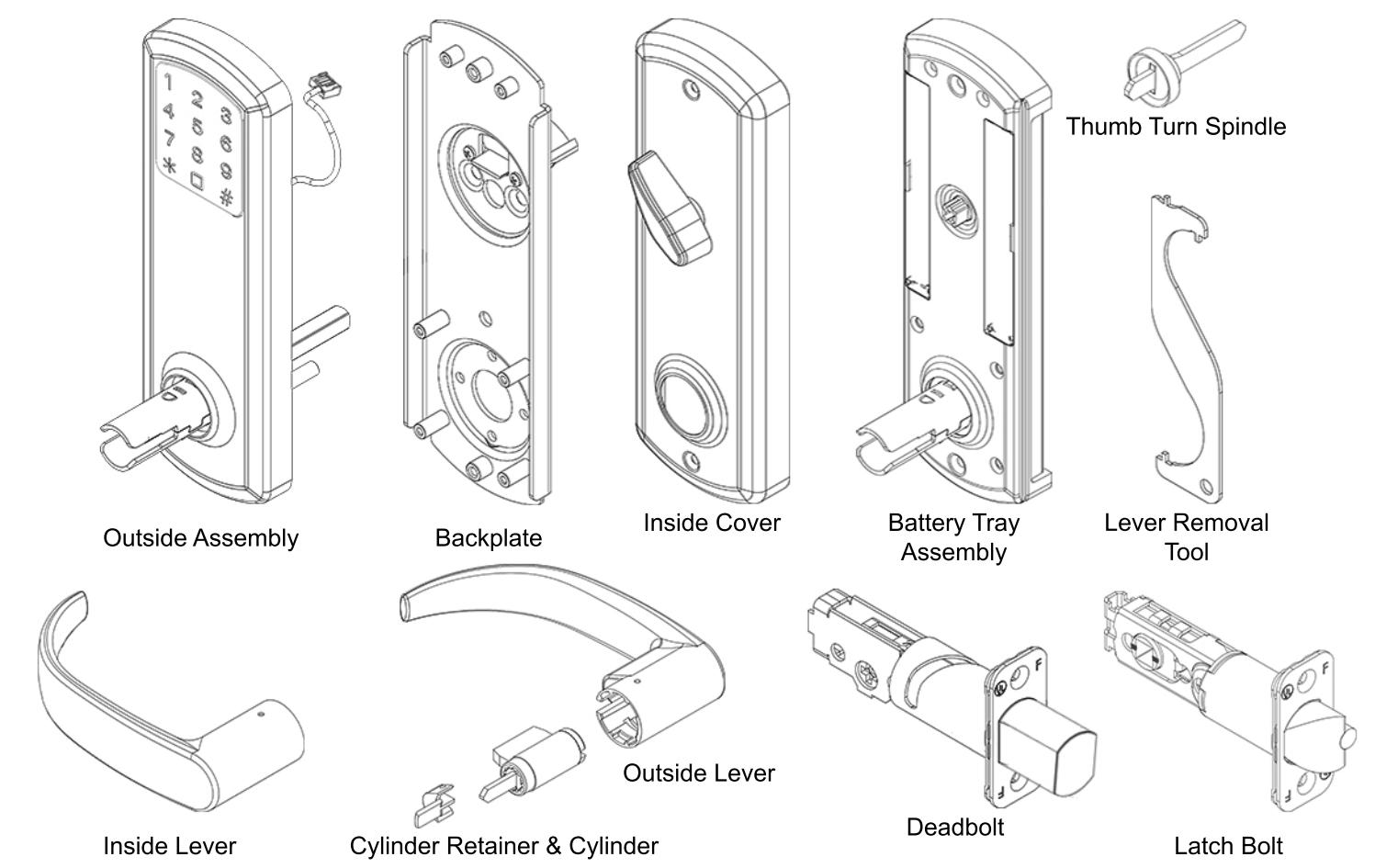

Package Content
YW2030
2
Package Content
Deadbolt Strike
Deadbolt Armor Strike

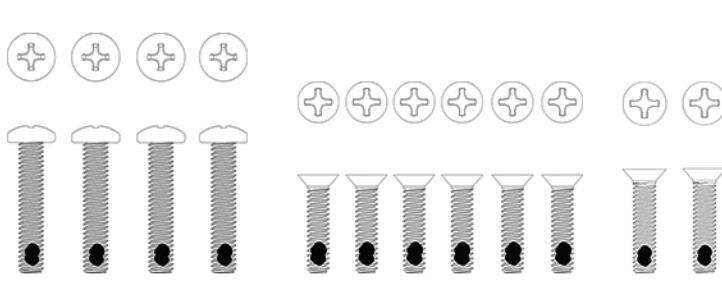

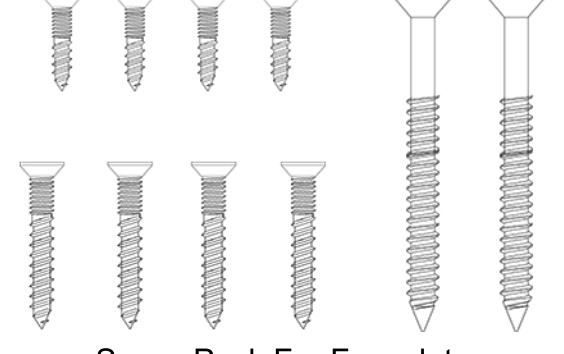

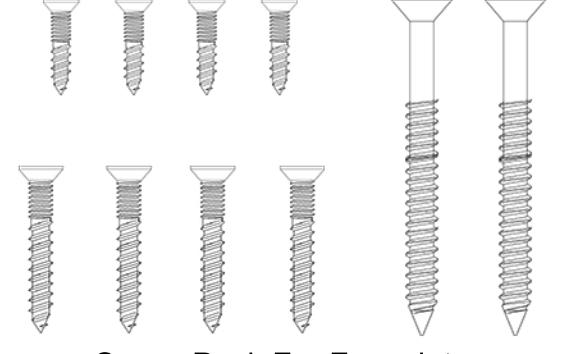

Screw Pack For Lock Assembly Screw Pack For Faceplate and Strike Installation
Getting Started
General Operation
This is an interconnect lock. Inside is always unlocked. Deadbolt can be extended from inside or outside by lifting lever or using thumbturn on the inside. From inside, rotating lever down will retract both bolts. From the outside, presenting a valid user code or keycard and rotating the lever down will retract both bolts. Outside latch bolt is always locked unless a valid code is used or unit is programmed to passage mode. Key Override - Rotating the key clockwise approximately 90o will allow you to rotate the lever and retract both bolts. The key will not retract the bolts. Return key back to home position to pull out key.
Tools Needed For Lock Installation
Phillips screw driver
Flat Head screw driver
Note:
Do not use a power drill for installation of lock as it can damage lock.
Tools May Be Needed For Door Preparation
Tape Measure
Power Drill (For drilling holes ONLY)
1" and 2 1/8" Drill Bits
Wood Chisel
Pencil
7/64 hex wrench
When batteries are installed and lock is ready to be operated, refer to programming guide for programming instruction.
Handing Information
Interconnect lock is handed. See handing information below.
Handing Information From Outside
If hinges are on the left, and door opens inward, it is a Left Hand Door(LH).
If hinges are on the left, and door opens outward, it is a Left Hand Reverse Door(LHR).
If hinges are on the right, and door opens inward, it is a Right Hand Door(RH).
If hinges are on the right, and door opens outward, it is a Right Hand Reverse Door(RHR).
If handing needs to be changed, see Addendum A (Page 19).
Door Preparation

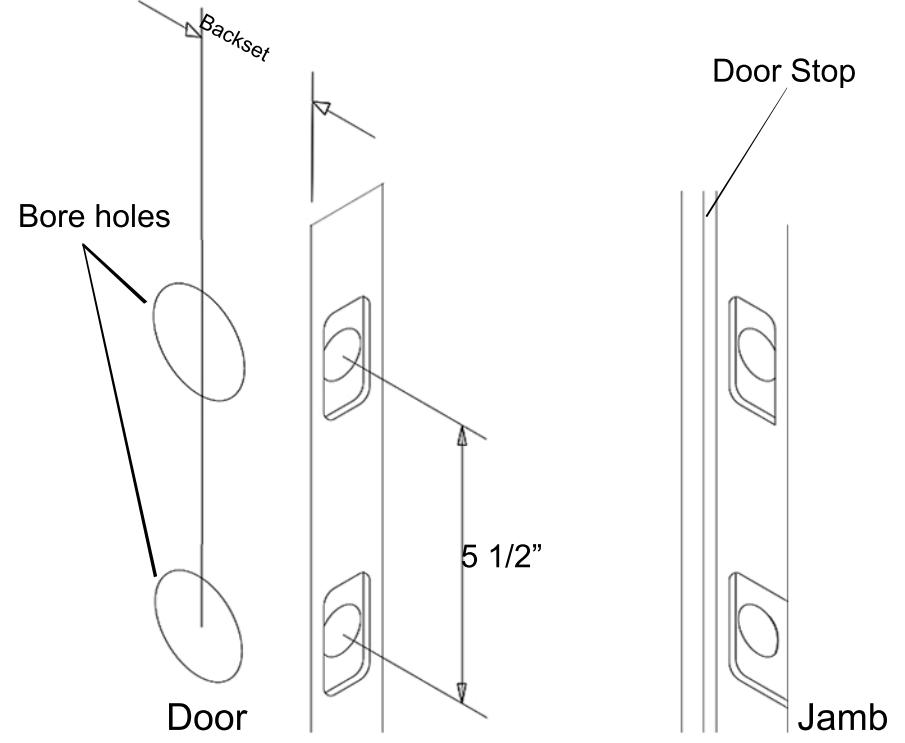

Prepare door and jamb per template provided. Backset is adjustable for 2 ³⁄" or 2 ³⁄". The backset is the dimension from the edge of the door to centerline of the lock. This lock requires a 4" center to center distance between the bore holes.
IMPORTANT:
Door stop is where the door will stop when normally operated. Door stop includes any gasket, smoke seal, or bumpers. Position of strikes are to be measured from where the door actually stops. The deadbolt, when thrown, cannot have any interference with the deadbolt strike. If there is any interference, strikes need to be adjusted for lock to work properly.

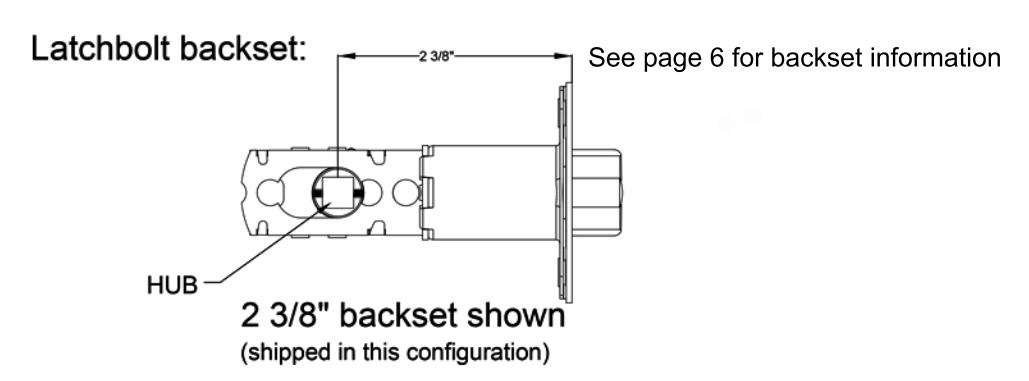

Latch installation - Latch handing and backset needs to match your door. See below for setting backset and handing.

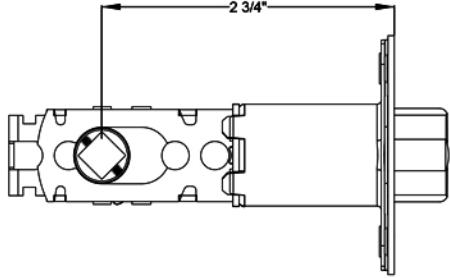

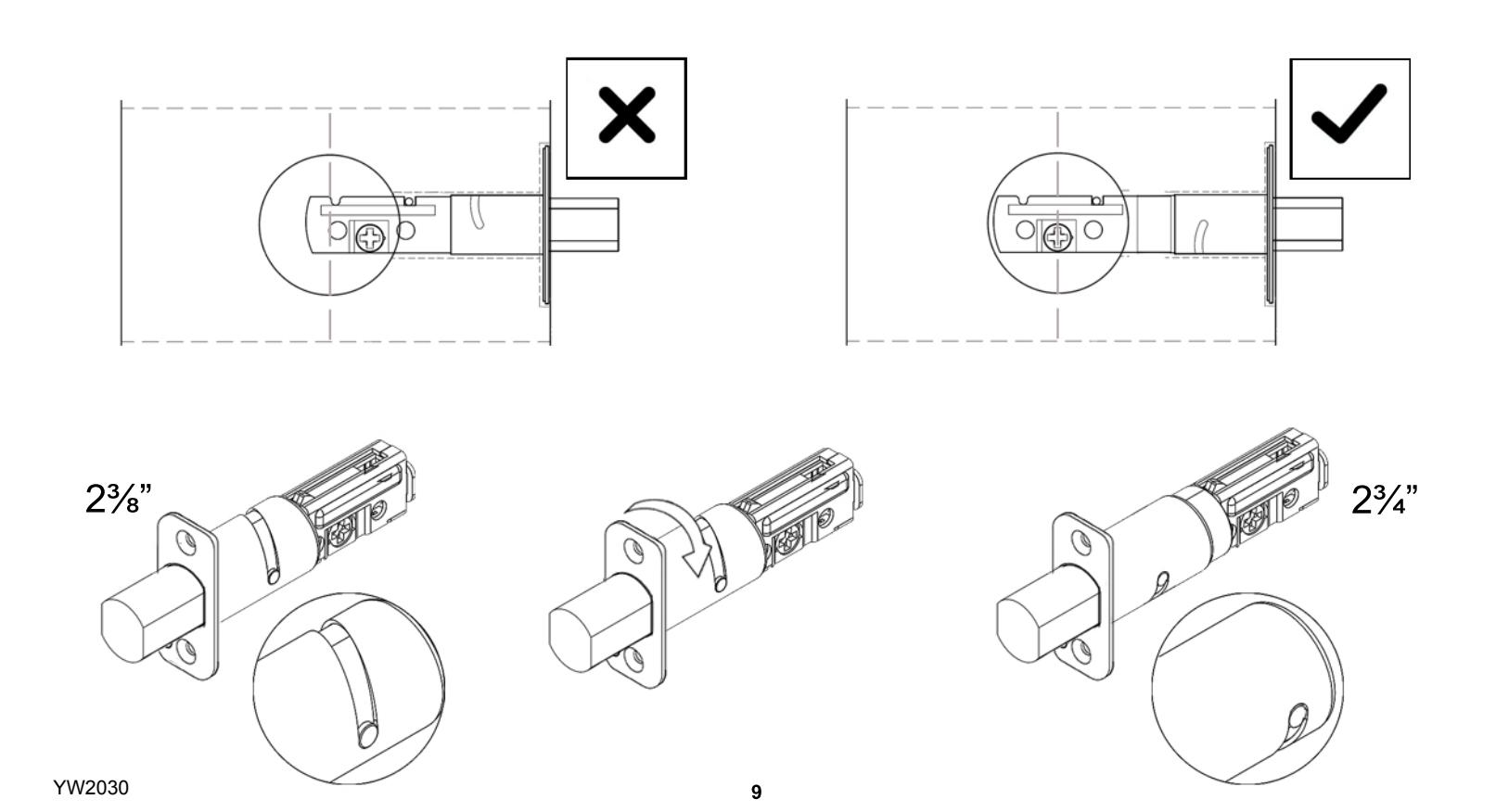

In order to adjust from 2 ³⁄" to 2 ³⁄", rotate hub on the diagonal as shown below. Pull on the hub to extend to 2 ³⁄" in the direction noted by the arrow. Push hub to the right to go back to 2 ³⁄".

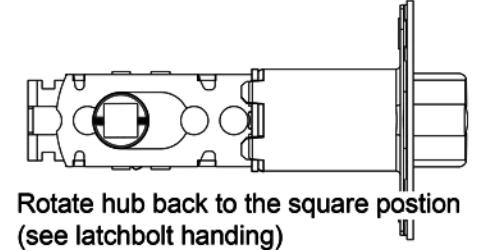

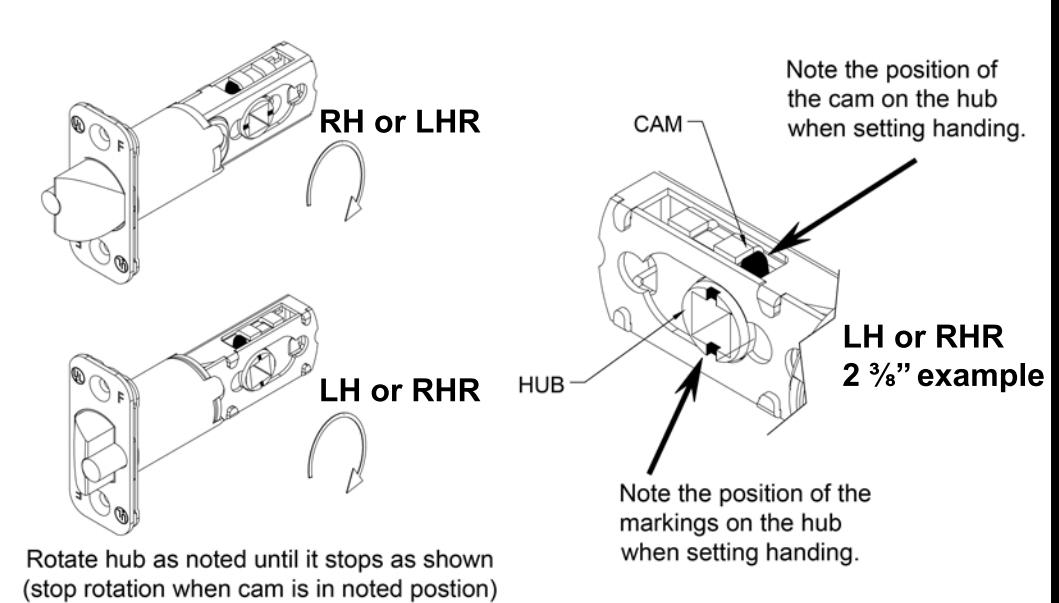

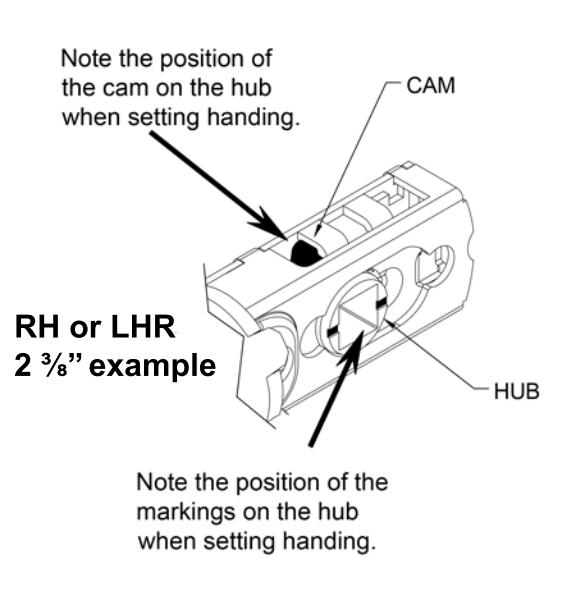

Latchbolt handing: See below showing the hub rotation for the handing of your door - RH, LH, RHR, LHR. See page 5 for door handing information.
8
Place the deadbolt in the door frame cutout and make sure the cross shaped hub is centered. Otherwise, look below on how to adjust the deadbolt by rotating the deadbolt face.

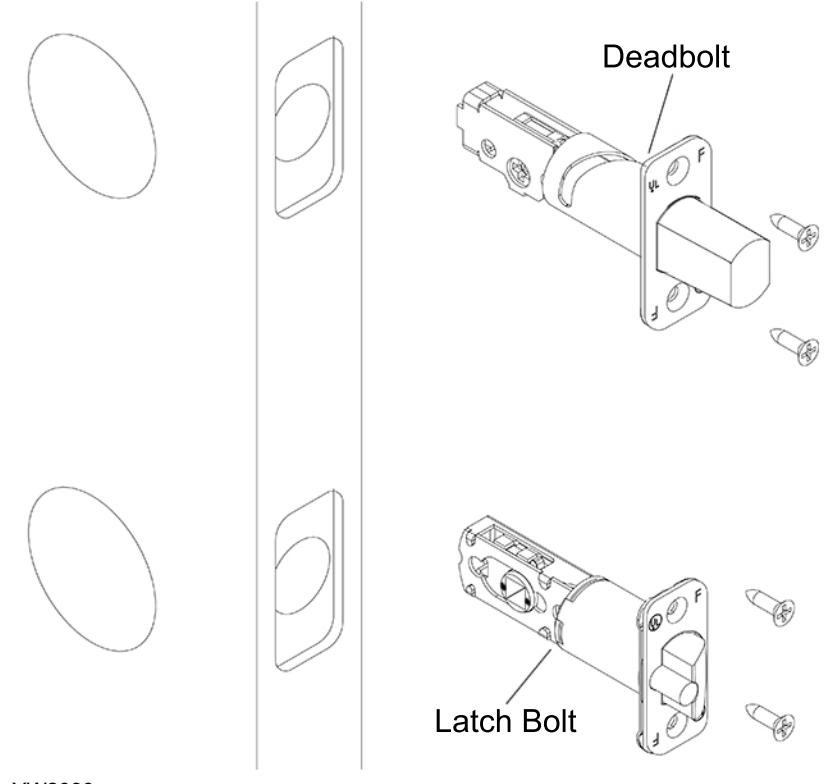

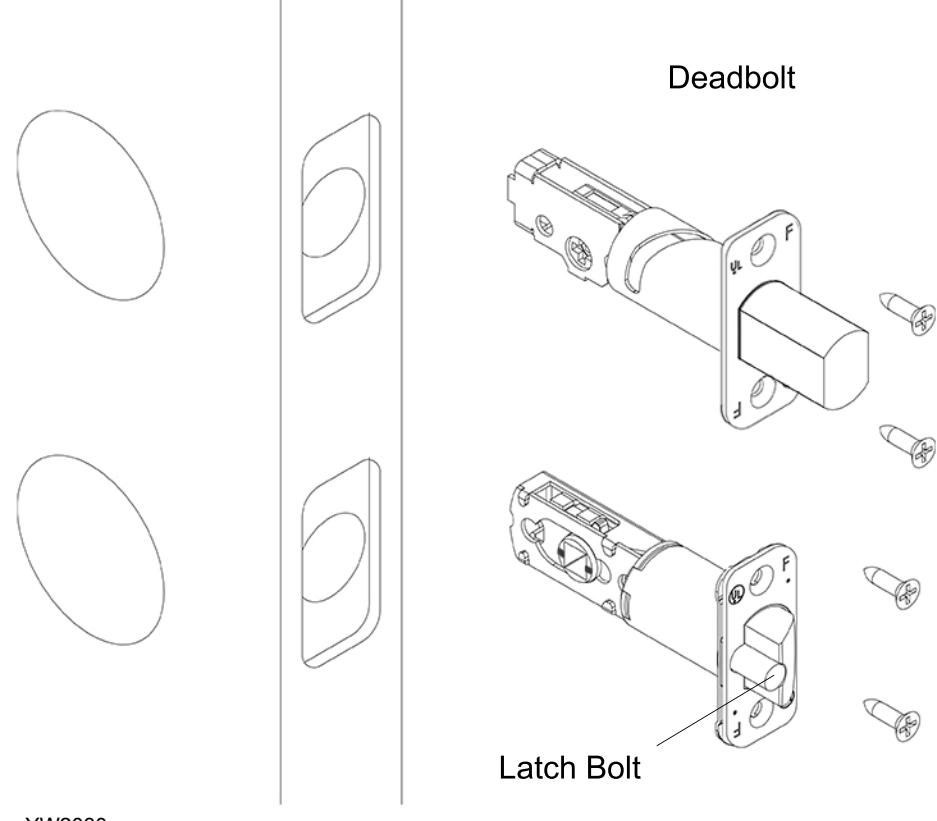

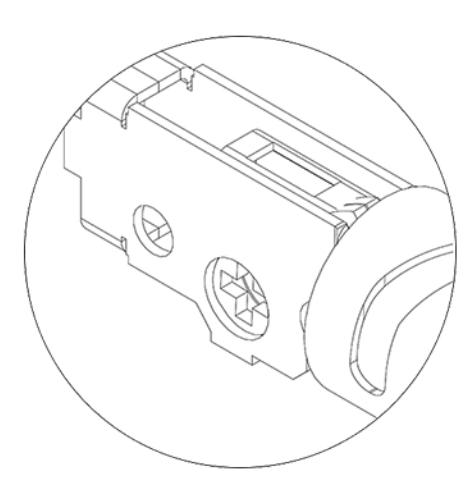

Extend deadbolt. Install deadbolt, deadbolt faceplate, and latch bolt as shown (RH Shown). Secure with 4 screws.
Position cross as shown below.

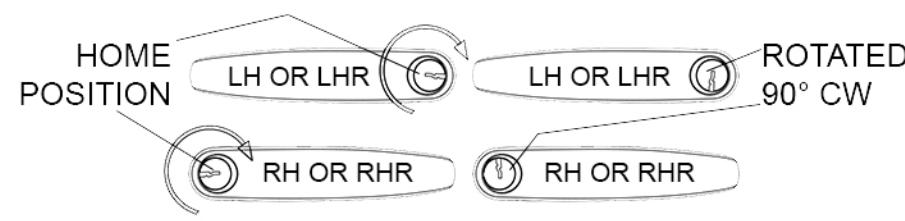

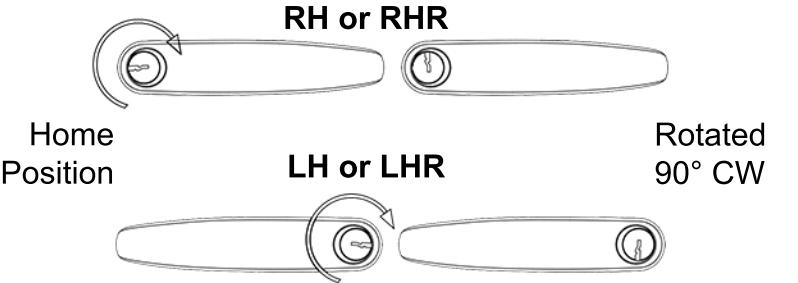

RH or RHR Lever Orientation
Scan QR code for a video on installing the outside lever

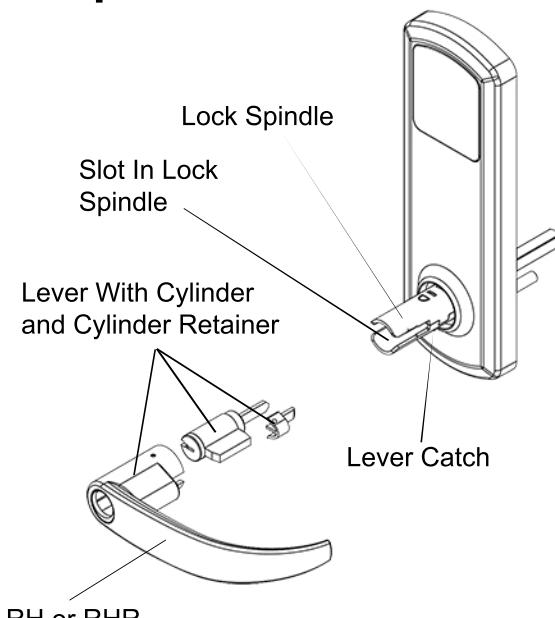

Install Outside Lever

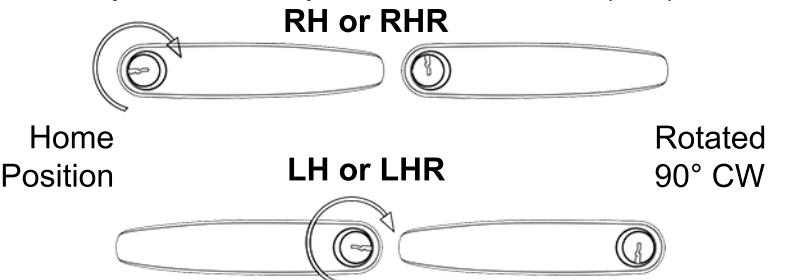

1) Insert key and rotate cylinder 90° clockwise(CW).
Note: LH lever and RH lever orientation

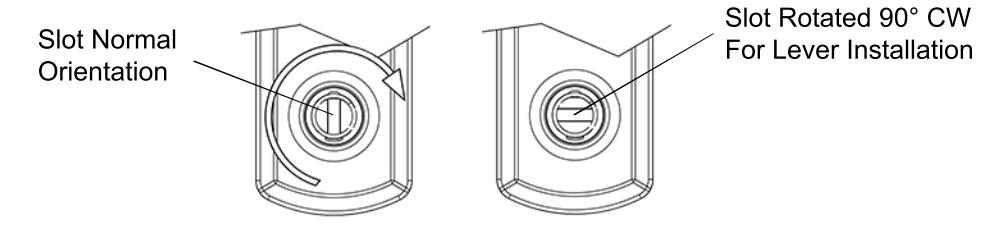

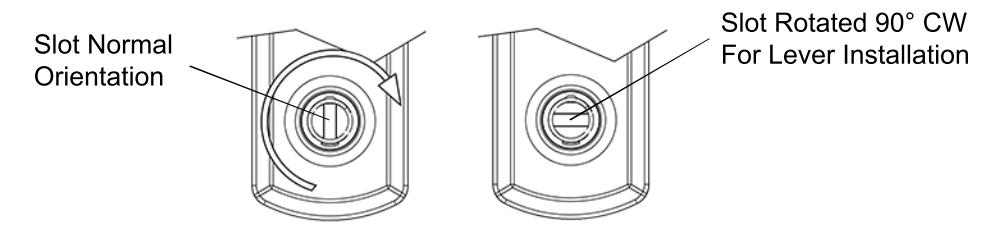

2) Use a flat head screw driver to rotate slot in spindle 90° CW on outside assembly.
3) With key inserted and rotated 90° CW, push lever onto outside assembly while the slot is also rotated 90° CW. Lever catch is on underside of lever and it should snap into place. Rotate keyway back to home position and pull out key. Pull lever to make sure lever is secure.

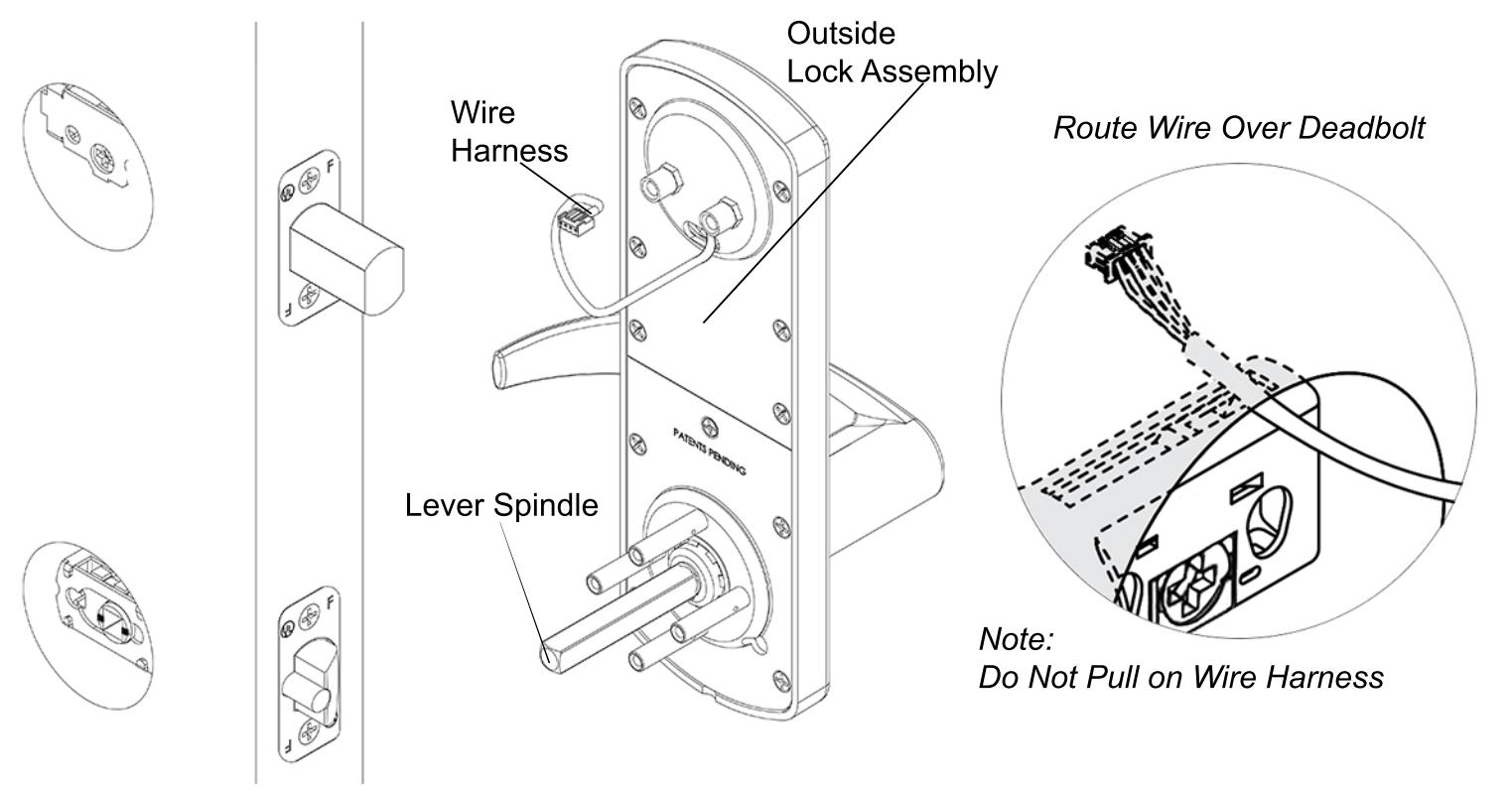

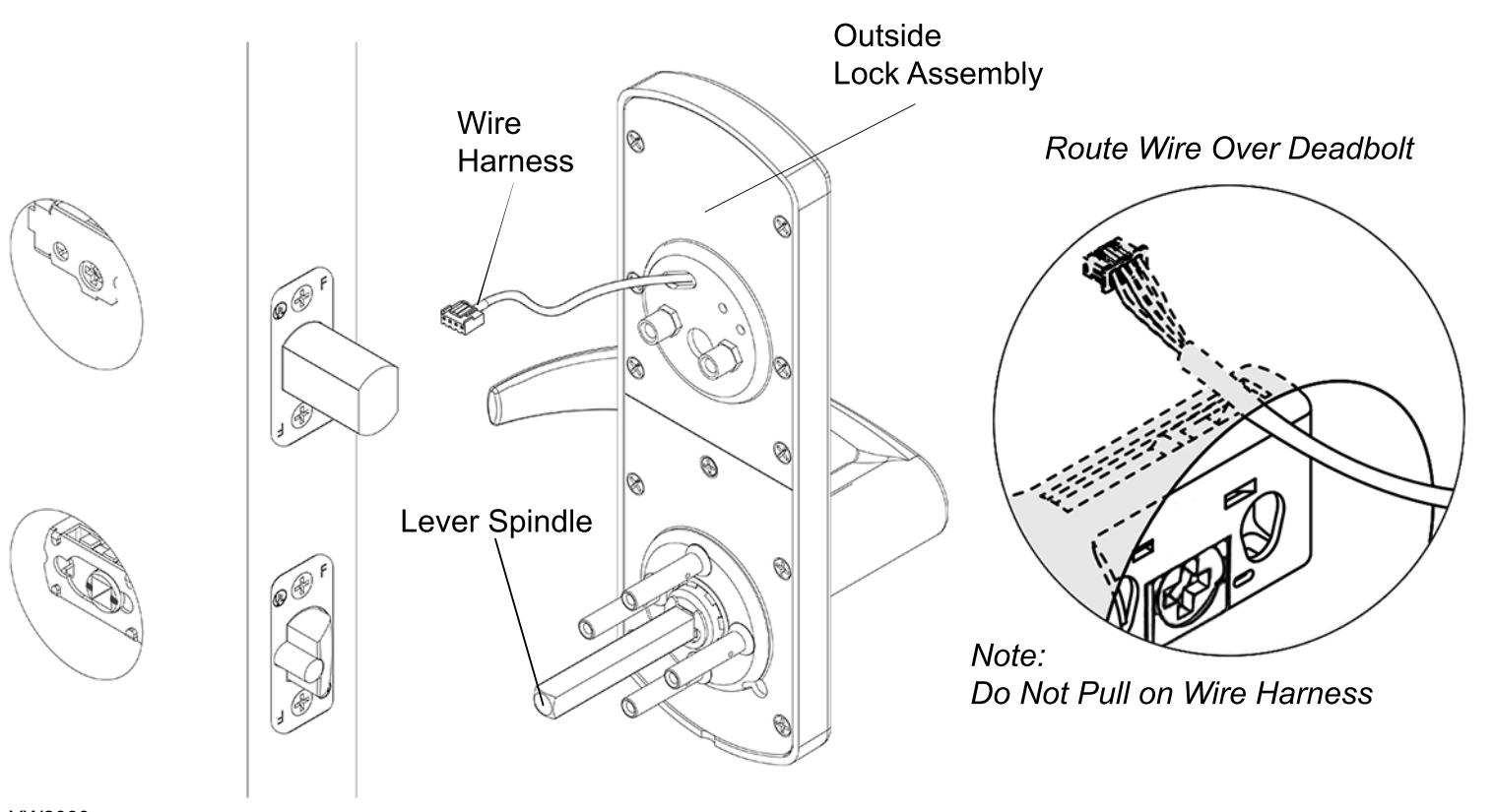

Align outside lock assembly and install onto door face. Lever spindle goes through latch hub. Carefully guide wire harness through and over deadbolt.

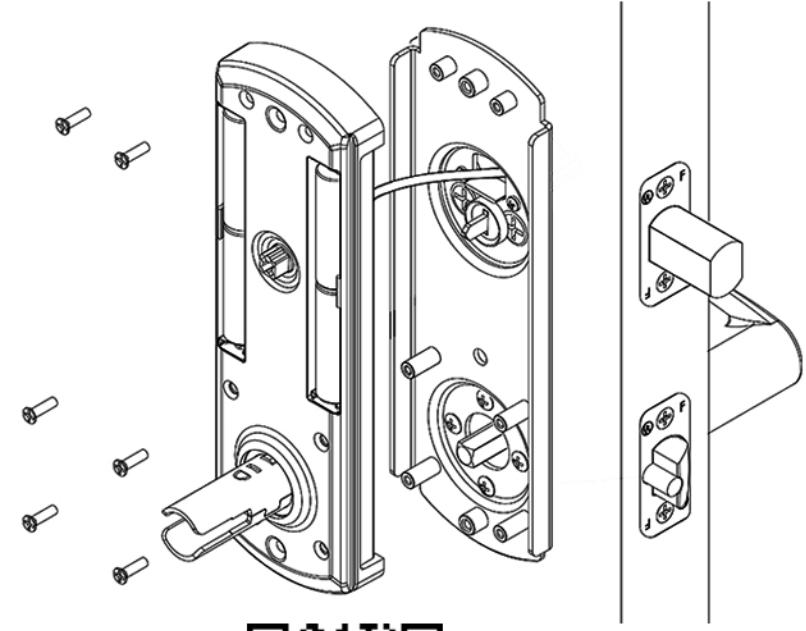

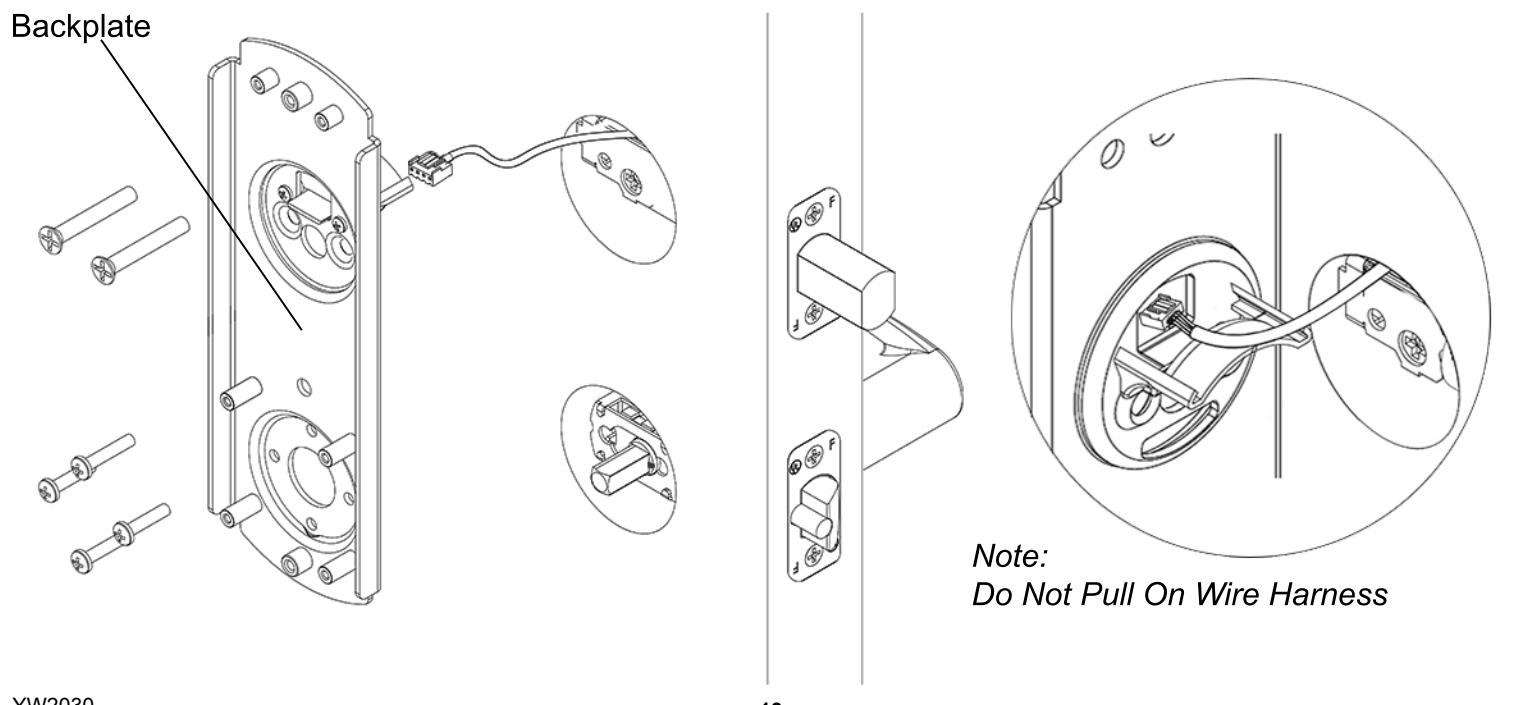

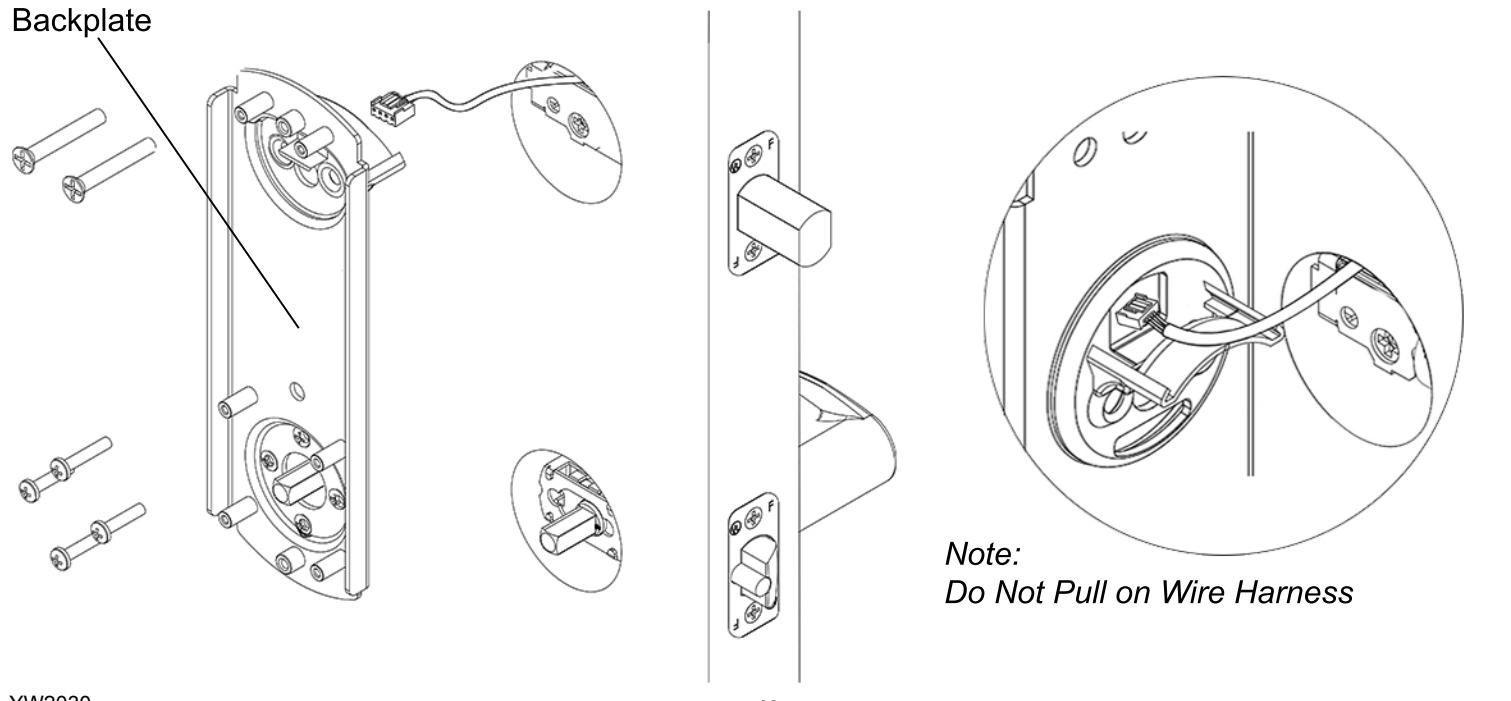

Align backplate and install on the door. Guide the wire harness above the shelf on the backplate and down through the slot. Secure top of backplate with 2 screws that go through the deadbolt - do not tighten until all screws on the backplate are installed. Secure bottom of backplate with 4 screws. Tighten all screws on the backplate.

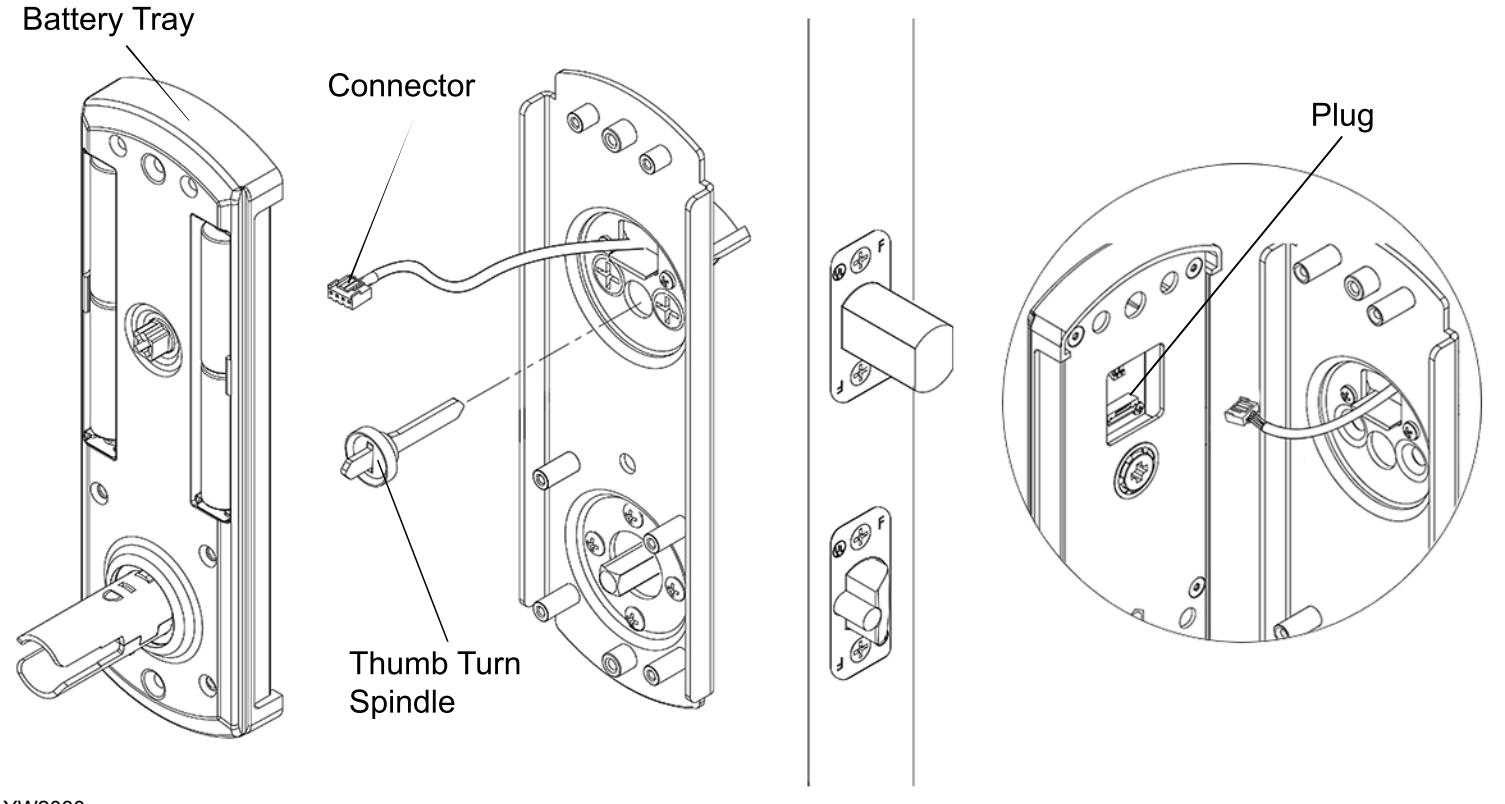

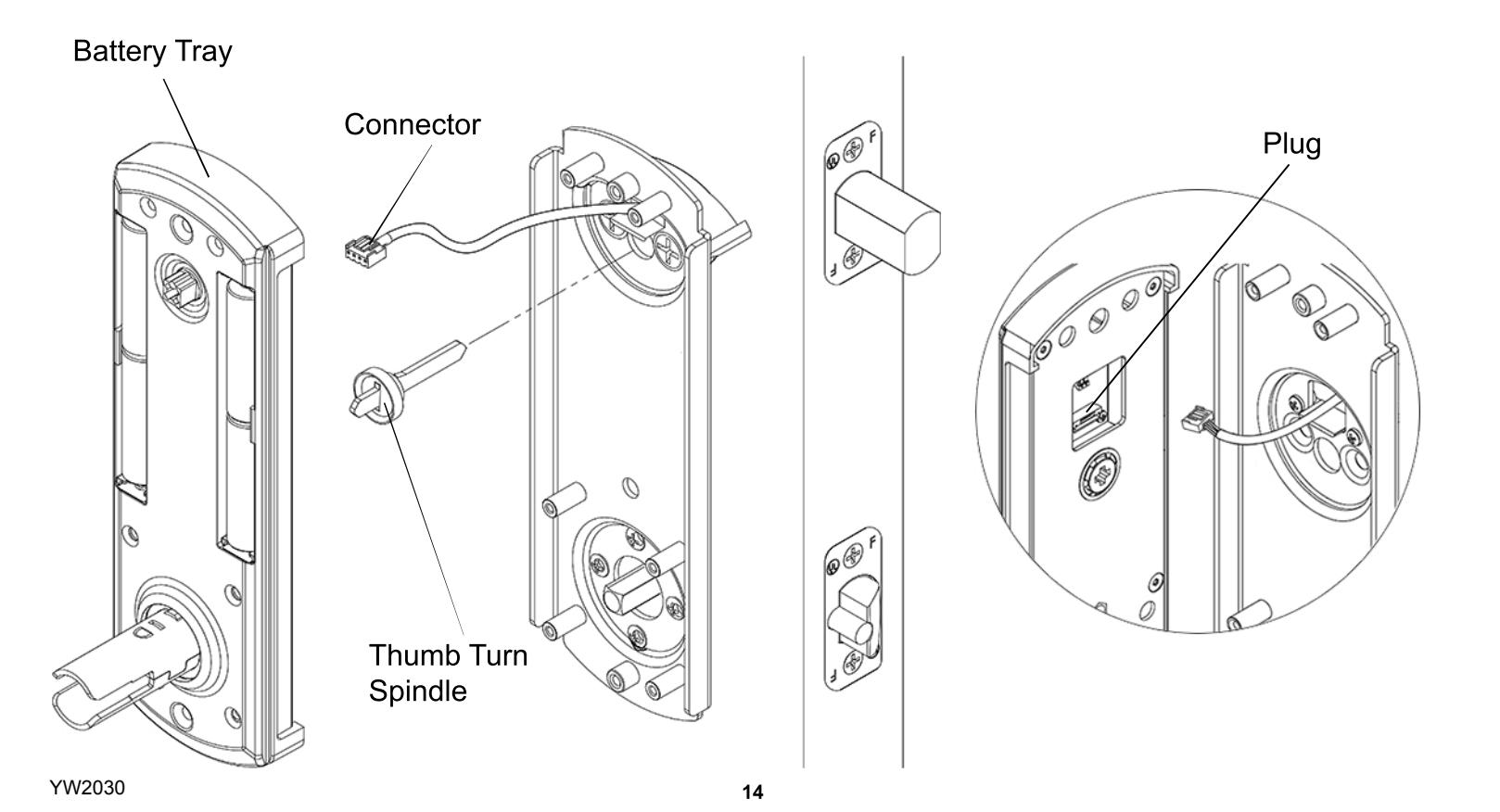

Install thumb turn spindle as shown. Plug in connector from lock assembly into plug on back of battery tray.

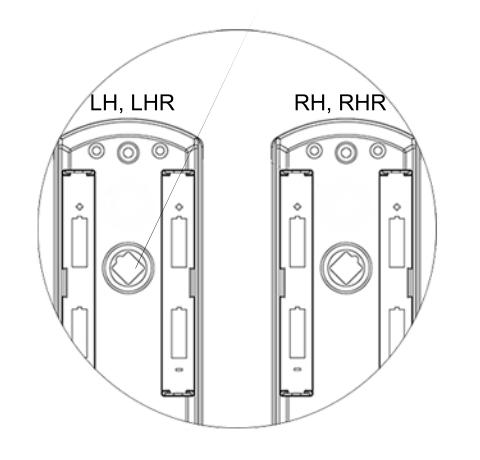

Set handing on battery tray. Push excess wire into hole over the backplate. Battery tray should sit flush without interference. Do not pinch wire harness. Secure battery tray with 6 screws.
Set handing on battery tray as shown below.
Note: Confirm deadbolt is extended and thumb turn spindle is installed.
Scan QR code for a video on setting handing
Install 4 AA-alkaline batteries into battery tray. Use only alkaline batteries for interconnect lock.

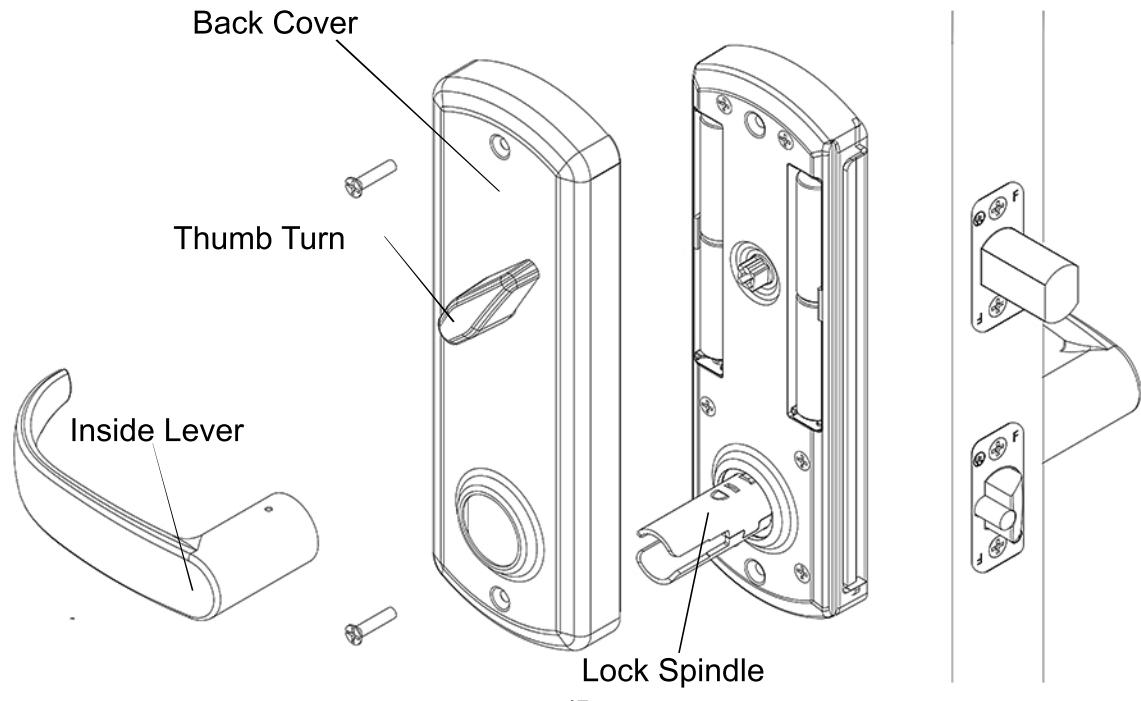

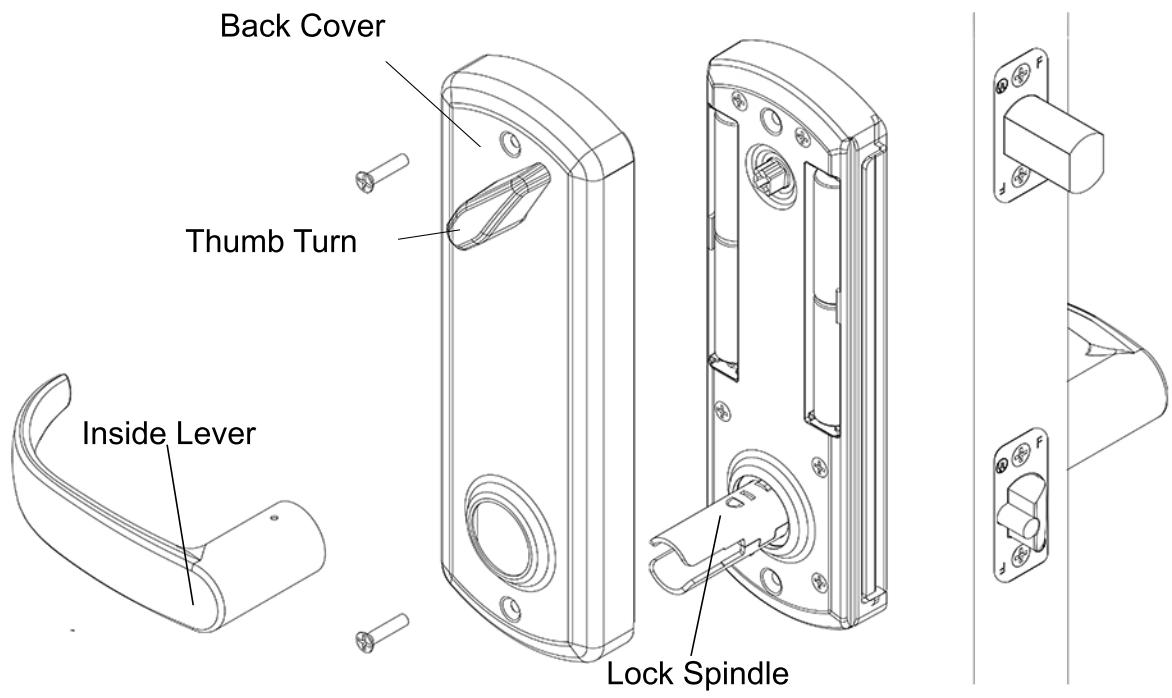

Place back cover over battery tray. Make sure the thumb turn on the back cover is oriented properly. Align thumb turn until it falls into place without forcing it. Secure back cover with 2 screws. Slide inside lever onto lock spindle. Lever catch is on underside of lever and it should snap into place. Pull lever to make sure it is secure.

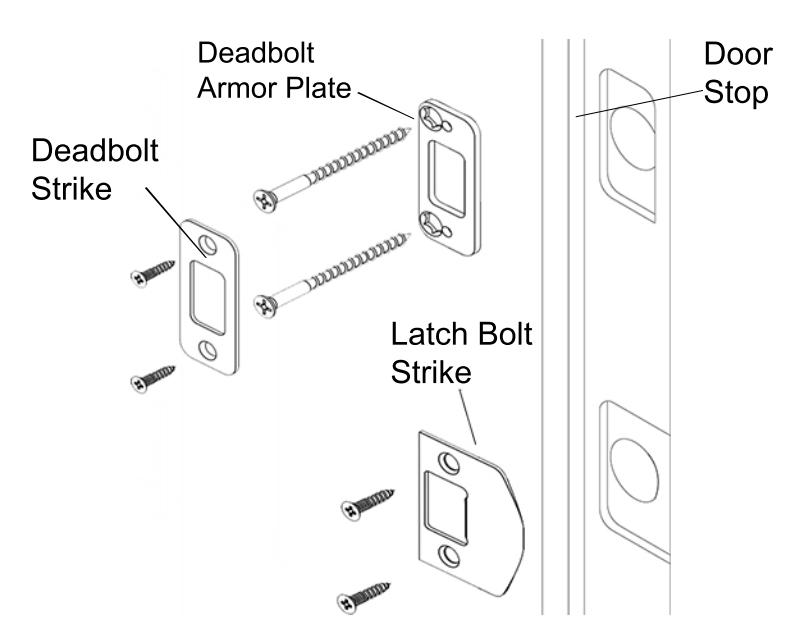

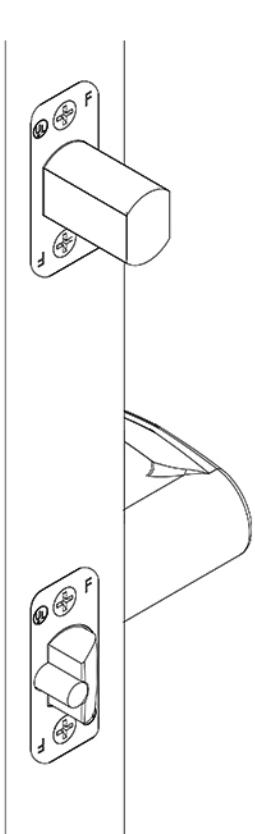

Install deadbolt armor plate, deadbolt strike, and latch bolt strike. Secure with 6 screws.
Remember, the door stop is where the door will stop when normally operated. Stop includes any gasket, smoke seal, or bumpers. Position of strikes are to be measured from where the door actually stops. The deadbolt, when thrown, cannot have any interference with deadbolt strike. If there is any interference, strikes need to be adjusted for the lock to work properly.
IMPORTANT:
Make sure the lock operates properly before closing the door. From inside, lifting the lever should extend the deadbolt and rotating the lever down should retract both bolts. From outside, lifting the lever should extend the deadbolt. Wake up the keypad by swiping across the surface and enter 1-2-3-4-5-6-#. The LED will light red then green. Rotating the lever down should retract both bolts.
Addendum A
Changing the handing should not be needed. Lock is shipped with handing specified. See shipping confirmation or box for details.
If handing needs to be changed from Right Hand to Left Hand (Or Left Hand to Right Hand), handing must be changed on outside assembly. This entails changing a socket head screw on the back of outside assembly. Also, latch bolt and levers need to be adjusted.
See:
Addendum C To change handing on outside assembly Addendum B To remove and adjust levers Step 2 To adjust latch bolt
If handing needs to be changed from Right Hand to Right Hand Reverse (Or Left Hand to Left Hand Reverse), only the latch bolt orientation needs to be changed.
See:
Step 2 In order to adjust latch bolt
Addendum B
Remove Inside Lever

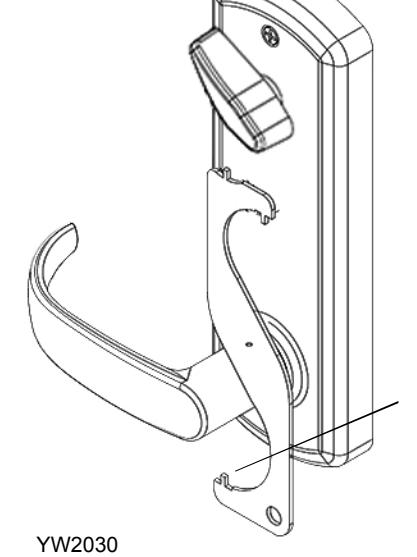

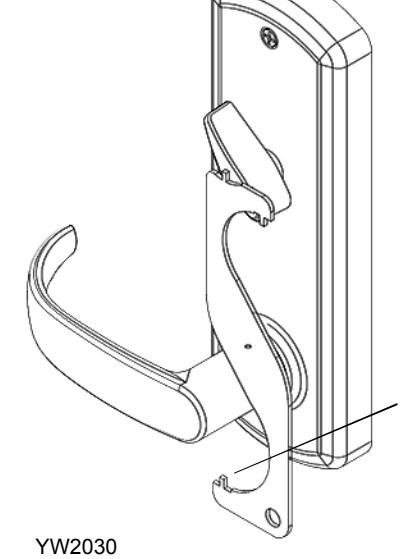

- 1) Insert prong on lever removal tool in hole on underside of lever.
- 2) Lift up the lever removal tool to depress the lever catch and pull the lever off.
Remove Outside Lever
1) Insert the mechanical key and rotate it 90° clockwise.
- 2) Insert prong on lever removal tool in the hole on the underside of the lever.
- 3) Lift up the lever removal tool to depress the lever catch and pull the lever off.
Prong
Addendum C
Change Handing On Outside Assembly
For this example, we will be changing the handing of a right hand lock to a left hand lock .
1) Remove lock assembly from door.

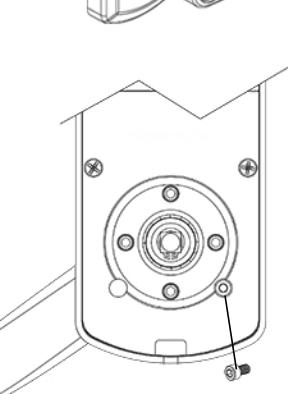

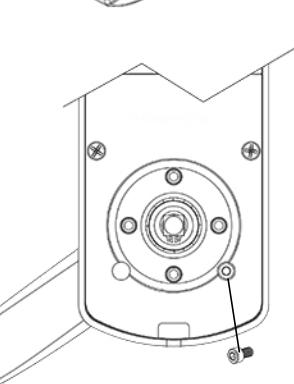

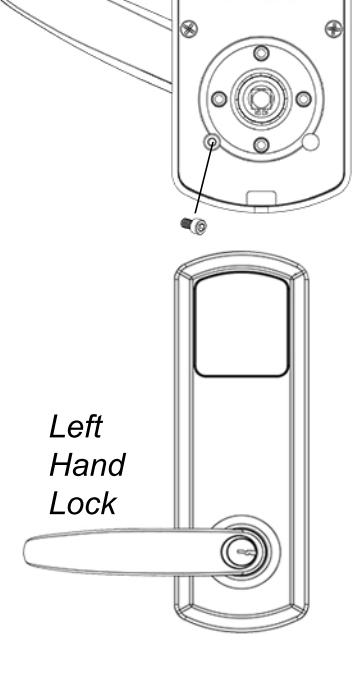

2) Rotate lever down on outside assembly, and use a 7/64" hex wrench to remove socket head screw from back of outside assembly.
3) To change handing, rotate lever up and install socket head screw on the left side of lock assembly.
Note: Be sure to change lever to new handing. See Install Outside Lever for more information.
Scan QR code for a video on changing handing
| PROBLEM | CAUSE | SOLUTION |
|---|---|---|
| Keypaddoesnotlightup. | Batteriesaredead. | Replacebatteriesbyremovingbackcover. |
|
Keypadislockedoutduetoxamountofincorrect
codes. |
Wait60secondsandtryagain. | |
| Notfullypluggedinwiresorpinchedwires. | Checkwireconnection. | |
|
Latchboltretractswhenleverisrotated
up,notdown. |
Hubonlatchboltwasnotinstalled
correctly. |
Takelockoffdoorandre-adjustlatchbolt.
(SeeStep2) |
|
Rotatingoutsideleverupwillnotextend
deadbolt. |
Deadboltwasnotextendedduring
installation. |
Removeinsidelever,backcover,and
batterytrayextenddeadboltandre-install parts.(SeeStep8) |
|
Handingonoutsideassemblywasnot
properlyset |
Takelockoffdoor.Adjusthandingonoutside
assemblyandre-installparts.(SeeAddendumC) |
|
|
Keywillnotcomeoutofleverafter
installation. |
Keycylinderwasnotinstalledcorrectly. |
Useleverremovaltooltoremoveleverand
re-installcylindercorrectly.(SeeStep5) |
|
Outsideleverretractsdeadboltandlatch
boltwithoutakey,usercodeorkeycard. |
Handingonoutsideassemblywasnot
properlyset. |
Takelockoffdoor.Adjusthandingonoutside
assemblyandre-installparts.(SeeAddendumC) |
| Deadboltbindsordoesnotfullyextend. | Strikesarenotaligned. | Adjuststrikes.(SeeStep12) |
VISITWWW.TOWNSTEEL.COMFORMOREINFORMATION.
17901RAILROADSTREET CITYOFINDUSTRY,CA91748 TOLLFREE:877-858-0888
TEL:626-965-8917 FAX:626-965-8919
TownSteel e-Genius 4000/5000 Series Lock Installation 5 1/2" Center to Center
| 2 |
| 4 |
| 5 |
| 6 |
| 7 |
| 8 |
| 9 |
23
1
Step 7 - Install Backplate
Step 10 - Install Batteries
Step 12 - Install Strikes
Exploded View Of Lock
Troubleshoot
YW2030
Addendum B - Remove Levers
Step 5 - Install Outside Lever
Step 6 - Install Outside Assembly
Step 9 - Set Handing On Battery Tray
Step 4 - Install Deadbolt And Latch Bolt
Step 8 - Install Spindle And Connect Battery Tray
Step 11 - Install Escutcheon And Inside Lever
Addendum C - Change Handing On Outside Assembly
Addendum A - Change Handing Information
Package Content
YW2030
2
Package Content
Latch Bolt Strike
Deadbolt Strike
Deadbolt Armor Strike
Screw Pack For Lock Assembly Screw Pack For Faceplate and Strike Installation
Getting Started
General Operation
This is an interconnect lock. Inside is always unlocked. Deadbolt can be extended from inside or outside by lifting lever or using thumbturn on the inside. From inside, rotating lever down will retract both bolts. From the outside, presenting a valid user code or keycard and rotating the lever down will retract both bolts. Outside latch bolt is always locked unless a valid code is used or unit is programmed to passage mode. Key Override - Rotating the key clockwise approximately 90o will allow you to rotate the lever and retract both bolts. The key will not retract the bolts. Return key back to home position to pull out key.
Tools Needed For Lock Installation
Phillips screw driver
Flat Head screw driver
Note:
Do not use a power drill for installation of lock as it can damage lock.
Tools May Be Needed For Door Preparation
Tape Measure
Power Drill (For drilling holes ONLY)
1" and 2 1/8" Drill Bits
Wood Chisel
Pencil
7/64 hex wrench
When batteries are installed and lock is ready to be operated, refer to programming guide for programming instruction.
Handing Information
Interconnect lock is handed. See handing information below.
Handing Information From Outside
If hinges are on the left, and door opens inward, it is a Left Hand Door(LH).
If hinges are on the left, and door opens outward, it is a Left Hand Reverse Door(LHR).
If hinges are on the right, and door opens inward, it is a Right Hand Door(RH).
If hinges are on the right, and door opens outward, it is a Right Hand Reverse Door(RHR).
If handing needs to be changed, see Addendum A (Page 19).
Door Preparation
Prepare door and jamb per template provided. Backset is adjustable for 2 ³⁄" or 2 ³⁄". The backset is the dimension from the edge of the door to centerline of the lock. This lock requires a 5 ¹⁄" center to center distance between the bore holes.
IMPORTANT:
Door stop is where the door will stop when normally operated. Door stop includes any gasket, smoke seal, or bumpers. Position of strikes are to be measured from where the door actually stops. The deadbolt, when thrown, cannot have any interference with the deadbolt strike. If there is any interference, strikes need to be adjusted for lock to work properly.
Latch installation - Latch handing and backset needs to match your door. See below for setting backset and handing.
In order to adjust from 2 ³⁄" to 2 ³⁄", rotate hub on the diagonal as shown below. Pull on the hub to extend to 2 ³⁄" in the direction noted by the arrow. Push hub to the right to go back to 2 ³⁄".
Latchbolt handing: See below showing the hub rotation for the handing of your door - RH, LH, RHR, LHR. See page 5 for door handing information.
8
Place the deadbolt in the door frame cutout and make sure the cross shaped hub is centered. Otherwise, look below on how to adjust the deadbolt by rotating the deadbolt face.

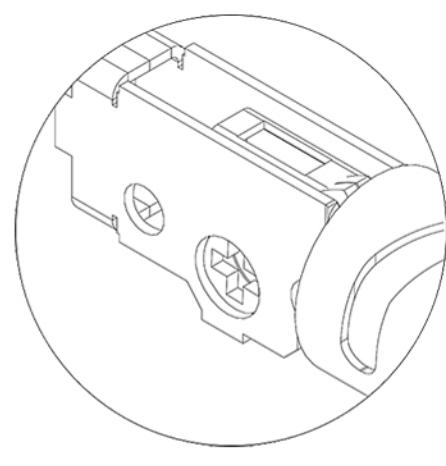

Extend deadbolt. Install deadbolt, and latch bolt as shown (RH Shown). Secure with 4 screws.
Position cross as shown below.
RH or RHR Lever Orientation
Scan QR code for a video on installing the outside lever

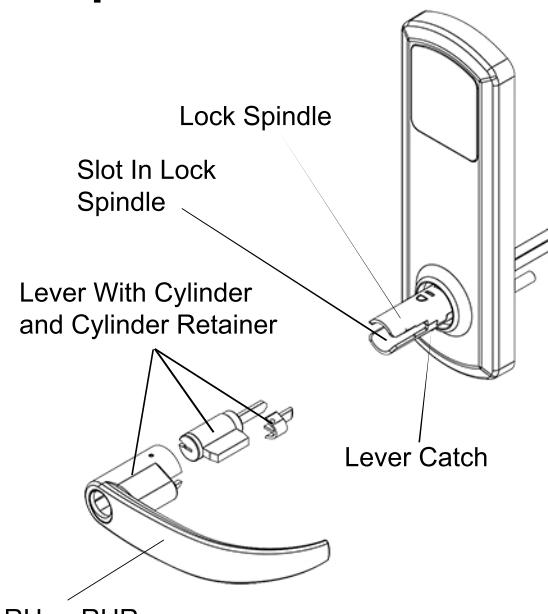

Install Outside Lever
1) Insert key and rotate cylinder 90° clockwise(CW).
Note: LH lever and RH lever orientation
2) Use a flat head screw driver to rotate slot in spindle 90° CW on outside assembly.
3) With key inserted and rotated 90° CW, push lever onto outside assembly while the slot is also rotated 90° CW. Lever catch is on underside of lever and it should snap into place. Rotate keyway back to home position and pull out key. Pull lever to make sure lever is secure.
Align outside lock assembly and install onto door face. Lever spindle goes through latch hub. Carefully guide wire harness through and over deadbolt housing.
Align backplate and install on the door. Guide the wire harness above the shelf on backplate and down through the slot. Secure top of backplate with 2 screws that go through the deadbolt housing - do not tighten until all screws on the backplate are installed. Secure bottom of backplate with 4 screws. Tighten all screws on backplate.
Install thumb turn spindle as shown. Plug in connector from lock assembly into plug on back of battery tray.

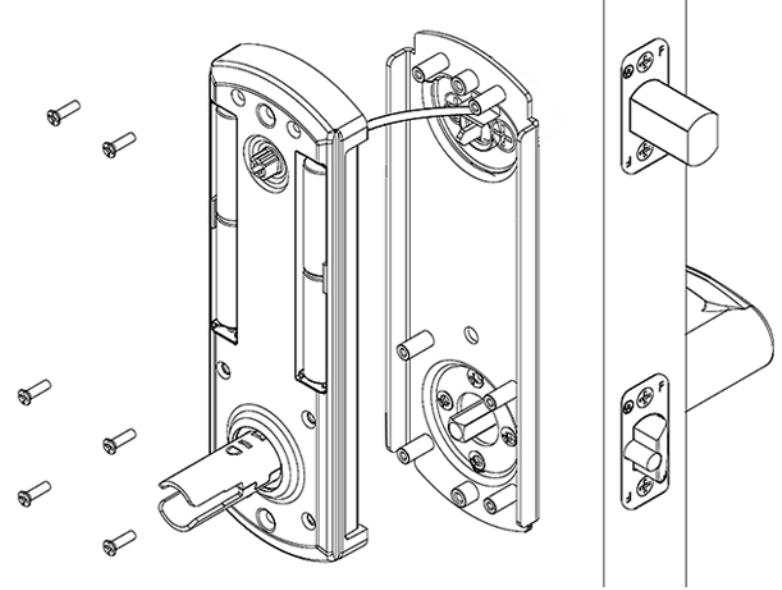

Set handing on battery tray. Push excess wire into hole over the backplate. Battery tray should sit flush without interference. Do not pinch wire harness. Secure battery tray with 6 screws.

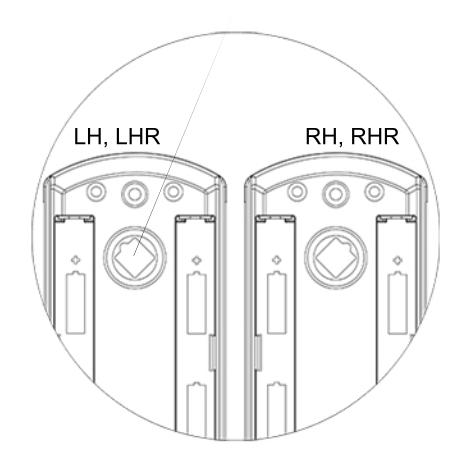

Set handing on battery tray as shown below .
Note: Confirm the deadbolt is extended and
thumb turn spindle is installed. Scan QR code for a video on setting handing
Install 4 AA-alkaline batteries into battery tray. Use only alkaline batteries for the interconnect lock.

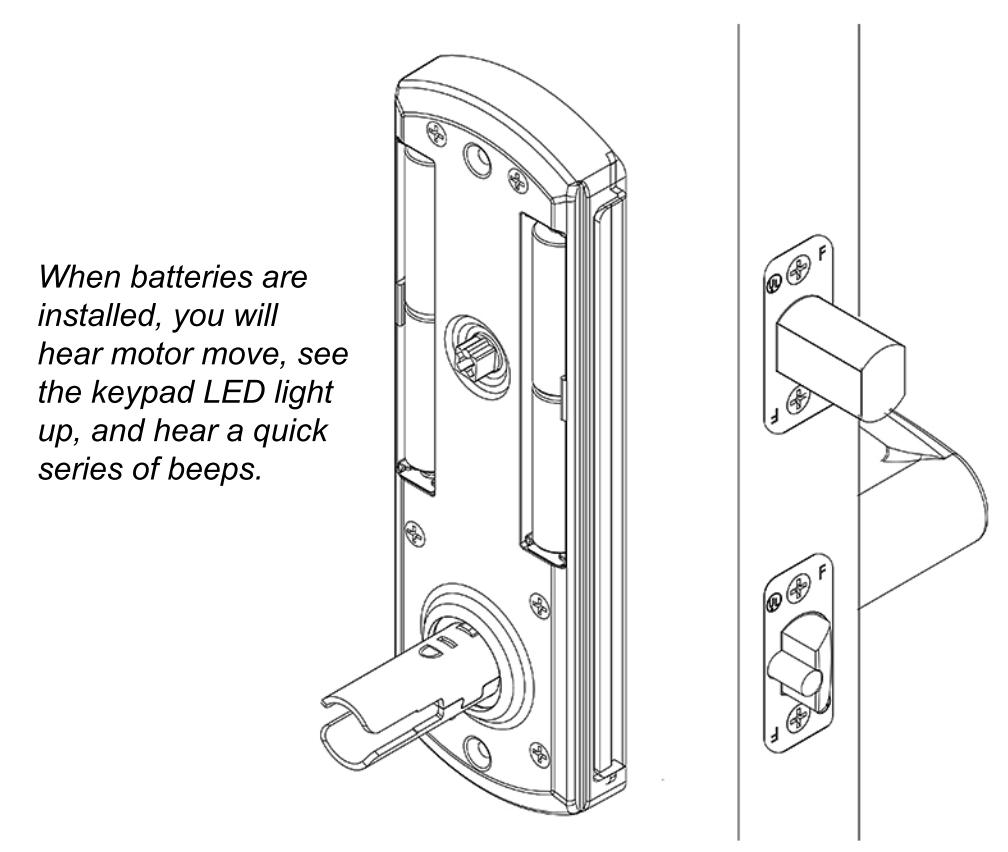

When batteries are installed, you will hear the motor move, see the LED light up, and hear a quick series of beeps.
Place back cover over battery tray. Make sure the thumb turn on the back cover is oriented properly. Align thumb turn until it falls into place without forcing it. Secure back cover with 2 screws. Slide inside lever onto lock spindle. Lever catch is on underside of lever and it should snap into place. Pull lever to make sure it is secure.
Install deadbolt armor plate, deadbolt strike, and latch bolt strike. Secure with 6 screws.
Remember, the door stop is where the door will stop when normally operated. Stop includes any gasket, smoke seal, or bumpers. Position of strikes are to be measured from where the door actually stops. The deadbolt, when thrown, cannot have any interference with deadbolt strike. If there is any interference, strikes need to be adjusted for the lock to work properly.
IMPORTANT:
Make sure the lock operates properly before closing the door. From inside, lifting the lever should extend the deadbolt and rotating the lever down should retract both bolts. From outside, lifting the lever should extend the deadbolt. Wake up the keypad by swiping across the surface and enter 1-2-3-4-5-6-#. The LED will light red then green. Rotating the lever down should retract both bolts.
Addendum A
Changing the handing should not be needed. Lock is shipped with handing specified. See shipping confirmation or box for details.
If handing needs to be changed from Right Hand to Left Hand (Or Left Hand to Right Hand), handing must be changed on outside assembly. This entails changing a socket head screw on the back of outside assembly. Also, latch bolt and levers need to be adjusted.
See:
Addendum C To change handing on outside assembly Addendum B To remove and adjust levers Step 2 To adjust latch bolt
If handing needs to be changed from Right Hand to Right Hand Reverse (Or Left Hand to Left Hand Reverse), only the latch bolt orientation needs to be changed.
See:
Step 2 In order to adjust latch bolt
Addendum B
Remove Inside Lever
- 1) Insert prong on lever removal tool in the hole on underside of the lever.
- 2) Lift up the lever removal tool to depress the lever catch and pull the lever off.
Remove Outside Lever
1) Insert the mechanical key and rotate it 90° clockwise.
- 2) Insert prong on lever removal tool in the hole on the underside of the lever.
- 3) Lift up the lever removal tool to depress the lever catch and pull the lever off.
Addendum C
Change Handing On Outside Assembly
For this example, we will be changing the handing of a right hand lock to a left hand lock .
1) Remove lock assembly from door.

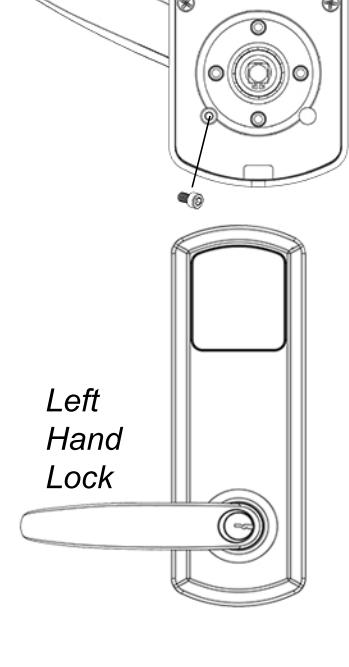

2) Rotate lever down on outside assembly, and use a 7/64" hex wrench to remove socket head screw from back of outside assembly.
3) To change handing, rotate lever up and install socket head screw on the left side of lock assembly.
Note: Be sure to change lever to new handing. See Install Outside Lever for more information.
Scan QR code for a video on changing handing

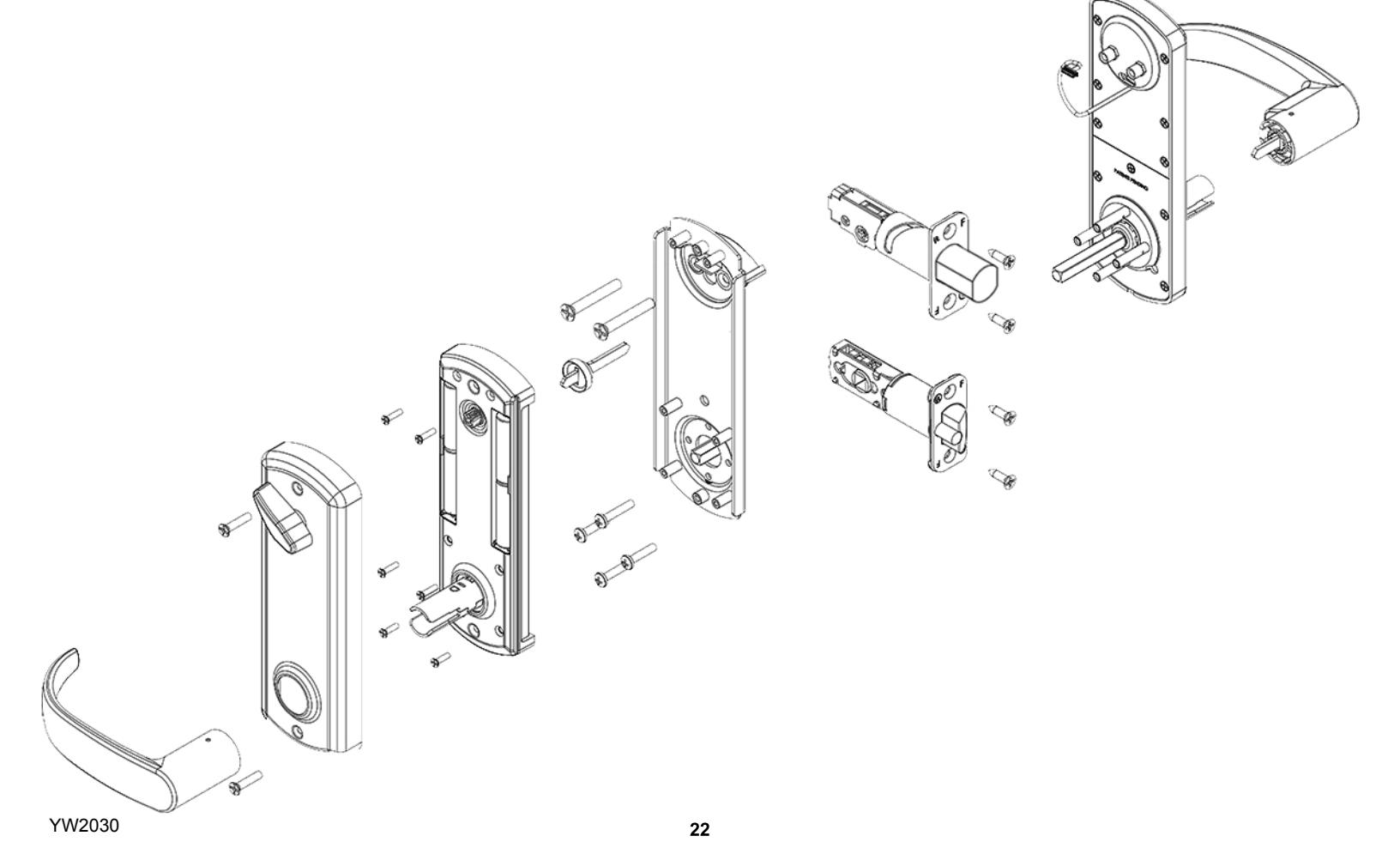

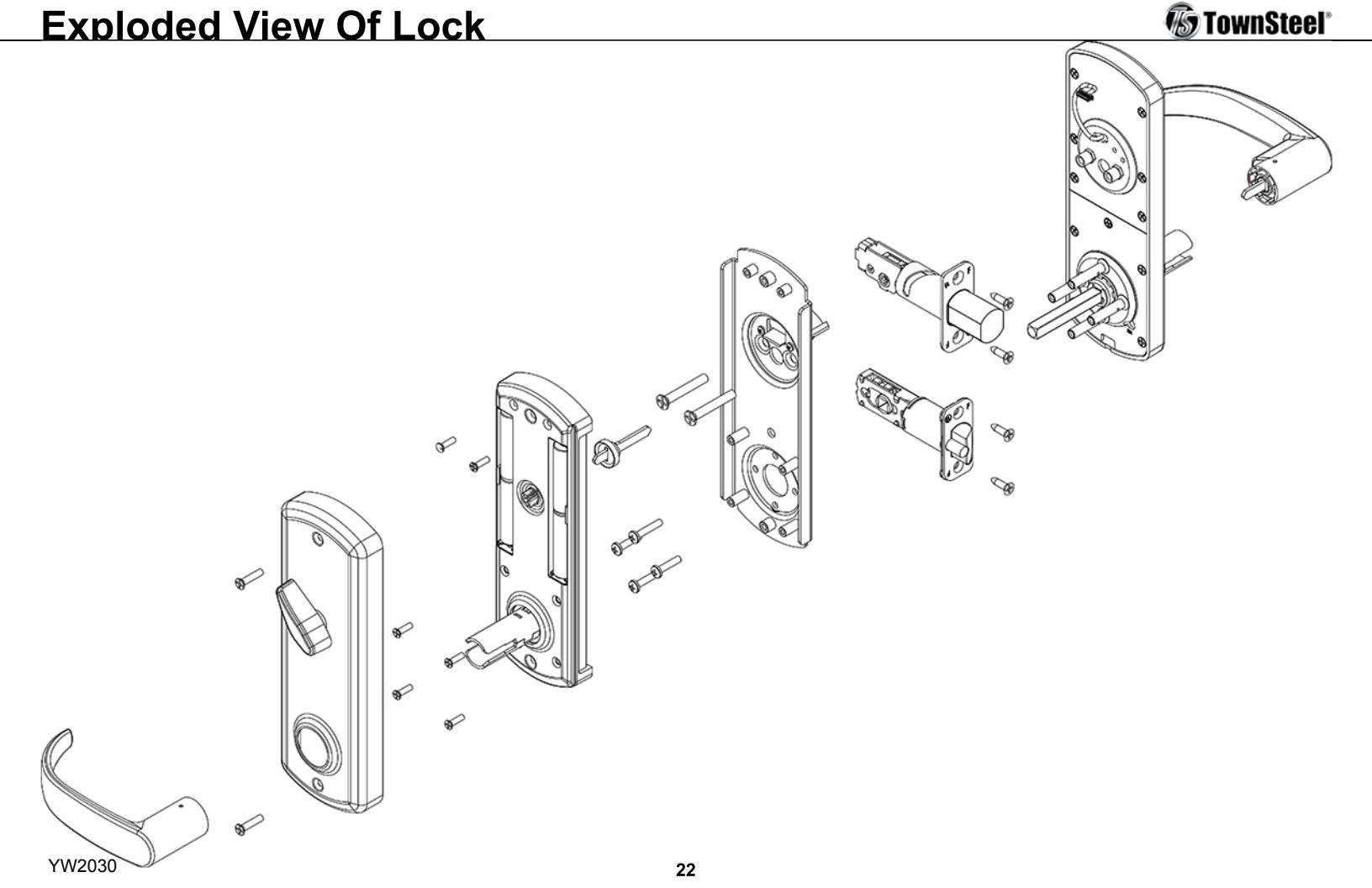

Exploded View Of Lock
| PROBLEM | CAUSE | SOLUTION |
|---|---|---|
| Keypaddoesnotlightup. | Batteriesaredead. | Replacebatteriesbyremovingbackcover. |
|
Keypadislockedoutduetoxamountofincorrect
codes. |
Wait60secondsandtryagain. | |
| Notfullypluggedinwiresorpinchedwires. | Checkwireconnection. | |
|
Latchboltretractswhenleverisrotated
up,notdown. |
Hubonlatchboltwasnotinstalled
correctly. |
Takelockoffdoorandre-adjustlatchbolt.
(SeeStep2) |
|
Rotatingoutsideleverupwillnotextend
deadbolt. |
Deadboltwasnotextendedduring
installation. |
Removeinsidelever,backcover,and
batterytrayextenddeadboltandre-install parts.(SeeStep8) |
|
Handingonoutsideassemblywasnot
properlyset |
Takelockoffdoor.Adjusthandingonoutside
assemblyandre-installparts.(SeeAddendumC) |
|
|
Keywillnotcomeoutofleverafter
installation. |
Keycylinderwasnotinstalledcorrectly. |
Useleverremovaltooltoremoveleverand
re-installcylindercorrectly.(SeeStep5) |
|
Outsideleverretractsdeadboltandlatch
boltwithoutakey,usercodeorkeycard. |
Handingonoutsideassemblywasnot
properlyset. |
Takelockoffdoor.Adjusthandingonoutside
assemblyandre-installparts.(SeeAddendumC) |
| Deadboltbindsordoesnotfullyextend. | Strikesarenotaligned. | Adjuststrikes.(SeeStep12) |
VISITWWW.TOWNSTEEL.COMFORMOREINFORMATION.
17901RAILROADSTREET CITYOFINDUSTRY,CA91748 TOLLFREE:877-858-0888 TEL:626-965-8917
FAX:626-965-8919
