Product Bulletin

Date: 02/20/2017

Product: LA GARD Backlit Input Unit

Subject: New LA GARD Models 5715, 5750, and 5750-K Input Units

Bulletin #28

The new LA GARD Model 5715, 5750, and 5750-K Input units for use with LA GARD locks have been released into production. These new input units are intended as replacements for retiring models 4715, 3750, and 3750-K, respectively. These retiring models will be discontinued when inventory is depleted, with a target End-Of-Life in mid-2017.

The new 57xx series of input units are a drop-in replacement for those models being retired. There will be no price difference between the new 57xx keypads and their corresponding retiring models.

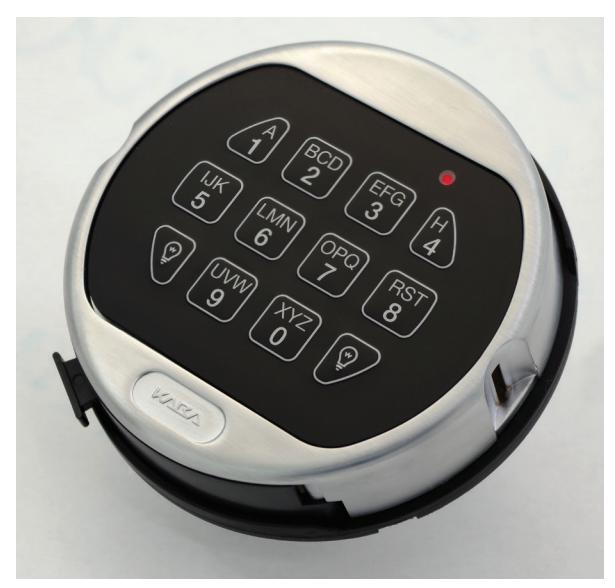

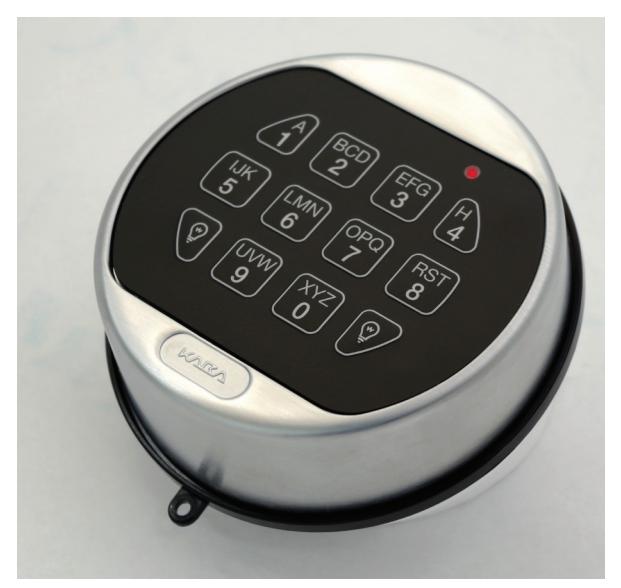

Model 5715 Model 5750

New Features:

• All 57xx models come with a backlit keypad as a standard feature.
• All 57xx models come with a two-year warranty from date of manufacture.
• All 57xx models have withstood unprecedented Reliability Life Cycle testing performed by industry leading international Quality Assurance test lab.

Other Features and Benefits Include:

• Lock Firmware compatibility

	5715	5750	5750-K
Basic/Basic Plus 4200/4200M, 3740, 3734	P	P	P
ComboGard Pro 4300/4300M, 6040/6040M, 6034, 6441 Redundant	P	P	P
AuditGard 4300/4300M, 6040/6040M, 6034, 6441 Redundant			P

NOTE: Locks retain all current UL and VdS/EN 1300 certifications when paired with 57xx input units as shown in this table.

• 57xx are offered in the following finishes:
  • 5715-SC Satin Chrome - 5715-BC Bright Chrome
  • 5715-BK Black
  • 5715-BN Black Nickel
  • 5750-SC Satin Chrome
  • 5750K-SC Satin Chrome
• Single nine-volt battery, accessible from the outside of the locked container.
• Hinged battery door on the 5750 and 5750-K for ease of battery replacement.
• Improved keypad button response with Direct-Press circuit board contact
• Improved keypad membrane
• Improved PCBA manufacturing and reliability
• For spindle models, easy-twist design with improved grip points
• Improved wire routing for cable retention
• Standard vertical mounting points; consistent installation, compatibility, and function with LA GARD locks, accessories, and industry standard dimensions

New documents being released with the 57xx keypads:

• 7030.0316 5715 User Operating Instructions • 7031.0316 5750 User Operating Instructions • 7032.0316 5750-K User Operating Instructions • 732.018 Rev O ComboGard Manager Instructions • 759.128 Rev F AuditGard Manager Instructions • 762.128 Rev G Entry device installation instructions
