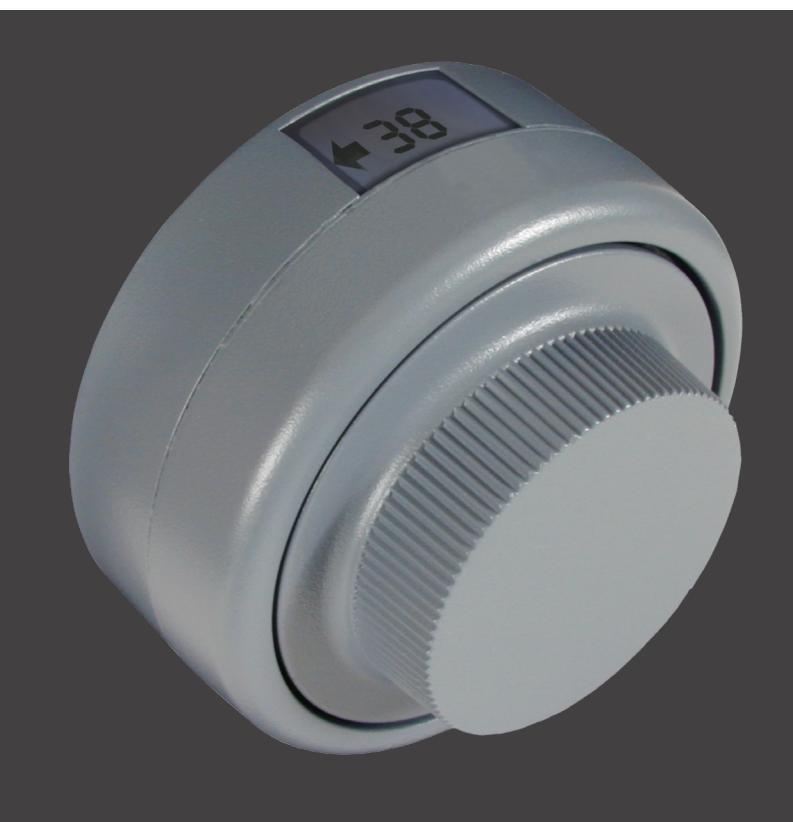

Kaba Mas X-10/CDX-10/ DKX-10
May 1, 2018
Type 1F High Security Electronic Locks FF-L-2740B/ FF-L-2790B
FF-L-2740B
| High-Security Lock |
|---|

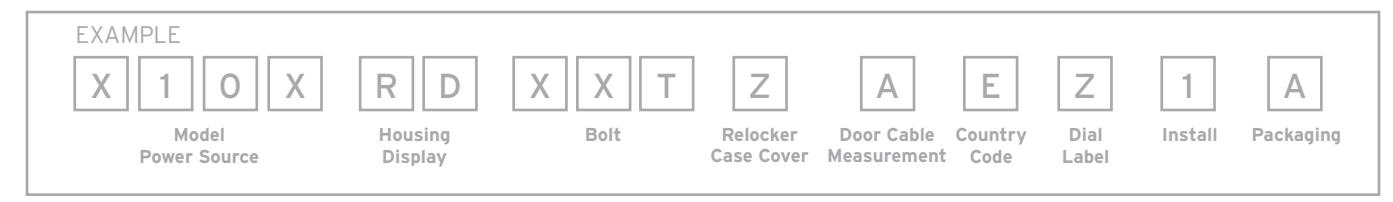

| Model/Power | Description | LIN (Lock Identification Number) | List Price |
|---|---|---|---|
| X10X | Standard OEM, Distributor, Self-Powered | X10Xxxxxxxxxxxx | $1,841.00 |
| Housing/Display | Add to List | ||
| RD | Round | xxxxRDxxxxxxxxx | no add |
| Bolt | |||
| XXT | Dead Bolt, 10-32.5 (2X) Tapped Holes | xxxxxxXXTxxxxxx | standard |
| Relocker/Case Cover | |||
| Z | Standard | xxxxxxxxZxxxxx | no add |
| Door Measurement | |||
| A | .92" (23.37 mm) Door | xxxxxxxxxxAxxxx | no add |
| B | 1.06" (26.92 mm) Door | xxxxxxxxxxBxxxx | no add |
| C | 1.13" (28.7 mm) Door | xxxxxxxxxxCxxxx | no add |
| D | 1.17" (29.72 mm) Door | xxxxxxxxxxDxxxx | no add |
| E | 1.25" (31.75 mm) Door | xxxxxxxxxxExxxx | no add |
| F | 1.38" (35.05 mm) Door | xxxxxxxxxxFxxxx | no add |
| G | 1.61" (40.89 mm) Door | xxxxxxxxxxGxxxx | no add |
| H | 2.06" (52.32 mm) Door | xxxxxxxxxxHxxxx | no add |
| J | 2.16" (54.86 mm) Door | xxxxxxxxxxJxxxx | no add |
| K | 2.25" (57.15 mm) Door | xxxxxxxxxxKxxxx | no add |
| L | 2.81" (71.45 mm) Door | xxxxxxxxxxLxxxx | no add |
| M | 4.50" (114.3 mm) Door | xxxxxxxxxxMxxxx | standard |
| N | 10.0" (254 mm) Door | xxxxxxxxxxNxxxx | add $320.00 |
| Country Code | Add to List | ||
| Country Code | Add to List | ||
|---|---|---|---|
| E | United States | xxxxxxxxxxxExxx | no add |
| Dial Label | |||
| Z | Standard | xxxxxxxxxxxxZxx | no add |
| Install | |||
| 1 | Distributor/Government (Individual) | xxxxxxxxxxxxx1x | no add |
| Packaging | |||
| A | Distributor/Government (Individual) | xxxxxxxxxxxxxxA | no add |
X-10 locks packed (10) per master carton
FF-L-2890B CDX-10™ X-10™
High Security Pedestrian Door Lock
CDX-10
Type V
| NOTE: to order the CDX-10 please specify strike using the information below | |||
|---|---|---|---|
| Part # | Description | List Price | |
| For mounting specify (includes plate and strike): | |||
| 521025/521030 | Strike Type 1 | $2,384.00 | |
| 521025/521031 | Strike Type 2 | $2,384.00 | |
| 521025/521032 | Strike Type 3 | $2,384.00 | |
| 521025/521033 | Strike Type 9 | $2,384.00 | |

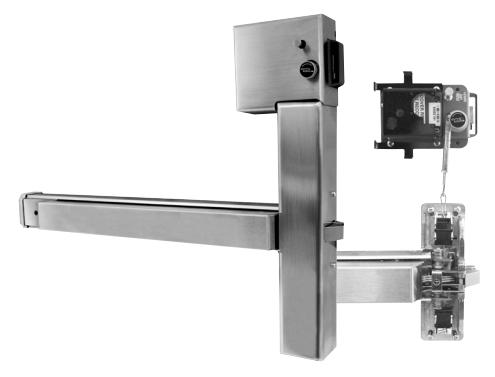

High Security Pedestrian Exit Device
DKX-10
Type III
| Part # | Description | List Price |
|---|---|---|
| 521026/511050 | Includes X-10, CDX base plate (521031) | $5,495.00 |
| Type 2 strike, F9300 fire-rated rim exit device, | ||
| strike and outside lever trim |
DKX-19
Type III
| Part # | Description | List Price |
|---|---|---|
| 511051 | Includes Sargent & Greenleaf 2740B | $6,995.00 |
| combination lock, CDX base plate, F9300 | ||
| fire-rated exit device, strike and outside lever trim |
X-10 Parts
| Accessories | Display Stand | List $ Per |
|---|---|---|
| 104035 | Display Stand for X-10 | $93.00 |
| 527075 | X-10 Mounted on Display Stand | $1987.00 |
| Part # | X-10 LCD Assembly (IC) | List $ Per |
| 507081 | Contents: LCD Endcap Assembly, Type 2, Non-Backlit (1) | $170.00 |
| 527081 | Contents: LCD Endcap Assembly, Type 2, Backlit (1) | $188.00 |
| Part # | X-10 Cable Assembly for up to 4.5" Door (UA) | List $ Per |
| 527100 | Contents: Cable Assembly, Flex Wall thk. 4.5 (1) | $103.00 |
| Ground Contact (1) | ||
| Tube Retainer (1) | ||
| Screw - FH 2 - 56 X .188, TORX, UC (1) | ||
| Part # | X-10 Cable Assembly for up to 2.25" Door (UA) | List $ Per |
| 521011 | Contents: Cable Assembly, Flex Wall thk. 2.813 (1) | $99.00 |
| Ground Contact (1) | ||
| Tube Retainer (1) | ||
| Screw - FH 2 - 56 X.188, TORX, UC (1) | ||
| Part # | X-10 Instruction Pack | List $ Per |
| 527002 | Contents: Change Key (1) | $34.00 |
| Mounting Template (1) | ||
| X-10 Operating Instructions (1) | ||
|
X-10 Installation Instructions (1)
X-10 Quick Reference Guide (1) |
||
| Part # | X-10 Change Key | List $ Per |
| 107061 | $13.00 | |
| Part # | X-10 Lock Mounting Kit | List $ Per |
| 524002 | Contents: | $54.00 |
| Saw Blade 52 teeth/inch (1) | ||
| Saw Handle (1) | ||
| Hexkey, 5/64 Long (1) | ||
| Tube Deburr Stone (1) | ||
| Vise Clamp (1) | ||
| Hub Gauge (1) | ||
| Lubricant, Tube Lubriplate Grease (1) | ||
| Screw - PH 8/32 X 5/16 (4) | ||
| Screw - Case 1/4 - 20 X .38 (4) | ||
| Screw - Case 1/4 - 20 X .31 (4) | ||
| Insulator, Tape M85-89 (1) | ||
| Zebra Connector Housing (1) | ||
| Zebra Connector, SPL (1) | ||
| Cable Retainer (3) | ||
| Spindle Screw - PH 6.32 X .395 (1) | ||
| Part # | X-10 Hub Assembly (GC) | List $ Per |
| 504067 | Contents: Hub Assembly (1) | $14.00 |
X-10 Parts
| Part # | X-10 Dial-Retaining Rings (C-Clips) | List $ Per |
|---|---|---|
| 504085 | Replacement Clips used w/ Hub (50) | $104.00 |
| Part # | X-10 Dial (HC) | List $ Per |
| 504068 | Contents: X-10 Dial (1) | $26.00 |
| Part # | X-10 4.5" Spindle Assembly with Mounting Screw (EC) | List $ Per |
| 524004 | Contents: Spindle Assembly, W-THK 4.5 (1) | $29.00 |
| Part # | X-10 Tube Kit (MA) | List $ Per |
| 104017 | Contents: Inner Tube 4.5 (1) | $60.00 |
| Outer Tube 4.5 (1) | ||
| Part # | Lubricant | List $ Per |
| 9810004 | Contents: Lubricant (1) | $1.70 |
| Part # | X-10 Coversion Kit for 10" Thick Door | List $ Per |
| 521000 | Contents: Spindle w/ screw, Cable Assembly, Tube - Inner, Outer | $407.00 |
| Part # | X-10 Sealed Lock Case Assembly, Bolt, Tapped (AC) | List $ Per |
| 521017 | Contents: Lock Case Assembly (1) with 4.5" cable | $1,373.00 |
| 521019 | Contents: Lock Case Assembly (1) with 2.813" cable | $1,369.00 |
| 521009 | Contents: Lock Case Assembly (1) without cable | $1,271.00 |
| Part # | X-10 Generator | List $ Per |
| 507084 | Contents: Generator, Non-Backlit (1) | $114.00 |
| Part # | X-10 Dial Ring Assembly (no LCD) (DC) | List $ Per |
| 504075 | Contents: Dial Ring (1) | $48.00 |
| Spindle Tube Retainer (1) | ||
| Spindle Tube Holder (1) | ||
| Screw - BH, 4-40 X .156, Comb. Drive (2) | ||
| Washer, SPL. flat, .185 ID X .360 OD (2) | ||
| Part # | X-10 Dial Ring Cover Assembly (CC) | List $ Per |
| 507085 | Contents: Generator Clutch Assembly, PCB (1) | $176.00 |
| Dial Ring Cover Assembly (1) | ||
| Screw - PH 8/32 X 5/16 (2) | ||
| Gear Plate Assembly (1) | ||
| Screw - SEMS, 6/32 X .313, Plain (3) | ||
| Gear Drive, 94ET/48P, 15IT/30P (1) | ||
| Gear, Comb, 14/53T, 48P (1) | ||
| Screw - PH 4/40 X 5/32 (2) | ||
| Screw - PH, 4/40 X .375, CRBH, Type 1 (2) | ||
NOTE: Minimum order amount per shipment is $100.00 net.
CDX-10
Strikes/Plates

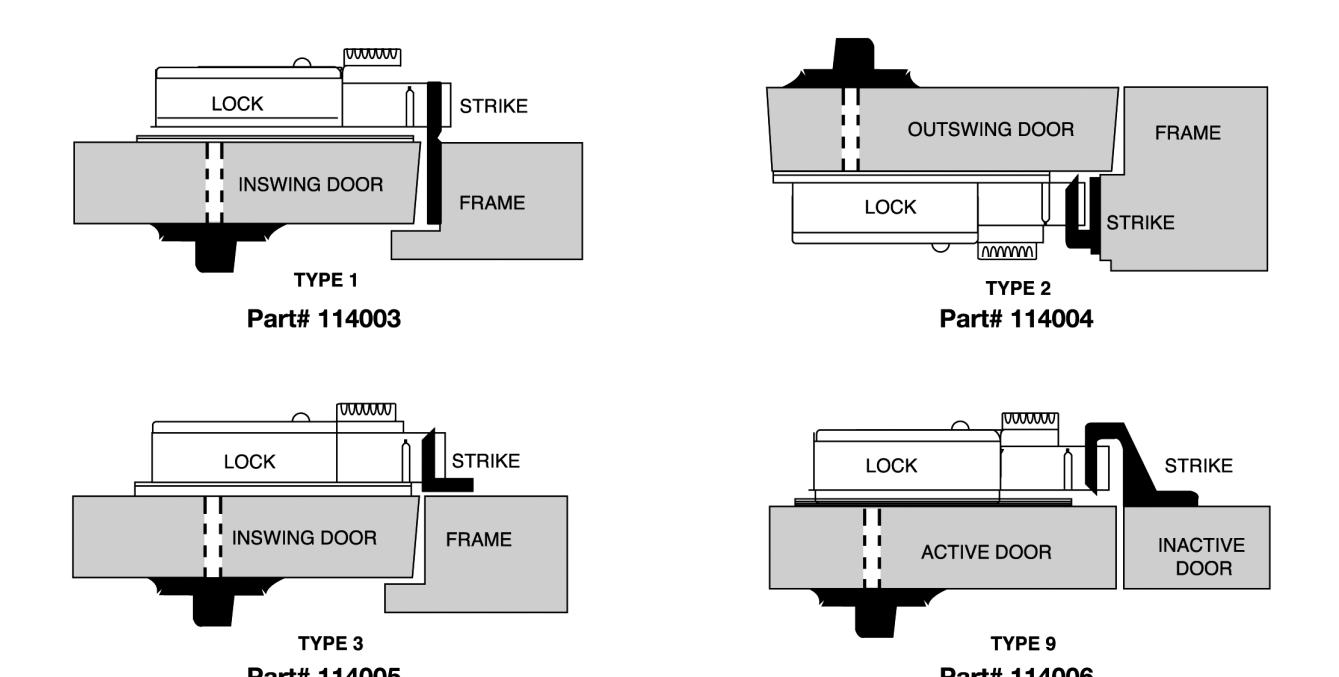

CDX-10 (FF-L-2890B) APPLICATIONS
| Part # | CDX Strike type 1 | List $ Per |
|---|---|---|
| 114003 | Contents: Strike Type 1 (1) | $22.00 |
| Part # | CDX Strike type 2 | List $ Per |
| 114004 | Contents: Strike Type 2 (1) | $48.00 |
| Part # | CDX Strike type 3 | List $ Per |
| 114005 | Contents: Strike Type 3 (1) | $42.00 |
| Part # | CDX Strike type 9 | List $ Per |
| 114006 | Contents: Strike Type 9 (1) | $71.00 |
| Part # | Mounting Plate | List $ Per |
| 114024 | Contents: Mounting Plate (1) | $110.00 |
| Part # | Base Plate | List $ Per |
| 115034 | Contents: Base Plate (Inside Container Door) (1) | $89.00 |
NOTE: Minimum order amount per shipment is $100.00 net.
Technical Training
| Part # | Course Description | Duration | Class Fee | Minimum Class Size |
|---|---|---|---|---|
| X091O-0900 | X-10 Installation/Operation (at Kaba Mas) | 1 day | $275/person | 6 |
| X091O-0900 | X-10 Installation/Operation (Off-site) | 1 day | $275/person | 6 |
* Course fee plus expenses
ALL CLASS FEES ARE NET PRICE EITHER PER DAY OR PERSON
X-10 off-site training must be prearranged by Kaba Mas distributor.
Note: Expenses are defined as instructor's travel (airfare/mileage), lodging, meals, transportation, and shipping training materials.
Product Weights & Measures
| X-10 | ||
|---|---|---|
| Single box | 4 lbs. | 10" x 7 1/4" x 4 1/4" |
| 10-Pack box | 40 lbs. | 22" x 15" x 11" |
| 6-Pack box | 24 lbs. | 12 1/2" x 12 1/2" x 12 1/2" (OEM) |
| CDX-10 | ||
| Single box | 9 lbs. | 12" x 9 1/4" x 6" |
| 5-Pack box | 45 lbs. or 63 lbs. | 19" x 16" x 12 1/2" (Gov't) |
| DKX-10 | ||
| Single box | 25lbs. (DKX) 9 lbs. (CDX) | DKX 51 1/2" x 10 1/2" x 5 1/2" |
| CDX 12" x 9 1/4" x 6" |
Kaba Mas LLC 1051 Newtown Pike, Ste. 150 Lexington KY 40511 T: 859 479 1329
