product: X-09 High Security Lock

application: X-09 Lockcase Screws Now With Nylock

Thread; Replacement CDX-09 Cover Kit

Bulletin: #022

Date: 8/23/07

Item #1: Nylock Screws for X-09 Lockcase Mounting

Kaba Mas now ships with each X-09 lock 2 sets of lockcase mounting screws that include a thread of locking material. This change was enacted on August 15, 2007 (lock serial number N09SRO17108152007 and above.) Resulting from this change, the use of Loctite® during the installation process is no longer necessary.

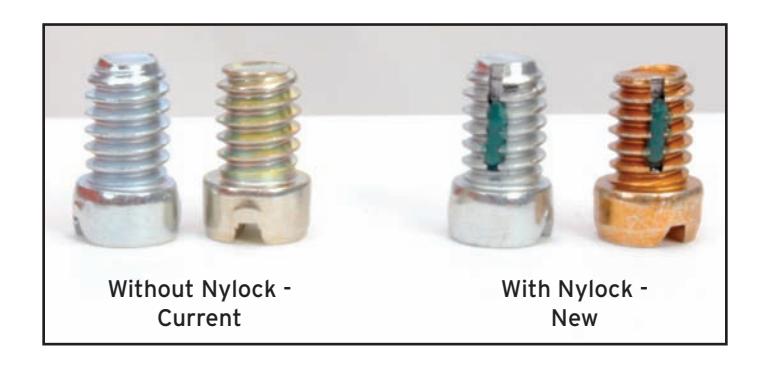

Previous version Lock Case Screws (required installer to add Loctite®)

New version Lock Case Screws (now comes with Nylock thread)

Color: Silver Size: 1/4 - 20 x .38L Qnt: 4 Color: Gold Size: 1/4 - 20 x .31L Qnt: 4

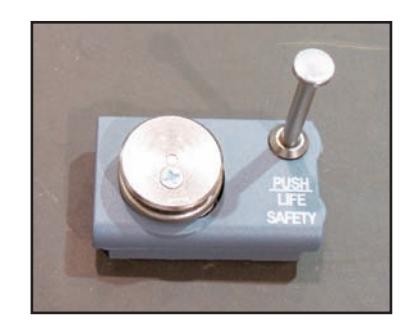

Item #2: CDX-09 for HSPED Replacement Cover with Long Pin

This part kit allows customers with a CDX-09 in use with HSPED (High Security Pedestrian Exit Device) to replace the cover in applications where the long plunger is required.

P/N: 514022 List price: $190

Kit contents:

• 1. CDX-09 cover with long plunger (1)
• 2. #6-32 flat head screw for the lock pulley cover (1)
• 3. X-09 back cover screws (2)
• 4. cable ties (3)
• 5. LOBC pin (1)
• 6. LOBC pin spring (1)
• 7. LOBC pin clip (1)
• 8. Replacement instructions
