CATEGORY: Parts Kits PRODUCT: X-09™ High Security Lock BULLETIN NUMBER: MB017

DATE: 7/27/06

Modification to Part Number of Motor Kit

The X-09 Motor Kit, previously P/N 507083, is now P/N 507101. The slide retainer and a screw used to attach it have been added to this motor replacement kit.

When replacing a motor in the X-09 lock using this new kit, one MUST also replace the fence and slide retainer. Otherwise, the new motor will not fit with the existing versions of these lock parts. Instructions are provided.

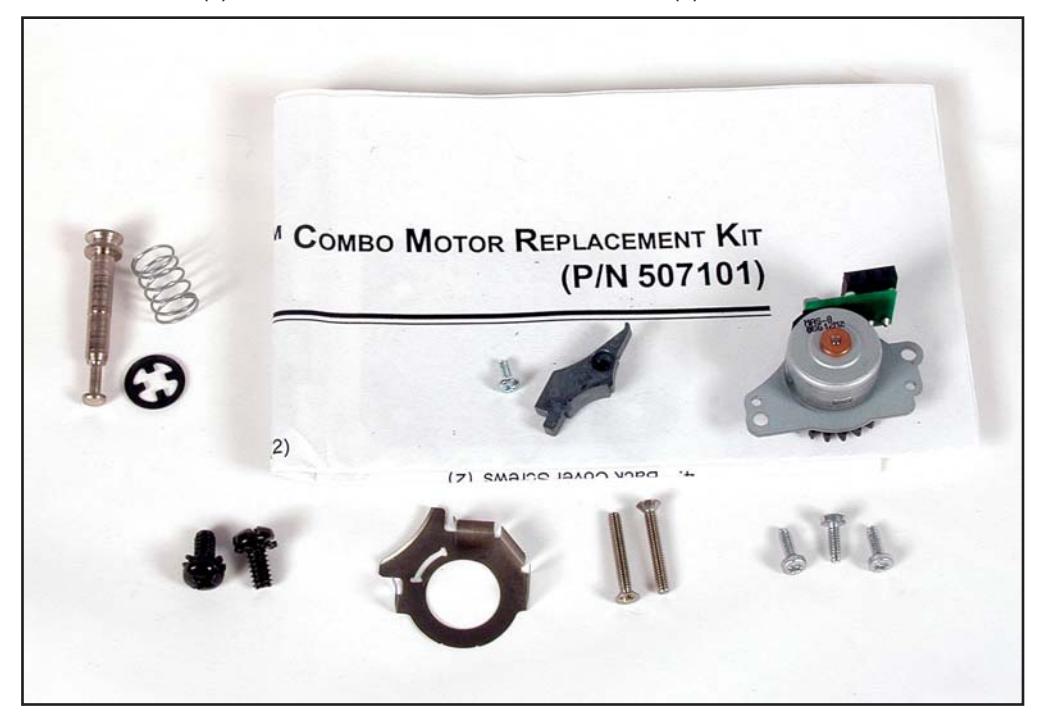

Contents of Kit:

(from top left) LOBC (Lock on Back Cover) Pin, Spring, Clip (1 each), Instructions (1), Phillips Head Screw for Slide Retainer (1), Slide Retainer (1) Combo Motor (1), (second row) Back Cover Screws (2), Fence (1), Flat Head Screws for CDX-09 Combo Motor (2),Torx Screws for X-09 Combo Motor (3)
