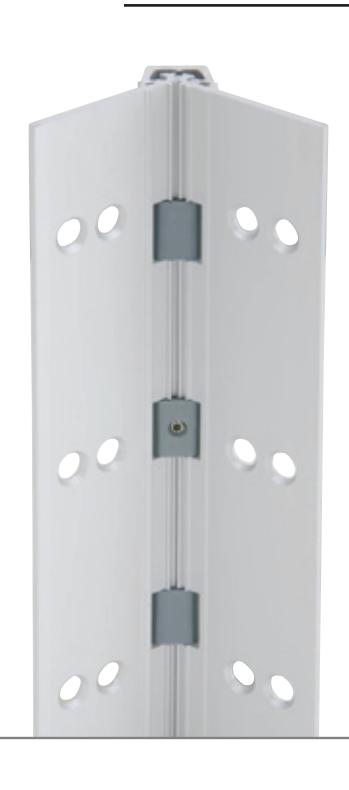

112HD Full mortise - narrow frame and door leaf

• For 1 3/4" doors
• Spread bearing design
• Non Handed for custom cut lengths

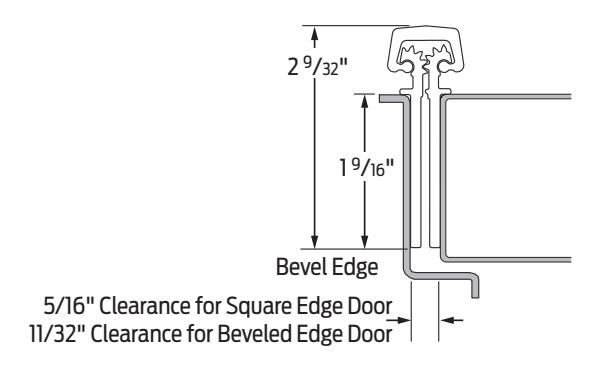

• Flush mounted, no inset
• 48" Maximum door width
• Beveled or square edge doors
• For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing

Certifications

• Meets ANSI 156.26 for 150lbs
• UL10C certified

Standard lengths

83", 85", 95", 120"

Standard Mounting Hardware

12-24 x 3/4" Steel self drilling / self tapping phillips head screw

Finishes

Clear Anodized (US28), Dark Bronze Anodized (313AN)

Custom anodizing and painting are available, consult factory.

Options:

EPT. . Electric power transfer

Optional mounting hardware:

• SECHM. . Security screws hollow metal door and frame
• SECWDHM. . . . . . .Security screws 1/2 wood, 1/2 hollow metal
• SECWDWD. . Security screws wood door and frame
• TF. . Thread forming screws
• TEKWD. . 1/2 self drill, self tap 1/2 wood
• WD. . Wood door and frame

For single door applications:

For pairs of doors see chart and general information
