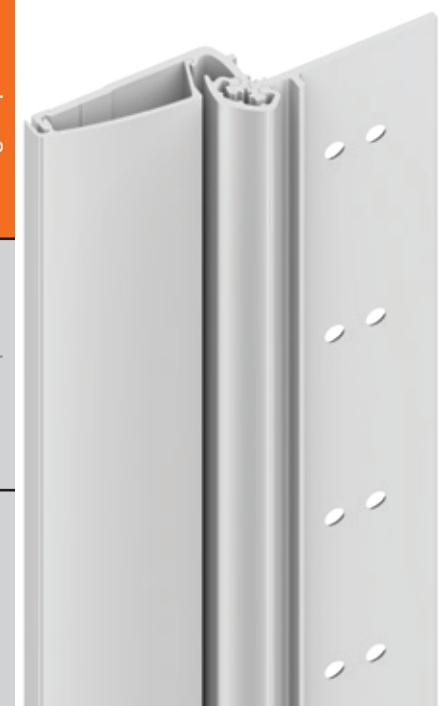

046XY Half surface - wide door leaf

• Half surface for retrofit or new construction

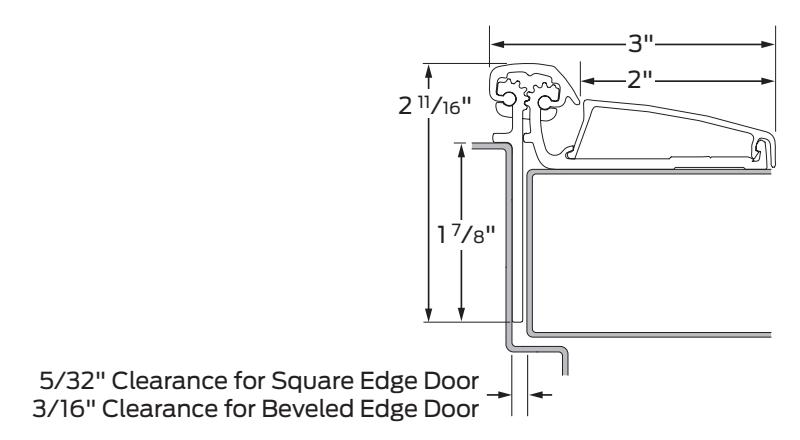

• Frame leaf depth 1-7/8"
• Patented center loaded, interlocking bearing design
• XY (lateral and vertical) adjustability while hanging the door
• Pinch point between cover and door is eliminated
• Non Handed for custom cut lengths
• 9/32" door inset
• Frame guidance lip is extended further for retrofit applications to cover existing heavy weight architectural hinge preps
• For doors weighing up to 450 pounds without reinforcing, 600 pounds with reinforcing
• For lead-lined application consult factory for engineering specials

Certifications

• Meets ANSI 156.26 for 150lbs and 300lbs
• UL10C certified

Standard lengths

83", 85", 95", 119"

Standard mounting hardware

12-24 x 3/4" Steel self drilling / self tapping hex head screw 12-24 x 3/4" Steel self drilling / self tapping phillips head screw

Finishes

Clear Anodized (US28), Dark Bronze Anodized (313AN), Black Anodized (315AN) Custom anodizing and painting are available, consult factory.

Optional mounting hardware:

• SECHM. . Security screws hollow metal door and frame
• SECWDHM. . . . . . .Security screws 1/2 wood, 1/2 hollow metal
• SECWDWD. . Security screws wood door and frame
• TEKWD. . 1/2 self drill, self tap 1/2 wood
• WD. . Wood door and frame

For single door applications:

For pairs of doors see chart and general information
