TOOLS REQUIRED

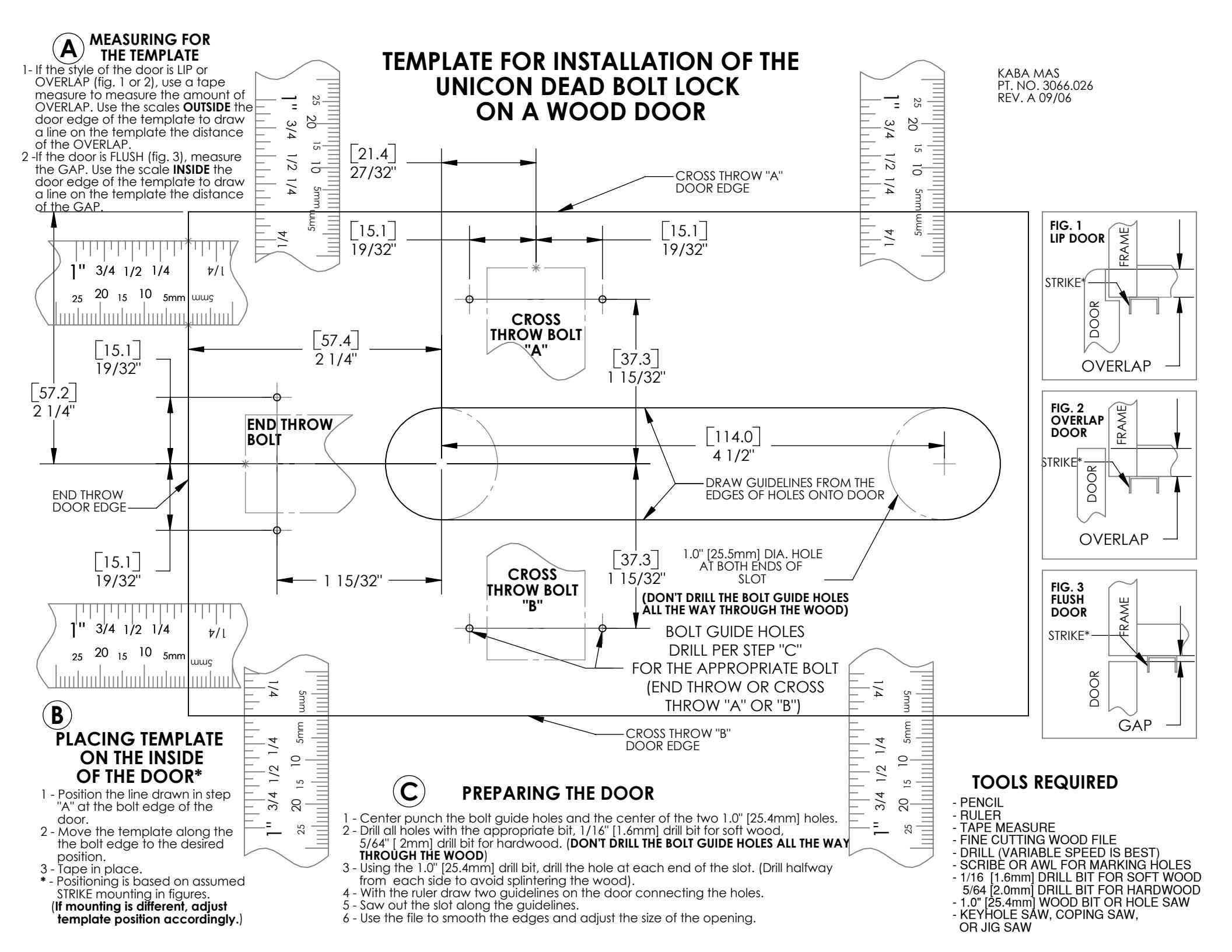

PLACING TEMPLATE ON DOOR

• 1- Position the bolt edge of the template on the bolt edge of the door.
• 2 Move the template along the the bolt edge of the door to the desired position.
• 3 Tape in place.

PREPARING DOOR FOR BOLT GUIDE

• 1- Mark the three holes using the dimensions shown on the left side of this sheet.
• 2 Drill the two small holes with a 1/8" [3mm] drill.
• 3 Drill the center hole with a 5/16" [8mm] drill bit. (Bolt must slide freely in this hole.)
• 4 Deburr all holes.

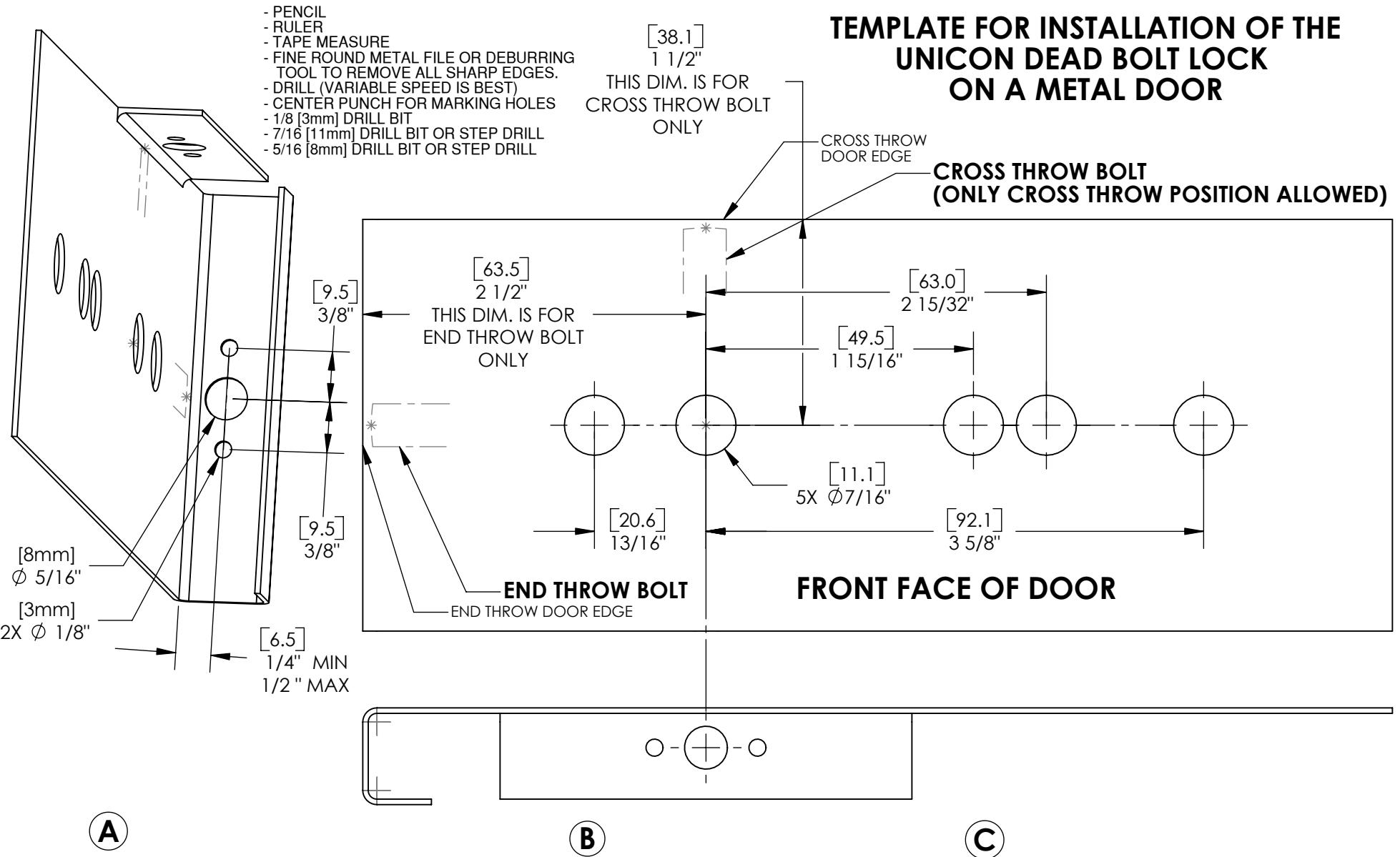

PREPARING THE DOOR FOR LOCK MOUNTING

• 1 Center punch the five lock mounting holes.
• 2 Drill all holes with the 7/16" [11mm] drill bit.
• (If a step drill is not used, a pilot hole may be required)
• 3 Deburr all holes using a file or deburring tool.
