Installation instructions

Company

Founded in 1983 with the aim of providing a complete range of professional products, Tecnosicurezza is now a consolidated reality in the field of locks and security systems for safes.

The experience gained in over 35 years of activity in the security sector has allowed the designing and manufacturing of high technology and reliability systems, which continue to receive the approval of an increasingly demanding clientele.

TECNOSICUREZZA is present directly on the Italian, Spanish and US markets and, through a extensive distribution network, in many European and extra-European countries.

TECNOSICUREZZA is aimed at national and international customers of primary importance, such as banks, safe manufacturers, cash in transit companies, mass market retailers and post offices.

Today TECNOSICUREZZA is a leading company focused on the customers' needs and constantly in step with technology.

Table of contents
COMPANY	2
TABLE OF CONTENTS	3
MODELS AND CHARACTERISTICS	4
ACCESSORIES	4
AUDIT AND PROGRAMMING ACCESSORIES	4
CERTIFICAZIONS	5
IMPORTANT NOTES!	6
KEYPAD DIMENSIONS	7
ROTOBOLT LOCK DIMENSIONS	8
STRAIGHTBOLT LOCK DIMENSIONS	8
SPRINGBOLT LOCK DIMENSIONS	9
MOTORLOCK DIMENSIONS	9
MOTORSPRINGBOLT LOCK DIMENSIONS	9
FIXED KEYPAD INSTALLATION INSTRUCTIONS	10
ROTOBOLT LOCK INSTALLATION INSTRUCTIONS	10
STRAIGHTBOLT AND SPRINGBOLT LOCKS INSTALLATION INSTRUCTIONS	11
MOTORLOCK AND MOTOR SPRINGBOLT LOCKS INSTALLATION INSTRUCTIONS	12
FUNCTIONAL TEST	14
CE DECLARATIONS	15
NOTES	17
CONTACTS	20

Models and characteristics

Model	Variant
T9510/BR – Keypad in metal. Black colour	/DL with Dallas key reader.
with rubber membrane foil keypad in black
colour.

Accessories

Code	Description
N077/A	Battery box with alarm interface.
L4001	Large battery box for 6 size C 1.5V batteries.
T6005/W	Power supply interface (12Vdc).
T6005	Power supply interface (12Vdc) with alarm interface.
L2666	Knob with 6 mm square spindle.
N1982	User Dallas key.

Audit and programming accessories

Code	Description
N42180/T	Interfaccia USB.
N42170/D	Dallas key reader with molex connector.
N42170/J	Dallas key reader with jack connector.
N42170/M	Magnetic Dallas key connection cable.
N1996RM	Magnetic Dallas key for audit.
T42146/J	Setup and audit cable.

Certificazions

PA SI VrIS SPA VdS \ SPA

Anerkennung

von Bauteilen und Systemen

of Components and Systems

Inhaber der Anerkennung TECNOSICUREZZA s.r.l. Via Cesare Battisti 276 IT-37057 Verona

Anerkennungs-Nr. Anzahl der Seiten gültig bis //7.444....// gültig vom //T.WW.LUU/ Approvat No No. of pages M 114313 07.07.2018 06.07.2022

Gegenstand der Anerkennung

Elektronisches Hochsicherheitsschloss - Klasse 2 High security electronic lock - class 2

DigiTech

Verwendung

in Wertbehältnissen

in secure storage units

Anerkennungsgrundlagen Basis of the Approval VdS 2344:2014-07 VdS 2396:2014-07 EN 1300:2013-11

Köln, den 06.07.2018

((DAkkS D-ZE-11149-01-01

Dr. Reinermann

Geschäftsführer Managing Director

muclial i. V. Prudent

Leiter der Zertifizierungsstelle Head of Certification Body

Die Anerkennung

umfasst nur das angegebene Bauteit/System in der zur Prüfung eingereichten Ausführung

mit den Bestandteilen nach Anlage 1.
dokumentiert in den technischen
Unterlagen nach Anlage 2, zur Verwendung in den angege benen Einrichtungen der Brandschutz- und Sicherungstechnik.

Bei der Anwendung des Gegenstandes der Amerkennung sind die Hin-weise mach Anlage 3 zu beachten.

Das Zertifikat darf nur unverändert und mit sämtlichen Anlagen verviel-fältigt werden. Alle Änderungen der Vorausset zungen für die Anerkennung sind der VdS-Zertifizierungs-stelle – mitsamt den erforderlicher Unterlagen - unverzüglich zu über-

This Approval

is valid only for the specified compo nent/system as submitted for testing

togeth at with the years listed in enactorsure 1 documented in the technical documents according to
enclosure 2 for the ase in the specified fire protection and security installation 4.

When using the subject of the approval the notes of enclosure 3 shall be observed.

This certificate may only be reproducted its present form without any modifications including all enclosures. All changes of the underlying conditions this approval shall be reported at on to the VolS certification body includin the required documentation

VdS Schadenverhütung GmbH Zertifiz-ierungsstelle Amsterdamer Str. 176 D-50735 Willi

Ein Linteraehmen des Gesamt-Ein Unterzehmen des Gesamt-werben des der Deutschen Ver-sicher zun gewitschaft e.V. (GDV), durch die DAkkS akkreditiert als Zertifizierungsstelle für Produkte in den Beraikhen Brandschutz und Sicher ungstechnik

A correspond to the German Insuran Association (GDV) accredited by DAI as cartification body by fire protects and security products

Important notes!

Before installing this product, please read carefully the installation and operating instructions.
Locks can be installed in all traditional safes.
Lock has to be mounted on secure storage metal (preferred steel) units only.
Locks must be protected against external attacks, for this reason it is recommended to install them on the door away from any through holes.
Any electronic part must be properly protected and not easily accessible even when the door is open.
Locks have been developed to work correctly in a temperature range from -5 ° C to + 50 ° C and in an environment with non-condensing humidity between 25% and 90%.
The mounting dimensions are standard (magic module).
For the installation of the keypad and lock, use only the screws provided by Tecnosicurezza. Any other screw must be approved in advance.
Locks are supplied with metric (M6) mounting screws. Upon request, Imperial 1/4-20 UNC format mounting screws are available.
The type of material and the length of the screws must, in any case, be selected so as to guarantee long life and reliability.
Tighten the screws so that the lock is firmly fixed to the mounting surface (recommended torque between 2.5 and 5.5 Nm).
The mounting surface must be perfectly flat.
In order to prevent loosening of the screws it is recommended the use of LOCTITE® threadlocker and/or specific washers positioned under the head of the fixing screw.
The diameter of the passage hole for the connection cable or the spindle must not exceed 11 mm.
The hole must be completely cleaned of drill dust and no edge should be sharp.

Lock must not be lubricated.
In the locked position, the distance between the bolt and the boltwork part that is moving the lock bolt must comply with the following specifications for each type of lock.
Any component to be fixed to the lock bolt must be previously approved by Tecnosicurezza before installation. In any case, the maximum load must not exceed 2.5 N.
Secure the cables away from moving parts by using cable ties and cable ties bases.
If placed in normal domestic or office environments, the locks do not require particular maintenance; in any case, after 10,000 opening/closing cycles, it is recommended to run a test that verifies the correct and complete operation of the product.
Use only DURACELL™ 9 Volt Alkaline batteries, or battery holders with DURACELL™ 1.5 Volt Alkaline batteries. Alternatively, it is also possible to use a stabilized 12V - 1A power supply (p.n. N1212) with relative power supply interface (p.n. T6005/W or p.n. T6005).
A series of acoustic signals during opening indicate a low battery level. In this case, the battery must be replaced.

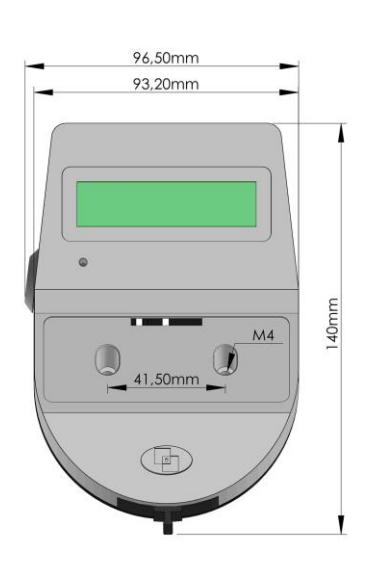

Keypad dimensions

II_DigiTech_01_eng 7 of 20

STANDARD mounting VERTICAL mounting

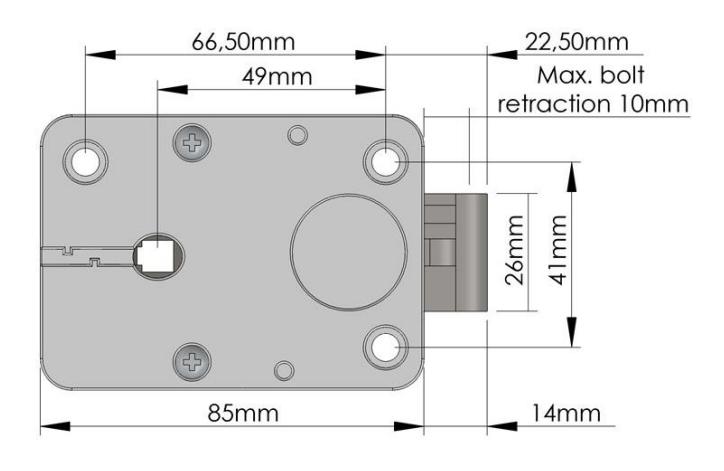

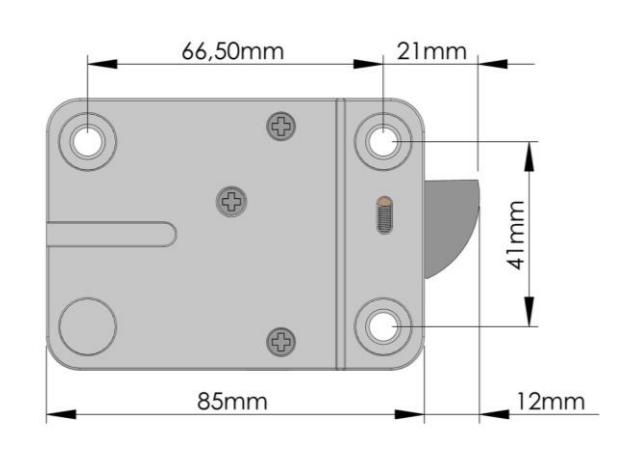

RotoBolt lock dimensions

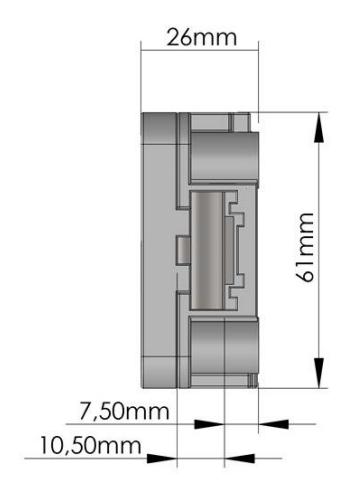

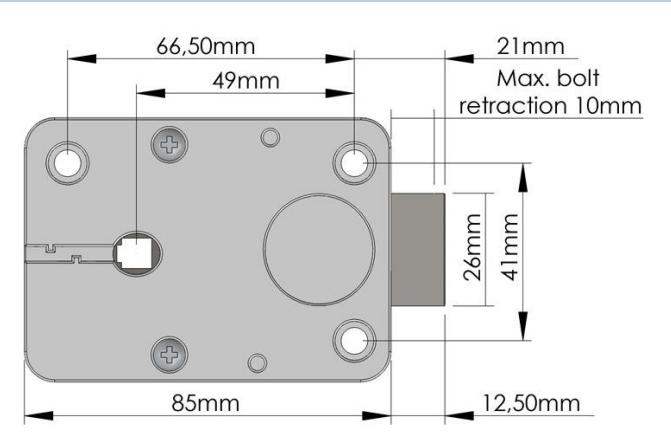

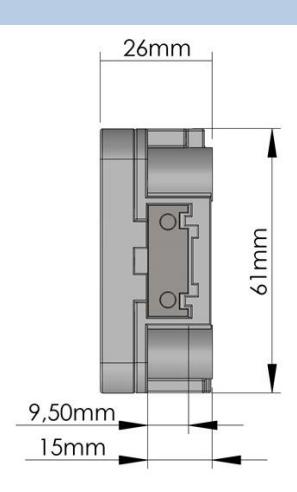

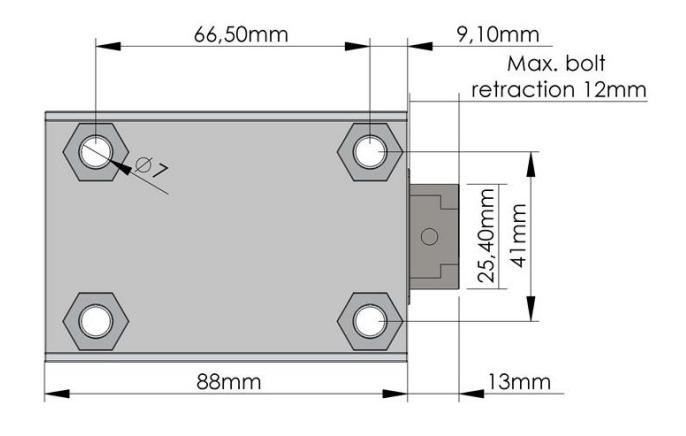

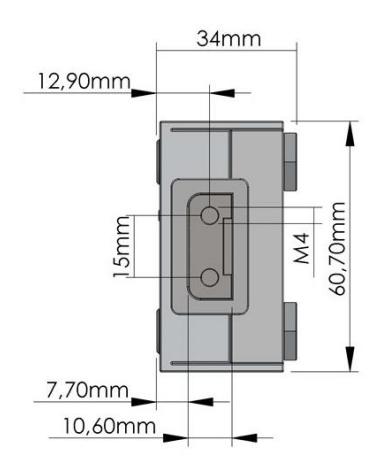

StraightBolt lock dimensions

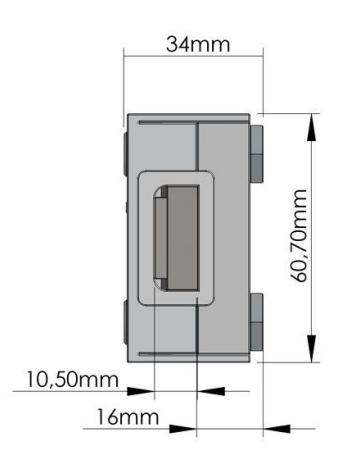

SpringBolt lock dimensions

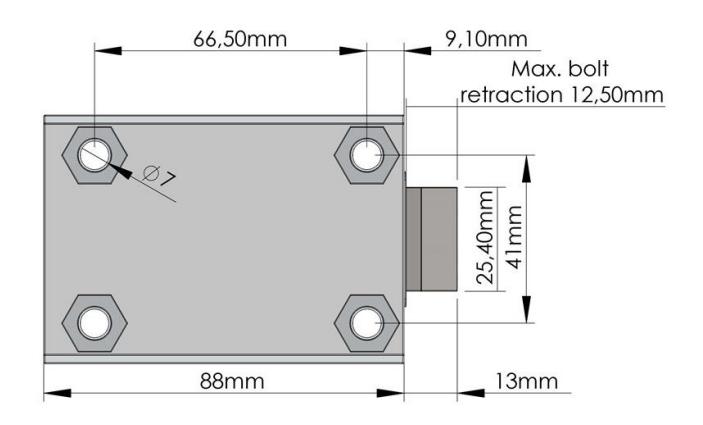

MotorLock dimensions

MotorSpringBolt lock dimensions

Fixed keypad installation instructions

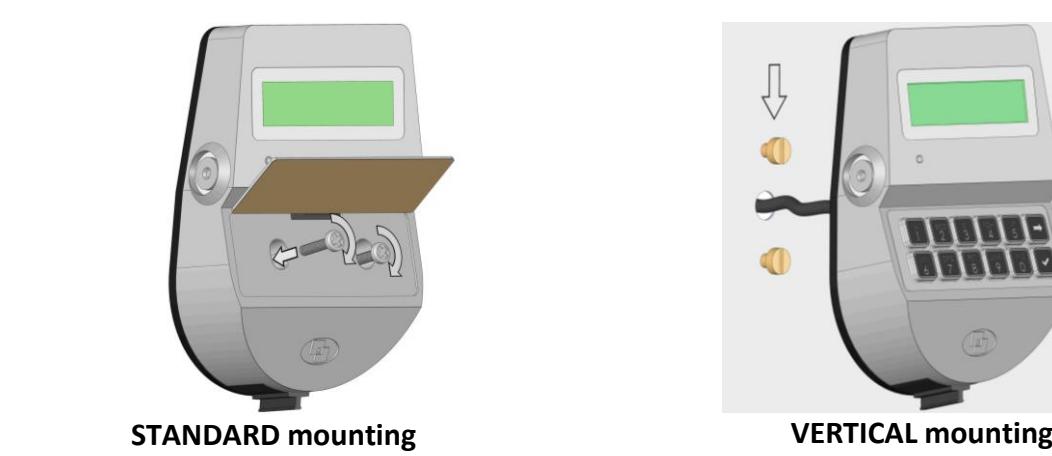

Insert the keypad cable inside the hole on the safe door and connect it to the lock connector "ENT" (connector 1 in the case of a MotorLock or Motor SpringBolt lock). Lift the keypad membrane and, making sure that the connection cable and the battery cable are not damaged by the keypad case, fix the screws to the relative threaded holes on the safe door.

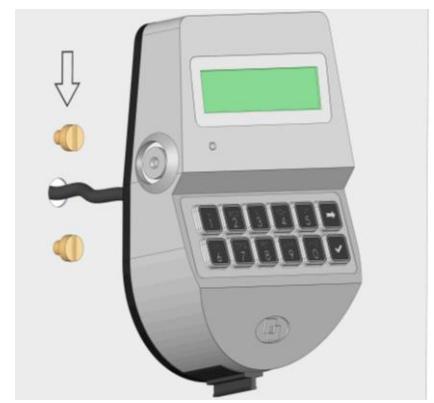

The keypad can also be installed in a quick hooking/unhooking mode (vertical mounting).

Remove the release liner placed under the membrane and apply the latter on the keypad case.

Connect a battery to the battery connector inside the keypad battery compartment or, if provided, connect the battery pack to the lock connector "BAT" (connector 2 in the case of a MotorLock or Motor SpringBolt lock).

RotoBolt lock installation instructions

The RotoBolt lock is a swingbolt lock whose block is carried out by a motor; it can be installed in all 4 directions, even upside down.

By entering a valid code, the lock electronic removes the blocking for 3 seconds and the boltwork can be moved into open position by pushing the bolt inside the lock case.

The bolt automatically secures when the safe handle, or the safe door mechanism, is brought to the locked position.

If the RotoBolt lock is used in conjunction with other locks, the safe door mechanism must ensure the closure of the RotoBolt before the other locks.

The lock can be mounted in all four mounting directions (RH, LH, VU, VD).

Furthermore, by flipping over the lock, both locking directions can be realized (RH/LH).

In the locked position the distance between the RotoBolt bolt and the RotobBolt part that is moving the lock bolt should be approximately 1 mm.

The bolt must be able to move freely without force being applied to it.

The maximum load applicable to the bolt must not exceed 1KN. Contact Tecnosicurezza in case of heavier loads.

Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and locked.

Any alarm interface or battery holder will be connected to the lock connector "BAT". To remove the cable, bring the connector upwards and carefully pull it out.

StraightBolt and SpringBolt locks installation instructions

StraightBolt and SpringBolt locks are locks with, respectively, a dead bolt and a spring bolt, whose block is carried out by a motor.

By entering a valid code, the lock electronic removes the blocking for 3 seconds and the boltwork can be moved into open position by turning the spindle inserted in the lock.

The spindle can be connected to a knob, a handle or directly to the keypad if equipped with a rotation kit. When the spindle is brought to the locked position, the bolt comes out ensuring the lock is locked.

The StraightBolt and SpringBolt locks can be mounted in all four mounting directions.

In the locked position, there should be approximately 1 mm clearance between the lock bolt and the cavity in the blocking bar of the boltwork. The bolt must be able to move freely without force being applied to it.

In open position, there should be minimum 3mm and maximum 5 mm clearance between the lock bolt and the blocking bar of the boltwork.

The maximum load applicable to the bolt must not exceed 1KN. Contact Tecnosicurezza in case of heavier loads.

The spring-latch version (SpringBolt) is specially designed to ensure self locking when the door closes.

The distance between the SpringBolt lock and the locking edge must be between a minimum of 3 mm and a maximum of 8 mm.

When locked, there must be a 0.5mm gap between lock bolt and locking surface.

The spindle must be inserted between a minimum of 7 mm to a maximum of 12 mm inside the lock.

WARNING: do not insert the spindle up to the lid of the lock, but leave some margin to allow the movement of the cable and to prevent any damage.

Make sure the cable is fully inserted and locked in the groove of the spindle. Remove any residues deriving from the cutting of the spindle that could damage the cable. Insert the cable connector into the square hole present in the bottom of the lock and make it come out from the opposite side.

Secure the cable, avoiding to stretch it too much, inside the specific groove on the lock cover and fix the lock using the appropriate mounting screws.

Connect the keypad cable to the lock connector "ENT", making sure it is fully inserted and locked. Any alarm interface or battery holder will be connected to the lock connector "BAT". To remove the cable, bring the connector upwards and carefully pull it out.

MotorLock and Motor SpringBolt locks installation instructions

MotorLock and Motor SpringBolt locks are locks with, respectively, a motor driven dead bolt and a motor driven spring bolt, whose block is carried out by a motor.

By entering a valid code, the motor retracts the bolt which remains in the open position for about 8 seconds and then automatically returns to the locked position.

If the manual relocking option is selected, the bolt closes by pressing and holding the button .

In open position, there should be minimum 3mm and maximum 5 mm clearance between the lock bolt and the blocking bar of the boltwork.

The spring-latch version ( Motor SpringBolt) is specially designed to ensure self locking when the door closes.

The distance between the SpringBolt lock and the locking edge must be between a minimum of 3 mm and a maximum of 8 mm.

In open position, there should be minimum 3mm and maximum 5 mm clearance between the lock bolt and the blocking bar of the boltwork.

Connect the keypad cable to the lock connector "1", making sure it is fully inserted and locked.

Any alarm interface or battery holder will be connected to the lock connector "2".

To remove the cable, bring the connector upwards and carefully pull it out.

Functional test

To be carried out with the door open.

MEMBRANE TEST:

Press and hold the button 5 to access the "Membrane Test" function.

Press slowly all the buttons according to the sequence shown on the display.

ELECTRONIC / MECHANICAL TEST:

OPENING:

Enter the opening code (standard manager code 123456 or simply 1 if the lock is in pre-setup mode). The display will show "open" and the green LED will light up.

With RotoBolt and MotorLock locks, turn the safe door handle to the open position.

With StraightBolt and SpringBolt locks, rotate the knob or handle according to the type of installation and move the lock bolt to the open position.

For all types of locks the bolt must be able to move freely.

LOCKING:

With RotoBolt and MotorLock locks, turn the safe door handle to the locked position. Lock bolt must fully extend and ensure locking.

With MotorLock locks with manual relocking, turn the door handle towards the locked position and press the button .

Lock bolt must fully extend and ensure locking.

With StraightBolt lock, rotate the knob or handle according to the type of installation and move the lock bolt to the locked position..

Lock bolt must fully extend and ensure locking.

Make sure that there is free space in all directions around the bolt when the movement is brought to the locked position.

Repeat the functional test several times before closing the safe door.

Failure to follow these installation instructions or opening the lock by personnel not authorized by Tecnosicurezza will void the warranty.
