Wall-Mount Sliding Door Hardware
Architecturally Designed Wall-Mount Sliding Door Hardware for Commercial and Residential Spaces
9710 Aluminum Wall-Mount System for 250 lb Sliding Doors.
Aluminum wall-mount track, fascia, end caps and hardware for heavy duty single door and bi-parting doors.
Headliners:
- • Track supports up to 250 lbs
- • Easy glide 4-wheel ball bearing carriers
- • Fastener concealment
- • Two finishes to choose between: anodized aluminum or dark bronze
Advantages:
- • Effortless installation
- • Ergonomically designed
- • Architecturally appealing
- • Space saving solution
Applications:
Commercial: & Residential: Office Restroom Healthcare Pantry Hospitality Closets
Room Divider
Door thickness: 1" to 1-3/4"
Load rating: Up to 250 lbs.
Length options: 60" (1524 mm)
72" (1839 mm) 96" (2438 mm) 144" (3658 mm)
Track material: Extruded aluminum
Carrier: 4-wheel ball bearing
Compares to: Pemko 280SWT, Johnson 2610F, 2610FB
Conforms to: ANSI BHMA
A156.14-2007 Grade 1, D8011 Grade 2, D8721
Finishes: Clear Anodized Aluminum (CLA)
Dark Bronze Anodized (DBA)

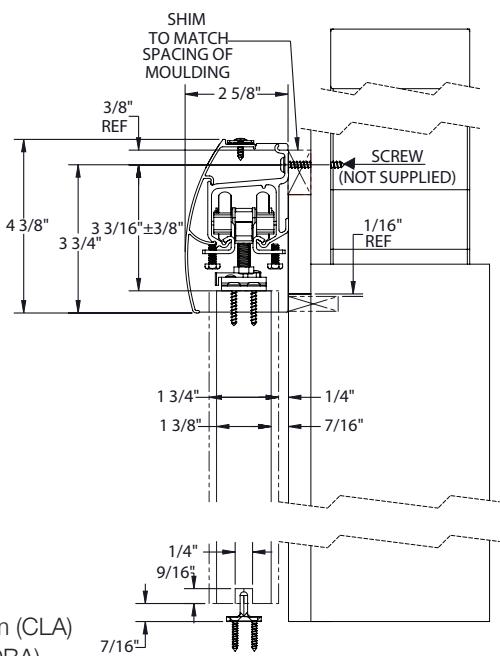

Side Wall-Mount
Effortless Installation

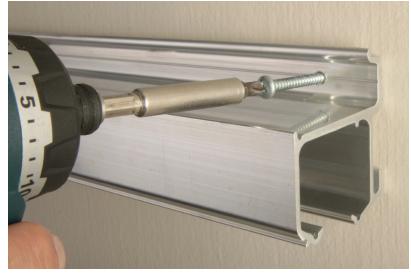

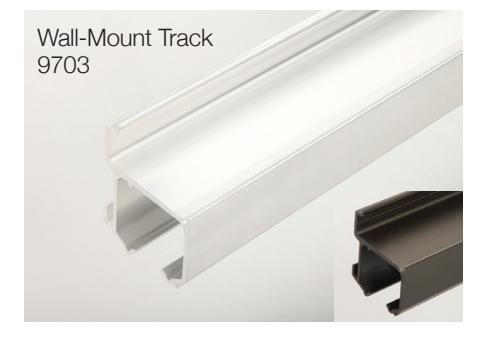

Step 1: Install wall-mount track.

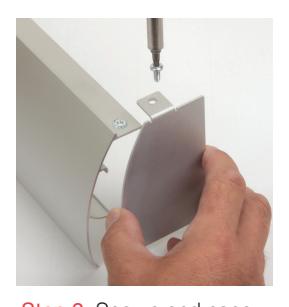

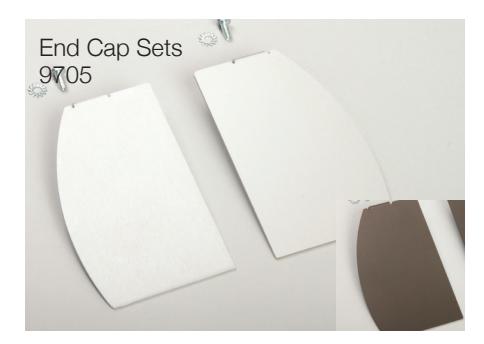

Step 2: Secure end caps to fascia.

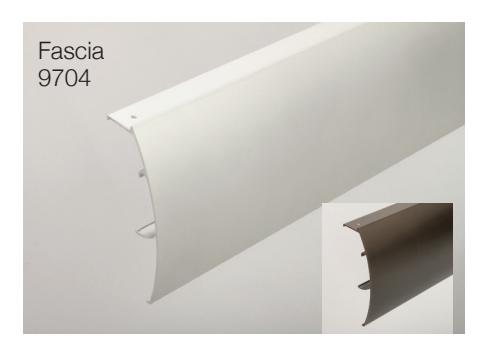

Step 3: Snap fascia onto wall-mount track.
