TEMPLATE FOR RAISED BARREL HINGES

Template No. T—RB Rev. FOR COMPUTER

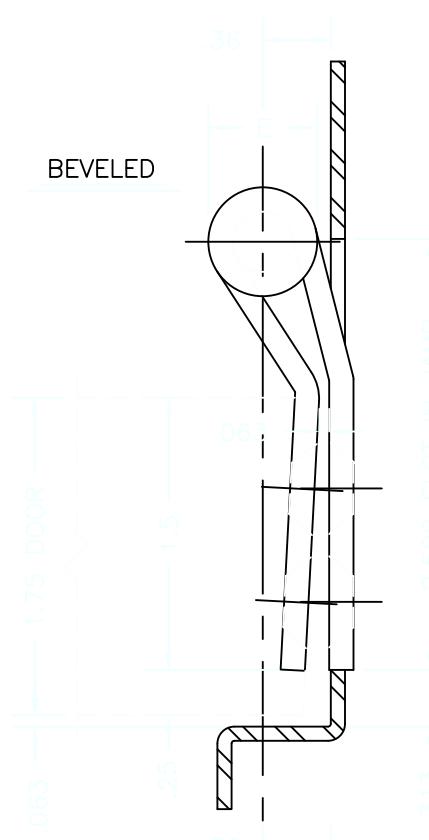

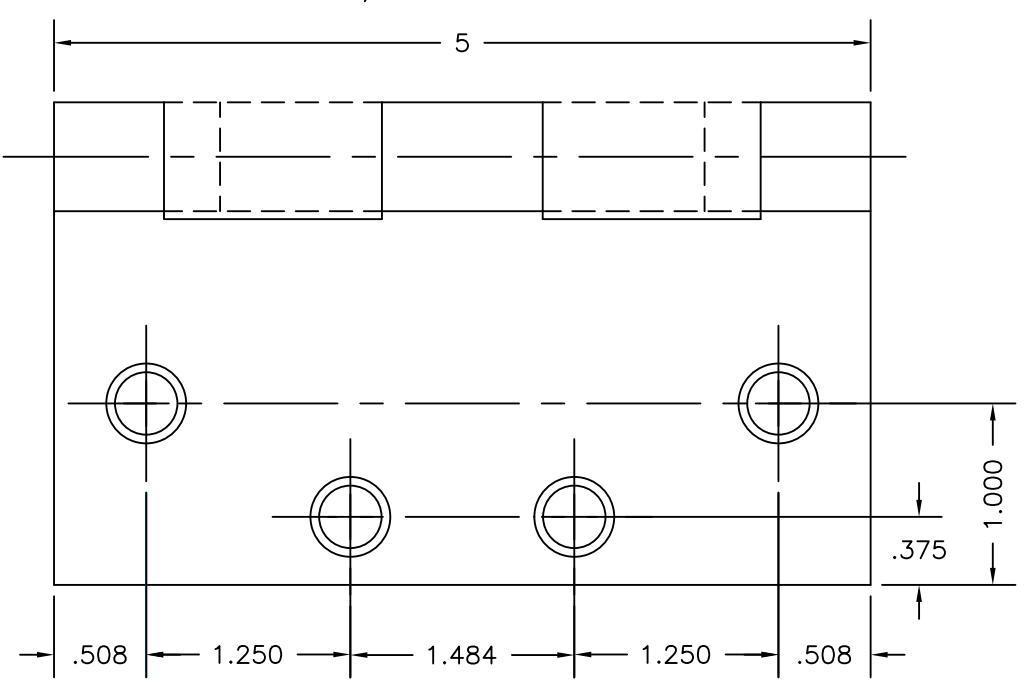

SIZES: 5 x 1 3/4 DOOR

-DO	NOT	SCALE-

CATALOG	NUMBER
STEEL HINGES	NON- FERROUS HINGES	METAL GAUGE	(E) KNUCKLE DIAMETER
700	800	.134	5/8
1279	1191	.134	5/8
AB700	AB800	.134	5/8
BB1279	BB1191	.134	5/8
AB750	AB850	.180	23/32
BB1168	BB1199	.180	47/64

ALL DIMENSIONS ARE IN INCHES.

Machine Screw Size- $12-24\; \backslash times\; 1/2$ " F.H. Wood Screw Size- No. $12\; \backslash times\; 1\; 1/4$ " F.H.

Hospital type and round corner template hinges conform to the above screw size and location. They are designated by "HT" and "RC" to catalog number.

Hager template hinges are made in size, gauge and with screw holes located to conform to ANSI—A156.7.

HAGER RESERVES THE RIGHT TO MAKE DESIGN CHANGES WITHOUT NOTICE. CALL HAGER ENGINEERING AT 1-800-325-9995 FOR LATEST REVISION DATE OF TEMPLATE.
