1. Product Name Locking Hardware
- • Deadbolts 3100 & 3200 Series
- • Cylindrical Lockss 3400 & 3500 Series
- • Tubular Locks 3600 Series
- • Interconnected Locks 3700 Series
- • Mortise Locks 3800 Series
2. Manufacturer
Hager Companies 139 Victor St. St. Louis, MO 63104 (800) 255-3590 (314) 772-4400
Fax: (800) 782-0149
E-mail: webmaster@hagerco.com www.hagerco.com
3. Product Description
BASIC USE
Hager Companies manufactures high quality ANSI/BHMA certified cylindrical, deadbolt, mortise and tubular locking hardware for new construction and retrofit door systems. With a variety of finishes and accessories, Hager offers Grade 1 products for heavy duty institutional, commercial and industrial applications and Grade 2 products for more standard duty commercial applications.
Functions vary by lock series:
- • 3100 Series deadbolt with interchangeable core - Double cylinder, single cylinder, classroom
- • 3200 Series deadbolt with standard core Double cylinder, single cylinder, thumbturn
- • 3400 Series cylindrical lock with Apollo knob, Archer or Withnell lever - Entry, office (levers only), classroom, storeroom, privacy, passage, dummy
- • 3500 Series cylindrical lock with Apollo knob, Archer or Withnell lever - Office (levers only), keyed communicating (levers only), exit (levers only), entry, classroom, storeroom, privacy, passage, dummy
- • 3600 Series tubular lock with Archer or Withnell lever - Entry, storeroom privacy, passage, dummy, classroom
- • 3700 Series interconnected lock with Archer, August or Withnell lever - Single or double entry locking, passage, storeroom, keyed communi-
cation, corridor, classroom, entry, office, exit
• 3800 Series mortise lock with Archer, William or Withnell lever - Entry, office, classroom, storeroom, privacy, passage, classroom security, storeroom with deadbolt, dummy, double dummy, cylinder lock, cylinder X thumbturn, double cylinder, classroom lock
COMPOSITION & MATERIALS
Deadbolts - 3100 & 3200 Series
- • Lock mechanism is zinc plated and dichromated heavy gauge steel
- • Cylinders are brass 6 pin, keyed different (C keyway)
- • Interchangeable cores, sold separately, are brass 6 or 7 pin
- • Latchbolts have a 1" (25.4 mm) brass throw with a concealed hardened steel roller to prevent sawing or cutting
Cylindrical Locks - 3400 & 3500 Series
- • Lock chassis is heavy gauge steel, zinc dichromated for corrosion resistance
- • Cylinders are brass 6 pin, keyed different (C keyway)
- • Interchangeable cores, sold separately, are brass 6 or 7 pin
- • Latchbolts have a 1/2" (12.7 mm) stainless steel throw

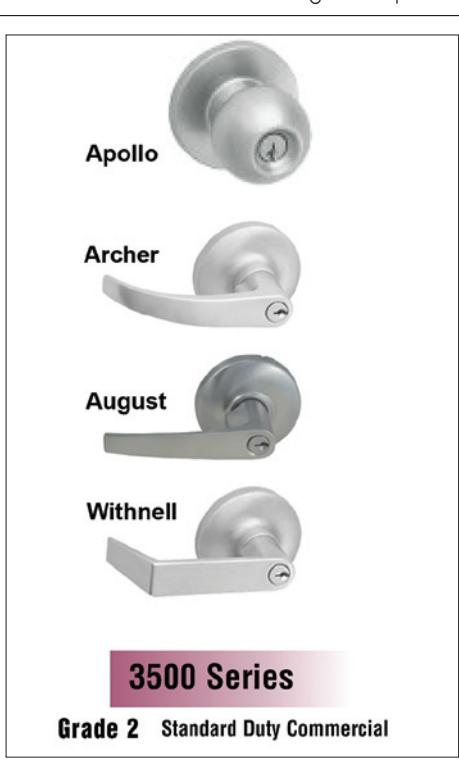

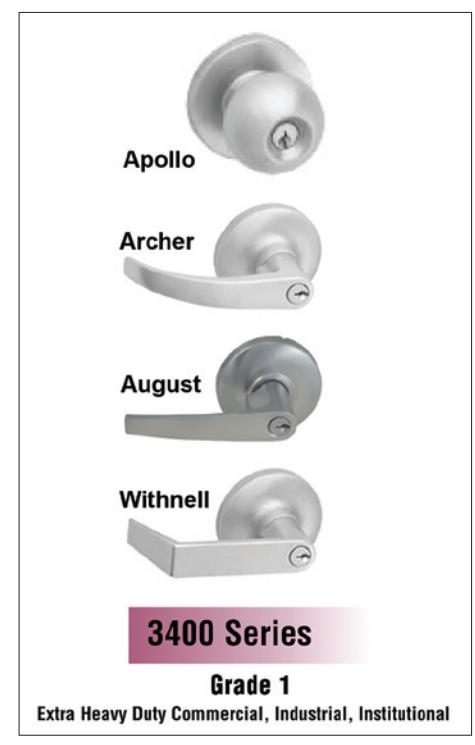

3400 Series cylindrical locks 3500 Series cylindrical locks
Tubular Locks - 3600 Series
- • Lock chassis is zinc plated and dichromated heavy gauge steel
- • Cylinders are brass 6 pin, keyed different (C keyway)
- • Latchbolts have a 1/2" (12.7 mm) stainless steel throw
Interconnected Locks - 3700 Series
- • Lock chassis is zinc dichromated heavy gauge steel with thru-bolt mounting
- • Cylinders are brass 6 pin, keyed different (C keyway); keyed 5-pin, standard
- • Interchangeable cores, sold separately, are brass 6 or 7 pin
Mortise Locks - 3800 Series
- • Cylinders are brass 6 pin, keyed different (C keyway)
- • Interchangeable cores, sold separately, are brass 6 or 7 pin
- • Deadbolts have a 1" (25.4 mm) stainless steel throw with a concealed hardened steel roller
- • Latchbolts have a 3/4" (19.1 mm) stainless steel throw with a concealed hardened steel roller
Types, finish
Deadbolts - 3100 & 3200 Series
3100 Series deadbolts are Grade 1 heavy duty and 3200 Series are Grade 2 standard duty deadbolts. Exposed trim for Grade 1 products is of brass or bronze; exposed trim for Grade 2 products is of wrought brass, stainless steel or bronze. Deadbolt Series 3100 are available with a US3, US4, US10, US10B, US26 or US26D finish. Deadbolt Series 3200 are available with a US3, US4, US10, US10B, US26, US26D, US32 or US32D finish.
Cylindrical - 3400 & 3500 Series
Cylindrical 3400 Series are Grade 1 heavy duty commercial, industrial and institutional locks; 3500 Series are Grade 2 standard duty commercial locks. Exposed trim for knobs is of wrought brass or stainless steel; exposed trim for levers is wrought brass, bronze or stainless steel, zinc based. Both Cylindrical 3400 and 3500
3100 Series deadbolt locks 3200 Series deadbolt locks
Series lock levers are available with a US3, US4, US10, US10B, US26 or US26D finish. Knobs are available with a US3 or US32D finish.

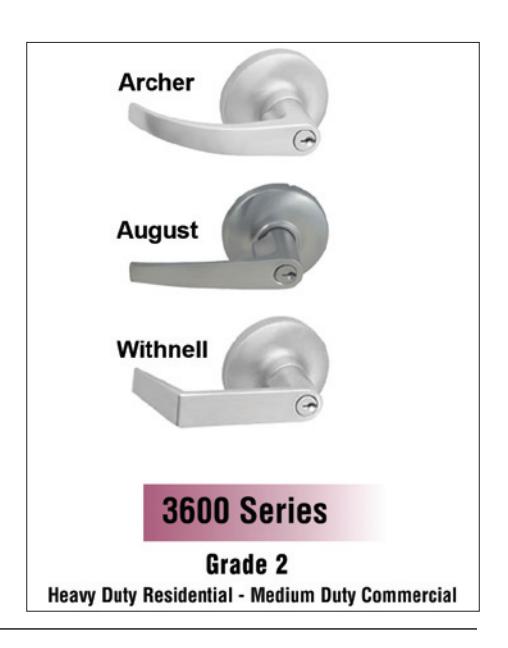

Tubular Locks - 3600 Series
Tubular locks are Grade 2 standard duty residential or commercial locks. Exposed trim is of wrought brass or bronze, zinc based. Tubular 3600 Series locks are available with a US3, US4, US10, US10B, US26 or US26D finish.
Interconnected Locks - 3700 Series
Interconnected Locks are Grade 2 heavy duty residential or medium duty commercial. Exposed trim is of wrought brass or bronze with cast zinc levers. Interconnected 3700 Series locks are available with a US3, US4, US10, US10B, US26 or US26D finish.
Mortise Locks - 3800 Series
Mortise locks are available in Grade 1 Sectional or Grade 1 Escutcheon for heavy duty com-
mercial, industrial and institutional applications. Exposed trim is of forged brass, cast stainless steel or cast zinc. Both Sectional and Escutcheon Series locks are available with a US3, US4, US10, US10B, US26, US26D or US32D finish.
Sizes
For all locks and deadbolts, the standard door preparation is 2 1/8" (54 mm) diameter. The latch hole is 1" (25.4 mm) diameter.
Accessories, options
Two brass keys are included with each lockset. For keying and keyway options, see Table 1.
Deadbolts - 3100 & 3200 Series Latchbolts (both series)
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner bolt
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) adjustable square corner bolt for 3219 deadbolt only
- • 1" (25.4 mm) faceplate
- • Round corner faceplate
Strikes
- • ASA deadbolt strike
- • Strike plate
Cylindrical Locks - 3400 & 3500 Series Latchbolts (both series)
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner spring latch, passage
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner spring latch, privacy
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner dead latch
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner spring latch, passage
|
Table
1 ACCESSORIES & Options |
||
|---|---|---|
| Keying | Stock Keyway | Non-stock Keyway |
| Keyed alike (KA) | Arrow AR1 | Schlage F |
| Keyed differently (KD) | Corbin 60 | Yale GA |
| Master keyed (MK, GMK) - Includes two keys | Corbin 67 | Weiser E |
| Construction master keyed (CMK) | Corbin 77 | |
| Keyed to specific or existing number | Corbin L4 | |
| Extra cut keys | Kwikset KW1 | |
| Key markings: AA1, AA2, etc., per key | Russwin D1 | |
| Key markings other than key set, per key | Schlage E | |
|
Locks are keyed differently (KD),
unless otherwise specified |
Sargent LA | |
|
Locks with keyed functions are
C keyway standard |
Yale E1R (100 or less) | |

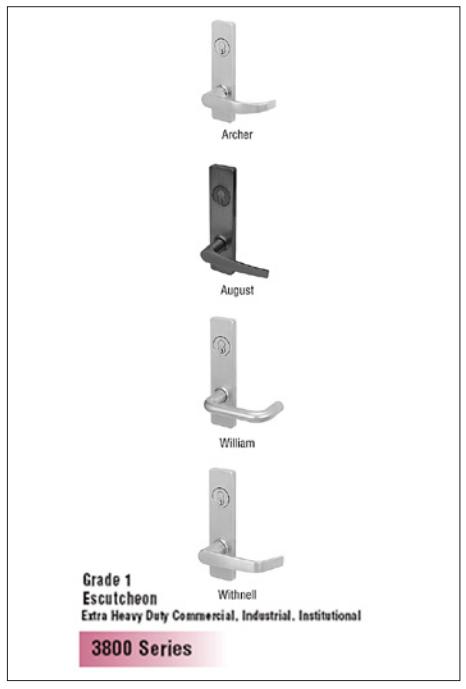

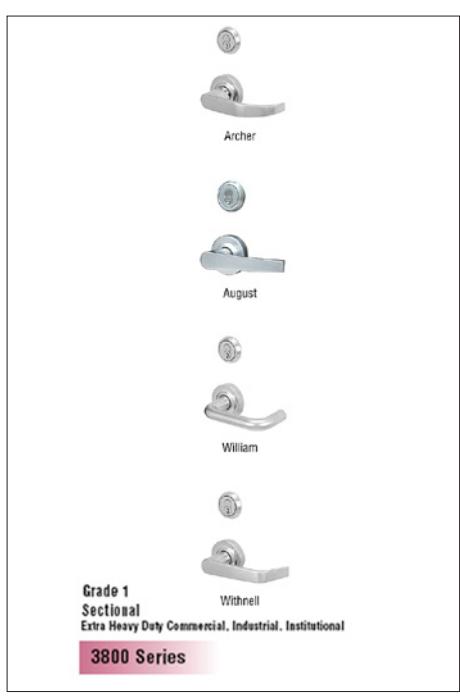

3800 Series escutcheon mortise locks 3800 Series sectional mortise locks
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner spring latch, privacy
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square corner dead latch
- • 5" (127 mm) backset extension link
Latchbolts for 3500 Series only
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) spring latch, passage
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) spring latch, privacy
Strikes (both series)
- • T-strike with plastic dust box
- • Full lip strike
- • Full lip strike, round corner
- • ASA strike plate
Tubular Locks - 3600 Series Latchbolts
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) adjustable square corner spring latch
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) adjustable square corner dead latch
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) adjustable round corner spring latch
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) adjustable round corner dead latch
- • 5" (127 mm) backset extension link Strikes
- • T-strike with plastic dust box
- • Full lip strike
- • Full lip strike, round corner
- • ASA strike plate
- • Faceplate adapter
Interconnected Locks - 3700 Series Latchbolts
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square or round corner, spring latch, passage
- • 2 3/8" (60 mm) or 2 3/4" (70 mm) square or round corner, dead latch, standard
Strikes
- • Full lip strike
- • Full lip strike, round corner
- • Faceplate adapter
Other
- • Tactile knurling
- • Split lever design
Mortise Locks - 3800 Series Strikes
- • Square corner extended lip
- • Round corner extended lip
- • Round corner standard lip
- • Square corner flat lip
- • Square corner extended flat lip
- • Square corner no lip
- • Full face mortise cylinder
- • Concealed mortise cylinder (for escutcheon trim only)
- • Standard and interchangeable cores are sold separately
4. Technical Data
APPLICABLE STANDARDS
American National Standards Institute (ANSI) - ANSI A117.1 Accessible and Useable Buildings and Facilities
American National Standards Institute/ Builders Hardware Manufacturers Association (ANSI/ BHMA)
- • ANSI/BHMA A156.2 Bored and Preassembled Locks and Latches
- • ANSI/BHMA A156.12 Interconnected Locks & Latches
- • ANSI/BHMA A156.5 Auxiliary Locks and Associated Products
- • ANSI/BHMA A250.13 Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies
International Code Council/American National Standards Institute (ICC/ANSI) - ICC/ANSI A117.1 Accessible and Usable Buildings and Facilities
Underwriters Laboratories, Inc. (UL)
- • UL 10B Fire Tests of Door Assemblies
- • UL1 0C/UBC 7-2 Positive Pressure Fire Tests of Door Assemblies
APPROVALS
Underwriters Laboratories' of Canada (ULC) - ULC Listed for all functions up to 3 hours for "A" label single doors
Underwriters Laboratories, Inc. (UL) - UL Listed for all functions up to 3 hours for "A" label single doors
PHYSICAL, TECHNICAL PROPERTIES
Hager Companies lock systems are neutral pressure rated as tested to UL 10B and positive pressure rated as tested to UL 10C.
5. Installation
Installation instructions are included with products and are also available online at www.hagerco.com.
6. Availability & Cost
Hager provides a unique service for its worldwide distributors. The Materials Resource Planning and the Distribution Resource Planning systems are computerized programs used to maintain distributor stock. Ordering is handled by computer linked, strategically located, worldwide distribution centers. Through www. hagerco.com, a search option locates distributors by region. Hager sales teams may also be located for national or international locations worldwide through a separate search option.
7. Warranty
Warranty statements and associated exceptions and limitations are available online at www.hagerco.com. Hager locks are warranted for the life of the building.
8. Maintenance
Product maintenance and operation are specific to product types and are available online at www.hagerco.com.
9. Technical Services
In addition to contacting distributors or sales team members, contact Hager representatives online at www.hagerco.com or e-mail: webmaster@hagerco.com.
10. Filing Systems
- • Reed First Sourceª
- • MANU-SPECª
- • Additional product information is available from the manufacturer upon request.
