UNEQUAL LEAF CENTERED (RH standard)
How to order:
Standard Weight Steel BB1279 5" x 4.5" US26D UNEQUAL NRP
Standard Weight Stainless Steel BB1191 5" x 4.5" US32D UNEQUAL NRP
Heavy Weight Steel BB1168 5" x 4.5" US26D UNEQUAL NRP
Heavy Weight Stainless Steel BB1199 5" x 4.5" US32D UNEQUAL NRP
- Handing is based on the <u>door</u> being the 4.5". Hinge can be handed in the field.
- Parts are sold as <u>NRP</u>

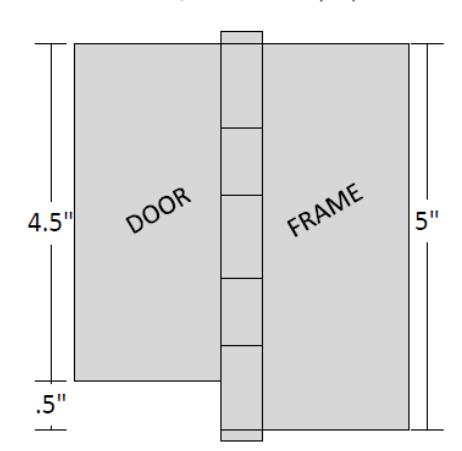

UNEQUAL BOTTOM (LH)
| Based on Hinge | Industrial Part | |
| Model | Number | |
| BB1279 | O-071 | |
| BB1191 | X351 | |
| BB1168 | T463 | |
| BB1199 | E368 | |

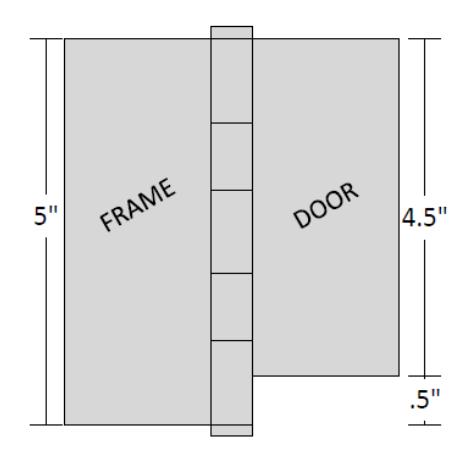

UNEQUAL BOTTOM (RH)
| Based on Hinge | Industrial Part | |
|---|---|---|
| Model | Number | |
| BB1279 | A580 | |
| BB1191 | X350 | |
| BB1168 | T461 | |
| BB1199 | E367 | |
- Handing is based on the <u>door</u> being the 4.5". If door is 5", Handing is opposite.
- For unequal top, turn upside down, then LH becomes RH and vise versa. (Hinge pin and plug will need to be swapped so pin is on top.
- Parts are sold as NRP
- Unequal bottom/top hinges can NOT be handed in the field.
TEMPLATE NO: - DRAWING NO: T-CT00128
REV:1 REV DATE: 4/1/19 SHEET 1 OF 1
