Euroline Split Lever Ordering Checklist

Date:, Customer ID:
Hager SO#:, Project:

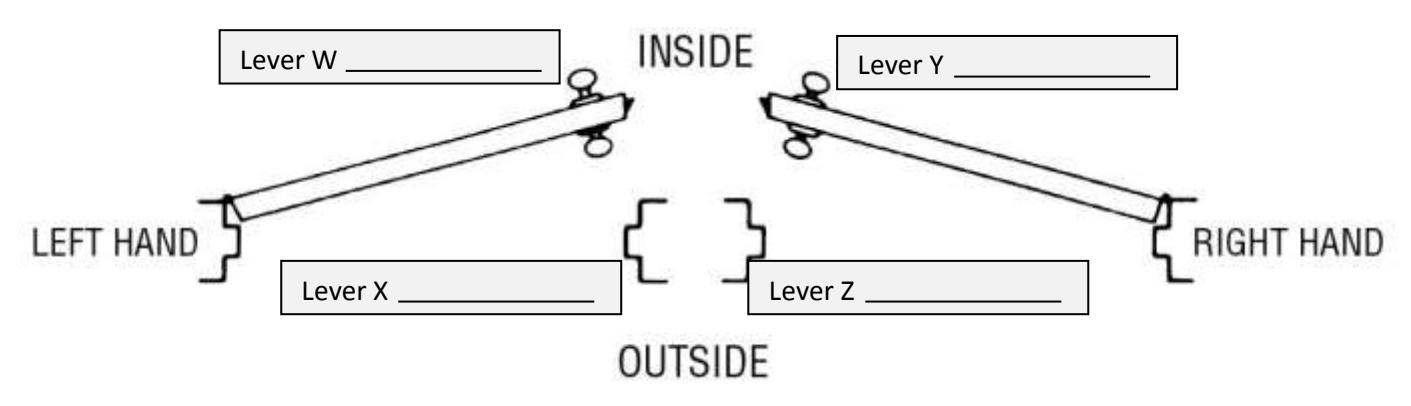

Split levers are ordered where the first lever in the description is on the inside of the door and the second lever is on the outside based on the image below. Then the door handing is specified. Inside and outside are just reference point to door swing direction and are not indicators to key side or secure side.

Fill in the appropriate lines below to obtain the correct lever description.

Hager Euroline Split Lever Ordering Checklist Information image on page 1

Depending on the handing, the appropriate description is below.

Left Hand: Lever W/Lever X LH

Right Hand: Lever Y/Lever Z RH

Hager Euroline Split Lever Ordering Checklist Information image on page 1

Hager Euroline Split Lever Ordering Checklist Information diagram on page 1

Depending on the handing, the appropriate description is below.

Lever W/Lever X LH 6802/6808 LH

Lever Y/Lever Z RH 6801/6803 RH

CUSTOMER APPROVAL: ________________________________________ DATE: __________________

LEVER HANDING VERIFIED BY CUSTOMER AND ACKNOWLEDGED BY SIGNATURE.
