eConestoga — Economy Series Barn Door Hardware
Hager Companies new eConestoga flat track sliding door hardware is a decorative sliding door system with a rustic look and feel.
Ideal for multi-family units, hotels, and office spaces, eConestoga series flat track sliding door hardware system is available with two styles of door hangers to complement the decor.
All mounting and installation hardware are conveniently packaged as kits in two standard track lengths — 72" and 96". Custom track lengths are available at extended lead times.
Benefits
- Purchased in complete sets rail included
- Purchased in 72" and 96" lengths
- Accessories/Service Parts available for customer accommodation
- • Applications: Hospitality, Residential, Multi-Family, Assisted Living
Product Information
Durable powder-coated steel • Black steel rail (72" or 96") Materials: System Includes:
• Two carriers • Two stops • One floor guide
• Rail mounting brackets and fasteners
Meets performance standards of ANSI/BHMA 156.14 (Grade 1 or sliding doors exceeding Standards:
100,000 cycles in operation)
Wood doors up to 1-3/4" thick, 250 lbs. maximum door weight Door Specifications:

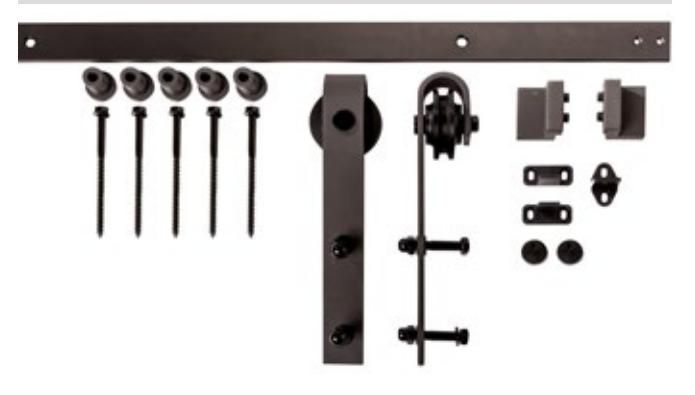

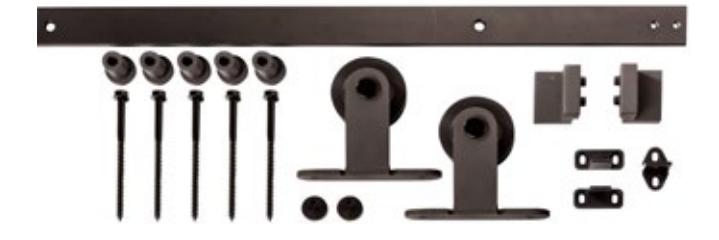

9456-72 & 9456-96 Top Mount 9457-72 & 9457-96 3" Strap
9458 Privacy Lock

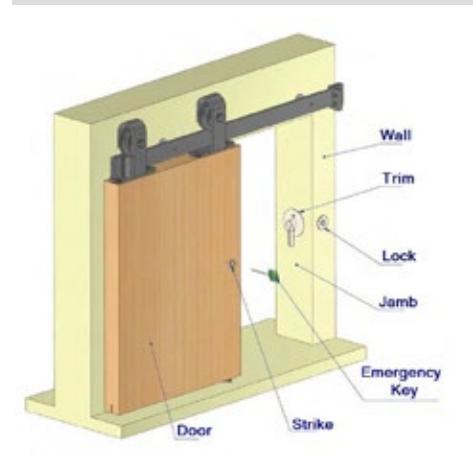

Installation based on barn door application where doors are hung on the OUTSIDE of the room.
- Install Lock Inside the Jamb Wall behind the barn door
- Install Trim Plate on the Jamb Wall facing the opening
- Install Strike with an emergency release on the barn door
- Adjustable Strike for door thickness from 1-3/8" to 2-1/4".
- Works with 9400 stainless steel round track, Conestoga, and eConestoga barn door series.
Optional Components
1-269-8694 Flush Pull
1-269-8646 Optional: Soft-Close Mechanism Note: Maximum door weight is 176 lbs when using soft-close
