Stainless Steel Barn Door Hardware
A Smart Contemporary Way to Hang Sliding Glass or Wood Doors for Commercial and Residential Locations Where Space is Limited
Stainless Steel Barn Door Hardware
Hager Companies Stainless Steel Barn Door Hardware System is available with seven styles of door hangers to complement any decor.
- Stainless steel track and gliders on nylon coated rollers
- For wood or glass doors weighing up to 250 lbs.
- Ergonomically designed
- Space saving solution
- Architecturally appealing
Commercial: Residential: Office Spaces Multi-Family Hotel Rooms Room Divider
Materials: 304 stainless steel track and hangers with nylon coated rollers
-
System Includes: Stainless steel track (78" or 96" *) with two end caps available in round or flat rail (* 96" subject to extended lead times)
- Hangers with wall brackets
- One door bottom guide
- Two track stops
- Mounting and installation hardware
Standards: Meets performance requirements of ANSI/BHMA 156.14 (Grade 1) for sliding doors by
exceeding 100,000 cycles in operation
Door Specifications: • Door weight up to 200 lbs.
- Wood doors 1-3⁄4" thick (top-mount hangers)
- Door bottom 3⁄8" undercut
- Glass doors 3⁄8" to 1/2" thick

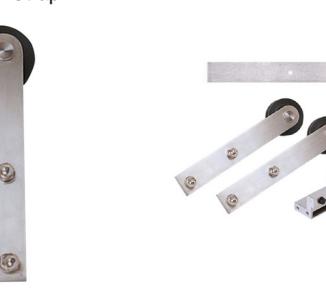

Round Rail Top-Mount Hanger for Wood Doors
9432
9433
Top-Mount Stick Top-Mount Dual Wheel Top-Mount Spoke Wheel Flat Stick Strap 9435 9462
Flat Rail Face-Mount Hanger for Wood or Glass Doors

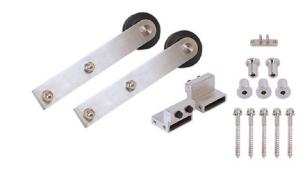

Flat Rail Kit Components
Round Rail Face-Mount Hanger for Wood or Glass Doors
9436
Face-Mount Stick Face-Mount Dual Wheel Face-Mount Triangle 9437
9438

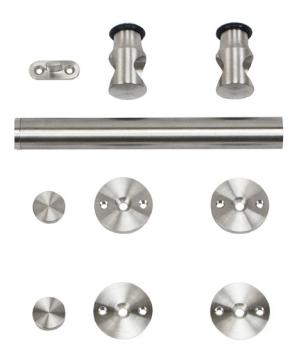

Round Rail Kit Components
