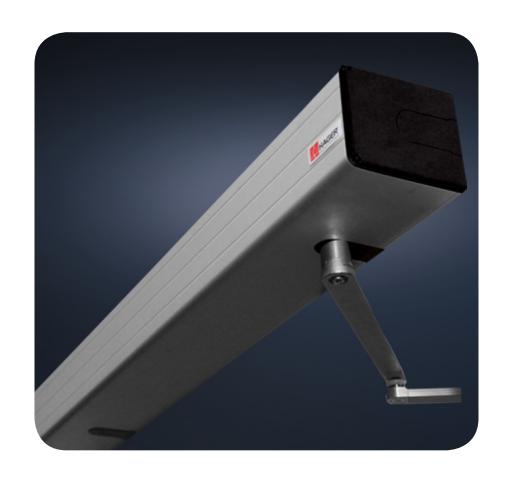

8400 Series Low Energy Power Operator
8400 Series Low Energy Power Operator
Models:
8418 Single Operator. (Handed)
8419 Simultaneous Pair - 2 units, 1 controller - doors operate at the same time. 8420 Independent Pair - 2 units, 2 controllers - doors operate independently
from each other.
8421 Double Egress Simultaneous Pair - 2 units, 1 controller - doors swing in opposite
direction at same time.
8422 Double Egress Independent Pair - 2 units, 2 controllers - doors swing in opposite
direction at different times.
8423 Single Operator paired with 5100 Series Mechanical Closer for inactive door. (Handed)
Note: * Must specify push or pull side mount for all operators except double egress applications.
* Specify handing when ordering the 8418 and 8423.
Headliners:
- • Ideal for manual openings that occasionally require an automatic opening
- Push or pull side mounting
- Quiet operation eliminates noise in sensitive areas
- Activated manually via wall switches or radio frequency devices
Features:
- • Single person installation
- Pre-drilled mounting holes for ease of installation
- Built-in adjustable door stop for protection against wind or abusive environments
- Interfaces with electric door hardware
- Operates as a mechanical closer if power is disconnected
- Obstacle recognition upon opening and closing
- Onboard power supply
- Blow open function for smoke ventilation
- Boost on close selectable on/off
Applications:
Libraries
Retail Buildings
Medical Buildings
Schools and Universities
Assisted Living Facilities
Specifications
Electrical:
Power requirements: 115 VAC 60 HZ
Current draw: 3.0A
Auxiliary output voltage: 24 VDC 500mA
Fuse type: 2.0A, 5 x 20mm, Slo-Blo
Electric lock relay type: Form "C" SPDT Lock relay rating: 5.0A @ 28 VDC
Dimensions:
Size: 5"h x 4-1/2"d x Door Opening Width + 3"
Reveal: Up to 12" standard
Max door weight: 350 lbs
Standard door sizes: Single: 36" - 48" Double: 60" - 96"
Parameters:
Hold open time: 1 sec to continuous
Built-in-stop: Manual swing to 180 degrees
Power swing to 100 degrees Fire alarm input: FA input shunts swing activations until FACP is manually reset
Internal display: LCD Battery backup size: Min 1500VA Memory type: Flash upgradeable
Adjustable swing degree: 80 degrees to 180 degrees
Certifications:
ANSI: Meets A156.19
Warranty: 2 years
UL/cUL: Listed for up to 3 hours UL10C: Positive pressure rated
Finishes:
ALM: Aluminum DBZ: Dark Bronze
Actuators, Transmitters and Accessories
Actuator Features:
- Hard wired and wireless (Hard wired standard)
- Beveled edges
- Graphics embossed onto the faceplate for durability
-
304 grade stainless steel finish
- scratch resistant
2-659-0175 Push to Open text and logo
2-659-0176 Handicap logo only 2-659-0177 Surface Mount Box
Bollard Posts
6" Round Actuator
2-659-0161 Push to Open text and logo 2-659-0162 Handicap logo only 2-659-0163 Surface Mount Box
2-659-0180 Black Powder Coat 2-659-0181 Bronze Powder Coat 2-659-0182 Silver Powder Coat
6" Square Actuator
2-659-0169 Push to Open text and logo 2-659-0170 Handicap logo only 2-659-0171 Surface Mount Box
2-659-0164 Weather Ring
36" Low Profile Actuator
2-659-0178 Push to Open text and logo - Wireless
2-659-0179 Push to Open text and logo - Hard wired
4.5" Square Actuator
2-659-0172 Push to Open text and logo 2-659-0173 Handicap logo only 2-659-0174 Surface Mount Box
4.5" Round Actuator
2-659-0165 Push to Open text and logo 2-659-0166 Handicap logo only 2-659-0167 Surface Mount Box 2-659-0168 Weather Ring
4.75" Vestibule Actuator
2-659-0242 Push to Open text and logo
2-659-0243 Surface Mount Box
Transmitter Features:
- Transmitters can be programmed to multiple receivers
- Optional delay no delay programming
- Toggle or pulse mode selectable by DIP switch
- Red LED on receiver verifies transmission and delivers troubleshooting assistance
- Red LED on transmitter ensures transmission and battery life
2-659-0184 3-Volt Hard Wired, One Button Transmitter
2-659-0185 9-Volt Hard Wired, One Button Transmitter
2-659-0186
Transmitter
Wireless, One Button
2-659-0183
433MHz Receiver
2-659-0240 Programmable Relay and Door Sequencer
2-659-0232 | 2-659-0233 Cover for Single Operator
2-659-0234 | 2-659-0235 Cover for Dual Operators
2-659-0230 | 2-659-0231 Drop Plate
2-659-0236 Power Supply
2-659-0237 Relay Board
