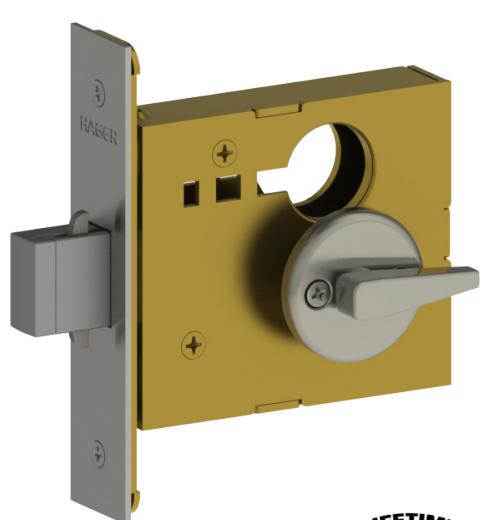

3800 Series
• Heavy duty commercial, industrial, institutional • Non-handed • Standard mortise cylinder or Small Format Interchangeable Core housing available
Thumbturn:
• Meets ADA Requirements, "No pinch," "No grasp."
Lock Case:
- • Heavy wrought steel with zinc dichromate finish
- • 4-5/16" x 3-9/16" x 1" (110 mm x 90 mm x 25 mm)
Armor Front:
• 1-1/4" x 5-5/8" x 7/32" (32 mm x 143 mm x 5 mm)
Keys:
• Two operating keys supplied per lock
Cylinder:
- • Brass keyed different C keyway Standard
- • Other keying options, including keyed 6-pin, available from factory
- • SFIC uncombinated or combinated, brass 6- or 7-pin sold separately
- • Drilled 6-pin, keyed 5-pin Standard
- • Small Format Interchangeable Core housing available
- • Schlage "L" cam Standard
Door Thickness:
- • 1-3/8" 2-1/2" (35 mm-64 mm) steel door
- • 1-3/4" 2-1/2" (45 mm-64 mm) wood door
- • Must specify door thickness if greater than 1-3/4" (45 mm)
Backset:
• 2-3/4" (70 mm) only
Deadbolt:
• 1" (25 mm) throw - stainless steel
Strike:
• 1 1/8" wide x 3 1/2" (29 mm x 89 mm) NO LIP
Finishes:
• US26D
Functions:
• 35-cylinder X thumbturn, 36-single cylinder, 37-double cylinder, 38-thumbturn only, 39-thumbturn w/ emergency key
Notes:
Ideal for the pocket door sets and kits outlined below.
Pocket Door Sets: Pocket Door Kits:
- 9110 9628
- 9130 9629
- 9678 9630
- 9901 9631
- 9850
The premium flush cup pulls below are options to accompany the chosen pocket door sets and kits. Additional pull options are available, please refer to the Trim & Auxiliary section of the catalog.
- 2610
- 2620
- 2630
- 2640
Product is ready for order placement. If there are any questions about this new product offering, please contact the Sliding Door Hardware Product Manager, Bryan Meyer at bmeyer@hagerco.com.

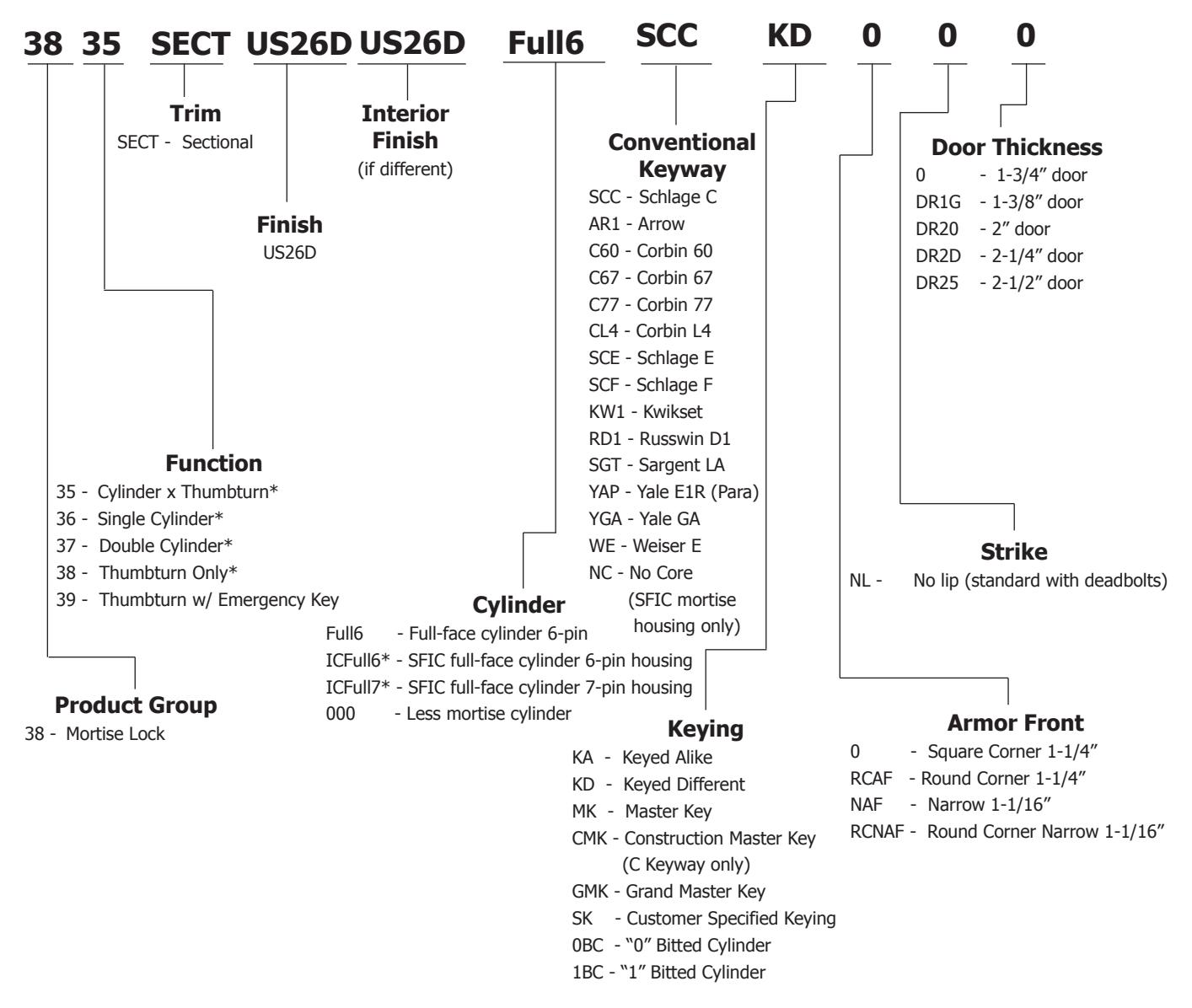

How To Order:
Notes:
- For additional keying information, refer to cylinder, core, and keying section of catalog.
- * Small format interchangeable core sold separately. Available in Best Keyways (A Standard) and other Hager keyways.
Ordering Example: 3835 SECT 26D Full6 SCC KD
| Description | Function | Finish | 2015 List |
Case
Qty. |
|---|---|---|---|---|
| 3800 Series Sliding Door Mortise Lock |
3835S
Cylinder x Thumbturn |
US26D | 168.90 | 6 |
|
Fixed Cylinder, Standard
1-1/8" Mortise Cylinder w/ Schlage `L' Cam Standard 6 Pin Cylinders, 5-pin Keyed |
3836S
Single Cylinder |
US26D | 168.90 | 6 |
|
Schlage C Keyway - KD Standard
2-3/4" (70 mm) Backset No Lip Strike, 3999 |
3837S
Double Cylinder |
US26D | 189.20 | 6 |
| ADA Thumbturn Standard |
3838S
Thumbturn only |
US26D | 150.00 | 6 |
|
Price includes mortise cylinder(s) where
applicable and standard cylinder will be shipped with deadlock unless specified. |
3839S
Thumbturn w/ Emergency Key (Privacy) |
US26D | 162.00 | 6 |
If keyed deadlocks ordered less cylinder, subtract $20.00 for each cylinder from list price.
Small Format Interchangeable Core housing available (cores sold separately - refer to Keying/Core section).
*3837 require two cylinders (must specify Full 6 for fixed cylinder or 6- or 7-pin SFIC housing).
Refer to catalog or website for more detailed information on functions.
