Adapter Kit For HAGER® 4500 Panic Bar

Adapter Kit 4500 Exit Device hager_4500_adapter_kit_kpb47_225369 image on page 1

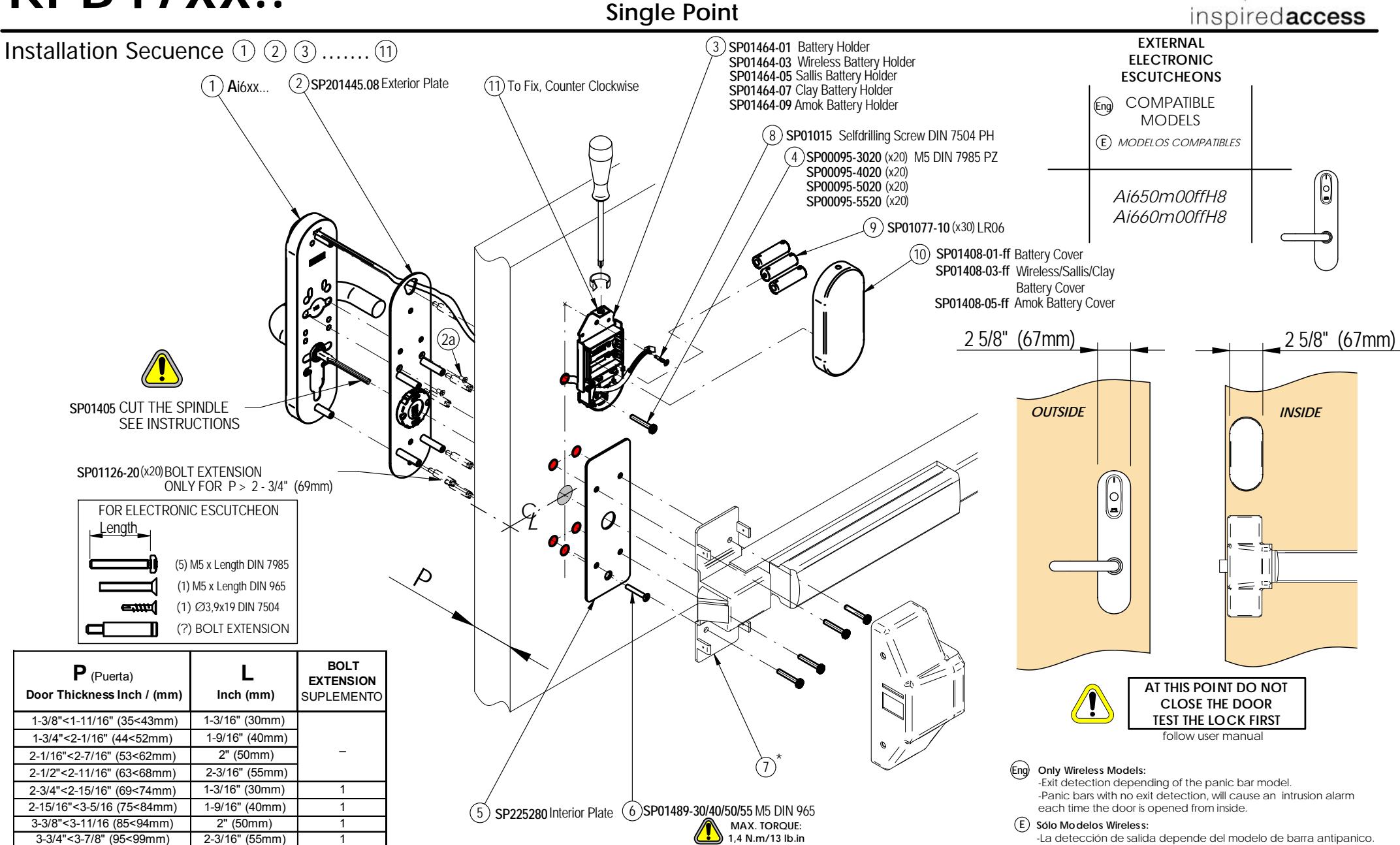

Adapter Kit 4500 Exit Device hager_4500_adapter_kit_kpb47_225369 diagram on page 1

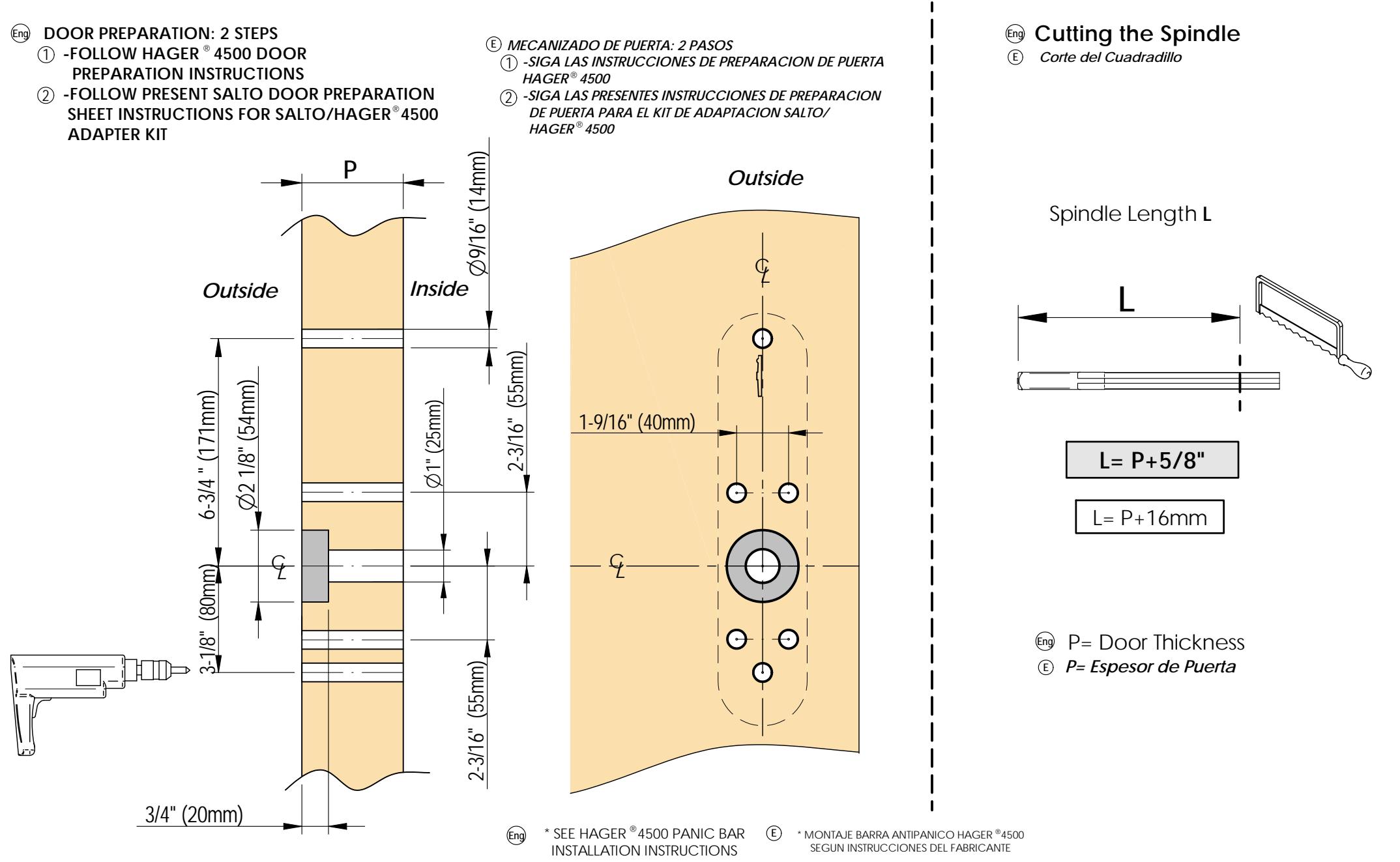

(E) * MONTAJE BARRA ANTIPANICO HAGER ® 4500

SEGUN INSTRUCCIONES DEL FABRICANTE

1-3/16" (30mm)

1-9/16" (40mm )

2" (50mm)

2

2

(Eng) * SEE HAGER ® 4500 PANIC BAR

INSTALLATION INSTRUCTIONS

3-15/16"<4-1/8" (100<105mm)

4-3/16"<4-1/2" (106<115mm)

4-9/16"<4-3/4" (116<120mm)

-Barras antipanico sin detector de salida, pueden causar una

alarma de intrusion cuando la puerta sea abierta desde el interior

KPB47xx..

Adapter Kit For HAGER® 4500 Panic Bar

Adapter Kit 4500 Exit Device hager_4500_adapter_kit_kpb47_225369 image on page 2

Adapter Kit 4500 Exit Device hager_4500_adapter_kit_kpb47_225369 diagram on page 2
