← Hager
Effective 4/1/2018
webmaster@hagerco.com
139 Victor Street Saint Louis, MO 63104
800-325-9995 (main phone) 314-772-4400 (local phone) 800-782-0149 (main fax) 314-772-0744 (local fax)
One Family. One Brand. One Vision.™
www.hagerco.com
Part # 5-500-2018
CONTACT INFORMATION
Corporate Office
139 Victor Street St. Louis, Missouri 63104 800-325-9995 (Sales and Service) 800-255-3590 (Main Office) 314-772-4400 (Local Main Office) 800-782-0149 (Fax) 314-772-0744 (Local Fax) webmaster@hagerco.com www.hagerco.com
Montgomery Plant
150 Folmar Parkway Montgomery, AL 36105 334-284-4700 (Main Phone)
Montgomery Distribution Center
200 County Court Montgomery, AL 36105 334-288-0432 (Main Phone)
SoCal Office
12440 Firestone Boulevard, Suite 310 Norwalk, CA 90650 855-557-0010 (Main Phone)
Canada Office
P.O. Box 124 Kitchener, Ontario N2G 3W9 800-255-3590 (Main Phone) 800-552-1926 (Main Fax)
A CLEANER, GREENER PRICE BOOK
Our Printer uses sophisticated ink-mixing technology that reduces VOCs and reduces ink waste to
less than one percent. They consistently recycle, reuse, and reduce both paper and ink
consumption.
Our Inks are soy-based, reducing harmful VOCs and preventing harmful chemicals from entering
the wastewater system.
Our Company is concerned about how our company and products affect the environment. As a result,
we've taken steps to minimize our impact—and we're continually reviewing ways to do more. Throughout the production of this Price Book, we made every effort to recycle and
use both sides of the paper.
General Information
TERMS AND CONDITIONS
General
Prices indicated will be in effect from the date on the cover and are subject to change without notice. If, under any law now or hereafter passed, the seller is required to pay a tax on sales or an excise tax, the amount of these taxes will be added to the invoice value. We shall not be responsible for any loss or damage resulting from delay in filling orders caused by fire, flood, strikes, differences with workmen, government regulations, accidents, transportation delays, shortages of materials, or other causes beyond our control. Should raw material prices rise substantially, it may become necessary to add a surcharge by material type at the time of shipment. Orders are processed in order of receipt, but lead times will vary in relation to production specifications. Errors or omissions in published prices are subject to correction.
Payments
Accounts are net 30 days, or 1% for cash if paid within 15 days following the date of invoice. Cash discounts do not apply to credit card payments. Accounts unpaid at expiration of 60 days from the date of invoice will be subject to a late payment charge of 1-1/2% per month of the total balance. Also, accounts unpaid after 60 days will be subject to C.O.D. shipments. Accounts unpaid after 90 days will be placed for collection. All collection charges, attorney fees, and court costs will be added to the amount due. An NSF (insufficient fund) check fee in the amount of $30.00 will be added to the account.
Minimum Order Charges
Orders with a net value of less than $50.00 will be invoiced at $50.00.
Minimum Annual Purchase Requirement
A minimum annual amount of $15,000.00 is required to maintain open account status with Hager Companies.
Packaging
- A charge of $100.00 net will be made when requested to itemize and special package in accordance with such schedules.
- A charge of $50.00 net will be made when requested to make changes on itemized jobs after the orders have been processed.
- A charge of $15.60 net for crating certain products will be added to invoices at time of shipment.
Quick Ship
The items throughout this price book that have prices in bold and red are items included in the Hager Quick Ship Program and typically ship within 24 hours. When ordering these products, please visit www.hagerco.com and click on 'Quick Ship' in the footer. You will be prompted to log in with your My Hager account name and password and then you may begin ordering.
Shipments and Freight Charges
All shipments are F.O.B. Point of Origin. Freight prepaid on shipments having a value of $2,000.00 net or more, route of our selection. Less than $2,000.00 net shipped prepay and add. Shipments by Express, Air Freight, or United Parcel Service are F.O.B. Point of Origin, without any freight allowance. Any request for shipments not falling under these guidelines may be subject to a handling charge. Hager will not provide consignee or third party freight billing.
There will be a $25.00 net charge for furnishing proof of delivery receipt. This charge will be canceled if delivery was not made. Proof of delivery may be obtained by visiting www.hagerco.com and establishing an account with "My Hager." Due to size limitations by certain carriers, some orders may require LTL shipment.
Please note that for next day air shipments, written consent with an authorized signature must be sent via fax or e-mail to Hager Companies before an order will be released for overnight delivery. Next day air requests must be received prior to 1:00 p.m. CDT.
Cancellations and Make-to-Order Items
Orders for non-stock goods, accepted by Hager, are non-cancelable except with prior written consent, and then subject to a service charge based on the manufacturing expenses incurred. Under no circumstances will non-stock, make-to-order or discontinued product be accepted for return unless it is due to a Hager error.
Return Goods Policy
No credit will be issued for returned goods unless such return is authorized by our St. Louis office. There will be a minimum 35% handling and restocking charge invoked in connection with the return. Freight terms will be specified on return goods authorization forms. Return goods must be in saleable condition or no credit will be issued and goods will be destroyed. No goods will be accepted for return after 6 months. No return goods authorization will be issued for less than $25.00.
Warranty Returns
A credit in the amount of the original purchase order will be issued after the returned product is inspected and the defect is found to be valid.
Inspection and Delivery
Customer will inspect all product deliveries immediately upon receipt. Hager will assume acceptance of delivered product if not notified within 5 days of receipt of product. If damage is visible upon receipt, note that on the Bill of Lading and notify Hager immediately.
Claims
All claims should be submitted to Hager as follows:
- All claims for pricing adjustments must be submitted within 30 days of invoice date
- All claims for order quantity discrepancies must be submitted within 5 days
- All claims for damaged material prior to acceptance by customer must be submitted within 5 days
Limited Warranty
Subject to the limitations of liability set forth below, Hager Companies (the "Company") warrants to purchasers that the products which the Company sells under the "Hager" trademark or trade name are free from defects in workmanship and materials under normal use and regular service and maintenance from date of delivery.
This is the sole and exclusive warranty given by the company with respect to the products and is in lieu of any and all other warranties, express or implied, arising by operation of law or otherwise. All implied warranties, including but not limited to the warranties of merchantability, non-infringement and fitness for a particular purpose, are hereby excluded.
This warranty does not cover defects or damage arising from improper installation, incorrect application, lack of or improper maintenance, improper storage, shipping and handling, excessive wear and tear, misuse, abuse, accident, unauthorized service, or use with unauthorized products or parts.
The sole and exclusive liability of the Company under this warranty or otherwise, shall be limited to the repair or replacement of any product or component part which shall prove defective to the original purchaser from the Company. The Company will not pay for the costs or repair performed other than in accordance with this warranty. The company shall not be liable for damages caused by delay in performance and in no event, regardless of the form of the claim or cause of action (whether based on contract, infringement, negligence, strict liability, other tort or otherwise), shall the company's liability to purchaser and/or its customers exceed the price paid by purchaser for the specific products giving rise to the claim or cause of action. Purchaser agrees that in no event shall the company's liability to purchaser and/or its customers extend to include incidental, consequential or punitive damages resulting from use of these products, or arising out of any breach of this warranty. The term "consequential damages" shall include, but not limited to, loss of anticipated profits, business interruption, loss of use or revenue, cost of capital or loss or damage to property or equipment. The foregoing limitations and exclusions are intended to be effective
General Information
to the maximum extent permitted by law. This warranty is governed by the law of the State of Missouri without regard to its conflicts of law principles. The company and purchaser agree that the United Nations Convention on Contracts for the International Sale of Goods and the United Nations Convention on the Limitation Period in the International Sale of Goods shall not apply to sales of the products covered by this warranty.
Written notice of a product believed to be defective as covered by this warranty should be sent to Hager Companies, 139 Victor Street, St. Louis, Missouri 63104 within 30 days from the discovery of the alleged defects, and should include the purchaser's name and address, identification of the product, and brief description of the defect. Upon receipt of such notice, the Company will inform the purchaser where to ship such product, shipping charges prepaid, for examination. In the event such examination reveals a defect covered by this warranty, the Company will, at its own option, repair or replace the product, and return it or the replacement to the purchaser, with charge only for transportation.
Hager Advantage Program
Please note that the terms of your Hager Advantage Program override any terms found in this price book. If you are not active in our Hager Advantage Program and would like to take advantage of the many benefits, please contact your Hager Sales Representative today.
CODES AND ILLUSTRATIONS
Units of Measure
EACH Item in a box either with or without screws. PACK Items poly bagged (1 or more) per bag.
PAIR Items (1 or more) pair per box. SET Items (1 or more) sets per box.
Illustrations
Pictures shown in this Price Book are for general product information only and are not meant to be used as templates. Contact Hager Companies Sales and Service for final product identification for installation, or go to www.hagerco.com to download templates or installation instructions.
Packaging
The following codes have been established to provide clarification of packaging methods. The basic code letter(s) are shown in parenthesis in the unit column of each page. The letter designation refers to the standard Hager Pack.
Hager Companies reserves the right to change the packaging methods when deemed necessary and to increase or decrease quantities to make full case quantities on a specific item.
B = Boxed PB = Poly Bag BLK = Bulk Pack SET = Set
| DISCOUNTS | |
|---|---|
| Customer Number | |
| Architectural Hinges | |
| Residential Hinges | |
| Roton Continuous Geared Hinges | |
| Stainless Steel Continuous Hinges | |
| Trim & Auxiliary | |
| Thresholds & Weatherstripping | |
| Sliding Door Hardware | |
| Locks | |
| Door Closers | |
| Exit Devices | |
| Electrified Products | |
| Notes | |
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| A |
|---|
| Armor Fronts (Mortise) 52-53 |
| _ |
| В |
| Backset Extension Links |
| 2500 |
| 3400 |
| 3500 |
| Blocking Rings |
| C |
| Cams (Fixed Cylinder) |
| Cams (LFIC) |
| Cams (SFIC) |
| Cash Box Nut |
| Cores |
| Small Format Interchangeable60 |
| Large Format Interchangeable |
| Cylinders |
| Key-In-Lever 57 |
| Mortise (Fixed Cylinder)59 |
| Mortise (SFIC)62 |
| Mortise Dummy59 |
| Mortise ADA Turn Knob59 |
| Rim (Fixed Cylinder)58 |
| Rim (SFIC) |
| Rim Dummy 58 |
| Cylinder Aligning Sleeves10, 26, 29, 35, 38 |
| Cylinder Collars |
| Cylindrical Locks |
| 2500, Grade 28-11 |
| 3400, Grade 122-27 |
| 3500, Grade 2 30-35 |
| D |

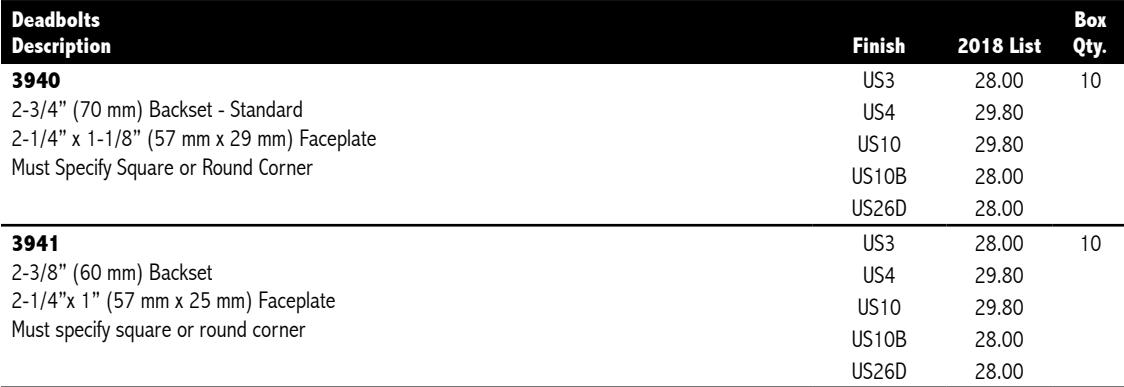

| Deadbolts |
| 3100, Grade 1 |
| 3200, Grade 2 |
| 3700, Interconnected |
| Deadlocks |
| 3100, Grade 1 |
| 3200, Grade 2 |
| Dustbox (Mortise) |
| Dustbox (Deadbolt) |
| Decorative Locks |
| 2300 5-7 |
| E |
|---|
| Electric Options |
| Cylindrical Locks24 |
| Mortise Locks 47 |
| Electric Standalone Locks |
| 34K128-29 |
| 34K228-29 |
| F |
| Faceplate Adapter |
| ' ' |
| I |
| Interchangeable Cores (Small Format) |
| Interchangeable Cores (Large Format) |
| Interconnected Locks |
| 3700, Grade 2 39-4 |
| , |
| K |
| Key Blanks (Fixed Cylinder) 56-57 |
| Key Blanks (SFIC)6 |
| Key Blanks (LFIC)63 |
| Keying Charges (Fixed Cylinder) 56 |
| Keying Charges (SFIC)6 |
| Keying Charges (LFIC)63 |
| Keying, Tools and Accessories |
| Keys, Cut (Fixed Cylinder) 56-57 |
| Keys, Cut (SFIC)6 |
| Keys, Cut (LFIC) |
| L |

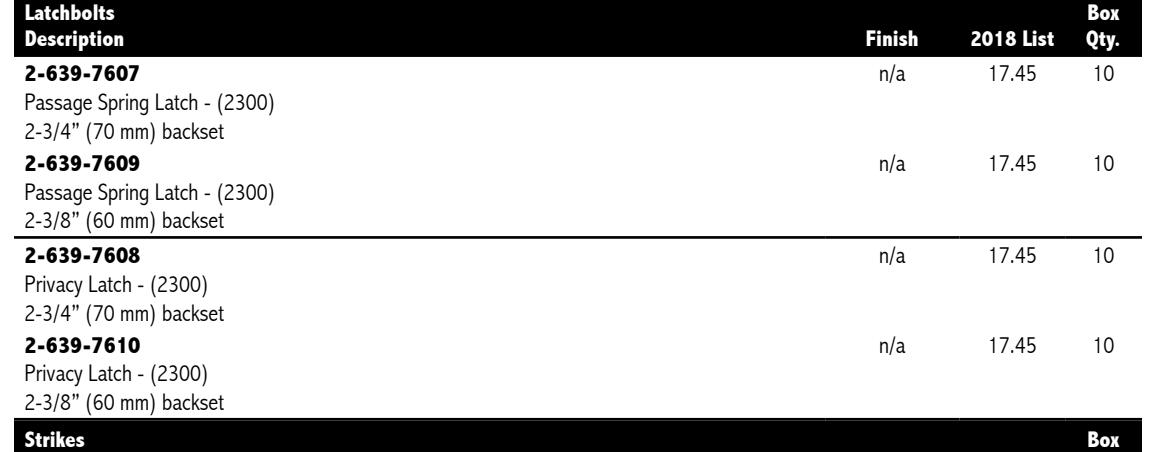

| Latchbolts |
| 2300, Tubular |
| 2500, Grade 2 Cylindrical8-1 |
| 3400, Grade 1 Cylindrical22-27 |
| 34K1/K2, Grade 1 Standalone28 |
| 3500, Grade 2 Cylindrical |
| 3600, Grade 2 Tubular |
| 3700, Grade 2 Interconnected |
| Lead Lining |
| Lead Times |
Locks
| M |
|---|
| Mortise Cam Screws |
| Mortise Cylinder59, 62, 64 |
| Mortise Locks |
| Mortise Locks (Deadlocks)48 |
| Mortise Locks (Small Case Deadlocks)49 |
| Mortise Locks (Sectional)43-44 |
| Mortise Locks (Escutcheon)45-46 |
| Mortise Locks (Sliding Door)50 |
| Mortise Lock Accessories |
| P |
| Power Supplies |
| Cylindrical Lock24 |
| Mortise Lock47 |
| _ |
| R |
| Rim Cylinder |
| _ |
| Software 34K1 |
| 34K2 |

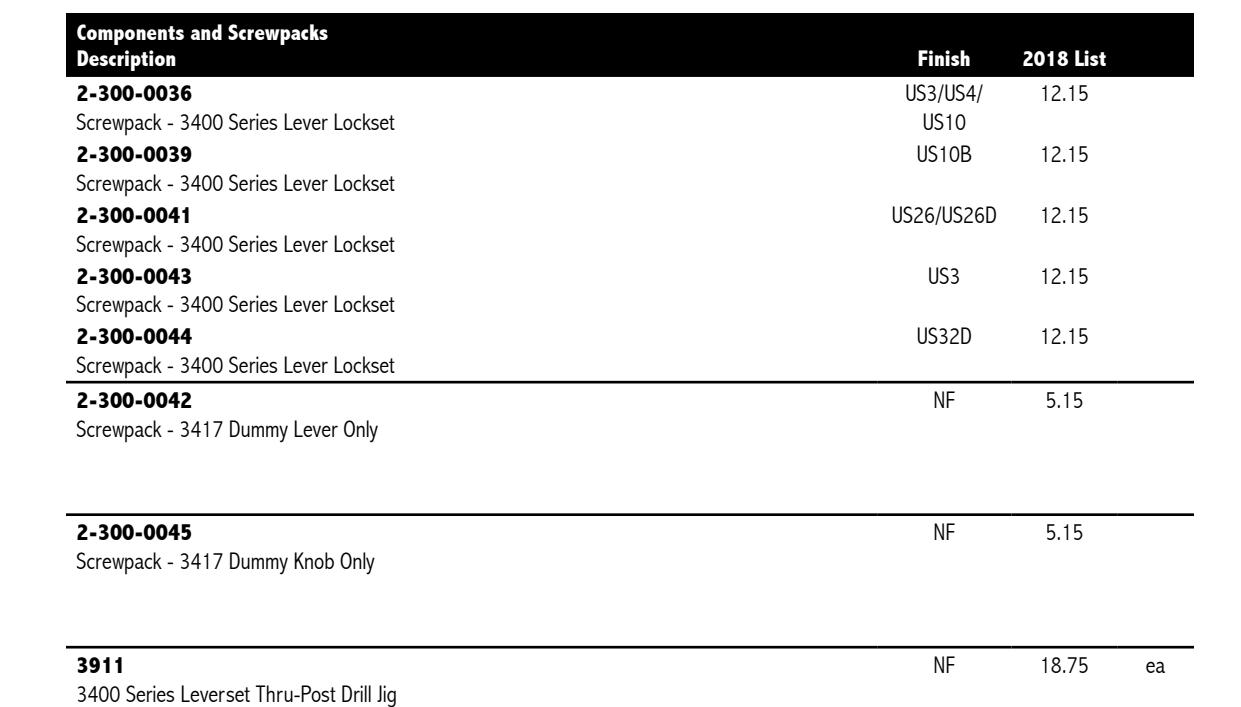

| Screw Packs |
| 2300, Tubular |
| 2500, Grade 1 Deadlock |
| 3100, Grade 2 Cylindrical |
| 3200, Grade 2 Deadlock |
| 3400, Grade 1 Cylindrical |
| 34K1/K2, Grade 1 Standalone |
| 3500, Grade 2 Cylindrical |
| 3600, Grade 2 Tubular |
| 3700, Grade 2 Interconnected |
| 3800, Grade 1 Mortise |
| Stock Numbers |
| Strikes |
| 2300, Tubular |
| 2500, Grade 1 Deadlock |
| 3100, Grade 1 Deadlock |
| 3200, Grade 2 Deadlock |
| 3300, Grade 3 Tubular21 |
| 3400, Grade 1 Cylindrical |
| 34K1/K2, Grade 1 Standalone29 |
| 3500, Grade 2 Cylindrical |
| 3600, Grade 2 Tubular |
| 3700, Grade 2 Interconnected |
| 3800, Grade 1 Mortise |
| 3000, arace i morase |
| Factile Warning | 8, 22, 28, 30, 43, 45 |
| Tailpieces (Fixed Cylinder) | 57-58 |
| Tailpieces (SFIC) | 61-62 |
| Tailpieces (Rim Cylinder) | 59, 64 |
| Thumbturns (Mortise Lock) | 53 |
| Гhru-bolt Jigs | 11, 29, 35 |
| Tubular Locks | |
| 2300 | 5-7 |
| 3300, Grade 3 | 21 |
| 3600, Grade 2 | 36-38 |
INTRODUCTION
Hager Companies offers a variety of locks to meet a wide range of applications and solutions. Heavy Duty Grade 1 deadlocks, cylindrical locks, and mortise locks are ideal for schools, hospitals, and other high-use environments. Grade 2 deadlocks and cylindrical locks are ideal for less abusive environments, while Grade 2 tubular locks are suitable for heavy duty residential or medium duty commercial environments.
All Hager locks have been rigorously tested and certified to the highest standards. Most lock series are BHMA certified per the ANSI A156.2 standards. They are also UL/cUL Listed for all functions up to and including 3 hours for "A" labeled doors. In addition to the certifications, all Hager leversets are ADA compliant and most come with a lifetime warranty.
Most Hager locksets are either non-handed or field reversible in the case of the 3800 Series mortise lock. Conventional cylinder and small format interchangeable core are available on keyed functions. Most lock series offer three lever style options along with one knob style. Please check appropriate section for series specific options.
QUICK SHIP
Products denoted with red and bold in the stock number listing in the back of the pricing section are available to order through the QuickShip program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
LEAD TIMES
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
Keyed lock orders will typically ship in 10-15 working days from the order entry date. All appropriate information and paperwork must be supplied for Hager to schedule and acknowledge master keyed lead times.
CANCELLATION NOTIFICATION
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
Notes:
- If master-keyed, include master key instruction sheet with order (available online).
- For additional keying information, please refer to cylinder, core, and keying section of catalog.
- Quick Connect option available on 3400 series electrified models (EL, EU, RX). Ordering example: 3480 2-3/4" US26D WTN SCC KD ASA ELEUQC.
- · Interchangeable construction core will be included with the lockset if "CIC" is specified in keying section. Customer must specify BLUE or RED color for SFIC.
Please refer to our Catalog or website (www.hagerco.com) for more detailed and series specific ordering information along with additional information including functions available, additional options, and keying information. Ordering forms such as Master Keying Instruction Sheet and Cylinder Instructions and Ordering Guide are also available on our website (www.hagerco.com).
* Small format interchangeable core sold separately. Available in Best Keyways or Hager Keyways, A Standard. Ordering example: 3453 2-3/4" US26D WTN NC ASA SFIC.
2300 Series
Decorative Tubular Locks 2-3/8" (60 mm) backset (optional)
2-3/4" (70 mm) backset (standard)
2-1/4" x 1" (57 mm x 25 mm) SC and RC Faceplate (standard)
Round and square corner full lip strikes (standard)
Optional strikes available. For ASA strike, add $7.00 adder to list price of the lock.
Refer to catalog or website for more detailed information on functions.
Finishes other than US10B, US15, and US26D, are subject to extended lead-times. Consult customer service for availability. When ordering handed lever designs, LH=LHR and RH=RHR
Split finish available at extended lead time. Handing information required when ordering split finish.
Charles
Johnston
Joshua
Louis
Warren
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 2310 | US3 | 105.70 | 24 |
| Passage | US10B | 105.70 | |
| US15 | 101.60 | ||
| US26 | 105.70 | ||
| US26D | 101.60 | ||
| 2317 | US3 | 47.50 | 24 |
| Single Dummy | US10B | 47.50 | |
|
(Specify handing on
Johnston and Warren |
US15 | 45.70 | |
| Levers) | US26 | 47.50 | |
| US26D | 45.70 |
| Case | |||
|---|---|---|---|
| Function | Finish | 2018 List | Qty. |
| 2327 | US3 | 95.00 | 24 |
| Double Dummy | US10B | 95.00 | |
| US15 | 91.35 | ||
| US26 | 95.00 | ||
| US26D | 91.35 | ||
| 2340 | US3 | 112.50 | 24 |
| Privacy | US10B | 112.50 | |
| US15 | 108.15 | ||
| US26 | 112.50 | ||
| US26D | 108.15 |
Locks - 2300 Series
| Description | Finish | 2018 List | Qty. |
|---|---|---|---|
| 3933 | US3 | 8.10 | 10 |
| T-Strike with Plastic Dust Box | US10B | 8.10 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), square corner | US15 | 8.10 | |
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| 2-639-7617 | US3 | 12.10 | 10 |

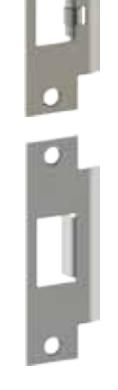

| Full lip replacement strikes (2300) (Includes square and round corner) | |||
| 2-639-7619 | US10B | 12.10 | 10 |
| Full lip replacement strikes (2300) (Includes square and round corner) | |||
| 2-639-7620 | US15 | 12.10 | 10 |
| Full lip replacement strikes (2300) (Includes square and round corner) | |||
| 2-639-7621 | US26 | 12.10 | 10 |
| Full lip replacement strikes (2300) (Includes square and round corner) | |||
| 2-639-7622 | US26D | 12.10 | 10 |
| Full lip replacement strikes (2300) (Includes square and round corner) | |||
| 3935 | US3 | 12.25 | 10 |
| ASA Strike | US10B | 13.00 | |
| 1-1/4" x 4-7/8" (32 mm x 124 mm), square corner | US15 | 12.25 | |
| US26 | 12.25 | ||
| US26D | 12.25 | ||
| 3959 | NF | 2.65 | 10 |
Faceplate Adapter Converts 1" (25 mm) to 1/8" (29 mm) width

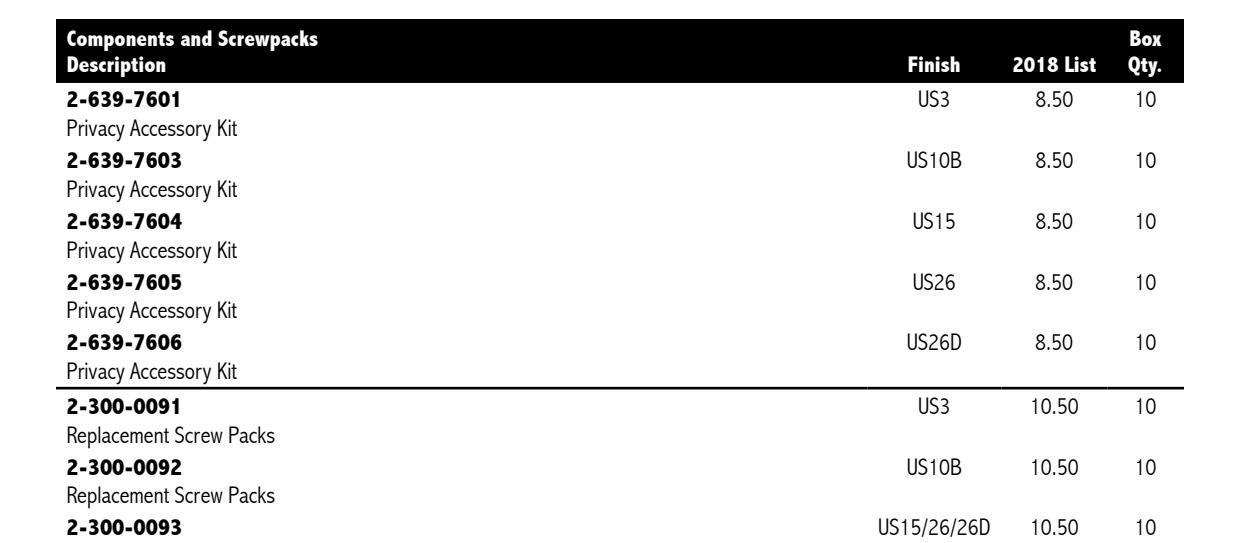

Replacement Screw Packs
Locks - 2500 Series
Withnell
Description
2500 Series
Grade 2 Cylindrical - Economy Fixed Cylinder, Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset 2-1/4" x 1-1/8" (57 mm x 29 mm) SC Faceplate ASA Strike
Small Format Interchangeable Core option Available (cores sold separately - refer to Keying/Core section).
If construction SFIC core is included with the lockset, $51.20 will be added to the list price of the lock. Refer to keying/cores section for construction core options.
Lead Lined available. Add $137.00 to the list price of the lock.
Tactile Warning available (levers only). Add $42 to the list price of the lock.
Optional backsets, faceplates and strikes available.
Optional keying/keyways available.
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 2510 (F75) | US3 | 97.10 | 6 |
| Passage | US10B | 97.10 | |
| US26D | 97.10 | ||
| 2517 | US3 | 58.30 | 12 |
| Single Dummy | US10B | 58.30 | |
| US26D | 58.30 | ||
| 2525 (F111) | US3 | 87.45 | 6 |
| Exit | US10B | 87.45 | |
| US26D | 87.45 | ||
| 2527 | US3 | 114.35 | 6 |
| BTB Dummy | US10B | 114.35 | |
| US26D | 114.35 |
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 2540 (F76A) | US3 | 99.20 | 6 |
| Privacy | US10B | 99.20 | |
| US26D | 99.20 | ||
| 2550 (F82A) | US3 | 110.65 | 6 |
| Office | US10B | 110.65 | |
|
2553 (F109)
Entry |
US26D | 110.65 | |
| 2570 (F84) | |||
| Classroom | |||
| 2580 (F86) | |||
| Storeroom |
| Latchbolts | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3947 | US3 | 28.00 | 10 |
| Spring Latch - Passage Only (2510) | US10B | 28.00 | |
| 2-3/4" (70 mm) Backset | US26D | 28.00 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | |||
| Must specify square or round corner. | |||
| 3949 | US3 | 28.00 | 10 |
| Spring Latch - Passage Only (2510) | US10B | 28.00 | |
|
2-3/8" (60 mm) Backset
2-1/4" x 1" (57 mm x 25 mm) Faceplate |
US26D | 28.00 | |
| Must specify square or round corner. | |||
| 3965 | US3 | 28.00 | 10 |
| Spring Latch - Privacy Only (2540) | US10B | 28.00 | |
| 2-3/4" (70 mm) Backset | US26D | 28.00 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | |||
| Must specify square or round corner. | |||
| 3967 | US3 | 28.00 | 10 |
| Spring Latch - Privacy Only (2540) | US10B | 28.00 | |
| 2-3/8" (60 mm) Backset | US26D | 28.00 | |
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | |||
| Must specify square or round corner. | |||
| 3948 | US3 | 28.00 | 10 |
| Dead Latch - 2525 and all keyed functions (2500 Series) | US10B | 28.00 | |
| 2-3/4" (70 mm) Backset | US26D | 28.00 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | |||
| Must specify square or round corner. | |||
|
3950
Dead Latch - 2525 and all keyed functions (2500 Series) |
US3 | 28.00 | 10 |
| 2-3/8" (60 mm) Backset | US10B | 28.00 | |
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | US26D | 28.00 | |
| Must specify square or round corner. | |||
| 3959 | NF | 2.65 | 10 |
| Faceplate Adapter | |||
| Can be used with 2500 2-3/8" (60 mm) backset latchbolt. | |||
| Converts 1" (25 mm) to 1-1/8" (29 mm) width. | |||
| 3917 | NF | 18.50 | |
| 3-3/4" (95 mm) Backset Extension Link | |||
| Must be used with 2-3/8" (60 mm) backset latchbolt to achieve | |||
| 3-3/4" total backset. | |||
| 3937 | NF | 20.00 | |
| 5" (127) Backset Extension Link | |||
| Must be used with 2-3/4" (70 mm) backset latchbolt to achieve | |||
| 5" total backset. |
|
Drive-In Latchbolts
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3922 | NF | 28.00 | 20 |
| 2-3/4" (70 mm) Drive-In Spring Latch - Passage only (2510) | |||
| 3923 | NF | 28.00 | 20 |
| 2-3/4" (70 mm) Drive-In Spring Latch - Privacy only (2540) | |||
| 3925 | NF | 28.00 | 20 |
| 2-3/8" (60 mm) Drive-In Spring Latch - Passage only (2510) |
Locks - 2500 Series
| Description | Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3926 | NF | 28.00 | 20 |
| 2-3/8" (60 mm) Drive-In Spring Latch - Privacy only (2540) | |||
| 3924 | NF | 28.00 | 20 |
| 2-3/4" (70 mm) Drive-In Dead Latch - All keyed functions (2500 Series) | |||
| 3927 | NF | 28.00 | 20 |
| 2-3/8" (60 mm) Drive-In Dead Latch - All keyed functions (2500 Series) | |||
|
Strikes
Description |
Finish | 2018 List |
Box
Qty. |
| 3933 | US3 | 8.10 | 10 |
| T-Strike with Plastic Dust Box | US10B | 8.10 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), square corner | US26D | 8.10 | |
| 3934 | US3 | 8.10 | 10 |
| Full Lip Strike | US10B | 8.10 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm), square corner | US26D | 8.10 | |
|
3935
ASA Strike Plate |
US3 | 12.25 | 10 |
| Shipped standard with 2500 Series |
US10B
US26D |
13.00
12.25 |
|
|
1-1/4" x 4-7/8" (32 mm x 124 mm), square corner 1-5/16" lip
Order dust box separately |
|||
| 3958 | US3 | 8.10 | 10 |
| Round Corner Full Lip Strike | US10B | 8.10 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm), round corner (1/4" radius) | US26D | 8.10 | |
| Components and Screwpacks | |||
| Description | Finish | 2018 List | |
| 2-639-3577 | NF | 3.05 | |
| Cylinder Aligning Sleeve (10 pack) | |||
| 2-300-0048 | US3 | 12.15 | |
| Screwpack - 2500 Series Lever Locksets | |||
| 2-300-0050 | US10B | 12.15 | |
| Screwpack - 2500 Series Lever Locksets | |||
|
2-300-0052
Screwpack - 2500 Series Lever Locksets |
US26D | 12.15 | |
| 2-300-0058 | NF | 12.15 | |
| Screwpack - 2517/2527 Lever Locksets only | |||
| 2-639-3523 | NF | 4.00 |
| Description | Finish | 2018 List | |
|---|---|---|---|

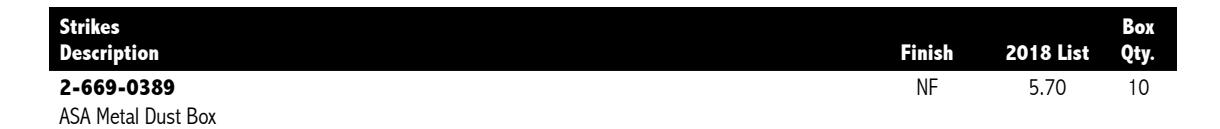

| 2-669-0389 | NF | 5.70 | |
| ASA Metal Dust Box | |||
| 3911 | NF | 18.75 | ea |
| 2500 Series Leverset Thru-Post Drill Jig |
11
3100 Series
Grade 1 Fixed Cylinder Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset 2-1/4" x 1-1/8" (57 mm x 29 mm) Square Corner Faceplate Square Corner Strike
If construction SFIC core is included with the lockset, $51.20 will be added to list price of the lock. Refer to keying/cores section for construction core options.
Small Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
Optional backsets, faceplates, and strikes available (see below). ASA Strike Available. Add $7.00 to list price of deadlock. Optional keying/keyways available.
| Case | |||
|---|---|---|---|
| Function | Finish | 2018 List | Qty. |
| 3114 (E2141) | US3 | 186.10 | 12 |
| Double Cylinder | US4 | 186.10 | |
| US10 | 186.10 | ||
| US10B | 186.10 | ||
| US26 | 186.10 | ||
| US26D | 178.95 | ||
| 3115 (E2151) | US3 | 164.10 | 12 |
| Cylinder x Thumbturn | US4 | 164.10 | |
| US10 | 164.10 | ||
| US10B | 164.10 | ||
| US26 | 164.10 | ||
| US26D | 157.80 |
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 3118 (E2171) | US3 | 169.80 | 12 |
| Classroom | US4 | 169.80 | |
| US10 | 169.80 | ||
| US10B | 169.80 | ||
| US26 | 169.80 | ||
| US26D | 163.25 | ||
| Strikes | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3929 | US3 | 19.70 | 10 |
| ASA Deadlock Strike | US4 | 20.95 | |
| 1-1/4" x 4-7/8" (32 mm x 124 mm), Square Corner | US10 | 20.95 | |
| 1 5/16" lip | US10B | 19.70 | |
| Order dust box separately. | US26 | 19.70 | |
| US26D | 19.70 | ||
| 3930 | US3 | 8.00 | 10 |
| Strike with plastic dust box | US4 | 8.45 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), Square corner | US10 | 8.45 | |
| US10B | 8.00 | ||
| US26D | 8.00 | ||
| 2-639-3109 | NF | 3.85 | 10 |
| Deadlock Dust Box |
|
Components and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
|
2-639-3151
Collar Handing Keys - 3118 - (RH and LH w/ set screw) |
NF | 6.40 |
| 2-639-7146 | US3 | 11.60 |
| Thumbturn Repair Kit - 3100 Series | ||
| 2-639-7147 | US4 | 11.60 |
| Thumbturn Repair Kit - 3100 Series | ||
| 2-639-7148 | US10 | 11.60 |
| Thumbturn Repair Kit - 3100 Series | ||
| 2-639-7149 | US10B | 11.60 |
| Thumbturn Repair Kit - 3100 Series | ||
| 2-639-7150 | US26 | 11.60 |
| Thumbturn Repair Kit - 3100 Series | ||
| 2-639-3168 | US26D | 11.60 |
| Thumbturn Repair Kit - 3100 Series |
Locks - 3100 Series
|
Components and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| 2-639-3152 | US3 | 9.30 |
| Thumbturn Rose - 3100 Series | ||
| 2-639-3153 | US4 | 9.30 |
| Thumbturn Rose - 3100 Series | ||
| 2-639-3154 | US10 | 9.30 |
| Thumbturn Rose - 3100 Series | ||
| 2-639-3155 | US10B | 9.30 |
| Thumbturn Rose - 3100 Series | ||
| 2-639-3156 | US26 | 9.30 |
| Thumbturn Rose - 3100 Series | ||
| 2-639-3157 | US26D | 9.30 |
| Thumbturn Rose - 3100 Series | ||
| 2-300-0000 | US3/US10 | 11.15 |
| Screwpack 3115/3118 | ||
| 2-300-0001 | US4 | 11.15 |
| Screwpack 3115/3118 | ||
| 2-300-0003 | US10B | 11.15 |
| Screwpack 3115/3118 | ||
| 2-300-0004 | US26 | 11.15 |
| Screwpack 3115/3118 | ||
|
2-300-0005
Screwpack 3115/3118 |
US26D | 11.15 |
| 2-300-0006 | US3/US10 | 11.15 |
| Screwpack 3114 | ||
| 2-300-0007 | US4 | 11.15 |
| Screwpack 3114 | ||
| 2-300-0009 | US10B | 11.15 |
| Screwpack 3114 | ||
| 2-300-0010 | US26 | 11.15 |
| Screwpack 3114 | ||
| 2-300-0011 | US26D | 11.15 |
| Screwpack 3114 | ||
| 2-639-3167 | 8.60 | |
| Tailpiece Kit for 2" - 2-1/4" Thick Door (3114/3118 Fixed Cylinder Only) | ||
| 2-639-3236 | US3/US4/ | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Thick Door (3114 Fixed Cylinder Only) | US10 | |
|
2-639-3238
Tailpiece Kit for 2" - 2-1/4" Thick Door (3114 Fixed Cylinder Only) |
US10B | 8.60 |
US26/US26D 8.60
2-639-3239
Tailpiece Kit for 2" - 2-1/4" Thick Door (3114 Fixed Cylinder Only)
|
Components and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| 2-639-7164 | US3 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3115/3118 | ||
| 2-639-7167 | US4 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3115/3118 | ||
| 2-639-7160 | US10 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3115/3118 | ||
| 2-639-7161 | US10B | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3115/3118 | ||
| 2-639-7163 | US26D | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3115/3118 |
15
3200 Series
Grade 2 Fixed Cylinder, Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset 2-1/4" x 1-1/8" SC Faceplate (57 mm x 29 mm) Square Corner Strike
Small Format Interchangeable Core optiion available (cores sold separately - refer to Keying/Core section).
If construction SFIC core is included with the lockset, $51.20 will be added to list price of the lock. Refer to keying/cores section for construction core options.
Refer to Catalog or website for more detailed information on functions.
Optional backsets, faceplates, and strikes available (see next page).
ASA Strike Available. Add $7.00 to list price of deadlock. Optional keying/keyways available.
| Function | Finish | 2018 List |
Case
Qty. |
Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 3214 (E2142) | US3 | 108.60 | 12 | 3220 (E21112) | US3 | 65.75 | |
| Double Cylinder | US4 | 108.60 | Thumbturn only w/ Blank | US4 | 65.75 | ||
| US10 | 108.60 | Plate | US10 | 65.75 | |||
| US10B | 108.60 | US10B | 65.75 | ||||
| US26D | 103.45 | US26D | 62.60 | ||||
| US32 | 94.90 | US32 | 57.45 | ||||
| US32D | 94.90 | US32D | 57.45 | ||||
| 3215 (E2152) | US3 | 88.45 | 12 | 3221 (E2192) | US3 | 54.05 | |
| Cylinder x Thumbturn | US4 | 88.45 |
Thumbturn only
(Replaced 3219) |
US4 | 54.05 | ||
| US10 | 88.45 | US10 | 54.05 | ||||
| US10B | 88.45 | US10B | 54.05 | ||||
| US26D | 84.25 | US26D | 51.50 | ||||
| US32 | 77.30 | US32 | 47.25 | ||||
| US32D | 77.30 | US32D | 47.25 | ||||
| 3216 | US3 | 70.35 | 20 | 3222 | US3 | 35.15 | 20 |
| Thumbturn x Occupancy | US4 | 70.35 | Retrofit Kit for use w/ | US4 | 35.15 | ||
| Indicator | US10 | 70.35 | 3220 or 3221 | US10 | 35.15 | ||
| US10B | 70.35 | US10B | 35.15 | ||||
| US26D | 67.00 | US26D | 33.50 | ||||
| US32 | 61.45 | US32 | 30.75 | ||||
| US32D | 61.45 | US32D | 30.75 |
Faceplate Adapter Can be used with 3220 and 3221 deadlock Converts 1" (25 mm) to 1-1/8 (29 mm) width
|
Strikes
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3929 | US3 | 19.70 | 10 |
| ASA Deadlock Strike | US4 | 20.95 | |
| 1-1/4" x 4-7/8" (32 mm x 124 mm), Square Corner | US10 | 20.95 | |
| 1-5/16" lip | US10B | 19.70 | |
|
Optional Strike can be used with 3100/3200 Series.
Order dust box separately. |
US26 | 19.70 | |
| For use with 3200 Series US32/US32D, order US26/US26D. | US26D/US32D | 19.70 | |
| 3930 | US3 | 8.00 | 10 |
| Strike with plastic dust box | US4 | 8.45 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), Square corner | US10 | 8.45 | |
| US10B | 8.00 | ||
| US26D | 8.00 | ||
| US32 | 8.00 | ||
| US32D | 8.00 | ||
| 2-639-3109 | NF | 3.85 | 10 |
| Deadlock Dust Box | |||
| For use with standard strike, 3930. |
Locks - 3200 Series
| Description | Finish | 2018 List |
|---|---|---|
| 2-300-0018 | US3/US10 | 11.15 |
| Screwpack for 3214 | ||
| 2-300-0019 | US4 | 11.15 |
| Screwpack for 3214 | ||
| 2-300-0021 | US10B | 11.15 |
| Screwpack for 3214 | ||
| 2-300-0022 | US32 | 11.15 |
| Screwpack for 3214 | ||
| 2-300-0023 | US26D/US32D | 11.15 |
| Screwpack for 3214 | ||
| 2-300-0024 | US3/US10 | 11.15 |
| Screwpack for 3215 | ||
| 2-300-0025 | US4 | 11.15 |
| Screwpack for 3215 | ||
| 2-300-0027 | US10B | 11.15 |
| Screwpack for 3215 | ||
| 2-300-0028 | US32 | 11.15 |
| Screwpack for 3215 | ||
| 2-300-0029 | US26D/US32D | 11.15 |
| Screwpack for 3215 | ||
| 2-300-0105 | US3/US10 | 11.15 |
| Screwpack 3216/3220/3222 | ||
| 2-300-0106 | US4 | 11.15 |
| Screwpack 3216/3220/3222 | ||
| 2-300-0108 | US10B | 11.15 |
| Screwpack 3216/3220/3222 | ||
| 2-300-0109 | US32 | 11.15 |
| Screwpack 3216/3220/3222 | ||
| 2-300-0110 | US26D/US32D | 11.15 |
| Screwpack 3216/3220/3222 | ||
| 2-300-0111 | US3/US10 | 11.15 |
| Screwpack 3221 | ||
| 2-300-0112 | US4 | 11.15 |
| Screwpack 3221 | ||
| 2-300-0114 | US10B | 11.15 |
| Screwpack 3221 | ||
| 2-300-0115 | US32 | 11.15 |
| Screwpack 3221 | ||
| 2-300-0116 | US26D/US32D | 11.15 |
| Screwpack 3221 |
|
Components and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| 2-639-3218 | US3/US10 | 11.40 |
| Thumbturn Assembly - 3215 | ||
| 2-639-3219 | US4 | 11.40 |
| Thumbturn Assembly - 3215 | ||
| 2-639-3221 | US10B | 11.40 |
| Thumbturn Assembly - 3215 | ||
| 2-639-7153 | US26D | 11.40 |
| Thumbturn Assembly - 3215 | ||
| 2-639-3222 | US32 | 11.40 |
| Thumbturn Assembly - 3215 | ||
|
2-639-3223
Thumbturn Assembly - 3215 |
US32D | 11.40 |
|
2-639-3230
Tailpiece Kit for 2" - 2-1/4" Door (3215 Fixed Cylinder Only) |
US3/US10 | 8.60 |
| 2-639-3231 | US4 | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3215 Fixed Cylinder Only) | ||
| 2-639-3233 | US10B | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3215 Fixed Cylinder Only) | ||
| 2-639-3234 | US32 | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3215 Fixed Cylinder Only) | ||
| 2-639-3235 | US26D | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3215 Fixed Cylinder Only) | ||
| 2-639-7151 | US32D | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3215 Fixed Cylinder Only) | ||
| 2-639-3236 | US3/US4/ | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3214 Fixed Cylinder Only) | US10 | |
| 2-639-3238 | US10B | 8.60 |
| Tailpiece Kit for 2" - 2-1/4" Door (3214 Fixed Cylinder Only) | ||
|
2-639-3239
Tailpiece Kit for 2" - 2-1/4" Door (3214 Fixed Cylinder Only) |
US26D/US32/
US32D |
8.60 |
| 2-639-3703 | US3 | 8.50 |
| Exterior Deadlock Scalp - 3200 Series | ||
| 2-639-3704 | US4 | 8.50 |
| Exterior Deadlock Scalp - 3200 Series | ||
| 2-639-3705 | US10 | 8.50 |
| Exterior Deadlock Scalp - 3200 Series | ||
| 2-639-3706 | US10B | 8.50 |
| Exterior Deadlock Scalp - 3200 Series | ||
| 2-639-7152 | US26D | 8.50 |
| Exterior Deadlock Scalp - 3200 Series | ||
| 2-639-3707 | US32 | 8.50 |
| Exterior Deadlock Scalp - 3200 Series | ||
| 2-639-3708 | US32D | 8.50 |
| Exterior Deadlock Scalp - 3200 Series |
Locks - 3200 Series
|
Components and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| 2-639-7157 | US3 | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7158 | US4 | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7154 | US10 | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7155 | US10B | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7156 | US26D | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7143 | US32 | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7144 | US32D | 6.85 |
| 3215 SFIC Deadlock Spacer | ||
| 2-639-7164 | US3 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7167 | US4 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7160 | US10 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7161 | US10B | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7163 | US26D | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7165 | US32 | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7166 | US32D | 20.00 |
| SFIC Deadlock Cylinder Assembly - 3215 | ||
| 2-639-7641 | NF | 8.70 |
| 3216 Emergency Key (10Pk) | ||
20
Archer
3300 Series
Grade 3 Tubular - Residential
Fixed Cylinder, Standard
5 Pin Keyed Different Cylinder only - no keying services available Schlage C Keyway only
2-3/8" - 2-3/4" (60mm - 70mm) adjustable backset
2-1/4" - 1" (57mm x 25mm) RC Faceplate (Square corner faceplate loose in the box)
1-3/4" x 2-1/4" Full lip round corner strike, no box (standard)
Optional strikes must be purchased separately.
Refer to catalog or website for more detailed information on functions.
Finishes other than US10B, US15 and US26D will be subject to extended lead times. Consult customer service for availability.
When ordering handed lever designs, LH=LHR and RH=RHR.
| - 30 | |
|---|---|
| ME | |
August
Johnston
Withnell
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 3310 | US3 | $46.50 | 18 |
| Passage | US10B | $54.00 | 18 |
| US15 | $46.50 | 18 | |
| US26 | $49.00 | 18 | |
| US26D | $49.00 | 18 | |
| 3317 | US3 | $22.25 | 27 |
| Single Dummy | US10B | $26.00 | 27 |
| (Specify Handing for | US15 | $22.25 | 27 |
| Johnston lever) | US26 | $24.00 | 27 |
| US26D | $24.00 | 27 |
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 3340 | US3 | $49.00 | 18 |
| Privacy | US10B | $56.50 | 18 |
| US15 | $49.00 | 18 | |
| US26 | $51.50 | 18 | |
| US26D | $51.50 | 18 | |
| 3353 | US3 | $57.50 | 18 |
| Entry | US10B | $65.00 | 18 |
| US15 | $57.50 | 18 | |
| US26 | $60.00 | 18 | |
| US26D | $60.00 | 18 |
|
Strikes
Description |
Finish | 2018 List |
|---|---|---|
| 2-639-7790 Full Lip Strike 1-3/4" x 2-1/4" (45mm x 57mm), square corner | US3 | $2.10 |
|
2-639-7792
Full Lip Strike 2-639-7793 Full Lip Strike |
US10B
US15/US26/US26D |
$2.10
$2.10 |
| 2-639-7795 T-Strike 1-1/8" x 2-3/4" (29mm x 70mm), square corner | US3 | $2.10 |
| 2-639-7797 T-Strike | US10B | $2.10 |
| 2-639-7798 T-Strike | US15/US26/US26D | $2.10 |
Apollo
Archer
3400 Series
Grade 1 Cylindrical Fixed Cylinder, Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset 2-1/4" x 1-1/8" SC Faceplate (57 mm x 29 mm) ASA Strike
Small and Large Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
If construction core is included with the lockset, $51.20 (SFIC) or $64.75 (LFIC) will be added to the list price of the lock. Refer to keying/cores section for construction core options.
Apollo knob with SFIC will be subject to extended lead times consult factory for availability.
Extended Lip ASA strike available. Add $12.00 to list price of the lock.
Lead Lined available. Add $137.00 to the list price of the lock. Tactile Warning available on levers only. Add $42.00 to the list
price of lock.
Anti-microbial available on 26D finish only. Add $40.00 to the list price of the lock.
3/4" latchbolt available. Add $103.00 to the list price of lock.
Split finish available. Priced at higher finish.
Optional backsets, faceplates, and strikes available (see next page).
Security Torx screws available. Add $14.00 to list price of the lock.
Optional keying/keyways available.
*3473 Corridor and 3495 Intruder Classroom functions are not available on Apollo knob.
3495 Intruder Classroom includes locking indicator rose.
Refer to catalog or website for more detailed information on functions.
LFIC is not available with knobsets.
| 6 | |
| 100 | 0 |
August
Withnell
| Function | Finish |
Lever
2018 List |
Case
Qty. |
Knob
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3410 (F75) | US3 | 283.30 | 6 | 252.50 | 10 |
| Passage | US4 | 283.30 | |||
| US10 | 283.30 | ||||
| US10B | 283.30 | ||||
| US26 | 283.30 | ||||
| US26D | 272.40 | ||||
| US32D | 252.50 | ||||
| 3417 | US3 | 133.25 | 12 | 122.00 | 10 |
| Single Dummy | US4 | 133.25 | |||
| US10 | 133.25 | ||||
| US10B | 133.25 | ||||
| US26 | 133.25 | ||||
| US26D | 128.10 | ||||
| US32D | 122.00 | ||||
| 3440 (F76A) | US3 | 326.25 | 6 | 288.35 | 10 |
| Privacy | US4 | 326.25 | |||
| US10 | 326.25 | ||||
| US10B | 326.25 | ||||
| US26 | 326.25 | ||||
| US26D | 313.70 | ||||
| US32D | 288.35 |
3400 Series (Continued)
Continued
| Function | Finish |
Lever
2018 List |
Case
Qty. |
Knob
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3450 (F82A) | US3 | 379.95 | 6 | 339.20 | 10 |
| Office | US4 | 379.95 | |||
| 3453 (F109) | US10 | 379.95 | |||
| Entry | US10B | 379.95 | |||
| 3470 (F84) | US26 | 379.95 | |||
| Classroom | US26D | 365.35 | |||
|
3473 (F90)
Corridor*/Dormitory |
US32D | 339.20 | |||
|
3480 (F86)
Storeroom |
|||||
| 3495 (F110) | US3 | 463.00 | 6 | ||
| Intruder Classroom* | US4 | 463.00 | |||
| US10 | 463.00 | ||||
| US10B | 463.00 | ||||
| US26 | 463.00 | ||||
| US26 | 463.00 | ||||
| US26D | 445.20 |
Locks - 3400 Series
|
3400 Series Electrified Cylindrical Lockset
Description |
Add electrified charges to the list price of the lock
Function |
2018 List |
|---|---|---|
|
Outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V.
Latchbolt retracted by key outside or lever inside. Auxiliary latch deadlocks latchbolt when door is closed. Inside always free for immediate egress. |
3480 ELEU
12V/24V Storeroom - Fail Safe/Fail Secure |
210.00 |
|
Monitors inside lever rotation. Incorporates into fire alarm systems or in
conjunction with an electromagnet. |
RX
Request to Exit |
179.00 |
QUICK CONNECT OPTION: Locks will come with molex connector attached. Quick connect option allows rapid installation of locks when used with the Hager Quick Connect harness cable. See Commercial Hinges section (page 7) for available harness sizes.
QUICK CONNECT ORDERING EXAMPLE: 3480 US26D WTN ELEUQC
|
Power Supplies
Description |
Add electrified charges to the list price of the lock
Function |
2018 List |
|---|---|---|
|
Provides power for Fail Safe or Fail Secure locking devices and interface with
building alarm controls, card readers, keypads, and other door controls. |
2903
24 Volt Power Supply |
Reference
Electrified products section |
|
Provides power and control for openings with an electrified locking device
and automatic door operator. |
2904
24 Volt Power Supply |
Reference
Electrified products section |
|
Provides up to 1 amp of 12 or 24 Volt DC Power for all Hager Electrified
Products. |
2908
24 Volt Power Supply |
Reference
Electrified products section |
|
Provides up to 2 amps of 12 or 24 Volt DC Power for all Hager Electrified
Products. |
2909
24 Volt Power Supply |
Reference
Electrified products section |
|
Latchbolts
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3943 | US3 | 29.40 | 10 |
| Spring Latch - Passage Only (3410) - Standard | US4 | 31.30 | |
| 2-3/4" (70 mm) Backset | US10 | 31.30 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 29.40 | |
| *Must specify square or round corner. | US26 | 29.40 | |
| US26D | 29.40 | ||
| 3945 | US3 | 29.40 | 10 |
| Spring Latch - Passage Only (3410) | US4 | 31.30 | |
| 2-3/8" (60 mm) Backset | US10 | 31.30 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 29.40 | |
| *Must specify square or round corner. | US26 | 29.40 | |
| US26D | 29.40 | ||
| 3964 | US3 | 29.40 | 10 |
| Spring Latch - Privacy Only (3440) | US4 | 31.30 | |
| 2-3/4" (70 mm) Backset | US10 | 31.30 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 29.40 | |
| *Must specify square or round corner. | US26 | 29.40 | |
| US26D | 29.40 |
|
3966
Spring Latch - Privacy Only (3440) 2-3/8" (60 mm) Backset |
US3 | |
|---|---|---|
| 29.40 | ||
| US4 | 31.30 | |
| US10 | 31.30 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 29.40 |
| *Must specify square or round corner. | US26 | 29.40 |
| US26D | 29.40 | |
| 3944 | US3 | 29.40 |
| Dead Latch - All keyed functions except Corridor | US4 | 31.30 |
| 2-3/4" (70 mm) Backset | US10 | 31.30 |
|
2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate
*Must specify square or round corner. |
US10B | 29.40 |
| US26 | 29.40 | |
| US26D | 29.40 | |
| 3946 | US3 | 29.40 |
| Dead Latch - All keyed functions except Corridor | US4 | 31.30 |
| 2-3/8" (60 mm) Backset | US10 | 31.30 |
|
2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate
*Must specify square or round corner. |
US10B | 29.40 |
| US26 | 29.40 | |
| US26D | 29.40 | |
| 3992 | US3 | 29.40 |
| Dead Latch - Corridor (3473) | US4 | 31.30 |
| 2-3/8" (60 mm) Backset | US10 | 31.30 |
|
2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate
*Must specify square or round corner. |
US10B | 29.40 |
| US26 | 29.40 | |
| US26D | 29.40 | |
| 3993 | US3 | 29.40 |
| Dead Latch - Corridor (3473) | US4 | 31.30 |
| 2-3/4" (70 mm) Backset | US10 | 31.30 |
|
2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate
*Must specify square or round corner. |
US10B | 29.40 |
| US26 | 29.40 | |
| US26D | 29.40 | |
| 3932 | US3 | 102.90 |
| 3/4" Dead Latch (3450, 3453, 3470, 3480, 3495) | US4 | 102.90 |
|
2-3/4" (70 mm) Backset
2-1/4" x 1-1/8" (57 mm x 29 mm) square corner faceplate |
US10 | 102.90 |
| US10B | 102.90 | |
| US26 | 102.90 | |
| US26D | 102.90 | |
|
3916
3-3/4" (95 mm) Backset Extension Link |
NF | 18.50 |
| Must be used with 2-3/8" backset latchbolt to achieve 3-3/4" total backset. | ||
|
3936
5" (127 mm) Backset Extension Link |
NF | 20.00 |
Locks - 3400 Series
ASA Metal Dust Box
|
Strikes
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3933 | US3 | 8.10 | 10 |
| T-Strike with Plastic Dust Box | US4 | 8.50 | |
| 1-1/8" x 2-3/4" (29 x 70 mm), square corner | US10 | 8.50 | |
| For use with US32D knobs, order US26D. | US10B | 8.10 | |
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| 3934 | US3 | 8.10 | 10 |
| Full Lip Strike | US4 | 8.50 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm), square corner | US10 | 8.50 | |
| For use with US32D knobs, order US26D. | US10B | 8.10 | |
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| 3935 | US3 | 12.25 | 10 |
| ASA Strike | US4 | 13.00 | |
| Shipped standard with 3400 Series | US5 | 12.25 | |
| 1-1/4" x 4-7/8" (32 mm x 124 mm), square corner | US10 | 12.25 | |
| 1-5/16" lip | US15 | 12.25 | |
| Order dust box separately | US10B | 13.00 | |
| US26 | 12.25 | ||
| US26D | 12.25 | ||
| US32D | 12.25 | ||
| 3958 | US3 | 8.10 | 10 |
| Round Corner Full Lip Strike | US4 | 8.50 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm), round corner | US10 | 8.50 | |
| (1/4" radius) | US10B | 8.10 | |
| For use with US32D knobs, order US26D | US26 | 8.10 | |
| US26D | 8.10 | ||
| 2-669-0389 | NF | 5.70 | 10 |
|
Components and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| 2-639-3490 | NF | 2.80 |
| Cylinder Aligning Sleeve (10 pack) |
27
Withnell
34K Series
Grade 1 Cylindrical Standalone Fixed Cylinder, Standard 6 Pin Cylinders, 5-pin keyed Standard Schlage C Keyway - KD Standard 2-3/4" (70mm) Backset 2-1/4" x 1-1/8" SC Faceplate (57mm x 29mm) ASA Strike Standard
Small Format Interchangeable Core option available (Core sold separately - refer to Keying/Core section).
If construction SFIC core is included with the lockset, $51.20 will
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 34K1 | US10B | 1082.00 | 2 |
|
Keypad - Entry/
Storeroom |
US26D | 1043.00 |
be added to list price of the lock. Refer to keying/cores section for construction core options.
Extended Lip ASA strike available. Add $12.00 to list price of the
Tactile Warning available. Add $42.00 to the list price of lock. <sup>3</sup>/<sub>4</sub>" latchbolt available. Add $103.00 to the list price of lock.
Optional faceplates and strikes available
Optional keying/keyways available.
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 34K2 | US10B | 1550.00 | 2 |
|
Keypad + Prox - Entry/
Storeroom |
US26D | 1494.00 |

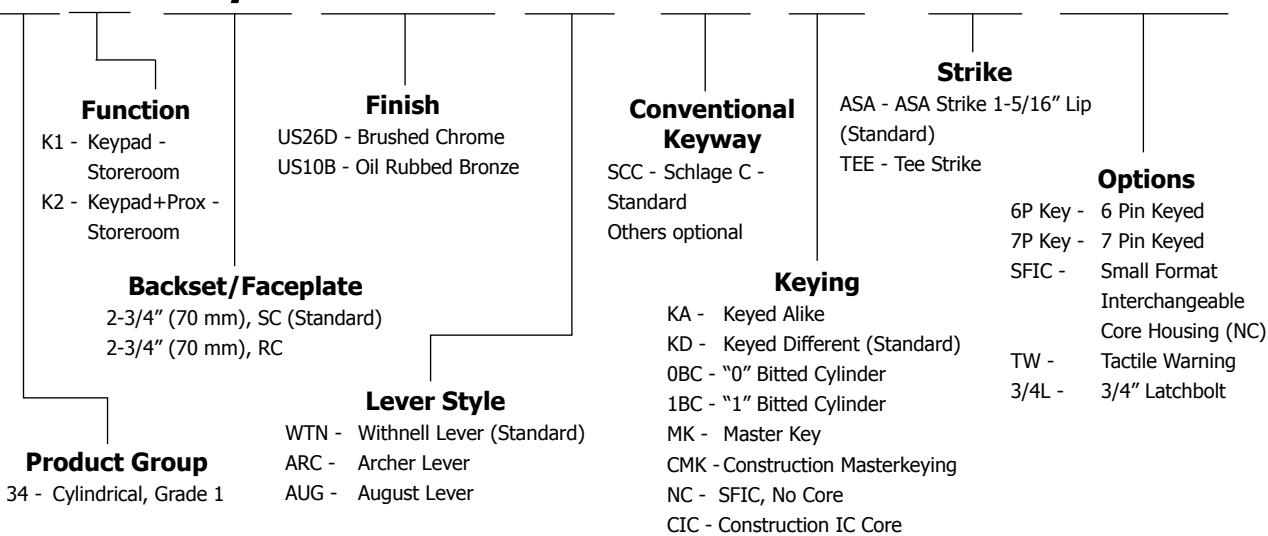

34K SERIES LOCKS HOW TO ORDER
2-3/4" US26D WTN SCC KD ASA 6P KEY
|
Audit Trail Accessories
Description |
Finish | 2018 List | |
|---|---|---|---|
| 2-639-6000 | n/a | 130.00 | |
| 34K1 Software Kit – Includes Disc, USB Cable and Programming manual | |||
| 2-639-6001 | n/a | 460.00 | |
| 34K2 Software Kit – Includes Disc, Prox card reader/enroller, USB Cable and Programming | |||
| manual | |||
| Latchbolts | Box | ||
| Description | Finish | 2018 List | Qty. |
| 3944 | US10B | 29.40 | 10 |
|
Dead Latch
2-3/4" (70 mm) Backset |
US26D | 29.40 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | |||
| *Must specify square or round corner. | |||
| 3932 | US10B | 102.90 | 10 |
| 3/4" Dead Latch | US26D | 102.90 | |
| 2-3/4" (70 mm) Backset | |||
| 2-1/4" x 1-1/8" (57 mm x 29 mm) square corner faceplate | |||
|
Strikes
Description |
Finish | 2018 List |
Box
Qty. |
| 3933 | US10B | 8.10 | 10 |
| T-Strike with Plastic Dust Box | US26D | 8.10 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), square corner | |||
| 3935 | US10B | 13.00 | 10 |
| ASA Strike Plate | US26D | 13.00 | |
| Shipped standard | |||
| 1-1/4" x 4-7/8" (32 mm x 124 mm), square corner | |||
| 1-5/16" lip | |||
| Order dust box separately: | |||
| 2-669-0389 | NF | 5.70 | 10 |
| ASA Metal Dust Box | |||
| Components and Screwpacks | |||
| Description | Finish | 2018 List | |
| 2-300-0300 | US10B | 13.25 | |
| Screwpack - 34K Series Lockset | |||
| 2-300-0301 | US26D | 13.25 | |
| Screwpack - 34K Series Lockset | |||
| 2-300-0302 | NF | 10.50 | |
| Screwpack - 34K Battery Cover (10 pack) | |||
| 2-639-3490 | NF | 2.80 | |
| Cylinder Aligning Sleeve (10 pack) | |||
| 2-639-7714 | NF | 4.00 |
Archer
August
Withnell
3500 Series
Grade 2 Cylindrical Fixed Cylinder, Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset 2-1/4" x 1-1/8" (57 mm x 29 mm) SC Faceplate ASA Strike
Small Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
If construction SFIC core is included with the lockset, $51.20 will be added to list price of the lock. Refer to keying/cores section for construction core options.
Extended Lip ASA strike available. Add $10.00 to list price of the lock.
Lead Lined available. Add $137.00 to the list price of the lock.
Tactile Warning available (Levers only). Add $42.00 to the list price of the lock.
Anti-microbial available on 26D finish only. Add $40.00 to list price of lock.
3/4" latchbolt available. Add $103.00 to the list price of the lock. Split finish available. Priced at higher finish.
Optional backsets, faceplates and strikes available (see next page).
Security Torx screws available. Add $12.00 to list price of the lock.
Optional keying/keyways available.
Apollo knob with SFIC will be subject to extended lead times, consult factory for availability.
*3525 Exit, 3527 BTB Dummy, and 3573 Corridor functions are not available on Apollo knob.
| Function | Finish |
Lever
2018 List |
Case
Qty. |
Knob
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3510 (F75) | US3 | 171.15 | 6 | 57.65 | 20 |
| Passage | US4 | 171.15 | |||
| US10 | 171.15 | ||||
| US10B | 171.15 | ||||
| US26 | 171.15 | ||||
| US26D | 159.25 | ||||
| US32D | 57.65 | 20 | |||
| 3517 | US3 | 67.75 | 12 | 33.00 | 60 |
| Single Dummy | US4 | 67.75 | |||
| US10 | 67.75 | ||||
| US10B | 67.75 | ||||
| US26 | 67.75 | ||||
| US26D | 63.00 | ||||
| US32D | 33.00 | 60 | |||
| 3525 (F111) | US3 | 171.15 | 6 | ||
| Exit* | US4 | 171.15 | |||
| US10 | 171.15 | ||||
| US10B | 171.15 | ||||
| US26 | 171.15 | ||||
| US26D | 159.25 | ||||
| 3527 | US3 | 135.45 | 6 | ||
| BTB Dummy* | US4 | 135.45 | |||
| US10 | 135.45 | ||||
| US10B | 135.45 | ||||
| US26 | 135.45 | ||||
| US26D | 126.00 | ||||
3500 Series (Continued)
Continued
| Function | Finish |
Lever
2018 List |
Case
Qty. |
Knob
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3540 (F76A) | US3 | 194.40 | 6 | 60.80 | 20 |
| Privacy | US4 | 194.40 | |||
| US10 | 194.40 | ||||
| US10B | 194.40 | ||||
| US26 | 194.40 | ||||
| US26D | 180.85 | ||||
| US32D | 60.80 | 20 | |||
| 3550 (F82A) | US3 | 215.70 | 6 | 87.85 | 20 |
| Office | US4 | 215.70 | |||
| 3553 (F109) | US10 | 215.70 | |||
| Entry | US10B | 215.70 | |||
| 3570 (F84) | US26 | 215.70 | |||
| Classroom | US26D | 200.65 | |||
|
3573 (F90)
Corridor*/Dormitory |
US32D | 87.85 | 20 | ||
|
3579 (F113)
Keyed Communicating |
|||||
|
3580 (F86)
Storeroom |
31
Locks - 3500 Series
| 2 | |
|---|---|
| Latchbolts | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3947 | US3 | 28.00 | 10 |
| Spring Latch - Passage only (3510) - Standard | US4 | 29.80 | |
|
2-3/4" (70 mm) Backset
2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate |
US10 | 29.80 | |
| Must specify square or round corner. | US10B | 28.00 | |
| US26 | 28.00 | ||
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3949 | US3 | 28.00 | 10 |
| Spring Latch - Passage only (3510) | US4 | 29.80 | |
| 2-3/8" (60 mm) Backset | US10 | 29.80 | |
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | US10B | 28.00 | |
| Must specify square or round corner. | US26 | 28.00 | |
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3965 | US3 | 28.00 | 10 |
| Spring Latch - Privacy only (3540) - Standard | US4 | 29.80 | |
| 2-3/4" (70 mm) Backset | US10 | 29.80 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 28.00 | |
| Must specify square or round corner. | US26 | 28.00 | |
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3967 | US3 | 28.00 | 10 |
| Spring Latch - Privacy only (3540) | US4 | 29.80 | |
| 2-3/8" (60 mm) Backset | US10 | 29.80 | |
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | US10B | 28.00 | |
| Must specify square or round corner. | US26 | 28.00 | |
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3948 | US3 | 28.00 | 10 |
| Dead Latch - 3525 and all keyed functions except Corridor | US4 | 29.80 | |
| 2-3/4" (70 mm) Backset | US10 | 29.80 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 28.00 | |
| Must specify square or round corner. | US26 | 28.00 | |
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3950 | US3 | 28.00 | 10 |
| Dead Latch - 3525 and all keyed functions except Corridor | US4 | 29.80 | |
| 2-3/8" (60 mm) Backset | |||
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | US10 | 29.80 | |
| Must specify square or round corner. | US10B | 28.00 | |
| US26 | 28.00 | ||
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3994 | US3 | 28.00 | 10 |
| Dead Latch - Corridor (3573) | US4 | 29.80 | |
|
2-3/8" (60 mm) Backset
2-1/4" x 1" (57 mm x 25 mm) Faceplate |
US10 | 29.80 | |
| Must specify square or round corner. | US10B | 28.00 | |
| US26 | 28.00 | ||
| US26D | 28.00 | ||
| US32D | 28.00 |
| Latchbolts | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3995 | US3 | 28.00 | 10 |
| Dead Latch - Corridor (3573) | US4 | 29.80 | |
| 2-3/4" (70 mm) Backset | US10 | 29.80 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) Faceplate | US10B | 28.00 | |
| Must specify square or round corner. | US26 | 28.00 | |
| US26D | 28.00 | ||
| US32D | 28.00 | ||
| 3959 | NF | 2.65 | 10 |
| Faceplate Adapter | |||
| Can be used with 3500 2-3/8" backset latchbolt. | |||
| Converts to 1" (25 mm) to 1-1/8" (29 mm) width. | |||
| 3932 | US3 | 102.90 | 10 |
| 3/4" Dead Latch (3550, 3553, 3570, 3580) | US4 | 102.90 | |
| 2-3/4" (70 mm) Backset | US10 | 102.90 | |
| 2-1/4" x 1-1/8" (57 mm x 29 mm) square corner faceplate | US10B | 102.90 | |
| US26 | 102.90 | ||
| US26D | 102.90 | ||
| 3917 | NF | 18.50 | 10 |
| 3-3/4" (95 mm) Backset extension link | |||
| Must be used with 2-3/8" backset latchbolt to achieve | |||
| 3-3/4" total backset. | |||
| 3937 | NF | 20.00 | 10 |
| 5" (127 mm) Backset extension link | |||
| Must be used with 2-3/4" backset latchbolt to achieve 5" total backset. | |||
Locks - 3500 Series
|
Drive-in Latchbolts
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3922 | NF | 28.00 | 20 |
| 2-3/4" (70 mm) Drive-In Spring Latch - Passage only (3510) | |||
|
3923
2-3/4" (70 mm) Drive-In Spring Latch - Privacy only (3540) |
NF | 28.00 | 20 |
| 3925 | NF | 28.00 | 20 |
|
2-3/8" (60 mm) Drive-In Spring Latch - Passage only (3510)
3926 |
NF | 28.00 | 20 |
| 2-3/8" (60 mm) Drive-In Spring Latch - Privacy only (3540) | |||
|
3924
2-3/4" (70 mm) Drive-In Dead Latch - All keyed functions except corridor |
NF | 28.00 | 20 |
|
3927
2-3/8" (60 mm) Drive-In Dead Latch - All keyed functions except corridor |
NF | 28.00 | 20 |
| 3996 | NF | 28.00 | 20 |
|
2-3/8" (60 mm) Drive-In Dead Latch - Corridor (3573)
3997 |
NF | 28.00 | 20 |
| 2-3/4" (70 mm) Drive-In Dead Latch - Corridor (3573) | |||
|
Strikes
Description |
Finish | 2018 List |
Box
Qty. |
| 3933 | US3 | 8.10 | 10 |
| T-Strike with Plastic Dust Box | US4 | 8.50 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), square corner | US10 | 8.50 | |
| For use with US32D knobs, order US26D. | US10B | 8.10 | |
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| US32D | 8.10 | ||
| 3934 | US3 | 8.10 | 10 |
| Full Lip Strike | US4 | 8.50 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm), square corner | US10 | 8.50 | |
| For use with US32D knobs, order US26D. | US10B | 8.10 | |
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| US32D | 8.10 | ||
| 3935 | US3 | 12.25 | 10 |
| ASA Strike | US4 | 13.00 | |
| Shipped Standard with 3500 Series | US5 | 12.25 | |
| 1-1/4" x 4-7/8" (32 mm x 124 mm), square corner 1-5/16" lip | US10 | 12.25 | |
| Order dust box separately. | US15 | 12.25 | |
| US10B | 13.00 | ||
| US26 | 12.25 | ||
| US26D | 12.25 | ||
| US32D | 12.25 | ||
| 3958 | US3 | 8.10 | 10 |
| Round Corner Full Lip Strike | US4 | 8.50 | |
US10 8.50 US10B 8.10 US26 8.10 US26D 8.10 US32D 8.10
1-5/8" x 2-1/4" (41 mm x 57 mm), round corner (1/4" radius)
For use with US32D knobs, order US26D.
| C) |
|---|
| ס |
|
Components and Screwpacks
Description |
Finish | 2018 List | |
|---|---|---|---|
| 2-300-0048 | US3/US4/ | 12.15 | |
| Screwpack - 3500 Series Lever Locksets | US10 | ||
| 2-300-0050 | US10B | 12.15 | |
| Screwpack - 3500 Series Lever Locksets | |||
| 2-300-0052 | US26/US26D | 12.15 | |
| Screwpack - 3500 Series Lever Locksets | |||
| 2-300-0059 | US3 | 12.15 | |
| Screwpack - 3500 Series Knob Locksets | |||
| 2-300-0060 | US32D | 12.15 | |
| Screwpack - 3500 Series Knob Locksets | |||
| 2-300-0058 | NF | 12.15 | |
| Screwpack - 3517/3527 Lever Locksets only | |||
| 2-300-0045 | NF | 5.15 | |
| Screwpack - 3517 Knob Lockset only | |||
| 2-639-3523 | NF | 4.20 | |
| 3500 Series thru bolt posts | |||
| 2-639-3577 | NF | 3.05 | |
| Cylinder Aligning Sleeve (10 pack) | |||
| 3912 | NF | 18.75 | ea |
| 3500 Series Leverset Thru-Post Drill Jig | |||
Locks - 3600 Series
August
Withnell
Description
3600 Series
Grade 2 Tubular Locks Fixed Cylinder, Standard 6 Pin Cylinders, 5-Pin Keyed Schlage C Keyway - KD Standard 2-3/8" - 2-3/4" (60 mm - 70 mm) adjustable backset 2-1/4" x 1" (57 mm x 25 mm) SC Faceplate ASA Strike Levers only
Small Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
Extended Lip ASA strike available. Add $10.00 to list price of the lock.
Split finish available, priced at higher finish.
Optional backsets, faceplates and strikes available (see next page).
Optional keying/keyways available.
Refer to catalog or website for more detailed information on functions.
If construction SFIC core is included with the lockset, $51.20 will be added to the list price Archer of the lock. Refer to keying/cores section for construction core options.
| Case | |||
|---|---|---|---|
| Function | Finish | 2018 List | Qty. |
| 3610 (F75) | US3 | 117.60 | 12 |
| Passage | US4 | 117.60 | |
| US10 | 117.60 | ||
| US10B | 117.60 | ||
| US26 | 117.60 | ||
| US26D | 109.40 | ||
| 3617 | US3 | 58.40 | 20 |
| Single Dummy | US4 | 58.40 | |
| US10 | 58.40 | ||
| US10B | 58.40 | ||
| US26 | 58.40 | ||
| US26D | 54.30 |
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 3640 (F76B) | US3 | 125.80 | 12 |
| Privacy | US4 | 125.80 | |
| US10 | 125.80 | ||
| US10B | 125.80 | ||
| US26 | 125.80 | ||
| US26D | 117.00 | ||
| 3653 (F82A) | US3 | 159.80 | 12 |
| Entry/Office | US4 | 159.80 | |
| 3670 (F84) | US10 | 159.80 | |
| Classroom | US10B | 159.80 | |
| 3680 (F86) | US26 | 159.80 | |
| Storeroom | US26D | 148.70 |
|
Latchbolts
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3951 | US3 | 23.50 | 10 |
| Spring Latch - Non-keyed Functions (3600) - Standard | US4 | 25.00 | |
| 2-3/8" - 2-3/4" (60 mm - 70 mm) adjustable backset | US10 | 25.00 | |
| 2-1/4" x 1" (57 mm x 25 mm) square corner faceplate | US10B | 23.50 | |
| US26 | 23.50 | ||
| US26D | 23.50 | ||
| 3952 | US3 | 23.50 | 10 |
| Dead Latch - All keyed functions (3600) - Standard | US4 | 25.00 | |
| 2-3/8" - 2-3/4" (60 mm - 70 mm) adjustable backset | US10 | 25.00 | |
| 2-1/4" x 1" (57 mm x 25 mm) square corner faceplate | US10B | 23.50 | |
| US26 | 23.50 | ||
| US26D | 23.50 | ||
| 3953 | US3 | 23.50 | 10 |
| Spring Latch - Non-keyed Functions (3600) | US4 | 25.00 | |
| 2-3/8" - 2-3/4" (60 mm - 70 mm) adjustable backset | US10 | 25.00 | |
| 2-1/4" x 1" (57 mm x 25 mm) round corner faceplate | US10B | 23.50 | |
| US26 | 23.50 | ||
| US26D | 23.50 | ||
| 3954 | US3 | 23.50 | 10 |
| Dead Latch - All keyed functions (3600) | US4 | 25.00 | |
| 2-3/8" - 2-3/4" (60 mm - 70 mm) adjustable backset | US10 | 25.00 | |
| 2-1/4" x 1" (57 mm x 25 mm) round corner faceplate | US10B | 23.50 | |
| US26 | 23.50 | ||
| US26D | 23.50 | ||
| 3938 | US3 | 25.00 | 10 |
| Dead Latch - All keyed functions (3600) | US4 | 26.30 | |
| 5" (127 mm) Backset | US10 | 26.30 | |
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | US10B | 25.00 | |
| Must specify square or round corner. | US26 | 25.00 | |
| US26D | 25.00 | ||
| 3939 | US3 | 25.00 | 10 |
| Spring Latch - Non-keyed functions (3600) | US4 | 26.30 | |
| 5" (127 mm) Backset | US10 | 26.30 | |
| 2-1/4" x 1" (57 mm x 25 mm) Faceplate | US10B | 25.00 | |
| Must specify square or round corner. | US26 | 25.00 | |
| US26D | 25.00 | ||
| Drive-in Latchbolts | Box | ||
| Description | Finish | 2018 List | Qty. |
| 3914 | NF | 23.50 | 20 |
| 2-3/8" - 2-3/4" (60 mm - 70 mm) Adjustable Drive-In Spring Latch - All non-keyed functions | |||
|
3915
2-3/8" - 2-3/4" (60 mm - 70 mm) Adjustable Drive-In Dead Latch - All keyed functions |
NF | 23.50 | 20 |
Locks - 3600 Series
| Strikes | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3933 | US3 | 8.10 | 10 |
| T-Strike with Plastic Dust Box | US4 | 8.50 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), square corner | US10 | 8.50 | |
| US10B | 8.10 | ||
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| 3934 | US3 | 8.10 | 10 |
| Full Lip Strike | US4 | 8.50 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm), square corner | US10 | 8.50 | |
| US10B | 8.10 | ||
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| 3935 | US3 | 12.25 | 10 |
| ASA Strike | US4 | 13.00 | |
| Shipped standard w/ 3600 Series | US5 | 12.25 | |
| 1-1/4" x 4-7/8" (32 mm x 124 mm), square corner | US10 | 12.25 | |
| 1-5/16" lip | US15 | 12.25 | |
| Order dust box separately | US10B | 13.00 | |
| US26 | 12.25 | ||
| US26D | 12.25 | ||
| US32D | 12.25 | ||
| 3958 | US3 | 8.10 | 10 |
| Round Corner Full Lip Strike | US4 | 8.50 | |
| 1-5/8" x 2-1/4" (41 mm x 57 mm) round corner (1/4" radius) | US10 | 8.50 | |
| US10B | 8.10 | ||
| US26 | 8.10 | ||
| US26D | 8.10 | ||
| 2-669-0389 | NF | 5.70 | 10 |
| ASA Metal Dust Box | |||
| 3959 | NF | 2.65 | 10 |
| Faceplate Adapter | |||
| 3600 Series Standard |
| Components and Screwpacks | ||
|---|---|---|
| Description | Finish | 2018 List |
| 2-300-0064 | US3/US4 | 11.05 |
| Screwpack - 3600 Series Lever Locksets | ||
| 2-300-0066 | US10B | 11.05 |
| Screwpack - 3600 Series Lever Locksets | ||
| 2-300-0068 | US26/US26D | 11.05 |
| Screwpack - 3600 Series Lever Locksets | ||
| 2-300-0074 | NF | 11.05 |
NF 2.80
Screwpack - 3617 Lever Locksets only
Converts 1" (25 mm) to 1-1/8" (29 mm) width
2-639-7159 Cylinder Aligning Sleeve (10 pack)
3700 Series
Grade 2 Interconnected Fixed Cylinder, Standard 6 Pin Cylinders, 5-Pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset 2-1/4" x 1-1/8" (57 mm x 29 mm) SC Faceplate T-Strike Levers only
Small Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 3710 (F95) | US3 | 318.40 | 6 |
| Entry Single Locking | US4 | 318.40 | |
| US10 | 318.40 | ||
| US10B | 318.40 | ||
| US26 | 318.40 | ||
| US26D | 309.10 | ||
| 3753 (F97) | US3 | 350.45 | 6 |
| Entry Double Locking | US4 | 350.45 | |
| US10 | 350.45 | ||
| US10B | 350.45 | ||
| US26 | 350.45 | ||
| US26D | 340.25 |
If construction SFIC core is included with the lockset, $51.20 will be added to list price of the lock. Refer to keying/cores section for construction core options.
Split finish available, priced at higher finish.
Optional backsets, faceplates and strikes available (see next page).
Optional keying / keyways available.
|
US3
US4 |
354.85 | 6 |
|---|---|---|
| 354.85 | ||
| US10 | 354.85 | |
| US10B | 354.85 | |
| US26 | 354.85 | |
| US26D | 344.50 | |
August
Withnell
Locks - 3700 Series
Faceplate Adapter Can be used with 3700 2-3/8" backset latchbolt. Converts 1" (25 mm) to 1-1/8" (29 mm) width.
|
Strikes
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3930 | US3 | 8.00 | 10 |
| 3700 Series Deadlock, Standard | US4 | 8.45 | |
| Strike with Plastic Dust Box | US10 | 8.45 | |
| 1-1/8" x 2-3/4" (29 mm x 70 mm), square corner | US10B | 8.00 | |
| US26 | 8.00 | ||
| US26D | 8.00 |
US3 8.10 10 US4 8.50 US10 8.50 US10B 8.10
NF 3.85 10
Box Qty.
Description Finish 2018 List
2-639-3109 Deadlock Dust Box, Plastic
Strikes
3933
T-Strike with Plastic Dust Box 3700 Series Latchbolt, Standard
1-1/8" x 2-3/4" (29 mm x 70 mm), square corner
| Components and Screwpacks | ||
|---|---|---|
| Description | Finish | 2018 List |
| 2-300-0138 | US3/US4/ | 11.60 |
| Screwpack - 3700 Series Lever Lockset | US10 | |
| 2-300-0140 | US10B | 11.60 |
| Screwpack - 3700 Series Lever Lockset | ||
| 2-300-0141 | US26/US26D | 11.60 |
| Screwpack - 3700 Series Lever Lockset | ||
| 2-639-7641 | NF | 8.70 |
| 3976 Emergency Key (10Pk) |
41
HOW TO ORDER EXAMPLE
Notes
- Finishes other than US10B, US15, US26D and US32D are subject to 90 day extended lead time.
- If master-keyed, include master key instruction sheet with order (available online).
- For additional keying information, refer to cylinder, core, and keying section of catalog.
- Quick Connect option available on 3800Series Electrified Sectional and Escutcheon models (EL, EU, RX, DPM, and LM).
Ordering example: 3880 SECT US26D WTN ELEUQC
• Door width greater than 2-1/2", or doors with offset prep are POA with 90 day extended lead time.
Please refer to our Catalog or website (www.hagerco.com) for more detailed and series specific ordering information along with additional information including functions available, additional options, and keying information.
August
William
Withnell
Charles
Johnston
3800 Series Sectional
Grade 1 Mortise Fixed Cylinder, Supplied Standard 1-1/8" Mortise Cylinder w/ Schlage L Cam - Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset ASA Strike, 3985
Price includes mortise cylinder(s) where applicable and standard cylinder will be shipped with lock unless specified.
If keyed functions ordered less cylinder, subtract $48.00 for each cylinder from list price.
Small and Large Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
If construction core is included with the lockset, $51.20 (SFIC) or $64.75 (LFIC) will be added to list price of the lock. Refer to keying/ cores section for construction core options.
*3857, 3861, and 3882 require two cylinders.
Must specify "Full" for fixed cylinder, "ICFULL6" for SFIC 6-Pin / LFIC 6-Pin, and "ICFull7" for SFIC 7-Pin.
Options
- Lead Lined available. Add $175.00 to the list price of lock.
- Tactile Warning available. Add $42.00 to the list price of lock.
- For Severe Windstorm Rating, add $40.00 to the list price of lock (3853 and 3881 only).
- Optional strikes and armor fronts available.
- Optional keying/keyways available.
- Anti-microbial available for 26D and 32D only. Add $40.00 list price to lock.
- Extended Lip ASA strike available, add $15.00 to list price of the lock.
- Lock Handing available, add $12.00 to list price of the lock.
- ADA thumbturn available, add $16 to list price of the lock.
- Security Torx screws available, add $18 to the list price of the lock. Finishes
Finishes other than 10B, 15, 26D and 32D will be subject to an extended lead time. Consult factory for availability.
**32D look on cast zinc lever; for a true 32D, specify stainless steel levers (Archer = ARS, William - WLS, Withnell = WTS).
Special door thicknesses are POA and will be subject to long lead time.
Handing required when ordering Johnston and Warren lever design.
Joshua
Louis
Warren
| Function | Finish |
Zinc
2018 List |
Case
Qty. |
S.S.
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3810S (F01) | US3 | 384.45 | 6 | 6 | |
| Passage | US4 | 384.45 | |||
| US10 | 384.45 | ||||
| US10B | 384.45 | ||||
| US15 | 384.45 | ||||
| US26 | 384.45 | ||||
| US26D | 369.65 | ||||
| US32D** | 369.65 | 480.50 | |||
| 3817S | US3 | 130.75 | 6 | 6 | |
| Single Dummy | US4 | 130.75 | |||
| US10 | 130.75 | ||||
| US10B | 130.75 | ||||
| US15 | 130.75 | ||||
| US26 | 130.75 | ||||
| US26D | 125.70 | ||||
| US32D** | 125.70 | 163.40 | |||
| 3827S | US3 | 260.60 | 6 | 6 | |
| Double Dummy | US4 | 260.60 | |||
| US10 | 260.60 | ||||
| US10B | 260.60 | ||||
| US15 | 260.60 | ||||
| US26 | 260.60 | ||||
| US26D | 250.55 | ||||
| US32D** | 250.55 | 325.75 | |||
3800 Series Sectional (Continued)
Continued
| Function | Finish |
Zinc
2018 List |
Case
Qty. |
S.S.
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3840S (F02) | US3 | 441.60 | 6 | 6 | |
| Privacy | US4 | 441.60 | |||
| US10 | 441.60 | ||||
| US10B | 441.60 | ||||
| US15 | 441.60 | ||||
| US26 | 441.60 | ||||
| US26D | 424.65 | ||||
| US32D** | 424.65 | 552.05 | |||
| 3844S (F22) | US3 | 480.90 | 6 | 6 | |
| Privacy w/ Cointurn | US4 | 480.90 | |||
| US10 | 480.90 | ||||
| US10B | 480.90 | ||||
| US15 | 480.90 | ||||
| US26 | 480.90 | ||||
| US26D | 462.45 | ||||
| US32D** | 462.45 | 601.20 | |||
| 3850S (F04) | US3 | 493.05 | 6 | 6 | |
| Office | US4 | 493.05 | |||
| 3870S (F05) | US10 | 493.05 | |||
| Classroom | US10B | 493.05 | |||
| 3880S (F07) | US15 | 493.05 | |||
| Storeroom | US26 | 493.05 | |||
| US26D | 474.10 | ||||
| US32D** | 474.10 | 616.35 | |||
| 3853S (F20) | US3 | 510.85 | 6 | 6 | |
| Entry | US4 | 510.85 | |||
| 3856S (F13) | US10 | 510.85 | |||
| Corridor | US10B | 510.85 | |||
| US15 | 510.85 | ||||
| US26 | 510.85 | ||||
| US26D | 491.20 | ||||
| US32D** | 491.20 | 638.55 |
| Function | Finish |
Zinc
2018 List |
Case
Qty. |
S.S.
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
|
3857S* (F33)
Intruder Classroom w/ Deadbolt |
US3
US4 |
548.70
548.70 |
6 | 6 | |
| 3861S* (F09) | US10 | 548.70 | |||
| Apartment Entrance | US10B | 548.70 | |||
| 3882S* (F30) | US15 | 548.70 | |||
| Institution | US26 | 548.70 | |||
| US26D | 527.60 | ||||
| US32D** | 527.60 | 685.85 | |||
| 3881S | US3 | 536.50 | 6 | 6 | |
| Storeroom w/ Deadbolt | US4 | 536.50 | |||
| US10 | 536.50 | ||||
| US10B | 536.50 | ||||
| US15 | 536.50 | ||||
| US26 | 536.50 | ||||
| US26D | 515.85 | ||||
| US32D** | 515.85 | 670.65 | |||
| 3896S | US3 | 501.45 | 6 | 6 | |
| Privacy w/ Indicator | US4 | 501.45 | |||
| US10 | 501.45 | ||||
| US10B | 501.45 | ||||
| US15 | 501.45 | ||||
| US26 | 501.45 | ||||
| US26D | 482.15 | ||||
| US32D** | 482.15 | 626.85 | |||
August
William
Charles
Johnston
3800 Series Escutcheon
Grade 1 Mortise Fixed Cylinder, Supplied Standard 1-1/8" Mortise Cylinder w/ Schlage L Cam - Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset ASA Strike, 3985
Price includes mortise cylinder(s) where applicable and standard cylinder will be shipped with lock unless specified.
If keyed functions ordered less cylinder, subtract $48.00 for each cylinder from list price.
Small and Large Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
If included with the lockset, $51.20 will be added to list price of the lock. Refer to keying/cores section for construction core options.
*3857, 3861, and 3882 require two cylinders.
Must specify "Full" for fixed cylinder, "ICFULL6" for SFIC 6-Pin / LFIC 6-Pin, and "ICFull7" for SFIC 7-Pin.
Options
- Lead Lined available. Add $175.00 to the list price of lock.
- Tactile Warning available. Add $42.00 to the list price of lock.
- For Severe Windstorm Rating, add $40.00 to the list price of lock (3853 and 3881 only).
- Optional strikes and armor fronts available.
- Optional keying/keyways available
- Anti-microbial available for 26D and 32D finishes only. Add $40.00 to list price of lock.
- Extended Lip ASA strike available. Add $15.00 to list price of the lock.
- Lock Handing Available. Add $12.00 to list price of the lock.
- Security Torx screws available, add $18.00 to the list price of the lock.
Finishes
Finishes other than 10B, 15, 26D and 32D will be subject to an extended lead time. Consult factory for availability.
**32D look on cast zinc lever; for a true 32D, specify stainless steel levers (Archer = ARS, William - WLS, Withnell = WTS).
Special door thicknesses are POA and will be subject to long lead time.
Handing required when ordering Johnston and Warren lever design.
| Joshua | |
|---|---|
| Louis | |
| Warren |
| Function | Finish |
Zinc
2018 List |
Case
Qty. |
S.S.
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3810E (F10) | US3 | 417.10 | 6 | 6 | |
| Passage | US4 | 417.10 | |||
| US10 | 417.10 | ||||
| US10B | 417.10 | ||||
| US15 | 417.10 | ||||
| US26 | 417.10 | ||||
| US26D | 401.05 | ||||
| US32D** | 401.05 | 521.35 | |||
| 3817E | US3 | 141.85 | 6 | 6 | |
| Single Dummy | US4 | 141.85 | |||
| US10 | 141.85 | ||||
| US10B | 141.85 | ||||
| US15 | 141.85 | ||||
| US26 | 141.85 | ||||
| US26D | 136.40 | ||||
| US32D** | 136.40 | 177.35 | |||
| 3827E | US3 | 282.70 | 6 | 6 | |
| Double Dummy | US4 | 282.70 | |||
| US10 | 282.70 | ||||
| US10B | 282.70 | ||||
| US15 | 282.70 | ||||
| US26 | 282.70 | ||||
| US26D | 271.85 | ||||
| US32D** | 271.85 | 353.40 | |||
3800 Series Escutcheon (Continued)
Continued
| Function | Finish |
Zinc
2018 List |
Case
Qty. |
S.S.
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3840E (F02) | US3 | 479.15 | 6 | 6 | |
| Privacy | US4 | 479.15 | |||
| US10 | 479.15 | ||||
| US10B | 479.15 | ||||
| US15 | 479.15 | ||||
| US26 | 479.15 | ||||
| US26D | 460.75 | ||||
| US32D** | 460.75 | 598.95 | |||
| 3844E (F22) | US3 | 521.85 | 6 | 6 | |
| Privacy w/ Cointurn | US4 | 521.85 | |||
| US10 | 521.85 | ||||
| US10B | 521.85 | ||||
| US15 | 521.85 | ||||
| US26 | 521.85 | ||||
| US26D | 501.75 | ||||
| US32D** | 501.75 | 652.30 | |||
| 3850E (F04) | US3 | 535.00 | 6 | 6 | |
| Office | US4 | 535.00 | |||
| 3870E (F05) | US10 | 535.00 | |||
| Classroom | US10B | 535.00 | |||
| 3880E (F07) | US15 | 535.00 | |||
| Storeroom | US26 | 535.00 | |||
| US26D | 514.40 | ||||
| US32D** | 514.40 | 668.75 | |||
| 3853E (F20) | US3 | 554.25 | 6 | 6 | |
| Entry | US4 | 554.25 | |||
| 3856E (F13) | US10 | 554.25 | |||
| Corridor | US10B | 554.25 | |||
| US15 | 554.25 | ||||
| US26 | 554.25 | ||||
| US26D | 532.95 | ||||
| US32D** | 532.95 | 692.80 |
| Function | Finish |
Zinc
2018 List |
Case
Qty. |
S.S.
2018 List |
Case
Qty. |
|---|---|---|---|---|---|
| 3857E* (F33) | US3 | 595.30 | 6 | 6 | |
|
Intruder Classroom w/
Deadbolt |
US4 | 595.30 | |||
| 3861E* (F09) | US10 | 595.30 | |||
| Apartment Entrance | US10B | 595.30 | |||
| 3882E* (F30) | US15 | 595.30 | |||
| Institution | US26 | 595.30 | |||
| US26D | 572.40 | ||||
| US32D** | 572.40 | 744.10 | |||
| 3881E | US3 | 582.10 | 6 | 6 | |
| Storeroom w/ Deadbolt | US4 | 582.10 | |||
| US10 | 582.10 | ||||
| US10B | 582.10 | ||||
| US15 | 582.10 | ||||
| US26 | 582.10 | ||||
| US26D | 559.70 | ||||
| US32D** | 559.70 | 727.60 | |||
| 3896E | US3 | 544.10 | 6 | 6 | |
| Privacy w/ Indicator | US4 | 544.10 | |||
| US10 | 544.10 | ||||
| US10B | 544.10 | ||||
| US15 | 544.10 | ||||
| US26 | 544.10 | ||||
| US26D | 523.15 | ||||
| US32D** | 523.15 | 680.10 | |||
|
3800 Series Electrified Options - Sectional or Escutcheon Models
Description |
Add electrified charges to the list price of the lock
Function |
2018 List |
|---|---|---|
|
Outside lever continuously locked (EL) or unlocked (EU) by 12 or 24V.
Latchbolt retracted by key outside or lever inside. Auxiliary latch deadlocks latchbolt when door is closed. Inside always free for immediate egress. |
3880ELEU
12V/24V Storeroom - Fail Safe/Fail Secure |
370.00 |
|
Both levers continuously locked (EL) or unlocked (EU) by 12 or 24V.
Latchbolt retracted by key inside or outside. Auxiliary latch deadlocks latchbolt when door is closed. |
3882ELEU
12V/24V Institution - Fail Safe/Fail Secure |
370.00 |
|
Monitors inside lever rotation. Incorporates into fire alarm systems or in
conjunction with an electromagnet. Available on 3880 or in conjunction with 3880ELEU. |
RX
Request to Exit |
198.00 |
|
Single switch (SPDT) mounted inside lockset monitors the full extension of
the latchbolt. Available on 3880, 3882, or in conjunction with 3880ELEU or 3882ELEU. |
LM
Latchbolt Monitoring |
198.00 |
|
Single switch (SPDT Reed Magnetic Switch) mounted inside the lock
monitors whether the door is fully closed. Available on 3880, 3882, or in conjunction with 3880ELEU or 3882ELEU. |
DPM
Door Position Monitoring |
218.00 |
Quick Connect Option: Locks will come with molex connector attached. Quick connect option allows rapid installation of locks when used with the Hager Quick Connect harness cable. See Commercial Hinge section (page 7) for available harness sizes.
Quick Connect Ordering Example: 3880 SECT US26D WTN ELEUQC
|
Power Supplies
Description |
Add electrified charges to the list price of the lock
Function 2018 List |
||
|---|---|---|---|
|
Provides power for locking devices and interfaces with building alarm
controls, card readers, keypads, and other door controls. |
2903
24 Volt Power Supply |
Reference
Electrified products section |
|
|
Provides power and control for openings with an electrified locking device
and automatic door operator. |
2904
24 Volt Power Supply |
Reference
Electrified products section |
|
|
Provides up to 1 amp of 12 or 24 Volt DC Power for all Hager Electrified
Products |
2908
24 Volt Power Supply |
Reference
Electrified products section |
|
|
Provides up to 2 amp of 12 or 24 Volt DC Power for all Hager Electrified
Products |
2909
24 Volt Power Supply |
Reference
Electrified products section |
|
3800 Series Deadlock
Grade 1 Mortise - Deadlock Fixed Cylinder, Standard 1-1/8" Mortise Cylinder w/ Schlage `L' Cam Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset No Lip Strike, 3991
Price includes mortise cylinder(s) where applicable and standard cylinder will be shipped with deadlock unless specified.
If keyed deadlocks ordered less cylinder, subtract $48.00 for each cylinder from list price.
Small and Large Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
*3862 requires two cylinders
Must specify "Full" for fixed cylinder, "ICFULL6" for SFIC 6-Pin / LFIC 6-Pin, and "ICFull7" for SFIC 7-Pin.
Options
- Lead Lined available. Add $175.00 to the list price of lock.
- Optional keying/keyways available.
Finishes other than 26D will be subject to an extended lead time. Consult factory for availability.
| Function | Finish | 2018 List |
Case
Qty. |
Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 3860S (F17) | US3 | 268.25 | 6 | 3863S (F29) | US3 | 325.75 | 6 |
| Cylinder x Thumbturn | US4 | 268.25 | Classroom | US4 | 325.75 | ||
| US10 | 268.25 | (Specify Handing) | US10 | 325.75 | |||
| US10B | 268.25 | US10B | 325.75 | ||||
| US26 | 268.25 | US26 | 325.75 | ||||
| US26D | 255.45 | US26D | 310.20 | ||||
| 3862S* (F16) | US3 | 325.75 | 6 | 3864S (F18) | US3 | 224.40 | 6 |
| Double Cylinder | US4 | 325.75 | Cylinder | US4 | 224.40 | ||
| US10 | 325.75 | US10 | 224.40 | ||||
| US10B | 325.75 | US10B | 224.40 | ||||
| US26 | 325.75 | US26 | 224.40 | ||||
| US26D | 310.20 | US26D | 213.75 |
** Hager Keyway is 7-Pin Only
3800 Series Small Case Deadlock
Grade 1 Mortise - Deadlock Fixed Cylinder, Standard 1-1/8" Mortise Cylinder w/ Schlage `L' Cam Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset No Lip Strike, 3999
Price includes mortise cylinder(s) where applicable and standard cylinder will be shipped with deadlock unless specified.
If keyed deadlocks ordered less cylinder, subtract $48.00 for each cylinder from list price.
Small and Large Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
*3832 requires two cylinders
Must specify "Full" for fixed cylinder, "ICFULL6" for SFIC 6-Pin / LFIC 6-Pin, and "ICFull7" for SFIC 7-Pin.
Options
- Optional keying/keyways available.
- **Hager Keyway is 7-Pin Only
Finishes other than 26D will be subject to an extended lead time. Consult factory for availability.
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
| 3830S (E06071) | US3 | 234.35 | 6 |
| Cylinder x Thumbturn | US4 | 234.35 | |
| US10 | 234.35 | ||
| US10B | 234.35 | ||
| US26 | 234.35 | ||
| US26D | 223.20 | ||
| 3831S (E06181) | US3 | 200.35 | 6 |
| Door Bolt | US4 | 200.35 | |
| Thumbturn only | US10 | 200.35 | |
| US10B | 200.35 | ||
| US26 | 200.35 | ||
| US26D | 190.80 | ||
| 3832S* (E06061) | US3 | 284.45 | 6 |
| Double Cylinder | US4 | 284.45 | |
| US10 | 284.45 | ||
| US10B | 284.45 | ||
| US26 | 284.45 | ||
| US26D | 270.90 |
| Case | |||
|---|---|---|---|
| Function | Finish | 2018 List | Qty. |
| 3833S (E06091) | US3 | 284.45 | 6 |
| Classroom | US4 | 284.45 | |
| (Specify Handing) | US10 | 284.45 | |
| US10B | 284.45 | ||
| US26 | 284.45 | ||
| US26D | 270.90 | ||
| 3834S (E06081) | US3 | 196.00 | 6 |
| Cylinder | US4 | 196.00 | |
| US10 | 196.00 | ||
| US10B | 196.00 | ||
| US26 | 196.00 | ||
| US26D | 186.70 |
3800 Series Sliding Door Mortise Lock
Sliding Door Mortise Lock Fixed Cylinder, Standard 1-1/8" Mortise Cylinder w/ Schlage `L' Cam Standard 6 Pin Cylinders, 5-pin Keyed Schlage C Keyway - KD Standard 2-3/4" (70 mm) Backset No Lip Strike
Price includes mortise cylinder(s) where applicable and standard cylinder will be shipped with deadlock unless specified.
If keyed deadlocks ordered less cylinder, subtract $48.00 for each cylinder from list price.
Small and Large Format Interchangeable Core option available (cores sold separately - refer to Keying/Core section).
*3837 requires two cylinders
Must specify "Full" for fixed cylinder, "ICFULL6" for SFIC 6-Pin / LFIC 6-Pin, and "ICFull7" for SFIC 7-Pin.
Options
- Optional keying/keyways available.
- **Hager Keyway is 7-Pin Only
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
|
3835S
Cylinder x Thumbturn |
US26D | 177.35 | 6 |
|
3836S
Single Cylinder |
US26D | 177.35 | 6 |
|
3837S
Double Cylinder |
US26D | 208.85 | 6 |
| Function | Finish | 2018 List |
Case
Qty. |
|---|---|---|---|
|
3838S
Thumbturn Only |
US26D | 157.50 | 6 |
|
3839S
Thumbturn w/ Emergency Key (Privacy) |
US26D | 170.10 | 6 |
|
Components, Strikes, and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| Zinc Mortise Lock Levers (each) | US26D/US32D | 56.45 |
| Consult factory for part numbers and other finishes. (May be subject to extended lead times) | ||
| Stainless Mortise Lock Levers (each) | US32D | 85.35 |
| Consult factory for part numbers and other finishes. (May be subject to extended lead times) | ||
| 3918 | US26D | 11.65 |
| Tapered Cylinder Collar | US10B | 13.65 |
|
For use with sectional mortise lock, standard with 1-1/8" cylinder, 1-3/4" door.
Includes wave washer and shim. |
US15 / US32D | 11.65 |
| 3928 | US26D | 11.65 |
| Flat Cylinder Collar | US10B | 13.65 |
|
1-3/8" diameter, 11/32" thick
For use with double cylinder sectional mortise locks and other special cylinders and door |
US15 / US32D | 11.65 |
|
thicknesses.
Consult factory. Includes wave washer and shim. |
||
| 3985 | US10B | 18.25 |
| Standard Lip Strike | US32D* | 17.05 |
| Square corner | ||
| 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) | ||
| 3986 | US10B | 18.25 |
| Extended Lip Strike | US32D* | 17.05 |
|
Square corner
1-1/4" x 4-7/8" x 1-1/2" (32 mm x 124 mm x 38 mm) |
||
| 3987 | US10B | 18.25 |
| Standard Lip Strike | US32D* | 17.05 |
| Round corner | ||
| 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) | ||
| 3988 | US10B | 18.25 |
| Extended Lip Strike | US32D* | 17.05 |
|
Round corner
1-1/4" x 4-7/8" x 1-1/2" (32 mm x 124 mm x 38 mm) |
||
| 3989 | US10B | 18.25 |
| Flat Lip Strike | US32D* | 17.05 |
| Square corner | ||
| 1-1/4" x 4-7/8" x 7/8" (32 mm x 124 mm x 22 mm) | ||
| 3990 | US10B | 18.25 |
| Extended Flat Lip Strike | US26D | 17.05 |
| Square corner | ||
| 1-1/4" x 4-7/8" x 1-3/16" (32 mm x 124 mm x 30 mm) | ||
| 3991 | US10B | 18.25 |
| Square corner | US26D | 17.05 |
|
Full Case Deadlock Strike (3860, 3862, 3863, 3864)
1-1/4" x 4-7/8" (32 mm x 124 mm) |
| Components, Strikes, and Screwpacks | ||
|---|---|---|
| Description | Finish | 2018 List |
| 3999 | US10B | 18.25 |
| For Small Case | US32D* | 17.05 |
|
No Lip Strike
Square corner |
||
| 1-1/8" x 3- 1/2" (29 mm x 89 mm) | ||
| 2-669-0389 | NF | 5.70 |
| ASA Metal Dust Box | ||
| 2-669-0224 | US10B | 12.50 |
| Armor Front 1-1/4" Square corner (Latch x Aux Latch x Deadbolt) - 3853, 3881 | ||
| 2-669-0226 | US32D* | 12.00 |
| Armor Front 1-1/4" Square corner (Latch x Aux Latch x Deadbolt) - 3853, 3881 | ||
| 2-669-0230 | US10B | 12.50 |
| Armor Front 1-1/4" Square corner (Latch x Aux Latch) - 3850, 3861, 3870, 3880, 3882 | ||
| 2-669-0232 | US32D* | 12.00 |
| Armor Front 1-1/4" Square corner (Latch x Aux Latch) - 3850, 3861, 3870, 3880, 3882 | ||
| 2-669-0236 | US10B | 12.50 |
| Armor Front 1-1/4" Square corner (Latch x Deadbolt) - 3856, 3857 | ||
| 2-669-0238 | US32D* | 12.00 |
| Armor Front 1-1/4" Square corner (Latch x Deadbolt) - 3856, 3857 | ||
| 2-669-0242 | US10B | 12.50 |
| Armor Front 1-1/4" Square corner (Latch) - 3810, 3840, 3844, 3896 | ||
| 2-669-0244 | US32D* | 12.00 |
| Armor Front 1-1/4" Square corner (Latch) - 3810, 3840, 3844, 3896 | ||
| 2-669-0248 | US10B | 12.50 |
| Armor Front 1-1/4" Square corner (Blank) | ||
| 2-669-0250 | US32D* | 12.00 |
| Armor Front 1-1/4" Square corner (Blank) | ||
| 2-669-0254 | US10B | 12.50 |
| Armor Front 1-1/4" Square corner (Deadbolt) - 3860, 3862, 3863, 3864 | ||
| 2-669-0256 | US32D* | 12.00 |
| Armor Front 1-1/4" Square corner (Deadbolt) - 3860, 3862, 3863, 3864 | ||
| 2-669-0296 | US10B | 12.50 |
| Armor Front 1-1/4" Round corner (Latch x Aux Latch x Deadbolt) - 3853, 3881 | ||
| 2-669-0298 | US32D* | 12.00 |
| Armor Front 1-1/4" Round corner (Latch x Aux Latch x Deadbolt) - 3853, 3881 | ||
| 2-669-0302 | US10B | 12.50 |
| Armor Front 1-1/4" Round corner (Latch x Aux Latch) - 3850, 3861, 3870, 3880, 3882 | ||
| 2-669-0304 | US32D* | 12.00 |
| Armor Front 1-1/4" Round corner (Latch x Aux Latch) - 3850, 3861, 3870, 3880, 3882 | ||
|
Components, Strikes, and Screwpacks
Description |
Finish | 2018 List | |
|---|---|---|---|
| 2-669-0308 | US10B | 12.50 | |
| Armor Front 1-1/4" Round corner (Latch x Deadbolt) - 3856, 3857 | |||
| 2-669-0310 | US32D* | 12.00 | |
| Armor Front 1-1/4" Round corner (Latch x Deadbolt) - 3856, 3857 | |||
| 2-669-0314 | US10B | 12.50 | |
| Armor Front 1-1/4" Round corner (Latch) - 3810, 3840, 3844, 3896 | |||
| 2-669-0316 | US32D* | 12.00 | |
| Armor Front 1-1/4" Round corner (Latch) - 3810, 3840, 3844, 3896 | |||
| 2-669-0320 | US10B | 12.50 | |
| Armor Front 1-1/4" Round corner (Blank) | |||
| 2-669-0322 | US32D* | 12.00 | |
| Armor Front 1-1/4" Round corner (Blank) | |||
| 2-669-0326 | US10B | 12.50 | |
| Armor Front 1-1/4" Round corner (Deadbolt) - 3860, 3862, 3863, 3864 | |||
| 2-669-0328 | US32D* | 12.00 | |
| Armor Front 1-1/4" Round corner (Deadbolt) - 3860, 3862, 3863, 3864 | |||
| 2-669-0408 | US10B | 34.15 | |
| Thumbturn (3850, 3853, 3856, 3860, 3881) | |||
| 2-669-0410 | US26D | 31.90 | |
| Thumbturn (3850, 3853, 3856, 3860, 3881) | |||
| 2-669-0411 | US15/US32D | 31.90 | |
| Thumbturn (3850, 3853, 3856, 3860, 3881) | |||
| *For use with US15 and US26D mortise locks, order US32D finish. | |||
| 2-669-0415 | US10B | 34.15 | |
| Thumbturn (3840, 3844, 3896) | |||
| 2-669-0417 | US26D | 31.90 | |
| Thumbturn (3840, 3844, 3896) | |||
| 2-669-0418 | US15/US32D | 31.90 | |
| Thumbturn (3840, 3844, 3896) | |||
| 2-669-0422 | US10B | 7.45 | |
| Emergency Release (3840, 3896) | |||
| 2-669-0424 | US26D | 6.95 | |
| Emergency Release (3840, 3896) | |||
| 2-669-0425 | US32D | 6.95 | |
| Emergency Release (3840, 3896) | |||
| 2-669-0111 | US10B | 27.20 | |
| Screwpack (3850S, 3853S, 3856S, 3840S, 3844S, 3896S) | |||
| 2-669-0112 | US32D | 25.40 | |
| Screwpack (3850S, 3853S, 3856S, 3840S, 3844S, 3896S) | |||
| 2-669-0115 | US10B | 27.20 | |
Screwpack (3870S, 3861S, 3857S, 3865S, 3810S)
Locks - 3800 Series
|
Components, Strikes, and Screwpacks
Description |
Finish | 2018 List |
|---|---|---|
| 2-669-0116 | US32D | 25.40 |
| Screwpack (3870S, 3861S, 3857S, 3865S, 3810S) | ||
| 2-669-0119 | US10B | 27.20 |
| Screwpack (3850E, 3853E, 3870E, 3861E, 3857E, 3856E, 3840E, 3844E, 3810E, 3896E) | ||
| 2-669-0120 | US32D | 25.40 |
| Screwpack (3850E, 3853E, 3870E, 3861E, 3857E, 3856E, 3840E, 3844E, 3810E, 3896E) | ||
| 2-669-0123 | US10B | 27.20 |
| Screwpack (3881S) | ||
| 2-669-0124 | US32D | 25.40 |
| Screwpack (3881S) | ||
| 2-669-0127 | US10B | 27.20 |
| Screwpack (3880S) | ||
| 2-669-0128 | US32D | 25.40 |
| Screwpack (3880S) | ||
| 2-669-0131 | US10B | 27.20 |
| Screwpack (3880E, 3881E) | ||
| 2-669-0132 | US32D | 25.40 |
| Screwpack (3880E, 3881E) | ||
| 2-669-0135 | US10B | 13.60 |
| Screwpack (3862S, 3863S, 3864S) | ||
| 2-669-0136 | US32D | 12.70 |
| Screwpack (3862S, 3863S, 3864S) | ||
| 2-669-0147 | US10B | 13.60 |
| Screwpack (3860S) | ||
|
2-669-0148
Screwpack (3860S) |
US32D | 12.70 |
| 2-669-0139 | US10B | 17.70 |
| Screwpack (3882S) | ||
| 2-669-0140 | US32D | 16.55 |
| Screwpack (3882S) | ||
| 2-669-0143 | US10B | 17.70 |
| Screwpack (3882E) | ||
| 2-669-0144 | US32D | 16.55 |
| Screwpack (3882E) | ||
| 2-669-0157 | NF | 10.20 |
| Screwpack (3827S) | ||
| 2-669-0158 | NF | 10.20 |
| Screwpack (3827E) | ||
| 2-669-0167 | NF | 7.10 |
| Screwpack (3817S) | ||
| 2-669-0168 | NF | 7.10 |
| Screwpack (3817E) | ||
| 2-669-0365 | NF | 8.70 |
|
Thru-Bolt Bag (2 each)
1-3/8" to 2" door |
||
| 2-669-0366 | NF | 9.65 |
| Thru-Bolt Bag (2 each) | ||
| Over 2" to 2-1/2" door |
| Description | ||
|---|---|---|
| Finish | 2018 List | |
| 2-669-0613 | NF | 26.50 |
| Square Spindles - 5-pk | ||
| 2-669-0597 | 26D | 11.10 |
| Armor Front Screws - 10-pk | ||
| 2-669-0615 | NF | 182.00 |
| Lock Case (3853) | ||
| 2-669-0616 | NF | 182.00 |
| Lock Case (3881) | ||
|
2-669-0600
Lock Case (3856, 3857) |
NF | 216.00 |
| NF | 178.75 | |
| 2-669-0603 | ||
|
Lock Case (3850, 3870, 3861, 3876)
2-669-0604 Lock Case (3880) |
NF | 178.75 |
Lock Case (3810)
Lock Case (3840, 3844, 3896)
Lock Case (3853 Windstorm Rated)
Lock Case (3881 Windstorm Rated)
Lever Adapters (Keepers) for Stainless Levers
2-669-0641
2-669-0635
2-669-0636
2-669-0643
NF 178.75
NF 216.00
NF 216.00
NF 6.40
Locks - Cylinders/Keying
|
Fixed Cylinders/Key-in-Lever - Keying Charges
Description |
Finish
2018 List |
|---|---|
| Keyed Different (KD) 5-pin (Standard), 6-pin, 7-pin (Hager Keyway only) available | N/C |
|
Keyed Alike (KA) 5-pin (Standard), 6-pin, 7-pin (Hager Keyway Only). 0-Bitted and 1-Bitted
available* |
N/C |
| Master Keyed (MK) - Add to list price of lock** | 21.10 |
|
Construction Master Keyed (CMK) - Add to the standard master key charge and the list price of
lock (Schlage C / Hager H1 only)** |
14.15 |
| Keyed to specific or existing number - Add to list price of lock | 7.50 |
|
Extra Cut Keys - specify change key, MK, GMK or CMK (3961 - 5-pin, 3962 - 6-pin, 3908 - 7-pin
Hager only) |
6.05 |
| Key Markings - Standard key symbols (AA1) - Visual Key Control (VKC) | No Charge |
| Key Markings - Non-standard code - Visual Key Control (VKC) | 6.05 |
| Custom Cylinder Markings | 6.05 |
| 3998 - Bitting List (No charge if ordered with master keying) - Factory Keyed | 175.00 |
| Bitting List - Hager designed system - Keyed by others | 175.00 |
| Other keyways available (refer to Catalog or website) - Add to list price of lock | 15.65 |
* Allow 7 working days for 0-bitted, 1-bitted, and KA orders
Notes:
- 1. Lock prices do not include keying charges.
- 2. Locks furnished with 6-pin cylinder, 5-pin keyed, Schlage C keyway keyed different unless otherwise specified.
- 3. 0 Bitted and 1 Bitted cylinders provided 6 pin only
- 4. Please include Master Key Instruction Sheet with order, available online or in catalog.
Failure to provide will delay order.
|
Fixed Cylinder Key
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3955 | NF | 1.60 | 50 |
| Key Blank | |||
| 5-Pin | |||
| C Keyway | |||
| Other keyways available* | |||
| 3956 | NF | 2.20 | 50 |
| Key Blank | |||
| 6-Pin | |||
| C Keyway | |||
| Other keyways available* | |||
| 3961 | NF | 6.35 | 50 |
| Cut 5-Pin Key | |||
| 5-Pin | |||
| C Keyway | |||
| Other keyways available* |
** Allow 20 working days for factory master key orders.
| 7 |
|---|
| (IA.GOR |
|
Fixed Cylinder Key
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3962 | NF | 6.35 | 50 |
| Cut 6-Pin Key | |||
| 6-Pin | |||
| C Keyway | |||
| Other keyways available* | |||
| 3907 | NF | 2.20 | 50 |
| Key Blank | |||
| 7-Pin | |||
| H Keyways | |||
| 3908 | NF | 6.35 | 50 |
| Cut 7-Pin Key | |||
| 7-Pin | |||
| H Keyways |
*Refer to catalog or website for more information on available keyways.
| - | ||
|---|---|---|
| 3 | ||
Tailpiece 1 Pack of 10 tailpieces for use with 3453L, 3450L, 3480L, 2580L
Tailpiece 2 Pack of 10 tailpieces for use with 3470L.
| 2-639-7002 | |
|---|---|
| Tailpiece 3 |
Pack of 10 tailpieces for use with 3453K, 3480K, 3550L, 3553L, 3553K, 3579L, 3580L, 3580K, 3753L, 2550L, 2553L
| 2-639-7003 | |
|---|---|
| Tailpiece 4 | |
| Pack of 10 tailpieces for use with 3470K, 3570K |
| 2-639-7005 |
|---|
| NF | 11.75 |
NF 11.75
NF 11.75
NF 11.75
NF 11.75
Tailpiece 6
2-639-7000
2-639-7001
Pack of 10 tailpieces for use with 3114 (Exterior Cyl.), 3214 (Exterior
Locks - Cylinders/Keying
Pack of 10 tailpieces for use with 3473L
| Description | Finish | 2018 List |
|---|---|---|
| 2-639-7006 | NF | 11.75 |
| Tailpiece 7 | ||
| Pack of 10 tailpieces for use with 3114 (Interior Cyl.), 3214 (Interior | ||
| 2-639-7007 | NF | 11.75 |
| Tailpiece 8 | ||
| Pack of 10 tailpieces for use with 3115, 3118, 3215, 3710L, 3753L | ||
| 2-639-7008 | NF | 11.75 |
| Tailpiece 9 | ||
| Pack of 10 tailpieces for use with 3653L, 3670L, 3680L | ||
| 2-639-7018 | NF | 11.75 |
| Tailpiece W | ||
| Pack of 10 tailpieces for use with 3473L | ||
| 2-639-7192 | NF | 11.75 |
| Tailpiece K | ||
| Pack of 10 tailpieces for use with 47KE, 47KN | ||
| 2-639-7087 | NF | 11.75 |
| Tailpiece Z | ||
| Pack of 10 tailpieces for use with 3570L and 3573L | ||
| 2-639-7094 | NF | 11.75 |
| Tailpiece X | ||
| Pack of 10 tailpieces for use with 3495L | ||
| 2-639-7322 | NF | 11.75 |
| Tailpiece V | ||
|
Fixed Cylinder - Rim Cylinder
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3901 | US3 | 48.50 | 1 |
| Fixed Rim Cylinder | US4 | 51.55 | |
| 6-Pin Cylinder, 5-Pin Keyed; 7-Pin Cylinder (Hager Keyway Only) | US10 | 51.55 | |
| Schlage C Keyway or Hager Keyway - Keyed Different Standard | US10B | 48.50 | |
| Shipped with breakoff tailpiece attached. | US26 | 48.50 | |
| Shipped with collar, mounting plate, and breakoff screws. | US26D | 48.50 | |
| 3903 | US3 | 32.40 | 1 |
| Rim Dummy Cylinder | US4 | 32.40 | |
| Shipped with mounting plate, and breakoff screws. | US10 | 32.40 | |
| US10B | 32.40 | ||
| US26 | 32.40 | ||
| US26D | 32.40 |
| LES | THE PERSON NAMED IN |
|---|---|
Fixed Cylinder - Mortise Cylinder Cams
|
Fixed Cylinder - Rim Cylinder Accessories
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
|
2-639-7058
Long breakoff tailpiece - 2-3/8" (60 mm) |
NF | 2.45 | 1 |
|
2-300-0118
Extra long breakoff screws - 2-3/8" (60 mm) (2 each) |
NF | 1.70 | 2 |
|
2-649-0137
Retaining cup Can be used with 45PN, 47PN, and 47RN |
NF | 8.95 | 1 |
| Fixed Cylinder - Mortise Cylinder | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3902 | US3 | 48.50 | 1 |
| Fixed Cylinder Mortise Cylinder | US4 | 51.55 | |
| 6-Pin Cylinder, 5-Pin Keyed, 7-Pin Cylinder (Hager Keyway Only) | US10 | 51.55 | |
| Schlage C Keyway or Hager Keyways - Keyed Different Standard | US10B | 48.50 | |
| Specify 1-1/8" (29 mm), 1-1/4" (32 mm) or 1-5/8" (41mm) | US26 | 48.50 | |
|
Shipped with standard cam attached and Adams Rite cam loose in box; specify if different.
Specify Schlage L cam when ordering cylinders for use in Hager mortise locks. |
US26D | 48.50 | |
| 3904 | US3 | 40.00 | 1 |
| Mortise Dummy | US4 | 42.50 | |
| Specify 1-1/8" (29 mm) or 1-1/4" (32 mm) | US10 | 42.50 | |
| US10B | 40.00 | ||
| US26 | 40.00 | ||
| US26D | 40.00 | ||
| 3905 | US3 | 69.95 | 1 |
| Mortise ADA Turn Knob | US10B | 69.95 | |
|
Specify 1-1/8" (29 mm) or 1-1/4" (32 mm)
Shipped with Schlage L cam attached, specify if different. |
US26D | 69.95 |
| Description | Finish | 2018 List | Qty. |
|---|---|---|---|
| 3971 | US2C | 3.70 ea. | 10 |
| Yale Cam | |||
| .722" (18 mm) | |||
| 3972 | US2C | 3.70 ea. | 10 |
| Adams Rite Cam | |||
| .560" (14 mm) | |||
| Shipped Loose in box w/ standard 3902 | |||
| 3973 | US2C | 3.70 ea. | 10 |
| Standard Cloverleaf | |||
| .741" (19 mm) | |||
| 3974 | US2C | 3.70 ea. | 10 |
| Marks Cam | |||
| R.755" (19 mm) | |||
Box
Locks - Cylinders/Keying
|
Fixed Cylinder - Mortise Cylinder Cams
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
|
3975
Standard Cam R.723" (18 mm) Shipped standard w/ 3902 |
US2C | 3.70 ea. | 10 |
|
3976
Schlage L Cam .637" (16 mm) For use w/ all keyed function 3800 Series Mortise Locks. |
US2C | 3.70 ea. | 10 |
|
3977
Sargent/Yale Cam .733" (18.6 mm) |
US2C | 3.70 ea. | 10 |
|
3978
Corbin Russwin/Best Cloverleaf Cam .725" (18.5 mm) |
US2C | 3.70 ea. | 10 |
Small Format Interchangeable Core - Keying Charges/Cores
| Description |
Finish
2018 List |
|---|---|
| 3981-U | 41.90 |
| Uncombinated Core 6-Pin (includes two key blanks), specify US4 or US26D | |
|
3982-U or 3909 (Hager SFIC Only)
Uncombinated Core 7-Pin (includes two key blanks), specify US4 or US26D |
41.90 |
| 3981-C | 51.20 |
|
Combinated Core 6-Pin (includes two operating keys), specify US4, US26D. Specify KA*, KD*,
MK**. Specify number of control keys needed. |
|
| 3982-C or 3969 (Hager SFIC Only) | 51.20 |
|
Combinated Core 7-Pin (includes two operating keys), specify US4, US26D.
Specify KA*, KD*, MK**. Specify number of control keys needed. |
|
| 3981-BLU or RED (Best A) | 51.20 |
| Construction Core 6-Pin (includes two operating keys). Specify number of control keys. Two | |
| control keys provided as a default. | |
| 3982-BLU or RED (Best A) | 51.20 |
|
Construction Core 7-Pin (includes two operating keys). Specify number of control keys. Two
control keys provided as a default. |
|
| Key Markings: Standard key symbols (AA1) - Visual Key Control (VKC) | N/C |
| Key Markings: Non-standard code - Visual Key Control (VKC) | 6.05 |
| Core Markings | 6.05 |
| 3984 | 6.05 |
| Cut Keys - Control Keys, Extra change keys, or Master Keys | |
| 3908 | 6.05 |
| Cut Keys (Hager Keyway Only) - Control Keys, Extra change keys, or Master Keys | |
| 3998 | 175.00 |
| Bitting list (no charge if ordered with master key) - Factory keyed | |
| Bitting list - Hager designed system - Keyed by others | 175.00 |
| Small Format Interchangeable Core - Keying Charges/Cores | ||
|---|---|---|
| Description | Finish | 2018 List |
- *Allow 7 working days for KD and KA orders
- ** Allow 20 working days for factory master key orders.
Notes:
- 1. Lock price includes keying charges.
- 2. Cores are supplied Best A keyed different unless otherwise specified.
- 3. Please include Master Key Instruction Sheet with order, available online or in catalog. Failure to provide will delay order.
- 4. Construction Cores Receive full credit, less shipping, of original cost upon return of cores and keys.
|
Small Format Interchangeable Core - Keys
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
|
3983
Small Format Interchangeable Core Key Blanks Best Keyways Used with 6-pin and 7-pin cores |
NF | 2.20 | 50 |
|
3984
Small Format Interchangeable Core Cut Key Best Keyways Used with 6-pin and 7-pin cores |
NF | 6.35 | 50 |
|
2-639-7168
SFIC 6-pin "BLUE" Construction Control Key Best A Keyway |
NF | 6.35 | 1 |
|
2-639-7169
SFIC 7-pin "BLUE" Construction Control Key Best A Keyway |
NF | 6.35 | 1 |
|
2-639-7113
SFIC 6-pin "RED" Construction Control Key Best A Keyway |
NF | 6.35 | 1 |
|
2-639-7170
SFIC 7-pin "RED" Construction Control Key Best A Keyway |
NF | 6.35 | 1 |
|
3907
Small Format Interchangeable Core Key Blanks Hager Keyways (7-pin cores only) |
NF | 2.20 | 50 |
|
3908
Small Format Interchangeable Core Cut Key Hager Keyways (7-pin cores only) |
NF | 6.35 | 50 |
|
Small Format Interchangeable Core - Tailpieces
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 2-639-7060 | NF | 13.55 | 10 |
| Pack of 10 tailpieces and compression springs for use with | |||
| 2500/3500 Series SFIC lever locksets. | |||
| 6-pin/7-pin cores |
Locks - Cylinders/Keying
|
2-639-7061
6-pin/7-pin cores |
|---|
|
2-639-7090
6-pin/7-pin cores |
|
2-639-7091
6-pin/7-pin cores |
|
2-639-7095
Pack of 10 tailpieces for use with 6-pin/7-pin cores |
| 3901 |
|
Small Format Interchangeable Core - Tailpieces
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
|
2-639-7061
Pack of 10 tailpieces and compression springs for use with 3400/3500 Series SFIC knob locksets. 6-pin/7-pin cores |
NF | 13.55 | 10 |
|
2-639-7090
Pack of 10 tailpieces and compression springs for use with 3753 interconnected lock SFIC lever locksets. 6-pin/7-pin cores |
NF | 13.55 | 10 |
|
2-639-7091
Pack of 10 tailpieces for use with 3114/3214 SFIC housing deadlock. 6-pin/7-pin cores |
NF | 13.55 | 10 |
|
2-639-7095
Pack of 10 tailpieces for use with 3115/3118/3215/3710DL/3753DL SFIC housing deadlock. 6-pin/7-pin cores |
NF | 13.55 | 10 |
| Small Format Interchangeable Core - Rim Cylinder Housing | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3901 | US3 | 48.50 | 1 |
| Rim Cylinder - Small Format Interchangeable Core Housing | US4 | 51.55 | |
| Specify 6-pin or 7-pin | US10 | 51.55 | |
| Supplied with long tailpiece standard, collar, mounting plate, and breakoff screws. | US10B | 48.50 | |
| Cores sold separately. | US26 | 48.50 | |
| US26D | 48.50 | ||
| Small Format Interchangeable Core - Mortise Cylinder Housing | Box | ||
|---|---|---|---|
| Description | Finish | 2018 List | Qty. |
| 3902 | US3 | 48.50 | 1 |
| Mortise Cylinder - Small Format Interchangeable Core Housing | US4 | 51.55 | |
| Specify length 1-1/4" (6-pin) or 1-3/8" (7-pin) or 1-5/8" for mortise exit devices. | US10 | 51.55 | |
| Shipped with standard cam attached and Adams Rite cam loose in box (specify if different). | US10B | 48.50 | |
| Cores sold separately. 1/4" blocking ring included. | US26 | 48.50 | |
| Specify Schlage L cam when ordering new cylinders for use in Hager mortise lock. | |||
| US26D | 48.50 | ||
|---|---|---|---|
|
Small Format Interchangeable Core - Mortise Cylinder Cams
Description |
Finish | 2018 List |
Box
Qty. |
|
2-639-7082
Yale Standard Cam Shipped standard w/ 3902 Small Format Interchangeable Core (SFIC) Housing. |
US2C | 3.70 ea | 10 |
|
2-639-7083
Adams Rite Cam Shipped loose in box w/ standard 3902 Small Format Interchangeable Core (SFIC) Housing. |
US2C | 3.70 ea | 10 |
| 2-639-7084 | US2C | 3.70 ea | 10 |
| J | L | |
|---|---|---|
| 1 | r | 3 |
| ٧ | Ľ. |
Corbin/Best Cloverleaf Cam
| Large Format Interchangeable Core - Keying Charges/Cores | ||
|---|---|---|
|
Description
3919-Z Zero Bitted Core 6-Pin (includes two key blanks), specify US4 or US26D |
Finish |
2018 List
53.00 |
|
3919-C
Combinated Core 6-Pin (includes two change keys), specify US4 or US26D. Specify KA*, KD*, MK**. Specify number of control keys needed. |
64.75 | |
|
3919-BLA (Schlage C)
Construction Core 6-Pin (includes two operating keys). Specify number of control keys. Two control keys provided as a default. |
64.75 | |
| Key Markings: Standard key symbols (AA1) - Visual Key Control (VKC) | N/C | |
| Key Markings: Non-standard code - Visual Key Control (VKC) | 6.05 | |
| Core Markings (Visual or Concealed) | 6.05 | |
|
3998
Bitting list (no charge if ordered with master key) - Factory keyed |
175.00 | |
| Bitting list - Hager designed system - Keyed by others | 175.00 |
* Allow 7 working days for KD and KA orders
Notes:
- 1. Lock prices do not include keying charges.
- 2. Cores are available in Schlage C keyway only.
- 3. Please include Master Key Instruction Sheet with order, available online or in catalog. Failure to provide will delay order.
- 4. Construction Cores Receive full credit, less shipping, of original cost upon return of cores and keys.
|
Large Format Interchangeable Core - Keys
Description |
Finish
2018 List |
|---|---|
| 3956 | 2.20 |
| LFIC Key Blanks | |
| Schlage C Keyway | |
| 3962 | 6.35 |
| LFIC Cut Keys | |
| Schlage C Keyway | |
| 2-639-7649 | 2.20 |
| LFIC Control Key Blanks | |
| Schlage C Keyway |
** Allow 20 working days for factory master key orders.
Locks - Cylinders/Keying
Schlage C Keyway
2-300-0175
Breakoff Screws - 2-1/8" (54mm) (2each)
For use with 3473 and 3495 LFIC lever locksets
|
Large Format Interchangeable Core - Keys
Description |
Finish
2018 List |
|---|---|
| 3963 | 6.35 |
| LFIC Control Cut Keys | |
| Schlage C Keyway | |
| 2-639-7132 | 6.35 |
| LFIC 6-Pin "Black" Construction Control Key |
|
Large Format Interchangeable Core - Tailpieces
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
|
2-639-7645
For use with 3450, 3453, and 3480 LFIC lever locksets |
2.45 | 1 | |
|
2-639-7646
For use with 3470 LFIC lever locksets |
2.45 | 1 | |
| 2-639-7647 | 2.45 | 1 |
| 2018 List |
Box
Qty. |
|---|---|
| 48.50 | 1 |
| 51.55 | |
| 51.55 | |
|
US10B
48.50 |
|
| 48.50 | |
|
US26D
48.50 |
|
| Box | |
| 2018 List | Qty. |
| 3.00 | 1 |
NF 1.70 2
|
Large Format Interchangeable Core - Mortise Cylinder Housing
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3902 | US3 | 48.50 | 1 |
| Mortise Cylinder - Large Format Interchangeable Core Housing | US4 | 51.55 | |
| 1-1/2" Length | US10 | 51.55 | |
| Shipped with standard cam attached and Adams Rite cam loose in box (specify if different). | US10B | 48.50 | |
| Cores sold separately. | US26 | 48.50 | |
| Specify Schlage L cam when ordering cylinders for use in Hager mortise locks. | US26D | 48.50 |
Box Qty.
| di | B | |
|---|---|---|
| ĸ. | ||
| ú | 뀂 | Įδ. |
| т | W | XΙΙ |
|
2-639-7570
Yale Standard Cam |
US2C | 3.90 ea | 1 |
|---|---|---|---|
| Shipped standard w/ 3902 Large Format Interchangeable Core (LFIC) Housing. | |||
| 2-639-7571 | US2C | 3.90 ea | 1 |
|
Adams Rite Cam
Shipped loose in box w/ standard 3902 Large Format Interchangeable Core (LFIC) Housing. |
|||
| 2-639-7572 | US2C | 3.90 ea | 1 |
|
Schlage `L' Cam
For use w/ all keyed functions on 3800 Series Mortise Locks and 46CE. |
|||
| 2-639-7573 | US2C | 3.90 ea | 1 |
| Corbin/Best Cloverleaf Cam | |||
| 2-639-7574 | US2C | 3.90 ea | 1 |
| Sargent/Yale Cam |
Description Finish 2018 List
Large Format Interchangeable Core - Mortise Cylinder Cams
|
Miscellaneous
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 3911 | NF | 18.75 | ea |
| 2500/3400 Series Lever | |||
| Thru-Bolt Jig - Steel | |||
| 3912 | NF | 18.75 | ea |
| 3500 Series Lever | |||
| Thru-Bolt Jig - Steel | |||
| 3959 | NF | 2.65 | ea |
| Faceplate Adaptor | |||
| Can be used with a 2-3/8" backset on the 2500, 3500, 3600, and 3700 Series lockset | |||
| and 3200 Series deadlocks. | |||
| Converts 1" (25 mm) to 1-1/8" (29 mm) width. | |||
| 3968 | BGA | 5.85 | ea |
| Aluminum Blocking Rings | CLR | 5.85 | |
| Sizes available | DBA | 5.85 | |
|
1/8" (3.2 mm), 3/16" (4.8 mm), 1/4" (6.4 mm),
5/16" (7.9 mm), 3/8" (9.5 mm), 1/2" (12.5 mm) |
US10 | 5.85 | |
| 3968 | US3 | 5.85 | |
| Aluminum Blocking Rings | US4 | 5.85 | |
| Sizes available | US10B | 5.85 | |
| 1/8" (3.2 mm), 1/4" (6.4 mm), | US26 | 5.85 | |
| US26D | 5.85 | ||
| 3979 | NF | 0.35 | each |
| Mortise Cam Screws - Fixed Cylinder Mortise Cylinder Only |
Locks - Cylinders/Keying
|
Cylinder Collars
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 2-647-0012 | US3 | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0013 | ALM | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0014 | DBZ | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0015 | US15 / US32D | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0016 | US4 | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0017 | US10 | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0018 | US10B | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0019 | US26 | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
| 2-647-0020 | US26D | 19.10 | each |
| Cylinder Collar - 7/8" projection | |||
|
Above cylinder collars can be used with 4700 Series exit device trim and 1-1/8" - 1-3/8" long
mortise cylinders. |
|||
| 2-649-0045 | US3 | 19.10 | each |
| Cylinder Collar - 7/16" projection | |||
| 2-649-0046 | US4 | 19.10 | each |
| Cylinder Collar - 7/16" projection | |||
| 2-649-0047 | US10 | 19.10 | each |
| Cylinder Collar - 7/16" projection | |||
| 2-649-0048 | US10B | 19.10 | each |
| Cylinder Collar - 7/16" projection | |||
| 2-649-0050 | US26 | 19.10 | each |
| Cylinder Collar - 7/16" projection | |||
| 2-649-0051 | US26D | 19.10 | each |
| Cylinder Collar - 7/16" projection | |||
| US15 / US32D | 19.10 | each | |
| 2-649-0052 |
|
Cylinder Collars
Description |
Finish | 2018 List |
Box
Qty. |
|---|---|---|---|
| 2-649-0053 | US3 | 19.10 | each |
| Cylinder Collar - 11/16" projection | |||
| 2-649-0054 | US4 | 19.10 | each |
| Cylinder Collar - 11/16" projection | |||
| 2-649-0055 | US10 | 19.10 | each |
| Cylinder Collar - 11/16" projection | |||
| 2-649-0056 | US10B | 19.10 | each |
| Cylinder Collar - 11/16" projection | |||
| 2-649-0057 | US26 | 19.10 | each |
| Cylinder Collar - 11/16" projection | |||
| 2-649-0058 | US26D | 19.10 | each |
| Cylinder Collar - 11/16" projection | |||
| 2-649-0059 | US15 / US32D | 19.10 | each |
| Cylinder Collar - 11/16" projection |
Above cylinder collars can be used with 4500 Series exit device trim and 1-1/4" or 1-3/8" long mortise cylinders.
|
Cylinder Parts
Description |
Finish | 2018 List |
|---|---|---|
| 2-650-3998 | 59.00/ | |
| SFIC Capping Strip | per 50 | |
| 2-639-7511 | 345.00 | |
| Pin Kit | ||
| 100 each of all pins and springs, additional top pins. Please note that pin kit does NOT include | ||
| SFIC caps. | ||
| 2-639-7512 | 50.00 | |
| Cylinder Lubricant | ||
| 2-639-7513 | 49.50/ | |
| Shims | per 100 | |
| Opens a locked conventional cylinder (at the workbench). | ||
| 2-639-7517 | 55.00/ | |
| Construction Ball | per 1,000 | |
| Used for lost ball construction keying. (#6 increment) | ||
| 2-639-7518 | 6.60/ per | |
| Cylinder Spring | 100 | |
| Pin tumbler spring for use in all cylinders. | ||
| 2-639-7519 | 15.00/ | |
| Cap Pin Spring | per 100 | |
|
Key-in-Knob/Lever cylinders including Retrofit, and Full Size (Schlage Retrofit) Interchanageable
Core. |
||
| 2-639-7520 | 9.00/ per | |
| Individual SFIC Cap | 100 | |
| For use with the individual capping block tool #6. | ||
| 2-639-7522 | 7.00/ per | |
| Profile Cylinder Set Screws | 10 | |
| Caps the profile cylinder chambers | ||
| 2-639-7523 | 15.00/ | |
| Hager Screw Cap - (.280") height | per 10 |
Locks - Cylinders/Keying
|
Cylinder Parts
Description |
Finish
2018 List |
|---|---|
| 2-639-7524 | 15.00/ |
| Retrofit Screw Cap - (.230") height | per 10 |
| For use in competitor cylinders with thinner tailpiece driver | |
| 2-639-7526 | 15.00/ |
| Screw Cap Pin (KIK / LFIC) | per 100 |
| 2-639-7527 | 19.00 |
| Follower (KIK) | |
| Holds top pins in place during assembly or disassembly | |
| 2-639-7528 | 38.00 |
| Tweezers | |
| 2-639-7530 | 57.00 |
| Capping Punch | |
| 2-639-7531 | 175.00 |
| Decombinating Block (punch included) | |
| 2-639-7532 | 218.90 |
| Manual Capping Block (punch included) (140 Spacing) | |
| 2-639-7534* | 2,440.00 |
| Capping Press (includes 156 spacing toolset) | |
| 2-639-7535 | 3,540.00 |
| Key Punch (140 Spacing) | |
| 2-639-7536 | 38.50 |
| HPC 1200 Series Code Card (140 Spacing) | |
| 2-639-7537 | 274.00 |
| Block and Punch Set (140 Spacing) | |
|
Toolset must be purchased in order to cap Hager H1, H2, or H3 Keyway
SFIC cores with Hager capping press (2-639-7534) |
* Purchase 2-639-7537 toolset to cap Hager Keyway SFIC Cores.
|
Top Pins (sold in multiples of 100)
Description |
2018 List |
|---|---|
| 2-639-8188 | 6.65/ per 100 |
| #2 (0.025") | |
| 2-639-8189 | 6.65/ per 100 |
| #3 (0.037") | |
|
2-639-8190
#4 (0.050") |
6.65/ per 100 |
|
2-639-8191
#5 (0.062") |
6.65/ per 100 |
| 2-639-8192 | 6.65/ per 100 |
| #6 (0.075") | |
| 2-639-8193 | 6.65/ per 100 |
| #7 (0.087") | |
| 2-639-8194 | 6.65/ per 100 |
| #8 (0.100") | |
| 2-639-8195 | 6.65/ per 100 |
| #9 (0.112") | |
| 2-639-8196 | 6.65/ per 100 |
| #10 (0.125") | |
| 2-639-8197 | 6.65/ per 100 |
| #11 (0.137") | |
|
2-639-8198
#12 (0.150") |
6.65/ per 100 |
|
2-639-8199
#13 (0.162") |
6.65/ per 100 |
| 2-639-8200 | 6.65/ per 100 |
| #14 (0.175") | |
| 2-639-8201 | 6.65/ per 100 |
| #15 (0.187") | |
| 2-639-8202 | 6.65/ per 100 |
| #16 (0.200") | |
| 2-639-8203 | 6.65/ per 100 |
| #17 (0.212") | |
| 2-639-8204 | 6.65/ per 100 |
| #18 (0.225") | |
| 2-639-8205 | 6.65/ per 100 |
| #19 (0.237") |
69
Locks - Full Bottom Pins
|
Full Bottom Pins (sold in multiples of 100)
Description 2-639-8210 #0 (0.185") |
2018 List
6.65/ per 100 |
|---|---|
|
2-639-8211
#1 (0.1975") |
6.65/ per 100 |
|
2-639-8212
#2 (0.210") |
6.65/ per 100 |
|
2-639-8213
#3 (0.2225") |
6.65/ per 100 |
|
2-639-8214
#4 (0.2350") |
6.65/ per 100 |
|
2-639-8215
#5 (0.2475") |
6.65/ per 100 |
|
2-639-8216
#6 (0.2600") |
6.65/ per 100 |
|
2-639-8217
#7 (0.2725") |
6.65/ per 100 |
|
2-639-8218
#8 (0.2850") |
6.65/ per 100 |
|
2-639-8219
#9 (0.2975") |
6.65/ per 100 |
|
SFIC Bottom Pins (sold in multiples of 100)
Description |
2018 List |
|---|---|
|
2-639-8220
#0 (0.110") |
6.65/ per 100 |
|
2-639-8221
#1 (0.122") |
6.65/ per 100 |
|
2-639-8222
#2 (0.135") |
6.65/ per 100 |
|
2-639-8223
#3 (0.147") |
6.65/ per 100 |
|
2-639-8224
#4 (0.160") |
6.65/ per 100 |
|
2-639-8225
#5 (0.172") |
6.65/ per 100 |
|
2-639-8226
#6 (0.185") |
6.65/ per 100 |
|
2-639-8227
#7 (0.197") |
6.65/ per 100 |
|
2-639-8228
#8 (0.210") |
6.65/ per 100 |
|
2-639-8229
#9 (0.222") |
6.65/ per 100 |
71
| 2310 | 2317 |
|---|---|
| 2310 2-3/8" US15 J0S | 2317 US26 CHA |
| 174156 | 169777 |
| 2310 2-3/8" 26D CHA | 2317 US26D JOS |
| 173293 | 167921 |
| 2310 2 3/4" US10B JOS | 2317 US26D JHN LH |
| 169469 | 171893 |
|
2310 2 3/4" US10B JHN
169738 |
2317 US26D JHN RH171894 |
| 2310 2 3/4" US10B WRN | 2317 US26D WRN LH |
| 169741 | 171907 |
| 2310 2 3/4" US10B LOU | 2317 US26D WRN RH |
| 169744 | 171908 |
| 2310 2 3/4" US10B CHA | 2317 US26D LOU |
| 169747 | 169767 |
| 2310 2 3/4" US15 JOS | 2317 US26D CHA |
| 169686 | 169773 |
| 2310 2 3/4" US15 JHN | 2317 US3 JOS |
| 169701 | 169751 |
| 2310 2 3/4" US15 WRN | 2317 US3 JHN LH |
| 169709 | 171897 |
| 2310 2 3/4" US15 LOU | 2317 US3 JHN RH |
| 169716 | 171898 |
| 2310 2 3/4" US15 CHA | 2317 US3 WRN LH |
| 169722 | 171911 |
| 2310 2 3/4" US26 JOS | 2317 US3 WRN RH |
| 169698 | 171912 |
| 2310 2 3/4" US26 JHN | 2317 US3 LOU |
| 169737 | 169769 |
| 2310 2 3/4" US26 WRN | 2317 US3 CHA |
| 169740 | 169775 |
| 2310 2 3/4" US26 LOU | 2317 US4 LOU |
| 169743 | 169770 |
| 2310 2 3/4" US26 CHA | 2317 US4 CHA |
| 169746 | 169776 |
| 2310 2 3/4" US26D JOS | 2317 US4 JOS |
| 169453 | 169752 |
| 2310 2 3/4" US26D JOS | 2317 US4 JHN LH |
| 169453 | 171900 |
| 2310 2 3/4" US26D JOS | 2317 US4 JHN RH |
| 169453 | 171901 |
| 2310 2 3/4" US26D JHN | 2317 US4 WRN LH |
| 169617 | 171913 |
| 2310 2 3/4" US26D WRN | 2317 US4 WRN RH |
| 169622 | 171914 |
|
2310 2 3/4" US26D LOU
169628 |
2340 |
| 2310 2 3/4" US26D CHA | 2340 2-3/8" US15 J0S |
| 169631 | 174157 |
| 2310 2 3/4" US3 JOS | 2340 2-3/8" 26D JOS |
| 169689 | 175754 |
| 2310 2 3/4" US3 JHN | 2340 2-3/8" 26D CHA |
| 169704 | 173294 |
| 2310 2 3/4" US3 WRN | 2340 2 3/4" US10B JOS |
| 169712 | 169471 |
| 2310 2 3/4" US3 LOU | 2340 2 3/4" US10B JHN |
| 169718 | 169819 |
| 2310 2 3/4" US3 CHA | 2340 2 3/4" US10B WRN |
| 169724 | 169822 |
| 2310 2 3/4" US4 JOS | 2340 2 3/4" US10B LOU |
| 169695 | 169825 |
| 2310 2 3/4" US4 JHN | 2340 2 3/4" US10B CHA |
| 169735 | 169828 |
| 2310 2 3/4" US4 WRN | 2340 2 3/4" US15 JOS |
| 169739 | 169688 |
| 2310 2 3/4" US4 LOU | 2340 2 3/4" US15 JHN |
| 169742 | 169703 |
| 2310 2 3/4" US4 CHA | 2340 2 3/4" US15 WRN |
| 169745 | 169711 |
| 2317 |
2340 2 3/4" US15 LOU
169730 |
| 2317 US10B JOS | 2340 2 3/4" US15 CHA |
| 169754 | 169732 |
| 2317 US10B JHN HL | 2340 2 3/4" US26 JOS |
| 171905 | 169700 |
| 2317 US10B JHN RH171906 |
2340 2 3/4" US26 JHN
169818 |
| 2317 US10B WRN LH | 2340 2 3/4" US26 WRN |
| 171917 | 169821 |
| 2317 US10B WRN RH | 2340 2 3/4" US26 LOU |
| 171918 | 169824 |
| 2317 US10B LOU | 2340 2 3/4" US26 CHA |
| 169772 | 169827 |
| 2317 US10B CHA | 2340 2 3/4" US26D JOS |
| 169778 | 169455 |
| 2317 US15 JOS169748 |
2340 2 3/4" US26D JOS
169455 |
| 2317 US15 JHN LH | 2340 2 3/4" US26D JHN |
| 171895 | 169619 |
| 2317 US15 JHN RH | 2340 2 3/4" US26D WRN |
| 171896 | 169682 |
| 2317 US15 WRN LH | 2340 2 3/4" US26D LOU |
| 171909 | 169729 |
| 2317 US15 WRN RH | 2340 2 3/4" US26D CHA |
| 171910 | 169733 |
| 2317 US15 LOU | 2340 2 3/4" US3 JOS |
| 169768 | 169694 |
| 2317 US15 CHA | 2340 2 3/4" US3 JHN |
| 169774 | 169706 |
| 2317 US10B JOS | 2340 2 3/4" US3 WRN |
| 169753 | 169728 |
| 2317 US26 JHN LH | 2340 2 3/4" US3 LOU |
| 171902 | 169731 |
| 2317 US26 JHN RH | 2340 2 3/4" US3 CHA |
| 171903 | 169734 |
| 2317 US26 WRN LH | 2340 2 3/4" US4 JOS |
| 171915 | 169697 |
| 2317 US26 WRN RH | 2340 2 3/4" US4 JHN |
| 171916 | 169817 |
| 2317 US26 LOU | 2340 2 3/4" US4 WRN |
| 169771 | 169820 |
| 2340 |
|---|
|
2340 2 3/4" US4 LOU
169823 |
|
2340 2 3/4" US4 CHA
169826 |
| 2510 |
|
2510 2-3/8" US10B ARC ASA
143873 |
|
2510 2-3/8" US10B WTN ASA
147186 |
|
2510 2-3/8" US26D ARC ASA
134474 |
|
2510 2-3/8" US26D WTN ASA
136277 |
|
2510 2-3/8" US3 WTN ASA
137318 |
|
2510 2-3/4" US10B ARC ASA
128993 |
|
2510 2-3/4" US10B WTN ASA
129000 |
|
2510 2-3/4" US26D ARC ASA.
129001 |
|
2510 2-3/4" US26D WTN ASA.
129002 |
|
2510 2-3/4" US3 ARC ASA
129003 |
|
2510 2-3/4" US3 WTN ASA
129004 |
| 2517 |
|
2517 US10B ARC
130785 |
|
2517 US10B WTN
130786 |
|
2517 US10B WTN
130786 |
|
2517 US10B WTN
130786 |
|
2517 US26D ARC.
130787 |
|
2517 US26D WTN.
130788 |
|
2517 US26D WTN
130788 |
|
2517 US3 ARC
130789 |
|
2517 US3 WTN
130790 |
| 2525 |
|
2525 2-3/8" US10B ARC ASA
176278 |
|
2525 2-3/8" US26D ARC ASA
156965 |
|
2525 2-3/8" US26D WTN ASA
147316 |
|
2525 2-3/8" US3 WTN ASA
167674 |
|
2525 2-3/4" US10B ARC ASA
129012 |
|
2525 2-3/4" US10B WTN ASA
129013 |
|
2525 2-3/4" US26D ARC ASA
129016 |
|
2525 2-3/4" US26D WTN ASA
129017 |
|
2525 2-3/4" US3 ARC ASA
129018 |
|
2525 2-3/4" US3 WTN ASA
129020 |
| 2540 |
|
2540 2-3/8" US10B ARC ASA
135767 |
|
2540 2-3/8" US10B WTN ASA
147189 |
|
2540 2-3/8" US26D ARC ASA
134473 |
|
2540 2-3/8" US26D WTN ASA
144640 |
|
2540 2-3/8" US3 WTN ASA
137317 |
|
2540 2-3/4" US10B ARC ASA
129021 |
|
2540 2-3/4" US10B WTN ASA
129022 |
|
2540 2-3/4" US26D ARC ASA.
129023 |
|
2540 2-3/4" US26D WTN ASA.
129024 |
|
2540 2-3/4" US3 ARC ASA
129025 |
|
2540 2-3/4" US3 WTN ASA
129026 2550 |
|
2550 2-3/8" US26D ARC SCC KD ASA
150263 |
|
2550 2-3/8" US26D WTN SCC KD ASA
148604 |
|
2550 2-3/4" US10B ARC SCC KD ASA
129637 |
|
2550 2-3/4" US10B WTN SCC KD ASA
129638 2550 2-3/4" US26D ARC SCC KD ASA 129639 |
|
2550 2-3/4" US26D WTN SCC KD ASA
129642 |
|
|
2550 2-3/4" US26D WTN SCC KD ASA
129642 |
|
|
2550 2-3/4" US3 ARC SCC KD ASA
129643 |
|
|
2550 2-3/4" US3 WTN SCC KA ASA
134149 |
|
|
2550 2-3/4" US3 WTN SCC KD ASA
129644 |
|
| 2553 | |
|
2553 2-3/8" US10B ARC SCC KA ASA
135787 |
|
|
2553 2-3/8" US10B ARC SCC KD ASA
140478 |
|
|
2553 2-3/8" US10B WTN SCC KD ASA
160465 |
|
|
2553 2-3/8" US26D ARC SCC KD ASA
134768 |
|
|
2553 2-3/8" US26D WTN SCC KD ASA
136279 |
|
|
2553 2-3/8" US3 ARC SCC KD ASA
163970 |
|
|
2553 2-3/8" US3 WTN SCC KD ASA
150220 |
|
|
2553 2-3/4" US10B ARC SCC KD ASA
129645 |
|
|
2553 2-3/4" US10B WTN SCC KD ASA
129646 |
|
|
2553 2-3/4" US26D ARC SCC KD ASA.
129647 |
|
| 2553 2-3/4" US26D WTN SCC KD ASA 129648 | |
|
2553 2-3/4" US3 ARC SCC KD ASA
129649 |
|
|
2553 2-3/4" US3 WTN SCC KD ASA
129650 |
|
|
2553 2-3/4" US3/US26D WTN SCC KD ASA
152111 2570 |
|
|
2570 2-3/8" US10B WTN SCC KD ASA
164364 |
|
|
2570 2-3/8" US26D WTN SCC KD ASA
143635 2570 2-3/8" US3 WTN SCC KD ASA 170761 |
|
|
2570 2-3/4" US10B ARC SCC KD ASA
129651 |
|
|
2570 2-3/4" US10B WTN SCC KD ASA
129652 |
|
|
2570 2-3/4" US26D ARC SCC KD ASA
129653 |
|
|
2570 2-3/4" US26D WTN SCC KD ASA
129654 |
|
|
2570 2-3/4" US3 ARC SCC KD ASA
129655 |
|
|
2570 2-3/4" US3 WTN SCC KD ASA
129656 |
|
| 2580 | |
|
2580 2-3/8" US10B WTN SCC KD ASA
151209 |
|
|
2580 2-3/8" US26D WTN SCC KD ASA
132617 |
|
|
2580 2-3/4" US10B ARC SCC KD ASA
129657 |
|
|
2580 2-3/4" US10B WTN SCC KD ASA
129658 |
|
|
2580 2-3/4" US26D ARC SCC KD ASA
129659 |
|
|
2580 2-3/4" US26D WTN SCC KD ASA
129660 |
|
|
2580 2-3/4" US3 ARC SCC KD ASA
129661 |
|
|
2580 2-3/4" US3 WTN SCC KD ASA
129662 |
|
| 3114 | |
|
3114 2-3/4" US10 NC IC
034812 |
|
|
3114 2-3/4" US10 SCC KD
012596 |
|
|
3114 2-3/4" US10B NC IC
034811 |
|
|
3114 2-3/4" US10B SCC KD
012597 |
|
|
3114 2-3/4" US26 NC IC
034810 |
|
|
3114 2-3/4" US26 SCC KD
028119 |
|
|
3114 2-3/4" US26D NC IC
034807 |
|
|
3114 2-3/4" US26D SCC KD
028118 3114 2-3/4" US3 NC IC 034815 |
|
|
3114 2-3/4" US3 SCC KD
012594 |
|
|
3114 2-3/4" US4 NC IC
034814 |
|
|
3114 2-3/4" US4 SCC KD
012595 |
| 3115 |
|---|
|
3115 2-3/4" US10 NC IC
040420 |
|
3115 2-3/4" US10 SCC KD
012588 |
|
3115 2-3/4" US10B NC IC
040418 |
|
3115 2-3/4" US10B SCC KD
012592 |
|
3115 2-3/4" US26 NC IC
040449 |
|
3115 2-3/4" US26 SCC KD
028121 |
|
3115 2-3/4" US26D NC IC
098283 |
|
3115 2-3/4" US26D SCC KD.
028120 |
|
3115 2-3/4" US3 NC IC
040425 |
|
3115 2-3/4" US3 SCC KD
012590 |
|
3115 2-3/4" US4 NC IC
050868 |
|
3115 2-3/4" US4 SCC KD
012589 |
| 3118 |
|
3118 2-3/4" US10 NC IC
038894 |
|
3118 2-3/4" US10 SCC KD
028133 |
|
3118 2-3/4" US10B NC IC
038887 |
|
3118 2-3/4" US10B SCC KD
050113 |
|
3118 2-3/4" US26 NC IC
039335 |
|
3118 2-3/4" US26 SCC KD
028126 |
|
3118 2-3/4" US26D NC IC
098282 |
|
3118 2-3/4" US26D SCC KD
028123 |
|
3118 2-3/4" US3 NC IC
038920 |
|
3118 2-3/4" US3 SCC KD
028129 |
|
3118 2-3/4" US4 NC IC
038899 |
|
3118 2-3/4" US4 SCC KD
028131 |
| 3214 |
|
3214 2-3/8" US10 SCC KD
099243 |
|
3214 2-3/4" US10 NC IC
034800 |
|
3214 2-3/4" US10 SCC KD
012650 |
|
3214 2-3/8" US10B SCC KD
058093 |
|
3214 2-3/4" US10B NC IC
034769 |
|
3214 2-3/4" US10B SCC KD
012651 |
|
3214 2-3/8" US26D SCC KD
113487 |
|
3214 2-3/4" US26D NC IC
034759 |
|
3214 2-3/4" US26D SCC KD
098342 |
|
3214 2-3/8" US3 SCC KD
044086 |
|
3214 2-3/4" US3 NC IC
034803 |
|
3214 2-3/4" US3 SCC KD
012647 |
|
3214 2-3/4" US32 NC IC
034758 |
|
3214 2-3/4" US32 SCC KD
012646 |
|
3214 2-3/8" US32D SCC KD
096051 |
|
3214 2-3/4" US32D NC IC
034749 |
|
3214 2-3/4" US32D SCC KD
012645 |
|
3214 2-3/8" US4 SCC KD
130567 |
|
3214 2-3/4" US4 NC IC
034801 |
|
3214 2-3/4" US4 SCC KD
012649 |
| 3215 |
|
3215 2-3/8" US10 NC IC
136009 |
|
3215 2-3/8" US10 SCC KD
054763 |
|
3215 2-3/4" US10 NC IC
048992 |
|
3215 2-3/4" US10 SCC KD
012653 |
|
3215 2-3/8" US10B NC IC
007223 |
|
3215 2-3/8" US10B SCC KD
097759 |
|
3215 2-3/4" US10B NC IC
038848 |
| Items with the price in bold and red are Quick Ship Items and ship in 24 hours. | ||
3215
|
3215 2-3/4" US10B SCC KD
012652 |
|
3215 2-3/8" US26D NC IC
046832 |
|
3215 2-3/8" US26D SCC KD
065836 |
|
3215 2-3/4" US26D NC IC
098280 |
|
3215 2-3/4" US26D SCC KD.
098341 |
|
3215 2-3/8" US3 NC IC
005743 |
|
3215 2-3/8" US3 SCC KD
096177 |
|
3215 2-3/4" US3 NC IC
084949 |
|
3215 2-3/4" US3 SCC KD
012655 |
|
3215 2-3/8" US32 SCC KD
140554 |
|
3215 2-3/4" US32 NC IC
038839 |
|
3215 2-3/4" US32 SCC KD
012656 |
|
3215 2-3/8" US32D NC IC
031595 |
|
3215 2-3/8" US32D SCC KD
097015 |
|
3215 2-3/4" US32D NC IC
098220 |
|
3215 2-3/4" US32D SCC KD.
012657 |
|
3215 2-3/8" US4 NC IC
108489 |
|
3215 2-3/8" US4 SCC KD
067222 |
|
3215 2-3/4" US4 NC IC
038847 |
|
3215 2-3/4" US4 SCC KD
012654 |
| 3216 |
| 3216 ADJ US10143039 |
|
3216 ADJ US10B
143040 |
|
3216 ADJ US26D.
143041 |
|
3216 ADJ US3
143037 |
| 3216 ADJ US32143042 |
|
3216 ADJ US32D
143043 |
|
3216 ADJ US4
143038 |
| 3220 |
| 3220 ADJ US10111391 |
|
3220 ADJ US10B
111392 |
|
3220 ADJ US26D
118136 |
|
3220 ADJ US3
111393 |
| 3220 ADJ US32111394 |
|
3220 ADJ US32D
111395 |
|
3220 ADJ US4
111396 |
| 3221 |
| 3221 ADJ US10111825 |
|
3221 ADJ US10B
111832 |
|
3221 ADJ US26D
118140 |
|
3221 ADJ US3
111833 |
| 3221 ADJ US32111834 |
|
3221 ADJ US32D
111835 |
|
3221 ADJ US4
111837 |
| 3222 |
| 3222 ADJ US10111415 |
|
3222 ADJ US10B
111416 |
|
3222 ADJ US26D
118139 |
|
3222 ADJ US3
111417 |
| 3222 ADJ US32111418 |
|
3222 ADJ US32D
111419 |
|
3222 ADJ US4
111421 |
| 3410 | 3440 |
|---|---|
| 3410 2-3/4" US10 ARC ASA | 3440 2-3/4" US3 APL ASA |
| 012557 | 012502 |
| 3410 2-3/4" US10 AUG ASA | 3440 2-3/4" US3 AUG ASA |
| 041178 | 040639 |
| 3410 2-3/4" US10 WTN ASA | 3440 2-3/4" US3 WTN ASA |
| 012548 | 012505 |
| 3410 2-3/4" US10B ARC ASA | 3440 2-3/4" US32D APL ASA |
| 012560 | 012503 |
| 3410 2-3/4" US10B AUG ASA | 3440 2-3/4" US4 ARC ASA |
| 041148 | 012517 |
| 3410 2-3/4" US10B WTN ASA | 3440 2-3/4" US4 AUG ASA |
| 012549 | 040618 |
| 3410 2-3/4" US26 ARC ASA | 3440 2-3/4" US4 WTN ASA |
| 012553 | 012508 |
|
3410 2-3/4" US26 AUG ASA
041141 |
3450 |
| 3410 2-3/4" US26 WTN ASA | 3450 2-3/4" US10 ARC NC ASA IC |
| 012526 | 038099 |
| 3410 2-3/4" US26D ARC ASA. | 3450 2-3/4" US10 ARC SCC KD ASA |
| 012550 | 038133 |
| 3410 2-3/4" US26D AUG ASA. | 3450 2-3/4" US10 AUG NC ASA IC |
| 041139 | 024940 |
| 3410 2-3/4" US26D WTN ASA. | 3450 2-3/4" US10 AUG SCC KD ASA |
| 012525 | 028445 |
| 3410 2-3/4" US3 ARC ASA | 3450 2-3/4" US10 WTN NC ASA IC |
| 012554 | 038088 |
|
3410 2-3/4" US3 APL ASA
012520 |
|
| 3410 2-3/4" US3 AUG ASA | 3450 2-3/4" US10 WTN SCC KD ASA |
| 041082 | 038127 |
| 3410 2-3/4" US3 WTN ASA | 3450 2-3/4" US10B ARC NC ASA IC |
| 012528 | 038087 |
| 3410 2-3/4" US32D APL ASA | 3450 2-3/4" US10B ARC SCC KD ASA |
| 012524 | 038116 |
| 3410 2-3/4" US4 ARC ASA | 3450 2-3/4" US10B AUG NC ASA IC |
| 012555 | 024141 |
| 3410 2-3/4" US4 AUG ASA | 3450 2-3/4" US10B AUG SCC KD ASA |
| 040960 | 028440 |
| 3410 2-3/4" US4 WTN ASA | 3450 2-3/4" US10B WTN NC ASA IC |
| 012530 | 038048 |
| 3417 |
3450 2-3/4" US10B WTN SCC KD ASA
038113 |
|
3450 2-3/4" US26 ARC NC ASA IC
038824 |
|
| 3417 US10 ARC | 3450 2-3/4" US26 ARC SCC KD ASA |
| 012576 | 038170 |
| 3417 US10 AUG | 3450 2-3/4" US26 AUG NC ASA IC |
| 028522 | 024933 |
| 3417 US10 WTN | 3450 2-3/4" US26 AUG SCC KD ASA |
| 012569 | 028439 |
| 3417 US10B ARC | 3450 2-3/4" US26 WTN NC ASA IC |
| 012577 | 038823 |
| 3417 US10B AUG | 3450 2-3/4" US26 WTN SCC KD ASA |
| 028542 | 038169 |
| 3417 US10B WTN | 3450 2-3/4" US26D ARC NC ASA IC |
| 012570 | 098296 |
| 3417 US26 ARC | 3450 2-3/4" US26D ARC SCC KD ASA. |
| 012572 | 098330 |
| 3417 US26 AUG | 3450 2-3/4" US26D AUG NC ASA IC |
| 028516 | 024987 |
| 3417 US26 WTN | 3450 2-3/4" US26D AUG SCC KD ASA. |
| 012566 | 028481 |
| 3417 US26D ARC | 3450 2-3/4" US26D WTN NC ASA IC |
| 012571 | 098323 |
|
3417 US26D AUG
028530 |
3450 2-3/4" US26D WTN SCC KD ASA 098333 |
| 3417 US26D WTN. | 3450 2-3/4" US3 ARC NC ASA IC |
| 012563 | 038539 |
| 3417 US3 ARC | 3450 2-3/4" US3 ARC SCC KD ASA |
| 012573 | 038167 |
| 3417 US3 APL | 3450 2-3/4" US3 AUG NC ASA IC |
| 012561 | 024928 |
| 3417 US3 AUG | 3450 2-3/4" US3 AUG SCC KD ASA |
| 028515 | 028431 |
| 3417 US3 WTN | 3450 2-3/4" US3 WTN NC ASA IC |
| 012567 | 038293 |
| 3417 US32D APL | 3450 2-3/4" US3 WTN SCC KD ASA |
| 012562 | 038140 |
| 3417 US4 ARC | 3450 2-3/4" US4 ARC NC ASA IC |
| 012575 | 038135 |
| 3417 US4 AUG | 3450 2-3/4" US4 ARC SCC KD ASA |
| 028529 | 038139 |
| 3417 US4 WTN | 3450 2-3/4" US4 AUG NC ASA IC |
| 012568 | 024949 |
| 3440 |
3450 2-3/4" US4 AUG SCC KD ASA
028446 |
| 3440 2-3/4" US10 ARC ASA | 3450 2-3/4" US4 WTN NC ASA IC |
| 012518 | 038112 |
| 3440 2-3/4" US10 AUG ASA | 3450 2-3/4" US4 WTN SCC KD ASA |
| 040751 | 038134 |
|
3440 2-3/4" US10 WTN ASA
012509 |
3453 |
| 3440 2-3/4" US10B ARC ASA | 3453 2-3/4" US10 ARC NC ASA IC |
| 012519 | 037850 |
| 3440 2-3/4" US10B AUG ASA | 3453 2-3/4" US10 ARC SCC KD ASA |
| 040748 | 012442 |
| 024866 | |
|
3440 2-3/4" US10B WTN ASA
012510 |
3453 2-3/4" US10 AUG NC ASA IC |
| 3440 2-3/4" US26 ARC ASA | 3453 2-3/4" US10 AUG SCC KD ASA |
| 012515 | 028404 |
| 3440 2-3/4" US26 AUG ASA | 3453 2-3/4" US10 WTN NC ASA IC |
| 040718 | 037795 |
| 3440 2-3/4" US26 WTN ASA | 3453 2-3/4" US10 WTN SCC KD ASA |
| 012504 | 012435 |
| 3440 2-3/4" US26D ARC ASA. | 3453 2-3/4" US10B ARC NC ASA IC |
| 012514 | 088953 |
| 3440 2-3/4" US26D AUG ASA. | 3453 2-3/4" US10B ARC SCC KD ASA |
| 040658 | 012443 |
| 3440 2-3/4" US26D WTN ASA. | 3453 2-3/4" US10B AUG NC ASA IC |
| 012499 | 024855 |
| 3440 2-3/4" US3 ARC ASA | 3453 2-3/4" US10B AUG SCC KD ASA |
| 012516 | 028393 |
| Items with the price in bold and red are Quick Ship Items and ship in 24 hours. |
| 3453 | |
|---|---|
| 3453 2-3/4" US10B WTN NC ASA IC | 037776 |
| 3453 2-3/4" US10B WTN SCC KD ASA | 012437 |
| 3453 2-3/4" US26 ARC NC ASA IC | 038229 |
| 3453 2-3/4" US26 ARC SCC KD ASA | 012439 |
| 3453 2-3/4" US26 AUG NC ASA IC | 024761 |
| 3453 2-3/4" US26 AUG SCC KD ASA | 028391 |
| 3453 2-3/4" US26 WTN NC ASA IC | 038044 |
| 3453 2-3/4" US26 WTN SCC KD ASA | 012429 |
| 3453 2-3/4" US26D ARC NC ASA IC | 098295 |
| 3453 2-3/4" US26D ARC SCC KD ASA. | 012438 |
| 3453 2-3/4" US26D AUG NC ASA IC | 024713 |
| 3453 2-3/4" US26D AUG SCC KD ASA. | 028390 |
| 3453 2-3/4" US26D WTN NC ASA IC | 098322 |
| 3453 2-3/4" US26D WTN SCC KD ASA 012427 | |
| 3453 2-3/4" US3 ARC NC ASA IC | 038042 |
| 3453 2-3/4" US3 ARC SCC KD ASA | 012440 |
| 3453 2-3/4" US3 AUG NC ASA IC | 024712 |
| 3453 2-3/4" US3 AUG SCC KD ASA | 028389 |
| 3453 2-3/4" US3 WTN NC ASA IC | 038040 |
| 3453 2-3/4" US3 WTN SCC KD ASA | 012433 |
| 3453 2-3/4" US4 ARC NC ASA IC | 038018 |
| 3453 2-3/4" US4 ARC SCC KD ASA | 012441 |
| 3453 2-3/4" US4 AUG NC ASA IC | 024616 |
| 3453 2-3/4" US4 AUG SCC KD ASA | 028381 |
| 3453 2-3/4" US4 WTN NC ASA IC | 037886 |
| 3453 2-3/4" US4 WTN SCC KD ASA | 012434 |
| 3453 2-3/4" US3 APL SCC KD ASA | 012423 |
| 3453 2-3/4" US32D APL NC ASA IC | 060301 |
|
3453 2-3/4" US32D APL SCC KD ASA
3470 |
012425 |
| 3470 2-3/4" US10 ARC NC ASA IC | 037656 |
| 3470 2-3/4" US10 ARC SCC KD ASA | 012473 |
| 3470 2-3/4" US10 AUG NC ASA IC | 024615 |
| 3470 2-3/4" US10 AUG SCC KD ASA | 028346 |
| 3470 2-3/4" US10 WTN NC ASA IC | 037616 |
| 3470 2-3/4" US10 WTN SCC KD ASA | 012458 |
| 3470 2-3/4" US10B ARC NC ASA IC | 037613 |
| 3470 2-3/4" US10B ARC SCC KD ASA | 012474 |
| 3470 2-3/4" US10B AUG NC ASA IC | 024467 |
| 3470 2-3/4" US10B AUG SCC KD ASA | 028344 |
| 3470 2-3/4" US10B WTN NC ASA IC | 037532 |
| 3470 2-3/4" US10B WTN SCC KD ASA | 012462 |
| 3470 2-3/4" US26 ARC NC ASA IC | 038100 |
| 3470 2-3/4" US26 ARC SCC KD ASA | 012467 |
| 3470 2-3/4" US26 AUG NC ASA IC | 024613 |
| 3470 2-3/4" US26 AUG SCC KD ASA | 028343 |
| 3470 2-3/4" US26 WTN NC ASA IC | 037742 |
| 3470 2-3/4" US26 WTN SCC KD ASA | 012453 |
| 3470 2-3/4" US26D ARC NC ASA IC | 098293 |
| 3470 2-3/4" US26D ARC SCC KD ASA. | 012463 |
| 3470 2-3/4" US26D AUG NC ASA IC | 024554 |
| 3470 2-3/4" US26D AUG SCC KD ASA. | 028339 |
| 3470 2-3/4" US26D WTN NC ASA IC | 098321 |
| 3470 2-3/4" US26D WTN SCC KD ASA 012451 |
| 3470 |
|---|
|
3470 2-3/4" US3 ARC SCC KD ASA
012468 |
|
3470 2-3/4" US3 AUG NC ASA IC
024543 |
|
3470 2-3/4" US3 AUG SCC KD ASA
028324 |
|
3470 2-3/4" US3 WTN NC ASA IC
037724 |
|
3470 2-3/4" US3 WTN SCC KD ASA
012454 |
|
3470 2-3/4" US4 ARC NC ASA IC
037686 |
|
3470 2-3/4" US4 ARC SCC KD ASA
012470 |
|
3470 2-3/4" US4 AUG NC ASA IC
024405 |
|
3470 2-3/4" US4 AUG SCC KD ASA
028330 |
|
3470 2-3/4" US4 WTN NC ASA IC
037657 |
|
3470 2-3/4" US4 WTN SCC KD ASA
012455 |
|
3470 2-3/4" US3 APL SCC KD ASA
012445 |
|
3470 2-3/4" US32D APL NC ASA IC
143141 |
|
3470 2-3/4" US32D APL SCC KD ASA
012447 |
| 3473 |
|
3473 2-3/4" US10 ARC NC ASA IC (REV1)
138464 |
|
3473 2-3/4" US10 ARC SCC KD ASA (REV1)
138465 |
|
3473 2-3/4" US10 AUG NC ASA IC (REV1)
138466 |
|
3473 2-3/4" US10 AUG SCC KD ASA (REV1)
138467 |
|
3473 2-3/4" US10 WTN NC ASA IC (REV1)
138468 |
| 3473 2-3/4" US10 WTN SCC KD ASA (REV1)138469 |
|
3473 2-3/4" US10B ARC NC ASA IC (REV1)
138470 |
|
3473 2-3/4" US10B ARC SCC KD ASA (REV1)
138471 |
|
3473 2-3/4" US10B AUG NC ASA IC (REV1)
138472 |
|
3473 2-3/4" US10B AUG SCC KD ASA (REV1)
138473 |
|
3473 2-3/4" US10B WTN NC ASA IC (REV1)
138474 |
|
3473 2-3/4" US10B WTN SCC KD ASA (REV1)
138475 |
|
3473 2-3/4" US26 ARC NC ASA IC (REV1)
138476 |
|
3473 2-3/4" US26 ARC SCC KD ASA (REV1)
138477 |
|
3473 2-3/4" US26 AUG NC ASA IC (REV1)
138478 |
|
3473 2-3/4" US26 AUG SCC KD ASA (REV1)
138479 |
|
3473 2-3/4" US26 WTN NC ASA IC (REV1)
138480 |
| 3473 2-3/4" US26 WTN SCC KD ASA (REV1)138481 |
|
3473 2-3/4" US26D ARC NC ASA IC (REV1)
138482 |
|
3473 2-3/4" US26D ARC SCC KD ASA (REV1)
138485 |
|
3473 2-3/4" US26D AUG NC ASA IC (REV1)
138487 |
|
3473 2-3/4" US26D AUG SCC KD ASA (REV1)
138488 |
|
3473 2-3/4" US26D WTN NC ASA IC (REV1)
138489 |
|
3473 2-3/4" US26D WTN SCC KD ASA (REV1)
138490 |
|
3473 2-3/4" US3 ARC NC ASA IC (REV1)
138491 |
|
3473 2-3/4" US3 ARC SCC KD ASA (REV1)
138492 |
|
3473 2-3/4" US3 AUG NC ASA IC (REV1)
138493 |
|
3473 2-3/4" US3 AUG SCC KD ASA (REV1)
138494 |
|
3473 2-3/4" US3 WTN NC ASA IC (REV1)
138495 |
|
3473 2-3/4" US3 WTN SCC KD ASA (REV1)
138496 |
|
3473 2-3/4" US4 ARC NC ASA IC (REV1)
138497 |
|
3473 2-3/4" US4 ARC SCC KD ASA (REV1)
138498 |
|
3473 2-3/4" US4 AUG NC ASA IC (REV1)
138499 |
|
3473 2-3/4" US4 AUG SCC KD ASA (REV1)
138500 |
|
3473 2-3/4" US4 WTN NC ASA IC (REV1)
138501 |
|
3473 2-3/4" US4 WTN SCC KD ASA (REV1)
138502 |
| 3480 |
3480 2-3/4" US10 ARC NC ASA IC. . 037343 3480 2-3/4" US10 ARC SCC KD ASA. . 012495 3480 2-3/4" US10 AUG NC ASA IC. . 024368
| 3480 | 3495 |
|---|---|
| 3480 2-3/4" US10 AUG SCC KD ASA | 3495 2-3/4" US26D ARC NC ASA IC |
| 028031 | 006797 |
| 3480 2-3/4" US10 WTN NC ASA IC | 3495 2-3/4" US26D ARC SCC KD ASA |
| 037330 | 007180 |
| 3480 2-3/4" US10 WTN SCC KD ASA | 3495 2-3/4" US26D AUG NC ASA IC |
| 012483 | 006705 |
| 3480 2-3/4" US10B ARC NC ASA IC | 3495 2-3/4" US26D AUG SCC KD ASA |
| 037326 | 006840 |
| 3480 2-3/4" US10B ARC SCC KD ASA | 3495 2-3/4" US26D WTN NC ASA IC |
| 012496 | 006753 |
| 3480 2-3/4" US10B AUG NC ASA IC | 3495 2-3/4" US26D WTN SCC KD ASA |
| 024348 | 007070 |
| 3480 2-3/4" US10B AUG SCC KD ASA | 3495 2-3/4" US3 ARC NC ASA IC |
| 028017 | 007292 |
| 3480 2-3/4" US10B WTN NC ASA IC | 3495 2-3/4" US3 ARC SCC KD ASA |
| 037325 | 007295 |
| 3480 2-3/4" US10B WTN SCC KD ASA | 3495 2-3/4" US3 AUG NC ASA IC |
| 012490 | 006745 |
| 3480 2-3/4" US26 ARC NC ASA IC | 3495 2-3/4" US3 AUG SCC KD ASA |
| 038085 | 007063 |
| 3480 2-3/4" US26 ARC SCC KD ASA | 3495 2-3/4" US3 WTN NC ASA IC |
| 012492 | 006795 |
| 3480 2-3/4" US26 AUG NC ASA IC | 3495 2-3/4" US3 WTN SCC KD ASA |
| 024328 | 007176 |
| 3480 2-3/4" US26 AUG SCC KD ASA | 3495 2-3/4" US4 ARC NC ASA IC |
| 027994 | 006819 |
| 3480 2-3/4" US26 WTN NC ASA IC | 3495 2-3/4" US4 ARC SCC KD ASA |
| 037531 | 007199 |
| 3480 2-3/4" US26 WTN SCC KD ASA | 3495 2-3/4" US4 AUG NC ASA IC |
| 012479 | 006743 |
| 3480 2-3/4" US26D ARC NC ASA IC | 3495 2-3/4" US4 AUG SCC KD ASA |
| 098292 | 006848 |
| 3480 2 3/4 26D ARC SCC KD ASA. | 3495 2-3/4" US4 WTN NC ASA IC |
| 012491 | 006792 |
| 3480 2-3/4" US26D AUG NC ASA IC | 3495 2-3/4" US4 WTN SCC KD ASA |
| 024264 | 007170 |
|
3480 2-3/4" US26D AUG SCC KD ASA.
027993 |
3510 |
|
3480 2-3/4" US26D WTN NC ASA IC
098651 |
|
| 3480 2-3/4" US26D WTN SCC KD ASA 012478 |
3510 2-3/4" US10 ARC ASA
000319 |
| 3480 2-3/4" US3 ARC NC ASA IC | 3510 2-3/4" US10 AUG ASA |
| 037516 | 038966 |
| 3480 2-3/4" US3 ARC SCC KD ASA | 3510 2-3/4" US10 WTN ASA |
| 012493 | 000261 |
| 3480 2-3/4" US3 AUG NC ASA IC | 3510 2-3/4" US10B ARC ASA |
| 024233 | 000320 |
| 3480 2-3/4" US3 AUG SCC KD ASA | 3510 2-3/4" US10B AUG ASA |
| 027990 | 037082 |
| 3480 2-3/4" US3 WTN NC ASA IC | 3510 2-3/4" US10B WTN ASA |
| 037444 | 000262 |
| 3480 2-3/4" US3 WTN SCC KD ASA | 3510 2-3/4" US26 ARC ASA |
| 012481 | 000316 |
| 3480 2-3/4" US4 ARC NC ASA IC | 3510 2-3/4" US26 AUG ASA |
| 037408 | 036933 |
| 3480 2-3/4" US4 ARC SCC KD ASA | 3510 2-3/4" US26 WTN ASA |
| 012494 | 000258 |
| 3480 2-3/4" US4 AUG NC ASA IC | 3510 2-3/4" US26D ARC ASA. |
| 024187 | 000313 |
| 3480 2-3/4" US4 AUG SCC KD ASA | 3510 2-3/4" US26D AUG ASA. |
| 027988 | 036892 |
| 3480 2-3/4" US4 WTN NC ASA IC | 3510 2-3/4" US26D WTN ASA. |
| 037388 | 000256 |
| 3480 2-3/4" US4 WTN SCC KD ASA | 3510 2-3/4" US3 ARC ASA |
| 012482 | 000317 |
| 3480 2-3/4" US3 APL SCC KD ASA | 3510 2-3/4" US3 AUG ASA |
| 012475 | 036825 |
| 3480 2-3/4" US32D APL NC ASA IC | 3510 2-3/4" US3 WTN ASA |
| 143142 | 000259 |
| 3480 2-3/4" US32D APL SCC KD ASA | 3510 2-3/4" US4 ARC ASA |
| 012477 | 000318 |
| 3495 |
3510 2-3/4" US4 AUG ASA
036813 |
|
3510 2-3/4" US4 WTN ASA
000260 |
|
| 3495 2-3/4" US10 ARC NC ASA IC | 3510 2-3/4" US3 APL ASA |
| 006810 | 091147 |
| 3495 2-3/4" US10 ARC SCC KD ASA | 3510 2-3/4" US32D APL ASA |
| 007195 | 091148 |
|
3495 2-3/4" US10 AUG NC ASA IC
006739 |
3517 |
| 3495 2-3/4" US10 AUG SCC KD ASA | 3517 US10 ARC |
| 006847 | 000329 |
| 3495 2-3/4" US10 WTN NC ASA IC | 3517 US10 AUG |
| 006765 | 027799 |
| 3495 2-3/4" US10 WTN SCC KD ASA | 3517 US10 WTN |
| 007081 | 000277 |
| 3495 2-3/4" US10B ARC NC ASA IC | 3517 US10B ARC |
| 006803 | 111284 |
| 3495 2-3/4" US10B ARC SCC KD ASA | 3517 US10B AUG |
| 007192 | 111285 |
| 3495 2-3/4" US10B AUG NC ASA IC | 3517 US10B WTN |
| 006738 | 111286 |
| 3495 2-3/4" US10B AUG SCC KD ASA | 3517 US26 ARC |
| 006846 | 000322 |
| 3495 2-3/4" US10B WTN NC ASA IC | 3517 US26 AUG |
| 006758 | 027791 |
|
3495 2-3/4" US10B WTN SCC KD ASA
007074 |
|
|
3495 2-3/4" US26 ARC NC ASA IC
006798 |
3517 US26 WTN
111288 3517 US26D ARC. 111289 |
| 3495 2-3/4" US26 ARC SCC KD ASA | 3517 US26D AUG |
| 007182 | 111290 |
| 3495 2-3/4" US26 AUG NC ASA IC | 3517 US26D WTN. |
| 006735 | 111291 |
| 3495 2-3/4" US26 AUG SCC KD ASA | 3517 US3 ARC |
| 006841 | 000323 |
| 3495 2-3/4" US26 WTN NC ASA IC | 3517 US3 AUG |
| 006754 | 027775 |
|
3495 2-3/4" US26 WTN SCC KD ASA
007071 |
|
|
3517 US3 WTN
111294 |
| 3517 | 3540 |
|---|---|
| 3517 US4 ARC | 3540 2-3/4" US26D AUG ASA. |
| 000325 | 038034 |
| 3517 US4 AUG | 3540 2-3/4" US26D WTN ASA. |
| 027768 | 000247 |
| 3517 US4 WTN | 3540 2-3/4" US3 ARC ASA |
| 000276 | 000309 |
| 3517 US3 APL | 3540 2-3/4" US3 AUG ASA |
| 000102 | 037999 |
| 3517 US32D APL | 3540 2-3/4" US3 WTN ASA |
| 000105 | 000249 |
|
3540 2-3/4" US4 ARC ASA
000310 |
|
| 3525 |
3540 2-3/4" US4 AUG ASA
037979 |
| 3525 2-3/4" US10 ARC ASA | 3540 2-3/4" US4 WTN ASA |
| 095545 | 000250 |
| 3525 2-3/4" US10 AUG ASA | 3540 2-3/4" US3 APL ASA |
| 038501 | 091121 |
|
3525 2-3/4" US10 WTN ASA
095536 |
|
| 3525 2-3/4" US10B ARC ASA | 3540 2-3/4" US32D APL ASA |
| 095546 | 091146 |
|
3525 2-3/4" US10B AUG ASA
038434 |
3550 |
| 3525 2-3/4" US10B WTN ASA | 3550 2-3/4" US10 ARC NC ASA IC |
| 095537 | 037229 |
| 3525 2-3/4" US26 ARC ASA | 3550 2-3/4" US10 ARC SCC KD ASA |
| 095547 | 037173 |
| 3525 2-3/4" US26 AUG ASA | 3550 2-3/4" US10 AUG NC ASA IC |
| 038492 | 023439 |
| 3525 2-3/4" US26 WTN ASA | 3550 2-3/4" US10 AUG SCC KD ASA |
| 095543 | 027728 |
| 3525 2-3/4" US26D ARC ASA | 3550 2-3/4" US10 WTN NC ASA IC |
| 095550 | 037227 |
| 3525 2-3/4" US26D AUG ASA | 3550 2-3/4" US10 WTN SCC KD ASA |
| 038430 | 037170 |
| 3525 2-3/4" US26D WTN ASA. | 3550 2-3/4" US10B ARC NC ASA IC |
| 095544 | 037208 |
| 3525 2-3/4" US3 ARC ASA | 3550 2-3/4" US10B ARC SCC KD ASA |
| 095533 | 037169 |
| 3525 2-3/4" US3 AUG ASA | 3550 2-3/4" US10B AUG NC ASA IC |
| 038519 | 023588 |
| 3525 2-3/4" US3 WTN ASA | 3550 2-3/4" US10B AUG SCC KD ASA |
| 095532 | 027729 |
| 3525 2-3/4" US4 ARC ASA | 3550 2-3/4" US10B WTN NC ASA IC |
| 095534 | 037206 |
| 3525 2-3/4" US4 AUG ASA | 3550 2-3/4" US10B WTN SCC KD ASA |
| 038390 | 037162 |
| 3525 2-3/4" US4 WTN ASA | 3550 2-3/4" US26 ARC NC ASA IC |
| 095535 | 038039 |
| 3527 |
3550 2-3/4" US26 ARC SCC KD ASA
037205 |
|
3550 2-3/4" US26 AUG NC ASA IC
023554 |
|
| 3527 US10 ARC | 3550 2-3/4" US26 AUG SCC KD ASA |
| 111169 | 027726 |
| 3527 US10 AUG | 3550 2-3/4" US26 WTN NC ASA IC |
| 111189 | 037256 |
| 3527 US10 WTN | 3550 2-3/4" US26 WTN SCC KD ASA |
| 111191 | 037203 |
| 3527 US10B ARC | 3550 2-3/4" US26D ARC NC ASA IC |
| 111192 | 098290 |
| 3527 US10B AUG | 3550 2-3/4" US26D ARC SCC KD ASA. |
| 111193 | 098325 |
| 3527 US10B WTN | 3550 2-3/4" US26D AUG NC ASA IC |
| 111194 | 023493 |
| 3527 US26 ARC | 3550 2-3/4" US26D AUG SCC KD ASA. |
| 111195 | 027719 |
| 3527 US26 AUG | 3550 2-3/4" US26D WTN NC ASA IC |
| 111196 | 098291 |
|
3527 US26 WTN
111197 |
3550 2-3/4" US26D WTN SCC KD ASA 098329 |
| 3527 US26D ARC | 3550 2-3/4" US3 ARC NC ASA IC |
| 111198 | 037245 |
| 3527 US26D AUG | 3550 2-3/4" US3 ARC SCC KD ASA |
| 111199 | 050365 |
|
3527 US26D WTN
111200 |
|
| 3527 US3 ARC | 3550 2-3/4" US3 AUG NC ASA IC |
| 111201 | 023438 |
| 3527 US3 AUG | 3550 2-3/4" US3 AUG SCC KD ASA |
| 111202 | 027713 |
| 3527 US3 WTN | 3550 2-3/4" US3 WTN NC ASA IC |
| 111203 | 037234 |
| 3527 US4 ARC | 3550 2-3/4" US3 WTN SCC KD ASA |
| 111205 | 037202 |
| 3527 US4 AUG | 3550 2-3/4" US4 ARC NC ASA IC |
| 111206 | 037232 |
| 3527 US4 WTN | 3550 2-3/4" US4 ARC SCC KD ASA |
| 111204 | 037200 |
|
3550 2-3/4" US4 AUG NC ASA IC
023453 |
|
| 3540 |
3550 2-3/4" US4 AUG SCC KD ASA
027704 |
| 3540 2-3/4" US10 ARC ASA | 3550 2-3/4" US4 WTN NC ASA IC |
| 000311 | 037230 |
| 3540 2-3/4" US10 AUG ASA | 3550 2-3/4" US4 WTN SCC KD ASA |
| 038384 | 037191 |
|
3540 2-3/4" US10 WTN ASA
000252 |
3553 |
|
3540 2-3/4" US10B ARC ASA
000312 |
|
| 3540 2-3/4" US10B AUG ASA | 3553 2-3/4" US10 ARC NC ASA IC |
| 038280 | 048993 |
|
3553 2-3/4" US10 ARC SCC KD ASA
000290 |
|
| 3540 2-3/4" US10B WTN ASA | 3553 2-3/4" US10 AUG NC ASA IC |
| 000254 | 023437 |
| 3540 2-3/4" US26 ARC ASA | 3553 2-3/4" US10 AUG SCC KD ASA |
| 000308 | 027702 |
| 3540 2-3/4" US26 AUG ASA | 3553 2-3/4" US10 WTN NC ASA IC |
| 038266 | 037888 |
| 3540 2-3/4" US26 WTN ASA | 3553 2-3/4" US10 WTN SCC KD ASA |
| 000248 | 000095 |
| 3540 2-3/4" US26D ARC ASA. | 3553 2-3/4" US10B ARC NC ASA IC |
| 000307 | 037159 |
| 3553 | |
|---|---|
| 3553 2-3/4" US10B ARC SCC KD ASA | 000291 |
| 3553 2-3/4" US10B AUG NC ASA IC | 023436 |
| 3553 2-3/4" US10B AUG SCC KD ASA | 027701 |
| 3553 2-3/4" US10B WTN NC ASA IC | 045784 |
| 3553 2-3/4" US10B WTN SCC KD ASA | 000096 |
| 3553 2-3/4" US26 ARC SCC KD ASA | 000286 |
| 3553 2-3/4" US26 AUG NC ASA IC | 023435 |
| 3553 2-3/4" US26 AUG SCC KD ASA | 027684 |
| 3553 2-3/4" US26 WTN NC ASA IC | 014395 |
| 3553 2-3/4" US26 WTN SCC KD ASA | 000092 |
| 3553 2-3/4" US26D ARC NC ASA IC | 098289 |
| 3553 2-3/4" US26D ARC SCC KD ASA. | 000284 |
| 3553 2-3/4" US26D AUG NC ASA IC | 023393 |
| 3553 2-3/4" US26D AUG SCC KD ASA. | 027683 |
| 3553 2-3/4" US26D WTN NC ASA IC | 098655 |
| 3553 2-3/4" US26D WTN SCC KD ASA 000091 | |
| 3553 2-3/4" US3 ARC NC ASA IC | 053986 |
| 3553 2-3/4" US3 ARC SCC KD ASA | 000288 |
| 3553 2-3/4" US3 AUG NC ASA IC | 023377 |
| 3553 2-3/4" US3 AUG SCC KD ASA | 027682 |
| 3553 2-3/4" US3 WTN NC ASA IC | 084942 |
| 3553 2-3/4" US3 WTN SCC KD ASA | 000093 |
| 3553 2-3/4" US4 ARC NC ASA IC | 086632 |
| 3553 2-3/4" US4 ARC SCC KD ASA | 000289 |
| 3553 2-3/4" US4 AUG NC ASA IC | 023296 |
| 3553 2-3/4" US4 AUG SCC KD ASA | 027677 |
| 3553 2-3/4" US4 WTN NC ASA IC | 037153 |
| 3553 2-3/4" US4 WTN SCC KD ASA | 000094 |
| 3553 2-3/4" US3 APL SCC KD ASA | 090526 |
| 3553 2-3/4" US32D APL NC ASA IC | 117596 |
| 3553 2-3/4" US32D APL SCC KD ASA | 091096 |
| 3570 | |
| 3570 2-3/4" US10 ARC NC ASA IC | 037112 |
| 3570 2-3/4" US10 ARC SCC KD ASA | 000297 |
| 3570 2-3/4" US10 AUG NC ASA IC | 023292 |
| 3570 2-3/4" US10 AUG SCC KD ASA | 027675 |
| 3570 2-3/4" US10 WTN NC ASA IC | 037111 |
| 3570 2-3/4" US10 WTN SCC KD ASA | 000130 |
| 3570 2-3/4" US10B ARC NC ASA IC | 037110 |
| 3570 2-3/4" US10B ARC SCC KD ASA | 000299 |
| 3570 2-3/4" US10B AUG NC ASA IC | 023281 |
| 3570 2-3/4" US10B AUG SCC KD ASA | 027667 |
| 3570 2-3/4" US10B WTN NC ASA IC | 037109 |
| 3570 2-3/4" US10B WTN SCC KD ASA | 000129 |
| 3570 2-3/4" US26 ARC NC ASA IC | 037760 |
| 3570 2-3/4" US26 ARC SCC KD ASA | 000294 |
| 3570 2-3/4" US26 AUG NC ASA IC | 023249 |
| 3570 2-3/4" US26 AUG SCC KD ASA | 027652 |
| 3570 2-3/4" US26 WTN NC ASA IC | 037152 |
| 3570 2-3/4" US26 WTN SCC KD ASA | 000098 |
| 3570 2-3/4" US26D ARC NC ASA IC | 098287 |
| 3570 2-3/4" US26D ARC SCC KD ASA. | 000293 |
| 3570 2-3/4" US26D AUG NC ASA IC | 023248 |
| 3570 2-3/4" US26D AUG SCC KD ASA | 027649 |
| 3570 2-3/4" US26D WTN NC ASA IC | 098288 |
3570
| 3570 2-3/4" US26D WTN SCC KD ASA 000097 | |
|---|---|
| 3570 2-3/4" US3 ARC NC ASA IC | 037145 |
| 3570 2-3/4" US3 ARC SCC KD ASA | 000295 |
|
3570 2-3/4" US3 AUG NC ASA IC
3570 2-3/4" US3 AUG SCC KD ASA |
023247
027645 |
| 3570 2-3/4" US3 WTN NC ASA IC | 084961 |
| 3570 2-3/4" US3 WTN SCC KD ASA | 000099 |
| 3570 2-3/4" US4 ARC NC ASA IC | 037129 |
| 3570 2-3/4" US4 ARC SCC KD ASA | 000296 |
| 3570 2-3/4" US4 AUG NC ASA IC | 023246 |
| 3570 2-3/4" US4 AUG SCC KD ASA | 027647 |
| 3570 2-3/4" US4 WTN NC ASA IC | 037113 |
| 3570 2-3/4" US4 WTN SCC KD ASA | 000101 |
|
3570 2-3/4" US3 APL SCC KD ASA
3570 2-3/4" US32D APL SCC KD ASA |
090544
091099 |
| 3573 | |
| 3573 2-3/4" US10 ARC NC ASA IC (REV1) | 138416 |
| 3573 2-3/4" US10 ARC SCC KD ASA (REV1) | 138417 |
| 3573 2-3/4" US10 AUG NC ASA IC (REV1) | 138418 |
| 3573 2-3/4" US10 AUG SCC KD ASA (REV1) | 138419 |
| 3573 2-3/4" US10 WTN NC ASA IC (REV1) | 138420 |
| 3573 2-3/4" US10 WTN SCC KD ASA (REV1)138421 | |
| 3573 2-3/4" US10B ARC NC ASA IC (REV1) | 138422 |
| 3573 2-3/4" US10B ARC SCC KD ASA (REV1) | 138423 |
| 3573 2-3/4" US10B AUG NC ASA IC (REV1) | 138424 |
| 3573 2-3/4" US10B AUG SCC KD ASA (REV1) | 138426 |
| 3573 2-3/4" US10B WTN NC ASA IC (REV1) | 138427 |
| 3573 2-3/4" US10B WTN SCC KD ASA (REV1) | 138428 |
| 3573 2-3/4" US26 ARC NC ASA IC (REV1) | 138429 |
| 3573 2-3/4" US26 ARC SCC KD ASA (REV1) | 138430 |
| 3573 2-3/4" US26 AUG NC ASA IC (REV1) | 138431 |
| 3573 2-3/4" US26 AUG SCC KD ASA (REV1) | 138432 |
| 3573 2-3/4" US26 WTN NC ASA IC (REV1) | 138433 |
| 3573 2-3/4" US26 WTN SCC KD ASA (REV1)138434 | |
|
3573 2-3/4" US26D ARC NC ASA IC (REV1)
3573 2-3/4" US26D ARC SCC KD ASA (REV1) |
138405
138435 |
| 3573 2-3/4" US26D AUG NC ASA IC (REV1) | 138407 |
| 3573 2-3/4" US26D AUG SCC KD ASA (REV1) | 138409 |
| 3573 2-3/4" US26D WTN NC ASA IC (REV1) | 138441 |
| 3573 2-3/4" US26D WTN SCC KD ASA (REV1) | 138412 |
| 3573 2-3/4" US3 ARC NC ASA IC (REV1) | 138448 |
| 3573 2-3/4" US3 ARC SCC KD ASA (REV1) | 138449 |
| 3573 2-3/4" US3 AUG NC ASA IC (REV1) | 138450 |
| 3573 2-3/4" US3 AUG SCC KD ASA (REV1) | 138452 |
| 3573 2-3/4" US3 WTN NC ASA IC (REV1) | 138453 |
| 3573 2-3/4" US3 WTN SCC KD ASA (REV1) | 138454 |
| 3573 2-3/4" US4 ARC NC ASA IC (REV1) | 138455 |
| 3573 2-3/4" US4 ARC SCC KD ASA (REV1) | 138456 |
| 3573 2-3/4" US4 AUG NC ASA IC (REV1) | 138457 |
| 3573 2-3/4" US4 AUG SCC KD ASA (REV1) | 138458 |
| 3573 2-3/4" US4 WTN NC ASA IC (REV1) | 138459 |
| 3573 2-3/4" US4 WTN SCC KD ASA (REV1) | 138460 |
| 3579 | |
| 3579 2-3/4" US10 ARC SCC KD ASA | 095564 |
| 3579 2-3/4" US10 AUG NC ASA IC | 023240 |
| 3579 | 3580 |
|---|---|
| 3579 2-3/4" US10 AUG SCC KD ASA | 3580 2-3/4" US3 WTN SCC KD ASA |
| 027417 | 000154 |
| 3579 2-3/4" US10 WTN SCC KD ASA | 3580 2-3/4" US4 ARC NC ASA IC |
| 095555 | 086636 |
| 3579 2-3/4" US10B ARC SCC KD ASA | 3580 2-3/4" US4 ARC SCC KD ASA |
| 095563 | 000303 |
| 3579 2-3/4" US10B AUG NC ASA IC | 3580 2-3/4" US4 AUG NC ASA IC |
| 023129 | 022602 |
| 3579 2-3/4" US10B AUG SCC KD ASA | 3580 2-3/4" US4 AUG SCC KD ASA |
| 027411 | 027328 |
| 3579 2-3/4" US10B WTN NC ASA IC | 3580 2-3/4" US4 WTN NC ASA IC |
| 100241 | 037089 |
| 3579 2-3/4" US10B WTN SCC KD ASA | 3580 2-3/4" US4 WTN SCC KD ASA |
| 095556 | 000155 |
| 3579 2-3/4" US26 ARC SCC KD ASA | 3580 2-3/4" US3 APL SCC KD ASA |
| 095560 | 090565 |
| 3579 2-3/4" US26 AUG NC ASA IC | 3580 2-3/4" US32D APL SCC KD ASA |
| 023053 | 091101 |
|
3579 2-3/4" US26 AUG SCC KD ASA
027410 |
3610 |
|
3579 2-3/4" US26 WTN SCC KD ASA
095557 |
|
| 3579 2-3/4" US26D ARC NC ASA IC | 3610 ADJ 2-3/8 TO 2-3/4 US10 ARC ASA |
| 098284 | 092398 |
| 3579 2-3/4" US26D ARC SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US10 AUG ASA |
| 095559 | 027301 |
| 3579 2-3/4" US26D AUG NC ASA IC | 3610 ADJ 2-3/8 TO 2-3/4 US10 WTN ASA |
| 023041 | 092402 |
| 3579 2-3/4" US26D AUG SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US10B ARC ASA |
| 027408 | 092404 |
| 3579 2-3/4" US26D WTN NC ASA IC | 3610 ADJ 2-3/8 TO 2-3/4 US10B AUG ASA |
| 098285 | 027299 |
| 3579 2-3/4" US26D WTN SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US10B WTN ASA |
| 095558 | 092403 |
| 3579 2-3/4" US3 ARC SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US26 ARC ASA |
| 095566 | 092406 |
| 3579 2-3/4" US3 AUG NC ASA IC | 3610 ADJ 2-3/8 TO 2-3/4 US26 AUG ASA |
| 022986 | 027295 |
| 3579 2-3/4" US3 AUG SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US26 WTN ASA |
| 027420 | 092405 |
| 3579 2-3/4" US3 WTN SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US26D ARC ASA |
| 095552 | 092408 |
| 3579 2-3/4" US4 ARC SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US26D AUG ASA |
| 095565 | 027294 |
| 3579 2-3/4" US4 AUG NC ASA IC | 3610 ADJ 2-3/8 TO 2-3/4 US26D WTN ASA |
| 023241 | 092410 |
| 3579 2-3/4" US4 AUG SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US3 ARC ASA |
| 027421 | 092416 |
| 3579 2-3/4" US4 WTN SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US3 AUG ASA |
| 095553 | 027292 |
| 3580 |
3610 ADJ 2-3/8 TO 2-3/4 US3 WTN ASA
092411 |
|
3610 ADJ 2-3/8 TO 2-3/4 US4 ARC ASA
092418 |
|
| 3580 2-3/4" US10 ARC NC ASA IC | 3610 ADJ 2-3/8 TO 2-3/4 US4 AUG ASA |
| 037088 | 027291 |
| 3580 2-3/4" US10 ARC SCC KD ASA | 3610 ADJ 2-3/8 TO 2-3/4 US4 WTN ASA |
| 000305 | 092419 |
|
3580 2-3/4" US10 AUG NC ASA IC
022937 |
3617 |
| 3580 2-3/4" US10 AUG SCC KD ASA | 3617 US10 ARC |
| 027351 | 013176 |
| 3580 2-3/4" US10 WTN NC ASA IC | 3617 US10 AUG |
| 037034 | 027277 |
| 3580 2-3/4" US10 WTN SCC KD ASA | 3617 US10 WTN |
| 000156 | 013170 |
| 3580 2-3/4" US10B ARC NC ASA IC | 3617 US10B ARC |
| 037031 | 013175 |
| 3580 2-3/4" US10B ARC SCC KD ASA | 3617 US10B AUG |
| 000306 | 027275 |
| 3580 2-3/4" US10B AUG NC ASA IC | 3617 US10B WTN |
| 022831 | 013169 |
| 3580 2-3/4" US10B AUG SCC KD ASA | 3617 US26 ARC |
| 027349 | 013172 |
| 3580 2-3/4" US10B WTN NC ASA IC | 3617 US26 AUG |
| 037018 | 027276 |
| 3580 2-3/4" US10B WTN SCC KD ASA | 3617 US26 WTN |
| 000160 | 013166 |
| 3580 2-3/4" US26 ARC NC ASA IC | 3617 US26D ARC |
| 037752 | 013171 |
| 3580 2-3/4" US26 ARC SCC KD ASA | 3617 US26D AUG |
| 000301 | 027272 |
| 3580 2-3/4" US26 AUG NC ASA IC | 3617 US26D WTN |
| 022737 | 013165 |
| 3580 2-3/4" US26 AUG SCC KD ASA | 3617 US3 ARC |
| 027347 | 013173 |
| 3580 2-3/4" US26 WTN NC ASA IC | 3617 US3 AUG |
| 037103 | 027262 |
| 3580 2-3/4" US26 WTN SCC KD ASA | 3617 US3 WTN |
| 000144 | 013167 |
| 3580 2-3/4" US26D ARC NC ASA IC | 3617 US4 ARC |
| 098286 | 013174 |
| 3580 2-3/4" US26D ARC SCC KD ASA. | 3617 US4 AUG |
| 000300 | 027278 |
| 3580 2-3/4" US26D AUG NC ASA IC | 3617 US4 WTN |
| 022700 | 013168 |
|
3580 2-3/4" US26D AUG SCC KD ASA.
027338 |
|
|
3580 2-3/4" US26D WTN NC ASA IC
098652 |
3640 |
| 3580 2-3/4" US26D WTN SCC KD ASA 000143 |
3640 ADJ 2-3/8 TO 2-3/4 US10 ARC ASA
092422 |
| 3580 2-3/4" US3 ARC NC ASA IC | 3640 ADJ 2-3/8" TO 2-3/4" US10 AUG ASA |
| 037098 | 027238 |
| 3580 2-3/4" US3 ARC SCC KD ASA | 3640 ADJ 2-3/8 TO 2-3/4 US10 WTN ASA |
| 000302 | 092421 |
| 3580 2-3/4" US3 AUG NC ASA IC | 3640 ADJ 2-3/8 TO 2-3/4 US10B ARC ASA |
| 022615 | 092423 |
| 3580 2-3/4" US3 AUG SCC KD ASA | 3640 ADJ 2-3/8" TO 2-3/4" US10B AUG ASA |
| 027337 | 027232 |
| 3580 2-3/4" US3 WTN NC ASA IC | 3640 ADJ 2-3/8 TO 2-3/4 US10B WTN ASA |
| 084892 | 092424 |
| 3640 | |
|---|---|
| 3640 ADJ 2-3/8 TO 2-3/4 US26 ARC ASA | 092428 |
| 3640 ADJ 2-3/8" TO 2-3/4" US26 AUG ASA | 027230 |
| 3640 ADJ 2-3/8 TO 2-3/4 US26 WTN ASA | 092427 |
| 3640 ADJ 2-3/8 TO 2-3/4 US26D ARC ASA | 092429 |
| 3640 ADJ 2-3/8" TO 2-3/4" US26D AUG ASA | 027229 |
| 3640 ADJ 2-3/8 TO 2-3/4 US26D WTN ASA | 092430 |
| 3640 ADJ 2-3/8 TO 2-3/4 US3 ARC ASA | 092431 |
| 3640 ADJ 2-3/8" TO 2-3/4" US3 AUG ASA | 027227 |
| 3640 ADJ 2-3/8 TO 2-3/4 US3 WTN ASA | 092433 |
| 3640 ADJ 2-3/8 TO 2-3/4 US4 ARC ASA | 092435 |
| 3640 ADJ 2-3/8" TO 2-3/4" US4 AUG ASA | 027225 |
| 3640 ADJ 2-3/8 TO 2-3/4 US4 WTN ASA | 092434 |
| 3653 | |
| 3653 ADJ 2-3/8" TO 2-3/4" US10 ARC NC ASA IC | 007193 |
| 3653 ADJ 2-3/8 TO 2-3/4 US10 ARC SCC KD ASA | 092436 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10 AUG NC ASA IC | 020652 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10 AUG SCC KD ASA | 026938 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10 WTN NC ASA IC | 007154 |
| 3653 ADJ 2-3/8 TO 2-3/4 US10 WTN SCC KD ASA | 092439 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10B ARC NC ASA IC | 006959 |
| 3653 ADJ 2-3/8 TO 2-3/4 US10B ARC SCC KD ASA | 092440 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10B AUG NC ASA IC | 020622 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10B AUG SCC KD ASA | 026695 |
| 3653 ADJ 2-3/8" TO 2-3/4" US10B WTN NC ASA IC | 007153 |
| 3653 ADJ 2-3/8 TO 2-3/4 US10B WTN SCC KD ASA | 092452 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26 ARC NC ASA IC | 007181 |
| 3653 ADJ 2-3/8 TO 2-3/4 US26 ARC SCC KD ASA | 092442 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26 AUG NC ASA IC | 020621 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26 AUG SCC KD ASA | 026868 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26 WTN NC ASA IC | 007148 |
| 3653 ADJ 2-3/8 TO 2-3/4 US26 WTN SCC KD ASA | 092450 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26D ARC NC ASA IC | 007177 |
| 3653 ADJ 2-3/8 TO 2-3/4 US26D ARC SCC KD ASA | 092443 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26D AUG NC ASA IC | 020617 |
| 3653 ADJ 2-3/8" TO 2-3/4" US26D AUG SCC KD ASA 026836 | |
| 3653 ADJ 2-3/8" TO 2-3/4" US26D WTN NC ASA IC | 007138 |
| 3653 ADJ 2-3/8 TO 2-3/4 US26D WTN SCC KD ASA | 092449 |
| 3653 ADJ 2-3/8" TO 2-3/4" US3 ARC NC ASA IC | 007198 |
| 3653 ADJ 2-3/8 TO 2-3/4 US3 ARC SCC KD ASA | 092444 |
| 3653 ADJ 2-3/8" TO 2-3/4" US3 AUG NC ASA IC | 020559 |
| 3653 ADJ 2-3/8" TO 2-3/4" US3 AUG SCC KD ASA | 026788 |
| 3653 ADJ 2-3/8" TO 2-3/4" US3 WTN NC ASA IC | 007173 |
| 3653 ADJ 2-3/8 TO 2-3/4 US3 WTN SCC KD ASA | 092447 |
| 3653 ADJ 2-3/8" TO 2-3/4" US4 ARC NC ASA IC | 007197 |
| 3653 ADJ 2-3/8 TO 2-3/4 US4 ARC SCC KD ASA | 092445 |
| 3653 ADJ 2-3/8" TO 2-3/4" US4 AUG NC ASA IC | 020489 |
| 026834 | |
| 3653 ADJ 2-3/8" TO 2-3/4" US4 AUG SCC KD ASA | |
| 3653 ADJ 2-3/8" TO 2-3/4" US4 WTN NC ASA IC | 007162 |
| 3653 ADJ 2-3/8 TO 2-3/4 US4 WTN SCC KD ASA | 092446 |
| 3670 | |
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US10 ARC NC ASA IC | 127307 |
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US10 ARC SCC KD ASA | 127308 |
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US10 AUG NC ASA IC | 127309 |
|
3670 REV 1 ADJ 2-3/8" - 2-3/4" US10 AUG SCC KD ASA
3670 REV 1 ADJ 2-3/8" - 2-3/4" US10 WTN NC ASA IC |
127310
127311 |
3670
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US10B ARC NC ASA IC | 127291 | ||
| 3670 REV 1 ADJ 2-3/8 - 2-3/4 US10B ARC SCC KD ASA | 127292 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US10B AUG NC ASA IC | 127293 | ||
| 3670 REV1 ADJ 2-3/8" - 2-3/4" US10B AUG SCC KD ASA | 127294 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US10B WTN NC ASA IC | 127295 | ||
| 3670 REV 1 ADJ 2-3/8 - 2-3/4 US10B WTN SCC KD ASA | 127296 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26 ARC NC ASA IC | 127313 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26 ARC SCC KD ASA | 127314 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26 AUG NC ASA IC | 127315 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26 AUG SCC KD ASA | 127316 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26 WTN NC ASA IC | 127317 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26 WTN SCC KD ASA | 127318 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26D ARC NC ASA IC | 127279 | ||
| 3670 REV 1 ADJ 2-3/8 TO 2-3/4 US26D ARC SCC KD ASA | 127280 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26D AUG NC ASA IC | 127281 | ||
| 3670 REV1 ADJ 2-3/8" - 2-3/4" US26D AUG SCC KD ASA | 127282 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US26D WTN NC ASA IC | 127283 | ||
| 3670 REV 1 ADJ 2-3/8 - 2-3/4 US26D WTN SCC KD ASA | 127284 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US3 ARC NC ASA IC | 127319 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US3 ARC SCC KD ASA | 127320 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US3 AUG NC ASA IC | 127321 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US3 AUG SCC KD ASA | 127322 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US3 WTN NC ASA IC | 127323 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US3 WTN SCC KD ASA | 127324 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US4 ARC NC ASA IC | 127325 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US4 ARC SCC KD ASA | 127326 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US4 AUG NC ASA IC | 127327 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US4 AUG SCC KD ASA | 127328 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US4 WTN NC ASA IC | 127329 | ||
| 3670 REV 1 ADJ 2-3/8" - 2-3/4" US4 WTN SCC KD ASA | 127330 | ||
| 3680 | |||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10 ARC NC ASA IC | 127331 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10 ARC SCC KD ASA | 127332 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10 AUG NC ASA IC | 127333 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10 AUG SCC KD ASA | 127334 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10 WTN NC ASA IC | 127335 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10 WTN SCC KD ASA | |||
| 127336 | |||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10B ARC NC ASA IC | 127297 | ||
| 3680 REV1 ADJ 2-3/8" - 2-3/4" US10B ARC SCC KD ASA | 127298 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10B AUG NC ASA IC | 127299 | ||
| 3680 REV1 ADJ 2-3/8" - 2-3/4" US10B AUG SCC KD ASA | 127300 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US10B WTN NC ASA IC | 127301 | ||
| 3680 REV1 ADJ 2-3/8" - 2/3/4" US10B WTN SCC KD ASA | 127302 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26 ARC NC ASA IC | 127337 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26 ARC SCC KD ASA | 127338 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26 AUG NC ASA IC | 127339 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26 AUG SCC KD ASA | 127340 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26 WTN NC ASA IC | 127341 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26 WTN SCC KD ASA | 127342 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26D ARC NC ASA IC | 127285 | ||
| 3680 REV 1 ADJ 2-3/8 - 2-3/4 US26D ARC SCC KD ASA | 127286 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26D AUG NC ASA IC | 127287 | ||
| 3680 REV1 ADJ 2-3/8" - 2-3/4" US26D AUG SCC KD ASA | 127288 | ||
| 3680 REV 1 ADJ 2-3/8" - 2-3/4" US26D WTN NC ASA IC | 127289 |
3670 REV 1 ADJ 2-3/8 - 2-3/4 US10 WTN SCC KD ASA. . 127312
| 3680 |
|---|
|
3680 REV 1 ADJ 2-3/8 - 2-3/4 US26D WTN SCC KD ASA
127290 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US3 ARC NC ASA IC
127343 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US3 ARC SCC KD ASA
127344 |
|
3680 REV 1 ADJ 2-3/8" TO 2-3/4" US3 AUG NC ASA IC
127345 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US3 AUG SCC KD ASA
127346 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US3 WTN NC ASA IC
127347 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US3 WTN SCC KD ASA
127348 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US4 ARC NC ASA IC
127349 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US4 ARC SCC KD ASA
127350 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US4 AUG NC ASA IC
127351 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US4 AUG SCC KD ASA
127352 |
|
3680 REV 1 ADJ 2-3/8" - 2-3/4" US4 WTN NC ASA IC
127353 |
|
3680 REV 1 ADJ 2-3/8" 1 2-3/4" US4 WTN SCC KD ASA
127354 |
| 3710 |
|
3710 2-3/4" US10 ARC NC TEE IC
005277 |
|
3710 2-3/4" US10 ARC SCC KD TEE
005365 |
|
3710 2-3/4" US10 AUG NC TEE IC
005268 |
|
3710 2-3/4" US10 AUG SCC KD TEE
005328 |
|
3710 2-3/4" US10 WTN NC TEE IC
005287 |
|
3710 2-3/4" US10 WTN SCC KD TEE
005663 |
|
3710 2-3/4" US10B ARC NC TEE IC
005275 |
|
3710 2-3/4" US10B ARC SCC KD TEE
005363 |
|
3710 2-3/4" US10B AUG NC TEE IC
005267 |
|
3710 2-3/4" US10B AUG SCC KD TEE
005316 |
|
3710 2-3/4" US10B WTN NC TEE IC
005242 |
|
3710 2-3/4" US10B WTN SCC KD TEE
005656 |
|
3710 2-3/4" US26 ARC NC TEE IC
005274 |
|
3710 2-3/4" US26 ARC SCC KD TEE
005355 |
|
3710 2-3/4" US26 AUG NC TEE IC
005263 |
|
3710 2-3/4" US26 AUG SCC KD TEE
005303 |
|
3710 2-3/4" US26 WTN NC TEE IC
005284 |
|
3710 2-3/4" US26 WTN SCC KD TEE
005651 |
|
3710 2-3/4" US26D ARC NC TEE IC
005273 |
|
3710 2-3/4" US26D ARC SCC KD TEE
005339 |
|
3710 2-3/4" US26D AUG NC TEE IC
005262 |
|
3710 2-3/4" US26D AUG SCC KD TEE
005302 |
|
3710 2-3/4" US26D WTN NC TEE IC
005283 |
|
3710 2-3/4" US26D WTN SCC KD TEE
005623 |
|
3710 2-3/4" US3 ARC NC TEE IC
005282 |
|
3710 2-3/4" US3 ARC SCC KD TEE
005369 |
|
3710 2-3/4" US3 AUG NC TEE IC
005272 |
|
3710 2-3/4" US3 AUG SCC KD TEE
005336 |
|
3710 2-3/4" US3 WTN NC TEE IC
005290 |
|
3710 2-3/4" US3 WTN SCC KD TEE
005684 |
|
3710 2-3/4" US4 ARC NC TEE IC
005281 |
|
3710 2-3/4" US4 ARC SCC KD TEE
005368 |
|
3710 2-3/4" US4 AUG NC TEE IC
005271 |
|
3710 2-3/4" US4 AUG SCC KD TEE
005335 |
|
3710 2-3/4" US4 WTN NC TEE IC
005289 |
|
3710 2-3/4" US4 WTN SCC KD TEE
005680 |
| 3753 |
|
3753 2-3/4" US10 ARC NC TEE IC
005444 |
|
3753 2-3/4" US10 ARC SCC KD TEE
005594 |
| Items with the price in bold and red are Quick Ship Items and ship in 24 hours. | ||
|---|---|---|
3753 2-3/4" US10 AUG NC TEE IC. . 005424
3753
|
3753 2-3/4" US10 AUG SCC KD TEE
005542 |
|
3753 2-3/4" US10 WTN NC TEE IC
005474 |
|
3753 2-3/4" US10 WTN SCC KD TEE
005708 |
|
3753 2-3/4" US10B ARC NC TEE IC
005442 |
|
3753 2-3/4" US10B ARC SCC KD TEE
005580 |
|
3753 2-3/4" US10B AUG NC TEE IC
005423 |
|
3753 2-3/4" US10B AUG SCC KD TEE
005541 |
|
3753 2-3/4" US10B WTN NC TEE IC
005468 |
|
3753 2-3/4" US10B WTN SCC KD TEE
005702 |
|
3753 2-3/4" US26 ARC NC TEE IC
005441 |
|
3753 2-3/4" US26 ARC SCC KD TEE
005578 |
|
3753 2-3/4" US26 AUG NC TEE IC
005399 |
|
3753 2-3/4" US26 AUG SCC KD TEE
005540 |
|
3753 2-3/4" US26 WTN NC TEE IC
005458 |
|
3753 2-3/4" US26 WTN SCC KD TEE
005701 |
|
3753 2-3/4" US26D ARC NC TEE IC
005440 |
|
3753 2-3/4" US26D ARC SCC KD TEE
005567 |
|
3753 2-3/4" US26D AUG NC TEE IC
005390 |
|
3753 2-3/4" US26D AUG SCC KD TEE
005525 |
|
3753 2-3/4" US26D WTN NC TEE IC
005454 |
|
3753 2-3/4" US26D WTN SCC KD TEE
115187 |
|
3753 2-3/4" US3 ARC NC TEE IC
005453 |
|
3753 2-3/4" US3 ARC SCC KD TEE
005610 |
|
3753 2-3/4" US3 AUG NC TEE IC
005431 |
|
3753 2-3/4" US3 AUG SCC KD TEE
005547 |
|
3753 2-3/4" US3 WTN NC TEE IC
005500 |
|
3753 2-3/4" US3 WTN SCC KD TEE
005715 |
|
3753 2-3/4" US4 ARC NC TEE IC
005446 |
|
3753 2-3/4" US4 ARC SCC KD TEE
005598 |
|
3753 2-3/4" US4 AUG NC TEE IC
005427 |
|
3753 2-3/4" US4 AUG SCC KD TEE
005544 |
|
3753 2-3/4" US4 WTN NC TEE IC
005499 |
|
3753 2-3/4" US4 WTN SCC KD TEE
005712 |
| 3810 |
|
3810 ESC US26D ARC
001029 |
|
3810 ESC US26D ARB
001134 |
|
3810 ESC US26D WLM
001118 |
|
3810 ESC US26D WLB
001110 |
|
3810 ESC US26D AUG
141107 |
|
3810 ESC US26D WTN
001070 |
|
3810 ESC US26D WTB
001039 |
|
3810 ESC US32D ARC
101244 |
|
3810 ESC US32D ARS
104200 |
|
3810 ESC US32D WLM
101245 |
| 3810 ESC US32D WLS104202 |
|
3810 ESC US32D WTN
101242 |
| 3810 ESC US32D WTS104198 |
|
3810 SECT US26D ARC
001035 |
|
3810 SECT US26D ARB
001094 |
|
3810 SECT US26D WLM
001132 |
|
3810 SECT US26D WLB
001113 |
|
3810 SECT US26D AUG
121368 |
|
3810 SECT US26D AUB
131854 |
|
3810 SECT US26D WTN
001078 3810 SECT US26D WTB 001050 |
| 3810 |
|---|
|
3810 SECT US32D ARC
101243 |
|
3810 SECT US32D ARS
104199 |
|
3810 SECT US32D WLM
100652 |
|
3810 SECT US32D WLS
104201 |
|
3810 SECT US32D AUG
142537 |
|
3810 SECT US32D WTN
101241 |
|
3810 SECT US32D WTS
104197 |
| 3817 |
|
3817 ESC 26D ARC
101383 |
|
3817 ESC 26D WLM
101384 |
|
3817 ESC 26D WTN
101380 |
|
3817 ESC 32D ARC
101392 |
|
3817 ESC US32D ARS
143086 |
|
3817 ESC 32D WLM
101394 |
|
3817 ESC 32D WTN
101387 |
|
3817 SECT US26 AUG
123073 |
|
3817 SECT 26D ARC
101382 |
|
3817 SECT 26D WLM
101385 |
|
3817 SECT US26D AUG
122764 |
|
3817 SECT 26D WTN
101379 |
|
3817 SECT 32D ARC
101388 |
|
3817 SECT 32D ARS
118466 |
|
3817 SECT 32D WLM
101393 |
|
3817 SECT 32D WTN
101386 |
| 3827 |
|
3827 ESC 26D ARC
101398 |
|
3827 ESC 26D WLM
101399 |
|
3827 ESC 26D AUG
124256 |
|
3827 ESC 26D WTN
101396 |
|
3827 ESC 32D ARC
101404 |
|
3827 ESC 32D WLM
101412 |
|
3827 ESC 32D WTN
101402 |
|
3827 SECT 26D ARC
101397 |
|
3827 SECT 26D WLM
101400 |
|
3827 SECT US26D AUG
122765 |
|
3827 SECT 26D WTN
101395 |
|
3827 SECT 32D ARC
101403 |
|
3827 SECT 32D ARS
118447 |
|
3827 SECT 32D WLM
101411 |
|
3827 SECT US32D WLS
110988 |
|
3827 SECT 32D WTN
101401 |
|
3827 SECT US32D WTS
141202 |
| 3840 |
|
3840 ESC US26D ARC
000999 |
| 000997 |
| 000992 |
| 000987 |
|
3840 ESC US26D ARB
3840 ESC US26D WLM 3840 ESC US26D WLB 3840 ESC US26D AUG 118525 |
|
3840 ESC US26D WTN
001023 |
| 001022 |
|
3840 ESC US26D WTB
3840 ESC US32D ARC 101339 |
|
3840 ESC US32D ARS
104206 |
|
3840 ESC US32D WLM
101340 |
3840
|
3840 ESC US32D WTN
101337 |
| 3840 ESC US32D WTS104204 |
|
3840 SECT US26D ARC
001000 |
|
3840 SECT US26D ARB
000998 |
|
3840 SECT US26D WLM
000994 |
|
3840 SECT US26D WLB
000988 |
|
3840 SECT US26D AUG
122766 |
|
3840 SECT US26D WTN
001098 |
|
3840 SECT US26D WTB
001011 |
|
3840 SECT US32D ARC
101338 |
|
3840 SECT US32D ARS
104205 |
|
3840 SECT US32D WLM
100653 |
|
3840 SECT US32D WLB
104116 |
|
3840 SECT US32D WLS
104207 |
|
3840 SECT US32D AUS
140374 |
|
3840 SECT US32D AUG
131036 |
|
3840 SECT US32D WTN
101336 |
|
3840 SECT US32D WTS
104203 |
| 3844 |
|
3844 ESC US26D WTN
135035 |
|
3844 ESC US32D WTN
135357 |
|
3844 SECT US26D ARC
142322 |
|
3844 SECT US26D WTN
134987 |
|
3844 SECT US26D WTS
142453 |
|
3844 SECT US32D WTN
135355 |
| 3850 |
|
3850 ESC US26D ARC
100433 |
|
3850 ESC US26D ARC FULL6 SCC KD
102922 |
|
3850 ESC US26D ARB
103654 |
|
3850 ESC US26D ARB FULL6 SCC KD
103631 |
|
3850 ESC US26D WLM
100434 |
|
3850 ESC US26D WLM FULL6 SCC KD
102924 |
|
3850 ESC US26D WLB
103655 |
|
3850 ESC US26D WLB FULL6 SCC KD
103632 |
|
3850 ESC US26D WTN
100432 |
|
3850 ESC US26D WTN FULL6 SCC KD
102920 |
|
3850 ESC US26D WTB
103656 |
|
3850 ESC US26D WTB FULL6 SCC KD
103633 |
|
3850 ESC US32D ARC
101236 |
|
3850 ESC US32D ARC FULL6 SCC KD
102969 |
|
3850 ESC US32D ARS
103657 |
|
3850 ESC US32D ARS FULL6 SCC KD
103658 |
|
3850 ESC US32D WLM
101239 |
|
3850 ESC US32D WLM FULL6 SCC KD
102971 |
| 3850 ESC US32D WLS103659 |
|
3850 ESC US32D WLS FULL6 SCC KD
103660 |
|
3850 ESC US32D WTN
101232 |
|
3850 ESC US32D WTN FULL6 SCC KD
102967 |
| 3850 ESC US32D WTS103746 |
|
3850 ESC US32D WTS FULL6 SCC KD
103661 |
|
3850 SECT US26D ARC
000965 |
|
3850 SECT US26D ARC FULL6 SCC KD
102921 |
|
3850 SECT US26D ARB
103340 |
|
3850 SECT US26D ARB FULL6 SCC KD
103341 |
|
3850 SECT US26D WLM
000959 |
| 3850 | 3853 |
|---|---|
| 3850 SECT US26D WLM FULL6 SCC KD | 3853 SECT US26D WLB REV 1 |
| 102923 | 115907 |
| 3850 SECT US26D WLB | 3853 SECT US26D WLB FULL6 SCC KD REV 1 |
| 103634 | 115908 |
|
3850 SECT US26D WLB FULL6 SCC KD
103635 |
3853 SECT US26D AUG REV 1131092 |
| 3850 SECT US26D AUG | 3853 SECT US26D AUG FULL6 SCC KD REV.1 |
| 136008 | 120892 |
| 3850 SECT US26D AUG FULL6 SCC KD | 3853 SECT US26D WTN REV 1 |
| 122972 | 115909 |
| 3850 SECT US26D WTN | 3853 SECT US26D WTN FULL6 SCC KD |
| 000972 | 115634 |
| 3850 SECT US26D WTN FULL6 SCC KD | 3853 SECT US26D WTB REV 1 |
| 102925 | 115911 |
| 3850 SECT US26D WTB | 3853 SECT US26D WTB FULL6 SCC KD REV 1 |
| 103338 | 115912 |
| 3850 SECT US26D WTB FULL6 SCC KD | 3853 SECT US32D ARC REV 1 |
| 103339 | 115914 |
| 3850 SECT US32D ARC | 3853 SECT US32D ARC FULL6 SCC KD REV 1 |
| 101234 | 115916 |
| 3850 SECT US32D ARC FULL6 SCC KD | 3853 SECT US32D ARS REV 1 |
| 102968 | 115917 |
| 3850 SECT US32D ARS | 3853 SECT US32D ARS FULL6 SCC KD (REV.1) |
| 103360 | 115918 |
| 3850 SECT US32D ARS FULL6 SCC KD | 3853 SECT US32D WLM REV 1 |
| 103361 | 115919 |
| 3850 SECT US32D WLM | 3853 SECT US32D WLM FULL6 SCC KD REV 1 |
| 101238 | 115921 |
| 3850 SECT US32D WLM FULL6 SCC KD | 3853 SECT US32D WLS REV 1 |
| 102970 | 115922 |
| 3850 SECT US32D WLS | 3853 SECT US32D WLS FULL6 SCC KD REV 1 |
| 103662 | 115923 |
| 3850 SECT US32D WLS FULL6 SCC KD | 3853 SECT US32D AUG FULL6 SCC KD REV.1 |
| 103663 | 121377 |
| 3850 SECT US32D AUG FULL6 SCC KD | 3853 SECT US32D AUS REV 1 |
| 121583 | 144317 |
| 3850 SECT US32D WTN | 3853 SECT US32D AUS FULL6 SCC KD REV 1 |
| 101230 | 144318 |
| 3850 SECT US32D WTN FULL6 SCC KD | 3853 SECT US32D WTN REV 1 |
| 102966 | 115924 |
| 3850 SECT US32D WTS | 3853 SECT US32D WTN FULL6 SCC KD REV 1 |
| 103358 | 115926 |
| 3850 SECT US32D WTS FULL6 SCC KD | 3853 SECT US32D WTS REV 1 |
| 103359 | 115927 |
| 3853 |
3853 SECT US32D WTS FULL6 SCC KD REV 1
115928 |
|
3853 ESC US26D ARC REV 1
115862 |
3857 |
| 3853 ESC US26D ARC FULL6 SCC KD REV 1 | 3857 ESC US26D ARC REV 1 |
| 115630 | 123411 |
| 3853 ESC US26D ARB REV 1 | 3857 ESC US26D ARC FULL6 SCC KD REV 1 |
| 115866 | 123830 |
| 3853 ESC US26D ARB FULL6 SCC KD REV 1 | 3857 ESC US26D ARB REV 1 |
| 115867 | 123832 |
| 3853 ESC US26D WLM REV 1 | 3857 ESC US26D ARB FULL6 SCC KD REV 1 |
| 115868 | 123833 |
| 3853 ESC US26D WLM FULL6 SCC KD REV 1 | 3857 ESC US26D WLM REV 1 |
| 115631 | 123840 |
| 3853 ESC US26D WLB REV 1 | 3857 ESC US26D WLM FULL6 SCC KD REV 1 |
| 115871 | 123868 |
| 3853 ESC US26D WLB FULL6 SCC KD REV 1 | 3857 ESC US26D WLB REV 1 |
| 115872 | 123869 |
| 3853 ESC US26D AUG FULL6 SCC KD REV 1 | 3857 ESC US26D WLB FULL6 SCC KD REV 1 |
| 125154 | 123870 |
| 3853 ESC US26D WTN REV 1 | 3857 ESC US26D AUG |
| 115873 | 118526 |
| 3853 ESC US26D WTN FULL6 SCC KD | 3857 ESC US26D WTN REV 1 |
| 115632 | 123871 |
| 3853 ESC US26D WTB REV 1 | 3857 ESC US26D WTN FULL6 SCC KD REV 1 |
| 115875 | 123872 |
| 3853 ESC US26D WTB FULL6 SCC KD REV 1 | 3857 ESC US26D WTB REV 1 |
| 115876 | 123873 |
| 3853 ESC US32D ARC REV 1 | 3857 ESC US26D WTB FULL6 SCC KD REV 1 |
| 115878 | 123874 |
| 3853 ESC US32D ARC FULL6 SCC KD REV 1 | 3857 ESC US32D ARC REV 1 |
| 115880 | 123875 |
| 3853 ESC US32D ARS REV 1 | 3857 ESC US32D ARC FULL6 SCC KD REV 1 |
| 115881 | 123876 |
| 3853 ESC US32D ARS FULL6 SCC KD REV 1 | 3857 ESC US32D ARS REV 1 |
| 115882 | 123879 |
| 3853 ESC US32D WLM REV 1 | 3857 ESC US32D ARS FULL6 SCC KD REV 1 |
| 115883 | 123880 |
| 3853 ESC US32D WLM FULL6 SCC KD REV 1 | 3857 ESC US32D WLM REV 1 |
| 115885 | 123881 |
| 3853 ESC US32D WLS REV 1 | 3857 ESC US32D WLM FULL6 SCC KD REV 1 |
| 115890 | 123882 |
| 3853 ESC US32D WLS FULL6 SCC KD REV 1 | 3857 ESC US32D WLS REV 1 |
| 115891 | 123932 |
| 3853 ESC US32D WTN REV 1 | 3857 ESC US32D WLS FULL6 SCC KD REV 1 |
| 115892 | 123933 |
| 3853 ESC US32D WTN FULL6 SCC KD REV 1 | 3857 ESC US32D WTN REV 1 |
| 115894 | 123935 |
| 3853 ESC US32D WTS REV 1 | 3857 ESC US32D WTN FULL6 SCC KD REV 1 |
| 115895 | 123936 |
| 3853 ESC US32D WTS FULL6 SCC KD REV 1 | 3857 ESC US32D WTS REV 1 |
| 115896 | 123937 |
| 3853 SECT US26D ARC REV 1 | 3857 ESC US32D WTS FULL6 SCC KD REV 1 |
| 115900 | 123938 |
| 3853 SECT US26D ARC FULL6 SCC KD | 3857 SECT US26D ARC REV 1 |
| 115902 | 123939 |
| 3853 SECT US26D ARB REV 1 | 3857 SECT US26D ARC FULL6 SCC KD REV 1 |
| 115903 | 123940 |
| 3853 SECT US26D ARB FULL6 SCC KD REV 1 | 3857 SECT US26D ARB REV 1 |
| 115904 | 123941 |
| 3853 SECT US26D ARS FULL6 SCC KD (REV.1) | 3857 SECT US26D ARB FULL6 SCC KD REV 1 |
| 139693 | 123942 |
| 3853 SECT US26D WLM REV 1 | 3857 SECT US26D WLM REV 1 |
| 115905 | 123980 |
| 3853 SECT US26D WLM FULL6 SCC KD REV 1 | 3857 SECT US26D WLM FULL6 SCC KD REV 1 |
| 115633 | 123981 |
| 3857 |
|---|
|
3857 SECT US26D WLB REV 1
123982 |
|
3857 SECT US26D WLB FULL6 SCC KD REV 1
123983 |
|
3857 SECT US26D AUG FULL6 SCC KD REV 1
139898 |
|
3857 SECT US26D WTN REV 1
123984 |
|
3857 SECT US26D WTN FULL6 SCC KD REV 1
123985 |
|
3857 SECT US26D WTB REV 1
123986 |
|
3857 SECT US26D WTB FULL6 SCC KD REV 1
123987 |
|
3857 SECT US32D ARC REV 1
123989 |
|
3857 SECT US32D ARC FULL6 SCC KD REV 1
123991 |
|
3857 SECT US32D ARS REV 1
123992 |
|
3857 SECT US32D ARS FULL6 SCC KD REV 1
123993 |
|
3857 SECT US32D ARS ICFULL7 NC REV1
145327 |
|
3857 SECT US32D WLM REV 1
123994 |
|
3857 SECT US32D WLM FULL6 SCC KD REV 1
123995 |
|
3857 SECT US32D WLS REV 1
124068 |
|
3857 SECT US32D WLS FULL6 SCC KD REV 1
124069 |
|
3857 SECT US32D AUG FULL6 SCC KD REV 1
131477 |
|
3857 SECT US32D WTN REV 1
124070 |
|
3857 SECT US32D WTN FULL6 SCC KD REV 1
124071 |
|
3857 SECT US32D WTS REV 1
124072 |
|
3857 SECT US32D WTS FULL6 SCC KD REV 1
124073 |
| 3870 |
|
3870 ESC US26D ARC
100370 |
|
3870 ESC US26D ARC FULL6 SCC KD
102930 |
|
3870 ESC US26D ARB
103700 |
|
3870 ESC US26D ARB FULL6 SCC KD
103642 |
|
3870 ESC US26D WLM
100374 |
|
3870 ESC US26D WLM FULL6 SCC KD
102932 |
|
3870 ESC US26D WLB
103701 |
|
3870 ESC US26D WLB FULL6 SCC KD
103644 |
| 3870 ESC US26D AUB124409 |
|
3870 ESC US26D WTN
100365 |
|
3870 ESC US26D WTN FULL6 SCC KD
102928 |
|
3870 ESC US26D WTB
103702 |
|
3870 ESC US26D WTB FULL6 SCC KD
103645 |
|
3870 ESC US32D ARC
101187 |
|
3870 ESC US32D ARC FULL6 SCC KD
102937 |
|
3870 ESC US32D ARS
103703 |
|
3870 ESC US32D ARS FULL6 SCC KD
103704 |
|
3870 ESC US32D WLM
101191 |
|
3870 ESC US32D WLM FULL6 SCC KD
102939 |
| 3870 ESC US32D WLS103705 |
|
3870 ESC US32D WLS FULL6 SCC KD
103706 |
|
3870 ESC US32D WTN
101182 |
|
3870 ESC US32D WTN FULL6 SCC KD
102934 |
| 3870 ESC US32D WTS103707 |
|
3870 ESC US32D WTS FULL6 SCC KD
103708 |
|
3870 SECT US26D ARC
100368 |
|
3870 SECT US26D ARC FULL6 SCC KD
102929 |
|
3870 SECT US26D ARB
103332 |
|
3870 SECT US26D ARB FULL6 SCC KD
103333 |
|
3870 SECT US26D WLM
100372 |
|
3870 SECT US26D WLM FULL6 SCC KD
102931 |
|
3870 SECT US26D WLB
103646 |
|
3870 SECT US26D WLB FULL6 SCC KD
103647 |
3870
| 3870 SECT US26D AUG | 143782 |
| 3870 SECT US26D AUG FULL6 SCC KD | 121680 |
| 3870 SECT US26D WTN | 100362 |
| 3870 SECT US26D WTN FULL6 SCC KD | 102927 |
| 3870 SECT US26D WTB | 103330 |
| 3870 SECT US26D WTB FULL6 SCC KD | 103331 |
| 3870 SECT US32D ARC | 101185 |
| 3870 SECT US32D ARC FULL6 SCC KD | 102936 |
| 3870 SECT US32D ARS | 103348 |
| 3870 SECT US32D ARS FULL6 SCC KD | 103357 |
| 3870 SECT US32D WLM | 101189 |
| 3870 SECT US32D WLM FULL6 SCC KD | 102938 |
| 3870 SECT US32D WLS | 103709 |
| 3870 SECT US32D WLS FULL6 SCC KD | 103710 |
| 3870 SECT US32D WTN | 101181 |
| 3870 SECT US32D WTN FULL6 SCC KD | 102933 |
| 3870 SECT US32D WTS | 103346 |
| 3870 SECT US32D WTS FULL6 SCC KD | 103347 |
| 3880 | |
| 3880 ESC US26D ARC | 100447 |
| 3880 ESC US26D ARC FULL6 SCC KD | 102981 |
| 3880 ESC US26D ARB | 103711 |
| 3880 ESC US26D ARB FULL6 SCC KD | 103648 |
| 3880 ESC US26D WLM | 100444 |
| 3880 ESC US26D WLM FULL6 SCC KD | 102983 |
| 3880 ESC US26D WLB | 103712 |
| 3880 ESC US26D WLB FULL6 SCC KD | 103649 |
| 3880 ESC US26D AUG | 118527 |
| 3880 ESC US26D AUG FULL6 SCC KD | 136173 |
| 3880 ESC US26D WTN | |
| 100446 | |
| 3880 ESC US26D WTN FULL6 SCC KD | 102979 |
| 3880 ESC US26D WTB | 103713 |
| 3880 ESC US26D WTB FULL6 SCC KD | 103650 |
| 3880 ESC US32D ARC | 101347 |
| 3880 ESC US32D ARC FULL6 SCC KD | 102987 |
| 3880 ESC US32D ARS | 103714 |
| 3880 ESC US32D ARS FULL6 SCC KD | 103715 |
| 3880 ESC US32D WLM | 101350 |
| 3880 ESC US32D WLM FULL6 SCC KD | 102989 |
| 3880 ESC US32D WLS103716 | |
| 3880 ESC US32D WLS FULL6 SCC KD | 103717 |
| 3880 ESC US32D WTN | 101343 |
| 3880 ESC US32D WTN FULL6 SCC KD | 102985 |
| 3880 ESC US32D WTS103718 | |
| 3880 ESC US32D WTS FULL6 SCC KD | 103719 |
| 3880 SECT US26D ARC | 100438 |
| 3880 SECT US26D ARC FULL6 SCC KD | 102980 |
| 3880 SECT US26D ARB | 103344 |
| 3880 SECT US26D ARB FULL6 SCC KD | 103345 |
| 3880 SECT US26D WLM | 100441 |
| 3880 SECT US26D WLM FULL6 SCC KD | 102982 |
| 3880 SECT US26D WLB | 103651 |
| 3880 SECT US26D WLB FULL6 SCC KD | 103652 |
| 3880 SECT US26D AUG | 122767 |
| 3880 SECT US26D AUG FULL6 SCC KD | 121692 |
Items with the price in bold and red are Quick Ship Items and ship in 24 hours.
3880
| 3880 SECT US26D WTN | 100435 |
|---|---|
| 3880 SECT US26D WTN FULL6 AR1 KD | 109917 |
| 3880 SECT US26D WTB | 103342 |
| 3880 SECT US26D WTB FULL6 SCC KD | 103343 |
| 3880 SECT US32D ARC | 101345 |
| 3880 SECT US32D ARC FULL6 SCC KD | 102986 |
| 3880 SECT US32D ARS | 103355 |
| 3880 SECT US32D ARS FULL6 SCC KD | 103356 |
| 3880 SECT US32D WLM | 101349 |
| 3880 SECT US32D WLM FULL6 SCC KD | 102988 |
| 3880 SECT US32D WLS | 103720 |
| 3880 SECT US32D WLS FULL6 SCC KD | 103721 |
| 3880 SECT US32D AUG FULL6 SCC KD | 124258 |
| 3880 SECT US32D WTN | 101341 |
| 3880 SECT US32D WTN FULL6 SCC KD | 102984 |
| 3880 SECT US32D WTS | 103353 |
| 3880 SECT US32D WTS FULL6 SCC KD | 103354 |
| 3881 | |
| 3881 ESC US26D ARC REV 1 | 115636 |
| 3881 ESC US26D ARC FULL6 SCC KD REV 1 | 115637 |
| 3881 ESC US26D ARB REV 1 | 115638 |
| 3881 ESC US26D ARB FULL6 SCC KD REV 1 | 115640 |
| 3881 ESC US26D WLM REV 1 | 115641 |
| 3881 ESC US26D WLM FULL6 SCC KD REV 1 | 115642 |
| 3881 ESC US26D WLB REV 1 | 115643 |
| 3881 ESC US26D WLB FULL6 SCC KD REV 1 | 115645 |
| 3881 ESC US26D AUB REV 1 | 146081 |
| 3881 ESC US26D WTN REV 1 | 115646 |
| 3881 ESC US26D WTN FULL6 SCC KD REV 1 | 115647 |
| 3881 ESC US26D WTB REV 1 | 115648 |
| 3881 ESC US26D WTB FULL6 SCC KD REV 1 | 115649 |
| 3881 ESC US32D ARC REV 1 | 115650 |
| 3881 ESC US32D ARC FULL6 SCC KD REV 1 | 115651 |
| 3881 ESC US32D ARS REV 1 | 115652 |
| 3881 ESC US32D ARS FULL6 SCC KD REV 1 | 115653 |
| 3881 ESC US32D WLM REV 1 | 115654 |
| 3881 ESC US32D WLM FULL6 SCC KD REV 1 | 115655 |
| 3881 ESC US32D WLS REV 1 | 115681 |
| 3881 ESC US32D WLS FULL6 SCC KD REV 1 | 115682 |
| 3881 ESC US32D WTN REV 1 | 115683 |
| 3881 ESC US32D WTN FULL6 SCC KD REV 1 | 115684 |
| 3881 ESC US32D WTS REV 1 | 115685 |
| 3881 ESC US32D WTS FULL6 SCC KD REV 1 | 115686 |
| 3881 SECT US26D ARC REV 1 | 115687 |
| 3881 SECT US26D ARC FULL6 SCC KD REV 1 | 115689 |
| 3881 SECT US26D ARB REV 1 | 115690 |
| 3881 SECT US26D ARB FULL6 SCC KD REV 1 | 115691 |
| 3881 SECT US26D WLM REV 1 | 115692 |
| 3881 SECT US26D WLM FULL6 SCC KD REV 1 | 115693 |
| 3881 SECT US26D WLB REV 1 | 115694 |
| 3881 SECT US26D WLB FULL6 SCC KD REV 1 | 115695 |
| 3881 SECT US26D AUG REV.1 | 123601 |
Items with the price in bold and red are Quick Ship Items and ship in 24 hours.
3881 SECT US26D AUG FULL6 SCC KD REV 1. . 130006 3881 SECT US26D WTN REV 1. . 115696 3881 SECT US26D WTN FULL6 SCC KD REV 1. . 115697
3881
|
3881 SECT US26D WTB REV 1
115763 |
|---|
|
3881 SECT US26D WTB FULL6 SCC KD REV 1
115764 |
|
3881 SECT US3 WTN REV. 1
128042 |
|
3881 SECT US3 WTN FULL6 SCC KD REV 1
136709 |
|
3881 SECT US32D ARC REV 1
115765 |
|
3881 SECT US32D ARC FULL6 SCC KD REV 1
115766 |
|
3881 SECT US32D ARS REV 1
115767 |
|
3881 SECT US32D ARS FULL6 SCC KD REV 1
115768 |
|
3881 SECT US32D WLM REV 1
115769 |
|
3881 SECT US32D WLM FULL6 SCC KD REV 1
115770 |
|
3881 SECT US32D WLS REV 1
115771 |
|
3881 SECT US32D WLS FULL6 SCC KD REV 1
115772 |
|
3881 SECT US32D AUG FULL6 SCC KD REV1
146044 |
|
3881 SECT US32D WTN REV 1
115773 |
|
3881 SECT US32D WTN FULL6 SCC KD REV 1
115774 |
|
3881 SECT US32D WTS REV 1
115775 |
|
3881 SECT US32D WTS FULL6 SCC KD REV 1
115776 |
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| A |
|---|
| Arms, 5100 Series |
|
Main Arm Assembly
6 |
|
Extra Heavy Duty Parallel
6 |
|
Extra Heavy Duty Hold Open
7 |
|
Extra Heavy Duty Stop
7 |
|
Extra Heavy Duty Hold Open Stop
8 |
|
Extra Heavy Duty Hold Open Cushion Stop
8 |
|
Extra Heavy Duty Cushion Stop
8 |
|
Standard Hold Open
6 |
| Arms, 5200 Series |
|
Main Arm Assembly
11 |
|
Extra Heavy Duty Hold Open Cushion Stop
13 |
|
Extra Heavy Duty Cushion Stop
13 |
|
Extra Heavy Duty
12 |
|
Extra Heavy Duty Hold Open
12 |
|
Extra Heavy Duty Hold Open Stop
12 |
|
Extra Heavy Duty Stop
12 |
|
Standard Hold Open
11 |
| Arms, 5300 Series |
|
Main Arm Assembly
16 |
|
Extra Heavy Duty
17 |
|
Extra Heavy Duty Hold Open
17 |
|
Extra Heavy Duty Hold Open Stop
17 |
|
Extra Heavy Duty Stop
17 |
|
Extra Heavy Duty Hold Open Cushion Stop
18 |
|
Extra Heavy Duty Cushion Stop
18 |
|
Standard Hold Open
16 |
| Arms, 5400 Series |
|
Main Arm Assembly
20 |
| B |
| Blade Stop Spacer |
|
5100 Series
7 |
|
5200 Series
12 |
|
5300 Series
17 |
|
5400 Series
20 |
| Body Only |
|
5100 Series, Cast Iron
6 |
|
5200 Series, Aluminum
11 |
|
5300 Series, Aluminum
16 |
|
5400 Series, Aluminum
19 |
| Brackets |
|
Extra Clearance, 5100 Series
7 |
|
Extra Clearance, 5200 Series
13 |
| Extra Clearance, 5300 Series18 | |
|---|---|
| Extra Heavy Duty Parallel Arm, 5100 Series7 | |
|
Hold Open
Parallel Arm, 5200 Series12 |
|
|
Hold Open
Parallel Arm, 5300 Series17 |
|
| Parallel Arm, 5100 Series7 | |
| Parallel Arm, 5200 Series11 | |
| Parallel Arm, 5300 Series16 | |
| Parallel Arm, 5400 Series20 | |
| C | |
| Closers | |
|
5100 Series, Grade 1
5 |
|
|
5200 Series, Grade 1
10 |
|
|
5300 Series, Grade 1
15 |
|
|
5400 Series, Grade 2
19 |
|
| Covers | |
| 5100 Series, Full Plastic6 | |
|
5100 Series, Metal
8 |
|
| 5200 Series, Full Plastic11 | |
| 5200 Series, Slim Line Plastic13 | |
|
5200 Series, Metal
13 |
|
| 5300 Series, Full Plastic16 | |
| D | |
| Drop Plates | |
| 5100 Series, Regular Arm7 | |
| 5100 Series, Low Clearance7 | |
| 5100 Series, Parallel Arm7 | |
| 5100 Series, Top Jamb7 | |
| 5200 Series, Top Jamb, Narrow Top Rail12 | |
|
5200 Series, Narrow Top Rail
13 |
|
| 5200 Series, Top Jamb, Parallel Arm13 | |
| 5200 Series, Parallel Arm13 | |
| 5300 Series, Narrow Rail, Parallel Arm17 | |
| 5300 Series, Low Clearance17 | |
| 5300 Series, OH Holder, Narrow17 | |
| E | |
| Electromagnetic Door Holders & Accessories | |
| Accessories22-23 | |
| Floor Mount (Double Door)21 | |
| Floor Mount (Single Door)21 | |
|
Flush Mount
21 |
|
| Recessed Mount21 | |
| Surface Mount21 | |
| H | |
| High Security Package, 5100 Series6 | |
| How To Order | 3-4 |
1
Door Controls
| L | S |
|---|---|
|
Lead Times
2 |
Screw Packs |
|
Long Rod and Shoe, 5100 Series
7 |
5100 Series6-8 |
|
Long Rod and Shoe, 5200 Series
12 |
5200 Series
11-12 |
|
Long Rod and Shoe, 5300 Series
17 |
5300 Series
16-17 |
| O |
5400 Series
20 |
|
Overhead Door Holders and Stops
24-28 |
Spring Cushion Kit
8, 13, 18 |
| P | T |
| Pinion Cap | Track Arms |
|
5200 Series
12 |
5100 Series
6, 8-9 |
|
5300 Series
16 |
5200 Series11, 13-14 |
|
5400 Series
20 |
5300 Series
16, 18 |
| Q | |
|
Quick Ship
2 |
INTRODUCTION
Hager door controls offer architects, contractors, and building owners a superior product with proven reliability. In fact, our 5100, 5200, and 5300 Series Grade 1 models are the only closers in the industry that are both BHMA certified and backed by a lifetime warranty. That makes them a no-risk choice for virtually any building type.
With Hager, you get door controls that are packaged with everything needed for quick installation, regardless of the application. Hager door closers are tri-packed for mounting three ways: parallel arm, regular arm, and top jamb. They are non-handed, packaged with a parallel arm bracket and thru-bolts at no extra charge, and adjustable for various door sizes.
Quick Ship
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
Lead Times
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
New Finish
Painted flat black finish (BHMA 693) is now available. Use BLK to designate finish. Extended lead time and MOQ may apply.
Cancellation Notification
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
HOW TO ORDER
HOTA - Hold Open/Stop Track Arm NHOTA - Non-Hold Open Stop Track Arm DEHOTA - Double Egress HO Stop Track Arm DENHOTA - Double Egress Non-HO Stop Track Arm
HOW TO ORDER
HOW TO ORDER
HDHOS - Extra Heavy Duty Hold Open Stop Arm HDHOCS - Extra Heavy Duty Hold Open Cushion Stop Arm HDS -Extra Heavy Duty Stop Arm HDCS -Extra Heavy Duty Cushion Stop Arm Hold Open/Stop Track Arm
HOTA -NHOTA - Non Hold Open Stop Track Arm
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5100 Series | ALM | 315.65 | 126470 | 4 | 1 |
| Grade 1 | BRZ | 315.65 | 126473 | ||
| Adjustable sizes 1-6 | DBZ | 315.65 | 126472 | ||
| GOL | 315.65 | 126474 |
ADA (Barrier Free) Door Closers:
Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. Adders are listed below. Add the list price of the option to the list price of the closer and take standard discounts.
|
Delayed Action Valve
Lead Lined Cover |
17.20
108.15 |
||
|---|---|---|---|
| Check with factory for pricing and availability of plated products. | POA | ||
| Closers with non-standard arms | |||
| 5100 Series 1-6 Closer, 5106 extra heavy duty arm, plastic cover | ALM | 362.50 | 130952 |
| BRZ | 362.50 | 130970 | |
| DBZ | 362.50 | 130973 | |
| GOL | 362.50 | 130976 | |
| 5100 Series 1-6 Closer, 5107 standard hold open arm, plastic cover | ALM | 353.65 | 126475 |
| BRZ | 353.65 | 130899 | |
| DBZ | 353.65 | 130947 | |
| GOL | 353.65 | 130951 | |
| 5100 Series 1-6 Closer, 5108 extra heavy duty hold open arm, plastic cover | ALM | 350.20 | 130956 |
| (left hand) | BRZ | 350.20 | 149871 |
| DBZ | 350.20 | 151034 | |
| GOL | 350.20 | 156482 | |
| 5100 Series 1-6 Closer, 5108 extra heavy duty hold open arm , plastic cover | ALM | 350.20 | 130957 |
| (right hand) | BRZ | 350.20 | 149872 |
| DBZ | 350.20 | 151033 | |
| GOL | 350.20 | 156483 | |
| 5100 Series 1-6 Closer, 5125 extra heavy duty stop arm, plastic cover | ALM | 362.50 | 130961 |
| BRZ | 362.50 | 130972 | |
| DBZ | 362.50 | 130975 | |
| GOL | 362.50 | 130978 | |
| 5100 Series 1-6 Closer, 5954 extra heavy duty hold open cushion stop arm, | ALM | 498.75 | 130959 |
| plastic cover | BRZ | 498.75 | 149499 |
| DBZ | 498.75 | 148985 | |
| GOL | 498.75 | 154060 | |
| 5100 Series 1-6 Closer, 5955 extra heavy cushion stop arm, plastic cover | ALM | 453.20 | 130962 |
| BRZ | 453.20 | 151220 | |
| DBZ | 453.20 | 150847 | |
| GOL | 453.20 | 155760 | |
| 5100 Series 1-6 Closer, 5961 extra heavy hold open stop arm, plastic cover | ALM | 409.15 | 130958 |
| BRZ | 409.15 | 130971 | |
| DBZ | 409.15 | 130974 | |
| GOL | 409.15 | 130977 |
Door Controls - 5100 Series
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
5100M16ALMOMOX
5100 Series High Security Package Package Contains: Closer, main arm assembly, parallel arm bracket, standard screw pack, SNB screw pack, torx screw pack and painted metal cover. |
ALM | 367.10 | 1521143 | 4 | 1 |
| 5100 Closer w/ Non Hold Open Stop Track Arm |
ALM
BRZ DBZ GOL |
359.35
359.35 359.35 359.35 |
166331
166352 166332 166353 |
10 | 1 |
| 5100 Closer w/ Hold Open Stop Track Arm |
ALM
BRZ DBZ GOL |
372.60
372.60 372.60 372.60 |
166337
166219 166338 167220 |
10 | 1 |
| 5100 Closer w/ Double Egress Non Hold Open Stop Track Arm |
ALM
BRZ DBZ GOL |
388.05
388.05 388.05 388.05 |
166344
167235 166345 167236 |
10 | 1 |
| 5100 Closer w/ Double Egress Hold Open Stop Track Arm |
ALM
BRZ DBZ GOL |
401.30
401.30 401.30 401.30 |
166348
167239 166349 167240 |
10 | 1 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|
5101
5100 Series Closer Body Only Adjustable sizes 1-6 |
ALM
BRZ DBZ GOL |
238.55
238.55 238.55 238.55 |
148803
148805 148804 148806 |
4 | 1 |
|
5102
Full Plastic Cover 5100 Series |
ALM
BRZ DBZ GOL |
16.65
16.65 16.65 16.65 |
89003
88988 88928 88730 |
25 | 1 |
|
5103
Main Arm Assembly 5100 Series |
ALM
BRZ DBZ GOL |
33.00
33.00 33.00 33.00 |
72038
71384 71378 71297 |
8 | 1 |
|
5104
Standard Screw Pack 5100 Series |
ALM
BRZ DBZ GOL |
9.30
9.30 9.30 9.30 |
87683
87619 87607 87089 |
80 | 1 |
|
5106
Extra Heavy Duty Parallel Arm 5100 Series |
ALM
BRZ DBZ GOL |
90.50
90.50 90.50 90.50 |
71612
71144 71129 71121 |
10 | 1 |
|
5107
Standard Hold Open Arm 5100 Series |
ALM
BRZ DBZ |
70.40
70.40 70.40 |
65492
65430 65429 |
10 | 1 |
GOL 70.40 65422
4/1/2018 www.hagerco.com
Door Controls - 5100 Series
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5941 | ALM | 9.30 | 104384 | 200 | 1 |
| SNB Screw Pack, 1-3/8" Door | BRZ | 9.30 | 104385 | ||
| 5100 Series | DBZ | 9.30 | 104386 | ||
| GOL | 9.30 | 104387 | |||
| 5942 | ALM | 9.30 | 104388 | 200 | 1 |
| SNB Screw Pack, 2" Door | BRZ | 9.30 | 104389 | ||
| 5100 Series | DBZ | 9.30 | 104390 | ||
| GOL | 9.30 | 104391 | |||
| 5943 | ALM | 9.30 | 104392 | 200 | 1 |
| SNB Screw Pack, 2-1/4" Door | BRZ | 9.30 | 104393 | ||
| 5100 Series | DBZ | 9.30 | 104394 | ||
| GOL | 9.30 | 104395 | |||
| 5946 | ALM | 28.65 | 148410 | 1000 | 1 |
|
Tamper Resistant Torx Screwpack
Sex Nuts and Bolts for 1-3/4" (44mm) doors 5100 Series Only |
|||||
| 5950 | ALM | 121.45 | 118353 | 10 | 1 |
| Spring Cushion Kit | BRZ | 121.45 | 120777 | ||
| 5100/5200/5300 Series | DBZ | 121.45 | 120779 | ||
| GOL | 121.45 | 120780 | |||
| 5954 | ALM | 253.85 | 118337 | 10 | 1 |
| Extra Heavy Duty | BRZ | 253.85 | 118338 | ||
| Hold Open Cushion Stop Arm | DBZ | 253.85 | 118339 | ||
| 5100 Series | GOL | 253.85 | 118340 | ||
| Includes 5961 and 5950. | |||||
| 5955 | ALM | 218.45 | 118341 | 10 | 1 |
| Extra Heavy Duty Cushion Stop Arm | BRZ | 218.45 | 118342 | ||
| 5100 Series | DBZ | 218.45 | 118343 | ||
| Includes 5125 and 5950. | GOL | 218.45 | 118344 | ||
| 5961 | ALM | 180.70 | 192281 | 10 | 1 |
| Extra Heavy Duty Hold Open Stop Arm | BRZ | 180.70 | 192282 | ||
| Can be combined with 5950, spring cushion kit. | DBZ | 180.70 | 192283 | ||
| GOL | 180.70 | 192284 | |||
| 5962 | US3 | 201.65 | 69551 | 25 | 1 |
| 5100 Series | US26 | 201.65 | 69550 | ||
| Plated Metal Cover | US26D | 201.65 | 69798 | ||
| (Check with factory for availability) | ALM / Painted | 141.15 | 144034 | ||
| DBZ / Painted | 141.15 | 144035 | |||
| 2-659-0187 | ALM | 87.55 | 167833 | 10 | 1 |
|
Non Hold Open Stop Track Arm
5100 Series |
|||||
| 2-659-0188 | BRZ | 87.55 | 162731 | ||
|
Non Hold Open Stop Track Arm
5100 Series |
|||||
| 2-659-0189 | DBZ | 87.55 | 162718 | ||
| Non Hold Open Stop Track Arm | |||||
| 5100 Series | |||||
| 2-659-0190 | GOL | 87.55 | 162719 | ||
|
Non Hold Open Stop Track Arm
5100 Series |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0195
Hold Open Stop Track Arm 5100 Series |
ALM | 100.95 | 167857 | 10 | 1 |
|
2-659-0196
Hold Open Stop Track Arm 5100 Series |
BRZ | 100.95 | 167858 | ||
|
2-659-0197
Hold Open Stop Track Arm 5100 Series |
DBZ | 100.95 | 167859 | ||
|
2-659-0198
Hold Open Stop Track Arm 5100 Series |
GOL | 100.95 | 167860 | ||
|
2-659-0203
Double Egress Non Hold Open Stop Track Arm 5100 Series |
ALM | 125.65 | 167865 | 10 | 1 |
|
2-659-0204
Double Egress Non Hold Open Stop Track Arm 5100 Series |
BRZ | 125.65 | 167866 | ||
|
2-659-0205
Double Egress Non Hold Open Stop Track Arm 5100 Series |
DBZ | 125.65 | 167867 | ||
|
2-659-0206
Double Egress Non Hold Open Stop Track Arm 5100 Series |
GOL | 125.65 | 167868 | ||
|
2-659-0207
Double Egress Hold Open Stop Track Arm 5100 Series |
ALM | 144.20 | 167869 | 10 | 1 |
|
2-659-0208
Double Egress Hold Open Stop Track Arm 5100 Series |
BRZ | 144.20 | 167870 | ||
|
2-659-0209
Double Egress Hold Open Stop Track Arm 5100 Series |
DBZ | 144.20 | 167871 | ||
|
2-659-0210
Double Egress Hold Open Stop Track Arm 5100 Series |
GOL | 144.20 | 167873 |
Track arms only available in painted finishes shown
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5200 Series | ALM | 236.80 | 126476 | 6 | 1 |
| Grade 1 | BRZ | 236.80 | 126478 | ||
| Adjustable sizes 1-6 | DBZ | 236.80 | 126477 | ||
| GOL | 236.80 | 126479 |
ADA (Barrier Free) Door Closers:
Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. Adders are listed below. Add the list price of the option to the list price of the closer and take standard discounts.
|
Delayed Action Valve
Lead Lined Cover |
17.20
108.15 |
||
|---|---|---|---|
| Check with factory for pricing and availability of plated products. | POA | ||
| Closers with non-standard arms | |||
| 5200 Series 1-6 Closer, 5203 tri-pack arm, slim line plastic cover | ALM | 236.80 | 145551 |
| BRZ | 236.80 | 166442 | |
| DBZ | 236.80 | 149176 | |
| GOL | 236.80 | 151746 | |
| 5200 Series 1-6 Closer, 5910 hold open arm, plastic cover | ALM | 275.40 | 145539 |
| BRZ | 275.40 | 145540 | |
| DBZ | 275.40 | 145541 | |
| GOL | 275.40 | 145542 | |
| 5200 Series 1-6 Closer, 5906 extra heavy duty hold open stop arm, plastic | ALM | 331.75 | 145552 |
| cover | BRZ | 331.75 | 145556 |
| DBZ | 331.75 | 145557 | |
| GOL | 331.75 | 145558 | |
| 5200 Series 1-6 Closer, 5907 extra heavy duty stop arm, plastic cover | ALM | 284.40 | 145560 |
| BRZ | 284.40 | 145561 | |
| DBZ | 284.40 | 145562 | |
| GOL | 284.40 | 145563 | |
| 5200 Series 1-6 Closer, 5911 extra heavy duty arm, plastic cover | ALM | 300.05 | 149447 |
| BRZ | 300.05 | 154453 | |
| DBZ | 300.05 | 148832 | |
| GOL | 300.05 | 155891 | |
| 5200 Series 1-6 Closer, 5912 extra heavy duty hold open arm, plastic cover | ALM | 271.90 | 148835 |
| (left hand) | BRZ | 271.90 | 163413 |
| DBZ | 271.90 | 153689 | |
| GOL | 271.90 | 156741 | |
| 5200 Series 1-6 Closer, 5912 extra heavy duty hold open arm, plastic cover | ALM | 271.90 | 148839 |
| (right hand) | BRZ | 271.90 | 163414 |
| DBZ | 271.90 | 153858 | |
| GOL | 271.90 | 156742 | |
| 5200 Series 1-6 Closer, 5956 extra heavy duty hold open cushion stop arm, | ALM | 422.30 | 149802 |
| plastic cover | BRZ | 422.30 | 151691 |
| DBZ | 422.30 | 149732 | |
| GOL | 422.30 | 162296 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5200 Series 1-6 Closer, 5957 extra heavy duty cushion stop arm, plastic | ALM | 383.15 | 149011 | ||
| cover | BRZ | 383.15 | 162252 | ||
| DBZ | 383.15 | 148977 | |||
| GOL | 383.15 | 162991 | |||
| ALM | 282.10 | 166333 | 10 | 1 | |
| 5200 Closer w/ Non Hold Open Stop Track Arm | BRZ | 282.10 | 166354 | ||
| DBZ | 282.10 | 166334 | |||
| GOL | 282.10 | 167045 | |||
| ALM | 295.55 | 166339 | 10 | 1 | |
| 5200 Closer w/ Hold Open Stop Track Arm | BRZ | 295.55 | 167223 | ||
| DBZ | 295.55 | 166341 | |||
| GOL | 295.55 | 137224 | |||
| ALM | 324.60 | 166350 | 10 | 1 | |
| 5200 Closer w/ Double Egress Non Hold Open Stop Track Arm | BRZ | 324.60 | 167241 | ||
| DBZ | 324.60 | 166351 | |||
| GOL | 324.60 | 167242 | |||
| ALM | 311.15 | 166346 | 10 | 1 | |
| 5200 Closer w/ Double Egress Hold Open Stop Track Arm | BRZ | 311.15 | 167237 | ||
| DBZ | 311.15 | 166347 | |||
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
| ALM | 167.10 | 148807 | 6 | 1 | |
|
5201
5200 Series Closer Body Only |
BRZ | 167.10 | 148809 | ||
| Adjustable sizes 1-6 | DBZ | 167.10 | 148808 | ||
| GOL | 167.10 | 148810 | |||
| ALM | 16.65 | 88651 | 25 | 1 | |
| 5202 | BRZ | 16.65 | 88532 | ||
|
Full Plastic Cover
5200 Series |
DBZ | 16.65 | 88355 | ||
| GOL | 16.65 | 88343 | |||
| 5203 |
ALM
BRZ |
33.00
33.00 |
71694
71296 |
8 | 1 |
| Main Arm Assembly | 70681 | ||||
| 5200 Series | DBZ | 33.00 | |||
| GOL | 33.00 | 71271 | |||
| 5204 | ALM | 9.60 | 72358 | 80 | 1 |
| Standard Screw Pack | BRZ | 9.60 | 72236 | ||
| 5200 Series |
DBZ
GOL |
9.60
9.60 |
72228
70684 |
||
| 5910 | ALM | 72.45 | 191400 | 10 | 1 |
| Standard Hold Open Arm | BRZ | 72.45 | 191402 | ||
|
5200 Series
If ordered separately, 5914, Rev 1 needed for parallel mount. |
DBZ
GOL |
72.45
72.45 |
191401
191403 |
||
| 5900 | ALM | 8.40 | 99140 | 120 | 1 |
| Parallel Arm Bracket | BRZ | 8.40 | 99138 | ||
| 5200/5300/5400 Series |
DBZ
GOL |
8.40
8.40 |
99135
99134 |
||
| 5902 | ALM | 9.60 | 9129 | 200 | 1 |
|
SNB Screw Pack, 1-3/4" Door
5200/5300/5400 Series |
BRZ
DBZ |
9.60
9.60 |
9128
9127 |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
Door Controls - 5200 Series
|
Description
Finish 2018 List Stock No. Qty. Qty. ALM 9.60 99125 200 1 5903 BRZ 9.60 99124 SNB Screw Pack, 1-3/8" Door DBZ 9.60 99123 5200/5300/5400 Series GOL 9.60 99122 ALM 9.60 9921 200 1 5904 BRZ 9.60 99118 SNB Screw Pack, 2" Door DBZ 9.60 99117 5200/5300/5400 Series GOL 9.60 99116 ALM 9.60 99115 200 1 5905 BRZ 9.60 99114 SNB Screw Pack, 2-1/4" Door DBZ 9.60 99113 5200/5300/5400 Series GOL 9.60 99112 ALM 180.70 14583 10 1 5906 BRZ 180.70 14582 Extra Heavy Duty Hold Open Stop Arm 5200/5300 Series DBZ 180.70 14578 Can be combined with 5950, spring cushion kit. GOL 180.70 14570 ALM 90.50 14595 10 1 5907 BRZ 90.50 14591 Extra Heavy Duty Stop Arm 5200/5300 Series DBZ 90.50 14587 Can be combined with 5950, spring cushion kit. GOL 90.50 14586 ALM 16.65 35989 25 1 5908 BRZ 16.65 35988 Long Rod and Shoe 5200/5300 Series DBZ 16.65 35941 GOL 16.65 35929 ALM 90.50 73657 10 1 5911 BRZ 90.50 73656 Extra Heavy Duty Arm DBZ 90.50 73607 5200/5300 Series GOL 90.50 73487 ALM 90.50 73446 10 1 5912 BRZ 90.50 73317 Extra Heavy Duty Hold Open Arm DBZ 90.50 73347 5200/5300 Series Specify handing when ordering. GOL 90.50 73283 ALM 25.55 73268 15 1 5913 BRZ 25.55 73244 Blade Stop Spacer DBZ 25.55 73076 5200/5300/5400 Series GOL 25.55 73074 ALM 16.65 72936 60 1 5914 BRZ 16.65 72905 Hold Open Parallel Arm Bracket 5200/5300 Series DBZ 16.65 72907 For standard hold-open arm. GOL 16.65 72814 ALM 41.20 72262 10 1 5918 BRZ 41.20 72242 Drop Plate - Top Jamb Narrow Top Rail w/ Mounting Screws DBZ 41.20 72248 5200 Series GOL 41.20 72241 For use with slim line or no cover. ALM 1.85 72138 20 1 5919 BRZ 1.85 70989 Pinion Cap 5200 Series DBZ 1.85 70987 GOL 1.85 70984 |
Case | Box | ||
|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5920 | ALM | 16.65 | 70962 | 18 | 1 |
| Slim Line Plastic Cover | BRZ | 16.65 | 70859 | ||
| 5200 Series | DBZ | 16.65 | 70987 | ||
| GOL | 16.65 | 70984 | |||
| 5921 | ALM | 40.00 | 33996 | 10 | 1 |
| Drop Plate | BRZ | 40.00 | 33994 | ||
| Narrow Top Rail w/ Mounting Screws | DBZ | 40.00 | 33980 | ||
| 5200 Series | GOL | 40.00 | 33979 | ||
| For use with full cover. | |||||
| 5922 | ALM | 40.00 | 33957 | 10 | 1 |
| Drop Plate - Top Jamb | BRZ | 40.00 | 33943 | ||
| Parallel Arm with Mounting Screws | DBZ | 40.00 | 33941 | ||
| 5200 Series | GOL | 40.00 | 33940 | ||
| For use with slim line or no cover. | |||||
| 5923 | ALM | 40.00 | 33947 | 10 | 1 |
| Drop Plate | BRZ | 40.00 | 33936 | ||
| Parallel Arm with Mounting Screws | DBZ | 40.00 | 33934 | ||
| 5200 Series | GOL | 40.00 | 33929 | ||
| For use with full cover. | |||||
| 5932 | US3 | 164.25 | 69533 | 25 | 1 |
| Plated Metal Cover | US26 | 164.25 | 69525 | ||
| (Check with factory for availability) | US26D | 164.25 | 69524 | ||
| 5200 Series | ALM (painted) | 164.25 | 191374 | ||
| ALM | 21.85 | 129577 | 48 | 8 | |
| 5936 | BRZ | 21.85 | 129578 | ||
|
Extra Clearance Bracket
5200/5300 Series |
DBZ | 21.85 | 129579 | ||
| GOL | 21.85 | 129580 | |||
| 5950 | ALM | 121.45 | 118353 | 10 | 1 |
| Spring Cushion Kit | BRZ | 121.45 | 120777 | ||
| 5100/5200/5300 Series | DBZ | 121.45 | 120779 | ||
| GOL | 121.45 | 120780 | |||
| 5956 | ALM | 253.85 | 118345 | 10 | 1 |
| Extra Heavy Duty Hold Open Cushion Stop Arm | BRZ | 253.85 | 118346 | ||
| 5200/5300 Series | DBZ | 253.85 | 118347 | ||
| Includes 5906 and 5950. | GOL | 253.85 | 118348 | ||
| 5957 | ALM | 218.45 | 118349 | 10 | 1 |
| Extra Heavy Duty Cushion Stop Arm | BRZ | 218.45 | 118350 | ||
| 5200/5300 Series | DBZ | 218.45 | 118351 | ||
| Includes 5907 and 5950. | GOL | 218.45 | 118352 | ||
|
2-659-0191
Non Hold Open Stop Track Arm |
ALM | 87.55 | 167837 | 10 | 1 |
| 5200 Series | |||||
| 2-659-0192 | BRZ | 87.55 | 167854 | ||
| Non Hold Open Stop Track Arm | |||||
| 5200 Series | |||||
| DBZ | 87.55 | 167855 | |||
|
2-659-0193
Non Hold Open Stop Track Arm |
|||||
| 5200 Series | |||||
| 2-659-0194 | GOL | 87.55 | 167856 | ||
| Non Hold Open Stop Track Arm |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
Door Controls - 5200 Series
Track arms only available in painted finishes shown
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5300 Series | ALM | 189.20 | 145672 | 6 | 1 |
| Grade 1 | BRZ | 189.20 | 145673 | ||
| Adjustable sizes 1-6 | DBZ | 189.20 | 145674 | ||
| GOL | 189.20 | 145675 |
ADA (Barrier Free) Door Closers:
Any certified BHMA/ANSI A156.4 door closer, regardless of manufacturer, that is installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient power to reliably close and latch a door.
If arms are ordered separately, there will be a significant difference in price than if purchased with a closer as a complete assembly. Adders are listed below. Add the list price of the option to the list price of the closer and take standard discounts.
|
Closers with non-standard arms
5300 Series 1-6 Closer, 5307 hold open arm, plastic cover ALM 226.70 145676 BRZ 226.70 145677 DBZ 226.70 145678 GOL 226.70 145679 5300 Series 1-6 Closer, 5906 extra heavy duty hold open stop arm, plastic ALM 281.40 145681 cover BRZ 281.40 145682 DBZ 281.40 145683 GOL 281.40 145684 5300 Series 1-6 Closer, 5907 extra heavy duty stop arm, plastic cover ALM 235.40 145686 BRZ 235.40 174460 DBZ 235.40 145687 GOL 235.40 164629 5300 Series 1-6 Closer, 5911 extra heavy duty arm, plastic cover ALM 235.40 150366 BRZ 235.40 173792 DBZ 235.40 152815 GOL 235.40 5300 Series 1-6 Closer, 5912 extra heavy duty hold open arm, plastic cover ALM 222.50 152972 (left hand) BRZ 222.50 DBZ 222.50 154681 GOL 222.50 5300 Series 1-6 Closer, 5912 extra heavy duty hold open arm, plastic cover ALM 222.50 152973 (right hand) BRZ 222.50 DBZ 222.50 154682 GOL 222.50 5300 Series 1-6 Closer, 5956 extra heavy duty hold open cushion stop arm, ALM 369.65 150916 plastic cover BRZ 369.65 171199 DBZ 369.65 160007 GOL 369.65 5300 Series 1-6 Closer, 5957 extra heavy duty cushion stop arm, plastic ALM 329.60 149230 cover BRZ 329.60 149807 DBZ 329.60 149013 GOL 329.60 173080 |
Delayed Action Valve
Lead Lined Cover Check with factory for pricing and availability of plated products. |
17.20
108.15 POA |
|
|---|---|---|---|
Door Controls - 5300 Series
| 5300 Closer w/ Non Hold Open Stop Track Arm |
ALM
BRZ |
233.60
233.60 |
166335
167062 |
10 | 1 |
|---|---|---|---|---|---|
|
DBZ
GOL |
233.60
233.60 |
166336
167217 |
|||
| 5300 Closer w/ Hold Open Stop Track Arm |
ALM
BRZ DBZ GOL |
245.55
245.55 245.55 245.55 |
166342
167225 166343 167234 |
10 | 1 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
| ALM | 121.75 | 148811 | 6 | 1 | |
| 5301 | BRZ | 121.75 | 148813 | ||
|
Closer Body Only
Adjustable sizes 1-6 |
DBZ | 121.75 | 148812 | ||
| GOL | 121.75 | 148814 | |||
| 5302 | ALM | 16.65 | 88207 | 25 | 1 |
| Full Plastic Cover | BRZ | 16.65 | 87873 | ||
| 5300 Series | DBZ | 16.65 | 87843 | ||
| GOL | 16.65 | 87785 | |||
| 5303 | ALM | 33.00 | 71270 | 8 | 1 |
| Main Arm Assembly | BRZ | 33.00 | 71255 | ||
| 5300 Series | DBZ | 33.00 | 71254 | ||
| GOL | 33.00 | 71234 | |||
| ALM | 9.60 | 72356 | 80 | 1 | |
| 5304 | BRZ | 9.60 | 72210 | ||
| Standard Screw Pack | DBZ | 9.60 | 72180 | ||
| 5300 Series | GOL | 9.60 | 72174 | ||
| 5307 | ALM | 72.45 | 73681 | 10 | 1 |
| Standard Hold Open Arm | BRZ | 72.45 | 73680 | ||
| 5300 Series | DBZ | 72.45 | 73677 | ||
| If ordered separately, 5914 needed for parallel mount. | GOL | 72.45 | 73660 | ||
| 5900 | ALM | 8.40 | 99140 | 120 | 1 |
| Parallel Arm Bracket | BRZ | 8.40 | 99138 | ||
| 5200/5300/5400 Series | DBZ | 8.40 | 99135 | ||
| GOL | 8.40 | 99134 | |||
| 5901 | ALM | 1.90 | 99133 | 200 | 1 |
| Pinion Cap | BRZ | 1.90 | 99132 | ||
| 5300/5400 Series | DBZ | 1.90 | 99131 | ||
| GOL | 1.90 | 99130 | 1 | ||
| ALM | 9.60 | 99129 | 200 | 1 | |
| 5902 | |||||
| SNB Screw Pack, 1-3/4" Door | BRZ | 9.60 | 99128 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99127 | ||
| GOL | 9.60 | 99126 | |||
| 5903 | ALM | 9.60 | 99125 | 200 | 1 |
| SNB Screw Pack, 1-3/8" | BRZ | 9.60 | 99124 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99123 | ||
| GOL | 9.60 | 99122 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5904 | ALM | 9.60 | 99121 | 200 | 1 |
| SNB Screw Pack, 2" Door | BRZ | 9.60 | 99118 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99117 | ||
| GOL | 9.60 | 99116 | |||
| 5905 | ALM | 9.60 | 99115 | 200 | 1 |
| SNB Screw Pack, 2-1/4" Door | BRZ | 9.60 | 99114 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99113 | ||
| GOL | 9.60 | 99112 | |||
| ALM | 180.70 | 14583 | 10 | 1 | |
| 5906 | BRZ | 180.70 | 14582 | ||
|
Extra Heavy Duty Hold Open Stop Arm
5200/5300 Series |
DBZ | 180.70 | 14578 | ||
| Can be combined with 5950, spring cushion kit. | GOL | 180.70 | 14570 | ||
| 5907 | ALM | 90.50 | 14595 | 10 | 1 |
| Extra Heavy Duty Stop Arm | BRZ | 90.50 | 14591 | ||
| 5200/5300 Series | DBZ | 90.50 | 14587 | ||
| Can be combined with 5950, spring cushion kit. | GOL | 90.50 | 14586 | ||
| 5908 | ALM | 16.65 | 35989 | 25 | 1 |
| Long Rod and Shoe | BRZ | 16.65 | 35988 | ||
| 5200/5300 Series | DBZ | 16.65 | 35941 | ||
| GOL | 16.65 | 35929 | |||
| ALM | 90.50 | 73657 | 10 | 1 | |
| 5911 | BRZ | 90.50 | 73656 | ||
|
Extra Heavy Duty Arm
5200/5300 Series |
DBZ | 90.50 | 73607 | ||
| GOL | 90.50 | 73487 | |||
| 5912 | ALM | 90.50 | 73446 | 10 | 1 |
| Extra Heavy Duty Hold Open Arm | BRZ | 90.50 | 73317 | ||
| 5200/5300 Series | DBZ | 90.50 | 73347 | ||
| Specify handing when ordering. | GOL | 90.50 | 73283 | ||
| 5913 | ALM | 25.55 | 73268 | 15 | 1 |
| Blade Stop Spacer | BRZ | 25.55 | 73244 | ||
| 5200/5300/5400 Series | DBZ | 25.55 | 73076 | ||
| GOL | 25.55 | 73074 | |||
| 5914 | ALM | 16.65 | 72936 | 60 | 1 |
| Hold Open Parallel Arm Bracket | BRZ | 16.65 | 72905 | ||
| 5200/5300 Series | DBZ | 16.65 | 72907 | ||
| For standard hold-open arm. | GOL | 16.65 | 72814 | ||
| 5915 | ALM | 40.00 | 72754 | 10 | 1 |
| Drop Plate - OH Holder | BRZ | 40.00 | 72741 | ||
| Narrow Rail w/ Mounting Screws | DBZ | 40.00 | 72750 | ||
| 5300 Series | GOL | 40.00 | 72673 | ||
| For use with full cover. | |||||
| 5916 | ALM | 40.00 | 72669 | 10 | 1 |
| Drop Plate - Narrow Rail | BRZ | 40.00 | 72500 | ||
| Parallel Arm Cover w/ Mounting Screws | DBZ | 40.00 | 72509 | ||
| 5300 Series | GOL | 40.00 | 72468 | ||
| For use with full cover. | |||||
| 5917 | ALM | 40.00 | 72410 | 10 | 1 |
| Drop Plate - Low Clearance | BRZ | 40.00 | 72281 | ||
| Overhead Holder w/ Mounting Screws | DBZ | 40.00 | 72372 | ||
| 5300 Series | GOL | 40.00 | 72264 | ||
| For use with no cover. |
Door Controls - 5300 Series
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5936 | ALM | 21.85 | 129577 | 48 | 1 |
| Extra Clearance Bracket | BRZ | 21.85 | 129578 | ||
| 5200/5300 Series | DBZ | 21.85 | 129579 | ||
| GOL | 21.85 | 129580 | |||
| 5950 | ALM | 121.45 | 118353 | 10 | 1 |
| Spring Cushion Kit (sold separately) | BRZ | 121.45 | 120777 | ||
| 5100/5200/5300 Series | DBZ | 121.45 | 120779 | ||
| GOL | 121.45 | 120780 | |||
| 5956 | ALM | 253.85 | 118345 | 10 | 1 |
| Extra Heavy Duty | BRZ | 253.85 | 118346 | ||
| Hold Open Cushion Stop Arm | DBZ | 253.85 | 118347 | ||
| 5200/5300 Series | GOL | 253.85 | 118348 | ||
| Includes 5906 and 5950. | |||||
| 5957 | ALM | 218.45 | 118349 | 10 | 1 |
| Extra Heavy Duty Cushion Stop Arm | BRZ | 218.45 | 118350 | ||
| 5200/5300 Series | DBZ | 218.45 | 118351 | ||
| Includes 5907 and 5950. | GOL | 218.45 | 118352 | ||
|
2-659-0191
Non Hold Open Stop Track Arm 5300 Series |
ALM | 87.55 | 167861 | 10 | 1 |
|
2-659-0192
Non Hold Open Stop Track Arm 5300 Series |
BRZ | 87.55 | 167862 | ||
|
2-659-0193
Non Hold Open Stop Track Arm 5300 Series |
DBZ | 87.55 | 167863 | ||
|
2-659-0194
Non Hold Open Stop Track Arm 5300 Series |
GOL | 87.55 | 167864 | ||
|
2-659-0199
Hold Open Stop Track Arm 5300 Series |
ALM | 100.95 | 167874 | 10 | 1 |
|
2-659-0200
Hold Open Stop Track Arm 5300 Series |
BRZ | 100.95 | 167875 | ||
|
2-659-0201
Hold Open Stop Track Arm 5300 Series |
DBZ | 100.95 | 167876 | ||
|
2-659-0202
Hold Open Stop Track Arm 5300 Series |
GOL | 100.95 | 167877 |
Track arms only available in painted finishes shown
|
ALM
116.80 98103 6 1 5400 Series BRZ 116.80 98107 Grade 2 Size 2 DBZ 116.80 98108 GOL 116.80 98109 ALM 116.80 13302 6 1 5400 Series BRZ 116.80 13303 Grade 2 Size 3 DBZ 116.80 13304 GOL 116.80 13305 ALM 116.80 13309 6 1 5400 Series BRZ 116.80 13308 Grade 2 DBZ 116.80 13307 Size 4 GOL 116.80 13306 ALM 116.80 13310 6 1 5400 Series BRZ 116.80 13311 Grade 2 DBZ 116.80 13312 Size 5 GOL 116.80 13313 16.00 5400 Series Adders: Optional backcheck available (add to list price) ALM 89.85 72172 6 1 5401 BRZ 89.85 71884 5400 Series Closer Body Only Size 2 DBZ 89.85 71839 GOL 89.85 71798 ALM 89.85 71778 6 1 5401 BRZ 89.85 71702 5400 Series Closer Body Only Size 3 DBZ 89.85 - GOL 89.85 - ALM 89.85 71555 6 1 5401 BRZ 89.85 71515 5400 Series Closer Body Only DBZ 89.85 71504 Size 4 GOL 89.85 71495 ALM 89.85 71477 6 1 5401 BRZ 89.85 71446 5400 Series Closer Body Only DBZ 89.85 71444 Size 5 |
Case | Box | ||||
|---|---|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
| GOL | 89.85 | 71439 |
Door Controls - 5400 Series
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
| 5403 | ALM | 29.45 | 71659 | 8 | 1 |
| Main Arm Assembly | BRZ | 29.45 | 71227 | ||
| 5400 Series | DBZ | 29.45 | 71218 | ||
| GOL | 29.45 | 71216 | |||
| 5404 | ALM | 9.15 | 72336 | 80 | 1 |
| Standard Screw Pack | BRZ | 9.15 | 72173 | ||
| 5400 Series | DBZ | 9.15 | 72171 | ||
| GOL | 9.15 | 72166 | |||
| 5900 | ALM | 8.65 | 99140 | 120 | 1 |
| Parallel Arm Bracket | BRZ | 8.65 | 99138 | ||
| 5200/5300/5400 Series | DBZ | 8.65 | 99135 | ||
| GOL | 8.65 | 99134 | |||
| 5901 | ALM | 1.90 | 99133 | 200 | 1 |
| Pinion Cap | BRZ | 1.90 | 99132 | ||
| 5300/5400 Series | DBZ | 1.90 | 99131 | ||
| GOL | 1.90 | 99130 | |||
| 5902 | ALM | 9.60 | 9129 | 200 | 1 |
| SNB Screw Pack, 1-3/4" Door | BRZ | 9.60 | 9128 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 9127 | ||
| GOL | 9.60 | 9126 | |||
| 5903 | ALM | 9.60 | 99125 | 200 | 1 |
| SNB Screw Pack, 1-3/8" Door | BRZ | 9.60 | 99124 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99123 | ||
| GOL | 9.60 | 99122 | |||
| 5904 | ALM | 9.60 | 9921 | 200 | 1 |
| SNB Screw Pack, 2" Door | BRZ | 9.60 | 99118 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99117 | ||
| GOL | 9.60 | 99116 | |||
| 5905 | ALM | 9.60 | 99115 | 200 | 1 |
| SNB Screw Pack, 2-1/4" Door | BRZ | 9.60 | 99114 | ||
| 5200/5300/5400 Series | DBZ | 9.60 | 99113 | ||
| GOL | 9.60 | 99112 | |||
| 5913 | ALM | 25.55 | 73268 | 15 | 1 |
| Blade Stop Spacer | BRZ | 25.55 | 73244 | ||
| 5200/5300/5400 Series | DBZ | 25.55 | 73076 | ||
| GOL | 25.55 | 73074 |
Door Controls - Electromagnetic Holders
LS 382.35 111432
L2 382.35 122342 LS 382.35 139500
12 & 24 US3 447.15 - 6 1 L2 447.15 - LS 447.15 -
L2 447.15 - LS 447.15 114881
LS 278.65 -
24 & 220 US3 382.35 -
24 & 120 US3 447.15 -
| LS | 252.75 | 124474 | ||||
|---|---|---|---|---|---|---|
| 380G | 12 & 24 | US3 | 382.35 | 133360 | 18 | 1 |
| Electromagnetic Door Holder | L2 | 382.35 | - | |||
| Floor Mount (Single Door) | LS | 382.35 | 133362 | |||
| 24 & 120 | US3 | 382.35 | - | |||
| L2 | 382.35 | - |
| 380H | |
|---|---|
| Electromagnetic Door Holder | |
| Floor Mount (Double Door) |
| 24 & 220 | US3 | 447.15 | - | ||||
|---|---|---|---|---|---|---|---|
| L2 | 447.15 | - | |||||
| LS | 447.15 | - | |||||
| 380R | 12 & 24 | US3 | 252.75 | 129952 | 25 | 1 | |
| Electromagnetic Door Holder | L2 | 252.75 | 130390 | ||||
| Recessed Mount | LS | 252.75 | 107442 | ||||
| 24 & 120 | US3 | 252.75 | - | ||||
| L2 | 252.75 | - | |||||
| LS | 252.75 | 107446 | |||||
| 24 & 220 | US3 | 252.75 | - | ||||
| L2 | 252.75 | - | |||||
| LS | 252.75 | 141037 | |||||
| 380S | 12 & 24 | US3 | 278.65 | 114503 | 25 | 1 | |
| Electromagnetic Door Holder | L2 | 278.65 | 113961 | ||||
| Surface Mount | LS | 278.65 | 107441 | ||||
| 24 & 120 | US3 | 278.65 | 120377 | ||||
| L2 | 278.65 | 116868 | |||||
| LS | 278.65 | 107444 | |||||
| 24 & 220 | US3 | 278.65 | - | ||||
| L2 | 278.65 | 139499 | |||||
4/1/2018 www.hagerco.com
Door Controls - Electromagnetic Holders
| 381B | 4" | US3 | 38.90 | 107547 | 50 | 1 |
| Surface Back Box | L2 | 38.90 | 107548 | |||
| LS | 38.90 | 107545 | ||||
| 381C | 4" | US3 | 26.00 | 107550 | 25 | 1 |
| Catch Disc | L2 | 26.00 | 107551 | |||
| LS | 26.00 | 107549 | ||||
|
381D
Drilling Fixture |
4" | - | 50.00 | 16654 | 1 | 1 |
| 381E | 1/2" | US3 | 16.95 | 107450 | 25 | 1 |
| Extension Rods | L2 | 16.95 | 107451 | |||
| LS | 16.95 | 107449 | ||||
| 1" | US3 | 18.25 | 107453 | |||
| L2 | 18.25 | 107452 | ||||
| LS | 18.25 | 107455 | ||||
| 1-1/2" | US3 | 19.50 | 107458 | |||
| L2 | 19.50 | 107460 | ||||
| LS | 19.50 | 107457 | ||||
| 2" | US3 | 20.85 | 107467 | |||
| L2 | 20.85 | 107468 | ||||
| LS | 20.85 | 107462 | ||||
| 3" | US3 | 22.10 | 107489 | |||
| L2 | 22.10 | 107490 | ||||
| LS | 22.10 | 107488 | ||||
| 4" | US3 | 23.35 | 107492 | |||
| L2 | 23.35 | 107493 | ||||
| LS | 23.35 | 107491 |
Door Controls - Electromagnetic Holders
| Description | Size | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|---|
|
381H
Hardware Package |
4" | - | 22.10 | - | 25 | 1 |
|
381S
Catch Plate Assembly |
4" |
US3
L2 |
64.80
64.80 |
107543
107544 |
50 | 1 |
| LS | 64.80 | 107542 | ||||
|
381W
Extension Wrenches (2 pcs.) |
4" | - | 5.20 | 107552 | 25 | 1 |
| Case | Box | |||||
|---|---|---|---|---|---|---|
| Description | Material | Finish | 2018 List | Stock No. | Qty. | Qty. |
| 6017 Series | ||||||
| Medium Duty Surface Mount | ||||||
| Hold Open | Stainless steel | US32D/630 | 165.20 | 140722 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 165.20 | 140824 | ||
| 18" - 33" Frame Opening | US3/632 | 165.20 | 147004 | |||
| ALM/powder coated | 121.20 | 140884 | ||||
| Hold Open | Stainless steel | US32D/630 | 165.20 | 140723 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 165.20 | 140825 | ||
| 33" - 51" Frame Opening | US3/632 | 165.20 | 147006 | |||
| ALM/powder coated | 121.20 | 140885 | ||||
| 6017 Series | ||||||
| Medium Duty Concealed Mount | ||||||
| Hold Open | Stainless steel | US32D/630 | 165.20 | 140729 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 165.20 | 140830 | ||
| 18" - 33" Frame Opening | US3/632 | 165.20 | 147005 | |||
| ALM/powder coated | 121.20 | 140890 | ||||
| Hold Open | Stainless steel | US32D/630 | 165.20 | 140730 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 165.20 | 140831 | ||
| 33" - 51" Frame Opening | US3/632 | 165.20 | 147007 | |||
| ALM/powder coated | 121.20 | 140891 | ||||
| 6000 Series Accessories | 2-659-0101 | US26D | 13.30 | 141691 | ||
| Surface Mounted End Cap and | 2-659-0102 | US10B | 13.30 | 141692 | ||
| Spring Replacement Kit | 2-659-0103 | US3 | 13.30 | 141697 | ||
| 6000 Series Accessories | 2-659-0104 | - | 13.30 | 141695 | ||
| Concealed Mounted End Cap and | ||||||
| Spring Replacement Kit | ||||||
| 6000 Series Accessories | 2-659-0105 | - | 19.90 | 141696 | ||
| Hold Open Replacement Kit | ||||||
| 6000 Series Accessories | 2-659-0106 | - | 19.90 | 141697 | ||
| Friction Replacement Kit | ||||||
| 6000 Series Screwpacks | 2-659-0098 | US26D | 10.00 | 141688 | ||
| Standard screwpack includes |
2-659-0099
2-659-0100 |
US10B
US3 |
10.00
10.00 |
141689
141690 |
||
|
machine screws, wood screws, sex
nuts & bolts for 1-3/4" doors, arm |
||||||
| set screws, Allen wrench, for both | ||||||
| concealed and surface mounted | ||||||
| 6000 Series Screwpacks | 2-659-0107 | US26D | 7.80 | 141698 | ||
| SNB screwpack includes sex nuts | 2-659-0108 | US10B | 7.80 | 141699 | ||
| and bolts for 1-3/8" doors | 2-659-0109 | US3 | 7.80 | 141700 | ||
| 6000 Series Screwpacks | 2-659-0110 | US26D | 7.80 | 141701 | ||
| SNB screwpack includes sex nuts | 2-659-0111 | US10B | 7.80 | 141702 | ||
| and bolts for 2" doors | 2-659-0112 | US3 | 7.80 | 141703 | ||
4/1/2018 www.hagerco.com
| Description | Material | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|---|
| 7015 Series | ||||||
| Heavy Duty Surface Mount | ||||||
| Friction | Stainless steel | US32D/630 | 313.90 | 140712 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 313.90 | 140814 | ||
| 23" - 39" Frame Opening | US3/632 | 313.90 | 147263 | |||
| ALM/powder coated | 253.35 | 140874 | ||||
| Friction | Stainless steel | US32D/630 | 313.90 | 140713 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 313.90 | 140815 | ||
| 39" - 54" Frame Opening | US3/632 | 313.90 | 147265 | |||
| ALM/powder coated | 253.35 | 140875 | ||||
| 7015 Series | ||||||
| Heavy Duty Concealed Mount | ||||||
| Friction | Stainless steel | US32D/630 | 313.90 | 140718 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 313.90 | 140820 | ||
| 23" - 39" Frame Opening | US3/632 | 313.90 | 147264 | |||
| ALM/powder coated | 253.35 | 140880 | ||||
| Friction | Stainless steel | US32D/630 | 313.90 | 140719 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 313.90 | 140821 | ||
| 39" - 54" Frame Opening | US3/632 | 313.90 | 147266 | |||
| ALM/powder coated | 253.35 | 140881 | ||||
| 7016 Series | ||||||
| Heavy Duty Surface Mount | ||||||
| Stop ONLY | Stainless steel | US32D/630 | 313.90 | 140680 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 313.90 | 140805 | ||
| 23" - 39" Frame Opening | US3/632 | 313.90 | 147252 | |||
| ALM/powder coated | 253.35 | 140870 | ||||
| Stop ONLY | Stainless steel | US32D/630 | 313.90 | 140701 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 313.90 | 140807 | ||
| 39" - 54" Frame Opening | US3/632 | 313.90 | 147255 | |||
| ALM/powder coated | 253.35 | 140871 | ||||
| 7016 Series | ||||||
| Heavy Duty Concealed Mount | ||||||
| Stop ONLY | Stainless steel | US32D/630 | 313.90 | 140714 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 313.90 | 140816 | ||
| 23" - 39" Frame Opening | US3/632 | 313.90 | 147254 | |||
| ALM/powder coated | 253.35 | 140876 | ||||
| Stop ONLY | Stainless steel | US32D/630 | 313.90 | 140715 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 313.90 | 140817 | ||
| 39" - 54" Frame Opening | US3/632 | 313.90 | 147256 | |||
| ALM/powder coated | 253.35 | 140877 |
| Case | Box | |||||
|---|---|---|---|---|---|---|
| Description | Material | Finish | 2018 List | Stock No. | Qty. | Qty. |
| 7017 Series | ||||||
| Heavy Duty Surface Mount | ||||||
| Hold Open | Stainless steel | US32D/630 | 313.90 | 140710 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 313.90 | 140810 | ||
| 23" - 39" Frame Opening | US3/632 | 313.90 | 147257 | |||
| ALM/powder coated | 253.35 | 140872 | ||||
| Hold Open | Stainless steel | US32D/630 | 313.90 | 140711 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 313.90 | 140813 | ||
| 39" - 54" Frame Opening | US3/632 | 313.90 | 147261 | |||
| ALM/powder coated | 253.35 | 140873 | ||||
| 7017 Series | ||||||
| Heavy Duty Concealed Mount | ||||||
| Hold Open | Stainless steel | US32D/630 | 313.90 | 140716 | 6 | 1 |
| Size 1 | Steel | US10B/640 | 313.90 | 140818 | ||
| 23" - 39" Frame Opening | US3/632 | 313.90 | 147258 | |||
| ALM/powder coated | 253.35 | 140878 | ||||
| Hold Open | Stainless steel | US32D/630 | 313.90 | 140717 | 6 | 1 |
| Size 2 | Steel | US10B/640 | 313.90 | 140819 | ||
| 39" - 54" Frame Opening | US3/632 | 313.90 | 147264 | |||
| ALM/powder coated | 253.35 | 140879 | ||||
| 7000 Series Accessories | 2-659-0119 | US26D | 18.20 | 141711 | ||
| Surface Mounted End Cap and | 2-659-0120 | US10B | 18.20 | 141712 | ||
| Spring Replacement Kit | 2-659-0121 | US3 | 18.20 | 141713 | ||
| 7000 Series Accessories | 2-659-0122 | - | 18.20 | 141714 | ||
| Concealed Mounted End Cap and | ||||||
| Spring Replacement Kit | ||||||
| 7000 Series Accessories | 2-659-0123 | - | 22.05 | 141715 | ||
| Hold Open Replacement Kit | ||||||
| 7000 Series Accessories | 2-659-0124 | - | 22.05 | 141716 | ||
| Friction Replacement Kit | ||||||
| 2-659-0116 | US26D | 15.20 | 141707 | |||
| 7000 Series Screwpacks | 2-659-0117 | US10B | 15.20 | 141708 | ||
|
Standard screwpack includes
machine screws, wood screws, sex |
2-659-0118 | US3 | 15.20 | 141709 | ||
| nuts & bolts for 1-3/4" doors, arm | ||||||
| set screws, Allen wrench, for both | ||||||
| concealed and surface mounted | ||||||
| 7000 Series Screwpacks | 2-659-0125 | US26D | 11.00 | 141717 | ||
| SNB screwpack includes sex nuts | 2-659-0126 | US10B | 11.00 | 141718 | ||
| and bolts for 1-3/8" doors | 2-659-0127 | US3 | 11.00 | 141719 | ||
| 7000 Series Screwpacks | 2-659-0128 | US26D | 11.00 | 141720 | ||
| SNB screwpack includes sex nuts | 2-659-0129 | US10B | 11.00 | 141721 | ||
| and bolts for 2" doors | 2-659-0130 | US3 | 11.00 | 141722 | ||
| Case | Box | |||||
|---|---|---|---|---|---|---|
| Description | Material | Finish | 2018 List | Stock No. | Qty. | Qty. |
| 7000 Series Screwpacks | 2-659-0131 | US26D | 11.00 | 141723 | ||
| SNB screwpack includes sex nuts | 2-659-0132 | US10B | 11.00 | 141724 | ||
| and bolts for 2-1/4" doors | 2-659-0133 | US3 | 11.00 | 141725 | ||
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| Accessories, 4500 Series Grade 1 | |
|---|---|
| Alarm Kit 25 | |
| Alarm Kit Latchbolt Monitor Switch28 | |
| Alarm Kit Tamper Switch29 | |
| Concealed Vertical Rod Bottom Latch Assembly29 | |
| Concealed Vertical Rod Top Latch Assembly29 | |
| Cylinder Cup Spacer 45PN/47PN 29, 44 | |
| Cylinder Dogging Conversion Kit23 | |
| End Cap Replacement Packs (standard and flush) 26-27 | |
| Extension Rod Kit - 24"25 | |
| Extension Rod Kit - 36"25 | |
| Hex Key for Dogging29 | |
| Less Bottom Rod Fire Bolt Kit28 | |
| Less Bottom Rod Replacement Head Cover Plug28 | |
| Photoluminescent Push Bar29 | |
| Replacement Head Covers 24-25 | |
| Rod to Rod Connector28 | |
|
Rod Guide Replacement Pack26
Spring Cage/Hanging Pin Replacement Pack27 |
|
| Surface Vertical Rod Top Latch Assembly24 | |
| Surface Vertical Rod Bottom Latch Assembly23 | |
| Screwpacks 27-28 | |
| Top or Bottom Latch Cover Replacement Pack27 | |
| Top or Bottom Rod Replacement Kits24 | |
| Accessories, 4600 Series Grade 1 Narrow Stile | |
| Alarm Kit 34 | |
| Alarm Kit Latchbolt Monitor Switch35 | |
| Alarm Kit Tamper Switch35 | |
| Cylinder Dogging Conversion Kit33 | |
| End Cap Replacement Packs (standard and flush)35 | |
| Hex Key for Dogging35 | |
| Rim Replacement Head Cover35 | |
| Accessories, 4700 Series Standard Duty | |
| Bottom Latch Assembly41 | |
| Bottom Latch Cover43 | |
| Cylinder Cup Spacer 45PN/47PN 29, 44 | |
| End Cap Replacement Pack44 | |
| Extension Rod Kit - 24"42 | |
| Extension Rod Kit - 36"42 | |
|
Hex Key for Dogging44
Replacement Dogging Plates42 |
|
| Replacement Head Covers42 | |
| Rod to Rod Connector44 | |
| Rod Guide Replacement43 | |
| Screwpacks 43-44 |
Top Latch Cover.................................................................................. 43
| Top or Bottom Rod Replacement Kit42 | |
|---|---|
| Trim Handing Pin43 | |
| C | |
| Cylinders | |
| Cylinder Collar, 4500 Trim 47-48 | |
| Cylinder Collar, 4700 Trim48 | |
| Mortise 47 | |
| Retaining Cup 47 | |
| Rim 46 | |
| E | |
| Exit Devices, Grade 1 | |
| How to Order 6 | |
| 4500 Rim Device 9 | |
| 4500 Mortise Lock Exit Device 12-13 | |
| 4500 Concealed Vertical Rod Device11 | |
|
4500 Concealed Vertical Rod Device Less Bottom Rod12
4500 Dummy Push Pad Device13 |
|
| 4500 Surface Vertical Rod Device10 | |
| 4500 Surface Vertical Rod Device Less Bottom Rod 9 | |
| 4500 Electric Modifications, Power Supplies, and Alarmed | |
| Devices4-5 | |
| Exit Devices, Grade 1 Narrow Stile | |
| How to Order 7 | |
| 4600 Narrow Stile Rim Device30 | |
| 4600 Electric Modifications, Power Supplies, and Alarmed | |
| Devices4-5 | |
| 4500 Dummy Push Pad Device13 | |
| Exit Devices, Standard Duty | |
| How to Order 8 | |
| 4700 Rim Device 36 | |
| 4700 Surface Vertical Rod Device36 | |
| M | |
| Mullions | |
| Mullion Set - Keyed Removable45 | |
| Mullion Set - Non-Keyed Removable45 | |
| Mullion Tube - Keyed Removable46 | |
| Mullion Tube - Non-Keyed Removable45 | |
| Stabilizer - Keyed Removable46 | |
| Stabilizer - Non-Keyed Removable45 | |
| Top/Bottom Bracket Set - Keyed Removable46 | |
| Top/Bottom Bracket Set - Non-Keyed Removable45 | |
1
S
| Shim Kit, 4500 Series Grade 1 | |
|---|---|
| Shim Kit, Rim Device | |
| Shim Kit, Surface Vertical Rod | .24 |
| Shim Kit, 4600 Series Grade 1 Narrow Stile | |
| Shim Kit, Narrow Stile Rim Device | . 34 |
| Shim Kit, 4700 Series Standard Duty | |
| Shim Kit, Rim Device | . 42 |
| Shim Kit, Surface Vertical Rod | |
| Strikes, 4500 Series Grade 1 | |
| Concealed Vertical Rod, Top Strike, Fire Rated | . 26 |
| Concealed Vertical Rod, Top Strike, Standard | |
| Double Door Strike, Standard | |
| Mortise Device, Fire Rated | . 29 |
| Mortise Device, Standard | |
| Mullion, Strikes45, | |
| Rim Device, Fire Rated | |
| Rim Device, Standard | . 22 |
| Surface Vertical Rod, Bottom Strike, Fire Rated | .23 |
| Surface Vertical Rod, Bottom Strike, Standard | .23 |
| Surface Vertical Rod, Top Strike, Fire Rated | |
| Surface Vertical Rod, Top Strike, Standard | |
| Threshold Strike, Standard | |
| Strikes, 4600 Series Grade 1 Narrow Stile | |
| Blade Stop | . 34 |
| Rim, Fire Rated | . 33 |
| Rim, Standard | . 33 |
| Semi-Flush Mount | . 34 |
| Single Rabbit | . 34 |
| Strikes, 4700 Series Standard Duty | |
| Double Door Strike, Standard | .41 |
| Mullion, Strikes | 46 |
| Rim Device, Standard | |
| Surface Vertical Rod, Bottom Strike, Standard | .41 |
| Surface Vertical Rod, Top Strike, Standard | |
| Threshold Strike, Standard | . 41 |
T
| Trim, 4500 Series Grade 1 | |
|---|---|
| Anti-Vandal Pull | 22 |
| Blank Escutcheon | 13-14 |
| Blank Escutcheon, Mortise | 14-15 |
| Cylinder Escutcheon | 15-16 |
| Cylinder Escutcheon, Mortise | 16-17 |
| Dummy Trim | 17-18 |
| Dummy Trim, Mortise | 18-19 |
| Night Latch | 19-20 |
| Night Latch, Mortise | 20-21 |
| Pull Plate Trim | 21 |
| Trim, 4600 Series Grade 1 Narrow Stile Blank Escutcheon |
30
31 31-32 32-33 |
| Trim, 4700 Series Standard Duty Blank Escutcheon | 36 |
| Dummy Trim | |
| Key-In-Lever Trim | |
| Night Latch | |
| Pull Plate Trim | |
| Raised Lip - Dummy | |
| Raised Lip - Night Latch |
INTRODUCTION
Every model in Hager's line of exit devices is designed and engineered to assure you and your customers years of superior performance. Hager exit devices use fewer moving parts and are constructed with high-quality features--like die cast caps on our lifetime warranty Grade 1 devices, and die cast head covers on all our models. All Hager exit devices meet UL specifications for panic devices and are fire rated for up to three hours.
Hager exit devices were designed with ease of installation in mind. We package our exit devices for convenience and versatility, with thru-bolts included for every model, slotted strikes, and non-handed designs. Hager offers escutcheon trim available in four functions, along with many other trim options.
Quick Ship
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
Lead Times
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
Cancellation Notification
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
New Finish
Painted flat black finish (BHMA 693) is now available. Use BLK to designate finish. Extended lead time and MOQ may apply.
APPLICATIONS
Single Door with Rim Exit Device
Double Door with Rim Exit Device and Surface Vertical Rod Exit Device
Double Door with Two Surface Vertical Rod Exit Devices
Double Door with Mullion
Exit Devices
ELECTRIC MODIFICATIONS - For use with 4500 Series and 4600 Series exit devices
| FUNCTION | FUNCTION # | DESCRIPTION |
ADD TO LIST
PRICE |
|---|---|---|---|
| Electric Latch Retraction | ELR |
Provides the means of locking or unlocking exit devices remotely.
Requires the use of Hager 2901 or 2902 power supply or warranty voided. |
$908.45 |
| Electric Dogging | ED |
Note: Mortise Exits will require Motor Driven Latch Retraction.
Provides continuous latch retraction and dogging simultaneously. |
$721.90 |
| Request to Exit | RX |
Used to shunt an alarm, activate an alarm, provide release of
magnetic locks, or signal a console. |
$290.45 |
|
Electric Latch Retraction
with Request to Exit |
ELRX |
Provides the means of locking or unlocking exit devices remotely,
along with an SPDT switch. Requires the use of Hager 2901 or 2902 power supply or warranty voided. Note: Mortise Exits will require Motor Driven Latch Retraction. |
$1,036.70 |
|
Electric Dogging with
Request to Exit |
EDRX |
Provides continuous latch retraction and dogging simultaneously
along with an SPDT switch. |
$873.45 |
| Dual Request to Exit | RX2 | Features two SPDT switches | $348.75 |
| Latchbolt Monitoring | LM |
An internal SPDT switch that monitors the latchbolt to signal both
egress and access of an opening |
$290.45 |
|
Latchbolt Monitoring/
Request to Exit |
RXLM |
Two internal SPDT switches that monitor the latchbolt and the pushbar
simultaneously |
$360.40 |
| Electric Trim* | ET* |
Provides the means of locking or unlocking outside lever trim controls
remotely. Specify Fail Safe (EL) or Fail Secure (EU) and voltage (12V or 24V). |
$535.30 |
|
Authorized Ingress/Key
Monitoring* |
AI* |
An internal SPDT switch that monitors the operation of the outside
trim, available for use with either the 45BE, 45CE or 45NL trim or nightlatch by optional pull. Must be ordered with the device. |
$302.10 |
|
Request to Exit/Authorized
Ingress* |
RXAI* |
Two internal SPDT switches that monitor the pushbar and the outside
trim simultaneously, available for use with either the 45CE or 45NL trim. Must be ordered with the device. |
$360.40 |
| Delayed Egress | DE |
Delays egress for 15 or 30 seconds when unauthorized egress
is initiated. Wall mount controller (2-679-0630) provides digital countdown display with verbal instructions or alarm tone only and must be ordered seperately, list price $1,404.50. |
$1,272.00 |
| Onboard Delayed Egress | OBDE |
Delays egress for 15 seconds (30 seconds optional) when
unauthorized egress is initiated. Modification can be made to 4501 or 4601 exit devices. |
$2,856.70 |
* Available on 4500 Series only.
ELECTRIC MODIFICATIONS (CONTINUED)
| FUNCTION | FUNCTION # | DESCRIPTION |
ADD TO LIST
PRICE |
|---|---|---|---|
|
Motor Driven Electric Latch
Retraction |
MLR |
Provides the means of locking or unlocking exit devices remotely
using an electric motor. Recommend Hager 2903 or 2904 Power Supply. |
$1,090.25 |
|
Motor Driven Electric Latch
Retraction with Request to Exit |
MLRX |
Provides the means of locking or unlocking exit devices remotely
using an electric motor, along with an SPDT switch. Recommend Hager 2903 or 2904 Power Supply. |
$1,234.40 |
|
Electrified Mortise Exit
Device |
EU/EL |
Provides the means of locking or unlocking outside lever trim controls
remotely. Specify Fail Safe (EL) or Fail Secure (EU) and voltage (12V or 24V). |
$535.30 |
POWER SUPPLIES
| PRODUCT # | DESCRIPTION | LIST PRICE |
|---|---|---|
| 2901 | For use with 4500/4600 Series electric latch retraction (ELR) |
Reference Electrified
Products for Pricing |
| 2902 |
For use with 4500/4600 Series electric latch retraction in a day/night mode
of operation (ELR) |
Reference Electrified
Products for Pricing |
| 2903 |
Provides 24 Vollt DC power for Fail Safe or Fail Secure locking devices and interface with
building alarm controls, card readers, keypads, and other door controls |
Reference Electrified
Products for Pricing |
| 2904 |
Provides 24 Vollt DC power and control for openings with an electrified locking device and
automatic door operator |
Reference Electrified
Products for Pricing |
| 2908 | Provides up to 1 amp of 12 or 24 Volt DC power. |
Reference Electrified
Products for Pricing |
| 2909 | Provides up to 2 amps of 12 or 24 Volt DC power. |
Reference Electrified
Products for Pricing |
QUICK CONNECT
Available for use with 4500 and 4600 Series AI (4500 only), ED, ELR, LM, MLR, and RX. Compatible with Hager Quick Connect Harness Cables which can plug into Hager hinges with quick connect for quick and accurate wiring of the door. No additional charge.
ALARMED DEVICES
4501/4601 ALK - Alarm Kit
Add $337.10 to the list price of the device
4501/4601 ALM - ALK with Latch Monitor Switch (recommended for use with SVR devices)
Add $452.65 to the list price of the device
4501/4601 ALT - ALK with Tamper Switch
Add $454.65 to the list price of the device
4501/4601 ALL - ALK with Latch Monitor and Tamper Switch
Add $568.20 to the list price of the device
Note: Alarm kit components may be purchased separately.
4500 SERIES HOW TO ORDER
* Fire rated LBR and CLB devices must be ordered in pairs for the vertical rod devices or can be used in conjunction with an approved automatic or constant latching flush bolt. When ordering pairs, specify one device LBR and second device LBR with fire bolt, for example: 4501 LBR Fire 36" x 84" plus 4501 LBR Fire 36" x 84" EO with bolt -OR- 4501 LBR Fire 36" x 84" plus an approved automatic or constant latching flush bolt. Add $50.35 to list price for firebolt kit.
4500 SERIES TRIM HOW TO ORDER
PT - Thumbpiece Entrance (Not available for CVR device) Function 05, key locks or unlocks thumbpiece
••• Not availabe on Mortise Exit trim
Notes:
- 1. Mortise cylinder 3902 is required for use with cylinder escutcheon trim and pull plate with thumb piece trim and is sold separately.
- 2. Rim cylinder with long tailpiece 3901 is required for use with night latch trim and is sold separately.
- 3. For more cylinder information, please refer to general information in the Locks section of the catalog.
- 4. If using shim kit, specify total door thickness including shims.
- 5. For ET trim, must specify Fail Safe (EL) or Fail Secure (EU) and 12 or 24 volt.
- 6. NEW Flat Black Finish (BHMA 693). Priced same as US10B. Extended lead times may apply.
VR - Vandal Resistant
MB - Mortise Blank Escutcheon (14)* MC - Mortise Cylinder Escutcheon (08) * MD - Mortise Dummy Trim (02) * MN - Mortise Night Latch (03) *
** Exits fordoors available. For more details, please call Hager Customer Service. Add $383.75 to 36" list price. (Requires extended lead-time).
*** Not available on Mortise devices
4600 SERIES HOW TO ORDER
4600 SERIES TRIM HOW TO ORDER
4600 SERIES TRIM
Notes:
- 1. Mortise cylinder 3902 with 3976 L cam is required for use with cylinder escutcheon trim and is sold separately.
- Rim cylinder 3901 with long tailpiece is required for use with night latch trim and is sold separately.
- For more cylinder information, please refer to general information in the Locks section of the catalog.
- 4. If using shim kit, specify total door thickness including shims.
- 5. NEW Flat Black Finish (BHMA 693). Priced same as US10B. Extended lead times may apply.
4700 SERIES HOW TO ORDER
4700 SERIES TRIM HOW TO ORDER
47 - 4700 Series, Standard Duty
Notes:
- 1. Handing is required for the 4700 Series trim.
- 2. Mortise cylinder, 3902, is sold separately.
- 3. For more cylinder information, please refer to General Information in the lock section of the catalog.
- 4. Maximum door thickness compatibility for key-in-lever (Entrance, Night Latch, and Passage) trim is 1-3/4" (44 mm)
| Description | Length | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 4501 RIM | 36" | US3 | 996.40 | 158092 | 1137.95 | 158111 | 3 |
| 4501 RIM | Exit Only | US4 | 996.40 | 158094 | 1137.95 | 158107 | |
| Grade 1 | US10 | 996.40 | 158087 | 1137.95 | 115725 | ||
| Non-Handed | US10B | 996.40 | 158088 | 1137.95 | 158103 | ||
| US26 | 996.40 | 158089 | 1137.95 | 158109 | |||
| Cylinder Dogging (specify CD), add | US26D | 961.95 | 158090 | 1101.90 | 158104 | ||
| $43.10 to list price. 3902 mortise | US32D | 996.40 | 158093 | 1137.95 | 158105 | ||
| cylinder with standard cam must be | 48" | US3 | 1031.95 | 156140 | 1181.90 | 156145 | 3 |
| ordered separately. | Exit Only | US4 | 1031.95 | 156141 | 1181.90 | 156146 | |
| Severe Windstorm Rated device, add | US10 | 1031.95 | 156138 | 1181.90 | 156142 | ||
| $53.90 to list price and specify WR. | US10B | 1031.95 | 156139 | 1181.90 | 156143 | ||
| US26 | 1031.95 | 158180 | 1181.90 | 156144 | |||
| Refer to page 4 for electric modification | US26D | 1007.00 | 156135 | 1144.80 | 154983 | ||
| pricing. | US32D | 1031.95 | 156136 | 1181.90 | 156137 | ||
|
Anti-microbial coating - add $46.65 to
list price. |
|||||||
| 4501 SVR LBR | 36" x 84" | US3 | 1468.10 | 129450 | 1591.10 | 126690 | 3 |
| list price. | |||||||
|---|---|---|---|---|---|---|---|
| 4501 SVR LBR | 36" x 84" | US3 | 1468.10 | 129450 | 1591.10 | 126690 | 3 |
| Grade 1 | Exit Only | US4 | 1468.10 | 131538 | 1591.10 | 135130 | |
| Non-Handed | US10 | 1468.10 | 130713 | 1591.10 | 144325 | ||
| US10B | 1468.10 | 127645 | 1591.10 | 126438 | |||
| Cylinder Dogging (specify CD), add | US26 | 1468.10 | - | 1591.10 | 146277 | ||
| $43.10 to list price. 3902 mortise | US26D | 1355.75 | 124387 | 1487.75 | 124389 | ||
| cylinder with standard cam must be | US32D | 1468.10 | 124388 | 1591.10 | 170442 | ||
| ordered separately. | 36" x 96" | US3 | 1522.70 | - | 1662.65 | - | 3 |
| Fire rated LBR devices must be ordered | Exit Only | US4 | 1522.70 | 152521 | 1662.65 | 173396 | |
| in pairs of less bottom rod vertical rod | US10 | 1522.70 | - | 1662.65 | 153887 | ||
| devices and with a spring loaded fire | US10B | 1522.70 | 143515 | 1662.65 | 126441 | ||
| latch (Part # 2-649-0166 - add | US26 | 1522.70 | - | 1662.65 | 155427 | ||
| $50.35 to list price) to ensure the | US26D | 1443.20 | 127422 | 1573.60 | 133810 | ||
| device's fire rating. | US32D | 1522.70 | 133952 | 1662.65 | 124391 | ||
| 48" x 84" | US3 | 1573.60 | - | 1707.15 | 146813 | 3 | |
| Refer to page 4 for electric modification. | Exit Only | US4 | 1573.60 | 131540 | 1707.15 | 147614 | |
| US10 | 1573.60 | 148071 | 1707.15 | - | |||
| Refer to page 25 for extension rod | US10B | 1573.60 | 161824 | 1707.15 | 127646 | ||
| kits for doors over 8 feet in height. | US26 | 1573.60 | - | 1707.15 | - | ||
| Note that these are not fire rated | US26D | 1487.75 | 129506 | 1608.55 | 127252 | ||
| for the LBR. | US32D | 1573.60 | 138585 | 1707.15 | 156237 | ||
| Anti-microbial coating - add $46.65 | 48" x 96" | US3 | 1601.70 | - | 1733.10 | - | 3 |
| to list price. | Exit Only | US4 | 1601.70 | - | 1733.10 | 141078 | |
| US10 | 1601.70 | - | 1733.10 | - | |||
| US10B | 1601.70 | 173468 | 1733.10 | 137024 | |||
| US26 | 1601.70 | - | 1733.10 | - | |||
| US26D | 1573.60 | 147312 | 1662.65 | 129948 | |||
| US32D | 1601.70 | 149138 | 1733.10 | 138708 |
Exit Devices - 4500
| List Fire | Case | ||||||
|---|---|---|---|---|---|---|---|
| Description | Length | Finish | 2018 List | Stock No. | Rated | Stock No. | Qty. |
| 4501 SVR | 36" x 84" | US3 | 1468.10 | 157344 | 1591.10 | 157393 | 3 |
| Grade 1 | Exit Only | US4 | 1468.10 | 157346 | 1591.10 | 157395 | |
| Non-Handed | US10 | 1468.10 | 157398 | 1591.10 | 169257 | ||
| US10B | 1468.10 | 157341 | 1591.10 | 157422 | |||
| Cylinder Dogging (specify CD), add | US26 | 1468.10 | 157342 | 1591.10 | 158058 | ||
| $43.10 to list price. 3902 mortise | US26D | 1355.75 | 157343 | 1487.75 | 157392 | ||
| cylinder with standard cam must be | US32D | 1468.10 | 157345 | 1591.10 | 157394 | ||
| ordered separately. | 36" x 96" | US3 | 1522.70 | 157400 | 1662.65 | 157426 | 3 |
| Severe Windstorm Rated device, add | Exit Only | US4 | 1522.70 | 157401 | 1662.65 | 158068 | |
| $53.90 to list price and specify WR. | US10 | 1522.70 | 157548 | 1662.65 | 158064 | ||
| US10B | 1522.70 | 157399 | 1662.65 | 157424 | |||
| Refer to page 4 for electric modification. | US26 | 1522.70 | 157568 | 1662.65 | 157425 | ||
| US26D | 1443.20 | 157390 | 1573.60 | 157396 | |||
| Refer to page 25 for extension rod kits | US32D | 1522.70 | 157391 | 1662.65 | 157397 | ||
| for doors over 8 feet in height. | 36" x 120" | US3 | 1744.80 | 157419 | 3 | ||
| Exit Only | US4 | 1744.80 | 157421 | ||||
| Anti-microbial coating - add $46.65 to | US10 | 1744.80 | 157402 | ||||
| list price. | US10B | 1744.80 | 157887 | ||||
| US26 | 1744.80 | 157417 | |||||
| US26D | 1625.00 | 157418 | |||||
| US32D | 1744.80 | 157420 | |||||
| 48" x 84" | US3 | 1573.60 | 157895 | 1707.15 | 156229 | 3 | |
| Exit Only | US4 | 1573.60 | 156152 | 1707.15 | 158070 | ||
| US10 | 1573.60 | 157734 | 1707.15 | 158070 | |||
| US10B | 1573.60 | 156149 | 1707.15 | 154982 | |||
| US26 | 1573.60 | 156150 | 1707.15 | 156227 | |||
| US26D | 1487.75 | 156147 | 1608.55 | 156148 | |||
| US32D | 1573.60 | 156151 | 1707.15 | 156230 | |||
| 48" x 96" | US3 | 1601.70 | 157901 | 1733.10 | 158076 | 3 | |
| Exit Only | US4 | 1601.70 | 157906 | 1733.10 | 156235 | ||
| US10 | 1601.70 | 157899 | 1733.10 | 158075 | |||
| US10B | 1601.70 | 157900 | 1733.10 | 156231 | |||
| US26 | 1601.70 | 156153 | 1733.10 | 156232 | |||
| US26D | 1573.60 | 156154 | 1662.65 | 156233 | |||
| US32D | 1601.70 | 157905 | 1733.10 | 156234 | |||
| 48" x 120" | US3 | 1818.45 | 156224 | 3 | |||
| Exit Only | US4 | 1818.45 | 156226 | ||||
| US10 | 1818.45 | 156155 | |||||
| US10B | 1818.45 | 156156 | |||||
| US26 | 1818.45 | 156157 | |||||
| US26D | 1692.85 | 158069 | |||||
| US32D | 1818.45 | 156225 |
| List Fire | Case | ||||||
|---|---|---|---|---|---|---|---|
| Description | Length | Finish | 2018 List | Stock No. | Rated | Stock No. | Qty. |
| 4501 CVR | 36" x 84" | US3 | 1845.50 | 149481 | 2068.10 | 149489 | 3 |
| Grade 1 - for wood or metal doors | Exit Only | US4 | 1845.50 | 149482 | 2068.10 | 149512 | |
| Non-Handed | US10 | 1845.50 | 149484 | 2068.10 | 150548 | ||
| US10B | 1845.50 | 149310 | 2068.10 | 150549 | |||
| Cylinder Dogging (specify CD), add | US26 | 1845.50 | 149485 | 2068.10 | 150550 | ||
| $43.10 to list price. 3902 mortise | US26D | 1845.50 | 149305 | 2068.10 | 173051 | ||
| cylinder with standard cam must be | US32D | 1845.50 | 149312 | 2068.10 | 149313 | ||
| ordered separately. | 36" x 96" | US3 | 1884.70 | 150573 | 2107.30 | 150763 | 3 |
| Refer to page 4 for electric modification | Exit Only | US4 | 1884.70 | 150574 | 2107.30 | 149314 | |
| pricing. | US10 | 1884.70 | 150758 | 2107.30 | 150764 | ||
| US10B | 1884.70 | 151032 | 2107.30 | 149315 | |||
| Refer to page 25 for extension rod kits | US26 | 1884.70 | 150760 | 2107.30 | 150765 | ||
| for doors over 8 feet in height. | US26D | 1884.70 | 150761 | 2107.30 | 149316 | ||
| US32D | 1884.70 | 150762 | 2107.30 | 149317 | |||
| Anti-microbial coating - add $46.65 to | 48" x 84" | US3 | 1920.75 | 168177 | 2143.35 | 150783 | 3 |
| list price. | Exit Only | US4 | 1920.75 | 168179 | 2143.35 | 150784 | |
| US10 | 1920.75 | 168173 | 2143.35 | 150785 | |||
| US10B | 1920.75 | 168174 | 2143.35 | 150786 | |||
| US26 | 1920.75 | 168175 | 2143.35 | 150787 | |||
| US26D | 1920.75 | 168176 | 2143.35 | 150788 | |||
| US32D | 1920.75 | 168178 | 2143.35 | 156236 | |||
| 48" x 96" | US3 | 1959.95 | 168182 | 2182.55 | 150796 | 3 | |
| Exit Only | US4 | 1959.95 | 168184 | 2182.55 | 150797 | ||
| US10 | 1959.95 | 168180 | 2182.55 | 150798 | |||
| US10B | 1959.95 | 168172 | 2182.55 | 150799 | |||
| US26 | 1959.95 | 168181 | 2182.55 | 150800 | |||
| US26D | 1959.95 | 168167 | 2182.55 | 150801 | |||
| US32D | 1959.95 | 168183 | 2182.55 | 150802 |
| Description | Length | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 4501 CLB | 36" x 84" | US3 | 1845.80 | - | 2068.10 | - | 3 |
| Grade 1 - for wood or metal doors | Exit Only | US4 | 1845.80 | - | 2068.10 | - | |
| Non-Handed | US10 | 1845.80 | - | 2068.10 | - | ||
| US10B | 1845.80 | 161859 | 2068.10 | - | |||
| Cylinder Dogging (specify CD), add | US26 | 1845.80 | - | 2068.10 | - | ||
| $43.10 to list price. 3902 mortise | US26D | 1845.80 | 161858 | 2068.10 | 161863 | ||
| cylinder with standard cam must be | US32D | 1845.80 | 161854 | 2068.10 | 161871 | ||
| ordered separately. | 36" x 96" | US3 | 1884.70 | - | 2107.30 | - | 3 |
| Fire rated LBR devices must be ordered | Exit Only | US4 | 1884.70 | - | 2107.30 | - | |
| in pairs of less bottom rod vertical rod | US10 | 1884.70 | - | 2107.30 | - | ||
| devices and with a spring loaded fire | US10B | 1884.70 | - | 2107.30 | 161874 | ||
| bolt (Part # 2-649-0166, add $50.35 | US26 | 1884.70 | - | 2107.30 | - | ||
| to list price) to ensure the device's fire | US26D | 1884.70 | 161872 | 2107.30 | 161875 | ||
| rating. | US32D | 1884.70 | 161873 | 2107.30 | 161876 | ||
| 48" x 84" | US3 | 1920.75 | - | 2143.35 | - | 3 | |
| Refer to page 4 for electric modification | Exit Only | US4 | 1920.75 | - | 2143.35 | - | |
| pricing. | US10 | 1920.75 | - | 2143.35 | - | ||
| US10B | 1920.75 | 169856 | 2143.35 | - | |||
| Refer to page 25 for extension rod kits | US26 | 1920.75 | - | 2143.35 | - | ||
| for doors over 8 feet in height | US26D | 1920.75 | 161877 | 2143.35 | 173691 | ||
| Anti-microbial coating - add $46.65 to | US32D | 1920.75 | - | 2143.35 | 161879 | ||
| list price. | 48" x 96" | US3 | 1959.95 | - | 2182.55 | - | 3 |
| Exit Only | US4 | 1959.95 | - | 2182.55 | - | ||
| US10 | 1959.95 | - | 2182.55 | - | |||
| US10B | 1959.95 | - | 2182.55 | - | |||
| US26 | 1959.95 | - | 2182.55 | - | |||
| US26D | 1959.95 | - | 2182.55 | - | |||
| US32D | 1959.95 | 161881 | 2182.55 | - |
Mortise Lock Exit Devices
Grade 1 Non-Handed
Cylinder Dogging (specify CD), add $43.10 to list price. 3902 mortise cylinder with standard cam must be ordered separately.
Refer to page 4 for electric modification pricing. Anti-microbial coating - add $46.65 to list price.
| 4501 M | 36" | US3 | 1851.85 | 162895 | 2035.75 | 162900 | 3 |
|---|---|---|---|---|---|---|---|
| (Pair with MB, MC, MD trim) | Exit Only | US4 | 1851.85 | 162897 | 2035.75 | 162901 | |
| US10 | 1851.85 | 162898 | 2035.75 | 162947 | |||
| US10B | 1851.85 | 162807 | 2035.75 | 162829 | |||
| US26 | 1851.85 | 162899 | 2035.75 | 162948 | |||
| US26D | 1787.70 | 162827 | 1966.85 | 162830 | |||
| US32D | 1851.85 | 162828 | 2035.75 | 162831 | |||
| 48" | US3 | 1876.20 | 162949 | 2060.15 | 162953 | 3 | |
| Exit Only | US4 | 1876.20 | 162950 | 2060.15 | 162954 | ||
| US10 | 1876.20 | 162951 | 2060.15 | 163724 | |||
| US10B | 1876.20 | 162832 | 2060.15 | 162836 | |||
| US26 | 1876.20 | 162952 | 2060.15 | 162956 | |||
| US26D | 1812.10 | 162833 | 1989.10 | 162835 | |||
| US32D | 1876.20 | 162834 | 2060.15 | 162837 |
| Description | Length | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 4501 N | 36" | US3 | 1851.85 | - | 2035.75 | - | 3 |
| (Pair with MN trim) | Exit Only | US4 | 1851.85 | - | 2035.75 | - | |
| US10 | 1851.85 | - | 2035.75 | - | |||
| US10B | 1851.85 | 163023 | 2035.75 | 163735 | |||
| US26 | 1851.85 | - | 2035.75 | - | |||
| US26D | 1787.70 | 163737 | 1966.85 | 163544 | |||
| US32D | 1851.85 | 163736 | 2035.75 | 163524 | |||
| 48" | US3 | 1876.20 | - | 2060.15 | - | 3 | |
| Exit Only | US4 | 1876.20 | - | 2060.15 | - | ||
| US10 | 1876.20 | - | 2060.15 | - | |||
| US10B | 1876.20 | 163734 | 2060.15 | 163731 | |||
| US26 | 1876.20 | - | 2060.15 | - | |||
| US26D | 1812.10 | 163733 | 1989.10 | 163730 | |||
| US32D | 1876.20 | 163732 | 2060.15 | 163729 | |||
| 4501 D | 36" | US3 | 628.05 | 149393 | 3 | ||
| Dummy Push Pad | US10B | 628.05 | 149392 | ||||
| Non-handed | US26D | 551.20 | 149391 | ||||
| For use with 4500 and 4600 Series | US32D | 628.05 | 149390 | ||||
| Exit Devices | 48" | US3 | 652.45 | 149397 | 3 | ||
| Anti-microbial coating - add $46.65 to | US10B | 652.45 | 149396 | ||||
| list price. | US26D | 575.60 | 149395 | ||||
| US32D | 652.45 | 149394 | |||||
|
Tactile Warning - add $42.40 to list price.
Anti-microbial coating - add $46.65 to list price. |
|||||||
| Archer Lever | 14 | US3 | 508.80 | 122812 | 6 | ||
|
Always
Operable |
US4 | 508.80 | 122814 | ||||
| US10 | 508.80 | 122804 | |||||
|
US10B
US26 |
508.80
508.80 |
122806
122808 |
|||||
| US26D | 489.75 | 122810 | |||||
| US3 | 508.80 | 122796 | 6 | ||||
| August Lever | US4 | 508.80 | 122797 | ||||
| US10 | 508.80 | 122792 | |||||
| US10B | 508.80 | 122793 | |||||
| US26 | 508.80 | 122794 | |||||
| US26D | 489.75 | 122795 | |||||
| Charles Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178079 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 176196 | |||||
| Johnston Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| (must specify handling) | US4 | 508.80 | 178146 | 508.80 | - | ||
| US10 | 508.80 | 178136 | 508.80 | 178142 | |||
| US10B | 508.80 | 177946 | 508.80 | 177951 | |||
| US26 | 508.80 | 178130 | 508.80 | 178133 | |||
US26D 489.75 177384 489.75 177387
| Description | Function | Finish | 2018 List |
Stock No.
LHR |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
| Joshua Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178087 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 178084 | |||||
| Louis Lever | 14 | US3 | 508.80 | 177349 | 6 | ||
| Always | US4 | 508.80 | 177356 | ||||
| Operable | US10 | 508.80 | 177291 | ||||
| US10B | 508.80 | 177296 | |||||
| US26 | 508.80 | 177301 | |||||
| US26D | 489.75 | 177305 | |||||
| Warren Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| US4 | 508.80 | - | 508.80 | - | |||
| US10 | 508.80 | - | 508.80 | - | |||
| US10B | 508.80 | 178053 | 508.80 | 178057 | |||
| US26 | 508.80 | - | 508.80 | - | |||
| US26D | 489.75 | 178031 | 489.75 | 178048 | |||
| William Lever | US3 | 508.80 | 165845 | 6 | |||
| US4 | 508.80 | 165846 | |||||
| US10 | 508.80 | 165841 | |||||
| US10B | 508.80 | 165842 | |||||
| US26 | 508.80 | 165843 | |||||
| US26D | 489.75 | 165844 | |||||
| Withnell Lever | US3 | 508.80 | 122813 | 6 | |||
| US4 | 508.80 | 122815 | |||||
| US10 | 508.80 | 122805 | |||||
| US10B | 508.80 | 122807 | |||||
| US26 | 508.80 | 122809 | |||||
| US26D | 489.75 | 122811 |
| Description | Function | Finish | 2018 List | Stock No. | Qty. |
|---|---|---|---|---|---|
|
45MB
Blank Escutcheon for use with 4501M Mortise Lock Exit Device Mortise trim does not match centerline of other 4500 Series trim Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. |
|||||
| Archer Lever | 14 Always | US3 | 508.80 | 163557 | 6 |
| Operable | US4 | 508.80 | 163596 | ||
| US10 | 508.80 | 163600 | |||
| US10B | 508.80 | 163696 | |||
| US26 | 508.80 | 163699 | |||
| US26D | 489.75 | 163559 | |||
| August Lever | US3 | 508.80 | 163593 | 6 | |
| US4 | 508.80 | 163597 | |||
| US10 | 508.80 | 163601 | |||
| US10B | 508.80 | 163697 | |||
| US26 | 508.80 | 163700 |
US26D 489.75 163560
Stock No.
Case
| Case | |||||
|---|---|---|---|---|---|
| Description | Function | Finish | 2018 List | Stock No. | Qty. |
| William Lever | US3 | 508.80 | 163594 | 6 | |
| US4 | 508.80 | 163598 | |||
| US10 | 508.80 | 163602 | |||
| US10B | 508.80 | 163698 | |||
| US26 | 508.80 | 163701 | |||
| US26D | 489.75 | 163624 | |||
| Withnell Lever | US3 | 508.80 | 163595 | 6 | |
| US4 | 508.80 | 163599 | |||
| US10 | 508.80 | 163695 | |||
| US10B | 508.80 | 163558 | |||
| US26 | 508.80 | 163702 | |||
| US26D | 489.75 | 163561 |
| Description | Function | Finish | 2018 List | LHR | RHR | Qty. | |
|---|---|---|---|---|---|---|---|
|
45CE
Cylinder Escutcheon Requires a 3902 mortise cylinder (with standard cam) sold separately Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. Refer to page 4 for electric modification pricing. |
|||||||
| Archer Lever | 08 | US3 | 508.80 | 122824 | 6 | ||
| Key locks or | US4 | 508.80 | 122826 | ||||
| unlocks lever | US10 | 508.80 | 122816 | ||||
| US10B | 508.80 | 122818 | |||||
| US26 | 508.80 | 122820 | |||||
| US26D | 489.75 | 122822 | |||||
| August Lever | US3 | 508.80 | 122802 | 6 | |||
| US4 | 508.80 | 122803 | |||||
| US10 | 508.80 | 122798 | |||||
| US10B | 508.80 | 122799 | |||||
| US26 | 508.80 | 122800 | |||||
| US26D | 489.75 | 122801 | |||||
| Charles Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178080 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 176193 | |||||
| Johnston Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| (must specify handling) | US4 | 508.80 | 178147 | 508.80 | - | ||
| US10 | 508.80 | 178137 | 508.80 | 178143 | |||
| US10B | 508.80 | 177948 | 508.80 | 177952 | |||
US26 508.80 178131 508.80 178134 US26D 489.75 177385 489.75 177386
Stock No.
| Description | Function | Finish | 2018 List |
Stock No.
LHR |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
| Joshua Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178088 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 178085 | |||||
| Louis Lever | 08 | US3 | 508.80 | 177350 | 6 | ||
| Key locks or | US4 | 508.80 | 177357 | ||||
| unlocks lever | US10 | 508.80 | 177292 | ||||
| US10B | 508.80 | 177298 | |||||
| US26 | 508.80 | 177302 | |||||
| US26D | 489.75 | 177306 | |||||
| Warren Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| US4 | 508.80 | - | 508.80 | - | |||
| US10 | 508.80 | - | 508.80 | - | |||
| US10B | 508.80 | 178054 | 508.80 | 178058 | |||
| US26 | 508.80 | - | 508.80 | - | |||
| US26D | 489.75 | 178032 | 489.75 | 178049 | |||
| William Lever | US3 | 508.80 | 159126 | 6 | |||
| US4 | 508.80 | 159127 | |||||
| US10 | 508.80 | 159128 | |||||
| US10B | 508.80 | 159121 | |||||
| US26 | 508.80 | 159129 | |||||
| US26D | 489.75 | 159109 | |||||
| Withnell Lever | US3 | 508.80 | 122825 | 6 | |||
| US4 | 508.80 | 122827 | |||||
| US10 | 508.80 | 122817 | |||||
| US10B | 508.80 | 122819 | |||||
| US26 | 508.80 | 122821 | |||||
| US26D | 489.75 | 122823 |
| Description | Function | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|---|
|
45MC
Cylinder Escutcheon for use with 4501M Mortise Lock Exit Device Mortise trim does not match centerline of other 4500 Series trim Requires a 3902 mortise cylinder (1-5/8" with standard cam) sold separately. Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. |
|||||
| Archer Lever |
08
Key locks or unlocks lever |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
163703
163708 163711 163562 163717 163523 |
6 |
| August Lever |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
163704
163709 163712 163715 163718 163564 |
6 |
| Case | |||||
|---|---|---|---|---|---|
| Description | Function | Finish | 2018 List | Stock No. | Qty. |
| William Lever | US3 | 508.80 | 163705 | 6 | |
| US4 | 508.80 | 163625 | |||
| US10 | 508.80 | 163713 | |||
| US10B | 508.80 | 163716 | |||
| US26 | 508.80 | 163719 | |||
| US26D | 489.75 | 163626 | |||
| Withnell Lever | US3 | 508.80 | 163707 | 6 | |
| US4 | 508.80 | 163710 | |||
| US10 | 508.80 | 163714 | |||
| US10B | 508.80 | 163563 | |||
| US26 | 508.80 | 163720 | |||
| US26D | 489.75 | 163565 |
| • | |||
|---|---|---|---|
| 1 | |||
| Į | |||
| I | 2 | ||
| Description | Function | Finish | 2018 List |
Stock No.
LHR |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
|
45DT
Dummy Trim Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. |
|||||||
| Archer Lever | 02 | US3 | 508.80 | 14036 | 6 | ||
|
Pull when
device is |
US4 | 508.80 | 14023 | ||||
| dogged down | US10 | 508.80 | 14049 | ||||
|
US10B
US26 |
508.80
508.80 |
14038
60033 |
|||||
| US26D | 489.75 | 60018 | |||||
| August Lever | US3 | 508.80 | 107837 | 6 | |||
| US4 | 508.80 | 107838 | |||||
| US10 | 508.80 | 107833 | |||||
| US10B | 508.80 | 107834 | |||||
| US26 | 508.80 | 107835 | |||||
| US26D | 489.75 | 107836 | |||||
| Charles Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178082 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 178078 | |||||
| Johnston Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| US4 | 508.80 | 178148 | 508.80 | - | |||
| US10 | 508.80 | 178138 | 508.80 | 178144 | |||
| US10B | 508.80 | 177949 | 508.80 | 177953 | |||
| US26 | 508.80 | 178132 | 508.80 | 178135 | |||
| US26D | 489.75 | 177937 | 489.75 | 177940 | |||
| Joshua Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178089 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 178086 |
| Stock No. | Stock No. | Case | |||||
|---|---|---|---|---|---|---|---|
| Description | Function | Finish | 2018 List | LHR | RHR | Qty. | |
| Louis Lever | 02 | US3 | 508.80 | 177354 | 6 | ||
| Pull when | US4 | 508.80 | 177358 | ||||
| device is | US10 | 508.80 | 177295 | ||||
| dogged down | US10B | 508.80 | 177299 | ||||
| US26 | 508.80 | 177303 | |||||
| US26D | 489.75 | 177307 | |||||
| Warren Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| US4 | 508.80 | - | 508.80 | - | |||
| US10 | 508.80 | - | 508.80 | - | |||
| US10B | 508.80 | 178055 | 508.80 | 178059 | |||
| US26 | 508.80 | - | 508.80 | - | |||
| US26D | 489.75 | 178046 | 489.75 | 178050 | |||
| William Lever | US3 | 508.80 | 159142 | 6 | |||
| US4 | 508.80 | 165851 | |||||
| US10 | 508.80 | 165847 | |||||
| US10B | 508.80 | 165848 | |||||
| US26 | 508.80 | 165849 | |||||
| US26D | 489.75 | 165850 | |||||
| Withnell Lever | US3 | 508.80 | 14035 | 6 | |||
| US4 | 508.80 | 14020 | |||||
| US10 | 508.80 | 14045 | |||||
| US10B | 508.80 | 14037 | |||||
| US26 | 508.80 | 60027 | |||||
| US26D | 489.75 | 60017 |
| Description | Function | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|---|
|
45MD
Dummy Trim for use with 4501M Mortise Lock Exit Device Mortise trim does not match centerline of other 4500 Series trim Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. |
|||||
| Archer Lever |
02
Pull when device is dogged down |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
-
- - - - - |
6 |
| August Lever |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
-
- - - - - |
6 |
| Case | |||||
|---|---|---|---|---|---|
| Description | Function | Finish | 2018 List | Stock No. | Qty. |
| William Lever | US3 | 508.80 | - | 6 | |
| US4 | 508.80 | - | |||
| US10 | 508.80 | - | |||
| US10B | 508.80 | - | |||
| US26 | 508.80 | - | |||
| US26D | 489.75 | - | |||
| Withnell Lever | US3 | 508.80 | - | 6 | |
| US4 | 508.80 | - | |||
| US10 | 508.80 | - | |||
| US10B | 508.80 | 163728 | |||
| US26 | 508.80 | - | |||
| US26D | 489.75 | 163727 |
| Description | Function | Finish | 2018 List |
Stock No.
LHR |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
|
45NL
Night Latch Requires a 3901 rim cylinder (with long tailpiece) sold separately. Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. Maximum door thickness compatibility is 2-1/2" (38 mm) |
|||||||
| Archer Lever |
03
Key retracts latchbolt |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
14003
13984 14015 14011 60009 60000 |
6 | ||
| August Lever |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
107844
107845 107840 107841 107842 107843 |
6 | |||
| Charles Lever |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
-
- - 178083 - 178429 |
6 | |||
| Johnston Lever |
US3
US4 US10 US10B US26 US26D |
508.80
508.80 508.80 508.80 508.80 489.75 |
-
178149 178139 177950 177955 177938 |
508.80
508.80 508.80 508.80 508.80 489.75 |
-
- 178145 177954 177956 177941 |
6 |
| Description | Function | Finish | 2018 List |
Stock No.
LHR |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
| Joshua Lever | US3 | 508.80 | - | 6 | |||
| US4 | 508.80 | - | |||||
| US10 | 508.80 | - | |||||
| US10B | 508.80 | 178092 | |||||
| US26 | 508.80 | - | |||||
| US26D | 489.75 | 178091 | |||||
| Louis Lever | 03 | US3 | 508.80 | 177355 | 6 | ||
| Key retracts | US4 | 508.80 | 177359 | ||||
| latchbolt | US10 | 508.80 | 177294 | ||||
| US10B | 508.80 | 177300 | |||||
| US26 | 508.80 | 177304 | |||||
| US26D | 489.75 | 177308 | |||||
| Warren Lever | US3 | 508.80 | - | 508.80 | - | 6 | |
| US4 | 508.80 | - | 508.80 | - | |||
| US10 | 508.80 | - | 508.80 | - | |||
| US10B | 508.80 | 178056 | 508.80 | 178060 | |||
| US26 | 508.80 | - | 508.80 | - | |||
| US26D | 489.75 | 178047 | 489.75 | 175051 | |||
| William Lever | US3 | 508.80 | 159148 | 6 | |||
| US4 | 508.80 | 159149 | |||||
| US10 | 508.80 | 159131 | |||||
| US10B | 508.80 | 159132 | |||||
| US26 | 508.80 | 159133 | |||||
| US26D | 489.75 | 159112 | |||||
| Withnell Lever | US3 | 508.80 | 13999 | 6 | |||
| US4 | 508.80 | 13980 | |||||
| US10 | 508.80 | 14012 | |||||
| US10B | 508.80 | 14007 | |||||
| US26 | 508.80 | 60008 | |||||
| US26D | 489.75 | 60001 |
| Description | Function | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|---|
| 45MN |
Night Latch for use with 4501N Moritse Lock Exit Device
Mortise trim does not match centerline of other 4500 Series trim
Requires a 3902 mortise cylinder (1-5/8" with standard cam) sold separately.
Tactile Warning - add $42.40 to list price.
Anti-microbial coating - add $46.65 to list price.
Maximum door thickness compatibility is 2-1/2" (38 mm)
| Archer Lever | 03 | US3 | 508.80 | - | 6 |
|---|---|---|---|---|---|
| Key retracts | US4 | 508.80 | - | ||
| latchbolt | US10 | 508.80 | - | ||
| US10B | 508.80 | - | |||
| US26 | 508.80 | - | |||
| US26D | 489.75 | 163538 |
| Description | Function | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|---|
| August Lever | US3 | 508.80 | - | 6 | |
| US4 | 508.80 | - | |||
| US10 | 508.80 | - | |||
| US10B | 508.80 | - | |||
| US26 | 508.80 | - | |||
| US26D | 489.75 | 163725 | |||
| William Lever | US3 | 508.80 | - | 6 | |
| US4 | 508.80 | - | |||
| US10 | 508.80 | - | |||
| US10B | 508.80 | - | |||
| US26 | 508.80 | - | |||
| US26D | 489.75 | 169861 | |||
| Withnell Lever | US3 | 508.80 | - | 6 | |
| US4 | 508.80 | - | |||
| US10 | 508.80 | - | |||
| US10B | 508.80 | - | |||
| US26 | 508.80 | - | |||
| US26D | 489.75 | 163726 | |||
| 45PD | 02 | US3 | 138.35 | 109038 | 12 |
| Pull Plate - Dummy Trim | Pull when | US4 | 138.35 | 109039 | |
| device is | US10 | 138.35 | 109040 | ||
| For use with 4500 RIM, SVR, LBR, ad | dogged | US10B | 138.35 | 109041 | |
| CLB devices. Not for CVR. | down | US26 | 138.35 | 109042 | |
| Tactile Warning - add $42.40 to | US26D | 138.35 | 109043 | ||
| list price. | US32D | 138.35 | 109044 | ||
| Anti-microbial coating - add $46.65 to | |||||
| list price. | |||||
| 45PN | 03 | US3 | 154.80 | 109048 | 12 |
| Pull Plate - Night Latch | Key | US4 | 154.80 | 109049 | |
| retracts | US10 | 154.80 | 109050 | ||
| For use with 4500 RIM, SVR, LBR, ad | latchbolt | US10B | 154.80 | 109051 | |
| CLB devices. Not for CVR. | US26 | 154.80 | 109052 | ||
| Requires a 3901 rim cylinder | US26D | 154.80 | 109053 | ||
| (sold separately) | US32D | 154.80 | 109054 | ||
| Includes retaining cup for 161 door | |||||
| prep. | |||||
| Tactile Warning - add $42.40 to | |||||
| list price. | |||||
|
Anti-microbial coating - add $46.65
to list price. |
|||||
| 45PT | 05 | US32D | 336.05 | 146142 | 6 |
| Pull Plate - Thumbpiece | Key locks | ||||
| or unlocks | |||||
| For use with 4501 Rim device | thumb | ||||
| Requires a 3902 mortise cylinder | piece | ||||
| (sold separately) | |||||
| Tactile Warning - add $42.40 to | |||||
| list price. | |||||
| Anti-microbial coating - add $46.65 | |||||
| to list price. |
4/1/2018 www.hagerco.com
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| 313SE (313SF w/Plastisol) | Dummy | US32D | 307.35 | 185346 | |
|
Anti-Vandal Pull for 4500 Rim device
Material: 11 GA stainless steel |
NL cyl. cutout
LHR |
US32D | 307.35 | 185350 | |
|
Max Projection: 1-7/8"
Size: 6-11/32 x 11" |
NL cyl. cutout
RHR |
US32D | 307.35 | 185352 | |
|
Door Thickness: 1-3/4" - 2"
Fasteners: 1/4" FPHMS with finish washers |
DUMMY |
US32D with
Plastisol |
348.40 | 185356 | |
|
Rim cylinder 3901 sold separately
Retaining cup 2-649-0137 for 161 |
NL cyl. cutout
LHR |
US32D with
Plastisol |
348.40 | 185358 | |
| prep sold separately |
NL cyl. cutout
RHR |
US32D with
Plastisol |
348.40 | 185361 | |
| 313LE (313LF w/Plastisol) | Dummy | US32D | 307.35 | 185355 | |
|
Anti-Vandal Pull w/Latchguard for 4500
Rim Device |
NL cyl. cutout
LHR |
US32D | 307.35 | 185354 | |
|
Material: 11 GA stainless steel
Max Projection: 1-7/8" Size: 6-11/32 x 11" |
NL cyl. cutout
RHR |
US32D | 307.35 | 185353 | |
|
Door Thickness: 1-3/4" - 2"
Fasteners: 1/4" FPHMS with finish |
DUMMY |
US32D with
Plastisol |
348.40 | 185357 | |
|
washers
Rim cylinder 3901 sold separately |
NL cyl. cutout
LHR |
US32D with
Plastisol |
348.40 | 185362 | |
|
Retaining cup 2-649-0137 for 161
prep sold separately |
NL cyl. cutout
RHR |
US32D with
Plastisol |
348.40 | 185363 | |
|
4915
Threshold strike for use with 4500 or 4700 Series. Optional - order separately. Not for fire-rated doors. |
Length | US32D | 24.95 | 67426 | 48 |
|
4920
Strike for use with 4500 Series or 4600 Series Rim exit device. Included with device. Not for fire-rated doors. |
US32D | 70.00 | 16208 | 24 | |
|
4920F
Fire rated strike for use with 4500 Series or 4600 Series fire rated Rim exit device. |
US32D | 97.00 | 16207 | 24 |
| Fire rated strike for use with 4500 Series or 4600 |
|---|
| Series fire rated Rim exit device. |
| Included with fire rated device. |
| 4921 | US3 | 70.00 | 102255 | 24 |
|---|---|---|---|---|
| Double door strike for 4500 Surface Vertical Rod and | US4 | 70.00 | 102256 | |
| Rim exit device. | US10 | 70.00 | 102257 | |
| Optional - order separately. | US10B | 70.00 | 102258 | |
| Not for fire-rated doors. | US26 | 70.00 | 102259 | |
| US32D | 70.00 | 102271 |
Case Qty.
Description Finish 2018 List Stock No.
| 4923F | |
|---|---|
| Fire rated top strike for use with 4500 Series Surface | |
| Vertical Rod device. Included with fire rated device. |
4924F Fire rated bottom strike for use with 4500 Series Vertical Rod device. Included with fire rated device.
| 4926 | |
|---|---|
| Cylinder Dogging Conversion Kit for | |
| panic rated 4500 device |
| Includes latch, cover and screws. | |
| US32D | 58.30 | 16201 | 12 |
US32D 44.55 16206 24
US32D 54.60 16205 24
| US3 | 45.60 | 157135 | 48 |
|---|---|---|---|
| US32D | 48.80 | 157149 | |
|---|---|---|---|
| US3 | 97.00 | 2526 | 24 |
| US4 | 97.00 | 2525 |
23
| 97.00 | 2522 |
|---|---|
| 97.00 | 2520 |
| 97.00 | 2518 |
| 97.00 | 2511 |
US10B 48.80 157146 US26 48.80 157147 US26D 48.80 157148
Exit Devices - 4500
CVR/CLB Rod Replacement Kit (top or bottom)
Includes: One (1) each 46-5/8" (1184 mm) rod, rod connector, and appropriate fasteners.
| 4930R | US3 | 82.70 | 1440 | 24 |
|---|---|---|---|---|
| Shim Kit for 4500 Rim Device | US4 | 82.70 | 1438 | |
| US10 | 82.70 | 1429 | ||
| Packaged 2 ea. 1/8" shims | US10B | 82.70 | 1428 | |
| US26 | 82.70 | 1426 | ||
| US26D | 82.70 | 1423 | ||
| US32D | 97.00 | 1421 | ||
| 4930S | US3 | 82.70 | 1412 | 24 |
| Shim Kit for 4500 Surface Vertical Rod Device | US4 | 82.70 | 1411 | |
| US10 | 82.70 | 1406 | ||
| Packaged 2 ea. 1/8" shims | US10B | 82.70 | 1404 | |
| US26 | 82.70 | 1400 | ||
| US26D | 82.70 | 1391 | ||
| US32D | 97.00 | 1388 | ||
| 4932C | US3 | 82.70 | 166447 | 20 |
| Replacement Head Cover for 4500 CVR Device | US4 | 82.70 | 166449 | |
| US10 | 82.70 | 166443 | ||
| US10B | 82.70 | 166444 | ||
| US26 | 82.70 | 166445 | ||
| US26D | 82.70 | 166446 | ||
| US32D | 97.00 | 166448 |
| Case | ||||
|---|---|---|---|---|
| Description |
Function
Finish |
2018 List | Stock No. | Qty. |
| 4932R | US3 | 82.70 | 105036 | 20 |
| Replacement Head Cover for 4500 Rim Device | US4 | 82.70 | 105037 | |
| US10 | 82.70 | 105038 | ||
| US10B | 82.70 | 105039 | ||
| US26 | 82.70 | 105040 | ||
| US26D | 82.70 | 105041 | ||
| US32D | 97.00 | 105042 | ||
| 4932S | US3 | 82.70 | 105043 | 20 |
| Replacement Head Cover for 4500 SVR Device | US4 | 82.70 | 105044 | |
| US10 | 82.70 | 105045 | ||
| US10B | 82.70 | 105046 | ||
| US26 | 82.70 | 105047 | ||
| US26D | 82.70 | 105048 | ||
| US32D | 97.00 | 105049 | ||
| 4936 | US3 | 29.15 | 129372 | 24 |
| 24" Extension Rod Kit | US4 | 29.15 | 129373 | |
| US10 | 29.15 | 129374 | ||
| Includes 24" extension rod, rod connector, rod guide, | US10B | 29.15 | 129375 | |
| and wood and machine screws. | US26 | 29.15 | 129376 | |
| US26D | 29.15 | 129377 | ||
| US32D | 29.15 | 129378 | ||
| US3 | 32.90 | 129381 | 24 | |
|
4937
36" Extension Rod Kit |
US4 | 32.90 | 129382 | |
| US10 | 32.90 | 129383 | ||
| Includes 36" extension rod, rod connector, rod guide, | US10B | 32.90 | 129384 | |
| and wood and machine screws. | US26 | 32.90 | 129385 | |
| US26D | 32.90 | 129386 | ||
| US32D | 32.90 | 129387 | ||
|
36"
4940 |
US3 | 389.55 | 137621 | 24 |
| Alarm Kit for 4500 Series | US4 | 389.55 | 137622 | |
| US10 | 389.55 | 137623 | ||
| Latchbolt monitor switch and tamper | US10B | 389.55 | 137595 | |
| switch available. See page 29. | US26 | 389.55 | 137624 | |
| US26D | 389.55 | 137596 | ||
| US32D | 389.55 | 137597 | ||
| 48" | US3 | 389.55 | 164020 | 24 |
| US4 | 389.55 | 164029 | ||
| US10 | 389.55 | 164004 | ||
| US10B | 389.55 | 164008 | ||
| US26 | 389.55 | 164012 | ||
| US26D | 389.55 | 164016 | ||
| US32D | 389.55 | 164025 |
| Description | Function | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|---|
|
4945
Top Strike Standard for 4501 CVR |
US32D | 45.05 | 150417 | ||
|
4945F
Fire Rated Top Strike for 4501 CVR |
US32D | 55.65 | 150418 | ||
|
2-649-0031
Rod Guide Replacement Pack |
US3 | 9.05 | 3478 | ||
|
2-649-0032
Rod Guide Replacement Pack |
US4 | 9.05 | 3477 | ||
|
2-649-0033
Rod Guide Replacement Pack |
US10 | 9.05 | 3476 | ||
|
2-649-0034
Rod Guide Replacement Pack |
US10B | 9.05 | 3473 | ||
|
2-649-0035
Rod Guide Replacement Pack |
US26 | 9.05 | 3467 | ||
|
2-649-0036
Rod Guide Replacement Pack |
US26D | 9.05 | 3466 | ||
|
2-649-0037
Rod Guide Replacement Pack |
US32D | 9.05 | 3464 | ||
|
2-649-0038
End Cap Replacement |
US3 | 29.15 | 3462 | ||
|
2-649-0039
End Cap Replacement |
US4 | 29.15 | 3454 | ||
|
2-649-0040
End Cap Replacement |
US10 | 29.15 | 3452 | ||
|
2-649-0041
End Cap Replacement |
US10B | 29.15 | 3435 | ||
|
2-649-0042
End Cap Replacement |
US26 | 29.15 | 3433 | ||
|
2-649-0043
End Cap Replacement |
US26D | 29.15 | 3424 | ||
|
2-649-0044
End Cap Replacement |
US32D | 29.15 | 3414 | ||
|
2-649-0218
Flush End Cap |
US3 | 33.95 | 182923 | ||
|
2-649-0220
Flush End Cap |
US4 | 33.95 | 182925 | ||
| 2-649-0214 | US10 | 33.95 | 182919 |
Flush End Cap
2-649-0215 Flush End Cap
2-649-0216 Flush End Cap
2-649-0217
www.hagerco.com
US10B 33.95 182920
US26 33.95 182921
US26D 33.95 182922
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Case | |||||
|---|---|---|---|---|---|
| Description | Function | Finish | 2018 List | Stock No. | Qty. |
|
2-649-0219
Flush End Cap |
US32D | 33.95 | 182924 | ||
| Note: All end caps come with bracket and fasteners | |||||
|
2-649-0049
Spring Cage and Handing Pin for 4500 Series Escutcheon Trim |
- | 13.80 | 3405 | ||
| US3 | 51.95 | 3333 | |||
|
2-649-0060
Top or Bottom Latch Cover Replacement Pack |
|||||
|
2-649-0061
Top or Bottom Latch Cover Replacement Pack |
US4 | 51.95 | 3306 | ||
|
2-649-0062
Top or Bottom Latch Cover Replacement Pack |
US10 | 51.95 | 3304 | ||
|
2-649-0063
Top or Bottom Latch Cover Replacement Pack |
US10B | 51.95 | 3299 | ||
|
2-649-0064
Top or Bottom Latch Cover Replacement Pack |
US26 | 51.95 | 3297 | ||
|
2-649-0065
Top or Bottom Latch Cover Replacement Pack |
US26D | 51.95 | 3296 | ||
|
2-649-0066
Top or Bottom Latch Cover Replacement Pack |
US32D | 51.95 | 3295 | ||
|
2-649-0074
SVR Screwpack - Latch, rod, rod connector, rod guide |
US3 | 7.95 | 103548 | ||
|
2-649-0075
SVR Screwpack - Latch, rod, rod connector, rod guide |
US4 | 7.95 | 103550 | ||
|
2-649-0076
SVR Screwpack - Latch, rod, rod connector, rod guide |
US10 | 7.95 | 103551 | ||
|
2-649-0077
SVR Screwpack - Latch, rod, rod connector, rod guide |
US10B | 7.95 | 103552 | ||
|
2-649-0078
SVR Screwpack - Latch, rod, rod connector, rod guide |
US26 | 7.95 | 103553 | ||
|
2-649-0079
SVR Screwpack - Latch, rod, rod connector, rod guide |
US26D | 7.95 | 103554 | ||
|
2-649-0080
SVR Screwpack - Latch, rod, rod connector, rod guide |
US32D | 7.95 | 103555 | ||
| 2-649-0081 | - | 4.80 | 103556 |
SVR Screwpack - Top and bottom strike
|
Description
Length |
Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
|
2-649-0082
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US3 | 14.35 | 103558 | |
|
2-649-0083
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US4 | 14.35 | 103559 | |
|
2-649-0084
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US10 | 14.35 | 103560 | |
|
2-649-0085
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US10B | 14.35 | 103561 | |
|
2-649-0086
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US26 | 14.35 | 103562 | |
|
2-649-0087
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US26D | 14.35 | 103563 | |
|
2-649-0088
Screwpack - Chassis, end cap, head cover, rim strike (4500 & 4600 Series) |
US32D | 14.35 | 103582 | |
|
2-649-0166
Firebolt Kit for Fire Rated 4500 Series LBR and CLB devices. Includes fire bolt, plastic plug, head cover plug, screws, and instructions. |
- | 53.55 | 124539 | |
|
Must use firebolt with fire rated pairs of less bottom rod
vertical rod devices to ensure the device's fire rating. |
||||
|
2-649-0167
LBR Replacement Head Cover Plug Shipped standard if device ordered as LBR |
- | 7.95 | 124540 | |
|
2-649-0168
Latchbolt Monitor Switch for 4940 and 4941 Alarm Kits |
- | 133.60 | 124228 | |
| 2-649-0177 | US3 | 7.95 | 129398 |
|
2-649-0168
Latchbolt Monitor Switch for 4940 and 4941 Alarm Kits |
- | 133.60 | 124228 | |
|---|---|---|---|---|
|
2-649-0177
Rod to Rod Connector |
US3 | 7.95 | 129398 | |
|
2-649-0178
Rod to Rod Connector |
US4 | 7.95 | 129399 | |
|
2-649-0179
Rod to Rod Connector |
US10 | 7.95 | 129400 | |
|
2-649-0180
Rod to Rod Connector |
US10B | 7.95 | 129401 | |
|
2-649-0181
Rod to Rod Connector |
US26 | 7.95 | 129402 | |
|
2-649-0182
Rod to Rod Connector |
US26D | 7.95 | 129403 | |
|
2-649-0183
Rod to Rod Connector |
US32D | 7.95 | 129404 |
| 2 |
|---|
| ( ) |
| V |
|
Description
2-649-0406 45PN/47PN Clylinder Cup Spacer |
Finish
- |
2018 List
8.50 |
Stock No.
182414 |
Case
Qty. |
|---|---|---|---|---|
|
2-649-1074
Hex Key for Dogging 5/32" 10 pack |
- | 5.85 | 122690 | |
|
2-649-1090
Tamper Switch for 4940 and 4941 alarm kits |
- | 133.60 | 137590 | |
|
2-649-1108
4501 CVR Top Latch Assembly Replacement Kit |
- | 80.60 | 150415 |
2-649-1109 - 80.60 150416
|
2-649-0205
4500 Series Mortise Exit Strike |
US10B | 24.40 | 174903 | |
|---|---|---|---|---|
|
2-649-0204
4500 Series Mortise Exit Strike |
US26D | 24.40 | 174902 | |
|
2-649-0203
4500 Series Mortise Exit Strike |
US32D | 24.40 | 174901 | |
|
2-649-0208
4500 Series Fire Rated Mortise Exit Strike |
US10B | 24.40 | 174906 |
US26D 24.40 174905
US32D 24.40 174904
300.00 185792
|
2-649-0250
4500/4600 Series 36" Photoluminescent Push Bar |
250.00 | 185696 |
2-649-0257 4500/4600 Series 48" Photoluminescent Push Bar
4500 Series Fire Rated Mortise Exit Strike
4500 Series Fire Rated Mortise Exit Strike
2-649-0207
2-649-0206
4501 CVR Bottom Latch Assembly Replacement Kit
| Description | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
| 4601 RIM | 36" | US3 | 1386.50 | 158394 | 1550.25 | 139568 | 3 |
| Narrow Stile Rim | Exit Only | US4 | 1386.50 | 158396 | 1550.25 | 139569 | |
| Grade 1 | US10 | 1386.50 | 158388 | 1550.25 | 139570 | ||
| Non-Handed | US10B | 1386.50 | 158343 | 1550.25 | 139571 | ||
| US26 | 1386.50 | 158390 | 1550.25 | 139572 | |||
| For cylinder dogging (specify CD), add | US26D | 1269.90 | 158324 | 1422.00 | 139573 | ||
| $43.10 to the list price. 3902 mortise | US32D | 1386.50 | 158344 | 1550.25 | 139574 | ||
| cylinder with standard cam must be | 48" | US3 | 1427.85 | 158401 | 1594.80 | 139592 | 3 |
| ordered separately. | Exit Only | US4 | 1427.85 | 158402 | 1594.80 | 139593 | |
| Refer to page 4 for electric modification | US10 | 1427.85 | 158397 | 1594.80 | 139594 | ||
| pricing. | US10B | 1427.85 | 158398 | 1594.80 | 139595 | ||
| US26 | 1427.85 | 158399 | 1594.80 | 139596 | |||
| Anti-microbial coating - add $46.65 to | US26D | 1307.00 | 156239 | 1466.00 | 139597 | ||
| list price. | US32D | 1427.85 | 156240 | 1594.80 | 139599 |
46BE
Blank Escutcheon
Tactile Warning - add $42.40 to list price.
Anti-microbial coating - add $46.65 to list price.
| Archer Lever | 14 Always | US3 | 508.80 | 171112 | 6 |
|---|---|---|---|---|---|
| Operable | US4 | 508.80 | 171116 | ||
| US10 | 508.80 | 170816 | |||
| US10B | 508.80 | 171033 | |||
| US26 | 508.80 | 171089 | |||
| US26D | 489.75 | 171090 | |||
| August Lever | US3 | 508.80 | 171114 | 6 | |
| US4 | 508.80 | 171118 | |||
| US10 | 508.80 | 170825 | |||
| US10B | 508.80 | 171084 | |||
| US26 | 508.80 | 171088 | |||
| US26D | 489.75 | 171096 | |||
| William Lever | US3 | 508.80 | 171113 | 6 | |
| US4 | 508.80 | 171117 | |||
| US10 | 508.80 | 170819 | |||
| US10B | 508.80 | 171083 | |||
| US26 | 508.80 | 171087 | |||
| US26D | 489.75 | 171071 | |||
| Withnell Lever | US3 | 508.80 | 171115 | 6 | |
| US4 | 508.80 | 171119 | |||
| US10 | 508.80 | 171032 | |||
| US10B | 508.80 | 171085 | |||
| US26 | 508.80 | 171089 | |||
| US26D | 489.75 | 171097 |
Case Qty.
|
46CE
Cylinder Escutcheon Requires a 3902 mortise cylinder (with 3976 L cam) sold separately. Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. |
||||||
|---|---|---|---|---|---|---|
| Archer Lever |
08
Key locks or |
US3
US4 |
508.80
508.80 |
171510
171514 |
6 |
unlocks lever
US10 508.80 171479 US10B 508.80 171483 US26 508.80 171504 US26D 489.75 171508
US4 508.80 171516 US10 508.80 171481 US10B 508.80 171503 US26 508.80 171506 US26D 489.75 171212
US4 508.80 171515 US10 508.80 171480 US10B 508.80 171484
Description Finish 2018 List Stock No.
| f | í | |
|---|---|---|
| ı | l | |
| ı | l | |
| ı | l | |
| US26 | 508.80 | 171506 | |||
|---|---|---|---|---|---|
| US26D | 489.75 | 171211 | |||
| Withnell Lever | US3 | 508.80 | 171513 | 6 | |
| US4 | 508.80 | 171518 | |||
| US10 | 508.80 | 171482 | |||
| US10B | 508.80 | 171129 | |||
| US26 | 508.80 | 171507 | |||
| US26D | 489.75 | 171509 | |||
|
46DT
Dummy Trim Tactile Warning - add $42.40 to list price. Anti-microbial coating - add $46.65 to list price. |
|||||
| Archer Lever | 02 | US3 | 508.80 | 171292 | 6 |
| Pull when | US4 | 508.80 | 171296 | ||
| device is | US10 | 508.80 | 171223 | ||
| dogged down | US10B | 508.80 | 171228 | ||
| US26 | 508.80 | 171234 | |||
| US26D | 489.75 | 171283 |
August Lever US3 508.80 171294 6
William Lever US3 508.80 171293 6
US4 508.80 171298 US10 508.80 171226 US10B 508.80 171232 US26 508.80 171281 US26D 489.75 171285
US4 508.80 171297 US10 508.80 171224 US10B 508.80 171375 US26 508.80 171280 US26D 489.75 171376
August Lever US3 508.80 171512 6
William Lever US3 508.80 171511 6
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
| Withnell Lever | US3 | 508.80 | 171295 | 6 |
| US4 | 508.80 | 171412 | ||
| US10 | 508.80 | 171227 | ||
| US10B | 508.80 | 171233 | ||
| US26 | 508.80 | 171282 | ||
| US26D | 489.75 | 171287 |
46NK
Night Lever Escutcheon
Requires a 3902 mortise cylinder (with 3976 L cam) sold separately.
Tactile Warning - add $42.40 to list price.
Anti-microbial coating - add $46.65 to list price.
| 09 | US3 | 508.80 | 172076 | 6 | |
|---|---|---|---|---|---|
| Archer Lever | Key releases | US4 | 508.80 | 172079 | |
| lever, lever | US10 | 508.80 | 171546 | ||
| locked when | US10B | 508.80 | 171550 | ||
| key removed | US26 | 508.80 | 171554 | ||
| US26D | 489.75 | 171558 | |||
| August Lever | US3 | 508.80 | 172077 | 6 | |
| US4 | 508.80 | 172080 | |||
| US10 | 508.80 | 171548 | |||
| US10B | 508.80 | 171552 | |||
| US26 | 508.80 | 171556 | |||
| US26D | 489.75 | 171560 | |||
| William Lever | US3 | 508.80 | 172083 | 6 | |
| US4 | 508.80 | 172082 | |||
| US10 | 508.80 | 171547 | |||
| US10B | 508.80 | 17551 | |||
| US26 | 508.80 | 171555 | |||
| US26D | 489.75 | 171559 | |||
| Withnell Lever | US3 | 508.80 | 172078 | 6 | |
| US4 | 508.80 | 172081 | |||
| US10 | 508.80 | 171549 | |||
| US10B | 508.80 | 171553 | |||
| US26 | 508.80 | 171557 | |||
| US26D | 489.75 | 171561 |
46NL
Night Latch
Requires a 3901 rim cylinder (with long tailpiece) sold separately.
Maximum door thickness compatibility is 2-1/2" (38mm).
Tactile Warning - add $42.40 to list price.
Anti-microbial coating - add $46.65 to list price.
| Archer Lever | 03 | US3 | 508.80 | 171538 | 6 |
|---|---|---|---|---|---|
| Key retracts | US4 | 508.80 | 171542 | ||
| latchbolt | US10 | 508.80 | 171523 | ||
| US10B | 508.80 | 171527 | |||
| US26 | 508.80 | 171531 | |||
| US26D | 489.75 | 171534 |
33
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
| August Lever | US3 | 508.80 | 171540 | 6 |
| US4 | 508.80 | 171544 | ||
| US10 | 508.80 | 171525 | ||
| US10B | 508.80 | 171529 | ||
| US26 | 508.80 | 171533 | ||
| US26D | 489.75 | 171536 | ||
| William Lever | US3 | 508.80 | 171539 | 6 |
| US4 | 508.80 | 171543 | ||
| US10 | 508.80 | 171524 | ||
| US10B | 508.80 | 171528 | ||
| US26 | 508.80 | 171532 | ||
| US26D | 489.75 | 171535 | ||
| Withnell Lever | US3 | 508.80 | 171541 | 6 |
| US4 | 508.80 | 171545 | ||
| US10 | 508.80 | 171526 | ||
| US10B | 508.80 | 171530 | ||
| US26 | 508.80 | 171424 | ||
| US26D | 489.75 | 171537 | ||
| 4920 | US32D | 70.00 | 16208 | 24 |
|
Strike for use with 4500 or 4600 Series Rim Exit
Device. |
Optional - order separately
4920F
Fire rated strike for use with 4500 or 4600 Series Fire Rated Rim Exit Device.
Included standard with fire rated device.
| 4925R | 36" | US3 | 42.40 | 157187 | 48 |
|---|---|---|---|---|---|
| Cylinder Dogging Conversion Kit for | US4 | 42.40 | 157191 | ||
| Panic Rated 4600 Series Rim Device. | US10 | 42.40 | 157192 | ||
| US10B | 42.40 | 157193 | |||
| Requires a 3902 mortise cylinder (with | US26 | 42.40 | 157194 | ||
| standard cam) sold separately. | US26D | 42.40 | 157195 | ||
| US32D | 42.40 | 157196 | |||
| 48" | US3 | 44.55 | 157197 | 36 | |
| US4 | 44.55 | 157198 | |||
| US10 | 44.55 | 157199 | |||
| US10B | 44.55 | 157200 | |||
| US26 | 44.55 | 157201 | |||
| US26D | 44.55 | 157202 | |||
| US32D | 44.55 | 157203 |
US32D 97.00 16207 24
Exit Devices - 4600
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| 4941R | 36" | US3 | 354.05 | 147106 | |
| Alarm Kit for 4600 Series Rim Device | US4 | 354.05 | 147107 | ||
| US10 | 354.05 | 147108 | |||
| Latchbolt monitor switch and tamper | US10B | 354.05 | 167348 | ||
| switch available. | US26 | 354.05 | 147110 | ||
| US26D | 354.05 | 167349 | |||
| US32D | 354.05 | 167464 | |||
| 48" | US3 | 354.05 | 147140 | ||
| US4 | 354.05 | 147146 | |||
| US10 | 354.05 | 147147 | |||
| US10B | 354.05 | 167468 | |||
| US26 | 354.05 | 147149 | |||
| US26D | 354.05 | 147150 | |||
| US32D | 354.05 | 167467 | |||
| 4950 | US32D | 70.00 | 139746 | 24 | |
US32D 70.00 139748 24
US32D 70.00 139747 24
Blade stop strike for use with 4600 Series Rim Exit Device.
Included standard with panic rated device.
4951
Single rabbet strike for use with 4600 Series Rim Exit Device Optional - order separately
4952
Semi-flush mount strike for use with 4600 Series Rim Exit Device Optional - order separately
| 4960R | US3 | 75.30 | 139716 | 24 |
|---|---|---|---|---|
| Shim Kit for 4600 Series Rim Exit Device | US4 | 75.30 | 139717 | |
| US10 | 75.30 | 139718 | ||
| Packaged 2 each 1/8" shims | US10B | 75.30 | 139719 | |
| US26 | 75.30 | 139720 | ||
| US26D | 75.30 | 139721 | ||
| US32D | 88.55 | 139722 |
| Case | ||||
|---|---|---|---|---|
|
Description
Length |
Finish | 2018 List | Stock No. | Qty. |
| 4965R | US3 | 75.30 | 139700 | 20 |
| US4 | 75.30 | 139707 | ||
| US10 | 75.30 | 139708 | ||
| US10B | 75.30 | 139709 | ||
| US26 | 75.30 | 139710 | ||
|
US26D
US32D |
75.30
88.55 |
139711
139712 |
||
| 2-649-0038 | US3 | 29.15 | 3462 | |
| End Cap Replacement Pack | ||||
| 2-649-0039 | US4 | 29.15 | 3454 | |
| End Cap Replacement Pack | ||||
| 2-649-0040 | US10 | 29.15 | 3452 | |
| End Cap Replacement Pack | ||||
| US10B | 29.15 | 3435 | ||
|
2-649-0041
End Cap Replacement Pack |
||||
| US26 | 29.15 | 3433 | ||
|
2-649-0042
End Cap Replacement Pack |
||||
| US26D | 29.15 | 3424 | ||
|
2-649-0043
End Cap Replacement Pack |
||||
| 2-649-0044 | US32D | 29.15 | 3414 | |
| End Cap Replacement Pack | ||||
| 2-649-0218 | US3 | 33.95 | 182923 | |
| Flush End Cap | ||||
| 2-649-0220 | US4 | 33.95 | 182925 | |
| Flush End Cap | ||||
| US10 | 33.95 | 182919 | ||
|
2-649-0214
Flush End Cap |
||||
|
2-649-0215
Flush End Cap |
US10B | 33.95 | 182920 | |
| 2-649-0216 | US26 | 33.95 | 182921 | |
| Flush End Cap | ||||
| 2-649-0217 | US26D | 33.95 | 182922 | |
| Flush End Cap | ||||
|
2-649-0219
Flush End Cap |
US32D | 33.95 | 182924 | |
| Note: All end caps come with bracket and fasteners | ||||
| - | 133.60 | 124228 | ||
|
2-649-0168
Latchbolt Monitor Switch for 4940 and 4941 Alarm Kits |
||||
| 2-649-1074 | - | 5.30 | 122690 | |
| Hex Key for Dogging 5/32" | ||||
| 10 pack | ||||
| 2-649-1090 | - | 133.60 | 137590 | |
| Tamper Switch for 4940 and 4941 Alarm Kits |
Tamper Switch for 4940 and 4941 Alarm Kits
| Description | Function | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 4701 RIM | 36" Exit Only | ALM | 303.20 | 118164 | 416.60 | 115718 | 3 |
| Standard Duty | DBZ | 303.20 | 118165 | 416.60 | 115738 | ||
| Non-Handed | US3 | 510.95 | 118162 | 627.55 | 115737 | ||
| US32D | 510.95 | 118163 | 627.55 | 115717 | |||
| 48" Exit Only | ALM | 341.35 | 118168 | 456.35 | 115720 | 3 | |
| DBZ | 341.35 | 118169 | 456.35 | 115740 | |||
| US3 | 549.10 | 118166 | 664.10 | 115739 | |||
| US32D | 549.10 | 118167 | 664.10 | 115719 | |||
| 4701 SVR | 36" x 84" | ALM | 492.90 | 118204 | 681.05 | 118190 | 3 |
| Standard Duty | Exit Only | DBZ | 492.90 | 118205 | 681.05 | 118191 | |
| Non-Handed | US3 | 701.75 | 118170 | 890.40 | 118188 | ||
| US32D | 701.75 | 118171 | 890.40 | 118189 | |||
| SVR panic devices available on 10' | 36" x 96" | ALM | 532.15 | 118176 | 720.30 | 118194 | 3 |
| openings. Order extension rod kits | Exit Only | DBZ | 532.15 | 118177 | 720.30 | 118195 | |
| separately. | US3 | 738.30 | 118174 | 928.60 | 118192 | ||
| US32D | 738.30 | 118175 | 928.60 | 118193 | |||
| 48" x 84" | ALM | 549.10 | 118181 | 738.30 | 118198 | 3 | |
| Exit Only | DBZ | 549.10 | 118182 | 738.30 | 118199 | ||
| US3 | 743.10 | 118178 | 946.05 | 118196 | |||
| US32D | 743.10 | 118180 | 946.05 | 118197 | |||
| 48" x 96" | ALM | 568.20 | 118185 | 757.90 | 118202 | 3 | |
| Exit Only | DBZ | 568.20 | 118186 | 757.90 | 118203 | ||
| US3 | 777.55 | 118183 | 967.25 | 118200 | |||
| US32D | 777.55 | 118184 | 967.25 | 118201 |
Stock No. RHR
Case
Qty.
Stock No.
LHR
2018 List
47BE
Blank Escutcheon
Description
Must specify handing
Steel body, zinc lever (US32D has stainess steel cover).
For doors thicker than 1-3/4" or when used with a shim kit, specify total door thickness.
Function
Tactile Warning - add $42.40 to list price of item.
| Archer Lever | 14 | ALM | 241.15 | 92763 | 241.15 | 92825 | 6 |
|---|---|---|---|---|---|---|---|
| Always | DBZ | 241.15 | 92760 | 241.15 | 92774 | ||
| Operable | US3 | 263.45 | 92764 | 263.45 | 92846 | ||
| US32D | 263.45 | 92772 | 263.45 | 92889 | |||
| August Lever | ALM | 241.15 | 107647 | 241.15 | 107648 | 6 | |
| - | DBZ | 241.15 | 107650 | 241.15 | 107649 | ||
| US3 | 263.45 | 107640 | 263.45 | 107643 | |||
| US32D | 263.45 | 107645 | 263.45 | 107646 | |||
| Withnell Lever | ALM | 241.15 | 92917 | 241.15 | 93139 | 6 | |
| DBZ | 241.15 | 92906 | 241.15 | 93083 | |||
| US3 | 263.45 | 92918 | 263.45 | 93173 | |||
| US32D | 263.45 | 92919 | 263.45 | 93199 |
| Stock No. | Stock No. | Case | ||||
|---|---|---|---|---|---|---|
| Description | Function | Finish | 2018 List | LHR | RHR | Qty. |
| 47CE |
Cylinder Escutcheon
Must specify handing
Requires a 3902 mortise cylinder (with standard cam) sold separately.
Steel body, zinc lever (US32D has stainess steel cover).
For doors thicker than 1-3/4" or when used with a shim kit, specify total door thickness.
Tactile Warning - add $42.40 to list price of item.
| Archer Lever |
08
Key locks or |
ALM
DBZ |
241.15 241.15 |
93208
93206 |
241.15 241.15 |
93829
93819 |
6 |
|---|---|---|---|---|---|---|---|
| unlocks lever | US3 | 263.45 | 93219 | 263.45 | 93903 | ||
| US32D | 263.45 | 93220 | 263.45 | 93913 | |||
| August Lever | ALM | 241.15 | 107658 | 241.15 | 107659 | 6 | |
| - | DBZ | 241.15 | 107660 | 241.15 | 107661 | ||
| US3 | 263.45 | 107652 | 263.45 | 107654 | |||
| US32D | 263.45 | 107655 | 263.45 | 107657 | |||
| Withnell Lever | ALM | 241.15 | 93778 | 241.15 | 95104 | 6 | |
| DBZ | 241.15 | 93765 | 241.15 | 95004 | |||
| US3 | 263.45 | 93786 | 263.45 | 95118 | |||
| US32D | 263.45 | 93801 | 263.45 | 95143 |
47DT
Dummy Trim
Must specify handing
Steel body, zinc lever (US32D has stainess steel cover).
For doors thicker than 1-3/4" or when used with a shim kit, specify total door thickness.
Tactile Warning - add $42.40 to list price of item.
| Description | Function | Finish |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|
| 47NL |
Night Latch
Must specify handing
Requires a 3902 mortise cylinder (sold separately) with standard cam.
Steel body, zinc lever (US32D has stainess steel cover).
For doors thicker than 1-3/4" or when used with a shim kit, specify total door thickness.
Tactile Warning - add $42.40 to list price of item.
| Archer Lever |
03
Key retracts |
ALM
DBZ |
241.15
241.15 |
92451
92397 |
241.15
241.15 |
92500
92499 |
6 |
|---|---|---|---|---|---|---|---|
| latchbolt | US3 | 263.45 | 92485 | 263.45 | 92531 | ||
| US32D | 263.45 | 92492 | 263.45 | 92532 | |||
| August Lever | ALM | 241.15 | 107803 | 241.15 | 107804 | 6 | |
| DBZ | 241.15 | 107805 | 241.15 | 107806 | |||
| US3 | 263.45 | 107799 | 263.45 | 107800 | |||
| US32D | 263.45 | 107801 | 263.45 | 807802 | |||
| Withnell Lever | ALM | 241.15 | 92575 | 241.15 | 92711 | 6 | |
| DBZ | 241.15 | 92566 | 241.15 | 92626 | |||
| US3 | 263.45 | 92576 | 263.45 | 92714 | |||
| US32D | 263.45 | 92593 | 263.45 | 92723 |
47KD
Dummy Trim
Steel body and zinc lever (US32D stainless steel rose). Tactile Warning - add $42.40 to list price of item.
| 02 | ALM | 218.40 | 109800 | 218.40 | - | 12 |
|---|---|---|---|---|---|---|
| Entrance by | DBZ | 218.40 | 109801 | 218.40 | - | |
| trim when | US3 | 241.15 | 109802 | 241.15 | - | |
| device is | US32D | 241.15 | 109803 | 241.15 | - | |
| dogged down | ||||||
| • | ALM | 218.40 | 109804 | 218.40 | - | 12 |
| DBZ | 218.40 | 109805 | 218.40 | - | ||
| US3 | 241.15 | 109806 | 241.15 | - | ||
| US32D | 241.15 | 109807 | 241.15 | - | ||
| • | ALM | 218.40 | 109808 | 218.40 | - | 12 |
| DBZ | 218.40 | 109809 | 218.40 | - | ||
| US3 | 241.15 | 109810 | 241.15 | - | ||
| US32D | 241.15 | 109811 | 241.15 | - | ||
|
Entrance by
trim when device is |
trim when US3 device is US32D dogged down ALM DBZ US3 US32D ALM DBZ US3 US32D ALM DBZ US3 | Entrance by trim when device is dogged down ALM 218.40 DBZ 241.15 ALM 218.40 US3 241.15 US32D 241.15 US32D 241.15 US32D 241.15 ALM 218.40 US3 241.15 US32D 241.15 ALM 218.40 US3 241.15 | Entrance by trim when US3 241.15 109802 device is dogged down ALM 218.40 109804 DBZ 218.40 109805 US3 241.15 109806 US32D 241.15 109807 ALM 218.40 109808 DBZ 218.40 109808 US3 241.15 109808 US3 241.15 109809 US3 241.15 109810 | Entrance by trim when US3 241.15 109801 218.40 241.15 device is dogged down ALM 218.40 109803 241.15 109803 241.15 109804 218.40 109804 218.40 109805 218.40 US3 241.15 109806 241.15 US32D 241.15 109806 241.15 US32D 241.15 109807 241.15 ALM 218.40 109808 218.40 DBZ 218.40 109809 218.40 US3 241.15 109810 241.15 | Entrance by trim when US3 241.15 109801 218.40 - device is dogged down ALM 218.40 109804 218.40 - DBZ 218.40 - DBZ 218.40 109805 218.40 - US32D 241.15 109806 241.15 - US32D 241.15 109806 241.15 - US32D 241.15 109807 241.15 - US32D 241.15 109807 241.15 - DBZ 218.40 109808 218.40 - DBZ 218.40 109809 218.40 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 109810 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 241.15 - US3 2 |
Stock No.
RHR
Case
Qty.
Stock No.
Steel body and zinc lever or knob (US32D stainless steel rose). Tactile Warning - add $42.40 to list price of item.
| Archer Lever | 08 | ALM | 241.15 | 169423 | 241.15 | 169422 | 12 |
|---|---|---|---|---|---|---|---|
| Artifer bever | Entrance by | DBZ | 241.15 | 169430 | 241.15 | 169429 | |
| trim | US3 | 263.45 | 169436 | 263.45 | 169435 | ||
|
key locks or
unlocks trim |
US32D | 263.45 | 169442 | 263.45 | 169441 | ||
| August Lever | ALM | 241.15 | 169426 | 241.15 | 169424 | 12 | |
| • | DBZ | 241.15 | 169432 | 241.15 | 169431 | ||
| US3 | 263.45 | 169438 | 263.45 | 169437 | |||
| US32D | 263.45 | 169444 | 263.45 | 169443 | |||
| Withnell Lever | ALM | 241.15 | 169428 | 241.15 | 169427 | 12 | |
| DBZ | 241.15 | 169434 | 241.15 | 169433 | |||
| US3 | 263.45 | 169440 | 263.45 | 169439 | |||
| US32D | 263.45 | 169446 | 263.45 | 169445 | |||
|
Apollo Knob
(not ADA compliant) |
US32D | 263.45 | 149372 | 263.45 | 169447 | 12 |
47KN
Night Latch
Fixed cylinder standard or SFIC housing option for levers (SFIC cores sold separately, refer to locks section). Steel body, zinc lever or knob (US32D stainless steel rose).
Tactile Warning - add $42.40 to list price of item.
| Archer Lever | 03 | ALM | 241.15 | 127486 | 241.15 | 109767 | 12 |
|---|---|---|---|---|---|---|---|
| Key retracts | DBZ | 241.15 | 127489 | 241.15 | 109768 | ||
| latchbolt | US3 | 263.45 | 127480 | 263.45 | 109769 | ||
| US32D | 263.45 | 127483 | 263.45 | 109770 | |||
| August Lever | ALM | 241.15 | 127487 | 241.15 | 109775 | 12 | |
| - | DBZ | 241.15 | 127490 | 241.15 | 109776 | ||
| US3 | 263.45 | 127481 | 263.45 | 109777 | |||
| US32D | 263.45 | 127484 | 263.45 | 109778 | |||
| Withnell Lever | ALM | 241.15 | 127488 | 241.15 | 109783 | 12 | |
| DBZ | 241.15 | 127491 | 241.15 | 109784 | |||
| US3 | 263.45 | 127482 | 263.45 | 109785 | |||
| US32D | 263.45 | 127485 | 263.45 | 109786 | |||
| Apollo Knob | US32D | 263.45 | 149373 | 263.45 | - | 12 | |
| (not ADA compliant) |
| Description | Function | Finish | 2018 List |
Stock No.
LHR |
Stock No.
RHR |
Case
Qty. |
|
|---|---|---|---|---|---|---|---|
| 47KP | |||||||
|
Passage
Steel body, zinc lever (US32D stainles |
c ctaal raca) | ||||||
| Tactile Warning - add $42.40 to list pr | |||||||
| Archer Lever | 14 | ALM | 218.40 | 109788 | 218.40 | - | 12 |
| Always | DBZ | 218.40 | 109789 | 218.40 | - | ||
| operable | US3 | 241.15 | 109790 | 241.15 | - | ||
| US32D | 241.15 | 109791 | 241.15 | - | |||
| August Lever | ALM | 218.40 | 109792 | 218.40 | - | 12 | |
| DBZ | 218.40 | 109793 | 218.40 | - | |||
|
US3
US32D |
241.15 |
109794
109795 |
241.15 | - | |||
| West II I | ALM |
241.15
218.40 |
109795 |
241.15
218.40 |
- | 12 | |
| Withnell Lever | DBZ | 218.40 | 109790 | 218.40 | - | 12 | |
| US3 | 241.15 | 109798 | 241.15 | _ | |||
| US32D | 241.15 | 109799 | 241.15 | - | |||
| Case | |||||||
| Description | Finish | 2018 List | Stock No. | Qty. | |||
| 47BT | 14 | US32D | 266.10 | 168977 | 168976 | 6 | |
| Pull Plate | Always | ||||||
| Thumb Piece Passage Must specify handing | Operable | ||||||
| Tactile Warning - add $42.40 to list | |||||||
| price of item. | |||||||
| LICAAD | 200.10 | 150200 | 150207 | ||||
| 47PT | 05 | US32D | 266.10 | 159296 | 159297 | 6 | |
|
Pull Plate
Thumb Piece Entrance |
Key locks | ||||||
| Must specify handing |
or unlocks
thumb |
||||||
| Tactile Warning - add $40.00 to list | piece | ||||||
| price of item. | p.000 | ||||||
| 47PD | 02 | ALM | 108.65 | 109019 | 12 | ||
| Pull Plate - Dummy Trim | Pull when | DBZ | 108.65 | 109020 | |||
| Plated steel for ALM, DBZ, and US3. | device is | US3 | 108.65 | 109021 | |||
| Stainless steel for US32D. | dogged | US32D | 108.65 | 109022 | |||
| Tactile Warning - add $42.40 to list | down | ||||||
| price of item. | |||||||
| 47PN | 03 | ALM | 125.10 | 109023 | 12 | ||
| Pull Plate - Night Latch | Key | DBZ | 125.10 | 109026 | |||
| Requires a 3901 rim cylinder (sold | retracts | US3 | 125.10 | 109027 | |||
| separately). Includes retaining cup for 161 door | latchbolt | US32D | 125.10 | 109028 | |||
| prep. | |||||||
| LL. | |||||||
| Plated steel for ALM, DBZ, and US3. | |||||||
| Plated steel for ALM, DBZ, and US3. Stainless steel for US32D. | |||||||
| ſ. |
|---|
| 6 |
| B |
| 2 2 2 |
| 0 |
| S. S. S. |
| + |
| Case | |||||
|---|---|---|---|---|---|
| Description | FL-Header | Finish |
2018 List
Year List |
St Head 1
Stock No. FR Head |
St Head 2
Qty. |
| 47RD | 02 | ALM | 60.45 | 18956 | 12 |
| Raised Lip Pull - Dummy Trim | Pull when | DBZ | 60.45 | 18949 | |
| Plated steel for ALM, DBZ, and US3. | device is | US3 | 60.45 | 18934 | |
| Stainless steel for US32D. | dogged | US32D | 60.45 | 18933 | |
| Tactile Warning - add $42.40 to list | down | ||||
| price of item. | |||||
| 47RN | 03 | ALM | 67.35 | 18914 | 12 |
| Raised Lip Pull - Night Latch | Key | DBZ | 67.35 | 18902 | |
| Requires a 3901 rim cylinder (sold | retracts | US3 | 67.35 | 18885 | |
| separately). | latchbolt | US32D | 67.35 | 18884 | |
| Tactile Warning - add $42.40 to list | |||||
| price of item. | |||||
| 4910 | US32D | 67.35 | 20040 | 24 | |
| Strike for use with 4700 Rim Exit Device | |||||
| Included standard with device. | |||||
| 4911 | DBZ | 60.45 | 19301 | 24 | |
| Double door strike for 4700 Surface Vertical Rod and | US3 | 60.45 | 19323 | ||
| Rim Exit Device. Not for fire-rated door. | US32D | 60.45 | 19322 | ||
| Optional - order separately. | |||||
| 4913 | US32D | 42.95 | 16231 | 24 | |
| Top strike for 4700 Surface Vertical Rod Exit Device | |||||
| Included standard with device. | |||||
| US32D | 42.95 | 16213 | 24 | ||
| 4914 | |||||
|
Bottom strike for 4700 Surface Vertical Rod
Exit Device |
|||||
| Included standard with device. | |||||
| 4915 | US32D | 24.95 | 67426 | 48 | |
| Threshold strike for use with 4500 Series or | |||||
| 4700 Series. Not for fire-rated doors. | |||||
| Optional order separately. | |||||
| 4917 | ALM | 63.10 | 56412 | 50 | |
| Bottom Latch Assembly | DBZ | 63.10 | 56401 | ||
| Includes latch, cover and screws. | US3 | 63.10 | 56400 | ||
| Included standard with device. | US32D | 63.10 | 56398 | ||
| 4918 | ALM | 63.10 | 56418 | 50 | |
| Top Latch Assembly | DBZ | 63.10 | 56410 | ||
| Includes latch, cover and screws. | US3 | 63.10 | 56409 | ||
| Included standard with device. | US32D | 63.10 | 56407 | ||
| ALM | 31.80 | 73587 | 24 | ||
|
4919
Rod Replacement Kit (top or bottom) |
DBZ | 31.80 | 73574 | ||
|
Includes rod (47-1/4"), rod guide, rod connector
assembly and all appropriate screws. |
US3
US32D |
31.80
31.80 |
73568
73530 |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| ø (j |
|---|
| 1. |
| 0 |
| Case | |||||
|---|---|---|---|---|---|
| Description |
FL-Header
Length |
Finish |
2018 List
Year List |
St Head 1
Stock No. FR Head |
St Head 2
Qty. |
| 4931R | ALM | 55.15 | 101773 | 24 | |
| Shim Kit for 4700 Series Rim Device | DBZ | 55.15 | 101774 | ||
|
Packaged 2 ea. 1/8" shims.
If using with 47BE, 47CE, 47NL trim, please specify |
US3 | 63.10 | 101775 | ||
| thickness (door plus shim). | US32D | 63.10 | 101776 | ||
| 4931S | ALM | 55.15 | 101783 | 24 | |
| Shim Kit for 4700 Series Surface Vertical Rod Device | DBZ | 55.15 | 101784 | ||
| Packaged 2 ea. 1/8" shims. | US3 | 63.10 | 101786 | ||
| If using with 47BE, 47CE, 47NL trim, please specify | US32D | 63.10 | 101787 | ||
| thickness (door plus shim). | |||||
| 4933R | ALM | 39.75 | 105050 | 20 | |
| Replacement Head Cover for 4700 Series Rim Device | DBZ | 39.75 | 105051 | ||
| US3 | 46.15 | 105052 | |||
| US32D | 46.15 | 105053 | |||
| 4933S | ALM | 39.75 | 105054 | 20 | |
| Replacement Head Cover for 4700 Series SVR Device | DBZ | 39.75 | 105055 | ||
| US3 | 46.15 | 105056 | |||
| US32D | 46.15 | 105057 | |||
| 4934 | 36" | ALM | 31.80 | 105058 | 20 |
| Replacement Dogging Plate for 4700 | DBZ | 31.80 | 105059 | ||
| Series Panic Rated Device | US3 | 31.80 | 105060 | ||
| US32D | 31.80 | 105061 | |||
| 48" | ALM | 36.05 | 105062 | 20 | |
| DBZ | 36.05 | 105063 | |||
| US3 | 36.05 | 105064 | |||
| US32D | 36.05 | 105065 | |||
| 4934F | 36" | ALM | 31.80 | 105066 | 20 |
| Replacement Dogging Plate for 4700 | DBZ | 31.80 | 105076 | ||
| Series Fire Rated Device | US3 | 31.80 | 105068 | ||
| US32D | 31.80 | 105069 | |||
| 48" | ALM | 36.05 | 105070 | 20 | |
| DBZ | 36.05 | 105071 | |||
| US3 | 36.05 | 105072 | |||
| US32D | 36.05 | 105073 | |||
| 4936 | ALM | 28.10 | 129379 | 24 | |
| 24" Extension Rod Kit | DBZ | 28.10 | 129380 | ||
| Includes 24" extension rod, rod connector, rod guide, | US3 | 29.15 | 129372 | ||
| and wood and machine screws. | US32D | 29.15 | 129378 | ||
| Fire rated up to 8' on Surface Vertical Rod device. | |||||
| 4937 | ALM | 31.80 | 129388 | 24 | |
| 36" Extension Rod Kit | DBZ | 31.80 | 129389 | ||
| Includes 36" extension rod, rod connector, rod guide, | US3 | 32.90 | 129381 | ||
| and wood and machine screws. | US32D | 32.90 | 129387 | ||
| Fire rated up to 8' on Surface Vertical Rod device. | |||||
| 2-649-0010 | US3 | 7.95 | 56131 | ||
| Rod Guide Replacement | |||||
|
Description
FL-Header Function |
Finish |
2018 List
Year List |
St Head 1
Stock No. FR Head |
Case
St Head 2 Qty. |
|---|---|---|---|---|
| 2-649-0011 | US32D | 7.95 | 56026 | |
| Rod Guide Replacement | ||||
|
2-649-0012
Rod Guide Replacement |
DBZ | 7.95 | 56025 | |
| 2-649-0013 | ALM | 7.95 | 56027 | |
| Rod Guide Replacement | ||||
|
2-649-0014
Trim Handing Pin - 5 pack |
- | 7.95 | 52275 | |
|
2-649-0021
Top Latch Cover |
ALM | 34.45 | 56389 | |
|
2-649-0022
Top Latch Cover |
DBZ | 34.45 | 56388 | |
|
2-649-0023
Top Latch Cover |
US3 | 34.45 | 56376 | |
|
2-649-0024
Top Latch Cover |
US32D | 34.45 | 56375 | |
|
2-649-0025
Bottom Latch Cover |
ALM | 34.45 | 56331 | |
|
2-649-0026
Bottom Latch Cover |
DBZ | 34.45 | 56328 | |
|
2-649-0027
Bottom Latch Cover |
US3 | 34.45 | 56319 | |
|
2-649-0028
Bottom Latch Cover |
US32D | 34.45 | 56296 | |
|
2-649-0095
SVR Screwpack - Latch, rod, rod connector, rod guide |
ALM | 7.95 | 103572 | |
|
2-649-0096
SVR Screwpack - Latch, rod, rod connector, rod guide |
DBZ | 7.95 | 103573 | |
|
2-649-0097
SVR Screwpack - Latch, rod, rod connector, rod guide |
US3 | 7.95 | 103574 | |
|
2-649-0098
SVR Screwpack - Latch, rod, rod connector, rod guide |
US32D | 7.95 | 103575 | |
|
2-649-0099
SVR Screwpack - Top and bottom strike |
- | 4.80 | 103576 | |
| 2-649-0100 | ALM | 13.80 | 103577 | |
|
Screwpack - Chassis, end cap, head cover, rim strike
2-649-0101 |
DBZ | 13.80 | 103578 | |
|
Screwpack - Chassis, end cap, head cover, rim strike
2-649-0102 |
US3 | 13.80 | 103579 | |
| Screwpack - Chassis, end cap, head cover, rim strike |
Exit Devices - 4700
| Description |
FL-Header
Function |
Finish |
2018 List
Year List |
St Head 1
Stock No. FR Head |
Case
St Head 2 Qty. |
|---|---|---|---|---|---|
| 2-649-0103 | US32D | 13.80 | 103580 | ||
|
Screwpack - Chassis, end cap, head cover, rim strike
2-649-0141 |
- | 2.65 | 103606 | ||
| Screwpack - 2" thick door, trim | |||||
|
2-649-0142
Screwpack - 2-1/4" thick door, trim |
- | 2.65 | 103607 | ||
| 2-649-0144 | ALM | 17.00 | 104043 | ||
| End Cap Replacement Pack | |||||
|
2-649-0145
End Cap Replacement Pack |
DBZ | 17.00 | 104044 | ||
|
2-649-0146
End Cap Replacement Pack |
US3 | 17.00 | 104045 | ||
|
2-649-0147
End Cap Replacement Pack |
US32D | 17.00 | 104046 | ||
| Note: All end caps come with bracket and fasteners | |||||
|
2-649-0164
Pack of 8 Screws, trim (4700), 1/4 - 20 x 3/4" PHMS |
- | 7.95 | 112534 | ||
|
2-649-0177
Rod to Rod Connector |
US3 | 7.95 | 129398 | ||
|
2-649-0183
Rod to Rod Connector |
US32D | 7.95 | 129404 | ||
|
2-649-0184
Rod to Rod Connector |
ALM | 7.95 | 129405 | ||
|
2-649-0185
Rod to Rod Connector |
DBZ | 7.95 | 129406 | ||
|
2-649-0406
45PN/47PN Clylinder Cup Spacer |
- | 8.50 | 182414 | ||
|
2-649-4703
Hex Key for Dogging 3/16" 10 pack |
- | 5.85 | 315 |
| Description | Function | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 4900U | 7' | USP | 501.40 | 133007 | 749.95 | 133010 | 1 |
| Non-Keyed Removable Mullion Set | 8' | USP | 501.40 | 133008 | 749.95 | 133011 | 1 |
|
11 Gauge Steel Tube, top bracket/
bottom bracket set Fire rated mullion requires a fire rated |
10' | USP | 625.40 | 133009 | - | 1 |
4904 Top/Bottom Bracket Set Removable (Non-Keyed)
strike (sold separately).
| 4905 | 7' | USP | 321.75 | 133032 | - | 1 |
|---|---|---|---|---|---|---|
| Mullion Tube (Non-Keyed) | 8' | USP | 321.75 | 133033 | - | 1 |
| 11 Gauge Steel | 10' | USP | 398.60 | 133034 | - | 1 |
US32D
219.95
133029
270.30
137.80
54.10
133031
16232
139749
24
4912 Fire rated strike for use with 4500 Series and 4600
Series Fire Rated Exit Device and Mullion
US32D 137.80 115780 24 4916 Fire rated strike for use with 4700 Series Fire Rated Exit
US32D
Mullion Stabilizer for use with 4900 Series Non-Keyed and Keyed Removable Mullion
| 4900T | 7' | USP | 1034.05 | 132391 | 1,223.80 | 132393 | 1 |
|---|---|---|---|---|---|---|---|
|
Keyed Removable Mullion Set
11 gauge steel tube, top bracket/ |
8' | USP | 1034.05 | 132392 | 1,223.80 | 132394 | 1 |
| bottom bracket set. | 10' | USP | 1192.00 | 132390 | - | 1 |
Requires a 3901 rim cylinder (sold separately).
Device and Mullion
4953
Fire rated mullion requires a fire rated strike (sold separately).
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
Exit Devices - 4700
| Description | Function | Finish | 2018 List | Stock No. |
List Fire
Rated |
Stock No. |
Case
Qty. |
|---|---|---|---|---|---|---|---|
| 4902 | - | 635.50 | 45351 | 787.05 | 31750 | 5 | |
| Top/Bottom Bracket Set | |||||||
| Key Removable |
| 4907 | 7' | USP | 428.80 | 45349 | - | 1 | |
|---|---|---|---|---|---|---|---|
| Mullion Tube (Key Removable) | 8' | USP | 428.80 | 45334 | - | 1 | |
| 11 Gauge Steel | 10' | USP | 557.60 | 45323 | - | 1 | |
| 4912 | US32D | - | 137.80 | 16232 | 24 |
| Fire rated strike for use with 4500 Series and 4600 |
|---|
| Series Fire Rated Device and Mullion |
| 4916 | US32D | - | 137.80 | 115780 | 24 |
|---|---|---|---|---|---|
| Fire rated strike for use with 4700 Series Fire Rated Ex | it | ||||
| Device and Mullion |
| 4953 | US32D | - | 54.10 | 139749 | 12 |
|---|---|---|---|---|---|
| Mullion Stabilizer for use with 4900 Series Non-Keyed | |||||
| and Keyed Removable Mullion |
| 3901 | US3 | 48.50 | |
|---|---|---|---|
| Rim Cylinder | US4 | 51.55 | |
| Fixed cylinder and Small Format Interchangeable Core | US10 | 51.55 | |
| housing available (SFIC cores sold separately). Dummy | US10B | 48.50 | |
| rim cylinders also available. | US26 | 48.50 | |
| US26D | 48.50 | ||
| Shipped standard with long break-off tailpiece. |
Specify 6-pin or 7-pin for SFIC housing.
For additional cylinder information, please refer to the Locks section.
Case Qty.
| Description |
FL-Header
Function |
Finish |
2018 List
Year List |
St Head 1
Stock No. FR Head |
St Head 2
Qty. |
|---|---|---|---|---|---|
| 3902 | US3 | 48.50 | 1 | ||
| Mortise Cylinder | US4 | 51.55 | |||
| Fixed cylinder and Small Format Interchangeable Core | US10 | 51.55 | |||
| housing available (SFIC cores sold separately). Dummy | US10B | 48.50 | |||
| mortise cylinders also available. | US26 | 48.50 | |||
| US26D | 48.50 | ||||
| Shipped with Schlage C keyway, standard cam attached, | |||||
Specify length 1-1/8" or 1-1/4" for fixed cylinder or 1-1/4" (6-pin) or 1-3/8" (7-pin) for SFIC housing and cam required.
and Adams Rite cam loose in box.
For mortise exit device trim specify 1-5/8" with standard cam for fixed cylinder (Schlage C Keyway) or SFIC housing.
For mortise exit device x cylinder/optional pull, use 1-3/8" cylinder with 11/16" cylindar collar.
For additional cylinder information, please refer to the Locks section.
| 2-649-0137 | NF | 9.55 | 103365 |
|---|---|---|---|
| Retaining Cup | |||
| For use with Rim cylinder and 161 prep |
| US3 | 19.10 | 3404 |
|---|---|---|
| US4 | 19.10 | 3395 |
| US10 | 19.10 | 3394 |
| US10B | 19.10 | 3393 |
| US26 | 19.10 | 3386 |
| US26D | 19.10 | 3384 |
| US32D | 19.10 | 3381 |
| US3 | 19.10 | 3380 |
| US4 | 19.10 | 3357 |
| US10 | 19.10 | 3346 |
| US10B | 19.10 | 3340 |
US26 19.10 3339
11/16" Cylinder Collar (4500 Escutcheon Trim)
11/16" Cylinder Collar (4500 Escutcheon Trim)
2-649-0057
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
|
Description
FL-Header |
Finish |
2018 List
Year List |
St Head 1
Stock No. |
FR Head
St Head 2 |
Case
Qty. |
|---|---|---|---|---|---|
|
2-649-0058
11/16" Cylinder Collar (4500 Escutcheon Trim) |
US26D | 19.10 | 3335 | ||
|
2-649-0059
11/16" Cylinder Collar (4500 Escutcheon Trim) |
US32D | 19.10 | 3334 | ||
|
Note: For use with 1-1/4" or 1-3/8" mortise cylinders
Note: All cylinder collars come with wave washer and spacer |
|||||
|
2-647-0012
7/8" Cylinder Collar - 5, 6, 7 pin (4700 Escutcheon Trim) |
US3 | 19.10 | 31809 | ||
|
2-647-0013
7/8" Cylinder Collar - 5, 6, 7 pin (4700 Escutcheon Trim) |
ALM | 19.10 | 31804 | ||
|
2-647-0014
7/8" Cylinder Collar - 5, 6, 7 pin (4700 Escutcheon Trim) |
DBZ | 19.10 | 31793 | ||
|
2-647-0015
7/8" Cylinder Collar - 5, 6, 7 pin (4700 Escutcheon Trim) |
US32D | 19.10 | 31789 | ||
|
Note: For use with 1-1/8" mortise cylinders
Note: All cylinder collars come with wave washer and spacer |
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| Adjustable Angle Bracket (2941/2942) |
|---|
| Coordinator Mounting Bracket (2950 Series) |
| Delayed Egress Magnetic Lock9-10 Door Prop Alarms |
| E Egress Sensors |
| F Filler Bars (2941/2942 Series) |
| G Gang Boxes 11 Glass Door Kits (2941/2942) 6 Glass Door Kits (2950 Series) 7 |
| K Key Swtich |
| Low Energy Power Operator 12-20 |
| M Magnetic Locks (2941/2942 Series) 6 Magnetic Locks (2950 Series) 6-7 Magnetic Shear Locks (2961/2965) 9 Magnetic Switches 11 |
| Outdoor Shrouds 4.11 |
| r | |
|---|---|
| Power Supply | 3-4 |
| Power Transfers | 11 |
| Pressure Sense Bars | 10 |
| Proximity Cards & Keys | |
| S | |
| Spacer Brackets (2950 Series) | 7 |
| _ | |
| I | |
| Top Jamb Kits (2941/2942) | 6 |
| Top Jamb Kits (2950 Series) | 7 |
| U | |
| Universal Brackets (2950 Series) | 7 |
| Underdesk Switch | 11 |
Low Energy Power Operators
Battery Backup (8200 Series)........................................................15 Bollard Posts...................................................................................19
8200 Series Low Energy Power Operators ....... 15-16 8400 Series Low Energy Power Operators ....... 12-14 A Actuators...................................................................................17-19 Arm Assemblies (8200 Series).......................................................16 Arm Assemblies (8400 Series).......................................................13 B H Handheld Programmer (8200 Series)............................................15 M Modules (8200 Series)...................................................................15 O On-Board Power Supply (8400 Series) .........................................14 S Spindles (8400 Series)...................................................................13
| R | |
|---|---|
| C |
Relay & Door Sequencer
20 |
| Covers (8400 Series)13-14 | Relay Board (8400 Series)14 |
| D | W |
| Drop Plates (8400 Series)13 | Wireless Receiver19 |
| Wireless Transmitters20 |
LEAD TIMES
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
QUICK SHIP
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
CANCELLATION NOTIFICATION
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
US32D 102.75 156367 12
294.65
199478
| 29KS MSD | Key switch - Momentary, SPDT | US32D | 102.75 | 156367 | 12 |
|---|---|---|---|---|---|
| 29KS ADD | Key switch - Alternate, DPDT | US32D | 119.00 | 156366 | 12 |
| 29KS MDD | Key switch - Momentary, DPDT | US32D | 113.60 | 156367 | 12 |
| Options: |
Red LED $21.65 list price adder
Green LED $21.65 list price adder |
2 LED's $27.05 list price adder 29EA NS
battery back up option available
operation, battery backup option available
415.20 199474 Door Prop Alarm, Single Gang Mount, No Key Switch 29EA KS Door Prop Alarm, Double Gang Mount, Key Switch
375.00 199473 29EA MKNC Door Prop Alarm, Double Gang Mount, Mortise Cylinder Switch
| 2902 | 658.20 | 114990 |
|---|---|---|
| For use with 4500 Series electric latch retraction in a day/night mode of |
| 2903 | 514.00 | 114455 |
|---|---|---|
| Provides 24 volt DC power for Fail Safe or Fail Secure locking devices and |
interface with building alarm controls, card readers, keypads, and other door controls.
| 2904 | 544.90 | 136899 |
|---|---|---|
Provides 24 volt DC power and control for opening with an electrified locking device and automatic door operator
2908 355.35 149931 1
Provides up to 1 amp of 12 or 24 volt DC power for all Hager Electrified Products except (ELR)
2909 541.80 177262
Provides up to 2 amps of 12 or 24 volt DC power for all Hager Electrified Products
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
|
2910
Provides up to 4 amps of 12 or 24 volt DC power for all Hager Electrified Products |
831.70 | 198523 | ||
|
2911
Provides up to 6 amps of 12 or 24 volt DC power for all Hager Electrified Products |
971.00 | 198524 | ||
|
2-679-0661
5 Amp hour battery backup for use with 2908 & 2909 |
47.60 | 153208 | ||
|
2-679-0662
12 VDC output regulator module for use with 2908 & 2909 |
61.05 | 159033 | ||
|
2-679-0664
Universal Relay Module for use with 2908 & 2909 |
117.25 | 156812 | ||
|
2-679-0703
Electric Retraction Sequencer for use with 2908 & 2909 |
177.20 | 177267 | ||
|
2-679-0704
Access Control Module for use with 2908 & 2909 |
193.65 | 177263 | ||
|
2-679-0705
16 AMP Power Booster for use with 2909 only |
177.25 | 177264 | ||
|
2-679-0706
Power Supply Remote Monitoring Module for use with 2908 & 2909 |
257.50 | 177266 | ||
|
2-679-0708
Underdesk Push Switch |
111.65 | 176289 | ||
|
2915
Heavy Duty Keypad - Indoor 500 users, 4-6 digit PIN codes 12/24V AC/DC |
US3
US4 US10B US26 US32D |
232.55
232.55 232.55 232.55 189.30 |
150749
150750 150751 150752 149619 |
12 |
|
2916
Heavy Duty Keypad - Outdoor 500 users, 4-6 digit PIN Codes 12/24V AC/DC |
32D | 247.20 | 173204 | 8 |
|
2916P
Heavy Duty Keypad / Prox-Outdoor 500 users, 4-6 digit PIN codes 12/24V AC/DC |
32D | 679.75 | 189700 | 8 |
|
2-679-0669
Shroud Cover |
- | 158.95 | 176541 | |
|
2-679-0700
Surface Mount Box |
- | 31.95 | 172698 | |
|
2-679-0021
HID ProxCard II, 25 Cards |
- | 189.30 | 149627 | |
|
2-679-0022
HID ProxCard II, 100 Cards |
- | 757.05 | 153893 |
|
2-679-0024
HID ProxKey, 100 Key fobs |
- | 1,514.10 | 153894 | |
|---|---|---|---|---|
|
2925
Electric Strike - 5/8" Latch Field Reversible Failsafe/Failsecure 12/24VDC 4-7/8" Sq Corner Stainless Steel Faceplate |
US32D | 129.80 | 149637 | 8 |
|
2928 SC
Electric Strike - 1/2" to 3/4" latch Failsafe/Failsecure 12/24V AC/DC 4-7/8" Sq Corner Stainless Steel Faceplate |
US32D | 210.90 | 149638 | 8 |
|
2928 RC
Electric Strike - 1/2" to 3/4" latch Failsafe/Failsecure 12/24V AC/DC 4-7/8" Radius Corner Faceplate |
ALM | 183.90 | 150333 | 8 |
|
2928 6R
Electric Strike - 1/2" to 3/4" latch Failsafe/Failsecure 12/24V AC/DC 6-7/8" Radius Corner Faceplate |
ALM | 189.30 | 154920 | 8 |
|
2928 7R
Electric Strike - 1/2" to 3/4" latch Failsafe/Failsecure 12/24V AC/DC 7-15/16" Radius Corner Faceplate |
ALM | 194.70 | 173212 | 8 |
|
Options: Keeper open/closed status $48.70 list price adder
Note: Additional finishes available for 2928. Inquire with Hager Customer Service for pricing. |
||||
|---|---|---|---|---|
| 2930 CYL | US4 | 546.20 | 175715 | 12 |
| Electric Strike - Cylindrical lock | US10 | 546.20 | 156216 | |
| Dual Voltage 12/24VDC | US10B | 546.20 | 160255 | |
| ANSI/BHMA A156.31 Grade 1 | US26 | 546.20 | 175075 | |
|
UL Listed 3-hour fire rated
Non-handed |
US26D | 546.20 | 149642 | |
| US32D | 497.50 | 149641 | ||
| 2930 MOR | US4 | 567.80 | 12 | |
| Electric Strike - Mortise lock | US10 | 567.80 | 167282 | |
| Dual Voltage 12/24VDC | US10B | 567.80 | 160328 | |
| ANSI/BHMA A156.31 Grade 1 | US26 | 567.80 | 163253 | |
| UL Listed 3-hour fire rated | US26D | 567.80 | 149646 | |
| Non-handed | US32D | 524.55 | 149645 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| 2930 MDB | US4 | 594.85 | 12 | ||
| Electric Strike - Mortise lock w/ Deadbolt | US10 | 594.85 | 175970 | ||
| Dual Voltage 12/24VDC | US10B | 594.85 | 176007 | ||
| ANSI/BHMA A156.31 Grade 1 | US26 | 594.85 | |||
| Non-handed | UL Listed 3-hour fire rated | US26D | 594.85 | 149649 | |
| US32D | 540.75 | 149648 | |||
| Options: |
Latchbolt Monitor (LBM) $70.85 list price adder
Door secure monitor (DSM) $146.05 list price adder Deadbolt monitor - (DBM) LH $75.75 list price adder Deadbolt monitor - (DBM) RH $75.75 list price adder |
||||
| 2-679-0028 | Buzzer 12/24V AC/DC operation for 2925/2928/2930 | - | 42.85 | 153474 | 12 |
| 2-679-0029 | Rectifier for AC operation for 2925/2928/2930 | - | 23.80 | 155676 | 12 |
| 600 lb. holding force |
2941 Magnetic Lock
12/24VDC, field selectable |
ALM | 243.35 | 149650 | 4 |
| 1200 lb. holding force |
2942 Magnetic Lock
12/24VDC, field selectable |
ALM | 292.05 | 149652 | 4 |
|
2-679-0100
Top Jamb Kit for 2942 |
ALM | 95.20 | 149653 | 8 | |
| 2-679-0101 | ALM | 95.20 | 149654 | 8 | |
| Top Jamb Kit for 2941 | |||||
| 2-679-0102 | Glass Door Kit for 2942 | ALM | 47.60 | 149655 | 8 |
| 2-679-0103 | Glass Door Kit for 2941 | ALM | 47.60 | 149656 | 8 |
| 2-679-0104 |
Adjustable Angle Bracket for 2942
10-1/2" x 1-3/4" x 3-1/8" |
ALM | 35.70 | 149657 | 8 |
| 2-679-0105 |
Adjustable Angle Bracket for 2941
9-7/8" x 1-1/4" x 2-1/4" |
ALM | 23.80 | 149658 | 8 |
| 2-679-0106 |
Angle bracket for 2942 (Cut for use with 2941)
10-1/2" x 1-1/2" x 3/4" |
ALM | 23.80 | 149659 | 8 |
|
2-679-0107
5/8" x 3/4" x 10-1/2" |
Filler bar for 2942 (Cut for use with 2941) | ALM | 17.90 | 149660 | 6 |
|
17.90
497.50 567.80 |
149661 | 6 |
|---|---|---|
|
149701
153513 |
2
2 |
|
| 1,011.25 | 152042 | 2 |
| 1,146.40 | 153528 | 2 |
| 470.50 | 149707 | 2 |
| 535.35 | 153533 | 2 |
| 951.75 | 152043 | 2 |
| 1,092.35 | 153538 | 2 |
| * Must order two for use with the 2952 or 2954 | ||||
|---|---|---|---|---|
|
2-679-0120
Top jamb kit 2951/2953 |
ALM | 115.75 | 149709 | 4 |
|
2-679-0130
Top jamb kit 2952/2954 |
ALM | 232.55 | 153861 | 4 |
|
2-679-0160
Glass door kit 2951/2953 * Order 2 ea. for double door |
ALM | 214.15 | 168468 | 8 |
|
2-679-0180
Universal Bracket for 2951/2953 |
ALM | 75.75 | 149710 | 12 |
|
2-679-0190
Universal Bracket for 2952/2954 |
ALM | 151.45 | 161684 | 9 |
|
2-679-0191
Universal Bracket for 2952/2954 |
DBZ | 222.80 | 167699 | 9 |
Note: Additional finishes available for 2951, 2952, 2953, 2954.
Inquire with Hager Customer Service for pricing.
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
|
2-679-0200
Spacer Bracket for 2951/2953 |
ALM | 107.10 | 153684 | 12 |
|
2-679-0201
Spacer Bracket for 2952/2954 |
ALM | 133.05 | 161686 | 9 |
|
2-679-0204
Armature mounting plate |
- | 71.40 | 167666 | 3 |
|
Note: Additional finishes available on many of the 2950 magnetic lock series accessories. Inquire with Hager Customer Service
for pricing. |
||||
|---|---|---|---|---|
|
2-679-0210
Coordinator mounting bracket for 2951/2953 |
ALM | 142.80 | 160581 | 12 |
|
2-679-0220
Coordinator mounting bracket for 2952/2954 |
ALM | 261.75 | 166426 | 6 |
|
2-679-0281
Filler bar - 1/8" x 1/-1/4" for 2951/2953 |
ALM | 38.95 | 149711 | 12 |
|
2-679-0283
Filler bar - 1/8" x 1/-1/4" for 2951/2953 |
DBZ | 74.65 | 149712 | 12 |
|
2-679-0291
Filler bar - 1/4" x 1/-1/4" for 2951/2953 |
ALM | 40.05 | 149713 | 12 |
|
2-679-0293
Filler bar - 1/4" x 1/-1/4" for 2951/2953 |
DBZ | 75.75 | 149715 | 12 |
|
2-679-0311
Filler bar - 1/2" x 1/-1/4" for 2951/2953 |
ALM | 44.35 | 149716 | 12 |
|
2-679-0313
Filler bar - 1/2" x 1/-1/4" for 2951/2953 |
DBZ | 80.05 | 149738 | 12 |
|
2-679-0321
Filler bar - 5/8" x 1/-1/4" for 2951/2953 |
ALM | 47.60 | 149717 | 12 |
|
2-679-0323
Filler bar - 5/8" x 1/-1/4" for 2951/295 |
DBZ | 83.30 | 149739 | 12 |
|
2-679-0381
Filler bar - 1/8" x 1/-1/4" for 2952/2954 |
ALM | 44.35 | 149718 | 12 |
|
2-679-0383
Filler bar - 1/8" x 1/-1/4" for 2952/2954 |
DBZ | 80.05 | 149740 | 12 |
|
2-679-0391
Filler bar - 1/4" x 1/-1/4" for 2952/2954 |
ALM | 47.60 | 149719 | 12 |
|
2-679-0393
Filler bar - 1/4" x 1/-1/4" for 2952/2954 |
DBZ | 83.30 | 149741 | 12 |
|
2-679-0411
Filler bar - 1/2" x 1/-1/4" for 2952/2954 |
ALM | 51.95 | 149720 | 12 |
|
2-679-0413
Filler bar - 1/2" x 1/-1/4" for 2952/2954 |
DBZ | 87.65 | 149742 | 12 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
|
2-679-0421
Filler bar - 5/8" x 1/-1/4" for 2952/2954 |
ALM | 54.10 | 149721 | 12 |
|
2-679-0423
Filler bar - 5/8" x 1/-1/4" for 2952/2954 |
DBZ | 89.80 | 149743 | 12 |
|
2-679-0491
Angle Bracket - 1-1/2" x 1-1/2" for 2951/2953 |
ALM | 51.95 | 149734 | 12 |
|
2-679-0493
Angle Bracket - 1-1/2" x 1-1/2" for 2951/2953 |
DBZ | 87.65 | 149744 | 12 |
|
2-679-0501
Angle Bracket - 2" x 1-1/2" for 2951/2953 |
ALM | 54.10 | 149735 | 12 |
|
2-679-0503
Angle Bracket - 2" x 1-1/2" for 2951/2953 |
DBZ | 89.80 | 149745 | 12 |
|
2-679-0571
Angle Bracket - 1-1/2" x 1-1/2" for 2952/2954 |
ALM | 69.25 | 149736 | 12 |
|
2-679-0573
Angle Bracket - 1-1/2" x 1-1/2" for 2952/2954 |
DBZ | 104.95 | 149746 | 12 |
|
2-679-0581
Angle Bracket - 2" x 1-1/2" for 2952/2954 |
ALM | 73.55 | 149737 | 12 |
|
2-679-0583
Angle Bracket - 2" x 1-1/2" for 2952/2954 |
DBZ | 109.25 | 149747 | 12 |
|
Note: Additional finishes available on many of the 2950 magnetic lock series accessories. Inquire with Hager Customer Service
for pricing |
||||
|
2961 Magnetic Shear Lock
2,000 lb. holding force 1-5/8" depth, integrated electronics |
US32D | 854.40 | 151837 | 6 |
|
2965 Magnetic Shear Lock
2,700 lb. holding force |
US32D | 924.70 | 151838 | 6 |
Options:
ITC for standard mounting armature kit for aluminum and hollow metal doors with 7/8" to 1-1/8" deep top channels, wood doors, and factory prepared hollow metal flush edge doors.
FTC for mounting for field prepared horizontal mounting in hollow metal doors with flush edge.
HTC for mounting 1-15/16" deep Herculite channels.
1-5/8" depth, integrated electronics
ITC, FTC, HTC Same Price
Herculite top rail armature adjustment bracket for leading edge adjustments (HTR) $393.75 list price adder
Magnetic bond sensor (MBS) $127.05 list price adder
Door Position sensor (DPS) $57.75 list price adder
|
2-679-0600
Wood Door reinforcement box for 2961 |
- | 47.60 | 158750 | 6 |
|---|---|---|---|---|
| 2958 Delayed Egress Magnetic Lock | ALM | 1,308.65 | 149748 | 6 |
|
1,650 lb. holding force
Surface mount - single 12/24 VDC |
DBZ | 1,378.65 | 176098 | |
| 2958 T Tandem Delayed Egress Magnetic Lock | ALM | 2,200.90 | 6 | |
|
1,650 lb. holding force
Surface mount - double 12/24 VDC |
DBZ | 2,276.60 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
|---|---|---|---|---|
|
Operation (Must Specify):
NA - IBC, IFC, NFPA101, NFPA1-UFC, UBC, SBC Compliant ND - IBC, IFC, California Building Code OSHPD, NFPA 101, NFPA1-UFC, UBC, SBC Compliant BD - BOCA National Building Code CH - City of Chicago Building Code Reset Control: Built in key switch - 1-30 second timed bypass, sustained bypass and alarm reset (std) (Not available with BOCA and Chicago operation) Built in reset push switch. Available with NFPA (NA) only Less key or push switch (No price reduction) |
||||
|
Options:
Door Position Status (DPS) $43.30 list price adder Magnetic Bond Sensor (MBS) $70.85 list price adder Anti-Tamper Switch (ATS) $59.50 list price adder |
||||
|
2972 Exit Switch
MSD 2" Square button Momentary, SPDT 10 AMP contact |
US32D | 75.75 | 149630 | 12 |
|
2972T Exit Switch with Integrated Adjustable Timer
2" Square Button Adjustable 1-60 second timer Note: Not Code Compliant |
US32D | 146.05 | 151710 | 6 |
|
Options: Red LED $21.65 list price adder
Green LED $21.65 list price adder 2 LED's $27.05 list price adder |
||||
|
2973 Code Compliant Exit Switch
2" Square Button Integrated fixed 30- second timer CSFM Listed, NFPA, IBC, IFC code compliance for Access Controlled Egress Doors LED illumination |
US32D | 151.45 | 149631 | 6 |
|
Options: Red LED $21.65 list price adder
Green LED $21.65 list price adder 2 LED's $27.05 list price adder |
||||
|
2977 Exit Swtich
Piezoelectric Button Green & Red Illumination Adj. 1-35 sec. 12/24VDC Timer |
US32D | 151.45 | 149634 | 12 |
|
2978 Touchless Exit Switch
Infrared sensor Illuminated status indication |
US32D | 89.25 | 149636 | 12 |
|
4801 Pressure Sense Bar
Pressure sense technology; Tri-failsafe 12/24 VDC voltage sense input includes 10 ft. cable and connector; armored power transfer loop |
ALM
BLK |
392.60
392.60 |
156360
167722 |
6 |
36" Standard, Optional 42" & 48" available
Case
| ne sale | UE: |
|---|---|
| HI.E | |
| Marian. | NI) |
| ASSESSED NAMED IN | 111 |
2-679-0650 Emergency Door Release Blue break glass station
- 218.50 149754 6
| Description | Mount | Finish | 2018 List | Stock No. |
Box
Qty. |
|---|---|---|---|---|---|
| 8418 Single Operator | Push | ALM | 4,507.65 | 162136 | 1 |
| 1 unit, 1 controller, single cover, handed | DBZ | 4,507.65 | 162141 | ||
| Standard Sizes - 36" | Pull | ALM | 4,538.10 | 162138 | |
|
42", 44" and 48" - add $85.40 to list price
Specify Push or Pull side of door |
DBZ | 4,538.10 | 162143 | ||
| 8419 Simultaneous Pair | Push | ALM | 8,090.25 | 162145 | 1 |
| 2 units, 1 controller, double cover, non-handed | DBZ | 8,090.25 | 162147 | ||
| Standard Sizes - 60" and 72" | Pull | ALM | 8,190.00 | 162146 | |
|
84", 88", 92" and 96" - add $85.40 to list price
Specify Push or Pull side of door |
DBZ | 8,190.00 | 162148 | ||
| 8420 Independent Pair | Push | ALM | 8,842.05 | 162149 | 1 |
| 2 units, 2 controllers, double cover, non-handed | DBZ | 8,842.05 | 162151 | ||
| Standard Sizes - 60" and 72" | Pull | ALM | 8,944.95 | 162150 | |
|
84", 88", 92" and 96" - add $85.40 to list price
Specify Push or Pull side of door |
DBZ | 8,944.95 | 162152 | ||
| 8421 Double Egress Simultaneous Pair | Push/Pull | ALM | 8,594.00 | 162153 | 1 |
| 2 units, 1 controller, double cover, non-handed | DBZ | 8,594.00 | 162154 | ||
| Standard Sizes - 60 "and 72" | |||||
| 84", 88", 92" and 96" - add $85.40 to list price | |||||
| 8422 Double Egress Independent Pair | Push/Pull | ALM | 9,392.20 | 162155 | 1 |
| 2 units, 2 controllers, double cover, non-handed | DBZ | 9,392.20 | 162156 | ||
| Standard Sizes - 60" and 72" | |||||
| 84", 88", 92" and 96" - add $85.40 to list price | |||||
|
8423 Single Operator with Mechanical Closer
1 unit, 1 controller, 1-5100 Series Door Closer, |
Push | ALM | 6,090.00 | 1 | |
| double cover, handed | DBZ | 6,090.00 | |||
| Standard Sizes - 60" and 72" | Pull | ALM | 6,090.00 | ||
| 84", 88", 92" and 96" - add $85.40 to list price | DBZ | 6,090.00 | |||
| Specify Push or Pull side of door | |||||
| *Note: Non-standard door widths in quantities under 50 units: add $208.40 per unit. | |||||
| *Note: Curtain wall operators are available. Please contact Technical Support |
| Description | Finish | Year List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0151
Pull Side Track Arm with 20mm Spindle |
ALM | 435.75 | 162512 | - | 1 |
|
2-659-0152
Pull Side Track Arm with 20mm Spindle |
DBZ | 530.25 | 162513 | - | |
|
2-659-0153
Push Side Standard Arm with 35mm Spindle |
ALM | 435.75 | 162515 | - | 1 |
|
2-659-0154
Push Side Standard Arm with 35mm Spindle |
DBZ | 530.25 | 162516 | - | |
|
2-659-0220
Push Side Standard Arm with 50mm Spindle For use with double egress assemblies |
ALM | 435.75 | 162561 | - | 1 |
|
2-659-0221
Push Side Standard Arm with 50mm Spindle For use with double egress assemblies |
DBZ | 530.25 | 162562 | - | |
|
2-659-0222
Double Egress Arm Assembly Track arm with 20mm Spindle |
ALM | 787.50 | 162563 | - | 1 |
|
2-659-0223
Double Egress Arm Assembly Track arm with 20mm Spindle |
DBZ | 892.50 | 162564 | - | |
|
2-659-0224
20mm Replacement Spindle For use with double egress and track arm assembly |
ALM | 150.70 | 162565 | - | 1 |
|
2-659-0225
20mm Replacement Spindle For use with double egress and track arm assembly |
DBZ | 183.75 | 162566 | - | |
|
2-659-0226
35mm Replacement Spindle For use with standard single and standard pair applications |
ALM | 150.70 | 162567 | - | 1 |
|
2-659-0227
35mm Replacement Spindle For use with standard single and standard pair applications |
DBZ | 183.75 | 162568 | - | |
|
2-659-0228
50mm Replacement Spindle |
ALM | 150.70 | 162570 | - | 1 |
|
2-659-0229
50mm Replacement Spindle For use with push side standard arm - double egress only |
DBZ | 183.75 | 162573 | - | |
|
2-659-0230
Narrow Top Rail Drop Plate |
ALM | 133.35 | 162693 | - | 1 |
|
2-659-0231
Narrow Top Rail Drop Plate |
DBZ | 133.35 | 162694 | - | |
|
2-659-0232
Cover for Single Operator - 36" |
ALM | 252.00 | 162574 | - | 1 |
|
2-659-0233
Cover for Single Operator - 36" |
DBZ | 252.00 | 162661 | - |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0234
Cover for Dual Operators - 72" |
ALM | 441.00 | 162663 | - | 1 |
|
2-659-0235
Cover for Dual Operators - 72" |
DBZ | 441.00 | 162692 | - | |
| Note: Additional sizes available. Inquire with Hager customer service for pricing. | |||||
|
2-659-0236
Power Supply On-Board 115 VAC 60Hz 24 VDC 500mA |
824.25 | 162696 | - | 1 | |
|
2-659-0237
Relay Board 24VDC 40mA 5 amp/ 220 VAC or 28VDC DPDT contacts |
32.05 | 162697 | - | 1 |
| Description | Size | Finish | 2018 List | Stock No. |
Box
Qty. |
|---|---|---|---|---|---|
| 8218 Single Operator | 31.5" | ALM | 2,500.00 | 184311 | 1 |
| 1 unit, standard arm, single 31.5" cover, non-handed | DBZ | 2,553.60 | 184312 | 1 | |
| Standard Size Header - 31.5", Full Width Header - 51.5", | 51.5" | ALM | 2,800.00 | 184313 | 1 |
| custom sizes available from 31.5" to 51.5" - add $225 to list | DBZ | 2,864.30 | 184314 | 1 | |
|
Standard Arm included (push side mount, 0 - 4.1875" reveal)
Deep Reveal Arm (4.125" - 9.875") - add $225 to list price |
|||||
| 8219 Simultaneous Pair Operator | ALM | 5,782.10 | 184317 | 1 | |
| 1 unit, standard arm, single 75.5" cover, non-handed | DBZ | 5,889.30 | 184318 | 1 | |
| Standard Size Header - 75.5", custom sizes available from | |||||
| 75.5" to 101.5" - add $225 to list | |||||
| Standard Arm included (push side mount, 0 - 4.1875" reveal) | |||||
| Deep Reveal Arm (4.125" - 9.875") - add $225 to list price | |||||
| Includes Multiple Door Module (2-659-0276) | |||||
| 8221 Double Egress Simultaneous Pair Operator | ALM | 5,782.10 | 185390 | 1 | |
| 1 unit, standard arm, single 75.5" cover, non-handed | DBZ | 5,889.30 | 185391 | 1 | |
| Standard Size Header - 75.5", custom sizes available from | |||||
| 75.5" to 101.5" - add $225 to list | |||||
| Standard Arm included (push side mount, 0 - 4.1875" reveal) | |||||
|
Deep Reveal Arm (4.125" - 9.875") - add $225 to list price
Includes Multiple Door Module (2-659-0276) |
|||||
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0275
Exterior Door Module (EDM) for 8200 Auto Operator |
178.60 | 184232 | - | 1 | |
|
Provides On-Board Output for 24VDC Electric Strike or Magnetic Lock as with (0.2 – 4.0s) delay,
allows for day/night mode operation, and provides programming interface when used with promgrammer (2-659-0280) |
|||||
|
2-659-0276
Multiple Door Module (MDM-B) for 8200 Auto Operator |
250.00 | 184247 | - | 1 | |
| Allows for operation of double leaved doors | |||||
|
2-659-0277
Programming Interface Module (PIM) for 8200 Auto Operator |
178.60 | 184269 | - | 1 | |
|
2-659-0280
iMotion Programmer w/ 6' Cord |
446.50 | 184279 | - | 1 | |
|
2-659-0278
Battery Backup with Interface Cable for 8200 Auto Operator |
778.60 | 184272 | - | 1 | |
|
Single Openings: 33" minimum header
Paired Openings: 36" minimum header |
|||||
|
2-659-0279
Battery Backup Extension Harness for 8200 Auto Operator |
60.70 | 184278 | - | 1 |
| Case | Box | |||
|---|---|---|---|---|
|
Description
Finish |
2018 List | Stock No. | Qty. | Qty. |
| 2-659-0283 | 135.70 | 184282 | - | 1 |
| 2.65" Drive Shaft Arm (double egress/deep reveal) | ||||
| 2-659-0284 | 89.30 | 184283 | - | 1 |
| 3.22" Drive Shaft Arm (standard in & out) | ||||
|
2-659-0285
3.94" Drive Shaft Arm (special applications) |
135.70 | 184286 | - | 1 |
| 2-659-0286 | 242.85 | 184287 | - | 1 |
| 4.84" Drive Shaft Arm (double egress out) | ||||
| 2-659-0319 | 87.50 | 194678 | - | 1 |
| Drive Arm Removal Tool | ||||
| 2-659-0287 | 342.45 | 184289 | - | 1 |
| Push Side Arm (0 - 4.1875" reveal) CLR | ||||
| (standard arm) | ||||
| 2-659-0288 | 342.45 | 184290 | - | 1 |
| Push Side Arm (0 - 4.1875" reveal) BLK | ||||
| (standard arm) | ||||
| 2-659-0289 | 342.45 | 184292 | - | 1 |
| Push Side Arm (4.125 - 9.875" reveal) CLR | ||||
| 2-659-0290 | 342.45 | 184297 | - | 1 |
| Push Side Arm (4.125 - 9.875" reveal) BLK | ||||
|
2-659-0291
Double Egress Outswing Door Arm Assembly (0 - 4.1875" reveal) CLR |
342.45 | 184298 | - | 1 |
| (standard arm) | ||||
| 2-659-0292 | 342.45 | 184300 | - | 1 |
| Double Egress Outswing Door Arm Assembly (0 - 4.1875" reveal) BLK | ||||
| (standard arm) | ||||
| 2-659-0293 | 342.45 | 184301 | - | 1 |
| Double Egress Outswing Door Arm Assembly (4.125 - 9.875" reveal) CLR | ||||
| 2-659-0294 | 342.45 | 184302 | - | 1 |
| Double Egress Outswing Door Arm Assembly (4.125 - 9.875" reveal) BLK | ||||
| 2-659-0295 | 342.45 | 184303 | - | 1 |
| Pull Side Arm and Slide Track (0" reveal) CLR | ||||
| 2-659-0296 | 342.45 | 184304 | - | 1 |
| Pull Side Arm and Slide Track (0" reveal) BLK | ||||
| 2-659-0297 | 570.80 | 184306 | - | 1 |
| RH Pull Side Deep Reveal Arm and Track (0 - 6" reveal) CLR | ||||
|
2-659-0298
RH Pull Side Deep Reveal Arm and Track (0 - 6" reveal) BLK |
570.80 | 184307 | - | 1 |
|
2-659-0299
LH Pull Side Deep Reveal Arm and Track (0 - 6" reveal) CLR |
570.80 | 184308 | - | 1 |
| 2-659-0300 | 570.80 | 184309 | - | 1 |
| LH Pull Side Deep Reveal Arm and Track (0 - 6" reveal) BLK | ||||
| 2-659-0301 | 146.45 | 184310 | - | 1 |
| Communication Harness for Pairs | ||||
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0303
6" Round with Text & Logo |
US32D/Blue | 206.00 | 185055 | 12 | 1 |
|
2-659-0304
6" Round with Logo Only |
US32D/Blue | 206.00 | 185058 | 12 | 1 |
|
2-659-0305
4-3/4" Square with Text & Logo |
US32D/Blue | 206.00 | 185056 | 12 | 1 |
|
2-659-0306
4-3/4" Square with Logo Only |
US32D/Blue | 206.00 | 185059 | 12 | 1 |
|
2-659-0307
4-3/4" Square with Logo Only |
US32D/Blue | 206.00 | 186793 | 12 | 1 |
|
2-659-0308
4-3/4" Square with Text Only |
US32D/Blue | 206.00 | 186794 | 12 | 1 |
|
2-659-0161
6" Round Actuator Push To Open and Handicap Symbol |
US32D/Blue | 123.60 | 162698 | 20 | 1 |
|
2-659-0162
6" Round Actuator Handicap Symbol |
US32D/Blue | 123.60 | 162699 | 20 | 1 |
|
2-659-0163
Surface Mount Box For 6" Round Actuator |
Black | 41.20 | 20 | 1 | |
|
2-659-0164
Weather Ring For 6" Round Actuator |
Black | 8.25 | 162701 | 10 | 1 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0165
4.5" Round Actuator Push To Open and Handicap Symbol |
US32D/Blue | 107.15 | 162703 | 20 | 1 |
|
2-659-0166
4.5" Round Actuator Handicap Symbol |
US32D/Blue | 107.15 | 162704 | 20 | 1 |
|
2-659-0167
Surface Mount Box For 4.5" Round Actuator |
Black | 33.00 | 162705 | 20 | 1 |
|
2-659-0168
Weather Ring For 4.5" Round Actuator |
Black | 8.25 | 162706 | 10 | 1 |
|
2-659-0241
Universal Back Plate For use when mounting 4.5" round or 4.5" square actuator to bollard post |
US32D | 26.80 | 162743 | 10 | 1 |
|
2-659-0169
6" Square Actuator Push To Open and Handicap Symbol |
US32D/Blue | 123.60 | 162707 | 20 | 1 |
|
2-659-0170
6" Square Actuator Handicap Symbol |
US32D/Blue | 123.60 | 162708 | 20 | 1 |
|
2-659-0171
Surface Mount Box For 6" Square Actuator |
Black | 33.00 | 162709 | 20 | 1 |
|
2-659-0172
4.5" Square Actuator Push To Open and Handicap Symbol |
US32D/Blue | 100.95 | 162710 | 20 | 1 |
|
2-659-0173
4.5" Square Actuator Handicap Symbol |
US32D/Blue | 100.95 | 162711 | 20 | 1 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0174
Surface Mount Box For 4.5" Square Actuator |
Black | 33.00 | 162712 | 45 | 1 |
|
2-659-0175
1.5" x 4.75" Jamb Actuator Push To Open and Handicap Symbol |
US32D/Blue | 97.85 | 162713 | 20 | 1 |
|
2-659-0176
1.5" x 4.75" Jamb Actuator Handicap Symbol |
US32D/Blue | 97.85 | 162714 | 20 | 1 |
|
2-659-0177
Surface Mount Box For 1.5" x 4.75" Jamb Actuator |
Black | 20.60 | 162715 | 20 | 1 |
|
2-659-0178
36" Low Profile Actuator Push To Open and Handicap Symbol Wireless Includes 433 MHz wireless transmitter |
US32D/Blue | 721.00 | 162716 | 2 | 1 |
|
Exceeds California Building Code, Section 1117B.6
2-659-0179 36" Low Profile Actuator Push To Open and Handicap Symbol |
US32D/Blue | 664.35 | 162717 | 2 | 1 |
|
Hard Wired
Exceeds California Building Code, Section 1117B.6 |
|||||
|
2-659-0242
4.75" Vestibule Actuator Push To Open and Handicap Symbol |
US32D/Blue | 247.20 | 162741 | 20 | 1 |
|
2-659-0243
Surface Mount Box For 4.75" Vestibule Actuator |
Black | 77.25 | 162742 | 42 | 1 |
|
2-659-0180
Bollard Post For use with 4.5" round and 4.5" square push plates |
Black | 515.00 | 162720 | 1 | 1 |
|
2-659-0181
Bollard Post For use with 4.5" round and 4.5" square push plates |
Bronze | 515.00 | 162724 | 1 | 1 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0182
Bollard Post For use with 4.5" round and 4.5" square push plates |
Silver | 515.00 | 162725 | 1 | 1 |
|
2-659-0183
433 MHz Receiver Digital, Radio Controlled |
- | 118.45 | 162726 | 20 | 1 |
|
2-659-0184
3-Volt Transmitter Wireless Hardwired to actuator |
Black | 113.30 | 162727 | 20 | 1 |
|
2-659-0185
9-Volt Transmitter Wireless |
Black | 113.30 | 162728 | 20 | 1 |
|
2-659-0186
Wireless Transmitter One Button |
Black | 113.30 | 162729 | 20 | 1 |
|
2-659-0240
Programmable Relay and Door Sequencer For door timing and advanced relay sequencing |
- | 164.80 | 162730 | 20 | 1 |
One Family. One Brand. One Vision.TM
www.hagerco.com
Architectural Finish Symbols......3-4 Back Plate .................................... Ε ECCO ................................... Emergency Stop Release......14 Fasteners.....9-10 D Detention Food Pass Through Hinge.......31 Detention Hinge (IHT) ......22, 28, 31 Detention Utility Hinge......31 Hinge Additions/Modifications.....5-11 Hinges - Air...... 5 Hinges - Electric .......5-7 Hinge Pins ...... 8 Hinge Tips.................................... Hinges – Brass or Stainless Steel BALL BEARING FIVE KNUCKLE Anchor .................................... Full Mortise......39-51, 68 Full Surface.................................... Half Mortise ......32, 69 Half Surface .................................... Swing Clear .................................... Wide Throw .................................... CONCEALED BEARING THREE KNUCKLE Anchor .................................... Full Mortise .................................... Full Surface......26, 29 Half Mortise .......26, 28 Half Surface .......26. 29 Wide Throw .................................... PLAIN BEARING FIVE KNUCKLE Full Mortise.................................... PLAIN BEARING THREE KNUCKLE Full Mortise......23, 29 CONCEALED BEARING FIVE KNUCKLE Full Mortise.................................... CONCEALED BEARING TWO KNUCKLE Full Mortise ....................................
TABLE OF CONTENTS
| Hinges — Steel |
|---|
| BALL BEARING FIVE KNUCKLE |
| Anchor |
| Full Mortise |
| Full Surface 70-71 |
| Half Mortise32 |
| Half Surface33 |
| Swing Clear 55-56 |
| Wide Throw37-38, 63-66 |
| CONCEALED BEARING THREE KNUCKLE |
| Anchor |
| Full Mortise |
| Full Surface20, 22 |
| Half Mortise20, 22 |
| Half Surface20, 23 |
| Swing Clear 71-74 |
| Wide Throw |
| PLAIN BEARING FIVE KNUCKLE |
| Full Mortise56-59 |
| Half Mortise32 |
| Half Surface |
| Swing Clear 54-56 |
| Welding 69 |
| PLAIN BEARING THREE KNUCKLE |
| Full Mortise |
| CONCEALED BEARING TWO KNUCKLE |
| Full Mortise30 |
| PLAIN BEARING TWO KNUCKLE |
| Full Mortise29, 31 |
| Hinges – Spring |
| Double Acting |
| Full Mortise |
| Full Mortise - Stainless Steel |
| Half Surface52 |
| Reverse Action53-54 |
| Spring Hinge Sets53 |
| L |
| Lead Times |
| м |
| Molly Jack Nut |
| Mortar Box |
| Flortal Box |
| P | |
|---|---|
| Pivots | 13-15 |
|
Pivots Rack & Pinion
|
14 |
| Pivot Reinforcing | 12 |
| R | |
| Reinforcement Plate | 12 |
| S | |
| Set Screws (Set) | 12 |
| Sleeve Bolt | 13 |
| Strike - Combination Rescue |
13 |
| Strike - Double Lip | 12-13 |
| T | |
| Tip Kits | 65-66 |
LEAD TIMES
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
QUICK SHIP
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
CANCELLATION NOTIFICATION
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
ARCHITECTURAL FINISH SYMBOLS
These additions apply to the BASE HINGE LIST PRICE as listed in the book. Not all products are available in all finishes. Contact Hager Companies Sales and Service (1-800-325-9995) for more specific information.
BHMA Symbol Base Material
*if not listed in pricing sections
| US & HAGER | DESCRIPTION | PRICING INSTRUCTIONS | STEEL |
BRASS &
BRONZE |
STAINLESS
STEEL |
|---|---|---|---|---|---|
| 2C | Plain Zinc Plate | 20% above US10A or US10B price | 603 | N/A | N/A |
| H2H x BP | Mechanical Galvanized; Steel Only | 25% above US10A price | N/A | N/A | N/A |
| 3 | Bright Brass | Use price of US10B | 632 | 605 | N/A |
| 3A | Bright Brass - Unlacquered | Use price of US3 | N/A | N/A | N/A |
| 3SC | Brass SecureCoat® Lifetime Bright Brass Finish | Price on Application | N/A | N/A | N/A |
| 4 | Satin Brass | Use price of US10 | 633 | 606 | N/A |
| 5 | Satin Brass, Oxidized | Use price of 10A/10B | 638 | 609 | N/A |
| 9 | Bright Bronze | 20% above US10A or US10B price | 637 | 611 | N/A |
| 10 | Satin Bronze | As listed | 639 | 612 | N/A |
| 10A (US11) | Antique Bronze, Lacquered | As listed (steel only) | 641/643 | N/A | N/A |
| 10B | Antique Bronze, Oiled | Use price of US10A | 640 | 613 | N/A |
| 10Z | Antiqued Bronze-SPL | Use price of US10A/US10B | N/A | N/A | N/A |
| 10D | Black Nickel, Oiled | Use price of US10B | 640 | 613 | N/A |
| SS/10Z | Antique Bronze, Stainless Steel | 30% above 32D | N/A | N/A | N/A |
| 14 | Bright Nickel | 20% above US10A or US10B | 645 | 618 | N/A |
| 14B | Black Nickel, Bright | 20% above US10A or US10B | N/A | N/A | N/A |
| 15 | Satin Nickel | Use price of US10A or US10B | 646 | 619 | N/A |
| 15A | Satin Nickel, Nickel Oxidized & Highlighted | 20% above US10A or US10B | 647 | 620 | N/A |
| 17A | Black Nickel, Dull | 20% above US10A or US10B | 648 | 621 | N/A |
| 26 | Bright Chromium Plated | Use price of US10A or US10B | 651 | 625 | N/A |
| 26D | Satin Chromium Plated | As listed | 652 | 626 | N/A |
| 32 | Stainless Steel Metal, Bright | Use price of US32D | N/A | N/A | 629 |
| 32D | Stainless Steel Metal, Satin (304) | As listed | N/A | N/A | 630 |
| 32D (316) | Stainless Steel Metal, Satin (316) | POA | N/A | N/A | 630 |
| 32D (CLR) | Stainless Steel Metal, Satin (Clear Coat) | 30% above US32D | N/A | N/A | 630 |
| P | Prime Coat | Use price of US10 | 600 | 600 | N/A |
| PS | Plain Steel | Use price of US4 or USP | N/A | N/A | N/A |
| L1 | Flat Black | Use price of US10 | 693 | 693 | N/A |
| L2 (90P) | Dark Bronze | Use price of US10 | 695 | 695 | N/A |
| L3 | Medium Bronze | Use price of US10 | 694 | 694 | N/A |
| LS | Luma Sheen® | Use price of US10 | 689 | 689 | N/A |
Colors By Hager
| US & HAGER | DESCRIPTION | PRICING INSTRUCTIONS | HEWI # |
|---|---|---|---|
| 13P | White | 20% above US10 price | 1 |
| 14P | Off White | 20% above US10 price | 5A |
| 15P | Grey | 20% above US10 price | 5 |
| 33P | Yellow | 20% above US10 price | 14 |
| 34P | Red | 20% above US10 price | 33 |
| 35P | Green | 20% above US10 price | 6 |
| 36P | Blue | 20% above US10 price | 52 |
| 83P | Black | 20% above US10 price | 8 |
| 84P | Olive | 20% above US10 price | 62 |
| 85P | Brown | 20% above US10 price | 9 |
| 86P | Burgundy | 20% above US10 price | 30 |
| 87P | Dark Green | 20% above US10 price | 60 |
| 88P | Dark Blue | 20% above US10 price | 50 |
Notes: -Colors by Hager are available only on architectural grade full mortise plain bearing hinges, full mortise ball bearing hinges, both standard and heavy weight, in both steel and brass material.
-For any finish not listed in this price book, or explained above, price and availability on request.
Whenever possible, Hager Companies employs the latest technologies in metal finishing to provide the best long-term performance for our customers. Some finishes may not comply completely with BHMA (Builders Hardware Manufacturing Association) Standard A156.18 specifications with regard to plating process. However, they match BHMA color standards and exceed all BHMA performance criteria with regard to such tests as salt spray corrosion resistance, ultraviolet light deterioration resistance, solvent resistance, perspiration resistance, and finish hardness. For the convenience of our customers, we refer to the most appropriate finish symbols to indicate similarity of appearance using BHMA standard nomenclature including the "US" and numerical designation. Dissimilar metals are plated to match or be compatible to the finishes indicated. Finish numbers indicated on each product are the most equivalent to the old "US" symbol numbers and carry the BHMA finish symbol in parenthesis adjacent to the finish: Example — US3 (605) - Bright Brass or US26D (626) - Satin Chrome.
Hager's finishes are durable, high quality finishes obtained by careful processing of steel, brass, and stainless steel materials. It is important to consider usage and climatic conditions when selecting finishes. This is especially true in areas subjected to strong corrosive chemical conditions, humid climate or salt air which may have a damaging effect on metal finishes in a very short period of time. The longevity and preservation of the finish appearance are determined by base metal and finish process.
Care and maintenance of clear protective coatings or other organic finishing applications may require different methods of cleaning and care. As an example, all hardware finishes should not be cleaned with solvents or abrasives; surfaces should periodically be cleaned with a mild, non-abrasive soap and dried lightly with a soft, clean cloth. The type of base material and finishing techniques must be considered when applying any cleaning or preservative method. Contact Hager's Sales and Service Department for further information on the care of hardware finishes.
Note: Hager only warrants US10B finish over brass or bronze base material. If steel base material is necessary, Hager recommends US10A lacquer finish.
HINGE ADDITIONS/MODIFICATIONS
These additions apply to the BASE HINGE LIST PRICE as listed in the book. They do not apply to the price of any hinges listed with additions in this book. If the hinge to be priced has additions, START WITH THE PRICE OF THE BASE HINGE, THEN ADD "FOR ADDITIONS WHERE NOT LISTED."
Antimicrobial powder coat protection - Symbol is 'MV5' (use as suffix). List price is $22.70.
Bearings
Ball bearings (symbol 'BB') and anti-friction bearings (symbol 'AB') regularly furnished. Oilite bearings (symbol 'OB') and CB (concealed bearing) available at same price as ball bearings.
*To maximize hinge life and assist in achieving ADA compliance, Hager recommends the use of anti-friction or ball bearing hinges with door closer products.
Concealed Air Transfer Hinge Modification
Exposed Electric Hinge Modification
| EXPOSED ELECTRIC CONTACTS | |||||
|---|---|---|---|---|---|
| Description | List | ||||
|
4" hinge - 2 or 3 contacts
4-1/2" and 5" hinge - 2, 3, or 4 contacts Only one hinge per door requires electric contact. |
Extra charge $126.65 per each contact. | ||||
|
To order, use symbol 'E' as suffix and the
number of contacts desired. |
|||||
| Note: All exposed contact hinges must be ordered with NRP feature. Patent No. 3,650,063. | |||||
| EXPOSED ELECTRIC SWITCH | |
|---|---|
| Description | List |
|
Miniature push button switch that is
incorporated in the hinge leaves. Available on 4", 4-1/2", and 5" hinges. Only one hinge per door requires electric switch. |
Extra charge $126.65 per each contact. |
| To order, use symbol 'E1S' as suffix. | |
Concealed Electric Hinge Modification
Swing clear, wide throw, raised barrel – add $160. Available on Heavy weight only.
| CONCEALED ELECTRIC MONITOR | ||
|---|---|---|
| Description | Steel/Brass List | Stainless Steel List |
|
Miniature snap action switch is incorporated
into the frame leaf. Available in 4" through 8". Full mortise ball bearing hinges. Concealed electric monitor, per hinge. |
$352.35 | $460.15 |
| NRP not necessary as hinges are cross pinned and are not field removable. To order, use symbol 'EMN' as suffix. |
| CONCEALED ELECTRIC THROUGH-WIRE | ||
|---|---|---|
| Description | Steel/Brass List | Stainless Steel List |
|
Four continuous electric conductors (28 gauge
wire). Available in 4" through 8". Full mortise ball bearing, standard weight and heavy weight in steel and brass material. NRP not necessary as hinges are cross pinned and are not field removable. To order, use symbol 'ETW' as suffix. |
||
| Extra charges (each) | ||
| ETW-4 (4 wire) | $314.05 | $392.55 |
| ETW-8 (8 wire) | $348.25 | $435.30 |
| ETW-12 (12 wire) | $487.45 | $609.35 |
| ETW-2 (18 GA)** | $414.55 | $517.00 |
| ETW-6-1828 (2-18 GA, 4-28 GA)*/** | $459.65 | $574.60 |
| ETW-8-1828(2-18 GA, 6-28 GA)*/** | $508.40 | $634.45 |
* Not available on three knuckle hinges. ** Not available on swing clear.
|
STANDARD WIRE LEAD - 8" per side: 18 or 28 gauge wire
Additional wire leads - must be bought in 4, 8, and 12 feet lengths. Price includes both sides. |
|
|---|---|
| Description | List |
| 4-wire hinge; per foot | $7.45 |
| 6-wire hinge; per foot | $7.45 |
| 8-, 10-, 12-wire hinge; per foot | $7.45 |
Quick Connect
Extra charge $43.40 per hinge (available on ETW 4, 8, and 12 wire. Not available with 18g wire.).
|
QUICK CONNECT HARNESS CABLES - connectors installed on one end, pigtails on the
other for easy install in the field |
|||||
|---|---|---|---|---|---|
| Part Number | Description | List Price | |||
| 1-479-0007 | 3" Wire Harness Assembly | $55.90 | |||
| 1-479-0008 | 6" Wire Harness Assembly | $58.30 | |||
| 1-479-0012 | 12" Wire Harness Assembly | $72.00 | |||
| 1-479-0026 | 26" Wire Harness Assembly | $85.70 | |||
| 1-479-0032 | 32" Wire Harness Assembly | $86.75 | |||
| 1-479-0038 | 38" Wire Harness Assembly | $89.25 | |||
| 1-479-0044 | 44" Wire Harness Assembly | $92.60 | |||
| 1-479-0400 | 50" Wire Harness Assembly | $94.30 | |||
| 1-479-1500 | 15'2 Wire Harness Assembly | $168.00 | |||
Five Knuckle Concealed Bearing Hinges (CB)
Available on standard weight, heavy weight full mortise 3-1/2", 4", 4-1/2", and 5". Price same as Ball Bearing (BB).
Prices and Part Numbers for Hinge Pins (Boxes of 10 Each)
Contract Grade Pins Size 4-1/2"
| STANDARD WEIGHT | ||
|---|---|---|
| STEEL - FINISH | PART NUMBER | LIST (10/BOX) |
| US3 | 1-890-7550 | $63.45 per box |
| US4 | 1-890-7619 | $63.45 per box |
| US10 | 1-890-7695 | $63.45 per box |
| US10A/US10B | 1-890-7733 | $63.45 per box |
| US26 | 1-890-7625 | $63.45 per box |
| US26D | 1-890-7657 | $63.45 per box |
| USP | 1-890-7771 | $63.45 per box |
| L1 | 1-890-7772 | $63.45 per box |
| HEAVY WEIGHT | ||
|---|---|---|
| STEEL - FINISH | PART NUMBER | LIST (10/BOX) |
| US3 | 1-890-8269 | $77.60 per box |
| US10 | 1-890-8270 | $77.60 per box |
| US10A/US10B | 1-890-8267 | $77.60 per box |
| US26D | 1-890-8305 | $77.60 per box |
| USP | 1-890-8268 | $77.60 per box |
Non-Removable Pins (Medium Security)
| Symbol | Description | List |
|---|---|---|
| NRP* | Set screw in barrel | $5.00 ea. |
| FRP* | Pin spun or riveted | |
| at both ends | $24.75 ea. |
* This modification is intended as a deterrent only. It is not to be considered suitable for high-security applications or abusive environments.
Pins Not Regularly Furnished in Complete Hinge
| Symbol | Description | List |
| BP | Brass Pin | $7.90 - 3" |
| $11.40 - 3-1/2" to 4" | ||
| $15.35 - 4-1/2" to 5" | ||
| $21.20 - 6" | ||
| SP | Stainless Steel Pin | $7.90 - 3" |
| $11.40 - 3-1/2" to 4" | ||
| $15.35 - 4-1/2" to 5" | ||
| $21.20 - 6" | ||
Raised Barrel Hinges
- Specify handing and door thickness.
- Not available on 8" x 6" or 8" x 8" hinges.
- Prices apply to both standard and heavyweight hinges.
- Prices listed for 1-3/8" and 1-3/4" doors only.
- For 2" or greater doors add 30%.
|
Symbol
RBB |
Description
Raised Barrel for Mortised Jamb Leaf, Beveled Edge Door Leaves Equal |
List
$44.75 ea. |
|---|---|---|
| RBS |
Raised Barrel for Mortised
Jamb Leaf, Square Edge Door Leaves Equal |
$44.75 ea. |
| JSM |
Raised Barrel for Jamb
Surface Mount, Leaves Equal |
$44.75 ea. |
Clear Coat
Not available on all finishes. Symbol List
CLR Add 30% to list price of hinge
Round Corners
Round corners (1/4" and 5/8" radius). Specify radius desired; standard
radius 1/4".
Symbol List RC $8.00 ea.
Rust Resistant Undercoat with Painted
Finishes
Symbol List CP/Plain bearing, all sizes $14.15 ea. Ball bearing, all sizes $16.55 ea.
Safety Stud
Security offered to prevent slipping leaves past one another when hinge is closed. Stud attached to one leaf projects into hole in matching leaf.
Symbol List SH* $19.05 ea. This feature not necessary on anchor hinges
* This modification is intended as a deterrent only. It is not to be considered suitable for high-security applications or abusive environments.
Reverse Safety Stud - Heavy Weight Only
Reverse safety studs extend into reinforcing plate of door & frame to help prevent screw shearing.
Symbol List RSS $29.40 ea.
Note: Available on steel, stainless steel detention or institutional tip hinges only. Not available on solid brass hinges.
Slip-In Hinges
1277/1278 & BB1277/BB1278 - Add to 1279/BB1279
List: $105.35 ea.
1577/1578 & BB1577/BB1578 - Add to 1191/BB1191
List: $105.35 ea.
Special Applications
In the event you do not find the particular hinge which will meet your requirements, we recommend that you contact Hager Companies Sales and Service and provide us with your specification.
Special Screws
All butt hinges are regularly packed with flat Phillips head wood or machine screws or bolts. All other types are special.
Extra for spanner head screws
Description List
Steel $1.50 per screw | 12.00 hinge Brass $2.45 per screw | 19.60 hinge Stainless steel $5.25 per screw | 42.00 hinge
Extra for tamper proof torx screws
Description List
Steel $1.50 per screw | 12.00 hinge Stainless steel $1.95 per screw | 15.60 hinge
Boxed Screws
Machine Torx (12-24 x1/2 - for 4", 4.5", 5" hinges)
Description List
1-804-3212 (26D) $150.00 per box-torx (100/box) 1-803-3205 (32D) $175.00 per box-torx (100/box)
Wood Torx (1-1/4x12 - for 4", 4.5", 5" hinges)
Description List
1-810-9920 (26D) $150.00 per box-torx (100/box) 1-813-9910 (32D) $175.00 per box-torx (100/box)
Standard Screw Packs for Full Mortise Architectural Hinges
| PART NUMBER | SIZE | FINISH | SCREWS |
|---|---|---|---|
|
700, AB700, 1279, BB1279, EC1100, EC1105, 1250
(with or without NRP), ECBB1100 |
4-1/2" x 4-1/2"
4-1/2" x 4 |
US3, US4, US5, US10, US10A (US11), US10B,
US15, US15A, US26, US26D, USP |
AMS & AWS |
| Other than listed above | 4-1/2" | Other than listed above | AMS & 1/2 WS |
| All | 3-1/2" | All | AWS & 1/2 MS |
| All | 4" | All | AWS & 1/2 MS |
| All | 5" | All | AMS & 1/2 WS |
| All hinges with decorative tips | All | All | AWS |
| Note: Hinge additions listed on pages 5-9 will affect standard screw packaging. |
Prices and Part Numbers for Bulk Packed Screws Contract grade hinges size 4", 4-1/2", and 5"
| WOOD SCREWS 1-1/4" x 12 FPHW - STEEL | MACHINE SCREWS 12-24 x 1/2" FPHM - STEEL | ||||
|---|---|---|---|---|---|
| PART NUMBER | FINISH | LIST (100/BOX) | PART NUMBER | FINISH | LIST (100/BOX) |
| 1-810-5824 | US3 | $108.80 per box | 1-800-7225 | US3 | $54.20 per box |
| 1-810-5952 | US4 | $108.80 per box | 1-800-7275 | US4 | $54.20 per box |
| 1-810-6208 | US10 | $108.80 per box | 1-800-7375 | US10 | $54.20 per box |
| 1-810-6336 | US10A/US10B | $108.80 per box | 1-800-7425 | US10A (US11)/US10B | $54.20 per box |
| 1-810-6848 | US26 | $108.80 per box | 1-800-7575 | US26 | $54.20 per box |
| 1-810-5696 | US26D | $108.80 per box | 1-800-7175 | US26D | $54.20 per box |
| 1-810-6976 | USP | $108.80 per box | 1-800-7625 | USP | $54.20 per box |
| 1-810-7232 | L1 | $108.80 per box | 1-800-7725 | L1 | $54.20 per box |
| WOOD SCREWS 1-1/4" x 12 FPHW - BRASS | MACHINE SCREWS 12-24 x 1/2" FPHM - BRASS | ||||
|---|---|---|---|---|---|
| PART NUMBER | FINISH | LIST (100/BOX) | PART NUMBER | FINISH | LIST (100/BOX) |
| 1-811-5824 | US3 | $215.80 per box | 1-801-7225 | US3 | $108.05 per box |
| 1-811-5952 | US4 | $215.80 per box | 1-801-7275 | US4 | $108.05 per box |
| 1-811-6208 | US10 | $215.80 per box | 1-801-7375 | US10 | $108.05 per box |
| 1-811-6336 | US10A/US10B | $215.80 per box | 1-801-7425 | US10A (US11)/US10B | $108.05 per box |
| 1-811-6848 | US26 | $215.80 per box | 1-801-7575 | US26 | $108.05 per box |
| 1-811-5696 | US26D | $215.80 per box | 1-801-7175 | US26D | $108.05 per box |
| 1-811-6976 | USP | $215.80 per box | 1-801-7625 | USP | $108.05 per box |
| 1-811-7232 | L1 | $215.80 per box | 1-801-7725 | L1 | $108.05 per box |
| WOOD SCREWS 1-1/4" x 12 FPHW - STAINLESS STEEL | MACHINE SCREWS 12-24 x 1/2" FPHM - STAINLESS STEEL | ||||
|---|---|---|---|---|---|
| PART NUMBER | FINISH | LIST (100/BOX) | PART NUMBER | FINISH | LIST (100/BOX) |
| 1-813-2500 | US32 | $215.80 per box | 1-803-2500 | US32 | $108.05 per box |
| 1-813-2499 | US32D | $215.80 per box | 1-803-2499 | US32D | $108.05 per box |
Stainless Steel Balls and Raceways
Furnished if desired on steel or brass ball bearing hinges.
| Description | List |
|---|---|
| Standard weight two ball bearing hinge$23.35 ea. | |
| Heavy weight four ball bearing hinge$28.25 ea. |
Swaging
Swaging, no holes or flat surface, add 30% to list price of hinge.
Tips - Exposed
| Symbol | Description | List |
|---|---|---|
| ET* | Button tip for three knuckle hinges onlyN/C | |
| *Exposed Tip | (ET standard on 5 knuckle) | |
| Tips - Hospital | ||
| Symbol | Description | List |
| HT* | Standard Weight and Heavy Weight Hinges$30.10 | |
| *Hospital Tip |
Tips - Decorator
Regular decorator tips are available on brass or steel hinges, three and five knuckle, for the type and size shown below. To order hinges with regular decorator tips, give the catalog number of the hinge, the size, the finish and the tip style.
Regular Decorator Tips:
For example: BB1199 – 5" x 5" US3 Ball Tip
BB1279 – 4-1/2" x 4-1/2" US10A Steeple Tip AB700 – 4-1/2" x 4-1/2" US3 Ball Tip
| REGULAR DECORATOR TIPS (Supplied with all wood screws unless otherwise specified) | LIST | ||
|---|---|---|---|
| Acorn Tip |
Standard Weight - 3-1/2", 4", 4-1/2", 5", and 6"
Heavy Weight - 4-1/2", 5", 6", and 8" |
$46.95
$46.95 |
|
| Ball Tip |
Standard Weight - 3", 3-1/2", 4", 4-1/2", 5", and 6"
Heavy Weight - 4-1/2", 5", 6", and 8" |
$29.40
$29.40 |
|
| Steeple Tip |
Standard Weight - 3", 3-1/2", 4", 4-1/2", 5", and 6"
Heavy Weight - 4-1/2", 5", 6", and 8" |
$29.40
$29.40 |
|
| Urn Tip |
Standard Weight - 3-1/2", 4", 4-1/2", 5", and 6"
Heavy Weight - 4-1/2", 5", 6", and 8" |
$46.95
$46.95 |
Note: Certain hinge additions/modifications may not be applicable. Please contact Hager Companies Customer Service before ordering.
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
|
100
Set Screw Set |
PS | 360.05 | 001076 | 10 | ||
| 251 | LH US2C | 188.30 | 001119 | 10 | ||
|
Full Surface Reinforcing Pivot for 3-1/2" (89 mm)
wide hinges (specify handing). |
RH US2C | 188.30 | 001120 | 10 | ||
| 252 | LH US2C | 188.30 | 001121 | 10 | ||
|
Full Surface Reinforcing Pivot for 4" (102 mm)
wide hinges, non-handed. |
RH US2C | 188.30 | 001122 | |||
|
253
Full Surface Reinforcing Pivot for 4-1/2" (114 mm) wide hinges, non-handed. |
US2C | 188.30 | 121571 | 1 | ||
|
254
Full Surface Reinforcing Pivot for 5" (127 mm) wide hinges, non-handed. |
US2C | 188.30 | 121572 | 1 | 10 | |
|
263
Thru Bolts for reinforcing 1-3/4" (45 mm) doors. Pack of 100 |
US2C | 257.05 | 001141 | 1 pack | ||
|
265
Molly Jack Nuts (8S JN) for Reinforcing Pivot Pack of 100 |
US2C | 137.00 | 001143 |
1 pack of
100 |
||
|
305
Hinge Reinforcement Plate |
4-1/2"
(114 mm) |
PS | 8.55 | 001153 | 50 | |
| 417 | 4-1/2" | USP | 30.95 | 001195 | 10 | 100 |
| Back Plate for Wood Doors | (114 mm) | US10 | 30.95 | 001187 | ||
| Half Surface Hinges or Full | US26D | 30.95 | 001190 | |||
| Surface Hinges | 5" | USP | 32.85 | 001203 | 10 | 100 |
| (127 mm) | US10 | 32.85 | 078619 | |||
| US26D | 32.85 | 001199 | ||||
|
430
Mortar Box |
H2H | 62.65 | 001206 | 1 | ||
| 451 | 5-3/4" | US26D | 198.10 | 001208 | 1 | |
|
Double Lipped Strike
Center Hung *Other sizes available |
(146 mm) | |||||
|
452
Double Lipped Strike Center Hung *Other sizes available |
6-3/4"
(172 mm) |
US26D | 198.10 | 001209 | 1 | |
|
453
Double Lipped Strike 1/8" Inset |
5-3/4
(146 mm) |
US26D | 198.10 | 001210 | 1 |
*Other sizes available
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| 100 | - | |
|---|---|---|
| 19 | ||
| 100 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
|
454
Double Lipped Strike 1/8" Inset *Other sizes available |
6-3/4"
(172 mm) |
US26D | 198.10 | 001211 | 1 | |
|
455
Center Hung Combination Rescue Door Stop and Two Way Strike Plates Specify Handing *Other sizes available |
5-3/4
(146 mm) |
LH US26D
RH US26D |
566.15
566.15 |
001218
001219 |
1 | |
|
456
Center Hung Combination Rescue Door Stop and Two Way Strike Plates Specify Handing *Other sizes available |
6-3/4"
(172 mm) |
LH US26D
RH US26D |
570.85
570.85 |
001222
001223 |
1 | |
|
457
1/8" Inset Combination Rescue Door Stop and Two Way Strike Plates Specify Handing *Other sizes available |
5-3/4
(146 mm) |
LH US26D
RH US26D |
566.15
566.15 |
001224
001225 |
1 | |
|
458
1/8" Inset Combination Rescue Door Stop and Two Way Strike Plates Specify Handing *Other sizes available |
6-3/4"
(172 mm) |
LH US26D
RH US26D |
594.40
594.40 |
001226
001227 |
1 | |
| *Other sizes available |
4 3/4" thru 8 3/4"
greater than 8 3/4" |
add $80 to list of 6 3/4" size
add $125 to list of 6 3/4" size |
||||
|
495
Forged Bronze - Full Mortise Ball Bearing Adjustable Top Pivot Hinge |
US10
US10B US26D |
246.65
246.65 246.65 |
001228
001231 001236 |
1 | ||
|
496
Forged Bronze - Full |
LH US10
RH US10 |
354.75
354.75 |
001242
001243 |
1 |
| 495 | US10 | 246.65 | 001228 | 1 |
| Forged Bronze - Full Mortise | US10B | 246.65 | 001231 | |
| Ball Bearing Adjustable Top | US26D | 246.65 | 001236 | |
| Pivot Hinge | ||||
| 496 | LH US10 | 354.75 | 001242 | 1 |
| Forged Bronze - Full | RH US10 | 354.75 | 001243 | |
| Mortise Ball Bearing | LH US10B | 354.75 | 001244 | |
| Adjustable Intermediate | RH US10B | 354.75 | 001245 | |
| Pivot Hinge | LH US26D | 332.30 | 001250 | |
| Specify Handing | RH US26D | 332.30 | 001251 | |
| 497 | LH US10 | 569.35 | 001257 | 1 |
| Forged Bronze - Full | RH US10 | 569.35 | 001258 | |
| Mortise Ball Bearing | LH US10B | 569.35 | 001259 | |
| Adjustable Bottom | RH US10B | 569.35 | 001260 | |
| Pivot Hinge | LH US26D | 559.35 | 001265 | |
| Specify Handing | RH US26D | 559.35 | 001266 | |
4/01/2018 www.hagerco.com
|
Description
500 |
Finish
US4 |
2018 List
504.45 |
Stock No.
001276 |
Box
Qty. 1 |
Case
Qty. 16 |
|---|---|---|---|---|---|
|
Brass - Full Mortise
Standard Weight Rack and Pinion Pivot |
US26D | 519.00 | 001274 | ||
| 510 | US26D | 350.05 | 001278 | 1 | 10 |
|
Mortise Application - Hospital Set
Wood Floor - Less Release |
|||||
|
511
Mortise Application - Hospital Set Masonry Floor - Less Release |
US26D | 417.45 | 001281 | 1 | 10 |
|
512
Surface Application - Hospital Set Masonry Floor - Less Release |
US26D | 417.45 | 001283 | 1 | 10 |
| 550 | US4 | 603.75 | 001290 | 1 | 10 |
|
Brass - Full Mortise
Heavy Weight Rack and Pinion Pivot |
US26D | 622.75 | 001288 | ||
| 551 | US4 | 664.20 | 113313 | 1 | 10 |
|
Brass - Full Mortise
Extra Heavy Weight Rack and Pinion Pivot |
US26D | 683.75 | 113311 | ||
| 600 | US26D | 624.75 | 001293 | 1 | 10 |
|
Mortise Application - Hospital Set
Wood Floor |
|||||
| 610 | US26D | 268.90 | 001296 | 1 | 10 |
| Emergency Stop Release |
|
Description
611 Mortise Application - Hospital Set Masonry Floor |
Finish
US26D |
2018 List
691.95 |
Stock No.
001298 |
Box
Qty. 1 |
Case
Qty. 10 |
|---|---|---|---|---|---|
|
612
Surface Application - Hospital Set Masonry Floor |
US26D | 691.95 | 001301 | 1 | 10 |
|
615
Steel - Heavy Weight Pivot Set for Frameless Opening |
US26D | 148.15 | 042688 | 1 | 10 |
| 700 | 3-1/2" x 3-1/2" | LS | 11.90 | - | 2 | 100 |
|---|---|---|---|---|---|---|
| Steel - Full Mortise | (89 mm x 89 mm) | USP | 8.85 | 000926 | ||
| Standard Weight | US3 | 17.75 | 001311 | |||
| Plain Bearing | US4 | 11.90 | 001312 | |||
| Three Knuckle | US10 | 11.90 | 001303 | |||
| US10A (US11) | 17.75 | 001304 | ||||
| US10B | 17.75 | 069448 | ||||
| US26 | 17.75 | 001308 | ||||
| US26D | 14.85 | 001309 | ||||
| 4" x 4" | LS | 14.05 | 14.05 | 3 | 48 | |
| (102 mm x 102 mm) | USP | 10.90 | 10.90 | |||
| US3 | 20.10 | 20.10 | ||||
| US4 | 14.05 | 14.05 | ||||
| US10 | 14.05 | 14.05 | ||||
| US10A (US11) | 20.10 | 20.10 | ||||
| US10B | 20.10 | 20.10 | ||||
| US26 | 20.10 | 20.10 | ||||
| US26D | 18.15 | 18.15 | ||||
| 4-1/2" x 4" | LS | 13.40 | 085393 | 3 | 48 | |
| (114 mm x 102 mm) | USP | 11.50 | 001350 | |||
| US3 | 23.00 | 001343 | ||||
| US4 | 13.40 | 001344 | ||||
| US10 | 13.40 | 001328 | ||||
| US10A (US11) | 23.00 | 001329 | ||||
| US10B | 23.00 | 001332 | ||||
| US26 | 23.00 | 001336 | ||||
| US26D | 14.60 | 001340 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 700 - Cont. | 4-1/2" x 4-1/2" | LS | 13.40 | - | 3 | 48 |
| Continued | (114 mm x 114 mm) | USP | 11.50 | 001390 | ||
| US3 | 23.00 | 001372 | ||||
| US4 | 13.40 | 001376 | ||||
| US10 | 13.40 | 001352 | ||||
| US10A (US11) | 23.00 | 001355 | ||||
| US10B | 23.00 | 001360 | ||||
| US26 | 23.00 | 001364 | ||||
| US26D | 14.60 | 001367 | ||||
| 5" x 4" | LS | 46.25 | - | 3 | 24 | |
| (127 mm x 102 mm) | USP | 38.05 | 001399 | |||
| US3 | 62.50 | - | ||||
| US4 | 46.25 | - | ||||
| US10 | 46.25 | - | ||||
| US10A (US11) | 62.50 | - | ||||
| US10B | 62.50 | 109332 | ||||
| US26 | 62.50 | - | ||||
| US26D | 42.85 | 104223 | ||||
| 5" x 4-1/2" | LS | 46.25 | - | 3 | 24 | |
| (127 mm x 114 mm) | USP | 38.05 | 067157 | |||
| US3 | 62.50 | - | ||||
| US4 | 46.25 | 123152 | ||||
| US10 | 46.25 | 038706 | ||||
| US10A (US11) | 62.50 | - | ||||
| US10B | 62.50 | - | ||||
| US26 | 62.50 | 065399 | ||||
| US26D | 42.85 | 001403 | ||||
| 5" x 5" | LS | 46.25 | - | 3 | 24 | |
| (127 mm x 127 mm) | USP | 38.05 | 042507 | |||
| US3 | 62.50 | - | ||||
| US4 | 46.25 | - | ||||
| US10 | 46.25 | 041251 | ||||
| US10A (US11) | 62.50 | 115621 | ||||
| US10B | 62.50 | 038084 | ||||
| US26 | 62.50 | - | ||||
| US26D | 42.85 | 068632 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB700 | 3-1/2" x 3-1/2" | LS | 35.55 | 124088 | 2 | 100 |
| Steel - Full Mortise | (89 mm x 89 mm) | USP | 31.10 | 045449 | ||
| Standard Weight | US3 | 43.00 | 044765 | |||
| Concealed Anti-Friction Bearing | US4 | 31.10 | 016859 | |||
| Three Knuckle | US10 | 35.55 | 029909 | |||
| US10A (US11) | 43.00 | 012038 | ||||
| US10B | 43.00 | 033999 | ||||
| US26 | 43.00 | 053130 | ||||
| US26D | 36.90 | 091472 | ||||
| 4" x 4" | LS | 35.55 | - | 3 | 48 | |
| (102 mm x 102 mm) | USP | 31.10 | 001501 | |||
| US3 | 43.00 | 001497 | ||||
| US4 | 31.10 | 001499 | ||||
| US10 | 35.55 | 098013 | ||||
| US10A (US11) | 43.00 | 068298 | ||||
| US10B | 43.00 | 034156 | ||||
| US26 | 43.00 | 022969 | ||||
| US26D | 36.90 | 001495 | ||||
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| AB700 - Cont. | 4-1/2" x 4" | LS | 29.65 | 085392 | 3 | 48 |
| Continued | (114 mm x 102 mm) | USP | 20.90 | 001559 | ||
| US3 | 35.80 | 001543 | ||||
| US4 | 29.65 | 095580 | ||||
| US10 | 29.65 | 001502 | ||||
| US10A (US11) | 35.80 | 001507 | ||||
| US10B | 35.80 | 001515 | ||||
| US26 | 35.80 | 001526 | ||||
| US26D | 20.10 | 001533 | ||||
| 4-1/2" x 4-1/2" | LS | 29.65 | 122473 | 3 | 48 | |
| (114 mm x 114 mm) | USP | 20.90 | 001682 | |||
| US3 | 35.80 | 001645 | ||||
| US4 | 29.65 | 001654 | ||||
| US10 | 29.65 | 001574 | ||||
| US10A (US11) | 35.80 | 001585 | ||||
| US10B | 35.80 | 001597 | ||||
| US26 | 35.80 | 001607 | ||||
| US26D | 20.10 | 001620 | ||||
| 5" x 4" | LS | 57.90 | - | 3 | 24 | |
| (127 mm x 102 mm) | USP | 57.90 | 069644 | |||
| US3 | 73.30 | 046335 | ||||
| US4 | 57.90 | 017201 | ||||
| US10 | 57.90 | 047777 | ||||
| US10A (US11) | 73.30 | 033653 | ||||
| US10B | 73.30 | 047266 | ||||
| US26 | 73.30 | 001706 | ||||
| US26D | 56.65 | 001709 | ||||
| 5" x 4-1/2" | LS | 57.90 | - | 3 | 24 | |
| (127 mm x 114 mm) | USP | 57.90 | 001748 | |||
| US3 | 73.30 | 001738 | ||||
| US4 | 57.90 | 091318 | ||||
| US10 | 57.90 | 098518 | ||||
| US10A (US11) | 73.30 | 097200 | ||||
| US10B | 73.30 | 028451 | ||||
| US26 | 73.30 | 019133 | ||||
| US26D | 56.65 | 001727 | ||||
| 5" x 5" | LS | 57.90 | - | 3 | 24 | |
| (127 mm x 127 mm) | USP | 57.90 | 001773 | |||
| US3 | 73.30 | 020279 | ||||
| US4 | 57.90 | 017173 | ||||
| US10 | 57.90 | 001758 | ||||
| US10A (US11) | 73.30 | 008276 | ||||
| US10B | 73.30 | 048588 | ||||
| US26 | 73.30 | 016080 | ||||
| US26D | 56.65 | 025276 |
Box
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTAB700 | 4-1/2" x 5" | LS | 111.60 | - | 3 | 24 |
| Wide Throw Hinge | (114 mm x 127 mm) | USP | 109.15 | 065577 | ||
| Steel - Full Mortise | US3 | 125.00 | 069940 | |||
| Standard Weight | US10 | 111.60 | 043251 | |||
| Concealed Anti-Friction Bearing | US10A (US11) | 125.00 | 030958 | |||
| Three Knuckle | US10B | 125.00 | 007941 | |||
| US26 | 125.00 | 069304 | ||||
| US26D | 116.95 | 001446 | ||||
| 4-1/2" x 6" | LS | 111.60 | - | 3 | 24 | |
| (114 mm x 152 mm) | USP | 109.15 | 023667 | |||
| US3 | 125.00 | 026730 | ||||
| US10 | 111.60 | 065978 | ||||
| US10A (US11) | 125.00 | 065835 | ||||
| US10B | 125.00 | 075797 | ||||
| US26 | 125.00 | 062172 | ||||
| US26D | 116.95 | 001458 | ||||
| 4-1/2" x 7" | LS | 120.35 | - | 3 | 24 | |
| (114 mm x 178 mm) | USP | 120.35 | 032001 | |||
| US3 | 137.25 | 011172 | ||||
| US10 | 122.65 | 091490 | ||||
| US10A (US11) | 137.25 | 047357 | ||||
| US10B | 137.25 | 104122 | ||||
| US26 | 137.25 | 001467 | ||||
| US26D | 128.55 | 039039 | ||||
|
4-1/2" x 8"
(114 mm x 203 mm) |
LS | 120.35 | - | 3 | 24 | |
| USP | 120.35 | 046359 | ||||
| US3 | 137.25 | 011806 | ||||
| US10 | 122.65 | - | ||||
| US10A (US11) | 137.25 | 063050 | ||||
| US10B | 137.25 | 104121 | ||||
| US26 | 137.25 | 081758 | ||||
| US26D | 128.55 | 001469 | ||||
| 5" x 6" | LS | 159.90 | - | 3 | 24 | |
| (127 mm x 152 mm) | USP | 152.20 | 110219 | |||
| US3 | 190.25 | 054746 | ||||
| US10 | 159.90 | 077240 | ||||
| US10A (US11) | 190.25 | - | ||||
| US10B | 190.25 | 030049 | ||||
| US26 | 190.25 | - | ||||
| US26D | 175.05 | 047936 | ||||
| 5" x 7" | LS | 159.90 | - | 3 | 24 | |
| (127 mm x 178 mm) | USP | 152.20 | 134948 | |||
| US3 | 190.25 | - | ||||
| US10 | 159.90 | - | ||||
| US10A (US11) | 190.25 | 044063 | ||||
| US10B | 190.25 | 045970 | ||||
| US26 | 190.25 | - | ||||
| US26D | 175.05 | 088534 |
Box Qty.
Case Qty.
| AB702 | 4-1/2" (114 mm) | USP | 100.05 | 001859 | 3 | 48 |
|---|---|---|---|---|---|---|
| Steel - Full Surface | US10 | 118.20 | - | |||
| Standard Weight | US10A (US11) | 150.70 | - | |||
| Concealed Anti-Friction Bearing | US10B | 150.70 | 141799 | |||
| Three Knuckle | US26D | 132.60 | 016632 |
| AB703 | 4-1/2" (114 mm) | USP | 98.60 | 097744 | 3 | 48 |
|---|---|---|---|---|---|---|
| Steel - Half Surface | US10 | 107.80 | 072359 | |||
| Standard Weight | US10A (US11) | 154.60 | 030194 | |||
| Concealed Anti-Friction Bearing | US10B | 154.60 | 074016 | |||
| Three Knuckle | US26D | 119.80 | 001866 |
| AB750 | 4-1/2" x 4" | LS | 64.95 | - | 3 | 24 |
|---|---|---|---|---|---|---|
| Steel - Full Mortise | (114 mm x 102 mm) | USP | 64.95 | 096935 | ||
| Heavy Weight | US3 | 77.05 | 073827 | |||
| Concealed Anti-Friction Bearing | US4 | 64.95 | 071658 | |||
| Three Knuckle | US10 | 64.95 | 001909 | |||
| US10A (US11) | 77.05 | 001911 | ||||
| US10B | 77.05 | 065832 | ||||
| US26 | 77.05 | 001914 | ||||
| US26D | 55.55 | 092641 | ||||
| 4-1/2" x 4-1/2" | LS | 64.95 | 114475 | 3 | 24 | |
| (114 mm x 114 mm) | USP | 64.95 | 002006 | |||
| US3 | 77.05 | 001982 | ||||
| US4 | 64.95 | 001987 | ||||
| US10 | 64.95 | 001936 | ||||
| US10A (US11) | 77.05 | 001944 | ||||
| US10B | 77.05 | 001956 | ||||
| US26 | 77.05 | 001965 | ||||
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB750 - Cont. | 5" x 4-1/2" | LS | 83.50 | - | 3 | 24 |
| Continued | (127 mm x 114 mm) | USP | 83.50 | 002093 | ||
| US3 | 86.95 | 002078 | ||||
| US4 | 83.50 | 002081 | ||||
| US10 | 83.50 | 092589 | ||||
| US10A (US11) | 86.95 | 002044 | ||||
| US10B | 86.95 | 002055 | ||||
| US26 | 86.95 | 016351 | ||||
| US26D | 71.60 | 002064 | ||||
| 5" x 5" | LS | 83.50 | - | 3 | 24 | |
| (127 mm x 127 mm) | USP | 83.50 | 023577 | |||
| US3 | 86.95 | 030368 | ||||
| US4 | 83.50 | 002131 | ||||
US10 83.50 002109
|
US10A (US11)
US10B US26 US26D |
86.95
86.95 86.95 71.60 |
002113
017886 006052 002125 |
||||
|---|---|---|---|---|---|---|
| WTAB750 | 4-1/2" x 5" | LS | 161.30 | - | 3 | 24 |
| Wide Throw | (114 x 127 mm) | USP | 174.90 | 115754 | ||
| Steel - Full Mortise | US3 | 196.60 | - | |||
| Heavy Weight | US10 | 161.30 | 065696 | |||
| Concealed Anti-Friction Bearing | US10A (US11) | 196.60 | 093406 | |||
| Three Knuckle | US10B | 196.60 | 076857 | |||
| US26 | 196.60 | 092976 | ||||
| US26D | 162.30 | 022959 | ||||
| 4-1/2" x 6" | LS | 162.05 | - | 3 | 24 | |
| (114 mm x 152 mm) | USP | 175.65 | 063855 | |||
| US3 | 197.60 | 043920 | ||||
| US10 | 162.05 | 045850 | ||||
| US10A (US11) | 197.60 | 090251 | ||||
| US10B | 197.60 | 086471 | ||||
| US26 | 197.60 | 089046 | ||||
| US26D | 169.60 | 097881 | ||||
| 4-1/2" x 7" | LS | 218.00 | - | 3 | 24 | |
| (114 mm x 178 mm) | USP | 236.50 | - | |||
| US3 | 266.10 | - | ||||
| US10 | 218.00 | 071083 | ||||
| US10A (US11) | 266.10 | 100602 | ||||
| US10B | 266.10 | 008253 | ||||
| US26 | 266.10 | - | ||||
| US26D | 228.30 | 067308 | ||||
| 4-1/2" x 8" | LS | 223.30 | - | 3 | 24 | |
| (114 mm x 203 mm) | USP | 241.95 | 130101 | |||
| US3 | 272.20 | 116852 | ||||
| US10 | 223.30 | - | ||||
| US10A (US11) | 272.20 | - | ||||
| US10B | 272.20 | 106119 | ||||
| US26 | 272.20 | - | ||||
| US26D | 233.65 | 003472 |
| Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|
| 5" x 6" | LS | 217.75 | - | 3 | 24 |
| (127 mm x 152 mm) | USP | 235.90 | 082907 | ||
| US3 | 264.10 | 010751 | |||
| US10 | 217.75 | 021555 | |||
| US10A (US11) | 264.10 | 010915 | |||
| US10B | 264.10 | 099390 | |||
| US26 | 264.10 | - | |||
| US26D | 225.80 | 001905 | |||
| 5" x 7" | LS | 221.05 | - | 3 | 24 |
| (127 mm x 178 mm) | USP | 239.40 | 082905 | ||
5" x 8"
(127 mm x 203 mm)
Box Qty.
US3 267.90 055700 US10 221.05 107846 US10A (US11) 267.90 - US10B 267.90 141294 US26 267.90 - US26D 229.10 045843
USP 249.75 069579 US3 279.75 - US10 230.60 -
US10A (US11) 287.55 120634 US10B 287.55 120635 US26D 250.05 002195
LS 230.60 - 3 24
Case Qty.
Heavy Weight
| US10A (US11) | 279.75 | 109588 | ||||
|---|---|---|---|---|---|---|
| US10B | 279.75 | 000774 | ||||
| US26 | 279.75 | - | ||||
| US26D | 238.90 | 020835 | ||||
| IHTAB750 | 4-1/2" x 4-1/2" | LS | 115.25 | 082386 | 3 | 24 |
| MADE IN USA | (114 mm x 114 mm) | USP | 136.10 | 081222 | ||
| Steel - Full Mortise | US26D | 120.70 | 081223 | |||
| Concealed Anti-Friction Bearing | 5" x 4-1/2" | LS | 126.10 | - | 3 | 24 |
| Heavy Weight | (127 x 114 mm) | USP | 144.65 | 005416 | ||
| Institutional or Prison; | US26D | 132.30 | 089127 | |||
| Welded Hospital Tip | ||||||
| Three Knuckle | ||||||
| TORX Screws - add $12 to list | ||||||
| AB751 | 4-1/2" (114 mm) | USP | 203.70 | 093988 | 3 | 36 |
| Steel - Half Mortise | US10 | 214.15 | - | |||
| Concealed Anti-Friction Bearing | US10A (US11) | 287.55 | 120634 |
| 5" (127 mm) | USP | 259.90 | 070348 | 3 | 24 | |
|---|---|---|---|---|---|---|
| US10 | 272.95 | - | ||||
| US10A (US11) | 355.50 | - | ||||
| US10B | 355.50 | - | ||||
| US26D | 309.25 | 016683 | ||||
| AB752 | 4-1/2" (114 mm) | USP | 333.70 | 020969 | 3 | 36 |
| Steel - Full Surface | US10 | 389.75 | - | |||
| Concealed Anti-Friction Bearing | US10A (US11) | 456.35 | - | |||
| Heavy Weight | US10B | 456.35 | 136055 | |||
| Three Knuckle | US26D | 408.85 | 018283 | |||
| 5" (127 mm) | USP | 403.10 | 110383 | 3 | 24 | |
| US10 | 423.30 | - | ||||
| US10A (US11) | 564.80 | - | ||||
| US10B | 564.80 | - | ||||
| US26D | 491.15 | 073873 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB753 | 4-1/2" (114 mm) | USP | 141.65 | 002220 | 3 | 36 |
| Steel | US10 | 163.40 | 126783 | |||
| Half Surface | US10A (US11) | 189.30 | - | |||
| Concealed Anti-Friction Bearing | US10B | 189.30 | 119027 | |||
| Three Knuckle | US26D | 153.85 | 094539 | |||
| Heavy Weight | 5" (127 mm) | USP | 160.95 | 020673 | 3 | 24 |
| US10 | 186.00 | - | ||||
| US10A (US11) | 214.45 | - | ||||
| US10B | 214.45 | 074015 | ||||
| US26D | 174.15 | 006188 | ||||
| 800 | 3-1/2" x 3-1/2" | US3 | 86.50 | 002239 | 2 | 100 |
| Brass or Stainless | (89 mm x 89 mm) | US10 | 67.75 | 125628 | ||
| Full Mortise | US10B | 86.50 | 002236 | |||
| Standard Weight | US26 | 86.50 | 018814 | |||
| Plain Bearing | US26D | 77.45 | 017876 | |||
| Three Knuckle | US32D | 81.70 | 002240 | |||
| 4" x 4" | US3 | 83.55 | 002247 | 3 | 48 | |
| (102 mm x 102 mm) | US10 | 64.75 | 131214 | |||
| US10B | 83.35 | 013109 | ||||
| US26 | 83.35 | 032743 | ||||
| US26D | 76.85 | 002246 | ||||
| US32D | 88.60 | 002249 | ||||
| 4-1/2" x 4" | US3 | 74.80 | 024497 | 3 | 48 | |
| (114 mm x 102 mm) | US10 | 63.85 | - | |||
| US10B | 74.80 | 023835 | ||||
| US26 | 74.80 | - | ||||
| US26D | 67.55 | 032689 | ||||
| US32D | 76.45 | 071727 | ||||
| 4-1/2" x 4-1/2" | US3 | 74.80 | 002279 | 3 | 48 | |
| (114 mm x 114 mm) | US10 | 63.85 | 005530 | |||
| US10B | 74.80 | 002268 | ||||
| US26 | 74.80 | 002271 | ||||
| US26D | 67.55 | 002274 | ||||
| US32D | 76.45 | 002284 | ||||
| 5" x 4" | US3 | 118.05 | - | 3 | 24 | |
| (127 mm x 102 mm) | US10 | 94.25 | - | |||
| US10B | 118.05 | 061899 | ||||
| US26 | 118.05 | - | ||||
| US26D | 104.90 | 092717 | ||||
| US32D | 119.45 | 097552 | ||||
| 5" x 4-1/2" | US3 | 118.05 | 019910 | 3 | 24 | |
| (127 x 114 mm) | US10 | 94.25 | - | |||
| US10B | 118.05 | 067358 | ||||
| US26 | 118.05 | - | ||||
| US26D | 104.90 | 107933 | ||||
| US32D | 119.45 | 006935 | ||||
| 5" x 5" | US3 | 118.05 | 016629 | 3 | 24 | |
| (127 mm x 127 mm) | US10 | 94.25 | - | |||
| US10B | 118.05 | 126436 | ||||
| US26 | 118.05 | 103826 | ||||
| US26D | 104.90 | 085018 | ||||
| US32D | 119.45 | 019417 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB800 | 3-1/2" x 3-1/2" | US3SC | POA | - | 2 | 100 |
| Brass or stainless | (89 mm x 89 mm) | US3 | 114.25 | 053131 | ||
| Full Mortise | US10 | 99.15 | - | |||
| Standard Weight | US10B | 114.25 | 026128 | |||
| Concealed Anti-Friction Bearing | US26 | 114.25 | 062177 | |||
| Three Knuckle | US26D | 94.40 | 041155 | |||
| US32D | 128.45 | 038024 | ||||
| 4" x 4" | US3SC | POA | - | 3 | 48 | |
| (102 mm x 102 mm) | US3 | 114.25 | 033633 | |||
| US10 | 99.15 | 002339 | ||||
| US10B | 114.25 | 002340 | ||||
| US26 | 114.25 | 002345 | ||||
| US26D | 94.40 | 002347 | ||||
| US32D | 128.45 | 002349 | ||||
| 4-1/2" x 4" | US3SC | POA | - | 3 | 48 | |
| (114 mm x 102 mm) | US3 | 85.70 | 002371 | |||
| US10 | 71.25 | 002353 | ||||
| US10B | 85.70 | 002354 | ||||
| US26 | 85.70 | 031110 | ||||
| US26D | 72.80 | 002366 | ||||
| US32D | 73.90 | 002379 | ||||
| 4-1/2" x 4-1/2" | US3SC | POA | - | 3 | 48 | |
| (114 mm x 114 mm) | US3 | 85.70 | 002430 | |||
| US10 | 71.25 | 002390 | ||||
| US10B | 85.70 | 002397 | ||||
| US26 | 85.70 | 095263 | ||||
| US26D | 72.80 | 002416 | ||||
| US32D | 73.90 | 002441 | ||||
| 5" x 4" | US3SC | POA | - | 3 | 24 | |
| (127 mm x 102 mm) | US3 | 141.05 | 138239 | |||
| US10 | 109.85 | 014350 | ||||
| US10B | 141.05 | 053030 | ||||
| US26 | 141.05 | - | ||||
| US26D | 112.40 | 041703 | ||||
| US32D | 115.60 | 002477 | ||||
| 5" x 4-1/2" | US3SC | POA | - | 3 | 24 | |
| (127 mm x 114 mm) | US3 | 141.05 | - | |||
| US10 | 109.85 | 129221 | ||||
| US10B | 141.05 | 037911 | ||||
| US26 | 141.05 | - | ||||
| US26D | 112.40 | 096274 | ||||
| US32D | 115.60 | 002500 | ||||
| 5" x 5" | US3SC | POA | - | 3 | 24 | |
| (127 mm x 127 mm) | US3 | 141.05 | 032238 | |||
| US10 | 109.85 | 129222 | ||||
| US10B | 141.05 | 021424 | ||||
| US26 | 141.05 | 065762 | ||||
| US26D | 112.40 | 009938 | ||||
| US32D | 115.60 | 095163 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTAB800 | 4-1/2" x 5" | LS | 163.55 | - | 3 | 24 |
| Wide Throw | (114 mm x 127 mm) | US3 | 228.60 | 051926 | ||
| Brass or Stainless | US10 | 163.55 | 074633 | |||
| Full Mortise | US10B | 216.00 | 002306 | |||
| Standard Weight | US26 | 216.00 | - | |||
| Concealed Anti-Friction Bearing | US26D | 185.50 | 081811 | |||
| Three Knuckle | US32 | 228.60 | - | |||
| US32D | 228.60 | 022382 | ||||
| 4-1/2" x 6" | LS | 179.20 | - | 3 | 24 | |
| (114 mm x 152 mm) | US3 | 233.40 | 016264 | |||
| US10 | 179.20 | 144616 | ||||
| US10B | 233.40 | 047131 | ||||
| US26 | 233.40 | 114753 | ||||
| US26D | 185.05 | 015281 | ||||
| US32 | 245.70 | 065657 | ||||
| US32D | 245.70 | 078170 | ||||
| 4-1/2" x 7" | LS | 188.25 | - | 3 | 24 | |
| (114 mm x 178 mm) | US3 | 245.20 | 121348 | |||
| US10 | 188.25 | - | ||||
| US10B | 245.20 | 021385 | ||||
| US26 | 245.20 | - | ||||
| US26D | 222.05 | 121347 | ||||
| US32 | 258.05 | - | ||||
| US32D | 258.05 | 017222 | ||||
| 4-1/2" x 8" | LS | 190.55 | - | 3 | 24 | |
| (114 mm x 203 mm) | US3 | 245.45 | 117869 | |||
| US10 | 190.55 | - | ||||
| US10B | 245.45 | 115804 | ||||
| US26 | 245.45 | 143234 | ||||
| US26D | 214.20 | 037781 | ||||
| US32 | 257.80 | 143233 | ||||
| US32D | 257.80 | 113887 | ||||
|
5" x 6"
(127 mm x 152 mm) |
LS | 347.55 | - | 3 | 24 | |
| US3 | 455.15 | - | ||||
| US10 | 347.55 | - | ||||
| US10B | 455.15 | 043722 | ||||
| US26 | 455.15 | - | ||||
| US26D | 402.20 | 122338 | ||||
| US32 | 483.10 | - | ||||
| US32D | 483.10 | 045622 | ||||
| 5" x 7" | LS | 364.90 | - | 3 | 24 | |
| (127 mm x 178 mm) | US3 | 478.05 | - | |||
| US10 | 364.90 | 140083 | ||||
| US10B | 478.05 | - | ||||
| US26 | 478.05 | - | ||||
| US26D | 414.55 | - | ||||
| US32 | 506.55 | 140555 | ||||
| US32D | 506.55 | 140540 |
| US32D | 519.40 | 088291 | ||||
|---|---|---|---|---|---|---|
| AB801 | 4-1/2" (114 mm) | US26D | 268.30 | 002551 | 3 | 48 |
| Brass or Stainless | US32D | 321.90 | 002553 | |||
| Half Mortise | 5" (127 mm) | US26D | 361.70 | - | 3 | 24 |
|
Standard Weight
Concealed Anti-Friction Bearing Three Knuckle |
US32D | 420.65 | 114328 |
Box Qty.
Case Qty.
| AB802 | 4-1/2" (114 mm) | US26D | 268.30 | 005532 | 3 | 48 |
|---|---|---|---|---|---|---|
| Brass or Stainless | US32D | 321.90 | 002558 | |||
| Full Surface | 5" (127 mm) | US26D | 361.70 | 141526 | 3 | 24 |
| Standard Weight | US32D | 420.65 | 046137 | |||
| Concealed Anti-Friction Bearing | ||||||
| Three Knuckle |
| AB803 | 4-1/2" (114 mm) | US26D | 268.30 | 005101 | 3 | 48 |
|---|---|---|---|---|---|---|
| Brass or Stainless | US32D | 321.90 | 014229 | |||
| Half Surface | 5" (127 mm) | US26D | 361.70 | 060966 | 3 | 24 |
| Standard Weight | US32D | 420.65 | 025450 | |||
| Concealed Anti-Friction Bearing | ||||||
| Three Knuckle |
| AB850 | 4-1/2" x 4" | US3SC | POA | - | 3 | 24 |
|---|---|---|---|---|---|---|
| Brass or Stainless | (114 mm x 102 mm) | US3 | 132.30 | 046338 | ||
| Full Mortise | US10 | 122.05 | 045488 | |||
| Heavy Weight | US10B | 132.30 | 001714 | |||
| Concealed Anti-Friction Bearing | US26 | 132.30 | - | |||
| Three Knuckle | US26D | 104.80 | 002599 | |||
| US32D | 106.90 | 093039 | ||||
| 4-1/2" x 4-1/2" | US3SC | POA | - | 3 | 24 | |
| (114 mm x 114 mm) | US3 | 132.30 | 098711 | |||
| US10 | 122.05 | 002615 | ||||
| US10B | 132.30 | 094812 | ||||
| US26 | 132.30 | 002631 | ||||
| US26D | 104.80 | 002638 | ||||
| US32D | 106.90 | 002654 | ||||
| 5" x 4" | US3SC | POA | - | 3 | 24 | |
| (127 mm x 102 mm) | US3 | 168.85 | - | |||
| US10 | 142.15 | 014351 | ||||
| US10B | 168.85 | 100720 | ||||
| US26 | 168.85 | 081818 | ||||
| US26D | 142.20 | 057422 | ||||
| US32D | 144.75 | 002683 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB850 - Cont. | 5" x 4-1/2" | US3SC | POA | - | 3 | 24 |
| Continued | (127 mm x 114 mm) | US3 | 168.85 | 091548 | ||
| US10 | 142.15 | 008334 | ||||
| US10B | 168.85 | 002691 | ||||
| US26 | 168.85 | 002700 | ||||
| US26D | 142.20 | 002704 | ||||
| US32D | 144.75 | 002721 | ||||
| 5" x 5" | US3SC | POA | - | 3 | 24 | |
| (127 mm x 127 mm) | US3 | 168.85 | 032239 | |||
| US10 | 142.15 | 033916 | ||||
| US10B | 168.85 | 095231 | ||||
| US26 | 168.85 | 112488 | ||||
| US26D | 142.20 | 002743 | ||||
| US32D | 144.75 | 024905 | ||||
| 6" x 4-1/2" | US3 | 393.00 | 124252 | 3 | 24 | |
| (152 mm x 114 mm) | US10 | 255.30 | 025004 | |||
| US10B | 393.00 | 043245 | ||||
| US26 | 393.00 | - | ||||
| US26D | 277.10 | 074191 |
6" x 5"
(152 mm x 127 mm)
US32D 374.85 002758
US10 255.30 - US10B 393.00 034166 US26 393.00 -
US3 393.00 - 3 24
| US26D | 277.10 | 022892 | ||||
|---|---|---|---|---|---|---|
| US32D | 374.85 | 001925 | ||||
| 6" x 6" | US26D | 277.10 | 026100 | 3 | 24 | |
| (152 mm x 152 mm) | US32D | 374.85 | 002771 | |||
| WTAB850 | 4-1/2" x 5" | LS | 244.95 | - | 3 | 24 |
| Wide Throw | (114 mm x 127 mm) | US3 | 310.35 | 119032 | ||
| Brass or Stainless | US10 | 244.95 | 089830 | |||
| Full Mortise | US10B | 310.35 | 041693 | |||
| Heavy Weight | US26 | 310.35 | - | |||
| Concealed Anti-Friction Bearing | US26D | 269.10 | 014202 | |||
| Three Knuckle | US32 | 332.85 | - | |||
| US32D | 332.85 | 073360 | ||||
| 4-1/2" x 6" | LS | 253.40 | - | 3 | 24 | |
| (114 mm x 152 mm) | US3 | 319.45 | 119033 | |||
| US10 | 253.40 | - | ||||
| US10B | 319.45 | 030057 | ||||
| US26 | 319.45 | - | ||||
| US26D | 287.15 | 004168 | ||||
| US32 | 341.80 | - | ||||
| US32D | 341.80 | 024258 | ||||
| 4-1/2" x 7" | LS | 280.70 | - | 3 | 24 | |
| (114 mm x 178 mm) | US3 | 337.35 | 146198 | |||
| US10 | 280.70 | - | ||||
| US10B | 337.35 | 062830 | ||||
| US26 | 337.35 | - | ||||
| US26D | 323.90 | 147246 | ||||
| US32 | 364.35 | - | ||||
| US32D | 364.35 | 017221 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTAB850 - Cont. | 4-1/2" x 8" | LS | 310.40 | - | 3 | 24 |
| Continued | (114 mm x 203 mm) | US3 | 364.35 | - | ||
| US10 | 310.40 | 126847 | ||||
| US10B | 364.35 | 113225 | ||||
| US26 | 364.35 | - | ||||
| US26D | 337.35 | 025417 | ||||
| US32 | 394.05 | - | ||||
| US32D | 394.05 | 035073 | ||||
| 5" x 6" | LS | 323.90 | - | 3 | 24 | |
| (127 mm x 152 mm) | US3 | 377.85 | 095930 | |||
| US10 | 323.90 | - | ||||
| US10B | 377.85 | 011469 | ||||
| US26 | 377.85 | - | ||||
| US26D | 348.20 | - | ||||
| US32 | 421.05 | 099689 | ||||
| US32D | 421.05 | 045352 | ||||
| 5" x 7" | LS | 323.90 | - | 3 | 24 | |
| (127 mm x 178 mm) | US3 | 391.40 | - | |||
| US10 | 323.90 | - | ||||
| US10B | 391.40 | 104539 | ||||
| US26 | 391.40 | - | ||||
| US26D | 350.80 | - | ||||
| US32 | 426.45 | - | ||||
| US32D | 426.45 | 081554 | ||||
| 5" x 8" | LS | 348.20 | - | 3 | 24 | |
| (127 mm x 203 mm) | US3 | 407.55 | 106302 | |||
| US10 | 348.20 | - | ||||
| US10B | 407.55 | 019906 | ||||
| US26 | 407.55 | - | ||||
| US26D | 364.35 | - | ||||
| US32 | 445.30 | - | ||||
| US32D | 445.30 | 015599 | ||||
| IHTAB850 | 4-1/2" x 4-1/2" | US32D | 129.10 | 079272 | 3 | 24 |
| MADE IN USA | (114 x 114 mm) | |||||
| Stainless - Full Mortise | 5" x 4-1/2" | US32D | 143.65 | 095240 | 3 | 24 |
| Heavy Weight | (127 mm x 114 mm) | |||||
|
Concealed Anti-Friction Bearing
Institutional or Prison |
||||||
| Welded Hospital Tip | ||||||
| Three Knuckle | ||||||
| TORX Screws - add $16.50 to list | ||||||
| AB851 | 4-1/2" (114 mm) | US26D | 322.75 | 085147 | 3 | 36 |
| Brass or Stainless | US32D | 461.00 | 002796 | |||
| Half Mortise | 5" (127 mm) | US26D | 377.80 | 054599 | 3 | 24 |
| Heavy Weight | US32D | 539.30 | 031247 |
| TORX Screws - add $16.50 to list | ||||||
|---|---|---|---|---|---|---|
| AB851 | 4-1/2" (114 mm) | US26D | 322.75 | 085147 | 3 | 36 |
|
Brass or Stainless
Half Mortise Heavy Weight Concealed Anti-Friction Bearing |
US32D | 461.00 | 002796 | |||
| 5" (127 mm) | US26D | 377.80 | 054599 | 3 | 24 | |
| US32D | 539.30 | 031247 | ||||
| 6" (152 mm) | US26D | 520.15 | - | 3 | 12 | |
| US32D | 676.90 | - |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB852 | 4-1/2" (114 mm) | US26D | 313.00 | 025134 | 3 | 36 |
| Brass or Stainless | US32D | 446.85 | 002809 | |||
| Full Surface | 5" (127 mm) | US26D | 366.95 | 072313 | 3 | 24 |
| Heavy Weight | US32D | 524.45 | 069984 | |||
| Concealed Anti-Friction Bearing | 6" (152 mm) | US26D | 520.75 | 110834 | 3 | 12 |
| US32D | 676.90 | 076455 | ||||
| AB853 | 4-1/2" (114 mm) | US26D | 351.95 | 054923 | 3 | 36 |
| Brass or Stainless | US32D | 460.95 | 098010 | |||
| Half Surface | 5" (127 mm) | US26D | 411.80 | 072526 | 3 | 24 |
| Heavy Weight | US32D | 539.80 | 014097 | |||
| Concealed Anti-Friction Bearing | 6" (152 mm) | US26D | 520.45 | 022454 | 3 | 12 |
| US32D | 676.45 | 074529 | ||||
| 920 | 4-1/2" x 4" | LH USP | 11.75 | 002850 | 3 | 48 |
|
Steel
Full Mortise |
(114 mm x 102 mm) | RH USP | 11.75 | 002851 | ||
| LH US10 | 16.25 | 002828 | ||||
| Standard Weight | RH US10 | 16.25 | 002830 | |||
| Plain Bearing | LH US10A (US11) | 31.50 | 074625 | |||
| Two Knuckle | RH US10A (US11) | 31.50 | 002833 | |||
| Specify Handing | LH US10B | 31.50 | 073260 | |||
| RH US10B | 31.50 | 073258 | ||||
| LH US26D | 22.55 | 002836 | ||||
| RH US26D | 22.55 | 002837 | ||||
| 4-1/2" x 4-1/2" | LH USP | 13.00 | 002888 | 3 | 48 | |
| (114 mm x 114 mm) | RH USP | 13.00 | 002889 | |||
| LH US10 | 16.25 | 002852 | ||||
| RH US10 | 16.25 | 002853 | ||||
| LH US10A (US11) | 31.50 | 002854 | ||||
| RH US10A (US11) | 31.50 | 002856 | ||||
| LHUS10B | 31.50 | 002858 | ||||
| RH US10B | 31.50 | 002859 | ||||
| LH US26D | 23.00 | 002867 | ||||
| RH US26D | 23.00 | 002869 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB920 | 4-1/2" x 4" | LH USP | 32.45 | 002914 | 3 | 48 |
| Steel | (114 mm x 102 mm) | RH USP | 32.45 | 002915 | ||
| Full Mortise | LH US10 | 28.20 | 002890 | |||
| Standard Weight | RH US10 | 28.20 | 002892 | |||
| Concealed Anti-Friction Bearing | LH US10A (US11) | 44.10 | 002894 | |||
| Two Knuckle | RH US10A (US11) | 44.10 | 002895 | |||
| Specify Handing | LHUS10B | 44.10 | 017887 | |||
| RH US10B | 44.10 | 017888 | ||||
| LH US26D | 36.85 | 002900 | ||||
| Available with ETW | RH US26D | 36.85 | 002901 | |||
| 4-1/2" x 4-1/2" | LH USP | 32.45 | 002958 | 3 | 48 | |
| (114 mm x 114 mm) | RH USP | 32.45 | 002963 | |||
| LH US10 | 28.20 | 002918 | ||||
| RH US10 | 28.20 | 002919 | ||||
| LH US10A (US11) | 44.10 | 002921 | ||||
| RH US10A (US11) | 44.10 | 002924 | ||||
| RH US10A (US11) | 44.10 | 002924 | ||||
|---|---|---|---|---|---|---|
| LHUS10B | 44.10 | 002926 | ||||
| RH US10B | 44.10 | 002927 | ||||
| LH US26D | 36.85 | 002936 | ||||
| RH US26D | 36.85 | 002937 | ||||
| AB923 | 4-1/2" x 4" | LH US3 | 92.15 | 037373 | 3 | 48 |
| Brass or Stainless | (114 mm x 102 mm) | RH US3 | 92.15 | 037374 | ||
| Full Mortise | LH US4 | 72.20 | 017474 | |||
| Standard Weight | RH US4 | 72.20 | - | |||
| Concealed Anti-Friction Bearing | LH US10 | 72.20 | 053643 | |||
| Two Knuckle | RH US10 | 72.20 | 053640 | |||
| Specify Handing | LH US10B | 92.15 | 064730 | |||
| RH US10B | 92.15 | 064731 | ||||
| LH US26 | 92.15 | 048404 | ||||
| Available with ETW | RH US26 | 92.15 | 048405 | |||
| LH US26D | 81.90 | 057100 | ||||
| RH US26D | 81.90 | 057102 | ||||
| LH US32 | 107.35 | 039538 | ||||
| RH US32 | 107.35 | 085667 | ||||
| LH US32D | 107.35 | 040225 | ||||
| RH US32D | 107.35 | 031930 | ||||
| 4-1/2" x 4-1/2" | LH US3 | 92.15 | 048410 | 3 | 48 | |
| (114 mm x 114 mm) | RH US3 | 92.15 | 048411 | |||
| LH US4 | 72.20 | 063272 | ||||
| RH US4 | 72.20 | 050767 | ||||
| LH US10 | 72.20 | 041925 | ||||
| RH US10 | 72.20 | 041924 | ||||
| LH US10B | 92.15 | 027478 | ||||
| RH US10B | 92.15 | 027479 | ||||
| LH US26 | 92.15 | 020180 | ||||
| RH US26 | 92.15 | 035847 | ||||
| LH US26D | 81.90 | 039586 | ||||
| RH US26D | 81.90 | 027480 | ||||
| LH US32 | 107.35 | 030201 | ||||
| RH US32 | 107.35 | 030202 | ||||
| LH US32D | 107.35 | 021425 | ||||
| RH US32D | 107.35 | 021427 | ||||
|
LH US26D
RH US26D |
84.35
84.35 |
026754
026705 |
||||
|---|---|---|---|---|---|---|
| AB933 | 4-1/2" x 4-1/2" | LH US3 | 137.60 | 029686 | 3 | 24 |
| Brass or Stainless | (114 mm x 114 mm) | RH US3 | 137.60 | 045591 | ||
| Full Mortise | LH US4 | 112.55 | 123743 | |||
| Heavy Weight | RH US4 | 112.55 | 106820 | |||
| Two Knuckle | LH US10 | 112.55 | - | |||
| Concealed Anti-Friction Bearing | RH US10 | 112.55 | - | |||
| Specify Handing | LH US10B | 121.60 | 027506 | |||
| Available with ETW | RH US10B | 121.60 | 067676 | |||
| LH US26 | 137.60 | 036291 | ||||
| RH US26 | 137.60 | 079694 | ||||
| LH US26D | 121.40 | 054219 | ||||
| RH US26D | 121.40 | 054119 | ||||
| LH US32 | 160.60 | - | ||||
| RH US32 | 160.60 | - | ||||
| LH US32D | 160.60 | 043454 | ||||
| RH US32D | 160.60 | 043455 | ||||
(76 mm x 102 mm)
|
Detention
Utility Hinge Full Surface Welded Tip |
||||||
|---|---|---|---|---|---|---|
| 992 | 3" x 4" | USP | 367.00 | 079398 | 1 | 12 |
| Steel | (76 mm x 102 mm) | |||||
| Detention | ||||||
| Food Pass Through Hinge |
Welded Tip Set of 2 hinges with 2 stops
Full Surface With Stop
Steel
BB1109 Brass or Stainless Half Mortise Standard Weight Ball Bearing
1129 Steel Half Mortise Standard Weight Plain Bearing
BB1129 Steel Half Mortise Standard Weight Plain Bearing
| - | |
|---|---|
| ne. | 3 |
| 41 | 500 |
| ш | |
| ш | 82 |
| м | MI. |
| 191 | B۳ |
| υM | E 8 |
| 74 |
| 98 | a | ||
|---|---|---|---|
| ĕ | Ŧ | ß | 9 |
| f | 1 | 2 | |
| 셤 | 1 | ۴ | |
| Ħ | 3 | Г | |
| 40 | r | 9, |
| 0 |
| 0 |
| 0 |
| US26D | 118.45 | 004218 | |||||
|---|---|---|---|---|---|---|---|
| BB1138 | 4-1/2" (114 mm) | USP | 129.45 | 004241 | 3 | 36 | |
| Steel | US10 | 136.00 | 018079 | ||||
| Half Mortise | US10A (US11) | 193.80 | - | ||||
| Heavy Weight | US10B | 193.80 | 022712 | ||||
| Ball Bearing | US26D | 168.60 | 004235 | ||||
| 5" (127 mm) | USP | 165.70 | 004254 | 3 | 24 | ||
| US10 | 177.70 | 004245 | |||||
| US10A (US11) | 213.80 | 007305 | |||||
| US10B | 213.80 | - | |||||
| US26D | 180.20 | 004250 | |||||
| 6" x 1-3/4" | USP | 508.10 | 040951 | 3 | 12 | ||
| (152 mm x 45 mm) | US10 | 533.50 | - | ||||
| US10A (US11) | 721.25 | - | |||||
| US10B | 721.25 | 100343 | |||||
| US26D | 627.20 | 016401 | |||||
|
Full Mortise Standard Weight
Plain BearingSpecify if all wood screws are required. |
1150 | 4-1/2" x 4" | US32 | 150.05 | 047217 | 3 |
133.05Brass or Stainless
48 |
| Stainless Steel | (114 mm x 102 mm) | US32D | 129.00 | 023378 | |||
| Full Mortise | US10Z | 169.05 | 177119 | 3 | 48 | ||
| Standard Weight | 4-1/2" x 4-1/2" | US32 | 150.05 | 028073 | 3 | 48 | |
| Spring Hinge | (114 mm x 114 mm) | US32D | 129.00 | 023379 | |||
Description Finish 2018 List Stock No.
4-1/2" (114 mm) US10 145.85 004145 3 48
5" (127 mm) US10 187.80 045318 3 24 US10B 210.95 - US26D 183.45 004165 US32D 248.85 004170
4-1/2" (114 mm) USP 27.20 004186 3 48
4-1/2" (114 mm) USP 70.25 004209 3 48
5" (127 mm) USP 94.70 004223 3 24
US10B 179.65 085217 US26D 156.20 004149 US32D 207.90 004154
US10 31.40 004175 US10A (US11) 46.65 007852 US10B 46.65 065372 US26D 35.60 004180
US10 74.75 004188 US10A (US11) 104.65 004190 US10B 104.65 004193 US26D 82.65 004197
US10 110.00 004215 US10A (US11) 135.95 113352 US10B 135.95 015737
US10Z 169.05 177118 3 48
Box Qty.
Case Qty.
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| BB1160 | 5" x 4-1/2" | LH USP | 221.40 | 004227 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 221.40 | 004228 | ||
| Full Mortise | LH US10 | 273.40 | 050338 | |||
| Heavy Weight | RH US10 | 273.40 | 050326 | |||
| Ball Bearing | LH US10A (US11) | 335.15 | 006254 | |||
| Anchor Hinge | RH US10A (US11) | 335.15 | 006654 | |||
| Specify Handing | LH US10B | 335.15 | - | |||
| NRP Standard | RH US10B | 335.15 | - | |||
| LH US26D | 268.45 | 075799 | ||||
| RH US26D | 268.45 | 075798 | ||||
| BB1162 | 5" x 4-1/2" | LH USP | 221.40 | 064527 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 221.40 | 064368 |
| RH US26D | 201.35 | 062573 | ||||
|---|---|---|---|---|---|---|
| BB1163 | 4-1/2" (114 mm) | LS | 136.15 | 042617 | 3 | 36 |
| Steel | USP | 118.05 | 004316 | |||
| Half Surface | US3 | 157.75 | 023227 | |||
| Heavy Weight | US10 | 136.15 | 004299 | |||
| Ball Bearing | US10A (US11) | 157.75 | 004301 | |||
| US10B | 157.75 | 018544 | ||||
| US26 | 157.75 | 017557 | ||||
| US26D | 128.20 | 004306 | ||||
| 5" (127 mm) | LS | 155.00 | - | 3 | 24 | |
| USP | 134.15 | 004328 | ||||
| US3 | 178.70 | 035797 | ||||
| US10 | 155.00 | 034771 | ||||
| US10A (US11) | 178.70 | 082389 | ||||
| US10B | 178.70 | 043379 | ||||
| US26 | 178.70 | 113652 | ||||
| US26D | 145.15 | 004321 | ||||
| 6" x 1-3/4" | USP | 493.55 | 004335 | 3 | 12 | |
| (152 mm x 45 mm) | US10 | 519.45 | 042171 | |||
| US10A (US11) | 624.15 | - | ||||
| US10B | 624.15 | 139351 | ||||
| US10B | 624.15 | 139351 | ||||
|---|---|---|---|---|---|---|
| US26D | 542.70 | 004332 | ||||
| BB1165 | 5" x 4-1/2" | LH USP | 221.40 | 023326 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 221.40 | 077148 | ||
| Full Mortise | LH US10 | 273.40 | 049205 | |||
| Heavy Weight | RH US10 | 273.40 | 049206 | |||
| Ball Bearing | LH US10A (US11) | 335.15 | 000822 | |||
| Anchor Hinge | RH US10A (US11) | 335.15 | 000823 | |||
| Specify Handing | LH US10B | 335.15 | 024967 | |||
| NRP Standard | RH US10B | 335.15 | 024968 | |||
| LH US26D | 268.45 | 065414 | ||||
| RH US26D | 268.45 | 065415 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| BB1168 | 4-1/2" x 4" | LS | 56.45 | - | 3 | 24 |
| Steel | (114 mm x 102 mm) | USP | 56.45 | 004540 | ||
| Full Mortise | US3 | 67.00 | 004529 | |||
| Heavy Weight | US10 | 56.45 | 004501 | |||
| Ball Bearing | US10A (US11) | 67.00 | 004505 | |||
| US10B | 67.00 | 004510 | ||||
| US15 | 67.00 | 084310 | ||||
| US26 | 67.00 | 004512 | ||||
| US26D | 48.30 | 004517 | ||||
| 4-1/2" x 4-1/2" | LS | 56.45 | 004735 | 3 | 24 | |
| (114 mm x 114 mm) | USP | 56.45 | 004744 | |||
| US3 | 67.00 | 004671 | ||||
| US10 | 56.45 | 004547 | ||||
| US10A (US11) | 67.00 | 004564 | ||||
| US10B | 67.00 | 004585 | ||||
| US15 | 67.00 | 004592 | ||||
| US26 | 67.00 | 004601 | ||||
| US26D | 48.30 | 004616 | ||||
| 5" x 4" | LS | 72.60 | - | 3 | 24 | |
| (127 mm x 102 mm) | USP | 71.55 | 004794 | |||
| US3 | 75.60 | 010504 | ||||
| US10 | 72.60 | 071777 | ||||
| US10A (US11) | 75.60 | 004779 | ||||
| US10B | 75.60 | 059153 | ||||
| US15 | 75.60 | 035760 | ||||
| US26 | 75.60 | 047535 | ||||
| US26D | 62.25 | 004785 | ||||
| 5" x 4-1/2" | LS | 72.60 | 128700 | 3 | 24 | |
| (127 mm x 114 mm) | USP | 71.55 | 004922 | |||
| US3 | 75.60 | 004881 | ||||
| US10 | 72.60 | 004802 | ||||
| US10A (US11) | 75.60 | 004813 | ||||
| US10B | 75.60 | 004826 | ||||
| US15 | 75.60 | 004830 | ||||
| US26 | 75.60 | 004836 | ||||
| US26D | 62.25 | 004850 |
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| BB1168 - Cont. | 5" x 5" | LS | 72.60 | - | 3 | 24 |
| Continued | (127 mm x 127 mm) | USP | 71.55 | 005029 | ||
| US3 | 75.60 | 004998 | ||||
| US10 | 72.60 | 004947 | ||||
| US10A (US11) | 75.60 | 004956 | ||||
| US10B | 75.60 | 004974 | ||||
| US15 | 75.60 | 022614 | ||||
| US26 | 75.60 | 004975 | ||||
| US26D | 62.25 | 004981 | ||||
| 6" x 4-1/2" | LS | 201.00 | - | 3 | 12 | |
| (152 mm x 114 mm) | USP | 194.50 | 005069 | |||
| US3 | 247.85 | 005064 | ||||
| US10 | 201.00 | 035454 | ||||
| US10A (US11) | 247.85 | 057799 | ||||
| US10B | 247.95 | 068270 | ||||
| US15 | 247.85 | 033562 | ||||
| US26 | 247.95 | 005054 | ||||
| US26D | 186.95 | 005057 | ||||
| 6" x 5" | USP | 194.50 | 005102 | 3 | 12 | |
| (152 mm x 127 mm) | US10 | 201.00 | 007229 | |||
| US10A (US11) | 247.85 | 020131 | ||||
| US10B | 247.95 | 078457 | ||||
| US15 | 247.85 | 030967 | ||||
| US26D | 186.95 | 005086 | ||||
| 6" x 6" | USP | 194.50 | 005128 | 3 | 12 | |
| (152 mm x 152 mm) | US10 | 201.00 | 030639 | |||
| US10A (US11) | 247.85 | 011627 | ||||
| US10B | 247.95 | 065303 | ||||
| US15 | 247.85 | 016874 | ||||
| US26D | 186.95 | 005113 | ||||
| 8" x 6" | USP | 449.15 | 005145 | 3 | 12 | |
| (203 mm x 152 mm) | US10 | 464.25 | 026481 | |||
| US10A (US11) | 572.45 | 047621 | ||||
| US10B | 572.45 | 039286 | ||||
| US15 | 572.45 | - | ||||
| US26D | 486.35 | 064840 | ||||
| 8" x 8" | USP | 449.15 | 005158 | 3 | 12 | |
| (203 mm x 203 mm) | US10 | 464.25 | 079431 | |||
| US10A (US11) | 572.45 | 005148 | ||||
| US10B | 572.45 | 017141 | ||||
| US15 | 572.45 | - | ||||
| US26D | 486.35 | 005151 |
Box
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1168 | 4-1/2" x 5" | LS | 131.50 | - | 3 | 24 |
| Wide Throw | (114 mm x 127 mm) | USP | 142.55 | 097956 | ||
| Steel | US3 | 160.35 | 004408 | |||
| Full Mortise | US10 | 131.50 | 012221 | |||
| Heavy Weight | US10A (US11) | 160.35 | 004403 | |||
| Ball Bearing | US10B | 160.35 | 007916 | |||
| US26 | 160.35 | 015160 | ||||
| US26D | 135.65 | 092594 | ||||
| 4-1/2" x 6" | LS | 132.10 | - | 3 | 24 | |
| (114 mm x 152 mm) | USP | 143.30 | 004427 | |||
| US3 | 161.20 | 004422 | ||||
| US10 | 132.10 | 099482 | ||||
| US10A (US11) | 161.20 | 098167 | ||||
| US10B | 161.20 | 004417 | ||||
| US26 | 161.20 | 004419 | ||||
| US26D | 138.30 | 004420 | ||||
| 4-1/2" x 7" | LS | 174.45 | - | 3 | 24 | |
| (114 mm x 178 mm) | USP | 189.25 | 040653 | |||
| US3 | 212.80 | 015930 | ||||
| US10 | 174.45 | 003123 | ||||
| US10A (US11) | 212.80 | 010920 | ||||
| US10B | 212.80 | 058190 | ||||
| US26 | 212.80 | 050632 | ||||
| US26D | 182.65 | 004435 | ||||
| 4-1/2" x 8" | LS | 182.05 | - | 3 | 24 | |
| (114 mm x 203 mm) | USP | 197.45 | 004450 | |||
| US3 | 222.10 | 078934 | ||||
| US10 | 182.05 | 045774 | ||||
| US10A (US11) | 222.10 | 019132 | ||||
| US10B | 222.10 | 062081 | ||||
| US26 | 222.10 | 066672 | ||||
| US26D | 190.60 | 004446 | ||||
| 5" x 6" | LS | 177.70 | - | 3 | 24 | |
| (127 mm x 152 mm) | USP | 192.50 | 008259 | |||
| US3 | 215.55 | 004463 | ||||
| US10 | 177.70 | 020214 | ||||
| US10A (US11) | 215.55 | 031197 | ||||
| US10B | 215.55 | 019659 | ||||
| US26 | 215.55 | 004459 | ||||
| US26D | 184.20 | 004461 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1168 - Cont. | 5" x 7" | LS | 180.30 | - | 3 | 24 |
| Continued | (127 mm x 203 mm) | USP | 195.40 | 066742 | ||
| US3 | 218.55 | 067657 | ||||
| US10 | 180.30 | 023928 | ||||
| US10A (US11) | 218.55 | 020805 | ||||
| US10B | 218.55 | 073756 | ||||
| US26 | 218.55 | 143181 | ||||
| US26D | 186.90 | 004475 | ||||
| 5" x 8" | LS | 188.05 | - | 3 | 24 | |
| (127 mm x 203 mm) | USP | 203.80 | 004495 | |||
| US3 | 228.15 | 008357 | ||||
| US10 | 188.05 | 034739 |
| US10 | 188.05 | 034739 | ||||
|---|---|---|---|---|---|---|
| US10A (US11) | 228.15 | 015855 | ||||
| US10B | 228.15 | 026651 | ||||
| US26 | 228.15 | 057245 | ||||
| US26D | 194.90 | 098271 | ||||
| 1173 | 3-1/2" (89 mm) | USP | 38.90 | 005304 | 3 | 48 |
| Steel | US10 | 43.35 | 005292 | |||
| Half Surface | US10A (US11) | 51.70 | 005293 | |||
| Standard Weight | US10B | 51.70 | 024439 | |||
| Plain Bearing | US26D | 45.50 | 005295 | |||
| 4" (102 mm) | USP | 59.55 | 005319 | 3 | 48 | |
| US10 | 62.65 | 005306 | ||||
| US10A (US11) | 73.90 | 046712 | ||||
| US10B | 73.90 | 044390 | ||||
| US26D | 64.45 | 005309 | ||||
| 4-1/2" (114 mm) | USP | 40.05 | 005337 | 3 | 48 | |
| US10 | 42.90 | 005321 | ||||
| US10A (US11) | 58.90 | 005323 | ||||
| US10B | 58.90 | 001848 | ||||
| US26D | 45.25 | 005326 | ||||
| BB1173 | 4" (102 mm) | USP | 75.95 | 005356 | 3 | 48 |
| Steel | US10 | 91.10 | 005349 | |||
| Half Surface | US10A (US11) | 114.35 | 001845 | |||
| Standard Weight | US10B | 114.35 | 091863 | |||
| Ball Bearing | US26D | 99.85 | 005351 | |||
| 4-1/2" (114 mm) | USP | 61.20 | 005389 | 3 | 48 | |
| US10 | 68.40 | 005358 | ||||
| US10A (US11) | 95.35 | 005360 | ||||
| US10B | 95.35 | 005364 | ||||
| US26D | 71.70 | 005367 | ||||
| 5" (127 mm) | USP | 86.50 | 005410 | 3 | 36 | |
| US10 | 105.75 | 005395 | ||||
| US10A (US11) | 130.65 | 005397 | ||||
| US10B | 130.65 | 015735 | ||||
| US26D | 97.35 | 005401 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| BB1190 | 5" x 4-1/2" | LH US10 | 369.30 | 004485 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 369.30 | 004484 | ||
| Full Mortise | LH US10B | 441.50 | 063136 | |||
| Heavy Weight | RH US10B | 441.50 | 073977 | |||
| Ball Bearing | LH US26D | 414.65 | 065999 | |||
| Anchor Hinge | RH US26D | 414.65 | 066000 | |||
| Specify Handing | LH US32D | 397.00 | 087614 | |||
| RH US32D | 397.00 | 087615 | ||||
| 1191 | 3" x 3" | US3 | 174.65 | 005484 | 2 | 100 |
| Brass or Stainless | (76 mm x 76 mm) | US4 | 137.00 | 005496 | ||
| Full Mortise | US10 | 137.00 | 065549 | |||
| Standard Weight | US10B | 174.65 | 005475 | |||
| Plain Bearing | US15 | 174.65 | 005478 | |||
| Specify if all wood screws are | US26 | 174.65 | 005479 | |||
| required. | US26D | 154.75 | 005481 | |||
| US32 | 194.25 | 005490 | ||||
| US32D | 192.05 | 005491 | ||||
| 3-1/2" x 3-1/2" | US3 | 72.10 | 006934 | 2 | 100 | |
| (89 mm x 89 mm) | US4 | 56.45 | 006952 | |||
| US10 | 56.45 | 006911 | ||||
| US10B | 72.10 | 006913 | ||||
| US15 | 72.10 | 006920 | ||||
| US26 | 72.10 | 006923 | ||||
| US26D | 64.55 | 006929 | ||||
| US32 | 72.25 | 006943 | ||||
| US32D | 68.10 | 006945 | ||||
| 4" x 3-1/2" | US3 | 90.15 | 097274 | 3 | 48 | |
| (102 mm x 89 mm) | US4 | 68.85 | 005502 | |||
| US10 | 68.85 | 121560 | ||||
| US10B | 90.15 | 069063 | ||||
| US15 | 90.15 | 035011 | ||||
| US26 | 90.15 | 011778 | ||||
| US26D | 78.60 | 029852 | ||||
| US32 | 88.75 | 132157 | ||||
| US32D | 82.30 | 088102 | ||||
| 4" x 4" | US3 | 69.40 | 005535 | 3 | 48 | |
| (102 mm x 102 mm) | US4 | 53.95 | 005562 | |||
| US10 | 53.95 | 005503 | ||||
| US10B | 69.40 | 005508 | ||||
| US15 | 69.40 | 052318 | ||||
| US26 | 69.40 | 005522 | ||||
| US26D | 64.05 | 005528 | ||||
US32 73.80 005549 US32D 65.85 005552
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 1191 - Cont. | 4-1/2" x 4" | US3 | 70.50 | 005597 | 3 | 48 |
| Continued | (114 mm x 102 mm) | US4 | 55.50 | 005620 | ||
| US10 | 55.50 | 052272 | ||||
| US10B | 70.50 | 005582 | ||||
| US15 | 70.50 | 005586 | ||||
| US26 | 70.50 | 005590 | ||||
| US26D | 58.90 | 005592 | ||||
| US32 | 71.00 | 005611 | ||||
| US32D | 66.00 | 005614 | ||||
| 4-1/2" x 4-1/2" | US3 | 70.50 | 005690 | 3 | 48 | |
| (114 mm x 114 mm) | US4 | 55.50 | 005724 | |||
| US10 | 55.50 | 005629 | ||||
| US10B | 70.50 | 005640 | ||||
| US15 | 70.50 | 005652 | ||||
| US26 | 70.50 | 005664 | ||||
| US26D | 58.90 | 005673 | ||||
| US32 | 71.00 | 005709 | ||||
| US32D | 66.00 | 005713 | ||||
| 5" x 4" | US3 | 98.40 | 005752 | 3 | 24 | |
| (127 mm x 102 mm) | US4 | 78.55 | 110512 | |||
| US10 | 78.55 | - | ||||
| US10B | 98.40 | 012964 | ||||
| US15 | 98.40 | 047207 | ||||
| US26 | 98.40 | 043361 | ||||
| US26D | 87.40 | 033877 | ||||
| US32 | 109.45 | 046989 | ||||
| US32D | 99.60 | 005755 | ||||
|
5" x 4-1/2"
(127 mm x 114 mm) |
US3 | 98.40 | 005771 | 3 | 24 | |
| US4 | 78.55 | 005783 | ||||
| US10 | 78.55 | 105329 | ||||
| US10B | 98.40 | 005763 | ||||
| US15 | 98.40 | 032825 | ||||
| US26 | 98.40 | 128711 | ||||
| US26D | 87.40 | 005768 | ||||
| US32 | 109.45 | 125488 | ||||
| US32D | 99.60 | 005779 | ||||
| 5" x 5" | US3 | 98.40 | 005803 | 3 | 24 | |
| (127 mm x 127 mm) | US4 | 78.55 | 027281 | |||
| US10 | 78.55 | 128170 | ||||
| US10B | 98.40 | 005791 | ||||
| US15 | 98.40 | 030280 | ||||
| US26 | 98.40 | 005799 | ||||
| US26D | 87.40 | 005800 | ||||
| US32 | 109.45 | 009578 | ||||
| US32D | 99.60 | 005815 |
| Box | Case | |||||
|---|---|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
| BB1191 | 3-1/2" x 3-1/2" | US3 | 85.55 | 007012 | 2 | 100 |
| Brass or Stainless | (89 mm x 89 mm) | US4 | 79.70 | 007026 | ||
| Full Mortise | US10 | 79.70 | 006997 | |||
| Standard Weight | US10B | 85.55 | 007000 | |||
| Ball Bearing | US15 | 85.55 | 039663 | |||
| Specify if all wood screws are | US26 | 85.55 | 007006 | |||
| required. | US26D | 83.75 | 007008 | |||
| US32 | 118.35 | 007020 | ||||
| US32D | 104.60 | 007021 | ||||
| 4" x 3-1/2" | US3 | 129.55 | 080659 | 3 | 48 | |
| (102 mm x 89 mm) | US4 | 99.35 | - | |||
| US10 | 99.35 | - | ||||
| US10B | 129.55 | 091160 | ||||
| US15 | 129.55 | 095215 | ||||
| US26 | 129.55 | - | ||||
| US26D | 124.95 | 072201 | ||||
| US32 | 156.65 | 085839 | ||||
| US32D | 130.00 | 006219 | ||||
| 4" x 4" | US3 | 98.80 | 006246 | 3 | 48 | |
| (102 mm x 102 mm) | US4 | 86.70 | 006269 | |||
| US10 | 86.70 | 006221 | ||||
| US10B | 98.80 | 006225 | ||||
| US15 | 98.80 | 006232 | ||||
| US26 | 98.80 | 006235 | ||||
| US26D | 92.75 | 006240 | ||||
| US32 | 116.95 | 006261 | ||||
| US32D | 112.90 | 006263 | ||||
| 4-1/2" x 4" | US3 | 84.20 | 006321 | 3 | 48 | |
| (114 mm x 102 mm) | US4 | 64.80 | 006343 | |||
| US10 | 64.80 | 006286 | ||||
| US10B | 84.20 | 006289 | ||||
| US15 | 84.20 | 006302 | ||||
| US26 | 84.20 | 006306 | ||||
| US26D | 65.65 | 006311 | ||||
| US32 | 78.65 | 006332 | ||||
| US32D | 66.65 | 006335 |
| Box | Case | |||||
|---|---|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
| BB1191 - Cont. | 4-1/2" x 4-1/2" | US3 | 84.20 | 006489 | 3 | 48 |
| Continued | (114 mm x 114 mm) | US4 | 64.80 | 006562 | ||
| US10 | 64.80 | 006373 | ||||
| US10B | 84.20 | 006393 | ||||
| US15 | 84.20 | 006426 | ||||
| US26 | 84.20 | 006446 | ||||
| US26D | 65.65 | 006462 | ||||
| US32 | 78.65 | 006528 | ||||
| US32D | 66.65 | 006537 | ||||
| 5" x 4" | US3 | 115.15 | 006630 | 3 | 24 | |
| (127 mm x 102 mm) | US4 | 89.70 | 069057 | |||
| US10 | 89.70 | 020761 | ||||
| US10B | 115.15 | 006621 | ||||
| US15 | 115.15 | 043259 | ||||
| US26 | 115.15 | 006623 | ||||
| US26D | 93.70 | 006627 | ||||
| US32 | 112.90 | 047877 | ||||
| US32D | 95.80 | 006636 | ||||
| 5" x 4-1/2" | US3 | 115.15 | 006681 | 3 | 24 | |
| (127 mm x 114 mm) | US4 | 89.70 | 006707 | |||
| US10 | 89.70 | 006644 | ||||
| US10B | 115.15 | 006655 | ||||
| US15 | 115.15 | 006665 | ||||
| US26 | 115.15 | 065277 | ||||
| US26D | 93.70 | 006672 | ||||
| US32 | 112.90 | 006693 | ||||
| US32D | 95.80 | 006696 | ||||
| 5" x 5" | US3 | 115.15 | 006761 | 3 | 24 | |
| (127 mm x 127 mm) | US4 | 89.70 | 006791 | |||
| US10 | 89.70 | 006727 | ||||
| US10B | 115.15 | 006733 | ||||
| US15 | 115.15 | 068939 | ||||
| US26 | 115.15 | 006746 | ||||
| US26D | 93.70 | 006752 | ||||
| US32 | 112.90 | 006779 | ||||
| US32D | 95.80 | 006784 |
Box Qty.
Case Qty.
| BB1191 - Cont. 2 | 6" x 4-1/2" | US3 | 360.45 | 006813 | 3 | 24 |
|---|---|---|---|---|---|---|
| Continued | (152 mm x 114 mm) | US4 | 283.25 | 030956 | ||
| US10 | 283.25 | 010566 | ||||
| US10B | 360.45 | 007519 | ||||
| US15 | 360.45 | - | ||||
| US26 | 360.45 | 099318 | ||||
| US26D | 324.15 | 006811 | ||||
| US32 | 394.00 | 084160 | ||||
| US32D | 394.00 | 006817 | ||||
| 6" x 5" | US3 | 360.45 | 006830 | 3 | 24 | |
| (152 mm x 127 mm) | US4 | 283.25 | 081058 | |||
| US10 | 283.25 | 031360 | ||||
| US10B | 360.45 | 069067 | ||||
| US15 | 360.45 | 117950 | ||||
| US26 | 360.45 | - | ||||
| US26D | 324.15 | 019124 | ||||
| US32 | 394.00 | - | ||||
| US32D | 394.00 | 006832 | ||||
| 6" x 6" | US3 | 360.45 | 006843 | 3 | 24 | |
| (152 mm x 152 mm) | US4 | 283.25 | 046772 | |||
| US10 | 283.25 | 012558 | ||||
| US10B | 360.45 | 006838 | ||||
| US15 | 360.45 | 070946 | ||||
| US26 | 360.45 | 147729 | ||||
| US26D | 324.15 | 006842 | ||||
| US32 | 394.00 | 106911 | ||||
| US32D | 394.00 | 006850 | ||||
| CB1191 | 4" x 3-1/2" | US3SC | POA | - | 3 | 24 |
| Stainless | (102 mm x 89 mm) | |||||
| Full Mortise | 4" x 4" | US3SC | POA | - | ||
| Standard Weight | (102 mm x 102 mm) | |||||
| Concealed Anti-Fiction Bearing | 4-1/2" x 4" | US3SC | POA | - | ||
| (114 mm x 102 mm) | ||||||
| 4-1/2" x 4-1/2" | US3SC | POA | - | |||
| (114 mm x 114 mm) | ||||||
| 5" x 4" | US3SC | POA | - | |||
| (127 mm x 102 mm) | ||||||
| 5" x 4-1/2" | US3SC | POA | - | |||
| (127 mm x 114 mm) | ||||||
US3SC POA
Price same as BB
All other finishes
Description Finish 2018 List Stock No.
5" x 5"
(127 mm x 127 mm)
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1191 | 3-1/2" x 5" | US3 | 154.10 | 067005 | 3 | 24 |
| Wide Throw | (89 mm x 127 mm) | US4 | 119.80 | 026605 | ||
| Brass or Stainless | US10 | 119.80 | 121849 | |||
| Full Mortise | US10B | 154.10 | 075305 | |||
| Standard Weight | US26 | 154.10 | 129251 | |||
| Ball Bearing | US26D | 135.20 | 118052 | |||
| US32 | 185.20 | 000080 | ||||
| US32D | 185.20 | 032663 | ||||
| 3-1/2" x 6" | US3 | 154.75 | 040163 | 3 | 24 | |
| (89 mm x 152 mm) | US4 | 124.10 | - | |||
| US10 | 124.10 | - | ||||
| US10B | 154.75 | 113815 | ||||
| US26 | 154.75 | - | ||||
| US26D | 139.45 | 130243 | ||||
| US32 | 192.20 | 138152 | ||||
| US32D | 192.20 | 076662 | ||||
| 4" x 5" | US3 | 193.45 | 010124 | 3 | 24 | |
| (102 mm x 127 mm) | US4 | 152.30 | 037602 | |||
| US10 | 152.30 | 086104 | ||||
| US10B | 193.45 | 070966 | ||||
| US26 | 193.45 | 041818 | ||||
| US26D | 170.20 | 038964 | ||||
| US32 | 207.85 | - | ||||
| US32D | 207.85 | 075139 | ||||
| 4" x 6" | US3 | 201.10 | 006119 | 3 | 24 | |
| (102 mm x 152 mm) | US4 | 159.00 | 012392 | |||
| US10 | 159.00 | 146501 | ||||
| US10B | 201.10 | 006117 | ||||
| US26 | 201.10 | 096937 | ||||
| US26D | 176.60 | 009831 | ||||
| US32 | 215.20 | 114550 | ||||
| US32D | 215.20 | 006121 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1191 - Cont. | 4" x 7" | US3 | 209.90 | 092349 | 3 | 24 |
| Continued | (102 mm x 178 mm) | US4 | 167.30 | 089839 | ||
| US10 | 167.30 | - | ||||
| US10B | 209.90 | 039719 | ||||
| US26 | 209.90 | 069207 | ||||
| US26D | 183.90 | 088865 | ||||
| US32 | 224.10 | 099920 | ||||
| US32D | 224.10 | 048155 | ||||
| 4-1/2" x 5" | US3 | 172.80 | 094007 | 3 | 24 | |
| (114 mm x 127 mm) | US4 | 130.80 | 101381 | |||
| US10 | 130.80 | 046401 | ||||
| US10B | 172.80 | 025650 | ||||
| US26 | 172.80 | 001393 | ||||
| US26D | 148.35 | 092728 | ||||
| US32 | 182.70 | 121467 | ||||
| US32D | 182.70 | 006144 | ||||
| 4-1/2" x 6" | US3 | 190.35 | 095253 | 3 | 24 | |
| (114 mm x 152 mm) | US4 | 146.15 | 036949 | |||
| US10 | 146.15 | 024066 | ||||
| US10B | 190.35 | 006152 | ||||
| US26 | 190.35 | 020291 | ||||
| US26D | 172.55 | 065373 | ||||
| US32 | 200.35 | 052335 | ||||
| US32D | 200.35 | 092901 | ||||
| 4-1/2" x 7" | US3 | 185.20 | 080909 | 3 | 24 | |
| (114 mm x 178 mm) | US4 | 149.85 | 041505 | |||
| US10 | 149.85 | - | ||||
| US10B | 185.20 | 024545 | ||||
| US26 | 185.20 | 049886 | ||||
| US26D | 173.60 | 069011 | ||||
| US32 | 205.90 | 076444 | ||||
| US32D | 205.90 | 099811 | ||||
| 4-1/2" x 8" | US3 | 200.30 | 072567 | 3 | 24 | |
| (114 mm x 203 mm) | US4 | 155.30 | 116184 | |||
| US10 | 155.30 | 137974 | ||||
| US10B | 200.30 | 034770 | ||||
| US26 | 200.30 | 060370 | ||||
| US26D | 174.75 | 008143 | ||||
| US32 | 210.40 | - | ||||
| US32D | 210.40 | 098630 | ||||
| 5" x 6" | US3 | 371.15 | 006199 | 3 | 24 | |
| (127 mm x 152 mm) | US4 | 283.50 | 067616 | |||
| US10 | 283.50 | 028304 | ||||
| US10B | 371.15 | 046882 | ||||
| US26 | 371.15 | - | ||||
| US26D | 328.25 | 033730 | ||||
| US32 | 394.20 | 046097 | ||||
| US32D | 394.20 | 040909 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1191 - Cont. 2 | 5" x 7" | US3 | 390.05 | 067159 | 3 | 24 |
| Continued | (127 mm x 178 mm) | US4 | 297.80 | 140565 | ||
| US10 | 297.80 | - | ||||
| US10B | 390.05 | 035145 | ||||
| US26 | 390.05 | - | ||||
| US26D | 338.25 | 065278 | ||||
| US32 | 413.30 | - | ||||
| US32D | 413.30 | 036859 | ||||
| 5" x 8" | US3 | 406.15 | 074194 | 3 | 24 | |
| (127 mm x 203 mm) | US4 | 328.80 | - | |||
| US10 | 328.80 | 038873 | ||||
| US10B | 406.15 | 020027 | ||||
| US26 | 406.15 | - | ||||
| US26D | 354.70 | 025454 | ||||
| US32 | 423.70 | - | ||||
| US32D | 423.70 | 072530 | ||||
| BB1192 | 5" x 4-1/2" | LH US10 | 369.30 | 067133 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 369.30 | 067237 | ||
| Full Mortise | LH US10B | 441.50 | 069389 | |||
| Heavy Weight | RH US10B | 441.50 | 069390 | |||
| Ball Bearing | LH US26D | 414.65 | 065079 | |||
| Anchor Hinge | RH US26D | 414.65 | 065078 | |||
| Specify Handing | LH US32D | 476.35 | 072244 | |||
| RH US32D | 476.35 | 072245 | ||||
| BB1195 | 5" x 4-1/2" | LH US10 | 369.30 | 037675 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 369.30 | 037676 | ||
| Full Mortise | LH US10B | 441.50 | 079470 | |||
| Heavy Weight | RH US10B | 441.50 | 079471 | |||
| Ball Bearing | LH US26D | 414.65 | 065411 | |||
| Anchor Hinge | RH US26D | 414.65 | 065412 | |||
| Specify Handing | LH US32D | 476.35 | 062056 | |||
| RH US32D | 476.35 | 062057 | ||||
| BB1196 | 5" x 4-1/2" | LH US10 | 369.30 | 085583 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 369.30 | 085582 | ||
| Full Mortise | LH US10B | 441.50 | 065640 | |||
| Heavy Weight | RH US10B | 441.50 | 065641 | |||
| Ball Bearing | LH US26D | 414.65 | 073416 | |||
| Anchor Hinge for Beveled Edge | RH US26D | 414.65 | 073415 | |||
| Doors | LH US32D | 476.35 | 063230 | |||
| Specify Handing | RH US32D | 476.35 | 063231 | |||
| BB1197 | 5" x 4-1/2" | LH US10 | 369.30 | 003650 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 369.30 | 088543 | ||
| Full Mortise | LH US10B | 441.50 | 067686 | |||
| Heavy Weight | RH US10B | 441.50 | 067687 | |||
| Ball Bearing | LH US26D | 414.65 | 074907 | |||
| Anchor Hinge | RH US26D | 414.65 | 074908 | |||
| LH US32D | 476.35 | 063230 | ||||
|---|---|---|---|---|---|---|
| Specify Handing | RH US32D | 476.35 | 063231 | |||
| BB1197 | 5" x 4-1/2" | LH US10 | 369.30 | 003650 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 369.30 | 088543 | ||
| Full Mortise | LH US10B | 441.50 | 067686 | |||
| Heavy Weight | RH US10B | 441.50 | 067687 | |||
| Ball Bearing | LH US26D | 414.65 | 074907 | |||
| Anchor Hinge | RH US26D | 414.65 | 074908 | |||
| Beveled Edge Doors | LH US32D | 476.35 | 079648 | |||
| Specify Handing | RH US32D | 476.35 | 079649 | |||
Box
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| BB1199 | 4-1/2" x 4" | US3 | 126.00 | 007369 | 3 | 24 |
| Brass or Stainless | (114 mm x 102 mm) | US4 | 116.25 | 007381 | ||
| Full Mortise | US10 | 116.25 | 019651 | |||
| Heavy Weight | US10B | 126.00 | 007354 | |||
| Ball Bearing | US15 | 126.00 | 035768 | |||
| US26 | 126.00 | 007362 | ||||
| US26D | 99.80 | 007364 | ||||
| US32 | 101.85 | 007376 | ||||
| US32D | 101.00 | 007378 | ||||
| 4-1/2" x 4-1/2" | US3 | 126.00 | 007469 | 3 | 24 | |
| (114 mm x 114 mm) | US4 | 116.25 | 007520 | |||
| US10 | 116.25 | 007390 | ||||
| US10B | 126.00 | 007406 | ||||
| US15 | 126.00 | 007424 | ||||
| US26 | 126.00 | 007437 | ||||
| US26D | 99.00 | 007445 | ||||
| US32 | 101.85 | 007496 | ||||
| US32D | 101.00 | 007502 | ||||
| 5" x 4" | US3 | 160.85 | 007564 | 3 | 24 | |
| (127 mm x 102 mm) | US4 | 135.35 | 069122 | |||
| US10 | 135.35 | 064950 | ||||
| US10B | 160.85 | 007557 | ||||
| US15 | 160.85 | 087838 | ||||
| US26 | 160.85 | 091928 | ||||
| US26D | 135.45 | 007561 | ||||
| US32 | 137.85 | 138846 | ||||
| US32D | 137.85 | 007567 | ||||
| 5" x 4-1/2" | US3 | 160.85 | 007619 | 3 | 24 | |
| (127 mm x 114 mm) | US4 | 135.35 | 007651 | |||
| US10 | 135.35 | 007576 | ||||
| US10B | 160.85 | 007585 | ||||
| US15 | 160.85 | 065583 | ||||
| US26 | 160.85 | 007601 | ||||
| US26D | 135.45 | 007607 | ||||
| US32 | 137.85 | 007634 | ||||
| US32D | 137.85 | 007639 | ||||
| 5" x 5" | US3 | 160.85 | 007717 | 3 | 24 | |
| (127 mm x 127 mm) | US4 | 135.35 | 007752 | |||
| US10 | 135.35 | 007678 | ||||
| US10B | 160.85 | 007689 | ||||
| US15 | 160.85 | 040362 | ||||
| US26 | 160.85 | 007703 | ||||
| US26D | 135.45 | 007707 | ||||
| US32 | 137.85 | 007738 | ||||
| US32D | 137.85 | 007742 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| BB1199 - Cont. | 6" x 4-1/2" | US3 | 374.30 | 011566 | 3 | 12 |
| Continued | (152 mm x 114 mm) | US4 | 243.15 | 018196 | ||
| US10 | 243.15 | 099882 | ||||
| US10B | 374.30 | 094854 | ||||
| US15 | 374.30 | 031525 | ||||
| US26 | 374.30 | - | ||||
| US26D | 263.90 | 007775 | ||||
| US32 | 357.00 | 058406 | ||||
| US32D | 357.00 | 007783 | ||||
| 6" x 5" | US3 | 374.30 | 007803 | 3 | 12 | |
| (152 mm x 127 mm) | US4 | 243.15 | 013028 | |||
| US10 | 243.15 | 019745 | ||||
| US10B | 374.30 | 007792 | ||||
| US15 | 374.30 | 055244 | ||||
| US26 | 374.30 | - | ||||
| US26D | 263.90 | 007800 | ||||
| US32 | 357.00 | 048380 | ||||
| US32D | 357.00 | 007807 | ||||
| 6" x 6" | US3 | 374.30 | 007827 | 3 | 12 | |
| (152 mm x 152 mm) | US4 | 243.15 | 007838 | |||
| US10 | 243.15 | 007816 | ||||
| US10B | 374.30 | 007820 | ||||
| US15 | 374.30 | 040565 | ||||
| US26 | 374.30 | 116381 | ||||
| US26D | 263.90 | 007825 | ||||
| US32 | 357.00 | 073209 | ||||
| US32D | 357.00 | 007832 | ||||
| 8" x 6" | USP | 598.40 | 054124 | 3 | 12 | |
| (203 mm x 152 mm) | US3 | 849.25 | 017553 | |||
| US10 | 628.20 | 071278 | ||||
| US10B | 849.25 | 072364 | ||||
| US15 | 849.25 | 095022 | ||||
| US26D | 738.60 | 003819 | ||||
| US32D | 984.60 | 007853 | ||||
| 8" x 8" | USP | 598.40 | 046441 | 3 | 12 | |
| (203 mm x 203 mm) | US3 | 849.25 | 073590 | |||
| US10 | 628.20 | 025171 | ||||
| US10B | 849.25 | 007857 | ||||
| US15 | 849.25 | 124169 | ||||
| US26D | 738.60 | 032486 | ||||
| US32D | 984.60 | 007863 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1199 | 4-1/2" x 5" | US3 | 295.55 | 007267 | 3 | 24 |
| Wide Throw | (114 mm x 127 mm) | US4 | 233.35 | 065299 | ||
| Brass or Stainless | US10 | 233.35 | 031727 | |||
| Full Mortise | US10B | 295.55 | 021314 | |||
| Heavy Weight | US26 | 295.55 | 017632 | |||
| Ball Bearing | US26D | 256.30 | 007274 | |||
| US32 | 317.05 | 089866 | ||||
| US32D | 317.05 | 098011 | ||||
| 4-1/2" x 6" | US3 | 304.25 | 023840 | 3 | 24 | |
| (114 mm x 152 mm) | US4 | 241.35 | 068984 | |||
| US10 | 241.35 | 048525 | ||||
| US10B | 304.25 | 055190 | ||||
| US26 | 304.25 | 033508 | ||||
| US26D | 273.55 | 076837 | ||||
| US32 | 325.50 | 015353 | ||||
| US32D | 325.50 | 007302 | ||||
| 4-1/2" x 7" | US3 | 321.30 | 103595 | 3 | 24 | |
| (114 mm x 178 mm) | US4 | 267.35 | 051679 | |||
| US10 | 267.35 | 013416 | ||||
| US10B | 321.30 | 007306 | ||||
| US26 | 321.30 | - | ||||
| US26D | 308.45 | 018563 | ||||
| US32 | 347.05 | - | ||||
| US32D | 347.05 | 099677 | ||||
| 4-1/2" x 8" | US3 | 347.05 | 028182 | 3 | 24 | |
| (114 mm x 203 mm) | US4 | 295.60 | 091502 | |||
| US10 | 295.60 | 087891 | ||||
| US10B | 347.05 | 039213 | ||||
| US26 | 347.05 | 069204 | ||||
| US26D | 321.30 | 105127 | ||||
| US32 | 375.30 | 051771 | ||||
| US32D | 375.30 | 020980 | ||||
| 5" x 6" | US3 | 359.90 | 048922 | 3 | 24 | |
| (127 mm x 152 mm) | US4 | 308.45 | 021718 | |||
| US10 | 308.45 | 125775 | ||||
| US10B | 359.90 | 032471 | ||||
| US26 | 359.90 | - | ||||
| US26D | 331.60 | 030677 | ||||
| US32 | 401.00 | 095695 | ||||
| US32D | 401.00 | 007332 | ||||
| 5" x 7" | US3 | 372.75 | 046417 | 3 | 24 | |
| (127 mm x 178 mm) | US4 | 308.45 | 109376 | |||
| US10 | 308.45 | 102105 | ||||
| US10B | 372.75 | 065989 | ||||
| US26 | 372.75 | - | ||||
| US26D | 334.20 | 048069 | ||||
| US32 | 406.15 | 145249 | ||||
US32D 406.15 030561
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1199 - Cont. | 5" x 8" | US3 | 388.15 | 084305 | 3 | 24 |
| Continued | (127 mm x 203 mm) | US4 | 331.60 | 142606 | ||
| US10 | 331.60 | 146648 | ||||
| US10B | 388.15 | 005340 | ||||
| US26 | 388.15 | - | ||||
| US26D | 347.05 | 034917 | ||||
| US32 | 424.15 | - | ||||
| US32D | 424.15 | 019520 | ||||
| 1250 | 3-1/2" x 3-1/2" | USP | 30.25 | 007989 | 2 | 80 |
| Steel | (89 mm x 89 mm) | US3 | 40.05 | 007984 | ||
| Full Mortise | US4 | 30.25 | 007986 | |||
| Standard Weight | US10 | 30.25 | 007974 | |||
| Spring Hinge | US10A (US11) | 40.05 | 007975 | |||
| Available with Raised Barrel | US10B | 40.05 | 007977 | |||
| Available with hospital tip (voids | US26D | 40.90 | 007981 | |||
| UL) | 4" x 4" | USP | 38.55 | 008006 | 3 | 48 |
| (102 mm x 102 mm) | US3 | 53.65 | 008001 | |||
| US4 | 38.55 | 008003 | ||||
| US10 | 38.55 | 007991 | ||||
| US10A (US11) | 53.65 | 007992 | ||||
| US10B | 53.65 | 007994 | ||||
| US26D | 47.40 | 007999 | ||||
| 4-1/2" x 4" | USP | 68.90 | 008020 | 3 | 48 | |
| (114 mm x 102 mm) | US3 | 65.35 | 008014 | |||
| US4 | 68.90 | 008015 | ||||
| US10 | 68.90 | 008008 | ||||
| US10A (US11) | 65.35 | 008009 | ||||
| US10B | 65.35 | 008010 | ||||
| US26D | 62.25 | 008013 | ||||
| 4-1/2" x 4-1/2" | USP | 68.90 | 008050 | 3 | 48 | |
| (114 mm x 114 mm) | US3 | 65.35 | 008039 | |||
| US4 | 68.90 | 008041 | ||||
| US10 | 68.90 | 008021 | ||||
| US10A (US11) | 65.35 | 008023 | ||||
| US10B | 65.35 | 008025 | ||||
| US26 | 65.35 | 008034 | ||||
| US26D | 62.25 | 008037 | ||||
| 1251 | 3-1/2" x 3-1/2" | USP | 30.25 | 008066 | 2 | 80 |
| Steel | (89 mm x 89 mm) | US3 | 40.05 | 008059 | ||
| 1/4" Round Corner | US4 | 30.25 | 008060 | |||
| Radius, Full Mortise | US10 | 30.25 | 012954 | |||
| Standard Weight | US10A (US11) | 40.05 | 008054 | |||
| Spring Hinge | US10B | 40.05 | 064255 | |||
| US26D | 40.90 | 008057 | ||||
| 4" x 4" | USP | 38.55 | 008079 | 3 | 48 | |
| (102 mm x 102 mm) | US3 | 53.65 | 008073 | |||
| US4 | 38.55 | 008074 | ||||
| US10 | 38.55 | 008067 | ||||
| US10A (US11) | 53.65 | 008069 | ||||
| US10B | 53.65 | 067122 | ||||
| US26D | 47.40 | 008072 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 1251 - Cont. | 4-1/2" x 4" | USP | 67.00 | 008086 | 3 | 48 |
| Continued | (114 mm x 102 mm) | US3 | 92.90 | 003696 | ||
| US4 | 82.60 | 008084 | ||||
| US10 | 82.60 | 012636 | ||||
| US10A (US11) | 92.90 | 072921 | ||||
| US10B | 92.90 | 038047 | ||||
| US26D | 89.55 | 008082 | ||||
| 4-1/2" x 4-1/2" | USP | 67.00 | 008093 | 3 | 48 | |
| (114 mm x 114 mm) | US3 | 92.90 | 008091 | |||
| US4 | 82.60 | 008092 | ||||
| US10 | 82.60 | 008087 | ||||
| US10A (US11) | 92.90 | 008088 | ||||
| US10B | 92.90 | 020899 | ||||
| US26D | 89.55 | 008090 | ||||
| 1252 | 3-1/2" x 3-1/2" | USP | 30.25 | 008101 | 2 | 80 |
| US26D | 89.55 | 008090 | ||||
|---|---|---|---|---|---|---|
| 1252 | 3-1/2" x 3-1/2" | USP | 30.25 | 008101 | 2 | 80 |
| Steel | (89 mm x 89 mm) | US3 | 40.05 | 008098 | ||
| 5/8" Round Corner | US4 | 30.25 | 008099 | |||
| Radius | US10 | 30.25 | 008094 | |||
| Full Mortise | US10A (US11) | 40.05 | 073193 | |||
| Standard Weight | US10B | 40.05 | 034664 | |||
| Spring Hinge | US26D | 40.90 | 008097 | |||
| 4" x 4" | USP | 38.55 | 008111 | 3 | 48 | |
| (102 mm x 102 mm) | US3 | 53.65 | 008106 | |||
| US4 | 38.55 | 008107 | ||||
| US10 | 38.55 | 008102 | ||||
| US10A (US11) | 53.65 | 008103 | ||||
| US10B | 53.65 | 079680 | ||||
| US26D | 47.40 | 008105 | ||||
| 4-1/2" x 4" | USP | 67.00 | 094477 | 3 | 48 | |
| (114 mm x 102 mm) | US3 | 92.90 | 131917 | |||
| US4 | 82.60 | 128797 | ||||
| US10 | 82.60 | - | ||||
| US10A (US11) | 92.90 | - | ||||
| US10B | 92.90 | 066475 | ||||
| US26D | 89.55 | 008112 | ||||
| 4-1/2" x 4-1/2" | USP | 67.00 | 008116 | 3 | 48 | |
| (114 mm x 114 mm) | US3 | 92.90 | 072949 | |||
| US4 | 82.60 | 008115 | ||||
| US10 | 82.60 | 110806 | ||||
| US10A (US11) | 92.90 | 004677 | ||||
| US10B | 92.90 | 090888 | ||||
| US26D | 89.55 | 008113 | ||||
| 1253 | 4-1/2" (114 mm) | USP | 102.20 | 008126 | 3 | 48 |
| Steel | US3 | 141.45 | 008122 | |||
| Half Surface | US4 | 122.95 | 008123 | |||
| Standard Weight | US10 | 122.95 | 068449 | |||
| Spring Hinge | US10A (US11) | 141.45 | 040132 | |||
US10B 141.45 029321 US26D 145.20 008121
| 1256 | 4-1/2" x 4-1/2" | USP | 170.75 | 066379 | 1 | 16 |
|---|---|---|---|---|---|---|
| Steel | (114 mm x 114 mm) | US3 | 176.55 | 066381 | ||
| Full Mortise | US4 | 178.75 | 066382 | |||
| Standard Weight | US10B | 176.55 | 078188 | |||
|
Spring Hinge Set
2 ea. 1250 and 1 ea. BB1279 |
US26D | 156.60 | 066380 |
| 1257 | 3-1/2" x 3-1/2" | USP | 31.30 | 092328 | 2 | 80 |
|---|---|---|---|---|---|---|
| Steel | (89 mm x 89 mm) | US3 | 50.00 | 067841 | ||
| Reverse Action (opens door) | US4 | 39.00 | 039089 | |||
| Spring Hinge | US10 | 47.25 | 137319 | |||
| Full Mortise | US10A (US11) | 50.00 | - | |||
| Standard Weight | US10B | 50.00 | 060356 | |||
| US26D | 51.15 | 040710 | ||||
| 4" x 4" | USP | 39.35 | 073648 | 3 | 48 | |
| (102 mm x 102 mm) | US3 | 60.45 | 025750 | |||
| US4 | 52.80 | 038768 | ||||
| US10 | 52.80 | 070295 | ||||
| US10A (US11) | 60.50 | 043768 | ||||
| US10B | 60.50 | 002584 | ||||
| US26D | 56.70 | 032167 | ||||
| 4-1/2" x 4" | USP | 77.80 | 035215 | 3 | 48 | |
| (114 mm x 102 mm) | US3 | 109.90 | 068150 | |||
| US4 | 95.65 | 007310 | ||||
| US10 | 95.65 | 101197 | ||||
| US10A (US11) | 109.90 | 068555 | ||||
| US10B | 109.90 | 054881 | ||||
| US26D | 105.55 | 028649 | ||||
| 4-1/2" x 4-1/2" | USP | 77.80 | 028435 | 3 | 48 | |
| (114 mm x 114 mm) | US3 | 109.90 | 043734 | |||
| US4 | 95.65 | 031889 | ||||
| US10 | 95.65 | 025898 | ||||
| US10A (US11) | 109.90 | 053642 | ||||
| US10B | 109.90 | 028288 | ||||
| US26D | 105.55 | 023280 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 1258 | 4" x 4" | USP | 39.35 | 089659 | 3 | 48 |
| Steel | (102 mm x 102 mm) | US3 | 60.45 | 073758 | ||
| Reverse Action (opens door) | US4 | 52.80 | 024870 | |||
| Spring Hinge | US10 | 52.80 | 103534 | |||
| 1/4" Round Corner Radius | US10A (US11) | 60.50 | 014734 | |||
| Full Mortise | US10B | 60.50 | - | |||
| Standard Weight | US26D | 56.70 | 059064 | |||
| 4-1/2" x 4" | USP | 77.80 | - | 3 | 48 | |
| (114 mm x 102 mm) | US3 | 109.90 | - | |||
| US4 | 95.65 | - | ||||
| US10 | 95.65 | - | ||||
| US10A (US11) | 109.90 | 090908 | ||||
| US10B | 109.90 | 050348 | ||||
| US26D | 105.55 | 018075 | ||||
| 4-1/2" x 4-1/2" | USP | 77.80 | 070595 | 3 | 48 |
US3 109.90 047076 US4 95.65 146899 US10 95.65 -
(114 mm x 114 mm)
|
US10A (US11)
US10B |
109.90
109.90 |
064308
077955 |
||||
|---|---|---|---|---|---|---|
| US26D | 105.55 | 004667 | ||||
| 1259 | 4" x 4" | USP | 39.35 | 057105 | 3 | 48 |
| Steel | (102 mm x 102 mm) | US3 | 60.45 | 022378 | ||
| Reverse Action (opens door) | US4 | 52.80 | 003583 | |||
| Spring Hinge | US10 | 52.80 | 095173 | |||
| 5/8" Round Corner Radius | US10A (US11) | 60.50 | 045428 | |||
| Full Mortise | US10B | 60.50 | 003805 | |||
| Standard Weight | US26D | 56.70 | 066746 | |||
| 4-1/2" x 4" | USP | 77.80 | 095677 | 3 | 48 | |
| (114 mm x 102 mm) | US3 | 109.90 | - | |||
| US4 | 95.65 | - | ||||
| US10 | 95.65 | - | ||||
| US10A (US11) | 109.90 | - | ||||
| US10B | 109.90 | - | ||||
| US26D | 105.55 | 117570 | ||||
| 4-1/2" x 4-1/2" | USP | 77.80 | 119644 | 3 | 48 | |
| (114 mm x 114 mm) | US3 | 109.90 | 034821 | |||
| US4 | 95.65 | 136373 | ||||
| US10 | 95.65 | - | ||||
| US10A (US11) | 109.90 | - | ||||
| US10B | 109.90 | 028805 | ||||
| US26D | 105.55 | 013126 | ||||
| 1260 | 3-1/2" (89 mm) | USP | 71.80 | 008132 | 3 | 48 |
| Steel | US3 | 107.45 | 008130 | |||
| Full Mortise | US4 | 78.35 | 008131 | |||
| Standard Weight |
|
US10A (US11)
US10B US26D |
109.90
109.90 105.55 |
-
028805 013126 |
||||
|---|---|---|---|---|---|---|
| 1260 | 3-1/2" (89 mm) | USP | 71.80 | 008132 | 3 | 48 |
| Steel | US3 | 107.45 | 008130 | |||
| Full Mortise | US4 | 78.35 | 008131 | |||
| Standard Weight | US10 | 88.95 | 008127 | |||
| Swing Clear | US10A (US11) | 107.45 | 057903 | |||
| US10B | 107.45 | 019620 | ||||
| US26 | 107.45 | 008128 | ||||
| US26D | 85.15 | 008129 | ||||
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 1260 - Cont. | 4" (102 mm) | USP | 85.15 | 008134 | 3 | 36 |
| Continued | US3 | 109.85 | 051811 | |||
| US4 | 81.00 | 051756 | ||||
| US10 | 91.90 | 052043 | ||||
| US10A (US11) | 109.85 | 097783 | ||||
| US10B | 109.85 | 018275 | ||||
| US26 | 109.85 | 008133 | ||||
| US26D | 87.60 | 053701 | ||||
| BB1260 | 4-1/2" (114 mm) | USP | 152.05 | 008150 | 3 | 36 |
| Steel | US10 | 158.30 | 008137 | |||
| Full Mortise | US10A (US11) | 186.95 | 008140 | |||
| Standard Weight | US10B | 186.95 | 062238 | |||
| Ball Bearing | US26D | 162.10 | 008142 | |||
| Swing Clear | 5" (127 mm) | USP | 152.05 | 008157 | 3 | 36 |
| RH Standard (Reversible to LH) | US10 | 158.30 | 016025 | |||
| US10A (US11) | 186.95 | 008154 | ||||
| US10B | 186.95 | 061702 | ||||
| US26D | 162.10 | 008156 | ||||
| BB1261 | 4-1/2" (114 mm) | USP | 152.05 | 008174 | 3 | 36 |
|
Steel
Full Mortise |
US10 | 158.30 | 008161 | |||
|
Standard Weight
Ball Bearing |
US10A (US11) | 186.95 | 008163 | |||
| US10B | 186.95 | 098270 | ||||
| Swing Clear | US26D | 162.10 | 008166 | |||
| Beveled Edge Doors | 5" (127 mm) | USP | 152.05 | 032933 | 3 | 36 |
| RH Standard (Reversible to LH) | US10 | 158.30 | 083843 | |||
| US10A (US11) | 186.95 | 008175 | ||||
| US10B | 186.95 | 073019 | ||||
| US26D | 162.10 | 008177 | ||||
| BB1262 | 4-1/2" (114 mm) | USP | 188.10 | 008193 | 3 | 24 |
| Steel | US10 | 190.80 | 008181 | |||
| Full Mortise | US10A (US11) | 229.15 | 008182 | |||
| Heavy Weight | US10B | 229.15 | 080232 | |||
|
Ball Bearing
Swing Clear |
US26D | 177.45 | 008186 | |||
| RH Standard (Reversible to LH) | 5" (127 mm) | USP | 188.10 | 008205 | 3 | 24 |
| US10 | 190.80 | 008195 | ||||
| US10A (US11) | 229.15 | 007128 | ||||
| US10B | 229.15 | 022873 | ||||
| US26D | 177.45 | 008199 | ||||
| BB1263 | 4-1/2" (114 mm) | USP | 188.10 | 008223 | 3 | 24 |
| Steel | US10 | 190.80 | 008212 | |||
| Full Mortise | US10A (US11) | 229.15 | 008214 | |||
| Heavy Weight | US10B | 229.15 | 008216 | |||
| Ball Bearing | US26D | 177.45 | 008218 | |||
| Swing Clear | 5" (127 mm) | USP | 188.10 | 008236 | 3 | 24 |
| Beveled Edge Doors | US10 | 190.80 | 008225 | |||
| RH Standard (Reversible to LH) | US10A (US11) | 229.15 | 008227 | |||
| US10B | 229.15 | 018189 | ||||
| US26D | 177.45 | 008229 |
| Box |
Case
Qty. |
|||||
|---|---|---|---|---|---|---|
| Description | 5" (127 mm) |
Finish
USP |
2018 List
418.35 |
Stock No.
008249 |
Qty.
3 |
24 |
|
BB1264
Steel |
US10 | 439.25 | 025668 | |||
| Half Mortise | US10A (US11) | 593.90 | 036300 | |||
| Heavy Weight | US10B | 593.90 | 039396 | |||
| Ball Bearing | ||||||
| Swing Clear | US26D | 516.50 | 008246 | |||
| BB1265 | 5" (127 mm) | USP | 418.35 | 008336 | 3 | 24 |
| Steel | US10 | 439.25 | 088701 | |||
| Half Mortise | US10A (US11) | 593.90 | - | |||
| Heavy Weight | US10B | 593.90 | - | |||
| Ball Bearing | US26D | 516.50 | 002311 | |||
| Swing Clear | ||||||
| Beveled Edge Doors | ||||||
| BB1266 | 5" (127 mm) | USP | 368.35 | 008266 | 3 | 12 |
| Steel | US10 | 386.60 | 071003 | |||
|
Full Surface
Heavy Weight |
US10A (US11) | 580.70 | 026077 | |||
| Ball Bearing | US10B | 580.70 | 060302 | |||
| Swing Clear | US26D | 460.30 | 008261 | |||
| 1267 | 4-1/2" (114 mm) | USP | 190.00 | 135773 | 3 | 36 |
| Steel | US3 | 221.30 | 121383 | |||
| Full Mortise | US10 | 199.90 | - | |||
| Swing Clear Spring Hinge | US10A (US11) | 221.30 | - | |||
| Square Edge Doors | ||||||
| Use with BB1260/AB7001 | US10B | 221.30 | - | |||
| US26 | 221.30 | - | ||||
| US26D | 210.20 | 113387 | ||||
| BB1270 | 5" (127 mm) | USP | 368.35 | 008282 | 3 | 12 |
| Steel | US10 | 386.60 | 062242 | |||
| Half Surface | US10A (US11) | 580.70 | 108714 | |||
| Heavy Weight | US10B | 580.70 | 034690 | |||
| Ball Bearing | US26D | 460.30 | 008277 | |||
| Swing Clear | ||||||
| 1277 | 106.20* | - | 3 | 48 | ||
| Made to Order | *Add to price of | |||||
| Full Mortise | 1279 | |||||
| Standard Weight | ||||||
| Both Leaves Tapped | ||||||
| BB1277 | 106.20* | - | 3 | 48 | ||
| Made to Order | *Add to price of | |||||
| Steel | BB1279 | |||||
| Full Mortise |
Full Mortise Standard Weight Ball Bearing
4/01/2018 www.hagerco.com
Both Leaves Tapped
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 1278 | 106.20* | - | 3 | 48 | ||
| Steel | *Add to price of | |||||
| Full Mortise | 1279 | |||||
| Standard Weight | ||||||
| Plain Bearing | ||||||
| One Leaf Tapped | ||||||
| Specify Handing | ||||||
| BB1278 | 106.20* | - | 3 | 48 | ||
| Steel | *Add to price of | |||||
| Full Mortise | BB1279 | |||||
|
Standard Weight
Ball Bearing |
||||||
| One Leaf Tapped | ||||||
| Specify Handing | ||||||
| 1279 | 3" x 3" | LS | 26.95 | 008460 | 2 | 100 |
| Steel | (76 mm x 76 mm) | H2H | 54.55 | 008448 | ||
| Full Mortise | USP | 23.00 | 008461 | |||
| Standard Weight | US3 | 50.35 | 008449 | |||
| Plain Bearing | US4 | 26.95 | 008454 | |||
| US10 | 26.95 | 008427 | ||||
| US10A (US11) | 50.35 | 008429 | ||||
| US10B | 50.35 | 064052 | ||||
| US15 | 50.35 | 008435 | ||||
| US26 | 50.35 | 008439 | ||||
| US26D | 41.85 | 008442 |
Box
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| 1279 - Cont. | 3-1/2" x 3-1/2" | LS | 9.40 | 010919 | 2 | 100 |
| Continued | (89 mm x 89 mm) | H2H | 19.05 | 010881 | ||
| USP | 7.35 | 010923 | ||||
| US3 | 14.80 | 010886 | ||||
| US4 | 9.40 | 010897 | ||||
| US10 | 9.40 | 010819 | ||||
| US10A (US11) | 14.80 | 010829 | ||||
| US10B | 14.80 | 010839 | ||||
| US15 | 14.80 | 010850 | ||||
| US26 | 14.80 | 010859 | ||||
| US26D | 12.35 | 010870 | ||||
| 4" x 3-1/2" | LS | 17.35 | - | 3 | 48 | |
| (102 x 89 mm) | H2H | 28.20 | - | |||
| USP | 13.35 | 000695 | ||||
| US3 | 24.50 | 008469 | ||||
| US4 | 15.70 | 096337 | ||||
| US10 | 15.70 | 015158 | ||||
| US10A (US11) | 24.50 | 063165 | ||||
| US10B | 24.50 | 025812 | ||||
| US15 | 24.50 | 041310 | ||||
| US26 | 24.50 | 056835 | ||||
| US26D | 21.30 | 088103 | ||||
| 4" x 4" | LS | 11.60 | 008583 | 3 | 48 | |
| (102 mm x 102 mm) | H2H | 20.80 | 008532 | |||
| USP | 9.10 | 008585 | ||||
| US3 | 16.65 | 008540 | ||||
| US4 | 11.60 | 008555 | ||||
| US10 | 11.60 | 008470 | ||||
| US10A (US11) | 16.65 | 008477 | ||||
| US10B | 16.65 | 008488 | ||||
| US15 | 16.65 | 008496 | ||||
| US26 | 16.65 | 008507 | ||||
| US26D | 15.15 | 008517 | ||||
| 4-1/2" x 4" | LS | 11.15 | 008648 | 3 | 48 | |
| (114 mm x 102 mm) | H2H | 23.95 | 067471 | |||
| USP | 9.60 | 008650 | ||||
| US3 | 19.20 | 008629 | ||||
| US4 | 11.15 | 008637 | ||||
| US10 | 11.15 | 008599 | ||||
| US10A (US11) | 19.20 | 008602 | ||||
| US10B | 19.20 | 008608 | ||||
| US15 | 19.20 | 008612 | ||||
| US26 | 19.20 | 008617 | ||||
| US26D | 12.00 | 008622 |
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| 1279 - Cont. 2 | 4-1/2" x 4-1/2" | LS | 11.15 | 008826 | 3 | 48 |
| Continued | (114 mm x 114 mm) | H2H | 23.95 | 008748 | ||
| USP | 9.60 | 008833 | ||||
| US3 | 19.20 | 008762 | ||||
| US4 | 11.15 | 008785 | ||||
| US10 | 11.15 | 008657 | ||||
| US10A (US11) | 19.20 | 008671 | ||||
| US10B | 19.20 | 008687 | ||||
| US15 | 19.20 | 008698 | ||||
| US26 | 19.20 | 008709 | ||||
| US26D | 12.00 | 008720 | ||||
| 5" x 4" | LS | 38.55 | - | 3 | 24 | |
| (127 mm x 102 mm) | H2H | 65.15 | 038234 | |||
| USP | 31.70 | 008871 | ||||
| US3 | 52.15 | 008863 | ||||
| US4 | 38.55 | 008865 | ||||
| US10 | 38.55 | 088473 | ||||
| US10A (US11) | 52.15 | 009784 | ||||
| US10B | 52.15 | 008536 | ||||
| US15 | 52.15 | 068578 | ||||
| US26 | 52.15 | 064843 | ||||
| US26D | 35.70 | 008862 | ||||
| 5" x 4-1/2" | LS | 38.55 | - | 3 | 24 | |
| (127 mm x 114 mm) | H2H | 65.15 | 031063 | |||
| USP | 31.70 | 008911 | ||||
| US3 | 52.15 | 008895 | ||||
| US4 | 38.55 | 008900 | ||||
| US10 | 38.55 | 008875 | ||||
| US10A (US11) | 52.15 | 008879 | ||||
| US10B | 52.15 | 008882 | ||||
| US15 | 52.15 | 083724 | ||||
| US26 | 52.15 | 008884 | ||||
| US26D | 35.70 | 008887 | ||||
| 5" x 5" | LS | 38.55 | 081132 | 3 | 24 | |
| (127 mm x 127 mm) | H2H | 65.15 | 019652 | |||
| USP | 31.70 | 008963 | ||||
| US3 | 52.15 | 008944 | ||||
| US4 | 38.55 | 008956 | ||||
| US10 | 38.55 | 008923 | ||||
| US10A (US11) | 52.15 | 008925 | ||||
| US10B | 52.15 | 008929 | ||||
| US15 | 52.15 | 067162 | ||||
| US26 | 52.15 | 008934 | ||||
| US26D | 35.70 | 008938 |
Box
Box
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| BB1279 | 3-1/2" x 3-1/2" | LS | 35.55 | 019111 | 2 | 100 |
| Steel | (89 mm x 89 mm) | H2H | 57.60 | - | ||
| Full Mortise | USP | 35.55 | 011038 | |||
| Standard Weight | US3 | 46.10 | 011013 | |||
| Ball Bearing | US4 | 35.55 | 011021 | |||
| US10 | 35.55 | 010983 | ||||
| US10A (US11) | 46.10 | 010988 | ||||
| US10B | 46.10 | 010995 | ||||
| US15 | 46.10 | 060839 | ||||
| US26 | 46.10 | 010998 | ||||
| US26D | 35.90 | 011003 | ||||
| 4" x 3-1/2" | LS | 41.90 | - | 3 | 48 | |
| (102 mm x 89 mm) | H2H | 62.35 | - | |||
| USP | 38.30 | 072989 | ||||
| US3 | 55.35 | 009726 | ||||
| US4 | 38.30 | 028772 | ||||
| US10 | 41.90 | 006898 | ||||
| US10A (US11) | 55.35 | 070929 | ||||
| US10B | 55.35 | 014742 | ||||
| US15 | 55.35 | 029388 | ||||
| US26 | 55.35 | 000728 | ||||
| US26D | 47.65 | 009725 | ||||
| 4" x 4" | LS | 29.65 | 009805 | 3 | 48 | |
| (102 mm x 102 mm) | H2H | 44.80 | 020230 | |||
| USP | 25.95 | 009808 | ||||
| US3 | 35.85 | 009778 | ||||
| US4 | 25.95 | 009792 | ||||
| US10 | 29.65 | 009727 | ||||
| US10A (US11) | 35.85 | 009731 | ||||
| US10B | 35.85 | 009738 | ||||
| US15 | 35.85 | 009747 | ||||
| US26 | 35.85 | 009755 | ||||
| US26D | 30.75 | 009763 | ||||
| 4-1/2" x 4" | LS | 24.70 | 009933 | 3 | 48 | |
| (114 mm x 102 mm) | H2H | 37.30 | 045582 | |||
| USP | 17.40 | 009937 | ||||
| US3 | 29.85 | 009888 | ||||
| US4 | 24.70 | 009900 | ||||
| US10 | 24.70 | 009817 | ||||
| US10A (US11) | 29.85 | 009825 | ||||
| US10B | 29.85 | 009841 | ||||
| US15 | 29.85 | 009849 | ||||
| US26 | 29.85 | 009857 | ||||
| US26D | 16.75 | 009868 |
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
|---|---|---|---|---|---|---|
| BB1279 - Cont. | 4-1/2" x 4-1/2" | LS | 24.70 | 010310 | 3 | 48 |
| Continued | (114 mm x 114 mm) | H2H | 37.30 | 010172 | ||
| USP | 17.40 | 010322 | ||||
| US3 | 29.85 | 010189 | ||||
| US4 | 24.70 | 010230 | ||||
| US10 | 24.70 | 009957 | ||||
| US10A (US11) | 29.85 | 009990 | ||||
| US10B | 29.85 | 010029 | ||||
| US15 | 29.85 | 010048 | ||||
| US26 | 29.85 | 010073 | ||||
| US26D | 16.75 | 010108 | ||||
| 5" x 4" | LS | 48.25 | - | 3 | 24 | |
| (127 mm x 102 mm) | H2H | 76.40 | - | |||
| USP | 48.25 | 010411 | ||||
| US3 | 61.10 | 010397 | ||||
| US4 | 48.25 | 010403 | ||||
| US10 | 48.25 | 010377 | ||||
| US10A (US11) | 61.10 | 010380 | ||||
| US10B | 61.10 | 071584 | ||||
| US15 | 61.10 | 035721 | ||||
| US26 | 61.10 | 010385 | ||||
| US26D | 47.25 | 010390 | ||||
| 5" x 4-1/2" | LS | 48.25 | 055246 | 3 | 24 | |
| (127 mm x 114 mm) | H2H | 76.40 | - | |||
| USP | 48.25 | 010515 | ||||
| US3 | 61.10 | 010479 | ||||
| US4 | 48.25 | 010493 | ||||
| US10 | 48.25 | 010416 | ||||
| US10A (US11) | 61.10 | 010429 | ||||
| US10B | 61.10 | 010438 | ||||
| US15 | 61.10 | 010444 | ||||
| US26 | 61.10 | 010447 | ||||
| US26D | 47.25 | 010457 | ||||
| 5" x 5" | LS | 48.25 | - | 3 | 24 | |
| (127 mm x 127 mm) | H2H | 76.40 | 105812 | |||
| USP | 48.25 | 010620 | ||||
| US3 | 61.10 | 010586 | ||||
| US4 | 48.25 | 010602 | ||||
| US10 | 48.25 | 010537 | ||||
| US10A (US11) | 61.10 | 010546 | ||||
| US10B | 61.10 | 010556 | ||||
| US15 | 61.10 | 010559 | ||||
| US26 | 61.10 | 010564 | ||||
| US26D | 47.25 | 010570 |
Box
| Box | Case | |||||
|---|---|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
| BB1279 - Cont. 2 | 6" x 4-1/2" | LS | 114.70 | - | 3 | 24 |
| Continued | (152 mm x 114 mm) | H2H | 174.80 | - | ||
| USP | 114.70 | 010651 | ||||
| US3 | 154.25 | 010644 | ||||
| US4 | 114.70 | 010649 | ||||
| US10 | 114.70 | 010632 | ||||
| US10A (US11) | 154.25 | 009996 | ||||
| US10B | 154.25 | 010638 | ||||
| US15 | 154.25 | 093744 | ||||
| US26 | 154.25 | 113396 | ||||
| US26D | 132.45 | 010641 | ||||
| 6" x 5" | LS | 114.70 | - | 3 | 24 | |
| (152 mm x 127 mm) | H2H | 174.80 | - | |||
| USP | 114.70 | 065930 | ||||
| US3 | 154.25 | 017680 | ||||
| US4 | 114.70 | 014005 | ||||
| US10 | 114.70 | 010656 | ||||
| US10A (US11) | 154.25 | 010658 | ||||
| US10B | 154.25 | 020934 | ||||
| US15 | 154.25 | 108871 | ||||
| US26 | 154.25 | - | ||||
| US26D | 132.45 | 010660 | ||||
| 6" x 6" | LS | 114.70 | - | 3 | 24 | |
| (152 mm x 152 mm) | H2H | 174.80 | - | |||
| USP | 114.70 | 010696 | ||||
| US3 | 154.25 | 010685 | ||||
| US4 | 114.70 | 010689 | ||||
| US10 | 114.70 | 010674 | ||||
| US10A (US11) | 154.25 | 010677 | ||||
| US10B | 154.25 | 068156 | ||||
| US15 | 154.25 | 043949 | ||||
| US26 | 154.25 | 010679 | ||||
| US26D | 132.45 | 010681 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1279 | 3-1/2" x 5" | LS | 68.15 | - | 3 | 24 |
| Wide Throw | (89 mm x 127 mm) | USP | 65.40 | 010918 | ||
| Steel | US3 | 83.40 | 009518 | |||
| Full Mortise | US10 | 68.15 | 101108 | |||
| Standard Weight | US10A (US11) | 83.40 | 009516 | |||
| Ball Bearing | US10B | 83.40 | 023424 | |||
| US26 | 83.40 | 065499 | ||||
| US26D | 74.25 | 011178 | ||||
| 3-1/2" x 6" | LS | 68.15 | - | 3 | 24 | |
| (89 mm x 152 mm) | USP | 65.40 | 066581 | |||
| US3 | 83.40 | 047525 | ||||
| US10 | 68.15 | 121608 | ||||
| US10A (US11) | 83.40 | 132395 | ||||
| US10B | 83.40 | 098415 | ||||
| US26 | 83.40 | 117331 | ||||
| US26D | 74.25 | 009523 | ||||
| 4" x 5" | LS | 95.10 | - | 3 | 24 | |
| (102 mm x 127 mm) | USP | 91.85 | 009537 | |||
| US3 | 110.85 | 009531 | ||||
| US10 | 95.10 | 011977 | ||||
| US10A (US11) | 110.85 | 009527 | ||||
| US10B | 110.85 | 031902 | ||||
| US26 | 110.85 | 009684 | ||||
| US26D | 101.75 | 092731 | ||||
| 4" x 6" | LS | 95.10 | - | 3 | 24 | |
| (102 mm x 152 mm) | USP | 91.85 | 009547 | |||
| US3 | 110.85 | 009545 | ||||
| US10 | 95.10 | 014811 | ||||
| US10A (US11) | 110.85 | 009540 | ||||
| US10B | 110.85 | 006722 | ||||
| US26 | 110.85 | 022988 | ||||
| US26D | 101.75 | 009543 | ||||
| 4" x 7" | LS | 95.10 | 130408 | 3 | 24 | |
| (102 mm x 178 mm) | USP | 91.85 | 093245 | |||
| US3 | 110.85 | 009552 | ||||
| US10 | 95.10 | 146515 | ||||
| US10A (US11) | 110.85 | 049316 | ||||
| US10B | 110.85 | 015456 | ||||
| US26 | 110.85 | 002586 | ||||
| US26D | 101.75 | 009551 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| WTBB1279 - Cont. | 4-1/2" x 5" | LS | 91.05 | - | 3 | 24 |
| Continued | (114 mm x 127 mm) | USP | 89.10 | 009587 | ||
| US3 | 101.90 | 009573 | ||||
| US10 | 91.05 | 009557 | ||||
| US10A (US11) | 101.90 | 009559 | ||||
| US10B | 101.90 | 009564 | ||||
| US26 | 101.90 | 009566 | ||||
| US26D | 95.30 | 009567 | ||||
| 4-1/2" x 6" | LS | 91.05 | - | 3 | 24 | |
| (114 mm x 152 mm) | USP | 89.10 | 009629 | |||
| US3 | 101.90 | 009613 | ||||
| US10 | 91.05 | 009591 | ||||
| US10A (US11) | 101.90 | 009596 | ||||
| US10B | 101.90 | 009600 | ||||
| US26 | 101.90 | 009601 | ||||
| US26D | 95.30 | 009607 | ||||
| 4-1/2" x 7" | USP | 95.90 | 009654 | 3 | 24 | |
| (114 mm x 178 mm) | US3 | 109.55 | 009644 | |||
| US10 | 98.00 | 009636 | ||||
| US10A (US11) | 109.55 | 097139 | ||||
| US10B | 109.55 | 034974 | ||||
| US26D | 102.60 | 009642 | ||||
| 4-1/2" x 8" | USP | 95.90 | 009671 | 3 | 24 | |
| (114 mm x 203 mm) | US3 | 109.55 | 093992 | |||
| US10 | 98.00 | 066950 | ||||
| US10A (US11) | 109.55 | 028232 | ||||
| US10B | 109.55 | 019076 | ||||
| US26D | 102.60 | 009663 | ||||
|
5" x 6"
(127 mm x 152 mm) |
USP | 121.75 | 049054 | 3 | 24 | |
| US3 | 152.10 | 097745 | ||||
| US10 | 127.80 | 009676 | ||||
|
US10A (US11)
US10B |
152.10
152.10 |
019102
028233 |
||||
| US26D | 140.00 | 009683 | ||||
| 5" x 7" | USP | 121.75 | 033635 | 3 | 24 | |
| (127 mm x 178 mm) | US3 | 152.10 | 021386 | |||
| US10 | 127.80 | 009694 | ||||
| US10A (US11) | 152.10 | 050575 | ||||
| US10B | 152.10 | 030684 | ||||
| US26D | 140.00 | 036924 | ||||
| 5" x 8" | USP | 121.75 | 027044 | 3 | 24 | |
| (127 mm x 203 mm) | US3 | 152.10 | 047665 | |||
| US10 | 127.80 | 042602 | ||||
| US10A (US11) | 152.10 | 034328 | ||||
| US10B | 152.10 | 011281 | ||||
| US26D | 140.00 | 094856 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| 1303 | 3" (76 mm) | USP | 43.95 | 126803 | 1 | 10 |
| Double Acting | US3 | 58.00 | 126804 | |||
| Spring Hinge | US4 | 53.20 | 126805 | |||
| US26D | 71.80 | 126807 | ||||
| 4" (102 mm) | USP | 49.85 | 126808 | 1 | 10 | |
| US3 | 65.55 | 126809 | ||||
| US4 | 64.55 | 126810 | ||||
| US26D | 80.65 | 126811 | ||||
| 5" (127 mm) | USP | 71.35 | 126812 | 1 | 10 | |
| US3 | 96.25 | 126813 | ||||
| US4 | 105.85 | 126814 | ||||
| US26D | 117.95 | 126815 | ||||
| 6" (152 mm) | USP | 71.35 | 126816 | 1 | 10 | |
| US3 | 96.25 | 126817 | ||||
| US4 | 105.85 | 126818 | ||||
| US26D | 117.95 | 126819 | ||||
| BB1360 | 4-1/2" (114 mm) | US32D | 221.80 | 060909 | 3 | 36 |
| Stainless Steel | 5" (127 mm) | US32D | 221.80 | 097565 | 3 | 36 |
| Full Mortise | ||||||
| Standard Weight | ||||||
| Ball Bearing | ||||||
|
Swing Clear
RH Standard (reversible to LH) |
||||||
| BB1361 | 4-1/2" (114 mm) | US32D | 221.80 | 044728 | 3 | 36 |
|
Stainless Steel
Full Mortise |
5" (127 mm) | US32D | 221.80 | 094295 | 3 | 36 |
| Standard Weight | ||||||
| Ball Bearing | ||||||
| Swing Clear | ||||||
| Beveled Edge Doors | ||||||
| RH Standard (reversible to LH) | ||||||
| BB1362 | 4-1/2" (114 mm) | US32D | 248.60 | 045163 | 3 | 24 |
| Stainless Steel | 5" (127 mm) | US32D | 248.60 | 041420 | 3 | 24 |
| Full Mortise | ||||||
| Heavy Weight | ||||||
| Ball Bearing | ||||||
| Swing Clear | ||||||
| RH Standard (reversible to LH) | ||||||
| BB1363 | 4-1/2" (114 mm) | US32D | 248.60 | 042414 | 3 | 24 |
| Stainless Steel | 5" (127 mm) | US32D | 248.60 | 042845 | 3 | 24 |
|
Full Mortise
Heavy Weight |
||||||
| Ball Bearing | ||||||
| Swing Clear | ||||||
| Beveled Edge Doors | ||||||
| RH Standard (reversible to LH) | ||||||
| 1577 | 105.35* | - | 3 | 48 | ||
| Brass or stainless | *Add to price of | |||||
| Full Mortise | 1191 | |||||
Full Mortise Standard Weight Plain Bearing Both Leaves Tapped
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
|
BB1577
Brass or stainless Full Mortise Standard Weight Ball Bearing Both Leaves Tapped |
105.35*
*Add to price of BB1191 |
- | 3 | 48 | ||
|
1578
Brass or stainless Full Mortise Standard Weight Plain Bearing One Leaf Tapped Specify Handing |
105.35*
*Add to price of 1191 |
- | 3 | 48 | ||
|
BB1578
Brass or stainless Full Mortise Standard Weight Ball Bearing One Leaf Tapped Specify Handing |
105.35*
*Add to price of BB1191 |
- | 3 | 48 | ||
| 1712 | 3-1/2" (89 mm) | ALL | 57.95 | 066653 | 10 | 100 |
| Ball Tip Hinge Kit | 4" (102 mm) | ALL | 57.95 | 066654 | 10 | 100 |
| Standard Weight | 4-1/2" (114 mm) | ALL | 58.35 | 066655 | 10 | 100 |
| 5" (127 mm) | ALL | 58.35 | 066656 | 10 | 100 | |
| 6" (152 mm) | ALL | 58.35 | 079328 | 10 | 100 | |
| 1713 | 4-1/2" (114 mm) | ALL | 63.75 | 066657 | 10 | 100 |
| Ball Tip Hinge Kit | 5" (127 mm) | ALL | 63.75 | 066658 | 10 | 100 |
| Heavy Weight | 6" (152 mm) | ALL | 63.75 | 072882 | 10 | 100 |
| 1716 | 3-1/2" (89 mm) | ALL | 58.35 | 066638 | 10 | 100 |
| Acorn Tip Hinge Kit | 4" (102 mm) | ALL | 58.35 | 066639 | 10 | 100 |
| Standard Weight | 4-1/2" (114 mm) | ALL | 58.35 | 066640 | 10 | 100 |
| 5" (127 mm) | ALL | 58.35 | 066641 | 10 | 100 | |
| 6" (152 mm) | ALL | 58.35 | - | 10 | 100 | |
| 1717 | 4-1/2" (114 mm) | ALL | 63.75 | 015890 | 10 | 100 |
| Acorn Tip Hinge Kit | 5" (127 mm) | ALL | 63.75 | 066643 | 10 | 100 |
| Heavy Weight | 6" (152 mm) | ALL | 63.75 | - | 10 | 100 |
| 1722 | 3-1/2" (89 mm) | ALL | 58.35 | 066644 | 10 | 100 |
| Steeple Tip Hinge Kit | 4" (102 mm) | ALL | 58.35 | 066645 | 10 | 100 |
| Standard Weight | 4-1/2" (114 mm) | ALL | 58.35 | 066689 | 10 | 100 |
| 5" (127 mm) | ALL | 58.35 | 066690 | 10 | 100 | |
| 6" (152 mm) | ALL | 58.35 | - | 10 | 100 | |
| 1723 | 4-1/2" (114 mm) | ALL | 63.75 | 066691 | 10 | 100 |
| Steeple Tip Hinge Kit | 5" (127 mm) | ALL | 63.75 | 066646 | 10 | 100 |
| Heavy Weight | 6" (152 mm) | ALL | 63.75 | - | 100 |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Box | Case | |||||
|---|---|---|---|---|---|---|
| Description | 3-1/2" (89 mm) |
Finish
ALL |
2018 List
58.35 |
Stock No.
066647 |
Qty.
10 |
Qty.
100 |
|
1728
Urn Tip Hinge Kit |
4" (102 mm) | ALL | 58.35 | 066648 | 10 | 100 |
| Standard Weight | ||||||
| 4-1/2" (114 mm) | ALL | 58.35 | 066649 | 10 | 100 | |
| 5" (127 mm) | ALL | 58.35 | 066650 | 10 | 100 | |
| 6" (152 mm) | ALL | 58.35 | - | 10 | 100 | |
| 1729 | 4-1/2" (114 mm) | ALL | 63.75 | 066651 | 10 | 100 |
|
Urn Tip Hinge Kit
Heavy Weight |
5" (127 mm) | ALL | 63.75 | 022876 | 10 | 100 |
| 6" (152 mm) | ALL | 63.75 | 007875 | 10 | 100 | |
| 1850 | 4" x 4" | PS | 55.90 | 042562 | 10 | 40 |
| Steel - Full Surface | (102 mm x 102 mm) | |||||
| Heavy Weight | 4-1/2" x 4-1/2" | PS | 73.25 | 042564 | 10 | 40 |
|
Plain Bearing
No Holes |
(114 mm x 114 mm) | |||||
| 5" x 5" | PS | 94.10 | 042596 | 1 | 10 | |
| (127 mm x 127 mm) | ||||||
|
6" x 6"
(152 mm x 152 mm) |
PS | 140.50 | 042597 | 1 | 10 | |
| 1850 LP | 6" x 6" | PS | 140.50 | 177161 | 1 | 10 |
| Loose Oval Pin | (152 mm x 152 mm) | |||||
|
BB2098
Brass or Stainless Half Mortise Heavy Weight |
4-1/2" (114 mm) | US10 | 201.10 | 012708 | 3 | 36 |
| US10B | 245.25 | 087963 | ||||
| US26D | 188.55 | 012711 | ||||
| US32D | 285.95 | 012716 | ||||
| Ball Bearing | 5" (127 mm) | US10 | 243.15 | - | 3 | 24 |
| US10B | 287.25 | 110727 | ||||
| US26D | 257.10 | 012724 | ||||
| US32D | 334.80 | 012728 | ||||
| 6" x 1-3/4" | US26D | 422.30 | 042103 | 3 | 12 | |
| (152 mm x 45 mm) | US32D | 603.20 | 012735 | |||
| BB2108 | 4-1/2" (114 mm) | US10 | 257.75 | 067805 | 3 | 36 |
| Brass or Stainless | US10B | 314.40 | 070520 | |||
| Full Surface | US26D | 276.20 | 004606 | |||
|
Heavy Weight
Ball Bearing |
US32D | 288.25 | 012747 | |||
| 5" (127 mm) | US10 | 296.40 | - | 3 | 24 | |
| US10B | 400.85 | - | ||||
| US26D | 348.55 | 100138 | ||||
| US32D | 452.90 | 036742 | ||||
| 6" (152 mm) |
US26D
US32D |
406.00
580.00 |
022939
012757 |
3 | 12 | |
| BB2109 | 4-1/2" (114 mm) | US10 | 296.40 | 012759 | 3 | 36 |
| Brass or Stainless | US10B | 400.85 | 115826 | |||
| Full Surface | US26D | 348.55 | 012762 | |||
| Heavy Weight | US32D | 452.90 | 012765 | |||
| Ball Bearing | 5" (127 mm) | US10 | 296.40 | - | 3 | 24 |
| US10B | 400.85 | 131276 | ||||
| US26D | 348.55 | 012768 | ||||
| US32D | 452.90 | 012771 | ||||
| 6" (152 mm) | US26D | 406.00 | 086735 | 3 | 12 | |
| US32D | 580.00 | 012778 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| BB2110 | 4-1/2" (114 mm) | US10 | 193.35 | 012793 | 3 | 48 |
| Brass or Stainless | US10B | 241.70 | 074876 | |||
| Full Surface | US26D | 208.10 | 012795 | |||
| Standard Weight | US32D | 281.95 | 012796 | |||
| Ball Bearing | 5" (127 mm) | US10 | 213.25 | - | 3 | 24 |
| US10B | 288.25 | - | ||||
| US26D | 250.70 | 049870 | ||||
| US32D | 357.95 | 012803 | ||||
| BB2112 | 4" (102 mm) | US10 | 401.25 | 056746 | 3 | 48 |
| Brass or Stainless | US10B | 505.25 | 028766 | |||
| Half Surface | US26D | 434.65 | 026917 | |||
| Standard Weight | US32D | 589.35 | 006867 | |||
| Ball Bearing | 4-1/2" (114 mm) | US10 | 193.35 | 012824 | 3 | 48 |
| US10B | 241.70 | 002499 | ||||
| US26D | 208.10 | 012828 | ||||
| US32D | 281.95 | 012833 | ||||
| 5" (127 mm) | US10 | 204.20 | 012838 | 3 | 36 | |
| US10B | 265.45 | 133233 | ||||
| US26D | 230.90 | 012839 | ||||
| US32D | 300.15 | 004041 | ||||
| BB2113 | 4-1/2" (114 mm) | US10 | 219.90 | 012847 | 3 | 36 |
| Brass or Stainless | US10B | 268.15 | 002056 | |||
| Half Surface | US26D | 235.65 | 012852 | |||
| Heavy Weight | US32D | 296.75 | 012857 | |||
| Ball Bearing | 5" (127 mm) | US10 | 255.55 | 012863 | 3 | 24 |
| US10B | 332.10 | 012864 | ||||
| US26D | 297.30 | 012865 | ||||
| US32D | 387.15 | 012866 | ||||
| 6" x 3-1/4" | US26D | 458.20 | 068257 | 3 | 12 | |
| (152 mm x 45 mm) | US32D | 597.45 | 012873 | |||
| BB2168 | 4-1/2" (114 mm) | USP | 305.20 | 012899 | 3 | 36 |
| Steel | US10 | 318.00 | - | |||
| Full Surface | US10A (US11) | 372.30 | - | |||
| Heavy Weight | US10B | 372.30 | 089570 | |||
| Ball Bearing | US26D | 333.65 | 012898 | |||
| 5" (127 mm) | USP | 368.45 | 012902 | 3 | 24 | |
| US10 | 386.90 | 141575 | ||||
| US10A (US11) | 504.20 | - | ||||
| US10B | 504.20 | - | ||||
| US26D | 438.45 | 011313 | ||||
| 6" (152 mm) | USP | 391.40 | 009661 | 3 | 12 | |
| US10 | 411.00 | - | ||||
| US10A (US11) | 555.55 | - | ||||
| US10B | 555.55 | - | ||||
| US26D | 483.35 | 012903 |
4/01/2018 www.hagerco.com
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| BB2169 | 4-1/2" (114 mm) | USP | 213.45 | 012914 | 3 | 36 |
| Steel | US10 | 318.05 | 042983 | |||
| Full Surface | US10A (US11) | 372.30 | 061635 | |||
| Heavy Weight | US10B | 372.30 | 115013 | |||
| Ball Bearing | US26D | 333.65 | 012911 | |||
| 5" (127 mm) | USP | 329.00 | 012923 | 3 | 24 | |
| US10 | 345.40 | 129997 | ||||
| US10A (US11) | 460.90 | - | ||||
| US10B | 460.90 | 080993 | ||||
| US26D | 400.75 | 012920 | ||||
| 6" (152 mm) | USP | 439.30 | 012930 | 3 | 12 | |
| US10 | 461.35 | 082081 | ||||
| US10A (US11) | 555.55 | - | ||||
| US10B | 555.55 | - | ||||
| US26D | 471.45 | 012929 | ||||
| BB2171 | 4-1/2" (114 mm) | USP | 83.40 | 012946 | 3 | 48 |
| Steel | US10 | 98.50 | 012934 | |||
| Full Surface | US10A (US11) | 125.60 | 012936 | |||
| Standard Weight | US10B | 125.60 | 143435 | |||
| Ball Bearing | US26D | 110.50 | 012940 | ||||
|---|---|---|---|---|---|---|---|
| 5" (127 mm) | USP | 99.95 | 012956 | 3 | 36 | ||
| US10 | 131.50 | 026071 | |||||
| US10A (US11) | 163.20 | - | |||||
| US10B | 163.20 | - | |||||
| US26D | 141.85 | 012952 | |||||
| AB7001 | 4-1/2" (114 mm) | LS | 186.40 | - | 3 | 36 | |
| Steel | USP | 186.40 | 122842 | ||||
| Full Mortise | US3 | 229.10 | 028735 | ||||
| Standard Weight | US10 | 193.95 | - | ||||
| Concealed Anti-Friction Bearing | US10A (US11) | 229.10 | 077050 | ||||
| Swing Clear | US10B | 229.10 | 008284 | ||||
| US26 | 229.10 | - | |||||
| US26D | 181.65 | 024377 | |||||
| 5" (127 mm) | LS | 186.40 | - | 3 | 36 | ||
| USP | 186.40 | - | |||||
| US3 | 229.10 | 102769 | |||||
| US10 | 193.95 | - | |||||
| US10A (US11) | 229.10 | - | |||||
| US10B | 229.10 | - | |||||
| US26 | 229.10 | 079631 | |||||
| US26D | 181.65 | 087869 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB7002 | 4-1/2" (114 mm) | LS | 186.40 | - | 3 | 36 |
| Steel | USP | 186.40 | 065541 | |||
| Full Mortise | US3 | 229.10 | 024690 | |||
| Standard Weight | US10 | 193.95 | - | |||
| Concealed Anti-Friction Bearing | US10A (US11) | 229.10 | 103793 | |||
| Swing Clear | US10B | 229.10 | 008287 | |||
| Beveled Edge Doors | US26 | 229.10 | 068502 | |||
| US26D | 181.65 | 094245 | ||||
| 5" (127 mm) | LS | 186.40 | - | 3 | 36 | |
| USP | 186.40 | - | ||||
| US3 | 229.10 | - | ||||
| US10 | 193.95 | - | ||||
| US10A (US11) | 229.10 | - | ||||
| US10B | 229.10 | - | ||||
| US26 | 229.10 | - | ||||
| US26D | 181.65 | 013655 | ||||
| AB7501 | 4-1/2" (114 mm) | USP | 230.65 | 073850 | 3 | 24 |
| Steel | US10 | 233.85 | 017299 | |||
| Full Mortise | US10A (US11) | 280.75 | 019030 | |||
|
Heavy Weight
Concealed Anti-Friction Bearing |
US10B | 280.75 | 122627 | |||
| US26D | 212.85 | 013622 | ||||
| Swing Clear | 5" (127 mm) | USP | 230.65 | - | 3 | 24 |
| US10 | 233.85 | 027631 | ||||
| US10A (US11) | 280.75 | 116946 | ||||
| US10B | 280.75 | - | ||||
| US26D | 212.85 | 013628 | ||||
| AB7502 | 4-1/2" (114 mm) | USP | 230.65 | 041605 | 3 | 24 |
| Steel | US10 | 233.85 | 025196 | |||
| Full Mortise | US10A (US11) | 280.75 | 081770 | |||
| Heavy Weight | US10B | 280.75 | 085448 | |||
| Concealed Anti-Friction Bearing | US26D | 212.85 | 094244 | |||
| Swing Clear | 5" (127 mm) | USP | 230.65 | 116906 | 3 | 24 |
| Beveled Edge Doors | US10 | 233.85 | 025197 | |||
| US10A (US11) | 280.75 | 094319 | ||||
| US10B | 280.75 | 109409 | ||||
| US26D | 212.85 | 013645 | ||||
| AB7505 | 5" x 4-1/2" | LH USP | 328.10 | 013659 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 328.10 | 092796 | ||
| Full Mortise | LH US10 | 334.35 | 043893 | |||
| Heavy Weight | RH US10 | 334.35 | 054740 | |||
| Concealed Anti-Friction Bearing | LH US10A (US11) | 404.75 | 013652 | |||
| Anchor Hinge | RH US10A (US11) | 404.75 | - | |||
| Specify Handing | LH US10B | 404.75 | 105739 | |||
| RH US10B | 404.75 | 105740 | ||||
LH US26D 322.10 094710 RH US26D 322.10 094711
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB7506 | 5" x 4-1/2" | LH USP | 328.10 | 013684 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 328.10 | 013687 | ||
| Full Mortise | LH US10 | 334.35 | 094813 | |||
| Heavy Weight | RH US10 | 334.35 | 093244 | |||
| Concealed Anti-Friction Bearing | LH US10A (US11) | 404.75 | 013664 | |||
| Anchor Hinge | RH US10A (US11) | 404.75 | 112521 | |||
| Specify Handing | LH US10B | 404.75 | 124567 | |||
| RH US10B | 404.75 | 124568 | ||||
| LH US26D | 322.10 | 013674 | ||||
| RH US26D | 322.10 | 013676 | ||||
| RH US26D | 322.10 | 013676 | ||||
|---|---|---|---|---|---|---|
| AB7507 | 5" x 4-1/2" | LH USP | 328.10 | 018824 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 328.10 | 071660 | ||
| Full Mortise | LH US10 | 334.35 | 076424 | |||
| Heavy Weight | RH US10 | 334.35 | - | |||
| Concealed Anti-Friction Bearing | LH US10A (US11) | 404.75 | - | |||
| Anchor Hinge | RH US10A (US11) | 404.75 | - | |||
| Specify Handing | LH US10B | 404.75 | 100912 | |||
| RH US10B | 404.75 | 100911 | ||||
| LH US26D | 322.10 | 013696 | ||||
| RH US26D | 322.10 | 096847 |
| RH US26D | 322.10 | 096847 | ||||
|---|---|---|---|---|---|---|
| AB7508 | 5" x 4-1/2" | LH USP | 328.10 | 013735 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 328.10 | 013736 | ||
| Full Mortise | LH US10 | 334.35 | 016914 | |||
| Heavy Weight | RH US10 | 334.35 | 016885 | |||
| Concealed Anti-Friction Bearing | LH US10A (US11) | 404.75 | 013713 | |||
| Anchor Hinge | RH US10A (US11) | 404.75 | 039369 | |||
| Beveled Edge Doors | LH US10B | 404.75 | 096476 | |||
| Specify Handing | RH US10B | 404.75 | 096475 | |||
| LH US26D | 314.80 | 013721 | ||||
| RH US26D | 314.80 | 013722 |
| RH US26D | 314.80 | 013722 | ||||
|---|---|---|---|---|---|---|
| AB7509 | 5" x 4-1/2" | LH USP | 328.10 | 013753 | 1 | 10 |
| Steel | (127 mm x 114 mm) | RH USP | 328.10 | 095106 | ||
| Full Mortise | LH US10 | 334.35 | 036585 | |||
| Heavy Weight | RH US10 | 334.35 | 036561 | |||
| Concealed Anti-Friction Bearing | LH US10A (US11) | 404.75 | - | |||
| Anchor Hinge | RH US10A (US11) | 404.75 | - | |||
| Beveled Edge Doors | LH US10B | 404.75 | 059951 | |||
| Specify Handing | RH US10B | 404.75 | 059965 | |||
| LH US26D | 322.10 | 013748 | ||||
| RH US26D | 322.10 | 013749 | ||||
| AB7511 | 5" (127 mm) | USP | 481.15 | 110076 | 3 | 24 |
| RH US26D | 322.10 | 013749 | |||
|---|---|---|---|---|---|
| 5" (127 mm) | USP | 481.15 | 110076 | 3 | 24 |
| US10 | 447.55 | - | |||
| US10A (US11) | 605.15 | - | |||
| US10B | 605.15 | - | |||
| US26D | 498.10 | 013760 | |||
Specify Handing`
| Box | Case | |||||
|---|---|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Qty. | Qty. | |
| AB7512 | 5" (127 mm) | USP | 481.15 | 110077 | 3 | 24 |
| Steel | US10 | 447.55 | - | |||
|
Half Mortise
Heavy Weight |
US10A (US11) | 605.15 | - | |||
| Concealed Anti-Friction Bearing | US10B | 605.15 | - | |||
| Swing Clear | US26D | 498.10 | 008559 | |||
| Beveled Edge Doors | ||||||
| AB7523 | 5" (127 mm) | USP | 388.00 | 028670 | 3 | 12 |
| Steel | US10 | 407.20 | - | |||
| Full Surface | US10A (US11) | 611.55 | - | |||
| Heavy Weight | US10B | 611.55 | 129552 | |||
| Concealed Anti-Friction Bearing | US26D | 485.05 | 005548 | |||
| Swing Clear | ||||||
| AB7534 | 5" (127 mm) | USP | 388.00 | - | 3 | 12 |
| Steel | US10 | 407.20 | - | |||
| Half Surface | US10A (US11) | 611.55 | 116947 | |||
| Heavy Weight | US10B | 611.55 | 043778 | |||
| Concealed Anti-Friction Bearing | US26D | 485.05 | 005551 | |||
| Swing Clear | ||||||
| AB8505 | 5" x 4-1/2" | LH US10 | 343.00 | 120612 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 343.00 | 120613 | ||
| Full Mortise | LH US10B | 410.70 | 005892 | |||
| Heavy Weight | RH US10B | 410.70 | 005891 | |||
| Concealed Anti-Friction Bearing | LH US26D | 325.55 | 088541 | |||
|
Anchor Hinge
Specify Handing |
RH US26D | 325.55 | 088542 | |||
| LH US32D | 536.20 | 013976 | ||||
| RH US32D | 536.20 | 013977 | ||||
| AB8506 | 5" x 4-1/2" | LH US10 | 424.70 | 038811 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 424.70 | 038812 | ||
| Full Mortise | LH US10B | 507.70 | 090057 | |||
| Heavy Weight | RH US10B | 507.70 | 090058 | |||
|
Concealed Anti-Friction Bearing
Anchor Hinge |
LH US26D | 477.45 | 013988 | |||
| Specify Handing | RH US26D | 477.45 | 013990 | |||
|
LH US32D
RH US32D |
547.80
547.80 |
013996
013998 |
||||
| AB8507 | 5" x 4-1/2" | LH US10 | 424.70 | - | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 424.70 | - | ||
| Full Mortise | LH US10B | 507.70 | 046057 | |||
| Heavy Weight | RH US10B | 507.70 | 046058 | |||
| Concealed Anti-Friction Bearing | LH US26D | 476.85 | 092729 | |||
| Anchor Hinge | RH US26D | 476.85 | 092730 | |||
| Beveled Edge Doors | LH US32D | 547.80 | 093601 | |||
| Specify Handing` |
RH US32D 547.80 094538
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| AB8508 | 5" x 4-1/2" | LH US10 | 424.70 | 057002 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 424.70 | 057004 | ||
| Full Mortise | LH US10B | 507.70 | 097781 | |||
| Heavy Weight | RH US10B | 507.70 | 014016 | |||
| Concealed Anti-Friction Bearing | LH US26D | 476.85 | 014019 | |||
| Anchor Hinge | RH US26D | 476.85 | 014021 | |||
| Beveled Edge Doors | LH US32D | 547.80 | 014028 | |||
| Specify Handing | RH US32D | 547.80 | 014030 | |||
| AB8509 | 5" x 4-1/2" | LH US10 | 424.70 | 012173 | 1 | 10 |
| Brass or Stainless | (127 mm x 114 mm) | RH US10 | 424.70 | 012174 | ||
| Full Mortise | LH US10B | 507.70 | 046059 | |||
| Heavy Weight | RH US10B | 507.70 | 046060 | |||
| Concealed Anti-Friction Bearing | LH US26D | 476.85 | 068077 | |||
| Anchor Hinge | RH US26D | 476.85 | 022626 | |||
| Beveled Edge Doors | LH US32D | 547.80 | 014048 | |||
| Specify Handing | RH US32D | 547.80 | 094613 | |||
| EC1100* | 4-1/2" x 4" | US26D | 9.55 | 121894 | 3 | 48 |
| Steel | (114 mm x 102 mm) | |||||
| Full Mortise | 4-1/2" x 4-1/2" | USP | 6.55 | 079434 | 3 | 48 |
| Standard Weight | (114 mm x 114 mm) | US3 | 12.00 | 079435 | ||
| Plain Bearing | US4 | 8.70 | 079441 | |||
| US10B | 12.00 | 075953 | ||||
| US15 | 12.00 | 108111 | ||||
| US26 | 12.00 | 108113 | ||||
| US26D | 9.55 | 075047 | ||||
| EC1100 NRP* | 4-1/2" x 4" | US26D | 11.60 | 123072 | 3 | 48 |
| Steel | (114 mm x 102 mm) | |||||
| Full Mortise | 4-1/2" x 4-1/2" | USP | 8.55 | 084179 | 3 | 48 |
| Standard Weight | (114 mm x 114 mm) | US10B | 14.00 | 075986 | ||
| Plain Bearing | US15 | 14.00 | 109256 | |||
| US26 | 14.00 | 135223 | ||||
| US26D | 11.60 | 082934 | ||||
| * ECCO hinges are sold in box quantities only | ||||||
| * Some ECCO hinges available in 316 Stainless Steel. Contact Hager Companies Sales and Service for information. | ||||||
|
ECBB1100*
Steel |
4-1/2" x 4"
(114 mm x 102 mm) |
US26D | 11.40 | 094657 | 3 | 48 |
| Full Mortise | 4-1/2" x 4-1/2" | USP | 11.05 | 079444 | 3 | 48 |
| Standard Weight | (114 mm x 114 mm) | US3 | 21.05 | 079445 | ||
| Ball Bearing | US4 | 15.30 | 079446 | |||
| US10B | 21.05 | 076317 | ||||
| US15 | 21.05 | 108114 | ||||
| US26 | 21.05 | 108117 | ||||
| US26D | 11.40 | 075048 | ||||
| 4-1/2" x 4" | US26D | 13.40 | 094659 | 3 | 48 |
| US15 | 21.05 | 108114 | ||||
|---|---|---|---|---|---|---|
| US26 | 21.05 | 108117 | ||||
| US26D | 11.40 | 075048 | ||||
| ECBB1100 NRP* | 4-1/2" x 4" | US26D | 13.40 | 094659 | 3 | 48 |
| Steel | (114 mm x 102 mm) | |||||
| Full Mortise | 4-1/2" x 4-1/2" | USP | 13.10 | 079448 | 3 | 48 |
| Standard Weight | (114 mm x 114 mm) | US3 | 23.10 | 082125 | ||
| Ball Bearing | US4 | 17.35 | 082129 | |||
| US10B | 23.10 | 076316 | ||||
| US26 | 23.10 | 109257 | ||||
| US26D | 13.40 | 075049 |
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
|
ECRC1100*
Round Corner Steel Full Mortise Standard Weight Plain Bearing |
4" x 4"
(102 mm x 102 mm) |
US15
US26 US26D |
11.55
11.55 8.00 |
109258
- 075637 |
3 | 48 |
|
ECRCBB1100*
Round Corner Steel Full Mortise Standard Weight Ball Bearing |
4" x 4"
(102 mm x 102 mm) |
US15
US26 US26D |
14.90
14.90 10.90 |
109259
- 073800 |
3 | 48 |
|
EC1101*
Brass or Stainless Steel Full Mortise Standard Weight Plain Bearing |
4-1/2" x 4-1/2"
(114 mm x 114 mm) |
US15
US26 US32D |
41.50
41.50 39.90 |
128121
125210 079552 |
3 | 48 |
|
ECBB1101*
Brass or Stainless Steel Full Mortise Standard Weight Ball Bearing |
4-1/2" x 4-1/2"
(114 mm x 114 mm) |
US15
US32D |
42.00
35.85 |
109275
079555 |
3 | 48 |
- * ECCO hinges are sold in box quantities only
- * Other ECCO hinges available in 316 Stainless Steel. Contact Hager Companies Sales and Service for information.
| ECBB1101 NRP* |
|---|
| Brass or Stainless Steel |
| Full Mortise |
| Standard Weight |
| Ball Bearing |
4-1/2" x 4-1/2" (114 mm x 114 mm)
US15 44.00 109276 3 48 US32D 37.85 079557 US32D/316SS 60.30 -
| ECBB1102* | 4-1/2" x 4-1/2" | USP | 24.00 | 091900 | 3 | 24 |
| Steel | (114 mm x 114 mm) | US15 | 49.95 | 109284 | ||
| Full Mortise | US26 | 49.95 | 119967 | |||
| Heavy Weight | US26D | 29.75 | 091783 | |||
| Ball Bearing | 5" x 4-1/2" | US15 | 51.80 | 130049 | 3 | 24 |
| (127 mm x 114 mm) | US26 | 51.80 | 140126 | |||
| US26D | 34.95 | 091638 | ||||
| ECBB1102 NRP* | 4-1/2" x 4-1/2" | USP | 26.00 | 091866 | 3 | 24 |
| Steel | (114 mm x 114 mm) | US15 | 52.00 | 109608 | ||
| Full Mortise | US26 | 52.00 | 127835 | |||
| Heavy Weight | US26D | 31.75 | 091778 | |||
| Ball Bearing | 5" x 4-1/2" | US15 | 53.80 | 132673 | 3 | 24 |
| (127 mm x 114 mm) | US26 | 53.80 | 125212 | |||
| US26D | 36.95 | 091618 | ||||
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
| ECBB1103* | 4-1/2" x 4-1/2" | US10B | 93.20 | 091741 | 3 | 24 |
| Brass or Stainless Steel | (114 mm x 114 mm) | US15 | 93.20 | 129146 | ||
| Full Mortise | US26 | 93.20 | 138809 | |||
| Heavy Weight | US32D | 85.80 | 091731 | |||
| Ball Bearing | 5" x 4-1/2" | US15 | 113.50 | - | 3 | 24 |
| (127 mm x 114 mm) | US26 | 113.50 | - | |||
| US32D | 109.85 | 091592 | ||||
| ECBB1103 NRP* | 4-1/2" x 4-1/2" | US10B | 95.20 | 091732 | 3 | 24 |
| Brass or Stainless Steel | (114 mm x 114 mm) | US26 | 95.20 | - | ||
| Full Mortise | US32D | 87.80 | 091693 | |||
| Heavy Weight | US32D/316SS | 125.90 | 169967 | |||
| Ball Bearing | 5" x 4-1/2" | US15 | 115.50 | - | 3 | 24 |
| (127 mm x 114 mm) | US26 | 115.50 | - | |||
| US32D | 111.85 | 091593 | ||||
| EC1105* | 4-1/2" x 4-1/2" | USP | 19.10 | 079571 | 3 | 48 |
| Steel | (114 mm x 114 mm) | US3 | 38.90 | 079569 | ||
| Full Mortise | US4 | 33.95 | 079570 | |||
| Standard Weight | US10B | 38.90 | 076318 | |||
| Spring Hinge | US15 | 38.90 | 109281 | |||
| US26 | 38.90 | 109282 | ||||
| US26D | 28.60 | 079567 |
* ECCO hinges are sold in box quantities only
* Other ECCO hinges available in 316 Stainless Steel. Contact Hager Companies Sales and Service for information.
| Description | Finish | 2018 List | Stock No. |
Box
Qty. |
Case
Qty. |
|
|---|---|---|---|---|---|---|
|
BB1279 Drop Leaf
Steel Full Mortise Standard Weight Ball Bearing NRP Standard Specify handing |
4-1/2" x 4-1/2" | US26D | 78.65 | |||
|
BB1168 Drop Leaf
Steel Full Mortise Heavy Weight Ball Bearing NRP Standard Specify handing |
4-1/2" x 4-1/2" | US26D | 126.05 | |||
|
BB1191 Drop Leaf
Steel Full Mortise Heavy Weight Ball Bearing NRP Standard Specify handing |
4-1/2" x 4-1/2" | US32D | 167.50 | |||
|
BB1199 Drop Leaf
Steel Full Mortise Heavy Weight Ball Bearing NRP Standard Specify handing |
4-1/2" x 4-1/2" | US32D | 250.55 | |||
|
BB1279 Short Leaf
Steel Full Mortise Standard Weight Ball Bearing Right Hand Standard Reversible to Left Hand |
4-1/2" x 4-3/8" | US26D | 78.65 | |||
|
BB1168 Short Leaf
Steel Full Mortise Heavy Weight Ball Bearing Right Hand Standard Reversible to Left Hand |
4-1/2" x 4-3/8" | US26D | 126.05 | |||
|
BB1191 Short Leaf
Brass or Stainless Full Mortise Standard Weight Ball Bearing Right Hand Standard |
4-1/2" x 4-3/8" | US32D | 167.50 |
Reversible to Left Hand
5" x 4-1/2" US32D 313.80
NRP Standard Specify handing
Steel Full Mortise Heavy Weight Ball Bearing NRP Standard Specify handing
BB1199 Unequal Leaf Centered
*Additional sizes, finishes, and hinges available. Contact Hager Customer Service for information.
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| Discount Groups |
|---|
| Fast Riveted Pin |
| Machine Screws4 |
| Non-Removable Pin (Set Screw in Barrel)2 |
| Pins - Residential and Decorative Tips19 |
| R Residential Finish Symbols2 |
| Safety Stud |
| T Template Hinges6, 9 |
| W Wood Screws17 |
RESIDENTIAL FINISH SYMBOLS
Not all products are available in all finishes. Contact Hager Sales and Service at 1-800-325-9995 for more specific information.
Non-Removable Pins (Medium Security)
Symbol Description List
NRP Set screw in barrel $2.65 each
BHMA Symbol Base Material
| US & HAGER | DESCRIPTION | STEEL | BRASS | STAINLESS STEEL |
|---|---|---|---|---|
| 1D | Black | N/A | N/A | N/A |
| 2D | Brass Tone Dichromate | N/A | N/A | N/A |
| 3 | Bright Brass | 632 | 605 | N/A |
| 3LB | Light Brass | N/A | N/A | N/A |
| 4 | Satin Brass | 633 | 606 | N/A |
| 10A | Antique Bronze - Lacquered | 641 | 614 | N/A |
| 10R | Dark Antique Bronze - Matte Lacquer | N/A | N/A | N/A |
| 15 | Satin Nickel | 646 | 619 | N/A |
| 26 | Bright Chromium Plated | 651 | 625 | N/A |
| 26D | Satin Chromium Plated | 652 | 626 | N/A |
| 32 | Stainless Steel Metal, Bright | N/A | N/A | 629 |
| 32D | Stainless Steel Metal, Satin | N/A | N/A | 630 |
| P | Prime Coat - Beige | 600 | 600 | N/A |
| ABA/US5 | Antique Brass | 638 | 609 | N/A |
| AN/15A | Antique Nickel | 647 | 620 | N/A |
Note: For any finish not listed in this Price Book, price and availability on request.
LEAD TIMES
Items with prices in bold within this section are stock items and usually ship within 24 hours. Non-stock items will typically ship within 90 business days depending on seasonal volume and order complexity. The anticipated ship date will be included with each order acknowledgment.
RESIDENTIAL DISCOUNT GROUPS
| GROUP | DESCRIPTION | DISC % |
| BB1541 - RCBB1541 - RCBB1542 (3.5) | ||
| 80M | 3.5 - SS BB (32-32D) | |
| 1741 - RC1741 - RC1842 (3.0, 3.5) | ||
| 81A | 3.0, 3.5 - PB BOX (10A-ABA-AN-1D-26-26D-3) | |
| 81C | 3.0, 3.5 - PB BOX (10R-15) | |
| 81G | 3.0, 3.5 - PB BOX (2D-4-P-3LB) | |
| BB1741 - RCBB1741 - RCBB1842 (3.5) | ||
| 82A |
3.5 - BB BOX (10A-ABA-AN-10R-1D-15-26-
26D-3) |
|
| 82G | 3.5 - BB BOX (2D-4-3LB) | |
| RC1641 - RC1841 - 7741 - 8741 (3.5) | ||
| 83A | 3.5 - BULK (10A-ABA-AN-1D-26-26D-3) | |
| 83C | 3.5 - BULK (10R-15) | |
| 83G | 3.5 - BULK (2D-4-P-3LB) | |
| 1541 - RC1541 - RC1542 (3.0, 3.5) | ||
| 86A |
3.0, 3.5 - BRASS (10A-ABA-AN-10R-15-26-
26D-3) |
|
| 86G | 3.0, 3.5 - BRASS (4) | |
| 86M | 3.0, 3.5 - SS (32-32D) | |
| 1750 - 1751 - 1752 (3.5) | ||
| 87A |
3.5 - SPRING (10A-ABA-AN-1D-10R-15-26-
26D-3) |
|
| 87G | 3.5 - SPRING (2D-4-P-3LB) | |
| RC1748 (3.5) | ||
| 88A | 3.5 - RC1748 (10A-ABA-AN-15-26-26D-3) | |
| 88G | 3.5 - RC1748 (2D-4-P-3LB) | |
| RCBB1841 (3.5) | ||
| 8CA | 3.5 - BB BULK (AN-15-3-10R-26-26D-5) | |
| 8CG | 3.5 - BB BULK (2D-4) | |
| BB1543 (4.0) | ||
| 90A | 4.0 - BRASS BB (10R-3-ABA-AN) | |
| 90G | 4.0 - BRASS BB (4) | |
| 90M | 4.0 - SS BB (32-32D) | |
| RCBB1841 (4.0) | ||
|---|---|---|
| 9CA | 4.0 - BB BULK (10R-15) | |
| GROUP | DESCRIPTION | DISC % |
| 1741 - RC1741 - 1842 (4.0) | ||
| 91A |
4.0 - PB BOX (10A-ABA-AN-10R-1D-15-26-26D
H2H) |
|
| 91C | 4.0 - PB BOX (10R-15) | |
| 91G | 4.0 - PB BOX (2D-4-P-3LB) | |
| RCBB1741 - RCBB1842 (4.0) | ||
| 92A | 4.0 - BB BOX (10A-ABA-AN-10R-1D-26-26D-3) | |
| 92G | 4.0 - BB BOX (2D-4-P-3LB) | |
| RC1641 - RC1841 - RC8641 - RC8741 - RC8744 (4.0) | ||
| 93A | 4.0 - BULK (10A-ABA-AN-1D-26-26D-3) | |
| 93C | 4.0 - BULK (10R - 15) | |
| 93G | 4.0 - BULK (2D-4-P-3LB) | |
| RC1542 - 1541 - RC1541 - RC1543 (4.0) | ||
| 96A | 4.0 - BRASS (ABA-AN-10R-15-26-26D-3) | |
| 96M | 4.0 - SS (32-32D) | |
| 1744 - 1750 - 1751 - 1752 - 1754 - 1760 - 1761 - 1762 - 1764 (4.0) | ||
| 97A | 4.0 SPRING (10A-ABA-AN-10R-1D-15-26-26D-3) | |
| 97G | 4.0 SPRING (2D-4-P-3LB) | |
| 97M | 4.0 SPRING (32-32D) | |
| RC1749 (4.0) | ||
| 99A | 4.0 - RC1749 (10A-ABA-15-26-26D-3-4-L2) | |
| 99G | 4.0 - RC1749 (2D-4-P-3LB) | |
| RC1846 - RC1847 (4.0) | ||
| 9AA | 4.0 - FRP BOX (3) | |
| 9AG | 4.0 - FRP BOX (2D-P) | |
| RC1846 - RC1847 (4.0) | ||
| 9BA | 4.0 - FRP BULK (10A-10R-ABA-AN-1D-3-15-26D) | |
| 9BG | 4.0 - FRP BULK (2D-P) | |
| RC1843 (4.0) | ||
| 9DA |
4.0 - SECURITY BOX (10A-ABA-AN-15-26D-3-
10R-26) |
|
| 9DG | 4.0 - SECURITY BOX (2D-4) | |
| RC1843 (4.0) | ||
| 9EA | 4.0 - SECURITY BULK (10R-15-26-26D-3-ABA-AN) | |
| 9EG | 4.0 - SECURITY BULK (2D-P-3LB) | |
| OTHER GROUP CODES | ||
| 701 | RESIDENTIAL BULK SCREWS | |
| 780 | RESIDENTIAL AUXILIARY |
| Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|
| 3-1/2" x 3-1/2" | US3 | 12.60 | 030276 | 2 each | 100 each | 86A |
| (89 mm x 89 mm) | US4 | 12.60 | 030291 | 86G | ||
| 10R | 12.60 | 036081 | 86A | |||
| US15 | 12.60 | 035594 | 86A | |||
| US26D | 12.60 | 030275 | 86A | |||
| US32 | 12.85 | 030288 | 86M | |||
| US32D | 12.85 | 030289 | 86M | |||
| 96A | ||||||
| (102 mm x 102 mm) | 96A | |||||
| US15 | 14.65 | 035743 | 96A | |||
| US26D | 14.65 | 033050 | 96A | |||
| 96M | ||||||
| US32D | 14.90 | 033056 | 96M | |||
| 3-1/2" x 3-1/2" | US32D | 16.45 | 034381 | 2 each | 100 each | 80M |
| (89 mm x 89 mm) | ||||||
| US32D | 18.85 | 034589 | 2 each | 50 each | 90M | |
|
4" x 4"
4" x 4" |
US3
10R US32 |
14.65
14.65 14.90 |
033051
036761 033053 |
2 each | 50 each |
Round Corner Full Mortise Residential Wt.
U/M -1 each
|
Ball Bearing with Screws
U/M - 1 each |
|||||||
|---|---|---|---|---|---|---|---|
| 1543 | 4" x 4" | US3 | 14.65 | 071461 | 2 each | 50 each | 96A |
| Solid Brass or Stainless | (102 mm x 102 mm) | 10R | 14.65 | 036911 | 96A | ||
| Square by 5/8" Radius | US15 | 14.65 | 071462 | 96A | |||
|
Full Mortise
Residential Wt. Plain Bearing with Screws U/M - 1 each |
US32D | 14.90 | 071531 | 96M | |||
| BB1543 | 4" x 4" | US3 | 18.85 | 071637 | 2 each | 50 each | 90A |
| Solid Brass or Stainless | (102 mm x 102 mm) | 10R | 18.85 | 036980 | 90A | ||
|
Square by 5/8" Radius
Full Mortise Residential Wt. Ball Bearing with Screws U/M - 1 each |
US32D | 18.50 | 071552 | 90M |
(102 mm x 102 mm)
| 1734 | 4" x 4" | |
|---|---|---|
| Stainless Steel | (102 mm x 102 mm) | |
| 1/4" Radius Round Corner | ||
| Full Mortise | ||
| Spring Hinge | ||
| Template | ||
| Timely Frame All MS 1/2 WS |
US32D 37.40 169906 2 each 80 each 97M
4/1/2018 www.hagerco.com
| Description | Finish | List | No. | Qty. | Qty. | Code | |
|---|---|---|---|---|---|---|---|
| 1741 | 3" x 3" | USP | 1.80 | 029648 | 2 each | 100 each | 81G |
| Steel | (76 mm x 76 mm) | 2D | 1.80 | 029641 | 81G | ||
| Square Corner | US3 | 5.15 | 033133 | 81A | |||
| Full Mortise | US10A | 5.15 | 033129 | 81A | |||
| Residential Wt. | US26 | 5.15 | 033131 | 81A | |||
| Plain Bearing - with Screws | US26D | 5.15 | 033132 | 81A | |||
| U/M - 1 each | 3-1/2" x 3-1/2" | USP | 1.80 | 029661 | 2 each | 100 each | 81G |
| (89 mm x 89 mm) | 1D | 5.15 | 030556 | 81A | |||
| 2D | 1.80 | 029658 | 81G | ||||
| US3 | 5.15 | 030533 | 81A | ||||
| 3LB | 1.80 | 029660 | 81G | ||||
| US4 | 1.80 | 029659 | 81G | ||||
| ABA/US5 | 5.15 | 030552 | 81A | ||||
| US10A | 5.15 | 030548 | 81A | ||||
| 10R | 5.15 | 037124 | 81C | ||||
| US15 | 5.15 | 030555 | 81C | ||||
| AN/US15A | 5.15 | 030620 | 81A | ||||
| US26 | 5.15 | 030547 | 81A | ||||
| US26D | 5.15 | 030551 | 81A | ||||
| 4" x 4" | USP | 2.65 | 029667 | 2 each | 50 each | 91G | |
| (102 mm x 102 mm) | 1D | 6.10 | 033144 | 91A | |||
| 2D | 2.65 | 029662 | 91G | ||||
| US3 | 6.10 | 033148 | 91A | ||||
| US4 | 2.65 | 029664 | 91G | ||||
| ABA/US5 | 6.10 | 033197 | 91A | ||||
| US10A | 6.10 | 033141 | 91A | ||||
| 10R | 6.10 | 038067 | 91C | ||||
| US15 | 6.10 | 032829 | 91C | ||||
| AN/US15A | 6.10 | 033199 | 91A | ||||
| US26 | 6.10 | 033145 | 91A | ||||
| US26D | 6.10 | 033146 | 91A | ||||
| BB1741 | 3-1/2" x 3-1/2" | US3 | 8.65 | 034274 | 2 each | 100 each | 82A |
| Steel | (89 mm x 89 mm) | US4 | 5.30 | 034337 | 82G | ||
| Square Corner | ABA/US5 | 5.30 | 034332 | 82A | |||
| Ball Bearing Hinges | US10A | 8.65 | 034330 | 82A | |||
| Full Mortise | 10R | 8.65 | 040217 | 82A | |||
| Residential Wt. with Screws | US15 | 8.65 | 034333 | 82A | |||
| U/M - 1 each | AN/US15A | 8.65 | 034334 | 82A | |||
| US26 | 8.65 | 034275 | 82A | ||||
| US26D | 8.65 | 034329 | 82A | ||||
| 4" x 4" | 2D | 6.15 | 034500 | 2 each | 50 each | 92G | |
| (102 mm x 102 mm) | US3 | 9.55 | 034474 | 92A | |||
| US4 | 6.15 | 034502 | 92G | ||||
| ABA/US5 | 9.55 | 034497 | 92A | ||||
| US10A | 9.55 | 034483 | 92A | ||||
| 10R | 9.55 | 040724 | 92A | ||||
2018
Stock
Box
Case
Disc.
| BB1741 | 3-1/2" x 3-1/2" | US3 | 8.65 | 034274 | 2 each | 100 each | 82A |
|---|---|---|---|---|---|---|---|
| Steel | (89 mm x 89 mm) | US4 | 5.30 | 034337 | 82G | ||
| Square Corner | ABA/US5 | 5.30 | 034332 | 82A | |||
| Ball Bearing Hinges | US10A | 8.65 | 034330 | 82A | |||
| Full Mortise | 10R | 8.65 | 040217 | 82A | |||
| Residential Wt. with Screws | US15 | 8.65 | 034333 | 82A | |||
| U/M - 1 each | AN/US15A | 8.65 | 034334 | 82A | |||
| US26 | 8.65 | 034275 | 82A | ||||
| US26D | 8.65 | 034329 | 82A | ||||
| 4" x 4" | 2D | 6.15 | 034500 | 2 each | 50 each | 92G | |
| (102 mm x 102 mm) | US3 | 9.55 | 034474 | 92A | |||
| US4 | 6.15 | 034502 | 92G | ||||
| ABA/US5 | 9.55 | 034497 | 92A | ||||
| US10A | 9.55 | 034483 | 92A | ||||
| 10R | 9.55 | 040724 | 92A | ||||
| US15 | 9.55 | 034498 | 92A | ||||
| AN/US15A | 9.55 | 034499 | 92A | ||||
| US26 | 9.55 | 034477 | 92A | ||||
| US26D | 9.55 | 034482 | 92A |
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| RC1741 | 3" x 3" | USP | 1.80 | 029677 | 2 each | 100 each | 81G |
| Steel | (76 mm x 76 mm) | 2D | 1.80 | 029673 | 81G | ||
| 1/4" Radius | US3 | 5.15 | 033512 | 81A | |||
| Round Corner | US4 | 1.80 | 029675 | 81G | |||
| Full Mortise | ABA/US5 | 5.15 | 032869 | 81A | |||
| Residential Wt. | US26D | 5.15 | 032859 | 81A | |||
| Plain Bearing with screws | 3-1/2" x 3-1/2" | USP | 1.80 | 029683 | 2 each | 100 each | 81G |
| U/M - 1 each | (89 mm x 89 mm) | 1D | 5.15 | 030680 | 81A | ||
| 2D | 1.80 | 029678 | 81G | ||||
| US3 | 5.15 | 030644 | 81A | ||||
| 3LB | 1.80 | 029475 | 81G | ||||
| US4 | 1.80 | 029681 | 81G | ||||
| ABA/US5 | 5.15 | 030648 | 81A | ||||
| US10A | 5.15 | 030645 | 81A | ||||
| 10R | 5.15 | 041116 | 81C | ||||
| US15 | 5.15 | 030652 | 81C | ||||
| AN/US15A | 5.15 | 030689 | 81A | ||||
| US26 | 5.15 | 030646 | 81A | ||||
| US26D | 5.15 | 030647 | 81A | ||||
| 4" x 4" | USP | 2.65 | 029707 | 2 each | 50 each | 91G | |
| (102 mm x 102 mm) | 1D | 6.10 | 032881 | 91A | |||
| 2D | 2.65 | 029695 | 91G | ||||
| US3 | 6.10 | 033267 | 91A | ||||
| US4 | 2.65 | 029698 | 91G | ||||
| ABA/US5 | 6.10 | 033523 | 91A | ||||
| US10A | 6.10 | 033514 | 91A | ||||
| 10R | 6.10 | 041269 | 91C | ||||
| US15 | 6.10 | 032876 | 91C | ||||
| AN/US15A | 6.10 | 032882 | 91A | ||||
| US26 | 6.10 | 033262 | 91A | ||||
| US26D | 6.10 | 033265 | 91A |
1. Items with prices in bold are stock items and usually ship within 24 hours. Please use stock number when ordering.
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| RC1741 | 3-1/2" x 3-1/2" | USP | 1.65 | 029477 | - | 100 each | 83G |
| Steel | (89 mm x 89 mm) | 1D | 4.75 | 031633 | 83A | ||
| 1/4" Radius | 2D | 1.65 | 029472 | 83G | |||
| Round Corner | US3 | 4.75 | 030706 | 83A | |||
| Full Mortise | 3LB | 1.65 | 029682 | 83G | |||
| Residential Wt. | US4 | 1.65 | 029474 | 83G | |||
| Plain Bearing | ABA/US5 | 4.75 | 030715 | 83A | |||
| Bulk Assembled | 10R | 4.75 | 041197 | 83C | |||
| See style #2617 & #2817 for | US15 | 4.75 | 030710 | 83C | |||
|
screws
U/M - Each - Bulk |
AN/US15A | 4.75 | 030716 | 83A | |||
| US26 | 4.75 | 030714 | 83A | ||||
| US26D | 4.75 | 030708 | 83A | ||||
| 4" x 4" | USP | 2.35 | 029569 | - | 100 each | 93G | |
| (102 mm x 102 mm) | 1D | 5.60 | 032697 | 93A | |||
| 2D | 2.35 | 029565 | 93G | ||||
| US3 | 5.60 | 033519 | 93A | ||||
| 3LB | 2.35 | 029568 | 93G | ||||
| US4 | 2.35 | 029566 | 93G | ||||
| US10A | 5.60 | 033600 | 93A | ||||
| 10R | 5.60 | 041270 | 93C | ||||
| US15 | 5.60 | 032877 | 93C | ||||
| AN/US15A | 5.60 | 081352 | 93A | ||||
| US26 | 5.60 | 038957 | 93A | ||||
| US26D | 5.60 | 033602 | 93A | ||||
| RCBB1741 | 3-1/2" x 3-1/2" | 1D | 8.65 | 079451 | 2 each | 100 each | 82A |
| US26 | 5.60 | 038957 | 93A | ||||
|---|---|---|---|---|---|---|---|
| US26D | 5.60 | 033602 | 93A | ||||
| RCBB1741 | 3-1/2" x 3-1/2" | 1D | 8.65 | 079451 | 2 each | 100 each | 82A |
| Steel | (89 mm x 89 mm) | US3 | 8.65 | 034346 | 82A | ||
| 1/4" Radius | US4 | 5.30 | 034361 | 82G | |||
| Round Corner | ABA/US5 | 8.65 | 034352 | 82A | |||
| Full Mortise | 10R | 8.65 | 038241 | 82A | |||
| Residential Wt. | US15 | 8.65 | 034353 | 82A | |||
| Ball Bearing with screws | AN/US15A | 8.65 | 034355 | 82A | |||
| U/M - 1 each | US26 | 8.65 | 034348 | 82A | |||
| 4" x 4" | US26D | 8.65 | 034349 | 82A | |||
| 1D | 9.55 | 079453 | 2 each | 50 each | 92G | ||
| (102 mm x 102 mm) | 2D | 6.15 | 034512 | 92G | |||
| US3 | 9.55 | 034504 | 92A | ||||
| US4 | 6.15 | 034514 | 92G | ||||
| ABA/US5 | 9.55 | 034509 | 92A | ||||
| US10A | 9.55 | 034508 | 92A | ||||
| 10R | 9.55 | 040073 | 92A | ||||
| US15 | 9.55 | 034510 | 92A | ||||
| AN/US15A | 9.55 | 034511 | 92A | ||||
| US26 | 9.55 | 034506 | 92A | ||||
| US26D | 9.55 | 034507 | 92A |
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| 1744 | 4" x 4" | USP | 15.85 | 169928 | 2 each | 80 each | 97G |
| Steel | (102 mm x 102 mm) | 2D | 15.85 | 169912 | 97G | ||
| 1/4" Radius | US3 | 25.95 | 169913 | 97A | |||
| Round Corner | US4 | 15.85 | 169915 | 97A | |||
| Full Mortise | ABA/US5 | 25.95 | 169917 | 97A | |||
| Residential Wt. | US10A | 25.95 | 169907 | 97A | |||
| Spring Hinge | US26 | 25.95 | 169909 | 97A | |||
| Template | US26D | 25.95 | 169911 | 97A | |||
|
All MS - 1/2 WS
U/M - 1 each |
|||||||
| RC1748 | 3-1/2" x 3-1/2" | 2D | 1.90 | 029724 | 2 each | 100 each | 88G |
| Steel | (89 mm x 89 mm) | US3 | 5.15 | 030693 | 88A | ||
| 1/4" Radius | 3LB | 1.90 | 029726 | 88G | |||
| Round Corner | US4 | 1.90 | 029725 | 88G | |||
| Full Mortise | US10A | 5.15 | 030698 | 88A | |||
| Residential Wt. | 10R | 5.15 | 016929 | 88A | |||
| Plain Bearing | US15 | 5.15 | 016936 | 88A | |||
| Template | US26D | 5.15 | 030695 | 88A | |||
|
All MS - 1/2 WS
U/M - 1 each |
|||||||
| RC1749 | 4" x 4" | 2D | 3.90 | 029731 | 3 each | 48 each | 99G |
| Steel | (102 mm x 102 mm) | US3 | 6.10 | 033529 | 99A | ||
| 1/4" Radius | 3LB | 3.90 | 029734 | 99G | |||
| Round Corner | US4 | 3.90 | 029732 | 99G | |||
| Full Mortise | ABA/US5 | 6.10 | 032889 | 99A | |||
| Residential Wt. | US10A | 6.10 | 032887 | 99A | |||
| Plain Bearing | 10R | 6.10 | 016902 | 99A | |||
| Template | US15 | 6.10 | 016897 | 99A | |||
| AMS - 1/2 WS | US26 | 6.10 | 033524 | 99A | |||
| U/M - 1 each |
US26D 6.10 033528 99A
1. Items with prices in bold are stock items and usually ship within 24 hours. Please use stock number when ordering.
USP 15.85 170046 2 each 80 each 97G 2D 15.85 170033 97G US3 25.95 170035 97A 3LB 15.85 170037 97G US4 15.85 170040 97G
4" x 4"
(102 mm x 102 mm)
|
US10A
25.95 170019 97A 10R 25.95 170020 97A US15 25.95 170021 97A AN/US15A 25.95 170044 97A US26 25.95 170023 97A US26D 25.95 170031 97A 3-1/2" x 3-1/2" USP 14.80 170220 2 each 80 each 87G 1751 (89 mm x 89 mm) Steel 1D 19.70 170204 87A 1/4" Radius 2D 14.80 170206 87G Round Corner US3 19.70 170207 87A Full Mortise US4 14.80 170215 87G Residential Wt. ABA/US5 19.70 170217 87A Spring Hinge with Screws US10A 19.70 170200 87A ALL WS 10R 19.70 170202 87A U/M - 1 each US15 19.70 170203 87A AN/US15A 19.70 170218 87A US26D 19.70 170205 87A 4" x 4" USP 15.85 170239 2 each 80 each 97G (102 mm x 102 mm) 1D 25.95 170226 97A 2D 15.85 170230 97G US3 25.95 170233 97A 3LB 15.85 170234 97G US4 15.85 170235 97G ABA/US5 25.95 170236 97A US10A 25.95 170223 97A 10R 25.95 170224 97A US15 25.95 170225 97A AN/US15A 25.95 170237 97A US26 25.95 170228 97A US26D 25.95 170229 97A |
ABA/US5 | 25.95 | 170043 | 97A | ||
|---|---|---|---|---|---|---|
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| 1752 | 3-1/2" x 3-1/2" | USP | 14.80 | 170428 | 2 each | 80 each | 87G |
| Steel | (89 mm x 89 mm) | 1D | 19.70 | 170245 | 87A | ||
| 5/8" Radius | 2D | 14.80 | 170418 | 87G | |||
| Round Corner | US3 | 19.70 | 170419 | 87A | |||
| Full Mortise | 3LB | 14.80 | 170420 | 87G | |||
| Residential Wt. | US4 | 14.80 | 170421 | 87G | |||
| Spring Hinge with Screws | ABA/US5 | 19.70 | 170423 | 87A | |||
| ALL WS | US10A | 19.70 | 170242 | 87A | |||
| U/M - 1 each | 10R | 19.70 | 170243 | 87A | |||
| US15 | 19.70 | 170244 | 87A | ||||
| AN/US15A | 19.70 | 170427 | 87A | ||||
| US26 | 19.70 | 170246 | 87A | ||||
| US26D | 19.70 | 170417 | 87A | ||||
| 4" x 4" | USP | 15.85 | 170480 | 2 each | 80 each | 97G | |
| (102 mm x 102 mm) | 1D | 25.95 | 170453 | 97A | |||
| 2D | 15.85 | 170457 | 97G | ||||
| US3 | 25.95 | 170458 | 97A | ||||
| 3LB | 15.85 | 170459 | 97G | ||||
| US4 | 15.85 | 170460 | 97G | ||||
| ABA/US5 | 25.95 | 170461 | 97A | ||||
| US10A | 25.95 | 170430 | 97A | ||||
| 10R | 25.95 | 170451 | 97A | ||||
| US15 | 25.95 | 170452 | 97A | ||||
| AN/US15A | 25.95 | 170479 | 97A | ||||
| US26 | 25.95 | 170454 | 97A | ||||
| US26D | 25.95 | 170455 | 97A | ||||
| 1754 | 4" x 4" | USP | 15.85 | 170494 | 2 each | 80 each | 97G |
| Steel | (102 mm x 102 mm) | 1D | 25.95 | 170483 | 97G | ||
| Square by 5/8" Radius | 2D | 15.85 | 170486 | 97G | |||
| Full Mortise | US3 | 25.95 | 170487 | 97A | |||
| Residential Wt. | 3LB | 15.85 | 170488 | 97G | |||
| Spring Hinge with Screws | US4 | 15.85 | 170489 | 97A | |||
| ALL WS | ABA/US5 | 25.95 | 170490 | 97G | |||
| U/M - 1 each | 10R | 25.95 | 170481 | 97A | |||
| US15 | 25.95 | 170482 | 97A | ||||
| AN/US15A | 25.95 | 170491 | 97A | ||||
| US26 | 25.95 | 170484 | 97A | ||||
| US26D | 25.95 | 170485 | 97A | ||||
| 1760 | 4" x 4" | US32 | 37.40 | 170495 | 2 each | 80 each | 97M |
|
Stainless Steel
Square Corner Full Mortise |
(102 mm x 102 mm) | US32D | 37.40 | 170497 | |||
|
Residential Wt.
Spring Hinge with Screws ALL WS |
| Stainless Steel |
|---|
| Square Corner |
| Full Mortise |
| Residential Wt. |
| Spring Hinge with Screws |
| ALL WS |
| U/M - 1 each |
1. Items with prices in bold are stock items and usually ship within 24 hours. Please use stock number when ordering.
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
|
1761
Stainless Steel 1/4" Radius Round Corner Full Mortise Residential Wt. Spring Hinge with Screws ALL WS U/M -1 each |
4" x 4"
(102 mm x 102 mm) |
US32
US32D |
37.40
37.40 |
170513
170514 |
2 each | 80 each | 97M |
|
1762
Stainless Steel 5/8" Radius Round Corner Full Mortise Residential Wt. Spring Hinge with Screws ALL WS U/M - 1 each |
4" x 4"
(102 mm x 102 mm) |
US32
US32D |
37.40
37.40 |
170515
170516 |
2 each | 80 each | 97M |
|
1764
Stainless Steel Square by 5/8" Radius |
4" x 4"
(102 mm x 102 mm) |
US32
US32D |
37.40
37.40 |
170517
170519 |
2 each | 80 each | 97M |
| 1764 | 4" x 4" | US32 | 37.40 | 170517 | 2 each | 80 each | 97M |
|---|---|---|---|---|---|---|---|
| Stainless Steel | (102 mm x 102 mm) | US32D | 37.40 | 170519 | |||
| Square by 5/8" Radius | |||||||
| Full Mortise | |||||||
| Residential Wt. | |||||||
| Spring Hinge with Screws | |||||||
| ALL WS | |||||||
| U/M - 1 each |
| 1816 | 4" x 4" | USP | 2.40 | 069042 | - | 100 each | 93G |
|---|---|---|---|---|---|---|---|
| Steel | (102 mm x 102 mm) | 1D | 5.60 | 089461 | 93A | ||
| Square by 5/8" Radius | 2D | 2.40 | 069009 | 93G | |||
| Full Mortise | US3 | 5.60 | 069142 | 93A | |||
| Residential Wt. | 3LB | 2.40 | 069010 | 93G | |||
| Plain Bearing | ABA/US5 | 5.60 | 069097 | 93A | |||
| Bulk Assembled Right Hand | 10R | 5.60 | 041716 | 93C | |||
| See style #2817 for Screws | US15 | 5.60 | 069140 | 93C | |||
| U/M - Each - Bulk | AN/US15A | 5.60 | 069099 | 93A | |||
| US26 | 5.60 | 069127 | 93A | ||||
| US26D | 5.60 | 069134 | 93A | ||||
| BB1816 | 4" x 4" | 2D | 6.15 | 069166 | 2 each | 50 each | 92G |
| Steel | (102 mm x 102 mm) | US3 | 9.55 | 070306 | 92A | ||
| Square by 5/8" Radius | US4 | 6.15 | 070312 | 92G | |||
| Full Mortise | ABA/US5 | 9.55 | 070258 | 92A | |||
| Residential Wt. | US10A | 9.55 | 070188 | 92A | |||
| Ball Bearing with screws | 10R | 9.55 | 041717 | 92A | |||
| Right Hand | US15 | 9.55 | 070289 | 92A | |||
| U/M - 1 each | AN/US15A | 9.55 | 070273 | 92A | |||
US26D 9.55 070311 92A
| US26D | 5.60 | 070476 | 93A | |||||
|---|---|---|---|---|---|---|---|---|
| BB1817 | 4" x 4" | 2D | 6.15 | 070498 | 2 each | 50 each | 92G | |
| Steel | (102 mm x 102 mm) | US3 | 9.55 | 070604 | 92A | |||
| Square by 5/8" Radius | US4 | 6.15 | 070612 | 92G | ||||
| Full Mortise | ABA/US5 | 9.55 | 070534 | 92A | ||||
| Residential Wt. | 10R | 9.55 | 041720 | 92A | ||||
| Ball Bearing with screws | US15 | 9.55 | 070562 | 92A | ||||
| Left Hand | AN/US15A | 9.55 | 070556 | 92A | ||||
| U/M - 1 each | US26D | 9.55 | 070580 | 92A | ||||
| 1818 | 4" x 4" | USP | 3.45 | 070634 | - | 100 each | 9EG | |
| Steel | (102 mm x 102 mm) | 2D | 3.45 | 070619 | 9EG | |||
| Square by 5/8" Radius | 3LB | 3.45 | 070665 | 9EG | ||||
3LB 3.45 070665 9EG 10R 7.60 095609 9EG US15 7.60 070745 9EA AN/US15A 7.60 070738 9EA
Full Mortise Residential Wt. Plain Bearing
|
Bulk Assembled Right Hand
Safety Stud See style #2817 for screws U/M - Each - Bulk |
US26D | 7.60 | 070767 | 9EA | |||
|---|---|---|---|---|---|---|---|
| 1819 | 4" x 4" | USP | 3.45 | 070900 | - | 100 each | 9EG |
| Steel | (102 mm x 102 mm) | 2D | 3.45 | 070835 | 9EG | ||
| Square by 5/8" Radius | 3LB | 3.45 | 070922 | 9EG |
| 1819 | 4" x 4" | USP | 3.45 | 070900 | - | 100 each | 9EG |
|---|---|---|---|---|---|---|---|
| Steel | (102 mm x 102 mm) | 2D | 3.45 | 070835 | 9EG | ||
| Square by 5/8" Radius | 3LB | 3.45 | 070922 | 9EG | |||
| Full Mortise | 10R | 7.60 | 095611 | 9EA | |||
| Residential Wt. | US15 | 7.60 | 070942 | 9EA | |||
| Plain Bearing | US26D | 7.60 | 070971 | 9EA | |||
| Bulk Assembled Left Hand | |||||||
| Safety Stud | |||||||
| See style #2817 for screws | |||||||
| U/M - Each - Bulk |
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| RC1841 | 3-1/2" x 3-1/2" | USP | 1.65 | 027745 | - | 100 each | 83G |
| Steel | (89 mm x 89 mm) | 1D | 4.75 | 030728 | 83A | ||
| 5/8" Radius | 2D | 1.65 | 027355 | 83G | |||
| Round Corner | US3 | 4.75 | 030718 | 83A | |||
| Full Mortise | 3LB | 1.65 | 027360 | 83G | |||
| Residential Wt. | US4 | 1.65 | 027526 | 83G | |||
| Plain Bearing | ABA/US5 | 4.75 | 030724 | 83A | |||
| Bulk Assembled with Screws | US10A | 4.75 | 030721 | 83A | |||
|
See style #2617 & #2817 for
screws U/M - Each - Bulk |
10R | 4.75 | 042004 | 83C | |||
| US15 | 4.75 | 030727 | 83C | ||||
| AN/US15A | 4.75 | 030842 | 83A | ||||
| US26 | 4.75 | 030719 | 83A | ||||
| US26D | 4.75 | 030720 | 83A | ||||
| 4" x 4" | USP | 2.40 | 028287 | - | 100 each | 93G | |
| (102 mm x 102 mm) | 1D | 5.60 | 033643 | 93A | |||
| 2D | 2.40 | 027771 | 93G | ||||
| US3 | 5.60 | 033308 | 93A | ||||
| 3LB | 2.40 | 027995 | 93G | ||||
| US4 | 2.40 | 027996 | 93G | ||||
| ABA/US5 | 5.60 | 033537 | 93A | ||||
| US10A | 5.60 | 033533 | 93A | ||||
| 10R | 5.60 | 042005 | 93C | ||||
| US15 | 5.60 | 032893 | 93C | ||||
|---|---|---|---|---|---|---|---|
| AN/US15A | 5.60 | 033565 | 93A | ||||
| US26 | 5.60 | 033535 | 93A | ||||
| US26D | 5.60 | 033307 | 93A | ||||
| RC1842 | 3-1/2" x 3-1/2" | USP | 1.80 | 029759 | 2 each | 100 each | 81G |
| Steel | (89 mm x 89 mm) | 1D | 5.15 | 030857 | 81A | ||
| 5/8" Radius | 2D | 1.80 | 029756 | 81G | |||
| Round Corner | US3 | 5.15 | 030851 | 81A | |||
| Full Mortise | 3LB | 1.80 | 029847 | 81G | |||
| Residential Wt. | US4 | 1.80 | 029757 | 81G | |||
| Plain Bearing with screws | ABA/US5 | 5.15 | 030853 | 81A | |||
| U/M - 1 each | US10A | 5.15 | 030843 | 81A | |||
| 10R | 5.15 | 042009 | 81C | ||||
| US15 | 5.15 | 030856 | 81C | ||||
| AN/US15A | 5.15 | 030859 | 81A | ||||
| US26 | 5.15 | 030845 | 81A | ||||
| US26D | 5.15 | 030846 | 81A | ||||
| 4" x 4" | USP | 2.65 | 029774 | 2 each | 50 each | 91G | |
| (102 mm x 102 mm) | 1D | 6.10 | 032899 | 91A | |||
| 2D | 2.65 | 029769 | 91G | ||||
| US3 | 6.10 | 033312 | 91A | ||||
| 3LB | 2.65 | 029771 | 91G | ||||
| US4 | 2.65 | 029770 | 91G | ||||
| ABA/US5 | 6.10 | 033313 | 91A | ||||
| US10A | 6.10 | 033309 | 91A | ||||
| 10R | 6.10 | 042010 | 91C | ||||
| US15 | 6.10 | 032898 | 91C | ||||
| AN/US15A | 6.10 | 033314 | 91A | ||||
| US26 | 6.10 | 033310 | 91A | ||||
| US26D | 6.10 | 033311 | 91A |
10R 9.55 042007 92A US15 9.55 034523 92A AN/US15A 9.55 034524 92A US26 9.55 034516 92A
US3 7.60 037028 9EA ABA/US5 7.60 126538 9EA
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| RCBB1842 | 3-1/2" x 3-1/2" | 1D | 8.65 | 084215 | 2 each | 100 each | 82A |
| Steel | (89 mm x 89 mm) | US3 | 8.65 | 034363 | 82A | ||
| 5/8" Radius | 3LB | 5.30 | 034375 | 82G | |||
| Round Corner | US4 | 5.30 | 034374 | 82G | |||
|
Full Mortise
Residential Wt. Ball Bearing with screws U/M - 1 each |
ABA/US5 | 8.65 | 034367 | 82A | |||
| US10A | 8.65 | 034366 | 82A | ||||
| 10R | 8.65 | 042006 | 82A | ||||
| US15 | 8.65 | 034370 | 82A | ||||
| AN/US15A | 8.65 | 034371 | 82A | ||||
| US26 | 8.65 | 034364 | 82A | ||||
| US26D | 8.65 | 034365 | 82A | ||||
| 4" x 4" | 1D | 9.55 | 084231 | 2 each | 50 each | 92A | |
| (102 mm x 102 mm) | 2D | 6.15 | 034526 | 92G | |||
| US3 | 9.55 | 034515 | 92A | ||||
| 3LB | 6.15 | 034528 | 92G | ||||
| US4 | 6.15 | 034527 | 92G | ||||
| ABA/US5 | 9.55 | 034520 | 92A | ||||
| US10A | 9.55 | 034519 | 92A |
| US26D | 9.55 | 034518 | 92A | ||||
|---|---|---|---|---|---|---|---|
| RC1843 | 4" x 4" | 2D | 3.40 | 033648 | 2 each | 50 each | 9DG |
| Steel | (102 mm x 102 mm) | US3 | 7.60 | 033649 | 9DA | ||
| 5/8" Radius | 3LB | 3.40 | 081897 | 9DG | |||
| Round Corner | US4 | 3.40 | 081896 | 9DG | |||
| Full Mortise | ABA/US5 | 7.60 | 036149 | 9DA | |||
| Residential Wt. | US10A | 7.60 | 081890 | 9DA | |||
| Plain bearing with screws | 10R | 7.60 | 042014 | 9DA | |||
| Safety Stud | US15 | 7.60 | 081894 | 9DA | |||
| U/M - 1 each | AN/US15A | 7.60 | 081898 | 9DA | |||
| US26 | 7.60 | 081895 | 9DA | ||||
| US26D | 7.60 | 037158 | 9DA | ||||
| RC1843 | 4" x 4" | USP | 3.45 | 033589 | - | 100 each | 9EG |
| Steel | (102 mm x 102 mm) | 2D | 3.45 | 033588 | 9EG |
|
Full Mortise
Residential Wt. Bulk Assembled with screws See style #2817 |
10R
US15 AN/US15A US26 |
7.60
7.60 7.60 7.60 |
129302
126539 126540 126536 |
9EA
9EA 9EA 9EA |
|||
|---|---|---|---|---|---|---|---|
|
Safety Stud
U/M - Each - Bulk |
US26D | 7.60 | 126537 | 9EA | |||
|
RC1846
Steel 5/8" Radius |
4" x 4"
(102 mm x 102 mm) |
2D
US3 US26D |
3.85
9.95 9.95 |
033651
033844 033843 |
2 each | 50 each |
9AG
9AA 9AA |
|
Round Corner
Full Mortise Residential Wt. Plain Bearing with screws Riveted Pin U/M - 1 each |
1. Items with prices in bold are stock items and usually ship within 24 hours. Please use stock number when ordering.
5/8" Radius Round Corner Full Mortise
2. Minimum order quantity is one box unless otherwise noted.
| RC1847 | 4" x 4" | USP | 3.85 | 033590 | - | 100 each | 9BG |
|---|---|---|---|---|---|---|---|
| Steel | (102 mm x 102 mm) | 2D | 3.85 | 033594 | 9BG | ||
| Square by 5/8" Radius | US3 | 7.10 | 084253 | 9BA | |||
| Full Mortise | ABA/US5 | 7.10 | 084254 | 9BA | |||
| Residential Wt. | US10A | 7.10 | 084255 | 9BA | |||
| Bulk Assembled with screws | 10R | 7.10 | 042017 | 9BA | |||
| See style #2817 for screws | US15 | 7.10 | 084258 | 9BA | |||
|
Riveted Pin
U/M - Each - Bulk |
AN/US15A
US26D |
7.10
7.10 |
084259
084261 |
9BA
9BA |
|||
|---|---|---|---|---|---|---|---|
| 1848 | 4" x 4" | US3 | 6.10 | 068746 | 2 each | 50 each | 91A |
| Steel | (102 mm x 102 mm) | ABA/US5 | 6.10 | 067438 | 91A | ||
| Unassembled | US10A | 6.10 | 068789 | 91A | |||
| Square by 5/8" Radius | 10R | 6.10 | 042019 | 91C | |||
| Full Mortise | US15 | 6.10 | 068735 | 91C | |||
| Residential Wt. | AN/US15A | 6.10 | 068713 | 91A | |||
|
Plain Bearing with screws
U/M - 1 each |
US26D | 6.10 | 068734 | 91A | |||
|
Plain Bearing with screws
U/M - 1 each |
AN/US15A
US26D |
6.10
6.10 |
068713
068734 |
91A
91A |
|||
|---|---|---|---|---|---|---|---|
| 2617 | #9 x 3/4" FPHS | USP | 35.40 | 035459 | 1 pack | 10 packs | 701 |
| Screws for Residential Hinges | 1D | 35.40 | 034111 | ||||
| UM - Pack of 600 | 2D | 35.40 | 034108 | ||||
| 3LB | 35.40 | 029794 | |||||
| US3 | 35.40 | 034109 | |||||
| US4 | 35.40 | 029793 | |||||
| ABA/US5 | 35.40 | 033323 | |||||
| US10A | 35.40 | 033320 | |||||
| 10R | 35.40 | 042098 | |||||
| US15 | 35.40 | 033321 | |||||
| AN/US15A | 35.40 | 033324 | |||||
| US26 | 35.40 | 033322 | |||||
| US26D | 35.40 | 034110 |
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| 2817 | #9 x 3/4" FPHS | USP | 47.20 | 033385 | 1 pack | 10 packs | 701 |
| Screws for Residential Hinges | 1D | 47.20 | 034124 | ||||
| UM - Pack of 800 | 2D | 47.20 | 034129 | ||||
| 3LB | 47.20 | 039796 | |||||
| US3 | 47.20 | 033384 | |||||
| US4 | 47.20 | 029795 | |||||
| ABA/US5 | 47.20 | 034126 | |||||
| US10A | 47.20 | 034303 | |||||
| 10R | 47.20 | 042099 | |||||
| US15 | 47.20 | 034302 | |||||
| AN/US15A | 47.20 | 034123 | |||||
| US26 | 47.20 | 033327 | |||||
| US26D | 47.20 | 033329 | |||||
| #9 X 1" FPHS | USP | 51.05 | 033386 | 1 pack | 10 packs | 701 | |
| 1D | 51.05 | 037331 | |||||
| 2D | 51.05 | 035480 | |||||
| 3LB | 51.05 | 029798 | |||||
| US3 | 51.05 | 033387 | |||||
| US4 | 51.05 | 029797 | |||||
| ABA/US5 | 51.05 | 035550 | |||||
| US10A | 51.05 | 035461 | |||||
| 10R | 51.05 | 042100 | |||||
| US15 | 51.05 | 036448 | |||||
| AN/US15A | 51.05 | 035556 | |||||
| US26 | 51.05 | 035582 | |||||
| US26D | 51.05 | 033388 | |||||
| #9 x 2-1/2" FPHS | USP | 67.45 | 048598 | 1 pack | - | 701 | |
| #10 x 2-1/2" FPHS | 2D | 67.45 | 048601 | 1 pack | - | 701 | |
| 7741 | 3-1/2" x 3-1/2" | 2D | 1.65 | 029502 | - | 100 each | 83G |
| Steel | (89 mm x 89 mm) | 3LB | 1.65 | 029508 | 83G | ||
| 1/4" Radius | US4 | 1.65 | 029504 | 83G | |||
| Round Corner | 10R | 4.75 | 021624 | 83C | |||
| Full Mortise | US15 | 4.75 | 050813 | 83C | |||
| Residential Wt. | AN/US15A | 4.75 | 050817 | 83A | |||
|
Plain Bearing
See style #2617 & #2817 for |
US26 | 4.75 | 030864 | 83A | |||
| US26D | 4.75 | 030867 | 83A | ||||
|
screws
Bulk Unassembled with pins |
4" x 4" | 2D | 2.35 | 029585 | - | 100 each | 93G |
| U/M - Each - Bulk | (102 x 102 mm) | US3 | 5.60 | 033751 | 93A | ||
| 3LB | 2.35 | 029603 | 93G | ||||
| US4 | 2.35 | 029586 | 93G | ||||
| 10R | 5.60 | 015750 | 93C | ||||
| US15 | 5.60 | 050204 | 93C | ||||
AN/US15A 5.60 051297 93A US26 5.60 033750 93A US26D 5.60 075057 93A
1. Items with prices in bold are stock items and usually ship within 24 hours. Please use stock number when ordering.
| Description | Finish |
2018
List |
Stock
No. |
Box
Qty. |
Case
Qty. |
Disc.
Code |
|
|---|---|---|---|---|---|---|---|
| 8741 | 3-1/2" x 3-1/2" | USP | 1.65 | 029500 | - | 100 each | 83G |
| Steel | (89 mm x 89 mm) | 2D | 1.65 | 029486 | 83G | ||
| 5/8" Radius | 3LB | 1.65 | 029497 | 83G | |||
| Round Corner | US4 | 4.75 | 029490 | 83G | |||
| Full Mortise | ABA/US5 | 4.75 | 030964 | 83A | |||
| Residential Wt. | 10R | 4.75 | 175354 | 83A | |||
| Plain Bearing | US15 | 4.75 | 030953 | 83C | |||
|
Bulk Unassembled with pins
See style #2617 & #2817 for screws |
US26D | 4.75 | 030962 | 83A | |||
| 4" x 4" | 2D | 2.40 | 029621 | - | 100 each | 93G | |
| U/M - Each - Bulk | (102 mm x 102 mm) | US4 | 2.40 | 029622 | 93G | ||
| 10R | 5.60 | 066186 | 93C | ||||
| US15 | 5.60 | 066183 | 93C | ||||
| US26D | 5.60 | 035794 | 93A | ||||
| 8744 | 4" x 4" | USP | 2.40 | 029639 | - | 100 each | 93G |
| Steel | (102 mm x 102 mm) | 2D | 2.40 | 029630 | 93G | ||
| Square by 5/8" Radius | US3 | 5.60 | 036142 | 93A | |||
| Full Mortise |
| US26D | 5.60 | 035794 | 93A | ||||
|---|---|---|---|---|---|---|---|
| 8744 | 4" x 4" | USP | 2.40 | 029639 | - | 100 each | 93G |
| Steel | (102 mm x 102 mm) | 2D | 2.40 | 029630 | 93G | ||
| Square by 5/8" Radius | US3 | 5.60 | 036142 | 93A | |||
| Full Mortise | 3LB | 2.40 | 039636 | 93G | |||
| Residential Wt. | US4 | 5.60 | 029631 | 93G | |||
| Plain Bearing | US10A | 5.60 | 084235 | 93A | |||
| Bulk Unassembled with pins | 10R | 5.60 | 042101 | 93C | |||
| See style #2817 for screws | US15 | 5.60 | 080130 | 93C | |||
| U/M - Each - Bulk | AN/US15A | 5.60 | 084237 | 93A | |||
| US26D | 5.60 | 036148 | 93A | ||||
| 8746 | 4" x 4" | USP | 3.45 | 068828 | - | 100 each | 9EG |
2D 3.45 068819 9EG US4 3.45 068989 9EG
(102 mm x 102 mm)
Steel
Square by 5/8" Radius
|
Full Mortise
Residential Wt. Plain Bearing Safety Stud Bulk Unassembled with pins See style #2817 for screws U/M - Each - Bulk |
ABA/US5
US15 US26D 10R 1D |
7.60
7.60 7.60 7.60 7.60 |
068910
068929 038964 195609 195610 |
9EA
9EA 9EA 9EA 9EA |
||
|---|---|---|---|---|---|---|
|
1700
Pins for Residential Wt. Plain Bearing Hinges |
3-1/2" (89 mm) |
2D
US15 US26D |
0.65
0.65 0.65 |
038152
038173 038174 |
100 each 1000 each | 900 |
|
Sold full box qty
U/M - 1 Each |
4" (102 mm) |
2D
US15 US26D |
0.65
0.65 0.65 |
038153
038166 038175 |
100 each 1000 each | 900 |
1. Items with prices in bold are stock items and usually ship within 24 hours. Please use stock number when ordering.
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| A |
|---|
| ANSI Standards |
| В |
|
|
| Bearing at Top |
| Bearing Replacement Kit |
| C |
| Cancellation Notification |
| Center Punches |
| Concealed Electric Hinges with Lead Wire7-10 |
| Concealed Electric Monitoring (EMN)7-10 |
| 3 ( ) |
| Concealed Electric Through-Wire (ETW)7-10 |
| Concealed Electric Through-Wire - Removable (RETW)7-10 |
| Concealed Electric Through-Wire and Monitoring (ETM)7-10 |
| Custom Hole Pattern |
| D |
| Dutch Door Prep13 |
| E |
|
|
| Electric Power Transfer Preparation (EPT)9 |
| Electrical Modifications |
| Exposed Electric Contacts (E)7-10 |
| Exposed Electric Switches (EIS)7-10 |
| Extra Long Hinges |
| Power Transfer Preparation |
| ' |
| F |
| Fasteners |
| Field Modifications |
| Fire Ratings 4 |
| H |
| Hinges |
| Concealed15, 16, 18-22, 23, 25-26, 28 |
| Full Surface |
| Half Surface |
| Hospital Tip |
| How To Order2 |
| L |
| Lead Times |
| Length Specifications |
| M | |
|---|---|
| Mortar Box | 11 |
| P | |
| Painted Cover Channels | 6 |
| Polished Cover Channels | |
| Q | |
| Quick Connect | |
| Quick Ship | 2 |
| _ | |
| R | |
| Replacement Moldings | 11 |
| S | |
| Shim Stock | 1 / |
| Shipping Cartons | 14 |
| Shipping CartonsShort Hinges |
14
12 |
|
Shipping Cartons
Short Hinges Special Anodizing |
14
12 6 |
| Shipping CartonsShort HingesSpecial AnodizingSpecial Cover Channels |
14
12 6 |
| Shipping Cartons |
14
12 6 5 |
| Shipping Cartons |
14
12 6 6 |
| Shipping Cartons |
14
12 6 6 6 |
| Shipping Cartons Short Hinges Special Anodizing Special Cover Channels Special Finished Hinges Special Holes Special Lengths Special Products |
14
12 6 6 6 |
| Shipping Cartons Short Hinges Special Anodizing Special Cover Channels Special Finished Hinges Special Holes Special Lengths Special Products Standard Finishes |
14
12 6 6 3 |
| Shipping Cartons Short Hinges Special Anodizing Special Cover Channels Special Finished Hinges Special Holes Special Lengths Special Products |
14
12 6 6 3 |
| Shipping Cartons |
14
12 6 6 3 3 |
| Shipping Cartons Short Hinges Special Anodizing Special Cover Channels Special Finished Hinges Special Holes Special Lengths Special Products Standard Finishes Standard Lengths |
14
12 6 6 3 3 |
Roton Continuous Hinges
Item# YS 1121190CLR000001
INTRODUCTION
Hager Roton hinges are unique, aluminum geared hinges developed to outperform most other entrance components because the weight of the door is distributed along the full length of the door frame.
Roton continuous hinges have been utilized in hospitals, schools, hotels, offices, airports, stadiums, storefronts, and commercial and industrial buildings in new construction and retrofit applications for over 30 years.
Hager Roton continuous geared hinges are designed for superior performance. Because of this, we offer our lifetime warranty with confidence.
ANSI Standards
- 780 Series Roton continuous geared hinges are approved per ANSI A156.26 Grade 1 for 150 lb. doors
- 780 Series Roton heavy duty hinges are approved per ANSI A156.26 Grade 1 for 300 lb. doors
- 780-111, 780-112, 780-124HD, 780-224, 780-226 standard duty and heavy duty Roton continuous geared hinges are Warnock-Hersey certified in accordance with ANSI A250.13 2003 Standard Severe Windstorm Resistant Components.
Lead Times
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question. 11/2014
Quick Ship
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
Cancellation Notification
Cancellation for made to order items must be completed within 48 hours of order placement.
Standard Lengths
Roton hinges are listed and priced as actual lengths 79" (6'8" opening), 83" (7'0" opening), 85" (7'2" opening), 95" (8'0" opening), and 119" (10'0" opening) for convenience in application to nominal sized doors. Actual length provides for threshold clearance, head clearance and door height allowances for carpeting. Other lengths may be ordered as non-standard items.
Special Lengths
Should a non-standard length be required, please price as the next standard length. (For example, if 86" length is required, use 95" list price.)
Length Specifications
If special lengths to match the actual net door heights are required, please indicate this clearly on your order. A special length should be specified from the net door height, not the nominal height of the opening. To order specify: "Actual Length", or "Net Door Height". Use pricing for the next longer standard length from which the special length can be manufactured. For example, hinges 86-3/4" long will be invoiced at the 95" price.
Field Modifications
While Roton hinges can be cut in the field, any product modifications may void all warranties. Should in-the-field modifications be required, cut only from bottom of hinge. Do not cut through bearings or screw holes. When cutting electric hinges it is extremely important to clamp both hinge leaves securely to prevent hinge "chatter" which can damage the hinge's internal wiring. Consult the St. Louis sales office before proceeding.
Template Hinges
Hager has developed templated hole patterns for Roton hinge models in standard lengths. Drawings are available upon request by contacting Hager Customer Service or accessing the Hager website at www.hagerco.com.
Due to normal variances inherent in the manufacturing process, Roton custom length hinges are deemed by Hager to be nontemplated.
Standard Finishes
Roton hinges are available in clear anodized satin aluminum (similar to US28), dark bronze and black exterior anodized coating.
Special Products
A special product is any product not listed in the price book in regard to length, finish, standard hole preparation or leaf combinations not illustrated. Orders for special products are encouraged, but any changes or cancellations on special orders may result in charges related to work performed and/or material loss. Under no circumstance will non-stock or make-to-order products be accepted for return unless due to Hager error.
FIRE RATINGS - UNDERWRITERS LABORATORY FIRE RATING FILE #A14627
780 Series Roton continuous geared hinges with stainless steel studs are approved for use on 4'x10' metal or wood swing type doors. 780 Series Roton continuous geared hinges without stainless steel studs are approved for use on 4'x8' single swing metal doors and 4'x10' single swing wood doors used without stainless steel studs limited to 20 minute fire rating without hose stream.
- Hollow metal, tin-clad, sheet-metal and steel covered composite type rated up to and including 3 hours
- Wood composite doors rated up to and including 1-1/2 hours
- Wood core doors rated up to 20 minutes without hose stream, non-studded
- 780 Series Roton Continuous Geared Hinges meet requirements for positive pressure UL10C, UL10B and UBC7-2 Part 1
| UL10C Fire Rated Roton |
Fully
Concealed |
Full
Surface |
Half
Surface |
NOTES: | ||
|---|---|---|---|---|---|---|
|
20 Minute Fire Rated Wood Core Door x Fire Rated Hollow Metal
Frame |
UL — FF STANDARD |
1. All Roton
hinges will be marked with |
||||
| 20 Minute Fire Rated Metal Door x Fire Rated Hollow Metal Frame | UL — FF STANDARD | UL stamp if they are | ||||
|
30 Minute Fire Rated Wood Composite Door x Fire Rated Hollow
Metal Frame |
UL — FF STANDARD |
fire-rated.
2. Several hinge |
||||
| 30 Minute Fire Rated Metal Door x Fire Rated Hollow Metal Frame | UL — FF STANDARD |
models cannot be
fire-rated. Check each |
||||
|
45 Minute Fire Rated Wood Composite Door x Fire Rated Hollow
Metal Frame |
UL — FF STANDARD | profile. | ||||
| 45 Minute Fire Rated Metal Door x Fire Rated Hollow Metal Frame | UL — FF STANDARD |
3. Models that require
studs have an extra |
||||
| 60 Minute Fire Rated Wood Door x Hollow Metal Frame | UL — FF STANDARD |
charge. Four studs
are required for UL stud hinges. Add to the hinge list price |
||||
| 60 Minute Fire Rated Metal Door x Hollow Metal Frame | UL — FF STANDARD | |||||
| 90 Minute Fire Rated Metal Door x Fire Rated Hollow Metal Frame | UL — FF STANDARD |
before applying buying
group discount - add |
||||
|
90 Minute Fire Rated Wood Composite Door x Fire Rated
Hollow Metal Frame |
UL — STUD REQUIRED * Must Specify | $56.80. | ||||
| 3 Hour Fire Rated Metal Door x Fire Rated Hollow Metal Frame | UL — STUD REQUIRED * Must Specify | |||||
FULLY CONCEALED WITH STUD
Fully Concealed
These models are concealed between the frame and the hinge edge of the door. Models available include: 780-041HD, 780-041LL, 780-111, 780-111HD, 780-111LL, 780-112, 780-112HD, 780-112LL, 780--124HD, 780-124LL, 780-224, 780-224HD, 780-224LL, 780-226, 780-226HD, 780-226LL, and 780- 235HD.
HALF SURFACE WITH STUD
Half Surface
These models have the frame leaf concealed between the frame and the edge of the door. The door leaf is mounted to the door with thru-bolts or screws. Models available include: 780-045HD, 780-046HD, 780-053, 780-053HD, 780-054HD, and 780-211HD.
FULL SURFACE WITH STUD
Full Surface
These models have the frame leaf mounted to the face of the frame and the face of the door. The door leaf is mounted to the face of the door with thru-bolts. Models available include: 780-057HD, 780-157, 780-157HD, 780-210, 780-210HD, and 780-257HD.
MODIFICATIONS & ADDITIONS
Special Cover Channels
Rounded back cover channels may be ordered. Availability for hinges with electrical modifications vary. Please consult the St. Louis sales office for confirmation. Add to the hinge list price before applying buying group discount:
| Round Back Cover Channels |
|---|
Clear Anodized
79", 83", 85" $25.40 95" $31.50 119" $40.55
Bronze Anodized
79", 83", 85" $50.70 95" $56.75 119" $64.90
Note: Special cover channels available in clear,
dark bronze and black finish.
| Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
|
Hinge
Model |
FBCC
Flat |
Round
RBCC |
||||||
| 750-134 | • | • | ||||||
| 750-138 | • | • | ||||||
| 780-041 | • | • | ||||||
| 780-045 | • | • | ||||||
| 780-046 | • | • | ||||||
| 780-053 | • | • | ||||||
| 780-054 | • | • | ||||||
| 780-057 | • | • | ||||||
| 780-110 | • | • | ||||||
| 780-111 | • | • | ||||||
| 780-112 | • | • | ||||||
| 780-113 | • | • | ||||||
| 780-114 | • | • | ||||||
| 780-124 | • | • | ||||||
| 780-155 | • | • | ||||||
| 780-157 | • | |||||||
| 780-208 | • | |||||||
| 780-210 | • | • | ||||||
| 780-211 | • | • | ||||||
| 780-213 | • | • | ||||||
| 780-224 | • | • | ||||||
| 780-226 | • | • | ||||||
| 780-235 | • | • | ||||||
| 780-257 | • | |||||||
780-259 • •
780-300 •
Roton Cover Channel
Round Back
Roton Continuous Hinges
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Bone White Painted Cover Channels
| For hinges 79", 83" and 85" in length | $60.90 |
|---|---|
| For hinges 95" in length | $83.10 |
| For hinges 119" in length | $123.60 |
Roton cover channels are offered in bone white as a standard stock color option. This is only available on the standard Roton cover channel and should be ordered as bone white paint # UC43350.
| Polished Cover Channels | CLEAR | GOLD |
|---|---|---|
| For hinges 79" in length | $60.90 | $83.10 |
| For hinges 83" in length | $60.90 | $83.10 |
| For hinges 85" in length | $60.90 | $83.10 |
| For hinges 95" in length | $83.10 | $103.30 |
| For hinges 119" in length | $122.55 | $141.80 |
Any hinge may be ordered with a polished clear cover channel (similar to US26) to complement clear anodized hinge leaves or a polished gold cover channel (similar to US3) to complement satin gold hinge leaves.
Special Finished Hinges Price on Application
Hager Companies can supply unfinished material to selected finishers for special projects that require unusual colors, but will require that final assembly be complete by Hager Companies. Because of special non-removable metal coatings applied to all hinges during assembly, users are cautioned against attempting to refinish any Roton product.
Cannot paint 500 or 1200 series hinges.
Special Anodizing Add 15% to the DBA hinges for black and gold
Roton hinges are available in various special colors including Black, Gold, and other special anodized finishes with fasteners to match. Example, specify "Black Anodized" or "Gold Anodized." All hinges ordered in special colors should be ordered at the same time to guarantee finish uniformity.
Other anodized colors by quotation only. Supply color chip for best match.
Special Holes Price on Application
Any hinge may be ordered with special hole locations for unusual frame or door locations. Please provide specification for each leaf.
For ease of ordering, Hager Companies has established standard locations for power transfer cutouts. All standard location dimensions are referenced from the top edge of the door to the centerline of the power transfer cutout. Please specify handing.
NOTE: These locations are for concealed hinges only.
| Opening | Door Height |
Actual Hinge
Length |
EMN | ETM | ETW | EPT | E1S | E | RETW | |
|---|---|---|---|---|---|---|---|---|---|---|
| 79 SD | 80" | 79-1/8" | 79" | 40-3/4" | 42-3/4" | 40-3/4" | 34-3/8" | 42-1/2" | 42-1/2" | – |
| 79 HD | 80" | 79-1/8" | 79" | 40-3/4" | 43-3/8" | 40-3/4" | 34-3/8" | 42-1/2" | 42-1/2" | 43-3/8" |
| 83 SD | 84" | 83-1/8" | 83" | 45-5/16" | 44-3/4" | 45-5/16" | 36-3/8" | 46-1/2" | 46-1/2" | – |
| 83 HD | 84" | 83-1/8" | 83" | 45-5/16" | 45-3/8" | 45-5/16" | 36-3/8" | 46-1/2" | 46-1/2" | 45-3/8" |
| 85 SD | 86" | 85-1/8" | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 85 HD | 86" | 85-1/8" | 85" | 46-5/16" | 46-3/8" | 46-5/16" | 37-3/8" | 48-1/2" | 48-1/2" | 46-3/8" |
| 95 SD | 96" | 95-1/8" | 95" | 56-3/8" | 55-13/16" | 56-3/8" | 47-1/2" | 59-3/4" | 59-3/4" | – |
| 95 HD | 96" | 95-1/8" | 95" | 56-3/8" | 56-1/2" | 56-3/8" | 47-1/2" | 59-3/4" | 59-3/4" | 56-1/2" |
| 119 SD | 120" | 119-1/8" | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| 119 HD | 120" | 119-1/8" | 119" | 81-1/4" | 81-5/16" | 81-1/4" | 72-5/16" | 83-3/4" | 83-3/4" | 81-5/16" |
SD = Standard Duty HD = Heavy Duty
ELECTRICAL MODIFICATIONS (CONTINUED)
|
wer Transfer
Preparation (EPT) Electric Po |
Exposed Electric Contacts |
witches
Exposed Electric S |
Wire
Concealed Electric Through- |
Monitoring
Concealed Electric |
Wire
Concealed Electric Through- Monitoring and |
Wire
movable Electric Through- Re |
|
|---|---|---|---|---|---|---|---|
| Part Number | EPT | E | E1S | ETW | EMN | ETM | RETW |
| 780-045HD | • | ||||||
| 780-046HD | • | ||||||
| 780-053 | • | ||||||
| 780-053HD | • | ||||||
| 780-054HD | • | ||||||
| 780-057HD | • | • | |||||
| 780-110HD | • | ||||||
| 780-111 | • | • | • | • | • | • | |
| 780-111HD | • | • | • | • | • | • | • |
| 780-111LL | • | • | • | • | • | • | |
| 780-112 | • | • | • | • | • | • | |
| 780-112HD | • | • | • | • | • | • | • |
| 780-112LL | • | • | • | • | • | • | |
| 780-124HD | • | • | • | • | • | • | • |
| 780-124LL | • | • | • | • | • | • | |
| 780-157 | • | • | |||||
| 780-224 | • | • | • | • | • | • | |
| 780-224HD | • | • | • | • | • | • | • |
| 780-224LL | • | • | • | • | • | • | |
| 780-226HD | • | • | • | • | • | • | • |
| 780-226LL | • | • | • | • | • | • | |
| 780-235HD | • | ||||||
| 1200-600 | • | • | |||||
| 1200-650 | • | • |
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Quick Connect $45.60
Available for ETM, ETW, and RETW options. Top and bottom knockouts for standard conduit fittings.
Concealed Electric Monitoring (EMN) $268.40
- Miniature switch is incorporated into the frame leaf.
- Specify handing and the dimension from the top edge of the door to the centerline of the electric monitoring location.
- Special Electric Modifications and EPT locations may require additional charges if screw holes have to be moved.
- Templates regarding location of monitoring switch available upon request.
Concealed Electric Through-Wire and Monitoring (ETM)
• Electric Preparation
| ETM-4 | $535.70 |
|---|---|
| ETM-6 | $584.40 |
| ETM-8 | $621.80 |
| ETM-10 | $662.25 |
- All ETM have 28-Gauge continuous conductors.
- This combines the continuous electric conductors and the miniature switch to provide both power transfer and monitoring.
- Miniature switch is incorporated into the frame leaf.
- Specify handing and the dimension from the top edge of the door to the centerline of each electric modification location.
- Templates regarding location of monitoring switch available upon request.
Concealed Electric Through-Wire (ETW)
• Electric Preparation
| ETW-4 | $268.40 |
|---|---|
| ETW-6 | $311.95 |
| ETW-8 | $349.40 |
| ETW-10 | $398.00 |
| ETW-12 | $445.40 |
- All ETW have 28-Gauge continuous conductors.
- 12" per side required as a suffix.
- Cut out for prep 1/2" drilled hole.
- Transfers power discreetly from building to door hardware.
- Specify handing and the dimension from the top edge of the door to the centerline of the electric through-wire location.
- Special electric modifications and EPT locations may require additional charges if screw holes have to be moved. Contact Hager Customer Service for charges.
- Templates regarding location of through-wires available upon request.
Available on the following Roton Concealed profiles:
• 780-057HD • 780-112HD • 780-157HD • 780-226HD • 1200-600HD • 780-111HD • 780-124HD • 780-224HD • 780-235HD • 1200-650HD
Power Transfer or Electric Power Transfer Preparation (EPT)
Concealed Leaf $104.40 Half Surface $62.90
- Hinge leaf cutout to accommodate power transfer device.
- Specify handing and the dimension from the top edge of the door to the centerline of the power transfer location.
- Special Electric Modifications and EPT locations may require additional charges if screw holes have to be moved.
Roton Continuous Hinges
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Lead Wire for Concealed Electric Hinges
| Electric Preparation | Per Foot |
|---|---|
| 4-wire hinge | $9.25 |
| 6-wire hinge | $13.50 |
| 8-wire hinge | $16.80 |
| 10-wire hinge | $19.05 |
- Standard wire leads are 12" per side
- Additional wire leads are available
Exposed Electric Switches (E1S) $93.80
- Miniature push button switch incorporated in hinge frame leaf to monitor position of the door.
- Three 12" wire leads.
- Each monitoring hinge only needs one E1S Switch.
- Specify handing and the dimension from the top edge of the door to the centerline of the electric switch location.
- Templates regarding location of contact switch available upon request.
Exposed Electric Contacts (E) $93.80
- Transfers power to door in closed position.
- Must have at least two (2) contacts to transfer power.
- Specify handing and the dimension from the top edge of the door to the centerline of the electric contact location.
- Templates regarding location of contacts available upon request.
Removable Electric Through-Wire (RETW) Twelve Wire $651.45 Removable 12 Wire Module Only $265.65
Component Finish 7-102-1870 Clear 7-112-1872 Dark Bronze 7-112-1876 Gold 7-112-1881 Black
Removable Electric Through-Wire (RETW) Ten Wire $552.10 Removable 10 Wire Module Only $214.90
Component Finish 7-102-1860 Clear 7-112-1870 Dark Bronze 7-112-1875 Gold 7-112-1880 Black
Available on heavy duty concealed profiles:
- 780-057HD 780-112HD 780-157HD 780-226HD
- 780-111HD 780-124HD 780-224HD
- Transfers power discreetly from building to door hardware.
- Removable ETW module can be easily removed for adjustment for service.
- Templates regarding location of monitoring switch available upon request.
- Specify handing and the dimension from the top edge of the door to the centerline of the electric through-wire location.
MODIFICATIONS & ADDITIONS
Mortar Box - 430 $45.55
- Serves as a mortar shield.
- Overall dimensions: 9" (229 mm) length with tabs, 7" (178 mm) inside, 1-3/4" x 1-3/4" (45 mm x 45 mm) inside dimension.
- Galvanized steel 0.040" (1 mm)
Replacement Molding 780-052M
Replacement door leaf molding for: 780-053, 780-053HD, 780-054HD, 780-155HD, 780-057HD, 780-157, 780-157HD, 780-257HD, and 780-259HD.
| Hinge Lengths | Clear Anodized | Dark Bronze Anodized |
|---|---|---|
| 79", 83", 85" | $38.60 | $44.60 |
| 95" | $44.60 | $53.25 |
| 119" | $53.25 | $61.80 |
Hinge Lengths Clear Anodized Dark Bronze Anodized 79", 83", 85" $38.60 $44.60
Replacement Molding 780-210M
Replacement door leaf molding for: 780-210, 780-210HD, 780-211, 780-211HD, 780-213HD, 780-045HD, and 780-046HD.
Hinge Lengths Clear Anodized Dark Bronze Anodized
Replacement Molding 780-247M
79", 83", 85" $34.50 $40.60 95" $40.60 $50.20
Replacement frame leaf molding 780-157, 780-157HD, 780-257HD
Note: Replacement moldings for 780-052M and 780-210M are shipped in stock lengths for trimming in the field and furnished with Allen head set screw and wrench.
119" $50.20 $58.80
Hinge Lengths Clear Anodized Dark Bronze Anodized
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Short Hinges $22.30
Hinges shorter than 79" will be invoiced at the 79" price. Where two or more short hinges can be obtained from a standard length, pricing is based on the number of standard lengths utilized plus an assembly charge for each hinge.
Extra Long Hinges $97.50
Hinges over 119" are manufactured as two separate lengths with a staggered joint for on-site connection. Hinge segments are taken from standard sizes for best economics in relation to the quantity required. Handing specifications are required to position the cuts inconspicuously and to finish symmetrical pairs in double door applications.
Custom Hole Pattern Price on Application
Any hinge may be ordered with special hole locations for unusual frame or door conditions. Please provide specifications for each leaf.
Bearing At Top $41.50
This application allows for the bearing to be set at the very top of the cover channel. The cover channel is flush with the top of the geared hinge, preventing any obstructions or debris from being inserted in the top of the channel.
Hospital Tip $122.50
Concealed models only can be prepared with a cover channel tapered at 45° angle at the top of the hinge. These are ideal for use in hospitals and correctional facilities to help provide a clean and safe environment.
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Tamper Resistant Hinge $143.80
This application is intended for use in hospital psychiatric areas and places of high security. The hinge is prepared with a hospital tip (concealed models only) and every other bearing is supplied with a set screw to lock against the inside of the cover channel for additional security. Torx screws available at additional charge (see page 14).
Dutch Door Prep $85.15
Furnished as continuous frame leaf, whole door leaf is cut to fit dutch door specified length.
| Bearing Replacement Kit | Part Numbers | Clear and Dark Bronze |
|---|---|---|
| Standard Duty for 780 Series | 7-070-0121 | $43.65 |
| Heavy Duty for 780 Series | 7-070-0122 | $83.10 |
| Extra Heavy Duty for 1200 Series | 7-070-0123 | $165.15 |
Center Punches $9.25 Part Numbers
Self-Centering center punches are available for #12 countersunk screws supplied. To make sure screw heads seat properly, accurate center punching is required.
7-070-0031
Roton Continuous Hinges
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Shim Stock
1/16" x 1-1/2" Wide x 7' Long $32.00 each 1/8" x 1-1/2" Wide x 7' Long $44.60 each
Larger sizes available Price on application
For clearance between the door and frame which may be excessive, a continuous shim is helpful (applied behind the frame leaf only). Anodized aluminum extrusions are supplied with no holes.
Shipping Carton $22.30 each
Extra shipping cartons are available for reshipping hinges in quantities of 2 or less.
Fasteners
All hinges are shipped with appropriate fasteners for metal doors and frames except where noted. If wood screws are required, please specify on order, and wood screws will be substituted at no extra charge. Bulk screws are packed separately.
| Description |
Part Numbers
Clear |
Dark Bronze | |
|---|---|---|---|
| #12 x 1-1/2" Flat Head Wood Screw | 7-080-0050 | 7-080-0051 | $247.30/box of 500 |
| #12-24 x 11/16" Self-Drilling Flat Head Screw | 7-080-0070 | 7-080-0072 | $221.10/box of 500 |
| #12-24 x 1/2" Spanner Head Machine Screw | $2.00 each | ||
| #12-24 x 11/16" Drill Quick Torx Screw | $2.00 each | ||
| #12-24 x 13/32" Self-Threading Screw (Clear or Bronze) | $0.80 each | ||
| #12-24 x 11/16" Self-Drilling Flat Head Screw (Clear or Bronze) | $1.10 each | ||
| #12-24 x 11/16" Self-Drilling Pan Head Screw (Clear) | $1.10 each | ||
| #12 x 1-1/2" Flat Head Wood Screw (Clear or Bronze) | $1.10 each | ||
| #12 - 14 x 1-1/2" Wood Torx Screw | $1.95 each | ||
| Sexbolts | $2.95 each |
Note: Additional fasteners may be ordered as follows (add to the hinge list price before applying buying group discount).
4/1/2018 www.hagerco.com
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-041HD | 79" (2007 mm) | Clear | 362.40 | 194918 | 6 |
| Concealed Leaf | Dark Bronze | 481.00 | 194919 | ||
| Heavy Duty | Black | 533.20 | - | ||
| 1-3/4" Door Swing Clear Action | 83" (2108 mm) | Clear | 362.40 | 194803 | 6 |
| Dark Bronze | 481.00 | 194920 | |||
| Black | 553.20 | - | |||
| 85" (2159 mm) | Clear | 362.40 | 194921 | 6 | |
| Dark Bronze | 481.00 | 194923 |
Black
Dark Bronze Black
Dark Bronze Black
Dark Bronze Black
Dark Bronze Black
Dark Bronze Black
95" (2413 mm) Clear 449.20 194805 6
119" (3023 mm) Clear 670.50 194925 2
79" (2007 mm) Clear 376.90 187432 6
83" (2108 mm) Clear 376.90 194928 6
85" (2159 mm) Clear 376.90 - 6
95" (2413 mm) Clear 461.30 194929 6
533.20
591.70 680.40
881.90 1,014.20
493.00 567.00
493.00 567.00
493.00 567.00
-
194924 -
194926 024432
- -
- -
- -
| 780-041LL |
|---|
| Concealed Leaf |
| With Half Drill Quick |
| and Half Wood Screws |
| 1-3/4" Door Lead Lined |
| Heavy Duty Profile Only |
| Swing Clear Action |
|
Dark Bronze
Black |
603.70
694.30 |
-
- |
|||
|---|---|---|---|---|---|
| 119" (3023 mm) | Clear | 681.50 | - | 2 | |
|
Dark Bronze
Black |
894.00
1,028.10 |
-
- |
|||
| 780-045HD | 79" (2007 mm) | Clear | 429.70 | 004046 | 4 |
|
Half Surface
Heavy Duty |
Dark Bronze
Black |
574.40
660.60 |
-
- |
||
| 83" (2108 mm) | Clear | 429.70 | 065575 | 4 | |
|
Dark Bronze
Black |
574.40
660.60 |
152230
- |
|||
| 85" (2159 mm) | Clear | 429.70 | 161260 | 4 | |
|
Dark Bronze
Black |
574.40
660.60 |
165869
- |
|||
| 95" (2413 mm) | Clear | 528.20 | 104689 | 4 | |
|
Dark Bronze
Black |
706.50
812.40 |
168059
- |
|||
| 119" (3023 mm) | Clear | 786.90 | 163204 | 2 | |
|
Dark Bronze
Black |
1,051.00
1,028.70 |
161207
- |
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-046HD | 79" (2007 mm) | Clear | 462.50 | 163916 | 4 |
| Half Surface | Dark Bronze | 606.70 | - | ||
| Heavy Duty | Black | 697.70 | - | ||
| 83" (2108 mm) | Clear | 462.50 | 026032 | 4 | |
| Dark Bronze | 606.70 | 149561 | |||
| Black | 697.70 | - | |||
| 85" (2159 mm) | Clear | 462.50 | 158054 | 4 | |
| Dark Bronze | 606.70 | - | |||
| Black | 697.70 | - | |||
| 95" (2413 mm) | Clear | 567.10 | 025211 | 4 | |
| Dark Bronze | 754.10 | 162657 | |||
| Black | 867.20 | - | |||
| 119" (3023 mm) | Clear | 847.20 | - | 2 | |
| Dark Bronze | 1,122.70 | - | |||
| Black | 1,291.10 | - | |||
| 780-053 | 79" (2007 mm) | Clear | 224.80 | 056995 | 5 |
| Half Surface | Dark Bronze | 309.10 | 163993 | ||
| Black | 355.40 | - | |||
| 83" (2108 mm) | Clear | 224.80 | 001927 | 5 | |
| Dark Bronze | 309.10 | 014876 | |||
| Black | 355.40 | - | |||
| 95" (2413 mm) | Clear | 278.50 | 010247 | 5 | |
| Dark Bronze | 376.70 | 009044 | |||
| Black | 433.20 | - | |||
| 780-053HD | 79" (2007 mm) | Clear | 282.00 | 013612 | 5 |
| Half Surface | Dark Bronze | 353.70 | 082818 | ||
| Heavy Duty | Black | 406.80 | - | ||
| 83" (2108 mm) | Clear | 282.00 | 194998 | 5 | |
| Dark Bronze | 353.70 | 194999 | |||
| Black | 406.80 | - | |||
| 85" (2159 mm) | Clear | 282.00 | 050663 | 5 | |
| Dark Bronze | 353.70 | 132585 | |||
| Black | 406.80 | - | |||
| 95" (2413 mm) | Clear | 349.90 | 195004 | 5 | |
| Dark Bronze | 423.90 | 018393 | |||
| Black | 487.50 | - | |||
| 119" (3023 mm) | Clear | 535.60 | 052397 | 3 | |
Dark Bronze Black
715.00 822.30
093628 -
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-054HD | 79" (2007 mm) | Clear | 308.00 | 021269 | 5 |
| Half Surface | Dark Bronze | 378.80 | 131605 | ||
| Heavy Duty | Black | 435.60 | - | ||
| 83" (2108 mm) | Clear | 308.00 | 195052 | 5 | |
| Dark Bronze | 378.80 | 027437 | |||
| Black | 435.60 | - | |||
| 85" (2159 mm) | Clear | 308.00 | 078989 | 5 | |
| Dark Bronze | 378.80 | 071971 | |||
| Black | 435.60 | - | |||
| 95" (2413 mm) | Clear | 380.80 | 078992 | 5 |
Dark Bronze Black
Black
Dark Bronze
119" (3023 mm) Clear 585.80 026627 3
85" (2159 mm) Clear 329.00 025846 5
450.50 518.00
534.30
464.60
071970 -
-
174835
|
Dark Bronze
Black |
756.10
869.50 |
159983
- |
|||
|---|---|---|---|---|---|
| 780-057HD | 79" (2007 mm) | Clear | 329.00 | 021238 | 5 |
| Full Surface | Dark Bronze | 464.60 | 017850 | ||
| Heavy Duty | Black | 534.30 | - | ||
| Bi-Fold Applications | 83" (2108 mm) | Clear | 329.00 | 007856 | 5 |
| Dark Bronze | 464.60 | 025973 |
| Black | 534.30 | - | |||
|---|---|---|---|---|---|
| 95" (2413 mm) | Clear | 418.30 | 024478 | 5 | |
|
Dark Bronze
Black |
575.20
661.50 |
094331
- |
|||
| 119" (3023 mm) | Clear | 623.50 | 088469 | 4 | |
|
Dark Bronze
Black |
856.70
985.20 |
165568
- |
|||
| 780-110HD | 79" (2007 mm) | Clear | 209.20 | 009945 | 8 |
|
Concealed Leaf
Heavy Duty |
Dark Bronze
Black |
270.30
310.80 |
127036
- |
||
| For 1" to 1-3/8" door | 83" (2108 mm) | Clear | 209.20 | 009549 | 8 |
|
Dark Bronze
Black |
270.30
310.80 |
006241
- |
|||
| 85" (2159 mm) | Clear | 209.20 | 044312 | 8 | |
|
Dark Bronze
Black |
270.30
310.80 |
173953
- |
|||
| 95" (2413 mm) | Clear | 251.40 | 100893 | 8 | |
|
Dark Bronze
Black |
325.80
374.70 |
161122
- |
|||
| 119" (3023 mm) | Clear | 398.20 | 158984 | 7 | |
|
Dark Bronze
Black |
522.90
601.40 |
169966
- |
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-111 | 79" (2007 mm) | Clear | 163.40 | 194809 | 8 |
| Concealed Leaf |
Dark Bronze
Black |
211.10
242.75 |
194810
- |
||
| 83" (2108 mm) | Clear | 163.40 | 184007 | 8 | |
| Dark Bronze | 211.10 | 184008 | |||
| Black | 242.75 | - | |||
| 95" (2413 mm) | Clear | 199.10 | 184031 | 8 | |
|
Dark Bronze
Black |
258.90
297.70 |
184048
- |
|||
| 780-111HD | 79" (2007 mm) | Clear | 203.30 | 183917 | 8 |
| Concealed Leaf | Dark Bronze | 265.50 | 194812 | ||
| Heavy Duty | Black | 305.40 | - | ||
| 83" (2108 mm) | Clear | 203.30 | 183924 | 8 | |
| Dark Bronze | 265.50 | 183988 | |||
| Black | 305.40 | 116592 | |||
| 85" (2159 mm) | Clear | 203.30 | 194814 | 8 | |
| Dark Bronze | 265.50 | 194815 | |||
| Black | 305.40 | - | |||
| 95" (2413 mm) | Clear | 246.80 | 184025 | 8 | |
| Dark Bronze | 319.20 | 194816 | |||
| Black | 367.10 | 109310 | |||
| 119" (3023 mm) | Clear | 394.40 | 194817 | 7 | |
| Dark Bronze | 513.60 | 194819 | |||
| Black | 590.60 | 113845 | |||
| 780-111LL | 79" (2007 mm) | Clear | 220.00 | 194848 | 8 |
| Concealed Leaf | Dark Bronze | 279.60 | - | ||
|
With Half Drill Quick
and Half Wood Screws |
Black | 321.60 | - | ||
| Lead Lined | 83" (2108 mm) | Clear | 220.00 | 195079 | 8 |
| Heavy Duty Profile Only | Dark Bronze | 279.60 | 195080 | ||
| Black | 321.60 | - | |||
| 85" (2159 mm) | Clear | 220.00 | - | 8 | |
| Dark Bronze | 279.60 | - | |||
| Black | 321.60 | - | |||
| 95" (2413 mm) | Clear | 261.50 | 195088 | 8 | |
| Dark Bronze | 333.20 | 195089 | |||
| Black | 383.20 | - | |||
| 405.00 | - | 7 | |||
| 119" (3023 mm) |
Clear
Dark Bronze |
528.20 | - |
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-112 | 79" (2007 mm) | Clear | 137.60 | 183922 | 8 |
| Concealed Leaf | Dark Bronze | 177.70 | 194822 | ||
| Single Pack w/ Drill Quick Screws | Black | 204.40 | - | ||
| 83" (2108 mm) | Clear | 137.60 | 184001 | 8 | |
| Dark Bronze | 177.70 | 184003 | |||
| Black | 204.40 | - | |||
| 95" (2413 mm) | Clear | 168.50 | 184032 | 7 | |
| Dark Bronze | 221.90 | 184033 | |||
| Black | 255.20 | - | |||
| 780-112 | 83" (2108 mm) | Clear | 123.80 | 184009 | 8 |
| Concealed Leaf | Dark Bronze | 160.00 | 184010 | ||
|
Case Pack w/ Drill Quick Screws
Must Order Case Quantity |
Black | 184.00 | - | ||
| 780-112HD | 79" (2007 mm) | Clear | 170.90 | 183881 | 8 |
|
Concealed Leaf
Single Pack w/ Drill Quick Screws |
Dark Bronze | 220.80 | 194826 | ||
| Black | 253.90 | - | |||
| 83" (2108 mm) | Clear | 170.90 | 183926 | 8 | |
| Dark Bronze | 220.80 | 183932 | |||
| Black | 253.90 | - | |||
| 85" (2159 mm) | Clear | 170.90 | 184011 | 8 | |
| Dark Bronze | 220.80 | 184013 | |||
| Black | 253.90 | - | |||
| 95" (2413 mm) | Clear | 205.90 | 184020 | 7 | |
| Dark Bronze | 271.50 | 184021 | |||
| Black | 312.20 | - | |||
| 119" (3023 mm) | Clear | 331.20 | 184038 | 7 | |
| Dark Bronze | 436.40 | 194827 | |||
| Black | 501.90 | - | |||
| 780-112HD | 83" (2108 mm) | Clear | 156.40 | 194828 | 8 |
| Concealed Leaf | Dark Bronze | 198.80 | 194829 | ||
|
Case Pack w/ Drill Quick Screws
Must Order Case Quantity |
Black | 228.60 | - | ||
| 780-112LL | 79" (2007 mm) | Clear | 188.50 | 195090 | 8 |
| Concealed Leaf | Dark Bronze | 246.40 | - | ||
| With Half Drill Quick | Black | 283.40 | - | ||
|
and Half Wood Screws
Lead Lined |
83" (2108 mm) | Clear | 188.50 | 195091 | 8 |
| Heavy Duty Profile Only | Dark Bronze | 246.40 | 195092 | ||
| Black | 283.40 | - | |||
| 85" (2159 mm) | Clear | 188.50 | 195093 | 8 | |
| Dark Bronze | 246.40 | - | |||
| Black | 283.40 | - | |||
| 95" (2413 mm) | Clear | 229.30 | 195094 | 8 | |
| Dark Bronze | 294.00 | 195095 | |||
| Black | 338.60 | - | |||
| 119" (3023 mm) | Clear | 365.80 | 195096 | 7 | |
| Dark Bronze | 478.00 | - | |||
| Black | 549.70 | - |
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-113HD | 79" (2007 mm) | Clear | 346.00 | 195097 | 6 |
| Concealed Leaf | Dark Bronze | 465.20 | 195098 | ||
| Heavy Duty | Black | 535.00 | - | ||
|
"Safety Hinge" When Used Without
Frame Stop |
83" (2108 mm) | Clear | 346.00 | 195099 | 6 |
| Dark Bronze | 465.20 | 195100 | |||
| Black | 535.00 | - | |||
| 85" (2159 mm) | Clear | 346.00 | 195101 | 6 | |
| Dark Bronze | 465.20 | 195102 | |||
| Black | 535.00 | - |
95" (2413 mm) Clear 567.10 195103 6
119" (3023 mm) Clear 703.80 195105 4
85" (2159 mm) Clear 343.20 195111 5
95" (2413 mm) Clear 422.30 195112 5
636.80 732.30
831.90 956.70
454.60 522.80
454.60 522.80
195104 -
- -
195110 -
- -
Dark Bronze Black
Dark Bronze Black
Dark Bronze Black
Dark Bronze Black
| 780-114HD | 79" (2007 mm) | Clear | 343.20 | 195106 | 5 |
|---|---|---|---|---|---|
| Concealed Leaf | Dark Bronze | 454.60 | 195108 | ||
| Heavy Duty | Black | 522.80 | - | ||
| Center Hung Applications | 83" (2108 mm) | Clear | 343.20 | 195109 | 5 |
| Dark Bronze | 557.70 | 195113 | ||
|---|---|---|---|---|
| Black | 641.40 | - | ||
| 119" (3023 mm) | Clear | 628.80 | - | 3 |
| Dark Bronze | 831.20 | - | ||
| Black | 955.90 | - | ||
| 79" (2007 mm) | Clear | 173.70 | 194831 | 8 |
| Dark Bronze | 226.20 | 194832 | ||
| Black | 260.20 | - | ||
| 83" (2108 mm) | Clear | 173.70 | 183991 | 8 |
| Black | 260.20 | 140988 | ||
| 85" (2159 mm) | Clear | 173.70 | 194835 | 8 |
| Dark Bronze | 226.20 | - | ||
| Black | 260.20 | - | ||
| 95" (2413 mm) | Clear | 210.10 | 194836 | 7 |
| Dark Bronze | 252.50 | 194837 | ||
| Black | 290.40 | - | ||
| 119" (3023 mm) | Clear | 341.40 | 194838 | 7 |
| Dark Bronze | 447.40 | - | ||
| Black | 514.50 | - | ||
| Dark Bronze | 226.20 | 194834 |
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
|
780-124LL
Concealed Leaf Heavy Duty profile only With half drill quick and Half Wood Screws Lead Lined |
79" (2007 mm) | Clear | 195.90 | - | 8 |
| Dark Bronze | 252.50 | - | |||
| Black | 290.40 | - | |||
| 83" (2108 mm) | Clear | 195.90 | 195114 | 8 | |
| Dark Bronze | 252.50 | - | |||
| Black | 290.40 | - | |||
| 85" (2159 mm) | Clear | 195.90 | - | 8 | |
| Dark Bronze | 252.50 | - | |||
| Black | 290.40 | - | |||
| 95" (2413 mm) | Clear | 235.30 | - | 7 | |
| Dark Bronze | 296.90 | - |
Black
Dark Bronze
Dark Bronze Black
Dark Bronze Black
Dark Bronze
119" (3023 mm) Clear 373.70 - 7
85" (2159 mm) Clear 363.40 018276 5
95" (2413 mm) Clear 445.90 063096 5
341.50
484.80
489.30 562.80
489.30 562.80
603.30
-
-
068371 -
046665 -
056566
| Black | 557.50 | - | |||
|---|---|---|---|---|---|
| 780-155HD | 79" (2007 mm) | Clear | 363.40 | 016603 | 5 |
| Half Surface | Dark Bronze | 489.30 | 128736 | ||
|
Heavy Duty
Center Hung and Egress Conversions |
Black | 562.80 | - | ||
| 83" (2108 mm) | Clear | 363.40 | 068088 | 5 |
| Black | 693.80 | - | |||
|---|---|---|---|---|---|
| 119" (3023 mm) | Clear | 663.60 | 078745 | 2 | |
| Dark Bronze | 896.90 | 062632 | |||
| Black | 1,031.40 | - | |||
| 780-157 | 79" (2007 mm) | Clear | 211.60 | 022092 | 5 |
| Full Surface | Dark Bronze | 285.80 | 049196 | ||
| Frame Face Dimension | Black | 328.70 | - | ||
| Limitations | 83" (2108 mm) | Clear | 211.60 | 048049 | 5 |
| Dark Bronze | 285.80 | 063070 | |||
| Black | 328.80 | - | |||
| 95" (2413 mm) | Clear | 258.70 | 021262 | 5 | |
| Dark Bronze | 349.10 | 009045 | |||
| Black | 401.40 | - | |||
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-157HD | 79" (2007 mm) | Clear | 262.20 | 022028 | 5 |
|
Full Surface
Heavy Duty Frame Face Dimension Limitations |
Dark Bronze | 319.70 | 084386 | ||
| Black | 367.70 | - | |||
| 83" (2108 mm) | Clear | 262.20 | 048059 | 5 | |
| Dark Bronze | 319.70 | 062422 | |||
| Black | 367.70 | - | |||
| 85" (2159 mm) | Clear | 262.20 | 019546 | 5 | |
| Dark Bronze | 319.70 | 035156 | |||
| Black | 367.70 | - | |||
| 95" (2413 mm) | Clear | 314.60 | 048060 | 5 | |
| Dark Bronze | 384.10 | 010547 | |||
| Black | 441.70 | - |
| 119" (3023 mm) | Clear | 521.40 | 099644 | 2 | |
|---|---|---|---|---|---|
| Dark Bronze | 678.80 | 037141 | |||
| Black | 780.60 | - | |||
| 780-208HD | 79" (2007 mm) | Clear | 249.50 | 195187 | 7 |
| Concealed Leaf | Dark Bronze | 319.80 | 195188 | ||
|
Heavy Duty
Bi-Fold Applications |
Black | 367.70 | - | ||
| 83" (2108 mm) | Clear | 249.50 | 195189 | 7 | |
| Dark Bronze | 319.80 | - | |||
| Black | 367.70 | - | |||
| 85" (2159 mm) | Clear | 249.50 | 195190 | 7 | |
| Dark Bronze | 319.80 | - | |||
| Black | 367.70 | - | |||
| 95" (2413 mm) | Clear | 273.50 | 195191 | 7 | |
| Dark Bronze | 392.90 | - | |||
| Black | 451.80 | - | |||
| 119" (3023 mm) | Clear | 408.20 | 195193 | 5 | |
| Dark Bronze | 585.80 | 195196 | |||
| Black | 673.70 | - | |||
| 780-210 | 79" (2007 mm) | Clear | 211.60 | 010064 | 6 |
| Full Surface | Dark Bronze | 285.80 | 073030 | ||
| Black | 328.70 | - | |||
| 780-210 | 79" (2007 mm) | Clear | 211.60 | 010064 | 6 |
|---|---|---|---|---|---|
| Full Surface | Dark Bronze | 285.80 | 073030 | ||
| Black | 328.70 | - | |||
| 83" (2108 mm) | Clear | 211.60 | 048050 | 6 | |
| Dark Bronze | 285.80 | 048051 | |||
| Black | 328.70 | - | |||
| 95" (2413 mm) | Clear | 253.20 | 063037 | 6 | |
| Dark Bronze | 344.90 | 020588 | |||
| Black | 396.60 | - |
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 780-210HD | 79" (2007 mm) | Clear | 258.20 | 017046 | 6 |
| Full Surface | Dark Bronze | 313.90 | 017037 | ||
| Heavy Duty | Black | 361.00 | - | ||
| 83" (2108 mm) | Clear | 258.20 | 048061 | 6 | |
| Dark Bronze | 313.90 | 048062 | |||
| Black | 361.00 | - | |||
| 85" (2159 mm) | Clear | 258.20 | 024124 | 6 | |
| Dark Bronze | 313.90 | 071974 | |||
| Black | 361.00 | - | |||
|
Dark Bronze
Black |
571.40
657.10 |
000304
- |
|||
|---|---|---|---|---|---|
| 780-211HD | 79" (2007 mm) | Clear | 508.20 | 116360 | 4 |
| Half Surface | Dark Bronze | 667.70 | - | ||
| Heavy Duty | Black | 767.90 | - | ||
|
Frame Leaf Wrap-Around
Reinforcement for Damaged Frames |
83" (2108 mm) | Clear | 508.20 | 010867 | 4 |
| Dark Bronze | 667.70 | 120382 | |||
| Black | 767.90 | - |
95" (2413 mm) Clear 304.80 048063 6
119" (3023 mm) Clear 509.80 025722 2
85" (2159 mm) Clear 508.20 162789 4
95" (2413 mm) Clear 625.40 115949 4
Dark Bronze Black
375.00 431.20
667.70 767.90
046722 -
160923 -
Dark Bronze Black
|
Dark Bronze
Black |
821.80
945.10 |
-
- |
|||
|---|---|---|---|---|---|
| 119" (3023 mm) | Clear | 931.70 | 158595 | 2 | |
|
Dark Bronze
Black |
1,224.60
1,408.30 |
-
- |
|||
| 780-213HD | 79" (2007 mm) | Clear | 481.30 | 023958 | 4 |
|
Half Surface
Heavy Duty Center Hung Doors |
Dark Bronze
Black |
635.50
730.80 |
107818
- |
||
| 83" (2108 mm) | Clear | 481.30 | 007660 | 4 | |
|
Dark Bronze
Black |
635.50
730.80 |
195212
- |
|||
| 85" (2159 mm) | Clear | 481.30 | 044343 | 4 | |
|
Dark Bronze
Black |
635.50
730.80 |
147623
- |
|||
| 95" (2413 mm) | Clear | 590.60 | 012731 | 4 | |
|
Dark Bronze
Black |
781.60
898.80 |
038555
- |
|||
| 119" (3023 mm) | Clear | 880.10 | 010262 | 2 | |
|
Dark Bronze
Black |
1,164.90
1,339.60 |
147624
- |
Case Pack w/ Drill Quick Screws
| Must Order Case Quantity | |||||
|---|---|---|---|---|---|
| 780-224HD | 79" (2007 mm) | Clear | 173.80 | 183882 | 7 |
| Concealed Leaf | Dark Bronze | 226.00 | 183921 | ||
| 1-3/4" Doors | Black | 259.90 | - | ||
| Single Pack w/ Drill Quick Screws | 83" (2108 mm) | Clear | 173.80 | 184122 | 7 |
| Dark Bronze | 226.00 | 183973 | |||
| Black | 259.90 | 183992 |
85" (2159 mm) Clear 173.80 184012 7
95" (2413 mm) Clear 210.50 184022 7
226.00 259.90
277.20
184014 -
184023
Dark Bronze Black
Dark Bronze
Black
565.80
| Black | 318.80 | 195809 | |||
|---|---|---|---|---|---|
| 119" (3023 mm) | Clear | 344.90 | 184039 | 5 | |
| Dark Bronze | 449.00 | 194842 | |||
| Black | 516.40 | 195810 | |||
| 780-224HD | 83" (2108 mm) | Clear | 156.40 | 194828 | 7 |
| Concealed Leaf | Dark Bronze | 203.50 | 194829 | ||
| 1-3/4" Doors | Black | 234.00 | - | ||
| Case Pack w/ Drill Quick Screws | |||||
| Must Order Case Quantity | |||||
| 780-224LL | 79" (2007 mm) | Clear | 200.70 | 195181 | 7 |
| Concealed Leaf | Dark Bronze | 256.10 | 195221 | ||
| 1-3/4" Doors Lead Lined | Black | 294.60 | - | ||
|
With Half Drill Quick
and Half Wood Screws |
83" (2108 mm) | Clear | 200.70 | 195184 | 7 |
| Heavy Duty Profile Only | Dark Bronze | 256.10 | 195222 | ||
| Black | 294.60 | - | |||
| 85" (2159 mm) | Clear | 200.70 | 195223 | 7 | |
| Dark Bronze | 256.10 | - | |||
| Black | 294.60 | - | |||
| 95" (2413 mm) | Clear | 242.70 | 195224 | 7 | |
| Dark Bronze | 298.80 | 195225 | |||
| Black | 343.60 | - | |||
| 119" (3023 mm) | Clear | 381.70 | 195226 | 5 | |
| Dark Bronze | 492.00 | - |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
-
| Description | Size | Finish | Year List | Stock No. | Case Qty. |
|---|---|---|---|---|---|
| 780-226HD | 79" (2007 mm) | Clear | 207.90 | 194843 | 7 |
| Concealed Leaf | Dark Bronze | 274.20 | 194844 | ||
| Heavy Duty | Black | 315.40 | - | ||
|
For Doors 2" or Thicker
Concealed Leaf |
83" (2108 mm) | Clear | 207.90 | 183974 | 7 |
| Heavy Duty | Dark Bronze | 274.20 | 194845 | ||
| For Doors 2" or Thicker | Black | 315.40 | 195812 | ||
| 85" (2159 mm) | Clear | 207.90 | 194846 | 7 | |
| Dark Bronze | 274.20 | 194849 | |||
| Black | 315.40 | - | |||
| 95" (2413 mm) | Clear | 253.00 | 184024 | 7 | |
| Dark Bronze | 325.30 | 194850 |
Black
119" (3023 mm) Clear 410.90 193587 5
374.10
195813
|
Dark Bronze
Black |
533.70
613.70 |
194851
195815 |
|||
|---|---|---|---|---|---|
| 780-226LL | 79" (2007 mm) | Clear | 225.30 | 195229 | 7 |
| Concealed Leaf | Dark Bronze | 287.00 | - | ||
| For Lead Lined Doors 2" or Thicker | Black | 330.00 | - | ||
|
With Half Drill Quick
and Half Wood Screws |
83" (2108 mm) | Clear | 225.30 | 195235 | 7 |
| Heavy Duty Profile Only | Dark Bronze | 287.00 | - | ||
| Black | 330.00 | - | |||
| 85" (2159 mm) | Clear | 225.30 | - | 7 | |
| Dark Bronze | 287.00 | - | |||
| Black | 330.00 | - | |||
| 95" (2413 mm) | Clear | 272.30 | 195236 | 7 | |
| Dark Bronze | 327.20 | 195237 | |||
| Black | 376.30 | - | |||
| 119" (3023 mm) | Clear | 427.70 | 195238 | 5 | |
| Dark Bronze | 551.00 | 195239 | |||
| Black | 633.70 | - | |||
| 780-235HD | 83" (2108 mm) | Clear | 483.40 | 195241 | 1 |
| Concealed Leaf | Dark Bronze | 632.80 | 195242 | ||
| Heavy Duty | Black | 727.70 | - | ||
| Wide Throw | 95" (2413 mm) | Clear | 596.60 | 195243 | 1 |
| Dark Bronze | 760.10 | 195244 | |||
| Black | 874.10 | - | |||
85" (2159 mm) Clear 505.50 112767 2
95" (2413 mm) Clear 622.10 028146 2
119" (3023 mm) Clear 927.60 162543 2
85" (2159 mm) Clear 312.50 147629 5
95" (2413 mm) Clear 374.20 045733 5
694.50 798.60
854.00 982.10
1,272.90
434.50 499.60
158749 -
161153 -
- -
- -
Dark Bronze Black
Dark Bronze Black
Dark Bronze
Dark Bronze Black
| Description | Size | Finish | Year List | Stock No. | Case Qty. |
|---|---|---|---|---|---|
| 780-257HD | 79" (2007 mm) | Clear | 505.50 | - | 2 |
| Full Surface | Dark Bronze | 694.50 | - | ||
| Heavy Duty | Black | 798.60 | - | ||
|
Double hinge for hanging two doors
from a fixed mullion. |
83" (2108 mm) | Clear | 505.50 | 081899 | 2 |
| Dark Bronze | 694.50 | 159250 | |||
| Black | 798.60 | - |
| Black | 1,463.80 | - | |||
|---|---|---|---|---|---|
| 780-259HD | 79" (2007 mm) | Clear | 312.50 | 026034 | 5 |
| Half Surface | Dark Bronze | 434.50 | 103994 | ||
|
Heavy Duty
For 3/4" or 1" door |
Black | 499.60 | - | ||
| 83" (2108 mm) | Clear | 312.50 | 026035 | 5 | |
| Dark Bronze | 434.50 | 147628 | |||
| Black | 499.60 | - |
|
Dark Bronze
Black |
534.20
614.40 |
147631
- |
||
| 119" (3023 mm) | Clear | 574.40 | 147632 | 3 |
|
Dark Bronze
Black |
795.60
915.00 |
027583
- |
||
| 79" (2007 mm) | Clear | 360.80 | 010212 | 4 |
|
Dark Bronze
Black |
490.10
563.10 |
019206
- |
||
| 83" (2108 mm) | Clear | 360.80 | 047819 | 4 |
|
Dark Bronze
Black |
490.10
563.10 |
057968
- |
||
| 85" (2159 mm) | Clear | 360.80 | 061937 | 4 |
|
Dark Bronze
Black |
490.10
563.10 |
038063
- |
||
| 95" (2413 mm) | Clear | 443.80 | 047821 | 4 |
|
Dark Bronze
Black |
602.10
692.40 |
047822
- |
||
| 119" (3023 mm) | Clear | 661.00 | 015052 | 2 |
|
Dark Bronze
Black |
898.20
1,033.00 |
011244
- |
||
| Description | Size | Finish | Year List | Stock No. | Case Qty. |
|---|---|---|---|---|---|
| 1200-600XHD | 83" (2108 mm) | Clear | 1,016.40 | 000590 | 1 |
| Concealed Leaf | Dark Bronze | 1,422.50 | 028601 | ||
|
Extra Heavy Duty
For doors from 1-3/4" to 2-3/8" thick. |
95" (2413 mm) | Clear | 1,151.70 | 004040 | 1 |
| Dark Bronze | 1,557.80 | 065709 | |||
| 119" (3023 mm) | Clear | 1,287.20 | 090770 | 1 | |
| Dark Bronze | 1,693.20 | 107206 | |||
| 1200-650XHD | 83" (2108 mm) | Clear | 1,354.80 | 090353 | 1 |
| Concealed Leaf | Dark Bronze | 1,760.90 | 135473 | ||
|
Extra Heavy Duty
For doors 2-3/8" thick or thicker. |
95" (2413 mm) | Clear | 1,490.20 | 090439 | 1 |
| Dark Bronze | 1,896.20 | 108903 | |||
| 119" (3023 mm) | Clear | 1,625.60 | 090440 | 1 | |
| Dark Bronze | 2,031.70 | 044852 |
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| A | M |
|---|---|
| ANSI Standards2 | Mortar Box |
| C | N |
| Cancellation Notification2 | No Hole (Blank) Hinges |
| Concealed Electric Through-Wire4-5 | |
| Custom Hole Pattern2 | P |
| Custom Length Hinges2 | Powder Coat |
| Dutch Door Hinges | • |
| Dutch Door ninges | Quide Compact |
| F | Quick Connect |
| Electrical Modifications Standard Locations4 | Quick Ship |
| Electrical Modifications Standard Locations | R |
| , , , | Raised Barrel |
| Exposed Electric Switches | |
| Extra Long Hinges2 | Replacement Moldings |
| F | S |
| Fasteners4 | Security Fasteners |
| Fire Rating2 | Security Studs |
| Sheared Leaf | |
| Standard Lengths | |
| Hinges | _ |
| Concealed Leaf | T |
| Full Surface | Tamper Resistant Hospital Tips |
| Half Surface6 | |
| Half Mortise6 | W |
| How To Order1 | Wide Throw |
|
L
Lead Times2 |
|
| Lead Lines | |
| Leau Lilleu | |
| HOW TO ORDER: | |
| 790 | 900 83 1/8" US32D 1 PK |
| Evanuala. 700 000 92 1/9" IS22D 1 DV |
Example: 790-900 83 1/8" US32D 1 PK
Stock Number: 023043
Item Number: PS90083B32D000001
Stainless Steel Continuous Hinges
ANSI Standards
790 Series stainless steel continuous hinges are approved for ANSI A156.26 Grade 1 for 150-pound doors.
Fire Rating
Hager 790 Series hinges are approved by Underwriters Laboratories, Inc. Fire Rated label for up to 3 hours for metal doors and 90 minutes for wood composite doors.
Lead Times
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
Quick Ship
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
Cancellation Notification
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
Standard Lengths
Stainless steel hinges are listed and priced as actual lengths 83-1/8" (7'0" opening), 85" (7'2" opening), 95" (8'0" opening), and 119" (10'0" opening) for convenience in application to nominal sized doors. Other lengths may be ordered as non-standard items.
Extra Long Hinges
Hinges over 119" are manufactured as two separate lengths with staggered joints for on-site connection.
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Custom Length Hinges
Actual door height may be specified at an additional charge outlined:
- For hinges 40" to 83" in length $68.15 to 7' list price.
- For hinges 83" to 95" in length $68.15 to 8' list price.
- For hinges 95" to 119" in length $68.15 to 10' list price.
- For hinges 119" to 192" in length $156.00 to the list price
Custom Hole Pattern
• Any hole pattern or shape other than Hager's standard hole pattern. Price on Application
No Hole (Blank) Hinges
• Holes omitted for special applications (i.e. welded installation). Price on Application
Lead Lined Hole Pattern
• Only available on Models 790-900, 790-911 and 790-915. Price on Application
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE Powder Coat Price on Application • Available in aluminum, dark bronze, satin bronze, satin brass, black, or white. Tamper Resistant Hospital Tips (HT) $113.65 • Custom lengths Price on Application • Available on concealed leaf models 790-900, 790-905, 790-907, 790-915, for standard lengths. Dutch Door Prep (DUTCH) $113.65 • Furnished as a continuous frame leaf while door leaf is cut to fit dutch door specified height. Wide Throw Price on Application • Specify distance from pin centerline to heel edge of hinge. Raised Barrel (SWAGED) Price on Application • Available on concealed and half surface models. Sheared Leaf Price on Application • Available on all models except 790-904 and 790-906. • Specify distance from pin centerline to extreme edge of hinge when ordering. Security Studs $80.00 • Stainless steel security studs mounted through frame leaf into door frame. • Door and frame must be specifically prepped to accommodate security studs. • Door leaf is drilled to accommodate studs. Replacement Moldings (M) Hinge lengths: 79", 83", 85" $168.10 95" $181.70 119" $198.95
• Shipped in stock lengths for trimming in the field.
- Brush aluminum & furnished with 5 each molding clips, 5 each 1/4"-14 x 1" panhead 2C screws.
- Available on models 790-903, 790-904, 790-906 and 790-909.
Security Fasteners $79.55
• Torx and Spanner Head available in place of standard fasteners.
Stainless Steel Continuous Hinges
MODIFICATIONS & ADDITIONS
Additional Fasteners
| #10-24 x 5/8" Torx Head Machine Screw | $2.80 /ea |
|---|---|
| #10-16 x 1-1/4" Thread Forming Flat Head Screw | $1.20 /ea |
| 1/4"-14 x 1" Thread Forming Pan Head Screw | $1.75 /ea |
| #10-24 x 5/8" Self-Drilling Flat Head Screw | $1.75 /ea |
| 1/4"-20 x 3/4" Self-Drilling Pan Head Screw | $1.50 /ea |
| Adjustment Stud With Flat Head Screw | $8.40 /ea |
| Sexbolt and Nut | $5.20 /ea |
STANDARD LOCATIONS FOR ELECTRICAL MODIFICATIONS
| 79" | 83" | 85" | 95" | 119" | |
|---|---|---|---|---|---|
| Opening | 80" | 84" | 86" | 96" | 120" |
| Door Height | 79-1/8" | 83-1/8" | 85-1/8" | 95-1/8" | 119-1/8" |
| Hinge Length | 79-3/16" | 83-1/8" | 85-1/8" | 95" | 118-3/4" |
| ETW | 41-1/2" | 43-1/2" | 45-1/2" | 55-3/8" | 79-1/8" |
| EPT | 24-1/2" | 28-7/16" | 30-7/16" | 40-1/2" | 64-7/16" |
| E1S | 41-1/2" | 43-1/2" | 45-1/2" | 55-3/8" | 79-1/8" |
MODIFICATIONS & ADDITIONS ADDITION TO LIST PRICE
Quick Connect $45.60
Available for ETW.
Electric Power Transfer Preparations (EPT) $130.25
- Hinge leaf cutout to accommodate power transfer device.
- Specify handing and dimension from top of hinge to centerline of power transfer cutout location. Please note the clearance from top of hinge to underside of header, typically 1/16" to 1/8" (1.6 mm to 3.2 mm).
- Available on models 790-900, 790-903, 790-904, and 790-915.
Exposed Electric Switches (E1S) $200.55
- Each monitoring hinge only needs one E1S switch.
- Specify handing and dimension from top of hinge to centerline of electric switch.
- Miniature push button switch is incorporated in the hinge frame leaf to monitor position of the door.
Concealed Electric Through-Wire (ETW)
| Electric Through Wire | ETW - 4 | $579.55 |
|---|---|---|
| Electric Through Wire | ETW - 8 | $866.95 |
| Electric Through Wire | ETW - 10 | $1,169.05 |
- 24-gauge 12" wire leads available on 790-900 and 790-915.
- Transfers power discretely from building to door hardware.
- Specify handing and dimension from top of hinge to centerline of electric through-wire location. Please note the clearance from top of hinge to underside of header, typically 1/16" to 1/8" (1.6 mm to 3.2 mm).
Mortar Box - 430 $45.55
- Serves as mortar shield.
- Top and bottom knockouts for standard conduit fittings.
- Overall dimensions are 9" (229 mm) length with tabs 7" (178 mm). Inside is 1-3/4" x 1-3/4" (45 mm x 45 mm).
- Galvanized steel .040" (1 mm).
Stainless Steel Continuous Hinges
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
| 790-900 | 79" (2007 mm) | US32D | 435.00 | 27336 | 1 |
| Concealed Leaf, 1/8" Inset | 83" (2108 mm) | US32D | 435.00 | 23243 | 1 |
| Door of Any Material | 85" (2159 mm) | US32D | 495.00 | 27921 | 1 |
| 95" (2413 mm) | US32D | 500.00 | 23250 | 1 | |
| 119" (3023 mm) | US32D | 725.00 | 23251 | 1 |
| 790-903 | 79" (2007 mm) | US32D | 500.00 | 42721 | 1 |
| Half Surface, 1/8" Inset | 83" (2108 mm) | US32D | 500.00 | 23254 | 1 |
|
Door of Any Material
Optional sex bolts available |
85" (2159 mm) | US32D | 580.00 | 53025 | 1 |
| (specify when ordering). | 95" (2413 mm) | US32D | 580.00 | 23256 | 1 |
| 119" (3023 mm) | US32D | 740.00 | 23260 | 1 |
| 790-904 | 79" (2007 mm) | US32D | 505.00 | 71952 | 1 |
|---|---|---|---|---|---|
| Half Mortise, 1/8" Inset | 83" (2108 mm) | US32D | 505.00 | 52990 | 1 |
| Door of Any Material | 85" (2159 mm) | US32D | 605.00 | 92025 | 1 |
| 95" (2413 mm) | US32D | 605.00 | 52993 | 1 | |
| 119" (3023 mm) | US32D | 785.00 | 52994 | 1 |
| 790-905 | 79" (2007 mm) | US32D | 560.00 | 65223 | 1 |
|---|---|---|---|---|---|
| Concealed Leaf, 1/8" Inset | 83" (2108 mm) | US32D | 560.00 | 23266 | 1 |
| Door of Any Material | 85" (2159 mm) | US32D | 640.00 | 36876 | 1 |
| 95" (2413 mm) | US32D | 640.00 | 23265 | 1 | |
| 119" (3023 mm) | US32D | 955.00 | 23267 | 1 |
|
790-906
Half Mortise, Edge Guard Door of Any Material |
79" (2007 mm) | US32D | 505.00 | 92102 | 1 |
|---|---|---|---|---|---|
| 83" (2108 mm) | US32D | 505.00 | 92103 | 1 | |
| 85" (2159 mm) | US32D | 605.00 | 92105 | 1 | |
| 95" (2413 mm) | US32D | 605.00 | 92107 | 1 | |
| 119" (3023 mm) | US32D | 785.00 | 92110 | 1 |
Stainless Steel Continuous Hinges
| Description | Finish | 2018 List | Stock No. | Case Qty. | |
|---|---|---|---|---|---|
|
790-909
Full Surface, 1/8" Inset Swing Clear Door of Any Material Optional sex bolts available (specify when ordering). |
79" (2007 mm) | US32D | 605.00 | 38978 | 1 |
| 83" (2108 mm) | US32D | 605.00 | 23270 | 1 | |
| 85" (2159 mm) | US32D | 695.00 | 47643 | 1 | |
| 95" (2413 mm) | US32D | 695.00 | 23271 | 1 | |
| 119" (3023 mm) | US32D | 890.00 | 23279 | 1 |
|
790-911
Concealed Leaf Swing Clear Door of Any Material |
79" (2007 mm) | US32D | 630.00 | 9412 | 1 |
| 83" (2108 mm) | US32D | 630.00 | 23284 | 1 | |
| 85" (2159 mm) | US32D | 645.00 | 89831 | 1 | |
| 95" (2413 mm) | US32D | 645.00 | 23285 | 1 | |
| 119" (3023 mm) | US32D | 985.00 | 23286 | 1 |
|
790-915
Concealed Leaf, 1/16" Inset |
79" (2007 mm) | US32D | 525.00 | 33963 | 1 | |
| 83" (2108 mm) | US32D | 525.00 | 23287 | 1 | ||
| Door of Any Material | 85" (2159 mm) | US32D | 595.00 | 40111 | 1 | |
| 95" (2413 mm) | US32D | 595.00 | 23288 | 1 | ||
| 119" (3023 mm) | US32D | 885.00 | 23289 | 1 | ||
|
790-926
Concealed Leaf Swing Clear Door of Any Material |
79" (2007 mm) | US32D | 780.00 | 45597 | 1 |
|---|---|---|---|---|---|
| 83" (2108 mm) | US32D | 780.00 | 26760 | 1 | |
| 85" (2159 mm) | US32D | 880.00 | 50336 | 1 | |
| 95" (2413 mm) | US32D | 880.00 | 26761 | 1 | |
| 119" (3023 mm) | US32D | 1,065.00 | 26762 | 1 |
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| A | F |
|---|---|
| Additions4 | Fasteners4 |
| Architectural Finish Symbols3 | |
| Armor Plates | Filler Plates |
| Filler Plate, Door Face83 | |
| C | Filler Plate, Flush Bolt Strike84 |
| Chain Door Check78 | Filler Plate, Door Edge83-84 |
| Coat Hooks | Filler Plate, Template Hinge Shim |
| Corner Guard65 | Filler Plate, Frame Strike84 |
| Custom Pulls | Filler Plate, Latch Adapter84 |
| 18 Degree Pull116-117 | Filler Plate, Flush Bolt84 |
| 90 Degree Pull100 | Filler Plate, Frame Hinge84 |
| Acorn Tip Pull104-105 | |
| Colonial Pull101 | Flush Bolts |
| C-Shaped Pulls94-99 | Automatic Flush Bolts74-76 |
| Curved Shape Pulls | Constant Latching Flush Bolt75 |
| Offset Mount, Vertical Pull92-93, 105, 108, 109 | Dust Proof Strike73 |
| Offset Pulls101-102, 115-116 | Automatic Flush Bolt with Fire Bolt76 |
| Segment Shape Pulls109-112 | Manual Flush Bolts74 |
| Square Tip Pull103-104 | Residential Flush Bolts |
| S-Shaped Pulls100 | Slide Flush Bolt73 |
| Steeple Tip Pull104 | |
| Straight Mount, Vertical Pulls93-94, 101, 103-110, 112 | Н |
| Crating | Hand Rail Bracket78, 125 |
| D | K |
| Door Coordinators | Kick Plates6-8, 119 |
| Carry Bar76 | |
| Coordinator with Filler Bar 77 | L |
| Filler Bars77 | Latches |
| Gravity Coordinator77 | Hospital Latch, 2-3/4" Backset79 |
| Mounting Brackets77 | Hospital Latch, 5" Backset79 |
| Door Edgings | Hospital Latch, Lead Lined79 |
| Mortise Type 57-59 | Latch Conversion Kit79 |
| Overlap Type59-61 | Pocket Door Latch 82 |
| Surface Type62-64 | Privacy Pocket Door Latch82-83 |
| Door Guard72, 120 | Latch Protectors85 |
| Door Knocker Viewer | |
| Door Protection Plates6-8, 119 | |
| Door Latch (Privacy) | |
| Door Silencers | |
| Metal Door78 | |
| Wood Door79 | |
| Door Viewers |
| M | R | ||||
|---|---|---|---|---|---|
| Miscellaneous Hardware | Recommended Application | ||||
| Closet Knobs118 | Recommended Maintenance | ||||
| Closet Rod, Sockets123, 125 | Residential Trim78, 81, 117-121 | ||||
| Closet Pull Sockets117-119 | Roller Latch/Catches | ||||
| Concealed Edge Pull21 | Adjustable Ball Catch80 | ||||
| Finger Pulls117-119 | Drive-In Ball Catch122 | ||||
| Magnetic Catch122 | Roller Latch80 | ||||
| Pocket Door Edge Pulls119 | Roller Latch with Stop80 | ||||
| Shelf Brackets | Roller Latch w/ ASA Strike117 | ||||
| Mounting Options 5 | Roller Latch w/ Full Lip Strike117 | ||||
| 3 1 | Roller Latch w/ Tee Strike80 | ||||
| Р | Three-Way Ball Catch80 | ||||
| Pulls | |||||
| Anti Vandal Trim | S | ||||
| Back-to-Back Offset Pulls | Signage | ||||
| Back-to-Back Straight Pulls16-17 | ADA Tactile, Plastic | ||||
| Cast Pulls12-13, 19 | International Symbols, Plastic | ||||
| Flush Cup Pulls | Men/Women, Metal | ||||
| Half Round | Men/Women, Plastic | ||||
| Offset Pulls | Numbers, Plastic | ||||
| Oval | Push/Pull, Metal | ||||
| Rectangular9-10 | Push/Pull, Plastic | ||||
| Round | Restroom/Restrooms, Plastic | ||||
| Straight Pulls | Stops and Holders | ||||
| Wire Drawer Pulls | Roller Bumper71-72 | ||||
| Pull Plates | Door Holder, Kickdown | ||||
| Cylinder Pull | Floor Stops | ||||
| Pull Plate w/ Lip | Heavy Duty Floor Stop71 | ||||
| Square Corner | Stops With Holder | ||||
| Push Bars | Wall Stops | ||||
| Back-to-Back | Hinge Pin Door Bumper | ||||
| Bent 44-46 | Surface Bolts | ||||
| Flat | Surface Doils | ||||
| Round | |||||
| Push Plates | |||||
| Beveled - Square Corner | |||||
| Half Circle | |||||
| Plastic Laminate | |||||
| Radius Corner | |||||
| Round Bevel Top and Bottom | |||||
| Rounded Corner | |||||
| Square Corner | |||||
| • | |||||
| Flat Bar | |||||
| Security Push/Pull Plate | |||||
CRATING CHARGES
When ordered separately, orders of less than 5 armor plates (plates over 16 inches high) are subject to a $15.60 net crating charge.
ARCHITECTURAL FINISH SYMBOLS
Unless specifically noted, finishes are priced as listed by each item on the following pages.
| US & HAGER | DESCRIPTION | BASE MATERIAL | PRICING INSTRUCTIONS | BHMA SYMBOL |
|---|---|---|---|---|
| 2C | Zinc Plated Steel | Steel | As Listed | 603 |
| 3 | Bright Brass | Brass | As Listed | 605 |
| 4 | Satin Brass | Brass | As Listed | 606 |
| 5 | Satin Brass, Oxidized | Brass Brass/Bronze | 25% Above US10B | 609 |
| 9 | Bright Bronze | Brass Brass/Bronze | 25% Above US10 | 611 |
| 10 | Satin Bronze | Brass Brass/Bronze | As Listed | 612 |
| 10B | Antique Bronze, Oiled | Brass Brass/Bronze | As Listed | 613 |
| 10R | Matte Lacquer Antique Bronze | Brass Brass/Bronze | As Listed | - |
| 15 | Satin Nickel | Brass Brass/Bronze | Price Same as US26D | 619 |
| 15A | Satin Nickel Oxidized | Brass Brass/Bronze | As Listed | 620 |
| 19 | Flat Black Coated | Brass | 25% Above US10B | 622 |
| 26 | Bright Chromium Plated | Brass Brass/Bronze | As Listed | 625 |
| 26D | Satin Chromium Plated | Brass Brass/Bronze | As Listed | 626 |
| 28 | Satin Anodized Aluminum | Aluminum | As Listed | 628 |
| 32 | Stainless Steel Metal, Bright | 300 Series | As Listed | 629 |
| 32D | Stainless Steel Metal, Satin | 300 Series | As Listed | 630 |
| L2 | Dark Bronze Painted | - | 25% Above US10B | 695 |
| PC | Clear Plastic | - | As Listed | - |
| PK | Plastic Laminate - Black | - | As Listed | - |
| CO | Plastic Laminate - Chocolate | - | As Listed | - |
| PG | Plastic Laminate - Grey | - | As Listed | - |
| S1 | Sprayed Aluminum | Cast Iron | As Listed | - |
| S2 | Sprayed Brass | Cast Iron | As Listed | - |
| S3 | Sprayed Bronze | Cast Iron | As Listed | - |
NOTE: For any finish not listed in this Price Book, or explained above, price and availability on request.
RECOMMENDED SPECIAL INSTRUCTIONS:
Application: All accessory item installation should be made following the application of paint or other finishes. Under no
circumstances should accessory items be installed prior to painting. Paint or other finish material must be dry before applying accessory items to door. Hager recommends that a 72 hour drying time be allowed prior to application of
accessory items under normal atmospheric conditions.
Maintenance: For cleaning, use only a soft damp cloth. Do not use any chemicals, abrasive cleaners, waxes, or brass cleaners on
items with a lacquer coating or on plastic plates.
ADDITIONS WHERE NOT LISTED
Door Edgings
For quantities less than 20 of one type of door edging, add 30% to list price.
Pull, Push Plate, Pull Plate, or Kick Plate Options
Add to the list price of each unit: Antimicrobial Powder Coat Protection (32D only) To order use MV3 as suffix - $14.50 list price each
Flush Back Mounting on Pull Plates $10.95 list each plate.
Cutouts - Standard Locations (Not available on Kick Plates) Wrought (.050) thickness -
-Cut for 1-1/4" (CFC) Standard Cylinder, add $14.95 each.
-Cut for 2-1/8" (CFC) Cylinder or Turn Piece, add $14.95 each.
Other thickness plates -
-Cut for 1-1/4" (CFC) Standard Cylinder, add $17.85 each.
-Cut for 2-1/8" (CFC) Cylinder or Turn Piece, add $17.85 each.
Cutouts - Non-Standard Locations
Priced on application.
Engraving
For engraving standard "PUSH" or "PULL", "Men" or "Women" for stainless steel, add $44.25 each, $88.50 set. For engraving standard "PUSH" or "PULL", "Men" or "Women" for all other materials, add $30.05 each, $60.15 set.
Tactile Warning
Available on limited items. Add $41.05 to list.
Pull Plates - Non-Standard
To price pull plates not listed in price book, add list price of pull desired to the list price of the plate desired, plus $4.80 list for assembly charge (and any other options required).
Accessibility Option
For Hager Special Accessibility Clearance - (2-1/2"), prefix "H". Add $6.35 List for single pull and $12.65 List for double pull.
FASTENERS
Illustrated below are various types of fasteners that can be furnished by Hager Companies. Please specify type of fastening desired. All types of fastening cannot be used with all items of hardware. If specified method is not possible, we reserve the right to furnish whatever type we feel is best suited for the installation. When used with tempered glass doors, specify thickness of glass and hole diameter.
Sex bolt and machine screws (various sizes)
Lead anchor (used with floor stops in masonry applications)
Plastic anchor and full threaded screw (used in drywall or masonry applications)
Toggle bolt (ideal for drywall applications)
Plastic toggle anchor (used with wall stops in drywall applications)
Thru-bolt and finish washer (flat or oval head; size as required)
Lag screw and shield
Spanner head machine screws (various sizes furnished at extra charge)
Security torx head machine screws (various sizes furnished at extra charge)
Note: Torx and Spanner screws are available for select items. Please call Customer Service for availability and price.
MOUNTINGS
Illustrated below are various types of mountings that can be furnished by Hager Companies. Please specify type of mounting desired. All types of mountings cannot be used with all items of hardware. If specified method is not possible, we reserve the right to furnish whatever type we feel is best suited for the installation. When used with tempered glass doors specify thickness of glass and hole diameter.
Mounting Accessory Charges:
For Concealed Cone mountings, add $10.95 list for each required fitting (Type 3).
For Concealed Cone mountings, add $10.95 list for each required fitting (Type 5).
For Spanner Collar mountings, add $18.80 list for each required fitting (Type 7).
For Concealed Cone and Lug mountings, add $27.75 list for each required fitting.
Temper Glass Door Installation:
Spanner Cap Mountings (Type 8) for tempered glass doors, add $18.80 list for each spanner cap. Note: Mounting back-to-back or spanner cap installation requires at least two fittings. Stile Plates, add $15.70 list each.
Lead Times
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
Quick Ship
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
Cancellation Notification
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
| DOOR PLATE HUNDRED SQUARE INCH SIZE CHART | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H/W | 24" | 26" | 28" | 30" | 32" | 34" | 36" | 38" | 40" | 42" | 44" | 46" |
48"
MAX |
| 4" | 0.96 | 1.04 | 1.12 | 1.20 | 1.28 | 1.36 | 1.44 | 1.52 | 1.60 | 1.68 | 1.76 | 1.84 | 1.92 |
| 6" | 1.44 | 1.56 | 1.68 | 1.80 | 1.92 | 2.04 | 2.16 | 2.28 | 2.40 | 2.52 | 2.64 | 2.76 | 2.88 |
| 8" | 1.92 | 2.08 | 2.24 | 2.40 | 2.56 | 2.72 | 2.88 | 3.04 | 3.20 | 3.36 | 3.52 | 3.68 | 3.84 |
| 10" | 2.40 | 2.60 | 2.80 | 3.00 | 3.20 | 3.40 | 3.60 | 3.80 | 4.00 | 4.20 | 4.40 | 4.60 | 4.80 |
| 12" | 2.88 | 3.12 | 3.36 | 3.60 | 3.84 | 4.08 | 4.32 | 4.56 | 4.80 | 5.04 | 5.28 | 5.52 | 5.76 |
| 14" | 3.36 | 3.64 | 3.92 | 4.20 | 4.48 | 4.76 | 5.04 | 5.32 | 5.60 | 5.88 | 6.16 | 6.44 | 6.72 |
| 16" | 3.84 | 4.16 | 4.48 | 4.80 | 5.12 | 5.44 | 5.76 | 6.08 | 6.40 | 6.72 | 7.04 | 7.36 | 7.68 |
| 18" | 4.32 | 4.68 | 5.04 | 5.40 | 5.76 | 6.12 | 6.48 | 6.84 | 7.20 | 7.56 | 7.92 | 8.28 | 8.64 |
| 20" | 4.80 | 5.20 | 5.60 | 6.00 | 6.40 | 6.80 | 7.20 | 7.60 | 8.00 | 8.40 | 8.80 | 9.20 | 9.60 |
| 22" | 5.28 | 5.72 | 6.16 | 6.60 | 7.04 | 7.48 | 7.92 | 8.36 | 8.80 | 9.24 | 9.68 | 10.12 | 10.56 |
| 24" | 5.76 | 6.24 | 6.72 | 7.20 | 7.68 | 8.16 | 8.64 | 9.12 | 9.60 | 10.08 | 10.56 | 11.04 | 11.52 |
| 26" | 6.24 | 6.76 | 7.28 | 7.80 | 8.32 | 8.84 | 9.36 | 9.88 | 10.40 | 10.92 | 11.44 | 11.96 | 12.48 |
| 28" | 6.72 | 7.28 | 7.84 | 8.40 | 8.96 | 9.52 | 10.08 | 10.64 | 11.20 | 11.76 | 12.32 | 12.88 | 13.44 |
| 30" | 7.20 | 7.80 | 8.40 | 9.00 | 9.60 | 10.20 | 10.80 | 11.40 | 12.00 | 12.60 | 13.20 | 13.80 | 14.40 |
| 32" | 7.68 | 8.32 | 8.96 | 9.60 | 10.24 | 10.88 | 11.52 | 12.16 | 12.80 | 13.44 | 14.08 | 14.72 | 15.36 |
| 34" | 8.16 | 8.84 | 9.52 | 10.20 | 10.88 | 11.56 | 12.24 | 12.92 | 13.60 | 14.28 | 14.96 | 15.64 | 16.32 |
| 36" | 8.64 | 9.36 | 10.08 | 10.80 | 11.52 | 12.24 | 12.96 | 13.68 | 14.40 | 15.12 | 15.84 | 16.56 | 17.28 |
| 38" | 9.12 | 9.88 | 10.64 | 11.40 | 12.16 | 12.92 | 13.68 | 14.44 | 15.20 | 15.96 | 16.72 | 17.48 | 18.24 |
| 40' | 9.60 | 10.40 | 11.20 | 12.00 | 12.80 | 13.60 | 14.40 | 15.20 | 16.00 | 16.80 | 17.60 | 18.40 | 19.20 |
| 42" | 10.08 | 10.92 | 11.76 | 12.60 | 13.44 | 14.28 | 15.12 | 15.96 | 16.80 | 17.64 | 18.18 | 19.32 | 20.16 |
| 44" | 10.56 | 11.44 | 12.32 | 13.20 | 14.08 | 14.96 | 15.84 | 16.72 | 17.60 | 18.48 | 19.36 | 20.24 | 21.12 |
| 46" | 11.04 | 11.96 | 12.88 | 13.80 | 14.72 | 15.64 | 16.56 | 17.48 | 18.40 | 19.32 | 20.24 | 21.16 | 22.08 |
|
48"
MAX |
11.52 | 12.48 | 13.44 | 14.40 | 15.36 | 16.32 | 17.28 | 18.24 | 19.20 | 20.16 | 21.12 | 22.08 | 23.04 |
To figure the list price of a door protection plate, find the hundred square inch size on the chart above. For odd or fractional sizes use the next higher price (i.e. - price as sq. inches). Multiply the square inch size by the list price (for example, 2.56 sq. inches list).
- #6 x 5/8" Phillips Oval Head undercut, Stainless Steel Sheet Metal Screws for counter sunk plates and Truss Head Stainless Steel Screws for non-counter sunk plates, to match plated finish.
- When ordered separately, orders of less than 5 armor plates are subject to a $15.60 net crating charge (plates over 16 inches high).
- Kickplates specified with adhesive tape will be supplied without holes.
- Armor plates available with UL listing. See page 7.
- Cutouts for kick and armor plates priced on application.
Mop Plate Up to 8"h x 48"w
Kick Plate 6"-12"h x 48"w
Stretcher Plate 6"-12"h x 48"w
Armor Plate Up to 48"h x 48"w
NFPA 80 STANDARD 6.4.5.3
- Factory installed protection plates shall be installed in accordance with the listing of the door.
- Field installed protection plate shall be labeled and installed in accordance with their listing.
Exception : Labeling is not required where the top of the protection plate is not more than 16" (406 mm) above the bottom of the door.
| Description | Height | US28 |
US3, US4,
US10 |
US10B,
US19, US9 |
US32 | US32D |
|---|---|---|---|---|---|---|
| 190S | Under 8" high | 11.25 | 31.80 | 37.10 | 22.15 | 9.95 |
| Four beveled edges | 8" to 24" high | 9.50 | 31.10 | 36.45 | 21.55 | 8.90 |
| .050 Gauge | Over 24" to 36" high | 10.10 | 39.75 | 45.20 | 21.80 | 9.15 |
| Metal Door Protection Plate | Over 36" to 48" high | 10.10 | 47.95 | 54.80 | 21.80 | 9.15 |
|
Note: UL Listed for US32 and
US32D only |
8" x 34" (List Pricing) | - | - | - | - | 24.21 |
| 10" x 34" (List Pricing) | - | - | - | - | 30.26 | |
| 198S | Under 8" high | - | - | - | - | 15.70 |
|
.038 Gauge
Metal Door Protection Plate |
8" to 24" high | - | - | - | - | 14.40 |
| Over 24" to 36" high | - | - | - | - | 14.40 | |
| Over 36" to 48" high | - | - | - | - | 14.40 |
Note: UL labeling not required when top of plate is less than 16" above the bottom of the door, per NFPA 80 - 2007.
| Description | Height | BGA |
|---|---|---|
| 199B | Under 8" high | 11.05 |
| Bright Gold Anodized | 8" to 24" high | 9.30 |
| 100 square inches | Over 24" to 36" high | 9.35 |
|
.038 Gauge
Metal Door Protection Plate |
Over 36" to 48" high | 10.20 |
| Description | Height |
Clear
Plastic |
Black | Brown | Grey | |
|---|---|---|---|---|---|---|
|
204S
Clear Plastic .125 Gauge |
Up to 48" high | 9.10 | - | - | - | |
|
214S
Plastic Laminate |
Up to 48" high | - | 11.00 | 15.05 | 15.05 |
| Plastic Laminate | |
|---|---|
| .125 Gauge |
| US3, US4, | US10B, | |||||
|---|---|---|---|---|---|---|
| Description | Height | US28 | US10 | US19, US9 | US32 | US32D |
| 220S | Under 8" high | 14.00 | 32.75 | 44.85 | - | 22.85 |
| Four beveled edges | 8" to 24" high | 14.00 | 32.75 | 44.85 | - | 22.85 |
| .062 Gauge | Over 24" to 36" high | 15.00 | 35.40 | 48.95 | - | 22.85 |
| Metal Door Protection Plate | Over 36" to 48" high | 16.40 | 38.10 | 51.60 | - | 22.85 |
Note: Diamond plate is available in US26. Please contact Hager for pricing.
| Description | Height |
Black
(Calcutta) |
Brown
(Chocolate) |
Tan
(Beige) |
|---|---|---|---|---|
| 225S | Under 8" high | 12.50 | 12.50 | 12.50 |
| .060 Gauge | 8" to 24" high | 10.65 | 10.65 | 10.65 |
| Kydex Door Protection Plate | Over 24" to 36" high | 11.30 | 11.30 | 11.30 |
| Over 36" to 48" high | 11.30 | 11.30 | 11.30 |
Note: UL labeling not required when top of plate is less than 16" above the bottom of the door, per NFPA 80 - 2007.
| Option | Description | Price |
|---|---|---|
| CSK | Countersunk Holes | 0.50 per 100 square inch price |
| SA | Self Adhesive Tape | 0.50 per 100 square inch price |
| Spanner Head Screws | 0.50 each | |
| Torx Head Screws | 0.50 each | |
| .125 Material | Price on Application | |
| Wrap Around Side & Bottom Return | Price on Application | |
| UL Label Stamp (No tape -voids UL Listing) | 12.80 |
8
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 1E | |||||
| Pull- Half Round | US3 | 49.65 | 052830 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 53.45 | 063599 | ||
| Base: 1/2" x 1" | US10 | 53.45 | 052831 | ||
| Projection: 2" | US10B | 53.45 | 052832 | ||
| Clearance: 1-1/2" | US26 | 53.45 | 022786 | ||
| CTC: 6" | US26D | 53.45 | 052834 | ||
| Door Thickness: 1-3/4" standard | US28 | 28.50 | 052835 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 51.95 | 074723 | ||
| Not suitable for BTB Mounting. | US32D | 50.55 | 052836 | ||
| 1G | |||||
| Pull- Half Round | US3 | 58.95 | 081562 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 63.50 | 028588 | ||
| Base: 1/2" x 1" | US10 | 63.50 | 060015 | ||
| Projection: 2" | US10B | 63.50 | 078323 | ||
| Clearance: 1-1/2" | US26 | 63.50 | 030588 | ||
| CTC: 8" | US26D | 63.50 | 066243 | ||
| Door Thickness: 1-3/4" standard | US28 | 30.05 | 056587 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHS with washers | US32 | 63.50 | 032021 | ||
| Not suitable for BTB Mounting. | US32D | 63.30 | 058307 | ||
| 1J | |||||
| Pull- Half Round | US3 | 69.10 | 073346 | 1 | 12 |
| Material: Brass, bronze, aluminum, | US4 | 75.25 | 026724 | ||
| stainless steel | US10 | 75.25 | 067206 | ||
| Base: 1/2" x 1" | US10B | 75.25 | 062739 | ||
| Projection: 2" | US26 | 75.25 | 013936 | ||
| Clearance: 1-1/2" | US26D | 75.25 | 062738 | ||
| CTC: 10" | US28 | 33.90 | 010948 | ||
| Door Thickness: 1-3/4" standard | US32 | 73.20 | 092494 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32D | 70.10 | 072255 | ||
| Not suitable for BTB Mounting. | |||||
| 1L | |||||
| Pull- Half Round | US3 | 79.20 | 022469 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 87.20 | 059759 | ||
| Base: 1/2" x 1" | US10 | 87.20 | 019781 | ||
| Projection: 2" | US10B | 87.20 | 048642 | ||
| Clearance: 1-1/2" | US26 | 87.20 | - | ||
| CTC: 12" | US26D | 87.20 | 085377 | ||
| Door Thickness: 1-3/4" standard | |||||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US28 | 41.90 | 067536 | ||
| Not suitable for BTB Mounting. | US32 | 85.40 | 060054 | ||
| US32D | 81.15 | 060014 | |||
| 2E | |||||
| Pull - Rectangular | US3 | 45.85 | 052812 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 47.35 | 002326 | ||
| Base: 3/8" x 1-1/4" | US10 | 47.35 | 091536 | ||
| Projection: 2" | US10B | 47.35 | 015641 | ||
| Clearance: 1-5/8" | US26 | 47.35 | 052815 | ||
| CTC: 6" | |||||
| Door Thickness: 1-3/4" standard | US26D | 47.35 | 052816 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US28 | 24.15 | 052817 | ||
| Not suitable for BTB Mounting. | US32 | 51.70 | - | ||
| US32D | 46.40 | 052818 |
4/1/2018 www.hagerco.com
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 2G | |||||
| Pull - Rectangular | US3 | 55.05 | 052819 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 58.40 | - | ||
| Base: 3/8" x 1-1/4" | US10 | 58.40 | 052820 | ||
| Projection: 2" | US10B | 58.40 | 052821 | ||
| Clearance: 1-5/8" | US26 | 58.40 | 120486 | ||
| CTC: 8" | US26D | 58.40 | 008573 | ||
| Door Thickness: 1-3/4" standard | US28 | 25.95 | 082824 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 60.00 | - | ||
| Not suitable for BTB Mounting. | US32D | 56.65 | 052825 | ||
| 2J | |||||
| Pull - Rectangular | US3 | 65.05 | 099284 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 70.55 | 111300 | ||
| Base: 3/8" x 1-1/4" | US10 | 70.55 | 137339 | ||
| Projection: 2" | US10B | 72.05 | 083743 | ||
| Clearance: 1-5/8" | US26 | 72.05 | - | ||
| CTC: 10" | US26D | 72.05 | 067318 | ||
| Door Thickness: 1-3/4" standard | US28 | 29.10 | 072355 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 40.20 | - | ||
| Not suitable for BTB Mounting. | US32D | 69.30 | 063689 | ||
| 2L | |||||
| Pull - Rectangular | US3 | 68.30 | 137565 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 72.90 | 078244 | ||
| Base: 3/8" x 1-1/4" | US10 | 76.00 | 036307 | ||
| Projection: 2" | US10B | 76.00 | 001482 | ||
| Clearance: 1-5/8" | US26 | 76.00 | - | ||
| CTC: 12" | US26D | 76.00 | 101506 | ||
| Door Thickness: 1-3/4" standard | US28 | 37.80 | 016671 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 76.85 | 036632 | ||
| Note suitable for BTB Mounting. | US32D | 73.85 | 068545 | ||
| 3E | |||||
| Pull - Round | US3 | 52.00 | 052507 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 52.00 | 082808 | ||
| Base: 3/4" diameter | US10 | 55.00 | 052508 | ||
| Projection: 2-1/4" | US10B | 55.00 | 052510 | ||
| Clearance: 1-1/2" | US26 | 55.00 | 052826 | ||
| CTC: 6" | US26D | 55.00 | 052705 | ||
| Door Thickness: 1-3/4" standard | US28 | 22.00 | 052511 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 54.00 | 003987 | ||
| US32D | 28.25 | 052512 | |||
| 3G | |||||
| Pull - Round | US3 | 53.40 | 052706 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 53.40 | 054828 | ||
| Base: 3/4" diameter | US10 | 56.50 | 052707 | ||
| Projection: 2-1/4" | US10B | 56.50 | 052513 | ||
| Clearance: 1-1/2" | US26 | 56.50 | 052827 | ||
| CTC: 8" | US26D | 56.50 | 052708 | ||
| Door Thickness: 1-3/4" standard | US28 | 28.50 | 052709 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 54.00 | 003987 | ||
| US32D | 30.00 | 052514 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 3J | |||||
| Pull - Round | US3 | 54.75 | 058846 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 54.75 | 017703 | ||
|
Base: 3/4" diameter
Projection: 2-1/4" |
US10 | 63.95 | 059315 | ||
| Clearance: 1-1/2" | US10B | 63.95 | 058929 | ||
| CTC: 10" | US26 | 63.95 | 067231 | ||
| Door Thickness: 1-3/4" standard | US26D | 63.95 | 060904 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US28 | 37.00 | 064414 | ||
| US32 | 55.75 | 009135 | |||
| US32D | 34.40 | 053788 | |||
| 3L | |||||
| Pull - Round | US3 | 65.95 | 062658 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 72.35 | 044307 | ||
| Base: 3/4" diameter | US10 | 77.85 | 084100 | ||
| Projection: 2-1/4" | US10B | 77.85 | 067606 | ||
| Clearance: 1-1/2" | US26 | 77.85 | 088253 | ||
| CTC: 12" | US26D | 77.85 | 070804 | ||
| Door Thickness: 1-3/4" standard | US28 | 40.10 | 068010 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 83.25 | 071641 | ||
| US32D | 59.20 | 056122 | |||
| P4E | |||||
| Security Pull - Round | US32D | 68.95 | 085014 | 1 | 12 |
| Material: Stainless steel | |||||
| Base: 1" diameter | |||||
| Projection: 2-1/4" | |||||
| Clearance: 1-1/4" | |||||
| CTC: 6" | |||||
| Fasteners: 3/8" - 16 x 1-1/4" | |||||
| Nyloc hex head cap screws | |||||
| Concealed mounting in door, use on hollow metal doors only. | |||||
| T4E | |||||
| Security Pull - Round | US32D | 72.00 | 085015 | 1 | 12 |
| Material: Stainless steel | |||||
| Base: 1" diameter | |||||
| Projection: 2-1/4" | |||||
| Clearance: 1-1/4" | |||||
| CTC: 6" | |||||
| Door Thickness: 1-3/4" standard | |||||
| Fasteners: 1/4" - 20 x 2-1/4" FTXMS with washers | |||||
| Security Torx, Thru Bolt Mounting | |||||
| 4G | |||||
| Pull - Round | US3 | 75.15 | 052710 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 81.15 | 071068 | ||
| Base: 1" diameter | US10 | 91.40 | 052711 | ||
| Projection: 2-3/4" | US10B | 94.10 | 052712 | ||
| Clearance: 1-3/4" | US26 | 83.70 | 052828 | ||
| CTC: 8" | US26D | 83.70 | 052713 | ||
| Door Thickness: 1-3/4" standard | US28 | 37.75 | 051945 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | |||||
| US32 | 72.50 | 056698 | |||
| US32D | 53.15 | 051946 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 4H | |||||
| Pull - Round | US3 | 74.20 | 116804 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 74.20 | - | ||
| Base: 1" diameter | US10 | 81.65 | - | ||
| Projection: 2-3/4" | US10B | 81.65 | 068290 | ||
| Clearance: 1-3/4" | US26 | 81.65 | 139764 | ||
| CTC: 9" | US26D | 81.65 | 016412 | ||
| Door Thickness: 1-3/4" standard | US28 | 42.85 | 099188 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 93.80 | 075526 | ||
| US32D | 68.90 | 037214 | |||
| 4J | |||||
| Pull - Round | US3 | 90.15 | 052714 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 90.15 | 054807 | ||
| Base: 1" diameter | US10 | 91.40 | 052715 | ||
| Projection: 2-3/4" | US10B | 94.10 | 052716 | ||
| Clearance: 1-3/4" | US26 | 92.10 | 052829 | ||
| CTC: 10" | US26D | 92.10 | 052515 | ||
| Door Thickness: 1-3/4" standard | US28 | 34.00 | 052717 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32 | 74.85 | 060648 | ||
| US32D | 59.10 | 052516 | |||
| 4L | |||||
| Pull - Round | US3 | 84.40 | 056307 | 1 | 12 |
|
Material: Brass, bronze, aluminum, stainless steel
Base: 1" diameter |
US4 | 84.40 | 062858 | ||
| Projection: 2-3/4" | US10 | 99.40 | 068316 | ||
| Clearance: 1-3/4" | US10B | 99.40 | 062875 | ||
| CTC: 12" | US26 | 99.40 | 054951 | ||
| Door Thickness: 1-3/4" standard | US26D | 99.40 | 072906 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US28 | 50.25 | 059808 | ||
| US32 | 109.45 | 069478 | |||
| US32D | 84.30 | 054672 | |||
| 5D | |||||
| Pull - Round | US3 | 33.45 | 048492 | 1 | 12 |
| Material: Brass, bronze, aluminum, | US4 | 33.45 | 048493 | ||
| stainless steel | US10 | 36.15 | 048489 | ||
| Base: 5/8" diameter | US10B | 36.15 | 048495 | ||
| Projection: 2-1/8" | US26 | 36.15 | 007765 | ||
| Clearance: 1-1/2" | US26D | 36.15 | 048496 | ||
| CTC: 5-1/2" | US28 | 22.80 | 048491 | ||
|
Door Thickness: 1-3/4" standard
Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers |
US32 | 42.30 | - | ||
| Not suitable for BTB Mounting. | US32D | 31.45 | 048497 | ||
| 5N | |||||
| Cast Pull | US3 | 50.25 | 052289 | 1 | 12 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 54.00 | 052290 | ||
|
Base: 5/8" x 1-3/16"
Projection: 2" |
US10 | 57.70 | 052291 | ||
| Clearance: 1-1/2" | US10B | 57.70 | 052292 | ||
| Length: 6-1/8" | US26 | 57.70 | 052808 | ||
| CTC: 5-1/2" | US26D | 57.70 | 052701 | ||
| Door Thickness: 1-3/4" standard | US28 | 35.30 | 138885 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32D | 63.30 | 052294 | ||
| Not suitable for BTB Mounting. | |||||
4/1/2018 www.hagerco.com
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 9G | |||||
| Pull - Oval | US3 | 44.00 | 073348 | 1 | 12 |
| Material: Brass, bronze, stainless steel | US4 | 44.00 | 129264 | ||
| Base: 1/2" x 3/4" | US10 | 48.80 | 071399 | ||
| Projection: 2" | US10B | 48.80 | 076145 | ||
| Clearance: 1-1/2" | US26 | 48.80 | - | ||
| CTC: 8" | US26D | 48.80 | 073350 | ||
| Door Thickness: 1-3/4" standard | US32 | 32.85 | 089854 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32D | 39.25 | 073862 | ||
| Not suitable for BTB Mounting. | |||||
| 9J | |||||
| Pull - Oval | US3 | 48.85 | 032128 | 1 | 12 |
| Material: Brass, bronze, stainless steel | US4 | 48.85 | 021300 | ||
| Base: 1/2" x 3/4" | US10 | 53.45 | 026721 | ||
| Projection: 2" | US10B | 53.45 | 020045 | ||
| Clearance: 1-1/2" | US26 | 53.45 | - | ||
| CTC: 10" | US26D | 53.45 | 068291 | ||
| Door Thickness: 1-3/4" standard | US32 | 54.50 | 112592 | ||
| Fasteners: 1/4"-20 x 2-1/4" FPHMS with washers | US32D | 47.65 | 089049 | ||
| Not suitable for BTB Mounting. | |||||
| 9L | |||||
| Pull - Oval | US3 | 53.45 | 001447 | 1 | 12 |
| Material: Brass, bronze, stainless steel | US4 | 53.45 | 090944 | ||
| Base: 1/2" x 3/4" | US10 | 58.20 | 018507 | ||
| Projection: 2" | US10B | 58.20 | 095056 | ||
| Clearance: 1-1/2" | US26 | 58.20 | - | ||
| CTC: 12" | US26D | 58.20 | 017368 | ||
| Door Thickness: 1-3/4" standard | US32 | 60.70 | 064516 | ||
|
Fasteners:1/4" x 2-1/4" FPHMS with washers
Not suitable for BTB Mounting. |
US32D | 51.95 | 075733 | ||
| 10L | |||||
| Pull - Round | US3 | 266.00 | 079250 | 1 | 8 |
| Material: Brass, bronze, stainless steel | US4 | 266.00 | 094670 | ||
| Base: 1-1/4" diameter | US10 | 295.30 | 002193 | ||
|
Projection: 3"
Clearance: 1-3/4" |
US10B | 295.30 | 084947 | ||
| CTC: 12" | US26 | 295.30 | 030731 | ||
| Door Thickness: 1-3/4" standard | US26D | 295.30 | 023472 | ||
| Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers | US32 | 263.90 | 097312 | ||
| US32D | 224.05 | 067649 | |||
| 10Q | |||||
| Pull - Round | US3 | 291.85 | 090612 | 2 | 8 |
| Material: Brass, bronze, stainless steel | US4 | 291.85 | 010843 | ||
| Base: 1-1/4" diameter | US10 | 312.35 | 034458 | ||
| Projection: 3" | US10B | 312.35 | 087786 | ||
| Clearance: 1-3/4" | US26 | 312.35 | - | ||
| CTC: 18" | US26D | 312.35 | 039520 | ||
| Door Thickness: 1-3/4" standard | US32 | 273.70 | 027254 | ||
| Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers | US32D | 253.90 | 072664 | ||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 11E | |||||
| 90° Offset Pull - Round | US3 | 80.65 | 059597 | - | 2 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 80.65 | 018312 | ||
| Base: 3/4" diameter | US10 | 84.30 | 060336 | ||
| Projection: 2-1/2" | US10B | 84.30 | 060315 | ||
| Clearance: 1-3/4" | US26 | 84.30 | 040696 | ||
| CTC: 6" | US26D | 84.30 | 075266 | ||
| Offset: 2-1/2" | US28 | 52.90 | 043401 | ||
|
Door Thickness: 1-3/4" standard
Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers |
US32 | 86.15 | - | ||
| Available with 45° offset | US32D | 67.25 | 057380 | ||
| 11G | |||||
| 90° Offset Pull - Round | US3 | 84.95 | 063681 | - | 2 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 84.95 | 047133 | ||
| Base: 3/4" diameter | US10 | 90.00 | 097774 | ||
| Projection: 2-1/2" | US10B | 90.00 | 068662 | ||
| Clearance: 1-3/4" | US26 | 90.00 | 013867 | ||
| CTC: 8" | US26D | 90.00 | 093586 | ||
| Offset: 2-1/2" | US28 | 59.90 | 067803 | ||
| Door Thickness: 1-3/4" standard | US32 | 91.40 | 109006 | ||
| Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers | US32D | 73.85 | 066983 | ||
| Available with 45° offset | |||||
| 11J | |||||
| 90° Offset Pull - Round | US3 | 89.90 | 073589 | - | 2 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 89.90 | 087629 | ||
| Base: 3/4" diameter | US10 | 97.60 | 074842 | ||
| Projection: 2-1/2" | US10B | 97.60 | 056958 | ||
|
Clearance: 1-3/4"
CTC: 10" |
US26 | 97.60 | 064743 | ||
| Offset: 2-1/2" | US26D | 97.60 | 091336 | ||
| Door Thickness: 1-3/4" standard | US28 | 63.30 | 075928 | ||
| Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers | US32 | 94.95 | 091535 | ||
| Available with 45° offset | US32D | 77.30 | 066497 | ||
| 11L | |||||
| 90° Offset Pull - Round | US3 | 97.60 | 096446 | - | 2 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 97.60 | - | ||
| Base: 3/4" diameter | US10 | 109.40 | 023215 | ||
| Projection: 2-1/2" | US10B | 109.40 | 070692 | ||
| Clearance: 1-3/4" | US26 | 109.40 | 062866 | ||
| CTC: 12" | US26D | 109.40 | 086064 | ||
| Offset: 2-1/2" | US28 | 67.90 | 073571 | ||
| Door Thickness: 1-3/4" standard | US32 | 101.95 | 078494 | ||
|
Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers
Available with 45° offset |
US32D | 82.55 | 065800 | ||
| 12G | |||||
|
90° Offset Pull - Round
Material: Brass, bronze, aluminum, stainless steel |
US3 | 164.00 | 060314 | - | 2 |
| Base: 1" diameter |
US4
US10 |
164.00
140.00 |
081233
043913 |
||
| Projection: 2-3/4" | |||||
| Clearance: 1-3/4" |
US10B
US26 |
158.00
166.00 |
076432
078220 |
||
| CTC: 8" | US26D | 166.00 | 062954 | ||
| Offset: 3" | US28 | 75.00 | 070404 | ||
| Door Thickness: 1-3/4" standard | US32 | 180.00 | 099416 | ||
| Fasteners: 5/16" - 18 x 2-1/4" FPHMS with washers | US32D | 100.00 | 060905 | ||
| Available with 45° offset | |||||
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 13L | |||||
| Push/Pull Set - Round | US3 | 174.90 | 095055 | 1 | 12 |
| Type 7 mounting | US4 | 174.90 | 110600 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 198.55 | 060284 | ||
| Base: 3/4" diameter | US10B | 198.55 | 039979 | ||
| Projection: 2-1/4" | US26 | 198.55 | 070322 | ||
| Clearance: 1-1/2" | US26D | 198.55 | 070163 | ||
| Door Thickness: 1-3/4" - 2-1/8" | US28 | 121.65 | 037236 | ||
|
CTC: 12"
BTB Mounting type 7 concealed spanner (Required 3/8" |
US32 | 193.10 | 034594 | ||
| min. holes in door) | US32D | 159.95 | 084896 | ||
| 14G | |||||
| Push/Pull Set - Round | US3 | 183.85 | 056325 | 1 | 12 |
| Type 7 mounting | US4 | 183.85 | 123899 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 197.70 | 027836 | ||
| Base: 1" diameter | US10B | 197.70 | 019363 | ||
| Projection: 2-3/4" | US26 | 197.70 | 029353 | ||
| Clearance: 1-3/4" | US26D | 197.70 | 077790 | ||
| Door Thickness: 1-3/4" - 2-1/8" | US28 | 126.20 | 091532 | ||
| CTC: 8" | US32 | 213.70 | 088849 | ||
| BTB Mounting type 7 concealed spanner (Required 3/8" | US32D | 172.00 | 070068 | ||
| min. holes in door) | |||||
| 14H | |||||
| Push/Pull Set - Round | US3 | 202.45 | 125548 | 1 | 12 |
| Type 7 mounting | US4 | 212.75 | 143956 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 214.75 | - | ||
| Base: 1" diameter | US10B | 214.75 | 018727 | ||
| Projection: 2-3/4" | US26 | 214.75 | - | ||
| Clearance: 1-3/4" | US26D | 214.75 | 034117 | ||
| Door Thickness: 1-3/4" - 2-1/8" | US28 | 126.45 | 147101 | ||
| CTC: 9" | US32 | 237.80 | - | ||
| BTB Mounting type 7 concealed spanner (Required 3/8" | US32D | 184.50 | 024734 | ||
| min. holes in door) | |||||
| 14J | |||||
| Push/Pull Set - Round | US3 | 204.10 | 056432 | 1 | 8 |
| Type 7 mounting | US4 | 204.10 | 028831 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 216.40 | 066033 | ||
| Base: 1" diameter | US10B | 216.40 | 060441 | ||
| Projection: 2-3/4" | US26 | 216.40 | 059309 | ||
| Clearance: 1-3/4" | US26D | 216.40 | 061594 | ||
| Door Thickness: 1-3/4" - 2-1/8" | US28 | 127.90 | 014601 | ||
| CTC: 10" | US32 | 239.40 | 084135 | ||
|
BTB Mounting type 7 concealed spanner (Required 3/8"
min. holes in door) |
US32D | 186.00 | 067342 | ||
| 14L | |||||
| Push/Pull Set - Round | US3 | 212.00 | 086803 | 1 | 8 |
|
Type 7 mounting
Material: Brass, bronze, aluminum, stainless steel |
US4 | 212.00 | - | ||
| Base: 1" diameter | US10 | 241.90 | 071917 | ||
| Projection: 2-3/4" | US10B | 241.90 | 071108 | ||
| US26 | 241.90 | 010126 | |||
|
Clearance: 1-3/4"
Door Thickness: 1-3/4" - 2-1/8" |
US26D | 241.90 | 023138 | ||
| CTC: 12" | US28 | 141.75 | 100725 | ||
| BTB Mounting type 7 concealed spanner (Required 3/8" | US32 | 259.60 | 063460 | ||
| min. holes in door) | US32D | 210.55 | 057010 | ||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 15C | |||||
|
Heavy Duty Flush Cup Pull
Material: Stainless steel Face: 3-1/2" x 5" |
US32D | 64.65 | 026410 | 1 | 10 |
|
Opening: 1-3/4" x 3-1/16"
Projection: 1/8" Cup Depth: 3/4" (Cup welded to face plate) Fasteners: #6 x5/8" OPHWS |
|||||
| 15N | |||||
| Flush Cup Pull | US3 | 58.00 | 053114 | 2 | 20 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 67.60 | 053115 | ||
| Face: 3-1/2" x 5" | US10 | 66.70 | 053116 | ||
| Opening: 1-3/4" x 3-1/16" | US10B | 66.70 | 053117 | ||
| Projection: 1/8" | US26 | 66.70 | 053118 | ||
| Cup Depth: 3/4" | US26D | 62.50 | 053119 | ||
| Fasteners: #6 x5/8" OPHWS | US28 | 25.15 | 053120 | ||
| US32D | 32.50 | 053121 | |||
| 15P | |||||
| Heavy Duty Security Flush Cup Pull | US32D | 68.45 | 085266 | 2 | 20 |
| Material: Stainless steel | |||||
| Face: 3-1/2" x 5" | |||||
| Opening: 1-3/4" x 3-1/16" | |||||
| Projection: 3/16" | |||||
| Cup Depth: 3/4" (Cup welded to face plate) | |||||
| Welded studs for security (2) 6 -32 x 1-1/2" FPHMS | |||||
|
(security torx)
15S |
|||||
| Light Duty Flush Cup Pull | US3 | 52.05 | 014360 | 2 | 20 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 58.95 | 039342 | ||
| Face: 3-1/2" x 5" | US10 | 66.70 | 025946 | ||
| Opening: 1-3/4" x 3-1/16" | US10B | 66.70 | 042147 | ||
| Projection: 1/8" | US26 | 66.70 | 089124 | ||
| Cup Depth: 3/4" | US26D | 66.70 | 020841 | ||
| Fasteners: #6 x 5/8" PPHWS | US28 | 42.30 | 091301 | ||
| Fasteners inside recessed cup | US32D | 43.90 | 017661 | ||
| 16N | |||||
| Light Duty Flush Cup Pull | US3 | 24.40 | 073983 | 2 | 20 |
| Material: Brass, bronze | US4 | 31.50 | 010007 | ||
| Face: 1-15/16" x 3" | US10 | 25.30 | 074227 | ||
| Opening: 27/32" x 2-3/8" | US10B | 25.30 | 068253 | ||
| Projection: 1/16" | US26 | 31.50 | 068254 | ||
| Cup Depth: 5/8" | US26D | 25.30 | 067702 | ||
| Fasteners: #8 x 3/4" OPHWS | |||||
| Fasteners inside recessed cup |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 16R | |||||
| Finger Pull Plate | US3 | 74.70 | 018081 | 2 | |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 81.85 | 141082 | ||
| Size: 4" x 16" | US10 | 81.85 | - | ||
| Opening: 1-3/4" x 3-1/16" | US10B | 81.85 | 060151 | ||
| Cup Depth: 13/16" | US26 | 81.85 | 085308 | ||
| Fasteners: #6 x 5/8" OPHWS | |||||
| US26D | 81.85 | 009524 | |||
| US28 | 57.30 | 092065 | |||
| US32 | 92.25 | - | |||
| US32D | 63.75 | 057855 | |||
| 17N | |||||
| Light Duty Flush Cup Pull | US3 | 21.45 | 068535 | 2 | |
| Material: Brass, bronze | US4 | 27.65 | 077871 | ||
| Face: 2-1/2" x 3-31/32" | US10 | 22.80 | 068096 | ||
| Opening: 1-11/32" x 3-13/32" | US10B | 22.80 | 068255 | ||
| Projection: 3/32" | US26 | 27.65 | 068256 | ||
| Cup Depth: 5/8" | US26D | 22.00 | 067507 | ||
| Fasteners: #8 x 13/16" OPHWS | |||||
| Fasteners inside recessed cup | |||||
| 19N | |||||
| Cast Pull | US3 | 67.80 | 068194 | 1 | |
| Material: Brass, bronze | US10 | 70.55 | 072477 | ||
| Base Diameter: 1-1/2" | US10B | 72.75 | 076217 | ||
| Projection: 3-1/8" | US26 | 72.75 | 063714 | ||
| Clearance: 1-11/16" | US26D | 72.75 | 064247 | ||
| CTC: 6-3/16" | |||||
| Length O/A: 9" | |||||
| Fasteners: #8 x 1" OPHWS | |||||
| Suitable for BTB Mounting with sex nuts by special quotation | |||||
| 20N | |||||
| Cast Pull | US3 | 67.80 | 058572 | 1 | |
| Material: Brass, bronze | US10 | 72.75 | 058573 | ||
| Base Diameter: 1-1/2" | US10B | 72.75 | 095243 | ||
| Projection: 3-1/8" | US26 | 72.75 | 017678 | ||
| Clearance: 1-11/16" | US26D | 72.75 | 058574 | ||
| CTC: 5-7/32" | |||||
| Length O/A: 9" | |||||
| Fasteners: 1/4" - 20 thru bolts with washers | |||||
| Door Thickness: 1-3/4" standard | |||||
| Not suitable for BTB Mounting | |||||
| 20L | |||||
| Push/Pull Set - Round | US3 | 577.25 | 140460 | 1 | |
| Type 7 mounting | US4 | 610.10 | 090986 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 610.10 | 146334 | ||
| Base: 1-1/4" diameter | US10B | 610.10 | 019165 | ||
| Projection: 3" | US26 | 610.10 | 052420 | ||
| Clearance: 1-3/4" | US26D | 610.10 | 022949 | ||
| CTC: 12" | |||||
|
Door Thickness: 1-3/4" - 2-1/8" standard
BTB Mounting type 7 concealed spanner (Required 7/16" |
US28
US32 |
610.10
539.60 |
-
030891 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 20Q | |||||
| Push/Pull Set - Round | US3 | 641.45 | - | 1 | 4 |
| Type 7 mounting | US4 | 677.95 | - | ||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Base: 1-1/4" diameter | US10 | 677.95 | - | ||
| Projection: 3" | US10B | 677.95 | 105155 | ||
| Clearance: 1-3/4" | US26 | 677.95 | - | ||
| CTC: 18" | US26D | 677.95 | 046330 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US28 | 677.95 | - | ||
| BTB Mounting type 7 concealed spanner (Required 7/16" | US32 | 417.50 | 066386 | ||
| min. holes in door) | US32D | 559.75 | 067607 | ||
| 21E | |||||
| 90° Offset Push/Pull Set - Round | US3 | 202.05 | 138354 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 202.05 | - | ||
| Base: 3/4" diameter | US10 | 211.65 | - | ||
| Projection: 2-1/2" | US10B | 211.65 | 012325 | ||
| Clearance: 1-3/4" | US26 | 211.65 | 071225 | ||
| CTC: 6" | US26D | 211.65 | 028763 | ||
| Offset: 2-1/2" | |||||
| Door Thickness: 1-3/4" - 2-1/8" standard | US28 | 147.45 | 019295 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32 | 214.05 | 161045 | ||
| minimum holes in door) | US32D | 176.30 | 089757 | ||
| Available with 45° offset | |||||
| 21G | |||||
| 90° Offset Push/Pull Set - Round | US3 | 213.00 | 058679 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 213.00 | 043225 | ||
| Base: 3/4" diameter | US10 | 222.90 | - | ||
| Projection: 2-1/2" | US10B | 222.90 | 063310 | ||
| Clearance: 1-3/4" | US26 | 222.90 | 018016 | ||
| CTC: 8" | US26D | 222.90 | 066826 | ||
| Offset: 2-1/2" | US28 | 161.50 | - | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US32 | 224.65 | 025013 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32D | 189.45 | 058003 | ||
| minimum holes in door) | |||||
| Available with 45° offset | |||||
| 21J | |||||
| 90° Offset Push/Pull Set - Round | US3 | 220.20 | 078909 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 220.20 | - | ||
| Base: 3/4" diameter | US10 | 237.95 | 005255 | ||
| Projection: 2-1/2" | US10B | 237.95 | 057372 | ||
| Clearance: 1-3/4" | US26 | 237.95 | 005678 | ||
| CTC: 10" | US26D | 237.95 | 067008 | ||
| Offset: 2-1/2" | US28 | 165.65 | 112219 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US32 | 231.50 | 019770 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32D | 196.50 | 080009 | ||
| minimum holes in door) | |||||
| Available with 45° offset |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 21L | |||||
| 90° Offset Push/Pull Set - Round | |||||
| Material: Brass, bronze, aluminum, stainless steel | US3 | 234.65 | 097140 | - | 1 |
| Base: 3/4" diameter | US4 | 234.65 | 002578 | ||
| Projection: 2-1/2" | US10 | 261.70 | - | ||
| Clearance: 1-3/4" | US10B | 261.70 | 042312 | ||
|
CTC: 12"
Offset: 2-1/2" |
US26 | 261.70 | 007396 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US26D | 261.70 | 032790 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US28 | 177.35 | 047803 | ||
| minimum holes in door) | US32 | 245.60 | 027578 | ||
| Available with 45° offset | US32D | 207.05 | 069905 | ||
| 22G | |||||
| 90° Offset Push/Pull Set - Round | US3 | 255.15 | 079012 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 255.15 | - | ||
| Base: 1" diameter | US10 | 286.00 | 075421 | ||
| Projection: 2-3/4" | US10B | 286.00 | 096184 | ||
| Clearance: 1-3/4" | US26 | 286.00 | 048693 | ||
| CTC: 8" | US26D | 286.00 | 007328 | ||
| Offset: 3" | US28 | 155.45 | 024277 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US32 | 256.85 | 098201 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32D | 253.30 | 067908 | ||
|
minimum holes in door)
Available with 45° offset |
|||||
| 22J | |||||
| 90° Offset Push/Pull Set - Round | US3 | 269.10 | 075192 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 269.10 | - | ||
| Base: 1" diameter | US10 | 301.40 | 050773 | ||
| Projection: 2-3/4" | US10B | 301.40 | 058192 | ||
| Clearance: 1-3/4" | US26 | 301.40 | 005787 | ||
| CTC: 10" | US26D | 301.40 | 085517 | ||
| Offset: 3" | US28 | 167.10 | 002376 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US32 | 280.35 | 073277 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32D | 272.90 | 076699 | ||
| minimum holes in door) | |||||
| Available with 45° offset | |||||
|
22L
90° Offset Push/Pull Set - Round |
US3 | 283.00 | 073970 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 283.00 | 078417 | ||
| Base: 1" diameter | US10 | 320.05 | 000477 | ||
| Projection: 2-3/4" | US10B | 320.05 | 080383 | ||
| Clearance: 1-3/4" | US26 | 320.05 | 015975 | ||
| CTC: 12" | US26D | 320.05 | 038687 | ||
| Offset: 3" | US28 | 178.55 | 000794 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US32 | 303.50 | 059202 | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32D | 292.90 | 064503 | ||
| minimum holes in door) | |||||
| Available with 45° offset | |||||
| 22N | |||||
| Concealed Edge Pull | US3 | 71.95 | 086819 | 1 | 10 |
|
Material: Solid brass
Size: 31/32" x 4-1/4" x 3/8" |
US26D | 78.20 | 086820 | ||
| Finger piece extends: 2-3/4" |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 23Q | |||||
| 90° Offset Pull - Round | US3 | 361.00 | 006390 | - | 2 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 361.00 | 029999 | ||
| Base Diameter: 1-1/4" | US10 | 380.50 | 021472 | ||
| Projection: 3" | US10B | 380.50 | 017369 | ||
| Clearance: 1-3/4" | US26 | 380.50 | 019785 | ||
| CTC: 18" | US26D | 380.50 | 023673 | ||
| Offset: 3-3/4" standard | US28 | 135.45 | 049363 | ||
| Fasteners: 5/16" - 18 thru bolt w/ washer | US32 | 332.05 | 002751 | ||
|
Door Thickness: 1-3/4" - 2-1/8" standard
Available with 45° offset |
US32D | 284.60 | 080011 | ||
| 24Q | |||||
| 90° Offset Push/Pull Set - Round | US3 | 768.35 | 003843 | - | 1 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 768.35 | 134285 | ||
| Base Diameter: 1-1/4" | US10 | 807.20 | 043201 | ||
| Projection: 3" | US10B | 807.20 | 024989 | ||
| Clearance: 1-3/4" | US26 | 807.20 | - | ||
| CTC: 18" | US26D | 807.20 | - | ||
| Offset: 3-3/4" | US28 | 289.40 | 095347 | ||
| Door Thickness: 1-3/4" - 2-1/8" standard | US32 | 710.95 | - | ||
| BTB Mounting Type 7 concealed spanner (Required 3/8" | US32D | 614.35 | 067055 | ||
| minimum holes in door) | |||||
| Available with 45° offset | |||||
| 25B | |||||
| Security Flush Pull Set | US32D | 131.70 | 025035 | 1 | 10 |
| Material: Stainless steel | |||||
| Face: 3-1/2" x 5" | |||||
|
Opening: 1-3/4" x 3-1/16"
Projection: 3/16" |
|||||
| Cup Depth: 3/4" | |||||
| Fasteners: (2) 6 - 32 x 1-1/2" FPHMS (security torx) | |||||
| 25C | |||||
| Heavy Duty Flush Pull Set | US32D | 127.75 | 008405 | 1 | 10 |
| Material: Stainless steel | |||||
| Face: 3-1/2" x 5" | |||||
| Opening: 1-3/4" x 3-1/16" | |||||
| Projection: 1/8" | |||||
| Cup Depth: 3/4" | |||||
| Fasteners: (4) 6 -32 OPHMS with sex nuts and bolts | |||||
| Consists of 2 ea. 15C pulls BTB | |||||
| 25N | |||||
| Flush Pull Set | US3 | 127.80 | 057171 | 1 | 10 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 127.80 | 069686 | ||
| Face: 3-1/2" x 5" | US10 | 131.50 | 064913 | ||
| Opening: 1-3/4" x 3-1/16" | US10B | 131.50 | 075384 | ||
| Projection: 1/8" | US26 | 131.50 | 087487 | ||
| Cup Depth: 3/4" | US26D | 131.50 | 055307 | ||
| Fasteners: (4) 6 -32 OPHMS with sex nuts and bolts | US28 | 97.95 | 074843 | ||
| Consists of 2 ea. 15N pulls BTB | US32D | 55.00 | 066502 |
Not available for BTB Mounting
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 25P | |||||
|
Security Finger Pull/Push Plate Set
Material: Stainless steel Base: 4" x 16" Opening: 1-3/4" x 3-1/16" Projection: 1/8" Fasteners: 8 - 32 x 3/4" FPHMS (security torx) sex nuts and bolts |
US32D | 267.85 | 089518 | 1 | 10 |
| 26N | |||||
| Security Finger Pull | US4 | 71.30 | 024671 | 2 | 20 |
| Material: Brass, stainless steel | US26 | 97.60 | 036321 | ||
| Face: 4" x 5" | US32D | 102.55 | 017790 | ||
| Opening: 1-5/8" x 3" | |||||
| Projection: 1/8" | |||||
|
Cup Depth: 13/16"
Fasteners: 1/4" - 20 x 3/4" security torx FPHMS |
|||||
| 27N | |||||
| Security Flush Cup Pull | US32D | 133.35 | 006749 | 2 | 20 |
| Material: Stainless steel | |||||
| Face: 5" x 5" | |||||
| Opening: 3" x 3-1/2" | |||||
| Projection: 3/8" | |||||
| Cup Depth: 7/8" | |||||
| Fasteners: 10 - 24 FPHMS (security torx) sex nuts and thru | |||||
| bolts | |||||
| Not available for BTB Mounting | |||||
| 27P | |||||
| Security Flush Cup Pull | US32D | 133.35 | 013714 | 2 | 20 |
| Material: Stainless steel | |||||
|
Face: 5" x 5"
Opening: 3" x 3-1/2" |
|||||
| Projection: 3/8" | |||||
| Cup Depth: 7/8" | |||||
| Fasteners: 1/4 - 20 x 3/4" FPHMS (security torx) | |||||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 30S | |||||
| Push Plate - Square Corner | |||||
|
Material: Brass, bronze, aluminum, stainless steel
Gauge: 0.050 |
|||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 17.10 | 052473 | 5 | 50 |
| US4 | 17.10 | 053057 | |||
| US10 | 20.40 | 052603 | |||
| US10B | 20.40 | 052604 | |||
| US26 | 20.40 | 052788 | |||
| US26D | 20.40 | 052605 | |||
| US28 | 10.75 | 052606 | |||
| US32 | 15.40 | 060400 | |||
| US32D | 12.50 | 052607 | |||
| 3-1/2" x 15" | US3 | 23.05 | 051947 | 5 | 50 |
| US4 | 24.50 | 053058 | |||
| US10 | 28.00 | 052474 | |||
| US10B | 28.00 | 052475 | |||
| US26 | 28.00 | 051948 | |||
| US26D | 27.00 | 052608 | |||
| US28 | 10.20 | 051949 | |||
| US32 | 14.00 | 067703 | |||
| US32D | 10.50 | 052476 | |||
| 4" x 16" | US3 | 27.00 | 052477 | 5 | 50 |
| US4 | 26.50 | 053059 | |||
| US10 | 29.50 | 052478 | |||
| US10B | 29.50 | 052479 | |||
| US26 | 29.50 | 052789 | |||
| US26D | 28.50 | 052480 | |||
| US28 | 11.40 | 052481 | |||
| US32 | 15.50 | 056570 | |||
| US32D | 11.05 | 052482 | |||
| 6" x 16" | US3 | 38.50 | 052609 | - | 5 |
| US4 | 38.50 | 016001 | |||
| US10 | 43.50 | 052610 | |||
| US10B | 43.50 | 052611 | |||
| US26 | 43.50 | 052612 | |||
| US26D | 42.50 | 052613 | |||
| US28 | 15.75 | 052614 | |||
| US32 | 23.40 | 059757 | |||
| US32D | 15.75 | 052615 | |||
| 8" x 16" | US3 | 47.35 | 052616 | - | 5 |
| US4 | 47.35 | 053054 | |||
| US10 | 54.30 | 052617 | |||
| US10B | 54.30 | 052618 | |||
| US26 | 54.30 | 052619 | |||
| US26D | 53.30 | 052620 | |||
| US28 | 17.55 | 052621 | |||
| US32 | 29.25 | 056697 | |||
| US32D | 21.40 | 052483 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| A30S | |||||
| Push Plate - Square Corner | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.062 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 28.10 | 088064 | 5 | 50 |
| US4 | 28.10 | 040610 | |||
| US10 | 32.60 | 089728 | |||
| US10B | 32.60 | 057228 | |||
| US26 | 32.60 | 083774 | |||
| US26D | 32.60 | 002164 | |||
| US28 | 13.75 | - | |||
| US32 | 26.10 | - | |||
| US32D | 16.75 | 018593 | |||
| 3-1/2" x 15" | US3 | 30.30 | 086010 | 5 | 50 |
| US4 | 30.30 | 125264 | |||
| US10 | 36.65 | 060451 | |||
| US10B | 36.65 | 095370 | |||
| US26 | 36.65 | 041812 | |||
| US26D | 36.65 | 050973 | |||
| US28 | 15.30 | 095372 | |||
| US32 | 31.80 | 014761 | |||
| US32D | 21.25 | 095371 | |||
| 4" x 16" |
US3
US4 |
34.25
34.25 |
088141
096314 |
5 | 50 |
| US10 | 40.35 | 018240 | |||
| US10B | 40.35 | 026224 | |||
| US26 | 40.35 | 068218 | |||
| US26D | 40.35 | 088369 | |||
| US28 | 16.50 | 098928 | |||
| US32 | 33.45 | 071242 | |||
| US32D | 23.25 | 084940 | |||
| 6" x 16" | US3 | 49.65 | 146109 | - | 5 |
| US4 | 49.65 | 147465 | |||
| US10 | 55.80 | 008731 | |||
| US10B | 55.80 | 094683 | |||
| US26 | 55.80 | 098852 | |||
| US26D | 55.80 | 001249 | |||
| US28 | 21.65 | 098000 | |||
| US32 | 56.80 | - | |||
| US32D | 38.70 | 052271 | |||
| 8" x 16" | US3 | 53.70 | 046204 | - | 5 |
| US4 | 53.70 | 065722 | |||
| US10 | 59.75 | 089364 | |||
| US10B | 59.75 | 025549 | |||
| US26 | 59.75 | 053802 | |||
| US26D | 59.75 | 092477 | |||
| US28 | 28.80 | - | |||
| US32 | 70.00 | 104412 | |||
| US32D | 43.30 | 081011 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 31E | |||||
| Pull Plate - Square Corner - Half Round Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 6" | |||||
| 30S x 1E Pull | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3-1/2" x 15" | US3 | 79.50 | 056433 | 1 | 10 |
| US4 | 79.50 | 060011 | |||
| US10 | 84.50 | 055633 | |||
| US10B | 84.50 | 058712 | |||
| US26 | 84.50 | 078715 | |||
| US26D | 79.50 | 054517 | |||
| US28 | 38.50 | 054428 | |||
| US32 | 79.80 | 071221 | |||
| US32D | 57.00 | 054029 | |||
| 4" x 16" |
US3
US4 |
80.50
80.50 |
052652
053049 |
1 | 10 |
| US10 | 85.50 | 052653 | |||
| US10B | 85.50 | 052493 | |||
| US26 | 85.50 | 052800 | |||
| US26D | 80.75 | 054341 | |||
| US28 | 39.50 | 052654 | |||
| US32 | 90.00 | 062509 | |||
| US32D | 68.20 | 052494 | |||
| 31G | |||||
| Pull Plate - Square Corner - Half Round Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 8" | |||||
| 30S x 1G Pull | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3-1/2" x 15" | US3 | 80.95 | 058350 | 1 | 10 |
| US4 | 80.95 | 085438 | |||
| US10 | 88.90 | 057757 | |||
| US10B | 88.90 | 058681 | |||
| US26 | 88.90 | 064372 | |||
| US26D | 88.90 | 058351 | |||
| US28 | 42.50 | 055483 | |||
| US32 | 99.90 | 041049 | |||
| US32D | 65.00 | 055482 | |||
| 4" x 16" | US3 | 86.00 | 056514 | 1 | 10 |
| US4 | 86.00 | 064373 | |||
| US10 | 90.45 | 058057 | |||
| US10B | 90.45 | 059416 | |||
| US26 | 90.45 | 059035 | |||
| US26D | 90.45 | 056759 | |||
| US28 | 45.00 | 056350 | |||
| US32 | 105.80 | 095219 | |||
| US32D | 66.00 | 055297 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 31J | |||||
| Pull Plate - Square Corner - Half Round Pull | |||||
|
Material: Brass, bronze, aluminum, stainless steel
Gauge: 0.050; CTC: 10" |
|||||
| 30S x 1J Pull | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3-1/2" x 15" | US3 | 92.10 | 011268 | 1 | 10 |
| US4 | 95.90 | 065208 | |||
| US10 | 99.35 | 700006 | |||
| US10B | 99.35 | 067881 | |||
| US26 | 99.35 | - | |||
| US26D | 99.35 | 081194 | |||
| US28 | 49.30 | 116104 | |||
| US32 | 111.15 | 077157 | |||
| US32D | 86.15 | 056322 | |||
| 4" x 16" | US3 | 93.85 | 125465 | 1 | 10 |
| US4 | 97.10 | 049246 | |||
| US10 | 103.00 | 063316 | |||
| US10B | 103.00 | 062373 | |||
| US26 | 103.00 | - | |||
| US26D | 103.00 | 021574 | |||
| US28 | 51.55 | 050497 | |||
| US32 | 104.75 | 068294 | |||
| US32D | 89.55 | 062377 | |||
| 32E | |||||
| Pull Plate - Square Corner - Rectangular Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 6" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 2E Pull | |||||
| 3-1/2" x 15" | US3 | 63.70 | 052642 | 1 | 10 |
| US4 | 60.95 | 053047 | |||
| US10 | 79.50 | 052643 | |||
| US10B | 79.50 | 052644 | |||
| US26 | 79.50 | 052797 | |||
| US26D | 79.50 | 052645 | |||
| US28 | 33.50 | 052646 | |||
| US32 | 66.95 | 067882 | |||
| US32D | 47.00 | 052647 | |||
| 4" x 16" | US3 | 71.00 | 052648 | 1 | 10 |
| US4 | 71.00 | 053048 | |||
| US10 | 81.50 | 052798 | |||
|
US10B
US26 |
81.50
81.50 |
052492
052799 |
|||
| US26D | 81.50 | 052649 | |||
| US28 | 35.50 | 052650 | |||
| US32 | 77.35 | 060399 | |||
| US32D | 49.00 | 052651 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 32G | |||||
|
Pull Plate - Square Corner - Rectangular Pull
Material: Brass, bronze, aluminum, stainless steel |
|||||
|
Gauge: 0.050; CTC: 8"
Fasteners: #6 x 5/8" OPH tapping screws |
|||||
| 30S x 2G Pull | |||||
| 3-1/2" x 15" | US3 | 73.70 | 059981 | 1 | 10 |
| US4 | 73.70 | 085113 | |||
| US10 | 86.05 | - | |||
| US10B | 85.50 | 066040 | |||
| US26 | 86.05 | - | |||
| US26D | 84.50 | 060646 | |||
| US28 | 44.50 | 063926 | |||
| US32 | 86.15 | - | |||
| US32D | 60.00 | 055010 | |||
| 4" x 16" | US3 | 84.50 | 054727 | 1 | 10 |
| US4 | 84.50 | 003510 | |||
| US10 | 89.50 | 056784 | |||
| US10B | 89.50 | 056756 | |||
| US26 | 89.00 | 065122 | |||
| US26D | 89.50 | 069514 | |||
| US28 | 48.50 | 069513 | |||
| US32 | 93.25 | 017637 | |||
| US32D | 64.00 | 055389 | |||
| 32J | |||||
|
Pull Plate - Square Corner - Rectangular Pull
Material: Brass, bronze, aluminum, stainless steel |
|||||
| Gauge: 0.050; CTC: 10" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 2J Pull | |||||
| 3-1/2" x 15" | US3 | 86.05 | 043039 | 1 | 10 |
| US4 | 88.55 | - | |||
| US10 | 94.70 | 118724 | |||
| US10B | 94.70 | 022532 | |||
| US26 | 94.70 | - | |||
| US26D | 94.70 | - | |||
| US28 | 40.65 | - | |||
| US32 | 102.35 | - | |||
| US32D | 86.15 | 019279 | |||
| 4" x 16" | US3 | 89.40 | 032063 | 1 | 10 |
| US4 | 94.25 | 139843 | |||
| US10 | 97.60 | 117572 | |||
| US10B | 97.60 | 005155 | |||
| US26 | 97.60 | 029867 | |||
| US26D | 97.60 | 044540 | |||
| US28 | 44.10 | - | |||
| US32 | 106.65 | 040153 | |||
US32D 91.40 069243
| Pull Plate - Square Corner - 3/4" Round Pull | |||||
|---|---|---|---|---|---|
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 8" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 3G Pull | |||||
| 3-1/2" x 15" | US3 | 75.00 | 052667 | 1 | 10 |
| US4 | 75.00 | 053046 | |||
| US10 | 82.50 | 052495 | |||
| US10B | 82.50 | 052668 | |||
| US26 | 82.50 | 052803 | |||
| US26D | 76.00 | 052669 | |||
| US28 | 35.50 | 052670 | |||
| US32 | 60.00 | 002398 | |||
| US32D | 37.60 | 052666 | |||
| 4" x 16" | US3 | 80.10 | 052671 | 1 | 10 |
| US4 | 80.10 | 053060 | |||
| US10 | 87.50 | 052672 | |||
| US10B | 87.50 | 052673 | |||
| US26 | 87.50 | 052804 | |||
| US26D | 82.10 | 005274 | |||
| US28 | 37.50 | 052675 | |||
| US32 | 64.30 | 063728 | |||
| US32D | 39.60 | 052676 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 33J | |||||
| Pull Plate - Square Corner - 3/4" Round Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 10" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 3J Pull | |||||
| 3-1/2" x 15" | US3 | 76.95 | 076230 | 1 | 10 |
| US4 | 79.20 | 048521 | |||
| US10 | 82.50 | 071881 | |||
| US10B | 82.50 | 006002 | |||
| US26 | 82.50 | 113458 | |||
| US26D | 82.50 | 112480 | |||
| US28 | 45.35 | 054673 | |||
| US32 | 91.25 | 067662 | |||
| US32D | 74.75 | 065235 | |||
| 4" x 16" | US3 | 82.80 | 087358 | 1 | 10 |
| US4 | 86.55 | 080814 | |||
| US10 | 90.30 | 059652 | |||
| US10B | 90.30 | 077870 | |||
| US26 | 90.30 | 135368 | |||
| US26D | 90.30 | 092249 | |||
| US28 | 47.90 | 060024 | |||
| US32 | 94.95 | 068874 | |||
| US32D | 77.25 | 057608 | |||
| 34G |
| US32 | 94.95 | 068874 | |||
|---|---|---|---|---|---|
| US32D | 77.25 | 057608 | |||
| 34G | |||||
| Pull Plate - Square Corner - 1" Round Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 8" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 4G Pull | |||||
| 3-1/2" x 15" | US3 | 90.45 | 052888 | 1 | 10 |
| US4 | 97.60 | 022822 | |||
| US10 | 101.75 | 052890 | |||
| US10B | 101.75 | 052891 | |||
| US26 | 101.75 | 068374 | |||
| US26D | 101.75 | 052893 | |||
| US28 | 50.55 | 143095 | |||
| US32 | 103.60 | - | |||
| US32D | 88.00 | 051944 | |||
| 4" x 16" | US3 | 93.25 | 052894 | 1 | 10 |
| US4 | 99.35 | 052895 | |||
| US10 | 104.70 | 052896 | |||
| US10B | 104.70 | 052897 | |||
| US26 | 104.70 | 052898 | |||
| US26D | 104.70 | 052899 | |||
| US28 | 51.55 | 052900 | |||
| US32 | 105.65 | 062950 | |||
| US32D | 91.25 | 052901 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 34J | |||||
|
Pull Plate - Square Corner - 1" Round Pull
Material: Brass, bronze, aluminum, stainless steel Gauge: 0.050; CTC: 10" Fasteners: #6 x 5/8" OPH tapping screws 30S x 4J Pull |
|||||
| 3-1/2" x 15" | US3 | 113.75 | 088937 | 1 | 10 |
| US4 | 113.75 | 023595 | |||
| US10 | 123.45 | 065332 | |||
| US10B | 125.60 | 057755 | |||
| US26 | 119.00 | 040243 | |||
| US26D | 119.00 | 068488 | |||
| US28 | 40.25 | 095443 | |||
| US32 | 88.00 | 069479 | |||
| US32D | 68.50 | 059558 | |||
| 4" x 16" | US3 | 114.50 | 058218 | 1 | 10 |
| US4 | 114.50 | 076042 | |||
| US10 | 124.50 | 054937 | |||
| US10B | 129.00 | 056339 | |||
| US26 | 122.50 | 067490 | |||
| US26D | 122.50 | 063209 | |||
| US28 | 41.00 | 065718 | |||
| US32 | 91.10 | 074891 | |||
| US32D | 69.60 | 056278 |
35D
Pull Plate - Square Corner - 5/8" Round Pull Material: Brass, bronze, aluminum, stainless steel
Gauge: 0.050; CTC: 5-1/2"
Fasteners: #6 x 5/8" OPH tapping screws
30S x 5D Pull
| 3-1/2" x 15" | US3 | 58.50 | 048502 | 1 | 10 |
|---|---|---|---|---|---|
| US4 | 58.50 | 029931 | |||
| US10 | 62.15 | 048500 | |||
| US10B | 62.15 | 048503 | |||
| US26 | 62.15 | 057278 | |||
| US26D | 62.15 | 024259 | |||
| US28 | 29.10 | 048501 | |||
| US32 | 59.90 | 163371 | |||
| US32D | 30.90 | 048505 | |||
| 4" x 16" | US3 | 62.15 | 048508 | 1 | 10 |
| US4 | 62.15 | 028846 | |||
| US10 | 64.15 | 048506 | |||
| US10B | 64.15 | 048509 | |||
| US26 | 64.15 | 012741 | |||
US26D 64.15 048510 US28 30.25 048507 US32 52.45 071154 US32D 33.75 048511
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 35N | |||||
| Pull Plate - Square Corner - Cast Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 5-1/2" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 5N Pull | |||||
| 3-1/2" x 15" | US3 | 61.65 | 052487 | 1 | 10 |
| US4 | 62.65 | 053051 | |||
| US10 | 66.25 | 052637 | |||
| US10B | 66.25 | 052488 | |||
| US26 | 66.25 | 052794 | |||
| US26D | 66.25 | 053052 | |||
| US28 | 39.25 | 052489 | |||
| US32 | 90.35 | 057091 | |||
| US32D | 56.70 | 052490 | |||
| 4" x 16" | US3 | 63.00 | 052639 | 1 | 10 |
| US4 | 64.65 | 007485 | |||
| US10 | 69.75 | 052795 | |||
| US10B | 69.75 | 052640 | |||
| US26 | 69.75 | 028998 | |||
| US26D | 69.75 | 052641 | |||
| US28 | 40.10 | 016004 | |||
| US32 | 98.90 | 030733 | |||
| US32D | 58.70 | 052491 |
| US32 | 98.90 | 030733 | |||
|---|---|---|---|---|---|
| US32D | 58.70 | 052491 | |||
| 36N | |||||
| Pull Plate - Square Corner | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 5-1/2" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 30S x 6N Pull | |||||
| 3-1/2" x 15" | US3 | 57.85 | 052484 | 1 | 10 |
| US4 | 57.85 | 053056 | |||
| US10 | 60.25 | 052628 | |||
| US10B | 60.25 | 052629 | |||
| US26 | 60.25 | 052792 | |||
| US26D | 60.25 | 052630 | |||
| US28 | 31.75 | 052485 | |||
| US32 | 79.80 | 098946 | |||
| US32D | 46.00 | 052631 | |||
| 4" x 16" | US3 | 59.85 | 052632 | 1 | 10 |
| US4 | 59.85 | 053050 | |||
| US10 | 62.25 | 052633 | |||
| US10B | 62.25 | 052634 | |||
| US26 | 62.25 | 052793 | |||
| US26D | 62.25 | 052635 | |||
| US28 | 33.75 | 052636 | |||
| US32 | 87.45 | 064685 | |||
| US32D | 46.75 | 052486 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 39E | |||||
|
Pull Plate - Square Corner - 3/4" Oval Pull
Material: Brass, bronze, aluminum, stainless steel Gauge: 0.050; CTC: 6" Fasteners: #6 x 5/8" OPH tapping screws 30S x 9E Pull |
|||||
| 3-1/2" x 15" | US3 | 57.50 | 066457 | 1 | 10 |
| US4 | 57.50 | 068631 | |||
| US10 | 59.50 | 066451 | |||
| US10B | 59.50 | 066452 | |||
| US26 | 78.90 | 066453 | |||
| US26D | 65.90 | 064908 | |||
| US32 | 70.00 | 092653 | |||
| US32D | 54.00 | 066454 | |||
| 4" x 16" | US3 | 59.50 | 066242 | 1 | 10 |
| US4 | 59.50 | 094002 | |||
| US10 | 63.50 | 066459 | |||
| US10B | 63.50 | 066460 | |||
| US26 | 82.80 | - | |||
| US26D | 67.90 | 066286 | |||
| US32 | 74.00 | 083352 | |||
| US32D | 55.00 | 066241 | |||
| 39G | |||||
|
Pull Plate - Square Corner - 3/4" Oval Pull
Material: Brass, bronze, aluminum, stainless steel Gauge: 0.050; CTC: 8" Fasteners: #6 x 5/8" OPH tapping screws 30S x 9G Pull |
|||||
| 3-1/2" x 15" | US3 | 59.75 | 066446 | 1 | 10 |
| US4 | 59.75 | 022286 | |||
| US10 | 64.30 | 066439 | |||
| US10B | 64.30 | 066440 | |||
| US26 | 82.45 | 125056 | |||
| US26D | 68.90 | 021978 | |||
| US32 | 74.85 | 113343 | |||
| US32D | 55.00 | 066442 | |||
| 4" x 16" | US3 | 63.75 | 066448 | 1 | 10 |
| US4 | 63.75 | 074705 | |||
| 68.65 | 066449 | ||||
| US10 | |||||
| US10B | 68.65 | 066450 | |||
|
US26
US26D |
86.45
72.85 |
066443
070325 |
|||
| US32 | 78.85 | 019174 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 39J | |||||
| Pull Plate - Square Corner - 3/4" Oval Pull | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050; CTC: 10" | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
|
30S x 9J Pull
3-1/2" x 15" |
US3 | 76.35 | 086925 | 1 | 10 |
| US4 | 92.50 | - | |||
| US10 | 92.50 | 124357 | |||
| US10B | 92.50 | 039926 | |||
| US26 | 103.20 | - | |||
| US26D | 98.40 | - | |||
| US32 | 95.60 | - | |||
| US32D | 82.25 | 005157 | |||
| 4" x 16" | US3 | 75.25 | 086628 | 1 | 10 |
| US4 | 93.05 | - | |||
| US10 | 93.05 | 112185 | |||
| US10B | 93.05 | 033458 | |||
| US26 | 106.25 | 106111 | |||
| US26D | 103.00 | 076007 | |||
| US32 | 96.35 | - | |||
| US32D | 83.75 | 074073 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 40R | |||||
|
Push Plate - Radius Corner - Not Beveled
Material: Brass, bronze, aluminum, stainless steel Gauge: 0.050 |
|||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 22.70 | 073770 | 10 | 50 |
| US4 | 23.55 | 076051 | |||
| US10 | 27.30 | 066942 | |||
| US10B | 27.30 | 003979 | |||
| US26 | 27.30 | 066131 | |||
| US26D | 27.30 | 074534 | |||
| US28 | 14.20 | 043755 | |||
| US32 | 21.25 | 066229 | |||
| 3-1/2" x 15" |
US32D
US3 |
18.25
26.20 |
-
058476 |
10 | 50 |
| US4 | 29.10 | 080655 | |||
| US10 | 31.45 | 057093 | |||
| US10B | 31.45 | 025774 | |||
| US26 | 31.45 | 086949 | |||
| US26D | 31.45 | 059230 | |||
| US28 | 15.30 | 066906 | |||
| US32 | 24.60 | 059562 | |||
| US32D | 21.25 | - | |||
| 4" x 16" | US3 | 28.90 | 058347 | 10 | 50 |
| US4 | 31.90 | 081497 | |||
| US10 | 34.35 | 016005 | |||
| US10B | 34.35 | 060152 | |||
| US26 | 34.35 | 059245 | |||
| US26D | 34.35 | 085378 | |||
| US28 | 16.05 | 016006 | |||
| US32 | 26.50 | 088231 | |||
| US32D | 22.80 | 052790 | |||
| 6" x 16" | US3 | 40.35 | 057640 | - | 5 |
|
US4
US10 |
43.40
47.15 |
047040
006018 |
|||
| US10B | 47.15 | 072734 | |||
| US26 | 47.15 | - | |||
| US26D | 47.15 | 114027 | |||
| US28 | 20.85 | 010887 | |||
| US32 | 49.75 | 088229 | |||
| US32D | 34.75 | 057637 | |||
| 8" x 16" | US3 | 47.35 | 025145 | - | 5 |
| US4 | 52.65 | 022787 | |||
| US10 | 56.80 | 015792 | |||
| US10B | 56.80 | 061212 | |||
| US26 | 56.80 | 126198 | |||
| US26D | 56.80 | 024628 | |||
| US28 | 23.75 | 122600 | |||
| US32 | 50.55 | - | |||
| US32D | 51.80 | 061211 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| A40R | |||||
|
Push Plate - Radius Corner - Not Beveled
Material: Brass, bronze, aluminum, stainless steel Gauge: 0.062 |
|||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 33.45 | 032130 | 10 | 50 |
| US4 | 33.45 | 131011 | |||
| US10 | 38.05 | - | |||
| US10B | 38.05 | 114771 | |||
| US26 | 38.05 | 039363 | |||
| US26D | 38.05 | 114030 | |||
| US28 | 22.80 | - | |||
| US32 | 33.25 | - | |||
| US32D | 23.25 | 048868 | |||
| 3-1/2" x 15" | US3 | 35.70 | - | 10 | 50 |
| US4 | 35.70 | 049913 | |||
|
US10
US10B |
42.00
42.00 |
-
074760 |
|||
| US26 | 42.00 | 044606 | |||
| US26D | 42.00 | 038686 | |||
| US28 | 20.50 | - | |||
| US32 | 39.25 | - | |||
| US32D | 27.45 | 059304 | |||
| 4" x 16" | US3 | 39.60 | 029232 | 10 | 50 |
| US4 | 39.60 | 014136 | |||
| US10 | 45.85 | 140485 | |||
| US10B | 45.85 | 077017 | |||
| US26 | 45.85 | - | |||
| US26D | 45.85 | 015454 | |||
| US28 | 21.70 | 047411 | |||
| US32 | 41.30 | 135831 | |||
| US32D | 29.90 | 099623 | |||
| 6" x 16" | US3 | 52.50 | 029232 | - | 5 |
| US4 | 57.10 | - | |||
| US10 | 57.10 | - | |||
| US10B | 57.10 | - | |||
| US26 | 57.10 | - | |||
| US26D | 57.10 | 055405 | |||
|
US28
US32 |
26.80
64.65 |
-
- |
|||
| US32D | 46.95 | 070607 | |||
| 8" x 16" | US3 | 58.40 | 076399 | - | 5 |
| US4 | 64.10 | - | |||
| US10 | 65.05 | - | |||
| US10B | 65.05 | 077019 | |||
| US26 | 65.05 | - | |||
| US26D | 65.05 | 142995 | |||
| US28 | 30.15 | - | |||
| US32 | 81.90 | - | |||
| US32D | 49.75 | 001398 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 50T | |||||
| Push Plate - Round - Not Beveled | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.050 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 27.45 | 078618 | 5 | 50 |
| US4 | 27.45 | 007196 | |||
| US10 | 29.90 | 006322 | |||
| US10B | 29.90 | 071333 | |||
| US26 | 29.90 | - | |||
| US26D | 29.90 | 102851 | |||
| US28 | 20.25 | 102662 | |||
| US32 | 23.85 | - | |||
| US32D | 22.80 | 059934 | |||
| 3-1/2" x 15" | US3 | 28.90 | 057418 | 5 | 50 |
| US4 | 28.90 | 077529 | |||
| US10 | 34.25 | 088168 | |||
| US10B | 34.25 | 000846 | |||
| US26 | 34.25 | 075140 | |||
| US26D | 34.25 | 062792 | |||
| US28 | 22.40 | 041167 | |||
| US32 | 27.30 | 015650 | |||
| US32D | 25.05 | 072371 | |||
| 4" x 16" | US3 | 31.90 | 056970 | 5 | 50 |
| US4 | 31.90 | 068950 | |||
| US10 | 36.65 | 058204 | |||
| US10B | 36.65 | 075002 | |||
| US26 | 36.65 | 059593 | |||
| US26D | 36.65 | 092668 | |||
| US28 | 23.85 | 018465 | |||
| US32 | 26.50 | 000492 | |||
| US32D | 29.50 | 016007 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| A50T | |||||
| Push Plate - Round - Not Beveled | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.062 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 43.40 | 094264 | 5 | 50 |
| US4 | 43.40 | 107968 | |||
| US10 | 48.10 | - | |||
| US10B | 48.10 | 095264 | |||
| US26 | 48.10 | 075708 | |||
| US26D | 48.10 | 079997 | |||
| US28 | 27.30 | 097574 | |||
| US32 | 37.80 | - | |||
| US32D | 32.25 | 034543 | |||
| 3-1/2" x 15" | US3 | 45.10 | 099962 | 5 | 50 |
| US4 | 45.10 | 094532 | |||
| US10 | 52.90 | - | |||
| US10B | 52.90 | 054241 | |||
| US26 | 52.90 | 014282 | |||
| US26D | 52.90 | 069277 | |||
| US28 | 31.70 | - | |||
| US32 | 39.25 | - | |||
| US32D | 33.25 | 084951 | |||
| 4" x 16" | US3 | 48.90 | 084171 | 5 | 50 |
| US4 | 48.90 | 075929 | |||
| US10 | 56.65 | 130057 | |||
| US10B | 56.65 | 111705 | |||
| US26 | 56.65 | 134570 | |||
| US26D | 56.65 | 032134 | |||
| US28 | 33.25 | 039648 | |||
| US32 | 41.30 | 053431 | |||
| US32D | 36.35 | 031281 | |||
| 60S | |||||
| Push Plate - Square Corner - Beveled | |||||
| Material: Plastic Laminate | |||||
| Gauge: 0.125 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | PG - Gray | 10.75 | - | 5 | 50 |
| PK - Black | 10.75 | 067121 | |||
| CO - Brown | 10.75 | 035206 | |||
| 3-1/2" x 15" | PG - Gray | 11.55 | - | 5 | 50 |
| PK - Black | 11.55 | 055792 | |||
| CO - Brown | 11.55 | 085523 | |||
| 4" x 16" | PG - Gray | 12.20 | 072811 | 5 | 50 |
| PK - Black | 12.20 | 056442 | |||
| CO - Brown | 12.20 | 076032 | |||
| 6" x 16" | PG - Gray | 15.30 | 094770 | 5 | 50 |
| PK - Black | 15.30 | 056581 | |||
| CO - Brown | 15.30 | 076033 | |||
| 8" x 16" | PG - Gray | 18.25 | 029886 | 5 | 50 |
| PK - Black | 18.25 | - | |||
| CO - Brown | 18.25 | 061399 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 70S | |||||
|
Push Plate - Square Corner - Beveled
Material: Clear Plastic Laminate |
|||||
| Gauge: 0.125 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | PC - Clear | 10.75 | 057033 | 5 | 50 |
| 3-1/2" x 15" | PC - Clear | 12.15 | 056757 | 5 | 50 |
| 6" x 16" | PC - Clear | 17.35 | 058687 | 5 | 50 |
| 8" x 16" | PC - Clear | 20.00 | 062760 | 5 | 50 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 80S | |||||
| Push Plate - Square Corner - Beveled | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.125 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 48.80 | 018566 | 5 | 50 |
| US4 | 51.55 | - | |||
| US10 | 57.10 | 110525 | |||
| US10B | 57.10 | 053549 | |||
| US26 | 57.10 | 113461 | |||
| US26D | 57.10 | 064583 | |||
| US28 | 24.15 | 147832 | |||
| US32 | 52.05 | 142047 | |||
| US32D | 40.50 | 021042 | |||
| 3-1/2" x 15" | US3 | 54.05 | 099583 | 5 | 50 |
|
US4
US10 |
59.20
62.85 |
000935
080441 |
|||
| US10B | 62.85 | 064035 | |||
| US26 | 62.85 | 023445 | |||
| US26D | 62.85 | 098464 | |||
| US28 | 27.85 | 085960 | |||
| US32 | 56.90 | 123564 | |||
| US32D | 29.50 | 066719 | |||
| 4" x 16" | US3 | 67.50 | 069050 | 5 | 50 |
| US4 | 67.50 | 053351 | |||
| US10 | 70.00 | 070736 | |||
| US10B | 70.00 | 080514 | |||
| US26 | 67.80 | 003451 | |||
| US26D | 67.80 | 099998 | |||
| US28 | 29.40 | 000740 | |||
| US32 | 59.15 | 081409 | |||
| US32D | 37.50 | 064974 | |||
| 6" x 16" | US3 | 79.60 | 125266 | - | 5 |
| US4 | 81.85 | 138751 | |||
| US10 | 84.40 | 134181 | |||
| US10B | 84.40 | 057343 | |||
| US26 | 84.40 | - | |||
| US26D | 84.40 | 024257 | |||
| US28 | 43.40 | 111496 | |||
| US32 | 75.55 | 033372 | |||
| US32D | 58.10 | 062560 | |||
| 8" x 16" | US3 | 101.05 | 024903 | - | 5 |
| US4 | 103.00 | 122088 | |||
| US10 | 103.00 | 042324 | |||
| US10B | 106.10 | 041316 | |||
| US26 | 106.10 | 078222 | |||
| US26D | 106.10 | - | |||
| US28 | 52.90 | - | |||
| US32 | 93.65 | 021592 | |||
| US32D | 72.15 | 073791 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 90R | |||||
|
Push Plate - Radius Corner - Not Beveled
Material: Brass, bronze, aluminum, stainless steel Gauge: 0.125 |
|||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 65.00 | - | 5 | 50 |
| US4 | 68.80 | 013671 | |||
| US10 | 73.30 | - | |||
| US10B | 73.30 | 056839 | |||
| US26 | 73.30 | 043374 | |||
| US26D | 73.30 | 097121 | |||
| US28 | 39.25 | 026780 | |||
| US32 | 68.10 | - | |||
| US32D | 53.15 | 099013 | |||
| 3-1/2" x 15" | US3 | 70.15 | 116990 | 5 | 50 |
| US4 | 72.75 | - | |||
| US10 | 78.95 | 140484 | |||
| US10B | 78.95 | 010106 | |||
| US26 | 78.95 | 068575 | |||
| US26D | 78.95 | 032458 | |||
| US28 | 43.60 | 078511 | |||
| US32 | 73.55 | - | |||
| US32D | 57.00 | 068865 | |||
| 4" x 16" | US3 | 74.30 | 086539 | 5 | 50 |
| US4 | 79.60 | 002134 | |||
| US10 | 84.05 | 077793 | |||
| US10B | 84.05 | 035806 | |||
| US26 | 84.05 | 013904 | |||
| US26D | 84.05 | 084672 | |||
| US28 | 45.10 | - | |||
| US32 | 78.90 | - | |||
| US32D | 58.10 | 075458 | |||
| 6" x 16" | US3 | 95.90 | 092195 | - | 5 |
| US4 | 98.05 | - | |||
| US10 | 100.60 | - | |||
| US10B | 100.60 | 087169 | |||
| US26 | 100.60 | - | |||
| US26D | 100.60 | 018872 | |||
| US28 | 59.30 | - | |||
| US32 | 91.25 | - | |||
| US32D | 69.60 | 080425 | |||
| 8" x 16" | US3 | 117.35 | - | - | 5 |
|
US4
US10 |
119.25
122.10 |
-
- |
|||
| US10B | 122.10 | 046733 | |||
| US26 | 122.10 | - | |||
| US26D | 122.10 | - | |||
| US28 | 68.60 | - | |||
| US32 | 109.40 | - | |||
| US32D | 82.50 | 018249 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 100T | |||||
| Push Plate - Square Corner - Rounded Bevel - Top and | |||||
| Bottom | |||||
| Material: Brass, bronze, aluminum, stainless steel | |||||
| Gauge: 0.125 | |||||
| Fasteners: #6 x 5/8" OPH tapping screws | |||||
| 3" x 12" | US3 | 63.50 | 080351 | 5 | 50 |
| US4 | 65.60 | 093144 | |||
| US10 | 71.40 | - | |||
| US10B | 71.40 | 016836 | |||
|
US26
US26D |
71.40
71.40 |
051749
025230 |
|||
| US28 | 37.95 | - | |||
| US32 | 66.30 | 094651 | |||
| US32D | 51.65 | 094863 | |||
| 3-1/2" x 15" | US3 | 68.40 | 069291 | 5 | 50 |
| US4 | 71.00 | 040912 | |||
| US10 | 77.15 | 068702 | |||
| US10B | 77.15 | 069149 | |||
| US26 | 77.15 | - | |||
| US26D | 77.15 | 007779 | |||
| US28 | 42.30 | 121532 | |||
| US32 | 71.80 | 071048 | |||
| US32D | 55.70 | 078531 | |||
| 4" x 16" | US3 | 72.65 | 079375 | 5 | 50 |
| US4 | 82.25 | 120436 | |||
| US10 | 82.25 | 036191 | |||
| US10B | 82.25 | 069394 | |||
| US26 | 82.25 | 131710 | |||
| US26D | 82.25 | 068881 | |||
| US28 | 50.10 | - | |||
| US32 | 75.60 | 080612 | |||
| US32D | 59.15 | 071810 | |||
| 6" x 16" | US3 | 82.25 | - | - | 5 |
| US4 | 88.55 | - | |||
| US10 | 92.10 | - | |||
| US10B | 92.10 | 032106 | |||
| US26 | 92.10 | 028999 | |||
| US26D | 92.10 | 146901 | |||
| US28 | 57.40 | 138277 | |||
| US32 | 75.55 | - | |||
| US32D | 67.90 | 001305 | |||
| 8" x 16" |
US3
US4 |
109.60
119.50 |
-
- |
- | 5 |
| US10 | 124.10 | - | |||
| US10B | 124.10 | 016853 | |||
| US26 | 124.10 | - | |||
| US26D | 124.10 | 146776 | |||
| US28 | 98.55 | - | |||
| US32 | 96.80 | 134422 | |||
| US32D | 92.15 | 012977 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 110S | |||||
| Half Circle Push Plate | |||||
| 8" x 16" | US3 | 58.05 | 018809 | 1 | 10 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 58.05 | 023148 | ||
| Gauge: 0.050 | US10B | 64.90 | 017836 | ||
| Fasteners: #6 x 5/8" OPH tapping screws | US26 | 64.90 | 018083 | ||
| US26D | 64.90 | 004595 | |||
| US28 | 37.05 | 043858 | |||
| US32 | 55.80 | 032334 | |||
| US32D | 45.35 | 001030 | |||
| 120L | |||||
| Pull Plate - w/ Lip (Not beveled) | US3 | 85.00 | 052718 | 2 | 20 |
| 3-1/2"x16" | US4 | 85.00 | 054479 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 76.50 | 052719 | ||
| Lip Projection: 1-1/8" | US10B | 76.50 | 052720 | ||
| Gauge: 0.125 | US26 | 76.50 | 052837 | ||
| Fasteners: #6 x 5/8" OPH tapping screws | US26D | 76.50 | 052721 | ||
| US28 | 38.05 | 052517 | |||
| US32 | 95.40 | 016965 | |||
| US32D | 41.55 | 052518 | |||
| 121L | |||||
| Cylinder Pull | US3 | 49.50 | 082020 | 1 | 10 |
| 2" x 3-3/4" | US4 | 38.05 | 080813 | ||
| Material: Brass, bronze, aluminum, stainless steel | US10 | 52.50 | 074977 | ||
| Beveled Lip Projection: 1-1/8" | US10B | 52.50 | 073385 | ||
| Gauge: 0.125 | US26 | 38.80 | 020459 | ||
| Cylinder Cutout: 1-1/4" diameter | US26D | 52.50 | 069510 | ||
| Cylinder sold separately. Stud installed on reverse to prevent | US28 | 34.00 | 063605 | ||
| twisting. | US32 | 45.35 | 095790 | ||
| US32D | 43.00 | 068962 | |||
| 122L | |||||
| Security Push/Pull Set | US32D | 217.60 | 088047 | 1 | 10 |
| Push Plate: 4" x 16" | |||||
| Pull Plate: 4" x 9-1/4" | |||||
| Fasteners: BTB by Type 6 | |||||
| Lip Projection: 2-1/8" | |||||
| Gauge: 0.125 | |||||
| Mounting with security torx screws and blank head sex nuts. |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 125S | ||||
| Bent Push Bar | US3 | 186.90 | 4 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 186.90 | 4.00 | |
| Bar Size: 3/8" x 1-1/4" | US10 | 193.35 | 4.00 | |
| Base Plate: 1" x 3" | ||||
| Projection: 2-1/8" | US10B | 193.35 | 4.00 | |
| *Add per linear inch or fraction thereof | US28 | 115.90 | 2.75 | |
| Standard fasteners are 1/4"-20 FPHMS and #8 x 3/4" FPH | US32 | 209.30 | 6.70 | |
| Tapping Screws. | US32D | 168.40 | 5.65 | |
| 126S | ||||
| Push Bar | US3 | 193.35 | 4 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 242.00 | 4.00 | |
| Bar Size: 3/8" x 1-1/4" | US10 | 286.90 | 4.00 | |
| Base Plate: 1" x 3" | US10B | 286.90 | 4.00 | |
| Projection: 2-1/8" | ||||
| *Add per linear inch or fraction thereof | US28 | 140.45 | 2.75 | |
| Standard fasteners are #8 x 3/4" FPH Tapping Screws. | US32 | 246.75 | 6.70 | |
| Optional thru bolts available. | US32D | 218.15 | 5.65 | |
| 127S | ||||
| Push Bar | US3 | 141.65 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 157.30 | 8.00 | |
| Bar Size: 3/8" x 1-1/4" | US10 | 157.30 | 8.00 | |
| Base: 1-1/4" Square | US10B | 157.30 | 8.00 | |
| Projection: 3/4" | US28 | 90.35 | 5.45 | |
| *Add per linear inch or fraction thereof | US32 | 165.50 | 12.90 | |
| Standard fasteners are 1/4"-20 FPHMS. Optional wood | US32D | 127.90 | 13.40 | |
| screws available no charge. | ||||
| 128P | ||||
| Wide Push Bar | US3 | 337.30 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 360.85 | 8.00 | |
| Bar Size: 3/8" x 3" | US10 | 371.75 | 8.00 | |
| Base Plate: 1-1/2" x 4-1/2" | US10B | 371.75 | 8.00 | |
| Projection: 2-1/8" | US28 | 313.45 | 5.45 | |
| *Add per linear inch or fraction thereof | US32 | 392.85 | 12.90 | |
| Standard fasteners are #8 x 3/4" FPH Tapping Screws. | US32D | 330.75 | 13.40 | |
| Optional thru bolts available. | ||||
| 128S | ||||
| Wide Push Bar | US3 | 317.55 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 331.95 | 8.00 | |
| Bar Size: 3/8" x 3" | US10 | 347.90 | 8.00 | |
| Base: 3/8" x 3" | US10B | 347.90 | 8.00 | |
| Projection: 2" | US28 | 173.75 | 5.45 | |
| Door Thickness: 1-3/4" Standard | US32 | 368.25 | 12.90 | |
| *Add per linear inch or fraction thereof | US32D | 306.90 | 13.40 | |
| Standard fasteners are 1/4"-20 x 2-1/4" FPHMS with finish | ||||
| washers. | ||||
| 129P | ||||
| Wide Push Bar | US3 | 268.90 | 1 | 8.00 |
| Bar Size: 3/8" x 3" | US4 | 285.00 | 8.00 | |
| Base: 1" x 3" | US10 | 301.40 | 8.00 | |
| Projection: 3/4" | US10B | 301.40 | 8.00 | |
| *Add per linear inch or fraction thereof | US28 | 124.85 | 5.45 | |
| Standard fasteners are 1/4"-20 x 1-1/4" | US32 | 332.05 | 12.90 | |
| FPHMS. Optional thru bolts available. #14 FPH wood screws | US32D | 263.00 | 13.40 | |
| available. |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 130S | ||||
| Push Bar | US3 | 184.10 | 4 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 198.55 | 4.00 | |
| Bar Stock: 1" Round | US10 | 236.65 | 4.00 | |
| Projection: 2-1/2" | US10B | 236.65 | 4.00 | |
| Door Thickness: 1-3/4" | US28 | 87.10 | 2.75 | |
| *Add per linear inch or fraction thereof | US32 | 219.40 | 6.70 | |
| Standard fasteners are 1/4"-20 x 2-1/4" FPHMS with finish | US32D | 173.75 | 5.65 | |
| washers. May be ordered with Type 5 mounting at an extra | ||||
| charge. | ||||
| 131S | ||||
| Push Bar | US3 | 189.60 | 4 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 207.55 | 4.00 | |
| Bar Stock: 1" Round | US10 | 227.40 | 4.00 | |
| Base Plate: 2" Diameter | US10B | 227.40 | 4.00 | |
| Projection: 2-5/8" | US28 | 94.95 | 2.75 | |
| Door Thickness: 1-3/4" Standard | US32 | 229.60 | 6.70 | |
| *Add per linear inch or fraction thereof | US32D | 187.95 | 5.65 | |
| Standard fasteners are 1/4"-20 x 2-1/4" FPHMS with finish | ||||
| washers. May be ordered with Type 5 mounting at an extra | ||||
| charge. | ||||
| 133S | ||||
| Push Bar | US3 | 156.00 | 4 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 169.75 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 184.10 | 4.00 | |
| Projection: 2-1/4" | US10B | 184.10 | 4.00 | |
| Door Thickness: 1-3/4" Standard | US28 | 73.85 | 2.75 | |
| *Add per linear inch or fraction thereof | US32 | 188.15 | 6.70 | |
| Standard fasteners are 1/4"-20 x 2-1/4" FPHMS with finish | US32D | 147.70 | 5.65 | |
| washers. | ||||
| 134S | ||||
| Push Bar | US3 | 162.30 | 4 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 182.35 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 194.85 | 4.00 | |
| Base Plate: 1-1/4" Diameter | US10B | 194.85 | 4.00 | |
| Projection: 2-3/8" | US28 | 84.30 | 2.75 | |
| Door Thickness: 1-3/4" Standard | US32 | 206.60 | 6.70 | |
| *Add per linear inch or fraction thereof | US32D | 157.95 | 5.65 | |
| Standard fasteners are 1/4"-20 x 2-1/4" FPHMS with finish | ||||
| washers. May be ordered with Type 5 mounting at an extra | ||||
| charge. | ||||
| 136S | ||||
| Push Bar | US3 | 388.00 | 4 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 396.85 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 405.80 | 8.00 | |
| Projection: 3" | US10B | 405.80 | 8.00 | |
| Fasteners: 5/16" - 18 x 2-1/4" with finish washers | US28 | 280.65 | 5.45 | |
| Door Thickness: 1-3/4" Standard | US32 | 368.25 | 12.90 | |
| *Add per linear inch or fraction thereof | US32D | 333.20 | 13.40 |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 137S | ||||
| Push Bar | US3 | 397.20 | 4 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 405.80 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 415.00 | 8.00 | |
| Base Plate: 2" Diameter | US10B | 415.00 | 8.00 | |
| Projection: 3-1/8" | US28 | 289.40 | 5.45 | |
| Door Thickness: 1-3/4" Standard | US32 | 419.15 | 12.90 | |
| Fasteners: 5/16" - 18 x 2-1/4" with finish washers | ||||
| Additional bars by quotation | US32D | 341.95 | 13.40 | |
| *Add per linear inch or fraction thereof | ||||
| May be ordered with Type 5 mounting at an extra charge. | ||||
| 138P | ||||
| Push/Pull Set | US3 | 411.10 | 2 | 16.10 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 447.30 | 16.10 | |
| Bar Stock: 1" Round | US10 | 475.95 | 16.10 | |
| Projection: 2-1/2" | US10B | 475.95 | 16.10 | |
| Fasteners: 1/4" - 20 type 3 concealed cone | US28 | 215.80 | 10.70 | |
| *Add per linear inch or fraction thereof | US32 | 480.50 | 23.65 | |
| US32D | 389.25 | 26.80 | ||
| 139P | ||||
| Push/Pull Set | US3 | 354.90 | 2 | 16.10 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 382.45 | 16.10 | |
| Bar Stock: 3/4" Round | US10 | 411.10 | 16.10 | |
| Projection: 2-1/4" | US10B | 411.10 | 16.10 | |
| Fasteners: 1/4" - 20 type 3 concealed cone | ||||
| *Add per linear inch or fraction thereof | US28 | 189.45 | 10.70 | |
| US32 | 417.20 | 23.65 | ||
| US32D | 337.30 | 26.80 | ||
| 140P | ||||
| Push/Pull Set | US3 | 820.60 | 2 | 16.10 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 836.55 | 16.10 | |
| Bar Stock: 1-1/4" Round | US10 | 854.55 | 16.10 | |
| Projection: 3" | US10B | 854.55 | 16.10 | |
| Fasteners: 5-16" - 18 Type 3 concealed cone | US28 | 620.50 | 10.70 | |
| *Add per linear inch or fraction thereof | US32 | 813.40 | 23.65 | |
| US32D | 708.25 | 26.80 | ||
| 150B | ||||
| Push/Pull Set | US3 | 283.25 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 296.00 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 304.85 | 4.00 | |
| Projection: 2-1/4" | US10B | 304.85 | 4.00 | |
| CTC: 8" | US28 | 160.05 | 2.75 | |
| Fasteners: Type 7 & (2) Type 8 | US32 | 348.95 | 6.70 | |
| Additional bars by quotation | US32D | 278.85 | 5.65 | |
| *Add per linear inch or fraction thereof | ||||
| For tempered glass only |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|
|---|---|---|---|---|---|
| 150D | |||||
| Push/Pull Set | US3 | 238.65 | 2 | 4.00 | |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 250.85 | 4.00 | ||
| Bar Stock: 3/4" Round | US10 | 259.75 | 4.00 | ||
| Projection: 2-1/4" | US10B | 259.75 | 4.00 | ||
| CTC: 8" | US28 | 124.70 | 2.75 | ||
| Fasteners: Type 7 & (2) Type 1 | US32 | 305.20 | 6.70 | ||
| Additional bars by quotation | US32D | 235.05 | 5.65 | ||
|
*Add per linear inch or fraction thereof
Standard fastening method |
|||||
| 150V | |||||
| Push/Pull Set | US3 | 267.50 | 2 | 4.00 | |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 279.75 | 4.00 | ||
| Bar Stock: 3/4" Round | US10 | 288.60 | 4.00 | ||
| Projection: 2-1/4" | US10B | 288.60 | 4.00 | ||
| CTC: 8" | US28 | 152.75 | 2.75 | ||
| Fasteners: Type 7 & (2) Type 5 | US32 | 333.20 | 6.70 | ||
| Additional bars by quotation | US32D | 263.00 | 5.65 | ||
|
*Add per linear inch or fraction thereof
Fully concealed fastening method |
|||||
| 151B | |||||
| Push/Pull Set | US3 | 296.00 | 2 | 4.00 | |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 308.45 | 4.00 | ||
| Bar Stock: 3/4" Round | US10 | 319.90 | 4.00 | ||
| Projection: 2-1/4" | US10B | 319.90 | 4.00 | ||
| CTC: 10" | US28 | 177.55 | 2.75 | ||
| Fasteners: Type 7 & (2) Type 8 | US32 | 317.40 | 6.70 | ||
| Additional bars by quotation | US32D | 289.40 | 5.65 | ||
|
*Add per linear inch or fraction thereof
For tempered glass only |
|||||
| 151D | |||||
| Push/Pull Set | US3 | 250.85 | 2 | 4.00 | |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 263.60 | 4.00 | ||
| Bar Stock: 3/4" Round | US10 | 274.85 | 4.00 | ||
| Projection: 2-1/4" | |||||
| CTC: 10" | US10B | 274.85 | 4.00 | ||
| Fasteners: Type 7 & (2) Type 1 | US28 | 135.35 | 2.75 | ||
| Additional bars by quotation | US32 | 315.65 | 6.70 | ||
| *Add per linear inch or fraction thereof | US32D | 245.60 | 5.65 | ||
| Standard fastening method | |||||
| 151V | |||||
| Push/Pull Set | US3 | 279.75 | 2 | 4.00 | |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 292.20 | 4.00 | ||
| Bar Stock: 3/4" Round | US10 | 303.70 | 4.00 | ||
| Projection: 2-1/4" | US10B | 303.70 | 4.00 | ||
| CTC: 10" | US28 | 166.15 | 2.75 | ||
| Fasteners: Type 7 & (2) Type 5 | US32 | 343.70 | 6.70 | ||
| Additional bars by quotation | US32D | 273.55 | 5.65 | ||
|
*Add per linear inch or fraction thereof
Fully concealed fastening method |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
|
152B
Push/Pull Set |
US3 | 309.10 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | ||||
| Bar Stock: 3/4" Round | US4 | 330.10 | 4.00 | |
| Projection: 2-1/4" | US10 | 333.75 | 4.00 | |
| CTC: 12" | US10B | 333.75 | 4.00 | |
| Fasteners: Type 7 & (2) Type 8 | US28 | 187.85 | 2.75 | |
| Additional bars by quotation | US32 | 365.10 | 6.70 | |
|
*Add per linear inch or fraction thereof
For tempered glass only |
US32D | 299.95 | 5.65 | |
| 152D | ||||
| Push/Pull Set | US3 | 263.85 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 285.00 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 288.60 | 4.00 | |
| Projection: 2-1/4" | US10B | 288.60 | 4.00 | |
| CTC: 12" | US28 | 148.75 | 2.75 | |
| Fasteners: Type 7 & (2) Type 1 | ||||
| Additional bars by quotation | US32 | 321.35 | 6.70 | |
|
*Add per linear inch or fraction thereof
Standard fastening method |
US32D | 256.25 | 5.65 | |
| 152V | ||||
| Push/Pull Set | US3 | 292.60 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 313.85 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 317.55 | 4.00 | |
| Projection: 2-1/4" | ||||
| CTC: 12" | US10B | 317.55 | 4.00 | |
| Fasteners: Type 7 & (2) Type 5 | US28 | 179.55 | 2.75 | |
| Additional bars by quotation | US32 | 349.50 | 6.70 | |
| *Add per linear inch or fraction thereof | US32D | 284.15 | 5.65 | |
| Fully concealed fastening method | ||||
| 153B | ||||
| Push/Pull Set | US3 | 317.05 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 355.25 | 4.00 | |
| Bar Stock: 1" Round | US10 | 355.25 | 4.00 | |
| Projection: 2-1/2" | US10B | 355.25 | 4.00 | |
| CTC: 10" | US28 | 180.60 | 2.75 | |
| Fasteners: Type 7 & (2) Type 8 | US32 | 369.00 | 6.70 | |
| Additional bars by quotation | US32D | 299.60 | 5.65 | |
|
*Add per linear inch or fraction thereof
For tempered glass only |
||||
| 153D | ||||
| Push/Pull Set | US3 | 272.10 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | ||||
| Bar Stock: 1" Round | US4 | 310.20 | 4.00 | |
| Projection: 2-1/2" | US10 | 323.35 | 4.00 | |
| CTC: 10" | US10B | 325.90 | 4.00 | |
| Fasteners: Type 7 & (2) Type 1 | US28 | 136.85 | 2.75 | |
| Additional bars by quotation | US32 | 325.20 | 6.70 | |
| *Add per linear inch or fraction thereof | US32D | 255.75 | 5.65 | |
Standard fastening method
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 153V | ||||
| Push/Pull Set | US3 | 301.40 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 339.10 | 4.00 | |
| Bar Stock: 1" Round | US10 | 339.10 | 4.00 | |
| Projection: 2-1/2" | US10B | 339.10 | 4.00 | |
| CTC: 10" | US28 | 166.85 | 2.75 | |
| Fasteners: Type 7 & (2) Type 5 | US32 | 353.25 | 6.70 | |
| Additional bars by quotation | US32D | 283.75 | 5.65 | |
|
*Add per linear inch or fraction thereof
Fully concealed fastening method |
||||
| 154B | ||||
| Push/Pull Set | US3 | 327.80 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 371.85 | 4.00 | |
| Bar Stock: 1" Round | US10 | 380.15 | 4.00 | |
| Projection: 2-1/2" | US10B | 380.15 | 4.00 | |
| CTC: 12" | US28 | 207.00 | 2.75 | |
| Fasteners: Type 7 & (2) Type 8 | US32 | 381.70 | 6.70 | |
| Additional bars by quotation | US32D | 308.80 | 5.65 | |
|
*Add per linear inch or fraction thereof
For tempered glass only |
||||
| 154D | ||||
| Push/Pull Set | US3 | 281.25 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 320.55 | 4.00 | |
| Bar Stock: 1" Round | US10 | 336.60 | 4.00 | |
| Projection: 2-1/2" | US10B | 336.60 | 4.00 | |
| CTC: 12" | US28 | 152.75 | 2.75 | |
| Fasteners: Type 7 & (2) Type 1 | US32 | 337.90 | 6.70 | |
| Additional bars by quotation | US32D | 264.90 | 5.65 | |
|
*Add per linear inch or fraction thereof
Standard fastening method |
||||
| 154V | ||||
| Push/Pull Set | US3 | 310.10 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 349.35 | 4.00 | |
| Bar Stock: 1" Round | US10 | 364.80 | 4.00 | |
| Projection: 2-1/2" | US10B | 364.80 | 4.00 | |
| CTC: 12" | US28 | 189.00 | 2.75 | |
| Fasteners: Type 7 & (2) Type 5 | US32 | 366.05 | 6.70 | |
| Additional bars by quotation | US32D | 292.90 | 5.65 | |
|
*Add per linear inch or fraction thereof
Fully concealed fastening method |
||||
| 155B | ||||
| Push/Pull Set | US3 | 365.10 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 387.85 | 4.00 | |
| Bar Stock: 1" Round | ||||
| Projection: 2-1/2" | US10 | 410.60 | 4.00 | |
| CTC: 18" | US10B | 410.60 | 4.00 | |
| Fasteners: Type 7 & (2) Type 8 | US28 | 236.20 | 2.75 | |
| Additional bars by quotation | US32 | 414.85 | 6.70 | |
|
*Add per linear inch or fraction thereof
For tempered glass only |
US32D | 334.95 | 5.65 |
4/1/2018 www.hagerco.com
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 155D | ||||
| Push/Pull Set | US3 | 320.05 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 361.30 | 4.00 | |
| Bar Stock: 1" Round | US10 | 365.65 | 4.00 | |
| Projection: 2-1/2" | US10B | 365.65 | 4.00 | |
| CTC: 18" | US28 | 162.40 | 2.75 | |
| Fasteners: Type 7 & (2) Type 1 | US32 | 371.00 | 6.70 | |
| Additional bars by quotation | US32D | 291.15 | 5.65 | |
|
*Add per linear inch or fraction thereof
Standard fastening method |
||||
| 155V | ||||
| Push/Pull Set | US3 | 348.85 | 2 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 371.75 | 4.00 | |
| Bar Stock: 1" Round | US10 | 394.30 | 4.00 | |
| Projection: 2-1/2" | US10B | 394.30 | 4.00 | |
| CTC: 18" | US28 | 199.30 | 2.75 | |
| Fasteners: Type 7 & (2) Type 5 | US32 | 399.00 | 6.70 | |
| Additional bars by quotation | US32D | 319.30 | 5.65 | |
|
*Add per linear inch or fraction thereof
Fully concealed fastening method |
||||
| 156B | ||||
| Offset Push/Pull Set | US3 | 326.50 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 326.50 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 341.35 | 4.00 | |
| Projection: 2-1/2" | US10B | 341.35 | 4.00 | |
| Offset: 2-1/2" | US28 | 208.90 | 2.75 | |
| CTC: 8" | US32 | 388.10 | 6.70 | |
| Fasteners: Type 7 & (2) Type 8 | US32D | 308.90 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
|
*Add per linear inch or fraction thereof
For tempered glass only |
||||
| 156D | ||||
| Offset Push/Pull Set | US3 | 270.65 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 281.35 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 296.20 | 4.00 | |
| Projection: 2-1/2" | US10B | 296.20 | 4.00 | |
| Offset: 2-1/2" | ||||
| CTC: 8" | US28 | 165.05 | 2.75 | |
| Fasteners: Type 7 & (2) Type 1 | US32 | 344.40 | 6.70 | |
| Handing Required | US32D | 265.05 | 5.65 | |
| Additional bars by quotation | ||||
*Add per linear inch or fraction thereof
Standard fastening method
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 156V | ||||
| Offset Push/Pull Set | US3 | 300.00 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 310.20 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 325.10 | 4.00 | |
| Projection: 2-1/2" | US10B | 325.10 | 4.00 | |
| Offset: 2-1/2" | US28 | 193.10 | 2.75 | |
| CTC: 8" | US32 | 372.30 | 6.70 | |
| Fasteners: Type 7 & (2) Type 5 | US32D | 293.10 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Fully concealed fastening method | ||||
| 157B | ||||
| Offset Push/Pull Set | US3 | 332.70 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 341.65 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 357.10 | 4.00 | |
| Projection: 2-1/2" | US10B | 357.10 | 4.00 | |
|
Offset: 2-1/2"
CTC: 10" |
US28 | 212.95 | 2.75 | |
| Fasteners: Type 7 & (2) Type 8 | US32 | 398.40 | 6.70 | |
| Handing Required | US32D | 316.10 | 5.65 | |
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| For tempered glass only | ||||
| 157D | ||||
| Offset Push/Pull Set | US3 | 278.30 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 288.60 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 304.05 | 4.00 | |
| Projection: 2-1/2" | US10B | 304.05 | 4.00 | |
| Offset: 2-1/2" | US28 | 169.25 | 2.75 | |
| CTC: 10" | US32 | 354.70 | 6.70 | |
| Fasteners: Type 7 & (2) Type 1 | US32D | 272.35 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method | ||||
| 157V | ||||
| Offset Push/Pull Set | US3 | 307.70 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 317.55 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 333.05 | 4.00 | |
| Projection: 2-1/2" | US10B | 333.05 | 4.00 | |
| Offset: 2-1/2" | US28 | 197.40 | 2.75 | |
| CTC: 10" | US32 | 382.85 | 6.70 | |
| Fasteners: Type 7 & (2) Type 5 | US32D | 300.25 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Fully concealed fastening method |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 158B | ||||
| Offset Push/Pull Set | US3 | 337.00 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 361.75 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 377.25 | 4.00 | |
| Projection: 2-1/2" | US10B | 377.25 | 4.00 | |
| Offset: 2-1/2" | US28 | 231.50 | 2.75 | |
| CTC: 12" | US32 | 417.40 | 6.70 | |
| Fasteners: Type 7 & (2) Type 8 | US32D | 329.75 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| For tempered glass only | ||||
| 158D | ||||
| Offset Push/Pull Set | US3 | 308.65 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 308.45 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 319.70 | 4.00 | |
| Projection: 2-1/2" | US10B | 319.70 | 4.00 | |
| Offset: 2-1/2" | US28 | 187.85 | 2.75 | |
| CTC: 12" | US32 | 373.45 | 6.70 | |
| Fasteners: Type 7 & (2) Type 1 | US32D | 285.90 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method | ||||
| 158V | ||||
| Offset Push/Pull Set | US3 | 320.90 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 337.30 | 4.00 | |
| Bar Stock: 3/4" Round | US10 | 348.60 | 4.00 | |
| Projection: 2-1/2" | US10B | 348.60 | 4.00 | |
| Offset: 2-1/2" | US28 | 215.80 | 2.75 | |
| CTC: 12" | US32 | 401.55 | 6.70 | |
| Fasteners: Type 7 & (2) Type 5 | US32D | 313.95 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Fully concealed fastening method | ||||
| 159B | ||||
| Offset Push/Pull Set | US3 | 358.95 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 387.85 | 4.00 | |
| Bar Stock: 1" Round | US10 | 402.20 | 4.00 | |
| Projection: 2-1/2" | US10B | 402.20 | 4.00 | |
| Offset: 3" | US28 | 217.60 | 2.75 | |
| CTC: 10" | US32 | 394.45 | 6.70 | |
| Fasteners: Type 7 & (2) Type 8 | US32D | 336.25 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| For tempered glass only |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 159D | ||||
|
Offset Push/Pull Set
Material: Brass, bronze, aluminum, stainless steel Bar Stock: 1" Round |
US3
US4 US10 |
313.85
342.75 381.05 |
1 |
4.00
4.00 4.00 |
|
Projection: 2-1/2"
Offset: 3" CTC: 10" Fasteners: Type 7 & (2) Type 1 Handing Required |
US10B
US28 US32 US32D |
381.05
166.95 350.85 292.40 |
4.00
2.75 6.70 5.65 |
|
|
Additional bars by quotation
*Add per linear inch or fraction thereof Standard fastening method |
||||
| 159V | ||||
| Offset Push/Pull Set | US3 | 342.75 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 371.75 | 4.00 | |
|
Bar Stock: 1" Round
Projection: 2-1/2" |
US10 | 386.10 | 4.00 | |
| Offset: 3" | US10B | 386.10 | 4.00 | |
| CTC: 10" | US28 | 200.05 | 2.75 | |
| Fasteners: Type 7 & (2) Type 5 | US32 | 378.80 | 6.70 | |
|
Handing Required
Additional bars by quotation *Add per linear inch or fraction thereof Fully concealed fastening method |
US32D | 320.45 | 5.65 | |
| 160B | ||||
| Offset Push/Pull Set | US3 | 367.60 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 395.05 | 4.00 | |
| Bar Stock: 1" Round | US10 | 409.50 | 4.00 | |
| Projection: 2-1/2" | US10B | 409.50 | 4.00 | |
| Offset: 3" | US28 | 235.05 | 2.75 | |
| CTC: 12" | US32 | 412.05 | 6.70 | |
|
Fasteners: Type 7 & (2) Type 8
Handing Required Additional bars by quotation |
US32D | 341.95 | 5.65 | |
|
*Add per linear inch or fraction thereof
For tempered glass only |
||||
| 160D | ||||
| Offset Push/Pull Set | US3 | 322.60 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 350.05 | 4.00 | |
| Bar Stock: 1" Round | US10 | 384.20 | 4.00 | |
| Projection: 2-1/2" | US10B | 387.60 | 4.00 | |
| Offset: 3" | US28 | 173.75 | 2.75 | |
| CTC: 12" | US32 | 368.25 | 6.70 | |
|
Fasteners: Type 7 & (2) Type 1
Handing Required |
US32D | 298.25 | 5.65 | |
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method |
4/1/2018 www.hagerco.com
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 160V | ||||
| Offset Push/Pull Set | US3 | 351.30 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 378.80 | 4.00 | |
| Bar Stock: 1" Round | US10 | 392.60 | 4.00 | |
| Projection: 2-1/2" | US10B | 393.25 | 4.00 | |
| Offset: 3" | ||||
| CTC: 12" | US28 | 210.65 | 2.75 | |
| Fasteners: Type 7 & (2) Type 5 | US32 | 396.35 | 6.70 | |
| Handing Required | US32D | 326.20 | 5.65 | |
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Fully concealed fastening method | ||||
| 161B | ||||
| Offset Push/Pull Set | US3 | 364.25 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 395.20 | 4.00 | |
| Bar Stock: 1" Round | US10 | 420.80 | 4.00 | |
| Projection: 2-1/2" | US10B | 420.80 | 4.00 | |
| Offset: 3" | US28 | 233.95 | 2.75 | |
| CTC: 18" | US32 | 425.85 | 6.70 | |
| Fasteners: Type 7 & (2) Type 8 | US32D | 342.40 | 5.65 | |
| Handing Required | ||||
|
Additional bars by quotation
*Add per linear inch or fraction thereof |
||||
| For tempered glass only | ||||
| 161D | ||||
| Offset Push/Pull Set | US3 | 340.85 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 369.80 | 4.00 | |
| Bar Stock: 1" Round | US10 | 396.85 | 4.00 | |
| Projection: 2-1/2" | US10B | 396.85 | 4.00 | |
| Offset: 3" | US28 | 189.85 | 2.75 | |
| CTC: 18" | ||||
| Fasteners: Type 7 & (2) Type 1 | US32 | 403.40 | 6.70 | |
| Handing Required | US32D | 323.15 | 5.65 | |
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method | ||||
| 161V | ||||
| Offset Push/Pull Set | US3 | 366.20 | 1 | 4.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 398.65 | 4.00 | |
| Bar Stock: 1" Round | US10 | 425.75 | 4.00 | |
| Projection: 2-1/2" | US10B | 425.75 | 4.00 | |
| Offset: 3" | US28 | 305.20 | 2.75 | |
| CTC: 18" | US32 | 431.35 | 6.70 | |
| Fasteners: Type 7 & (2) Type 5 | US32D | 343.70 | 5.65 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof |
Fully concealed fastening method
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 164B | ||||
| Push/Pull Set | US3 | 647.55 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 673.85 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 686.55 | 8.00 | |
| Projection: 3" | US10B | 686.55 | 8.00 | |
| CTC: 12" | ||||
| Fasteners: Type 7 & (2) Type 8 | US28 | 510.15 | 5.45 | |
| Additional bars by quotation | US32 | 682.55 | 12.90 | |
| *Add per linear inch or fraction thereof | US32D | 563.20 | 13.40 | |
| For tempered glass only | ||||
| 164D | ||||
| Push/Pull Set | US3 | 589.05 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 627.95 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 627.95 | 8.00 | |
| Projection: 3" | US10B | 627.95 | 8.00 | |
| CTC: 12" | US28 | 453.20 | 5.45 | |
| Fasteners: Type 7 & (2) Type 1 | US32 | 563.20 | 12.90 | |
| Additional bars by quotation | US32D | 506.25 | 13.40 | |
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method | ||||
| 164V | ||||
| Push/Pull Set | US3 | 666.90 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 666.90 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 680.65 | 8.00 | |
| Projection: 3" | US10B | 680.65 | 8.00 | |
| CTC: 12" | US28 | 491.10 | 5.45 | |
| Fasteners: Type 7 & (2) Type 5 | US32 | 614.35 | 12.90 | |
| Additional bars by quotation | US32D | 549.95 | 13.40 | |
| *Add per linear inch or fraction thereof | ||||
| Fully concealed fastening method | ||||
| 165B | ||||
| Push/Pull Set | US3 | 686.55 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 725.40 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 725.40 | 8.00 | |
| Projection: 3" | US10B | 725.40 | 8.00 | |
| CTC: 18" | US28 | 530.95 | 5.45 | |
| Fasteners: Type 7 & (2) Type 8 | US32 | 648.45 | 12.90 | |
| Additional bars by quotation | US32D | 597.30 | 13.40 | |
| *Add per linear inch or fraction thereof | ||||
| For tempered glass only | ||||
| 165D | ||||
| Push/Pull Set | US3 | 627.95 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 666.90 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 666.90 | 8.00 | |
| Projection: 3" | US10B | 666.90 | 8.00 | |
| CTC: 18" | US28 | 474.10 | 5.45 | |
| Fasteners: Type 7 & (2) Type 1 | US32 | 591.60 | 12.90 | |
| Additional bars by quotation | US32D | 534.65 | 13.40 | |
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method |
| Description | Finish | 2018 List | Case Qty. |
CTC
Over 36"* |
|---|---|---|---|---|
| 165V | ||||
| Push/Pull Set | US3 | 697.90 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 705.95 | 8.00 | |
| Bar Stock: 1-1/4" Round | ||||
| Projection: 3" | US10 | 705.95 | 8.00 | |
| CTC: 18" | US10B | 705.95 | 8.00 | |
| Fasteners: Type 7 & (2) Type 5 | US28 | 511.95 | 5.45 | |
| Additional bars by quotation | US32 | 642.70 | 12.90 | |
| *Add per linear inch or fraction thereof | US32D | 587.80 | 13.40 | |
| Fully concealed fastening method | ||||
| 167B | ||||
| Offset Push/Pull Set | US3 | 760.50 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 778.00 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 799.55 | 8.00 | |
| Projection: 3" | US10B | 799.55 | 8.00 | |
| Offset: 3-3/4" | US28 | 568.95 | 5.45 | |
| CTC: 18" | US32 | 718.65 | 12.90 | |
| Fasteners: Type 7 & (2) Type 8 | ||||
| Handing Required | US32D | 635.05 | 13.40 | |
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| For tempered glass only | ||||
| 167D | ||||
| Offset Push/Pull Set | US3 | 726.20 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 726.20 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 764.50 | 8.00 | |
| Projection: 3" | US10B | 764.50 | 8.00 | |
| Offset: 3-3/4" | US28 | 511.95 | 5.45 | |
| CTC: 18" | US32 | 661.70 | 12.90 | |
| Fasteners: Type 7 & (2) Type 1 | US32D | 572.65 | 13.40 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Standard fastening method | ||||
| 167V | ||||
| Offset Push/Pull Set | US3 | 729.45 | 1 | 8.00 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 743.40 | 8.00 | |
| Bar Stock: 1-1/4" Round | US10 | 743.40 | 8.00 | |
| Projection: 3" | US10B | 743.40 | 8.00 | |
| Offset: 3-3/4" | US28 | 534.55 | 5.45 | |
| CTC: 18" | US32 | 681.10 | 12.90 | |
| Fasteners: Type 7 & (2) Type 5 | US32D | 610.40 | 13.40 | |
| Handing Required | ||||
| Additional bars by quotation | ||||
| *Add per linear inch or fraction thereof | ||||
| Fully concealed fastening method | ||||
| 170D | ||||
| Push/Pull Set | US3 | 997.40 | 1 | 32.10 |
| Material: Brass, bronze, aluminum, stainless steel | US4 | 997.40 | 32.10 | |
| Bar Stock: 3/8" x 1-1/4" | US10 | 997.40 | 32.10 | |
| Base: 1-1/4" Square | US10B | 997.40 | 32.10 | |
| Projection: Push Bar 3/4" | ||||
| Projection: Pull Bar 2-1/2" | US28 | 530.95 | 21.50 | |
| Fasteners: 1/4" 20 thru bolts Type 4 | US32 | 969.75 | 51.50 | |
| US32D | 884.40 | 53.60 |
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 180H | |||
| Door Edgings - Mortise Type | US28 | 40.10 | 10 |
| Material: Aluminum, stainless steel | US32D | 56.80 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
|
Cutouts will hand product, specify handling. Other lengths by
quotation. |
|||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| 180K | |||
|---|---|---|---|
| Door Edgings - Mortise Type | US28 | 41.20 | 10 |
| Material: Aluminum, stainless steel | US32D | 64.25 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 180M | |||
| Door Edgings - Mortise Type | US28 | 64.25 | 10 |
| Material: Aluminum, stainless steel | US32D | 84.60 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
|
Cutouts will hand product, specify handling. Other lengths by
quotation. |
|||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 | |
| 180P |
|
180P
Door Edgings - Mortise Type |
US28 | 68.60 | 10 |
|---|---|---|---|
| Material: Aluminum, stainless steel | US32D | 89.45 | |
|
Length: Up to 42"
Thickness: .045050" |
|||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
|
Cutouts will hand product, specify handling. Other lengths by
quotation. |
|||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 180Q | |||
| Door Edgings - Mortise Type | US28 | 86.95 | 5 |
| Material: Aluminum, stainless steel | US32D | 110.05 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
|
thickness. Please provide actual door thickness.
Cutouts will hand product, specify handling. Other lengths by |
|||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 | |
|
181H
Door Edgings - Overlap Type |
US28 | 64.25 | 5 |
| Material: Aluminum, stainless steel | US32D | 89.70 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
|
Cutouts will hand product, specify handling. Other lengths by
quotation. |
|||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
US32D 27.45
US32D 27.40
Latch Cutout (Add to list price) US28 27.40
UL Rated (Add to list price) US32D 16.55
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 181K | |||
| Door Edgings - Overlap Type | US28 | 60.05 | 5 |
| Material: Aluminum, stainless steel | US32D | 84.00 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
|
Cutouts will hand product, specify handling. Other lengths by
quotation. |
|||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 | |
| 181M | |||
| Door Edgings - Overlap Type | US28 | 81.20 | 5 |
| Material: Aluminum, stainless steel | US32D | 102.85 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 181P | |||
| Door Edgings - Overlap Type | US28 | 85.30 | 10 |
| U/M - each | US32D | 106.60 | |
| Material: Aluminum, stainless steel | |||
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
|
Standard edge guards made for 1-3/4" +0/-1/32" door
thickness. Please provide actual door thickness. |
|||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 | |
| 181Q | |||
| Door Edgings - Overlap Type | US28 | 90.95 | 5 |
| Material: Aluminum, stainless steel | US32D | 102.70 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws |
| Door Edgings - Overlap Type | US28 | 90.95 | 5 |
| Material: Aluminum, stainless steel | US32D | 102.70 | |
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 | |
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 182H | |||
| Door Edgings - Surface | US28 | 38.60 | 10 |
| Non-Mortise Type | US32D | 60.05 | |
| Material: Aluminum, stainless steel | |||
| Length: Up to 42" | |||
| Thickness: .045050" | |||
|
Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws
available on request. |
|||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| 182K | |||
|---|---|---|---|
| Door Edgings - Surface | US28 | 41.20 | 10 |
| Non-Mortise Type | US32D | 49.05 | |
| Material: Aluminum, stainless steel | |||
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 182M | |||
| Door Edgings - Surface | US28 | 64.65 | 10 |
| Non-Mortise Type | US32D | 84.60 | |
| Material: Aluminum, stainless steel | |||
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
| Cutouts will hand product, specify handling. Other lengths by | |||
| quotation. | |||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 | |
| 182P | |||
| Door Edgings - Surface | US28 | 68.60 | 10 |
| 182P | ||||
| Door Edgings - Surface | US28 | 68.60 | 10 | |
| Non-Mortise Type | US32D | 89.45 | ||
| Material: Aluminum, stainless steel | ||||
| Length: Up to 42" | ||||
| Thickness: .045050" | ||||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | ||||
| available on request. | ||||
| Standard edge guards made for 1-3/4" +0/-1/32" door | ||||
| thickness. Please provide actual door thickness. | ||||
| Cutouts will hand product, specify handling. Other lengths by | ||||
| quotation. | ||||
| Hinge Cutout (Add to list price) | US28 | 27.40 | ||
| US32D | 27.40 | |||
| Bolt Cutout (Add to list price) | US28 | 27.45 | ||
| US32D | 27.45 | |||
| Latch Cutout (Add to list price) | US28 | 27.40 | ||
| US32D | 27.40 | |||
| UL Rated (Add to list price) | US32D | 16.55 | ||
| Description | Finish | 2018 List | Case Qty. |
|---|---|---|---|
| 182Q | |||
| Door Edgings - Surface | US28 | 87.25 | 10 |
| Non-Mortise Type | US32D | 110.05 | |
| Material: Aluminum, stainless steel | |||
| Length: Up to 42" | |||
| Thickness: .045050" | |||
| Fasteners: #6 x 5/8" FPHSMS (Self drilling) #6 x 1" screws | |||
| available on request. | |||
| Standard edge guards made for 1-3/4" +0/-1/32" door | |||
| thickness. Please provide actual door thickness. | |||
|
Cutouts will hand product, specify handling. Other lengths by
quotation. |
|||
| Hinge Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| Bolt Cutout (Add to list price) | US28 | 27.45 | |
| US32D | 27.45 | ||
| Latch Cutout (Add to list price) | US28 | 27.40 | |
| US32D | 27.40 | ||
| UL Rated (Add to list price) | US32D | 16.55 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 185G | |||||
| Corner Guard | US28 | 89.30 | - | - | - |
| Material: Aluminum, stainless steel | w/tape | ||||
| Size: 3" x 3" x 40" | US32D w/tape | 109.15 | 062999 | ||
| Thickness: .050" | US28 | 59.15 | 044109 | ||
| Fasteners: #6 x 5/8" FPHSMS self drilling | US32D | 79.80 | 087970 | ||
| #6 x 1" screws available upon request. | |||||
| Other lengths by quotation. | |||||
| 230W | |||||
| Convex Wall Stop | US3 | 9.00 | 053679 | 10 | 100 |
| Concealed Mounting | US4 | 11.55 | 053680 | ||
| Material: Cast brass or bronze | US10 | 11.60 | 053681 | ||
| Stop: Rubber | US10B | 11.60 | 053683 | ||
| Diameter: 2-15/32" | US15 | 16.15 | 094602 | ||
| Projection: 1-3/32" | US15A | 16.15 | 054038 | ||
| Fastener: #10 x 1-1/2" PPHWS with | |||||
| plastic and toggle anchor | US19 | 16.15 | 073621 | ||
| Add optional 230T machine screw with | US26 | 14.45 | 053682 | ||
| metal toggle nut screwpack - 0.70 each list. | US26D | 7.55 | 053684 | ||
| 232W | |||||
| Convex Wall Stop | US3 | 3.90 | 051972 | 10 | 100 |
| Concealed Mounting | US4 | 3.90 | 053231 | ||
| Material: Wrought brass, bronze or stainless steel | US5 | 9.95 | 072846 | ||
| Stop: Rubber | US9 | 9.85 | 017030 | ||
| Diameter: 2-7/16" | US10 | 3.90 | 051973 | ||
| Projection: 1" | US10B | 3.90 | 051974 | ||
| Fastener: #10 x 1-1/2" PPHWS with | US15 | 10.00 | 046072 | ||
| plastic and toggle anchor | US15A | 10.00 | 062556 | ||
| Add optional 230T machine screw with | US19 | 10.00 | 071703 | ||
| metal toggle nut screwpack - 0.70 each list. | US26 | 4.05 | 051975 | ||
| US26D | 3.80 | 051976 | |||
|
US32
US32D |
10.00
2.75 |
053691
053678 |
|||
| 234W | |||||
| Concave Wall Stop | US3 | 9.00 | 053227 | 10 | 100 |
| Material: Cast brass or bronze | US4 | 11.55 | 053228 | ||
| Stop: Rubber | US10 | 11.60 | 053229 | ||
| Diameter: 2-15/32" | US10B | 11.60 | 053230 | ||
| Projection: 1-3/32" | US15 | 16.15 | 094603 | ||
| Fastener: #10 x 1-1/2" PPHWS with | |||||
| plastic and toggle anchor | US15A | 16.15 | 054039 | ||
| Add optional 230T machine screw with | US19 | 16.15 | 067951 | ||
| metal toggle nut screwpack - 0.70 each list. | US26 | 14.45 | 053235 |
US26D 7.55 053236
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 236W | |||||
| Concave Wall Stop | US3 | 3.90 | 051977 | 10 | 100 |
| Material: Wrought brass, bronze or stainless steel | US4 | 3.90 | 053237 | ||
| Stop: Rubber | US5 | 9.95 | 072849 | ||
| Diameter: 2-7/16" | US9 | 9.85 | 018702 | ||
| Projection: 1" | US10 | 3.90 | 051978 | ||
| Fastener: #10 x 1-1/2"PPHWS with | US10B | 3.90 | 051979 | ||
| plastic and toggle anchor | US15 | 9.95 | 014846 | ||
| Add optional 230T machine screw with | US15A | 9.95 | 054522 | ||
| metal toggle nut screwpack - 0.70 each list. | US19 | 9.95 | 018437 | ||
| US26 | 4.05 | 051980 | |||
| US26D | 3.80 | 051981 | |||
| US32 | 9.85 | 053238 | |||
| US32D | 2.75 | 053239 | |||
| 241F | |||||
| Dome Stop - Low | US3 | 6.75 | 051982 | 10 | 100 |
| Material: Die cast brass | US4 | 6.65 | 053259 | ||
| Base Diameter: 1-11/16" | US5 | 10.85 | 072845 | ||
| Base: 1/8" Thick | US9 | 10.85 | 056749 | ||
| Height: 1" | US10 | 7.60 | 051983 | ||
| Fastener: #14 x 1-1/2" with plastic anchor | US10B | 6.70 | 051984 | ||
| and 1/4-20 x 3/4" FPHMS with lead anchor | US15 | 8.30 | 034785 | ||
| US15A | 10.85 | 054041 | |||
| US19 | 10.85 | 073625 | |||
| US26 | 6.65 | 051985 | |||
| US26D | 6.25 | 052148 | |||
| 242F | |||||
| Dome Stop - Universal | US3 | 10.45 | 075489 | 10 | 100 |
| Material: Forged brass | US4 | 10.45 | 099613 | ||
| Base Diameter: 1-11/16" | US10B | 11.00 | 075488 | ||
| Base: 7/32" Thick | US15 | 12.20 | 094363 | ||
| Height: 1-5/8" | US26 | 10.75 | 081314 | ||
| Fastener: #14 x 1-1/2" FPHWS with plastic anchor | US26D | 9.20 | 075487 | ||
| and 1/4 - 20 x 3/4" FPHMS with lead anchor | |||||
| 243F | |||||
| Dome Stop - High | US3 | 7.60 | 051986 | 10 | 100 |
| Material: Die cast brass | US4 | 7.60 | 053268 | ||
| Base Diameter: 1-11/16" | US5 | 12.40 | 077629 | ||
| Base: 7/16" Thick | US9 | 12.40 | 056750 | ||
| Height: 1-9/32" | US10 | 8.60 | 052149 | ||
| Fastener: #14 x 1-1/2" FPHWS with plastic anchor | US10B | 7.75 | 052328 | ||
| and 1/4 - 20 x 1-1/4" FPHMS with lead anchor |
US15 9.15 035110 US15A 12.40 054043 US19 12.40 068921 US26 7.75 052329 US26D 6.45 052150
and 1/4 - 20 x 1-1/4" FPHMS with lead anchor
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 244F | |||||
| Cast Floor Stop | US3 | 22.20 | 097343 | 5 | 50 |
| Material: Cast brass | US4 | 22.20 | 058458 | ||
| Base: 1-3/4" x 4" | US10 | 21.75 | 097344 | ||
| Base Thickness: 5/32" | US10B | 21.75 | 097345 | ||
| O/A Height: 1" | US26 | 22.45 | 097346 | ||
| Fasteners: #14 x 1-1/2" FPHWS with plastic anchor; | US26D | 13.90 | 097347 | ||
| 1/4 - 20 x 3/4" FPHMS with lead anchor | |||||
| 245F | |||||
| Cast Floor Stop | US3 | 31.70 | 097348 | 5 | 50 |
| Material: Cast brass | US4 | 31.70 | 036320 | ||
| Base: 1-3/4" x 2" | US10 | 29.90 | 097349 | ||
| Base Thickness: 1/2" | US10B | 31.05 | 097350 | ||
| O/A Height: 1-5/16" | US26 | 31.05 | 097351 | ||
| Fasteners: #14 x 1-1/2" FPHWS with plastic anchor; | US26D | 20.75 | 097352 | ||
| 1/4 - 20 x 1-1/4" FPHMS with lead anchor | |||||
|
246B
Dome Stop Riser Plate |
Mil | 6.05 | 052934 | 10 | 100 |
| Material: Brass | US3 | 3.45 | 054344 | ||
| Diameter: 1-3/4" | US4 | 3.45 | 066234 | ||
| Base: 3/8" thick | |||||
| For use with 241F | US10 | 3.70 | 059349 | ||
| US10B | 3.70 | 054443 | |||
| US15 | 8.00 | 061758 | |||
| US15A | 8.00 | 054044 | |||
| US19 | 8.00 | 054523 | |||
|
US26
US26D |
3.45
2.95 |
066412
055308 |
|||
| 248G | |||||
| Modern Style Universal Stop | US26 | 25.65 | 148878 | 10 | 100 |
| Material: Brass w/ gray rubber bumper | US26D | 25.65 | 159656 | ||
| Diameter: 1-7/16" | |||||
| Height: 1-1/2" | |||||
| Fasteners: 1/4 - 20 x 1" FPHMS with lead anchor; | |||||
| #12 x 1-1/4" FPHWS with plastic anchor | |||||
| 248F | |||||
| Modern Style Universal Stop | US26 | 19.90 | 193603 | 10 | 100 |
| Material: Brass w/ black rubber bumper | US26D | 19.90 | 023442 | 10 | 100 |
| Diameter: 1-7/16" | |||||
| Height: 1-1/2" | |||||
|
Fasteners: 1/4 - 20 x 1" FPHMS with lead anchor;
#12 x 1-1/4" FPHWS with plastic anchor |
|||||
| 249F | |||||
| L-Shaped Floor Stop | US2C | 8.55 | 011616 | 5 | 50 |
| Material: Steel with rubber bumper | |||||
| Height: 2-5/8" | |||||
| Base: 1" x 2-1/2" x 7/32" thick | |||||
Fastener: #14 x 1-1/2" FPHWS with plastic anchor
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 250W | |||||
| Convex Wall Stop | US3 | 9.15 | 052784 | 20 | 200 |
| Material: Cast brass with rubber bumper | US4 | 9.15 | 056083 | ||
| Diameter: 1" | US10 | 9.75 | 052785 | ||
| Projection: 9/16" | US10B | 9.75 | 052786 | ||
| Fastener: #6 x 3/4" screw w/ anchor | US15 | 12.50 | 061694 | ||
| and .052" diameter nail | US15A | 12.50 | 054045 | ||
| US19 | 12.50 | 054526 | |||
| US26 | 9.75 | 052787 | |||
| US26D | 9.75 | 053275 | |||
| 251W | |||||
| Concave Wall Bumper | Grey | 2.30 | 052935 | 20 | 200 |
Diameter: 1-9/16" x 2-1/2" Height: 2-11/16"
Fastener: 1 ea. 1/4 - 20 x 3/4" FPHMS with lead anchor;
5/16 - 18 x 2-1/2" stud with lead anchor;
| Material: Adhesive backed rubber | |||||
|---|---|---|---|---|---|
| Diameter: 1-7/8" | |||||
| Projection: 25/32" | |||||
| 252F | |||||
| Floor Stop | US3 | 24.30 | 058522 | 5 | 50 |
| Material: Cast brass with rubber bumper | US10 | 26.25 | 058523 | ||
US10B 24.20 058517 US15 42.30 061610 US15A 42.30 054046 US19 42.30 054531
| 254S | |||||
|---|---|---|---|---|---|
| Wall Stop and Holder | US3 | 47.65 | 097810 | 5 | 50 |
| Material: Cast brass with rubber bumper | US4 | 47.65 | 030895 | ||
| Base Diameter: 2-11/32" | US10 | 55.70 | 097811 | ||
| Base Projection: 3-1/2" | US10B | 55.70 | 097813 | ||
| Engaged Projection: 5-19/32" | US15 | 55.70 | 061598 | ||
| Keeper: 1" x 2" | US26 | 55.70 | 097812 | ||
| Fastener: #10 x 1" FPHWS with plastic anchor | US26D | 55.70 | 097814 | ||
| 254W |
| Wall Stop and Holder | US3 | 47.65 | 097805 | 5 | 50 |
|---|---|---|---|---|---|
| Material: Cast brass with rubber bumper | US4 | 47.65 | 071803 | ||
| Base Diameter: 2-11/32" | US10 | 55.70 | 097806 | ||
| Base Projection: 3-1/2" | US10B | 55.70 | 097807 | ||
| Engaged Projection: 5-19/32" | US15 | 55.70 | 061570 | ||
| Keeper: 1" x 2" | US26 | 55.70 | 097808 | ||
|
Fastener: #10 x 1" FPHWS with plastic anchor;
5/16 - 18 x 2-1/2" stud with lead anchor |
US26D | 55.70 | 097809 | ||
| 255S | |||||
| Wall Stop | US3 | 29.00 | 017532 | 5 | 50 |
| Material: Cast brass with rubber bumper | US4 | 29.00 | 017533 | ||
| Base Diameter: 2-11/32" | US10 | 29.35 | 094583 | ||
| Projection: 3-11/16" | US10B | 29.35 | 017534 | ||
| Fastener: #10 x 1" OPHWS with plastic anchor | US15 | 36.35 | 061568 | ||
| US26 | 32.45 | 017531 | |||
| US26D | 21.20 | 000917 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 255W | |||||
|
Wall Stop
Material: Cast brass with rubber bumper |
US3 | 29.00 | 058532 | 5 | 50 |
| Base Diameter: 2-11/32" |
US4
US10 |
29.00
29.35 |
075493
058533 |
||
| Projection: 3-11/16" | US10B | 29.35 | 058534 | ||
| Fastener: #10 x 1" OPHWS with plastic anchor; | US15 | 36.35 | 061567 | ||
| 5/16" - 18 x 2-1/2" threaded stud, 5/16" lead anchor | US26 | 32.45 | 058675 | ||
| US26D | 21.20 | 058535 | |||
| 256S | |||||
| Wall Stop & Holder | US3 | 52.20 | 068146 | 5 | 50 |
| Material: Cast brass with rubber bumper | US10 | 41.60 | 070578 | ||
| Base Diameter: 2-1/4 | US10B | 43.60 | 099449 | ||
| Engaged Projection: 5-11/16" | US15 | 51.20 | 060858 | ||
| Projection: 3-25/32" | US26 | 52.20 | 088625 | ||
| Keeper: 25/32" x 1-1/2" | US26D | 28.50 | 067225 | ||
| Fastener: #10 x 1" OPHWS with plastic anchor | |||||
| 256W | |||||
| Wall Stop & Holder | US3 | 52.20 | 058585 | 5 | 50 |
| Material: Cast brass with rubber bumper | US10 | 41.60 | 058586 | ||
|
Base Diameter: 2-1/4"
Engaged Projection: 5-11/16" |
US10B | 43.60 | 058587 | ||
| Projection: 3-25/32" | US15 | 51.20 | 060860 | ||
| Keeper: 25/32" x 1-1/2" | US26 | 52.20 | 058520 | ||
| Fastener: #10 x 1" OPHWS with plastic anchor; | US26D | 28.50 | 058521 | ||
| 5/16" - 18 x 2-1/2" stud with lead anchor | |||||
| 257F | |||||
| Floor Stop | US3 | 22.10 | 058546 | 5 | 50 |
| Material: Cast brass with rubber bumper | US10 | 25.65 | 058547 | ||
| Base: 1-9/16" x 2-15/32" | US10B | 22.70 | 058548 | ||
| Height: 2" | US15 | 42.30 | 060857 | ||
| Fastener: #14 x 1-1/2" FPHWS with plastic anchor; | US15A | 42.30 | 054048 | ||
|
1/4 - 20 x 3/4" FPHMS with lead anchor;
5/16" - 18 x 2-1/2" stud with lead anchor |
US19 | 42.30 | 054532 | ||
| US26 | 28.75 | 058549 | |||
| US26D | 20.10 | 058550 | |||
| 258F | |||||
| Floor Stop & Holder | US3 | 40.10 | 058551 | 5 | 50 |
| Material: Cast brass with rubber bumper | US10 | 36.50 | 058552 | ||
| Base: 1-9/16" x 2-15/32" | US10B | 36.50 | 058553 | ||
| Height: 3" | US15 | 63.30 | 060855 | ||
|
Keeper: 1" x 2"
Fasteners: #10 x 1" FPHWS with plastic anchor; |
US26 | 41.35 | 058554 | ||
| 1/4 - 20 x 3/4" FPHMS with lead anchor; | US26D | 29.20 | 058555 | ||
| 5/16 - 18 x 2-1/2" stud with lead anchor | |||||
| 259F | |||||
| Tri Base Floor Stop | US3 | 25.95 | 086836 | 5 | 50 |
| Material: Cast brass with rubber bumper | US4 | 25.95 | 090238 | ||
| Base: 2-1/2" wide x 1-9/16" deep | US10 | 25.50 | 086566 | ||
| Height: 1-11/16" | US10B | 25.50 | 086567 | ||
| Fasteners: #10 x 1-1/4" FPHWS with plastic anchor; | US26 | 31.95 | 086568 | ||
| 10 - 32 x 3/4" FPHMS with lead anchor |
10 - 32 x 3/4" FPHMS with lead anchor
US26D 21.45 084984
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
|
Description
Finish 2018 List Stock No. Box Qty. Case Qty. 259H Tri Base Floor Stop - Tall US3 30.35 013387 5 50 Material: Cast brass with rubber bumper US4 30.35 012068 Base: 2-1/2" wide x 1-9/16" deep US10 29.00 033155 Height: 2-1/4" US10B 29.00 006004 Fasteners: #10 x 1-1/4" FPHWS with plastic anchor; US26 36.20 031052 10 - 32 x 3/4" FPHMS with lead anchor US26D 24.10 005661 260W Angled Wall Stop US26D 70.30 059730 5 50 Material: Cast brass with rubber bumper Base: 2-3/16" wide x 2-15/16" tall Projection: 3-21/32" Fasteners: #14 x 1-1/2" FPHWS with plastic anchor and 1/4 - 20 x 3/4" FPHMS with lead anchor 267F Floor Stop US3 28.00 058536 5 50 Material: Cast brass with rubber bumper US10 29.00 058537 Base: 2-1/4" US10B 29.00 058538 Height: 3-1/8" US15 36.35 060853 Fasteners: #10 x 1" OPHWS with plastic anchor; US15A 36.35 031421 5/16" - 18 x 2-1/2" stud with lead anchor US19 36.35 033541 US26 32.45 058539 US26D 21.75 058540 267S Cast Floor Stop US3 23.10 097803 5 50 Material: Cast brass with rubber bumper US10 28.00 097804 Base: 2-1/4" US10B 29.20 097800 Height: 3-1/8" US15 36.35 060851 Fasteners: #10 x 1" OPHWS with plastic anchor US26 32.45 097801 US26D 21.75 097802 268F Floor Stop & Holder US3 52.95 058541 5 50 Material: Cast brass with rubber bumper US10 47.65 058542 Base: 2-1/4" US10B 49.80 058543 Height: 3-19/32" US15 47.65 075320 Keeper: 25/32" x 1-1/2" US15A 47.65 054050 Fasteners: #10 x 1" OPHWS with plastic anchor; US19 47.65 054533 5/16" - 18 x 2-1/2" stud with lead anchor US26 52.95 058544 US26D 29.70 058545 268S Cast Floor Stop & Holder US3 52.95 070926 5 50 Material: Cast brass with rubber bumper US10 47.65 088879 Base: 2-1/4" US10B 49.80 072110 Height: 3-19/32" US15 47.65 060840 Keeper: 25/32" x 1-1/2" US26 52.95 095114 |
|||||
|---|---|---|---|---|---|
| Fasteners: #10 x 1" OPHW with plastic anchors | US26D | 29.70 | 068934 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
|
269F
Heavy Duty Floor Stop Material: 5/8" Steel pin with rubber bumper Bumper: 1-1/2" high Diameter: 2" Steel Bolt: 5/8" - 11 x 2-1/2" thread Special Grout by others |
- | 22.55 | 085062 | 5 | 50 |
| 269T | |||||
|
Heavy Duty Floor Stop - Tall
Material: 5/8" Steel pin with rubber bumper Bumper: 3-1/2" high Diameter: 2" Steel Bolt: 5/8" - 11 x 2-1/2" thread Special Grout by others |
- | 28.95 | 083131 | 3 | 30 |
| 270C | |||||
|
Kick Down Door Holder
Material: Cast iron with rubber tip Base: 1-7/16" x 2-1/8" Arm: 3-13/16" Fasteners: #6 x 3/4" OPHTS S1 - Sprayed Alum., S2 - Sprayed Brass, S3 - Sprayed Bronze 270CR replacement rubber tips available, 6 per bag |
S1
S2 S3 |
13.55
13.55 13.55 |
058588
058589 058590 |
5 | 50 |
| 270D | |||||
|
Kick Down Door Holder
Material: Cast brass with rubber tip Base: 1-19/32" x 1-25/32" Arm: 3-1/2" Fasteners: #6 x 3/4" OPHWS |
US3
US10 US10B US15 US15A US19 US26 US26D |
27.15
30.25 26.70 42.30 42.30 42.30 39.50 24.35 |
058525
058526 058527 060822 054051 054542 058568 058569 |
5 | 50 |
| 270R | |||||
|
Replacement Rubber Tips
Material: Black rubber For use with 270D or 271D door holders Sold in packs of 10 |
Rubber | 27.70 | 073663 | 10 | 100 |
| 271D | |||||
|
Kick Down Door Holder
Material: Cast brass with rubber bumper Base: 1-19/32" x 1-25/32" Arm: 4-7/16" Fasteners: #6 x 3/4" OPHWS |
US3
US10 US10B US26 US26D |
47.65
47.65 47.65 47.65 47.65 |
058570
058571 058564 058565 058566 |
5 | 50 |
| 271W | |||||
|
Roller Bumper
Material: Cast brass or bronze with rubber roller Base: 2" Projection: 4-1/2" Fasteners: #10 x 1" FPHWS with plastic anchor |
US3
US10 US10B US26 US26D |
28.95
31.00 31.60 30.30 23.50 |
123928
123929 123930 123931 123927 |
10 | 50 |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 272W | |||||
| Material: Cast brass or bronze with rubber roller | US3 | 32.10 | 052779 | 10 | 100 |
| Base: 2" | US10 | 33.05 | 052780 | ||
| Projection: 6-1/4" | US10B | 33.00 | 052781 | ||
| Fasteners: #10 x 1" FPHWS with plastic anchor | US26 | 39.20 | 052782 | ||
| US26D | 29.40 | 052783 | |||
| 273W | |||||
| Curved Roller Bumper | US3 | 28.40 | 043325 | 5 | 50 |
| Material: Cast brass or bronze with rubber roller | US4 | 31.00 | 043326 | ||
| Projection: 2-21/32" | US10 | 28.40 | 043323 | ||
| Fasteners: #10 x 1" FPHWS with plastic anchor | US10B | 31.00 | 043327 | ||
| US26 | 34.00 | 043324 | |||
| US26D | 25.95 | 043328 | |||
| 274B | |||||
| Door Guard Protective Plate | US3 | 5.75 | 048087 | - | 10 |
| Material: Brass | US4 | 5.75 | 046942 | ||
| Fasteners: Double sided pressure sensitive tape | US10 | 5.75 | 048363 | ||
| To be used with the 274D | US10B | 5.75 | 048365 | ||
| US15 | 5.75 | 060811 | |||
| US26 | 5.75 | 048364 | |||
| US26D | 5.75 | 048366 | |||
| 274C | |||||
| Shim for Door Guard | Black | 2.05 | 158025 | - | 50 |
| Material: Resilient black rubber, 3/32" thick | |||||
| To be used with the 274D | |||||
| 274D | |||||
| Material: Cast brass | US3 | 27.15 | 158021 | 5 | 50 |
| Arm Length: 4-1/2" | US4 | 25.65 | 158022 | ||
| Fasteners; #6 x 3/4" OPHWS; #6 x 1-1/2" OPHWS; | US10 | 28.20 | 158016 | ||
| 6 - 32 x 1/2" OPHMS | US10B | 27.40 | 158017 | ||
| US15 | 28.20 | 158018 | |||
| US26 | 26.05 | 158019 | |||
| US26D | 23.10 | 158020 | |||
| 275D | |||||
| Surface Bolt - 8" | US3 | 28.20 | 058752 | 1 | 12 |
| Material: Steel | US10 | 25.95 | 074243 | ||
| Bolt Size: 1/4" x 3/4" | US10B | 28.95 | 056786 | ||
| Bolt Throw: 1" | US26D | 23.10 | 052287 | ||
|
Fasteners: #10 x 1-1/4" FPHWS; 10 - 24 x 1" FPHMS
Universal and angle strikes included |
|||||
| 276D | |||||
|
Surface Bolt - 12"
Material: Steel |
US3 | 21.00 | 083603 | 1 | 12 |
| Bolt Size: 1/4" x 3/4" | US10 | 28.00 | 025645 | ||
| Bolt Throw: 1" | US10B | 73.60 | 073888 | ||
| US26D | 26.85 | 053325 |
Fasteners: #10 x 1-1/4" FPHWS; 10 - 24 x 1" FPHMS
Universal and angle strikes included
|
Description
Finish 2018 List Stock No. Box Qty. Case Qty. 277D Privacy Door Latch US3 37.30 161173 1 10 Material: Cast Zinc US4 37.30 161174 Base: 2-5/8" x 1-9/16" US10B 53.30 161149 Projection: 2-3/16" US15 50.65 Fasteners: #12 x 1-3/4" FPHSMS US26 36.35 161171 US26D 34.30 161172 278D Surface Bolt - 6" US3 20.15 086661 10 100 Material: Brass US10B 21.90 020392 Bolt Size: 7/16" US26D 20.85 086662 Bolt Throw: 31/32" Projection: 3/4" Fasteners: #5 x 5/8" FPHWS Mortise and universal strikes included 279D Dutch Door Bolt US3 45.80 097353 10 100 Material: Brass US10 38.20 097183 O/A Size: 1-11/16" x 4" US10B 45.80 023685 Bolt Size: 5/8" half round US26D 45.80 097354 Bolt Throw: 3/8" Projection: 1-1/4" Knob Diameter: 29/32" Fasteners: #6 x 3/4" FPHWS Universal and angle strikes included 280X Dust Proof Strike US3 19.65 052522 10 100 w/ Removable Plate US4 18.55 053326 Material: Brass US9 26.05 021465 Face Plate: 1-7/16" x 2-29/32" US10 20.80 052559 Barrel Diameter: 1" US10B 20.20 052523 Depth: 2-3/16" US15 24.50 040347 Plunger Diameter: 3/4" US15A 26.05 054052 Fasteners: #8 x 1" FPHWS with plastic anchors; US19 26.05 067955 spanner wrench US26 20.10 052839 US26D 17.30 052524 281D Slide Flush Bolt US3 13.45 056621 10 100 Material: Brass or bronze w/ steel components US4 14.05 056789 Face Plate: 3/4" x 6" US5 19.10 035600 Bolt Diameter: 1/2" US10 14.05 052723 Bolt Throw: 1" US10B 14.05 056790 Strike: 7/8" x 1-3/4" US15 19.10 036438 Rod Backset: 7/16" US15A 19.10 054055 Fasteners: #6 x 3/4" FPHWS |
||||
|---|---|---|---|---|
| US19 | 19.10 | 054545 |
US19 19.10 054545 US26 16.25 052525 US26D 13.45 056791
| Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|
| 80 | ||||
| 40 | ||||
| US3 | 185.90 | 053297 | 1 | 10 |
| US4 | 186.10 | 074059 | ||
| US10 | 186.10 | 053298 | ||
|
US3
US4 US5 US9 US10 US10B US15 US15A US19 US26 US26D US3 US4 US5 US9 US10 US10B US15 US15A US19 US26 US26D US10B US15 US32 US32D |
20.35
20.35 33.55 33.55 20.75 20.75 25.95 37.05 37.05 22.45 18.95 30.95 30.95 62.20 62.20 30.95 30.00 62.20 62.20 62.20 32.35 30.00 180.40 254.60 254.60 175.05 |
052281
052282 062354 083207 052283 052284 040346 054056 067956 052285 052286 052929 053328 018995 032026 052930 052931 060810 054057 054567 052932 052933 053299 046049 117105 117104 |
2
2 |
4 feet wide x 9 feet tall
| 293D | |||||
|---|---|---|---|---|---|
| Constant Latching Flush Bolts | US3 | 172.50 | 058567 | 1 | 10 |
| Metal Doors | US4 | 172.50 | 087519 | ||
| Material: Stainless steel/brass w/ steel components | US10 | 172.50 | 058560 | ||
| Face Plate: 1" x 6-3/4" | US10B | 167.40 | 058561 | ||
| Bolt Head: 1/2" square | US15 | 237.40 | 093481 | ||
| Bolt Throw: 3/4" | US32 | 237.40 | 117108 | ||
| Bolt Backset: 3/4" | US32D | 162.40 | 117109 | ||
| Fasteners: #8 x 1" combination screws | |||||
| T-Strike: 1-1/8" x 2-3/4" | |||||
| 280X Dust Proof Strike recommended | |||||
| 1-1/2 hour fire rating on wood doors up to | |||||
| 4 feet wide x 9 feet tall |
| 294D | |||||
|---|---|---|---|---|---|
| Constant Latching Flush Bolts | US3 | 185.90 | 058563 | 1 | 10 |
| Wood Door | US4 | 185.90 | 082014 | ||
| Material: Stainless steel/brass w/ steel components | US10 | 185.90 | 058556 | ||
| Face Plate: 1" x 8-1/2" | US10B | 180.40 | 058557 | ||
| Bolt Head: 1/2" square | US15 | 254.60 | 095081 | ||
| Bolt Throw: 3/4" | US32 | 254.60 | 117111 | ||
|
Bolt Backset: 3/4"
Fasteners: #10 x 1" SMS; #8 x 1" combination screws |
US32D | 175.05 | 117110 | ||
|
T-Strike: 1-1/8" x 2-3/4"
280X Dust Proof Strike recommended |
1-1/2 hour fire rating on wood doors up to
4 feet wide x 9 feet tall
| 295W | |||||
|---|---|---|---|---|---|
| Automatic Flush Bolt w/Fire Bolt | US3 | 147.70 | 080593 | 1 | 10 |
| Wood Doors | US4 | 147.70 | 080594 | ||
| Material: Stainless steel/brass with steel components | US10 | 147.70 | 080592 | ||
| Face Plate: 1" x 8-1/2" | US10B | 147.70 | 080591 | ||
| Bolt Head: Flattened 1/2" square | US15 | 163.55 | 060807 | ||
| Bolt Throw: 3/4" | US32 | 147.70 | 080590 | ||
| Backset: 3/4" | US32D | 147.70 | 080589 | ||
| Fasteners: #10 x 1" SMS; #8 x 1" combination screws | |||||
| Mortise Strike: 15/16" x 2-1/4" | |||||
| 20 minute fire rating for wood doors up to | |||||
| 4 feet wide x 9 feet tall | |||||
| 296W | |||||
| Automatic Flush Bolt Set for Wood Doors | US3 | 330.30 | 083221 | 1 | 10 |
| Backset: 1-1/2" | US4 | 330.30 | 083222 | ||
| Fasteners: Sixteen (16) #8 x 1" APS; four (4) plastic | US10 | 330.30 | 083223 | ||
| anchors | US10B | 330.30 | 083224 | ||
| Fasteners: Sixteen (16) #8 x 1" APS; four (4) plastic | US10 | 330.30 | 083223 | ||
| anchors | US10B | 330.30 | 083224 | ||
| Strike: 1-1/8" x 2-1/4" | US15 | 330.30 | 060784 | ||
| 1-1/2 hour fire rating for wood doors up to | US32 | 330.30 | 083225 | ||
| 4 feet wide x 9 feet tall | US32D | 330.30 | 083226 | ||
| 297C | |||||
| Carry Bar | USP | 33.55 | 058524 | 2 | 20 |
| Material: Stainless steel/brass | US3 | 59.70 | 058528 | ||
| Base: 1-3/4" x 2-1/4" | US10 | 59.70 | 058529 | ||
| Projection: 25/32" | US10B | 59.70 | 058530 | ||
| Fasteners: 12 - 24 x 3/4" PPHMS with sex nuts | US15 | 59.70 | 060778 | ||
| For use on pairs of doors with astragal and | US32 | 59.70 | 117361 | ||
| 297D-298D coordinator. | US32D | 59.70 | 117226 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 297D | |||||
| Coordinator with Filler Bar | |||||
| Material: Steel | |||||
| Base: 1-5/8" x 5/8" | |||||
| Fasteners: 12-24 x 1-1/4" TPHMS; #8 x 1" combo screws | |||||
| If overall frame width is different than widths shown, consult | |||||
| Hager Customer Service. | |||||
| If active and Inactive doors are unequal in length, consult | |||||
| Hager Customer Service for proper sizing. | |||||
| 60" | Black | 118.95 | 069727 | 1 | 4 |
| Coordinator with Filler Bar | |||||
| Material: Steel | |||||
| Fasteners: 12-24 x 1-1/4" TPHMS; #8 x 1" combo screws | |||||
| If overall frame width is different than widths shown, consult | |||||
| Hager Customer Service. If active and inactive doors are | |||||
| unequal in length, consult Hager Customer Service for proper | |||||
| sizing. | |||||
| 72" | Black | 125.30 | 052312 | 1 | 4 |
| 96" | Black | 139.45 | 052313 | 1 | 4 |
| 297F | |||||
| 297F | |||||
| Filler Bars | |||||
| Material: Steel | |||||
| Thickness: 5/8" standard | |||||
| 18-5/8" | Black FB1 | 24.80 | 098884 | - | - |
| 42-5/8" | Black FB1 | 34.50 | 073866 | - | - |
| 297M | |||||
| Mounting Bracket | Black | 20.50 | 053257 | - | - |
| Material: Aluminum | |||||
| Stop Height: 5/8" | |||||
| Soffit Width: 1-3/8" to 2-3/8" | |||||
| Fasteners: 12-24 x 2" FPHMS; 1/4 - 20 x 1/2" FPHMS | |||||
| 297N | |||||
| Mounting Bracket | Black | 20.50 | 053258 | 2 | 20 |
| Material: Aluminum | |||||
| Soffit Width: 3" or greater | |||||
| Fasteners: 12-24 x 2" FPHMS; 1/4 - 20 x 1/2" FPHMS | |||||
| 298D | |||||
| Gravity Coordinator | US3 | 79.65 | 055123 | 1 | 10 |
| Mounting Bracket | Black | 20.50 | 053258 | 2 | 20 |
|---|---|---|---|---|---|
| Material: Aluminum | |||||
| Soffit Width: 3" or greater | |||||
| Fasteners: 12-24 x 2" FPHMS; 1/4 - 20 x 1/2" FPHMS | |||||
| 298D | |||||
| Gravity Coordinator | US3 | 79.65 | 055123 | 1 | 10 |
| Material: Cast brass w/rubber roller | US10 | 79.45 | 060271 | ||
| Base: 1-1/8" x 5-1/2" | US10B | 77.10 | 055124 | ||
| Projection: 7" | US26D | 65.70 | 055125 | ||
| Fasteners: #12 x 1" OPHWS; | |||||
| #6 x 3/4" FPHWS; #8 x 3/4" FPHWS; #8 x 3/4" TPHWS |
| Optional grommet nut set available (part #1-320-9801) | |||||
|---|---|---|---|---|---|
| 25-1/2" | US26D | 58.10 | 063667 | 1 | 10 |
| 30-1/2" | US26D | 58.10 | 063668 | 1 | 10 |
|---|---|---|---|---|---|
| 301D | |||||
| Residential Hinge Pin Stop | US3 | 4.60 | 023366 | 5 | 50 |
| Material: Wrought steel with rubber bumpers | US26D | 4.60 | 023363 | ||
| Features: Works with both 1/4" and 5/16" hinge pins | |||||
| Must purchase an NRP hinge for use with this pin stop | |||||
| 303W |
| 303W | |||||
|---|---|---|---|---|---|
| Handrail Bracket | US3 | 77.35 | 053306 | 5 | 50 |
| Material: Cast brass | US4 | 77.35 | 067806 | ||
| Base Diameter: 3-5/32" | US10 | 82.65 | 052151 | ||
| Base to Center of Rail: 2-3/4" | US10B | 82.65 | 053307 | ||
| Fasteners: #10 x 1-1/4" FPHWS with plastic anchor; | US26 | 82.65 | 052327 | ||
| 10 - 24 x 13/16" FPHMS with lead anchors | US26D | 82.65 | 052152 |
| Wire Pull |
|---|
| Material: 5/16" brass rod |
| Projection: 1-9/32" |
305D
| Fasteners: | 8 - | 32 x | 1" | IPHMS |
|---|---|---|---|---|
| CTC+ 3" |
| Projection: 1-9/32" | |||||
|---|---|---|---|---|---|
| Fasteners: 8 - 32 x 1" TPHMS | |||||
| CTC: 3" | US3 | 10.25 | 086821 | 10 | 100 |
| US4 | 10.60 | - | |||
| US10 | 10.60 | 020779 | |||
| US10B | 10.60 | 095891 | |||
| US26 | 10.60 | 086823 | |||
| US26D | 10.60 | 086822 | |||
| CTC: 3-1/2" | US3 | 10.25 | 086824 | 10 | 100 |
| US4 | 10.60 | 007767 | |||
| US10 | 10.60 | 089114 | |||
| US10B | 10.60 | 018946 | |||
| US26 | 10.60 | 086826 | |||
| US26D | 10.60 | 086825 | |||
| CTC: 4" | US3 | 10.25 | 086827 | 10 | 100 |
| US4 | 10.60 | 019788 | |||
| US10 | 10.60 | 090240 | |||
| US10B | 10.60 | 018468 | |||
| US26 | 10.60 | 086829 | |||
| US26D | 10.60 | 086828 | |||
| 307D | |||||
| Metal Door Silencer | Grey | 11.05 | 052527 | - | 100 |
Material: Rubber Diameter: 1/2" Projection: 1/8" U/M Bag of 100
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 308D | |||||
| Wood Door Silencer | Grey | 16.60 | 052526 | - | 100 |
| Base: 3/8" x 3/4" | |||||
| Projection: 9/64" | |||||
| U/M Bag of 100 | |||||
| 310C | |||||
| Conversion Kit | US26D | 53.40 | 711114 | 5 | 50 |
| Strike: 1-11/16" x 2-1/4" | |||||
| Filler Plate: 1-1/8" x 3-3/8" | |||||
| Fasteners: #10 x 1-1/2" FPHWS; #10 x 1" FPHWS; | |||||
| 8 - 32 x 1/4" FPHMS; 10 - 24 x 1/2" FPHMS | |||||
| Converts Roller Latch to Push Pull Latch |
311H
Push/Pull Latch
Material: Zinc, stainless steel; Door Thickness: 1-3/4";
Bolt Throw: 1/2" Standard
Backset: 2-3/4" Standard; 5" Optional; Projection: 2-5/8";
Strike: ASA 1-1/4" x 4-7/8" Standard T-Strike 1-1/8" x 2-3/4" Standard; Horizontal Mounting w/ 5" Backset Options: Engraving Handed:
A - "PUSH" down; "Pull" up B - "PUSH" up; "PULL" down C - "PUSH" up; "PULL" up D - "PUSH" down; "PULL" down
| 2-3/4" | US26 | 240.60 | 161063 | 1 | 10 |
|---|---|---|---|---|---|
| US26D | 195.45 | 161064 | |||
| US32 | 296.40 | 161067 | |||
| US32D | 232.35 | 161068 | |||
| 5" | US26 | 240.60 | 161069 | 1 | 10 |
| US26D | 195.45 | 161070 | |||
| US32 | 296.40 | 161071 | |||
| US32D | 232.35 | 161072 | |||
| Lead Lined 2-3/4" | US26 | 286.35 | 1 | 10 | |
| US26D | 232.55 | 161066 | |||
| US32 | 335.95 | ||||
| US32D | 319.95 | 161073 | |||
| Lead Lined 5" | US26 | 286.35 | 1 | 10 | |
| US26D | 232.55 | 161076 | |||
| US32 | 335.95 | ||||
| US32D | 319.95 | 161080 | |||
| 313S |
| US32D | 319.95 | 161080 | |||
|---|---|---|---|---|---|
| 313S | |||||
| Anti-Vandal Trim | US32D | 305.90 | - | - | - |
| Material: 11 GA stainless steel | US32D | 346.75 | - | ||
| Max Projection: 1-7/8" | with | ||||
| Size: 6-11/32" x 11" | Plastisol | ||||
| Door Thickness: 1-3/4" - 2" |
Fasteners: 1/4 - 20" FPHMS with finish washers Available with latchguard (313L). Cylinder cutout available. Can be used with exit devices and mortise locks.
| 320R | |||||
|---|---|---|---|---|---|
| Roller Latch | US3 | 41.95 | 049988 | 1 | 50 |
| Material: Brass with nylon roller | US4 | 41.95 | 049989 | ||
| Latch Face: 2-1/4" x 1-1/8" | US9 | 84.30 | 049990 | ||
| Strike: 1-1/8" x 2-3/4" | US10 | 41.95 | 049987 | ||
| Strike Thickness: .058 wrought | US10B | 44.75 | 049994 |
US15 46.10 060809
| US26 | 41.95 | 049993 | |||
|---|---|---|---|---|---|
| US26D | 27.65 | 049995 | |||
| 321R | |||||
| Adjustable Ball Catch | US3 | 17.85 | 055947 | 1 | 50 |
| Material: Brass with steel ball roller | US4 | 17.85 | 055953 | ||
| Latch Face: 1" x 2-1/8" | US10 | 21.25 | 055944 | ||
| Strike: 1-1/2" x 2-1/8" | US10B | 21.25 | 055960 | ||
| Strike Thickness: .050" | US15 | 21.25 | 075224 | ||
| Fasteners: #6 FPHWS | US15A | 21.25 | 055961 | ||
| US19 | 21.25 | 055945 | |||
| US26D | 17.85 | 055963 | |||
|---|---|---|---|---|---|
| 322V | |||||
| Door Knocker w/ 115° Viewer | US3 | 29.45 | 056479 | 1 | 50 |
| Material: Wrought brass | US4 | 29.45 | 064778 | ||
| Knocker Size: 2-7/32" x 3-1/4" | US10 | 33.00 | 056593 | ||
| Projection: 19/32" | US26D | 29.45 | 056478 | ||
| Fasteners: #6 x 3/4" TPHSMS | Lettering available - up to four characters, Arial, 1/2" tall, black - $6.00 total added to net price |
323S Three-Way Ball Catch Material: Brass with Stainless Steel Balls US26D 18.30 158659 30 300
Body: 1/2" x 2-3/16" x 1/2" Strike: 3/8" x 1-3/8" x 5/8"
Max Roller Projection: 7/16" Fasteners: #8 x 1" FPHWS
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 324W | |||||
| Light Duty Wall Bumper | US3 | 9.00 | 013810 | 1 | 50 |
| Material: Brass or bronze | US4 | 9.60 | 013811 | ||
| Base: 1-1/4" diameter | US5 | 10.75 | 013814 | ||
| Projection: 3-1/4" | US10 | 10.75 | 013809 | ||
| Tip Diameter: 5/8" | US10B | 10.75 | 013812 | ||
| Fasteners: #10 x 7/8" wood thread | US15 | 10.75 | 040348 | ||
| Replacement rubber tip available | US15A | 10.75 | 013813 | ||
| (Part # 1-269-3073) | US19 | 10.75 | 030873 | ||
| US26 | 9.30 | 013808 | |||
| US26D | 9.30 | 013807 | |||
| 326F | |||||
| Automatic Floor Stop and Holder | US3 | 72.85 | 058510 | 5 | 30 |
| US26D | 9.30 | 013807 | |||
|---|---|---|---|---|---|
| 326F | |||||
| Automatic Floor Stop and Holder | US3 | 72.85 | 058510 | 5 | 30 |
| Material: Cast brass | US10 | 76.85 | 058511 | ||
| Holder Base: 3-1/16" x 3-1/2" | US10B | 76.85 | 058512 | ||
| Projection:1-15/16" | US26 | 76.85 | 058507 | ||
|
Floor Strike: 2" x 4-3/32"
Strike Height: 1-1/4" |
US26D | 76.85 | 058508 | ||
| Max Door to Floor Clearance: 1/2" or less | |||||
| Fasteners: 4 ea. 12-24 x 1" TPHMS and #12 x 1" TPHWS; | |||||
| 3 ea. #14 x 1-1/2" FPHWS and anchors; | |||||
| 1/4 - 20 x 3/4" FPHMS with lead anchor | |||||
|---|---|---|---|---|---|
| 326W | |||||
| Automatic Wall Stop and Holder | US3 | 80.90 | 058513 | 5 | 30 |
| Material: Cast brass | US10 | 84.95 | 058514 | ||
| Holder Base: 2-13/32" x 2-25/32" | US10B | 84.95 | 058515 | ||
| Holder Projection: 2-5/16" | US26 | 84.95 | 058516 | ||
| Engaged Projection: 3-5/8" | US26D | 84.95 | 058509 | ||
| Strike Base: 1" x 2-1/16" | |||||
| Strike Projection: 2" | |||||
| Fasteners: #10 x 1" OPHWS and anchors; | |||||
| 10 - 24 x 1-1/4" FPHMS | |||||
| 327F |
| 327F | |||||
|---|---|---|---|---|---|
| Automatic Floor Stop and Holder | US3 | 72.85 | 034684 | 5 | 30 |
| Material: Cast brass | US10 | 76.85 | 085315 | ||
| Holder Base: 3-1/16" x 3-1/2" | US10B | 76.85 | 076374 | ||
| Projection:1-15/16" | US26 | 76.85 | 037584 | ||
| Floor Strike: 2" x 4-3/32" | US26D | 76.85 | 029249 | ||
| Strike Height: 1-3/4" | |||||
| Max Door to Floor Clearance: 9/16" to 1-1/16" | |||||
| Fasteners: 4 ea. x 12-24 x 1" TPHMS and #12 x 1" TPHWS; |
3 ea. #14 x 1-1/2" FPHWS and anchors; 1/4 - 20 x 3/4" FPHMS with lead anchor
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 327W | |||||
| Automatic Wall Stop and Holder | US3 | 122.25 | 098618 | 5 | 20 |
| Material: Cast brass | US4 | 122.25 | 098619 | ||
| Holder Base: 3-1/16" x 3-1/2" | US10 | 122.25 | 098617 | ||
| Holder Projection: 1-15/16" | US10B | 122.25 | 098615 | ||
| Engaged Projection: 3-1/2" | US26 | 122.25 | 098614 | ||
|
Strike Diameter: 2-3/8"
Strike Projection: 3-1/16" |
US26D | 115.25 | 098612 | ||
| Fasteners: #12 x 1 TPHWS; 12-24 x 1" TPHMS; | |||||
| 1/4" - 20 x 3/4" FPHMS with lead anchor; | |||||
| #14 x 1-1/2" FPHWS | |||||
| Strike is adjustable 45° left or right |
| 328F | |||||
|---|---|---|---|---|---|
| Automatic Floor Stop and Holder | US3 | 72.85 | 043083 | 5 | 30 |
| Material: Cast brass | US10 | 76.85 | 036197 | ||
| Holder Base: 3-1/16" x 3-1/2" | US10B | 76.85 | 045516 | ||
| Projection: 1-15/16" | US26 | 76.85 | - | ||
| Floor Strike: 2" x 4-3/32" | US26D | 76.85 | 032493 | ||
| Strike Height: 2-1/4" | |||||
| Max Door to Floor Clearance: 1-1/8" to 1-9/16" | |||||
| Fasteners: 4 ea. 12-24 x 1" TPHMS and #12 x 1" TPHWS; | |||||
| 3 ea. #14 x 1-1/2" FPHWS and anchors; | |||||
| 1/4 - 20 x 3/4" FPHMS with lead anchor |
| 329F | |||||
|---|---|---|---|---|---|
| Automatic Floor Stop and Holder | US3 | 72.85 | 078700 | 5 | 30 |
| Material: Cast brass | US10 | 76.85 | 040616 | ||
| Holder Base: 3-1/16" x 3-1/2" | US10B | 76.85 | 044158 | ||
| Projection: 1-15/16" | US26 | 76.85 | 116003 | ||
| Strike Height: 2-3/4" | US26D | 76.85 | 029252 | ||
| Floor Strike: 2" x 4-3/32" | |||||
| Max Door to Floor Clearance: 1-5/8" to 2-1/16" | |||||
| Fasteners: 4 ea. 12-24 x 1" TPHMS and #12 x 1" TPHWS; | |||||
| 3 ea. #14 x 1-1/2" FPHWS and anchors; | |||||
| 330D | |||||
|---|---|---|---|---|---|
| Pocket Door Latch | US3 | 086840 | 1 | 20 | |
| Material: Brass | US5 | 086841 | |||
| Fits: 1-3/8" - 1-3/4" door | US10 | See Sliding | 066707 | ||
| Size: 2-3/4" x 2-1/2" | US10B | Door | 056768 | ||
| Finger Pull Extends: 1-3/8" | US15 | Hardware | 078972 | ||
| Fasteners: #6 x 5/8" OPHWS | US15A | Section for | 054061 | ||
| US19 | Pricing | 054570 | |||
| US26 | 086837 | ||||
| US26D | 086838 |
| US26 | 086837 | ||||
|---|---|---|---|---|---|
| US26D | 086838 | ||||
| 330L | |||||
| Privacy Pocket Door Latch | US3 | 143162 | 1 | 20 | |
| Material: Brass | US5 | 143164 | |||
| Size: 2-3/4" x 2-1/2" | US10 | See Sliding | 143165 | ||
| Finger Pull Extends: 1-3/8" | US10B | Door | 143158 | ||
| Strike: 1" x 2-1/4" | US15 | Hardware | 143159 | ||
| 1-3/8" doors | US15A | Section for | 143160 | ||
| Fasteners: #6 x 5/8" OPHWS; #6 x 3/4" FPHWS | US19 | Pricing | 143166 | ||
| US26 | 143167 | ||||
| US26D | 143161 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| Privacy Pocket Door Latch Material: Brass Size: 2-3/4" x 2-1/2" Finger Pull Extends: 1-3/8" Strike: 1" x 2-1/4" 1-3/4" doors Fasteners: #6 x 5/8" OPHWS; #6 x 3/4" FPHWS |
US3
US5 US10 US10B US15 US15A US19 US26 |
See Sliding
Door Hardware Section for Pricing |
143172
143178 143168 143169 143173 143174 143175 143170 143171 |
1 | 20 |
| 334V | |||||
| Door Knocker w/ 115° Viewer Material: Solid cast brass Knocker Size: 3-9/16" x 6-3/4" Fasteners: Two (2) 8-32 x 2 FHMS for standard 1-3/4" doors Two (2) #8 finish washers Two (2) 8-32 x 1-5/8" FHMS for 1-3/8" doors |
US3
US4 US10 US10B US26 US26D |
39.05
38.10 41.45 41.45 39.05 38.10 |
Arial, 1/2" ta |
1
ilable – up to fou ill, black – $6.00 t available on US |
total added to |
|
336A
161 Prep - Door Edge Filler Plate Gauge: .134" Size: 1-1/8" x 2-1/4" |
Primed steel | 2.50 | 023352 | 25 | 250 |
|
336B
86 Prep - Door Edge Filler Plate Gauge: .180 Size: 1-1/4" x 8" |
Primed steel | 4.00 | 023329 | 25 | 250 |
| 336C Door Face Filler Plate Gauge: .055" Size: 1-3/4" Diameter | Primed steel | 3.35 | 023346 | 25 | 250 |
| 336D Door Face Filler Plate Gauge: .055 Size: 2-5/8" Diameter | Primed steel | 3.80 | 023343 | 25 | 250 |
|
Square - Door Edge Filler Plate
Gauge: .134 Size: 1-3/4" x 4-1/2" |
Primed steel | 3.20 | 023334 | 25 | 250 |
| 336F Bevel - Door Edge Filler Plate Gauge: .134 Size: 1-1/2" x 4-1/2" | Primed steel | 3.05 | 023332 | 25 | 250 |
|
336G
Square - Door Edge Filler Plate Gauge: .134 Size: 1.3/4" y 5" |
Primed steel | 3.35 | 023340 | 25 | 250 |
Size: 1-3/4" x 5"
Fasteners: 5/16 - 20 x 1-1/2" carriage bolts with sex nuts
For use w/ most mortise locks
For use w/ cylindrical locksets with 3-3/4" backset or
greater.
341C
Latch Protector Plate w/ Lock Cut Out Without Safety Studs
Material: 12 GA steel, stainless steel
Size: 3" x 11"
For 1-3/4" door thickness
Fasteners: 5/16 - 20 x 1-1/2" carriage bolts with sex nuts For use with cylindrical locksets with a 2-3/4" backset.
341D
Latch Protector Plate w/ Lock Cut Out with Frame Pin Material: 12 GA steel,
stainless steel Size: 3" x 11"
For 1-3/4" door thickness
Fasteners: 5/16 - 20 x 1-1/2" carriage bolts with sex nuts For use with cylindrical locksets with a 2-3/4" backset.
342D
Latch Protector Plate w/ Escutcheon Cut Out
Material: 12 GA steel, stainless steel Size: 3" x 11"
For 1-3/4" door thickness
Fasteners: 5/16 - 20 x 1-1/2" carriage bolts with sex nuts
For use with cylindrical and mortise locksets
345D
Latch Protector Plate Material: 12 GA steel, stainless steel
Size: 1-5/8" x 10" For 1-3/4" door thickness
Fasteners: 5/16-20 x 1-1/2" carriage bolts with sex nuts
For use with cylindrical and mortise locksets
US2C 10.80 041194 1 10
US32D 34.90 150740 1 10
US32D 45.15 150739 1 10
US2C 14.00 041191 1 10
US32D 20.55 002181
US32D 27.65 002180
| MEN |
|---|
| Description |
Color
Finish |
2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 350M | |||||
| Engraved Plastic Sign - MEN | Brown (W1) w/ | 15.85 | 089107 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 15.85 | 092413 | ||
| Size: 2" x 5" | white lettering | ||||
| Signs are individually packed in a polybag | Blue (W3) w/ | 15.85 | 090948 | ||
| white lettering | |||||
| Silver (B1) w/ | 15.85 | 089108 | |||
| black lettering | |||||
| Gold (B2) w/ | 15.85 | 030383 | |||
| black lettering | |||||
| 350W | |||||
| Engraved Plastic Sign - WOMEN | Brown (W1) w/ | 17.80 | 089103 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
|
Lettering: 3/4" Helvetica
Size: 2" x 5" |
Black (W2) w/ | 17.80 | 092414 | ||
| Fasteners: Double sided pressure | white lettering | ||||
| sensitive tape, or screws (specify) |
Blue (W3) w/
white lettering |
17.80 | 091068 | ||
| Signs are individually packed in a polybag | Silver (B1) w/ | 17.80 | 089104 | ||
| black lettering | |||||
| Gold (B2) w/ | 17.80 | 030384 | |||
| black lettering | |||||
| 350H | |||||
| Engraved Plastic Sign - PUSH | Brown (W1) w/ | 17.80 | 089109 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 17.80 | 097215 | ||
| Size: 2" x 4" | white lettering | ||||
| Fasteners: Double sided pressure | Blue (W3) w/ | 17.80 | 032116 | ||
|
sensitive tape, or screws (specify)
Signs are individually packed in a polybag |
white lettering | ||||
| Silver (B1) w/ | 17.80 | 089110 | |||
| black lettering | |||||
|
Gold (B2) w/
black lettering |
17.80 | 066158 | |||
|
350L
Engraved Plastic Sign - PULL |
Brown (W1) w/ | 17.80 | 089111 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 17.80 | 097216 | ||
| Size: 2" x 4" | white lettering | ||||
| Fasteners: Double sided pressure | Blue (W3) w/ | 17.80 | 032117 | ||
| sensitive tape, or screws (specify) | white lettering | ||||
| Signs are individually packed in a polybag | Silver (B1) w/ | 17.80 | 089106 | ||
| black lettering | |||||
| Gold (B2) w/ | 17.80 | 024447 | |||
| black lettering | |||||
| 350R | |||||
| Engraved Plastic Sign - Number | Brown (W1) w/ | 15.85 | 000848 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 15.85 | 010640 | ||
|
Size: 2" x 4"
Fasteners: Double sided pressure |
white lettering | ||||
| sensitive tape, or screws (specify) | Blue (W3) w/ | 15.85 | 119668 | ||
| Signs are individually packed in a polybag | white lettering | ||||
| Silver (B1) w/ | 15.85 | 067081 |
Signs are individually packed in a polybag Up to 3 characters (4 additional characters $6.30) Silver (B1) w/ black lettering 15.85 067081
| I | D | ) |
|---|---|---|
| ļ | I | |
| l | l | |
| Ì | Ĭ | ĺ |
| ŀ | 5 | ) |
| ľ | Ī | |
| l |
| D | Δ6 | +1 |
|
351H
Engraved Plastic Sign - PUSH |
Brown (W1) w/ | 15.85 | 011628 | - | 5 |
|---|---|---|---|---|---|
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 15.85 | 016508 | ||
| Size: 1" x 4-1/2" | white lettering | ||||
| Fasteners: Double sided pressure | Blue (W3) w/ | 15.85 | 017432 | ||
| sensitive tape, or screws (specify) | white lettering | ||||
| Signs are individually packed in a polybag | Silver (B1) w/ | 15.85 | 097655 | ||
| black lettering | |||||
| Gold (B2) w/ | 15.85 | 009462 | |||
| black lettering | |||||
| 351L | |||||
| Engraved Plastic Sign - PULL | Brown (W1) w/ | 15.85 | 011623 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 15.85 | 016509 | ||
| Size: 1" x 4-1/2" | white lettering | ||||
| Fasteners: Double sided pressure | Blue (W3) w/ | 15.85 | 017433 | ||
| sensitive tape, or screws (specify) | white lettering | ||||
| Signs are individually packed in a polybag | Silver (B1) w/ | 15.85 | 097656 | ||
| black lettering | |||||
| Gold (B2) w/ | 15.85 | 009464 | |||
| black lettering | |||||
| 352M | |||||
| Engraved Plastic Sign - MEN | Brown (W1) w/ | 20.70 | 092362 | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 20.70 | 089552 | ||
| Size: 2-1/2" x 6" | white lettering | ||||
|
Fasteners: Double sided pressure
sensitive tape, or screws (specify) |
Blue (W3) w/ | 20.70 | 089105 | ||
| Signs are individually packed in a polybag | white lettering | ||||
| Silver (B1) w/ | 20.70 | 092753 | |||
| black lettering | |||||
|
Gold (B2) w/
black lettering |
20.70 | 098437 | |||
|
352W
Engraved Plastic Sign - WOMEN |
|||||
| Material: .125" thick plastic | Brown (W1) w/ | 21.70 | 092363 | - | 5 |
| Lettering: 3/4" Helvetica | white lettering | ||||
| Size: 2-1/2" x 7" | Black (W2) w/ | 21.70 | 089553 | ||
| Fasteners: Double sided pressure | white lettering | ||||
| sensitive tape, or screws (specify) | Blue (W3) w/ | 21.70 | 089100 | ||
| Signs are individually packed in a polybag | white lettering | ||||
| Silver (B1) w/ | 21.70 | 092754 | |||
| black lettering | |||||
| Gold (B2) w/ | 21.70 | 098438 | |||
| black lettering | |||||
| 354A | |||||
| Engraved Plastic Sign - Restroom | Brown (W1) w/ | 26.65 | - | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 26.65 | 024414 | ||
| Size: 2" x 6" | white lettering |
Size: 2" x 6" Fasteners: Double sided pressure sensitive tape Signs are individually packed in a polybag white lettering Blue (W3) w/ white lettering 26.65 035530
| Rest | tro | Om | 10 |
| 1100 | uo | UII | 2 |
| 354B | |||||
|---|---|---|---|---|---|
| Engraved Plastic Sign - Restrooms | Brown (W1) w/ | 26.65 | - | - | 5 |
| Material: .125" thick plastic | white lettering | ||||
| Lettering: 3/4" Helvetica | Black (W2) w/ | 26.65 | 049899 | ||
| Size: 2" x 6" | white lettering | ||||
| Fasteners: Double sided pressure sensitive tape | Blue (W3) w/ | 26.65 | 025589 | ||
| Signs are individually packed in a polybag | white lettering |
| 723 | - | ||
|---|---|---|---|
| - 17 | 71 | ||
| 711 | I SIESEII IN | u . |
| _ | _ | _ | - | _ | - |
|---|---|---|---|---|---|
| ۰ |
| white lettering | |||||
|---|---|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 360M | |||||
| Engraved Metal Sign - MEN | US3 | 44.30 | 090400 | - | 5 |
| Material: .050" thick metal | US28 | 60.95 | 095542 | ||
| Lettering: 3/4" Helvetica black filled | US32D | 60.95 | 090407 | ||
| Size: 2" x 6" | |||||
|
Fasteners: Double sided pressure sensitive tape
Signs are individually packed in a polybag |
|||||
| 360W | |||||
| Engraved Metal Sign - WOMEN | US3 | 44.30 | 020058 | - | 5 |
|
Material: .050" thick metal
Lettering: 3/4" Helvetica black filled |
US28 | 60.95 | 095988 | ||
| Size: 2" x 6" | US32D | 60.95 | 090409 | ||
| Fasteners: Double sided pressure sensitive tape | |||||
| Signs are individually packed in a polybag | |||||
| 361H | |||||
| Engraved Metal Sign - PUSH | US3 | 35.55 | 090412 | - | 5 |
| Material: .050" thick metal | US10B | 40.90 | 001026 | ||
| Lettering: 3/4" Helvetica black filled | US28 | 35.55 | 092478 | ||
| Size: 2" x 4" | US32D | 49.00 | 090414 | ||
| Fasteners: Double sided pressure sensitive tape | |||||
| Signs are individually packed in a polybag | |||||
| 361L | |||||
| Engraved Metal Sign - PULL | US3 | 35.55 | 090410 | - | 5 |
| Material: .050" thick metal | US10B | 40.90 | 001027 | ||
| Lettering: 3/4" Helvetica black filled | US28 | 35.55 | 092474 | ||
| Size: 2" x 4" | US32D | 49.00 | 090411 | ||
|
Fasteners: Double sided pressure sensitive tape
Signs are individually packed in a polybag |
|||||
| 362H | |||||
|
Engraved Metal Sign - PUSH
Material: .050" thick metal |
US3 | 35.55 | 096199 | - | 5 |
| Lettering: 3/4" Helvetica black filled |
US10B
US28 |
40.90
35.55 |
-
022877 |
||
| Size: 1" x 4-1/2" | US32D | 49.00 | 018669 | ||
| Fasteners: Double sided pressure sensitive tape | |||||
| Signs are individually packed in a polybag | |||||
| 362L | |||||
| Engraved Metal Sign - PULL | US3 | 35.55 | 097728 | - | 5 |
| Material: .050" thick metal | US10B | 40.90 | - | ||
| Lettering: 3/4" Helvetica black filled | US28 | 35.55 | 022878 | ||
| Size: 1" x 4-1/2" | US32D | 49.00 | 016954 | ||
| Fasteners: Double sided pressure sensitive tape | |||||
| Signs are individually packed in a polybag |
| Description | Color | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 364N | |||||
| Engraved International Symbol | Red (W4) w/ | 31.95 | 089099 | - | 5 |
| No Smoking | raised white | ||||
| Material: .125" thick plastic | symbol | ||||
| Size: 6" x 6" | |||||
| Fasteners: Pressure sensitive tape standard, | |||||
|
or screws (specify)
Signs are individually packed in a polybag |
|||||
| 364S | |||||
| International Handicap Symbol | Blue (W3) w/ | 19.10 | 099952 | - | 5 |
| Material: .0625" thick plastic | raised white | ||||
| Raised HANDICAP symbol | symbol | ||||
| Size: 3" x 3" | |||||
| Fasteners: Pressure sensitive tape standard, | |||||
|
or screws (specify)
Signs are individually packed in a polybag |
|||||
|
364M
International Handicap Symbol |
Blue (W3) w/ | 23.85 | 092522 | - | 5 |
| Material: .0625" thick plastic | raised white | ||||
| Raised HANDICAP symbol | symbol | ||||
| Size: 4" x 4" | |||||
| Fasteners: Double sided pressure sensitive tape standard, | |||||
| or screws (specify) | |||||
| Signs are individually packed in a polybag | |||||
| 364L | |||||
|
International Handicap Symbol
Material: .125" thick plastic |
Brown (W1) w/
raised white |
32.85 | 017405 | - | 5 |
| 1/32" raised HANDICAP symbol | symbol | ||||
| Size: 6" x 6" | Black (W2) w/ | 32.85 | 098102 | ||
| Fasteners: Double sided pressure sensitive tape standard, | raised white | ||||
| or screws (specify) | symbol | ||||
| Signs are individually packed in a polybag | Blue (W3) w/ | 32.85 | 089101 | ||
| raised white | |||||
| symbol | |||||
| 365M | |||||
|
ADA Tactile Signage - MEN
Material: .125" thick plastic |
Brown (W1) w/
raised white |
53.65 | 089102 | - | 5 |
| Grade 2 Braille Translation | symbol | ||||
| Size: 6" x 8" | Black (W2) w/ | 53.65 | 089097 | ||
| Fasteners: Double sided pressure sensitive tape | raised white | ||||
| Signs are individually packed in a polybag | symbol | ||||
| Blue (W3) w/ | 53.65 | 089098 | |||
| raised white | |||||
| symbol | |||||
| 365W | |||||
|
ADA Tactile Signage - WOMEN
Material: .125" thick plastic |
Brown (W1) w/
raised white |
56.40 | 089116 | - | 5 |
| Grade 2 Braille Translation | symbol | ||||
| Size: 6" x 8" | Black (W2) w/ | 56.40 | 089117 | ||
| Fasteners: Double sided pressure sensitive tape | raised white | ||||
| Signs are individually packed in a polybag | symbol | ||||
| Blue (W3) w/ | 56.40 | 089118 | |||
| raised white |
symbol
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Color | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 366R | |||||
| ADA Tactile Signage | Brown (W1) w/ | 26.90 | 113411 | - | 5 |
| Room Number | raised white | ||||
| Material: .125" thick plastic | symbol | ||||
| Grade 2 Braille Translation | Black (W2) w/ | 26.90 | 008919 | ||
| Size: 2-1/2" x 5" | raised white | ||||
| Fasteners: Double sided pressure sensitive tape | symbol | ||||
| Up to 3 characters included | Blue (W3) w/ | 26.90 | 008910 | ||
| Add $6.30 for a fourth character | raised white | ||||
| Signs are individually packed in a polybag | symbol | ||||
| 366S | |||||
| ADA Tactile Signage - STAIRS | Brown (W1) w/ | 47.80 | 089112 | - | 5 |
| Material: .125" thick plastic | raised white | ||||
| Grade 2 Braille Translation | symbol | ||||
| Size: 6" x 8" | Black (W2) w/ | 47.80 | 089113 | ||
| Fasteners: Double sided pressure sensitive tape | raised white | ||||
| Signs are individually packed in a polybag | symbol | ||||
| Blue (W3) w/ | 47.80 | 089115 | |||
| raised white | |||||
| symbol | |||||
| 368E | |||||
| ADA Tactile Signage - EXIT | Brown (W1) w/ | 47.80 | 089119 | - | 5 |
| Material: .125" thick plastic | raised white | ||||
| Grade 2 Braille Translation | symbol | ||||
| Size: 6" x 8" | Black (W2) w/ | 47.80 | 090296 | ||
raised white symbol
Black (W2) w/
56.65 089456
Material: .125" thick plastic Grade 2 Braille Translation
Size: 6" x 8"
|
Fasteners: Double sided pressure sensitive tape
Signs are individually packed in a polybag |
raised white
symbol Blue (W3) w/ raised white symbol |
56.65 | 089090 | ||
|---|---|---|---|---|---|
| 368W | |||||
| ADA Tactile Signage - WOMEN | Brown (W1) w/ | 59.45 | 089092 | - | 5 |
| Material: .125" thick plastic | raised white | ||||
| Grade 2 Braille Translation | symbol | ||||
| Size: 6" x 8" | Black (W2) w/ | 59.45 | 090033 | ||
| Fasteners: Double sided pressure sensitive tape | raised white | ||||
| Signs are individually packed in a polybag | symbol | ||||
| Blue (W3) w/ | 59.45 | 089093 | |||
| raised white | |||||
| symbol |
| Case Qty. | ||||
|---|---|---|---|---|
|
Brown (W1) w/
raised white |
65.55 | 089719 | - | 5 |
|
Black (W2) w/
raised white |
65.55 | 090224 | ||
|
Blue (W3) w/
raised white symbol |
65.55 | 089091 | ||
|
Brown (W1) w/
raised white symbol |
53.65 | 089094 | - | 5 |
|
Black (W2) w/
raised white symbol |
53.65 | 094727 | ||
|
Blue (W3) w/
raised white symbol |
53.65 | 089095 | ||
|
Brown (W1) w/
raised white |
53.65 | 089096 | - | 5 |
|
Black (W2) w/
raised white |
53.65 | 094726 | ||
|
Blue (W3) w/
raised white symbol |
53.65 | 089120 | ||
|
Blue (W3) w/
raised white symbol and |
32.85 | 089558 | - | 5 |
| Blue (W3) w/ | 32.85 | 091565 | - | 5 |
|
symbol and
lettering |
||||
|
Blue (W3) w/
raised white symbol and lettering |
32.85 | 089557 | - | 5 |
|
Color
symbol symbol symbol symbol lettering raised white |
2018 List | Stock No. | Box Qty. |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 901P | |||||
| Coat Hook - Short single | US3 | 18.30 | 004095 | 1 | - |
| Material: Brass | US26D | 18.30 | 006028 | ||
| Diameter: 1" | |||||
|
Projection: 1-1/4"
Fasteners: #14 x 1-1/4" wood thread |
|||||
| 902P | |||||
|
Coat Hook - Long Single
Material: Brass |
US3
US26D |
25.70
25.70 |
004098
011657 |
1 | 12 |
| Diameter: 1" | |||||
| Projection: 2-1/2" | |||||
| Fasteners: #14 x 1-1/4" wood thread | |||||
| 903P | |||||
| Coat Hook - Long Double | US3 | 35.30 | 022247 | 1 | 12 |
| Material: Brass | US26D | 35.30 | 006364 | ||
| Diameter: 1" | |||||
| Projection: 2-1/2" | |||||
| Fasteners: #14 x 1-1/4" wood thread | |||||
| 910P | |||||
|
Offset Mounting Vertical Pull
Pull Diameter: 1-1/4" |
|||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| Clearance: 1-1/2" | |||||
| Projection: 2-3/4" | |||||
| Length: 36" | US3 | 329.90 | - | 1 | 12 |
| CTC: 20" | US4 | 329.90 | 117797 | ||
| US10 | 341.05 | 045611 | |||
| US10B | 341.05 | 075958 | |||
| US15A | 341.05 | - | |||
| US26 | 341.05 | 013794 | |||
| US26D | 341.05 | 034212 | |||
| US28 | 311.80 | 097652 | |||
| US32D | 249.50 | 034762 | |||
|
Length: 72"
CTC: 56" |
US3
US4 |
396.80
396.80 |
-
- |
1 | 12 |
| US10 | 420.95 | - | |||
| US10B | 420.95 | 001763 | |||
| US15A | 420.95 | - | |||
| US26 | 420.95 | 013765 | |||
| US26D | 420.95 | 001766 | |||
| US28 | 346.55 | - | |||
US32D 351.25 001767
|
Description
Finish 2018 List Stock No. Box Qty. Case Qty. 910B Offset Mounting Vertical Pull BTB Mounting Pull Diameter: 1-1/4" Clearance: 1-1/2" Projection: 2-3/4" Offset: 1-5/8" Length: 36" US3 679.55 141396 1 12 CTC: 20" US4 679.55 133716 US10 701.85 048451 US10B 701.85 043270 US15A 701.85 - US26 701.85 - US26D 701.85 048202 US28 643.40 - US32D 518.75 022333 Length: 72" US3 813.35 - 1 12 CTC: 56" US4 813.35 - US10 861.60 - US10B 861.60 045049 US15A 861.60 - US26 861.60 145909 US26D 861.60 095610 US28 712.90 043452 US32D 722.25 034310 915P Straight Mounting Vertical Pull Pull Diameter: 1-1/4" Fasteners: 3/8 - 16 FPHMS with finish washers Length: 36" US3 311.80 - 1 12 CTC: 20" US4 311.80 030973 Clearance: 1-1/2" US10 328.95 - Projection: 2-3/4" US10B 328.95 024013 US15A 328.95 - US26 328.95 011437 US26D 328.95 095117 US28 238.85 046879 US32D 272.35 022924 Length: 72" US3 363.35 026509 1 12 CTC: 56" US4 363.35 093132 Clearance: 1-1/2" US10 386.15 - Projection: 2-3/4" US10B 386.15 047686 US15A 386.15 - US26 386.15 107976 US26D 386.15 076713 US28 311.80 147145 US32D 328.95 033534 |
|||
|---|---|---|---|
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 915B | |||||
| 915B | |||||
| Straight Mounting Vertical Pull | |||||
| BTB Mounting | |||||
| Pull Diameter: 1-1/4" | |||||
| Length: 36" | US3 | 643.40 | 083233 | 1 | 12 |
| CTC: 20" | US4 | 643.40 | 095145 | ||
| Clearance: 1-1/2" | US10 | 677.65 | 127056 | ||
| Projection: 2-3/4" | US10B | 677.65 | 045158 | ||
| US15A | 677.65 | - | |||
| US26 | 677.65 | 042157 | |||
| US26D | 677.65 | 099445 | |||
| US28 | 497.50 | 086258 | |||
| US32D | 564.45 | 036192 | |||
| Length: 72" | US3 | 746.45 | 079229 | 1 | 12 |
|
CTC: 56"
Clearance: 1-1/2" |
US4 | 746.45 | 030970 | ||
| Projection: 2-3/4" | US10 | 792.00 | - | ||
| US10B | 792.00 | 039857 | |||
| US15A | 792.00 | - | |||
| US26 | 792.00 | - | |||
| US26D | 792.00 | 075209 | |||
| US28 | 643.40 | 091752 | |||
| US32D | 677.65 | 038310 | |||
| 920P | |||||
| C-Shaped Pull | US3 | 396.80 | 175665 | 1 | 12 |
| Projection: 2-1/4" | US4 | 396.80 | 023694 | ||
| Base Diameter: 1" | US10 | 453.45 | 068045 | ||
| Clearance: 1-3/4" | US10B | 453.45 | 067513 | ||
|
CTC: 8-1/2"
Fasteners: 3/8 - 16 FPHMS with finish washers |
US15A | 453.45 | 007029 | ||
| US26 | 453.45 | - | |||
| US26D | 453.45 | 127861 | |||
| US28 | 254.60 | - | |||
| US32D | 386.15 | 006521 | |||
| 920B | |||||
| C-Shaped Pull | US3 | 813.35 | 075752 | 1 | 12 |
| BTB Mounting | US4 | 813.35 | 023825 | ||
| Projection: 2-1/4" | US10 | 926.65 | - | ||
| Base Diameter: 1" | US10B | 926.65 | - | ||
| Clearance: 1-3/4" | US15A | 926.65 | - | ||
| CTC: 8-1/2" | US26 | 926.65 | - | ||
| US26D | 813.35 | - | |||
| US28 | 529.05 | - | |||
US32D 792.00 028143
| E- |
| - |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 921P | |||||
| C-Shaped Pull | US3 | 793.45 | 108557 | 1 | 12 |
| Projection: 2-1/8" | US4 | 793.45 | - | ||
| Clearance: 1-1/2" | US10B | 793.45 | 025579 | ||
| Offset: 8-1/2" | US15A | 793.45 | - | ||
| CTC: 17-1/2" | US26 | 793.45 | - | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | US26D | 793.45 | 063488 | ||
| US32D | 747.90 | 039887 | |||
| 921B | |||||
| C-Shaped Pull | US3 | 1,606.65 | - | 1 | 12 |
| BTB Mounting | US4 | 1,606.65 | - | ||
| Projection: 2-1/8" | US10B | 1,606.65 | - | ||
| Clearance: 1-1/2" | US15A | 1,606.65 | - | ||
| Offset: 8-1/2" | US26 | 1,606.65 | - | ||
| CTC: 17-1/2" | US26D | 1,606.65 | 092126 | ||
| US32D | 1,515.55 | 021628 | |||
| 922P | |||||
|
C-Shaped Pull Continuous
Pull Diameter: 1" |
|||||
| Projection: 2-1/2" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| Clearance: 1-1/2" | |||||
| CTC: 10" | US3 | 247.65 | 052183 | 1 | 12 |
| US4 | 247.65 | - | |||
| US10 | 301.10 | 001074 | |||
| US10B | 301.10 | 076741 | |||
| US15A | 301.10 | - | |||
| US26 | 301.10 | 080488 | |||
| US26D | 301.10 | 033046 | |||
| US28 | 159.45 | - | |||
| US32D | 238.85 | 040459 | |||
| CTC: 12" | US3 | 284.40 | 007927 | 1 | 12 |
| US4 | 284.40 | 018417 | |||
| US10 | 317.80 | 029399 | |||
| US10B | 317.80 | 029237 | |||
| US15A | 317.80 | - | |||
| US26 | 317.80 | 031122 | |||
| US26D | 317.80 | 033048 | |||
| US28 | 181.70 | - | |||
| US32D | 261.20 | 017908 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 922B | |||||
|
C-Shaped Pull Continuous
BTB Mounting |
|||||
|
Pull Diameter: 1"
Projection: 2-1/2" |
|||||
| Clearance: 1-1/2" | |||||
| CTC: 10" | US3 | 515.10 | 043544 | 1 | 12 |
| US4 | 515.10 | 054798 | |||
| US10 | 621.90 | - | |||
| US10B | 621.90 | 076740 | |||
| US15A | 621.90 | - | |||
| US26 | 621.90 | 038676 | |||
| US26D | 621.90 | 028387 | |||
| US28 | 338.65 | 047322 | |||
| US32D | 497.50 | 031463 | |||
| CTC: 12" | US3 | 588.55 | 025373 | 1 | 12 |
| US4 | 588.55 | 049391 | |||
| US10 | 655.40 | ||||
| US10B | 655.40 | 031604 | |||
| US15A | 655.40 | - | |||
| US26 | 655.40 | 039882 | |||
| US26D | 655.40 | 054764 | |||
| US28 | 383.25 | - | |||
| US32D | 542.15 | 032177 | |||
| 923P |
| US26D | 655.40 | 054764 | |||
|---|---|---|---|---|---|
| US28 | 383.25 | - | |||
| US32D | 542.15 | 032177 | |||
| 923P | |||||
| C-Shaped Pull Flanged | |||||
| Pull Diameter: 1" | |||||
| Projection: 2-3/4" | |||||
| Clearance: 1-3/4" | |||||
| Base Diameter: 3/4" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 10" | US3 | 283.45 | - | 1 | 12 |
| US4 | 283.45 | - | |||
| US10 | 300.15 | - | |||
| US10B | 300.15 | 042387 | |||
| US15A | 300.15 | - | |||
| US26 | 300.15 | - | |||
| US26D | 300.15 | - | |||
| US28 | 158.95 | 042579 | |||
| US32D | 237.95 | 107215 | |||
| CTC: 12" | US3 | 305.75 | 028028 | 1 | 12 |
| US4 | 305.75 | 041657 | |||
| US10 | 317.80 | - | |||
| US10B | 317.80 | 086167 | |||
| US15A | 317.80 | - | |||
| US26 | 317.80 | 007281 | |||
| US26D | 317.80 | 059492 | |||
| US28 | 183.10 | - | |||
| US32D | 261.20 | 043111 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 923B | |||||
| C-Shaped Pull Flanged | |||||
| BTB Mounting | |||||
| Pull Diameter: 1" | |||||
| Projection: 2-3/4" | |||||
| Clearance: 1-3/4" | |||||
| Base Diameter: 3/4" | |||||
| CTC: 10" | US3 | 586.65 | - | 1 | 12 |
| US4 | 586.65 | - | |||
| US10 | 620.00 | - | |||
| US10B | 620.00 | - | |||
| US15A | 620.00 | - | |||
| US26 | 620.00 | 056938 | |||
| US26D | 620.00 | 027475 | |||
| US28 | 337.65 | 087162 | |||
| US32D | 495.65 | 097112 | |||
| CTC: 12" | US3 | 631.25 | 033306 | 1 | 12 |
| US4 | 631.25 | - | |||
| US10 | 655.40 | - | |||
| US10B | 655.40 | 109525 | |||
| US15A | 655.40 | - | |||
| US26 | 655.40 | 036898 | |||
| US26D | 655.40 | 100390 | |||
| US28 | 385.95 | - | |||
| US32D | 542.15 | 032950 | |||
| 924P | |||||
| C-Shaped Pull | US3 | 351.25 | 047324 | 1 | 12 |
| O/A Height: 15" | US4 | 351.25 | 081526 | ||
| Projection: 2-1/2" | US10B | 386.15 | 039224 | ||
| Clearance: 1-1/2" | US15A | 386.15 | 112695 | ||
| Offset: 6-1/2" | US26 | 386.15 | - | ||
| Fasteners: 3/8 -16 FPHMS with finish washers | US26D | 351.25 | 033435 | ||
| US32D | 511.00 | 091516 | |||
| 924B | |||||
| C-Shaped Pull | US3 | 722.25 | - | 1 | 12 |
| BTB Mounting | US4 | 722.25 | 094302 | ||
| O/A Height: 15" | US10B | 792.00 | 027198 | ||
| Projection: 2-1/2" | US15A | 792.00 | 113505 | ||
| Clearance: 1-1/2" | US26 | 792.00 | - | ||
| Offset: 6-1/2" | US26D | 722.25 | 034830 | ||
| US32D | 1,041.75 | 044848 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 925P | |||||
| C-Shaped Pull | |||||
| Pull Diameter: 1-1/4" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| 6-1/2" | US3 | 311.80 | - | 1 | 12 |
| US4 | 311.80 | - | |||
| US10 | 328.95 | - | |||
| US10B | 328.95 | - | |||
| US15A | 328.95 | - | |||
| US26 | 328.95 | - | |||
| US26D | 328.95 | - | |||
| US28 | 225.80 | - | |||
| US32D | 254.60 | 082874 | |||
| 8-1/2" | US3 | 317.80 | 105030 | 1 | 12 |
| US4 | 317.80 | - | |||
| US10 | 340.10 | - | |||
| US10B | 340.10 | 009660 | |||
| US15A | 340.10 | - | |||
| US26 | 340.10 | - | |||
| US26D | 340.10 | 020046 | |||
| US28 | 237.95 | - | |||
| US32D | 272.35 | 093311 | |||
| 12-1/2" | US3 | 374.45 | 063609 | 1 | 12 |
| US4 | 374.45 | 022243 | |||
| US10 | 396.80 | - | |||
| US10B | 396.80 | 095383 | |||
| US15A | 396.80 | - | |||
| US26 | 396.80 | - | |||
| US26D | 396.80 | 015911 | |||
| US28 | 272.35 | - | |||
| US32D | 363.35 | 019494 |
|
Description
Finish 2018 List Stock No. Box Qty. Case Qty. 925B C-Shaped Pull BTB Mounting Pull Diameter: 1-1/4" 6-1/2" US3 643.40 - 1 12 US4 643.40 - US10 677.65 - US10B 677.65 - |
|---|
|
US15A
677.65 - |
|
US26
677.65 - |
|
US26D
631.25 - |
|
US28
677.65 - |
|
US32D
529.05 032601 |
|
8-1/2"
US3 655.40 - 1 12 |
|
US4
655.40 - |
|
US10
699.95 - |
|
US10B
699.95 126789 |
|
US15A
699.95 - |
|
US26
699.95 - |
|
US26D
699.95 - |
|
US28
495.65 - US32D 564.45 091632 |
|
12-1/2"
US3 768.75 084531 1 12 |
|
US4
768.75 - |
|
US10
813.35 - |
|
US10B
813.35 - |
|
US15A
813.35 - |
|
US26
813.35 - |
|
US26D
813.35 - |
|
US28
564.45 - |
|
US32D
746.45 - |
| 926P |
|
Curved Shaped Pull
US3 363.35 087555 1 12 |
|
Base Diameter: 1-1/4"
US4 363.35 - |
|
Projection: 3"
US10B 407.95 000085 |
| Clearance: 1-13/16" |
| Offset: 5-9/32" |
| CTC: 12" |
| Pull Diameter: 1-3/16" |
| Fasteners: 3/8 - 16 FPHMS with finish washers |
| 926B |
|
Curved Shaped Pull
US3 746.45 - 1 12 |
|
BTB Mounting
US4 746.45 - |
|
Base Diameter: 1-1/4"
US10B 835.65 - |
|
Projection: 3"
Clearance: 1-13/16" |
| Offset: 5-9/32" |
| CTC: 12" |
| Pull Diameter: 1-3/16" |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 930P | |||||
| 90° Pull | |||||
|
Fasteners: 3/8 - 16 FPHMS with finish washers
Projection: 3" |
|||||
| Clearance: 1-3/4" | |||||
| 10" x 10", 14-5/32 CTC | US3 | 238.85 | - | 1 | 12 |
| US4 | 238.85 | - | |||
| US10B | 272.35 | 104490 | |||
| US15A | 272.35 | - | |||
| US26 | 272.35 | - | |||
| US26D | 272.35 | 038630 | |||
| US28 | 146.85 | - | |||
| US32D | 226.75 | 041518 | |||
| 12" x 12" 16-31/32" CTC | US3 | 255.55 | - | 1 | 12 |
| US4 | 255.55 | - | |||
| US10B | 295.10 | - | |||
| US15A | 295.10 | - | |||
| US26 | 249.50 | 063600 | |||
| US26D | 249.50 | - | |||
| US28 | 159.45 | - | |||
| US32D | 238.85 | 063295 | |||
|
90° Pull
BTB Mounting Projection: 3"; Clearance: 1-3/4" 10" x 10", 14-5/32 CTC |
US3 | 497.50 | 078218 | 1 | 12 |
| US4 | 497.50 | - | |||
| US10B | 564.45 | 104485 | |||
| US15A | 564.45 | - | |||
| US26 | 564.45 | - | |||
| US26D | 564.45 | - | |||
| US28 | 313.50 | - | |||
| US32D | 473.25 | 102505 | |||
| 12" x 12" 16-31/32" CTC | US3 | 530.90 | - | 1 | 12 |
| US4 | 530.90 | - | |||
| US10B | 609.90 | - | |||
| US15A | 609.90 | - | |||
| US26 | 518.75 | - | |||
| US26D | 518.75 | - | |||
| US28 | 338.65 | - | |||
| US32D | 497.50 | 048305 | |||
| 932P | |||||
| S-Shaped Pull | US3 | 476.15 | 017835 | 1 | 12 |
| Projection: 3" | US4 | 476.15 | 019496 | ||
| Clearance: 2" | US10B | 521.75 | 039480 | ||
| Pull Diameter: 1" | US15A | 521.75 | 020472 | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | US26 | 521.75 | - | ||
| US26D | 476.15 | 019495 | |||
US28 386.15 - US32D 465.55 021879
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 933P | |||||
| Colonial Style Door Pull | US3 | 91.15 | 021632 | 1 | 12 |
| Projection: 2-3/16" | US4 | 80.05 | 025560 | ||
| Pull Diameter: 1" | US10B | 107.85 | 041459 | ||
|
Base Diameter: 15/16"
Fasteners: 3/8 - 16 FPHMS with finish washers |
US26 | 107.85 | 140775 | ||
| Clearance: 1-3/16" | |||||
| CTC: 6" | |||||
| 933B | |||||
| Colonial Style Door Pull | US3 | 202.10 | - | 1 | 12 |
| BTB Mounting | US4 | 179.90 | - | ||
| Projection: 2-3/16" | US10B | 235.50 | 020879 | ||
| Pull Diameter: 1" | US26 | 235.50 | - | ||
|
Base Diameter: 15/16"
Clearance: 1-3/16" |
|||||
| CTC: 6" | |||||
| 934P | |||||
| Offset Pull | |||||
| Projection: 3-1/8" | |||||
| Pull Diameter: 1-1/4" | |||||
| Base Diameter: 1" | |||||
|
Clearance: 1-7/8"
Fasteners: 3/8 - 16 FPHMS with finish washers |
|||||
| CTC: 12" | US3 | 328.95 | 015408 | 1 | 12 |
| US4 | 328.95 | 055245 | |||
| US10B | 328.95 | 018229 | |||
| US15A | 328.95 | 022244 | |||
| US26 | 328.95 | 024963 | |||
| US26D | 328.95 | 009614 | |||
| US28 | 325.20 | - | |||
| US32D | 396.80 | 087258 | |||
| CTC: 16" | US3 | 340.55 | 015588 | 1 | 12 |
| US4 | 340.55 | - | |||
| US10B | 340.55 | 018887 | |||
| US15A | 340.55 | 014454 | |||
|
US26
US26D |
340.55
340.55 |
-
081586 |
|||
| US28 | 334.55 | - | |||
| US32D | 410.65 | 055788 | |||
| CTC: 18" | US3 | 373.05 | 012816 | 1 | 12 |
| US4 | 373.05 | - | |||
| US10B | 373.05 | 018219 | |||
| US15A | 373.05 | - | |||
| US26 | 373.05 | 024883 | |||
| US26D | 373.05 | - | |||
| US28 | 367.00 | - | |||
| US32D | 449.70 | 089638 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 934B | |||||
|
Offset Pull
BTB Mounting |
|||||
| Base Diameter: 1" | |||||
| Projection: 3-1/8" | |||||
| Clearance: 1-7/8" | |||||
| Pull Diameter: 1-1/4" | |||||
| CTC: 12" | US3 | 677.65 | - | 1 | 12 |
| US4 | 677.65 | 048154 | |||
| US10B | 677.65 | 042701 | |||
| US15A | 677.65 | - | |||
| US26 | 677.65 | - | |||
| US26D | 677.65 | - | |||
| US28 | 670.20 | - | |||
| US32D | 813.35 | 120341 | |||
| CTC: 16" | US3 | 700.90 | 083864 | 1 | 12 |
| US4 | 700.90 | - | |||
| US10B | 700.90 | - | |||
| US15A | 700.90 | - | |||
| US26 | 700.90 | - | |||
| US26D | 700.90 | - | |||
| US28 | 688.85 | - | |||
| US32D | 841.10 | - | |||
| CTC: 18" | US3 | 765.90 | - | 1 | 12 |
| US4 | 765.90 | 048152 | |||
| US10B | 765.90 | - | |||
| US15A | 765.90 | - | |||
| US26 | 765.90 | - | |||
| US26D | 765.90 | - | |||
| US28 | 753.75 | - | |||
| US32D | 919.10 | 098230 | |||
| 936P | |||||
| Coat Hook Single/Angled | US3 | 48.40 | 021976 | 1 | 12 |
| Material: Brass | US26D | 48.40 | 009820 | ||
| Base Diameter: 1-15/16" | |||||
| Hook Diameter: 11/16" | |||||
| Projection: 3-5/16" | |||||
| 937P | |||||
| Coat Hook | US3 | 49.60 | 028259 | 1 | 12 |
| Material: Brass | US26D | 49.60 | 009821 | ||
| Projection: 3-3/4" top hook; 2-1/2" bottom hook | |||||
| 940P | |||||
| Double Coat Hook | US3 | 18.10 | 028110 | 1 | 12 |
| Material: Brass | US26D | 18.10 | 022327 | ||
| Top Projection: 3-15/16" | |||||
| Bottom Projection: 2-1/8" | |||||
| Thickness: 1/4" |
Fasteners: #10 x 1" FPHWS
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
|
941P
Single Coat Hook Material: Brass Projection: 2-1/8" Thickness: 1/4" Fasteners: #10 x 1" FPHWS |
US3
US26D |
16.85
16.85 |
043274
017192 |
1 | 12 |
|
945P
Double Coat Hook - Surface mounting Material: Brass O/A Height: 5-1/2" Projection: 3-5/16" Fasteners: #10 x 1" FPHWS w/ anchors |
US3
US26D |
45.95
45.95 |
041591
000986 |
1 | 12 |
|
946P
Double Coat Hook w/ Concealed Mounting Material: Brass O/A Height: 5-1/2" Projection: 3-11/16" Fasteners: #10 x 1" FPHWS w/ anchors |
US3
US26D |
87.60
87.60 |
035563
016502 |
1 | 12 |
|
951P
Double Coat Hook/Straight Material: Brass O/A Height: 5-3/4" Projection: 2-3/4" |
US3
US26D |
87.60
87.60 |
009815
007030 |
1 | 12 |
|
952P
Single Coat Hook/Straight Material: Brass O/A Height: 2-13/16" Projection: 2-7/32" |
US3
US26D |
70.30
70.30 |
009818
009816 |
1 | 12 |
|
956P
Double Coat Hook/Angled Material: Brass O/A Height: 5-11/16" Projection: 3-23/32" |
US3
US4 US26D |
85.30
85.30 85.30 |
022248
190569 009823 |
1 | 12 |
|
957P
Coat Hook Materials: Brass Projection: 1-3/4" Base Diameter: 3/4" Fasteners: #10 x 1" wood thread |
US3
US26D |
21.55
21.55 |
038315
010738 |
1 | 12 |
|
960P
Square Tip Pull O/A Height: 16" Base Diameter: 1-1/4" Pull Diameter: 1" Projection: 3-1/4" Clearance: 1-3/4" Fasteners: 3/8 - 16 FPHMS with finish washers CTC: 12" |
US3
US4 US10B US15A US26 US26D |
430.65
430.65 430.65 430.65 430.65 430.65 |
009259
038157 011621 013611 020471 015493 |
1 | 12 |
4/1/2018
www.hagerco.com
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 960B | |||||
| Square Tip Pull | US3 | 881.10 | - | 1 | 12 |
| BTB Mounting | US4 | 881.10 | 044725 | ||
| O/A Height: 16" | US10B | 881.10 | 075667 | ||
| Base Diameter: 1-1/4" | US15A | 881.10 | - | ||
| Pull Diameter: 1" | US26 | 881.10 | - | ||
| Projection: 3-1/4" | US26D | 881.10 | 069324 | ||
| Clearance: 1-3/4" | |||||
| CTC: 12" | |||||
| 961P | |||||
| Steeple Tip Pull | US3 | 407.95 | 000571 | 1 | 12 |
| O/A Height: 16-5/16" | US4 | 407.95 | - | ||
| Base Diameter: 2" | US10B | 407.95 | 015679 | ||
| Pull Diameter: 1" | US15A | 407.95 | 009262 | ||
| Projection: 3" | US26 | 407.95 | - | ||
| Clearance: 1-3/4" | US26D | 407.95 | 015011 | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 12" | |||||
| 961B | |||||
| Steeple Tip Pull | US3 | 835.65 | 026830 | 1 | 12 |
| BTB Mounting | US4 | 835.65 | 074979 | ||
| O/A Height: 16-5/16" | US10B | 835.65 | 078830 | ||
| Base Diameter: 2" | US15A | 835.65 | - | ||
| Pull Diameter: 1" | US26 | 835.65 | - | ||
| Projection: 3" | US26D | 835.65 | 092283 | ||
|
Clearance: 1-3/4"
CTC: 12" |
|||||
| 962P | |||||
| Acorn Tip Pull | US3 | 407.95 | 007923 | 1 | 12 |
|
O/A Height: 16-5/16"
Base Diameter: 2" |
US4 | 407.95 | 011372 | ||
| Pull Diameter: 1" | US10B | 407.95 | 011629 | ||
| Projection: 3" | US15A | 407.95 | 000573 | ||
| Clearance: 1-7/8" | US26 | 407.95 | 009264 | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | US26D | 407.95 | - | ||
| CTC: 12" |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 963P | |||||
|
Acorn Tip Pull - Offset
Pull Diameter: 1" |
|||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 12" | US3 | 442.30 | 090673 | 1 | 12 |
|
US4
US10B |
425.60
442.30 |
-
093281 |
|||
| US15A | 442.30 | - | |||
| US26 | 442.30 | - | |||
| US26D | 442.30 | - | |||
| CTC: 16" | US3 | 544.55 | - | 1 | 12 |
| US4 | 515.75 | - | |||
| US10B | 544.55 | 125026 | |||
| US15A | 544.55 | - | |||
| US26 | 544.55 | - | |||
| US26D | 544.55 | 089733 | |||
| CTC: 18" | US3 | 549.15 | 068942 | 1 | 12 |
| US4 | 441.35 | 080532 | |||
| US10B | 553.40 | 099640 | |||
| US15A | 553.40 | - | |||
| US26 | 553.40 | - | |||
| US26D | 553.40 | 015561 | |||
| CTC: 24" | US3 | 575.10 | - | 1 | 12 |
| US4 | 545.75 | - | |||
| US10B | 575.10 | 049909 | |||
| US15A | 575.10 | - | |||
| US26 | 575.10 | - | |||
| US26D | 575.10 | 073269 | |||
| CTC: 30" | US3 | 597.90 | - | 1 | 12 |
| US4 | 570.95 | - | |||
| US10B | 597.90 | 049907 | |||
| US15A | 597.90 | - | |||
| US26 | 597.90 | - | |||
| US26D | 597.90 | - | |||
| 967P | |||||
| Curved Pull | US3 | 1,076.75 | 024430 | 1 | 12 |
| O/A Height: 20-1/2" | US4 | 1,076.75 | 009305 | ||
| Clearance: 3-9/16" | US10B | 1,245.90 | 016556 | ||
| Projection: 5-9/16" | US15A | 1,245.90 | 006769 | ||
| Specify handing | US26 | 1,245.90 | 011769 | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | US26D | 1,245.90 | 008614 | ||
| Description | Finish | 2018 List | Case Qty. | Over 36"* |
|---|---|---|---|---|
| 970P | ||||
| 970P | US3 | 493.25 | 12 | 8.00 |
| Push/Pull Set | US4 | 493.25 | 8.00 | |
| Base Diameter: 1" | US10 | 493.25 | 8.00 | |
| Pull Projection: 3" | US10B | 493.25 | 8.00 | |
| Pull Clearance: 2" | US15A | 493.25 | 8.00 | |
| CTC Length: 16-3/4" | US26 | 493.25 | 8.00 | |
| Push clearance: 1-3/4" | US26D | 493.25 | 8.00 | |
| Push projection: 2-3/4" | US32D | 476.00 | 13.40 | |
| Fasteners: Type 3 Mounting | ||||
| Handing Required | ||||
| Additional Bars by Quotation | ||||
| *Add per linear inch or fraction thereof |
| • | } |
|---|---|
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 974P | |||||
| Door Pull | |||||
| Pull Diameter: 1" (25 mm) | |||||
| Base Diameter: 2" (51 mm) | |||||
| Projection: 2-1/2" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 12" | US3 | 489.70 | 096812 | 1 | 12 |
| US4 | 489.70 | - | |||
| US10B | 489.70 | 077525 | |||
| US26 | 489.70 | - | |||
| US26D | 489.70 | 067183 | |||
| US32D | 489.70 | 090347 | |||
| CTC: 18" | US3 | 509.65 | - | 1 | 12 |
| US4 | 509.65 | - | |||
| US10B | 509.65 | - | |||
| US26 | 509.65 | - | |||
| US26D | 509.65 | 077942 | |||
| US32D | 509.65 | 008568 | |||
| CTC: 24" | US3 | 532.40 | - | 1 | 12 |
| US4 | 532.40 | - | |||
| US10B | 532.40 | - | |||
| US26 | 532.40 | - | |||
| US26D | 532.40 | 118329 | |||
| US32D | 532.40 | 065323 | |||
| CTC: 30" | US3 | 555.15 | - | 1 | 12 |
| US4 | 555.15 | - | |||
| US10B | 555.15 | - | |||
| US26 | 555.15 | - | |||
| US26D | 555.15 | - | |||
| US32D | 555.15 | - | |||
| CTC: 36" |
US3
US4 |
555.15
555.15 |
-
- |
1 | 12 |
| US10B | 555.15 | - | |||
| US26 | 555.15 | - | |||
| US26D | 555.15 | 117957 | |||
| US32D | 555.15 | 138337 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 974B | |||||
| Door Pull | |||||
| BTB Mounting | |||||
| Pull Diameter: 1" (25 mm) | |||||
| Base Diameter: 2" (51 mm) | |||||
| Projection: 2-1/2" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 12" | US3 | 999.15 | - | 1 | 12 |
| US4 | 999.15 | - | |||
| US10B | 999.15 | 094407 | |||
| US26 | 999.15 | - | |||
| US26D | 999.15 | - | |||
| US32D | 999.15 | 094083 | |||
| CTC: 18" | US3 | 1,039.05 | - | 1 | 12 |
| US4 | 1,039.05 | - | |||
| US10B | 1,039.05 | - | |||
| US26 | 1,039.05 | - | |||
| US26D | 1,039.05 | 091914 | |||
| US32D | 1,039.05 | 080540 | |||
| CTC: 24" | US3 | 1,084.60 | - | 1 | 12 |
| US4 | 1,084.60 | - | |||
| US10B | 1,084.60 | 031371 | |||
| US26 | 1,084.60 | 111278 | |||
| US26D | 1,084.60 | 094396 | |||
| US32D | 1,084.60 | 080541 | |||
| CTC: 30" | US3 | 1,130.05 | - | 1 | 12 |
| US4 | 1,130.05 | - | |||
| US10B | 1,130.05 | - | |||
| US26 | 1,130.05 | - | |||
| US26D | 1,130.05 | 107473 | |||
| US32D | 1,130.05 | 124943 | |||
| CTC: 36" | US3 | 1,130.05 | - | 1 | 12 |
| US4 | 1,130.05 | - | |||
| US10B | 1,130.05 | - | |||
| US26 | 1,130.05 | - | |||
| US26D | 1,130.05 | - | |||
| US32D | 1,130.05 | 091943 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 975P | |||||
| Vertical Pull | |||||
| Pull Diameter: 1" | |||||
|
Projection: 2-3/4"
Fasteners: 3/8 - 16 FPHMS |
|||||
| with finish washers | |||||
| Length: 36" | US3 | 268.60 | 119311 | 1 | 12 |
| CTC: 20" | US4 | 268.60 | - | ||
| US10 | 268.60 | 068796 | |||
| US10B | 268.60 | 042466 | |||
| US15A | 268.60 | 012591 | |||
| US26 | 268.60 | 050339 | |||
| US26D | 268.60 | 012278 | |||
| US32D | 268.60 | 010891 | |||
| Length: 72" | US3 | 386.15 | 119290 | 1 | 12 |
| CTC: 56" | US4 | 386.15 | 074642 | ||
| US10 | 386.15 | 070431 | |||
| US10B | 386.15 | 022804 | |||
| US15A | 386.15 | 012601 | |||
| US26 | 386.15 | 030738 | |||
| US26D | 386.15 | 029768 | |||
| US32D | 386.15 | 028382 | |||
| 975B | |||||
| Vertical Pull | |||||
| BTB Mounting | |||||
| Pull Diameter: 1" | |||||
| Projection: 2-3/4" | |||||
| Length: 36" | US3 | 557.00 | - | 1 | 12 |
| CTC: 20" | US4 | 557.00 | - | ||
| US10 | 557.00 | - | |||
| US10B | 557.00 | 025610 | |||
| US15A | 557.00 | - | |||
| US26 | 557.00 | 030737 | |||
| US26D | 557.00 | 021401 | |||
| US32D | 557.00 | 028442 | |||
|
Length: 72"
CTC: 56" |
US3 | 792.00 | - | 1 | 12 |
| US4 | 792.00 | - | |||
| US10 | 792.00 | 070432 | |||
|
US10B
US15A |
792.00
792.00 |
021488
- |
|||
| US26 | 792.00 | 030738 | |||
| US26D | 792.00 | 021402 | |||
| US32D | 792.00 | 021547 | |||
| 976P | |||||
|
Door Pull Offset
Overall: 29-1/2"; CTC: 19-13/16" |
US32D | 593.75 | 088820 | 1 | 12 |
| Base Diameter: 1-1/4" | |||||
| Pull Diameter: 1-1/4" | |||||
| Projection: 5-3/8" | |||||
| Clearance: 4-1/8" | |||||
| Offset: 1-3/4" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 976B | |||||
| Door Pull Offset | US32D | 1,207.25 | 062051 | 1 | 12 |
| Overall: 29-1/2"; CTC: 19-13/16" | |||||
| BTB Mounting | |||||
| Base Diameter: 1-1/4" | |||||
|
Pull Diameter: 1-1/4"
Projection: 5-3/8" |
|||||
| Clearance: 4-1/8" | |||||
| Offset: 1-3/4" | |||||
| 980P | |||||
| Segment Shape - Straight | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 9" | US3 | 179.40 | - | 1 | 12 |
| US4 | 179.40 | - | |||
| US10B | 179.40 | 012840 | |||
| US15A | 179.40 | 076601 | |||
| US26 | 179.40 | - | |||
| US26D | 179.40 | - | |||
| US32D | 179.40 | 027302 | |||
| CTC: 12" |
US3
US4 |
179.40
179.40 |
-
095352 |
1 | 12 |
| US10B | 179.40 | 083262 | |||
| US15A | 179.40 | - | |||
| US26 | 179.40 | 014517 | |||
| US26D | 179.40 | 049530 | |||
| US32D | 179.40 | 031717 | |||
| CTC: 18" | US3 | 198.85 | - | 1 | 12 |
| US4 | 198.85 | - | |||
| US10B | 198.85 | 012799 | |||
| US15A | 198.85 | 014455 | |||
| US26 | 198.85 | 064564 | |||
| US26D | 198.85 | 057861 | |||
| US32D | 198.85 | 016625 | |||
| CTC: 24" | US3 | 198.85 | 041663 | 1 | 12 |
| US4 | 198.85 | 085204 | |||
| US10B | 198.85 | 065896 | |||
|
US15A
US26 |
198.85
198.85 |
-
011979 |
|||
| US26D | 198.85 | 036275 | |||
| US32D | 198.85 | 024698 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 980B | |||||
| Segment Shape - Straight | |||||
| BTB Mounting | |||||
| CTC: 9" | US3 | 378.55 | - | 1 | 12 |
| US4 | 378.55 | - | |||
| US10B | 378.55 | 116185 | |||
| US15A | 378.55 | 114829 | |||
| US26 | 378.55 | - | |||
| US26D | 378.55 | - | |||
| US32D | 378.55 | 083497 | |||
| CTC: 12" | US3 | 378.55 | - | 1 | 12 |
| US4 | 378.55 | - | |||
| US10B | 378.55 | 101513 | |||
| US15A | 378.55 | - | |||
| US26 | 378.55 | - | |||
| US26D | 378.55 | 039876 | |||
| US32D | 378.55 | 032307 | |||
| CTC: 18" | US3 | 417.45 | - | 1 | 12 |
| US4 | 417.45 | - | |||
| US10B | 417.45 | 077056 | |||
| US15A | 417.45 | 077533 | |||
| US26 | 417.45 | 088558 | |||
| US26D | 417.45 | 044015 | |||
| US32D | 417.45 | 022336 | |||
| CTC: 24" | US3 | 417.45 | - | 1 | 12 |
| US4 | 417.45 | - | |||
| US10B | 417.45 | 017774 | |||
| US15A | 417.45 | - | |||
| US26 | 417.45 | - | |||
| US26D | 417.45 | 027476 | |||
| US32D | 417.45 | 032023 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
| 981P | |||||
| Segment Shape - Offset Pull | |||||
| Projection: 2-3/8" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 9" | US3 | 204.00 | - | 1 | 12 |
| US4 | 204.00 | - | |||
| US10B | 204.00 | 047545 | |||
| US15A | 204.00 | 087991 | |||
| US26 | 204.00 | - | |||
| US26D | 204.00 | 047907 | |||
| US32D | 204.00 | 046757 | |||
| CTC: 12" | US3 | 211.90 | 026794 | 1 | 12 |
| US4 | 211.90 | 111689 | |||
| US10B | 211.90 | 027812 | |||
| US15A | 211.90 | 026777 | |||
| US26 | 211.90 | 011836 | |||
| US26D | 211.90 | 035056 | |||
| US32D | 211.90 | 004578 | |||
| CTC: 18" | US3 | 238.85 | 053460 | 1 | 12 |
| US4 | 238.85 | - | |||
| US10B | 238.85 | 075906 | |||
| US15A | 238.85 | 019090 | |||
| US26 | 238.85 | 042120 | |||
| US26D | 238.85 | 010525 | |||
| US32D | 238.85 | 015319 | |||
| CTC: 24" | US3 | 295.10 | 011702 | 1 | 12 |
| US4 | 295.10 | 006783 | |||
| US10B | 295.10 | 039910 | |||
| US15A | 295.10 | 020401 | |||
| US26 | 295.10 | 092955 | |||
| US26D | 295.10 | 010526 | |||
| US32D | 295.10 | 033975 |
| 1 |
|---|
| 1 |
| - 1 |
| - 1 |
| - // |
| / |
| / |
| 1 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 981B | |||||
| Segment Shape - Offset Pull | |||||
| BTB Mounting | |||||
| Projection: 2-3/8" | |||||
| CTC: 9" | US3 | 427.75 | - | 1 | 12 |
| US4 | 427.75 | - | |||
| US10B | 427.75 | 089663 | |||
| US15A | 427.75 | - | |||
| US26 | 427.75 | - | |||
| US26D | 427.75 | - | |||
| US32D | 427.75 | 076275 | |||
| CTC: 12" | US3 | 443.50 | 027231 | 1 | 12 |
| US4 | 443.50 | - | |||
| US10B | 443.50 | 078949 | |||
| US15A | 443.50 | - | |||
| US26 | 443.50 | - | |||
| US26D | 443.50 | 023547 | |||
| US32D | 443.50 | 037048 | |||
| CTC: 18" | US3 | 497.50 | - | 1 | 12 |
| US4 | 497.50 | 050164 | |||
| US10B | 497.50 | 001599 | |||
| US15A | 497.50 | - | |||
| US26 | 497.50 | 022355 | |||
| US26D | 497.50 | 022637 | |||
| US32D | 497.50 | 028505 | |||
| CTC: 24" | US3 | 609.90 | - | 1 | 12 |
| US4 | 609.90 | - | |||
| US10B | 609.90 | 085243 | |||
| US15A | 609.90 | - | |||
| US26 | 609.90 | 049864 | |||
| US26D | 609.90 | 027598 | |||
| US32D | 609.90 | 031349 | |||
| 982P | |||||
| Straight Pull | US3 | 442.30 | 087996 | 1 | 12 |
| Base Diameter: 1-5/16" | US4 | 442.30 | - | ||
| Projection: 3-1/8" | US10B | 476.15 | 084256 | ||
|
Clearance: 1-13/16"
CTC: 20" |
US15A | 476.15 | - | ||
| Fasteners: 3/8 - 16 FPHMS with | US26 | 476.15 | - | ||
| finish washers | US26D | 476.15 | 058080 | ||
| US32D | 544.55 | 080284 | |||
| 982B | |||||
| Straight Pull | US3 | 904.35 | - | 1 | 12 |
| BTB Mounting | US4 | 904.35 | - | ||
| Base Diameter: 1-5/16" | US10B | 972.15 | - | ||
| Projection: 3-1/8" | US15A | 972.15 | - | ||
| Clearance: 1-13/16" | US26 | 972.15 | - | ||
| CTC: 20" | US26D | 972.15 | 009491 | ||
| US32D | 1,108.85 | 091255 |
| Base Diameter: 14-1/4" | |||||
|---|---|---|---|---|---|
| Projection: 3-1/8" | |||||
| Clearance: 1-7/8" | |||||
| Specify handing | |||||
| Left Hand | US3 | 904.35 | 099638 | 1 | 12 |
| US4 | 904.35 | - | |||
| US10B | 972.15 | 044345 | |||
| US15A | 972.15 | - | |||
| US26 | 972.15 | 072463 | |||
| US26D | 972.15 | 065560 | |||
| US32D | 1,108.85 | 085556 | |||
| Right Hand | US3 | 904.35 | 098156 | 1 | 12 |
| US4 | 904.35 | - | |||
| US10B | 972.15 | 044347 | |||
| US15A | 972.15 | - | |||
| US26 | 972.15 | - | |||
| US26D | 972.15 | 065559 | |||
| US32D | 1,108.85 | 085557 | |||
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 984P | |||||
| Curved Pull | |||||
| Projection: 3" | |||||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
| CTC: 12" | US3 | 295.10 | - | 1 | 12 |
| US4 | 295.10 | 021651 | |||
| US10B | 295.10 | 067449 | |||
| US15A | 295.10 | - | |||
| US26 | 295.10 | - | |||
| US26D | 295.10 | 013764 | |||
| US32D | 368.00 | 078894 | |||
| CTC: 20" | US3 | 440.45 | 077926 | 1 | 12 |
|
US4
US10B |
440.45
440.45 |
-
092541 |
|||
|
US15A
US26 |
440.45
440.45 |
-
- |
|||
| US26D | 440.45 | 014652 | |||
| US32D | 569.10 | 082549 | |||
| 984B | |||||
|
Curved Pull
BTB Mounting |
|||||
| Projection: 3" | |||||
| CTC: 12" | US3 | 609.90 | - | 1 | 12 |
| US4 | 609.90 | - | |||
| US10B | 609.90 | 033349 | |||
| US15A | 609.90 | - | |||
| US26 | 609.90 | - | |||
| US26D | 609.90 | - | |||
| US32D | 755.75 | 057306 | |||
| CTC: 20" | US3 | 900.70 | - | 1 | 12 |
| US4 | 900.70 | 039804 | |||
| US10B | 900.70 | 033348 | |||
| US15A | 900.70 | - | |||
| US26 | 900.70 | - | |||
| US26D | 900.70 | 032543 | |||
| US32D | 1,158.00 | 114348 | |||
| 985P | |||||
| Curved Pull | US3 | 249.50 | 006990 | 1 | 12 |
| O/A Height: 14" | US4 | 249.50 | 020375 | ||
| Base Diameter: 2" | US10B | 284.40 | 009303 | ||
| Projection: 3" | US15A | 284.40 | 014456 | ||
| Clearance: 1-9/16" | US26 | 284.40 | 055276 | ||
US26D 249.50 007482 US32D 363.35 010406
Offset: 1-5/8" CTC: 12"
Fasteners: 3/8 - 16 FPHMS with finish washers
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 985B | |||||
| Curved Pull | US3 | 518.75 | 025851 | 1 | 12 |
| BTB Mounting | US4 | 518.75 | 029159 | ||
| O/A Height: 14" | US10B | 588.55 | 024891 | ||
| Base Diameter: 2" | US15A | 588.55 | 027680 | ||
| Projection: 3" | US26 | 588.55 | - | ||
| Offset: 1-5/8" | US26D | 518.75 | 025866 | ||
|
Clearance: 1-9/16"
CTC: 12" |
US32D | 746.45 | 023384 | ||
| 986P | |||||
| Curved Pull | US3 | 623.45 | 081279 | 1 | 12 |
| O/A Height: 22" | US4 | 623.45 | 033174 | ||
| Pull Diameter: 1-1/4" | US10B | 623.45 | 014868 | ||
| Base Diameter: 2" | US15A | 623.45 | 021822 | ||
| Projection: 3-7/8" | US26 | 623.45 | 016593 | ||
| Offset: 3" | US26D | 623.45 | 010418 | ||
| Clearance: 2-5/8" | US32D | 566.75 | 011392 | ||
|
CTC: 20"
Fasteners: 3/8 - 16 FPHMS with finish washers |
|||||
| 986B | |||||
| Curved Pull | US3 | 1,266.65 | - | 1 | 12 |
| BTB Mounting | US4 | 1,266.65 | 032338 | ||
| O/A Height: 22" | US10B | 1,266.65 | 013369 | ||
| Pull Diameter: 1-1/4" | US15A | 1,266.65 | 042684 | ||
| Base Diameter: 2" | US26 | 1,266.65 | - | ||
| Projection: 3-7/8" | US26D | 1,266.65 | 022069 | ||
| Offset: 3" | US32D | 1,153.25 | 040173 | ||
| Clearance: 2-5/8" | |||||
|
CTC: 20"
987P |
|||||
| Double Curved Pull | US3 | 544.55 | - | 1 | 12 |
| Base Diameter: 1-1/4" | US4 | 544.55 | - | ||
| Projection: 3" | US10B | 544.55 | 038422 | ||
| Clearance: 2" | US15A | 544.55 | 014457 | ||
| CTC: 20" | US26 | 544.55 | 080621 | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | US26D | 544.55 | 017011 | ||
| US32D | 532.40 | 018215 | |||
| 987B | |||||
| Double Curved Pull | US3 | 1,108.85 | - | 1 | 12 |
| BTB Mounting | US4 | 1,108.85 | - | ||
| Base Diameter: 1-1/4" | US10B | 1,108.85 | 062018 | ||
| Projection: 3" | US15A | 1,108.85 | 080604 | ||
| Clearance: 2" | US26 | 1,108.85 | 083130 | ||
| CTC: 20" | US26D | 1,108.85 | 025865 | ||
| US32D | 1,084.60 | 022332 | |||
| 988P | |||||
| Offset Pull | US3 | 295.10 | - | 1 | 12 |
| Projection: 3" | US26 | 295.10 | - | ||
| CTC: 24" | US32D | 295.10 | 032028 | ||
| Fasteners: 3/8 - 16 FPHMS with finish washers | |||||
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 988B | |||||
|
Offset Pull
BTB Mounting |
US3
US26 |
609.90
609.90 |
-
- |
1 | 12 |
| Projection: 3" | US32D | 609.90 | 032030 | ||
| CTC: 24" | |||||
| 990P | |||||
| 18° Pull Bar - Handed | |||||
| Pull Diameter: 1" | |||||
| O/A Height: 25" | |||||
| Projection: 2-3/4" | |||||
| Clearance: 1-3/4" | |||||
| CTC: 24" | |||||
|
Specify handing
Fasteners: 3/8 - 16 FPHMS with finish washers |
|||||
| Left Hand | US3 | 680.10 | - | 1 | 12 |
| US4 | 680.10 | - | |||
| US10B | 680.10 | - | |||
| US15A | 680.10 | - | |||
| US26 | 680.10 | - | |||
| US26D | 680.10 | 097531 | |||
| US32D | 611.35 | 078681 | |||
| Right Hand | US3 | 680.10 | - | 1 | 12 |
| US4 | 680.10 | - | |||
| US10B | 680.10 | 098837 | |||
| US15A | 680.10 | - | |||
| US26 | 680.10 | - | |||
US26D 680.10 097700 US32D 611.35 078682
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| FIIIISII | ZOTO LIST | Stock No. | DOX QLy. | case Qty. | |
|
990B
18° Pull Bar - Handed |
|||||
| BTB Mounting | |||||
| Pull Diameter: 1" | |||||
| O/A Height: 25" | |||||
| Projection: 2-3/4" | |||||
| Clearance: 1-3/4" | |||||
| CTC: 24" | |||||
| Specify handing | |||||
| Left Hand | US3 | 1,379.95 | - | 1 | 12 |
| US4 | 1,379.95 | - | |||
| US10B | 1,379.95 | 055038 | |||
| US15A | 1,379.95 | - | |||
| US26 | 1,379.95 | - | |||
| US26D | 1,379.95 | 105210 | |||
| . | US32D | 1,242.55 | 124116 | ||
| Right Hand | US3 | 1,379.95 | - | 1 | 12 |
| US4 | 1,379.95 | - | |||
| US10B | 1,379.95 | 054966 | |||
| US15A | 1,379.95 | - | |||
| US26 | 1,379.95 | - | |||
| US26D | 1,379.95 | 105211 | |||
| US32D | 1,242.55 | 124120 | |||
| 1442 | |||||
| Roller Latch with Full Lip Strike | US3 | 32.35 | 070478 | 1 | 12 |
| Material: Forged brass | US4 | 45.70 | 011444 | ||
| Latch Face: 1" x 3-3/8" | US10 | 45.70 | 011442 | ||
| Strike: 1-11/16" x 2-1/4" x 5/32" thick | US10B | 34.45 | 070462 | ||
| Max Roller Projection: 3/8" | US15 | 38.35 | 060770 | ||
| Fasteners: #8 x 1" FPHWS; 8 - 32 x 3/4" FPHMS; #10 x 1-1/2" FPHWS | US15A | 61.65 | 054026 | ||
| Non-Ferrous Version available on US3, US10B, US15, and | US19 | 61.65 | 054513 | ||
| US26D with extended lead time - 13.85 adder | US26 | 33.95 | 064292 | ||
| (NF) comp | US26D | 27.45 | 011443 | ||
| 1443 | |||||
| Roller Latch w/ ASA Strike | US3 | 35.50 | 061158 | 1 | 12 |
| Material: Forged brass | US4 | 47.75 | - | ||
|
Latch Face: 1" x 3-3/8"
Strike: 1-1/4" x 4-7/8" w/ 5/8" Lip |
US10 | 48.60 | 011445 | ||
| Strike Thickness: .093" | US10B | 40.45 | 061159 | ||
| Max Roller Projection: 3/8" | US15 | 53.60 | 060765 | ||
| Fasteners: 12 - 24 x 1/2" FPHMS; | US15A | 61.65 | 054032 | ||
| #12 x 3/4" FPHWS; #10 x 1-1/2" FPHWS | US19 | 61.65 | 054515 | ||
| . , , , | US26 | 45.70 | 088079 | ||
| US26D | 30.20 | 011446 | |||
| 2610 | |||||
| Finger Pull | US3 | 013049 | - | 500 | |
| Material: Brass | US4 | See Sliding | 071953 | ||
| Overall Diameter: 31/32" | US5 | Door | 067282 | ||
| Finger Pull Diameter: 3/4" | US10A | Hardware | 068711 | ||
| Pull Clearance: 5/16" | US15 | Section for | 040589 | ||
| Projection: 1/32" | US15A | Pricing | 040590 |
Pricing US26 013047 US26D 071169
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
| 2620 | |||||
| Round Flush Pull | US3 | 013081 | _ | 50 | |
| Material: Brass | US4 | See Sliding | 072997 | ||
| Overall Diameter: 2-1/16" | US5 | Door | 072148 | ||
| Finger Pull Diameter: 1-11/16" | US10A | Hardware | 072534 | ||
| Pull Clearance: 11/32" | US15 | Section for | 072624 | ||
| Projection: 5/64" | US15A | Pricing | 072158 | ||
| US26 | 9 | 072554 | |||
| US26D | 075322 | ||||
| 2630 | |||||
| Round Flush Pull | US3 | 051919 | 50 | ||
| Material: Brass | US4 | 6 61.1. | 073783 | 50 | |
| Overall Diameter: 2-7/16" | US5 | See Sliding | 053163 | ||
| Finger Pull Diameter: 2-1/16" | US10A | Door | 073053 | ||
| Pull Clearance: 11/32" | US15 | Hardware | 073056 | ||
| Projection: 3/32" | US15A | Section for | 054307 | ||
| , | US26 | Pricing | |||
| US26D |
023430
023431 |
||||
| 03200 | 023431 | ||||
| 2640 | 1100 | 000700 | 50 | ||
| Oblong Flush Pull | US3 | 096760 | - | 50 | |
| Material: Brass | US4 | See Sliding | 075056 | ||
|
Size: 1-5/16" x 2-3/4"
Cup Clearance: 5/16" |
US5 | Door | 074270 | ||
| Fasteners: #6 x 5/8" OPHWS | US10A | Hardware | 074533 | ||
| Tastellers. #0 x 5/6 Of TIWS | US15 | Section for | 074711 | ||
| US15A | Pricing | 074350 | |||
| US26 | 026751 | ||||
| US26D | 074664 | ||||
|
9558
West Keek |
W | See Sliding Door | 000567 | 100 | |
| Wood Knob Knob Diameter: 1-1/2" | Wood | Hardware Section | 096567 | - | 100 |
| Base Diameter: 15/16" | for Pricing | ||||
| Fasteners: #8 x 1-3/4" PPHWS | |||||
| 9566 | |||||
| Knob | US3 | 099824 | _ | 100 | |
| Material: Zinc | US4 | 098635 | 100 | ||
| Knob Diameter: 1-1/4" | US5 | See Sliding | 028859 | ||
| Projection: 1" | US10A | Door | 098634 | ||
| Fasteners: #8 - 32 x 2" PPHMS; | US10B | Hardware | 098633 | ||
| #8 - 32 x 1-3/4" PPHMS | US15 | Section for | 098632 | ||
| US15A | Pricing | 098629 | |||
| US26 | 098628 | ||||
| US26D | 098627 | ||||
| 9567 | 33200 | 030027 | |||
| Rose - For use with 9566 knob | US3 | 099825 | _ | 100 | |
| Material: Zinc | US4 | C - C !! !! | 098626 | _ | 100 |
| Base Diameter: 1-3/4" | US5 | See Sliding | 018102 | ||
| Projection: 15/32" | US10A | Door | 098625 | ||
| Fasteners: #8 - 32 x 2" PPHMS; | US10B | Hardware | 098624 | ||
| #8 - 32 x 1-3/4" PPHMS | US15 | Section for | 098623 | ||
| US15A | Pricing | 098622 | |||
| US26 | 098621 | ||||
| US26D | 098620 | ||||
| U320D | 030020 |
| 9884 | |
|---|---|
| Pocket Door Edge Pull |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. |
|---|---|---|---|---|---|
|
9865
Plastic Pull Overall Diameter: 1-31/32" Finger Pull Diameter: 1-19/32" Pull Clearance: 11/32" Projection: 5/64" |
Plastic | 1.00 | 098993 | - | 100 |
|
9882
Pocket Door Edge Pull Material: Brass Finger Pull Extends: 3/4" Faceplate: 3/4" x 3-7/8" Fasteners: #6 x 5/8" FPHWS Note: See Sliding Door section for pricing and multiplier. |
US3
US4 US10 US10B US26 US26D |
14.60
17.65 14.60 17.65 17.65 17.65 |
049582
049583 049578 049580 049579 049581 |
- | 100 |
|
9884
Pocket Door Edge Pull Material: Zinc Finger Pull Extends: 1-1/16" Faceplate: 21/32" x 3-1/2" Fasteners: #6 x 5/8" FPHWS Note: See Sliding Door section for pricing and multiplier. |
US3 |
See Sliding
Door Hardware Section for Pricing |
099056 | - | 20 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. | Disc Code |
|---|---|---|---|---|---|---|
| 199B | ||||||
| Door Protection Plate | ||||||
| U/M - 1 each | ||||||
| Material: Aluminum (.038") | ||||||
| Fasteners: #6 x 5/8" TPH Tapping Screws | ||||||
| 6" x 30" | BGA | 19.89 | 099256 | 1 | - | 390 |
| 6" x 34" | BGA | 22.54 | 097105 | 390 | ||
| 8" x 30" | BGA | 22.32 | 099257 | 391 | ||
| 8" x 34" | BGA | 25.30 | 097106 | 391 | ||
| 208 | ||||||
| Kick Down Door Holder | US15A/AN | 6.80 | 039115 | 5 | 50 | 780 |
| Material: Aluminum alloy | US26 | 6.80 | 001104 | |||
| Base: 1-5/8" x 1-7/8" | US26D | 6.80 | 075679 | |||
| Arm: 3-7/8" | ||||||
| Fasteners: #6 x 3/4" FPHWS | ||||||
| 209 | ||||||
| Floor Door Stop | US26 | 1.15 | 76165 | 5 | 50 | 780 |
| Material: Zinc | US3 | 1.15 | 76168 | |||
| Height: 1-1/4" | ||||||
| Base Diameter: 1-3/32" | ||||||
| Tip Diameter: 19/32" | ||||||
| Fasteners: #8 x 2" FPHWS | ||||||
| U/M - 1 each |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. | Disc Code |
|---|---|---|---|---|---|---|
| 210 | ||||||
| Door Stop - Rigid | US3 | 1.90 | 076443 | 5 | 50 | 780 |
| Material: Zinc | US4 | 1.65 | 078852 | |||
| Projection: 3" | US5/ABA | 1.75 | 078854 | |||
| Base Diameter: 1" | US10A | 1.75 | 075736 | |||
| Tip Diameter: 11/16" | US10R | 1.75 | 097367 | |||
| Fasteners: #8 x 5/8" wood thread | US15A/AN | 1.75 | 039117 | |||
| U/M - 1 each | US15 | 1.75 | 039118 | |||
| US26 | 1.70 | 076171 | ||||
| US26D | 1.90 | 076170 | ||||
| 211 | ||||||
| Door Stop - Flexible | US3 | 1.50 | 076206 | 10 | 100 | 780 |
| Material: Zinc | US4 | 1.25 | 001109 | |||
| Projection: 3-1/8" | US5/ABA | 1.65 | 053162 | |||
| Base Diameter: 1" | US10A | 1.65 | 076199 | |||
| Tip Diameter: 9/16" | US10R | 1.65 | 097368 | |||
| Fasteners: #8 x 3/4" PPHWS | US15A/AN | 1.65 | 039126 | |||
| U/M - 1 each |
US15 1.65 039121 US26 1.35 076205 US26D 1.50 076203
US4 1.90 023084 US5/ABA 2.00 023083 US10A 1.65 076219 US10R 1.65 097369 US15A/AN 2.00 034530
US3 2.00 056477 10 100 780
212
Hinge Pin Door Bumper Material: Zinc U/M - 1 each
Adjustable from 180° to 120° For use with residential hinges Works with 1/4" hinge pins
| US15 | 1.95 | 034492 | ||||
| US26 | 1.50 | 076221 | ||||
| US26D | 1.50 | 076220 | ||||
| 1412 | ||||||
| Door Guard | US3 | 8.55 | 056475 | 5 | 50 | 780 |
| Arm Length: 4" | US5/ABA | 6.60 | 011433 | |||
| Material: Zinc | US10A | 6.60 | 076222 | |||
| Fasteners: #6 x 3/4" FPHWS | US15A/AN | 6.60 | 035285 | |||
| U/M - 1 each with screws | US15 | 6.60 | 035279 | |||
| US26 | 6.60 | 011431 | ||||
| US26D | 8.55 | 076223 | ||||
| 1413 | ||||||
| Flush Bolt - Square Corners | US3 | 8.65 | 051915 | 10 | 100 | 780 |
| Material: Brass w/ steel components | US4 | 8.65 | 055562 | |||
| Bolt Diameter: 1/2" | US5/ABA | 10.60 | 051916 | |||
| Bolt Throw: 15/16" | US10A | 10.60 | 055563 | |||
| Faceplate: 3/4" x 6" | US10R | 10.60 | 072931 | |||
| Backset: 7/16" | US15A/AN | 10.60 | 035457 | |||
| Strike: 7/8" x 1-3/4" | US15 | 8.65 | 035457 | |||
| Fasteners: #6 x 3/4" FPHWS | US26 | 8.65 | 055568 | |||
| U/M - 1 each with screws | US26D | 8.65 | 055561 |
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. | Disc Code |
|---|---|---|---|---|---|---|
| 1414 | ||||||
| Flush Bolt | US3 | 8.65 | 0519177 | 10 | 100 | 780 |
| Material: Brass w/ steel components | US5/ABA | 10.60 | 051918 | |||
| Bolt Diameter: 1/2" | US10A | 10.60 | 055586 | |||
| Bolt Throw: 15/16" | US10R | 10.60 | 097374 | |||
| Faceplate: 3/4" x 6" | US15A/AN | 10.60 | 040832 | |||
| Backset: 7/16" | US15 | 8.65 | 040830 | |||
| Strike: 7/8" x 1-3/4" | US26 | 8.65 | 055570 | |||
| Fasteners: #6 x 3/4" FPHWS | US26D | 8.65 | 055589 | |||
| Strikeplate and screws, U/M - 1 each | ||||||
| 1415 | ||||||
| Strike Plate | US3 | 2.00 | 081300 | 100 | 500 | 780 |
| Material: Brass | US10A | 2.00 | 081308 | |||
| Size: 7/8" x 1-3/4" | US15A/AN | 2.00 | 081311 | |||
| Fasteners: #6 x 3/4" FPHWS | US15 | 2.00 | 081305 | |||
| U/M - 1 each with screws | US26D | 2.00 | 081307 | |||
| 1416 | ||||||
| Flush Bolt - Single Route | US3 | 10.25 | 078952 | 10 | 100 | 780 |
| Material: Brass w/ steel components | US4 | 10.25 | 076239 | |||
| Bolt Diameter: 5/16" | US5/ABA | 12.15 | 076225 | |||
| Backset: 3/8" | US10A | 12.15 | 076236 | |||
| Faceplate: 3/4" x 7-1/8" | US10R | 12.15 | 097375 | |||
| Strike: 21/32" x 1-1/2" | US15A/AN | 12.15 | 035990 | |||
| Bolt Throw: 7/8" | US15 | 12.15 | 036004 | |||
| Fasteners: #8 x 1-1/2" FPHWS; #6 x 3/4" FPHWS | US26 | 10.25 | 076238 | |||
| U/M - 1 each with strikeplate and screws | US26D | 10.25 | 076237 | |||
| 1417 | ||||||
| Flush Bolt | US3 | 8.65 | 089156 | 10 | 100 | 780 |
| Material: Brass w/ steel components | US10R | 10.60 | 183077 | |||
| Bolt Diameter: 1/2", Bolt Throw: 1", | US15 | 8.65 | 183076 | |||
| Faceplate: 3/4" x 6", Backset: 7/16", | US26 | 8.65 | 089157 | |||
| Strike: 7/8" x 1-3/4", Fasteners: #6 x 3/4" FPHWS, | ||||||
| Strikeplate and screws, U/M - 1 each | ||||||
| 1418 | ||||||
| Flush Bolt with Extension Rod | US3 | 12.05 | 068407 | 10 | 100 | 780 |
| Material: Brass w/ steel components | US4 | 12.05 | 068337 | |||
| Bolt Diameter: 5/16" | US5/ABA | 12.05 | 068263 | |||
|
Backset: 3/8"
Faceplate: 23/32" x 7-3/8" |
US10A | 13.85 | 068467 | |||
| Strike: 5/8" x 1-1/2" | US10R | 13.25 | 072930 | |||
| Bolt Throw: 3/4" | US15A/AN | 13.85 | 068249 | |||
| Extended Rod Length: 16" | US15 | 12.05 | 068448 | |||
| Fasteners: #8 x 1-1/2" FPHWS; #6 x 3/4" FPHWS | US26 | 12.05 | 068447 | |||
| U/M - 1 each wit | US26D | 12.05 | 068436 | |||
| 1419 | ||||||
| Flip/Foot Bolt Flush Bolt | US3 | 9.60 | 019228 | 10 | 100 | 485 |
| Material: Brass with steel components | US4 | 9.60 | 019227 | |||
| Faceplate: 3/4" x 7-1/8" | US5/ABA | 12.05 | 019224 | |||
| Strike: 5/8" x 1-1/2" | US10A | 12.05 | 019627 | |||
| Bolt Diameter: 5/16" | US10R | 12.05 | 019212 | |||
| Bolt Throw: 3/4" | US15A/AN | 9.60 | 019216 | |||
| Backset: 5/16" | US15 | 9.60 | 019231 | |||
| Fasteners: #8 x 1-1/2" FPHWS; #6 x 3/4" FPHWS | US26 | 9.60 | 019230 | |||
| U/M - 1 each | US26D | 9.60 | 019229 | |||
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. | Disc Code |
|---|---|---|---|---|---|---|
| 1439 | ||||||
| Magnetic Catch | - | 2.00 | 011439 | 25 | 100 | 780 |
|
Material: Plastic
Catch: 1-1/16" x 2" |
||||||
| Strike: 7/8" x 1" | ||||||
| Fasteners: #6 x 1/2" TPHWS; #4 x 1/2" FPHWS | ||||||
| U/M - 1 each with screws | ||||||
| 1446 | ||||||
| Ball Catch | US3 | 3.85 | 051902 | 10 | 50 | 780 |
| Material: Zinc | US4 | 3.85 | 055624 | |||
| Faceplate: 1" x 2-1/4" | US5/ABA | 4.35 | 051903 | |||
| Strike: 1-3/8" x 2-1/4" | US10A | 4.35 | 055634 | |||
|
Fasteners: #6 FPHWS
U/M - 1 each with two strikeplates and screws |
US10R | 4.35 | 097376 | |||
| US15A/AN | 4.35 | 036870 | ||||
| US15 | 4.35 | 036878 | ||||
| US26 | 3.85 | 055635 | ||||
| US26D | 3.85 | 055608 | ||||
| 1447 | ||||||
| Drive in Ball Catch | US3 | 3.50 | 043896 | 10 | 50 | 780 |
| Material: Zinc | US4 | 3.85 | 055638 | |||
|
Faceplate: 1" diameter
Strike: 1-3/8" x 2-1/4" |
US5/ABA | 4.35 | 055636 | |||
| Fasteners: #6 FPHWS | US10A | 4.35 | 055639 | |||
| U/M - 1 each with 2 strikeplates and screws | US10R | 4.35 | 097377 | |||
|
US15A/AN
US15 |
4.35
4.35 |
037445
036882 |
||||
| US26 | 3.50 | 055640 | ||||
| US26D | 3.85 | 055637 | ||||
|
1448
Strike Plate for 1446 or 1447 |
US3 | 2.00 | 079333 | 100 | 500 | 780 |
| Size: 1-3/8" x 2-1/4" | US4 | 2.00 | 079334 | |||
| Fasteners: #6 FPHWS | US5/ABA | 2.00 | 079351 | |||
| U/M - 1 each with screws | US10A | 2.00 | 079339 | |||
| US10R | 2.00 | 097378 | ||||
| US15A/AN | 2.00 | 079340 | ||||
| US15 | 2.00 | 079335 | ||||
| US26 | 2.00 | 079337 | ||||
| US26D | 2.00 | 079338 | ||||
| 1449 | ||||||
| Drive In Ball Catch for 1448 | US4 | 1.75 | 101876 | 100 | 300 | 780 |
| Material: Zinc | ||||||
| Faceplate: 1" diameter |
U/M - 1 each
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. | Disc Code |
|---|---|---|---|---|---|---|
| 1755 | ||||||
| 115° One Way Door Viewer | US3 | 6.10 | 056866 | 10 | 100 | 490 |
| UL Listed | US4 | 6.10 | 011919 | 490 | ||
| U/M - 1 each | US5/ABA | 6.00 | 076270 | 780 | ||
| 90 min. fire rated | US10A | 6.00 | 076272 | 780 | ||
| Door Thickness: 1-3/8" - 2-1/8" | US10R | 6.00 | 097475 | 780 | ||
| US15A/AN | 6.00 | 076271 | 780 | |||
| US15 | 6.00 | 076276 | 780 | |||
| US26 | 5.85 | 076274 | 780 | |||
| US26D | 5.90 | 055225 | 490 | |||
| 1756 | ||||||
| 185° One Way Door Viewer | US3 | 9.20 | 011920 | - | 50 | 490 |
| UL Listed | US4 | 9.20 | 066884 | 490 | ||
| U/M - 1 each | US5/ABA | 13.75 | 072679 | 780 | ||
| 90 Minute Fire-Rated | US10A | 13.75 | 076442 | 780 | ||
| Door Thickness: 1-3/8" - 2-1/8" | US10R | 13.75 | 097476 | 780 | ||
| US15A/AN | 13.75 | 076441 | 780 | |||
| US15 | 13.75 | 067422 | 780 | |||
| US26 | 13.60 | 044337 | 780 | |||
| US26D | 9.55 | 086149 | 490 | |||
| 1758 | ||||||
| 115° One Way Door Viewer with Privacy Flap | US3 | 9.70 | 146215 | 10 | 100 | 490 |
| Door Thickness: 1-3/8" - 2-1/8" | US10A | 9.45 | 146216 | 780 | ||
| UL Listed | US26 | 9.45 | 146217 | 780 | ||
|
U/M - 1 each
90 Minute Fire-Rated |
US26D | 9.40 | 146218 | 490 | ||
| 1759 | ||||||
| 185° One Way Door Viewer with Privacy Flap | US3 | 12.60 | 146219 | - | 50 | 490 |
| Door Thickness: 1-3/8" - 2-1/8" | US10A | 17.95 | 146220 | 780 | ||
|
UL Listed
U/M - 1 each |
US26 | 17.95 | 146221 | 780 | ||
| 90 Minute Fire-Rated | US26D | 12.25 | 146222 | 490 | ||
| 1765 | ||||||
| Privacy Flap for 115° One Way Viewer 1755 | US3 | 4.70 | 146207 | 1 | 200 | 490 |
| US10A | 4.20 | 146208 | 780 | |||
| US26 | 4.20 | 146209 | 780 | |||
| US26D | 4.70 | 146210 | 490 | |||
| 1766 | ||||||
| Privacy Flap for 185° One Way Viewer 1756 | US3 | 5.40 | 146211 | 1 | 200 | 490 |
| US10A | 5.00 | 146212 | 780 | |||
| US26 | 5.00 | 146213 | 780 | |||
| US26D | 5.25 | 146214 | 490 |
1. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 2. U/M is each unless otherwise noted.
| Description | Finish | 2018 List | Stock No. | Box Qty. | Case Qty. | Disc Code |
|---|---|---|---|---|---|---|
|
1795
Adjustable Closet Rod 1" Pole Diameter U/M - 1 each with screws |
||||||
|
0.36 gauge steel with bright zinc finish
18-30" (457-762 mm) |
4.40 | 011928 | - | 10 | 780 | |
|
30-48"
(762-1219 mm) |
5.90 | 011929 | ||||
|
48-72"
(1219-1829 mm) |
8.30 | 011930 | ||||
|
72-96"
(1829-2438 mm) |
10.70 | 011931 | ||||
|
96-150"
(2438-3810 mm) |
15.30 | 011932 | ||||
|
1797
Shelf and Rod Support U/M - 1 each with screws |
BY | 4.70 | 000326 | - | 20 | 780 |
|
1798
Shelf and Rod Support U/M - 1 each with screws |
BY | 5.00 | 000327 | - | 20 | 780 |
|
1799
Adjustable Shelf and Rod Support U/M - 1 each with screws |
BY | 4.35 | 000328 | - | 20 | 780 |
|
1801
Shelf Bracket U/M - 1 each with screws |
BY | 4.40 | 054634 | - | 20 | 780 |
|
BL6209
Floor Door Stop Height: 1-3/8" Base Diameter: 13/16" Tip Diameter: 1/2" Fastener: #8 x 11/32" thread U/M - 1 each |
US26D/ABA | 1.05 | 056231 | - | 150 | 780 |
US26D 1.05 040035
Series
One Family. One Brand. One Vision.TM
www.hagerco.com
| TABLE OF CONTENTS | 1 | ||
|---|---|---|---|
| Interlocking Thresholds | 12 | ||
| A | Interlocking Weatherstripping | ||
| Astragal | 21, 23-27 | Intumescent Weatherstripping | |
| В | J | ||
| Barrier Free Ramps | 9 | Jamb Weatherstripping | |
| Bumper Thresholds | 9-10 | Jamb Weatherstripping | 22-23, 25-27 |
| Bumper/Stop Strips | 10 | Adjustable | |
| Magnetic | 2! | ||
| Carpet Thresholds | 10-11 | L | |
| Cast Abrasive Aluminum Thresholds | Lead Times | ||
| Saddle Thresholds | 13-14 | ||
| Cover Plate | M | ||
| Materials and Finishes | |||
| D | |||
| Door Bottoms | |||
| Automatic Door Bottoms | 19 | P | |
| Door Shoes | 21-22 | Panic Thresholds | 11-12 |
| Door Sweeps | 20-21, 23, 26-27 | Press-On Weatherstripping | 15-18 |
| Rain Drip | 21-23 | Product Information | |
| E | R | ||
| Edge Sealing Systems | 15-18 | Rain Drips | |
| Elevator | DoorBottom Rain Drip | 21-22 | |
| Overhead Rain Drip | 23 | ||
| F | Replacement Inserts | ||
| Fabrication Options | 5 | Residential Thresholds | 6-7 |
| Fasteners | 2 | ||
| Fastener Options | 3 | S | |
| Finish Options | 2,5 | Smoke Seals | 15-18 |
| Fire Labeling | 2 | Saddle Thresholds | 6-10, 13-14 |
| Floor Closer Thresholds | Spring Bronze | ||
| Floor Plates and Supports | 9-10 | Stock Numbers | 29-43 |
| G | Sure-Step | ||
| Garage Weatherstripping | 22 | т | |
| н | Thermal Barrier Thresholds | ||
| Half Saddle Thresholds | 6, 8-9, 12 | Saddle Thresholds | 7-9 |
| How to Order | Panic Thresholds | 11-12 | |
| W | |||
| Water Return - Interlocking | 12 |
PRODUCT INFORMATION
Drawings or illustrations used in the Price Book are subject to change without notice. Questions regarding any dimensions should be directed to Hager Companies Customer Service.
MATERIALS AND FINISHES
Metals
All aluminum extrusions are of alloy 6063-T5. All bronze extrusions are of alloy CDA385 brass specified as Architectural Bronze in the industry. For stock finishes, refer to the code listed below each individual item throughout the price book. Please inquire for the availability on non-stock finishes.
| MIL- | Mill Finish Aluminum | LBA - | Light Bronze Anodized Aluminum |
|---|---|---|---|
| 300- | Polished Bronze (CDA385) | MIB- | Mill Finish Bronze (CDA385) |
| CAL- | Cast Aluminum | GYP- | Primed Steel (Grey) |
| DBA- | Dark Bronze Anodized Aluminum | BLA- | Black Anodized Aluminum |
| SCA- | Hager Carb-Coat on Aluminum | 32D- | Matte Stainless Steel (Non-Extruded) |
| SCB- | Hager Carb-Coat on Bronze | WH- | White Paint on Aluminum |
| GLD- | Gold Anodized Aluminum | CLR- | Clear Anodized Aluminum |
| 10B- | Antique Bronze, Oiled | BCA- | Bright Clear Anodized Aluminum |
Gaskets
Gasketing is available in a wide variety of materials. Vinyl is an economical choice and remains flexible down to -40°F. Neoprene gasketing is supplied both as a solid (dense) and as a closed cell sponge with a tough outer skin, remaining flexible down to -50°F. Silicone gasketing provides the best resistance to cold by remaining flexible down to -70°F. To order gasket only, see how to order example on page 3.
| B- | Nylon Brush (Black) | V- | Vinyl |
|---|---|---|---|
| N- | Neoprene, Solid EPDM | W- | Pile (Thread May Be Removed To Allow Expansion) (Grey) |
| Closed Cell Sponge EPDM, TPE (Black) | F- | Vinyl with Fins (Grey) | |
| S- | Silicone |
Colors for Press-On Gasketing
- B Brown
- S Charcoal or Black
- T Tan
- W White
- G Grey
FASTENERS
All products are furnished with appropriate fasteners as listed, except where noted. Most thresholds are furnished with mounting holes and #10 x 1-1/2" flat head sheet metal screws. Most weatherstripping products are furnished with slotted holes and #6 x 5/8" pan head sheet metal screws. Brass screws are furnished with bronze products.
FIRE LABELING
All products containing non-metallic seals have been listed and labeled resulting from a determination by a certified fire laboratory that these products do not adversely affect the fire resistance of the door or frame. All products are regularly checked under a labeling and listing inspection service.
HOW TO ORDER
When placing your order, please specify item number, gasket code, size and finish code. Also be sure to state any special fabrication needs or optional fasteners desired. Thresholds are fabricated in standard sizes with 1/2" extra on thresholds 50" and under. Thresholds over 50" are supplied with 1" extra length for fitting.
| Example: |
891S
V |
36 x 84 | MIL |
|---|---|---|---|
| Item # | Gasketing | Size | Finish |
| 515S | S-Silicone | 36" | GLD |
| 575S | W-Pile | 48" | MIB |
| 750S | N-Neoprene | 36" x 84" | 32D |
| 802S | B-Nylon Brush | 48" x 96" | MIL |
| 885S | V-Vinyl | 36" x 84" | DBA |
| 881S* | N-Neoprene | 48" x 84" | 000 |
| *Use Finish 000 to receive gasket only |
Thresholds must be purchased and billed at 4" increments, except for Abrasive Cast Aluminum Thresholds and Automatic Door Bottoms. Weatherstripping must be purchased and billed at 4" increments. Threshold and weatherstripping products supplied in lengths up to 12'.
FASTENER OPTIONS
| Thresholds | Add to List Price |
|---|---|
| #10 Wood Screws and Plastic Anchors$ 0.60 /ft | |
| #10 Wood Screws and Lead Anchors | 0.80 /ft |
| #10 Machine Screws and Lead Anchors | 0.90 /ft |
| #10 S.S. Machine Screws and Lead Anchors | 1.50 /ft |
|
#10 S.S. Wood Screws
|
1.00 /ft |
|
#10 S.S. Wood Screws and Plastic Anchors
|
1.40 /ft |
| #10 S.S. Wood Screws and Lead Anchors | 1.60 /ft |
|
#10 Torx Wood Screws
|
1.90 /ft |
| #10 S.S. Torx Wood Screws | 2.90 /ft |
| #10 Torx Machine Screws | 1.80 /ft |
| #10 S.S. Torx Machine Screws | 2.80 /ft |
|
#10 S.S Torx Machine Screws and Lead Anchors
|
2.40 /ft |
| 1/4-20 Machine Screws and Lead Anchors | 1.30 /ft |
| 1/4-20 S.S. Machine Screws and Lead Anchors | 1.90 /ft |
|
1/4-20 Flat Head Sleeve Anchor
|
2.40 /ft |
| 1/4 Tap-Con Type (Self-Tapping Concrete) | 1.30 /ft |
| Cast-On Anchors (Cast Products Only) | 8.00/ea |
|
Thru-bolts 1/4 - 20 x 1-1/4" FPHM with 1-1/4" post
|
2.90 /ft |
Note: Standard fasteners included: #10 x 1-1/2" Phillips flat-head sheet metal screws.
| Weatherstripping | Add to List Price |
|---|---|
| #6 x 5/8" Phillips Pan-head Stainless Steel Screws$ 0.50 /ft | |
|
#6 x 5/8" Phillips Self-drilling (TEK) Screws
|
0.30 /ft |
| #6 x 5/8" S.S. Phillips Self-drilling (TEK) Screws | 0.40 /ft |
| #6 x 5/8" Phillips Pan-head Torx Sheet Metal Screws | 1.50 /ft |
|
Two-way Self-adhesive Tape
|
1.40 /ft |
| Note: Standard fasteners included: #6 x 5/8" Phillips pan-head sheet metal screws. |
| Vinyl - Grey | List Price (Per Foot) |
|---|---|
| 400S | $ 1.30 |
| 434S, 435S, 477S, 478S, 481S, 515S, 516S, 517S, 518S, 520S, 532S, 541S, 552S, 560S, | |
|
565S, 570S, 575S, 580S, 599S, 771S, 837S, 860S
|
0.80 |
|
756S, 770S, 884S
|
1.10 |
| 774S, 777S, 778S, 779S, 780S, 782S, 783S | 1.30 |
|
881S, 885S, 890S, 891S, 896S
|
0.80 |
| Vinyl - Black | |
| Black inserts are supplied standard with DBA aluminum extrusions. Must specify on order for black replacement gaskets. | |
| 434S, 435S, 477S, 478S, 481S, 515S, 516S, 517S, 518S, 520S, 532S, 541S, 552S, 560S, | |
|
565S, 570S, 575S, 580S, 599S, 771S, 837S, 860S
|
0.80 |
|
881S, 885S, 890S, 891S, 896S
|
0.70 |
| Silicone - Grey | |
| 434S, 435S, 477S, 478S, 481S, 515S, 516S, 517S, 518S, 520S, 532S, 541S, 552S, 560S, | |
|
565S, 570S, 575S, 580S, 599S, 771S, 837S, 860S
|
2.30 |
| 730S, 740S | 4.70 |
| 750S | 1.30 |
| 875S | 1.50 |
|
881S, 885S, 890S, 891S, 896S
|
1.60 |
|
Black inserts are supplied standard with DBA aluminum extrusions. Must specify on order for black replacement gaskets.
434S, 435S, 477S, 478S, 481S, 515S, 516S, 517S, 518S, 520S, 532S, 541S, 552S, 560S, |
|
|
565S, 570S, 575S, 580S, 599S, 771S, 837S, 860S
|
2.30 |
|
881S, 885S, 890S, 891S, 896S
|
1.60 |
| Neoprene - Black | |
| 434S, 435S, 477S, 478S, 481S, 515S, 516S, 517S, 518S, 520S, 532S, 541S, 552S, 560S, | |
|
565S, 570S, 575S, 580S, 599S, 771S, 837S, 860S
|
2.10 |
|
730S, 740S, 864S, 870S, 872S*, 873S, 877S, 878S, 880S, 892S
|
1.30 |
|
743S, 747S, 861S
|
2.50 |
| 754S, 774S, 777S, 778S, 779S, 780S, 782S | 1.30 |
|
750S, 753S, 785S, 862S, 863S
|
1.40 |
|
858S, 865S, 866S
|
3.60 |
|
871S, 874S, 875S
|
1.40 |
|
881S, 885S, 890S, 891S, 896S
|
1.00 |
| Neoprene - Grey | |
| 872S(US32D finishes only) | 4.90 |
| Pile - Grey | |
| 434S, 435S, 477S, 478S, 515S, 516S, 517S, 518S, 520S, 532S, 541S, 552S, 560S, 565S, 570S, 575S, | |
| 580S, 599S, 728S, 771S, 789S, 806S, 808S, 837S, 845S, 847S, 881S, 885S, 893S | 0.90 |
|
Nylon Brush - Black
770S, 800S, 802S, 882S, 883S |
2.80 |
| FABRICATION OPTIONS | |
|---|---|
| Add to List Price | |
| Bevel One Edge of Threshold$ 5.50 /ft | |
| Rip One Edge (Width) of Threshold | 5.50 /ft |
|
L-Notch Both Ends of Threshold
|
10.50 /ea |
| U-Notch Both Ends of Threshold | 20.90 /ea |
| Cast Abrasive NotchingPOA | |
| Miter Return on One Edge, One End of Threshold | 35.60 /ea |
| Miter Return on One Edge, Both Ends of Threshold | 71.20 /ea |
| Miter Return on Both Edges, One End of Threshold | 71.20 /ea |
| Miter Return on Both Edges, Both Ends of Threshold142.40 /ea | |
|
Tack Weld One Line of Threshold
POA |
|
| Pan for Water Return Threshold | 1.00 /ft |
| End Caps for Automatic Door Bottoms (Mortised Models)DBA 7.20 /2 Caps | |
| GLD 7.20 /2 Caps | |
| Lead Lining (Automatic Door Bottoms) - Up to 48" | 121.70 |
FINISH OPTIONS
| Add to List Price | |
|---|---|
| Clear Anodized (CLR) | Price on Application |
| Black Anodized (BLA) | Price on Application |
| White Paint (WHP) | Price on Application |
SURE-STEP
| Add to List Price | |
|---|---|
|
Up to 4" Width
21.10 /ft |
|
|
Up to 5" Width
26.40 /ft |
|
|
Up to 6" Width
31.60 /ft |
|
|
Up to 7" Width
37.00 /ft |
|
| Up to 8" Width42.20 /ft |
QUICK SHIP
Products denoted with bold and red in the stock number listing in the back of the pricing section are available to order through the QuickShip program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
LEAD TIMES
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
CANCELLATION NOTIFICATION
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
DBA 16.90 GLD 19.90
4" x 5/8"
Price Code: POA - Price on Application
Insert Codes: V - Vinyl; N - Neoprene, EDPM, or TPE; S - Silicone; W - Pile; B - Nylon Brush; F - Vinyl Fin Finish Codes: MIL - Mill Finished Aluminum; DBA - Dark Bronze Anodized; GLD - Gold Anodized; MIB - Mill Finished Bronze; 32D - Matte Stainless Steel; GYP - Primed for Painting; CLR - Clear Anodized; CAL - Cast Aluminum
Comparison Numbers
NGP: 8428 Pemko: 254X4FG ANSI: J32193
NGP: 428E Pemko: 2548 ANSI: J32130
NGP: 425HD Pemko: 1715 ANSI: J32130
NGP: 813 Pemko: 2748 ANSI: J32130
NGP: 713 Pemko: 276 ANSI: J32130
NGP: 325 Pemko: 229 ANSI: J33130
NGP: 324 Pemko: 227 ANSI: J33130
NGP: 322 Pemko: 168 ANSI: J33130
Pemko: 205 ANSI: J30100
Pemko: 2051 ANSI: J30100
NGP: 410 Pemko: 173 ANSI: J32330
| Description | Finish |
Without
Insert |
N |
With Insert
S V |
W |
Comparison
Numbers |
|---|---|---|---|---|---|---|
| 438S |
NGP:
653 Pemko: 158 |
|||||
|
Threshold - Half Saddle
1/4" Step |
MIL
DBA |
13.10
19.40 |
ANSI: J32330 | |||
| 5-1/2" x 1/2" | ||||||
| 440S |
NGP:
8142 |
|||||
| Threshold - Floor Plate | MIL | 8.00 | Pemko: 190 | |||
| 2" x 1/4" | DBA | 10.20 | ANSI: J37100 | |||
| GLD | 11.70 | |||||
| 442S |
NGP:
657 |
|||||
| Threshold | MIL | 12.40 | Pemko: 259 | |||
| Barrier Free Ramp | DBA | 16.60 | ANSI: J38130 | |||
| 1/2" Rise | GLD | 19.20 | ||||
| 6" x 1/2" | ||||||
| 443S |
Pemko: 257
ANSI: J30180 |
|||||
|
Threshold
Barrier Free Ramp |
MIL | 14.10 | ||||
| 1/4" Rise | DBA | 18.70 | ||||
| 6" x 3/4" | GLD | 21.30 | ||||
| 444S |
NGP:
R050 |
|||||
| Threshold | MIL | 29.50 | Pemko: 257X259 | |||
| Barrier Free Ramp | DBA | 36.20 | ANSI: J38183 | |||
| 3/4" Rise | GLD | 42.40 | ||||
| 12" x 3/4" | ||||||
| 445S |
NGP:
8143 Pemko: 191 |
|||||
|
Threshold - Floor Plate
3" x 1/4" |
MIL
DBA |
10.80
14.70 |
ANSI: J37100 | |||
| GLD | 17.00 | |||||
| 448S |
NGP:
1013 |
|||||
| Threshold - Saddle | MIL | 26.90 | ANSI: J37100 | |||
| 10" x 1/4" | DBA | 34.80 | Pemko: 2750 | |||
| 450S |
NGP:
8144 |
|||||
| Threshold - Floor Plate | MIL | 14.60 | Pemko: 192 | |||
| 4" x 1/4" | DBA | 19.20 | ANSI: J37100 | |||
| GLD | 20.20 | |||||
| 451S |
NGP:
8429 |
|||||
| Threshold - Saddle | MIL | 26.50 | Pemko: 254X5FG | |||
| Thermal Barrier | DBA | 33.90 | ANSI: J32193 | |||
| 9" x 1/2" | GLD | 36.80 | ||||
| 452S |
NGP:
8430 |
|||||
| Threshold - Saddle | MIL | 29.30 | Pemko: 255X5FG | |||
| Thermal Barrier | DBA | 37.10 | ANSI: J32193 | |||
| 10" x 1/2" | GLD | 41.40 | ||||
| 455S |
NGP:
8145 |
|||||
| Threshold - Floor Plate | MIL | 17.80 |
ANSI:
J37100 |
|||
| 5" x 1/4" | DBA | 23.80 | ||||
| GLD | 27.50 |
DBA 9.70 GLD 11.00
MIL 8.30 DBA 10.80 GLD 12.30
NGP: 417 Pemko: 174 ANSI: J32183
2" x 7/8"
504S
Threshold - Carpet Edge 2-1/8" x 1/2"
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 505S |
NGP:
414 |
||||||
| Threshold - Carpet Divider | MIL | 5.60 | Pemko: 236 | ||||
| 1-13/16" x 7/16" | DBA | 7.50 |
ANSI:
J32113 |
||||
| GLD | 8.50 | ||||||
|
506S
Threshold - Carpet Divider |
MIL | 9.80 |
NGP:
404 Pemko: 2364 |
||||
| 4" x 7/16" |
ANSI:
J32113 |
||||||
|
DBA
GLD |
13.30
15.30 |
||||||
|
508S
Threshold - Carpet Divider |
MIL | 5.90 |
NGP:
414 Pemko: 236 |
||||
| 1-13/16" x 11/16" | DBA | 7.70 |
ANSI:
J32140 |
||||
| GLD | 8.30 | ||||||
| 515S | Pemko: | ||||||
| Threshold - Panic | MIL | 17.60 | 17.60 | 16.10 | 16.10 | 252X226FG | |
| Thermal Barrier | DBA | 23.00 | 23.00 | 20.90 | 20.90 |
ANSI:
J36190 |
|
| 4-1/8" x 7/8" | GLD | 24.70 | 24.70 | 22.50 | 22.50 | ||
| 516S |
NGP:
8435 |
||||||
| Threshold - Panic | MIL | 18.80 | 18.80 | 17.90 | 17.90 | Pemko: | |
| Thermal Barrier | DBA | 25.00 | 25.00 | 23.30 | 23.30 | 253X226FG | |
| 5-1/8" x 7/8" | GLD | 26.30 | 26.30 | 25.10 | 25.10 |
ANSI:
J36190 |
|
| 517S |
NGP:
8436 |
||||||
| Threshold - Panic | MIL | 21.00 | 21.00 | 19.90 | 19.90 | Pemko: | |
| Thermal Barrier | DBA | 27.80 | 27.80 | 26.50 | 26.50 | 254X226FG | |
| 6-1/8" x 7/8" | GLD | 29.30 | 29.30 | 27.90 | 27.90 |
ANSI:
J36190 |
|
| 518S |
NGP:
8437 |
||||||
| Threshold - Panic | MIL | 23.80 | 23.80 | 22.50 | 22.50 | Pemko: | |
| Thermal Barrier | DBA | 31.70 | 31.70 | 29.90 | 29.90 | 255X226FG | |
| 7-1/2" x 7/8" | GLD | 34.90 | 34.90 | 34.10 | 34.10 |
ANSI:
J36190 |
|
| 520S |
NGP:
896 |
||||||
| Threshold - Panic | MIL | 11.90 | 11.90 | 11.00 | 11.00 | Pemko: 2005 | |
| 5" x 1/2" | DBA | 15.40 | 15.40 | 14.20 | 14.20 |
ANSI:
J36130 |
|
| GLD | 17.10 | 17.10 | 15.80 | 15.80 | |||
| 532S |
NGP:
803 |
||||||
| Threshold - Panic | MIL | 14.60 | 14.60 | 13.50 | 13.50 | Pemko: 181 | |
| 5" x 1" | DBA | 19.40 | 19.40 | 18.00 | 18.00 |
ANSI:
J36100 |
|
| GLD | 21.20 | 21.20 | 19.60 | 19.60 | |||
| 541S |
NGP:
804 |
||||||
| Threshold - Panic | MIL | 14.30 | 14.30 | 13.30 | 13.30 | Pemko: 177 | |
| 5" x 7/8" | DBA | 19.30 | 19.30 | 18.90 | 18.90 |
ANSI:
J36100 |
|
| GLD | 21.40 | 21.40 | 21.40 | 21.40 | |||
| 552S |
NGP:
890 |
||||||
| Threshold - Panic | MIL | 14.10 | 14.10 | 13.40 | 13.40 | Pemko: 179 | |
| 5" x 3/4" | DBA | 18.70 | 18.70 | 18.00 | 18.00 |
ANSI:
J36100 |
| Description | Finish |
Without
Insert |
N | S |
With Insert
V |
W |
Comparison
Numbers |
||
|---|---|---|---|---|---|---|---|---|---|
| 560S |
NGP:
891 |
||||||||
| Threshold - Panic | MIL | 12.30 | 12.30 | 11.50 | 11.50 | Pemko: 185 | |||
| 3-1/2" x 1" | DBA | 17.20 | 17.20 | 16.10 | 16.10 |
ANSI:
J36300 |
|||
| GLD | 19.10 | 19.10 | 17.90 | 17.90 | |||||
| 565S | Pemko: 1855 | ||||||||
| Threshold - Panic | MIL | 12.60 | 12.60 | 11.70 | 11.70 |
ANSI:
J36300 |
|||
| 3-5/8" x 7/8" | DBA | 17.10 | 17.10 | 16.50 | 16.50 | ||||
| GLD | 18.90 | 18.90 | 17.20 | 17.20 | |||||
| 572S | Pemko: 182 | ||||||||
| Threshold - Half Saddle | MIL | 17.70 | ANSI: J33180 | ||||||
| 1/2" Offset | DBA | 24.00 | NGP: 656 | ||||||
| 7" x 1" | GLD | 28.40 | |||||||
| 575S | Pemko: 181 | ||||||||
| Threshold - Panic | MIL | 14.40 | 14.40 | 13.60 | 13.60 |
ANSI:
J36100 |
|||
| 5" x 1" | DBA | 19.50 | 19.50 | 18.30 | 18.30 | ||||
| GLD | 21.20 | 21.20 | 19.90 | 19.90 | |||||
| 580S |
NGP:
897 |
||||||||
| Threshold - Panic | MIL | 16.80 | 16.80 | 16.10 | 16.10 | Pemko: 277 | |||
| 5" x 7/8" | DBA | 21.90 | 21.90 | 20.90 | 20.90 |
ANSI:
J36100 |
|||
| GLD | 23.60 | 23.60 | 22.50 | 22.50 | |||||
| 599S | Pemko: 159 | ||||||||
| Threshold - Panic | MIL | 13.90 | 13.90 | 13.30 | 13.30 |
ANSI:
J36300 |
|||
| 3-1/2" x 7/8" | DBA | 19.70 | 19.70 | 18.50 | 18.50 | ||||
| GLD | 19.20 | 19.20 | 20.20 | 20.20 | |||||
| 600S | Pemko: 101 | ||||||||
| Threshold - Interlock Cap | MIL | 5.60 |
ANSI:
J34170 |
||||||
| 1-1/2" x 5/16" | DBA | 6.20 | |||||||
| GLD | 8.10 | ||||||||
| 603S | Pemko: 120 | ||||||||
| Threshold - Interlock | MIL | 13.50 |
ANSI:
J34170 |
||||||
| 5" x 7/8" | DBA | 19.60 | |||||||
| * 701S Interlocking Hook provided | |||||||||
| 604S | Pemko: 114 | ||||||||
| Threshold - Interlock | MIL | 13.80 |
ANSI:
J34170 |
||||||
| 5" x 1/2" | DBA | 17.20 | |||||||
| *701S Interlocking Hook provided | |||||||||
| 608S | Pemko: 145 | ||||||||
| Threshold - Interlock | MIL | 14.80 |
ANSI:
J34170 |
||||||
|
Water Return
*Pan Extra - See options, must |
DBA | 17.00 | |||||||
| specify on order | |||||||||
| 4-1/2" x 7/8" | |||||||||
| Without | With Insert | Comparison | ||||||
|---|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers | |
| 626S |
ANSI:
J37230 |
|||||||
| Threshold - Saddle | ||||||||
| Cast Abrasive Aluminum | ||||||||
| 8' Max Length | ||||||||
| 4" x 3/8" | CAL | 96.40 | ||||||
| 5" x 3/8" | CAL | 115.70 | ||||||
| 6" x 3/8" | CAL | 134.90 | ||||||
|
627S
Threshold - Saddle Cast Abrasive Aluminum 8' Max Length |
ANSI:
J32230 NGP: 4425 |
||
|---|---|---|---|
| 4" x 1/2" | CAL | 96.40 | |
| 5" x 1/2" | CAL | 115.90 | |
| 6" x 1/2" | CAL | 134.90 |
|
651S
Threshold - Saddle for floor closers center hung without mitered end 7" x 1/2" |
NGP:
Type 1 Pemko: Type 11 ANSI: J39130 |
||
|---|---|---|---|
| Up to 36" | MIL | 137.90 | |
| DBA | 153.90 | ||
| Up to 72" | MIL | 274.90 | |
| DBA | 307.60 | ||
| Lengths over 72" add the following | MIL | 1.70 | |
| per inch | DBA | 2.00 |
|
652S
Threshold - Saddle for floor closers center hung without mitered end 5" x 1/2" |
NGP:
Type 1 Pemko: Type 11 ANSI: J39130 |
||
|---|---|---|---|
| Up to 36" | MIL | 110.50 | |
| DBA | 123.30 | ||
| Up to 72" | MIL | 225.00 | |
| DBA | 251.10 | ||
| Lengths over 72" add the following | MIL | 1.70 | |
| per inch | DBA | 2.00 |
| Description | Finish |
Without
Insert |
N |
With Insert
S |
V | W |
Comparison
Numbers |
|---|---|---|---|---|---|---|---|
|
653S
Threshold - Saddle For Floor Closers Offset hung with Mitered Ends 7" x 1/2" |
NGP:
Type 3 Pemko: Type 13 ANSI: J39153 |
||||||
| Up to 36" | MIL | 192.20 | |||||
| DBA | 214.50 | ||||||
| Up to 72" | MIL | 374.20 | |||||
| DBA | 399.60 | ||||||
| Lengths over 72" add the following | MIL | 1.70 | |||||
| per inch | DBA | 2.00 |
|
654S
Threshold - Saddle For Floor Closers Offset hung with Mitered Ends 7" x 1/2" |
NGP:
Type 4 Pemko: Type 14 ANSI: J39153 |
|||
|---|---|---|---|---|
| Up to 36" | MIL | 192.20 | ||
| DBA | 214.50 | |||
| Up to 72" | MIL | 384.30 | ||
| DBA | 428.90 | |||
| Lengths over 72" add the following | MIL | 1.70 | ||
| per inch | DBA | 2.00 |
|
655S
Threshold - Saddle For Floor Closers Offset hung with Mitered Ends 7" x 1/2" |
NGP:
Type 5 Pemko: Type 15 ANSI: J39153 |
||
|---|---|---|---|
| Up to 36" | MIL | 232.20 | |
| DBA | 259.20 | ||
| Up to 72" | MIL | 464.50 | |
| DBA | 518.40 | ||
| Lengths over 72" add the following | MIL | 0.80 | |
| per inch | DBA | 1.10 | |
| 676S | NGP: | 818 | ||
|---|---|---|---|---|
| Cover Plate | MIL | 7.10 | Pemko: 18/1A | |
| 8' Max. Length | ANSI: J17300 | |||
| 1/8" Height | ||||
| Charges: length X per foot charge X | ||||
| width in inches (3" min.) Example: 6 | ||||
| (ft. length) x $7.10 (ft. list) x 6 (in. |
width)
NGP: 5100 Pemko: 5110 ANSI: R0C004
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 677S |
NGP:
814 |
||||||
|
Cover Plate
8' Max. Length 1/4" Height |
MIL | 11.40 |
Pemko: 14/1A
ANSI: J17300 |
||||
|
Charges: length X per foot charge X
width in inches (3" min.) Example: 6 (ft. length) x $11.40 (ft. list) x 6 (in. width) |
|||||||
|
701S
Weatherstrip Interlock "J" Hook |
MIL | 3.50 |
NGP:
80 Pemko: 61 ANSI: R0Y016 |
Black 23.30/roll
710S Press-On Mullion Smoke Seal Sponge Neoprene Note: Available in 120" only
|
717S
Weatherstrip Interlock Overhead Rain Drip |
MIL
DBA |
4.00
6.40 |
NGP:
124 Pemko: 347 ANSI: R3Y106 |
|
|---|---|---|---|---|
|
718S
Weatherstrip Interlock Overhead w/ Vinyl |
MIL
DBA |
3.90
5.90 |
NGP:
123 Pemko: 68 ANSI: R3D036 |
|
|
719
Press-on Weatherstrip Edge Sealing System & Smoke Seal Intumescent material |
NGP:
9450 ANSI: ROW154 |
|||
| 7' | Brown | 32.27 | ||
| 8' | Gray | 36.88 | ||
| 9' | Charcoal | 41.49 | ||
| 3' x 7' | Tan | 78.37 | ||
| 4' x 7' | White | 82.98 | ||
| 4' x 8' | 92.20 | |||
| 6' x 7' | 92.20 | |||
| 7' x 7' | 96.81 |
| 96.81 | ||
|---|---|---|
|
NGP:
9850 |
||
| Pemko: | ||
| HSS2000XS44 | ||
| ANSI: ROW154 | ||
| Brown | 65.28 | |
| Gray | 69.12 | |
| Charcoal | 76.80 | |
| Tan | 76.80 | |
| White | 80.64 | |
| 84.48 | ||
| 92.16 | ||
Finish Codes: MIL - Mill Finished Aluminum; DBA - Dark Bronze Anodized; GLD - Gold Anodized; MIB - Mill Finished Bronze; 32D - Matte Stainless Steel; GYP - Primed for Painting; CLR - Clear Anodized; CAL - Cast Aluminum
| Without | With I | nsert | Comparison | ||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 721 | NGP: 5020 | ||||||
| Press-on Weatherstrip | ANSI: ROW154 | ||||||
| Smoke Seal | |||||||
| TPE | |||||||
| 7' | Brown | 14.20 | |||||
| 8' | Gray | 16.30 | |||||
| 9' | Charcoal | 18.30 | |||||
| 3' x 7' | Tan | 34.60 | |||||
| 4' x 7' | White | 36.60 | |||||
| 4' x 8' | 40.70 | ||||||
| 6' x 7' | 40.70 | ||||||
| 7' x 7' | 42.70 | ||||||
| ·=·· - | |||
|---|---|---|---|
| 722 | Pemko: | ||
| Press-on Weatherstrip | HSS2000xs88 | ||
| Edge Sealing System & Smoke Seal | ANSI: ROW154 | ||
| Intumescent material | NGP: 9750 | ||
| 3' x 7' | Charcoal | 65.80 | |
| 4' x 7' | Brown | 69.70 | |
| 4' x 8' | Tan | 77.50 | |
| 6' x 7' | White | 77.50 | |
| 7' x 7' | 81.30 | ||
| 6' x 8' | 85.20 | ||
| 8' x 8' | 93.00 | ||
| 724 | _ | - | NCD: 0F00 |
| 8' x 8' | 93.00 | |||
|---|---|---|---|---|
| 724 | NGP: 9500 | |||
| Press-on Weatherstrip | ANSI: ROW156 | |||
| Edge Sealing System | ||||
| Intumescent material | ||||
| 7' | Brown | 38.90 | ||
| 8' | Gray | 44.40 | ||
| 9' | Charcoal | 50.00 | ||
| 3' x 7' | Tan | 94.40 | ||
| 4' x 8' | White | 111.10 | ||
| 725 | • | _ | Pemko: P493 | |
| Press-on Weatherstrip | Charcoal | 0.95 | ANSI: ROC156 |
| 726 | NGP: 5050 | ||
|---|---|---|---|
| Press-on Weatherstrip | Pemko: S88 | ||
| Smoke Seal | ANSI: ROE154 | ||
| 17' | Brown | 24.30 | |
| 18' | Charcoal | 26.50 | |
| 19' | Tan | 27.50 | |
| 20' | White | 28.60 | |
| 21' | 30.90 | ||
| 22' | 32.40 | ||
| 25' | 36.80 | ||
| 260' | 363.30 | ||
| 520' | 726.60 |
Sponge Neoprene
| Description | Finish |
Without
Insert |
N |
With Insert
S V |
W |
Comparison
Numbers |
|---|---|---|---|---|---|---|
| 727 |
NGP:
PF180 |
|||||
| Press-on Weatherstrip | ANSI: R0Y156 | |||||
| TPE material | ||||||
| 7' | Charcoal | 11.10 | ||||
| 8' | 12.60 | |||||
| 3' x 7' | 26.90 | |||||
| 4' x 8' | 31.60 | |||||
| 728 |
NGP:
5040 |
|||||
| Press-on Weatherstrip | Pemko: S44 | |||||
| TPE | ANSI: R00154 | |||||
| 17' | Charcoal | 23.80 | ||||
| 20' | White | 27.90 | ||||
| 21' | 29.10 | |||||
| 25' | 34.70 | |||||
| 260' | 328.70 | |||||
| 520' | 656.80 | |||||
| 729 |
NGP:
9800 |
|||||
| Press-on Weatherstrip | Pemko: HSS2000 | |||||
| Edge Sealing System | ANSI: ROW156 | |||||
| Intumescent material | ||||||
| 17' | Brown | 32.50 | ||||
| 19' | Charcoal | 36.20 | ||||
| 21' | Tan | 40.10 | ||||
| 25' | White | 47.70 | ||||
| 150' | 280.40 | |||||
| 730S |
NGP:
225 |
|||||
| Automatic Door Bottom | Pemko: 411 | |||||
| Mortise Application | ANSI: R3Y326 | |||||
| End Caps Furnished | ||||||
| (max. drop 3/4") | ||||||
| 24" to 36" | MIL | 55.60 | 66.00 | |||
| 37" to 48" | MIL | 68.60 | 82.80 | |||
| 734 |
NGP:
9550 |
|||||
| Press-on Weatherstrip | ANSI: ROW154 | |||||
| Edge Sealing System & Smoke Seal | ||||||
| Intumescent material | ||||||
| 7' | Brown | 39.40 | ||||
| 8' | Charcoal | 45.00 | ||||
| 9' | Tan | 50.60 | ||||
| 3' x 7' | White | 95.60 | ||||
| 6' x 7' | 112.40 |
8' x 8' 135.00
| 25' | 36.60 | ||
|---|---|---|---|
| 260' | 361.20 | ||
| 520' | 722.50 | ||
| 737 | NGP: 5060 | ||
|
Press-on Weatherstrip
Smoke Seal |
Pemko: S77
ANSI: R0E154 |
||
| 17' | Charcoal | 27.30 | |
| 18' | White | 28.90 | |
| 19' | 30.50 | ||
| 20' | 32.10 | ||
| 21' | 33.50 | ||
| 22' | 35.10 | ||
| 25' | 39.80 | ||
| 260' | 339.60 | ||
| 520' | 627.70 | ||
| 738 | NGP: 5075 |
| 738 | NGP: 5075 | ||
|---|---|---|---|
| Press-on Weatherstrip | Pemko: S773 | ||
| Smoke Seal | ANSI: ROE154 | ||
| 17' | Charcoal | 31.80 | |
| 18' | 34.50 | ||
| 20' | 37.70 | ||
| 21' | 40.30 | ||
| 22' | 42.20 | ||
| 739 | NGP: 5070 | ||
| Press-on Weatherstrip | Pemko: S772 | ||
| Smoke Seal | ANSI: ROE154 | ||
| 17' | Brown | 41.65 | |
| 18' | Clear | 44.10 | |
| 19' | 46.55 | ||
| 20' | 49.00 | ||
| 21' | 51.45 |
53.90
22'
| Without | With | Insert | Comparison | ||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 740S | NGP: 222 | ||||||
| Automatic Door | Pemko: 4131 | ||||||
| Bottom - Surface Applied | ANSI: R3Y336 | ||||||
| End Caps Furnished | |||||||
| (max. drop 3/4"") | |||||||
| 24" to 36" | CLR | 6 | 2.50 | 73.90 | |||
| DBA | 7 | 1.30 | 83.30 | ||||
| GLD | 8 | 0.00 | 92.40 | ||||
| 37" to 48" | CLR | 7 | 7.90 | 89.90 | |||
| DBA | 8 | 9.90 | 100.90 | ||||
| GLD | 10 | 00.90 | 116.50 | ||||
| 742S | NGP: 320 | ||||||
| Automatic Door | Pemko: 420 | ||||||
| Bottom - Hollow Metal Door | ANSI: R3D326 | ||||||
| Application (max. drop 1/2") | |||||||
| 24" to 36" | MIL | 4 | 8.50 | 48.50 | |||
| 37" to 48" | MIL | 6 | 3.20 | 63.20 | |||
| 743S | NGP: 422 | ||||||
| Automatic Door Bottom | Pemko: 434 | ||||||
| Mortise Application | ANSI: R3C326 | ||||||
| End Caps Furnished | |||||||
| (max drop 3/4") | |||||||
| 24" to 36" | MIL | 9 | 0.00 | ||||
| 37" to 48" | MIL | 1 | 11.20 | ||||
| 747S | NGP: 420 | ||||||
| A |
Pemko: 4301
ANSI: R3C336 |
||||||
| Automatic Heavy Duty | ANDI: NOCOOD | ||||||
|
Door Bottom - Surface Applied
End Caps Furnished in Listed |
|||||||
| Furnishes | |||||||
| (max. drop 3/4") | |||||||
| 24" to 36" | CLR | 0 | 7.00 | ||||
| ∟ ⊤ 10 J0 | DBA | 07.60 | |||||
| 27" +- 40" | GLD | 19.70 | |||||
| 37" to 48" | CLR | 21.00 | |||||
| DBA | 34.20 | ||||||
| GLD | 14 | 49.30 |
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 750S |
NGP:
200 |
||||||
| Door Bottom - Sweep | CLR | 4.50 | 6.70 | Pemko: 315 | |||
| DBA | 5.90 | 8.20 | ANSI: R0Y436 | ||||
| GLD | 6.50 | 8.80 | |||||
| 32D | 27.30 | 30.30 | |||||
| 753S |
NGP:
114 |
||
|---|---|---|---|
| Door Bottom - Sweep | MIL | 6.70 | Pemko: 3151 |
| DBA | 7.70 | ANSI: R3B436 | |
| GLD | 8.30 | ||
NGP: 197 Pemko: 3151 ANSI: R3B436
NGP: 102V ANSI: R3D436
| 754S | ||
|---|---|---|
| Door Bottom - Sweep | CLR | 6.80 |
| DBA | 8.90 | |
| GLD | 9.60 | |
| 756S |
NGP:
97 |
||
|---|---|---|---|
| Door Bottom - Sweep or Astragal* | MIL | 3.00 | Pemko: 307 |
| DBA | 4.10 | ANSI: R3D434 | |
| *Order 2 for a set | GLD | 4.40 |
| Without | With Insert | Comparison | ||||||
|---|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers | |
| 759S |
NGP:
96 |
|||||||
| Door Bottom - Sweep | MIL | 4.40 | Pemko: 57 | |||||
| DBA | 5.20 | ANSI: R3D436 | ||||||
| GLD | 5.70 | |||||||
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | B | S | V | W | Numbers |
| 770S |
NGP:
17 |
||||||
| Door Bottom - Sweep w/ Rain Drip | MIL | 2.70 | 6.50 | 4.30 |
NGP:
101 |
||
| DBA | 4.80 | 8.00 | 5.70 |
NGP:
C627 |
|||
| GLD | 5.30 | 8.20 | 6.30 |
Pemko: 345
ANSI: R3Y534 |
| Description | Finish |
Without
Insert |
N | S |
With Insert
V |
W |
Comparison
Numbers |
|---|---|---|---|---|---|---|---|
|
771S
Astragal |
MIL
DBA |
10.30
11.30 |
10.70
11.70 |
9.90
10.80 |
9.50
12.10 |
NGP:
143 Pemko: 300 ANSI: R3Y725 |
|
|
772S
Door Bottom - Shoe or Astragal |
MIL
DBA GLD |
6.40
7.90 8.40 |
6.80
8.60 8.90 |
6.60
8.10 8.40 |
6.30
7.70 8.00 |
NGP:
116 Pemko: 313 ANSI: R3Y726 |
|
|
774S
Door Bottom - Shoe or Astragal |
MIL
DBA |
4.20
5.50 |
3.50
4.50 |
NGP:
112 Pemko: 234 ANSI: R3Y725 |
|||
|
776S
Door Bottom - Shoe or Astragal 1-3/4" Door |
CLR
DBA |
11.90
14.10 |
NGP:
14RA ANSI: R3C735 |
||||
|
777S
Door Bottom - Shoe w/ Rain Drip |
MIL
DBA GLD |
6.10
7.90 8.80 |
5.10
6.60 7.30 |
NGP:
318 Pemko: 210 ANSI: R3D536 |
Price Code: POA - Price on Application
Insert Codes: V - Vinyl; N - Neoprene, EDPM, or TPE; S - Silicone; W - Pile; B - Nylon Brush; F - Vinyl Fin Finish Codes: MIL - Mill Finished Aluminum; DBA - Dark Bronze Anodized; GLD - Gold Anodized; MIB - Mill Finished Bronze; 32D - Matte Stainless Steel; GYP - Primed for Painting; CLR - Clear Anodized; CAL - Cast Aluminum
| Description | Finish |
Without
Insert N |
With Insert
S V |
W |
Comparison
Numbers |
|---|---|---|---|---|---|
|
778S
Door Bottom - Shoe w/ Rain Drip |
MIL | 6.10 | 5.10 |
NGP:
319E Pemko: 215 |
|
| DBA | 7.90 | 6.60 |
ANSI:
R3D536 |
||
| GLD | 8.80 | 7.30 | |||
| 779S |
NGP:
36 |
||||
| Door Bottom - Shoe | MIL | 6.10 | 5.10 | Pemko: 217 | |
| DBA | 7.90 | 6.60 |
ANSI:
R3D436 |
||
| GLD | 8.80 | 7.30 | |||
| 780S |
NGP:
35 |
||||
| Door Bottom - Shoe | MIL | 7.40 | 6.20 | Pemko: 222 | |
| DBA | 9.60 | 8.00 |
ANSI:
R3D436 |
||
| GLD | 10.80 | 9.00 | |||
| 782S |
NGP:
99 |
||||
| Door Bottom - Shoe | MIL | 16.40 | 13.50 | Pemko: 221 | |
| DBA | 21.10 | 17.60 |
ANSI:
R3D436 |
||
| GLD | 22.60 | 20.30 | |||
| 783S |
NGP:
319E |
||||
| Door Bottom - Shoe w/ Rain Drip | MIL | 5.10 |
ANSI:
R3D536 |
||
| Low Profile | DBA | 7.20 | |||
| GLD | 7.70 | ||||
| 785S |
NGP:
188 |
||||
| Jamb Weatherstrip | MIL | 4.30 |
ANSI:
R3D164 |
||
| up to 96" | DBA | 6.20 | |||
| GLD | 6.60 |
| Description | Finish | B | N |
With Insert
S |
V | W |
Comparison
Numbers |
|---|---|---|---|---|---|---|---|
|
787S
Garage Weatherstrip |
MIL | 37.60 |
NGP:
81369 Pemko: E199 ANSI: R3D016 |
||||
| 789S | ANSI: R3F536 | ||||||
| Door Bottom | MIL | 9.20 | |||||
| Rain Drip | DBA | 13.30 | |||||
| GLD | 13.90 | ||||||
| 800S |
NGP:
A626A |
||||||
| Jamb Weatherstrip | MIL | 5.50 | Pemko: 45041 | ||||
| DBA | 7.90 |
ANSI:
R3F164 |
|||||
| GLD | 8.50 |
| 802S |
NGP:
B606 |
||
|---|---|---|---|
| Door Sweep or Jamb Weatherstrip or | MIL | 4.10 | Pemko: 18061 |
| Astragal* | DBA | 5.40 |
ANSI:
R3F164 |
| GLD | 5.80 |
803S Jamb Weatherstrip MIL 6.90 DBA 8.20 NGP: D620 Pemko: 45100 ANSI: R3F164
GLD 8.80
GLD 17.30
| 806S | ||
|---|---|---|
| Door Sweep | MIL | 9.10 |
| DBA | 13.10 | |
| GLD | 13.60 |
*Order 2 for a set
| 808S | NGP: | G622 | ||
|---|---|---|---|---|
| Jamb Weatherstrip | MIL | 12.10 | Pemko: 45175 | |
| DBA | 16.90 | ANSI: | R3F164 |
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 810S |
NGP:
16 |
||||||
| Overhead Rain Drip | MIL | 4.80 | Pemko: 346 | ||||
| DBA | 6.50 |
ANSI:
R3Y036 |
|||||
| GLD | 7.50 | ||||||
| 822S | NGP: | 43CB | ||
|---|---|---|---|---|
| Jamb Weatherstrip | MIB | 4.30 | Pemko: B75 | |
| Spring Bronze | ANSI: | R1Y156 | ||
| 8' Lengths only |
Pemko: 18137 ANSI: R3F436
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
| 835S |
NGP:
139 |
||||||
| Astragal - Bar Type | MIL | 6.20 | Pemko: 357 | ||||
| 10' Max length | DBA | 7.90 |
ANSI:
R0Y636 |
||||
| GLD | 8.90 | ||||||
| GYP | 6.40 | ||||||
| 32D | 28.30 | ||||||
| 836S |
NGP:
176 |
||||||
| Astragal T-Type | MIL | 5.30 | Pemko: 359 | ||||
| DBA | 7.10 |
ANSI:
R3Y616 |
|||||
| GLD | 7.60 | ||||||
| 837S | NGP: 158 | ||||||
| Astragal T-Type | MIL | 7.00 | 7.30 | 6.00 | 6.00 | Pemko: 355 | |
| DBA | 9.40 | 9.50 | 8.20 | 8.20 | ANSI: R3Y714 | ||
| GLD | 9.80 | 9.80 | 8.70 | 8.70 | |||
| 838S |
NGP:
136P |
||||||
| Meeting Stile | MIL | 4.10 | Pemko: A372P | ||||
| *insert not replaceable |
ANSI:
R3F725 |
| With Insert | Comparison | ||||||
|---|---|---|---|---|---|---|---|
| Description | Finish | B | N | S | V | W | Numbers |
| 839S | Pemko: 5041AP | ||||||
| Kerf-in Mortise | MIL | 4.50 |
ANSI:
R3A425 |
||||
| Astragal Sweep | |||||||
| *Brush insert |
| Without | With Insert | Comparison | |||||
|---|---|---|---|---|---|---|---|
| Description | Finish | Insert | N | S | V | W | Numbers |
|
845S
Astragal - Surface Applied Adjustable Spring Loaded w/ Pile Must also order 846 for a set. |
MIL
DBA GLD |
16.20
19.40 21.00 |
NGP:
140P Pemko: 351P ANSI: R3F834 |
||||
|
846S
Astragal - Surface Applied Adjustable Spring Loaded Must also order 845 for a set |
MIL
DBA GLD |
15.80
18.90 20.80 |
NGP:
140P Pemko: 351P ANSI: R3F834 |
||||
|
847S
Astragal - Mortise Type Adjustable Spring Loaded w/ Pile Must also order 848 for a set |
MIL
DBA GLD |
15.30
19.10 21.20 |
NGP:
144P Pemko: 354P ANSI: R3F824 |
||||
|
848S
Astragal - Mortise Type Adjustable Spring Loaded Must also order 847 for a set |
MIL
DBA GLD |
15.40
19.30 21.50 |
NGP:
144P Pemko: 354P ANSI: R3F824 |
| Description | Finish |
Without
Insert |
N | S |
With Insert
V |
W |
Comparison
Numbers |
|---|---|---|---|---|---|---|---|
| 849S |
NGP:
149MA |
||||||
| Adjustable Astragals | MIL | 40.80 |
ANSI:
R3L835 |
||||
| Magnetic | DBA | 49.00 | |||||
| 80" to 96" Doors only | GLD | 53.00 | |||||
| (sold as set ONLY) | |||||||
| 859S |
NGP:
159M |
||||||
| Magnetic | MIL | 8.70 | Pemko: 2815 | ||||
| Weatherstrip | DBA | 10.80 |
ANSI:
R3L264 |
||||
| GLD | 11.20 | ||||||
| 860S |
NGP:
106 |
||||||
| Jamb Weatherstrip | MIL | 15.70 | 16.20 | 15.20 | 15.20 | Pemko: 351 | |
| Adjustable | DBA | 18.80 | 19.40 | 18.20 | 18.20 |
ANSI:
R3B264 |
|
| GLD | 19.90 | 20.50 | 19.30 | 19.30 | |||
| 861S |
NGP:
108 |
||||||
| Jamb Weatherstrip | MIL | 7.90 | Pemko: 285 | ||||
| DBA | 9.10 |
ANSI:
R3C164 |
|||||
| GLD | 9.90 | ||||||
| 862S |
NGP:
137 |
||||||
| Jamb Weatherstrip | CLR | 6.10 | Pemko: 319 | ||||
| DBA | 7.00 |
ANSI:
R3B164 |
|||||
| GLD | 7.70 | ||||||
| 863S |
ANSI:
R3B164 |
||||||
| Jamb Weatherstrip | CLR | 6.80 | |||||
| DBA | 8.00 | ||||||
| GLD | 8.30 | ||||||
| 864S |
NGP:
107 |
||||||
| Jamb Weatherstrip | CLR | 11.30 | Pemko: 379 | ||||
| Adjustable | DBA | 14.10 |
ANSI:
R3C164 |
||||
| GLD | 14.60 | ||||||
| 865S |
NGP:
103N |
||||||
| Jamb Weatherstrip | MIL | 15.50 | Pemko: 350 | ||||
| Adjustable | DBA | 18.20 |
ANSI:
R3C264 |
||||
| GLD | 19.20 | ||||||
| 866S |
NGP:
303N |
||||||
| Jamb Weatherstrip | MIL | 16.20 |
ANSI:
R3C264 |
||||
| Adjustable Spring Loaded | DBA | 19.20 | |||||
| GLD | 20.40 | ||||||
| 870S |
NGP:
127 |
||||||
| Jamb Weatherstrip | CLR | 3.80 |
NPG:
120SS |
||||
| DBA | 4.90 | Pemko: 305 | |||||
| GLD | 5.80 |
ANSI:
R0C164 |
|||||
| 32D | 24.20 |
| Description | Finish |
Without
Insert |
N |
With Insert
S |
V | W |
Comparison
Numbers |
|---|---|---|---|---|---|---|---|
| 871S |
NGP:
132N |
||||||
| Jamb Weatherstrip | MIL | 5.40 | Pemko: 368 | ||||
| DBA | 6.90 |
ANSI:
R3C164 |
|||||
| GLD | 7.10 | ||||||
| 872S |
NGP:
115 |
||||||
| Door Bottom Sweep or Astragal | CLR | 5.40 | Pemko: 305 | ||||
| Order 2 for set | DBA | 6.30 |
ANSI:
R0B634 |
||||
| *32D is supplied with gray insert and | GLD | 7.30 | |||||
|
differ from black gasket supplied with
other finishes |
32D* | 25.50 | |||||
| 873S |
NGP:
110 |
||||||
| Jamb Weatherstrip | MIL | 4.10 | Pemko: 332 | ||||
| DBA | 5.30 |
ANSI:
R3C164 |
|||||
| GLD | 6.10 | ||||||
| 874S |
NGP:
109 |
||||||
| Astragal/Jamb | MIL | 6.20 | Pemko: 375 | ||||
| Weatherstrip | DBA | 8.40 |
ANSI:
R3C164 |
||||
| GLD | 9.10 | ||||||
| 32D | 32.30 | ||||||
| 875S |
NGP:
130 |
||||||
| Jamb Weatherstrip | CLR | 4.90 | 6.60 | Pemko: 315 | |||
| DBA | 6.10 | 8.20 |
ANSI:
R0Y134 |
||||
| GLD | 6.80 | 8.90 | |||||
| 877S |
ANSI:
R3C164 |
||||||
| Jamb Weatherstrip | MIL | 5.80 | NGP: 133 | ||||
| DBA | 7.20 | ||||||
| GLD | 8.10 | ||||||
| 878S |
NGP:
134 |
||||||
| Jamb Weatherstrip | CLR | 4.60 | Pemko: 312 | ||||
| DBA | 5.30 |
ANSI:
R3C164 |
|||||
| GLD | 5.50 | ||||||
| 880S |
NGP:
165 |
||||||
| Jamb Weatherstrip | MIL | 4.30 | Pemko: 296 | ||||
| DBA | 5.80 |
ANSI:
R3C164 |
|||||
| GLD | 6.20 | ||||||
| 881S |
NGP:
700E |
||||||
| Jamb Weatherstrip | MIL | 6.60 | 7.10 | 5.90 | 7.60 | Pemko: 290 | |
| Hardware Compatible | DBA | 8.30 | 8.90 | 7.30 | 9.40 |
ANSI:
R3Y164 |
|
| GLD | 9.20 | 9.90 | 8.20 | 10.60 |
| Comparison | ||||||
|---|---|---|---|---|---|---|
| Numbers | ||||||
|
ANSI:
R3Y164 |
||||||
|
NGP:
170 |
||||||
| Pemko: 29310 | ||||||
|
ANSI:
R3Y164 |
||||||
| GLD | 8.80 | 9.50 | 10.00 | 8.80 | 9.30 | |
|
NGP:
152 |
||||||
| Pemko: 316 | ||||||
|
ANSI:
R3Y164 |
||||||
| GLD | 3.60 | 4.60 | 2.80 | |||
|
NGP:
160 |
||||||
| Pemko: 303 | ||||||
|
ANSI:
R3Y164 |
||||||
| GLD | 2.80 | 3.60 | 4.60 | 2.80 | ||
| Pemko: 294 | ||||||
|
ANSI:
R3B164 |
||||||
| GLD | 4.00 | |||||
|
NGP:
A605 |
||||||
| Pemko: 309 | ||||||
|
ANSI:
R3F164 |
||||||
| GLD | 4.20 | |||||
|
NGP:
156 |
||||||
| MIL | 2.30 | 2.90 | 1.60 | Pemko: 297 | ||
| DBA | 3.50 | 4.50 | 2.70 |
ANSI:
R3Y164 |
||
|
Finish
CLR DBA GLD CLR DBA MIL DBA MIL DBA MIL DBA MIL DBA |
F
5.70 8.30 1.60 2.70 |
N
6.40 8.90 2.30 3.50 2.30 3.50 2.50 3.90 |
GLD
10.60 S 6.90 9.60 2.90 4.50 2.90 4.50 |
With Insert
V 6.10 7.60 8.10 5.70 8.30 1.60 2.70 1.60 2.70 |
W
6.30 8.80 2.70 4.10 |
| Description | Size | Finish |
Without
Insert |
Comparison
Numbers |
|---|---|---|---|---|
| 900S |
NGP:
401 |
|||
| Vinyl Threshold | 36" | Black | 36.45 | Pemko: EV232BL |
| Carpet to Carpet | 48" | Black | 48.60 | |
| 901S |
NGP:
402 |
|||
| Vinyl Threshold | 36" | Black | 38.45 | Pemko: EV2325BL |
| Carpet to Tile | 48" | Black | 51.25 | |
|
NGP:
407 |
||||
| Vinyl Threshold | 36" | Black | 36.45 | Pemko: EV2326BL |
| Tile to Tile | 48" | Black | 48.60 | |
|
NGP:
398 |
||||
| Vinyl Threshold | 36" | Black | 38.45 | Pemko: EV2320BL |
| Carpet | 48" | Black | 51.25 | |
| 904S |
NGP:
399 |
|||
| Vinyl Threshold | 36" | Black | 39.09 | Pemko: EV2322BL |
| Carpet to Tile | 48" | Black | 52.12 | |
|
NGP:
400 |
||||
| Vinyl Threshold | 36" | Black | 49.80 | |
| Transition | 48" | Black | 66.40 | |
| 906S |
NGP:
344 |
|||
| Door Bottom - Shoe | 36" | Brown | 23.10 | Pemko: 2170 |
| Triple Fin | 48" | Brown | 30.80 |
| Thresholds | |
|---|---|
| 400S 36" DBA VINYL | 057047 |
| 401S 36" DBA | 069704 |
| 401S 36" MIL | 051003 |
| 401S 72" SCA | 134225 |
| 402S 36" MIL | 051415 |
| 403S 36" US3 | 055207 |
| 403S 36" US32D | 031227 |
| 403S 36" US9 | 073874 |
| 403S 36" DBA | 054097 |
| 403S 36" LBA | 002372 |
| 403S 36" MIL. | 051829 |
| 403S 36" SCA | 007258 |
| 403S 48" US10B | 046127 |
| 403S 48" US3 | 055216 |
| 403S 48" US32D | 004453 |
| 403S 48" MIL | 051420 |
| 403S 72" MIL | 051422 |
| 403S 72" US32D | 037064 |
| 403S 72" DBA | 054098 |
| 404S 36" US3 | 066258 |
| 404S 36" US32D | 029919 |
| 404S 36" DBA | 053510 |
| 404S 36" MIL. | 051423 |
| 404S 48" US32D | 029920 |
| 404S 48" DBA | 058788 |
| 404S 48" MIL 051424 | |
| 404S 72" US3 | 066324 |
| 404S 72" US32D | 031159 |
| 404S 72" MIL 051426 | |
| 404S 96" US32D | 079828 |
| 404S 96" MIL | 053016 |
| 406S 36" MIL | 051431 |
|
406S 72" GLD
406S 72" MIL |
025728
051434 |
| 407S 36" DBA | 069696 |
| 407S 36" GLD | 022070 |
| 407S 36" MIL | 051435 |
| 407S 48" MIL | 051436 |
| 407S 72" GLD | 082336 |
| 407S 96" MIL | 077245 |
| 410S 36" DBA | 058997 |
| 410S 36" MIB | 063300 |
| 410S 36" MIL. | 051009 |
| 410S 48" DBA | 061578 |
| 410S 48" MIL | 051011 |
| 410S 72" DBA | 061579 |
| Thresholds | |
|---|---|
| 410S 72" GLD | 038946 |
| 410S 72" MIB | 059484 |
| 410S 72" MIL. | 051013 |
| 410S 96" MIL | 056399 |
| 411S 36" BLA | 081343 |
| 411S 36" MIL | 051015 |
| 412S 36" US32D | 030454 |
| 412S 36" US32D NH | 001776 |
| 412S 36" DBA 053693 | |
| 412S 36" GLD | 053738 |
| 412S 36" MIL. | 051021 |
| 4125 36" MIL WSPA | 091344 |
| 412S 36" SCA | 055441 |
| 412S 36" SCB | 017067 |
| 412S 48" US10B | 040516 |
| 412S 48" US32D | 033440 |
| 412S 48" DBA | 054063 |
| 412S 48" MIL. | 051023 |
| 412S 48" SCA | 074258 |
| 412S 72" US32D | 030457 |
| 412S 72" DBA | 053067 |
| 412S 72" GLD | 063301 |
| 412S 72" MIL. | 051025 |
| 412S 72" SCA | 060167 |
| 412S 72" SCB | 129267 |
| 412S 96" US32D | 090042 |
|
412S 96" GLD
412S 96" MIL |
055211
052764 |
| 413S 36" US3 | 052029 |
| 413S 36" US32D | 025717 |
| 413S 36" DBA | 015900 |
| 413S 36" MIL. | 051027 |
| 413S 48" US32D | 039101 |
| 413S 48" DBA | 065227 |
| 413S 48" MIL. | 051029 |
| 413S 72" US3 | 052031 |
| 413S 72" US32D | 023441 |
| 413S 72" DBA | 054295 |
| 413S 72" MIL. | 051031 |
| 413S 96" US3 | 052032 |
| 413S 96" MIL | 054157 |
| 414S 36" DBA | 000955 |
| 414S 36" MIL | 051451 |
| 414S 72" DBA | 117097 |
| 415S 36" US3 | 047179 |
| 415S 36" DBA | 057305 |
Thresholds and Weatherstripping - Stock Numbers Thresholds
| Thresholds | Thresholds |
|---|---|
| 415S 36" MIL. | 426S 36" DBA |
| 051033 | 002015 |
|
415S 36" SCA
071687 |
426S 36" MIL 061695 |
| 415S 48" DBA | 426S 48" MIL |
| 023733 | 077225 |
| 415S 48" MIL 051035 | 426S 72" MIL 064254 |
| 415S 48" SCA | 426S 96" MIL |
| 066494 | 064253 |
| 415S 72" US9 | 427S 36" MIL |
| 074543 | 061190 |
| 415S 72" MIL 051037 |
427S 48" MIL
061133 |
| 416S 36" DBA | 427S 72" MIL |
| 060723 | 061125 |
| 416S 36" GLD | 427S 96" DBA |
| 081665 | 134871 |
|
416S 36" MIL
051051 |
428S 36" MIL 069001 |
| 416S 36" SCA | 428S 48" MIL |
| 090216 | 030450 |
| 416S 48" DBA | 428S 72" DBA |
| 063049 | 066973 |
|
416S 48" MIL
051053 |
428S 72" MIL 059870 |
| 416S 72" EBRP | 428S 96" DBA |
| 061273 | 021942 |
| 416S 72" DBA | 430S 36" MIL |
| 016047 | 062855 |
| 416S 72" MIL | 430S 48" MIL |
| 051055 | 088799 |
| 416S 96" MIL | 430S 72" DBA |
| 052960 | 095313 |
| 417S 36" US9 | 430S 72" MIL |
| 066359 | 070161 |
| 417S 36" DBA | 430S 72" SCA |
| 059553 | 084515 |
|
431S 36" DBA
070641 |
|
|
417S 36" MIL.
056494 417S 36" SCA 058889 |
431S 36" GLD
048973 |
| 417S 48" DBA | 431S 36" MIB |
| 024802 | 053331 |
| 417S 48" MIL | 431S 36" MIL |
| 057023 | 051455 |
| 417S 72" DBA | 431S 48" DBA |
| 075007 | 078959 |
| 417S 72" MIL | 431S 48" MIL |
| 057024 | 051456 |
| 417S 96" MIL | 431S 72" DBA |
| 060172 | 055522 |
| 418S 36" US10B | 431S 72" GLD |
| 031199 | 066756 |
| 418S 36" MIL 056495 |
431S 72" MIB
067194 |
| 418S 48" MIL | 431S 72" MIL |
| 062685 | 051458 |
| 418S 72" US3 | 431S 96" MIL |
| 048580 | 096450 |
| 418S 72" MIL | 432S 36" BLA |
| 059607 | 095183 |
| 418S 96" MIL | 432S 36" DBA |
| 066488 | 059786 |
| 419S 36" MIL | 432S 36" MIL |
| 056496 | 053172 |
| 419S 48" DBA | 432S 48" US10B |
| 108927 | 095706 |
| 420S 36" MIL | 432S 48" MIL |
| 061332 | 062853 |
| 420S 48" MIL | 432S 72" US10B |
| 030506 | 095703 |
| 420S 72" MIL | 432S 72" BLA |
| 073999 | 095185 |
| 421S 36" MIL 059872 |
432S 72" DBA
057872 |
| 421S 72" DBA | 432S 72" MIL |
| 068739 | 053822 |
| 421S 72" MIL | 433S 36" DBA |
| 064918 | 054825 |
| 422S 36" MIL | 433S 36" GLD |
| 064486 | 058459 |
| 422S 48" MIL | 433S 36" MIL |
| 085099 | 051463 |
| 422S 72" MIL | 433S 48" MIL |
| 064485 | 051464 |
| 423S 72" MIL | 433S 72" DBA |
| 082531 | 063629 |
| 424S 36" MIL | 433S 72" GLD |
| 066013 | 062034 |
| 424S 48" MIL | 433S 72" MIL |
| 095418 | 051466 |
| Thresholds | Thresholds | ||
|---|---|---|---|
| 434S 36" MIL | 052038 | 455S 72" GLD | 031990 |
| 434S 36" MIL NEOPRENE | 026655 | 455S 96" MIL | 070042 |
| 434S 36" MIL SILICONE | 031084 | 460S 72" MIL | 051483 |
| 434S 36" MIL VINYL | 056329 | 460S 96" MIL | 075035 |
| 435S 36" GLD | 106702 | 465S 72" MIL | 051488 |
| 435S 36" MIL NEOPRENE | 028335 | 470S 36" MIL | 051492 |
| 435S 72" MIL NEOPRENE | 080550 | 470S 72" GLD | 062275 |
| 435S 36" MIL VINYL | 056497 | 470S 72" MIL | 051494 |
| 435S 72" MIL VINYL | 056644 | 477S 48" DBA | 144656 |
| 436S 36" DBA | 038944 | 477S 36" BLA NEOPRENE | 072390 |
| 436S 36" MIL | 027686 | 477S 48" MIL NEOPRENE | 025060 |
| 436S 48" DBA | 093704 | 477S 36" MIL VINYL | 089975 |
| 436S 48" GLD | 089938 | 477S 48" DBA VINYL | 021980 |
| 436S 48" MIL | 023620 | 477S 48" MIL VINYL | 017278 |
| 436S 72" DBA | 075861 | 477S 72" MIL VINYL | 094703 |
| 436S 72" MIL | 032198 | 478S 36" MIL | 144368 |
| 436S 96" MIL | 054106 | 478S 36" GLD SILICONE | 088825 |
| 438S 36" DBA | 046790 | 480S 36" MIL | 051495 |
| 438S 36" GLD | 048227 | 480S 48" DBA | 101556 |
| 438S 36" MIL | 013799 | 480S 48" MIL | 051496 |
| 438S 72" DBA | 045585 | 480S 72" MIL | 062474 |
| 438S 72" GLD | 078454 | 481S 36" MIL NEOPRENE | 055791 |
| 440S 72" GLD | 140089 | 481S 48" MIL NEOPRENE | 076605 |
| 442S 36" MIL | 065007 | 481S 72" MIL NEOPRENE | 055980 |
| 442S 36" SCA | 071626 | 481S 36" MIL SILICONE | 072476 |
| 442S 48" MIL | 063483 | 481S 36" DBA VINYL | 006126 |
| 442S 72" MIL | 086139 | 481S 36" MIL VINYL | 056073 |
| 443S 36" MIL | 065346 | 481S 48" DBA VINYL | 063958 |
| 444S 36" MIL | 089632 | 481S 48" MIL VINYL | 051940 |
| 444S 48" MIL | 094554 | 481S 72" DBA VINYL | 050881 |
| 445S 72" MIL | 051471 | 481S 72" MIL VINYL | 054902 |
| 445S 96" MIL | 062261 | 484S 36" DBA | 079872 |
| 448S 36" DBA | 117092 | 484S 36" MIL | 051516 |
| 448S 36" MIL | 038781 | 484S 48" DBA | 050841 |
| 448S 48" MIL | 111712 | 484S 48" MIL | 051517 |
| 448S 72" DBA | 130861 | 484S 72" DBA | 050882 |
| 448S 72" MIL | 037440 | 484S 72" MIL | 051519 |
| 448S 96" MIL | 066757 | 484S 96" MIL | 088497 |
| 448S 96" MIL NH | 139421 | 492S 36" MIL | 032347 |
| 450S 36" GLD | 131762 | 504S 36" MIL | 051534 |
| 450S 48" MIL | 051473 | 504S 72" MIL | 056390 |
| 450S 72" GLD | 060490 | 505S 36" MIL | 051542 |
| 450S 96" MIL | 012758 | 506S 36" BLA | 052729 |
| 451S 48" MIL | 098765 | 506S 36" MIL | 054719 |
| 451S 72" MIL | 073016 | 506S 72" BLA | 016492 |
| 452S 72" MIL | 092409 | 508S 36" DBA | 020721 |
Thresholds and Weatherstripping - Stock Numbers Thresholds
|
508S 36" MIL
034315 532S 72" VINYL 062282 508S 96" DBA 110506 532S 72" MIL VINYL 051555 515S 36" MIL PILE 026369 532S 96" MIL VINYL 053837 516S 36" MIL 124421 541S 36" 10B NEOPRENE 078694 516S 72" MIL 128226 541S 36" MIL NEOPRENE 054211 516S 36" MIL NEOPRENE 034721 541S 48" 10B NEOPRENE 078680 516S 36" MIL SILICONE 064022 541S 48" DBA NEOPRENE 000896 516S 36" MIL VINYL 033033 541S 48" MIL NEOPRENE 054059 516S 72" MIL VINYL 034574 541S 72" MIL NEOPRENE 054060 517S 72" MIL NEOPRENE 013993 541S 36" CLR VINYL 095393 517S 72" GLD VINYL 133469 541S 36" DBA VINYL 053658 518S 48" GLD VINYL 055794 541S 36" MIL VINYL. 051068 518S 72" GLD VINYL 138533 541S 48" CLR VINYL 095382 520S 36" MIL 033055 541S 48" MIL VINYL 051070 520S 72" MIL 051539 541S 72" MIL VINYL 051074 520S 36" US10B NEOPRENE 029314 552S 36" 32D VINYL 108523 520S 36" US10B NEOPRENE NH 029318 552S 36" MIL VINYL. 051568 520S 36" MIL NEOPRENE 054613 552S 48" MIL VINYL 051569 520S 48" MIL NEOPRENE 056182 552S 96" MIL VINYL 057479 520S 72" US10B NEOPRENE 029312 560S 36" MIL VINYL 051076 520S 72" US10B NEOPRENE NH 029315 560S 36" MIL VINYL NH 008752 520S 72" MIL NEOPRENE 055935 560S 48" MIL VINYL 051078 520S 72" SCA NEOPRENE 046841 560S 48" MIL VINYL NH 012801 520S 36" US32D SILICONE 107239 560S 72" MIL VINYL 051082 520S 36" MIL SILICONE 064059 560S 72" MIL VINYL NH 009223 520S 48" MIL SILICONE 080333 565S 36" SCA NEOPRENE 145379 520S 72" US32D SILICONE 053973 565S 48" MIL NEOPRENE 008593 520S 72" MIL SILICONE 064061 565S 48" SCA NEOPRENE 145380 520S 36" DBA VINYL 054218 565S 36" MIL VINYL 057025 565S 36" SCA VINYL 137796 520S 36" MIL VINYL. 051061 520S 36" SCA VINYL 001850 565S 48" SCA VINYL 137797 520S 36" SCB VINYL 120773 566S 72" MIL VINYL 017021 520S 48" DBA VINYL 079046 572S 36" DBA 025594 572S 72" MIL 030908 520S 48" MIL VINYL. 051062 520S 72" DBA VINYL 054454 575S 36" DBA VINYL 052358 575S 36" MIL VINYL 051084 520S 72" MIL VINYL. 051066 520S 72" SCA VINYL 017347 575S 48" MIL VINYL 051086 520S 72" SCB VINYL 120774 575S 72" MIL VINYL 051090 520S 96" MIL VINYL 057442 575S 96" MIL VINYL 052982 532S 36" MIL 051548 580S 36" MIL VINYL 021041 532S 36" DBA NEOPRENE 071073 599S 48" DBA VINYL 134849 532S 36" MIL SILICONE 073124 600S 36" MIL 051584 532S 72" MIL SILICONE 054919 600S 48" MIL 022772 532S 36" US32D VINYL 107563 603S 36" US10B 076299 532S 36" MIL VINYL 051552 603S 36" US3 104453 532S 48" MIL VINYL 051830 603S 36" DBA 078404 |
Thresholds | Thresholds |
|---|---|---|
| Thresholds | Press-On Weatherstripping |
|---|---|
| 603S 36" MIL | 726W 300" WHITE |
| 051590 | 054225 |
| 603S 48" MIL | 726W 520-FT WHITE |
| 051591 | 054227 |
| 603S 72" DBA | 728S 204" CHARCOAL |
| 098807 | 048276 |
| 604S 36" DBA | 728S 216" CHARCOAL |
| 053623 | 051094 |
| 604S 36" MIL | 728S 240" CHARCOAL |
| 051592 | 049528 |
| 604S 36" SCA | 728S 252" CHARCOAL |
| 071847 | 061881 |
| 604S 48" DBA | 728S 260-FT CHARCOAL |
| 074415 | 047334 |
| 604S 48" MIL | 728S 264" CHARCOAL |
| 051593 | 061882 |
| 604S 72" US3 | 728S 300" CHARCOAL |
| 048329 | 064421 |
| 604S 72" DBA | 728S 520-FT CHARCOAL |
| 068183 | 002601 |
| 604S 72" MIL | 728W 204" WHITE |
| 063979 | 050505 |
| 604S 72" SCA | 728W 240" WHITE |
| 094430 | 056601 |
| 604S 96" MIL | 728W 300" WHITE |
| 062565 | 074080 |
| 608S 36" US3 | 729B 204" BROWN |
| 051218 | 045920 |
| 608S 36" MIL | 729B 216" BROWN |
| 006863 | 055100 |
| 608S 48" MIL | 729B 252" BROWN |
| 106173 | 046133 |
| 608S 72" US3 | 729B 300" BROWN |
| 051219 | 079208 |
| 608S 72" DBA | 729S 204" BLACK |
| 083909 | 015885 |
| 608S 72" MIL | 729S 252" BLACK |
| 065732 | 068776 |
| 608S 96" DBA | 729S 300" BLACK |
| 118427 | 068777 |
| 608S 96" MIL | 729T 204" TAN |
| 094020 | 082927 |
| 859S 36" DBA | 729T 240" TAN |
| 021458 | 103218 |
| 859S 36" MIL | 729T 252" TAN |
| 031358 | 021429 |
| Press-On Weatherstripping |
729T 300" TAN
082930 |
| 726B 204" BROWN 108247 |
729W 204" WHITE
024763 |
| 726B 216" BROWN | 729W 252" WHITE |
| 141854 | 027429 |
| 726B 240" BROWN 110396 |
729W 300" WHITE
027430 |
| 726B 252" BROWN | 736S 204" CHARCOAL. |
| 103765 | 089698 |
| 726B 300" BROWN | 736S 216" CHARCOAL |
| 137455 | 093251 |
|
726S 204" CHARCOAL.
052216 |
736S 240" CHARCOAL 096054 |
| 726S 216" CHARCOAL. | 736S 252" CHARCOAL |
| 052583 | 096055 |
| 726S 240" CHARCOAL. | 736S 260-FT CHARCOAL |
| 052217 | 095015 |
| 726S 252" CHARCOAL. | 736S 264" CHARCOAL |
| 052437 | 098132 |
| 726S 260-FT CHARCOAL | 736S 300" CHARCOAL |
| 053002 | 090886 |
| 726S 264" CHARCOAL | 736S 520-FT CHARCOAL |
| 052582 | 095014 |
| 726S 300" CHARCOAL | 736T 204" TAN |
| 052737 | 018642 |
| 726S 520-FT CHARCOAL 053070 |
736T 252" TAN
018641 |
| 726T 204" TAN | 736W 204" WHITE |
| 068315 | 096056 |
| 726T 240" TAN | 736W 216" WHITE |
| 068312 | 098957 |
| 726T 252" TAN | 736W 240" WHITE |
| 139885 | 096057 |
| 726W 204" WHITE | 736W 252" WHITE |
| 054222 | 096088 |
| 726W 216" WHITE | 736W 260-FT WHITE |
| 054799 | 095017 |
| 726W 240" WHITE | 736W 264" WHITE |
| 054223 | 046032 |
| 726W 252" WHITE | 736W 300" WHITE |
| 054224 | 096033 |
| 726W 260-FT WHITE | 736W 520-FT WHITE |
| 054226 | 095016 |
| 726W 264" WHITE | 737S 204" CHARCOAL |
| 060177 | 035450 |
| Press-On Weatherstripping | Press-On Weatherstripping | ||
|---|---|---|---|
| 737S 216" CHARCOAL | 035449 | 719W 84" WHITE | 082517 |
| 737S 240" CHARCOAL | 035447 | 719W 84" x 84" WHITE | 082490 |
| 737S 252" CHARCOAL | 035422 | 719W 96" WHITE | 082518 |
| 737S 260-FT CHARCOAL | 035383 | 719W 108" WHITE | 082519 |
| 737S 264" CHARCOAL | 035393 | 720B 36" x 84" BROWN FLEX INTUMECENT SINGLE WING | 107435 |
| 737S 300" CHARCOAL | 035392 | 720B 48" X 84" BROWN FLEX INTUMESCENT SINGLE WING | 107433 |
| 737S 520-FT CHARCOAL | 035382 | 720B 72" X 84" BROWN FLEX INTUMESCENT SINGLE WING | 107434 |
| 737W 204" WHITE | 035381 | 720B 84" x 84" BROWN FLEX INTUMECENT SINGLE WING | 112842 |
| 737W 216" WHITE | 035380 | 720G 36" x 84" GREY FLEX INTUMECENT SINGLE WING | 112844 |
| 737W 240" WHITE | 035358 | 720G 84" x 84" GREY FLEX INTUMECENT SINGLE WING | 112846 |
| 737W 252" WHITE | 035346 | 720S 36" x 84" CHARCOAL FLEX INTUM SINGLE WING | 105952 |
| 737W 260' WHITE | 035342 | 720S 48" X 84" CHARCOAL FLEX INTUM SINGLE WING | 105953 |
| 737W 264" WHITE | 035345 | 720S 72" X 84" CHARCOAL FLEX INTUM SINGLE WING | 105954 |
| 737W 300" WHITE | 035344 | 720S 84" x 84" CHARCOAL FLEX INTUM SINGLE WING | 105955 |
| 737W 520' WHITE | 035325 | 720S 96" X 96" CHARCOAL FLEX INTUM SINGLE WING | 118211 |
| 719B 36" x 84" BROWN | 082481 | 720T 36" x 84" TAN FLEX INTUMECENT SINGLE WING | 112851 |
| 719B 48" x 84" BROWN | 085139 | 720T 84" x 84" TAN FLEX INTUMECENT SINGLE WING | 112853 |
| 719B 72" x 84" BROWN | 082483 | 720W 36" x 84" WHITE FLEX INTUMECENT SINGLE WING | 112855 |
| 719B 84" BROWN082511 | 720W 48" x 84" WHITE FLEX INTUMECENT SINGLE WING | 136649 | |
| 719B 84" x 84" BROWN | 082484 | 720W 72" x 84" WHITE FLEX INTUMECENT SINGLE WING | 136650 |
| 719B 96" BROWN082514 | 720W 84" x 84" WHITE FLEX INTUMECENT SINGLE WING | 112857 | |
| 719B 108" BROWN | 082515 | 721B 36" x 84" BROWN | 029485 |
| 719G 36" x 84" GREY | 082498 | 721B 48" x 84" BROWN | 029488 |
| 719G 48" x 84" GREY | 085140 | 721B 72" x 84" BROWN | 029491 |
| 719G 72" x 84" GREY | 082502 | 721B 84" BROWN047510 | |
| 719G 84" GREY | 082527 | 721B 84" x 84" BROWN | 143529 |
| 719G 84" x 84" GREY | 082503 | 721B 96" BROWN047517 | |
| 719G 96" GREY | 082530 | 721B 108" BROWN | 047518 |
| 719G 108" GREY | 082532 | 721G 36" x 84" GREY | 013457 |
| 719S 36" x 84" CHARCOAL | 082491 | 721G 48" x 84" GREY | 108615 |
| 719S 48" X 84" CHARCOAL | 085084 | 721G 72" x 84" GREY | 089314 |
| 719S 72" x 84" CHARCOAL | 082494 | 721G 84" GREY | 087654 |
| 719S 84" CHARCOAL | 082522 | 721G 96" GREY | 087652 |
| 719S 84" x 84" CHARCOAL | 082496 | 721S 36" x 84" BLACK 029493 | |
| 719S 96" CHARCOAL | 082524 | 721S 48" x 84" BLACK | 029494 |
| 719S 108" CHARCOAL | 082525 | 721S 72" x 84" BLACK | 029496 |
| 719T 36" x 84" TAN | 082504 | 721S 84" BLACK081187 | |
| 719T 48" x 84" TAN | 085141 | 721S 84" x 84" BLACK | 000002 |
| 719T 72" x 84" TAN | 082507 | 721S 96" BLACK081186 | |
| 719T 84" TAN | 082534 | 721S 96" x 96" BLACK | 142009 |
| 719T 84" x 84" TAN | 082506 | 721S 108" BLACK | 081735 |
| 719T 96" TAN | 082535 | 721T 36" x 84" TAN | 029513 |
| 719T 108" TAN | 082538 | 721T 48" x 84" TAN | 029515 |
| 719W 36" x 84" WHITE | 082485 | 721T 72" x 84" TAN | 029518 |
| 719W 48" x 84" WHITE | 085144 | 721T 84" TAN | 097047 |
| 719W 72" x 84" WHITE | 082487 | 721T 96" TAN | 062335 |
Press-On Weatherstripping Thresholds and Weatherstripping - Stock Numbers
| Press-On Weatherstripping | |
|---|---|
| 721T 108" TAN | 123704 |
| 721W 36" x 84" WHITE | 029520 |
| 721W 48" x 84" WHITE | 029521 |
| 721W 72" x 84" WHITE | 029523 |
| 721W 84" WHITE | 059248 |
| 721W 84" x 84" WHITE | 074859 |
| 721W 96" WHITE | 059123 |
| 721W 108" WHITE | 059122 |
| 722B 36" x 84" BROWN | 086961 |
| 722B 48" x 84" BROWN | 086929 |
| 722B 72" x 84" BROWN | 086793 |
| 722B 84" x 84" BROWN | 086791 |
| 722B 96" x 96" BROWN | 086780 |
| 722S 36" x 84" CHARCOAL | 087124 |
| 722S 48" x 84" CHARCOAL | 087063 |
| 722S 72" x 84" CHARCOAL | 087055 |
| 722S 84" x 84" CHARCOAL | 087054 |
| 722S 96" x 96" CHARCOAL | 087005 |
| 722T 36" x 84" TAN | 086777 |
| 722T 48" x 84" TAN | 086775 |
| 722T 72" x 84" TAN | 086754 |
| 722T 84" x 84" TAN | 086752 |
| 722T 96" x 96" TAN | 086745 |
| 722W 36" x 84" WHITE | 086996 |
| 722W 48" x 84" WHITE | 086993 |
| 722W 72" x 84" WHITE | 086972 |
| 722W 84" x 84" WHITE | 086969 |
| 722W 96" x 96" WHITE | 086966 |
| 724B 36" x 84" BROWN | 047696 |
| 724B 48" x 84" BROWN | 138515 |
| 724B 72" x 84" BROWN | 086997 |
| 724B 84" BROWN047527 | |
| 724B 96" BROWN047528 | |
| 724B 108" BROWN | 047530 |
| 724G 36" X 84" GREY | 096307 |
| 724G 48" X 84" GREY | 047045 |
| 724G 72" X 84" GREY | 096358 |
| 724G 84" GREY | 089146 |
| 724G 96" GREY | 093403 |
| 724S 36" x 84" CHARCOAL | 089572 |
| 724S 84" CHARCOAL | 061283 |
| 724S 84" x 84" CHARCOAL | 109589 |
| 724S 96" CHARCOAL | 000241 |
| 724S 108" CHARCOAL | 014723 |
| 724T 84" TAN | 051666 |
| 724T 96" TAN | 051682 |
| Press-On Weatherstripping |
|---|
|
724W 84" WHITE
033732 |
|
724W 96" WHITE
107109 |
|
727S 36" x 84" CHARCOAL
051140 |
|
727S 72" x 84" CHARCOAL
054064 |
|
727S 84" CHARCOAL
051139 |
|
727S 96" CHARCOAL
053646 |
|
734S 36" X 84" BROWN
026246 |
|
734B 72" X 84" BROWN
026201 |
| 734B 84" BROWN026247 |
| 734B 96" BROWN026244 |
|
734B 96" X 96" BROWN
026200 |
|
734B 108" BROWN
026211 |
|
734G 36" X 84" GREY
026193 |
|
734G 72" X 84" GREY
026189 |
|
734G 84" GREY
026198 |
|
734G 96" GREY
026197 |
|
734G 96" X 96" GREY
026188 |
|
734G 108" GREY
026194 |
|
734S 36" X 84" BLACK
026327 |
|
734S 72" X 84" BLACK
026322 |
| 734S 84" BLACK026357 |
| 734S 96" BLACK026330 |
|
734S 96" X 96" BLACK
026321 |
|
734S 108" BLACK
026329 |
|
734T 36" X 84" TAN
026171 |
|
734T 72" X 84" TAN
026145 |
|
734T 84" TAN
026187 |
|
734T 96" X 96" TAN
026142 |
|
734T 108" TAN
026172 |
|
725S 84" NEOPRENE
060206 |
|
725S 96" NEOPRENE
060504 |
|
738S 204" CHARCOAL
164037 |
|
738S 240" CHARCOAL
164039 |
| Auto-Door Bottoms |
|
730S 36" MIL NEOPRENE.
072966 |
| 730S 36" MIL NEOPRENE 051857 |
|
730S 42" MIL NEOPRENE
054841 |
|
730S 48" MIL NEOPRENE
051390 |
|
730S 36" MIL SILICONE.
046487 |
|
730S 42" MIL SILICONE
034849 |
|
730S 48" MIL SILICONE
087236 |
|
740S 36" NEOPRENE
076463 |
|
740S 36" CLR NEOPRENE.
055452 |
|
740S 36" DBA NEOPRENE
052434 |
|
740S 36" GLD NEOPRENE
057701 |
740S 42" CLR NEOPRENE. . 085096
Thresholds and Weatherstripping - Stock Numbers Press-On Weatherstripping
| Auto-Door Bottoms | Door Bottoms & Sweeps |
|---|---|
| 740S 42" DBA NEOPRENE | 750S 42" US32D SILICONE |
| 059866 | 095058 |
| 740S 42" GLD NEOPRENE | 750S 48" US32D SILICONE |
| 074922 | 055864 |
| 740S 48" NEOPRENE | 750S 48" CLR SILICONE |
| 080708 | 070213 |
| 740S 48" CLR NEOPRENE | 752S 36" DBA VINYL |
| 087513 | 015097 |
| 740S 48" DBA NEOPRENE | 752S 36" GLD VINYL |
| 052435 | 057972 |
| 740S 48" GLD NEOPRENE | 752S 36" MIL VINYL. |
| 066177 | 061376 |
| 740S 36" CLR SILICONE | 752S 42" DBA VINYL |
| 068926 | 027712 |
| 740S 42" US32D SILICONE | 752S 42" GLD VINYL |
| 017715 | 088346 |
| 740S 42" CLR SILICONE | 752S 42" MIL VINYL |
| 069035 | 067894 |
| 740S 48" US32D SILICONE | 752S 48" DBA VINYL |
| 027269 | 040624 |
| 740S 48" CLR SILICONE | 752S 48" GLD VINYL |
| 068927 | 039647 |
| 742S 36" MIL NEOPRENE | 752S 48" MIL VINYL |
| 054065 | 007958 |
| 742S 42" MIL NEOPRENE | 752S 48" MIL VINYL TEK |
| 061380 | 078452 |
| 742S 48" MIL NEOPRENE | 753S 36" DBA NEOPRENE |
| 000739 | 061082 |
|
753S 36" GLD NEOPRENE
077227 |
|
|
742S 36" MIL VINYL.
053529 742S 42" MIL VINYL 058976 |
|
|
742S 48" MIL VINYL
053865 |
753S 36" MIL NEOPRENE.
051337 753S 42" MIL NEOPRENE 067110 |
|
753S 48" MIL NEOPRENE
051338 |
|
|
743S 36" MIL NEOPRENE.
052842 743S 42" MIL NEOPRENE 056039 |
|
|
754S 36" CLR NEOPRENE.
083440 |
|
| 743S 48" MIL NEOPRENE | 754S 36" DBA NEOPRENE |
| 053078 | 052427 |
| 747S 36" CLR NEOPRENE. | 754S 42" CLR NEOPRENE |
| 053563 | 083370 |
| 747S 36" DBA NEOPRENE | 754S 42" DBA NEOPRENE |
| 053781 | 005796 |
| 747S 36" GLD NEOPRENE | 754S 48" CLR NEOPRENE. |
| 016063 | 083372 |
| 747S 42" CLR NEOPRENE | 756S 36" DBA VINYL |
| 087210 | 054378 |
| 747S 42" DBA NEOPRENE | 756S 36" GLD VINYL |
| 057863 | 058375 |
| 747S 48" CLR NEOPRENE | 756S 36" MIL VINYL. |
| 084717 | 052010 |
| 747S 48" DBA NEOPRENE | 756S 42" MIL VINYL |
| 053735 | 061396 |
| 747S 48" GLD NEOPRENE | 756S 48" DBA VINYL |
| 058145 | 055418 |
| Door Bottoms & Sweeps |
756S 48" MIL VINYL.
052011 |
| 750S 36" US10B NEOPRENE | 759S 36" DBA VINYL |
| 010703 | 027134 |
| 750S 36" US32D NEOPRENE | 759S 36" GLD VINYL |
| 023937 | 066852 |
| 750S 36" CLR NEOPRENE. | 759S 36" MIL VINYL |
| 053564 | 060170 |
| 750S 36" DBA NEOPRENE 053069 |
759S 42" DBA VINYL
027167 |
| 750S 36" GLD NEOPRENE | 759S 42" GLD VINYL |
| 052905 | 104864 |
| 750S 42" US32D NEOPRENE | 759S 42" MIL VINYL |
| 037601 | 036002 |
| 750S 42" CLR NEOPRENE | 759S 48" DBA VINYL |
| 053565 | 066858 |
| 750S 42" DBA NEOPRENE | 759S 48" GLD VINYL |
| 064869 | 093917 |
| 750S 42" GLD NEOPRENE | 759S 48" MIL VINYL |
| 071669 | 032110 |
| 750S 48" US3 NEOPRENE | 770S 36" MIL. |
| 054200 | 051349 |
| 750S 48" US32D NEOPRENE | 770S 36" DBA BRUSH |
| 076771 | 065591 |
| 750S 48" CLR NEOPRENE. | 770S 36" GLD BRUSH |
| 057658 | 040794 |
|
750S 48" DBA NEOPRENE
053013 |
770S 36" MIL BRUSH 061333 |
| 750S 48" GLD NEOPRENE | 770S 42" DBA BRUSH |
| 058143 | 065066 |
| 750S 36" US32D SILICONE | 770S 42" MIL BRUSH |
| 040289 | 033809 |
|
750S 36" CLR SILICONE
043444 |
770S 48" DBA BRUSH 046311 |
| 750S 36" DBA SILICONE | 770S 48" MIL BRUSH |
| 006348 | 084855 |
Door Bottoms & Sweeps Thresholds and Weatherstripping - Stock Numbers
| 770S 36" VINYL | 075567 |
|---|---|
| 770S 36" DBA VINYL | 057644 |
| 770S 36" GLD VINYL | 055454 |
| 770S 36" MIL VINYL. | 054681 |
| 770S 36" WHP VINYL | 048479 |
| 770S 42" GLD VINYL | 016288 |
| 770S 42" MIL VINYL | 067931 |
| 770S 48" DBA VINYL | 070746 |
| 770S 48" GLD VINYL | 038496 |
| 770S 48" MIL VINYL. | 063484 |
| 774S 36" NEOPRENE | 062304 |
| 774S 36" DBA NEOPRENE | 064438 |
| 774S 36" MIL NEOPRENE | 051357 |
| 774S 48" MIL NEOPRENE | 051358 |
| 774S 36" MIL VINYL | 051359 |
| 774S 48" DBA VINYL | 061377 |
| 774S 48" MIL VINYL | 051360 |
| 776S 42" CLR NEOPRENE | 094490 |
| 777S 36" DBA NEOPRENE | 035004 |
| 777S 36" MIL NEOPRENE | 027008 |
| 777S 36" DBA VINYL | 054611 |
| 777S 36" MIL VINYL | 051363 |
| 778S 36" DBA NEOPRENE | 015955 |
| 778S 36" MIL NEOPRENE | 015977 |
| 778S 48" DBA NEOPRENE | 058254 |
| 778S 36" VINYL | 062294 |
| 778S 36" DBA VINYL | 053780 |
|
778S 36" GLD VINYL
778S 36" MIL VINYL 051365 |
055193 |
| 778S 42" DBA VINYL | 054862 |
| 778S 42" GLD VINYL | 062642 |
| 778S 42" MIL VINYL | 059750 |
| 778S 48" VINYL | 062641 |
| 778S 48" DBA VINYL | 054896 |
| 778S 48" MIL VINYL | 051366 |
| 779S 36" DBA NEOPRENE | 022886 |
| 779S 36" MIL NEOPRENE | 025961 |
| 779S 42" MIL NEOPRENE | 035071 |
| 779S 48" MIL NEOPRENE | 026920 |
| 779S 36" DBA VINYL | 057067 |
| 779S 36" GLD VINYL | 066396 |
| 779S 36" LBA VINYL | 062297 |
| 779S 36" MIL VINYL | 054773 |
| 779S 42" DBA VINYL | 021025 |
| 779S 42" GLD VINYL | 068655 |
| 779S 42" MIL VINYL | 058978 |
| Door Bottoms & Sweeps | |
|---|---|
| 779S 48" DBA VINYL | 012715 |
| 779S 48" GLD VINYL | 032823 |
| 779S 48" MIL VINYL | 057028 |
| 780S 36" MIL NEOPRENE | 027342 |
| 780S 48" MIL NEOPRENE | 029354 |
| 780S 36" DBA VINYL | 059252 |
| 780S 36" GLD VINYL | 086619 |
| 780S 36" MIL VINYL | 054821 |
| 780S 42" DBA VINYL | 053662 |
| 780S 42" MIL VINYL | 065433 |
| 780S 48" DBA VINYL | 071002 |
| 780S 48" MIL VINYL | 055420 |
| 782S 36" BLA NEOPRENE | 081341 |
| 782S 36" DBA NEOPRENE | 048578 |
| 782S 36" MIL NEOPRENE | 032350 |
| 782S 42" GLD NEOPRENE | 044501 |
| 782S 48" MIL NEOPRENE | 032330 |
| 782S 36" VINYL | 005870 |
| 782S 36" DBA VINYL | 034338 |
| 782S 36" GLD VINYL | 039678 |
| 782S 36" MIL VINYL 022288 | |
| 782S 36" WHP VINYL | 106288 |
| 782S 42" DBA VINYL | 014122 |
| 782S 42" MIL VINYL | 054861 |
| 782S 48" MIL VINYL | 034603 |
| 783S 36" MIL | 115282 |
| 783S 36" GLD VINYL | 098197 |
| 783S 36" MIL VINYL | 037956 |
| 783S 48" MIL VINYL | 037965 |
| 787S 36" MIL NEOPRENE | 055268 |
| 789S 36" BLA PILE | 037433 |
| 789S 36" DBA PILE | 044987 |
| 789S 36" GLD PILE | 032351 |
| 789S 36" MIL PILE | 036194 |
| 789S 42" MIL PILE | 036195 |
| 789S 48" MIL PILE | 036617 |
| 801S 36" DBA BRUSH | 059618 |
| 801S 36" GLD BRUSH | 063248 |
| 801S 36" MIL BRUSH. | 053035 |
| 801S 42" MIL BRUSH | 055943 |
| 801S 48" DBA BRUSH | 067890 |
| 801S 48" MIL BRUSH. | 054070 |
| 802S 36" DBA BRUSH 054610 | |
| 802S 36" GLD BRUSH | 054786 |
| 802S 36" MIL BRUSH. | 053194 |
| 802S 42" GLD BRUSH | 052346 |
Thresholds and Weatherstripping - Stock Numbers Door Bottoms & Sweeps
| Door Bottoms & Sweeps | Jamb Weatherstripping |
|---|---|
| 802S 42" MIL BRUSH | 802S 84" GLD BRUSH |
| 065250 | 054500 |
| 802S 48" DBA BRUSH | 802S 84" MIL BRUSH. |
| 061397 | 052979 |
| 802S 48" GLD BRUSH | 802S 96" BCA BRUSH |
| 067474 | 020711 |
| 802S 48" MIL BRUSH 054074 |
802S 96" DBA BRUSH
054257 |
|
806S 36" DBA BRUSH
032352 |
802S 96" MIL BRUSH 058708 |
| 806S 36" MIL BRUSH 035673 |
803S 36" MIL BRUSH
054075 |
| 806S 48" DBA BRUSH | 803S 36" x 84" MIL BRUSH |
| 029484 | 051382 |
| 806S 48" MIL BRUSH | 803S 48" x 96" MIL BRUSH |
| 031581 | 048945 |
| 872S 36" US32D NEOPRENE | 803S 72" x 84" MIL BRUSH |
| 044304 | 051394 |
| 872S 36" CLR NEOPRENE | 803S 72" x 96" BLA BRUSH |
| 095928 | 015019 |
| 872S 42" US32D NEOPRENE | 803S 72" x 96" DBA BRUSH |
| 086947 | 030527 |
| 872S 48" US32D NEOPRENE | 803S 84" MIL BRUSH |
| 142033 | 053077 |
|
808S 48" MIL BRUSH
043629 |
|
| Jamb Weatherstripping |
808S 72" MIL BRUSH
040087 |
| 785S 36" MIL NEOPRENE | 808S 84" DBA BRUSH |
| 120166 | 072589 |
| 785S 36" x 84" MIL NEOPRENE | 808S 84" MIL BRUSH |
| 120162 | 038341 |
|
785S 36" x 96" GLD NEOPRENE
120178 |
|
| 785S 36" x 96" MIL NEOPRENE | 859S 36" x 84" DBA |
| 122126 | 031883 |
| 785S 48" DBA NEOPRENE | 859S 36" x 84" GLD |
| 122470 | 038948 |
| 785S 72" x 84" DBA NEOPRENE | 859S 36" x 84" MIL |
| 120174 | 080290 |
| 785S 72" x 84" MIL NEOPRENE | 859S 36" x 96" MIL |
| 120163 | 030375 |
| 785S 84" DBA NEOPRENE | 859S 36" x 108" MIL |
| 120177 | 030376 |
| 785S 84" GLD NEOPRENE | 859S 48" GLD |
| 120173 | 121288 |
| 785S 84" MIL NEOPRENE | 859S 48" MIL |
| 120164 | 067767 |
| 785S 96" DBA NEOPRENE | 859S 48" x 84" MIL |
| 120172 | 071926 |
| 785S 96" MIL NEOPRENE | 859S 48" x 96" MIL |
| 120171 | 042801 |
| 800S 36" MIL BRUSH | 859S 72" DBA |
| 054784 | 090769 |
| 800S 36" x 84" MIL BRUSH | 859S 72" MIL |
| 051373 | 095946 |
| 800S 48" x 84" MIL BRUSH | 859S 72" x 84" MIL |
| 051374 | 070969 |
| 800S 72" x 84" MIL BRUSH | 859S 72" x 96" MIL |
| 051375 | 091951 |
| 800S 72" x 96" MIL BRUSH | 859S 84" DBA |
| 019037 | 086427 |
| 800S 84" DBA BRUSH | 859S 84" GLD |
| 030583 | 121287 |
| 800S 84" MIL BRUSH | 859S 84" MIL |
| 056636 | 028610 |
| 800S 96" MIL BRUSH | 859S 96" MIL |
| 061569 | 091966 |
| 802S 36" DBA BRUSH | 859S 120" MIL |
| 054610 | 042496 |
| 802S 36" GLD BRUSH | 860S 36" x 84" MIL NEOPRENE |
| 054786 | 051234 |
|
860S 36" x 84" MIL VINYL
091326 |
|
| 802S 36" MIL BRUSH | 861S 36" MIL NEOPRENE |
| 053194 | 065452 |
| 802S 36" x 84" MIL BRUSH | 861S 36" x 84" MIL NEOPRENE |
| 051379 | 051235 |
| 802S 48" DBA BRUSH | 861S 72" x 84" MIL NEOPRENE |
| 061397 | 051237 |
| 802S 48" GLD BRUSH | 861S 84" MIL NEOPRENE |
| 067474 | 065463 |
| 802S 48" MIL BRUSH | 862S 36" CLR NEOPRENE |
| 054074 | 083520 |
| 802S 48" x 84" MIL BRUSH | 862S 36" x 84" CLR NEOPRENE |
| 051380 | 083522 |
| 802S 72" MIL BRUSH | 862S 48" CLR NEOPRENE |
| 055939 | 060040 |
| 802S 72" x 84" MIL BRUSH | 862S 48" x 84" CLR NEOPRENE |
| 051381 | 084994 |
| 802S 84" BCA BRUSH | 862S 72" x 84" CLR NEOPRENE |
| 101313 | 083517 |
| 802S 84" BLA BRUSH | 862S 72" x 84" DBA NEOPRENE |
| 016491 | 058008 |
| 802S 84" DBA BRUSH 055941 |
Jamb Weatherstripping Thresholds and Weatherstripping - Stock Numbers
| Jamb Weatherstripping | |
|---|---|
| 862S 72" x 96" CLR NEOPRENE | 083632 |
| 862S 72" x 96" DBA NEOPRENE | 055343 |
| 862S 84" CLR NEOPRENE | 083616 |
| 862S 84" DBA NEOPRENE | 073092 |
| 862S 96" DBA NEOPRENE | 061765 |
| 863S 36" x 84" CLR NEOPRENE | 058992 |
| 863S 48" x 84" CLR NEOPRENE | 092863 |
| 863S 72" x 84" CLR NEOPRENE | 087142 |
| 863S 84" CLR NEOPRENE | 084707 |
| 864S 36" CLR NEOPRENE | 083568 |
| 864S 36" x 84" CLR NEOPRENE | 057659 |
| 864S 36" x 96" CLR NEOPRENE | 083570 |
| 864S 36" x 108" CLR NEOPRENE | 062579 |
| 864S 48" x 84" CLR NEOPRENE | 086659 |
| 864S 48" x 96" CLR NEOPRENE | 032695 |
| 864S 72" x 84" CLR NEOPRENE | 083572 |
| 864S 72" x 84" DBA NEOPRENE | 065293 |
| 864S 84" CLR NEOPRENE | 083573 |
| 864S 96" CLR NEOPRENE | 094658 |
| 865S 36" DBA NEOPRENE | 010688 |
| 865S 36" GLD NEOPRENE | 055359 |
| 865S 36" MIL NEOPRENE | 087913 |
| 865S 36" x 84" DBA NEOPRENE | 036985 |
| 865S 36" x 84" GLD NEOPRENE | 091572 |
| 865S 36" x 84" MIL NEOPRENE | 062415 |
| 865S 36" x 96" DBA NEOPRENE | 096197 |
| 865S 36" x 96" MIL NEOPRENE | 017295 |
| 865S 36" x 108" DBA NEOPRENE | 079468 |
| 865S 36" x 108" MIL NEOPRENE | 083004 |
| 865S 48" MIL NEOPRENE | 102562 |
| 865S 48" x 84" DBA NEOPRENE | 101633 |
| 865S 48" x 84" GLD NEOPRENE | 060542 |
| 865S 48" x 84" MIL NEOPRENE | 028997 |
| 865S 48" x 96" DBA NEOPRENE | 125536 |
| 865S 48" x 96" MIL NEOPRENE | 075191 |
| 865S 48" x 108" MIL NEOPRENE | 092260 |
| 865S 72" MIL NEOPRENE | 087915 |
| 865S 72" x 84" DBA NEOPRENE | 081104 |
| 865S 72" x 84" GLD NEOPRENE | 091571 |
| 865S 72" x 84" MIL NEOPRENE | 022917 |
| 865S 72" x 96" DBA NEOPRENE | 036353 |
| 865S 72" x 96" MIL NEOPRENE | 037449 |
| 865S 84" MIL NEOPRENE | 025286 |
| 865S 96" GLD NEOPRENE | 083908 |
| 865S 96" MIL NEOPRENE | 054907 |
| 866S 36" DBA NEOPRENE TEK | 103187 |
| Jamb Weatherstripping | |
|---|---|
| 866S 36" MIL NEOPRENE | 055632 |
| 866S 36" x 84" DBA NEOPRENE | 040799 |
| 866S 36" x 84" GLD NEOPRENE | 067399 |
| 866S 36" x 84" MIL NEOPRENE | 056313 |
| 866S 36" x 96" MIL NEOPRENE | 031942 |
| 866S 48" MIL NEOPRENE | 006290 |
| 866S 48" x 84" GLD NEOPRENE | 078811 |
| 866S 48" x 84" MIL NEOPRENE | 037712 |
| 866S 48" x 108" MIL NEOPRENE | 089576 |
| 866S 72" MIL NEOPRENE | 055553 |
| 866S 72" x 84" DBA NEOPRENE | 092913 |
| 866S 72" x 84" GLD NEOPRENE | 110343 |
| 866S 72" x 84" MIL NEOPRENE | 007786 |
| 866S 72" x 96" GLD NEOPRENE | 105904 |
| 866S 72" x 96" MIL NEOPRENE | 103804 |
| 866S 84" GLD NEOPRENE | 078809 |
| 866S 84" MIL NEOPRENE | 042719 |
| 866S 96" DBA NEOPRENE | 031357 |
| 866S 96" MIL NEOPRENE | 055485 |
| 866S 120" MIL NEOPRENE | 074592 |
| 870S 36" US32D NEOPRENE | 043706 |
| 870S 36" x 84" US10B NEOPRENE | 020778 |
| 870S 36" x 84" US32D NEOPRENE | 041926 |
| 870S 36" x 84" CLR NEOPRENE. | 059054 |
| 870S 36" x 84" DBA NEOPRENE | 053497 |
| 870S 36" x 84" GLD NEOPRENE | 016082 |
| 870S 36" x 84" WHP NEOPRENE | 044674 |
| 870S 36" x 96" US32D NEOPRENE | 001160 |
| 870S 36" x 96" CLR NEOPRENE | 083619 |
| 870S 36" x 108" US10B NEOPRENE | 048667 |
| 870S 48" US32D NEOPRENE | 107363 |
| 870S 48" CLR NEOPRENE | 068708 |
| 870S 48" x 84" US32D NEOPRENE | 081517 |
| 870S 48" x 84" CLR NEOPRENE 063110 | |
| 870S 48" x 96" CLR NEOPRENE | 091229 |
| 870S 72" US32D NEOPRENE | 133064 |
| 870S 72" CLR NEOPRENE | 083870 |
| 870S 72" x 84" US32D NEOPRENE | 047924 |
| 870S 72" x 84" CLR NEOPRENE 083596 | |
| 870S 72" x 84" DBA NEOPRENE | 053881 |
| 870S 72" x 84" WHP NEOPRENE | 044675 |
| 870S 72" x 96" US32D NEOPRENE | 001161 |
| 870S 72" x 96" CLR NEOPRENE | 084596 |
| 870S 72" x 96" WHP NEOPRENE | 044676 |
| 870S 84" US32D NEOPRENE | 054591 |
870S 84" CLR NEOPRENE. . 083597
Thresholds and Weatherstripping - Stock Numbers Jamb Weatherstripping
| Jamb Weatherstripping | Jamb Weatherstripping |
|---|---|
| 870S 84" DBA NEOPRENE | 881S 36" x 84" MIL NEOPRENE |
| 060876 | 051279 |
| 870S 96" US32D NEOPRENE | 881S 36" x 96" MIL NEOPRENE |
| 097748 | 087921 |
| 870S 96" CLR NEOPRENE | 881S 48" MIL NEOPRENE |
| 083884 | 058998 |
| 871S 36" MIL NEOPRENE | 881S 48" x 84" GLD NEOPRENE |
| 023335 | 058764 |
| 871S 36" x 84" MIL NEOPRENE | 881S 48" x 84" MIL NEOPRENE |
| 051255 | 051280 |
| 871S 48" x 84" MIL NEOPRENE | 881S 72" GLD NEOPRENE |
| 051198 | 092855 |
| 871S 72" x 84" BLA NEOPRENE | 881S 72" MIL NEOPRENE |
| 106806 | 068703 |
| 871S 72" x 84" MIL NEOPRENE | 881S 72" x 84" DBA NEOPRENE |
| 051257 | 062108 |
| 871S 84" MIL NEOPRENE | 881S 72" x 84" GLD NEOPRENE |
| 063621 | 034678 |
| 873S 36" MIL NEOPRENE | 881S 72" x 84" MIL NEOPRENE |
| 053862 | 051281 |
| 873S 36" x 84" DBA NEOPRENE | 881S 72" x 96" MIL NEOPRENE |
| 053712 | 087923 |
| 873S 36" x 84" MIL NEOPRENE | 881S 84" MIL NEOPRENE |
| 051263 | 054328 |
| 873S 36" x 96" MIL NEOPRENE | 881S 96" MIL NEOPRENE |
| 058799 | 087019 |
| 873S 48" x 84" MIL NEOPRENE | 881S 36" MIL SILICONE |
| 051264 | 065435 |
| 873S 72" x 84" MIL NEOPRENE | 881S 36" x 84" GLD SILICONE |
| 051265 | 076415 |
| 873S 84" DBA NEOPRENE | 881S 36" x 84" MIL SILICONE |
| 063162 | 055461 |
| 873S 84" MIL NEOPRENE | 881S 36" x 96" MIL SILICONE |
| 053864 | 080370 |
| 874S 36" US32D NEOPRENE | 881S 36" x 108" MIL SILICONE |
| 105906 | 049936 |
| 874S 36" x 84" US32D NEOPRENE | 881S 48" MIL SILICONE |
| 064413 | 070160 |
| 874S 36" x 84" MIL NEOPRENE | 881S 48" x 84" MIL SILICONE |
| 054083 | 075414 |
| 874S 48" US32D NEOPRENE | 881S 48" x 96" MIL SILICONE |
| 113653 | 022364 |
| 874S 48" x 84" US32D NEOPRENE | 881S 48" x 108" MIL SILICONE |
| 102263 | 056004 |
| 874S 72" x 84" US32D NEOPRENE | 881S 72" MIL SILICONE |
| 102266 | 062770 |
| 874S 72" x 96" US32D NEOPRENE | 881S 72" x 84" MIL SILICONE |
| 064095 | 062773 |
| 874S 72" x 96" MIL NEOPRENE | 881S 72" x 96" MIL SILICONE |
| 087114 | 080371 |
| 874S 84" MIL NEOPRENE | 881S 84" MIL SILICONE |
| 052592 | 054669 |
| 874S 96" CLR NEOPRENE | 881S 96" MIL SILICONE |
| 130963 | 080374 |
| 874S 96" MIL NEOPRENE | 881S 36" DBA VINYL |
| 057221 | 074308 |
| 874S 120" US32D NEOPRENE | 881S 36" MIL VINYL |
| 078861 | 053349 |
| 875S 36" CLR NEOPRENE | 881S 36" x 84" VINYL |
| 083401 | 000159 |
| 875S 36" x 84" CLR NEOPRENE | 881S 36" x 84" DBA VINYL |
| 058096 | 058981 |
| 875S 36" x 108" CLR NEOPRENE | 881S 36" x 84" MIL VINYL |
| 053915 | 052013 |
| 875S 48" CLR NEOPRENE | 881S 36" x 96" MIL VINYL |
| 083402 | 078158 |
| 875S 48" x 84" CLR NEOPRENE | 881S 36" x 108" MIL VINYL |
| 084882 | 072388 |
| 875S 72" x 84" CLR NEOPRENE | 881S 48" MIL VINYL |
| 059921 | 055205 |
| 875S 84" CLR NEOPRENE | 881S 48" x 84" MIL VINYL |
| 084251 | 052014 |
| 875S 36" x 84" CLR SILICONE | 881S 48" x 96" MIL VINYL |
| 003880 | 073151 |
| 877S 36" x 84" MIL NEOPRENE | 881S 72" MIL VINYL |
| 072544 | 053348 |
| 878S 36" DBA NEOPRENE | 881S 72" x 84" DBA VINYL |
| 005555 | 058982 |
| 878S 36" x 84" CLR NEOPRENE | 881S 72" x 84" MIL VINYL |
| 058993 | 056386 |
| 880S 36" x 84" BLA NEOPRENE | 881S 72" x 96" DBA VINYL |
| 064900 | 058983 |
| 880S 36" x 84" MIL NEOPRENE | 881S 72" x 96" MIL VINYL |
| 051275 | 063628 |
| 880S 72" x 84" MIL NEOPRENE | 881S 84" MIL VINYL |
| 051277 | 055208 |
| 881S 36" MIL NEOPRENE | 881S 96" MIL VINYL |
| 065849 | 062481 |
| 881S 36" x 84" NEOPRENE | 881S 36" MIL PILE |
| 035415 | 061446 |
| 881S 36" x 84" DBA NEOPRENE | 881S 36" x 84" MIL PILE |
| 084186 | 065534 |
Jamb Weatherstripping Thresholds and Weatherstripping - Stock Numbers
| Jamb Weatherstripping | |
|---|---|
| 881S 36" x 96" MIL PILE | 050803 |
| 881S 48" x 84" MIL PILE | 079361 |
| 881S 48" x 96" MIL PILE | 055447 |
| 881S 72" MIL PILE | 073013 |
| 881S 72" x 84" MIL PILE | 068518 |
| 882S 84" CLR BRUSH | 092969 |
| 882S 84" DBA BRUSH | 092972 |
| 882S 84" GLD BRUSH | 092977 |
| 882S 96" CLR BRUSH | 092971 |
| 882S 96" DBA BRUSH | 092975 |
| 882S 96" GLD BRUSH | 092978 |
| 883S 36" CLR BRUSH | 092979 |
| 883S 36" DBA BRUSH | 092980 |
| 883S 36" GLD BRUSH | 092983 |
| 883S 84" CLR BRUSH | 022506 |
| 884S 36" CLR VINYL | 092987 |
| 884S 36" x 84" GLD VINYL | 145335 |
| 884S 48" CLR VINYL | 092988 |
| 884S 84" VINYL | 112086 |
| 884S 84" CLR VINYL | 092989 |
| 884S 84" DBA VINYL | 092992 |
| 884S 84" GLD VINYL | 093003 |
| 884S 96" CLR VINYL | 092990 |
| 884S 96" DBA VINYL | 093002 |
| 884S 96" GLD VINYL | 093004 |
| 885S 72" x 84 CLR NEOPRENE | 095035 |
| 885S 84" NEOPRENE | 062195 |
| 885S 84" CLR SILICONE | 098428 |
| 885S 36" x 84" CLR VINYL | 094826 |
| 885S 36" x 84" DBA VINYL | 064909 |
| 885S 72" x 84" DBA VINYL | 026261 |
| 885S 72" x 96" DBA VINYL | 098563 |
| 885S 84" CLR VINYL | 054716 |
| 885S 96" DBA PILE | 135972 |
| 890S 36" x 84" DBA NEOPRENE | 054834 |
| 890S 36" x 84" MIL NEOPRENE | 064142 |
| 890S 48" x 84" MIL NEOPRENE | 091396 |
| 890S 72" x 84" DBA NEOPRENE | 054835 |
| 890S 72" x 84" MIL NEOPRENE | 064143 |
| 890S 72" x 96" MIL NEOPRENE | 078079 |
| 890S 84" MIL NEOPRENE | 072200 |
| 890S 36" x 84" MIL SILICONE | 060628 |
| 890S 72" x 96" MIL SILICONE | 093708 |
| 890S 36" MIL VINYL | 065300 |
| 890S 36" x 84" DBA VINYL | 053199 |
| 890S 36" x 84" MIL VINYL | 051287 |
| Jamb Weatherstripping | |
|---|---|
| 890S 48" MIL VINYL | 053842 |
| 890S 48" x 84" MIL VINYL | 051288 |
| 890S 72" MIL VINYL | 069373 |
| 890S 72" x 84" MIL VINYL | 051302 |
| 890S 72" x 96" MIL VINYL | 056203 |
| 890S 84" MIL VINYL | 053181 |
| 890S 96" MIL VINYL | 053841 |
| 891S 72" x 84" MIL FVN | 008055 |
| 891S 36" x 84" DBA NEOPRENE | 055108 |
| 891S 36" x 84" GLD NEOPRENE | 093250 |
| 891S 36" x 84" MIL NEOPRENE 056722 | |
| 891S 36" x 96" DBA NEOPRENE | 014000 |
| 891S 36" x 96" MIL NEOPRENE | 057549 |
| 891S 48" x 84" DBA NEOPRENE | 057018 |
| 891S 48" x 84" MIL NEOPRENE | 057511 |
| 891S 48" x 96" DBA NEOPRENE | 033393 |
| 891S 72" x 84" DBA NEOPRENE | 057019 |
| 891S 72" x 84" GLD NEOPRENE | 074600 |
| 891S 72" x 84" MIL NEOPRENE | 057020 |
| 891S 72" x 96" DBA NEOPRENE | 019682 |
| 891S 72" x 96" MIL NEOPRENE | 061748 |
| 891S 84" DBA NEOPRENE | 008359 |
| 891S 84" MIL NEOPRENE | 073792 |
| 891S 96" MIL NEOPRENE | 025113 |
| 891S 36" x 84" DBA SILICONE | 057068 |
| 891S 36" x 84" MIL SILICONE 057519 | |
| 891S 48" x 84" MIL SILICONE | 059552 |
| 891S 72" GASKET ONLY, SILICONE BLACK | 134581 |
| 891S 72" GASKET ONLY, SILICONE BLACK BKG | 134598 |
| 891S 72" x 84" MIL SILICONE 061696 | |
| 891S 72" x 96" MIL SILICONE | 081032 |
| 891S 84" GASKET ONLY, SILICONE BLACK BKG | 134783 |
| 891S 84" MIL SILICONE | 056283 |
| 891S 96" MIL SILICONE | 056284 |
| 891S 36" DBA VINYL | 003929 |
| 891S 36" MIL VINYL | 052986 |
| 891S 36" x 84" CLR VINYL | 033882 |
| 891S 36" x 84" DBA VINYL 052356 | |
| 891S 36" x 84" GLD VINYL | 052599 |
| 891S 36" x 84" MIL VINYL. | 051304 |
| 891S 36" x 84" MIL VINYL TEK | 053838 |
| 891S 36" x 96" DBA VINYL | 054437 |
| 891S 36" x 96" MIL VINYL | 053667 |
|
891S 36" x 108" MIL VINYL
891S 48" MIL VINYL |
057520
055375 |
| 891S 48" x 84" DBA VINYL | 052432 |
| Jamb Weatherstripping | Astragals | ||
|---|---|---|---|
| 891S 48" x 84" GLD VINYL | 057871 | 756S 84" DBA VINYL | 054120 |
| 891S 48" x 84" MIL VINYL. | 051305 | 756S 84" MIL VINYL | 059622 |
| 891S 48" x 96" DBA VINYL | 054216 | 756S 96" DBA VINYL | 020114 |
| 891S 48" x 96" MIL VINYL | 056032 | 756S 96" MIL VINYL | 075551 |
| 891S 72" MIL VINYL | 053692 | 771S 84" MIL NEOPRENE | 097923 |
| 891S 72" x 84" DBA VINYL | 052357 | 771S 96" MIL SILICONE | 123173 |
| 891S 72" x 84" GLD VINYL | 054126 | 771S 84" MIL VINYL | 037527 |
| 891S 72" x 84" MIL VINYL. | 051306 | 771S 96" MIL VINYL | 046239 |
| 891S 72" x 96" DBA VINYL | 052433 | 771S 84" MIL PILE | 052983 |
| 891S 72" x 96" MIL VINYL | 052431 | 774S 96" MIL NEOPRENE | 059422 |
| 891S 84" DBA VINYL | 064207 | 774S 84" MIL VINYL | 085136 |
| 891S 84" MIL VINYL | 053031 | 802S 84" BCA BRUSH | 101313 |
| 891S 96" DBA VINYL | 071086 | 802S 84" BLA BRUSH | 016491 |
| 891S 96" MIL VINYL | 053015 | 802S 84" DBA BRUSH | 055941 |
| 892S 36" x 84" DBA NEOPRENE | 044791 | 802S 84" GLD BRUSH | 054500 |
| 892S 36" x 84" GLD NEOPRENE | 047155 | 802S 84" MIL BRUSH | 052979 |
| 892S 36" x 84" MIL NEOPRENE | 044788 | 802S 96" BCA BRUSH | 020711 |
| 892S 48" x 84" MIL NEOPRENE | 044785 | 802S 96" DBA BRUSH | 054257 |
| 892S 72" x 84" DBA NEOPRENE | 048297 | 802S 96" MIL BRUSH | 058708 |
| 892S 72" x 84" GLD NEOPRENE | 071107 | 822S 96" MIB | 060612 |
| 892S 72" x 84" MIL NEOPRENE | 044786 | 822S 96" MIB BULK | 086203 |
| 892S 84" MIL NEOPRENE | 044967 | 835S 84" US32D | 057965 |
| 893S 36" DBA PILE | 055134 | 835S 84" DBA | 054076 |
| 893S 36" MIL PILE | 051285 | 835S 84" GLD | 052598 |
| 893S 36" x 84" MIL PILE | 051314 | 835S 84" GYP | 052218 |
| 893S 72" x 84" MIL PILE | 051313 | 835S 84" MIL 051399 | |
| 893S 72" x 84" WHP PILE | 048452 | 835S 96" US32D | 082492 |
| 893S 84" CLR PILE | 085233 | 835S 96" DBA | 054077 |
| 893S 84" DBA PILE | 058449 | 835S 96" GYP | 054078 |
| 893S 84" GLD PILE | 064959 | 835S 96" MIL | 051401 |
| 893S 84" MIL PILE | 053666 | 835S 120" US32D | 019549 |
| 893S 96" MIL PILE | 056263 | 835S 120" DBA | 028190 |
| 896S 36" x 84" DBA NEOPRENE | 036879 | 835S 120" GYP | 066347 |
| 896S 36" x 84" MIL NEOPRENE | 033668 | 835S 120" MIL | 072577 |
| 896S 48" x 84" MIL NEOPRENE | 037316 | 836S 84" DBA | 052438 |
| 896S 48" x 96" MIL NEOPRENE | 050091 | 836S 84" GLD | 067594 |
| 896S 72" x 84" MIL NEOPRENE | 035258 | 836S 84" MIL | 051402 |
| 896S 84" MIL NEOPRENE | 035980 | 836S 96" DBA | 065451 |
| 896S 96" MIL NEOPRENE | 049422 | 836S 96" GLD | 013885 |
| 896S 36" x 84" MIL SILICONE | 066836 | 836S 96" MIL | 051404 |
| 896S 48" x 84" MIL SILICONE | 051154 | 836S 120" DBA | 056267 |
| 896S 36" MIL VINYL | 063497 | 836S 120" MIL | 070159 |
| 896S 36" x 84" GLD VINYL | 087327 | 837S 84" DBA NEOPRENE | 058049 |
| 896S 36" x 84" MIL VINYL | 073543 | 837S 84" GLD NEOPRENE | 060491 |
| 896S 72" x 84" MIL VINYL | 074012 | 837S 84" MIL NEOPRENE | 051407 |
| 896S 84" MIL VINYL | 033779 | 837S 96" DBA NEOPRENE | 052767 |
Jamb Weatherstripping Thresholds and Weatherstripping - Stock Numbers
Astragals
| 837S 96" MIL NEOPRENE | 051408 |
|---|---|
| 837S 120" MIL NEOPRENE | 069420 |
| 837S 84" DBA SILICONE | 058625 |
| 837S 84" GLD SILICONE | 062464 |
| 837S 84" MIL SILICONE | 056392 |
| 837S 96" DBA SILICONE | 058626 |
| 837S 96" GLD SILICONE | 079237 |
| 837S 96" MIL SILICONE | 058141 |
| 837S 84" DBA VINYL | 052439 |
| 837S 84" GLD VINYL | 054867 |
| 837S 84" MIL VINYL | 051405 |
| 837S 84" WHP VINYL | 076481 |
| 837S 96" BCA VINYL | 020677 |
| 837S 96" DBA VINYL | 059436 |
| 837S 96" GLD VINYL | 090519 |
| 837S 96" MIL VINYL | 051406 |
| 837S 120" GLD VINYL | 068238 |
| 837S 120" MIL VINYL | 059619 |
| 838S 84" MIL PILE | 056500 |
| 838S 96" MIL PILE | 063241 |
| 839SW 84" MIL BRUSH | 141943 |
| 839S 84" MIL BRUSH | 141944 |
| 839S 96" MIL BRUSH | 141947 |
| 839S 120" MIL BRUSH | 141949 |
| 845S 84" MIL PILE | 051409 |
| 846S 84" MIL | 051410 |
| 847S 84" DBA PILE | 075287 |
| 847S 84" GLD PILE | 000606 |
| 847S 96" GLD PILE | 135979 |
| 848S 84" DBA | 075288 |
| 848S 84" GLD | 128894 |
| 849S 84" DBA | 038794 |
| 849S 84" GLD | 022999 |
| 849S 84" MIL | 014074 |
| 849S 96" DBA | 075587 |
| 849S 96" GLD | 080239 |
| 849S 96" MIL | 031904 |
| 872S 84" US32D NEOPRENE | 046184 |
| 872S 84" CLR NEOPRENE. | 053566 |
| 872S 84" DBA NEOPRENE | 052859 |
| 872S 84" GLD NEOPRENE | 053173 |
| 872S 96" US32D NEOPRENE | 028509 |
| 872S 96" CLR NEOPRENE | 083594 |
| 872S 120" US32D NEOPRENE | 060244 |
| 872S 120" CLR NEOPRENE | 084691 |
| 874S 84" MIL NEOPRENE | 052592 |
Astragals
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| B |
|---|
| Barn Door Hardware |
|
9400 Series Barn Door Packaged Sets
35 |
| Bi-Fold Door Hardware |
|
9570 Packaged Sets
15 |
|
9860 Packaged Sets and 9861 Packaged Sets
16 |
|
9890 Packaged Sets and 9891 Packaged Sets
17 |
| By-Pass Door Hardware |
|
9110 Packaged Sets and 9130 Packaged Sets
4 |
|
9514 Packaged Sets and 9583 Packaged Sets
5 |
|
9611 Packaged Sets and 9612 Packaged Sets
6 |
|
9614 Packaged Sets and 9683 Packaged Sets
7 |
|
9673 Packaged Sets and 9674 Packaged Sets
9 |
|
9675 Packaged Sets and 9676 Packaged Sets
10 |
|
9844 Packaged Sets and 9845 Packaged Sets
11 |
|
9875 Packaged Sets
13 |
|
9885 Packaged Sets and 9886 Packaged Sets
14 |
| C |
|
Components for Barn Door Hardware
36-37 |
|
Components for Sliding Door Hardware
25-34 |
| Conestoga - How to Order and Pricing38-39 |
| D |
|
Door Selection Chart
3 |
| H |
|
How to Order
2 |
| L |
|
Lead Times
2 |
| P |
| Pocket Door Hardware |
|
9110 Packaged Sets and 9130 Packaged Sets
18 |
|
9628 | 9629 | 9630 | 9631 Framed Kits
19 |
|
9678 Packaged Sets
20 |
|
9850 Framed Kits
21 |
|
9878 Packaged Sets
22 |
9901 Packaged Sets............................................................. 23
|
Q
Quick Ship |
2 |
|---|---|
|
S
Side Mount Selection Chart |
2 |
|
W
Wall Mount 9710 Series |
24 |
Sliding Door Hardware
GENERAL INFORMATION
Lead Times
Stock items will typically ship in five working days or less from the order entry date. Made-to-order items will typically ship in 15 working days depending on seasonal volume and order complexity. Special orders including industrials, special machining, and large quantities may need to be scheduled. The anticipated ship date will be included with each order acknowledgement. Please contact Customer Service if product availability is in question.
Quick Ship
Products denoted with red and bold pricing are available to order through the Quick Ship program and ship within 24 hours. When ordering these products please visit www.hagerco.com and log in to MyHager to access the 'Quick Ship' portal. Due to the promptness of the fulfillment process, Quick Ship orders are non-cancellable.
Cancellation Notification
Cancellation for made-to-order items must be communicated within 48 hours of order placement.
HOW TO ORDER:
EXAMPLE: 9710 Wall Mount Packaged Set For 1 Door CLA 72"
STOCK NUMBER: 160958
ITEM NUMBER: 9710007200000CLA
| Side Mount Selection Chart | ||||||||
|---|---|---|---|---|---|---|---|---|
| Door thickness | 3/4" (19mm) | 1" (25.4mm) | 1-1/8" (29mm) | 1-3/8" (35mm) | 1-3/4" (44mm) | |||
| Front hanger | B | B | A or B | B | A | |||
| Rear hanger | A | A | Same as front | B | B | |||
| Door gap | 3/4" | 1/2" | 11/16" | 9/16" | 3/8" | |||
| Item # | Description | |||||||
| Hanger A | 9200 | Single wheel hanger-offset A | ||||||
| Hanger B | 9201 | Single wheel hanger-offset B | ||||||
| Hanger B | 9202 | Twin wheel hanger- offset B | ||||||
| Hanger A | 9203 | Twin wheel hanger- offset A | ||||||
| Hanger A | 9400 | Micro cam hanger-offset A | ||||||
| Hanger B | 9401 | Micro cam hanger-offset B | ||||||
Hanger Mount Selection Example:
Door thickness: 1-1/8" Door weight: 60 lbs.
Select single, twin or micro cam hanger
Front hanger: 9400 Rear hanger: 9400
Note: Hanger is stamped "A" or "B" for easy Identification for consideration for 9514, 9583, 9614, 9683, 9844 and 9845 by-pass packaged sets located on pages 5, 7 and 10.
Sliding Door Hardware
|
Maximum
Weight Per Door |
Packaged
Sets |
Description | Parts Bags | Track | Page # |
|---|---|---|---|---|---|
| By-Pass | |||||
| 60# | 9514 | Aluminum track & hardware for 3/4" - 1-3/8" thick doors. | 9814 | 9810 | 5 |
| 60# | 9583 | Aluminum track & hardware for 3/4" - 1-3/8" thick doors, for 3 doors. | 9814 | 9810 | 5 |
| 60# | 9614 | Aluminum track with grooved fascia - hardware for 1-3/8" thick doors. | 9540 | 9820 | 7 |
| 60# | 9683 | Aluminum track with grooved fascia - hardware for 1-3/8" thick doors. | 9401 hangers | 9820 | 7 |
| 60# | 9844 | Galvanized steel & hardware for 1-1/8" - 1-3/8" thick doors. | 9540 | 9840 | 11 |
| 60# | 9845 | Galvanized steel & hardware for 1-1/8" - 1-3/8" thick doors for 3 doors. | 9400/9401 hangers | 9840 | 11 |
| 125# | 9673 | Heavy duty aluminum box track with grooved fascia & hardware for 1-3/8" - 1-3/4" thick doors. | 9679 | 9603 | 9 |
| 125# | 9675 | Heavy duty aluminum box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9679 | 9602 | 9 |
| 150# | 9611 | Aluminum double box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9892 | 9821 | 6 |
| 150# | 9674 | Heavy duty aluminum box track with grooved fascia & hardware for 1-3/8" & 1-3/4" thick doors. | 9680 | 9603 | 9 |
| 150# | 9676 | Heavy duty aluminum box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9680 | 9602 | 10 |
| 175# | 9110 | Heavy duty aluminum I-beam track and hardware for 1" – 1-3/4" thick doors. *Must order 2 per by pass.* | 9109 | 9101 | 4 |
| 250# | 9612 | Aluminum double box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9893 | 9821 | 6 |
| 250# | 9875 | Heavy duty aluminum box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9827 hangers | 9801 | 13 |
| 250# | 9885 | Heavy duty aluminum double track with smooth fascia & hardware for 1-3/8" & 1-3/4" thick doors. | 9827 hangers | 9803 | 13 |
| 250# | 9886 | Heavy duty aluminum double track with smooth fascia & hardware for 1-3/8" & 1-3/4" thick doors. | 9827 hangers | 9803 | 13 |
| 275# | 9130 | Heavy duty aluminum I-beam track and hardware for 1" thick doors and up. *Must order 2 per by pass.* | 9129 | 9101 | 4 |
| Bi-Fold Sets | |||||
| 50# | 9570 | Aluminum track & hardware for 1-1/8"" & 1-3/4"" thick doors. | 9571 | 9601 | 15 |
| 125# | 9860 | Heavy duty aluminum box track & hardware for 1-3/8"& 1-3/4" thick doors. | 9894 | 9821 | 16 |
| 125# | 9861 | Heavy duty aluminum box track & hardware for 1-3/8"& 1-3/4" thick doors. | 9894 | 9821 | 14 |
| 125# | 9890 |
Heavy duty aluminum box track & hardware for for 1-1/8" & 1-3/4" thick doors. Up to 75 lbs per panel
for multi fold applications. |
9827 hangers | 9801 | 17 |
| 125# | 9891 | "Heavy duty aluminum box track & hardware for 1-1/8"" & 1-3/4"" thick doors. | 9827 hangers | 9801 | 17 |
| Pocket Door Sets | |||||
| 125# | 9678 | Heavy duty aluminum box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9632 | 9601 | 20 |
| 150# | 9678 | Heavy duty aluminum box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9633 | 9101 | 20 |
| 175# | 9110 | Heavy duty aluminum I-beam track & hardware for 1" thick doors and up. | 9109 | 9101 | 18 |
| 250# | 9878 | Aluminum box track & hardware for 1-3/8" thick doors and up. | 9742 | 9801 | 22 |
| 250# | 9901 | Extra heavy duty aluminum box track & hardware for 1-3/8" & 1-3/4" thick doors. | 9895 | 9821 | 23 |
| 275# | 9130 | Heavy duty aluminum I-beam track & hardware for 1" thick doors and up. | 9129 | 9101 | 18 |
| Pocket Door Frame Kits | All Pocket Door Framed Kits for 1-3/8" Thick Doors | ||||
| 125# | 9631 | Pocket Door Packaged Sets for 3'0" wide 6'8" high door | 9606 hangers | 9601 | 19 |
| 150# | 9628 | Pocket Door Packaged Sets for 3'0" wide 7'0" high door | 9606 hangers | 9601 | 19 |
| 150# | 9629 | Pocket Door Packaged Sets for 3'0" wide 8'0" high door | 9606 hangers | 9601 | 19 |
| 150# | 9630 | Pocket Door Packaged Sets for 3'0" wide 9'0" high door | 9606 hangers | 9601 | 19 |
| 250# | 9850 | Pocket Door Packaged Sets for 4'0" wide 8'0" high door | 9827 hangers | 9801 | 21 |
| 250# | 9850 | Pocket Door Packaged Sets for 4'0" wide 8'6" high door | 9827 hangers | 9801 | 21 |
| Wall Mount Sets | |||||
| 250# | 9710 | Heavy duty aluminum track & hardware for 1" & 1-3/4" thick doors. | 9711 | 9703 | 24 |
| Barn Door Pakaged Sets | |||||
| 250# | All | 9400 Series Stainless Steel Barn Door | N/A | N/A | 35 |
| 250# | All | Conestoga | N/A | N/A | 38 |
Sliding Door Hardware - 9110 and 9130 Packaged Sets - By-Pass
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| 9110 Packaged Sets for doors up to 175 lbs (79 kg) per door. | |||||
| Contents: 9101 track, 9109 parts bag | |||||
| Heavy duty aluminum I-beam track & hardware for 1" - 1-3/4" (25mm - 45mm) thick doors. | |||||
| 9110-60 - Packaged set for 2'6" door | 60" (1524 mm) | 117.55 | 135334 | 5 | |
| 9110-72 - Packaged set for 3'0" door | 72" (1829 mm) | 129.95 | 135335 | ||
| 9110-84 - Packaged set for 3'6" door | 84" (2134 mm) | 141.55 | 135336 | ||
| 9110-96 - Packaged set for 4'0" door | 96" (2438 mm) | 154.05 | 135337 | ||
| 9110-120 - Packaged set for 5'0" door | 120" (3048 mm) | 158.60 | 135338 | ||
| 9110-144 - Packaged set for 6'0" door | 144" (3658 mm) | 185.75 | 135339 | ||
| Note: Must order 2 each 9110 packaged sets | |||||
|
9130 Packaged Sets for doors up to 275 lbs (125 kg) per door.
Contents: 9101 track, 9129 parts bag |
|||||
| 9130-60 - Packaged set for 2'6" door | 60" (1524 mm) | 150.15 | 135340 | 5 | |
| 9130-72 - Packaged set for 3'0" door | 72" (1829 mm) | 161.00 | 135341 | ||
| 9130-84 - Packaged set for 3'6" door | 84" (2134 mm) | 162.60 | 135342 | ||
| 9130-96 - Packaged set for 4'0" door | 96" (2438 mm) | 177.25 | 135343 | ||
| 9130-120 - Packaged set for 5'0" door | 120" (3048 mm) | 209.80 | 135344 | ||
|
9130-144 - Packaged set for 6'0" door
Note: Must order 2 each 9130 packaged sets |
144" (3658 mm) | 234.10 | 135346 | ||
| 9101-60 - I-beam track only, heavy duty aluminum | 60" (1524 mm) | AL | 54.85 | 023278 | 5 |
| 9101-72 - I-beam track only, heavy duty aluminum | 72" (1829 mm) | AL | 68.65 | 096508 | |
| 9101-84 - I-beam track only, heavy duty aluminum | 84" (2134 mm) | AL | 81.80 | 096509 | |
| 9101-96 - I-beam track only, heavy duty aluminum | 96" (2438 mm) | AL | 87.45 | 096707 | |
| 9101-120 - I-beam track only, heavy duty aluminum | 120" (3048 mm) | AL | 114.40 | 096511 | |
| 9101-144 - I-beam track only, heavy duty aluminum | 144" (3658 mm) | AL | 137.65 | 096512 | |
| 9101-192 - I-beam track only, heavy duty aluminum | 192" (4877 mm) | AL | 182.75 | 096513 | |
| Parts Description | |||||
|
9109 - 2 ea. 9102 two wheel hangers, 1 ea. 9115 floor guide.
*Up to 175 lbs (79 kg) per door.* |
56.95 | 135690 | 10 | ||
|
9129 - 2 ea. 9105 four wheel hangers, 1 ea. 9115 floor guide.
*Up to 275 lbs (125 kg) per door.* |
84.05 | 135315 | 10 | ||
| Components Description | |||||
| 9102 | US2C | 25.00 | 135310 | 20 | |
| 2 Wheel Hanger - For use with 9101 track | |||||
| 9105 | US2C | 37.50 | 135312 | 40 | |
| 4 Wheel Hanger - For use with 9101 track | |||||
| 9115 | US2C | 8.85 | 096522 | 50 | |
| Bottom Door Guide |
Sliding Door Hardware - 9514 and 9583 Packaged Sets - By-Pass
2018 List
Stock No.
Case Qty.
| 4 | 4 | |||
|---|---|---|---|---|
| ń | 1 | |||
| 1. | ||||
| 4 | _ | |||
| Щ | -1 | L | 1 |
Description Finish
For 3/4" (19 mm) and 1-3/8" (35mm) thick doors.
| 9514-48 - By-pass set for two 24" doors | 48" (1219 mm) | 37.50 | 099662 | 5 |
|---|---|---|---|---|
| 9514-60 - By-pass set for two 30" doors | 60" (1524 mm) | 40.60 | 099663 | |
| 9514-72 - By-pass set for two 36" doors | 72" (1829 mm) | 45.20 | 099666 | |
| 9514-96 - By-pass set for two 48" doors | 96" (2438 mm) | 60.05 | 017418 |
Contents: 9810 track, 2 ea. 9400 hangers, 4 ea. 9401 hangers, 2 ea. 9353 guides, 3 ea. 2610 pulls
| 9583-96 - | 96" (2438 mm) | 68.65 | 029415 | 5 | |
|---|---|---|---|---|---|
| 9810-46 - Aluminum track | 46-3/8" (1178 mm) | AL | 15.80 | 019702 | 10 |
| 9810-58 - Aluminum track | 58-3/8" (1483 mm) | AL | 18.85 | 019703 | |
| 9810-70 - Aluminum track | 70-3/8" (1788 mm) | AL | 22.90 | 019704 | |
| 9810-93 - Aluminum track | 93-3/8" (2372 mm) | AL | 29.65 | 019705 | |
| 9810-120 - Aluminum track | 120" (3048 mm) | AL | 37.50 | 016570 | |
| 9810-144 - Aluminum track | 144" (3658 mm) | AL | 49.90 | 026064 |
| Parts Description | |||
|---|---|---|---|
| 9814 - 2 ea. 9400 hangers, 2 ea. 9401 hangers, | 14.95 | 016772 | 10 |
| 2 ea. 2610 pulls, 1 ea. 9353 guide | |||
| 9841 - For 1" to 1-1/8", specify 9841 parts bag. | 8.10 | 099665 | 10 |
4 ea. 9401 hangers, 2 ea. 9865 pulls, 1 ea. 9351 guide
| 9351 | 2.65 | 096563 | 50 |
|---|---|---|---|
| Door Guide | |||
| 9353 | 2.65 | 096564 | 20 |
|---|---|---|---|
| Adjustable Door Guide |
|
9400
Cam Adjustable Hanger - Small 3/8" (10 mm) offset A |
US2C | 3.35 | 017417 | 100 |
|---|---|---|---|---|
| 9401 | US2C | 3.35 | 096566 | 100 |
| Cam Adjustable Hanger - | ||||
| Large 11/16" (18 mm) offset B |
9865 Plastic 1.00 098993 50
Plastic Pull Overall Diameter: 1-31/32" Finger Pull Diameter: 1-19/32" Pull Clearance: 11/32"
Projection: 5/64"
5
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9611 and 9612 Packaged Sets - By-Pass
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9611 Packaged Sets for doors up to 150 lbs (68 kg) each.
9573 spacer kit is used for 1-3/4" (4 mm) doors. No spacer kit required for 1-3/8" (35 mm) doors. Contents: 2 ea. 9821 tracks, 9892 parts bag For 1-3/8" (35 mm) and 1-3/4" (44 mm) thick doors. |
|||||
| 9611-60 - By-pass set for two 30" doors | 60" (1524 mm) | 126.85 | 019404 | 5 | |
| 9611-72 - By-pass set for two 36" doors | 72" (1829 mm) | 136.40 | 019402 | ||
| 9611-96 - By-pass set for two 48" doors | 96" (2438 mm) | 165.00 | 019389 | ||
|
9612 Packaged Sets for doors up to 250 lbs (113 kg) each.
Contents: 2 pcs 9821 Track, 9893 Parts bag |
|||||
| 9612-60 - By-pass set for two 30" doors | 60" (1524 mm) | 159.45 | 019368 | 5 | |
| 9612-72 - By-pass set for two 36" doors | 72" (1829 mm) | 170.45 | 019362 | ||
| 9612-96 - By-pass set for two 48" doors | 96" (2438 mm) | 185.60 | 019378 | ||
| 9821-59 - Aluminum box track | 59" (1499 mm) | AL | 30.90 | 019084 | 10 |
| 9821-71 - Aluminum box track | 71" (1803 mm) | AL | 38.30 | 019062 | |
| 9821-96 - Aluminum box track | 96" (2438 mm) | AL | 51.05 | 019061 | |
| 9821-144 - Aluminum box track | 144" (3658 mm) | AL | 73.95 | 019050 | |
| Grooved fascia for painting | |||||
| 9709-48 - Aluminum grooved fascia, 2-3/4" (70 mm) wide | 48" (1219 mm) | AL | 34.40 | 023321 | 10 |
| 9709-60 - Aluminum grooved fascia, 2-3/4" (70 mm) wide | 60" (1524 mm) | AL | 51.55 | 023322 | |
| 9709-72 - Aluminum grooved fascia, 2-3/4" (70 mm) wide | 72" (1829 mm) | AL | 59.15 | 096603 | |
| 9709-96 - Aluminum grooved fascia, 2-3/4" (70 mm) wide | 96" (2438 mm) | AL | 67.00 | 096604 | |
| Parts Description | |||||
|
9892 - 4 ea. 9824 four-wheel hangers w/ top mount plate, 1 ea. 9909 guide, 9573
spacer kit |
52.70 | 019421 | 10 | ||
|
9893 - 4 ea. 9825 four-wheel ball bearing hangers w/ top mount plate, 1 ea. 9909
guide, 9573 spacer kit |
98.60 | 019418 | 10 | ||
| Components Description | |||||
| 9573 | 4.95 | 019014 | 5 | ||
| Spacer Kit - 3/8" use with 9821 track - For doors 1-3/4" thick | |||||
|
9824
4 Wheel Hanger w/ Top Mount Plate |
27.80 | 135320 | 20 | ||
|
9825
4 Wheel Ball Bearing Hanger w/ Top Mount Plate |
34.95 | 135321 | 10 | ||
| 9909 | US2C | 8.10 | 097528 | 20 | |
|
Heavy Duty Adjustable Door Guide
From 3/4" to 1-3/4" (19 mm to 44 mm) |
Sliding Door Hardware - 9614 and 9683 Packaged Sets - By-Pass
2018 List
Stock No.
Case Qty.
Description Finish
| 9614-72 - By-pass set for two 36" doors | 72" (1829 mm) | 60.75 | 016652 | ||
|---|---|---|---|---|---|
|
9683 Packaged Sets for three (3) 32" doors and doors up to 60 lbs. (27 kg) each.
Contents: 9820 track, 6 ea. 9401 hangers, 2 ea. 9351 guides, and 3 ea. 2610 pulls |
|||||
| 9683-96 - By-pass set for three 32" doors | 96" (2438 mm) | 85.70 | 022329 | ||
| Grooved fascia for painting | |||||
|
9820-48 - Aluminum track with 1-3/4" grooved fascia
9820-60 - Aluminum track with 1-3/4" grooved fascia 9820-72 - Aluminum track with 1-3/4" grooved fascia 9820-84 - Aluminum track with 1-3/4" grooved fascia 9820-96 - Aluminum track with 1-3/4" grooved fascia 9820-120 - Aluminum track with 1-3/4" grooved fascia 9820-144 - Aluminum track with 1-3/4" grooved fascia |
48" (1219 mm)
60" (1524 mm) 72" (1829 mm) 84" (2134 mm) 96" (2438 mm) 120" (3048 mm) 144" (3658 mm) |
AL
AL AL AL AL AL AL |
29.05
36.05 42.15 56.95 62.30 71.75 93.45 |
000461
000462 000463 028175 099664 000464 000460 |
5 |
| Parts Description | |||||
| 9540 - 4 ea. 9401 hangers, 2 ea. 2610 pull, 1 ea. 9351 guide | 9.55 | 017419 | 10 | ||
|
9544 - 4 ea. 9202 hangers, 2 ea. 2630 pull, 1 ea. 9351 guide
*Used to increase door weight capacity to 75 lbs* |
14.15 | 017035 | |||
| 9841 - 4 ea. 9401 hangers, 2 ea. 9865 pull, 1 ea. 9351 guide | 8.10 | 099665 | |||
| 9842 - 4 ea. 9401 hangers, 2 ea. 2630 pull, 1 ea., 9351 guide | 11.10 | 017424 | |||
|
9843 - 4 ea. 9202 hangers, 2 ea. 9865 pull, 1 ea. 9351 guide
*Used to increase door weight capacity to 75 lbs* |
12.65 | 016912 |
| Components Description | ||||
|---|---|---|---|---|
| 2610 | US3 | 0.95 | 013049 | 500 |
| Finger Pull | US4 | 0.95 | 071953 | |
| Material: Brass | US5 | 0.95 | 067282 | |
| Overall Diameter: 31/32" | US10A | 0.95 | 068711 | |
| Finger Pull Diameter: 3/4" | US15 | 0.95 | 040589 | |
| Pull Clearance: 5/16" | US15A | 0.95 | 040590 | |
| Projection: 1/32" | US26 | 0.95 | 013047 | |
| US26D | 0.95 | 071169 | ||
| 2630 | US3 | 4.15 | 051919 | 50 |
| Round Flush Pull | US4 | 4.15 | 073783 | |
| Material: Brass | US5 | 4.15 | 053163 | |
| Overall Diameter: 2-7/16" | US10A | 4.15 | 073053 | |
| Finger Pull Diameter: 2-1/16" | US15 | 4.15 | 073056 | |
| Pull Clearance: 11/32" | US15A | 4.15 | 005307 | |
| Projection: 3/32" | US26 | 4.15 | 023430 | |
| US26D | 4.15 | 023431 | ||
| 9202 | US2C | 3.35 | 096562 | 100 |
Twin Wheel Hanger - Large 11/16" (18 mm) offset B
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9614 and 9683 Packaged Sets - By-Pass
| Components Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
9351
Door Guide |
2.65 | 096563 | 50 | |
|
9401
Cam Adjustable Hanger - Large 11/16" (18 mm) offset B |
US2C | 3.35 | 096566 | 100 |
|
9865
Plastic Pull Overall Diameter: 1-31/32" Finger Pull Diameter: 1-19/32" Pull Clearance: 11/32" Projection: 5/64" |
Plastic | 1.00 | 098993 | 50 |
Sliding Door Hardware - 9673 and 9674 Packages Sets - By-Pass
From 3/4" to 1-3/4" (19 mm to 44 mm)
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9675 and 9676 Packaged Sets - By-Pass
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9675 Packaged Sets for doors up to 125 lbs (57 kg) each.
Contents: 9602 track, 9679 parts bag Heavy duty aluminum double box track & hardware For 1-3/8" (35 mm) and 1-3/4" (44 mm) thick doors. |
|||||
|
9675-48 - By-pass set for two 24" doors
9675-60 - By-pass set for two 30" doors |
48" (1219 mm)
60" (1524 mm) |
88.80
95.00 |
137175
137176 |
5 | |
|
9675-72 - By-pass set for two 36" doors
9675-96 - By-pass set for two 48" doors |
72" (1829 mm)
96" (2438 mm) |
104.30
123.00 |
137177
137178 |
||
| 9676 Packaged Sets for doors up to 150 lbs (68 kg) each. | |||||
|
9676-48 - By-pass set for two 24" doors
9676-60 - By-pass set for two 30" doors 9676-72 - By-pass set for two 36" doors |
48" (1219 mm)
60" (1524 mm) 72" (1829 mm) |
135.40
136.90 150.95 |
136350
136351 136352 |
5 | |
| 9676-96 - By-pass set for two 48" doors | 96" (2438 mm) | 167.25 | 136353 | ||
|
Grooved fascia for painting
9709-48 - Aluminum grooved fascia, 2-3/4" (70 mm) wide |
48" (1219 mm) | AL | 34.40 | 023321 | 10 |
|
9709-60 - Aluminum grooved fascia, 2-3/4" (70 mm) wide
9709-72 - Aluminum grooved fascia, 2-3/4" (70 mm) wide 9709-96 - Aluminum grooved fascia, 2-3/4" (70 mm) wide |
60" (1524 mm)
72" (1829 mm) 96" (2438 mm) |
AL
AL AL |
51.55
59.15 67.00 |
023322
096603 096604 |
|
|
9602-46 - Double box track only, heavy duty aluminum
9602-58 - Double box track only, heavy duty aluminum |
46" (1168 mm)
58" (1473 mm) |
AL
AL |
32.90
40.60 |
096582
096583 |
5 |
|
9602-70 - Double box track only, heavy duty aluminum
9602-94 - Double box track only, heavy duty aluminum |
70" (1778 mm)
94" (2388 mm) |
AL
AL |
46.85
60.75 |
096584
096585 |
|
|
9602-118 - Double box track only, heavy duty aluminum
9602-142 - Double box track only, heavy duty aluminum |
118" (2997 mm)
142" (3607 mm) |
AL
AL |
73.25
87.20 |
096586
096587 |
|
|
Parts Description
9575 - 4 ea. 9572 hangers w/ top mount plate, 1 ea. 9909 guide |
27.45 | 137167 | 5 | ||
| 9679 - 4 ea. 9605 hangers w/ top mount plate, 1ea. 9909 guide | 38.30 | 096600 | 5 | ||
| 9680 - 4 ea. 9606 ball bearing hangers w/ top mount plate, 1ea. 9909 guide | 90.30 | 136357 | 5 | ||
| Components Description | |||||
| 9572 - 4 Wheel Hanger w/ Top Mount Plate | US2D | 11.85 | 135316 | 20 | |
| 9605 - 4 Wheel Hanger w/ Top Mount Plate | US2D | 5.55 | 135317 | 20 | |
| 9606 - 4 Wheel Ball Bearing Hanger w/ Top Mount Plate | US2D | 17.30 | 135318 | 20 | |
|
9909 - Heavy Duty Adjustable Door Guide
From 3/4" to 1-3/4" (19 mm to 44 mm) |
US2C | 8.10 | 097528 | 20 |
Sliding Door Hardware - 9844 and 9845 Packaged Sets - By-Pass
US26D 4.15 023431
US2C 3.35 096562 100
9202 Twin Wheel Hanger - Large 11/16" (18 mm) offset B
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
4/1/2018 www.hagerco.com
Sliding Door Hardware - 9844 and 9845 Packaged Sets - By-Pass
| Components Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
9351
Door Guide |
2.65 | 096563 | 50 | |
|
9400
Cam Adjustable Hanger - Small 3/8" (10 mm) offset A |
US2C | 3.35 | 017417 | 100 |
|
9401
Cam Adjustable Hanger - Large 11/16" (18 mm) offset B |
US2C | 3.35 | 096566 | 100 |
|
9865
Plastic Pull Overall Diameter: 1-31/32", Finger Pull Diameter: 1-19/32", Pull Clearance: 11/32", Projection: 5/64" |
Plastic | 1.00 | 098993 | 50 |
Sliding Door Hardware - 9875 Packaged Sets- By-Pass
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9875 Packaged Sets for doors up to 250 lbs (113 kg).
Contents: 2 ea. 9801 tracks, 4 ea. 9827 hangers w/ top mount plate, 1 ea. 9574 space, 1 ea. 9909 guide Heavy duty Aluminum box track & hardware For 1-3/8" (35 mm) and 1-3/4" (44 mm) thick doors. 9574 spacer kit is used for 1-3/4" (4 mm) doors. |
|||||
| No spacer kit required for 1-3/8" (35 mm) doors. | |||||
| 9875-48 - By-pass set for two 24" doors | 48" (1219 mm) | 183.60 | 137420 | 6 | |
| 9875-60 - By-pass set for two 30" doors | 60" (1524 mm) | 231.70 | 137421 | ||
| 9875-72 - By-pass set for two 36" doors | 72" (1829 mm) | 244.10 | 137422 | ||
| 9875-96 - By-pass set for two 48" doors | 96" (2438 mm) | 273.60 | 137423 | ||
| Grooved fascia for painting | |||||
| 9809-72 - Aluminum grooved fascia, 3-7/8" (98 mm) thick | 72" (1829 mm) | AL | 92.65 | 096646 | 10 |
| 9809-96 - Aluminum grooved fascia, 3-7/8" (98 mm) thick | 96" (2438 mm) | AL | 121.35 | 096647 | |
| 9801-72 - Aluminum box track | 72" (1829 mm) | AL | 49.90 | 096641 | 10 |
| 9801-96 - Aluminum box track | 96" (2438 mm) | AL | 67.00 | 096642 | |
| 9801-120 - Aluminum box track | 120" (3048 mm) | AL | 84.05 | 096643 | |
| 9801-144 - Aluminum box track | 144" (3658 mm) | AL | 109.75 | 096644 | |
| 9801-192 - Aluminum box track | 192" (4877 mm) | AL | 146.20 | 096645 | |
| Components Description | |||||
|
9574
Spacer Kit - For use with 9801 - For doors 1-3/8" and 1-3/4" thick |
4.95 | 015991 | 5 | ||
| 9827 | 40.60 | 018292 | 10 | ||
| 4 Wheel Ball bearing Hanger w/ Top Mount Plate | |||||
| 9909 | US2C | 8.10 | 097528 | 20 | |
|
Heavy Duty Adjustable Door Guide
From 3/4" to 1-3/4" (19 mm to 44 mm) |
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9885 and 9886 Packaged Sets - By-Pass
Sliding Door Hardware - 9570 Packaged Sets - Bi-Fold
|
9569 - 1 ea. 9572 hanger w/ top mount plate, 9618 pivot set, 9559 aligner, 9558
knob and 9815 bumper stop, 3 ea. 9220 hinges |
23.50 | 016913 | 10 | |
|---|---|---|---|---|
| Components Description | ||||
| 9220 | US2D | 1.80 | 099119 | 600 |
| Non-Mortise Bi-Fold Hinge with Screws | ||||
| 9558 | Wood | 1.80 | 096567 | 100 |
| Wood Knob | ||||
| Knob Diameter: 1-1/2" | ||||
| Base Diameter: 15/16" | ||||
| Fasteners: #8 x 1-3/4" PPHWS | ||||
| 9559 | US2D | 1.00 | 096568 | 200 |
| Aligner | ||||
| 9572 | US2D | 11.85 | 135316 | 20 |
| 4 Wheel Hanger w/ Top Mount Plate | ||||
| 9815 | 7.10 | 096648 | 20 | |
| Bumper Stop | ||||
| 9618 | - | 8.10 | 137182 | 10 |
| Pivot Set - For 9570 series |
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9860 and 9861 Packaged Sets - Bi-Fold
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| 9860 Packaged Sets for doors up to 125 lbs (57 kg) per panel bi-fold. | |||||
| Contents: 9821 track, 1 ea. 9894 parts bag, and 3 ea. 1741 hinges | |||||
| Heavy duty Aluminum box track & hardware. For 1-3/8"(35mm) and 1-3/4"(44mm) thick doors. | |||||
| 9860-30 - Bi-fold set for two 15" doors | 30" (762 mm) | 99.45 | 019456 | 6 | |
| 9860-36 - Bi-fold set for two 18" doors | 36" (914 mm) | 107.15 | 019452 | ||
| 9860-48 - Bi-fold set for two 24" doors | 48" (1219 mm) | 119.75 | 019451 | ||
|
9861 Packaged Sets for doors up to 125 lbs. (57 kg) per panel for multi-fold.
Contents: 9821 track, 2 ea. 9894 parts bag, and 6 ea. 1741 hinges |
|||||
| 9861-48 - Bi-fold set for four 12" doors | 48" (1219 mm) | 191.10 | 019446 | 6 | |
| 9861-60 - Bi-fold set for four 15" doors | 60" (1524 mm) | 198.10 | 019439 | ||
| 9861-72 - Bi-fold set for four 18" doors | 72" (1829 mm) | 211.85 | 019438 | ||
| 9861-96 - Bi-fold set for four 24" doors | 96" (2438 mm) | 232.35 | 019437 | ||
| 9821-59 - Aluminum box track | 59" (1499 mm) | AL | 30.90 | 019084 | 10 |
| 9821-71 - Aluminum box track | 71" (1803 mm) | AL | 38.30 | 019062 | |
| 9821-96 - Aluminum box track | 96" (2438 mm) | AL | 51.05 | 019061 | |
| 9821-144 - Aluminum box track | 144" (3658 mm) | AL | 73.95 | 019050 | |
| Parts Description | |||||
|
9894 - 1 ea. 9825 hanger w/ top mount plate, 9828 bi-fold pivot, 9815 bumper stop,
9559 aligner |
88.00 | 019435 | 10 | ||
| Components Description | |||||
| 1741 | US2D | 1.90 | 029658 | ||
| Full Mortise Plain Bearing Hinges with Screws | 50 | ||||
| 3-1/2" x 3-1/2" | |||||
| 9559 | US2D | 1.00 | 096568 | ||
| Aligner | |||||
| 9815 | 7.10 | 096648 | |||
| Bumper Stop | |||||
| 9825 | 34.95 | 135321 | |||
| Ball Bearing Hanger w/ Top Mount Plate | |||||
| 9828 | 50.50 | 018286 |
200
20 10 10 |
Sliding Door Hardware - 9890 and 9891 Packaged Sets - Bi-Fold
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9890 Packaged Sets for doors up to 125 lbs (57 kg).
Contents: 9801 track, 9827 hangers w/ top mount plate, 9828 pivots & 1741 hinges (3 ea. for 2 doors, 6 ea. for 4 doors) |
|||||
| Heavy duty aluminum box track & hardware for 1-1/8"(29mm) and 1-3/4"(44mm) thick doors. | |||||
| 9890-30 - Bi-fold set for two 15" doors | 30" (762 mm) | 106.70 | 017732 | 6 | |
| 9890-36 - Bi-fold set for two 18" doors | 36" (914 mm) | 111.15 | 017444 | ||
| 9890-48 - Bi-fold set for two 24" doors | 48" (1219 mm) | 124.55 | 017439 | ||
| 9891-48 - Bi-fold set for four 12" doors | 48" (1219 mm) | 189.50 | 017438 | 6 | |
| 9891-60 - Bi-fold set for four 15" doors | 60" (1524 mm) | 199.85 | 017437 | ||
| 9891-72 - Bi-fold set for four 18" doors | 72" (1829 mm) | 214.65 | 017436 | ||
| 9891-96 - Bi-fold set for four 24" doors | 96" (2438 mm) | 236.15 | 017434 | ||
| 9801-48 - Aluminum box track | 48" (1219 mm) | AL | 33.25 | 040426 | 6 |
| 9801-72 - Aluminum box track | 72" (1829 mm) | AL | 49.90 | 096641 | |
| 9801-96 - Aluminum box track | 96" (2438 mm) | AL | 67.00 | 096642 | |
| 9801-120 - Aluminum box track | 120" (3048 mm) | AL | 84.05 | 096643 | |
| 9801-144 - Aluminum box track | 144" (3658 mm) | AL | 109.75 | 096644 | |
| 9801-192 - Aluminum box track | 192" (4877 mm) | AL | 146.20 | 096645 | |
| Components Description | |||||
| 1741 | US2D | 1.90 | 029658 | 50 | |
|
Full Mortise Plain Bearing Hinges with Screws
3-1/2" x 3-1/2" |
|||||
| 9827 | 40.60 | 018292 | 10 | ||
| 4 Wheel Ball bearing Hanger w/ Top Mount Plate | |||||
| 9828 | 50.50 | 018286 | 10 | ||
| Heavy Duty Pivot Set with 9815 Bumper Stop |
Sliding Door Hardware - 9110 and 9130 Packaged Sets - Pocket Door
Sliding Door Hardware - 9628 | 9629 | 9630 | 9631 - Pocket Door Framed Kits
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9628 - For 3'0" wide x 9'0" high doors up to 150
lbs (68 kg) per door. |
108" (2743 mm) | AL | 245.70 | 136339 | 1 |
|
9629 - For 3'0" wide x 8'0" high doors up to 150
lbs (68 kg) per door. |
96" (2134 mm) | AL | 223.85 | 136341 | 1 |
|
9630 - For 3'0" wide x 7'0" high doors up to 150
lbs (68 kg) per door. |
84" (2134 mm) | AL | 219.30 | 136343 | 1 |
|
9631 - For 3'0" wide x 6'8" high doors up to 150
lbs (68 kg) per door. |
80" (2032 mm) | AL | 140.10 | 137180 | 1 |
Note: Packaged sets contents: 9601 track, 1 header assembly, 2 pair of split studs, 2 floor plates and 2 end brackets, 2 each 9606 ball bearing hangers w/ top mount plate,1 each 9881 bumper, and 1 each 9883 door guide set. For 1-3/8"(35mm) and 1-3/4"(44 mm) thick doors.
| Replacement Description | |||||
|---|---|---|---|---|---|
| 9601-71 - Aluminum box track | 71" (1803 mm) | AL | 24.35 | 096578 | 10 |
| 9601-84 - Aluminum box track | 84" (2134 mm) | AL | 32.90 | 045141 | |
| 9601-96 - Aluminum box track | 96" (2438 mm) | AL | 37.75 | 096579 | |
| 9601-120 - Aluminum box track | 120" (3048 mm) | AL | 42.15 | 096580 | |
| 9601-144 - Aluminum box track | 144" (3658 mm) | AL | 49.90 | 096581 | |
|
9606
4 Wheel Ball Bearing Hanger w/ Top Mount Plate |
US2D | 17.30 | 135318 | 20 | |
| 9881 | 1.00 | 096685 | 80 | ||
| Rubber Bumper | |||||
| 9883 | 3.70 | 096686 | 100 | ||
| 2-Piece Door Guide set with screws | |||||
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9678 Packaged Sets - Pocket Door
2-Piece Door Guide set with screws
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9678 Packaged Sets up to 125 lbs. (57 kg)per door.
Contents: 9601 track, 9632 parts bag. For 1-3/8"(35mm) and 1-3/4"(44mm) thick doors. Heavy duty Aluminum box track & hardware |
|||||
| 9678-72 - Pocket set for 3' door | 72" (1829 mm) | 83.20 | 136354 | 6 | |
| 9678-96 - Pocket set for 4' door | 96" (2438 mm) | 99.65 | 136356 | ||
| 9601-71 - Box track only, heavy duty aluminum | 71" (1803 mm) | AL | 24.35 | 096578 | 6 |
| 9601-84 - Box track only, heavy duty aluminum | 84" (2134 mm) | AL | 32.90 | 045141 | |
| 9601-96 - Box track only, heavy duty aluminum | 96" (2438 mm) | AL | 37.75 | 096579 | |
| 9601-120 - Box track only, heavy duty aluminum | 120" (3048 mm) | AL | 42.15 | 096580 | |
| 9601-144 - Box track only, heavy duty aluminum | 144" (3658 mm) | AL | 49.90 | 096581 | |
| Parts Description | |||||
|
9632 - 2 ea. 9605 hangers w/ top mount plate, 1 ea. 9883 door guide,
1 ea. 9881 bumper. *Up to 125 lbs (57 kg) per door.* |
32.90 | 135322 | 10 | ||
|
9633 - 2 ea. 9606 ball bearing hangers w/ top mount plate, 1 ea. 9883 door guide,
1 ea. 9881 bumper. *Up to 150 lbs (69 kg) per door.* |
54.55 | 135323 | |||
| Components Description | |||||
| 9605 | US2D | 5.55 | 135317 | 20 | |
| 4 Wheel Hanger w/ Top Mount Plate | |||||
| 9606 | US2D | 17.30 | 135318 | 20 | |
| 4 Wheel Ball Bearing Hanger w/ Top Mount Plate | |||||
| 9881 | 1.00 | 096685 | 80 | ||
| Rubber Bumper | |||||
| 9883 | 3.70 | 096686 | 100 |
Sliding Door Hardware - 9850 - Pocket Door Framed Kits
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9850 - For 4'0" wide x 8'0" high doors, up to 250
lbs.(113 kg) per door. |
96'" (2438 mm) | AL | 393.25 | 139083 | 1 |
|
9850 - For 4'0" wide x 8'6" high doors, up to 250
lbs.(113 kg) per door. |
102" (2591 mm) | AL | 458.45 | 139085 | 1 |
Note: Packaged sets contents: 9801 track, 1 header assembly, 3 pairs of split studs, 2 each 9827 hangers w/ top mount plate, 1 ea. 9881 bumper, 1ea. 9883 door guide set, 3 floor plates and 2 end brackets. For 1-3/8"(35mm) and 1-3/4"(44mm) thick doors.
| Replacement Description | |||||
|---|---|---|---|---|---|
| 9801-72 - Box Track only, Heavy Duty Aluminum | 72" (1829 mm) | AL | 49.90 | 096641 | 5 |
| 9801-96 - Box Track only, Heavy Duty Aluminum | 96" (2438 mm) | AL | 67.00 | 096642 | |
| 9801-120 - Box Track only, Heavy Duty Aluminum | 120" (3048 mm) | AL | 84.05 | 096643 | |
| 9801-144 - Box Track only, Heavy Duty Aluminum | 144" (3658 mm) | AL | 109.75 | 096644 | |
| 9801-192 - Box Track only, Heavy Duty Aluminum | 192" (4877 mm) | AL | 146.20 | 096645 | |
| 9827 | 40.60 | 018292 | 10 | ||
| 4 Wheel Ball bearing Hanger w/ Top Mount Plate | |||||
| 9881 | 1.00 | 096685 | 80 | ||
| Rubber Bumper | |||||
| 9883 | 3.70 | 096686 | 100 | ||
| 2-Piece Door Guide set with screws | |||||
Sliding Door Hardware - 9878 Packaged Sets - Pocket Door
Sliding Door Hardware - 9901 Packaged Sets - Pocket Door
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| 9901 Packaged Sets for doors up to 250 lbs. (113 kg) | |||||
| Contents: 9821 track, 9895 parts bag | |||||
| Extra heavy duty Aluminum box track & hardware for 1-3/8"(35mm) and 1-3/4"(44mm) thick doors. | |||||
| 9901-72 - Pocket set for 3' doors | 72" (1829 mm) | 141.70 | 019361 | 6 | |
| 9901-96 - Pocket set for 4' doors | 96" (2438 mm) | 158.60 | 019358 | ||
| 9821-59 - Aluminum box track | 59" (1499 mm) | AL | 30.90 | 019084 | 10 |
| 9821-71 - Aluminum box track | 71" (1803 mm) | AL | 38.30 | 019062 | |
| 9821-96 - Aluminum box track | 96" (2438 mm) | AL | 51.05 | 019061 | |
| 9821-144 - Aluminum box track | 144" (3658 mm) | AL | 73.95 | 019050 | |
| Parts Description | |||||
|
9895 - 2 ea. 9825 hangers w/ top mount plate,
1 ea. 9883 guide set, 1 ea. 9881 bumper |
69.90 | 019408 | 10 | ||
| Components Description | |||||
| 9825 | 34.95 | 135321 | 10 | ||
| Ball Bearing Hanger w/ Top Mount Plate | |||||
| 9881 | 1.00 | 096685 | 80 | ||
| Rubber Bumper | |||||
| 9883 | 3.70 | 096686 | 100 | ||
| 2-Piece Door Guide set with screws |
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
Sliding Door Hardware - 9710 Packaged Sets - Wall-Mount
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
||
|---|---|---|---|---|---|---|
| 9710 Packaged Sets for heavy duty single doors and bi-parting doors up to 250 lbs. (113kg) | ||||||
| Contents of Packaged Sets: 9703 track, 9704 fascia, 9705 end caps and 9711 parts bags. | ||||||
| (2 ea. 9711 parts bags included in 144" pkg set.) | ||||||
| Heavy duty aluminum wall-mount box track, anodized fascia, end caps and hardware for 1"(25mm and 1-3/4"(44mm) thick doors. | ||||||
| 9710-60 - Wall-Mount Packaged Set for 1 Door | 60" (1524 mm) | CLA | 222.05 | 160955 | 1 | |
| 9710-72 - Wall-Mount Packaged Set for 1 Door | 72" (1829 mm) | CLA | 235.65 | 160958 | ||
| 9710-96 - Wall-Mount Packaged Set for 1 Door | 96" (2438 mm) | CLA | 271.90 | 160959 | ||
| 9710-144 - Wall-Mount Packaged Set for 1 or 2 Doors | 144" (3658 mm) | CLA | 453.20 | 160991 | ||
| 9710-60 - Wall-Mount Packaged Set for 1 Door | 60" (1524 mm) | DBA | 277.60 | 160961 | 1 | |
| 9710-72 - Wall-Mount Packaged Set for 1 Door | 72" (1829 mm) | DBA | 294.60 | 160962 | ||
| 9710-96 - Wall-Mount Packaged Set for 1 Door | 96" (2438 mm) | DBA | 339.90 | 160963 | ||
| 9710-144 - Wall-Mount Packaged Set for 1 or 2 Doors | 144" (3658 mm) | DBA | 577.05 | 160989 | ||
| 9703-60 - Wall-Mount Track-mill finish | 60" (1524 mm) | ALM | 66.65 | 160984 | 5 | |
| 9703-72 - Wall-Mount Track-mill finish | 72" (1829 mm) | ALM | 70.70 | 160985 | ||
| 9703-96 - Wall-Mount Track-mill finish | 96" (2438 mm) | ALM | 81.60 | 160986 | ||
| 9703-144 - Wall-Mount Track-mill finish | 144" (3658 mm) | ALM | 156.55 | 160988 | ||
| 9703-60 - Wall-Mount Track- dark bronze anodized | 60" (1524 mm) | DBA | 103.00 | 160993 | 5 | |
| 9703-72 - Wall-Mount Track- dark bronze anodized | 72" (1829 mm) | DBA | 109.70 | 160994 | ||
| 9703-96 - Wall-Mount Track- dark bronze anodized | 96" (2438 mm) | DBA | 126.70 | 160995 | ||
| 9703-144 - Wall-Mount Track- dark bronze anodized | 144" (3658 mm) | DBA | 243.10 | 160996 | ||
| 9704-60 - Wall-Mount Fascia- clear anodized | 60" (1524 mm) | CLA | 86.65 | 161003 | 5 | |
| 9704-72 - Wall-Mount Fascia- clear anodized | 72" (1829 mm) | CLA | 91.95 | 161004 | ||
| 9704-96 - Wall-Mount Fascia- clear anodized | 96" (2438 mm) | CLA | 106.10 | 161005 | ||
| 9704-144 - Wall-Mount Fascia- clear anodized | 144" (3658 mm) | CLA | 203.95 | 161006 | ||
| 9704-60 - Wall-Mount Fascia-dark bronze anodized | 60" (1524 mm) | DBA | 133.90 | 161009 | 5 | |
| 9704-72 - Wall-Mount Fascia-dark bronze anodized | 72" (1829 mm) | DBA | 142.85 | 161010 | ||
| 9704-96 - Wall-Mount Fascia-dark bronze anodized | 96" (2438 mm) | DBA | 164.55 | 161011 | ||
| 9704-144 - Wall-Mount Fascia-dark bronze anodized | 144" (3658 mm) | DBA | 315.20 | 161012 | ||
| Parts Description | ||||||
| 9705 - End Cap Set- anodized | CLA | 68.00 | 161013 | 10 | ||
| DBA | 81.60 | 161014 | 10 | |||
| 9711 - Parts Bag: 2 ea. 9827 hangers w/ top mount plate, 1 ea. 9115 bottom door | 66.95 | 161015 | 10 | |||
| guide, 4 ea 9815 bumper stops | ||||||
| Components Description | ||||||
| 9115 | US2C | 8.85 | 096522 | 50 | ||
| Bottom Door Guide | ||||||
| 9815 | 7.10 | 096648 | 20 | |||
| Bumper Stop | ||||||
9827
4 Wheel Ball Bearing Hanger w/ Top Mount Plate
40.60 018292 10
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
| - Distance | 330D | US3 | 086840 | 20 | |
| 11.6 | Pocket Door Latch | US5 | 086841 | ||
| Material: Cast brass | US10 | Refer | 066707 | ||
| Fits: 1-3/8" - 1-3/4" door | US10B | to Trim | 056768 | ||
| Size: 2-3/4" x 2-1/2" | US15 | section | 078972 | ||
| Finger Pull Extends: 1-3/8" | US15A | for | 054061 | ||
| Fasteners: #6 x 5/8" OPHWS | US19 | pricing | 054570 | ||
| US26 | 086837 | ||||
| US26D | 086838 | ||||
| - Direct | 330L | US3 | 143162 | 20 | |
| IN F | Privacy Pocket Door Latch | US5 | 143164 | ||
| 12. | Material: Brass | US10 | Refer | 014365 | |
| Size: 2-3/4" x 2-1/2" | US10B | to Trim | 143158 | ||
| Finger Pull Extends: 1-3/8" | US15 | section | 143159 | ||
| Strike: 1" x 2-1/4" | US15A | for | 143160 | ||
| 1-3/8" doors | US19 | pricing | 143166 | ||
| Fasteners: #6 x 5/8" OPHWS; #6 x 3/4" FPHWS | US26 | 1 3 | 143167 | ||
| US26D | 143161 | ||||
| 330M | US3 | 143172 | 20 | ||
| 1 18 1 | Privacy Pocket Door Latch | US5 | 143172 | 20 | |
| 19. | Material: Brass | US10 | Refer | 143176 | |
| The second | Size: 2-3/4" x 2-1/2" | US10B | to Trim | 143169 | |
| Finger Pull Extends: 1-3/8" | US15 | section | 143173 | ||
| Strike: 1" x 2-1/4" | US15A | for | 143174 | ||
| 1-3/4" doors | US19 | pricing | 143174 | ||
| Fasteners: #6 x 5/8" OPHWS; #6 x 3/4" FPHWS | US26 | 1 3 | 143173 | ||
| , , | US26D | 143170 | |||
| 2000 | 1.00 | F0 | |||
| 1741 | US2D | 1.90 | 029658 | 50 | |
| Full Mortise Plain Bearing | |||||
| Hinges with Screws | |||||
| 3-1/2" x 3-1/2" | |||||
| 2610 | US3 | 0.95 | 013049 | 500 | |
| Finger Pull | US4 | 0.95 | 071953 | ||
| Material: Brass | US5 | 0.95 | 067282 | ||
| Overall Diameter: 31/32" | US10A | 0.95 | 068711 | ||
| Finger Pull Diameter: 3/4" | US15 | 0.95 | 040589 | ||
| Pull Clearance: 5/16" | US15A | 0.95 | 040590 | ||
| Projection: 1/32" | US26 | 0.95 | 013047 | ||
| US26D | 0.95 | 071169 |
2620
US3
1.60
013081
50
Round Flush Pull US4 1.60 072997 Material: Brass US5 1.60 072148 Overall Diameter: 31/32" US10A 1.60 072534 Finger Pull Diameter: 1-11/16" US15 1.60 072624 Pull Clearance: 11/32" US15A 1.60 072158 Projection: 5/64" US26 1.60 072554 US26D 1.60 075322
For additional components, refer to component section. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. U/M is each unless otherwise noted.
| Description | Finish |
2018
List |
Stock
No. |
|
|---|---|---|---|---|
| 2630 | US3 | 4.15 | 051919 | |
| Round Flush Pull | US4 | 4.15 | 073783 | |
| Material: Brass | US5 | 4.15 | 053163 | |
| Overall Diameter: 2-7/16" | US10A | 4.15 | 073053 | |
| Finger Pull Diameter: 2-1/16" | US15 | 4.15 | 073056 | |
| Pull Clearance: 11/32" | US15A | 4.15 | 005307 | |
| Projection: 3/32" | US26 | 4.15 | 023430 | |
| US26D | 4.15 | 023431 | ||
| 2640 | US3 | 5.85 | 096760 | |
| Oblong Flush Pull | US4 | 5.85 | 075056 | |
| Material: Brass | US5 | 5.85 | 074270 | |
| Size: 1-5/16" x 2-3/4" | US10A | 5.85 | 074533 | |
| Cup Clearance: 5/16" | ||||
| Fasteners: #6 x 5/8" OPHWS | US15 | 5.85 | 074711 | |
| US15A | 5.85 | 074350 | ||
| US26 | 5.85 | 026751 | ||
| US26D | 5.85 | 074664 | ||
| 9101-60 | 60" (1524 mm) | AL | 54.85 | 023278 |
| I-beam track, heavy duty aluminum | 72" (1829 mm) | AL | 68.65 | 096508 |
| 84" (2134 mm) | AL | 81.80 | 096509 | |
| 96" (2438 mm) | AL | 87.45 | 096707 | |
| 120" (3048 mm) | AL | 114.40 | 096511 | |
| 144" (3658 mm) | AL | 137.65 | 096512 | |
| 192" (4877 mm) | AL | 182.75 | 096513 | |
|
2 Wheel Hanger
9105 4 Wheel Hanger |
US2C | 37.50 | 135312 | |
|
9109
Parts Bag: 2 ea. 9102 two wheel hangers, 1 ea. 9115 floor guide |
56.95 | 135690 | ||
|
9111
Bottom Roller Guide |
US2C | 4.10 | 096516 | |
| 9113 | AL | 53.90 | 135314 | |
|
Stop
9114-72 - Bottom Guide Track- 72" 9114-96 - Bottom Guide Track- 96" 9114-144 - Bottom Guide Track- 144" |
72" (1829 mm)
96" (2438 mm) 144" (3658 mm) |
AL
AL AL |
40.60
53.90 81.00 |
096519
096520 096521 |
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|
|---|---|---|---|---|---|
|
9121
Roller Guide - For use with 9122 guide |
US2C | 16.65 | 137181 | 20 | |
| 9122-48 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 48" (1219 mm) | AL | 21.15 | 096557 | 5 |
| 9122-60 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 60" (1524 mm) | AL | 26.65 | 096558 | 5 |
| 9122-72 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 72" (1829 mm) | AL | 31.25 | 096559 | 5 |
| 9122-96 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 96" (2438 mm) | AL | 41.45 | 096560 | 5 |
| 9122-120 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 120" (3048 mm) | AL | 52.20 | 096605 | 5 |
| 9122-132 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 132" (3353 mm) | AL | 56.95 | 096606 | 5 |
| 9122-144 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 144" (3658 mm) | AL | 62.30 | 096607 | 5 |
| 9122-192 - Bottom Guide Channel - 3/4" wide x 5/8" tall | 192" (4877 mm) | AL | 83.20 | 096608 | 5 |
|
9128
Bottom Pivot Bolt and Door Plate with Bottom Pivot Floor Bracket |
US2C | 39.60 | 023150 | 10 | |
|
9129
Parts Bag: 2 ea. 9105 4-wheel hangers, 1 ea. 9115 floor guide |
84.05 | 135315 | 10 | ||
|
9169
Top Pivot Assembly |
US2C | 8.85 | 096635 | 10 | |
|
9200
Hanger - Small 3/8" (10 mm) offset A |
1.80 | 016575 | 100 | ||
|
9201
Hanger - Large 11/16" (18 mm) offset B |
US2C | 1.80 | 096561 | 100 | |
|
9202
Twin Wheel Hanger - Large 11/16" (18 mm) offset B |
US2C | 3.35 | 096562 | 100 | |
|
9203
Twin Wheel Hanger - Small 3/8" (10 mm) offset A |
US2C | 3.35 | 017007 | 100 | |
|
9220
Non-Mortise Bi-Fold Hinge with Screws |
US2D | 1.80 | 099119 | 600 | |
| 9262 - Keyed Lock for pocket door applications | US3 | 43.70 | 098994 | 6 | |
| US26D | 44.85 | 016724 | |||
| 9264 - Keyed Lock for bifold applications | US3 | 37.50 | 016725 | 6 | |
| Keyed Lock - Keyed Alike | US3 | 37.50 | 002801 | ||
| 9268 - Keyed Lock for bypass applications | US3 | 42.15 | 016726 | 6 | |
| US26D | 42.95 | 099251 |
Keyed Lock - Keyed Alike US3 42.15 002804 6
US26D 42.95 002802
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
| 9351 | 2.65 | 096563 | 50 | |
| Door Guide | ||||
|
9353
Adjustable Door Guide |
2.65 | 096564 | 20 | |
| 9354 | US2C | 1.80 | 003633 | 50 |
| Carpet Riser | US2D | 1.80 | 096565 | 50 |
| 9400 | US2C | 3.35 | 017417 | 100 |
| Cam Adjustable Hanger - Small 3/8" (10 mm) offset A | ||||
| 9401 | US2C | 3.35 | 096566 | 100 |
| Cam Adjustable Hanger - Large 11/16" (18 mm) offset B | ||||
|
9540
Parts Bag: 4 ea. 9401 hangers, 2 ea. 2610 pulls, 1 ea. 9351 guide |
9.55 | 017419 | 10 | |
|
9544
Parts Bag: 4 ea. 9202 hangers, 2 ea. 2630 pulls, 1 ea. 9351 guide |
14.15 | 017035 | 10 | |
| Used to increase door weight capacity to 75 lbs | ||||
|
9558
Wood Knob |
Wood | 1.80 | 096567 | 100 |
|
Knob Diameter: 1-1/2"
Base Diameter: 15/16" |
||||
| Fasteners: #8 x 1-3/4" PPHWS | ||||
|
9559
Aligner |
US2D | 1.00 | 096568 | 200 |
| 9566 | US3 | 6.80 | 099824 | 100 |
| Knob | US4 | 7.65 | 098635 | |
| Material: Zinc | US5 | 7.65 | 028859 | |
| Knob Diameter: 1-1/4" | US10A | 7.65 | 098634 | |
| Projection: 1" | US10B | 7.65 | 098633 | |
| Fasteners: #8 - 32 x 2" PPHMS; #8 - 32 x 1-3/4" PPHMS | US15 | 7.65 | 098632 | |
| US15A | 7.65 | 098629 | ||
| US26 | 6.80 | 098628 | ||
US26D 7.65 098627
US2D 11.85 135316 20
4.95 019014 5
4.95 015991 5
27.45 137167 5
| 10 | · 0 |
|---|---|
| All I | 100 |
| 0 | 1000117 |
| VII | |
| - 74 |
Parts Bag: 1 ea. 9572 hanger w/ top mount plate, 9618 pivot set, 9559 aligner, 9558 knob and 9815 bumper stop, 3 ea. 9220 hinges
9573 Spacer Kit - 3/8" use with 9821 track - For doors 1-3/4" thick
9574 Spacer Kit - For use with 9801 - For doors 1-3/8" and 1-3/4" thick
9575 Parts Bag: 4 ea. 9572 hangers w/ top mount plate, 1 ea. 9909
| 9601-71 - Aluminum box track | 71" (1803 mm) | AL | 24.35 | 096578 | |
| 9601-84 - Aluminum box track | 84" (2134 mm) | AL | 32.90 | 045141 | |
| 9601-96 - Aluminum box track | 96" (2438 mm) | AL | 37.75 | 096579 | |
| 9601-120 - Aluminum box track | 120" (3048 mm) | AL | 42.15 | 096580 | |
| 9601-144 - Aluminum box track | 144" (3658 mm) | AL | 49.90 | 096581 | |
| 9602-46 - Double box track only, heavy duty aluminum | 46" (1168 mm) | AL | 32.90 | 096582 | 5 |
| 9602-58 - Double box track only, heavy duty aluminum | 58" (1473 mm) | AL | 40.60 | 096583 | |
| 9602-70 - Double box track only, heavy duty aluminum | 70" (1778 mm) | AL | 46.85 | 096584 | |
| 9602-94 - Double box track only, heavy duty aluminum | 94" (2388 mm) | AL | 60.75 | 096585 | |
| 9602-118 - Double box track only, heavy duty aluminum | 118" (2997 mm) | AL | 73.25 | 096586 | |
| 9605 | US2D | 5.55 | 135317 | 20 | |
|---|---|---|---|---|---|
| 9603-144 - Aluminum box track with fascia | 144" (3658 mm) | AL | 175.05 | 029360 | |
| 9603-120 - Aluminum box track with fascia | 120" (3048 mm) | AL | 142.40 | 029359 | |
| 9603-96 - Aluminum box track with fascia | 96" (2438 mm) | AL | 113.70 | 135291 | |
| 9603-72 - Aluminum box track with fascia | 72" (1829 mm) | AL | 87.20 | 135290 | |
| 9603-60 - Aluminum box track with fascia | 60" (1524 mm) | AL | 73.25 | 135289 | |
| 9603-48 - Aluminum box track with fascia | 48" (1219 mm) | AL | 60.75 | 135288 | 5 |
9602-142 - Double box track only, heavy duty aluminum 142" (3607 mm) AL 87.20 096587
4-Wheel Hanger w/ Top Mount Plate
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted.
4. Packaged sets and parts bags are available with optional components by special quotation.
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted.
Parts Bag: 2 ea. 9816 hangers w/ top mount plate, 1 ea. 9883 guide set, 1 ea. 9881 bumper
| 9801-72 - Box Track, Heavy Duty Aluminum | 72" (1829 mm) | AL | 49.90 | 096641 | 5 |
|---|---|---|---|---|---|
| 9801-96 - Box Track, Heavy Duty Aluminum | 96" (2438 mm) | AL | 67.00 | 096642 | |
| 9801-120 - Box Track, Heavy Duty Aluminum | 120" (3048 mm) | AL | 84.05 | 096643 | |
| 9801-144 - Box Track, Heavy Duty Aluminum | 144" (3658 mm) | AL | 109.75 | 096644 | |
| 9801-192 - Box Track, Heavy Duty Aluminum | 192" (4877 mm) | AL | 146.20 | 096645 | |
| 9803-48 - Double Box Track w/ Fascia, Heavy Duty Aluminum | 48" (1219 mm) | AL | 104.30 | 022482 | 2 |
| 9803-60 - Double Box Track w/ Fascia, Heavy Duty Aluminum | 60" (1524 mm) | AL | 130.75 | 022483 | |
| 9803-72 - Double Box Track w/ Fascia, Heavy Duty Aluminum | 72" (1829 mm) | AL | 155.60 | 022484 | |
| 9803-96 - Double Box Track w/ Fascia, Heavy Duty Aluminum | 96" (2438 mm) | AL | 208.35 | 022485 | |
|
9803-120 - Double Box Track w/ Fascia, Heavy Duty
Aluminum |
120" (3048 mm) | AL | 259.70 | 022486 | |
|
9803-144 - Double Box Track w/ Fascia, Heavy Duty
Aluminum |
144" (3658 mm) | AL | 311.85 | 022487 | |
| 9809-72 - Aluminum Fascia, 3-7/8" (98 mm) high | 72" (1829 mm) | AL | 92.65 | 096646 | 10 |
| 9809-96 - Aluminum Fascia, 3-7/8" (98 mm) high | 96" (2438 mm) | AL | 121.35 | 096647 | |
| 9810-46 - Aluminum Track | 46-3/8" (1178 mm) | AL | 15.80 | 019702 | 10 |
| 9810-58 - Aluminum Track | 58-3/8" (1483 mm) | AL | 18.85 | 019703 | |
| 9810-70 - Aluminum Track | 70-3/8" (1788 mm) | AL | 22.90 | 019704 | |
| 9810-93 - Aluminum Track | 93-3/8" (2372 mm) | AL | 29.65 | 019705 | |
| 9810-120 - Aluminum Track | 120" (3048 mm) | AL | 37.50 | 016570 | |
| 9810-144 - Aluminum Track | 144" (3658 mm) | AL | 49.90 | 026064 |
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
2 ea. 2610 pulls, 1 ea. 9353 guide set. For 1" to 1-1/8" doors, specify 9841 parts bag.
| 9815 | 7.10 | 096648 | 20 |
|---|---|---|---|
| Bumper Stop |
| 9820-48 - Aluminum track with 1-3/4" grooved fascia | 48" (1219 mm) | AL | 29.05 | 000461 | 5 |
|---|---|---|---|---|---|
| 9820-60 - Aluminum track with 1-3/4" grooved fascia | 60" (1524 mm) | AL | 36.05 | 000462 | |
| 9820-72 - Aluminum track with 1-3/4" grooved fascia | 72" (1829 mm) | AL | 42.15 | 000463 | |
| 9820-84 - Aluminum track with 1-3/4" grooved fascia | 84" (2134 mm) | AL | 56.95 | 028175 | |
| 9820-96 - Aluminum track with 1-3/4" grooved fascia | 96" (2438 mm) | AL | 62.30 | 099664 | |
| 9820-120 - Aluminum track with 1-3/4" grooved fascia | 120" (3048 mm) | AL | 71.75 | 000464 | |
| 9820-144 - Aluminum track with 1-3/4" grooved fascia | 144" (3658 mm) | AL | 93.45 | 000460 | |
| 9821-59 - Aluminum box track | 59" (1499 mm) | AL | 30.90 | 019084 | 10 |
| 9821-71 - Aluminum box track | 71" (1803 mm) | AL | 38.30 | 019062 | |
| 9821-96 - Aluminum box track | 96" (2438 mm) | AL | 51.05 | 019061 | |
| 9821-144 - Aluminum box track | 144" (3658 mm) | AL | 73.95 | 019050 | |
| 9824 | 27.80 | 135320 | 20 | ||
| 4-Wheel Hanger w/ Top Mount Plate | |||||
| 9825 | 34.95 | 135321 | 10 | ||
| 4-Wheel Ball Bearing Hanger w/ Top Mount Plate | |||||
| 9827 | 40.60 | 018292 | 10 | ||
| 4-Wheel Ball bearing Hanger w/ Top Mount Plate |
9828 Heavy Duty Pivot Set with 9815 Bumper Stop
50.50 018286 10
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
9841
Parts Bag: 4 ea. 9402 hangers, 2 ea. 9865 pulls, 1 ea. 9351 guide |
8.10 | 099665 | 10 | |
|
9842
Parts Bag: 4 ea. 9402 hangers, 2 ea. 9630 pulls, 1 ea. 9351 guide |
11.10 | 017424 | 10 | |
|
9843
Parts Bag: 4 ea. 9401 hangers, 2 ea. 9865 pulls, 1 ea. 9351 guide. Used to increase door weight capacity to 75 lbs |
12.65 | 016912 | 10 | |
|
9865
Plastic Pull Overall Diameter: 1-31/32" Finger Pull Diameter: 1-19/32" Pull Clearance: 11/32" Projection: 5/64" |
Plastic | 1.00 | 098993 | 50 |
|
9877
Door Guide, 2 pieces required per door |
1.80 | 016843 | 50 | |
|
9880
Stop |
US2C | 1.80 | 096684 | 10 |
|
9881
Rubber Bumper |
1.00 | 096685 | 80 | |
|
9882
Pocket Door Edge Pull Material: Brass Finger Pull Extends: 3/4" Faceplate: 3/4" x 3-7/8" Fasteners: #6 x 5/8" FPHWS |
US3
US4 US10 US10B US26 US26D |
14.60
17.65 14.60 17.65 17.65 17.65 |
049582
049583 049578 049580 049579 049581 |
100 |
|
9883
2-Piece Door Guide Set with Screws |
3.70 | 096686 | 100 | |
|
9884
Pocket Door Edge Pull Material: Zinc Finger Pull Extends: 1-1/16" Faceplate: 21/32" x 3-1/2" |
US3 | 7.75 | 099056 | 40 |
Fasteners: #6 x 5/8" FPHWS
1. For additional components, refer to component section. 2. Items with the price in bold and red are Quick Ship items and ship in 24 hours. Please use stock number when ordering. 3. U/M is each unless otherwise noted. 4. Packaged sets and parts bags are available with optional components by special quotation.
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
9889
1-Piece Guide |
1.80 | 096687 | 20 | |
|
9892
Parts Bag: 4 ea. 9824 4-wheel hangers w/ top mount plate, 1 ea. 9909 guide, 1 ea. 9573 spacer kit |
52.70 | 019421 | 10 | |
|
9893
Parts Bag: 4 ea. 9825 4-wheel ball bearing hangers w/ top mount plate, 1 ea. 9909 guide, 1ea. 9573 spacer kit |
98.60 | 019418 | 10 | |
|
9894
Parts Bag: 1 ea. 9825 4-wheel ball bearing hanger w/ top mount plate, 1 ea. 9828 pivot set with 9815 bumper stop, 9559 aligner |
88.00 | 019435 | 10 | |
|
9895
Parts Bag: 2 ea. 9825 4-wheel ball bearing hangers w/ top mount plate, 1 ea. 9883 guide, 1 ea. 9881 bumper |
69.90 | 019408 | 10 | |
|
9900
Reversible Side Mount Bracket |
US2C | 7.10 | 003775 | 20 |
|
9909
Heavy Duty Adjustable Door Guide From 3/4" to 1-3/4" (19 mm to 44 mm) |
US2C | 8.10 | 097528 | 20 |
Sliding Door Hardware - 9400 Series Stainless Barn Door
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
9432 Packaged Sets - Top Mount Stick 2m SS Round Rail
Includes stainless steel track with two end caps, hangers with wall brackets, one bottom door guide, two track stops, mounting and installation hardware |
||||
| 9432-78 - Top Mount Stick 2m (78-3/4") SS Round Rail | 32D | 525.00 | 183635 | 1 |
| 9432-96 - Top Mount Stick 2m (96-3/4") SS Round Rail | 32D | 610.00 | 183636 | 1 |
| 9433 Packaged Sets - Top Mount Dual Wheel 2m SS Round Rail |
|---|
| Includes stainless steel track with two end caps, hangers with wall brackets, |
| one bottom door guide, two track stops, mounting and installation hardware |
| 9433-78 - Top Mount Dual Wheel 2m (78-3/4") SS Round Rail | 32D | 590.00 | 183637 | 1 |
|---|---|---|---|---|
| 9433-96 - Top Mount Dual Wheel 2m (96-3/4") SS Round Rail | 32D | 733.35 | 183638 | 1 |
9435 Packaged Sets - Top Mount Spoke Wheel 2m SS Round Rail Includes stainless steel track with two end caps, hangers with wall brackets, one bottom door guide, two track stops, mounting and installation hardware
| 9435-78 - Top Mount Spoke Wheel 2m (78-3/4") SS Round Rail | 32D | 530.00 | 183641 | 1 |
|---|---|---|---|---|
| 9435-96 - Top Mount Spoke Wheel 2m (96-3/4") SS Round Rail | 32D | 595.00 | 183642 | 1 |
9436 Packaged Sets - Face Mount Strap Stick 2m SS Round Rail Includes stainless steel track with two end caps, hangers with wall brackets, one bottom door guide, two track stops, mounting and installation hardware
| one bottom door guide, two track stops, mounting and installation hardware | ||||
|---|---|---|---|---|
| 9436-78 - Face mount Strap Stick 2m (78-3/4") SS Round Rail | 32D | 580.00 | 183643 | 1 |
9437 Packaged Sets - Face Mount Strap Dual Wheel 2m SS Round Rail
Includes stainless steel track with two end caps, hangers with wall brackets, one bottom door guide, two track stops, mounting and installation hardware
| 9437-78 - Face mount Strap Dual Wheel 2m (78-3/4") SS Round Rail | 32D | 782.80 | 183646 | 1 |
|---|---|---|---|---|
9438 Packaged Sets - Face Mount Strap Triangle 2m SS Round Rail
Includes stainless steel track with two end caps, hangers with wall brackets, one bottom door guide, two track stops, mounting and installation hardware
| 9438-78 - Face Mount Strap Triangle 2m (78-3/4") SS Round Rail | 32D | 760.00 | 183650 | 1 |
| 9438-96 - Face Mount Strap Triangle 2m (96-3/4") SS Round Rail | 32D | 840.00 | 183651 | 1 |
|---|
9462 Packaged Sets - Flat Rail Stick Strap SS Flat Track
Includes stainless steel track, hangers with wall brackets, one bottom door guide, two track stops, mounting and installation hardware
| 9462-78 - Flat Rail Stick Strap SS 72" Flat Track | 32D | 666.70 | 183683 | 1 |
|---|
|
9462-96 - Flat Rail Stick Strap SS 96" Flat Track
32D |
733.35 | 183684 | 1 |
|---|
Sliding Door Hardware - Stainless Barn Door Components
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
1-269-8663
Round Rail Connector SS304 satin nickel |
32D | 32.95 | 181901 | 1 |
|
1-269-8664
Flat Rail Connector SS304 satin nickel |
32D | 32.95 | 181902 | 1 |
|
1-269-8665
Tool set for 05WG; 06WG; 07WG (round rail) |
3.45 | 183156 | 1 | |
|
1-269-8666
Tool set for 01W; 02W (round rail) |
32D | 3.45 | 183163 | 1 |
|
1-269-8667
End Cap |
32D | 8.80 | 183164 | 1 |
|
1-269-8668
Guide for wood door |
5.50 | 183165 | 1 | |
|
1-269-8669
Door Stop |
32D | 38.45 | 183166 | 1 |
|
1-269-8670
Guide for glass door |
32D | 27.50 | 183167 | 1 |
|
1-269-8671
Top Mount Stick Sliding Door Roller for Wood, SS304 Satin |
32D | 137.35 | 183168 | 1 |
|
1-269-8672
Top Mount Dual Wheel Sliding Door Roller for Wood, SS304 Satin |
32D | 384.55 | 183170 | 1 |
|
1-269-8673
Top Mount Spoke Wheel Sliding Door Roller for Wood, SS304 Satin |
32D | 329.60 | 183171 | 1 |
|
1-269-8674
Strap Stick Sliding Door Roller for Wood and Glass, SS304 Satin |
32D | 274.70 | 183172 | 1 |
|
1-269-8675
Strap Dual Wheel Sliding Door Roller for Wood and Glass, SS304 Satin |
32D | 466.95 | 183173 | 1 |
|
1-269-8676
Strap Triangle Sliding Door Roller for Wood and Glass, SS304 Satin |
32D | 329.60 | 183176 | 1 |
Sliding Door Hardware - Stainless Barn Door Components
| Description | Finish |
2018
List |
Stock
No. |
Case
Qty. |
|---|---|---|---|---|
|
1-269-8677
Flat Rail Stick Sliding Door Carrier for Wood SS304 Satin |
32D | 184.05 | 183179 | 1 |
|
1-269-8678
Flat Rail Door Stopper Left, SS304 Satin |
32D | 54.95 | 183180 | 1 |
|
1-269-8679
Flat Rail Door Stopper Right, SS304 Satin |
32D | 54.95 | 183181 | 1 |
|
1-269-8680
Flat Rail Anti Jump |
32D | 3.30 | 183182 | 1 |
Conestoga Barn Door - How to Order
IMPORTANT:
- 1. Track is ordered separately from hardware kit.
- 2. Track and Carrier Hardware are shipped in separate cartons.
Single Door Solution:
1. 9450 Track: Specify length (72" or 96").
2. Carrier Hardware Kit: Specify style – Includes all mounting hardware.
Example:
9450 - 72 / 9450 - 96
Bi-Part Door Solution:
If using two doors that are 3' wide, order a 6' track per door, for a total of 12'. This allows the doors to clear the door opening when in the open position. Order one carrier hardware kit per door and one Splice Kit.
To Order:
1. 9450 Track: Specify quantity and length.
Example:
9450 - 72 / 9450 - 96
2. Carrier Hardware Kit: Specify quantity and carrier style. Example: Order 2 of part number 9453, 5" hook carrier style – Includes all mounting hardware.
3. Splice Kit: Order 1 of part number 1-269-8691 Flat Rail Splice Kit.
| Stock Number |
Hager Part
Number |
Description |
2018
List |
|---|---|---|---|
| Conestoga Barn Door | |||
| Rail Only | |||
| 186243 | 9450-72 | 72" Black Powder Coated Flat Rail | $113.35 |
| 186251 | 9450-96 | 96" Black Powder Coated Flat Rail | $158.70 |
| fasteners. | Hanger Kits Less Rail: All kits include two carriers, stops, floor guide and rail mounting brackets and | ||
| 188467 | 9452 | 3" Hook Carrier Kit Less Rail - Black Powder Coated | $570.70 |
| 188468 | 9453 | 5" Hook Carrier Kit Less Rail - Black Powder Coated | $733.35 |
| 188469 | 9454 | 3" Strap Carrier Kit Less Rail - Black Powder Coated | $526.65 |
| 188470 | 9455 | 3" Top Mount Carrier Kit Less Rail - Black Powder Coated | $555.45 |
| Optional Components | |||
| Single Carrier w/ Fastners | |||
| 186264 | 1-269-8685 | 3" Hook Carrier - Black Powder Coated | $274.50 |
| 186266 | 1-269-8686 | 5" Hook Carrier - Black Powder Coated | $381.20 |
| 186267 | 1-269-8687 | 3" Strap Carrier - Black Powder Coated | $205.90 |
| 186270 | 1-269-8688 | 3" Top Mount Carrier - Black Powder Coated | $222.30 |
| Privacy Latch and Pull | |||
| 186296 | 1-269-8693 | Sliding Door Privacy Latch & Strike Plate - Black Powder Coated | $57.35 |
| 186299 | 1-269-8694 | 4" x 1-3/4" x 7/16" Flush Pull - Black Powder Coated | $57.35 |
| Accessories | |||
| 186289 | 1-269-8689 | Brack Kit: Includes 1 wall mount braket with fastener | $25.50 |
| 186290 | 1-269-8690 | Stop Kit: Inclues 2 end Stops with fasteners | $76.00 |
| 186292 | 1-269-8691 | Splice Kit: Includes splice componentsand fastners for joing rails | $48.30 |
One Family. One Brand. One Vision.TM
www.hagerco.com
TABLE OF CONTENTS
| D | |
|---|---|
| Door Controls | |
| Concealed Door Closers | 12 |
| Door Closers Accessories | 13 |
| Floor Springs | 12 |
| Patch Fittings | |
| Surface Door Closers | |
| E | |
| Euroline Hinges | |
| 1191 | 18 |
| 1279 | 18 |
| 7191 | 17 |
| 7192 | |
| BB1168 | |
| BB1191 | |
| BB1199 | |
| BB1279 | |
| BB6191 | |
| 250.0. | |
| Exit Devices | |
| Exit Devices | 14 |
| Exit Trim | |
| Miscellaneous | |
| r iiseeiiarieous | |
| L | |
|
_
Locks |
|
| Lever Sets | 7-10 |
| Lock Bodies | |
| Lock Cylinders | |
| Lock Functions | |
| Miscellaneous Lock Accessories | |
| Prisecularicous Eoch Accessories | |
| т | |
| Trim and Auxiliary | |
| Coat & Hat Hooks | 15 |
| Door Stops | |
| Flushbolts | |
| Miscellaneous | |
| Signage | 15-16 |
Lock Functions
Euroline Introduction
Most of us in the door hardware industry are familiar with ANSI - American National Standards Institute, BHMA - Builders Hardware Manufacturers Association, along with UL - Underwriters Laboratories and Intertek. However these standards and fire codes, which are strictly enforced in the United States and Canada, are not customary in approximately 90% of the rest of the world.
European standards - EN and CE - are dominant in Europe, the Middle East and most of Asia. Any hardware products sold into areas that embrace these standards must meet their cycle and fire tests, which are completely different than those of ANSI and UL.
Hager Companies launched the Euroline in late 2008 to provide a comprehensive product line that meets and exceeds EN and CE standards. It currently consists of a complete product portfolio including hinges, trim and auxiliary, door controls, exit devices, mortise locks, cylinders, levers, and accessories.
Since that time the product line has expanded and Hager Companies has been successful in marketing in Latin America, the Middle East and Asia. In addition, our Euroline products recently passed separate stringent fire tests in Mainland China. This will allow Hager Companies to furnish our products throughout the Peoples Republic of China on commercial buildings.
As always, service is our number one priority and that is true for our global customers as well. We have representatives across the globe as well as distribution centers in Dubai, United Arab Emirates and Zhuhai, China.
European locksets are sold in component form: lock body, lever set and cylinder. This allows end users to mix and match cylinders, levers and lock bodies. It also allows multiple mechanical and electronic keyways to be used interchangeably. This modular approach allows for greater flexibility on the jobsite.
| Picture | Function | Function Description | Required Parts |
|---|---|---|---|
| Passage | Latchbolt operated by lever from either side at all times. |
3800U-55L
Leverset |
|
| Bathroom Indicator |
Latchbolt operated by lever from either side at all times. Deadbolt
operated by thumbturn from inside and by emergency release with indicator from outside. |
3800U-55B
Leverset 2-669-0736 |
|
| Privacy |
Latchbolt operated by lever from either side at all times. Deadbolt
operated by thumbturn from inside and by emergency release from outside. |
3800U-55S
Leverset 3000R |
|
| Classroom |
Latchbolt operated by lever from either side. Deadbolt operated by
key from outside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000H |
|
| Storeroom |
Latchbolt operated by key from outside or by operating inside lever.
Outside lever never retracts latchbolt. |
3800U-55M
Leverset Half Spindle** 3000H |
|
| Security Storeroom |
Latchbolt operated by key from outside or by operating inside lever.
Outside lever never retracts latch. Anti-thrust bolt. |
3800U-55T
Leverset Half Spindle** 3000H |
|
| Exit |
Latchbolt operated by lever from either side. Deadbolt operated by
key from outside and by thumbturn from inside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
||
| Entrance |
Latchbolt operated by lever from either side. Deadbolt operated by
key from either side. |
3800U-55S
Leverset 3000D |
|
* Use the split spindle in place of the spindle that comes with the leverset.
** Use the half spindle going into the inside lever in place of the spindle that comes with the leverset.
Lock Functions
| Picture | Function | Function Description | Required Parts |
|---|---|---|---|
| Bedroom | Latchbolt operated by lever from either side. Deadbolt operated by thumbturn from inside and emergency release from outside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000R |
|
| 4 + | Dormitory | Latchbolt operated by lever from either side. Deadbolt operated by key from outside and thumbturn from inside. |
3800U-55S
Leverset 3000C |
| Institutional | Latchbolt operated by key from either side. Neither lever retracts latchbolt. |
3800U-55M
Leverset** 3000D |
|
| Security Institutional | Latchbolt operated by key from either side. Neither lever retracts latchbolt. Anti-thrust bolt. |
3800U-55T
Leverset** 3000D |
|
| Security Classroom | Latchbolt operated by lever from either side. Deadbolt operated by key from inside or outside. Operating inside lever retracts both latchbolt and deadbolt simultaneously. |
3800U-55P
Leverset Split Spindle* 3000D |
|
| ⊶ | Double Deadbolt | Deadbolt operated by key from either side. No latchbolt. |
3800U-55F
3000D |
| ⊶ □ | Privacy Deadbolt | Deadbolt operated by key from outside and by thumbturn from inside. No latchbolt. |
3800U-55F
3000C |
| ». | Single Deadbolt | Deadbolt operated by key from outside only. No latchbolt. |
3800U-55F
3000H |
Use the split spindle in place of the spindle that comes with the leverset.
** Do not install the spindle that comes with the leverset.
|
Description
Description Lock Bodies |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
3800U-20H
Sliding Door Mortise Lock |
US32D | 26.65 | 138187 | 20 | 1 |
|
3800U-60H
Sliding Door Mortise Lock |
US32D | 26.65 | 138188 | 20 | 1 |
|
3800U-55B
Bathroom Mortise Lock CE: 3X510F-BG20 CertiFire: CF5283 |
US32D | 28.85 | 136178 | 20 | 1 |
|
3800U-55D
Small Mortise Lock |
US32D | 24.05 | 136175 | 20 | 1 |
|
3800U-55F
Deadbolt Mortise Lock CE: 3X510F3BC00 CertiFire: CF5283 |
US32D | 28.85 | 136179 | 20 | 1 |
|
3800U-55L
Latch Mortise Lock CE: 3X510F-B020 CertiFire: CF5283 |
US32D | 28.85 | 136181 | 20 | 1 |
|
3800U-55M
Nightlatch Mortise Lock CE: 3X510F-B020 CertiFire: CF5283 Requires 2-669-0732 Half Spindle |
US32D | 28.85 | 136180 | 20 | 1 |
|
3800U-60N
Latch Small Mortise Lock |
US32D | 24.05 | 150655 | 20 | 1 |
Lock Body Finish Price Adder US3: $6.50 US4: $4.25 US5: $6.50 US10B: $4.25
US32: $3.15
U/M - Each
• 50 Piece Minimum Order Quantity per Lock for Above Finishes
• Above Finishes Not Available on 3800U-20H or 3800U-60H
Locks
| R | ||||
|---|---|---|---|---|
| ĕ | ä | ı | ||
| 1 | ١ | i | ş | ı |
| ä | ĺ | ı | ||
| ٦ | į | j | į | þ |
| Ц |
Case Вох Description Finish 2018 List Stock No. Qty. Qty. Lock Bodies 3800U-55P US32D 28.85 136182 20 1 Anti-Panic Mortise Lock CE: 376B1342A B/D CertiFire: CF5283 Requires 2-669-0733 Split Spindle 3800U-55S US32D 26.15 136177 20 1 Sash Mortise Lock CE: 3X510F3BC20 CertiFire: CF5283 3800U-55T US32D 28.85 136183 20 1 Nightlatch w/ Anti-Thrust Bolt Mortise Lock CE: 3X510F2BB20 CertiFire: CF5283
Lock Body Finish Price Adder
US3: $6.50 US4: $4.25 US5: $6.50 US10B: $4.25 US32: $3.15
U/M - Each
• 50 Piece Minimum Order Quantity per Lock for Above Finishes
Requires 2-669-0732 Half Spindle
• Above Finishes Not Available on 3800U-20H or 3800U-60H
| Description Miscellaneous Lock Accessories | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|
|---|---|---|---|---|---|---|
|
3910
Padlock |
US26D | 51.25 | 152895 | 54 | 1 | |
| 2-669-1364 Blank Cylinder Rose | US32D | 3.25 | 174072 | 200 | 20 | |
| 00 | 2-669-0644 Replacement Rose Kit | US32D | 6.10 | 125929 | 20 | 10 |
| 2-669-0645 Lever Spindle Extension Kit - Round Rose Levers | US32D | 9.15 | 125930 | 100 | N/A | |
| 2-669-1363 Lever Spindle Extension Kit - Square Rose Levers | US32D | 9.15 | 172838 | 100 | N/A |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
Description
Miscellaneous Lock Accessories |
|||||
|
2-669-0732
Half Spindle |
US32D | 6.45 | 136184 | 500 | 1 |
|
2-669-0733
Split Spindle |
US32D | 8.05 | 136185 | 500 | 1 |
|
2-669-0735
Strike Dust Box |
US32D | 1.70 | 140210 | 100 | 1 |
|
2-669-0736
Bathroom Turn Indicator w/ Emergency Release |
US32D | 23.25 | 140211 | 50 | 1 |
|
Description
Description Lever Sets |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
6801
Tube Lever |
US32D | 24.35 | 114777 | 20 | 1 |
|
6802
Tube Lever |
US32D | 24.35 | 146399 | 20 | 1 |
|
6803
Tube Lever |
US32D | 24.35 | 114782 | 20 | 1 |
|
6805
Tube Lever |
US32D | 24.35 | 114785 | 20 | 1 |
Lever Set Finish Price Adder US3: $15.00 US4: $6.50
US5: $6.50 US10B: $6.50 US32: $8.50
• 200 Piece Minimum Order Quantity per Lever Set for Above Finishes
Locks
|
Description
Description Lever Sets |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
6806
Tube Lever |
US32D | 24.35 | 114803 | 20 | 1 |
|
6807
Solid Lever |
US32D | 53.10 | 114804 | 20 | 1 |
|
6808
Solid Lever |
US32D | 53.10 | 114805 | 20 | 1 |
|
6809
Solid Lever |
US32D | 56.15 | 114806 | 20 | 1 |
|
6810
Cast Hollow Lever |
US32D | 53.10 | 114807 | 20 | 1 |
|
6811
Tube Lever |
US32D | 26.00 | 114808 | 20 | 1 |
|
6812
Tube Lever |
US32D | 28.85 | 114809 | 20 | 1 |
|
6813
Tube Lever |
US32D/
US32 Dual Finish |
28.85 | 114810 | 20 | 1 |
|
6814
Cast Hollow Lever |
US32D/
US32 Dual Finish |
51.85 | 138154 | 20 | 1 |
Lever Set Finish Price Adder US3: $15.00 US4: $6.50 US5: $6.50 US10B: $6.50 US32: $8.50
• 200 Piece Minimum Order Quantity per Lever Set for Above Finishes
|
Description
Description Lever Sets |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
6815
Solid Lever |
US32D | 46.50 | 138155 | 20 | 1 |
|
6816
Cast Hollow Lever |
US32D/
US32 Dual Finish |
52.75 | 138157 | 20 | 1 |
|
6817
Solid Lever |
US32D | 45.75 | 138158 | 20 | 1 |
|
6818
Solid Lever |
US32D | 50.80 | 138159 | 20 | 1 |
|
6819
Cast Hollow Lever |
US32D/
US32 Dual Finish |
50.40 | 138160 | 20 | 1 |
|
6820
Tube Lever |
US32D | 24.00 | 138161 | 20 | 1 |
|
6821
Tube Lever |
US32D/
US32 Dual Finish |
25.50 | 138162 | 20 | 1 |
|
6822
Solid Lever |
US32D | 43.20 | 138163 | 20 | 1 |
|
6823
Solid Lever Handed |
US32D | 67.35 |
RH: 172831
LH: 172832 |
20 | 1 |
Lever Set Finish Price Adder US3: $15.00 US4: $6.50 US5: $6.50
US10B: $6.50 US32: $8.50
• 200 Piece Minimum Order Quantity per Lever Set for Above Finishes
Locks
|
Description
Lever Sets Description |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
6824
Solid Lever |
US32D | 50.80 | 138165 | 20 | 1 |
|
6825
Cast Hollow Lever |
US32D | 46.40 | 138166 | 20 | 1 |
|
6826
Solid Lever |
US32D | 40.50 | 138167 | 20 | 1 |
|
6827
Solid Lever |
US32D | 52.10 | 138168 | 20 | 1 |
|
6828
Cast Hollow Lever |
US32D | 48.55 | 138169 | 20 | 1 |
|
6829
Cast Hollow Lever |
US32D | 46.75 | 138170 | 20 | 1 |
|
6830
Solid Lever Handed |
US32D/
US32 Dual Finish |
73.60 |
RH: 172833
LH: 172834 |
20 | 1 |
|
6831
Solid Lever Handed |
US32D | 63.20 |
RH: 172835
LH: 172836 |
20 | 1 |
|
6832
Solid Lever |
US32D/
US32 Dual Finish |
50.05 | 138174 | 20 | 1 |
Lever Set Finish Price Adder US3: $15.00 US4: $6.50 US5: $6.50 US10B: $6.50
US32: $8.50
• 200 Piece Minimum Order Quantity per Lever Set for Above Finishes
| Description | Finish | Size | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|---|
|
Description
Lock Cylinders 3000 - H Series Half Cylinders |
US15 |
40mm
45mm 50mm |
18.80
21.15 21.15 |
175593
175616 * |
60 | 1 |
|
3000 - C Series
Thumbturn Cylinder |
US15 |
60mm
70mm 75mm 80mm |
24.35
28.10 28.10 30.40 |
175599
175602 * 175612 |
60 | 1 |
|
3000 - D Series
Double Cylinder |
US15 |
60mm
70mm 75mm 80mm |
21.40
24.90 24.90 27.50 |
175598
175601 * 175611 |
60 | 1 |
|
3000 - R Series
Thumbturn Cylinder with Emergency Release |
US15 |
60mm
70mm 80mm |
20.55
22.40 26.55 |
175597
175600 175610 |
60 | 1 |
Keying Charges
Keyed Different (KD): No Charge Keyed Alike (KA): No Charge
Master Keyed (MK/GMK): Add $21.10 to list price of cylinder
Extra Cut Keys: $6.05 Blank Keys: $3.30
Key Markings (Standard Key Symbols): No Charge Key Markings (Non-Standard Key Symbols): $6.05 Custom Cylinder Markings (Side Only): $6.05
Bitting Lists (No Charge if ordered with Master Keying): $83.95
6 & 7 Pin Cylinders for Master Keying Only
U/M - Each
Cylinder Finish Price Adder US3: No Charge US26: No Charge
• 200 Piece Minimum Order Quantity per Lock for Above Finishes
* Master keyed item only. Inquire with Hager Customer Service for SKU.
Door Controls
|
Description
Description Surface Door Closers |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
5800V
Surface Door Closer Size 3 CE - 4:8:3:1:1:3 |
ALM | 62.85 | 142378 | 10 | 1 |
|
5800R
Surface Door Closer Size 2-5 CE - 4:8:2/5:1:1:3 CertiFire: CF5390 |
ALM | 141.40 | 142357 | 10 | 1 |
|
5800X
Surface Door Closer Size 3-6 CE - 4:8:3/6:1:1:3 CertiFire: CF5390 |
ALM | 135.10 | 189533 | 10 | 1 |
|
Description
Description Concealed Door Closers |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
5800C
Concealed Door Closer Size 3 |
ALM | 88.00 | 142358 | 10 | 1 |
|
5800D
Concealed Door Closer Size 2-4 CE - 4:8:2/4:1:1:3 CertiFire: CF5392 |
ALM | 207.35 | 142372 | 10 | 1 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
Description
Floor Springs 5800F Floor Spring Size 3 CE - 3:8:3:1:1:3 |
US32D | 178.10 | 177677 | 4 | 1 |
|
5815F
Floor Spring w/ 90 Degree Hold Open Size 3 |
US32D | 178.10 | 177680 | 4 | 1 |
|
5800H
Heavy Duty Floor Spring Size 3-6 CE - 3:8:3/6:1:1:3 |
US32D | 391.40 | 181055 | 4 | 1 |
|
5815H
Heavy Duty Floor Spring w/ 90 Degree Hold Open Size 3-6 |
US32D | 391.40 | 181056 | 4 | 1 |
Note: Additional finishes available on most items. Inquire with Hager Customer Service for pricing. U/M - Each
|
Description
Description Door Closers Accessories |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
2-659-0087
Surface Closer Track Arm For 5800R, X, V |
ALM | 37.25 | 122869 | 25 | 1 |
|
2-659-0088
Surface Closer Cover For 5800R |
US32D | 35.75 | 122870 | 17 | 1 |
|
2-659-0097
Surface Closer Parallel Arm Bracket For 5800R, X, V |
ALM | 8.85 | 138151 | 100 | 1 |
|
2-659-0149
Surface Closer Hold Open Arm For 5800R, X, V |
ALM | 41.00 | 153843 | 10 | 1 |
Note: Additional finishes available on most items. Inquire with Hager Customer Service for pricing.
U/M - Each
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
Description
Patch Fittings 651 Bottom Patch Fitting |
US32 | 25.15 | 134144 | 10 | 1 |
|
652
Top Patch Fitting |
US32 | 25.15 | 134145 | 10 | 1 |
|
653
Overpanel Patch Fitting |
US32 | 25.15 | 134146 | 10 | 1 |
|
654
Corner Overpanel and Sidelight Patch Fitting |
US32 | 40.55 | 134147 | 10 | 1 |
|
655
Bottom Lock Patch Fitting |
US32 | 53.45 | 134148 | 10 | 1 |
|
2-659-0150
Heavy Duty Top Pivot |
ALM | 18.20 | 154746 | 10 | 1 |
Note: Additional finishes available on most items. Inquire with Hager Customer Service for pricing.
Exit Devices
|
Description
Description Exit Trim |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
42CE
Cylinder Escutcheon Trim William Lever |
US32D | 119.45 | 193685 | 20 | 1 |
|
42KE
Key-in-Lever Trim Withnell Lever |
US32D | 70.15 | 170013 | 12 | 1 |
| Case | Box | |||
|---|---|---|---|---|
| Finish | Stock No. | Qty. | Qty. | |
| US32D | 13.05 | 195626 | 1 | |
| 2018 List |
Note: Additional finishes available on most items. Inquire with Hager Customer Service for pricing. U/M - Each
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|
Flushbolts
Description 280E Dust Proof Strike |
US32D | 9.85 | 114930 | 300 | 10 |
|
1420
Manual Flush Bolt |
US32D | 17.90 | 114811 | 100 | 2 |
| Case | Box | ||||
|
Description
Description Door Stops |
Finish | 2018 List | Stock No. | Qty. | Qty. |
|
248E
Pedestal Door Stop |
US32D | 9.00 | 114951 | 200 | 10 |
|
248U
Pedestal Door Stop |
US32D | 14.95 | 123266 | 100 | 10 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|
Description
Coat & Hat Hooks |
|||||
|
6630
Coat & Hat Hook |
US32D | 9.30 | 114948 | 200 | 10 |
|
6640
Coat & Hat Hook |
US32D | 9.50 | 114950 | 200 | 10 |
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|
Description
Signage |
|||||
|
371F
Signage Female |
US32D | 9.00 | 122875 | 20 | 10 |
|
371M
Signage |
US32D | 9.00 | 122873 | 20 | 10 |
Male
| Description | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
Description
Signage 371U Signage Universal |
US32D | 9.00 | 122877 | 20 | 10 |
|
371H
Signage Disabled |
US32D | 9.00 | 122876 | 20 | 10 |
|
371S
Signage No Smoking |
US32D | 9.00 | 122874 | 20 | 10 |
|
Description
Description Miscellaneous |
Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|
|
299D
Concealed Door Chain |
US32D | 25.35 | 114952 | 48 | 1 |
|
1757
Door Viewer |
US26D
US3 |
7.95
7.95 |
133689
133690 |
200 | 1 |
|
277E
Surface Bolt |
US15 | 11.05 | 133809 | 50 | 1 |
|
277T
Indicator Thumbturn Bolt |
US32D | 16.55 | 138118 | 50 | 1 |
Note: Additional finishes available on most items. Inquire with Hager Customer Service for pricing. U/M - Each
| Description | Size | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|
|---|---|---|---|---|---|---|---|
|
BB6191
Stainless Full Mortise Standard Weight |
89mm x 89mm |
US3
US5 US10B US32D |
19.10
16.50 16.50 13.25 |
117673
117306 117296 117686 |
48 | 2 | |
|
Ball Bearing
CE Certified CertiFire: CF5288 |
102mm x 76mm |
US3
US5 US10B US32D |
22.00
16.50 16.50 12.55 |
117308
117691 117688 117689 |
48 | 2 | |
| 102mm x 89mm |
US3
US5 US10B US32D |
24.55
18.20 18.20 14.55 |
117702
117758 117309 117729 |
48 | 2 | ||
| 102mm x 102mm |
US3
US5 US10B US32D |
25.35
19.70 19.75 15.40 |
117311
117780 117310 117777 |
48 | 2 | ||
| 127mm x 89mm |
US3
US5 US10B US32D |
29.80
22.80 22.80 18.45 |
117359
117362 117344 117782 |
48 | 2 | ||
|
7191
Rising Butt Hinge Stainless Full Mortise Raises Door Upon Opening Handed |
102mm x 76mm (LH)
102mm x 76mm (RH) 102mm x 102mm (LH) 102mm x 102mm (RH) |
US32D |
12.40
12.40 15.15 15.15 |
135300
135304 146537 146538 |
60 | 2 | |
|
7192
Falling Butt Hinge Stainless Full Mortise Lowers Door Upon Opening |
102mm x 76mm (LH)
102mm x 76mm (RH) 102mm x 102mm (LH) 102mm x 102mm (RH) |
US32D |
13.60
13.60 15.60 15.60 |
146542
146541 146540 146539 |
60 | 2 |
Handed Non-Removable Pin (NRP) Adder: $3.65 each
U/M - Each
Notes: • Additional finishes available on most items. Inquire with Hager Customer Service for pricing on US10, US4, and US32.
Protective Clear Coat Adder: $0.50 each
• For pricing on sizes not listed, please contact your Hager Sales Representative or Hager Customer Service.
Please note that minimum order in case quantities only, no broken cases.
Export Commercial Hinges
| Description | Size | Finish | 2018 List | Stock No. |
Case
Qty. |
Box
Qty. |
|---|---|---|---|---|---|---|
|
1279
Steel Full Mortise Standard Weight |
76mm x 76mm
89mm x 89mm 102mm x 102mm 114mm x 102mm 114mm x 114mm |
US26D |
11.35
11.60 11.90 12.35 12.35 |
53908
36829 36832 36678 37714 |
100
48 48 48 48 |
2
3 3 3 3 |
|
BB1279
Steel Full Mortise Standard Weight Ball Bearing |
89mm x 89mm
102mm x 102mm 114mm x 102mm 114mm x 114mm |
US26D |
13.50
16.65 18.50 18.50 |
36822
37710 34213 34215 |
48
48 48 48 |
3
3 3 3 |
|
BB1168
Steel Full Mortise Heavy Weight Ball Bearing |
114mm x 102mm
114mm x 114mm |
US26D |
34.35
34.35 |
37715
36680 |
48
48 |
3
3 |
|
1191
Stainless Full Mortise Standard Weight |
76mm x 76mm
89mm x 89mm 102mm x 102mm 114mm x 102mm 114mm x 114mm |
US32D |
16.35
21.00 24.20 31.00 31.00 |
53021
52987 37716 36679 38646 |
100
48 48 48 48 |
2
3 3 3 3 |
|
BB1191
Stainless Full Mortise Standard Weight Ball Bearing |
89mm x 89mm
102mm x 102mm 114mm x 102mm * 114mm x 114mm * 127mm x 114mm |
US32D |
22.85
29.85 38.60 38.60 58.25 |
61669
37717 35597 35419 82255 |
48
48 48 48 48 |
3
3 3 3 3 |
|
BB1199
Stainless Full Mortise Heavy Weight Ball Bearing |
114mm x 102mm *
114mm x 114mm * 127mm x 114m |
US32D |
61.35
61.35 90.05 |
36817
35433 44553 |
48
48 48 |
3
3 3 |
Non-Removable Pin (NRP) Adder: $3.65 each Hospital Tip (HT) Adder: $7.30 each Safety Stud (SH) Adder: $5.10 each Round Corner (RC) Adder: $2.90 each Stainless Steel Pin (114mm) Adder: $3.65 each Protective Clear Coat Adder: $0.50 each
-
Notes: Additional finishes available on most items. Inquire with Hager Customer Service for pricing on US10, US4, and US32
- For pricing on sizes not listed, please contact Hager Customer Service.
* Available in 316 Stainless Steel. Add $20.25 to list price of hinge
One Family. One Brand. One Vision.TM
www.hagerco.com
Index Locks
| 2310 | 3810E | |
| 2317 | 3810S | |
| 5 | 3817E | |
| 2340 | 3817S | |
| 2510 | 3827E | |
| 2517 | 38275 | |
| 2525 | 3830S49 | |
| 2527 | 3831S | |
| 25/10 | 8 | 3832S* |
| 2553 | 3834549 | |
| 2570 | 3840E | |
| 2580 | 8 | 3840S |
| 551.2 | ||
| 2903 | 3844S | |
| 2904 | 3850E | |
| 2904 | 47 | 3850S |
| 2909 | 3856E | |
| 2909 | 3856S | |
| 12 | ||
| 3118 | ||
| 3214 | 3861E* | |
| 3215 | ||
| 3220 | 3863$48 | |
| 3221 | 3864S | |
| 3222 | 3870E | |
| 3417 | 3880E44 | |
| 3440 | 3880S | |
| 3450 | 23 | 3881E |
| 3123 | 23 | 3881S |
| 3882E*46 | ||
| 3473 | 3882EL | |
| 3480 | 3882S*44 | |
| LEU | ||
| 24 | ||
| 3510 | 3901 | |
| 3517 | 3901 | |
| 3525 | 30 | 3901 |
| 30 | ||
| 3540 | ||
| 3550 | 3902 | |
| 3553 | 3903 | |
| 31 | ||
| 3579 | 3907 | |
| 3580 | 31 | 3907 |
| 3610 | 36 | |
| 3653 | 3911 | |
| 36 | ||
| 3753 | 3912 | |
| 3796 | 39 | 3914 |
Locks
| 3915 | . 37 | 3947 |
| 3916 | 3947 | |
|
·
|
||
| 3917 | 9 | 3948 |
| 3917 | .33 | 3948 |
| 3918 | E1 | 3948 |
| 3919-C | . 63 | 3949 |
| 3919-Z | 63 | 3949 |
| 3920 | . 40 | 39494 |
| 3921 | . 40 | 3950 |
| 3922 | 9 | 3950 |
| 3922 | . 34 | 3950 |
| 3923 | 9 | 3951 |
| 3923 | 2.4 | 3952 |
| 3523 | ||
| 3924 | . 10 | 3953 |
| 3924 | . 34 | 3954 |
| 3925 | 3955 | |
| 3925 | . 34 | 3956 |
| 3926 | . 10 | 3956 |
| 3926 | · · · | 3958 |
| 3927 | . 10 | 3958 |
| 3927 | . 34 | 3958 |
| 3928 | 3958 | |
| 3929 | . 13 | 3958 |
| 3929 | . 17 | 3959 |
| 3930 | 3959 | |
| 3930 | . 17 | 3959 |
| 3930 | 40 | 3959 |
| 3932 | 3959 | |
| 3932 | . 29 | 3959 |
| 3933 | 6 | 3959 |
| 3933 | . 10 | 3960 or 3906 (Hager Keyway Only) |
| 3933 | . 29 | 3961 |
| 3933 | 34 | 3962 |
| 3933 | 3962 | |
| 3933 | . 41 | 3964 |
| 3934 | 10 | 3965 |
| 3934 | . 26 | 3965 |
| 3934 | . 34 | 3966 |
| 3934 | 38 | 3967 |
| 3934 | . 41 | 39673 |
| 3935 | 6 | 3968 |
| 3935 | 10 | 3968 |
| • • • | ||
| 3935 | .26 | 39715 |
| 3935 | .29 | 3972 |
| 3935 | 3.4 | 3973 |
| 3936 | .25 | 3974 |
| 3937 | 9 | 3975 |
| 3937 | 22 | 3976 |
| 3938 | 39776 | |
| 3939 | . 37 | 3978 |
| 3940 | 3979 | |
| 3940 | .1/ | 3980 |
| 3941 | .13 | 3981-BLU or RED (Best A)6 |
| 3941 | 3981-C | |
| 3942 | .1/ | 3981-U6 |
| 3943 | . 24 | 3982-BLU or RED (Best A)6 |
| 3944 | 3982-C or 3969 (Hager SFIC Only) | |
| 3945 | . 24 | 3982-U or 3909 (Hager SFIC Only)6 |
| 3946 | . 25 | 3983 |
| 3947 | 3984 | |
Index Locks
| 3984 | 2-300-006638 |
| 3985 | 2-300-006838 |
| 3986 | 2-300-007438 |
| 3987 | 2-300-0091 |
| 3988 | 2-300-0092 |
| 3989 | 2-300-0093 |
| 3990 | 2-300-010518 |
| 3991 | 2-300-010618 |
| 3992 | 2-300-010718 |
| 3993 | 2-300-010818 |
| 3994 | 2-300-010918 |
| 3995 | 2-300-011018 |
| 3996 | 2-300-011118 |
| 3997 | 2-300-011218 |
| 3998 | 2-300-011318 |
| 3998 | 2-300-011418 |
| 3999 | 2-300-011518 |
| 2-300-000114 | 2-300-011618 |
| 2-300-000214 | 2-300-011859 |
| 2-300-000314 | 2-300-013841 |
| 2-300-000414 | 2-300-014041 |
| 2-300-000514 | 2-300-014141 |
| 2-300-000614 | 2-300-017564 |
| 2-300-000714 | 2-639-310913 |
| 2-300-000814 | 2-639-310917 |
| 2-300-000914 | 2-639-310941 |
| 2-300-001014 | 2-639-3151 |
| 2-300-001114 | 2-639-315214 |
| 2-300-0018 | 2-639-3153 |
| 2-300-0019 | 2-639-3155 |
| 2-300-0020 | 2-639-3156 |
| 2-300-0021 | 2-639-315714 |
| 2-300-0022 | 2-639-3168 |
| 2-300-0024 | 2-639-321819 |
| 2-300-0025 | 2-639-3219 |
| 2-300-0026 | 2-639-3220 |
| 2-300-0027 | 2-639-3221 |
| 2-300-002818 | 2-639-322219 |
| 2-300-002918 | 2-639-322319 |
| 2-300-003627 | 2-639-323019 |
| 2-300-003827 | 2-639-323119 |
| 2-300-003927 | 2-639-323319 |
| 2-300-004127 | 2-639-323419 |
| 2-300-004227 | 2-639-323519 |
| 2-300-004327 | 2-639-323619 |
| 2-300-004427 | 2-639-323814 |
| 2-300-004527 | 2-639-323819 |
| 2-300-004535 | 2-639-323914 |
| 2-300-0048 | 2-639-323919 |
| 2-300-0048 | 2-639-3490 |
| 2-300-0050 | 2-639-3490 |
| 2-300-0050 | 2-639-3523 |
| 2-300-0052 | 2-639-3523 |
| 2-300-0052 | 2-639-3577 |
| 2-300-0058 | 2-639-3703 |
| 2-300-005935 | 2-639-370419 |
| 2-300-006035 | 2-639-3705 |
| 2-300-006438 | 2-639-370619 |
Locks
| 2-639-3707 | 9 2-639-7520 | |
| 2-639-3708 | 9 2-639-7522 | |
| 2-639-7000 | 2-639-7523 | |
| 2-639-7001 | 2-639-7524 | |
| 2-639-7002 | 2-639-7526 | |
| 2-639-7003 | 2-639-7527 | |
| 2-639-7005 | ||
| 2-639-7006 | ||
| 2-639-7007 | 68 | |
| 2-639-7008 |
|
|
| 2-639-7018 | ||
| 2-639-7018 | ||
| 2-639-7060 | ||
| 2-639-7061 | ||
| 2-639-7082 | ||
| 2-639-7083 | = | |
| 2-639-7084 | _ 000 7070 | |
| 2-639-7085 | ||
| 2-639-7086 | ||
| 2-639-7087 | 2-639-7574 | 65 |
| 2-639-7090 | 2-639-7578 | |
| 2-639-7091 | _ 000 , 00 . | |
| 2-639-7094 | 2-639-7603 | |
| 2-639-7095 | 2-639-7604 | |
| 2-639-7143 | 20 2-639-7605 |
|
| 2-639-7144 | 20 2-639-7606 | |
| 2-639-7146 | 6 | |
| 2-639-7147 | 6 | |
| 2-639-7148 | 2 000 7 000 | |
| 2-639-7149 | 2 000 / 000 | |
| 2-639-7150 | _ 000 , 0.0 | |
| 2-639-7151 | ||
| 2-639-7152 | ||
| 2-639-7153 | 2 000 / 020 | |
| 2-639-7154 | ||
| 2-639-7155 | : | |
| 2-639-7156 | 2 033 70 13 | |
| 2-639-7157 | ||
| 2-639-7158 | ||
| 2-639-7159 | L 033 7000 | |
| 2-639-7160 | ||
| 2-639-7160 | 201,00101 | |
| 2-639-7161 | 201,0011 | |
| 2-639-7161 | ||
| 2-639-7163 | 2-647-0016 | |
| 2-639-7163 | 20 2-647-0017 | |
| 2-639-7164 | 20.700.0 | |
| 2-639-7164 | 20 2-647-0019 | |
| 2-639-7165 | 20 2-647-0020 | |
| 2-639-7166 | 20 2-649-0045 | |
| 2-639-7167 | ||
| 66 | ||
| 2-639-7192 | ||
| 2-639-7322 | ||
| 2-639-7511 | = | |
| 2-639-7512 | = | 66 |
| 2-639-7513 | ||
| 2-639-7517 | ||
| 2-639-7518 | ||
| 2-039-/518 | 2-649-0055 |
Index Locks
| 2-649-0056 | 67 |
| 2-649-0057 | 67 |
| 2-649-0058 | 67 |
| 2-649-0059 | 67 |
| 2-649-0137 | 59 |
| 2-669-0111 | 53 |
| 2-669-0112 | |
| 2-669-0115 | |
| 2-669-0116 | |
| 2-669-0119 | |
| 2-669-0120 | |
| 2-669-0123 | |
| 2-669-0124 | |
| 2-669-0127 | |
| 2-669-0128 | |
| 2-669-0131 | |
| 2-669-0132 | |
| 2-669-0135 | |
| 2-669-0136 | |
| 2-669-0139 | |
| 2-669-0140 | 54 |
| 2-669-0143 | 54 |
| 2-669-0144 | 54 |
| 2-669-0147 | 54 |
| 2-669-0148 | 54 |
| 2-669-0157 | 54 |
| 2-669-0158 | |
| 2-669-0167 | |
| 2-669-0168 | |
| 2-669-0224 | |
| 2-669-0226 | |
| 2-669-0230 | |
| 2-669-0232 | |
| 2-669-0236 | |
| 2-669-0238 | |
| 2-669-0242 | |
| 2-669-0244 | |
| 2-669-0248 | |
| 2-669-0250 | |
| 2-669-0254 | |
| 2-669-0256 | 52 |
| 2-669-0296 | 52 |
| 2-669-0298 | 52 |
| 2-669-0302 | 52 |
| 2-669-0304 | 52 |
| 2-669-0308 | 53 |
| 2-669-0310 | 53 |
| 2-669-0314 | 53 |
| 2-669-0316 | |
| 2-669-0320 | 53 |
| 2-669-0322 | |
| 2-669-0326 | |
| 2-669-0328 | |
| 2-669-0365 | |
| 2-669-0366 | |
| 2-669-0389 | |
| 2-669-0389 | |
| 2-669-0389 | |
| 2-669-0389 | |
| 2_669_0389 | 3.8 |
| 2-669-0389 |
|---|
| 2-669-040853 |
| 2-669-041053 |
| 2-669-041153 |
| 2-669-041553 |
| 2-669-041753 |
| 2-669-041853 |
| 2-669-042253 |
| 2-669-042453 |
| 2-669-042553 |
| 2-669-059755 |
| 2-669-060055 |
| 2-669-060355 |
| 2-669-060455 |
| 2-669-060555 |
| 2-669-061355 |
| 2-669-061555 |
| 2-669-061655 |
| 2-669-063555 |
| 2-669-063655 |
| 2-669-064155 |
| 2-669-064355 |
| DPM |
| LM |
| RX |
| Stainless Mortise Lock Levers (each) |
| 7inc Mortise Lock Levers (each) 51 |
| 380F | 5905 |
|---|---|
| 380G | 5905 |
| 380H | 5906 |
| 380R | 5906 |
| 380S | 5907 |
| 381A | 5907 |
| 381B | 5908 |
| 5908 | |
| 381C | |
| 381D | 5909 |
| 381E | 5911 |
| 381H | 5911 |
| 381$23 | 5912 |
| 381W | 5912 |
| 5100 Series | 5913 |
| 5101 | 5913 |
| 5102 | 5913 |
| 5103 | 5914 |
| 5104 | 5914 |
| 5106 | 5915 |
| 5107 | 5916 |
| 5108 | 5917 |
| 5918 | |
| 5109 | |
| 51107 | 5919 |
| 5111 | 5920 |
| 5112 | 59211 |
| 51137 | 5922 |
| 5114 | 5923 |
| 5115 | 5932 |
| 5125 | 5935 |
| 5200 Series | 5936 |
| 5201 | 5936 |
| 5202 | 5940 |
| 5203 | 5941 |
| 5204 | 5942 |
| 5207 | 5943 |
| 5300 Series | 5946 |
| 5301 | 5950 |
| 5302 | 5950 |
| 5303 | 5950 |
| 5304 | 5954 |
| 5307 | 5955 |
| 5400 Series | 5956 |
| 5401 | 5956 |
| 540320 | 5957 |
| 5404 | 5957 |
| 5900 | 5961 |
| 5900 | 5962 |
| 5900 | 6000 Series Accessories2 |
| 5901 | 6000 Series Screwpacks2 |
| 5901 | 6000 Series Screwpacks2 |
| 5902 | 6015 Series - Medium Duty Concealed Mount |
| 5902 | 6015 Series - Medium Duty Surface Mount |
| 5902 | 6016 Series - Medium Duty Concealed Mount |
| 5903 | 6016 Series - Medium Duty Surface Mount |
| 5903 | 6017 Series - Medium Duty Concealed Mount |
| 5903 | 6017 Series - Medium Duty Surface Mount |
| 5904 | 7000 Series Accessories |
| 5904 | 7000 Series Accessories |
| 5904 | 7000 Series Screwpacks2 |
| 5905 | 7015 Series - Heavy Duty Concealed Mount |
| 7015 Series - Heavy Duty Surface Mount | |
|---|---|
| 7016 Series - Heavy Duty Concealed Mount | |
| 7016 Series - Heavy Duty Surface Mount | |
| 7017 Series - Heavy Duty Concealed Mount | |
| 7017 Series - Heavy Duty Surface Mount | |
| 2-659-0187 | |
| 2-659-0188 | |
| 2-659-0189 | |
| 2-659-0190 | 8 |
| 2-659-0191 | |
| 2-659-0191 | |
| 2-659-0192 | . 13 |
| 2-659-0192 | |
| 2-659-0193 | |
| 2-659-0193 | |
| 2-659-0194 | . 13 |
| 2-659-0194 | . 18 |
| 2-659-0195 | 9 |
| 2-659-0196 | 9 |
| 2-659-0197 | 9 |
| 2-659-0198 | |
| 2-659-0199 | . 14 |
| 2-659-0199 | . 18 |
| 2-659-0200 | |
| 2-659-0200 | . 18 |
| 2-659-0201 | . 14 |
| 2-659-0201 | . 18 |
| 2-659-0202 | |
| 2-659-0202 | . 18 |
| 2-659-0203 | 9 |
| 2-659-0204 | |
| 2-659-0205 | 9 |
| 2-659-0206 | 9 |
| 2-659-0207 | 9 |
| 2-659-0208 | |
| 2-659-0209 | 9 |
| 2-659-0210 | 9 |
| 2-659-0211 | . 14 |
| 2-659-0212 | . 14 |
| 2-659-0213 | |
| 2-659-0214 | . 14 |
| 2-659-0215 | |
| 2-659-0216 | |
| 2-659-0217 |
| 45BE | 4916 | 16 |
|---|---|---|
| 45CE | 4917 | |
| 45DT17 | 4918 | 41 |
| 45MB | 4919 | 41 |
| 45MC | 4920 | 22 |
| 45MD18 | 4920 | 33 |
| 45MN | 4920F | |
| 45NL19 | 4920F | |
| 45PD | 4921 | 22 |
| 45PN | 4923 | 23 |
| 45PT | 4923F | 23 |
| 46BE | 4924 | |
| 46CE31 | 4924F | |
| 46DT31 | 4925R | 33 |
| 46NK | 4926 | 23 |
| 46NL | 4927 | 23 |
| 47BE | 4928 | 2/ |
| 47BT | 4929 | |
| 47CE37 | 4929C | |
| 47DT37 | 4930R | 42 |
| 47KD | 4930S | 42 |
| 47KE | 4931R | 24 |
| 47KN | 4931$ | |
| 47KP | 4932C | |
| 47NL | 4932R | 42 |
| 47PD | 4932S | 42 |
| 47PN | 4933R | 42 |
| 47PT | 4933S | 42 |
| 47RD | 4934 | |
| 4934F | 42 | |
| 47RN | ||
| 313LE (313LF w/Plastisol) | 4936 | 25 |
| 313LE (313LF w/Plastisol) | ||
| 313LE (313LF w/Plastisol) | 4936 | 42 |
| 313LE (313LF w/Plastisol) |
4936
4936 4937 |
42
25 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 |
4936
4936 4937 4937 |
42
25 42 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 |
4936
4936 4937 4937 4940 |
42
25 42 25 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 |
4936
4936 4937 4937 4940 4941R |
42
25 42 25 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 |
4936
4936 4937 4937 4940 |
42
25 42 25 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 |
4936
4936 4937 4937 4940 4941R |
42
25 42 25 34 26 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 |
4936
4936 4937 4937 4940 4941R 4945 |
42
25 42 25 34 26 26 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945F |
42
25 42 25 34 26 26 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945F 4950 |
42
25 42 25 34 26 26 34 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945F 4950 4951 |
42
25 42 25 34 26 26 34 34 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945 4945 4950 4951 4952 |
42
25 42 25 34 26 26 34 34 34 45 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 |
4936
4937 4937 4940 4941R 4945 4945F 4950 4951 |
42
25 42 25 34 26 26 34 34 34 45 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945 4945 4950 4951 4952 |
42
25 42 25 34 26 26 34 34 34 45 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 11 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945 4950 4951 4952 4953 4960R |
42
25 42 25 34 26 26 34 34 45 46 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945 4950 4951 4952 4953 4960R 4965R |
42
25 42 25 34 26 34 34 45 46 34 35 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 CVR 11 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 |
4936
4936 4937 4937 4940 4941R 4945 4945 4945 4950 4951 4952 4953 4963 4960R 4965R 2-647-0012 |
42
25 42 25 34 26 26 34 45 46 34 45 48 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 11 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4900U 45 |
4936
4936 4937 4940 4941R 4945 4945 4945 4950 4951 4952 4953 4963 4968 4965R 2-647-0012 2-647-0013 |
42
25 34 26 26 34 34 45 46 34 48 48 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 11 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4900U 45 4902 46 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4965R 2-647-0012 2-647-0014 |
42
25 34 26 34 34 45 46 34 48 48 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 11 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4900U 45 4902 46 |
4936
4936 4937 4940 4941R 4945 4945 4945 4950 4951 4952 4953 4963 4968 4965R 2-647-0012 2-647-0013 |
42
25 34 26 34 34 45 46 34 48 48 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4965R 2-647-0012 2-647-0014 |
42
25 34 26 26 34 34 45 46 34 48 48 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4968 4968 2-647-0012 2-647-0013 2-647-0014 2-647-0015 2-649-0010 |
42
25 42 25 34 26 26 34 34 45 46 34 48 48 48 48 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4968 2-647-0012 2-647-0013 2-647-0014 2-649-0010 2-649-0011 |
42
25 42 25 34 26 34 45 46 34 48 48 48 42 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 4910 41 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4968 4968 2-647-0012 2-647-0013 2-647-0014 2-649-0010 2-649-0011 2-649-0012 |
42
25 42 25 34 26 34 34 45 48 48 48 48 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 4910 41 4911 41 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4968 2-647-0012 2-647-0013 2-647-0014 2-649-0010 2-649-0011 2-649-0012 2-649-0013 |
42
25 42 25 34 26 34 34 45 48 48 48 48 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 4910 41 4911 41 4912 46 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4968 2-647-0012 2-647-0013 2-647-0015 2-649-0010 2-649-0011 2-649-0013 2-649-0013 2-649-0014 |
42
25 42 25 26 26 34 34 45 48 48 48 48 48 43 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 4910 41 4911 41 4912 46 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4968 2-647-0012 2-647-0013 2-647-0014 2-649-0010 2-649-0011 2-649-0012 2-649-0013 |
42
25 42 25 26 26 34 34 45 48 48 48 48 48 43 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 M 12 4501 N. 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 4910 41 4911 41 4912 46 4912 45 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4968 2-647-0012 2-647-0013 2-647-0015 2-649-0010 2-649-0011 2-649-0013 2-649-0013 2-649-0014 |
42
25 42 25 34 26 26 34 34 45 48 48 48 48 43 43 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D. 13 4501 D. 13 4501 N. 12 4501 N. 13 4501 SVR. 10 4501 SVR BB 9 4601 RIM 30 4701 RIM 36 4701 SVR. 36 4900T 45 4900 45 4905 45 4907 46 4910 41 4911 41 4912 46 4912 46 4913 46 |
4936
4937 4937 4940 4941R 4945 4945 4950 4951 4952 4953 4960R 4968 2-647-0012 2-647-0013 2-647-0014 2-649-0010 2-649-0011 2-649-0011 2-649-0014 2-649-0014 2-649-0014 2-649-0014 2-649-0014 2-649-0012 |
42
25 42 25 34 26 34 45 48 48 48 43 43 43 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D 13 4501 D 13 4501 N 12 4501 N 13 4501 SVR 10 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4900U 45 4902 46 4904 45 4907 46 4910 41 4911 41 4912 46 4913 46 4914 41 | 4936 4937 4937 4940 49418 4945 4945 4945 4950 4951 4952 4953 49608 4968 2-647-0012 2-647-0013 2-647-0015 2-649-0010 2-649-0011 2-649-0011 2-649-0012 2-649-0014 2-649-0014 2-649-0013 2-649-0014 2-649-0014 2-649-0014 2-649-0021 2-649-0022 2-649-0023 |
42
25 42 25 34 26 34 34 45 48 48 48 43 43 43 43 43 43 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D 13 4501 M 12 4501 N 13 4501 RIM 9 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4902 46 4904 45 4905 45 4907 46 4910 41 4911 41 4912 46 4913 46 4914 41 4915 41 | 4936 4937 4937 4940 4941R 4945 4945 4945F 4950 4951 4952 4953 4960R 4965R 2-647-0012 2-647-0013 2-647-0015 2-649-0010 2-649-0011 2-649-0011 2-649-0012 2-649-0014 2-649-0014 2-649-0012 2-649-0013 2-649-0014 2-649-0012 2-649-0013 2-649-0014 2-649-0014 2-649-0014 2-649-0021 2-649-0022 2-649-0023 2-649-0024 | 42 5 42 25 34 26 34 34 34 34 34 34 34 34 34 34 34 34 34 |
| 313LE (313LF w/Plastisol) 22 313SE (313SF w/Plastisol) 22 3901 46 3902 47 4501 CLB 12 4501 D 13 4501 D 13 4501 N 12 4501 N 13 4501 SVR 10 4501 SVR 10 4501 SVR LBR 9 4601 RIM 30 4701 RIM 36 4701 SVR 36 4900T 45 4900U 45 4902 46 4904 45 4907 46 4910 41 4911 41 4912 46 4913 46 4914 41 | 4936 4937 4937 4940 49418 4945 4945 4945 4950 4951 4952 4953 49608 4968 2-647-0012 2-647-0013 2-647-0015 2-649-0010 2-649-0011 2-649-0011 2-649-0012 2-649-0014 2-649-0014 2-649-0013 2-649-0014 2-649-0014 2-649-0014 2-649-0021 2-649-0022 2-649-0023 |
425
425 346 343 456 484 484 434 434 434 434 434 434 434 434 |
| 2-649-002743 | 2-649-009643 |
| 2-649-002843 | 2-649-009743 |
| 2-649-003126 | 2-649-009843 |
| 2-649-003226 | 2-649-009943 |
| 2-649-0033 | 2-649-010043 |
| 2-649-0034 | 2-649-010143 |
| 2-649-0102 | |
| 2-649-003526 | |
| 2-649-003626 | 2-649-010343 |
| 2-649-0037 | 2-649-013744 |
| 2-649-003826 | 2-649-014147 |
| 2-649-003835 | 2-649-0142 |
| 2-649-003926 | 2-649-014444 |
| 2-649-003935 | 2-649-014544 |
| 2-649-004026 | 2-649-014644 |
| 2-649-0040 | 2-649-0147 |
| 2-649-004126 | 2-649-016444 |
| 2-649-004135 | 2-649-0166 |
| 2-649-004226 | 2-649-0167 |
| 2-649-0042 | 2-649-0168 |
| 2-649-004326 | 2-649-016835 |
| 2-649-004335 | 2-649-017728 |
| 2-649-0044 | 2-649-017744 |
| 2-649-004435 | 2-649-0178 |
| 2-649-004547 | 2-649-017928 |
| 2-649-004647 | 2-649-018028 |
| 2-649-004747 | 2-649-0181 |
| 2-649-004847 | 2-649-0182 |
| 2-649-0049 | 2-649-0183 |
| 2-649-005047 | 2-649-018344 |
| 2-649-005147 | 2-649-018444 |
| 2-649-005247 | 2-649-018544 |
| 2-649-0203 | |
| 2-649-005347 | = |
| 2-649-005447 | 2-649-020429 |
| 2-649-005547 | 2-649-0205 |
| 2-649-005647 | 2-649-0206 |
| 2-649-005747 | 2-649-0207 |
| 2-649-005848 | 2-649-020829 |
| 2-649-005948 | 2-649-021426 |
| 2-649-006027 | 2-649-021435 |
| 2-649-006127 | 2-649-0215 |
| 2-649-006227 | 2-649-021535 |
| 2-649-006327 | 2-649-0216 |
| 2-649-0064 | 2-649-021635 |
| 2-649-006527 | 2-649-0217 |
| 2-649-0066 | 2-649-0217 |
| 2-649-007427 | 2-649-021826 |
| 2-649-007527 | 2-649-021835 |
| 2-649-007627 | 2-649-021926 |
| 2-649-007727 | 2-649-0219 |
| 2-649-007827 | 2-649-0220 |
| 2-649-007927 | 2-649-022035 |
| 2-649-008027 | 2-649-107429 |
| 2-649-008127 | 2-649-1074 |
| 2-649-008228 | 2-649-109029 |
| 2-649-008328 | 2-649-109035 |
| 2-649-008428 | 2-649-110829 |
| 2-649-008528 | 2-649-1109 |
| 2-649-4703 | |
| 2-649-0086 | ۷-۵-۵-۲/۵۵۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰۰ |
| 2-649-008728 | |
| 2-649-008828 | |
| 2-649-009528 |
Index
| 29KS ADD3 | 2-659-017118 |
|---|---|
| 29KS ASD3 | 2-659-017218 |
| 29KS MDD | 2-659-017318 |
| 29KS MSD3 | 2-659-017419 |
| 2901 | 2-659-017519 |
| 2902 | 2-659-017619 |
| 2903 | 2-659-017719 |
| 2904 | 2-659-017819 |
| 2908 | 2-659-017919 |
| 2909 | 2-659-018019 |
| 2915 | 2-659-018119 |
| 2916 | 2-659-018220 |
| 2916P | 2-659-018320 |
| 2925 | 2-659-018420 |
| 2928 RC5 | 2-659-018520 |
| 2928 SC5 | 2-659-018620 |
| 2930 CYL | 2-659-022013 |
| 2930 MDB | 2-659-022113 |
| 2930 MOR | 2-659-022213 |
| 2941 Magnetic Lock6 | 2-659-022313 |
| 2942 Magnetic Lock6 | 2-659-022413 |
| 2951 Magnetic Lock6 | 2-659-022513 |
| 2952 Magnetic Lock7 | 2-659-022613 |
| 2953 Magnetic Lock7 | 2-659-022713 |
| 2954 Magnetic Lock7 | 2-659-022813 |
| 2958 Delayed Egress Magnetic Lock | 2-659-022913 |
| 2958 T Tandem Delayed Egress Magnetic Lock | 2-659-023013 |
| 2961 Magnetic Shear Lock | 2-659-023113 |
| 2965 Magnetic Shear Lock9 | 2-659-023213 |
| 2972 Exit Switch10 | 2-659-023313 |
| 2972T Exit Switch with Integrated Adjustable Timer | 2-659-023414 |
| 2973 Code Compliant Exit Switch | 2-659-023514 |
| 2977 Exit Swtich | 2-659-023614 |
| 2978 Touchless Exit Switch10 | 2-659-023714 |
| 4801 Pressure Sense Bar10 | 2-659-024020 |
| 8218 Single Operator15 | 2-659-024118 |
| 8219 Simultaneous Pair Operator15 | 2-659-024219 |
| 8221 Double Egress Simultaneous Pair Operator | 2-659-024319 |
| 8418 Single Operator12 | 2-659-027515 |
| 8419 Simultaneous Pair | 2-659-027615 |
| 8420 Independent Pair12 | 2-659-027715 |
| 8421 Double Egress Simultaneous Pair12 | 2-659-027815 |
| 8422 Double Egress Independent Pair | 2-659-027915 |
| 8423 Single Operator with Mechanical Closer | 2-659-028015 |
| 2928 6R5 | 2-659-028316 |
| 2928 7R5 | 2-659-028416 |
| 2-659-015113 | 2-659-028516 |
| 2-659-015213 | 2-659-028616 |
| 2-659-015313 | 2-659-028716 |
| 2-659-015413 | 2-659-028816 |
| 2-659-016117 | 2-659-028916 |
| 2-659-016217 | 2-659-029016 |
| 2-659-016317 | 2-659-029116 |
| 2-659-016417 | 2-659-029216 |
| 2-659-016518 | 2-659-029316 |
| 2-659-016618 | 2-659-0294 |
| 2-659-016718 | 2-659-0295 |
| 2-659-016818 | 2-659-029616 |
| 2-659-016918 | 2-659-029716 |
| 2-659-017018 | 2-659-029816 |
Index
Electrified Products
| 2 650 0200 | |
|---|---|
| 2-659-0299 | 16 |
| 2-659-0300 | 16 |
| 2-659-0301 | |
| 2-659-0303 | 17 |
| 2-659-0304 | 17 |
| 2-659-0305 | 1/ |
| 2-659-0306 | 17 |
| 2-679-0021 | |
| 2-679-0022 | . 4 |
| 2-679-0023 | 4 |
| 2-679-0024 | |
| 2-679-0028 | . 6 |
| 2-679-0029 | 6 |
| 2-679-0100 | |
| 2-679-0101 | . 6 |
| 2-679-0102 | 6 |
| 2-679-0103 | |
| 2-679-0104 | . 6 |
| 2-679-0105 | |
| 2-679-0106 | . 6 |
| 2-679-0107 | 6 |
| 2-679-0108 | |
| 2-679-0120 | . 7 |
| 2-679-0121 | 7 |
| • • | |
| 2-679-0130 | |
| 2-679-0131 | . 7 |
| 2-679-0160 | |
| 2-679-0161 | . 7 |
| 2-679-0180 | . 7 |
| 2-679-0181 | |
| 2-679-0190 | . 7 |
| 2-679-0191 | . 7 |
| 2-679-0200 | |
| 2-679-0201 | . 7 |
| 2-679-0204 | 7 |
| 2-679-0205 | |
| 2-679-0210 | . 8 |
| 2-679-0220 | Q |
| 2-679-0281 | |
| 2-679-0283 | . 8 |
| 2-679-0291 | Q |
| 2-679-0293 | ٠8 |
| 2-679-0311 | . 8 |
| 2-679-0313 | Q |
| 2-679-0321 | . 8 |
| 2-679-0323 | . 8 |
| 2-679-0381 | |
| 2-679-0383 | . 8 |
| 2-679-0391 | 8 |
| 2-679-0393 | ٠8 |
| 2-679-0411 | . 8 |
| 2-679-0413 | |
| 2-679-0421 | |
| 2-679-0423 | . 8 |
| 2-679-0491 | |
| 2-679-0493 | . 9 |
| 2-679-0501 | . 9 |
| 2-679-0503 | |
| 2-679-0571 | . 9 |
| 2-679-0573 | . 9 |
| = | - |
| 2-679-0581 | ٥ |
|---|---|
| 2-679-0583 | ٥ |
| 2-679-0600 | ( |
| 2-679-0601 | ( |
| 2-679-0611 PIR Egress Sensor | |
| 2-679-0612 PIR Egress Sensor | |
| 2-679-0620 | |
| 2-679-0621 | • |
| 2-679-0622 | |
| 2-679-0623 | • |
| 2-679-0624 | |
| 2-679-06251 | • |
| 2-679-06261 | |
| 2-679-06421 | |
| • | |
| 2-679-0661 | |
| 2-679-0662 | |
| 2-679-0664 | : |
| 2-679-0669 | |
| 2-679-0700 | |
| 2-679-0703 | 4 |
| 2-679-0704 | |
| 2-679-0705 | |
| 2-679-0706 | 4 |
| 2-679-0708 | 4 |
| 2-679-0708 |
| 100 . | 279 - Continued 2 | ||
| 251. | 2 1 | 303 | |
| 577 | |||
| = | 578 | ||
| 254 . | 712 | ||
| 263. | 2 1 | 713 | |
| 265 . | 2 1 | 716 | |
| 305 | 2 1 | 717 | |
| = | 722 | ||
| 430 . | = | 723 | |
| 451. | 2 1 | 728 | |
| 452 . | 2 1 | 729 | |
| 453 | 2 1 | 850 | |
| 850 LP | |||
| = | B700 | ||
| 456 . | = | B700 - Continued | |
| 457 . | 3 Al | B7001 | |
| 458 . | 3 Al | B7002 | |
| B701 | |||
| 1 | |||
| B702 | |||
| B703 | |||
| 500 . | B750 | ||
| 510 . | 4 Al | B750 - Continued | |
| 511 | 4 Al | B7501 | |
| 1 | • | B7502 | |
| • | B7505 | ||
| 551. | 4 Al | B7506 | |
| 600 . | 4 Al | B7507 | |
| 610 . | 4 Al | B7508 | |
| 611 | 5 AI | B7509 | |
| B751 | |||
| B7511 | |||
| B7512 | |||
| 700 - | Continued | 6 Al | B752 |
| 300 . | .3 Al | B7523 | |
| 920 | -9 ΔΙ | B753 | |
| 3 | B7534 | ||
| B800 | |||
| 1129 | 52 AI | B801 | |
| 1150 | 3 | 32 Al | B802 |
| 1173 | 88 Al | B803 | |
| 3 | B850 | ||
| - Continued | B850 - Continued | ||
| 5 | - | B8505 | |
| 1251 | 5 | 50 Al | B8506 |
| 1251 | - Continued | 51 Al | B8507 |
| B8508 | |||
| 5 | B8509 | ||
| 5 | B851 | ||
| 1256 | 5 | B852 | |
| 1257 | 5 | 52 AI | B853 |
| 1258 | 5 | 3 Al | B920 |
| 5 | B923 | ||
| 5 | B930 | ||
| - Continued5 | B9333 | ||
| 1267 | 5 | 55 B | B1109 |
| 1277 | 5 | 55 B | B1129 |
| 1278 | 6 R | B1138 | |
| 5 | B1160 | ||
| - Continued | B1162 | ||
| 14/9 | - conunued | )/ B | . ב |
| BB1163 | 33 |
| BB1165 | 33 |
| BB1166 | |
| BB1167 | |
| BB1168 | |
| BB1168 - Continued. | |
| BB1108 - Continued. | 30 |
| BB1168 Drop Leaf | |
| BB1168 Short Leaf | |
| BB1168 Unequal Leaf Centered | |
| BB1173 | 38 |
| BB1190 | 39 |
| BB1191 | 41 |
| BB1191 - Continued | 42 |
| BB1191 - Continued 2 | |
| BB1191 Drop Leaf | |
| BB1191 Short Leaf | |
| BB1191 Unequal Leaf Centered | |
| BB1192 | |
| BB1195 | |
| BB1196 | 46 |
| BB1197 | 46 |
| BB1199 | 47 |
| BB1199 - Continued | 48 |
| BB1199 Drop Leaf | |
| BB1199 Short Leaf | |
| BB1199 Unequal Leaf Centered | |
| BB1260 | |
| BB1261 | |
| BB1262 | |
| BB1263 | 54 |
| BB1264 | |
| BB1265 | 55 |
| BB1266 | 55 |
| BB1270 | 55 |
| BB1277 | |
| BB1278 | |
| BB1279 | |
| BB1279 - Continued. | |
| BB1279 - Continued 2 | 61 |
| BB1279 Drop Leaf | |
| BB1279 Short Leaf | |
| BB1279 Unequal Leaf Centered | 76 |
| BB1360 | 64 |
| BB1361 | 64 |
| BB1362 | 64 |
| BB1363 | 64 |
| BB1577 | |
| BB1578 | |
| BB2098 | |
| BB2108 | |
| BB2109 | |
| BB2110 | |
| BB2112 | ٠. |
| BB2113 | 67 |
| BB2168 | 67 |
| BB2169 | 68 |
| BB2171 | |
| CB1191 | |
| EC1100 | |
| 72 |
| EC1101 |
|---|
| EC1105 |
| ECBB1100 |
| ECBB1100 NRP |
| ECBB1101 |
| ECBB1101 NRP |
| ECBB1102 |
| ECBB1102 NRP |
| ECBB1103 |
| ECBB1103 NRP7 |
| ECRC1100 |
| ECRCBB1100 |
| IHTAB7502 |
| IHTAB8502 |
| IHTHB9533 |
| WT1191 |
| WT1191 - Continued |
| WT1279 |
| WT1279 - Continued |
| WTAB700 |
| WTAB700 - Continued |
| WTAB7502 |
| WTAB750 - Continued |
| WTAB800 |
| WTAB800 - Continued |
| WTAB850 |
| WTAB850 - Continued |
| WTBB11683 |
| WTBB1168 - Continued |
| WTBB11914 |
| WTBB1191 - Continued |
| WTBB1191 - Continued 2 |
| WTBB11994 |
| WTBB1199 - Continued |
| WTBB12796 |
| WTBB1279 - Continued 6 |
| 1340 1541 1543 1700 1 1710 1 1720 1 1734 1 1741 1 1750 1 1751 1 1752 1 1754 1 | 4 5 8 9 5 |
|---|---|
| 1543 1700 1 1710 1 1720 1 1734 1 1741 1 1750 1 1751 1 1752 1 | 5 8 9 9 5 6 9 |
| 17700 1 17710 1 1720 1 1734 1 1741 1 1750 1 1751 1 1752 1 | 5 6 9 |
| 1710 1 1720 1 1734 1 1741 1 1750 1 1751 1 1752 1 | 9 5 6 9 |
| 1720 1 1734 1741 1744 1750 1751 1752 | 5 |
| 1734 1741 1744 1750 1751 1752 | 6 |
| 1741 1744 1750 1751 1752 | 6 |
| 1744 1750 1 1751 1 1752 1 | ç |
| 1750 | |
| 1751 | |
| 1752 | |
| 1760 | |
| 1761 | |
| 1762 | |
| 1764 | |
| 1816 | |
| 1817 | |
| 1818 | |
| 1848 | |
| 2617 | |
| 2817 | |
| 7741 | |
| 8741 | |
| 8744 | |
| 8746 | |
| BB1541 | |
| BB1543 | |
| BB1741 | |
| BB1816 | |
| BB1817 | 3 |
| BB1817 | 3 |
| BB1817 | 3 4 |
| BB1817 | 3 4 5 3 |
| BB1817 | 3 4 5 3 7 |
| BB1817 | 3 4 5 3 7 8 |
| BB1817 | 3 4 5 3 7 8 |
| BB1817 | 3 4 5 3 7 8 9 |
| BB1817 | 3 4 5 3 7 8 9 9 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 |
| BB1817 | 3 4 5 3 7 8 9 4 4 5 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 5 5 |
| BB1817 | 34537889 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 5 5 5 6 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 5 5 5 6 6 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 5 5 6 6 6 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 5 5 5 6 6 6 4 5 |
| BB1817 | 3 4 5 3 7 8 9 9 4 4 5 5 5 6 6 6 4 5 |
Roton
Index
| 500-048 | |
|---|---|
| 500-200 | 15 |
| 500-220 | 15 |
| 750-134 | 15 |
| 750-138 | 15 |
| 780-041HD | 16 |
| 780-041LL | 16 |
| 780-045HD | 16 |
| 780-046HD | 17 |
| 780-053 | 17 |
| 780-053HD | 17 |
| 780-054HD | |
| 780-057HD | 18 |
| 780-110HD | 18 |
| 780-111 | 19 |
| 780-111HD | 19 |
| 780-111LL | |
| 780-112 | 20 |
| 780-112HD | |
| 780-112LL | 20 |
| 780-113HD | 21 |
| 780-114HD | 21 |
| 780-124HD | |
| 780-124LL | |
| 780-155HD | 22 |
| 780-157 | 22 |
| 780-157HD | 23 |
| 780-208HD | 23 |
| 780-210 | 23 |
| 780-210HD | 24 |
| 780-211HD | |
| 780-213HD | |
| 780-224 | |
| 780-224HD | |
| 780-224LL | |
| 780-226HD | |
| 780-226LL | |
| 780-235HD | 26 |
| 780-257HD | |
| 780-259HD | |
| 780-300HD | |
| 1200-600XHD | |
| 1200-650XHD | |
Stainless Steel Continuous Hinges
Index
| 790-900 | 6 |
|---|---|
| 790-903 | 6 |
| 790-904 | 6 |
| 790-905 | 6 |
| 790-906 | 6 |
| 790-909 | 7 |
| 790-911 | 7 |
| 790-915 | 7 |
| 790-926 | 7 |
| 1E | 22N |
|---|---|
| 9 | 21 |
| 1G | 23Q |
| 9 | 22 |
| 1J | 24Q |
| 9 | 22 |
| 1L | 25B |
| 9 | 22 |
|
2E
9 |
25C 22 |
| 2G | 25N |
| 10 | 22 |
| 2J | 25P |
| 10 | 23 |
| 2L | 26N |
| 10 | 23 |
| 3E | 27N |
| 10 | 23 |
| 3G | 27P |
| 10 | 23 |
| 3J | 30S |
| 11 | 24 |
| 3L | 31E |
| 11 | 26 |
| 4G | 31G |
| 11 | 26 |
| 4H | 31J |
| 12 | 27 |
| 4J | 32E |
| 12 | 27 |
| 4L | 32G |
| 12 | 28 |
| 5D | 32J |
| 12 | 28 |
| 5N | 33E |
| 12 | 29 |
| 6N | 33G |
| 13 | 29 |
| 7N | 33J |
| 13 | 30 |
| 8N | 34G |
| 13 | 30 |
| 9E | 34J |
| 13 | 31 |
| 9G | 35D |
| 14 | 31 |
| 9J | 35N |
| 14 | 32 |
| 9L | 36N |
| 14 | 32 |
| 10L 14 |
39E
33 |
| 10Q | 39G |
| 14 | 33 |
| 11E | 39J |
| 15 | 34 |
| 11G | 40R |
| 15 | 35 |
|
11J
15 |
50T 37 |
|
60S
38 |
|
| 11L 15 | |
| 12G | 70S |
| 15 | 39 |
| 12J | 80S |
| 16 | 40 |
| 12L 16 |
90R
41 |
| 13E | 100T |
| 16 | 42 |
| 13G | 110S |
| 16 | 43 |
| 13J | 120L |
| 16 | 43 |
| 13L 17 |
121L
43 |
| 14G | 122L |
| 17 | 43 |
|
14H
17 |
|
|
125S
44 |
|
| 14J | 126S |
| 17 | 44 |
| 14L 17 |
127S
44 |
| 15C 18 |
128P
44 |
| 15N | 128S |
| 18 | 44 |
| 15P | 129P |
| 18 | 44 |
| 15S | 130S |
| 18 | 45 |
| 16N | 131S |
| 18 | 45 |
| 16R | 133S |
| 19 | 45 |
| 17N | 134S |
| 19 | 45 |
| 19N | 136S |
| 19 | 45 |
| 20L 19 |
137S
46 |
| 20N | 138P |
| 19 | 46 |
| 20Q | 139P |
| 20 | 46 |
| 21E | 140P |
| 20 | 46 |
| 21G | 150B |
| 20 | 46 |
| 21J | 150D |
| 20 | 47 |
| 21L 21 |
150V
47 |
| 22G | 151B |
| 21 | 47 |
|
22J
21 22L 21 |
151D
47 151V 47 |
| 152B | 48 | 204S | 7 |
|---|---|---|---|
| 152D | 48 | 208 | 119 |
| 152V | 48 | 209 | 119 |
| 153B | 48 | 210 | 120 |
| 153D | 48 | 211 | 120 |
| 153V | 49 | 212 | 120 |
| 154B | 49 | 214S | 7 |
| 154D | 49 | 220S | 7 |
| 154V | 49 | 225S | 8 |
| 155B | 49 | 230W | 65 |
| 155D | 50 | 232W | 65 |
| 155V | 50 | 234W | 65 |
| 156B | 50 | 236W | 66 |
| 156D | 50 | 241F | 66 |
| 156V | 51 | 242F | 66 |
| 157B | 51 | 243F | 66 |
| 244F | 67 | ||
| 157D | 51 | ||
| 157V | 51 | 245F | 67 |
| 158B | 52 | 246B | 67 |
| 248F | 67 | ||
| 158D | 52 | ||
| 158V | 52 | 248G | 67 |
| 159B | 52 | 249F | 67 |
| 159D | 53 | 250W | 68 |
| 159V | 53 | 251W | 68 |
| 160B | 53 | 252F | 68 |
| 160D | 53 | 254S | 68 |
| 160V | 54 | 254W | 68 |
| 161B | 54 | 255S | 68 |
| 161D | 54 | 255W | 69 |
| 161V | 54 | 256S | 69 |
| 164B | 55 | 256W | 69 |
| 164D | 55 | 257F | 69 |
| 164V | 55 | 258F | 69 |
| 165B | 55 | 259F | 69 |
| 165D | 55 | 259H | 70 |
| 165V | 56 | 260W | 70 |
| 167B | 56 | 267F | 70 |
| 167D | 56 | 267S | 70 |
| 167V | 56 | 268F | 70 |
| 170D | 56 | 268S | 70 |
| 180H | 57 | 269F | 71 |
| 180K | 57 | 269T | 71 |
| 180M | 58 | 270C | 71 |
| 180P | 58 | 270D | 71 |
| 180Q | 59 | 270R | 71 |
| 181H | 59 | 271D | 71 |
| 181K | 60 | 271W | 71 |
| 181M | 60 | 272W | 72 |
| 181P | 61 | 273W | 72 |
| 181Q | 61 | 274B | 72 |
| 182H | 62 | 274C | 72 |
| 182K | 62 | 274D | 72 |
| 182M | 63 | 275D | 72 |
| 182P | 63 | 276D | 72 |
| 182Q | 64 | 277D | 73 |
| 185G | 65 | 278D | 73 |
| 190S |
279D
7 |
73 | |
| 198S |
7
280X |
73 | |
| 199B |
281D
7 |
73 | |
| 199B | 119 | 282D | 74 |
|
283D
74 |
340D | 85 |
|
291D
74 |
341D | 85 |
| 342D | 85 | |
|
292D
75 |
||
|
293D
75 |
345D | 85 |
|
294D
75 |
350H | 86 |
|
295M
76 |
350L | 86 |
|
295W
76 |
350M | 86 |
|
296W
76 |
350R | 87 |
|
297C
76 |
350W | 86 |
|
297D
77 |
351H | 87 |
|
297F
77 |
351L | 87 |
|
297M
77 |
352M | 87 |
|
297N
77 |
352W | 87 |
|
298D
77 |
354A | 88 |
|
300D
78 |
354B | 88 |
|
301D
78 |
360M | 88 |
|
303W
78 |
360W | 88 |
|
305D
78 |
361H | 88 |
|
307D
78 |
361L | 88 |
|
308D
79 |
362H | 88 |
|
310C
79 |
362L | 89 |
|
311H
79 |
364L | 89 |
|
313S
79 |
364M | 89 |
|
318D
80 |
364N | 89 |
|
318S
80 |
364S | 89 |
|
320R
80 |
365M | 89 |
|
321R
80 |
365W | 90 |
|
322V
80 |
366R | 90 |
|
323S
80 |
366S | 90 |
|
324W
81 |
368E | 90 |
|
326F
81 |
368M | 90 |
|
326W
81 |
368U | 91 |
|
327F
81 |
368W | 91 |
|
327W
82 |
369L | 91 |
|
328F
82 |
369R | 91 |
|
329F
82 |
370M | 91 |
|
330D
82 |
370U | 91 |
|
330L
82 |
370W | 92 |
|
330M
83 |
901P | 92 |
|
334V
83 |
902P | 92 |
|
336A
83 |
903P | 92 |
|
336B
83 |
910B | 93 |
|
336C
83 |
910P | 92 |
|
336D
83 |
915B | 94 |
|
336E
83 |
915P | 93 |
|
336F
83 |
920B | 94 |
|
336G
83 |
920P | 94 |
|
336H
84 |
921B | 95 |
|
336J
84 |
921P | 95 |
|
336K
84 |
922B | 96 |
|
336L
84 |
922P | 95 |
|
336M
84 |
923B | 97 |
|
336N
84 |
923P | 96 |
|
336P
84 |
924B | 97 |
|
336Q
84 |
924P | 97 |
|
336R
84 |
925B | 99 |
|
337A
84 |
925P | 98 |
|
337B
84 |
926B | 99 |
| 926P | 99 | |
|
337C
85 |
||
|
337D
85 |
930B | 100 |
| 930P | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | |||||||||||||
| 932P | 100 | ||||||||||||
|
933B
933P |
101
101 |
||||||||||||
| 934B | 102 | ||||||||||||
| 934P | 101 | ||||||||||||
| 936P | 102 | ||||||||||||
| 937P | 102 | ||||||||||||
| 940P | 102 | ||||||||||||
| 941P | 103 | ||||||||||||
| 945P | 103 | ||||||||||||
| 946P | 103 | ||||||||||||
| 951P | 103 | ||||||||||||
| 952P | 103 | ||||||||||||
| 956P | 103 | ||||||||||||
|
957P
960B |
103
104 |
||||||||||||
| 960P | 103 | ||||||||||||
| 961B | 104 | ||||||||||||
| 961P | 104 | ||||||||||||
| 962P | 104 | ||||||||||||
| 963P | 105 | ||||||||||||
| 967P | 105 | ||||||||||||
| 970P | 106 | ||||||||||||
| 974B | 107 | ||||||||||||
| 974P | 106 | ||||||||||||
| 975B | 108 | ||||||||||||
| 975P | 108 | ||||||||||||
|
976B
976P |
109
108 |
||||||||||||
| 980B | |||||||||||||
| 110 | |||||||||||||
| 980P | 109 | ||||||||||||
| 981B | 112 | ||||||||||||
|
981P
982B |
111
112 |
||||||||||||
| 982P | 112 | ||||||||||||
| 983B | 113 | ||||||||||||
| 983P | 113 | ||||||||||||
| 984B | 114 | ||||||||||||
| 984P | 114 | ||||||||||||
| 985B | 115 | ||||||||||||
| 985P | 114 | ||||||||||||
| 986B | 115 | ||||||||||||
| 986P | 115 | ||||||||||||
| 987B | 115 | ||||||||||||
|
987P
988B |
115
116 |
||||||||||||
| 988P | 115 | ||||||||||||
| 990B | 117 | ||||||||||||
| 990P | 116 | ||||||||||||
| 1412 | 120 | ||||||||||||
| 1413 | 120 | ||||||||||||
| 1414 | 121 | ||||||||||||
| 1415 | 121 | ||||||||||||
| 1416 | 121 | ||||||||||||
| 1418 | 121 | ||||||||||||
| 1419 | 121 | ||||||||||||
|
1439
1442 |
122
117 |
| 1446 | 122 |
| 1447 | 122 |
| 1448 | 122 |
| 1449 | 122 |
| 1755 | 122 |
| 1756 | 123 |
| 1758 | 123 |
| 1759 | 123 |
| 1765 | 123 |
| 1766 | 123 |
| 1795 | 123 |
| 1797 | 124 |
| 1798 | 124 |
| 1799 | 124 |
| 1801 | 124 |
| 2610 | 117 |
| 2620 | 118 |
| 2630 | 118 |
| 2640 | 118 |
| 6601 | 125 |
| 9558 | 118 |
| 9566 | 118 |
| 9567 | 118 |
| 9865 | 119 |
| 9882 | 119 |
| 9884 | 119 |
| A30S | 25 |
| A40R | 36 |
| A50T 38 | |
| BL6209 | 124 |
| BL6211 | 124 |
| BL6212 | 124 |
| BL6610 | 125 |
| BL6793 | 125 |
| BL6794 | 125 |
| CSK | 8 |
| P4E | 11 |
| P8N | 13 |
| SA | 8 |
| T4E | 11 |
| 400S | 518S |
|---|---|
| 6 | 11 |
| 401S | 520S |
| 6 | 11 |
| 402S | 532S |
| 6 | 11 |
| 403S | 541S |
| 6 | 11 |
| 404S | 552S |
| 6 | 12 |
| 406S | 560S |
| 6 | 12 |
| 407S | 565S |
| 6 | 12 |
| 408S | 572S |
| 6 | 12 |
|
575S
12 |
|
|
410S
6 |
|
| 411S | 580S |
| 6 | 12 |
| 412S | 599S |
| 7 | 13 |
| 413S | 600S |
| 7 | 13 |
| 415S | 603S |
| 7 | 13 |
| 416S | 604S |
| 7 | 13 |
| 417S | 608S |
| 7 | 13 |
| 418S | 626S |
| 7 | 13 |
| 419S | 627S |
| 7 | 13 |
| 420S | 651S |
| 7 | 13 |
| 421S | 652S |
| 7 | 13 |
| 422S | 653S |
| 7 | 14 |
| 423S | 654S |
| 7 | 15 |
| 424S | 655S |
| 8 | 15 |
| 426S | 676S |
| 8 | 15 |
| 427S | 677S |
| 8 | 15 |
|
701S
15 |
|
|
428S
8 |
|
| 430S | 710S |
| 8 | 15 |
| 431S | 717S |
| 8 | 15 |
| 432S | 718S |
| 8 | 15 |
| 433S | 719 |
| 8 | 15 |
| 434S | 720 |
| 8 | 15 |
| 435S | 721 |
| 8 | 16 |
| 436S | 722 |
| 8 | 16 |
| 438S | 724 |
| 9 | 16 |
| 440S | 725 |
| 9 | 16 |
| 442S | 726 |
| 9 | 16 |
|
443S
9 |
|
|
727
17 |
|
| 444S | 728 |
| 9 | 17 |
| 445S | 729 |
| 9 | 17 |
| 448S | 730S |
| 9 | 17 |
| 450S | 734 |
| 9 | 17 |
| 451S | 736 |
| 9 | 18 |
| 452S | 737 |
| 9 | 18 |
| 455S | 738 |
| 10 | 18 |
| 460S | 739 |
| 10 | 18 |
| 465S | 740S |
| 10 | 19 |
| 470S | 742S |
| 10 | 19 |
| 477S | 743S |
| 10 | 19 |
| 478S | 747S |
| 10 | 19 |
| 480S | 750S |
| 10 | 20 |
| 481S | 752S |
| 10 | 20 |
| 484S | 753S |
| 10 | 20 |
| 492S | 754S |
| 10 | 20 |
| 503S | 756S |
| 10 | 20 |
| 504S | 759S |
| 10 | 21 |
| 505S | 770S |
| 10 | 21 |
| 506S | 771S |
| 11 | 21 |
|
508S
11 |
|
| 515S | 774S |
| 11 | 21 |
|
776S
21 |
|
|
516S
11 517S 11 |
777S
21 |
Index
| 778S | 21 | |||||||||||||||
| 779S | 22 | |||||||||||||||
| 780S | 22 | |||||||||||||||
| 782S | 22 | |||||||||||||||
| 783S | 22 | |||||||||||||||
| 785S | 22 | |||||||||||||||
| 787S | 22 | |||||||||||||||
| 789S | 22 | |||||||||||||||
| 800S | 22 | |||||||||||||||
| 801S | 23 | |||||||||||||||
| 802S | 23 | |||||||||||||||
| 803S | 23 | |||||||||||||||
| 806S | 23 | |||||||||||||||
| 808S | 23 | |||||||||||||||
| 810S | 23 | |||||||||||||||
| 822S | 23 | |||||||||||||||
| 835S | 24 | |||||||||||||||
| 836S | 24 | |||||||||||||||
| 837S | 24 | |||||||||||||||
| 838S | 24 | |||||||||||||||
| 839S | 24 | |||||||||||||||
| 844S | 24 | |||||||||||||||
| 845S | 24 | |||||||||||||||
| 846S | 25 | |||||||||||||||
| 847S | 24 | |||||||||||||||
| 848S | 24 | |||||||||||||||
| 849S | 24 | |||||||||||||||
| 859S | 25 | |||||||||||||||
| 860S | 25 | |||||||||||||||
| 861S | 25 | |||||||||||||||
| 862S | 25 | |||||||||||||||
| 863S | 25 | |||||||||||||||
| 864S | 25 | |||||||||||||||
| 865S | 25 | |||||||||||||||
| 866S | 25 | |||||||||||||||
| 870S | 25 | |||||||||||||||
| 871S | 26 | |||||||||||||||
| 872S | 26 | |||||||||||||||
| 873S | 26 | |||||||||||||||
| 874S | 26 | |||||||||||||||
| 875S | 26 | |||||||||||||||
| 877S | 26 | |||||||||||||||
| 878S | 26 | |||||||||||||||
| 880S | 26 | |||||||||||||||
| 881S | 26 | |||||||||||||||
| 882S | 27 | |||||||||||||||
| 883S | 27 | |||||||||||||||
| 884S | 27 | |||||||||||||||
| 885S | 27 | |||||||||||||||
| 890S | 27 | |||||||||||||||
| 891S | 27 | |||||||||||||||
| 892S | 27 | |||||||||||||||
| 893S | 27 |
| 896S | 27 | |||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 900S | 28 | |||||||||||||||||||
| 901S | 28 | |||||||||||||||||||
| 902S | 28 | |||||||||||||||||||
| 903S | 28 | |||||||||||||||||||
| 904S | 28 | |||||||||||||||||||
| 905S | 28 | |||||||||||||||||||
| 906S | 28 |
Sliding Door Hardware
| 330D | 9353 |
| 25 | 5 |
| 330L | 9353 |
| 25 | 28 |
| 330M | 9354 |
| 25 | 28 |
| 1741 | 9400 |
| 16 | 5 |
| 1741 | 9400 |
| 17 | 12 |
| 1741 | 9400 |
| 25 | 28 |
| 2610 | 9401 |
| 5 | 5 |
| 2610 | 9401 |
| 7 | 8 |
| 2610 | 9401 |
| 11 | 12 |
| 2610 | 9401 |
| 25 | 28 |
| 2620 | 9432-78 |
| 25 | 35 |
| 2630 | 9433-78 |
| 7 | 35 |
| 2630 | 9435-78 |
| 11 | 35 |
| 2630 | 9435-96 |
| 26 | 35 |
| 2640 | 9436-78 |
| 26 | 35 |
| 9101-60 | 9437-78 |
| 4 | 35 |
| 9101-60 | 9438-78 |
| 26 | 35 |
| 9101-72 | 9462-78 |
| 18 | 35 |
| 9102 | 9462-96 |
| 4 | 35 |
| 9102 | 9514-48 |
| 18 | 5 |
| 9102 | 9540 |
| 26 | 7 |
| 9105 | 9540 |
| 4 | 11 |
| 9105 | 9540 |
| 18 | 28 |
| 9105 | 9544 |
| 26 | 7 |
| 9109 | 9544 |
| 4 | 11 |
| 9109 | 9544 |
| 18 | 28 |
| 9109 | 9558 |
| 26 | 15 |
| 9110-60 | 9558 |
| 4 | 28 |
| 9110-60 | 9559 |
| 18 | 15 |
| 9111 | 9559 |
| 26 | 16 |
| 9113 | 9559 |
| 26 | 28 |
| 9114-72 | 9566 |
| 26 | 28 |
| 9115 | 9567 |
| 4 | 29 |
| 9115 | 9569 |
| 18 | 15 |
| 9115 | 9569 |
| 24 | 29 |
| 9115 | 9570-36 |
| 26 | 15 |
| 9121 | 9572 |
| 27 | 9 |
| 9122-48 | 9572 |
| 27 | 10 |
| 9128 | 9572 |
| 27 | 15 |
| 9129 | 9572 |
| 4 | 29 |
| 9129 | 9573 |
| 18 | 6 |
| 9129 | 9573 |
| 27 | 29 |
| 9130-60 | 9574 |
| 4 | 13 |
| 9130-60 | 9574 |
| 18 | 29 |
| 9169 | 9575 |
| 27 | 9 |
|
9575
10 |
|
|
9200
27 |
|
| 9201 | 9575 |
| 27 | 29 |
| 9202 | 9583-96 |
| 7 | 5 |
| 9202 | 9601-35 |
| 11 | 15 |
| 9202 | 9601-71 |
| 27 | 19 |
| 9203 | 9601-71 |
| 27 | 20 |
| 9220 | 9601-71 |
| 15 | 29 |
| 9220 | 9602-46 |
| 27 | 10 |
| 9262 | 9602-46 |
| 27 | 29 |
| 9264 | 9602-58 |
| 27 | 10 |
| 9268 | 9603-48 |
| 27 | 9 |
| 9351 | 9603-48 |
| 5 | 29 |
| 9351 | 9605 |
| 8 | 9 |
| 9351 | 9605 |
| 12 | 10 |
| 9351 | 9605 |
| 28 | 20 |
| 9605 | 9815 |
| 30 | 14 |
| 9606 | 9815 |
| 9 | 15 |
| 9606 | 9815 |
| 10 | 16 |
| 9606 | 9815 |
| 19 | 24 |
| 9606 | 9815 |
| 20 | 32 |
| 9606 | 9820-48 |
| 30 | 7 |
| 9610 | 9820-48 |
| 30 | 32 |
| 9611-60 | 9821-59 |
| 6 | 6 |
| 9614-48 | 9821-59 |
| 7 | 16 |
| 9618 | 9821-59 |
| 15 | 23 |
| 9618 | 9821-59 |
| 30 | 32 |
| 9628 | 9824 |
| 19 | 6 |
| 9629 | 9824 |
| 19 | 32 |
| 9630 | 9825 |
| 19 | 6 |
| 9631 | 9825 |
| 19 | 16 |
| 9632 | 9825 |
| 20 | 23 |
| 9632 | 9825 |
| 30 | 32 |
| 9633 | 9827 |
| 20 | 13 |
| 9633 | 9827 |
| 30 | 14 |
| 9634 | 9827 |
| 30 | 17 |
| 9639 | 9827 |
| 30 | 21 |
| 9673-48 | 9827 |
| 9 | 22 |
| 9674-48 | 9827 |
| 9 | 24 |
| 9675-48 | 9827 |
| 10 | 32 |
| 9676-48 | 9828 |
| 10 | 16 |
| 9678-72 | 9828 |
| 20 | 17 |
|
9828
32 |
|
|
9679
9 |
|
| 9679 | 9840-46 |
| 10 | 11 |
| 9679 | 9840-46 |
| 30 | 32 |
| 9680 | 9841 |
| 9 | 5 |
| 9680 | 9841 |
| 10 | 7 |
| 9680 | 9841 |
| 30 | 11 |
| 9683-96 | 9841 |
| 7 | 33 |
| 9703-60 | 9842 |
| 24 | 7 |
| 9703-60 | 9842 |
| 30 | 11 |
| 9704-60 | 9842 |
| 24 | 33 |
| 9704-60 | 9843 |
| 31 | 7 |
| 9705 | 9843 |
| 24 | 11 |
| 9705 | 9843 |
| 31 | 33 |
| 9709-48 | 9844-48 |
| 6 | 11 |
| 9709-48 | 9845-96 |
| 10 | 11 |
| 9709-60 | 9850 |
| 31 | 21 |
| 9710-60 | 9860-30 |
| 24 | 16 |
| 9711 | 9861-48 |
| 24 | 16 |
| 9711 | 9865 |
| 31 | 5 |
| 9742 | 9865 |
| 22 | 8 |
| 9742 | 9865 |
| 31 | 12 |
| 9801-48 | 9865 |
| 17 | 33 |
| 9801-72 | 9875-48 |
| 13 | 13 |
| 9801-72 | 9877 |
| 21 | 33 |
| 9801-72 | 9878-72 |
| 22 | 22 |
| 9801-72 | 9880 |
| 31 | 33 |
| 9803-48 | 9881 |
| 14 | 19 |
| 9803-48 | 9881 |
| 31 | 20 |
| 9809-72 | 9881 |
| 13 | 21 |
| 9809-72 | 9881 |
| 31 | 22 |
| 9810-46 | 9881 |
| 5 | 23 |
| 9810-46 | 9881 |
| 31 | 33 |
| 9814 | 9882 |
| 5 | 33 |
| 9814 | 9883 |
| 32 | 19 |
Index
| 9883 | 20 |
|---|---|
| 9883 | 21 |
| 9883 | 22 |
| 9883 | 23 |
| 9883 | 33 |
| 9884 | 33 |
| 9885-48 | 14 |
| 9886-96 | 14 |
| 9889 | 34 |
| 9890-30 | 17 |
| 9892 | 6 |
| 9892 | 34 |
| 9893 | 6 |
| 9893 | 34 |
| 9894 | 16 |
| 9894 | 34 |
| 9895 | 23 |
| 9895 | 34 |
| 9900 | 34 |
| 9901-72 | 23 |
| 9909 | 6 |
| 9909 | 9 |
| 9909 | 10 |
| 9909 | 13 |
| 9909 | 14 |
| 9909 | 34 |
| 1-269-8663 | 36 |
| 1-269-8664 | 36 |
| 1-269-8665 | 36 |
| 1-269-8666 | 36 |
| 1-269-8667 | 36 |
| 1-269-8668 | 36 |
| 1-269-8669 | 36 |
| 1-269-8670 | 36 |
| 1-269-8671 | 36 |
| 1-269-8672 | 36 |
| 1-269-8673 | 36 |
| 1-269-8674 | 36 |
| 1-269-8675 | 36 |
| 1-269-8676 | 36 |
| 1-269-8677 | 37 |
| 1-269-8678 | 37 |
| 1-269-8679 | 37 |
| 1-269-8680 | 37 |
