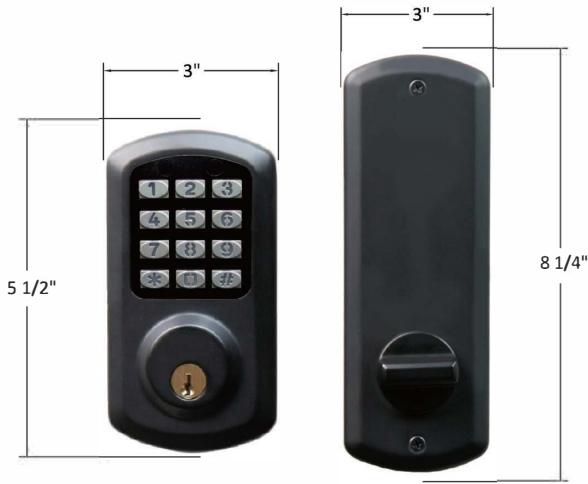

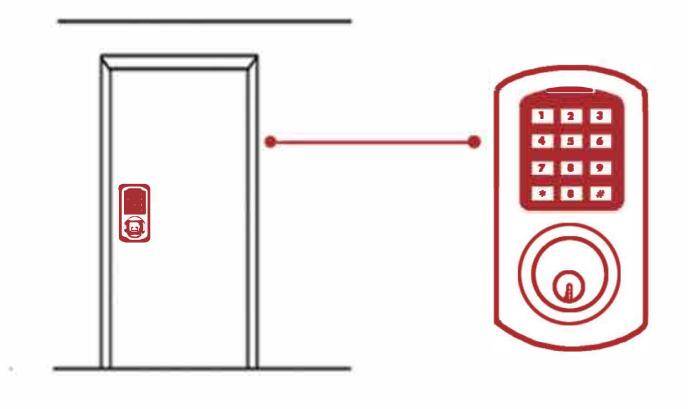

e-Smart 2000

Standalone Deadbolt

• Offline deadbolt, programmable at the lock – easy installation and programming
• For single residential homes or multi-housing facilities
• Offers 12-key illuminated keypad and mechanical key override
• Robust and unique motor design provides stronger, faster and more reliable gear drive
• Patent pending hybrid gearing design provides quieter operation
• Complies with the ANSI/BHMA Grade 1
• UL 10C 3 Hour Rated

Electronic Specifications

• Offline motorized deadbolt lock, programmable at the lock
• Powered with 4 AA alkaline batteries, 1-year battery life in normal conditions

• Standard 12-key illuminated keypad
• 100 user codes and 5 service codes capacity per lock
• Low battery warning

Mechanical Specifications

• Single cylinder motorized deadbolt lock
• Standard 161 door prep
• For door thickness 1-3/8" to 1-3/4"
• 5 or 6 pin Schlage C keyway
• 6 or 7 pin Small or Large format IC(SFIC/LFIC) with or without core High security optional
• 1" x 2-1/4" faceplate, plated finish
• 2-3/4" x 1-1/8" strike
• 1" throw deadbolt, anti-saw pins, drive-in deadbolt available
• 2-3/8" and 2-3/4" backset adjustable
• Dummy trim available for inactive leaf of paired door

Warranty

• 1-vear limited for electronic
• 5-year limited for finish
• 10-year limited for mechanical

How To O	rder
Series	ES2T: e-Smart 2000 TownSteel ES4T: e-Smart 4000 TownSteel ES5BT: e-Smart 5000 BLE(Bluetooth) TownSteel ES5RT: e-Smart 5000 RF(WIFI) TownSteel ESDT: e-Smart Dummy TownSteel	Example: Series	Cylinder
Finish	622 / US19 / Flat Black 630 / US32D / Satin Stainless Steel Others finish upon request	ES5BT - 62	1
Cylinder	D: Dummy SC(KIK): 5 or 6 pin SFIC/LFIC: Small/Large form at IC Core with or without core, 6 or 7 pin HS: High Security	Fini	sh

e-Smart 4000

Standalone Deadbolt

Features

• Programmable at the lock
• For single residential homes or multi-housing facilities
• Illuminated touch keypad, RFID card, and mechanical key override
• Robust and unique motor design provides stronger, faster and more reliable gear drive
• Patent pending hybrid gearing design provides quieter operation
• Certified ANSI/BHMA A156.36, Grade 1 listed
• 3 hour UL fire rated and NFPA 80 fire code certified

Electronic Specifications

• Powered with 4 AA alkaline batteries, 1 year battery life in normal conditions
• 12-key touch keypad
• Code length: 6 to 10 digits
• 99 pin codes and 300 MIFARE RFID cards/stickers capacity

Mechanical Specifications

• Heavy duty motorized deadbolt lock
• Standard 161 door prep
• For door thickness 1-3/4"
• 5 or 6 pin Schlage C keyway
• 6 or 7 pin Small or Large format IC(SFIC/LFIC) with or without core High security optional
• 1-1/8" x 2-3/4" strike
• 1" throw deadbolt, anti-saw pins, drive-in deadbolt available
• 2-3/8" and 2-3/4" backset adjustable
• Dummy trim available for inactive leaf of paired door

Programming Features

• RFID 13.56 MHz
• 300 MIFARE RFID cards/stickers capacity
• Custom logo imprinting available

Warranty

• 1-year limited for electronic
• 5-year limited for finish
• 10-year limited for mechanical

How To O	rder
Series	ES2T: e-Smart 2000 TownSteel ES4T: e-Smart 4000 TownSteel ES5BT: e-Smart 5000 BLE(Bluetooth) TownSteel ES5RT: e-Smart 5000 RF(WIFI) TownSteel ESDT: e-Smart Dummy TownSteel	Example: Series	Cylinder
Finish	622 / US19 / Flat Black 630 / US32D / Satin Stainless Steel Others finish upon request	ES5BT - 62	2 SC5
Cylinder	D: Dummy SC(KIK): 5 or 6 pin SFIC/LFIC: Small/Large form at IC Core with or without core, 6 or 7 pin HS: High Security	Fini	sh

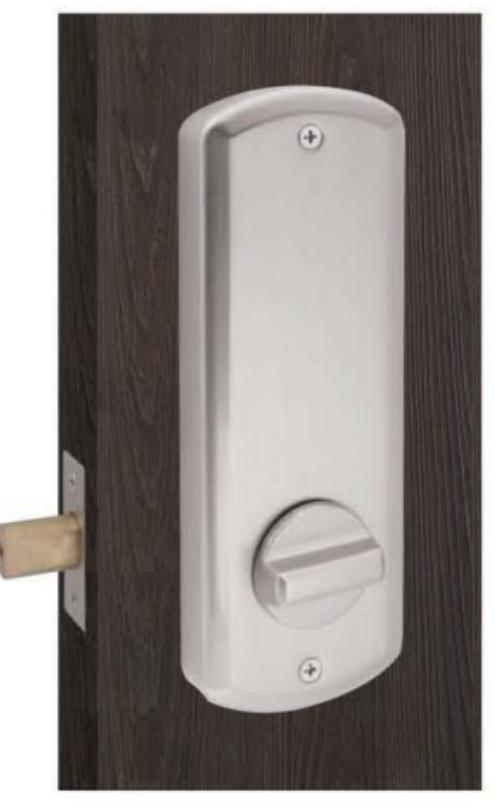

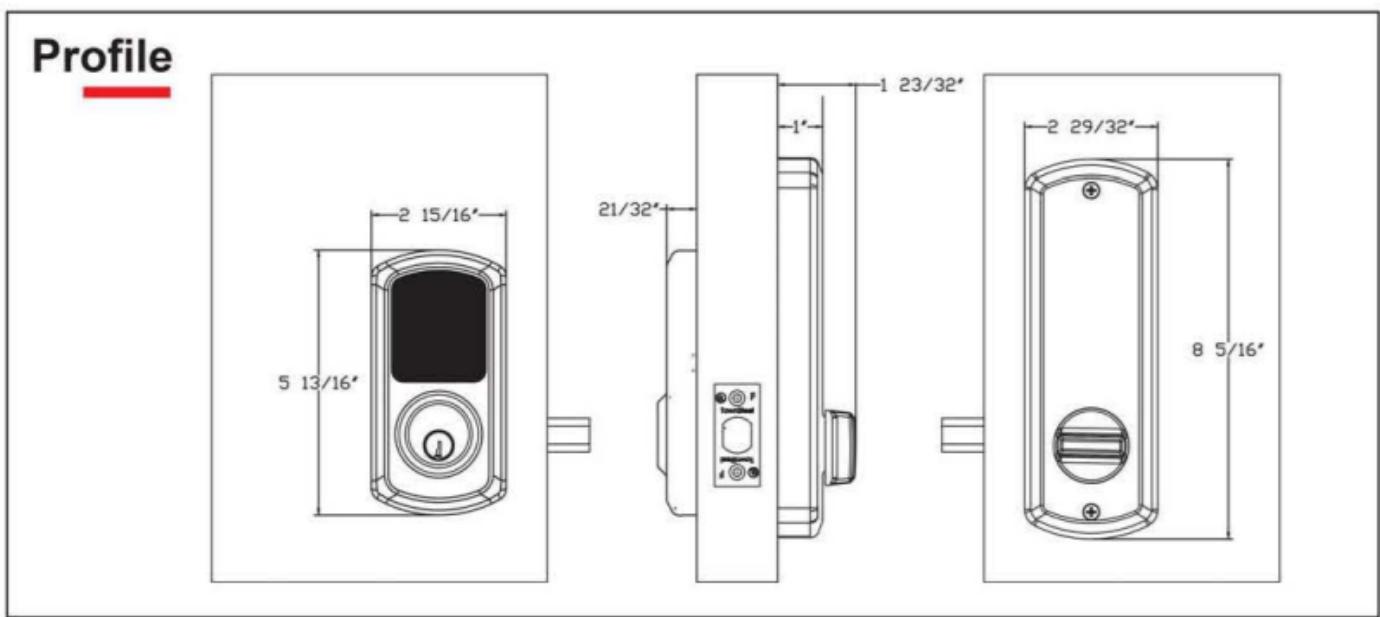

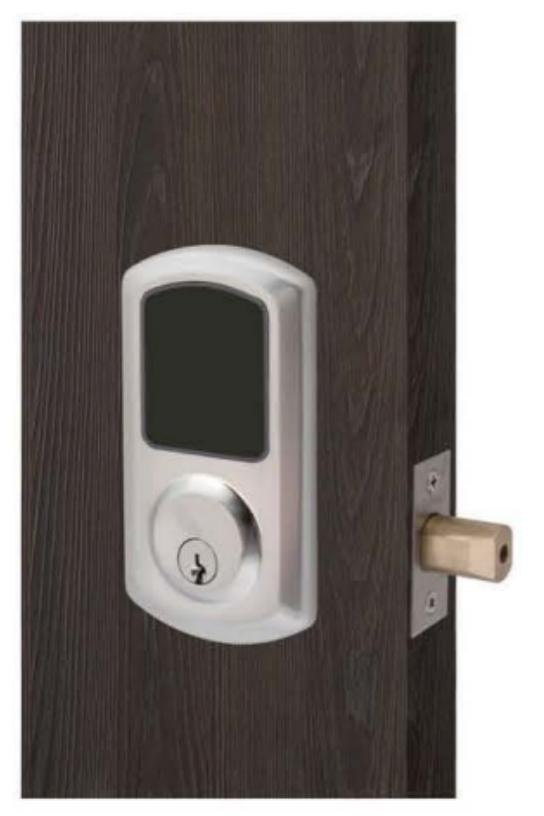

e-Smart 5000

Standalone Deadbolt

TOWNSTEE B Architectural Hardware MFG

e-Smart 5000-RF e-Smart 5000-BLE

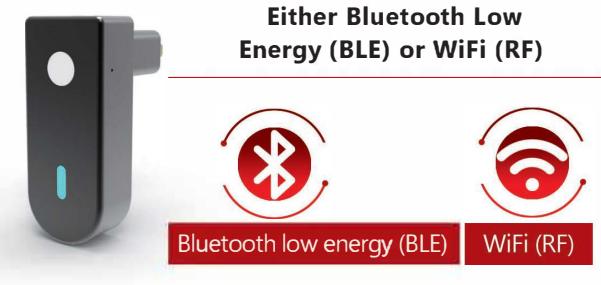

Gateway sold separately

Features

• Programmable at the lock or through an APP
• For single residential homes or multi-housing facilities
• Illuminated touch keypad, RFID card, and mechanical key override
• Robust and unique motor design provides stronger, faster and more reliable gear drive
• Patent pending hybrid gearing design provides quieter operation
• Certified ANSI/BHMA A156.36, Grade 1 listed
• UL 10C 3 Hour Rated

Electronic Specifications

• Works with gateway via WiFi or BLE
• Powered with 4 AA alkaline batteries, 1 year battery life under normal conditions
• 12-key touch keypad
• Code length: 6 to 10 digits
• 99 pin codes and 300 MIFARE RFID cards capacity

Mechanical Specifications

• Heavy duty motorized deadbolt lock
• Standard 161 door prep
• For door thickness 1-3/4"
• 5 or 6 pin Schlage C keyway
• 6 or 7 pin Small or Large format IC(SFIC/LFIC) with or without core High security optional
• 1" x 2-1/4" faceplate, plated finish
• 1-1/8" x 2-3/4" strike
• 1" throw deadbolt, anti-saw pins, drive-in deadbolt available
• 2-3/8" and 2-3/4" backset adjustable Dummy trim available for inactive leaf of paired door

Warranty

• 1-year limited for electronic
• 5-year limited for finish
• 10-year limited for mechanical

How To O	rder
Series	ES2T: e-Smart 2000 TownSteel ES4T: e-Smart 4000 TownSteel ES5BT: e-Smart 5000 BLE(Bluetooth) TownSteel ES5RT: e-Smart 5000 RF(WIFI) TownSteel ESDT: e-Smart Dummy TownSteel	Example: Series	Cylinder
Finish	622 / US19 / Flat Black 630 / US32D / Satin Stainless Steel Others finish upon request	ES5BT - 62	•
Cylinder	D: Dummy SC(KIK): 5 or 6 pin SFIC/LFIC: Small/Large form at IC Core with or without core, 6 or 7 pin HS: High Security	Fin	ish

e-Smart Series

Series	e-Smart\ne-Smart Dummy (ESDT)	Series Cylinder
Finish	SN: US15, Satin Nickel FB: US19, Flat Black SC: US26D, Satin Chrome Or special color upon request	ES6T-SN-SC
Cylinder	SC(KIK) / SFIC / CLFIC / SLFIC / HS

e-Smart Series

Series	e-Smart\ne-Smart Dummy (ESDT)	Series Cylinder
Finish	SN: US15, Satin Nickel FB: US19, Flat Black SC: US26D, Satin Chrome Or special color upon request	ES6T-SN-SC
Cylinder	SC(KIK) / SFIC / CLFIC / SLFIC / HS
