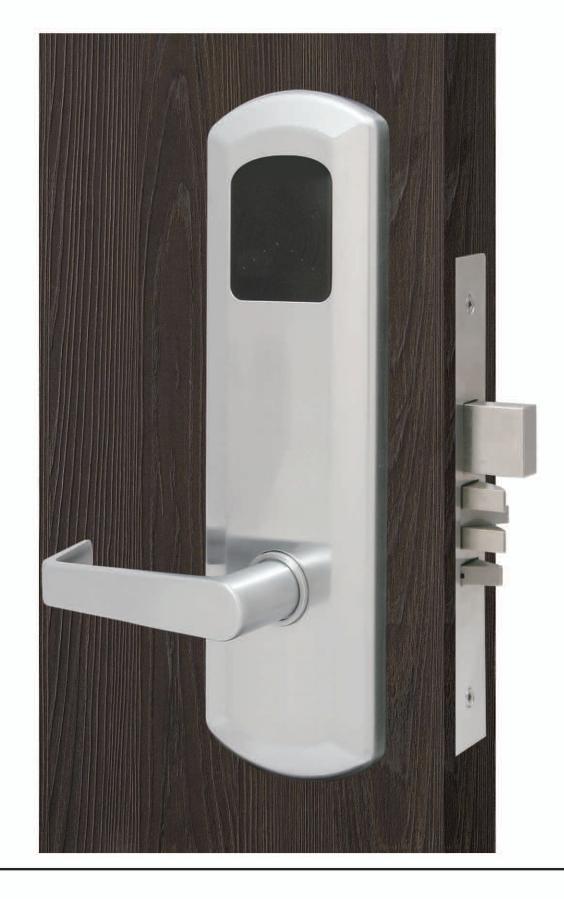

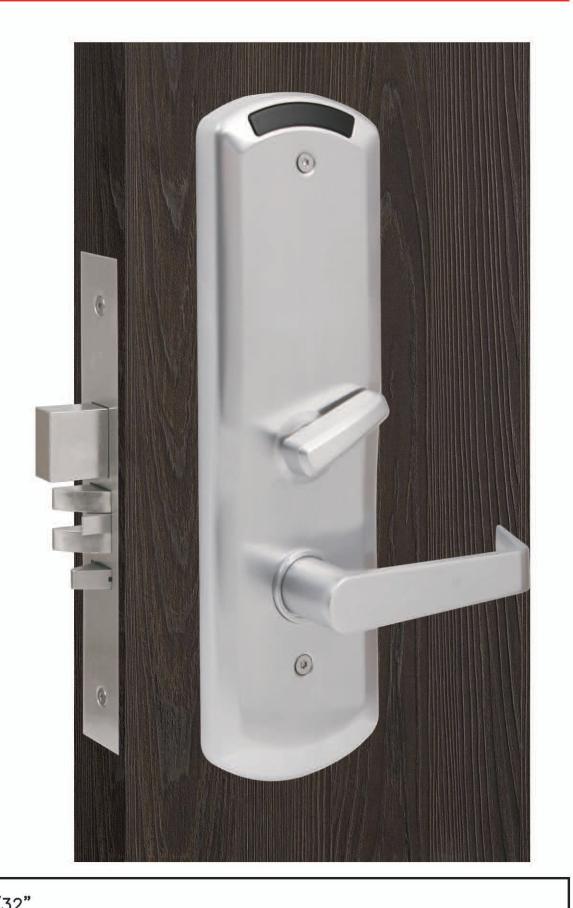

e-KONTOS 1A Series

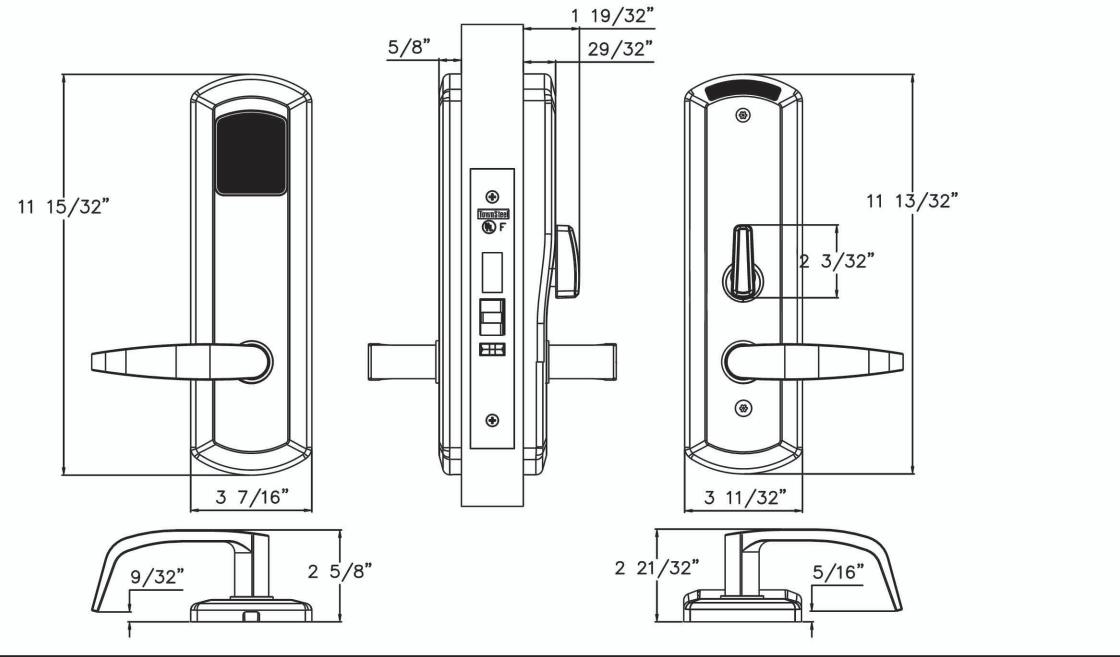

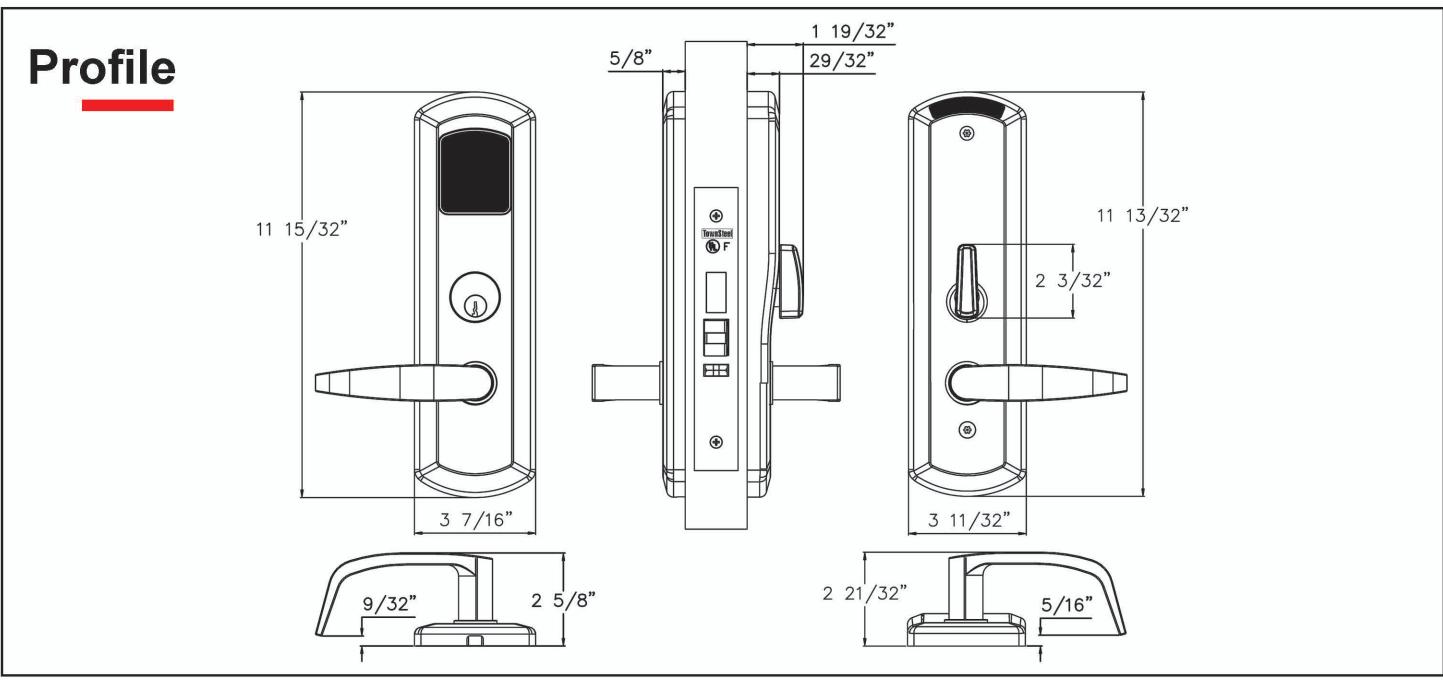

Profile

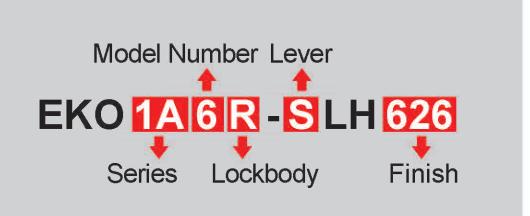

| How To Order | |
|---|---|
| Series | e-Kontos 1A: No cylinder |
| Model Number |
5R: 5000-RF(WiFi) / 5B: 5000-BLE(Bluetooth)
6: 6000(Maxx Access System) |
| Lockbody | R: Rigid / C: Clutched / X: Automatic Deadbolt Series |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog |
| Finish | 622: US19, Flat Black / 626: US26D, Satin Chrome Or special color upon request |
| Cylinder | N/A |

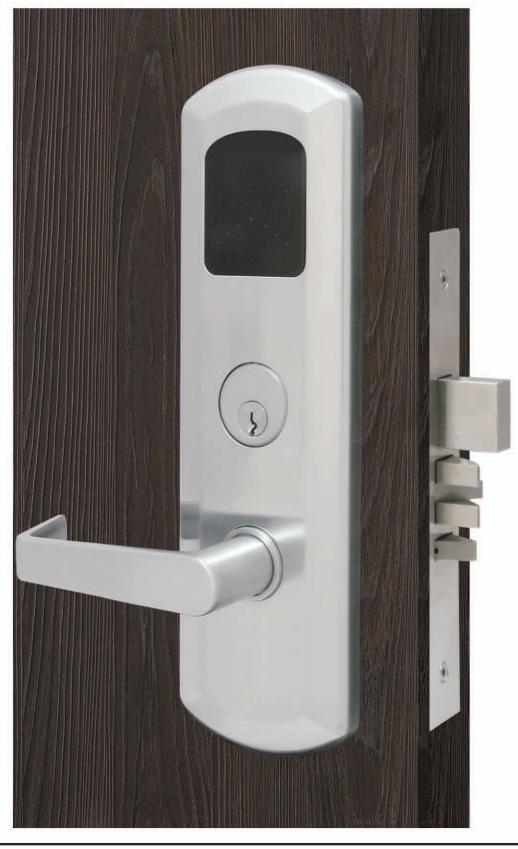

e-KONTOS 1B Series
| How To Order | |||
|---|---|---|---|
| Series | e-Kontos 1B: With cylinder | ||
| Model Number |
5R: 5000-RF(WiFi) / 5B: 5000-BLE(Bluetooth)
6: 6000(Maxx Access System) |
Model Number Lever Cylinder | |
| Lockbody | R: Rigid / C: Clutched / X: Automatic Deadbolt Series | EKO1B6R-SLH626-SFIC7 | |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | CKO IDOK-SLITOZO-SFICI | |
| Finish |
622: US19, Flat Black / 626: US26D, Satin Chrome
Or special color upon request |
Series Lockbody Finish | |
| Cylinder | Any mortise cylinder can be used | ||
