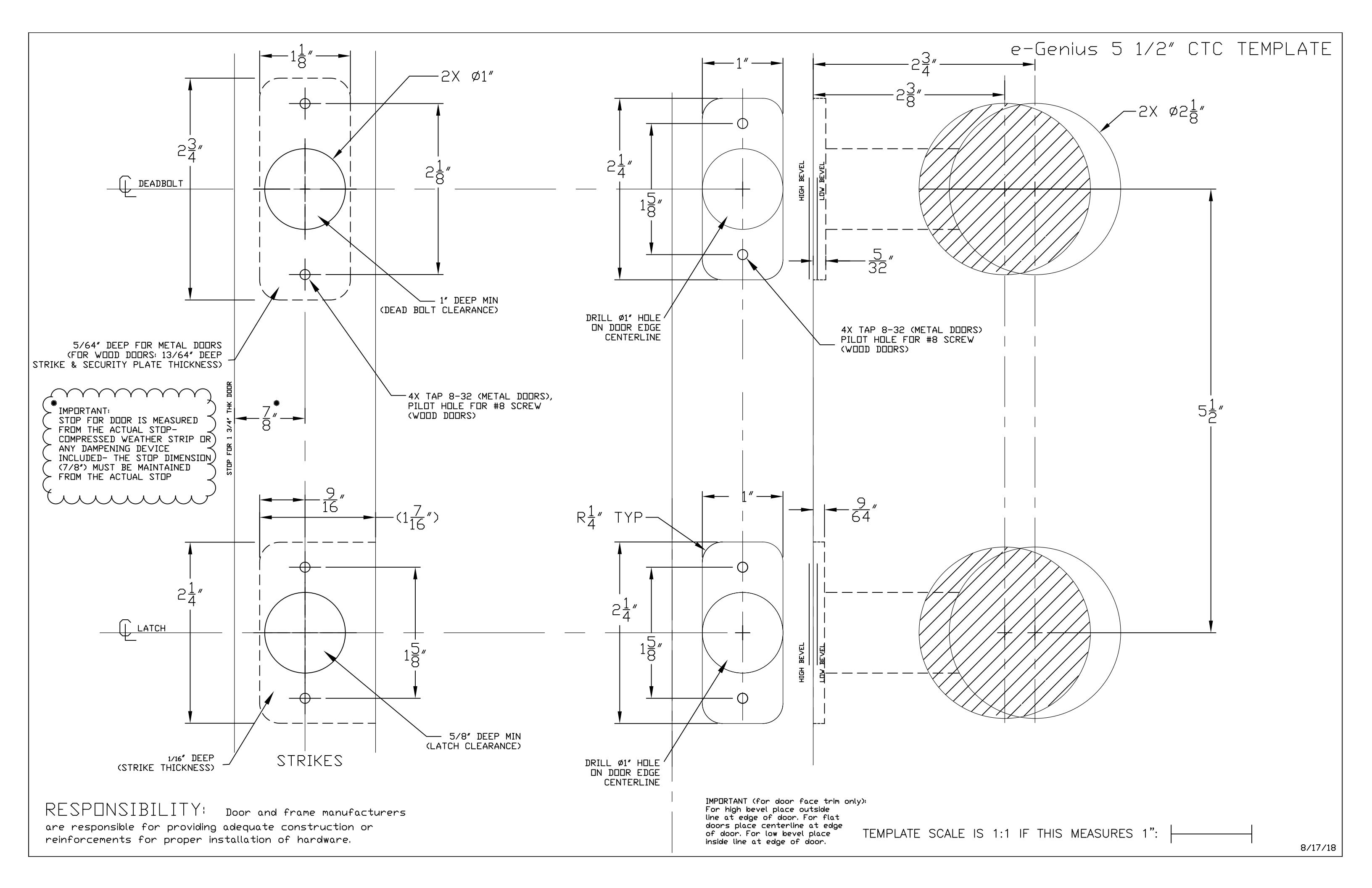

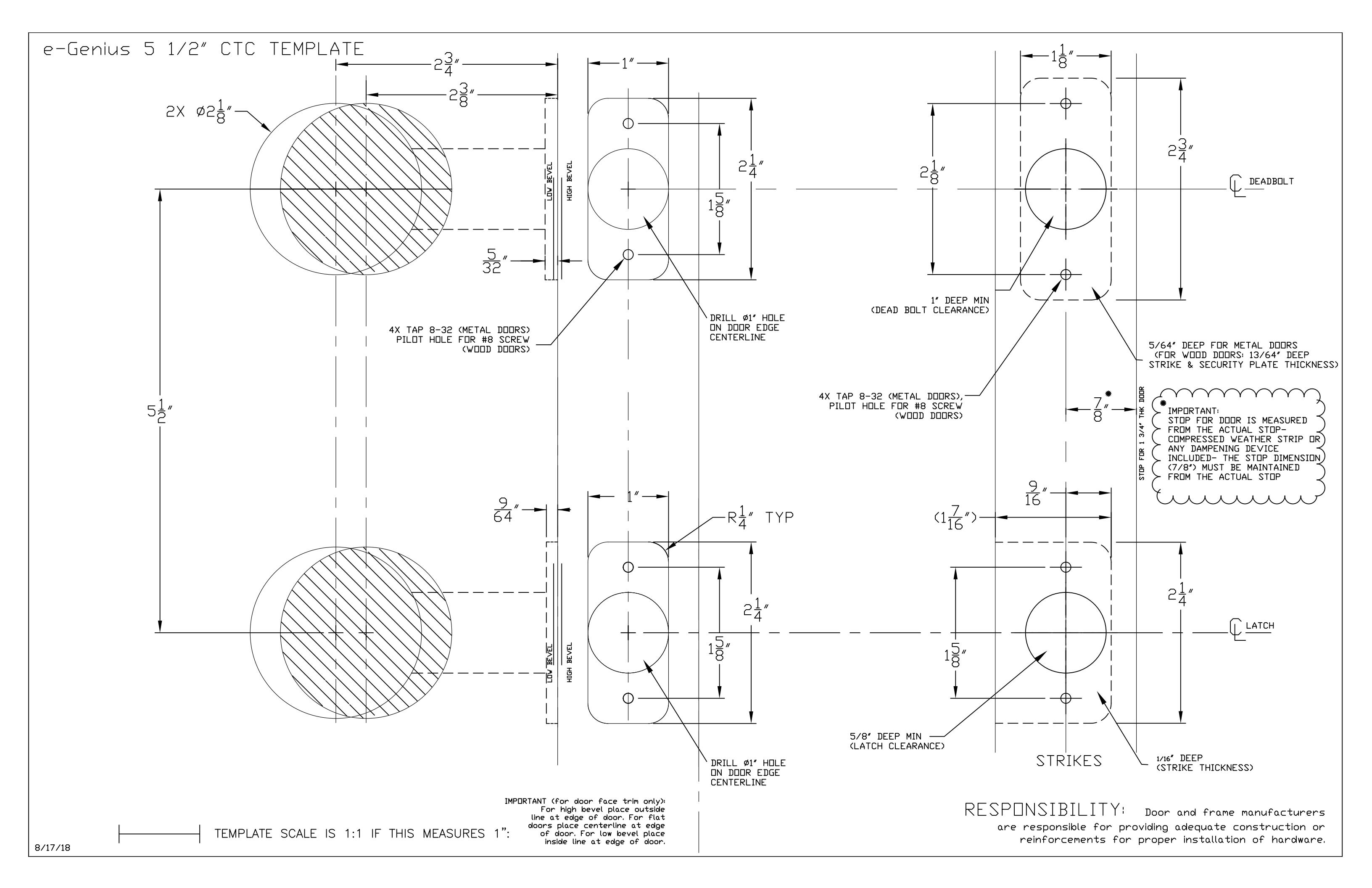

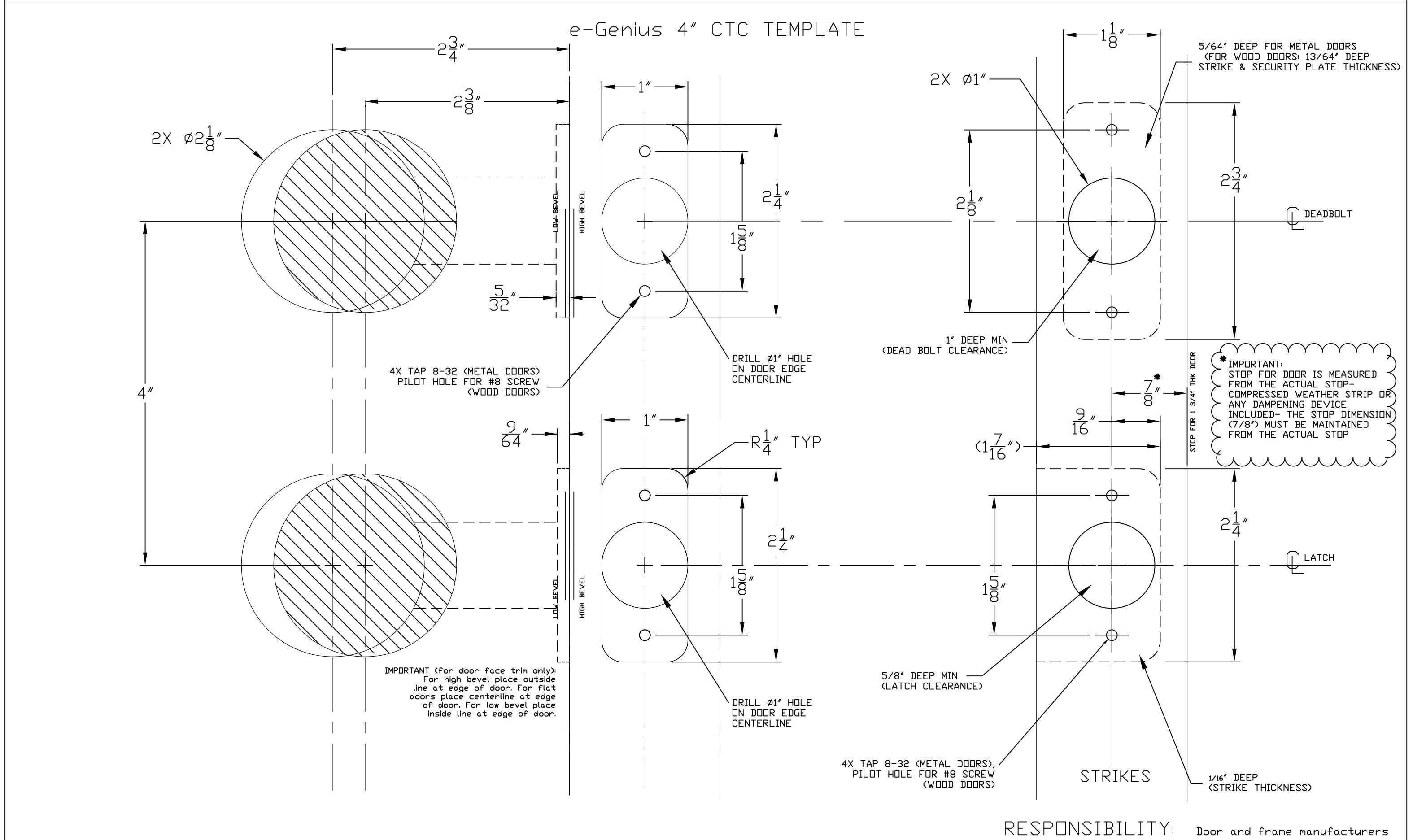

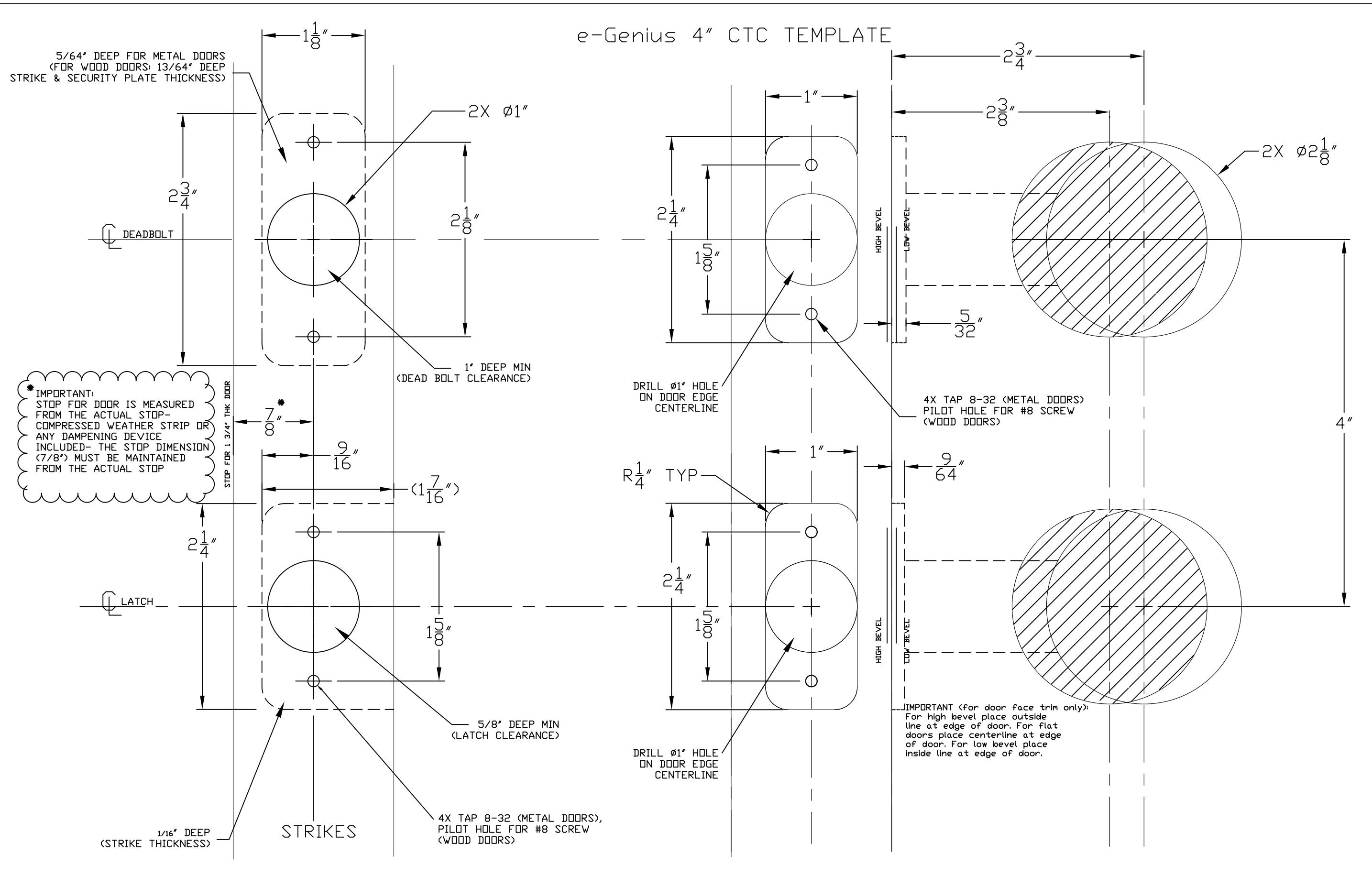

e-Genius Template
Open the original PDF document
View PDF
RESPONSIBILITY: Door and frame manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware.
TEMPLATE SCALE IS 1:1 IF THIS MEASURES 1":
ESPONSIBILITY: Door and frame manufacturers are responsible for providing adequate construction or reinforcements for proper installation of hardware.
