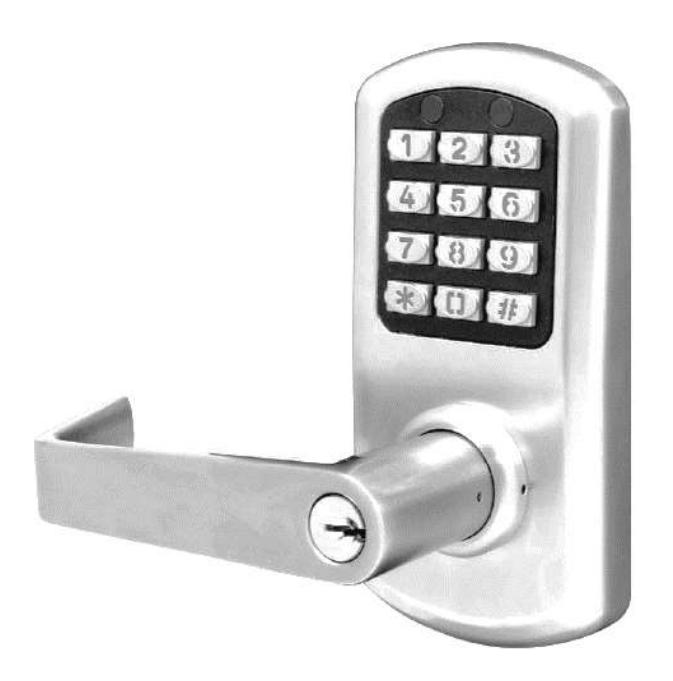

Motorized Cylindrical Lock

e-Elite 2000

Features and Benefits

• Extra heavy-duty lockset certified with ANSI/BHMA Grade 1 for extensive use in both interior and exterior working environment
• All metal keypad design for tactile requirements and ADA compliance
• Master Code- programs all User Codes, Service Codes, System Setting and opens the lock.
• User Code- are programmed by Master Code and used to operate the lock
• Service Code- allows one entry per code and deleted after used.
• Pin Code- 4-6 digits (Master Code and User Code must be the same length)
• Passage Mode- remain door actively unlocked until disabled by Master Code
• LED indicator located around the keypad of the lock and flashes green/red LED dependent on inputs
• Keypad sound adjustable
• 100 User Codes, 5 Service Codes capacity
• Programmable via keypad at the lock
• Other features noted in the Programming Manual

Motorized Cylindrical Lock

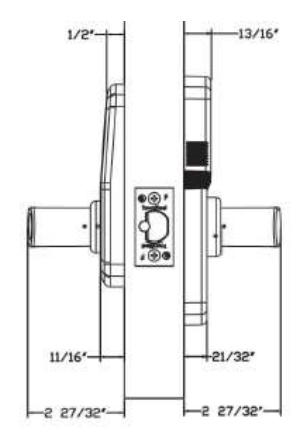

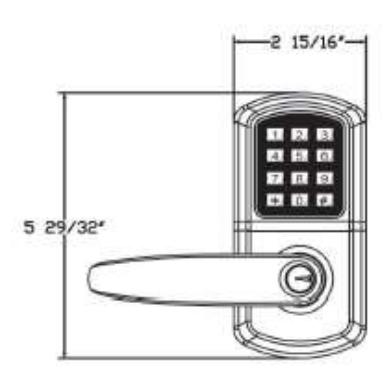

Mechanical Specifications

• Door Thickness: 1-
• Backset: 2- standard, 2- optional
• Clutched or Rigid trim
• Faceplate: 1- -
• Strike: ASA strike standard, 1- -
• Escutcheon: Steel or zinc alloy
• Lever: Zinc or stainless steel

Electronic Specifications

• Programmable at the lock
• Battery operated, no hard wiring required
• Low battery warning
• Standard 12-key illuminated touch keypad
• Non-volatile memory
• Weather resistant lock

Cylinder Specifications

Key in lever option:

• SC Schlage® 6-
• K6 Kwikset® 6-
• HS6 High security 6-
• SF6 Best® 6-
• SF7 Best® 7-
• HS7 High security 7-pin, IC c

Less cylinder core option:

• SF Schlage® small format IC, SFIC
• SLF Schlage® large format IC, SLFIC
• CLF Corbin® large format IC, CLFIC

Warranty

• 2-year limited for electronic
• 10-year limited for mechanical

Available Lever Styles to Choose

• Gala (G)
• Quest (Q)
• Sentinel (S)

Finishes

• 619: US15, Satin Nickel
• 622: US19, Flat Black
• 626: US26D, Satin Chrome Or special color upon request

How to Order
Series	2: e-Elite 2000; 4: e-Elite 4000
Lockbody	1: Rigid / 2: Clutched
Lever Style	S: Sentinel / Q: Quest / G: Gala
Handing	RH / LH / RHR / LHR
Finish	619: US15, Satin Nickel / 622: US19, Flat Black 626: US26D, Satin Chrome / Or special color upon request
Cylinder	SC / K6 / HS6 / SF6 / SF7 / HS7 / SF / SLF / CLF *KD standard, KA, MK, GMK, GGMK upon request
Backset	Blank: 2- -

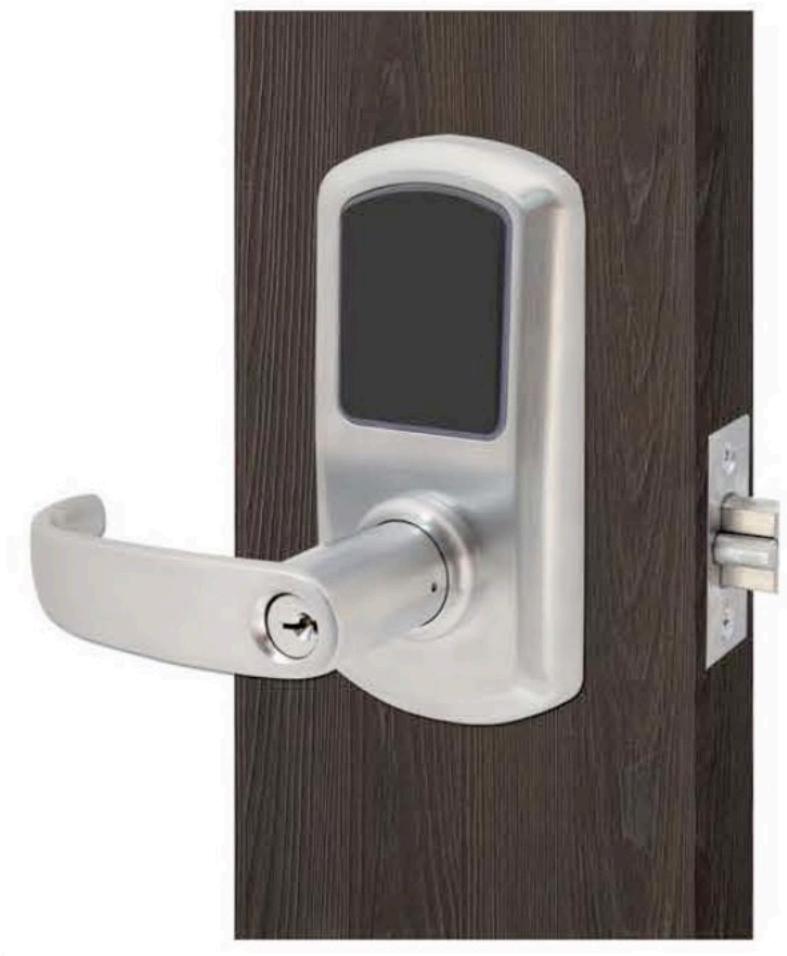

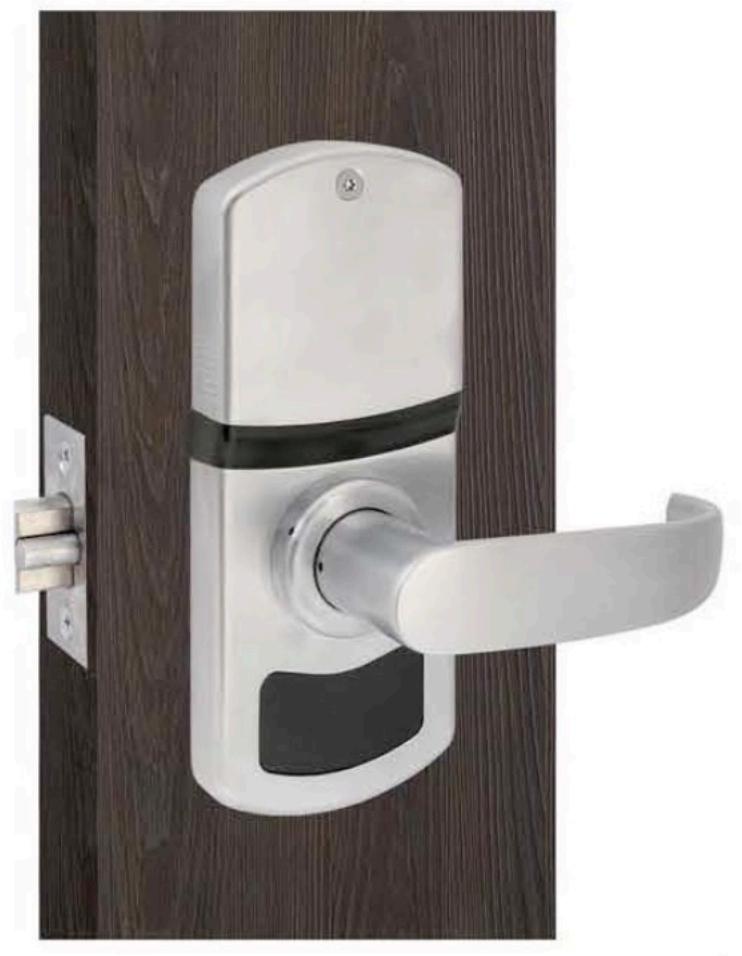

e-Elite Series

How To Order
Series	e-Elite
Lockbody	1: Rigid / 2: Clutch	Lever Cylinder
Lever Style	S: Sentinel / Q: Quest / G: Gala	t t
Finish	SN: US15, Satin Nickel / FB: US19, Flat Black SC: US26D, Satin Chrome Or special color upon request	EE61T-SLHSN-SFIC7 Lockbody Finish
Cylinder	SC(KIK 6 pin) / SFIC6 / SFIC7 / CLFIC6 / SLFIC / HS
