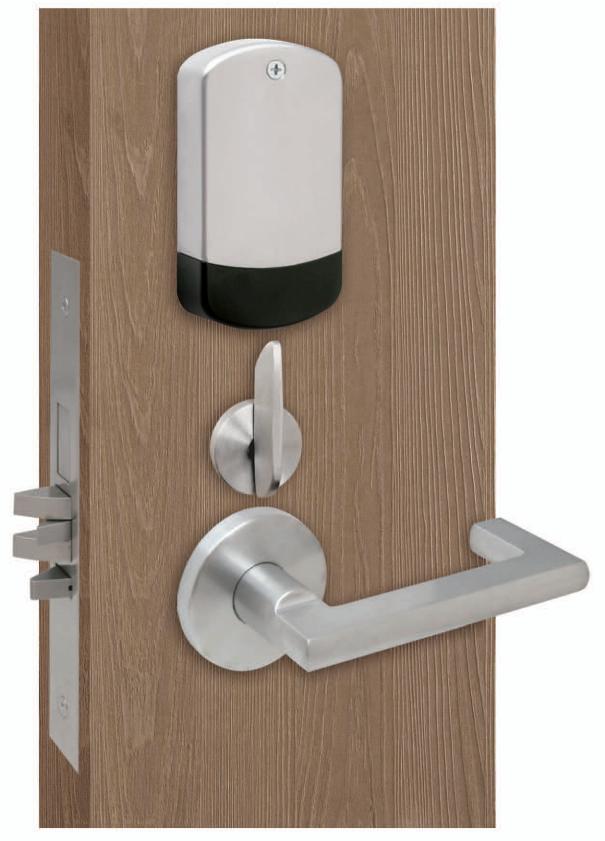

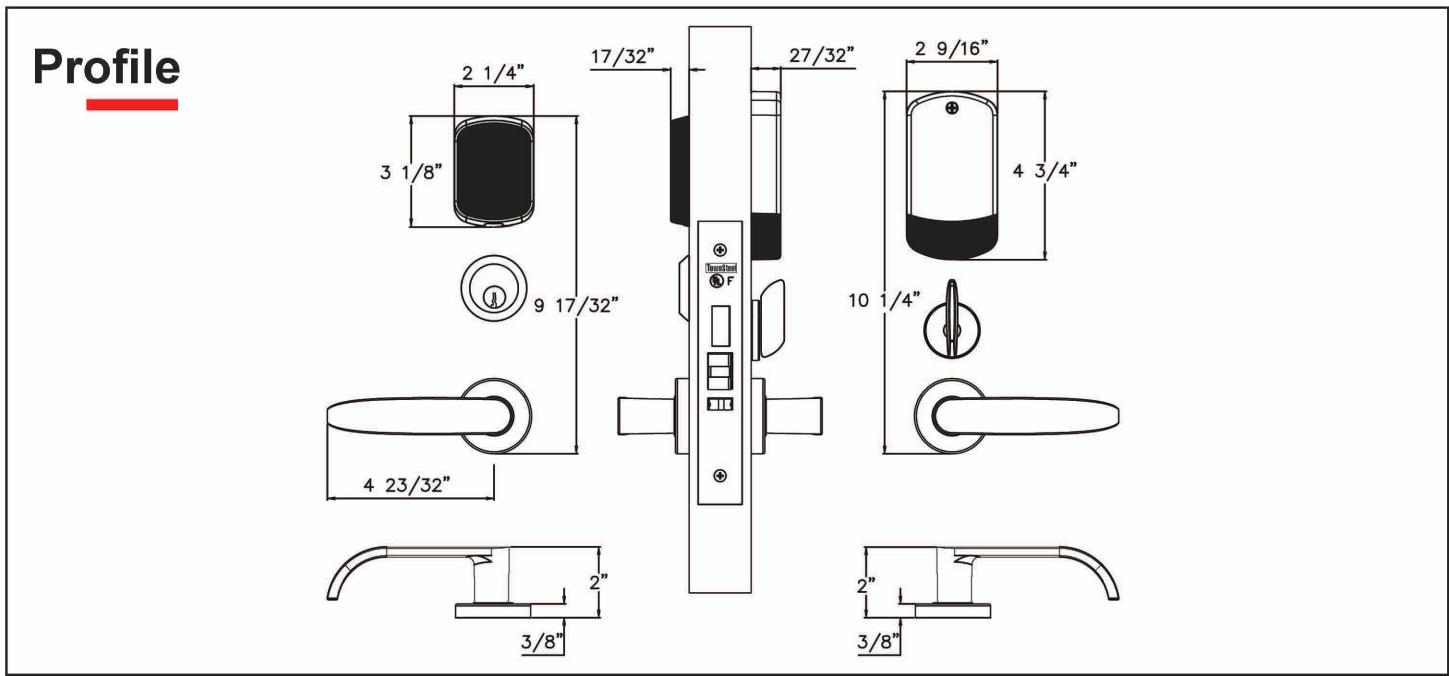

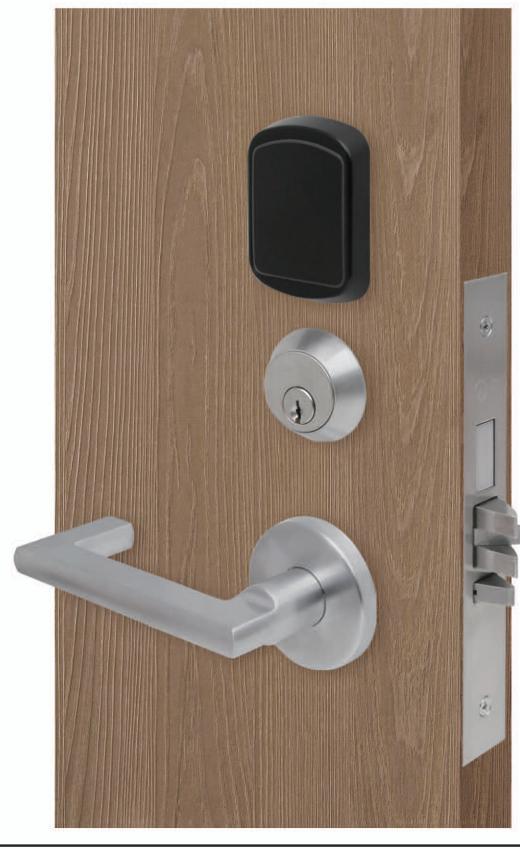

e-CRONUS 1B Series
| How To Order | ||
|---|---|---|
| Series | e-Cronus 1B: With cylinder | |
| Model Number | 2: 2000(Keypad) / 4: 4000(RFID) / 5R: 5000-RF(WiFi) 5B: 5000-BLE(Bluetooth) / 6: 6000(Maxx Access System) | Model Number Lever Cylinder |
| Lockbody | R: Rigid / C: Clutched / X: Automatic Deadbolt Series | |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR 1B6R-SLH626-SFIC7 |
| Finish | 622: US19, Flat Black / 626: US26D, Satin Chrome Or special color upon request | Series Lockbody Finish |
| Cylinder | Any mortise cylinder can be used |

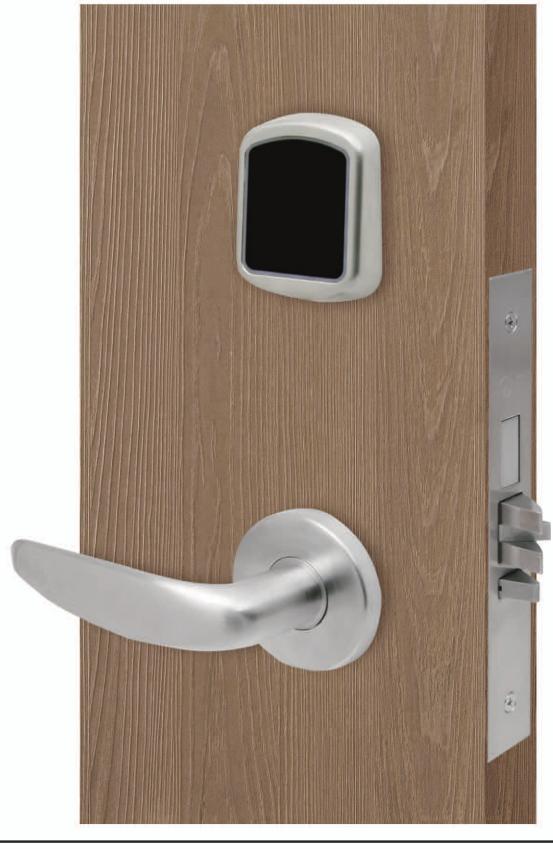

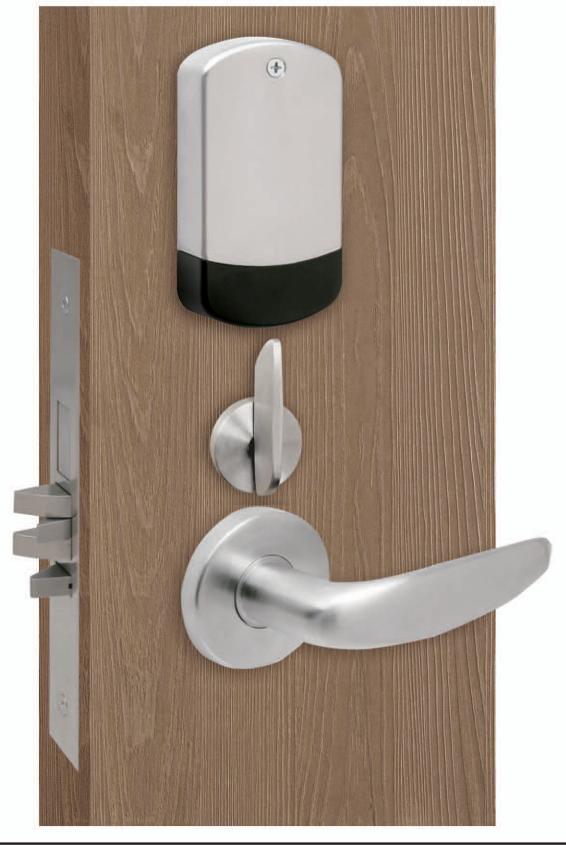

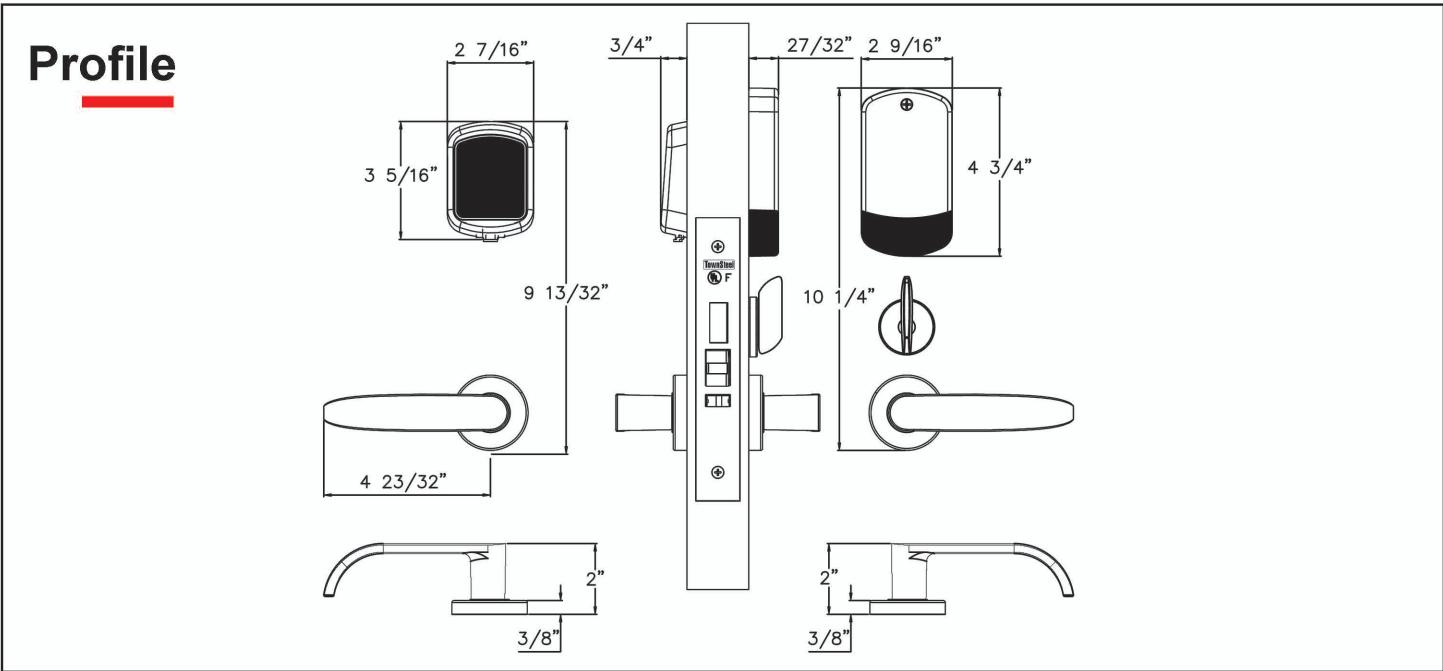

e-CRONUS 2A Series
| How To Order | ||
|---|---|---|
| Series | e-Cronus 2A: No cylinder | |
| Model Number |
2: 2000(Keypad) / 4: 4000(RFID) / 5R: 5000-RF(WiFi)
5B: 5000-BLE(Bluetooth) / 6: 6000(Maxx Access System) |
Model Number Lever ECR 2A 6 R - S LH 626 |
| Lockbody | R: Rigid / C: Clutched / X: Automatic Deadbolt Series | |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | LOITEAUT - OLITOLO |
| Finish | 622: US19, Flat Black / 626: US26D, Satin Chrome Or special color upon request | Series Lockbody Finish |
| Cylinder | N/A | |
| A 0.4 |

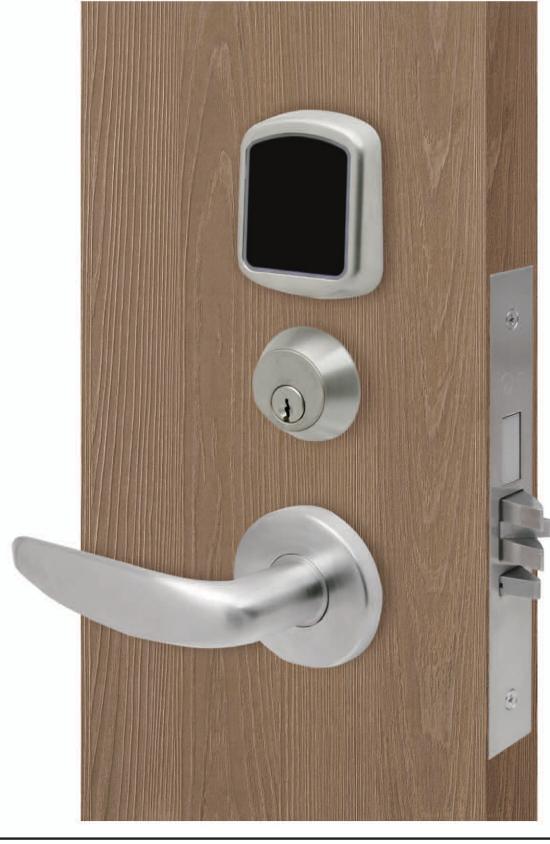

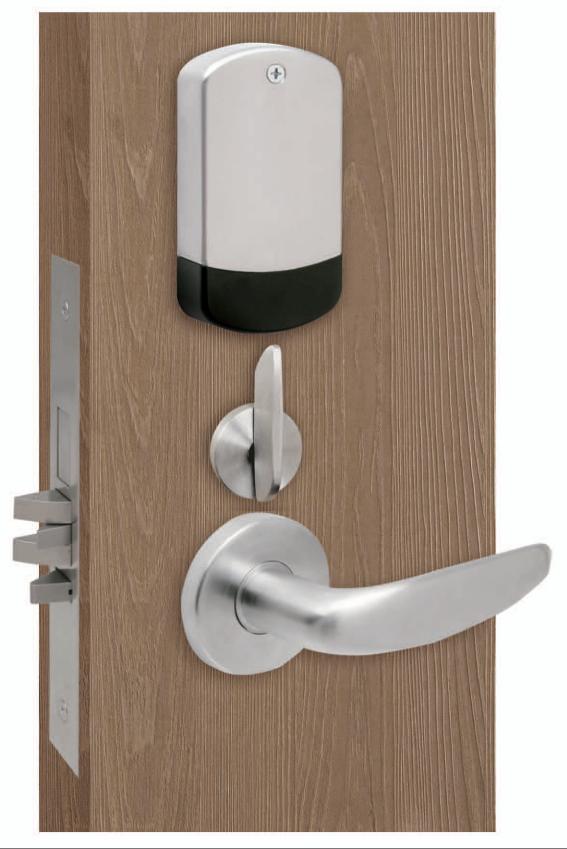

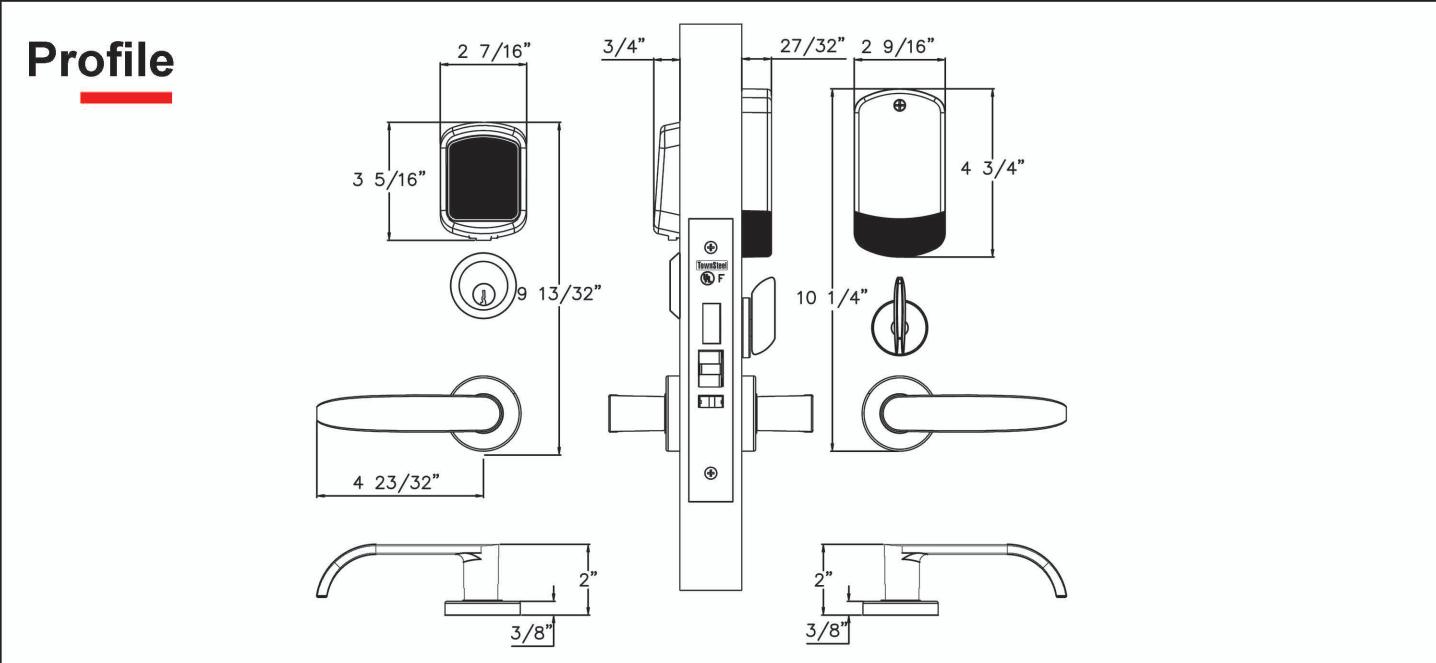

e-CRONUS 2B Series
| How To Order | ||
|---|---|---|
| Series | e-Cronus 2B: With cylinder | |
| Model Number |
2: 2000(Keypad) / 4: 4000(RFID) / 5R: 5000-RF(WiFi)
5B: 5000-BLE(Bluetooth) / 6: 6000(Maxx Access System) |
Model Number Lever Cylinder |
| Lockbody | R: Rigid / C: Clutched / X: Automatic Deadbolt Series | COMPAND OLLICOR OFICE |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | ECR 2B 6 R - S LH 626 - SFIC7 |
| Finish | 622: US19, Flat Black / 626: US26D, Satin Chrome Or special color upon request | Series Lockbody Finish |
| Cylinder | Any mortise cylinder can be used | |

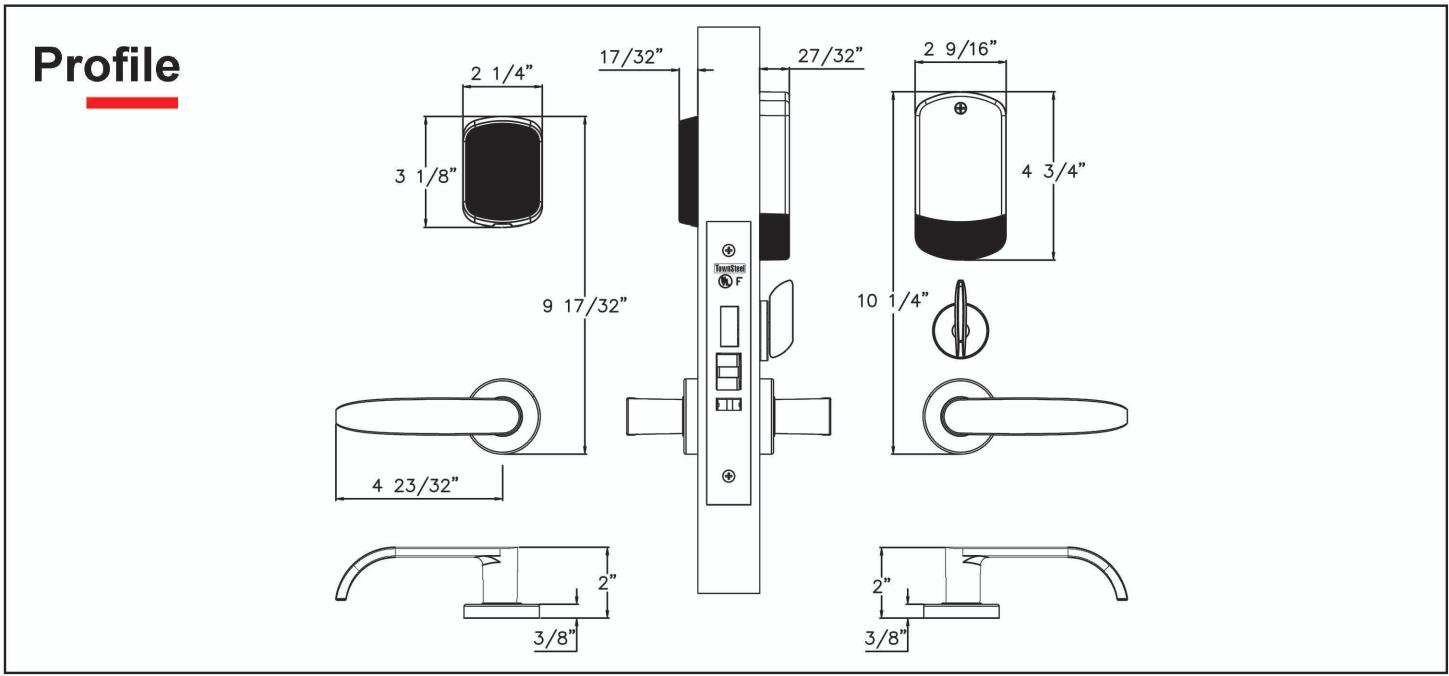

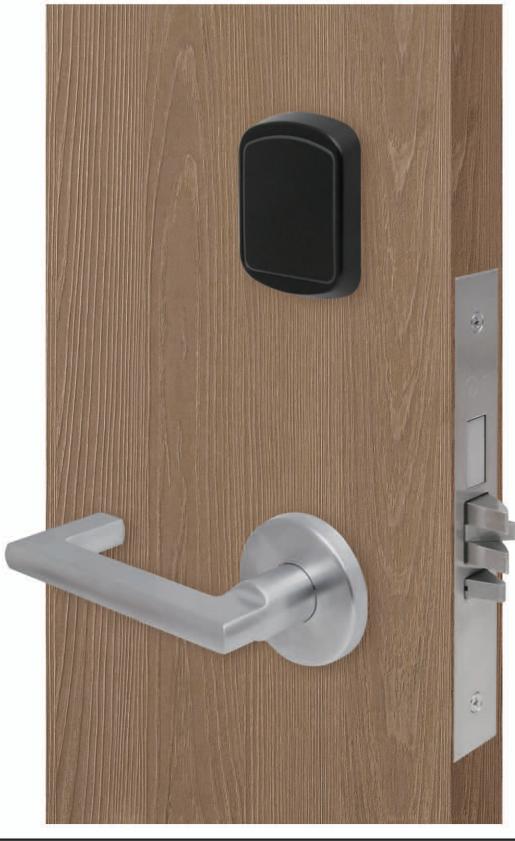

e-CRONUS 1A Series
| How To Order | ||
|---|---|---|
| Series | e-Cronus 1A: No cylinder | |
| Model Number |
2: 2000(Keypad) / 4: 4000(RFID) / 5R: 5000-RF(WiFi)
5B: 5000-BLE(Bluetooth) / 6: 6000(Maxx Access System) |
Model Number Lever |
| Lockbody | R: Rigid / C: Clutched / X: Automatic Deadbolt Series | ECR 1A6R-SLH626 |
| Lever Style | S: Sentinel / Q: Quest / Or see TownSteel Catalog | LON MOIN-BLITOZO |
| Finish | 622: US19, Flat Black / 626: US26D, Satin Chrome Or special color upon request | Series Lockbody Finish |
| Cylinder | N/A | |
| _ |
