View PDF| 7.7 | DEPTHS | SPACES | ||||
|---|---|---|---|---|---|---|
| # | INCH | MM | # | INCH | MM | |
| 0 | 1 | .216 | 5.48 | |||
| 1 | .320 | 8.05 | 2 | .371 | 9.42 | |
| 2 | .302 | 7.60 | 3 | .526 | 13.36 | |
| 3 | .284 | 7.15 | 4 | .681 | 17.30 | |
| 4 | .266 | 6.70 | 5 | .836 | 21.24 | |
| 5 | .248 | 6.25 | 6 | |||
| 6 | .230 | 5.80 | 7 | |||
| 7 | .212 | 5.35 | 8 | |||
| 8 | .194 | 4.90 | 9 | |||
| 9 | .176 | 4.45 | 10 | |||
| 10 | 11 | |||||
| 11 | - Lange Grand | 12 | ||||
|
DEPTH
INCREMENT |
SPACE
INCREMENT |
|||||
| INCH | MM | INCH | MM | |||
| .0 | 18 | .45 | .155 | 3.94 | ||

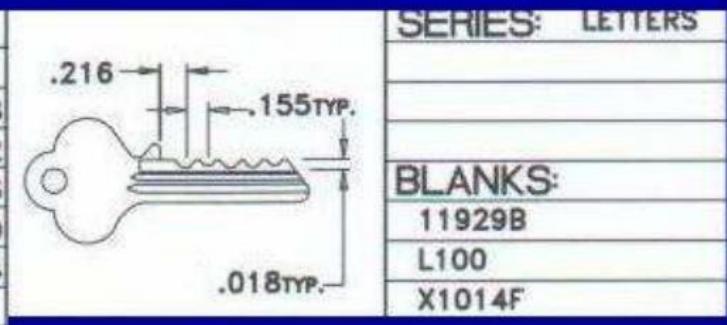

EAGLE LARGE PIN
