IMPORTANT

Templates must be printed without size modifications and verified for dimensional accuracy.

• • Before printing, select the printing options necessary to ensure that copies are produced without size adjustments.
• • After printing, measure the dimensions indicated on the template to ensure correct scale.

345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC

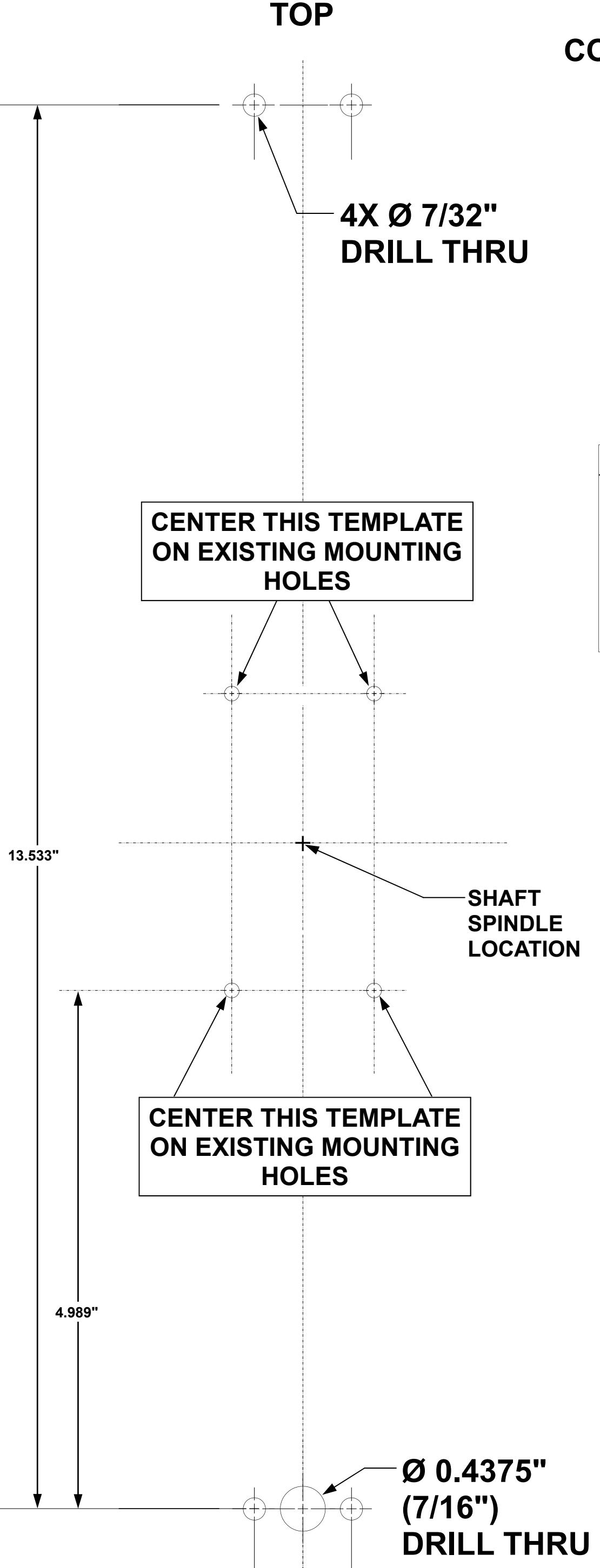

USE TO INSTALL ON: CORBIN RUSSWIN ED8200

4X.468"

2X.936"

IMPORTANT

ALWAYS SELECT PRINTING OPTIONS TO ENSURE THAT COPIES OF TEMPLATES ARE PRODUCED WITHOUT SIZE ADJUSTMENTS.

AFTER PRINTING, VERIFY THE DIMENSIONS OF THIS BOX ARE 2.000 X 2.000 INCHES ± 0.010.
