CR25LM/DM
IMPORTANT:
It is highly recommended that you install the cam/prong driver and lock cylinder into the lock body and cycle to the locked position before assembling cam, cam shifter and stop pin onto the back of the lock.

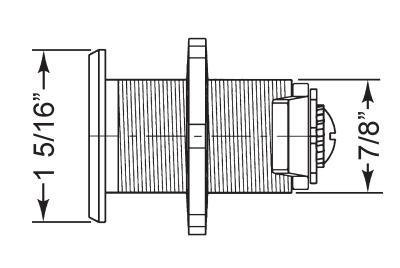

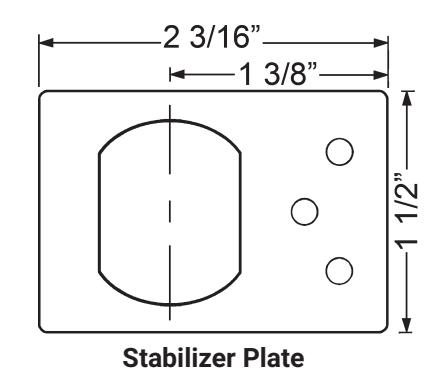

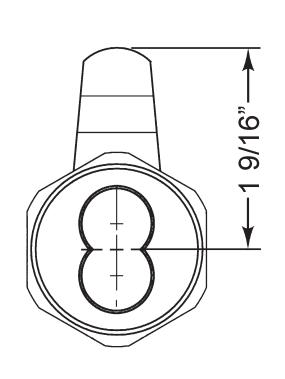

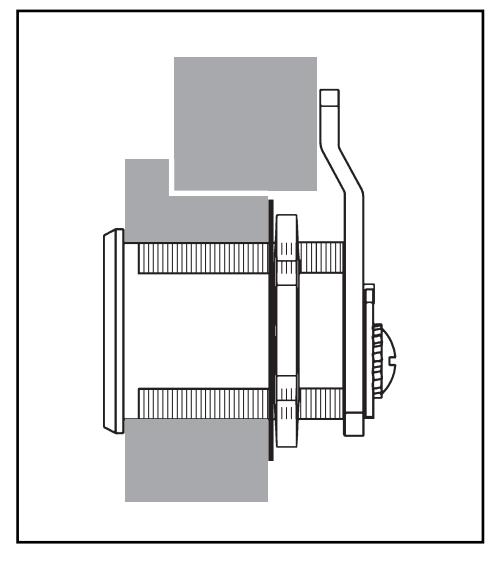

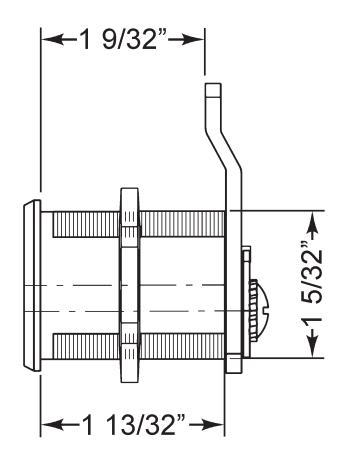

Typical Installation

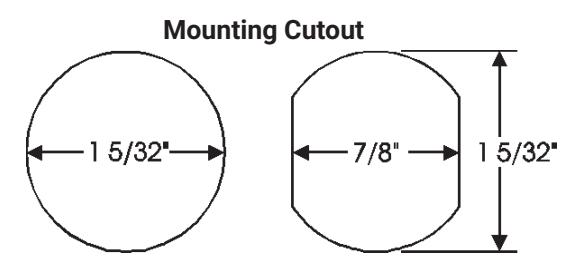

Lock diameter is 1-1/8". Drilled hole should be slightly larger.
|
Title
Installation instructions for CR25LM/DM series cam lock |
||||
|---|---|---|---|---|
| Series | Barrel Length | Bolt type | Mounting | Revision Date |
| CR25 | 1-7/16" | Cam lock | Surface | 09/2014 |
CR25LM/DM
Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4
key retaining door cam shifter
key retaining door cam shifter
IMPORTANT! If your cam has a brass pin between the two notched cut outs use these instructions, otherwise see page 3.
CR25LM/DM

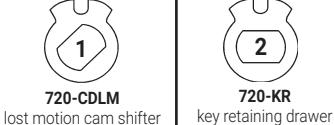

cam shifter
Assembled with vertical long cam 720-3-2 or extra long 3" cam 720-3-4
(non-key-retaining)

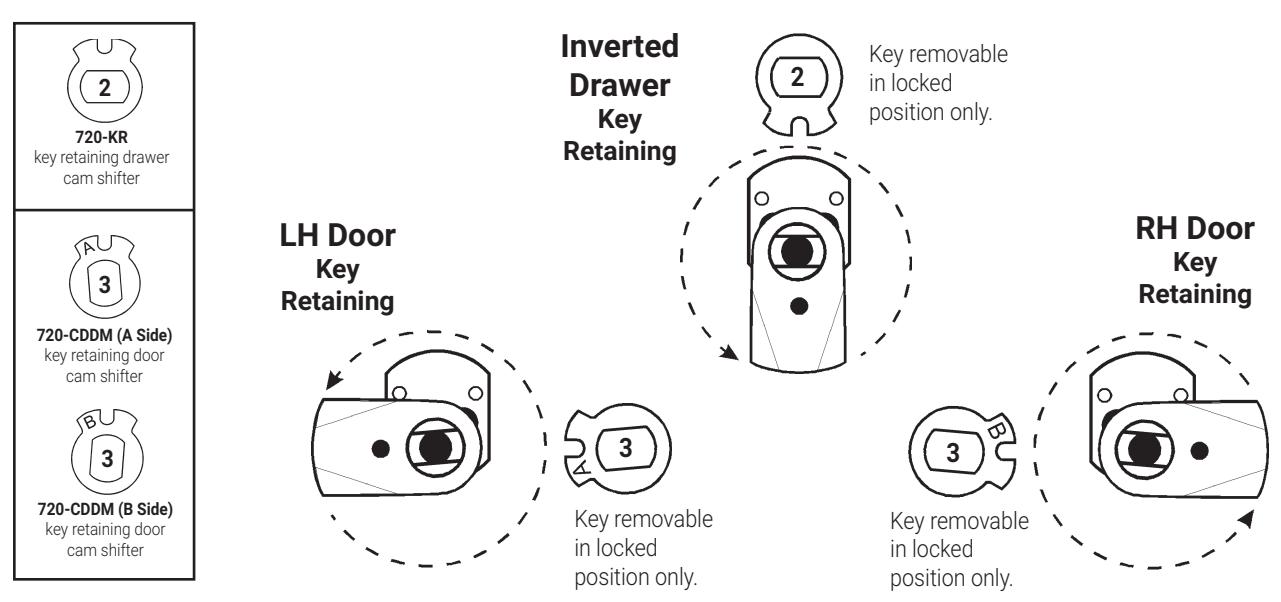

720-CDDM (A Side) key retaining door cam shifter
720-CDDM (B Side) key retaining door cam shifter
IMPORTANT! If your cam has a brass pin on the bottom of the cam use these instructions, otherwise see page 2.

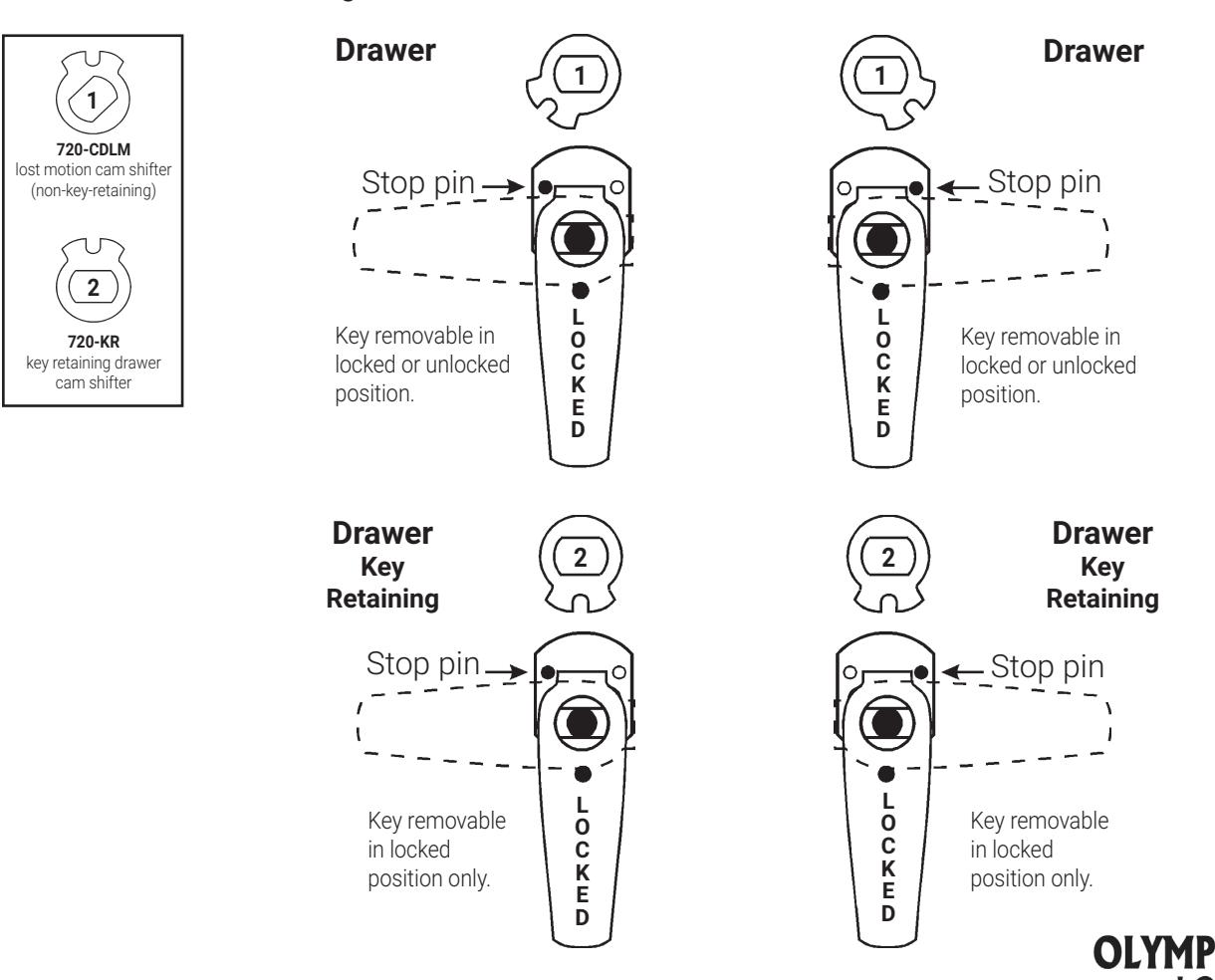

Assembled with short cam 720-3-1 CR25LM/DM
Assembled with inverted long cam 720-3-3 or 720-3-5
