Installation Instructions

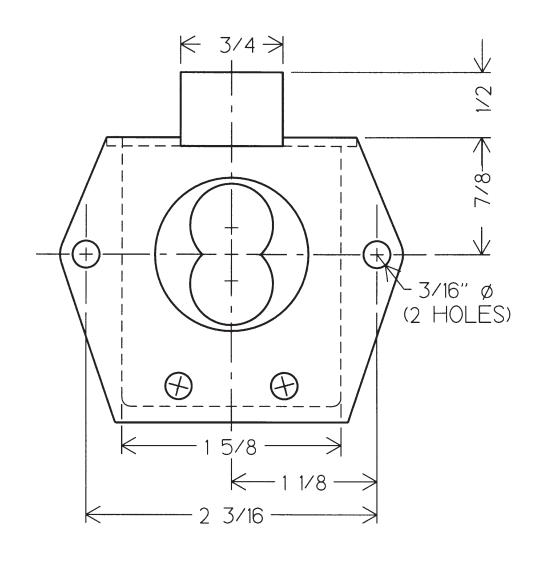

CR1125RD

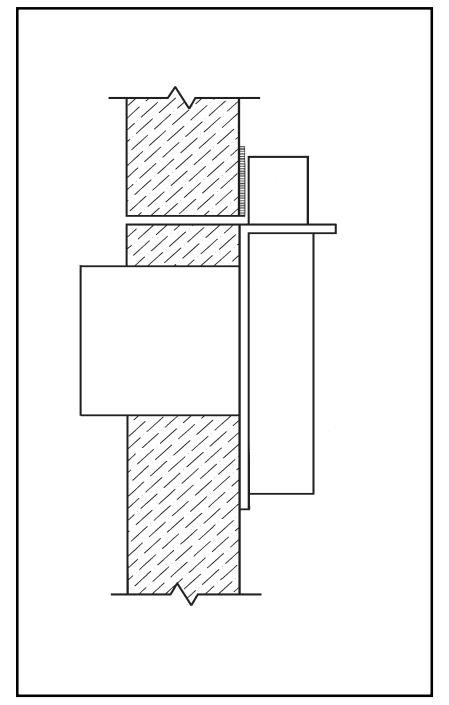

Typical Installation
Includes

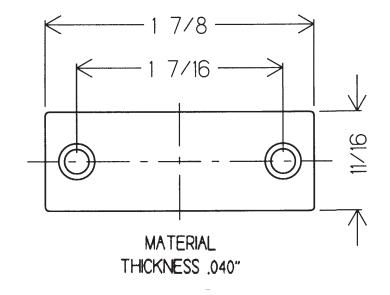

2 Mounting screws #8 x 5/8" 2 Strike screws #5 x 5/8"
|
Title
|
|
Installation instructions for CR1125RD series cabinet lock
|
|
Series
|
Barrel Length
|
Bolt type
|
Mounting
|
Revision Date
|
|
CR1125RD
|
1-1/16"
|
Deadbolt
|
Surface
|
06/2004
|
