- 1- FOR DIMENSIONS AND TOLERANCES REFER TO CORRESPONDING DOOR PREPARATION DRAWING IP#.
- 2- FOR EXIT DEVICE AND MORTISE LOCK CUT-OUT REFER TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS.
- 3- BACKSET SHOWN FOR REFERENCE ONLY, ADJUST BACKSET TO EXIT DEVICE MANUFACTURER INSTALLATION INSTRUCTIONS.
- 4- HOLES A: FROM THE INSIDE OF THE DOOR, DRILL HOLES (SEE TABLE)
-
5- SYMBOLS: ₩ DEEP
- CENTER LINE OF DOOR
- Ø DIAMETER
- NOT TO SCALE
6- HOLES D: ONLY LOCK
WITH MESSENGER OR BLUETOOTH. FOR COMPLETE HOLE PATTERN REFER TO DRAWING IP-515149/DT-515149 FOR RIM OR MORTISE LOCKS AND
IP-515150/DT-515150 FOR VERTICAL SURFACE RODS LOCKS.
7- ALL DIMS INCHES [mm]
|
HOLE
ID |
DIM
INCH/(mm) |
↓
INCH/(mm) |
COMMENTS | |||
| А |
Ø 5/16
(7,95) |
√ 3/4
(19.05) |
SEE NOTE #4 | |||
| В |
Ø 1/2
(12,7) |
* | - | |||
| С |
∅1
(25,4) |
* | SEE NOTE #2 | |||
| D |
Ø 3/4
(19.05) |
* | SEE NOTE #6 | |||
* UNLESS OTHERWISE NOTED, DRILL HALF DOOR THICKNESS ON BOTH SIDES.

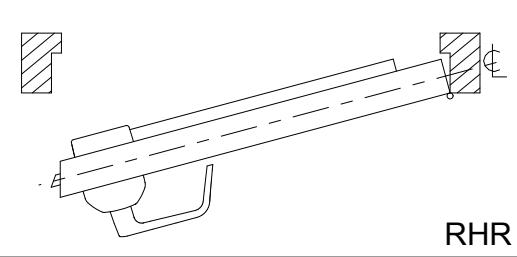

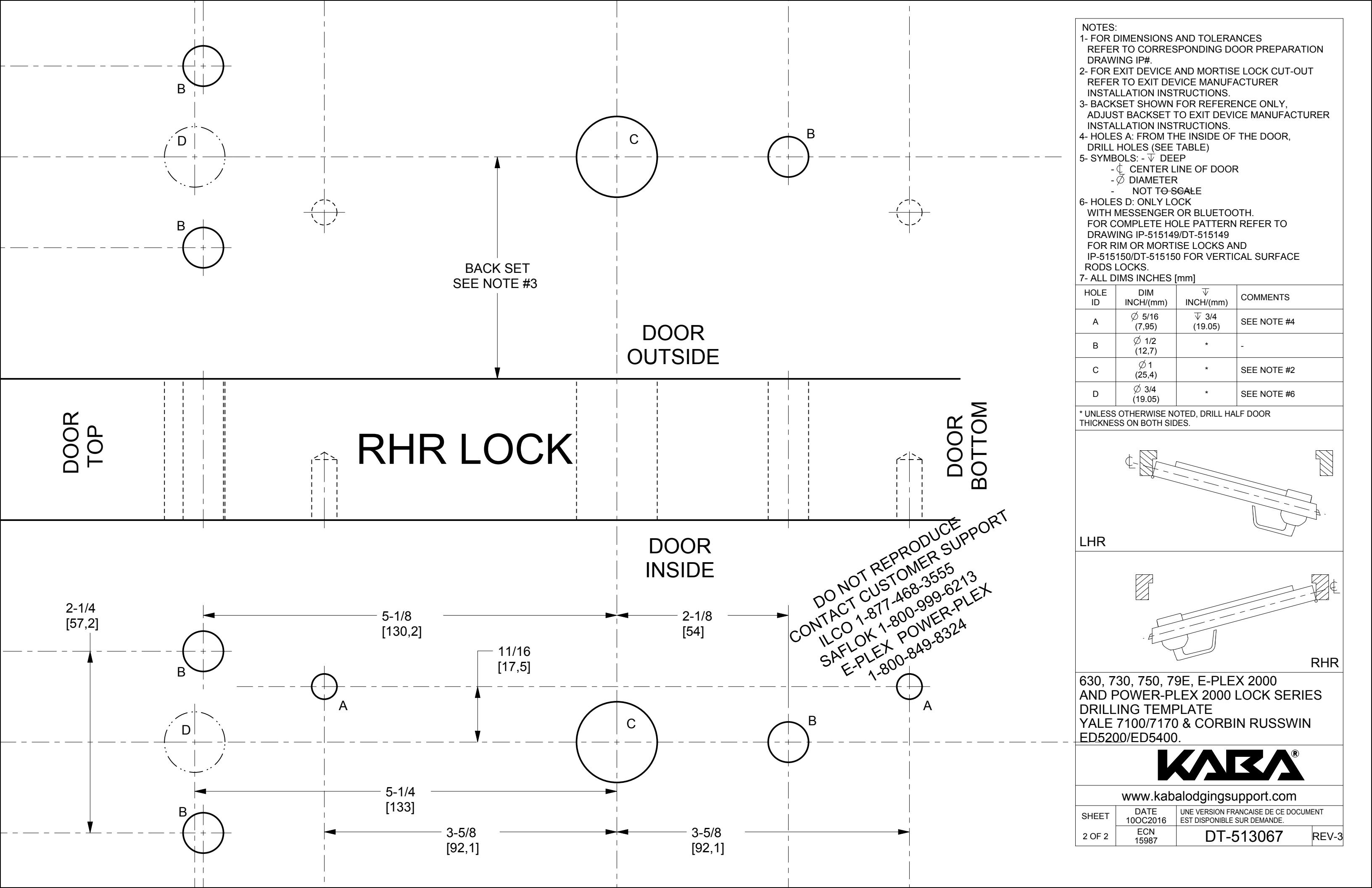

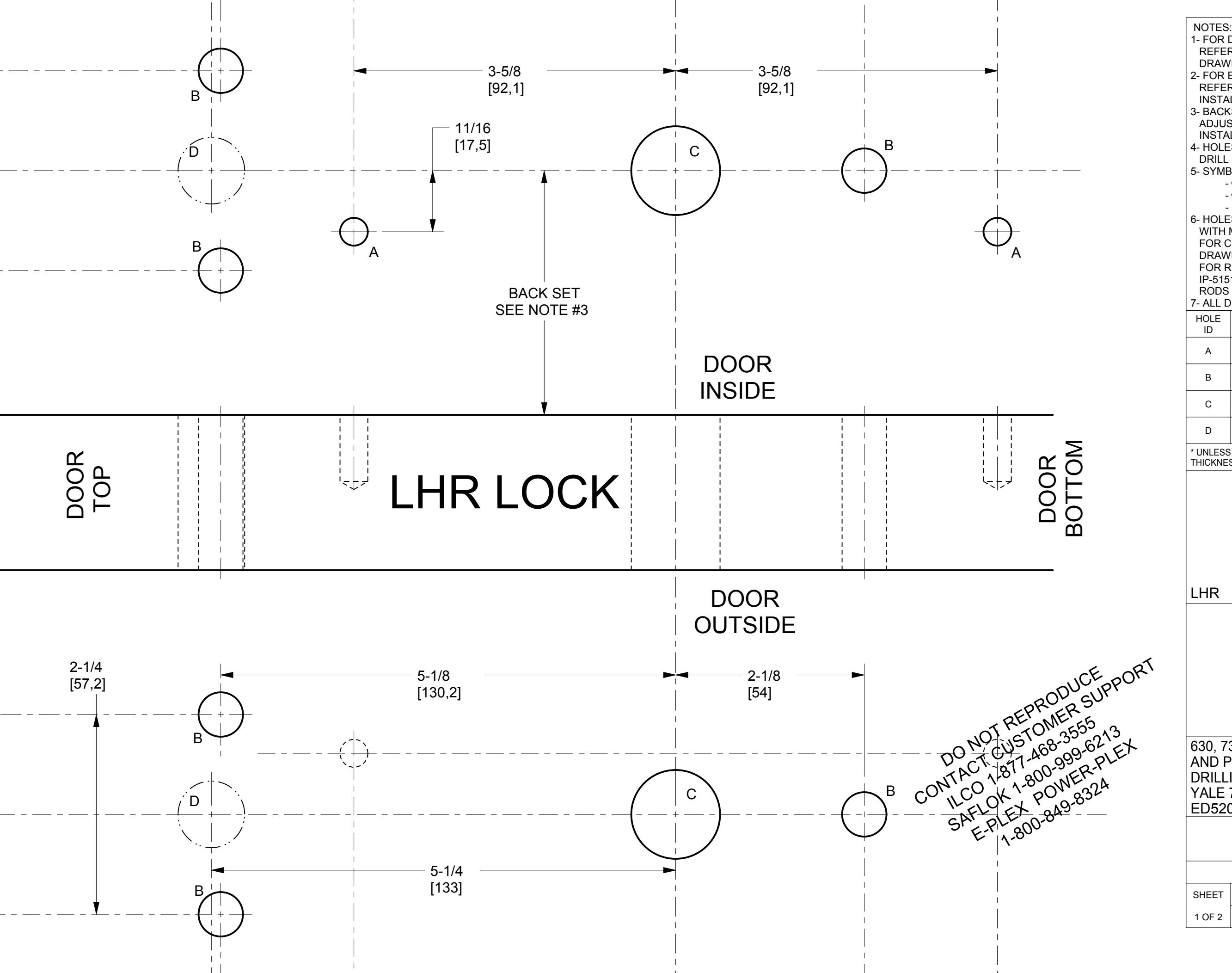

630, 730, 750, 79E, E-PLEX 2000 AND POWER-PLEX 2000 LOCK SERIES DRILLING TEMPLATE YALE 7100/7170 & CORBIN RUSSWIN ED5200/ED5400.
www.kabalodgingsupport.com
| SHEET |
DATE
10OC2016 |
UNE VERSION FRANCAISE DE CE DOCUM EST DISPONIBLE SUR DEMANDE. | ENT |
|---|---|---|---|
| 1 OF 2 |
ECN
15987 |
DT-513067 | REV-3 |
