ASSA ABLOY

Windstorm Exit Device Shim Kits for ED5200S (A) x M107

Installation Instructions

FM 236 (617417550) Rev. 9/09

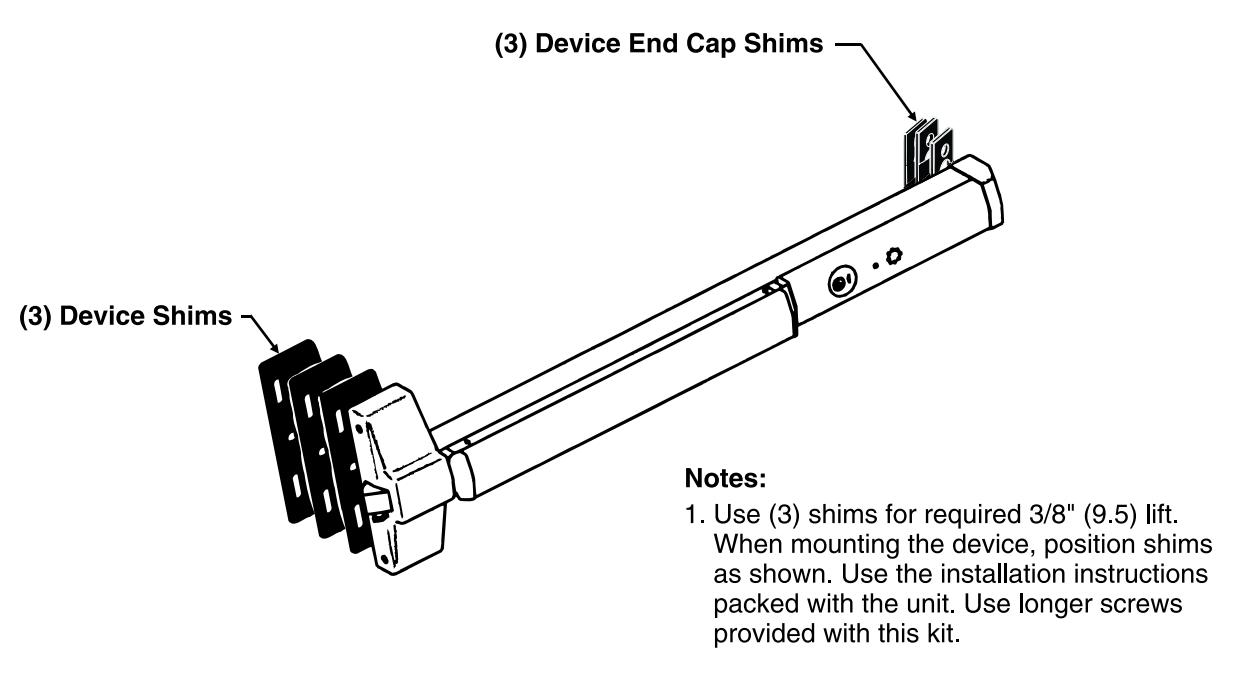

Shim Locations

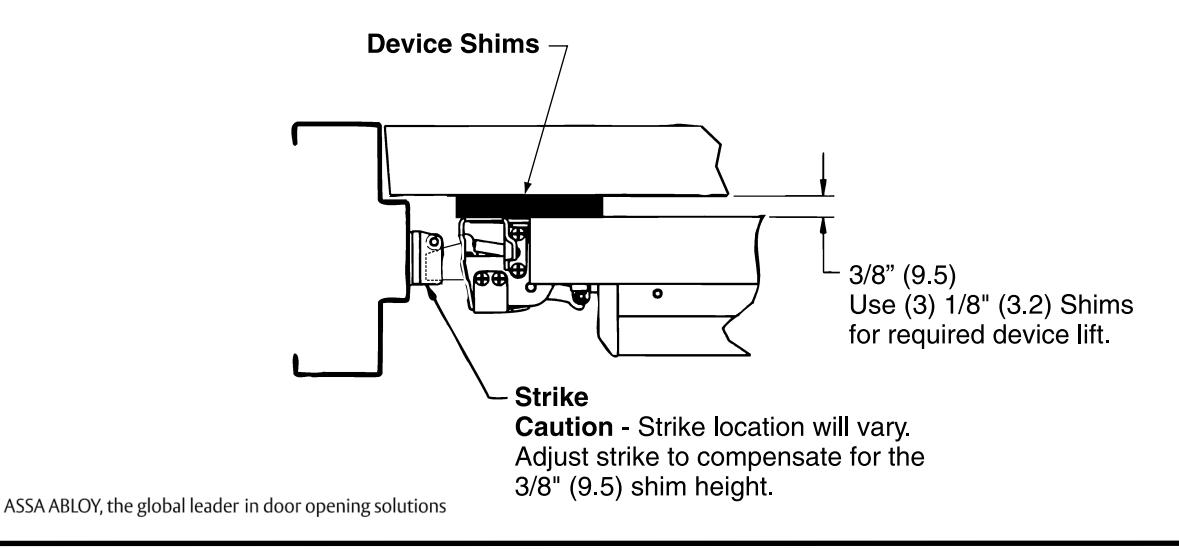

2. For SecureBolt Device, Strike, and Shim locations, see illustration below.

Caution: Strike Location Will Vary

In U.S.: Corbin Russwin, Inc. 225 Episcopal Road Berlin, CT 06037 USA Phone: 860-225-7411

In Canada: ASSA ABLOY Door Security Solutions Canada ¹⁶⁰ Four Valley Drive Vaughan, Ontario, Canada L4K 4T9 Phone: 800-461-3007
