Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Shaded area represents mortise lock cavity from device template.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate structural support to maintain door integrity during operation.

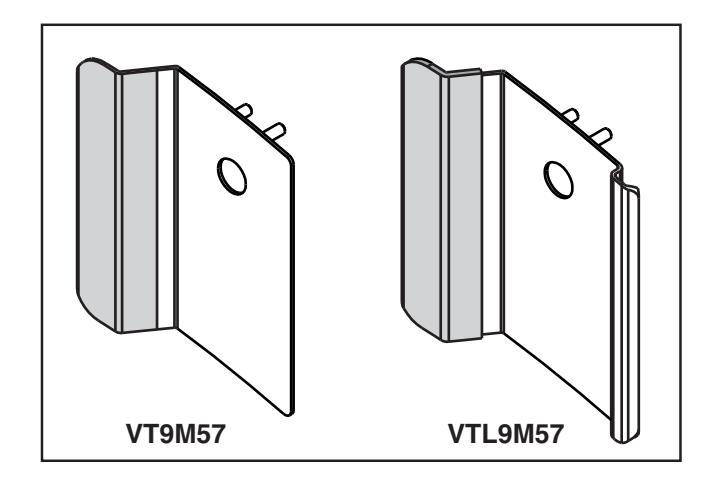

Corbin Russwin VT9M57 and VTL9M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T31091 image on page 1

Corbin Russwin VT9M57 and VTL9M57 Trim for ED5600 Wide Stile Mortise Wood or Composite Door Template_T31091 diagram on page 1

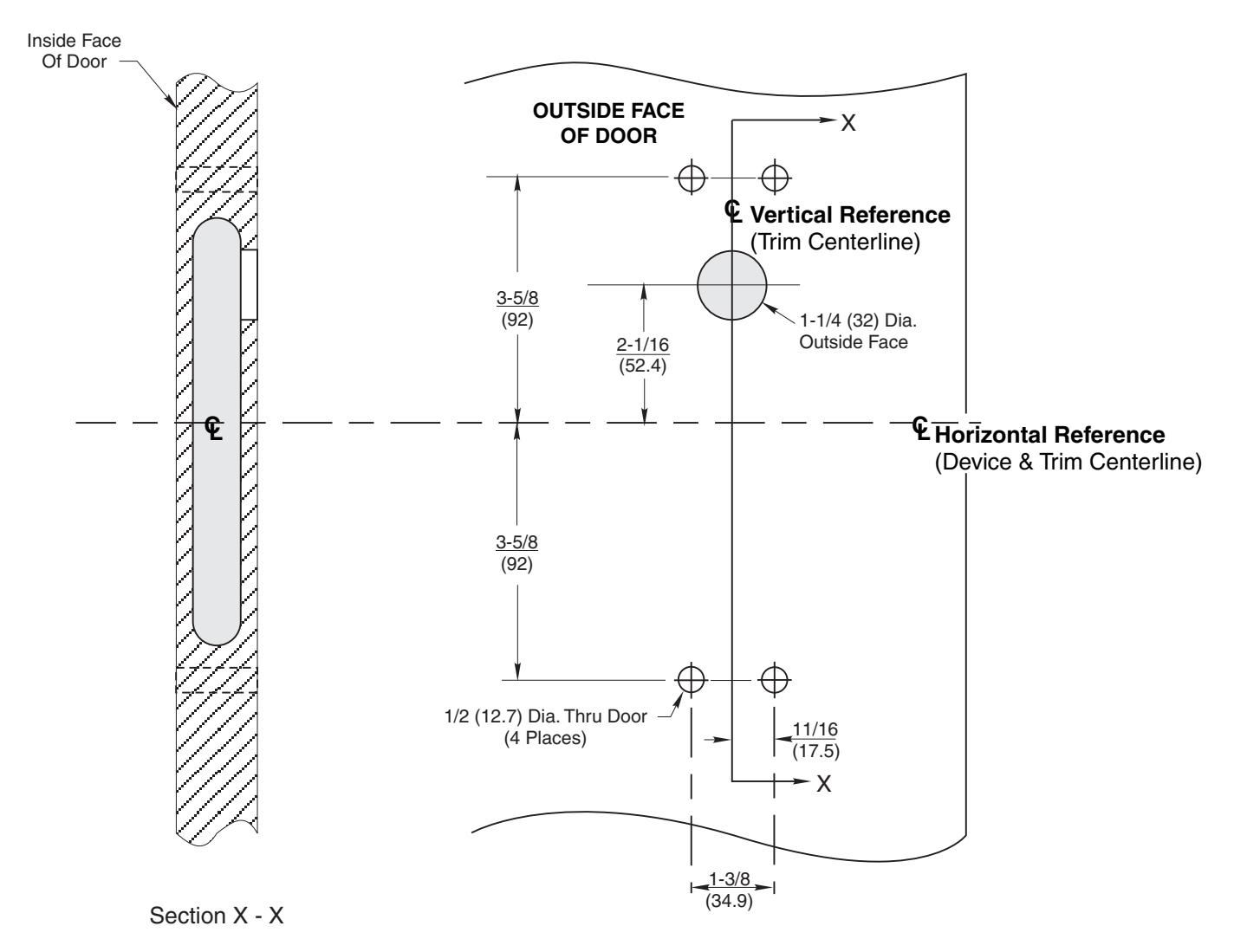

VT9M57 & VTL9M57 Series Trim Wood or Composite Door Preparation With ED5600 Series Mortise Exit Devices
