Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.

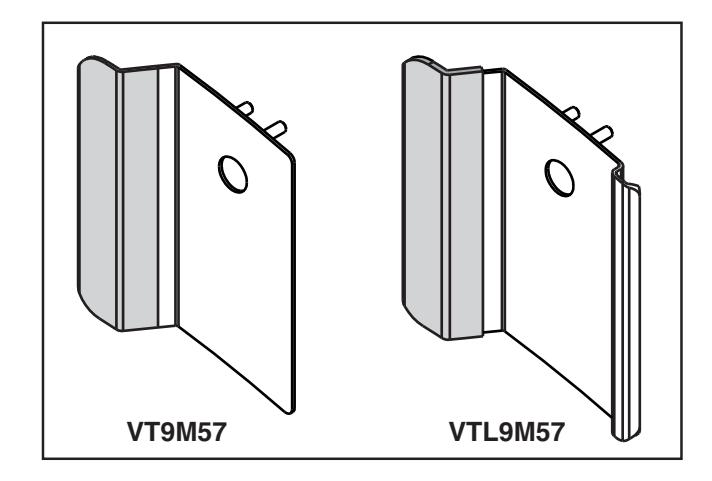

Corbin Russwin VT9M57 and VTL9M57 Trim for ED5600 Wide Stile Mortise Metal Door Template_T31090 image on page 1

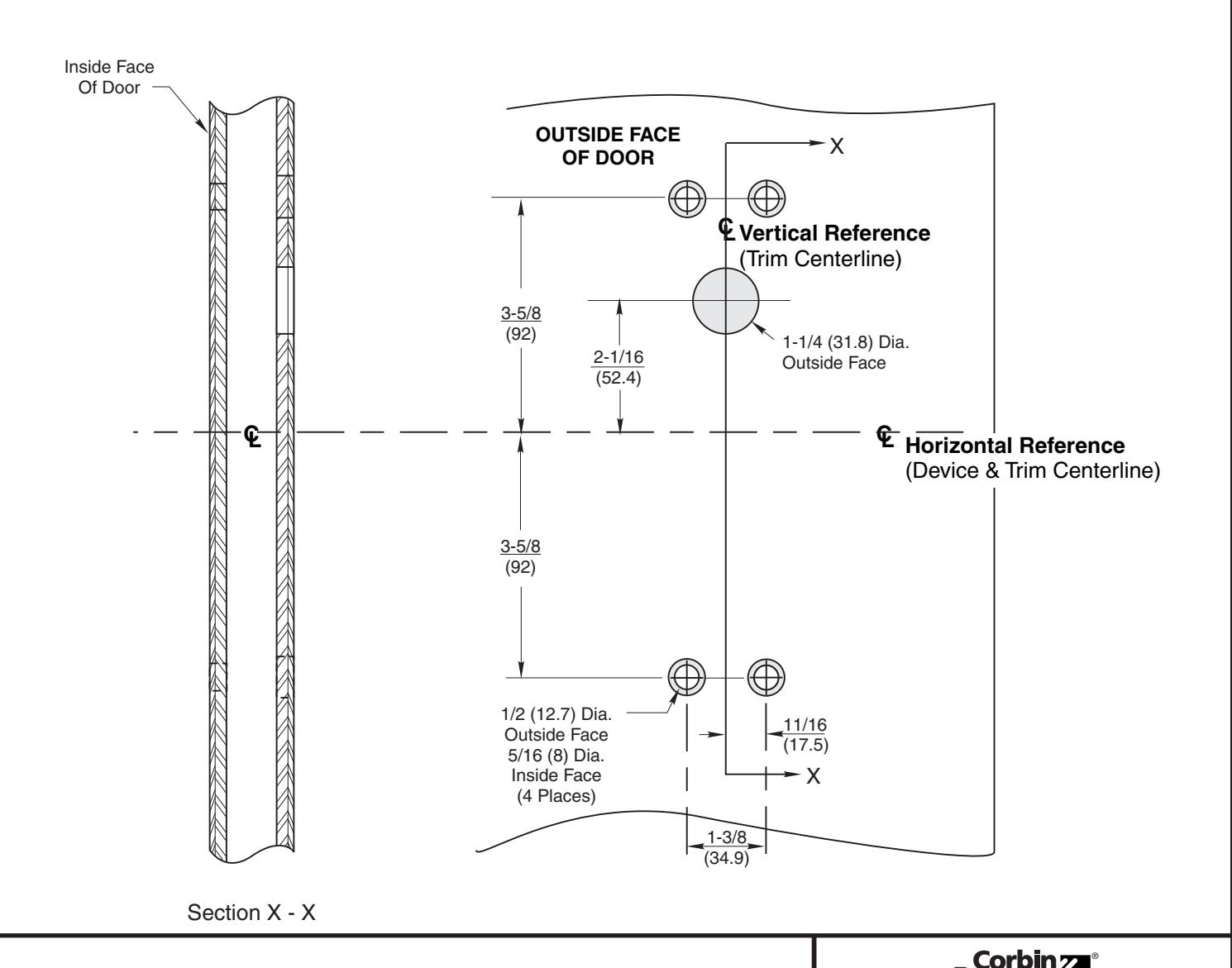

Corbin Russwin VT9M57 and VTL9M57 Trim for ED5600 Wide Stile Mortise Metal Door Template_T31090 diagram on page 1

VT9M57 & VTL9M57 Series Trim Metal Door Preparation With ED5600 Series Mortise Exit Devices

T31090 11-08 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE ASSA ABLOY www.corbinrusswin.com
