Notes:

  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. RHR door shown. Preparation is typical for both door hands.
  • 5. For door reinforcement see template T30800.
  • 6. Prepare mounting holes when installing trim.
  • 7. Provide adequate internal support to prevent door deformation after trim is bolted to the device.
  • 8. Dimensions given about a centerline are symmetrical.

Corbin Russwin VT957 and VTL957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door …_T31088 imag

Corbin Russwin VT957 and VTL957 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Metal Door …_T31088 diag

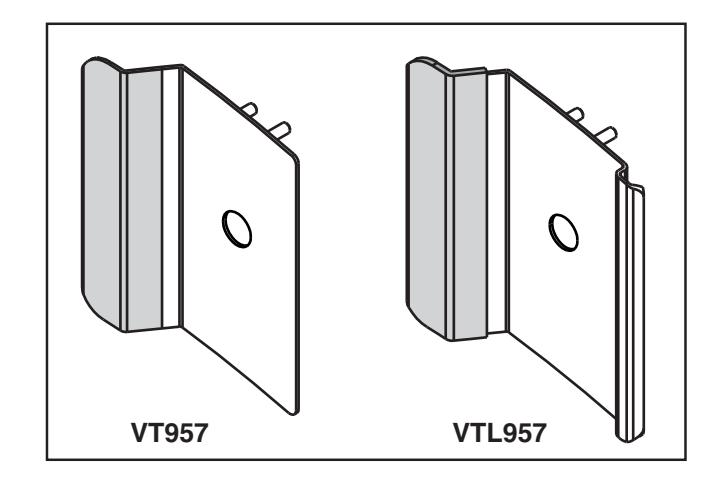

VT957 & VTL957 Series Trim

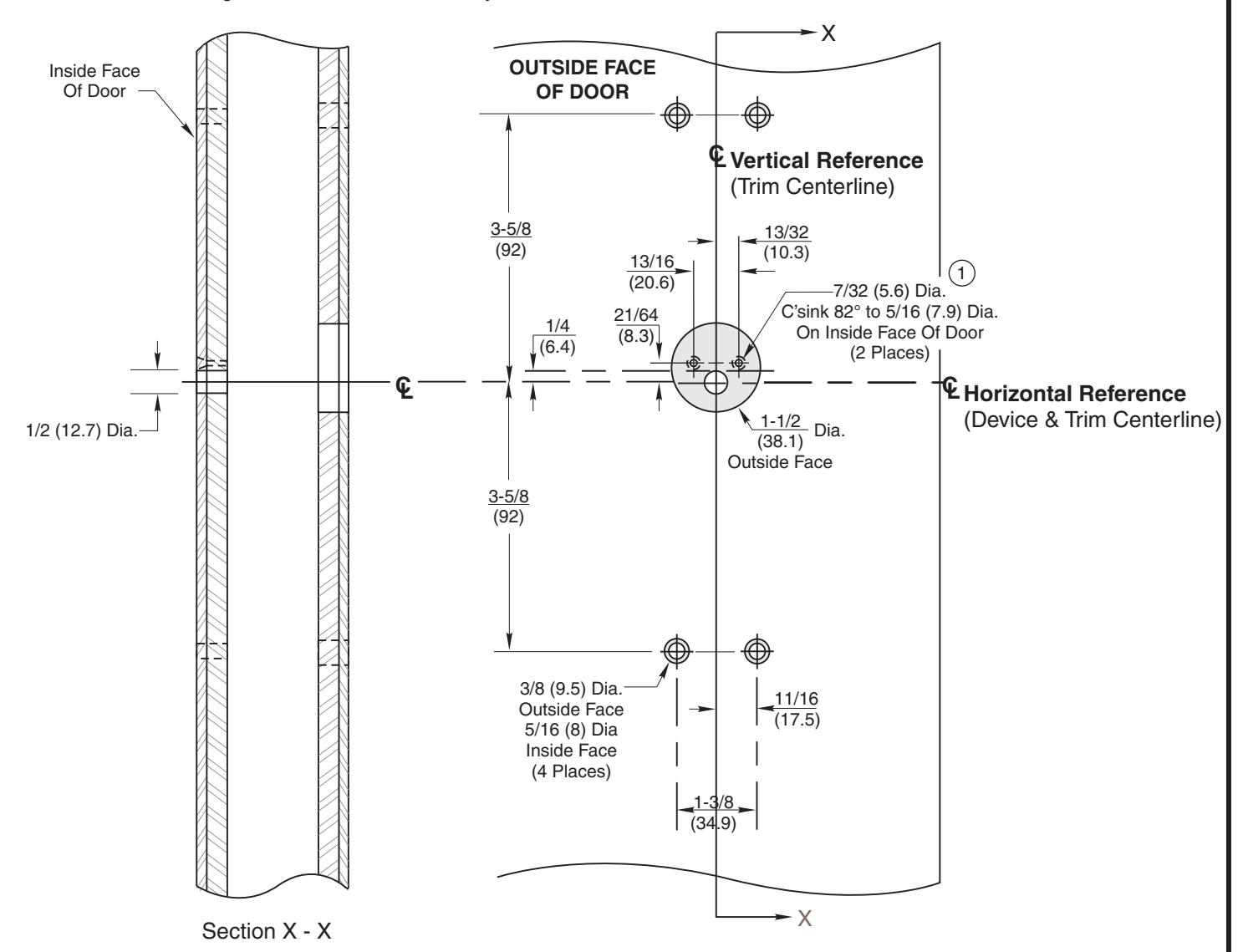

Metal Door Preparation With ED5200, ED5400 or ED5800 Series Rim, SecureBolt™, and Vertical Rod Exit Devices

T31088-1 08-09 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE ASSA ABLOY www.corbinrusswin.com T31088
