  • 1. This template is an addition to the device template. Locate centerlines using horizontal and vertical references on device template.
  • 2. Do not scale drawing.
  • 3. Dimensions are in inches (mm).
  • 4. LHR door shown. Preparation is typical for both door hands.
  • 5. Provide adequate internal support to maintain door integrity during operation.
  • 6. Prepare mounting holes when installing trim.

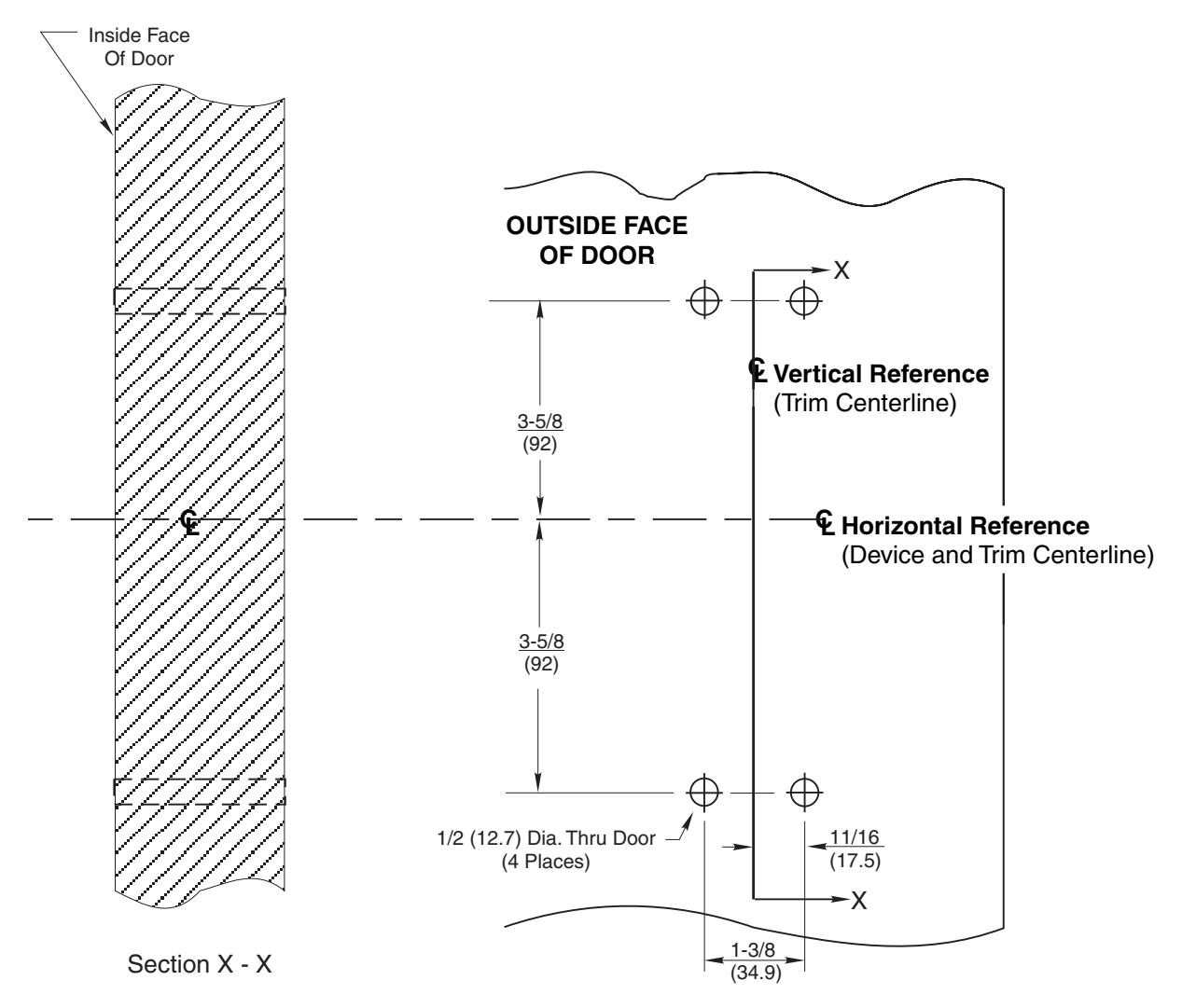

Corbin Russwin VT950 and VTL950 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Com…_T31087 imag

Corbin Russwin VT950 and VTL950 Trim for ED5200, ED5400, ED5800 Wide Stile Rim, SecureBolt, CVR, SVR Wood or Com…_T31087 diag

VT950 & VTL950 Series Trim

With ED5200, ED5400 or ED5800 Series Rim, SecureBolt, and Vertical Rod Exit Devices

Wood or Composite Door Preparation

T31087 11-08 DO NOT SCALE DRAWING SUPERSEDES TEMPLATE NUMBER DATE ASSA ABLOY www.corbinrusswin.com
